Product Type	Master Audio Controller (KADS-100) with Active Speakers (KADS-1, KADS-2)
Model Numbers	KADS-100, KADS-1, KADS-2
Dimensions (KADS-100)	43.3 cm x 18.1 cm x 4.4 cm (19" x 1U)
Dimensions (KADS-1/KADS-2)	18.3 cm x 17.2 cm x 24.4 cm
Weight (KADS-100)	2.3 kg (5.1 lbs) net; 3.7 kg (8.1 lbs) shipping
Weight (KADS-1/KADS-2)	4.7 kg (10.36 lbs) each; 6.0 kg (13.23 lbs) shipping
Power Supply (KADS-100)	100–240 V AC, 50/60 Hz, 220 VA
Power Supply (KADS-1)	24 V DC, 1.2 A (provided via cable from controller or KADS-2)
Power Supply (KADS-2)	24 V DC, 1.2 A (external adapter included)
Audio Inputs (KADS-100)	8 x RCA analog stereo, 1 x S/PDIF RCA, 1 x USB (mass storage), 1 x Mic (6.5mm jack)
Audio Outputs (KADS-100)	1 x 2-pin terminal block to speakers
Control Interfaces	Front panel buttons, IR remote, RS-232, Ethernet (Web pages), Protocol 3000
Maximum Speakers	Up to 99 daisy-chained KADS-1/KADS-2
Maximum Distance Between Speakers	30 m (100 ft) per link; total span up to 240 m (800 ft) without extra power
Audio Features	8 logical channels, EQ (bass, mid, treble), volume, mute, presets, test tone generator
Operating Temperature	0° to +40°C (32° to 104°F)
Storage Temperature	-40° to +70°C (-40° to 158°F)
Humidity	10% to 90% RHL non-condensing
Safety Compliance	CE, RoHS, WEEE
Included Accessories (KADS-100)	Power cord, IR remote with batteries, 1 ferrite ring, rack ears, rubber feet, quick start guide
Included Accessories (KADS-1)	1 ferrite ring, U-shaped mounting bracket, quick start guide
Included Accessories (KADS-2)	1 ferrite ring, U-shaped mounting bracket, power supply, quick start guide
Maintenance	No user-serviceable parts; clean with dry cloth; avoid moisture and extreme temperatures
Warranty	7 years limited warranty (check website for details)

Frequently Asked Questions - KADS-100 Kramer

How do I connect the KADS-100 to speakers?

Connect the 2-pin terminal block 'To SPEAKERS' on the KADS-100 rear panel to the IN connector of the first KADS-1/KADS-2 using a twisted-pair cable. Then daisy-chain additional speakers by connecting the OUT of one speaker to the IN of the next. Ensure all connections are made with power off.

How do I set up the audio channels?

Press Enter on the front panel to open the menu. Use the rotary knob to select 'Channel Setup', then choose a channel ID (1-8). Press Enter to edit properties like input source (analog, SPDIF, USB, test tone), volume, and stereo/mono mode. Alternatively, use the Web pages under 'Channel Settings'.

Can I control the system remotely?

Yes, you can control the KADS-100 via its embedded Web pages over Ethernet. Open a supported browser and enter the device's IP address (default 192.168.1.39). You can also use RS-232 serial commands (Kramer Protocol 3000) or the included IR remote control.

How do I assign a speaker to a specific audio channel?

Using the Web pages, go to the 'Channel Settings' page. Select a channel, then drag and drop a speaker button (showing its ID and label) onto that channel. You can also assign speakers via the front panel menu under 'Speaker Setup'.

What is the maximum number of speakers I can connect?

The KADS-100 can support up to 99 speakers in a daisy-chain configuration. However, without an external power supply (via a KADS-2), you can power up to 8 KADS-1 speakers. For longer chains, add a KADS-2 every 8 speakers to provide additional power.

How do I update the firmware on a KADS-1 or KADS-2 speaker?

Download the latest firmware from the Kramer website (.kfw or .rbf file). Connect a USB flash-drive (FAT32, max 1GB) with the firmware file to the USB Program port on the rear of the speaker. Power cycle the speaker; it will automatically detect and install the update (takes at least 60 seconds).

How do I set the speaker ID?

Each speaker must have a unique ID (01-99). On the rear panel, use two rotary switches: the left sets the tens digit, the right sets the units. For example, to set ID 28, turn the left switch to 2 and the right switch to 8. ID 00 is reserved and should not be used.

What should I do if no sound comes out?

Check that all devices are powered on and that the speaker IDs are set correctly. Ensure the audio source is properly connected and assigned to the correct channel. Verify volume levels are not muted (front panel or Web pages). Also, check that the speaker's 'LAST' switch is set correctly: push to the right if it is the last speaker in the chain.

How do I reset the KADS-100 to factory defaults?

Turn off the device. Press and hold the Enter and Esc buttons together, then turn on the power. Continue holding until the device resets. You can also use the Web pages under 'Device Settings' by clicking the 'FACTORY RESET' button.

Can I use the microphone input simultaneously with music?

Yes, the KADS-100 has a dedicated microphone input with gain and delay control. You can enable 'Talk Over' (ducking) for each channel via the Web pages under 'Microphone Settings' or the front panel menu under 'Mic Setup'. When the mic is active, it will automatically reduce the music volume for clear speech.

USER MANUAL KADS-100 Kramer

KADS-100 Master Audio Controller

KADS-1 Speaker

KADS-2 Speaker

KADS-100 Master Audio Controller Quick Start Guide

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerav.com/manual/KADS-100, KADS-1, KADS-2 to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

The KADS-100 Master Audio Controller

√ IR remote control transmitter with batteries

1 Power cord

1 Quick start guide

1 Set of ear racks

4 Rubber feet

1 Ferrite ring

Step 2: Install the KADS-100

To rack mount the device attach both ear brackets to the machine (by removing the three screws from each side of the machine and replacing those screws through the ear brackets) or place the machine on a table.

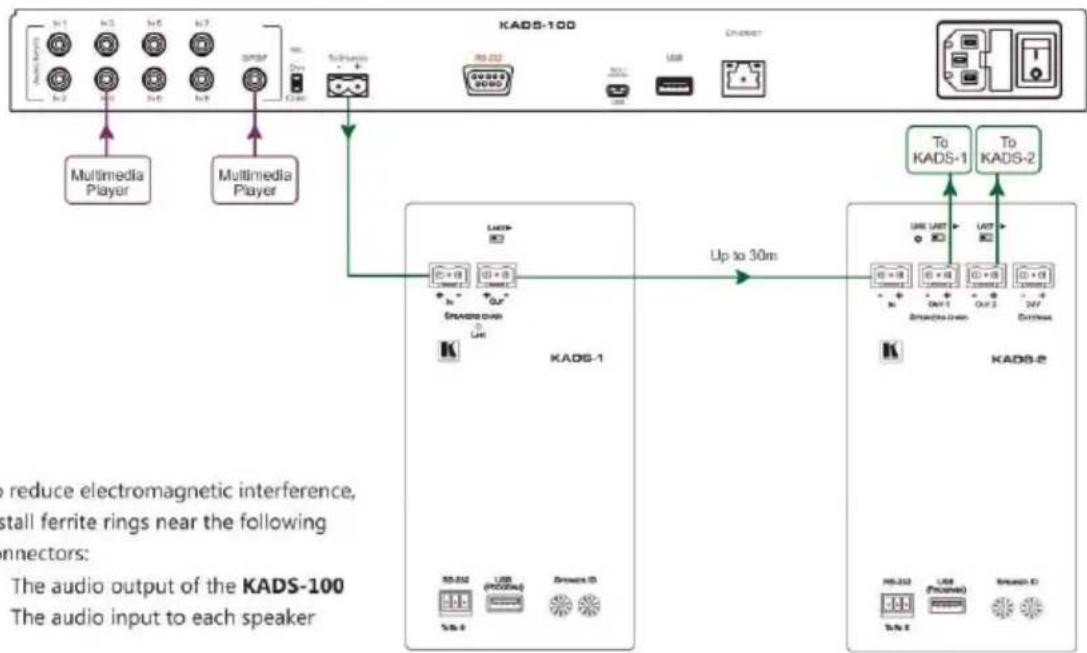

Step 3: Connect inputs and outputs

Always switch off the power to each device before connecting it to your KADS-100.

For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the KADS-100

To reduce electromagnetic interference, install ferrite rings near the following connectors:

• The audio output of the KADS-100
• The audio input to each speaker

To install a ferrite ring on the audio output of the KADS-100:

1. Open the plastic cover of the ferrite ring by disengaging the clips with a small screwdriver.
2. Feed the audio output cable from the KADS-100 through the ring.
3. Form a small loop in the cable and feed it through the ring again.
4. Close the ring to secure the loop inside the ring.

To install a ferrite ring on the audio input to each speaker:

1. Open the plastic cover of the ferrite ring by disengaging the clips with a small screwdriver.
2. Feed the audio input cable to the KADS-1/KADS-2 through the ring.
3. Form a small loop in the cable and feed it through the ring again.
4. Form a second small loop in the cable and feed it through the ring again,
5. Close the ring to secure the cable loops inside the ring.

Step 4: Connect the power

Connect AC power to the rear of the KADS-100, switch on its power and then switch on the power to each device.

Step 5: Operate the KADS-100

To operate the KADS-100:

◆ Connect one or more audio sources.
Using the Menu or Web pages, map the audio sources to the logical audio channels.
Using the Menu, the Web pages, or the IR remote control, map each logical audio channel to one or more speakers.
Using the Menu or Web pages, set the speaker properties, (for example, volume and bass).
If required, save the current configuration to one of the preset memories using the Web pages.

KADS-1, KADS-2 Quick Start Guide

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerav.com/manual/KADS-100, KADS-1, KADS-2 to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

The KADS-1 or KADS-2 Speaker

1 Quick start guide

1 U-shaped mounting bracket

1 Ferrite ring

1 Power supply (only with the KADS-2)

Step 2: Install the KADS-1 or KADS-2

Attach the U-shaped mounting bracket to the wall and mount the speaker in the bracket.

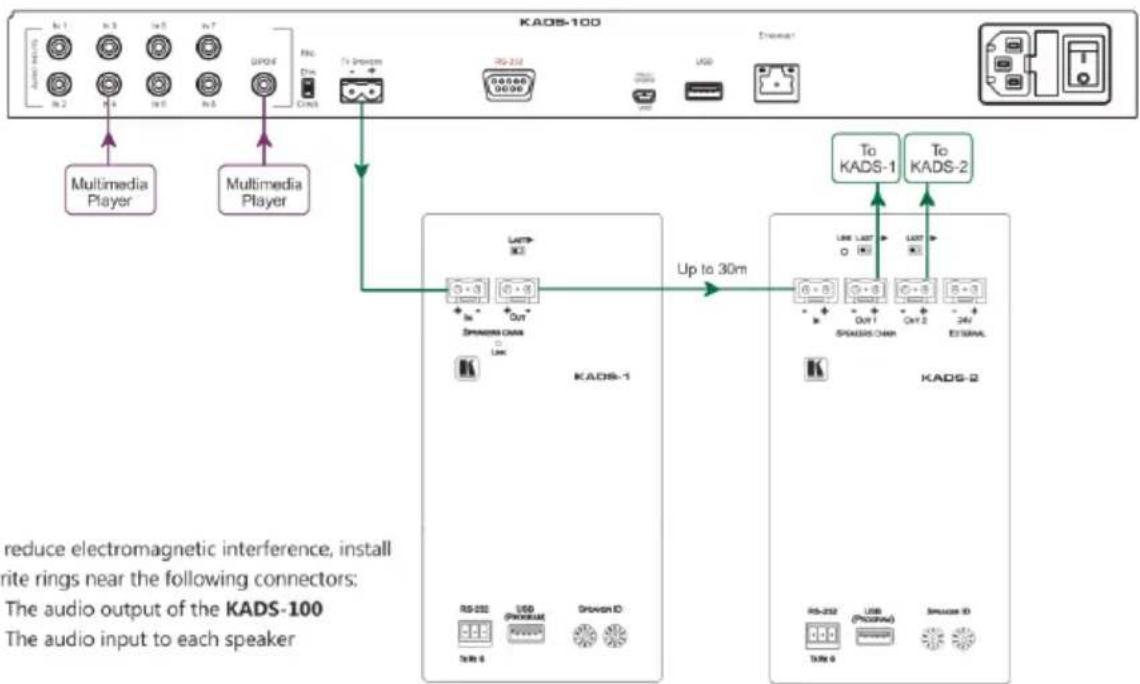

Step 3: Connect inputs and outputs

Always switch off the power to each device before connecting it to your KADS-1/KADS-2.

For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the KADS-1/KADS-2.

To reduce electromagnetic interference, install ferrite rings near the following connectors:

• The audio output of the KADS-100
• The audio input to each speaker

To install a ferrite ring on the output of the KADS-100:

1. Open the plastic cover of the ferrite ring by disengaging the clips with a small screwdriver.
2. Feed the audio output cable from the KADS-100 through the ring.
3. Form a small loop in the cable and feed it through the ring again.
4. Close the ring to secure the loop inside the ring.

To install a ferrite ring on the input to each speaker:

1. Open the plastic cover of the ferrite ring by disengaging the clips with a small screwdriver.
2. Feed the audio input cable to the KADS-1/KADS-2 through the ring.
3. Form a small loop in the cable and feed it through the ring again.
4. Form a second small loop in the cable and feed it through the ring again.
5. Close the ring to secure the loops inside the ring.

Step 4: Connect the power

If required (see the KADS-100, KADS-1, KADS-2 User Manual), connect the power adapter to the KADS-2 and plug the adapter into the mains electricity.

Contents

1 Introduction 1

2 Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3 Overview 4

3.1 Using the IR Transmitter 5

4 Defining the KADS-100, KADS-1 and KADS-2 6

4.1 Defining the KADS-100 Speaker 6

4.2 Defining the KADS-1 or a KADS-2 9

4.3 Defining the KADS-1 or a KADS-2 10

5 Installing in a Rack 11

6 Connecting the KADS-100, KADS-1 and KADS-2 12

6.1 Installing the Ferrite Rings 14

6.2 Connecting a Serial Controller 15

6.3 Wiring the RJ-45 Connectors 15

7 Setting the Speaker ID 16

8 Operating the KADS-100 17

8.1 Operating the KADS-100 Using the Front Panel Buttons 17

8.2 Operating the KADS-100 Using the Menu 21

8.3 Operating the KADS-100 Using the Web Pages 22

8.4 Operating the KADS-1 and KADS-2 Using the Remote Control 35

9 Updating the KADS-1 or KADS-2 Firmware 36

10 Technical Specifications 37

10.1 Default IP Parameters 39

10.2 Default Logon Credentials 39

11 Protocol 3000 40

11.1 Kramer Protocol 3000 Syntax 40

11.2 Kramer Protocol 3000 Commands 43

Figures

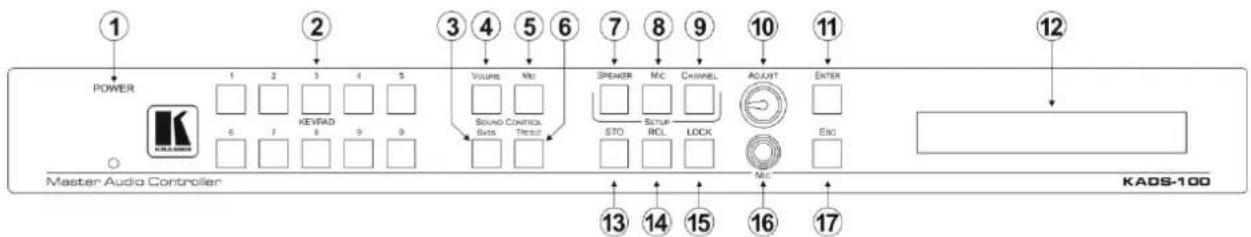

Figure 1: KADS-100 Front Panel 7

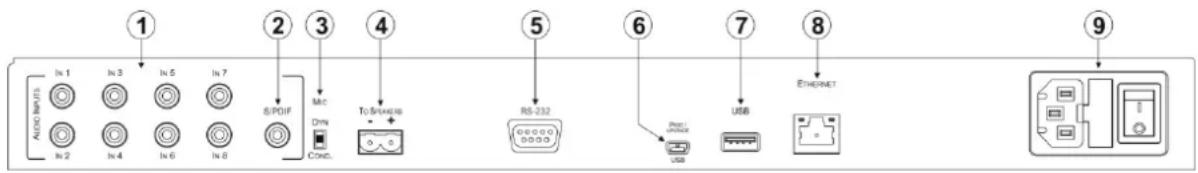

Figure 2: KADS-100 Rear Panel 8

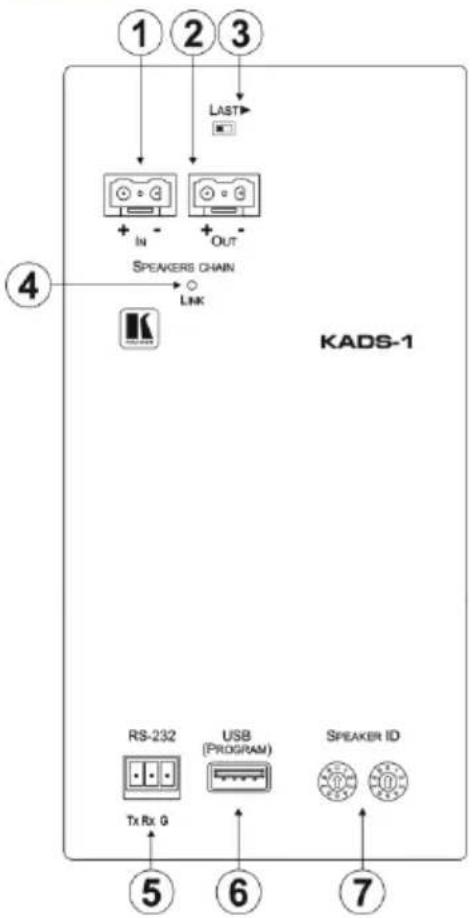

Figure 3: KADS-1 Rear Panel 9

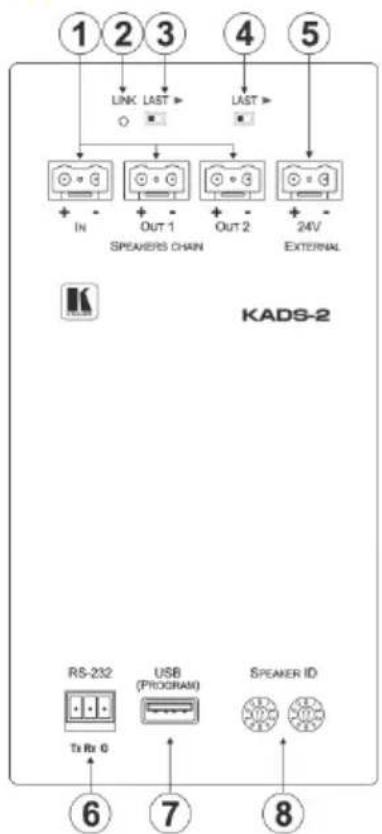

Figure 4: KADS-2 Rear Panel 10

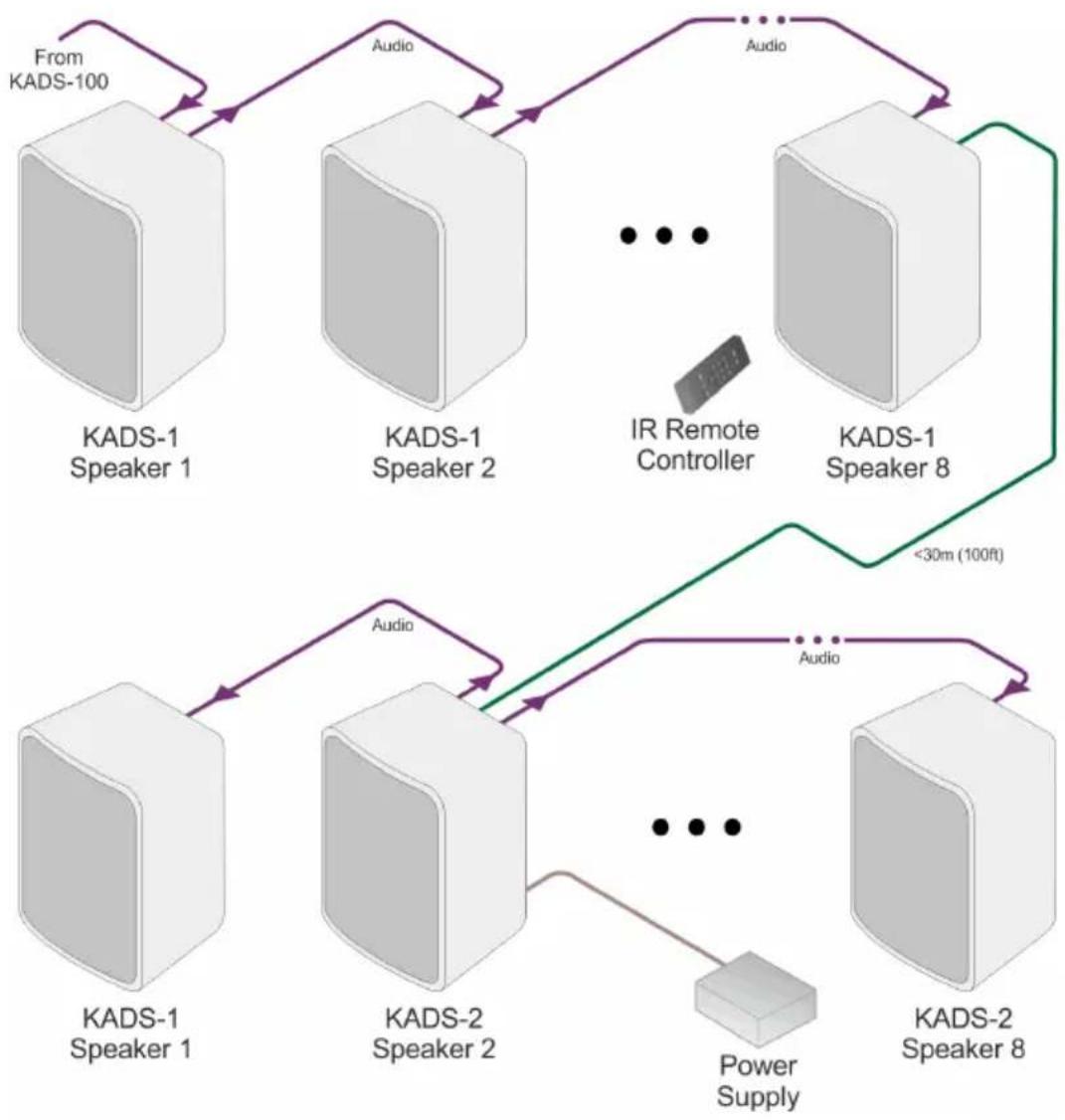

Figure 5: Connecting the KADS-100, KADS-1 and KADS-2 12

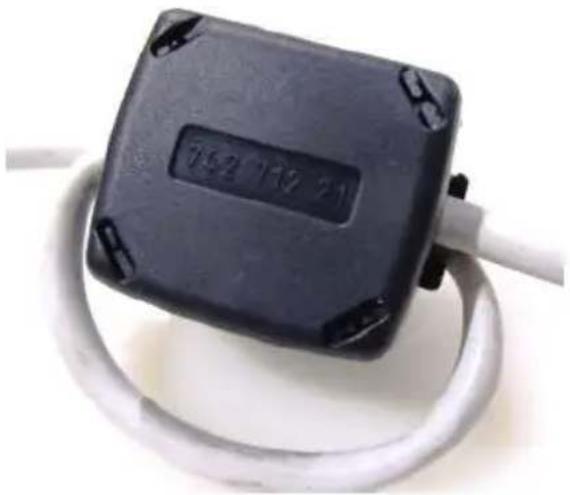

Figure 6: Looping the Cable through the Ferrite Ring 14

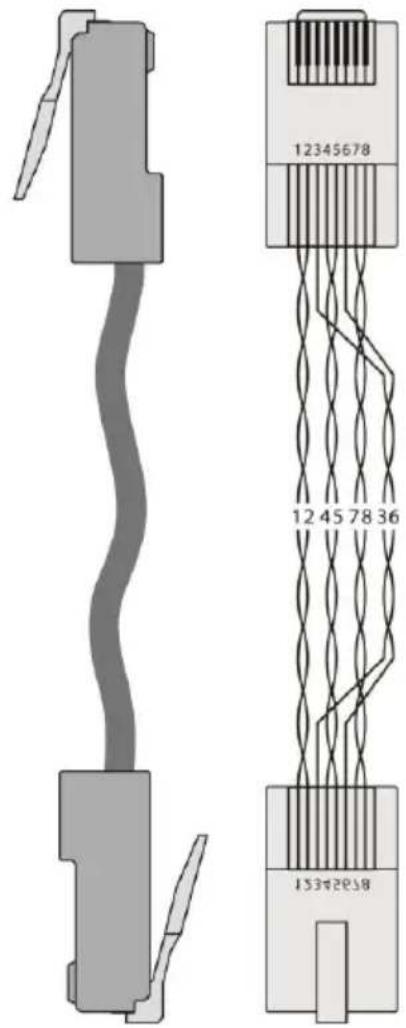

Figure 7: TP PINOUT 15

Figure 8: Setting the Rotary Switches 16

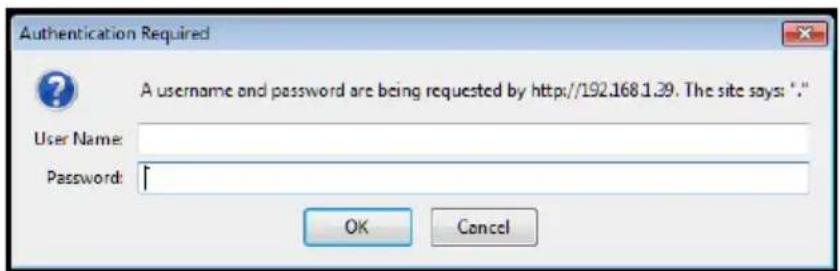

Figure 9: Entering Logon Credentials 23

Figure 10: The Default Page 23

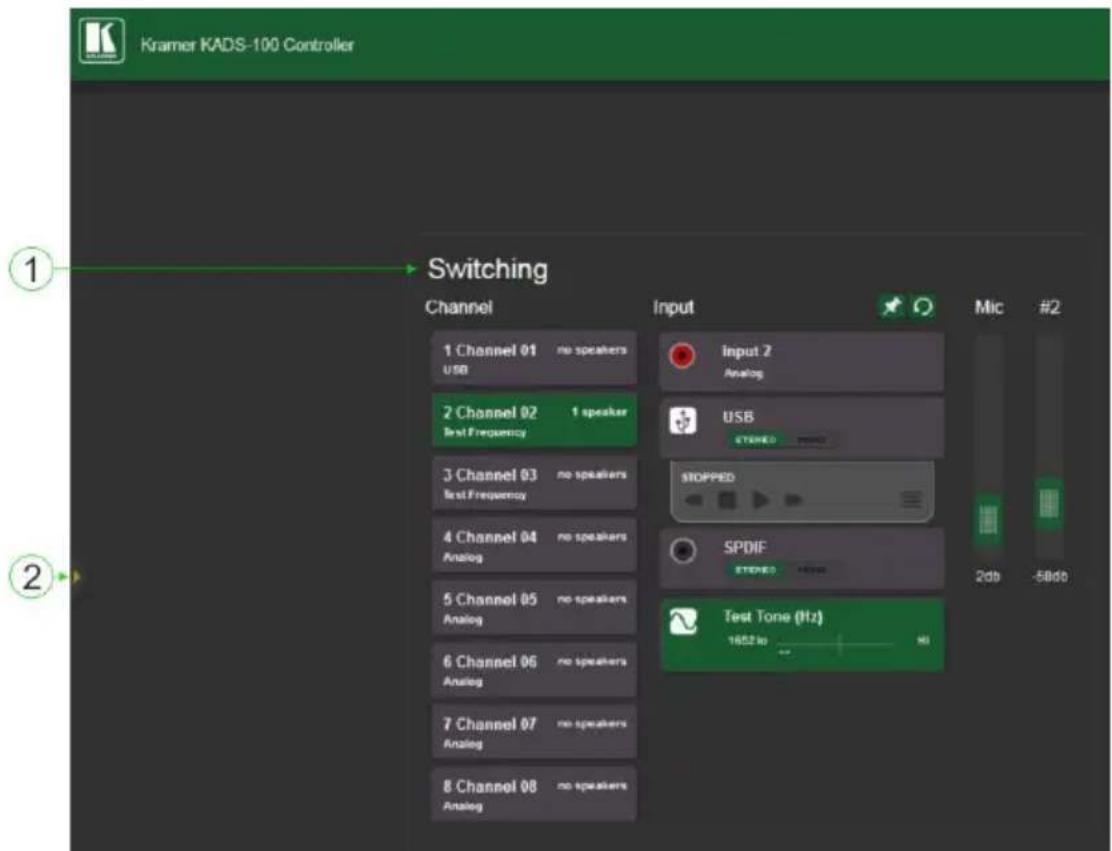

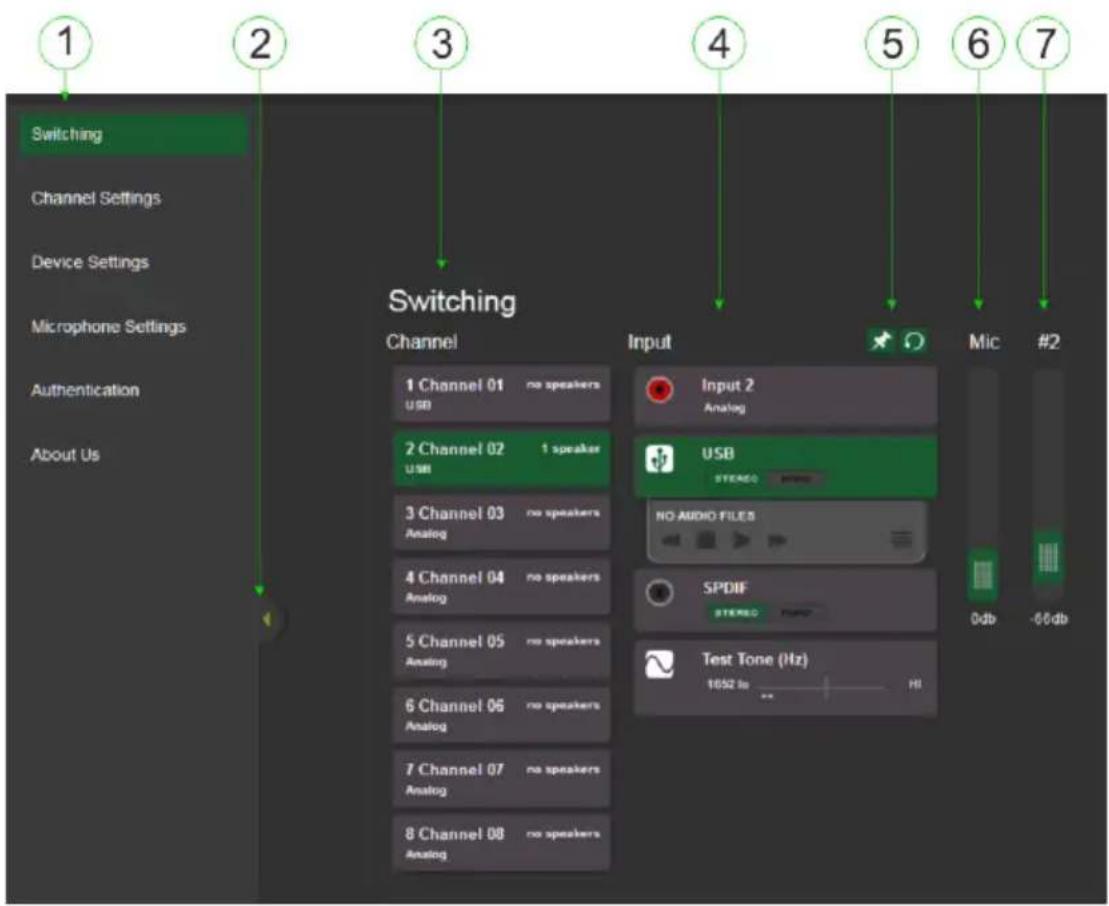

Figure 11: The Switching Page 24

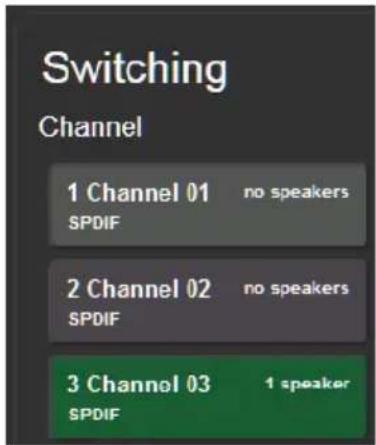

Figure 12: Channel Selection Example 26

Figure 13: Analog Input Selection Button 26

Figure 14: USB Input Selection Button 27

KADS-100/KADS-1/KADS-2 – Contents

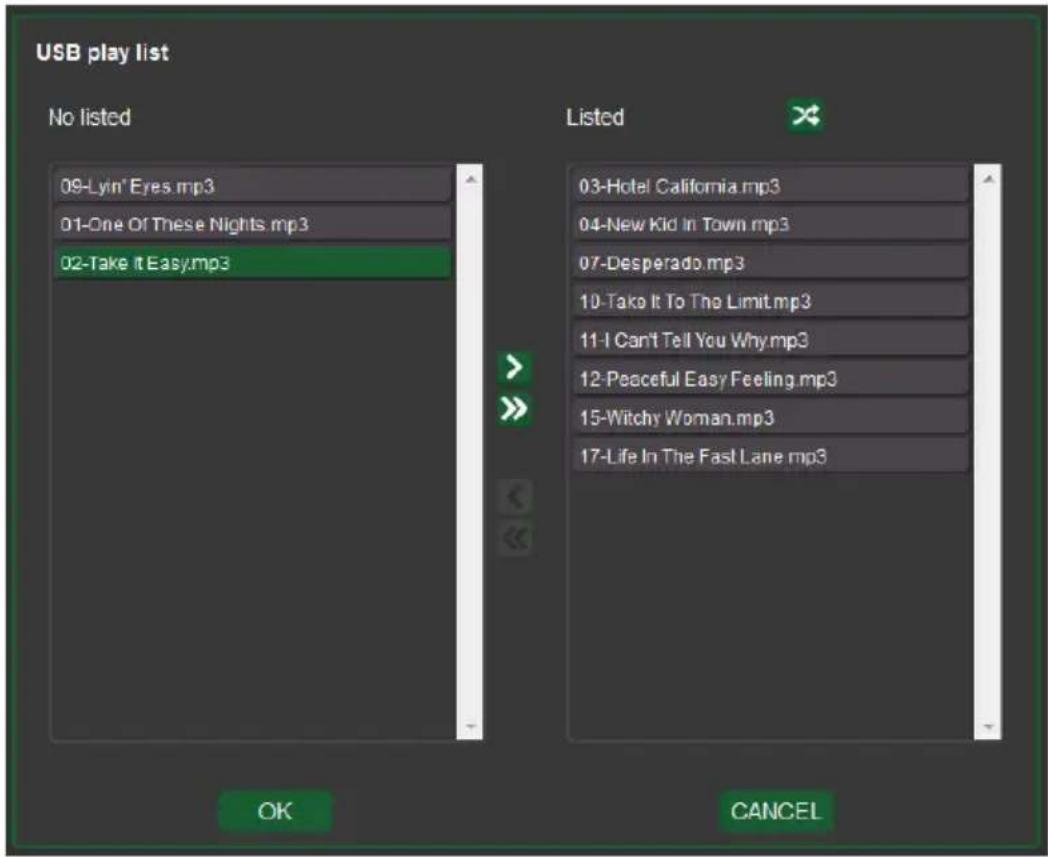

Figure 15: Playlist Window 28

Figure 16: SPDIF Input Selection Button 29

Figure 17: Test Tone Selection Button 29

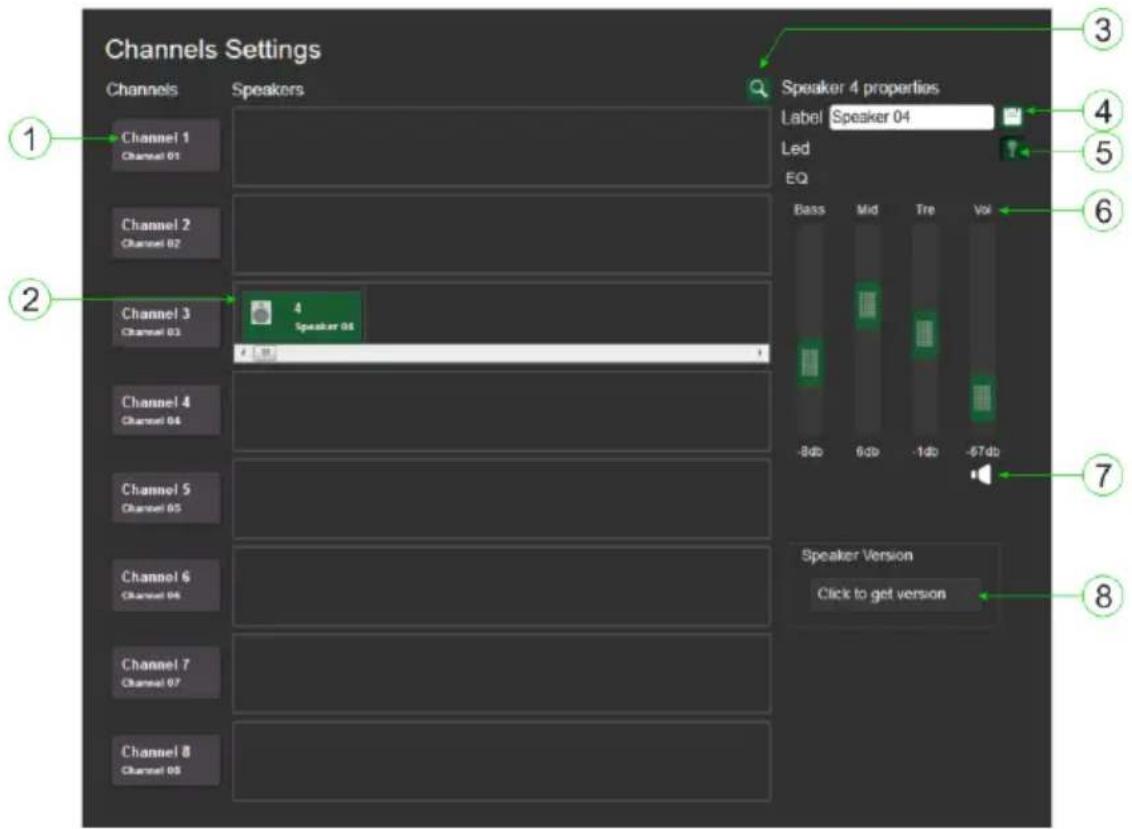

Figure 18: The Channel Settings Page 30

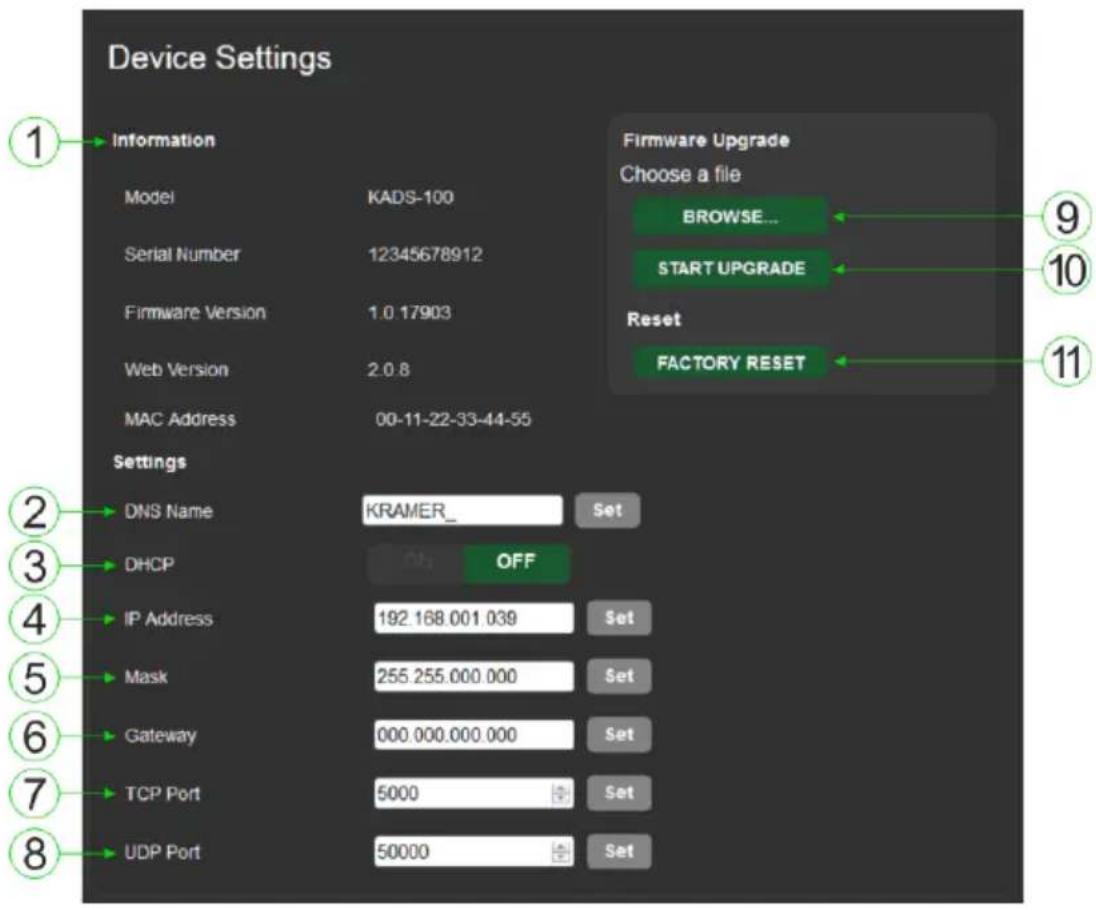

Figure 19: The Video and Audio Settings Page 31

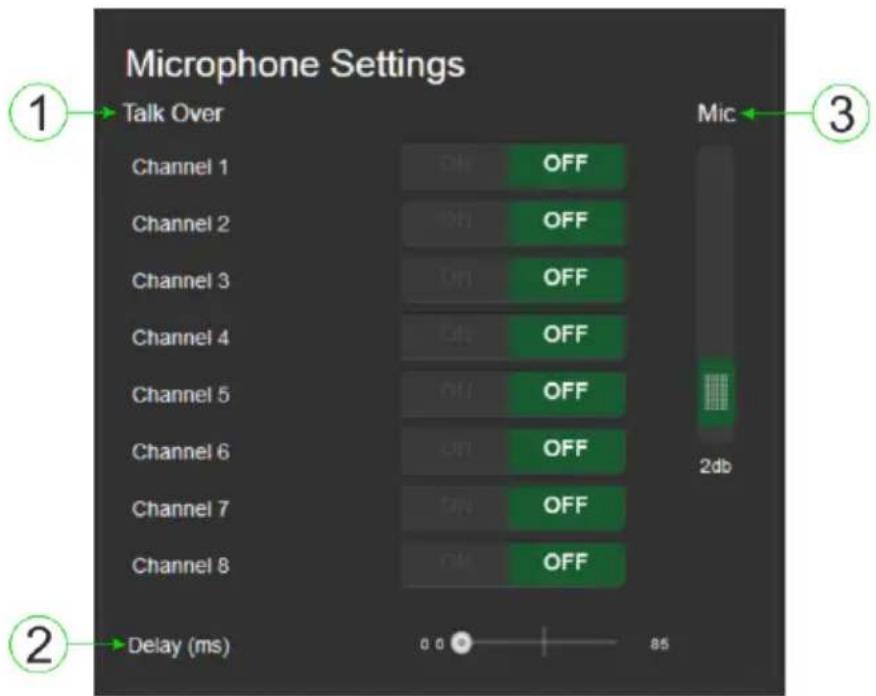

Figure 20: The Microphone Settings Page 33

Figure 21: The Authentication Page—Security Disabled 34

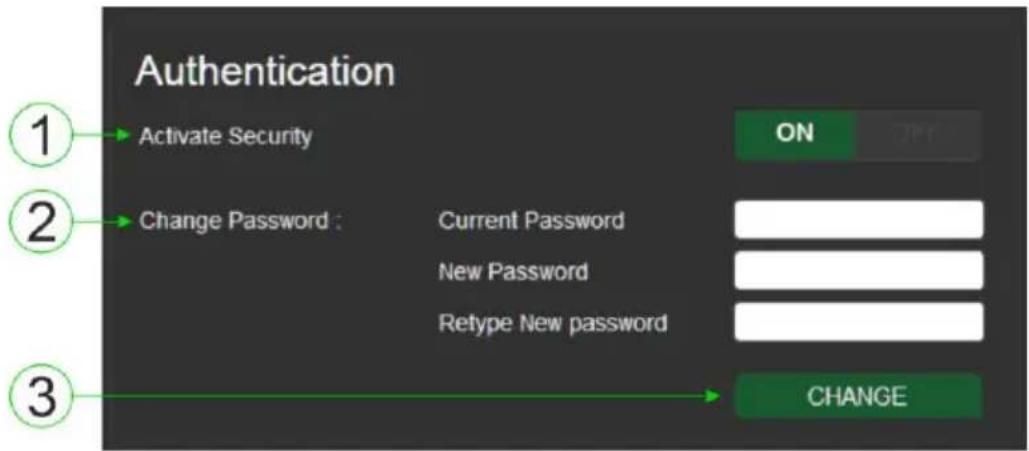

Figure 22: The Authentication Page—Security Enabled 34

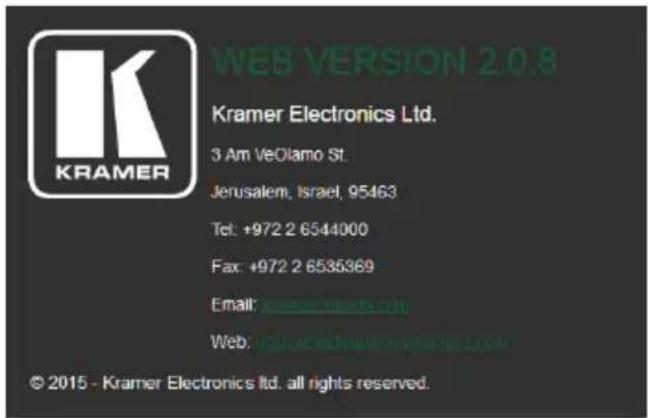

Figure 23: The About Us Page 35

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration.

Congratulations on purchasing your Kramer KADS-100 Master Audio Controller, KADS-1 Speaker and KADS-2 Speaker which are part of the Kramer Audio Distribution System and are ideal for:

• Small to large presentation and multimedia applications
• Long-range audio distribution for schools, hospitals, stores, and security applications

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to http://www.kramerav.com/downloads/KADS-100 to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your KADS-100, KADS-1, and KADS-2 away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the power cord that is supplied with the unit

Warning: Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only

Warning: Disconnect the power and unplug the unit from the wall before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

3 Overview

The KADS-100 is a Master Audio Controller for use with multiple, remote, active KADS-1 and KADS-2 speakers. It features eight analog audio inputs, an S/PDIF digital stereo audio input, and a USB connector for mass-storage audio devices. RS-232 data and commands travel bi-directionally between controller and speakers, allowing remote status requests and control of up to 99 daisy-chained KADS-1 and KADS-2 speakers.

The KADS-100 can provide power to support up to eight KADS-1 speakers. By adding a KADS-2 speaker it provides power to a further eight speakers. This setup can be extended to control up to 99 speakers.

The KADS-1 is an active speaker with multi-channel, digital audio, RS-232 data, and power provided over a single cable.

The KADS-2 is similar to the KADS-1 but it also has a power supply to allow adding more speakers, either by daisy-chaining them or in a tree and branch configuration.

The KADS-100, KADS-1 and KADS-2 feature:

• High resolution audio
• Highly flexible layout options
- Eight logical audio channels for mapping to physical inputs
- Presets for storing commonly used configurations
• Power provision to compatible devices
- Transmission up to 30m (100ft) between speakers. Total span of 240m (800ft) for eight KADS-1 speakers without an additional power supply
• Remote control using the built-in Web pages (KADS-100)
• Standard 1U 19" rack size (KADS-100)

Each speaker can be individually configured:

• Using the KADS-100
- Locally using the supplied IR remote controller

3.1 Using the IR Transmitter

You can use the IR remote control transmitter provided to control the KADS-1 and KADS-2 machine via the built-in IR receiver on the front panel, (see Section 8.4).

4 Defining the KADS-100, KADS-1 and KADS-2

This section defines the:

• KADS-100 Master Audio Controller (see Section 4.1)
• KADS-1 Speaker (see Section 4.2)
• KADS-2 Speaker (see Section 4.3)

The KADS-100 has a single output that can be connected to either a KADS-1 or a KADS-2 up to 30m away.

The KADS-1 has a single output which can be connected to either another KADS-1 or a KADS-2 up to 30m away with a total of eight speakers in the chain.

The KADS-2 has two outputs that can be connected to either a KADS-1 or a KADS-2 up to 30m away with a total of eight speakers in the chain. The KADS-2 also has a power input for extending a further eight speakers in the chain.

4.1 Defining the KADS-100 Speaker

Figure 3 defines the front panel of the KADS-100.

Figure 1: KADS-100 Front Panel

#	Feature		Function
1	POWER LED		Lights green when the device is powered on
2	KEYPAD 1 ~ 9 and 0 Buttons		Press to select an input or to select which speaker to control depending on the context of the menu, (see Section 8.2). During setup, the buttons are used for entering numeric values
3	SOUND CONTROL Buttons	BASS	Press to select control of the audio bass of the last speaker configured using the menu
4		VOLUME	Press to select control of the audio volume of the last speaker configured using the menu
5		MID	Press to select control of the audio midrange of the last speaker configured using the menu
6		TREBLE	Press to select control of the audio treble using the menu
7	SETUP Buttons	SPEAKER	Press to select which speaker to control, (see Section 8.2)
8		MIC	Press to select control of the microphone parameters using the menu
9		CHANNEL	Press to select a channel using the Adjust knob after selecting a channel to control
10	ADJUST Rotary Knob		Rotate to move up or down through a menu, or to adjust the parameter of the selected function, depending on the context of the menu
11	ENTER Button		Press to enter the menu or selected sub-menu, or to accept the displayed parameter.If you are not in the menu, pressing Enter displays all available menus, (File Playback, Setup, Speaker Setup, Microphone Setup, and Channel Setup)
12	LCD Display		Displays the configuration menu
13	STO Button		Press to store the current setup
14	RCL Button		Press to recall a stored setup
15	LOCK Button		Press and hold to lock the front panel controls. Press and hold again to unlock
16	MIC 6.5mm Phone Jack		Microphone socket
17	ESC Button		Press to exit one level of the menu

Figure 3 defines the rear panel of the KADS-100.

    A --> J["Audio Level: In 1 to In 2"]
    B --> K["S/PDIF: In 3 to In 7"]
    C --> L["MC: In 4 to In 6"]
    D --> M["To Breakers: In 7 to In 8"]
    E --> N["RS-232: In 7 to In 8"]
    F --> O["USB: In 7 to In 8"]
    G --> P["Ethernet: In 7 to In 8"]

Figure 2: KADS-100 Rear Panel

#	Feature		Function
1	AUDIO INPUTS	IN 1 ~ 8 RCA Connectors	Connect up to eight audio sources
2		S/PDIF RCA Connector	Connect to a digital audio source
3	MIC DYN COND Switch		Push switch up to select a dynamic type microphone. Push switch down to select a condenser type microphone, (enables 48V phantom power for the MIC input)
4	To SPEAKERS 2-pin Connector (M)		Connect to the first speaker in the chain, (see Section 6)
5	RS-232 9-pin D-sub Connector (F)		Connect to the remote serial controller to control the KADS-1 or to a PC to upgrade the firmware
6	PROG/UPGRADE USB Mini USB Connector		Connect to a PC to perform a firmware upgrade
7	USB Connector		Connect a USB mass storage device, (for example, a USB flash-drive) to provide audio files
8	ETHERNET RJ-45 Connector		Connect to a PC via a LAN for remote control over Ethernet
9	Mains plug, fuse and switch		Connect to the mains supply

4.2 Defining the KADS-1 or a KADS-2

Figure 3 defines the rear panel of the KADS-1.

Figure 3: KADS-1 Rear Panel

#	Feature		Function
1	SPEAKERS CHAIN	IN 2-Pin Connector	Connect to the + and – speaker output of a KADS-1, KADS-2 or KADS-100, (see Section 6)
2		OUT 2-Pin Connector	Connect to the + and – speaker input of another KADS-1 or KADS-2
3	LAST Switch		Push to the right when this speaker is the last in the chain, push to the left when there are additional speakers connected to OUT
4	LINK LED		Lights green when the device is connected to a source
5	RS-232 3-pin Terminal Block		For the use of Kramer service personnel only
6	USB (Program) Connector		Connect a USB flash-drive to perform a firmware upgrade, (see Section 9)
7	SPEAKER ID 10 Position Rotary Switches		Sets the tens and units of the device ID, (see Section 7) Note: ID 0 is reserved for system use

4.3 Defining the KADS-1 or a KADS-2

Figure 4 defines the rear panel of the KADS-2.

Figure 4: KADS-2 Rear Panel

#	Feature		Function
1	SPEAKERS CHAIN	IN 2-Pin Connector	Connect to the + and – speaker output of a KADS-1, KADS-2 or KADS-100, (see Section 6)
		OUT 1 2-Pin Connector	Connect to the + and – speaker input of another KADS-1 or KADS-2
		OUT 2 2-Pin Connector	Connect to the + and – speaker input of another KADS-1 or KADS-2
2	LINK LED		Lights green when the device is connected to a source
3	LAST Out 1 Switch		Push to the right when there are no speakers connected to OUT 1; push to the left when there are additional speakers connected to OUT 1
4	LAST Out 2 Switch		Push to the right when there are no speakers connected to OUT 2; push to the left when there are additional speakers connected to OUT 2
5	24V EXTERNAL 2-Pin Connector		Connect to the supplied power adapter when connecting more than eight devices
6	RS-232 3-pin Terminal Block		For the use of Kramer service personnel only
7	USB (Program) USB Connector		Connect a USB flash-drive to perform a firmware upgrade, (see Section 9)
8	SPEAKER ID 10 Position Rotary Switches		Sets the tens and units of the device ID, (see Section 7). Note: ID 00 is reserved for system use

5 Installing in a Rack

This section provides instructions for rack mounting the KADS-100.

Before installing in a rack, be sure that the environment is within the recommended range:

OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing

CAUTION!

When installing on a 19" rack, avoid hazards by taking care that:

1. It is located within the recommended environmental conditions, as the operating ambient temperature of a closed or multi unit rack assembly may exceed the room ambient temperature.
2. Once rack mounted, enough air will still flow around the machine.
3. The machine is placed straight in the correct horizontal position.
4. You do not overload the circuit(s). When connecting the machine to the supply circuit, overloading the circuits might have a detrimental effect on overcurrent protection and supply wiring. Refer to the appropriate nameplate ratings for information. For example, for fuse replacement, see the value printed on the product label.
5. The machine is earthed (grounded) in a reliable way and is connected only to an electricity socket with grounding. Pay particular attention to situations where electricity is supplied indirectly (when the power cord is not plugged directly into the socket in the wall), for example, when using an extension cable or a power strip, and that you use only the power cord that is supplied with the machine.

To rack-mount a machine:

1. Attach both ear brackets to the machine. To do so, remove the screws from each side of the machine (3 on each side), and replace those screws through the ear brackets.

Technical line drawing of a mechanical bracket assembly with bolts and mounting holes (no text or symbols)

1. Place the ears of the machine against the rack rails, and insert the proper screws (not provided) through each of the four holes in the rack ears.

Note:

• In some models, the front panel may feature built-in rack ears
- Detachable rack ears can be removed for desktop use
• Always mount the machine in the rack before you attach any cables or connect the machine to the power
- If you are using a Kramer rack adapter kit (for a machine that is not 19"), see the Rack Adapters user manual for installation instructions available from our Web site

6 Connecting the KADS-100, KADS-1 and KADS-2

Always switch off the power to each device before connecting it to your KADS-100, KADS-1 and KADS-2. After connecting your KADS-100/KADS-1/KADS-2, connect the power to each of them and then switch on the power to each device.

You do not have to connect all the inputs and outputs, connect only those that are required.
    subgraph_KADS-1_Speaker_1["Speaker 1"]
        A1["From KADS-100"] --> B1["Audio"]
    end
    subgraph_KADS-1_Speaker_2["Speaker 2"]
        A2["From KADS-100"] --> B2["Audio"]
    end
    subgraph_KADS-1_Speaker_8["Speaker 8"]
        A3["From KADS-100"] --> B3["Audio"]
    end
    B1 --> C["IR Remote Controller"]
    B2 --> C
    B3 --> C
    C --> D["<30m (100ft)"]
    E["Power Supply"] --> F["..."]
    G["Audio"] --> H["..."]
    I["Power Supply"] --> J["..."]
    KADS-1_Speaker_1 --> KADS-2_Speaker_2
    KADS-2_Speaker_2 --> KADS-2_Speaker_8

Figure 5: Connecting the KADS-100, KADS-1 and KADS-2

To connect the KADS-1 and the KADS-2 as illustrated in Figure 5:

• In the first chain:

1. Connect the KADS-100 to the SPEAKERS CHAIN IN connector on the first KADS-1.
2. Connect the SPEAKERS CHAIN OUT connector on the first KADS-100 to the SPEAKERS CHAIN IN connector on the first KADS-2.
3. Connect the SPEAKERS CHAIN OUT connector on the first KADS-2 to the SPEAKERS CHAIN IN connector on the second KADS-2.
4. Repeat Step 3 for up to another six KADS-2 speakers until the chain extends over no more than 240m (787ft).

• In the second chain:

1. Connect the SPEAKERS CHAIN OUT connector on the eighth KADS-1 to the SPEAKERS CHAIN IN connector on the first KADS-2 in the second chain.

2. Connect the supplied power adapter to the first KADS-2 in the second chain.

3. Connect the first SPEAKERS CHAIN OUT connector on the first KADS-2 in the second chain to the SPEAKERS CHAIN IN connector on the second KADS-2 in the second chain.

4. Connect the second SPEAKERS CHAIN OUT connector on the first KADS-2 in the second chain to the SPEAKERS CHAIN IN connector on the first KADS-1 speaker in the second chain.

Note: To reduce electromagnetic interference, install ferrite rings near the following connectors:

• The audio output of the KADS-100
• The audio input to every speaker

6.1 Installing the Ferrite Rings

Close-up of a black square electronic device with a white cable, no visible text or symbols on the device itself.

Figure 6: Looping the Cable through the Ferrite Ring

To install a ferrite ring on the output of the KADS-100:

1. Open the plastic cover of the ferrite ring by disengaging the clips with a small screwdriver.
2. Feed the audio output cable from the KADS-100 through the ring.
3. Form a small loop in the cable and feed it through the ring again.
4. Close the ring to secure the loop inside the ring.

To install a ferrite ring on the input to each speaker:

1. Open the plastic cover of the ferrite ring by disengaging the clips with a small screwdriver.
2. Feed the audio input cable to the KADS-1/KADS-2 through the ring.
3. Form a small loop in the cable and feed it through the ring again.
4. Form a second small loop in the cable and feed it through the ring again.
5. Close the ring to secure the loops inside the ring.

6.2 Connecting a Serial Controller

You can connect a serial controller to the KADS-100 via an RS-232 connection using, for example, a PC.

To connect to the KADS-100 via RS-232:

Connect the RS-232 9-pin D-sub connector on the KADS-100 (only pin 2, pin 3, and pin 5 need be connected) to the RS-232 9-pin D-sub port on your PC

6.3 Wiring the RJ-45 Connectors

This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.

EIA /TIA 568B
PIN	Wire Color
1	Orange / White
2	Orange
3	Green / White
4	Blue
5	Blue / White
6	Green
7	Brown / White
8	Brown

Figure 7: TP PINOUT

7 Setting the Speaker ID

Each speaker must have a unique ID, including those in installations with more than eight speakers. You can set the ID of the speaker (between 01 and 99) using the rotary switches on the rear panel of the speaker.

Note: ID 00 is reserved for system use and if used may cause the system to malfunction.

SPEAKER ID

Figure 8: Setting the Rotary Switches

To set the ID of a KADS-1 or KADS-2, (for example, 28 as shown in Figure 8):

1. Turn the KADS-100 off.
2. Using a small screwdriver, turn the left hand rotary switch to the required number of tens; in this example, 2.
3. Turn the right hand rotary switch to the required number of units; in this example, 8.
4. Turn the KADS-100 on.

8 Operating the KADS-100

The KADS-100 can be operated using either the front panel buttons (which are shortcuts to the speaker setup menu of the last configured speaker) or the menu.

On power up, the KADS-100 scans for all connected speakers. This can take up to 60 seconds.

Each of the eight analog inputs is mapped to one of the eight logical, audio channels. The S/PDIF, microphone, and USB inputs can be mapped to one or more of the eight logical, audio channels. Each of the eight logical, audio channels can be mapped to one or more of the speakers.

8.1 Operating the KADS-100 Using the Front Panel Buttons

8.1.1 Setting up a Channel

When switching a channel to S/PDIF or an mp3 source that is defined as stereo, the paired channel also switches to this source. Paired channels are:

• 1 and 2
• 3 and 4
- 5 and 6
• 7 and 8

Examples:

1. The mp3 source is selected as stereo, then:
   • If channel 1 is switched to mp3, channel 2 automatically switches as well
   • If channel 4 is switched to mp3, channel 3 automatically switches as well

2. The mp3 source is selected as mono, then:

3. If channel 1 is switched to mp3, channel 2 does not switch

4. If channel 4 is switched to mp3, channel 3 does not switch

To set up a channel:

1. Press Enter. The display shows the first entry of the menu.
2. Use the rotary knob to move down the menu to Channel Setup.
3. Press Enter. The display shows the Channel ID selection.
4. Use the rotary knob to move up or down the channel list. Press Enter when the required channel ID is displayed. The Channel properties menu is displayed.
5. Press Enter or use the rotary knob to move up and down the channel properties. Repeat until the required properties have been set.
6. Press Esc repeatedly until you exit the menu system.

8.1.2 Selecting a Speaker to Control

Note: If no speaker is selected, then the last speaker that was selected is controlled. If no speaker was previously selected then speaker 1 is controlled by default.

To select a speaker to control, use either of the following methods:

1. Press the required Keypad button on the front panel. The selected Speaker button lights red and the LED on the speaker lights.
2. Enter the number of the speaker to control using the Keypad 1 to 9 and 0 buttons, for example, press 2 and 8 for speaker 28. The selected speaker number is displayed on the LCD.
3. Press the Enter button. Use the menu options to configure the speaker, (see Section 8.2).

—OR—

1. Press Enter.

2. Select Speaker Setup using the rotary knob.

3. Press Enter.
   The selected Speaker button lights red and the LED on the speaker lights.
4. Enter the number of the speaker to control using the Keypad 1 to 9 and 0 buttons, for example, press 2 and 8 for speaker 28. The selected speaker number is displayed on the LCD.
5. Press the Enter button.
   Use the menu options to configure the speaker, (see Section 8.2).

8.1.3 Setting the Microphone Gain and Delay

To set the microphone gain and delay:

1. Press the Mic button on the front panel.
   The Mic button lights red.
2. Use the menu options to set the microphone gain and delay, (see Section 8.2).

8.1.4 Setting the Volume, Bass, Mid, and Treble Audio Properties

Note: The following procedure sets the audio properties for the speaker that was last selected unless another speaker is first selected, (see Section 8.1.2). If no speaker has been selected yet, the procedure will set the audio properties for speaker 1.

To set the audio properties:

1. Press either the Volume, Mid, Bass, or Treble button on the front panel. The selected button lights red and the current level for the selected audio property is displayed on the LCD.
2. Use the menu options to set the level for the selected audio property, (see Section 8.2).

8.1.5 Storing and Recalling Configurations

To store a configuration in a preset:

1. Press the STO button.

The button lights red.

1. Press and hold (until the STO button no longer lights) one of the numbered

Keypad buttons in which to store the current configuration.

To restore a configuration from a preset:

1. Press the RCL button from which to recall the configuration.

The button lights red.

1. Press and hold (until the RCL button no longer lights) the numbered Keypad

button from which to recall the configuration.

A progress message is displayed indicating which speaker is being updated.

To lock and unlock the front panel buttons:

1. Press and hold the Lock button.

The panel buttons are locked and the Lock button lights. Pressing any

button now causes the Lock button to flash for a few seconds.

1. Press and hold the Lock button.

The panel buttons are unlocked and the Lock button no longer lights.

8.1.6 Resetting the KADS-100 to Factory Default Parameters

To reset the KADS-100 to factory default parameters:

1. Turn off the device.

2. Press and hold the Enter and Esc buttons together.

3. While holding the buttons depressed, turn on the device and wait a few

seconds.

The device is reset to factory default.

8.2 Operating the KADS-100 Using the Menu

You can use the menu to configure both the KADS-100 and all of the speakers. After 5 minutes of inactivity, the KADS-100 automatically exits the menu.

Note: This is the only way to access the File Playback menu option.

To use the menu:

1. Press the Menu button.

The menu options appear on the display.

1. Use the Adjust rotary knob to move up or down through the options until you reach the required item, (see the table below). Turn the knob clockwise to move down the list or turn the knob anti-clockwise to move up the list.

2. Press Enter to select the required option.

The context-sensitive sub-menu options are displayed.

1. Press Enter to choose the selected sub-menu option.

Either the sub-menu parameters are displayed, or additional options are displayed if the sub-menu comprises further options.

1. Press Exit to save the selection and to move one level up the menu.

Press Exit repeatedly to leave the menu.

Menu Item	Level One	Level Two	Level Three
File Playback Setup	Play/Pause
	Stop
	Previous
	Next
Speaker Setup	Speaker ID [01-99]:	Speaker Channel	1 to 8
		Speaker Volume (db)	-76 to +24
		Speaker Bass (db)	-20 to +20
		Speaker Mid (db)	-20 to +20
		Speaker Treble (db)	-20 to +20
Mic Setup	Mic Gain (db)	-16 to +16
	Mic Delay (ms)	1 to 85
Channel Setup	Channel ID	1 to 8	Select Input: analog, file, Spdif, test tone
	Channel Volume (db)	-80 to +20
	Mic Talk Over (ducking)	Yes, No
	File Mode	Stereo, Mono
	Spdif Mode	Stereo, Mono
	Test Sine Frequency (Hz)	0 to 20000

8.3 Operating the KADS-100 Using the Web Pages

The KADS-100 can be operated remotely using the embedded Web pages. The Web pages are accessed using a Web browser and an Ethernet connection.

Before attempting to connect:

• Ensure that your browser is supported (see Section 10)
• Ensure that JavaScript is enabled

Note: Connecting to the KADS-100 via more than one Web browser at a time can lead to unpredictable behavior.

8.3.1 Browsing the KADS-100 Web Pages

Note: In the event that a Web page does not update correctly, clear your Web browser's cache by pressing CTRL+F5.

To browse the KADS-100 Web pages:

1. Open your Internet browser.
2. Type the IP number of the device, (see Section 10.1) in the Address bar of your browser.

http://192.168.1.39

Note: If authentication is enabled, (see Section 8.3.5) the following window appears (Figure 9) and you must enter the valid username and password to access the Web pages. For default authentication details, see Section 10.2.

Figure 9: Entering Logon Credentials

Following a successful logon or if no authentication is set, the screen shown in Figure 10 is displayed.

Figure 10: The Default Page

#	Item	Description
1	Switching Details	Displays the current switching status and the current audio and microphone volume
2	Left Hand Side Panel Hide/Reveal Button	Click to reveal the left hand side page panel

Click the left hand side Hide/Reveal button to open the left hand side page panel.

The Switching page appears as shown in Figure 11.

Figure 11: The Switching Page

The areas on the switching page are described in the following table.

#	Item	Description
1	Page Selection Panel	Click one of the buttons to select a page
2	Channel Switching Selection Buttons	Click one of the buttons to select a channel to control
3	Page Selection Panel Hide Button	Click the arrow to close the page selection panel
4	Input Selection Buttons	Analog—select the associated analog input for the current channelUSB—USB flash-drive with playback controlsSPDIF—digital inputTest Frequency—audio frequency generator with frequency control
5	Set/Recall Preset Buttons	Click one of the buttons to save or retrieve a configuration, (see Section 8.3.1.1)
6	Mic Slider	Slide up/down to increase/decrease the mic volume
7	Channel Volume Slider	Slide up/down to increase/decrease the audio volume for the selected channel

There are six Web pages described in the following sections:

• Switching (see Section 8.3.2)
• Channel Settings (see Section 8.3.3)
• Device Settings (see Section 8.3.4)
• Microphone Settings (see Section 8.3.5)
• Authentication (see Section 8.3.6)
• About Us (see Section 8.3.7)

8.3.1.1 The Save/Recall Preset Facility

The Save/Recall preset facility (see item 5 in Figure 11) lets you save and recall a configuration.

Note: The Save/Recall preset facility on this Web page does not work on iPads or tablets.

To save the current configuration:

1. Click the Save Preset button.

The Save Preset popup window is displayed.

1. Click the required preset number (0 to 9) to which to save the current configuration.

The current configuration is saved and the popup box disappears.

To recall a preset configuration:

1. Click the Recall Preset button.

The Recall Preset popup window is displayed.

1. Click the required preset number (0 to 9) from which to retrieve the configuration.

The selected configuration is retrieved and the popup box disappears.

8.3.2 The Switching Page

The Switching page lets you select a channel, an audio input, and to adjust the microphone or output volume.

8.3.2.1 Channel Selection Buttons

Figure 12: Channel Selection Example

The example selection shown in Figure 12 indicates that Channel 3 is selected, the S/PDIF input is assigned to this channel, and the channel has one speaker connected to it.

8.3.2.2 Input Selection Buttons

There are four input selection buttons:

• Analog—associated analog input for the current channel
• USB—USB flash-drive storage with playback controls
- SPDIF—digital input
• Test Frequency—audio frequency generator with frequency control

Analog Button

Figure 13: Analog Input Selection Button

This button selects the analog input associated with the currently selected channel.

USB Button

Figure 14: USB Input Selection Button

This button selects the USB input. When this feature is active and there are tracks available for playing, the button also provides the following playback controls:

• Mono or stereo playback
- Move one track back
- Stop
- Pause/Play
- Move one track forward
- Open playlist window

Note: Only mp3 files are compatible with the player and all mp3 file names must be in English.

Note: Only files in the root directory of the USB flash-drive are detected. If there are no valid files detected, an error message is displayed.

Clicking on the Open Playlist button displays the window shown in Figure 15. It can take up to 30 seconds for the files on the USB flash-drive to be recognized.

Figure 15: Playlist Window

To move tracks to and from the playlist:

1. Highlight a track in the No Listed pane.
2. Click the highlighted Add One or Add All arrow button. The track(s) are moved to the Listed pane.

Note: You cannot send an empty playlist to the KADS-1.

1. Click OK to accept the changes or Cancel to dismiss the changes.
2. To remove tracks from the playlist, highlight the track(s) in the No Listed pane and click the Remove One or Remove All arrow button. The track(s) are removed from the playlist.
3. Click OK to accept the changes or Cancel to dismiss the changes.

Note: Unplugging the USB flash-drive and adding or removing tracks from the USB flash-drive causes the playlist to reset to default.

SPDIF Button

Figure 16: SPDIF Input Selection Button

This button selects the S/PDIF digital input and provides the ability to select mono or stereo playback.

Test Tone Generator Button

Figure 17: Test Tone Selection Button

This button selects the audio signal generator and provides the ability select the signal frequency using the slider button. The currently selected frequency is shown in Herz to the left of the slider. The selectable range is from 20 to 20000.

8.3.3 The Channel Settings Page

The Channel Settings page lets you:

• View and modify channel properties, for example, the label and channel equalization
• Assign speakers to channels
  • Manually scan for connected speakers
• View and modify speaker properties, for example, the speaker label and equalization
• Turn on and off the LED on a speaker to aid in identification
• Mute and unmute a speaker
  • Retrieve the firmware version of a speaker

Figure 18: The Channel Settings Page

#	Item	Description
1	Channel Selection Buttons	Press to select a channel
2	Speaker Button	Click to select a speaker. Drag and drop to assign to a channel. The button indicates the speaker ID and label
3	Manual Speaker Scan Button	Click to manually scan for all connected speakers
4	Speaker or Channel Label Field and Save Button	Edit to modify the channel or speaker label. Click the Save button to save the new label
5	LED Button	Click to turn on or off the LED on the front of the currently selected speaker
6	Equalization Sliders	Click and drag to modify the bass, mid, treble, and volume for the selected speaker. Range: Bass, mid, treble; -20 to +20dB Volume; -76 to +24dB
7	Speaker Version Button	Click to retrieve the currently selected speaker firmware version

8.3.4 The Device Settings Page

The Device Settings page lets you:

• View and modify device specific information, for example, model, serial number, and IP parameters
  • Perform a firmware upgrade
• Perform a factory reset

Figure 19: The Video and Audio Settings Page

#	Item	Description
1	Information Section	Displays the model, serial number, firmware version, Web version, and MAC address
2	DNS Name Field	Enter the DNS name and press Set to save
3	DHCP ON/OFF Buttons	Press to turn DHCP on or off
4	IP Address Field	Enter the IP address and press Set to save
5	Mask Field	Enter the IP mask and press Set to save
6	Gateway Field	Enter the IP gateway and press Set to save
7	TCP Port	Enter the TCP port or use the spinner buttons to adjust the value and press Set to save
8	UDP Port	Enter the UDP port or use the spinner buttons to adjust the value and press Set to save
9	BROWSE... Button	Press to browse to a new firmware version file.Note: Only the .kfw file format is supported
10	Start Upgrade	Press after selecting a new firmware version file to start the upgrade procedure
11	FACTORY RESET Button	Press to reset the device to factory default parameters

To upgrade the firmware:

1. Click the Browse button.

The Windows Browser opens.

1. Browse to the required file.

2. Select the required file and click Open.

The firmware file name is displayed in the Firmware Upgrade page.

1. Click Start Upgrade.

The firmware file is loaded and a progress bar is displayed.

Do not interrupt the process or the KADS-100 may be damaged.

1. When the process is complete, reboot the device.

The firmware is upgraded.

To reset the KADS-100 to factory default parameters:

1. Click the Factory Reset button.

The confirmation message is displayed.

1. Click OK to continue or Cancel to exit the procedure.

2. Click OK.

The progress message is displayed.

On completion, the success message is displayed.

1. Click OK.

8.3.5 The Microphone Settings Page

The Microphone Settings page lets you:

• Enable/disable the microphone talkover for each channel
• Set the microphone signal delay time
• Adjust the microphone level

Figure 20: The Microphone Settings Page

#	Item	Description
1	Talk Over Channel Buttons	Click ON or OFF to enable or disable the talkover feature for each channel
2	Delay Slider	Click and drag the slider left or right to decrease or increase the microphone signal delay.Range: 0 to 85
5	Mic Slider	Click and drag the slider up or down to increase or decrease the microphone gain.Range: 0dB to +24dB

8.3.6 The Authentication Page

The Authentication page lets you enable/disable security, and to assign or change logon authentication details. (For default logon credentials see Section 9.) The following page is displayed when security is not activated.

Figure 21: The Authentication Page—Security Disabled

To activate security:

- Click ON.

Security is enabled and a message is displayed before the Web page is reloaded.

The following page is displayed when security is activated.

Figure 22: The Authentication Page—Security Enabled

#	Item		Description
1	Activate Security Button		Click to enable/disable security settings. When enabled, the valid username and password must be provided to allow Web page access
2	Change Password	Current Password box	Enter the current password
3		New Password box	Enter the new password, (up to 15 printable ASCII characters)
4		Retry New password box	Retype the new password
5	CHANGE Button		Click to save the new authentication details

8.3.7 The About Us Page

The About Us page displays the Web page version and Kramer Electronics Ltd company details.

Figure 23: The About Us Page

8.4 Operating the KADS-1 and KADS-2 Using the Remote Control

To use the remote control to operate the KADS-1/KADS-2:

1. Press the SPK button.

The LED on the speaker flashes red.

1. Press the number of the required speaker, for example, 07 or 41.

2. Press Enter.

The LED lights green.

1. Press either Volume, Mid, Bass, or Treble to select the option to modify.

2. Press Up or Down to increase or decrease the selected option.

The audio character changes immediately.

1. Press Enter.

2. Repeat steps 4, 5, and 6 to modify any other options.

3. Press End when finished.

The LED on the speaker no longer lights.

9 Updating the KADS-1 or KADS-2 Firmware

To update the KADS-1 or KADS-2 firmware:

1. Go to http://www.kramerelectronics.com and download the latest firmware to a USB flash-drive or PC, (only .kfw and .rbf file formats are compatible.)
2. Connect the USB flash-drive or the PC to the USB Program connector on the rear of the KADS-1/KADS-2.

If you are using a USB flash-drive, it is scanned for relevant files, the LED on the front panel flashes a few times, and the firmware is automatically loaded to the KADS-1/KADS-2. The procedure takes at least 60 seconds.

If you are using a PC, browse to the folder where the firmware upgrade file is stored.

1. When the procedure is complete, the speaker automatically reboots with the new firmware and the flashing LED lights solid.

10 Technical Specifications

		KADS-100
INPUTS:		1 Mic on a 6.5mm phone jack (F)8 Analog stereo audio on RCA connectors1 S/PDIF audio on an RCA connector1 USB on a USB Type A connector, (for audio files)
OUTPUTS:		1 Speaker on a 2-pin terminal block connector
PORTS:		1 Bidirectional RS-232 on a 9-pin D-sub connector, (for remote serial control or firmware upgrades)1 Prog/Upgrade on a mini USB, (for firmware upgrades)1 Ethernet on an RJ-45 TP connector
RS-232:	BAUD RATE:	115200bps
	MODE:	Full-duplex
USB USB FLASH-DRIVE:		Maximum 1GB partition formatted as FAT32
MAXIMUM DISTANCE BETWEEN SPEAKERS:		30m (100ft)
POWER CONSUMPTION:		100–240V AC, 50/60Hz, 220VA
TRANSMISSION DISTANCE:		Up to 30m (100ft) on a two wire twisted power cable
SUPPORTED WEB BROWSERS:		Windows 7 and higher:IE (32/64 bit) version 10Firefox version 30Chrome version 35MAC:Chrome version 35Firefox version 27Safari version 7Android OS:Chrome version 35iOS:Chrome version 35Safari version 7
OPERATING TEMPERATURE:		0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:		-40° to +70°C (-40° to 158°F)
HUMIDITY:		10% to 90%, RHL non-condensing
COOLING:		Forced air, fan
ENCLOSURE TYPE:		Aluminium
RACK MOUNT:		With included rack “ears”
FURNITURE MOUNT:		With included rubber feet
PRODUCT WEIGHT:		2.3kg (5.1lbs) approx.
SHIPPING WEIGHT:		3.7kg (8.1lbs) approx.
VIBRATION:		ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE:		CE
ENVIRONMENTAL REGULATORY COMPLIANCE:		RoHs and WEEE
DIMENSIONS:		Rack mount 19" x 1U (43.3cm x 18.1cm x 4.4cm, W, D, H)
INCLUDED ACCESSORIES:		Power cord, Remote Control RC-IR3,1 Ferrite ring PN 2582-000021

		KADS-1	KADS-2
INPUTS:		1 TP on a 2-pin Large terminal block
OUTPUTS:		1 TP on a 2-pin Molex connector	2 TP on 2-pin Molex connectors
PORTS:		1 Bidirectional RS-232 serial port on a 3-pin terminal block, (for the use of Kramer service personnel only)1 USB for firmware upgrades	1 Bidirectional RS-232 serial port on a 3-pin terminal block, (for the use of Kramer service personnel only)1 USB for firmware upgrades1 2-pin Molex connector for 24V DC power
POWER OUTPUT:		25W	25W
AUDIO:	BANDWIDTH:	75 to 20kHz @-3dB
	S/N RATIO:	84dB unweighted
	TOTAL GAIN:	-80dB to +24dB
RS-232:	BAUD RATE:	115200bps
	MODE:	Full-duplex
POWER CONSUMPTION:		24V DC 1.2A	24V DC 1.2A
TRANSMISSION DISTANCE:		8 Speakers each up to 30m (100ft) apart	8 Speakers each up to 30m (100ft) apart per power supply
OPERATING TEMPERATURE:		0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:		-40° to +70°C (-40° to 158°F)
HUMIDITY:		10% to 90%, RHL non-condensing
DIMENSIONS:		18.3cm x 17.2cm x 24.4cm (7.2" x 6.77" x 9.61"), W, D, H
PRODUCT WEIGHT:		4.7kg (10.36lbs) approx.	4.7kg (10.36lbs) approx.
SHIPPING WEIGHT:		6.0kg (13.23lbs) approx.	6.0kg (13.23lbs) approx.
VIBRATION:		ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE:		CE
ENVIRONMENTAL REGULATORY COMPLIANCE:		RoHs and WEEE

	KADS-1	KADS-2
INCLUDED ACCESSORIES:	1 Ferrite ring PN 2582-000022	Power supply, 1 Ferrite ring PN 2582-000022
OPTIONS:	Kramer BC-2S 300m cable

10.1 Default IP Parameters

Parameter	Values	Default
Device Name	Any alphanumeric string up to 14 chars (can include hyphen, but not at the beginning or end)	KRAMER_
DHCP	ON/OFF	OFF
IP Address	Any valid IP address	192.168.1.39
Mask	Any valid network mask	255.255.0.0
Gateway	Any valid gateway address	192.168.0.1
TCP Port	0 to 65535	5000
UDP Port	0 to 65535	50000

10.2 Default Logon Credentials

Parameter	Values
Name	admin
Password	admin

11 Protocol 3000

The KADS-100 can be operated using serial commands from a PC, remote controller or touch screen using the Kramer Protocol 3000.

This section describes:

• Kramer Protocol 3000 syntax (see Section 11.1)
- Kramer Protocol 3000 commands (see Section 11.2)

11.1 Kramer Protocol 3000 Syntax

11.1.1 Host Message Format

Start	Address (optional)	Body	Delimiter
#	Device_id@	Message	CR

11.1.1.1 Simple Command

Command string with only one command without addressing:

Start	Body	Delimiter
#	Command SP Parameter_1,Parameter_2,...	CR

11.1.1.2 Command String

Formal syntax with commands concatenation and addressing:

Start	Address	Body	Delimiter
#	Device_id@	Command_1 Parameter1_1,Parameter1_2,...|Command_2 Parameter2_1,Parameter2_2,...|Command_3Parameter3_1,Parameter3_2,...|...	CR

11.1.2 Device Message Format

Start	Address (optional)	Body	Delimiter
~	Device_id@	Message	CR LF

11.1.2.1 Device Long Response

Echoing command:

Start	Address (optional)	Body	Delimiter
~	Device_id@	Command SP [Param1,Param2 ...] result	CR LF

= Carriage return (ASCII 13 = 0x0D ) = Line feed (ASCII 10 = 0x0A ) = Space (ASCII 32 = 0x20 )

11.1.3 Command Terms

Command

A sequence of ASCII letters ('A'-'Z', 'a'-'z' and '-'').

Command and parameters must be separated by at least one space.

Parameters

A sequence of alphanumeric ASCII characters ('0'-9', 'A'-Z', 'a'-z' and some special characters for specific commands). Parameters are separated by commas.

Message string

Every command entered as part of a message string begins with a message starting character and ends with a message closing character.

Note: A string can contain more than one command. Commands are separated by a pipe ( ' |' ) character.

Message starting character

'#' – For host command/query

'\~' – For device response

Device address (Optional, for K-NET)

K-NET Device ID followed by '@'

Query sign

'?' follows some commands to define a query request.

Message closing character

CR- For host messages; carriage return (ASCII 13)

CRLF – For device messages; carriage return (ASCII 13) + line-feed (ASCII 10)

Command chain separator character

When a message string contains more than one command, a pipe ('|') character separates each command.

Spaces between parameters or command terms are ignored.

11.1.4 Entering Commands

You can directly enter all commands using a terminal with ASCII communications software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial or Ethernet port on the Kramer device. To enter CR press the Enter key.

( LF is also sent but is ignored by command parser).

For commands sent from some non-Kramer controllers like Crestron, some characters require special coding (such as, /X##). Refer to the controller manual.

11.1.5 Command Forms

Some commands have short name syntax in addition to long name syntax to allow faster typing. The response is always in long syntax.

11.1.6 Chaining Commands

Multiple commands can be chained in the same string. Each command is delimited by a pipe character ("|"). When chaining commands, enter the message starting character and the message closing character only once, at the beginning of the string and at the end.

Commands in the string do not execute until the closing character is entered.

A separate response is sent for every command in the chain.

11.1.7 Maximum String Length

64 characters

11.2 Kramer Protocol 3000 Commands

Command	Description	Permission
#	Protocol handshaking	End User
AUD-LVL	Set audio level in specific amplifier stage	End User
BASS	Set audio bass level	End User
BUILD-DATE?	Read device build date	End User
DIR	Lists files in device	End User
ETH-PORT	Change protocol Ethernet port	Administrator
FACTORY	Reset to factory default configuration	End User
FS-FREE	Get file system free space	End User
HELP	List of commands	End User
LOCK-FP	Lock front panel	Administrator
LOGIN	Set protocol permission	Not Secure
LOGOUT	Cancel current permission level	Not Secure
MIC-DELAY	Set delay for microphone output	End User
MIC-GAIN	Set the microphone gain	End User
MID-RANGE	Set audio midrange level	End User
MODEL?	Read device model	End User
MUTE	Set audio mute	End User
NAME	Set machine (DNS) name	Administrator
NAME-RST	Reset machine name to factory default	Administrator
NET-DHCP	Set DHCP mode	Administrator
NET-GATE	Set Gateway	Administrator
NET-IP	Set IP address	Administrator
NET-MAC?	Get MAC address	End User
NET-MASK	Set subnet mask	Administrator
PASS	Set password for login level	Administrator
PROT-VER?	Read device protocol version	End User
PRST-RCL	Recall saved preset	End User
PRST-STO	Store current connections to preset	End User
RESET	Reset device	Administrator
ROUTE	Set layer routing	End User
SECUR	Set current security state	Administrator
SN?	Read device serial number	End User
STEREO	Set audio stereo	End User
TEST-FREQ	Set signal generator test frequency	End User
TLK	Set audio talkover	End User
TREBLE	Set audio treble level	End User

11.2.1 Command Descriptions

Command - #		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	#	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Protocol handshaking	#CR
Get:	-	-
Response
~nn@SPOKCR LF
Parameters
Response Triggers
Notes
Use to validate the Protocol 3000 connection and get the machine number

Command - AUD-LVL		Command Type - Audio
Command Name		Permission	Transparency
Set:	AUD-LVL	End User	Public
Get:	AUD-LVL?	End User	Public
Description		Syntax
Set:	Set audio level in specific amplifier stage	#AUD-LVL _SP stage, channel, volume _CR
Get:	Get audio level in specific amplifier stage	#AUD-LVL? _SP stage, channel _CR
Response
~nn@AUD-LVL _SP stage, channel, volume _CR LF
Parameters
stage - 'IN, 'OUT' or numeric value of present audio processing stageFor example: '1' for input level, '2' for outputchannel - input or output numbervolume - audio parameter in Kramer units, minus sign precedes negative values.++ increase current value,-- decrease current value
Response Triggers
Notes
Command - BASS		Command Type - Audio
Command Name		Permission	Transparency
Set:	BASS	End User	Public
Get:	BASS?	End User	Public
Description		Syntax
Set:	Set audio bass level	#BASS _SP channel, bass_level _CR
Get:	Get audio bass level	#BASS? _SP channel _CR
Response
~nn@BASS _SP channel, bass_level _CR LF
Parameters
channel - input or output numberbass_level - audio parameter in Kramer units, minus sign precedes negative values++ increase current value-- decrease current value
Response Triggers
Notes

Command - BUILD-DATE		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	BUILD-DATE?	End User	Public
Description		Syntax
Set:	Get device build date	#BUILD-DATECR
Get:	-	-
Response
~nn@BUILD-DATESPdateSPtimeCRLF
Parameters
date - Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day time - Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds
Response Triggers
Notes
Command - DIR		Command Type - File System
Command Name		Permission	Transparency
Set:	DIR	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	List files in device	#DIRCR
Get:	-	-
Response
Multi Line:~nn@DIRCR LFfile_name TAB file_size SP bytes, SP ID: SP file_id CR LFTAB free_size SP bytes. CR LF
Parameters
file_name - name of filefile_size - file size in bytes. A file can take more space on device memoryfile_id - internal ID for file in file systemfree_size - free space in bytes in device file system
Response Triggers
Notes

Command - ETH-PORT		Command Type - Communication
Command Name		Permission	Transparency
Set:	ETH-PORT	Administrator	Public
Get:	ETH-PORT?	End User	Public
Description		Syntax
Set:	Set Ethernet port protocol	#ETH-PORT _SP portType, ETHPort, portNum _CR
Get:	Get Ethernet port protocol	#ETH-PORT? _SP portType, portNum _CR
Response
~nn@ ETH-PORT _SP portType, ETHPort, portNum _CR LF
Parameters
portNum - 1-4 TCP/UDP port enumerator (equals the connected com port number from the tunneling port) portType - TCP/UDP ETHPort - TCP/UDP port number
Response Triggers
Notes
Command - FACTORY		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	FACTORY	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device to factory default configuration	#FACTORYCR
Get:	-	-
Response
~nn@FACTORYSPOKCR LF
Parameters
Response Triggers
Notes
This command deletes all user data from the device. The deletion can take some time.

Command - FS-FREE?		Command Type - File System
Command Name		Permission	Transparency
Set:	-	-	-
Get:	FS-FREE?	Administrator	Public
Description		Syntax
Set:	-	-
Get:	Get file system free space	#FS-FREE?CR
Response
~hn@FS_FREESP free_size CR LF
Parameters
free_size - free size in device file system in bytes
Response Triggers
Notes
Command - HELP		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	HELP	End User	Public
Description		Syntax
Set:	-	-
Get:	Get command list or help for specific command	2 options:1. #HELPCR2. #HELPSPcommand_nameR
Response
1. Multi-line: ~nn@Device available protocol 3000 commands: CR LF command, SP command... CR LFTo get help for command use: HELP (COMMAND_NAME) CR LF2. Multi-line: ~nn@HELP SP command: CR LF description CR LF USAGE: usage CR LF
Parameters
Response Triggers
Notes
Command - LOCK-FP		Command Type - System
Command Name		Permission	Transparency
Set:	LOCK-FP	End User	Public
Get:	LOCK-FP?	End User	Public
Description		Syntax
Set:	Lock front panel	Option 1: #LOCK-FP _SP lock_mode _CR Option 2: #LOCK-FP _SP device_id,lock_mode _CR
Get:	Get front panel lock state	Option 1: #LOCK-FP? _CR Option 2: #LOCK-FP? _SP device_id _CR
Response
Set: Option 1: ~nn@LOCK-FP _SP lock_mode _SP OK _CR LFOption 2: ~01@LOCK-FP _SP device_id,lock_mode _SP OK _CR LFGet: Option 1: ~nn@LOCK-FP _SP lock_mode _CR LFOption 2: ~01@LOCK-FP _SP device_id,lock_mode _CR LF
Parameters
lock_mode - 0/OFF - unlocks the front panel buttons, 1/ON - locks the front panel buttons device_id - for K-Net controllers, select the button panel to lock. Locking is allowed only from the master
Response Triggers
Notes
Command - LOGIN		Command Type - Authentication
Command Name		Permission	Transparency
Set:	LOGIN	Not Secure	Public
Get:	LOGIN?	Not Secure	Public
Description		Syntax
Set:	Set protocol permission	#LOGIN _SP login_level, password _CR
Get:	Get current protocol permission level	#LOGIN? _CR
Response
Set: ~nn@LOGIN _SP login_level,password _SP OK _CR LFor~nn@LOGIN _SP ERR _SP 004 _CR LF(if bad password entered)Get: ~nn@LOGIN _SP login_level _CR LF
Parameters
login_level - level of permissions required (End User or Admin)password - predefined password (by PASS command). Default password is an empty string
Response Triggers
Notes
For devices that support security, LOGIN allows to the user to run commands with an End User or Administrator permission levelIn each device, some connections can be logged in to different levels and some do not work with security at allConnection may logout after timeoutThe permission system works only if security is enabled with the “SECUR” command

Command - LOGOUT		Command Type - Authentication
Command Name		Permission	Transparency
Set:	LOGOUT	Not Secure	Public
Get:	-	-	-
Description		Syntax
Set:	Cancel current permission level	#LOGOUTCR
Get:	-	-
Response
~nn@LOGOUTSP OKCR LF
Parameters
Response Triggers
Notes
Logs out from End User or Administrator permission levels to Not Secure
Command - MIC-DELAY		Command Type - Audio
Command Name		Permission	Transparency
Set:	MIC-DELAY	End User	Public
Get:	MIC-DELAY?	End User	Public
Description		Syntax
Set:	Set delay for microphone output.	# MIC-DELAYSPid,delayCR
Get:	Get delay for microphone output.	# MIC-DELAY?idCR
Response
~hn@MIC-DELAYSPid,delayCR LF
Parameters
Id - MIC idDelay - 0-85ms
Response Triggers
Notes

Command - MIC-GAIN		Command Type - Audio
Command Name		Permission	Transparency
Set:	MIC-GAIN	End User	Public
Get:	MIC-GAIN?	End User	Public
Description		Syntax
Set:	Set the microphone gain	# MIC-GAIN _SP P1,P2 _CR
Get :	Get the microphone gain	# MIC-GAIN? _SP P1 _CR
Response
Set / Get : ~ nn@MIC-GAIN _SP P1,P2 _CR LF
Parameters
P1 - Input number, for VP-553 always 0P2 - level - 0 to 100
Response Triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedAfter execution, response is sent to all com ports if CMD-NAME was set any other external control device (button press, device menu and similar) or genlock status was changed
Notes
Sets the microphone input audio gain
Command - MIDRANGE		Command Type - Audio
Command Name		Permission	Transparency
Set:	MIDRANGE	End User	Public
Get:	MIDRANGE?	End User	Public
Description		Syntax
Set:	Set audio midrange level	#MIDRANGE _SP channel, midrange_level _CR
Get:	Get audio midrange level	#MIDRANGE? _SP channel _CR
Response
~nn@MIDRANGE _SP channel, midrange_level _CR LF
Parameters
channel - input or output numbermidrange_level - audio parameter in Kramer units, minus sign precedes negative values++ increase current value-- decrease current value
Response Triggers
Notes

Command - MODEL?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	MODEL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device model	#MODEL?CR
Response
~nn@MODELSPmodel_nameCRLF
Parameters
model_name - String of up to 19 printable ASCII chars
Response Triggers
Notes
Command - MUTE		Command Type - Audio
Command Name		Permission	Transparency
Set:	MUTE	End User	Public
Get:	MUTE?	End User	Public
Description		Syntax
Set:	Set audio mute	#MUTESPchannel,mute_modeCR
Get:	Get audio mute	#MUTE?SPchannelCR
Response
~nn@MUTESPchannel, mute_modeCR LF
Parameters
channel - output numbermute_mode - 0 or OFF / 1 or ON
Response Triggers
Notes

Command - NAME		Command Type - System (Ethernet)
Command Name		Permission	Transparency
Set:	NAME	Administrator	Public
Get:	NAME?	End User	Public
Description		Syntax
Set:	Set machine (DNS) name	#NAMESPmachine_nameCR
Get:	Get machine (DNS) name	#NAME?CR
Response
Set: ~nn@NAMESPmachine_nameSPOKCR LF
Get: ~nn@NAME?SPmachine_nameCR LF
Parameters
machine_name - String of up to 14 alpha-numeric chars (can include hyphen, not at the beginning or end)
Response Triggers
Notes
The machine name is not the same as the model name. The machine name is used to identify a specific machine or a network in use (with DNS feature on)
Command - NAME-RST		Command Type - System (Ethernet)
Command Name		Permission	Transparency
Set:	NAME-RST	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Reset machine (DNS) name to factory default	#NAME-RSTCR
Get:	-	-
Response
~nn@NAME-RSTSPOKCR LF
Parameters
Response Triggers
Notes
Factory default of machine (DNS) name is “KRAMER_” + 4 last digits of device serial number

Command - NET-DHCP		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-DHCP	Administrator	Public
Get:	NET-DHCP?	End User	Public
Description		Syntax
Set:	Set DHCP mode	#NET-DHCPSPmodeCR
Get:	Get DHCP mode	#NET-DHCP?CR
Response
Set: ~nn@ NET-DHCPSPmodeSPOKCR LF
Get: ~nn@ NET-DHCPSPmodeCR LF
Parameters
mode - 0 - Do not use DHCP. Use the IP set by the factory or using the IP set command1 - Try to use DHCP. If unavailable, use IP as above
Response Triggers
Notes
Connecting Ethernet to devices with DHCP may take more time in some networksTo connect with a randomly assigned IP by DHCP, specify the device DNS name (if available) using the command “NAME”. You can also get an assigned IP by direct connection to USB or RS-232 protocol port if availableFor proper settings consult your network administrator
Command - NET-GATE		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-GATE	Administrator	Public
Get:	NET-GATE?	End User	Public
Description		Syntax
Set:	Set gateway IP	#NET-GATESPip_addressCR
Get:	Get gateway IP	#NET-GATE?CR
Response
Set: ~nn@NET-GATESPip_addressSPOKCR LF
Get: ~nn@NET-GATESPip_addressCR LF
Parameters
ip_address - format: xxx.xxx.xxx.xxx
Response Triggers
Notes
A network gateway connects the device via another network and maybe over the Internet. Be careful of security problems. For proper settings consult your network administrator

Command - NET-IP		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-IP	Administrator	Public
Get:	NET-IP?	End User	Public
Description		Syntax
Set:	Set IP address	#NET-IP _SP ip_address _CR
Get:	Get IP address	#NET-IP? _CR
Response
Set: ~nn@ NET-IP _SP ip_address _SP OK _CR LFGet: ~nn@ NET-IP _SP ip_address _CR LF
Parameters
ip_address - format: xxx.xxx.xxx.xxx
Response Triggers
Notes
For proper settings consult your network administrator
Command - NET-MAC?		Command Type - Communication
Command Name		Permission	Transparency
Set:	-	-	-
Get:	NET-MAC?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get MAC address	#NET-MAC?CR
Response
~nn@NET-MACSP mac_addressCRLF
Parameters
mac_address - Unique MAC address. Format: XX-XX-XX-XX-XX where X is hex digit
Response Triggers
Notes

Command - NET-MASK		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-MASK	Administrator	Public
Get:	NET-MASK?	End User	Public
Description		Syntax
Set:	Set subnet mask	#NET-MASKSPnet_maskCR
Get:	Get subnet mask	#NET-MASK?CR
Response
Set: ~nn@NET-MASKSPnet_maskSPOKCR LF
Get: ~nn@NET-MASKSPnet_maskOR LF
Parameters
net_mask - format: xxx.xxx.xxx.xxx
Response Triggers
The subnet mask limits the Ethernet connection within the local networkFor proper settings consult your network administrator
Notes
Command - PASS		Command Type - Authentication
Command Name		Permission	Transparency
Set:	PASS	Administrator	Public
Get:	PASS?	Administrator	Public
Description		Syntax
Set:	Set password for login level	#PASS _SP login_level,password _CR
Get:	Get password for login level	#PASS? _SP login_level _CR
Response
~hn@PASS _SP login_level,password _SP OK _CR LF
Parameters
login_level - level of login to set (End User or Administrator).password - password for the login_level. Up to 15 printable ASCII chars
Response Triggers
Notes
The default password is an empty string

Command - PROT-VER?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	PROT-VER?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device protocol version	#PROT-VER?CR
Response
~nn@PROT-VERSP3000:versionCR LF
Parameters
Version - XX.XX where X is a decimal digit
Response Triggers
Notes
Command - PRST-RCL		Command Type - System
Command Name		Permission	Transparency
Set:	PRST-RCL	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Recall saved preset list	#PRST-RCLSPpresetCR
Get:	-	-
Response
~nn@PRST-RCLSPpresetCRLF
Parameters
preset - preset number
Response Triggers
Notes
In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL

Command - PRST-STO		Command Type - System
Command Name		Permission	Transparency
Set:	PRST-STO	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Store current connections,volumes and modes in preset	#PRST-STOSPresetCR
Get:	-	-
Response
~nn@PRST-STOSPresetCR LF
Parameters
preset - preset number
Response Triggers
Notes
In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL
Command - RESET		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	RESET	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device	#RESETCR
Get:	-	-
Response
~nn@RESET$P OK CR LF
Parameters
Response Triggers
Notes
To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect and reconnect the cable to reopen the port.

Command - ROUTE		Command Type - Routing
Command Name		Permission	Transparency
Set:	ROUTE	End User	Public
Get:	ROUTE?	End User	Public
Description		Syntax
Set:	Set layer routing	#ROUTE _SP layer, dest, src _CR
Get:	Get layer routing	#ROUTE? _SP layer, dest _CR
Response
~nn@ ROUTESPlayer, dest, srcCR LF
Parameters
layerdest - * - ALLx - disconnect, otherwise destination idsrc - source id
Response Triggers
Notes
This command replaces all other routing commands.
Command - SECUR		Command Type - Authentication
Command Name		Permission	Transparency
Set:	SECUR	Administrator	Public
Get:	SECUR?	Not Secure	Public
Description		Syntax
Set:	Start/stop security	#SECURSPsecurity_modeCR
Get:	Get current security state	#SECUR?CR
Response
Set: ~nn@SECURSPsecurity_modeSPOKCR LF
Get: ~nn@SECURSPsecurity_modeCR LF
Parameters
security_mode – 1/ON - enables security, 0/OFF - disables security
Response Triggers
Notes
The permission system works only if security is enabled with the “SECUR” command

Command - SN?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	SN?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device serial number	#SN?CR
Response
~nn@SNSPserial_numberCRLF
Parameters
serial_number - 11 decimal digits, factory assigned
Response Triggers
Notes
For new products with 14 digit serial numbers, use only the last 11 digits
Command - STEREO		Command Type - Audio
Command Name		Permission	Transparency
Set:	STEREO	End User	Public
Get:	STEREO?	End User	Public
Description		Syntax
Set:	Set stereo audio	#STEREO _SP channel,stereo_mode _CR
Get:	Get stereo audio	#STEREO?channel, _CR
Response
~nn@STEREO _SP channel,stereo_mode _CR LF
Parameters
channel - output numberstereo_mode - 0 or OFF / 1 or ON
Response Triggers
Notes

Command - TEST-FREQ		Command Type - Audio
Command Name		Permission	Transparency
Set:	TEST-FREQ	End User	Public
Get:	TEST-FREQ?	End User	Public
Description		Syntax
Set:	Sets signal generator frequency	#TEST_FREQSPfrequencyCR
Get:	Gets signal generator frequency	#TEST_FREQ?SP
Response
~nn@TEST_FREQSPfrequencyCR LF
Parameters
frequency - 20-24000Hz
Response Triggers
Notes
Command - TLK		Command Type - Audio
Command Name		Permission	Transparency
Set:	TLK	End User	Public
Get:	TLK?	End User	Public
Description		Syntax
Set:	Set audio talkover	#TLKSPchannel,talkover_modeCR
Get:	Get audio talkover	#TLK?channel,CR
Response
~nn@TLKSPchannel,talkover_modeCR LF
Parameters
channel - output numbertalkover_mode - 0 or OFF / 1 or ON
Response Triggers
Notes

Command - TREBLE		Command Type - Audio
Command Name		Permission	Transparency
Set:	TREBLE	End User	Public
Get:	TREBLE?	End User	Public
Description		Syntax
Set:	Set audio treble level	#TREBLE _SP channel, treble_level _CR
Get:	Get audio treble level	#TREBLE? _SP channel _CR
Response
~nn@TREBLE _SP channel, treble_level _CR LF
Parameters
channel - input or output numbertreble_level - audio parameter in Kramer units, minus sign precedes negative values++ increase current value-- decrease current value
Response Triggers
Notes

11.2.2 On/Off

Number	Value
0	Off
1	On

11.2.3 Stage

Number	Value
0	Input
1	Output
2	(Reserved)
3	(Reserved)

LIMITED WARRANTY

The warranty obligations of Kramer Electronics for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long Does this Coverage Last

Seven years as of this printing; please check our Web site for the most current and accurate warranty information.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics will do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.

2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.

3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics will not do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy under this Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, please visit our web site at www.kramerelectronics.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required. You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation on Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW.

IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A "CONSUMER PRODUCT" UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, please visit our Web site at

www.kramerelectronics.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

KRAMER

P/N:

Rev: 3

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

www.kramerAV.com

[e-mail]
