Product Type	Outdoor Wireless Broadband Router / 5GHz Base Station
Model	RidgeWave 4700FWB
Brand	BEC Technologies
Wireless Standard	802.11a/n/ac, backward compatible with 802.11b/g/n
Frequency Bands	2.4 GHz and 5 GHz concurrently
Maximum Data Rate	Up to 2000 Mbps (2.4 GHz: 300 Mbps, 5 GHz: 1700 Mbps)
MIMO	4 x 4:4 MIMO
Antenna	4 external 5 GHz N-type antennas with 18 dBi gain
Interfaces	2 Gigabit Ethernet (one WAN/PoE, one LAN), 4 antenna connectors
Power Supply	Passive Gigabit Power over Ethernet (GPoE) via included 802.3at PoE injector
Enclosure Rating	IP68 (water and dust ingress protection), industrial grade
Dimensions (Device)	8.5 x 7.5 x 3 inches (257 x 227 x 91 mm)
Weight (Device)	2 kg (4.4 lbs) without mounting kit
Security	WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK, WEP 64/128-bit, MAC filtering, SPI firewall
Management	Web-based GUI, Quick Start Wizard, SNMP, TR-069, BECentral Cloud
Additional Features	Hotspot with captive portal, WDS repeater, IPv6 dual-stack, QoS, VLAN, VPN pass-through
Operating Temperature	Industrial grade, suitable for extreme temperatures (not explicitly given, but IP68 rated)
Mounting	Wall or pole mount with included hardware
Maintenance	Firmware upgrade via web GUI; reset to factory defaults using reset button
Safety	Do not open case; use PoE injector indoors; mandatory grounding; FCC Class B
Spare Parts and Repairability	Antennas replaceable; mounting kit replaceable; PoE injector replaceable; contact support for other parts

Frequently Asked Questions - RidgeWave 4700FWB BEC Technologies

What is the default IP address and login credentials for the RidgeWave 4700FWB?

The default IP address is 192.168.1.254. The default username is admin and password is admin.

How do I reset the router to factory defaults?

Press and hold the Reset button on the device for 6 seconds or more while the router is powered on. Release the button. The device will restore to factory settings and reboot.

How do I upgrade the firmware?

Download the latest firmware from the BEC website. Log in to the web GUI, go to Maintenance > Firmware & Configuration, browse to the firmware file, and click Upgrade. Do not power off during the process.

What should I do if I forget the login password?

Use the Reset button to restore factory defaults (hold for 6+ seconds). The default password is admin.

How do I connect the router to the Internet?

Connect the WAN/PoE port to your modem or ONT using the provided outdoor Ethernet cable and PoE injector. Then, log in to the web GUI and use the Quick Start Wizard to configure your WAN connection type (PPPoE, DHCP, or Static IP) as provided by your ISP.

Is grounding mandatory?

Yes, the BEC 4700 must be properly earth grounded to prevent damage to the unit and connected equipment. A grounding wire is included.

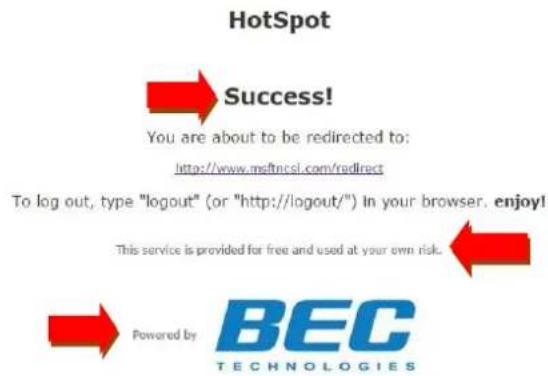

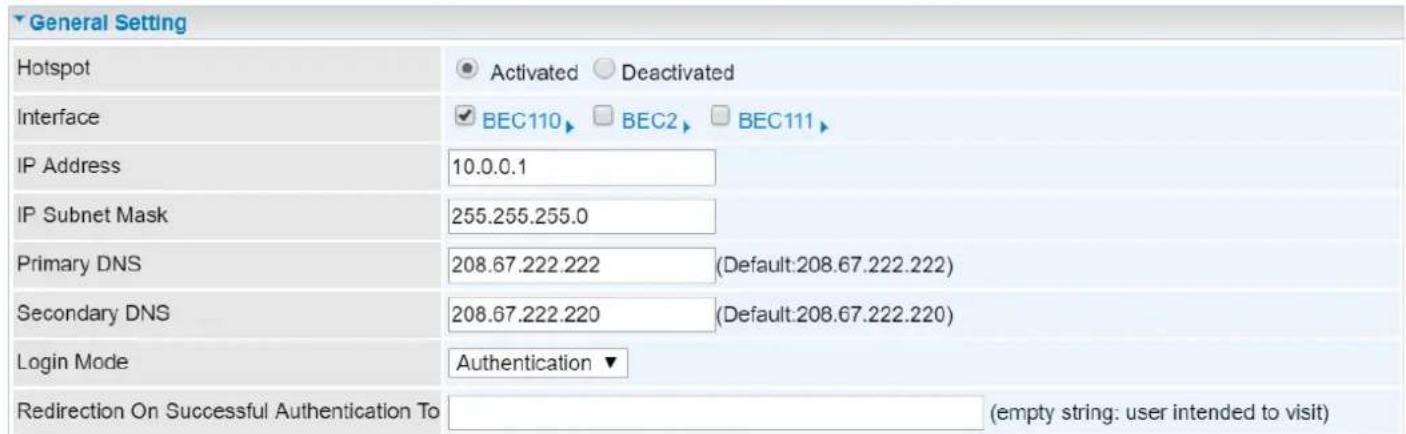

How do I configure the Wi-Fi hotspot feature?

Go to Configuration > Hotspot and enable it. Set the interface (SSID), login mode (authentication or agreement), and customize captive portal. You can also create user accounts or integrate with RADIUS.

What wireless security options are available?

The router supports WEP 64/128-bit, WPA-PSK, WPA2-PSK, and Mixed WPA/WPA2-PSK. It also supports WPS (PIN method). We recommend using WPA2-PSK with AES encryption.

Can I use the router as a repeater?

Yes, the 5 GHz interface supports WDS Repeater mode. Go to Configuration > Interface Setup > Wireless 5G Repeater and enter the SSID and security of the primary AP or use site survey.

What is the recovery procedure if the router becomes unresponsive?

Set your PC IP to 192.168.1.100. Power off the router, press and hold the Reset button, power on. When the Power LED turns Red, continue holding for 6 more seconds until the Internet LED flashes Green. Then access http://192.168.1.1 to upload firmeware.

USER MANUAL RidgeWave 4700FWB BEC Technologies

RidgeWave® 5GHz Base Station

White BEC wireless router mounted on a metal frame (no text or symbols visible)

Copyright Notice

Copyright@ 2020 BEC Technologies Inc. All rights reserved.

BEC Technologies reserves the right to change and make improvement to this manual at any time without prior notice.

No part of this document may be reproduced, copied, transmitted in any form or by any means without prior written permission from BEC Technologies, Inc.

Support Contact Information

Contact Support: http://bectechnologies.net/support/.

Telephone: [phone]

TABLE OF CONTENTS

COPYRIGHT NOTICE ....1

SUPPORT CONTACT INFORMATION ......1

CHAPTER 1: INTRODUCTION ....1

INTRODUCTION TO YOUR ROUTER....1

FEATURES & SPECIFICATIONS....3

HARDWARE SPECIFICATIONS....5

APPLICATION DIAGRAM 6

CHAPTER 2: PRODUCT OVERVIEW......7

IMPORTANT NOTE FOR USING THIS ROUTER 7

PACKAGE CONTENTS......7

DEVICE DESCRIPTION 8

MOUNTING KIT INSTALLATION 10

ROUTER INSTALLATION INSTRUCTIONS 14

SYSTEM RECOVERY PROCEDURES.... 17

CHAPTER 3: BASIC INSTALLATION .....18

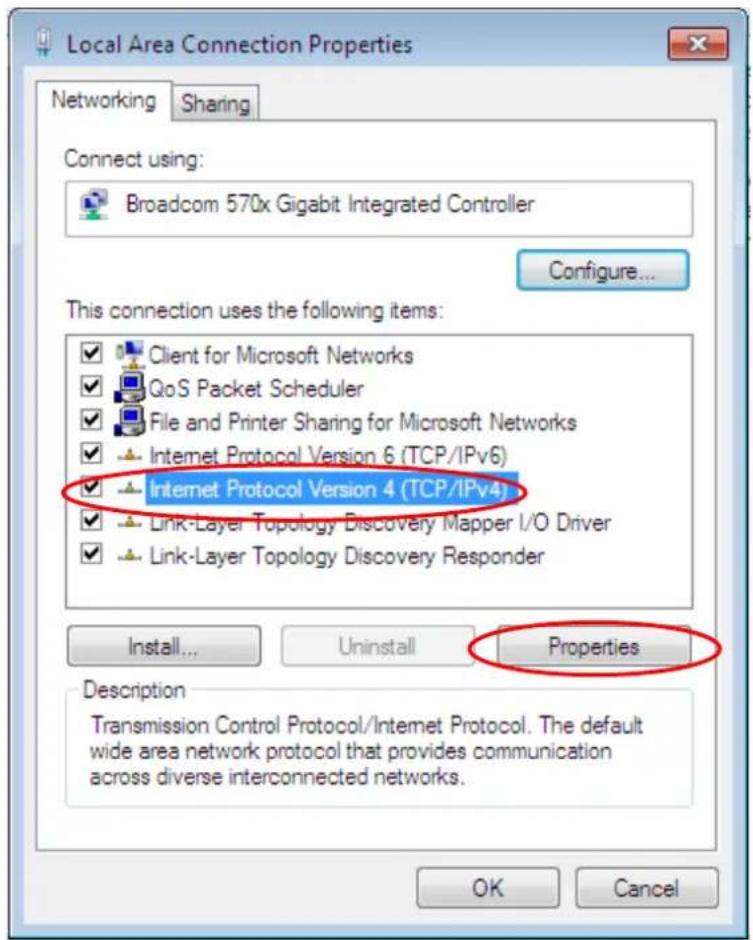

NETWORK CONFIGURATION – IPv4 19

Configuring PC in Windows 10 (IPv4) ...... 19

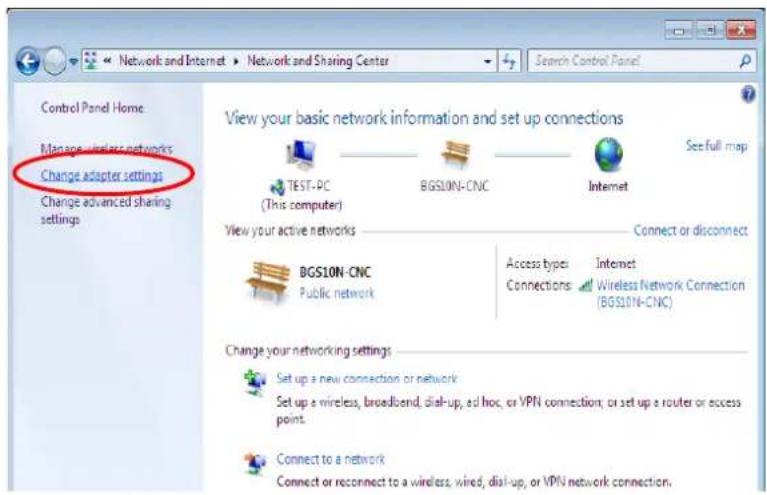

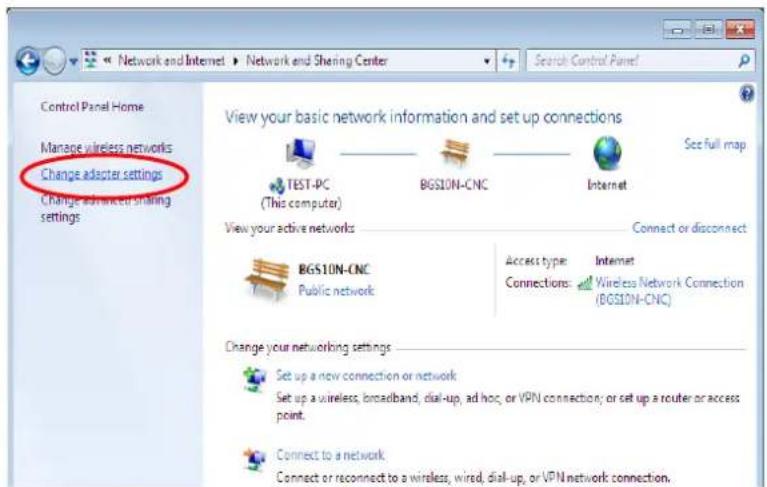

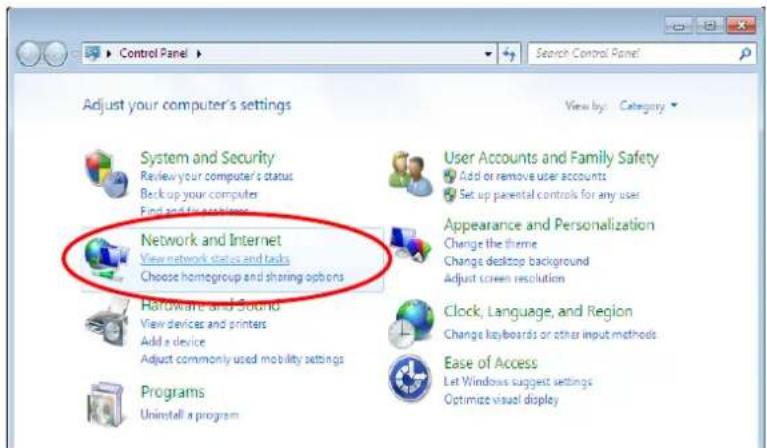

Configuring PC in Windows 7/8 (IPv4)....21

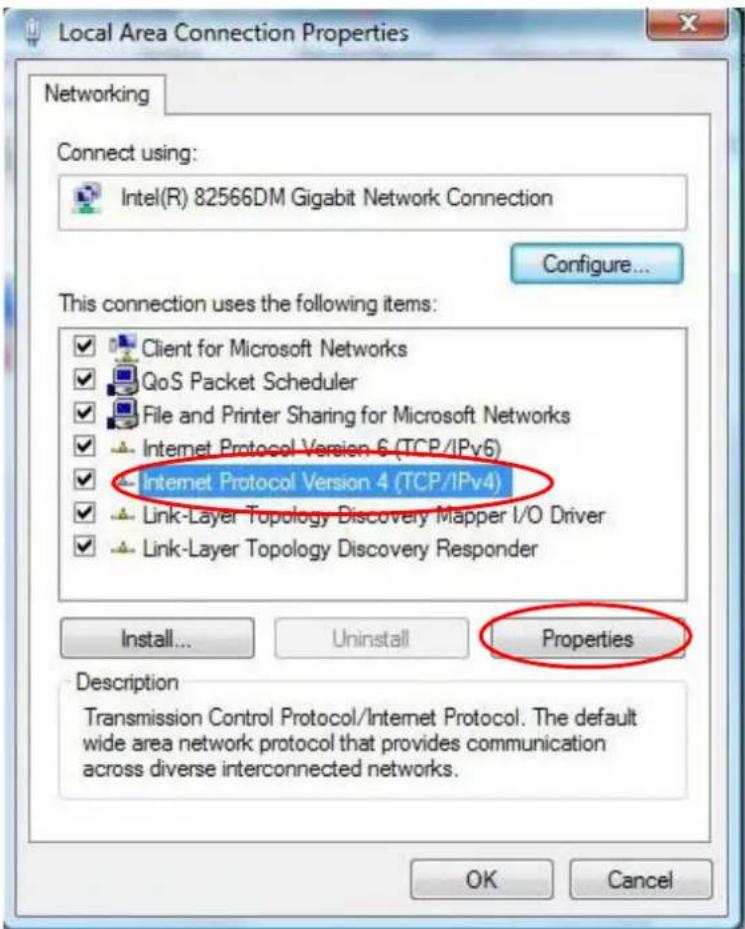

Configuring PC in Windows Vista (IPv4) 23

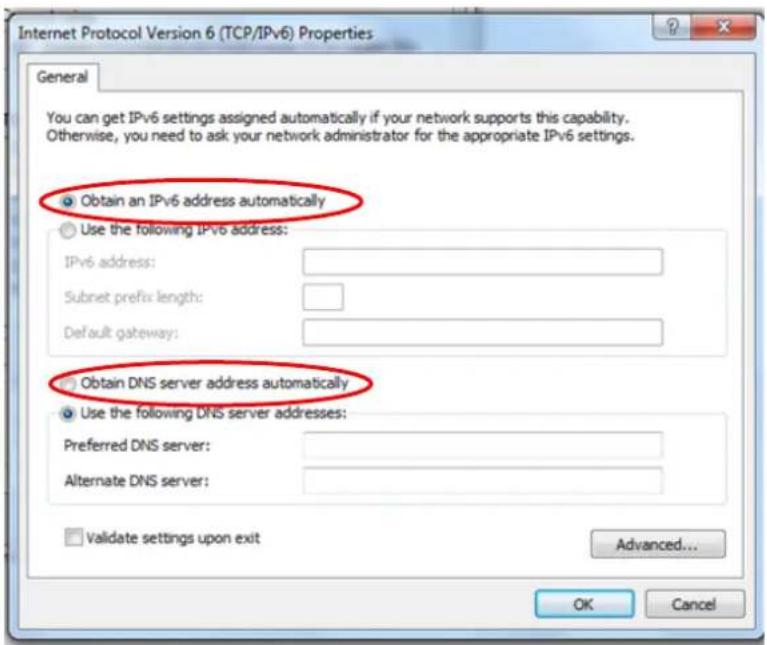

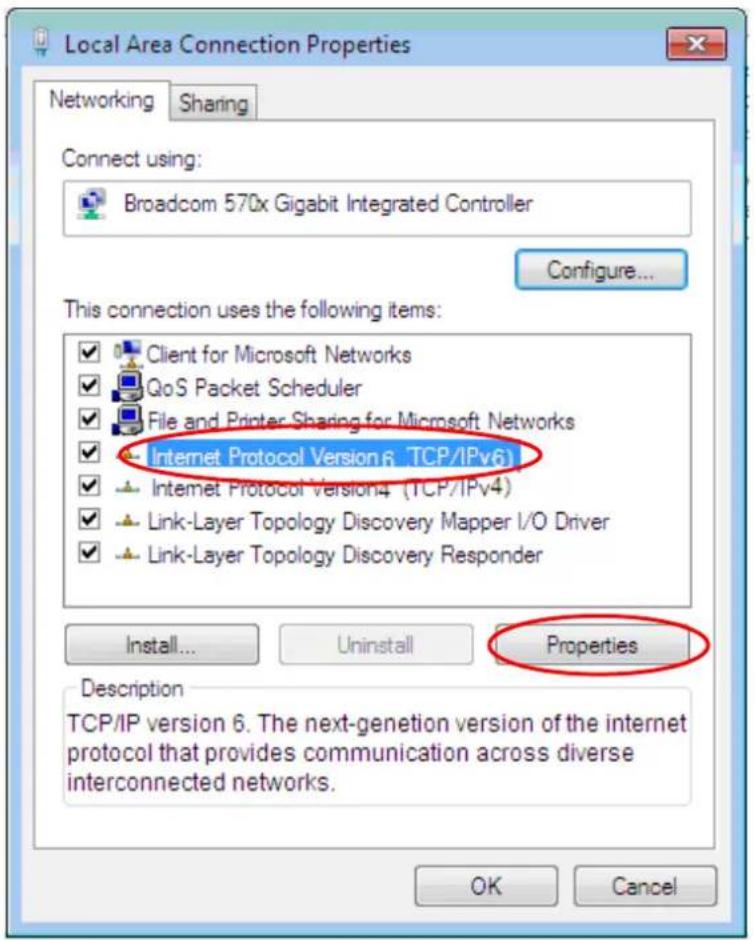

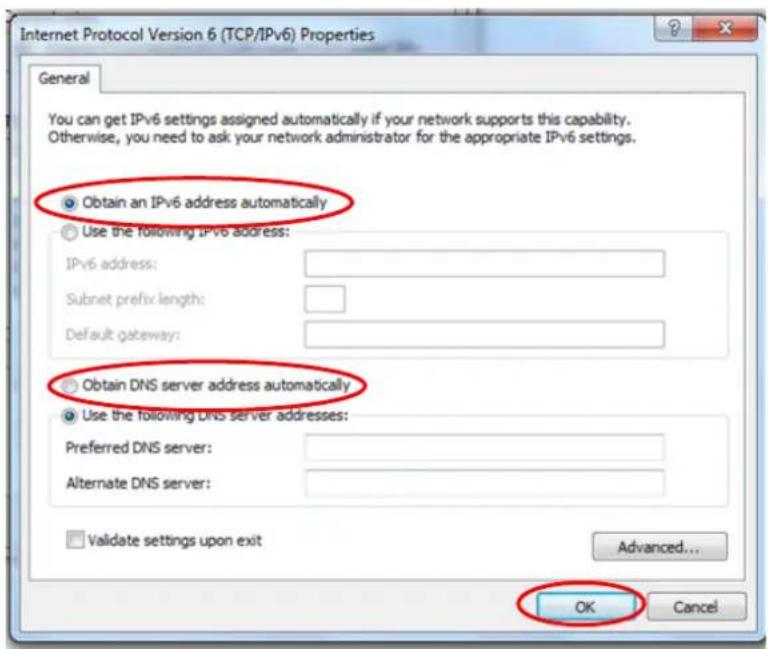

NETWORK CONFIGURATION – IPv6 25

Configuring PC in Windows 10 (IPv6) ......25

Configuring PC in Windows 7/8 (IPv6)....27

Configuring PC in Windows Vista (IPv6) 29

DEFAULT SETTINGS.... 31

INFORMATION FROM YOUR ISP 32

CHAPTER 4: DEVICE CONFIGURATION .....33

LOGIN TO YOUR DEVICE 33

STATUS.... 35

Device Info 35

System Status 37

System Log 37

Wireless Status....38

Hotspot Status....39

Statistics 40

DHCP Table....43

ARP Table 43

VRRP Status....43

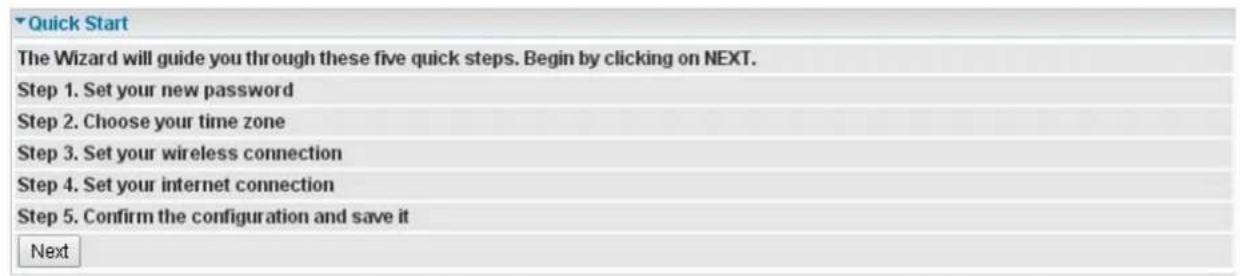

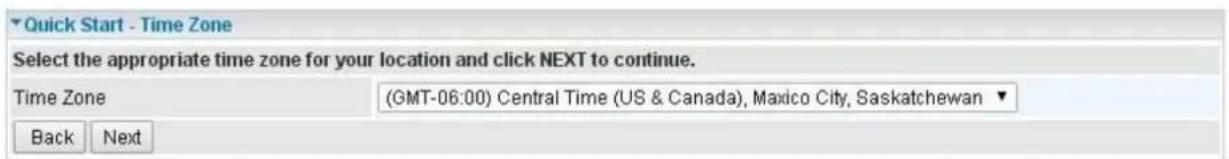

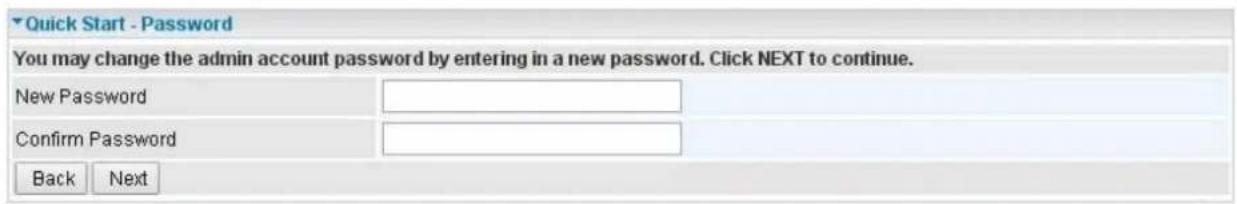

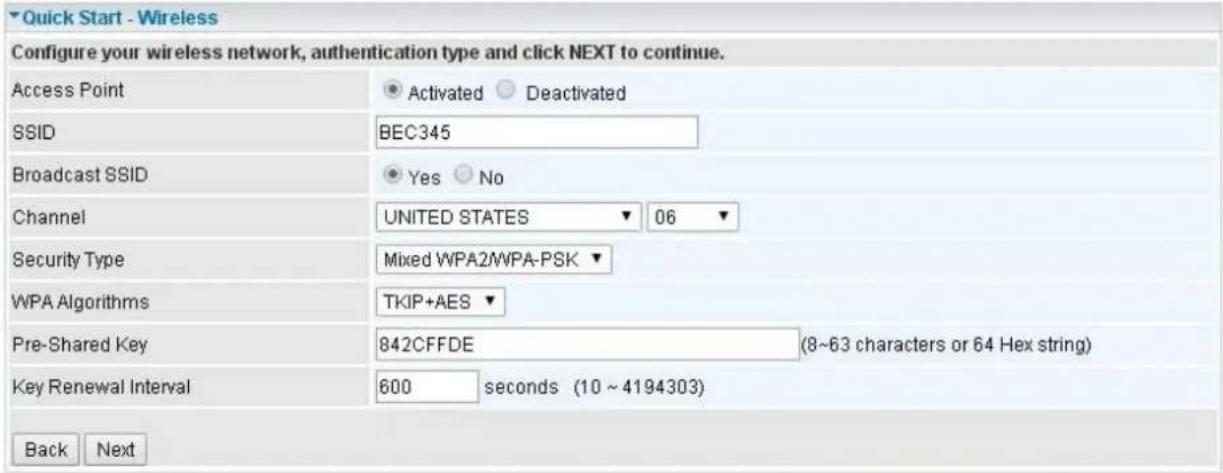

QUICK START 44

CONFIGURATION.... 47

Interface Setup....47

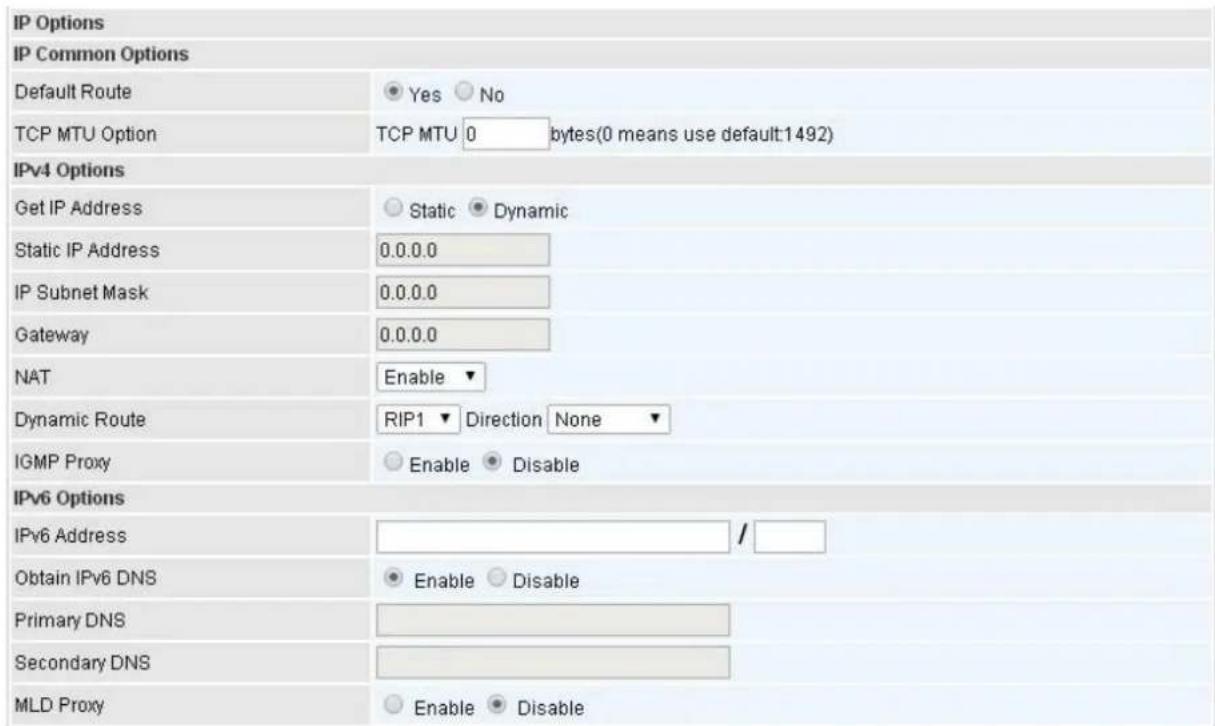

Internet 47

LAN....51

Wireless (2.4GHz) 55

Wireless MAC Filter 60

Wireless 5GHz 61

Wireless 5G MAC Filter 69

Wireless 5G Repeater 70

Loopback....71

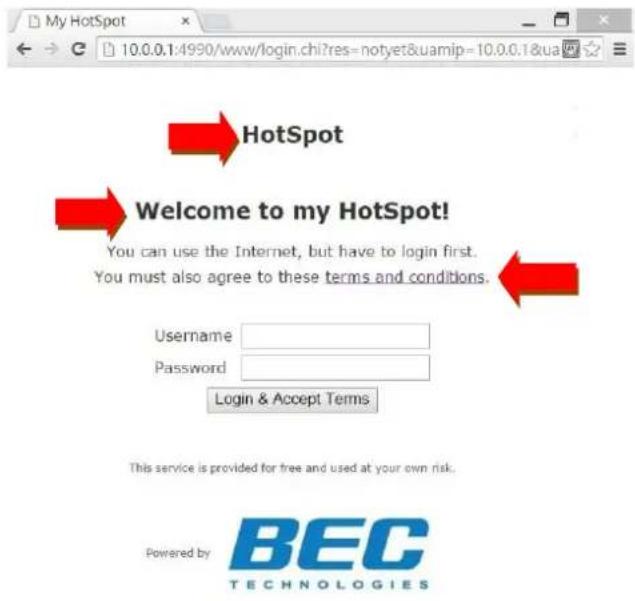

Hotspot 72

General Setting....72

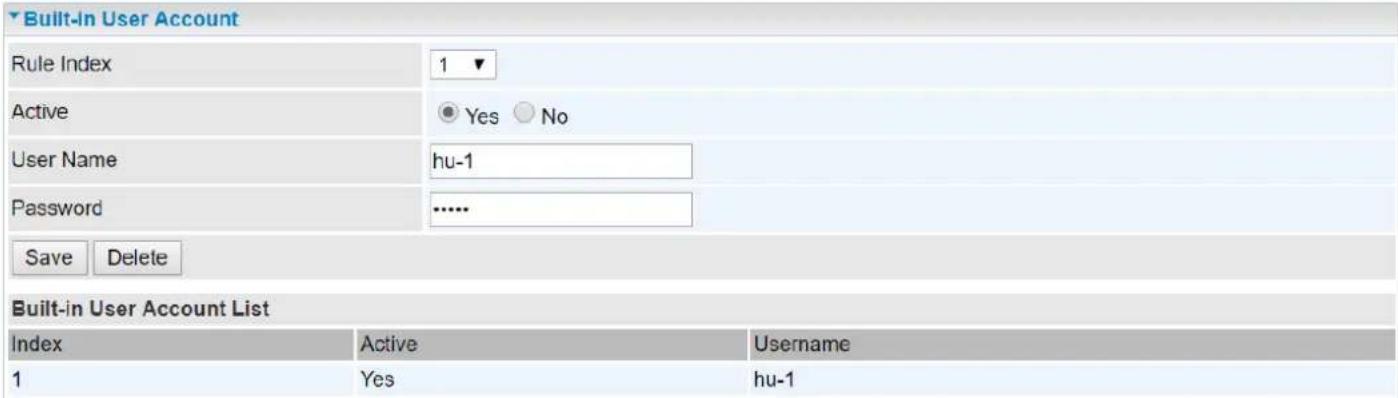

Built-in User Account 75

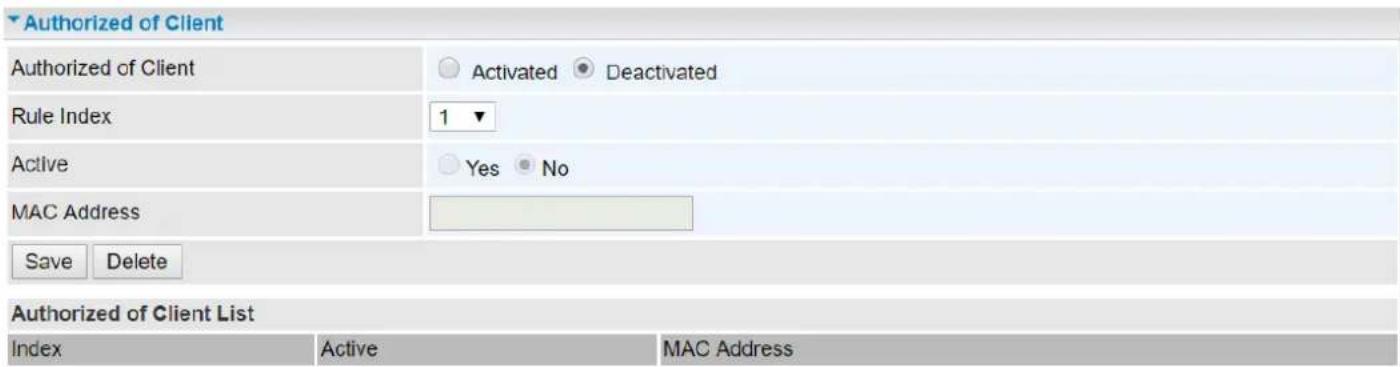

Authorized of Client 76

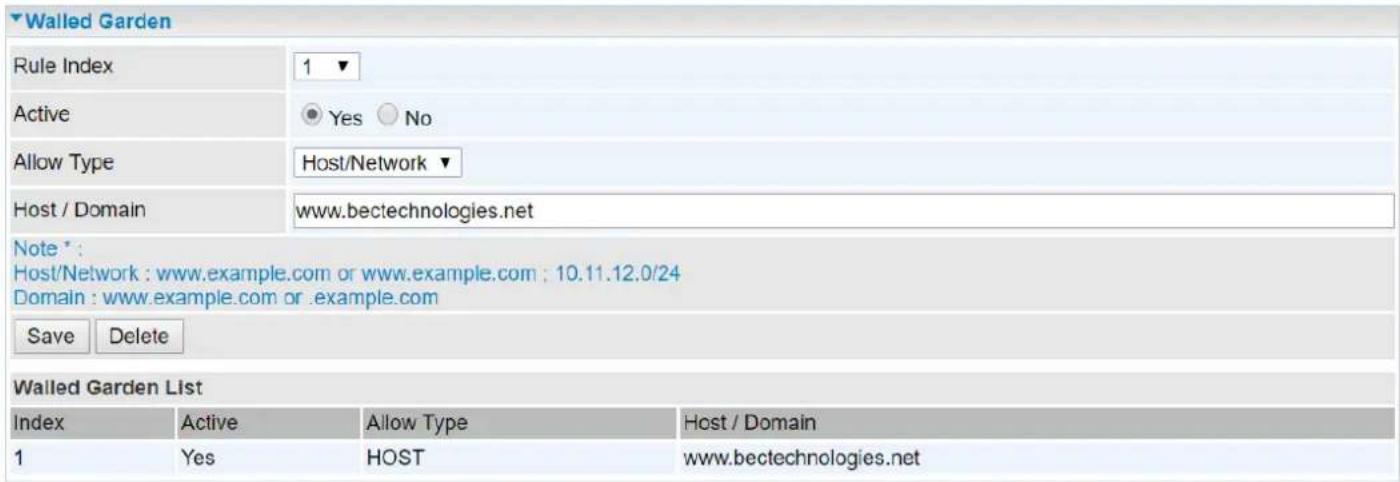

Walled Garden 77

Advertisement 78

Hotspot Status Log 79

Customization....80

Advanced Setup 82

Firewall....82

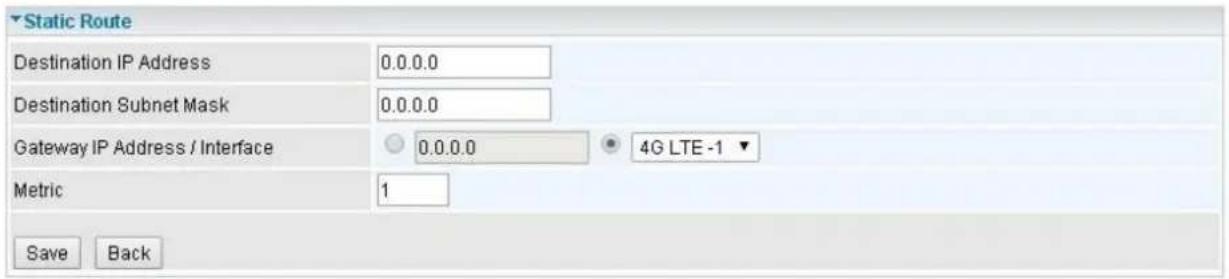

Static Routing 83

NAT 84

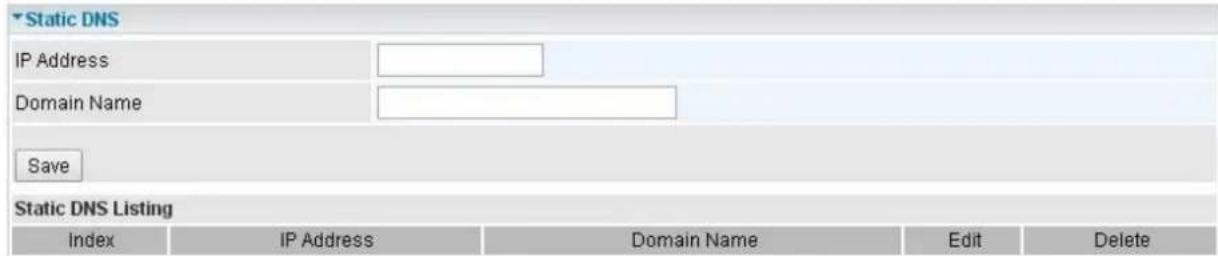

Static DNS....89

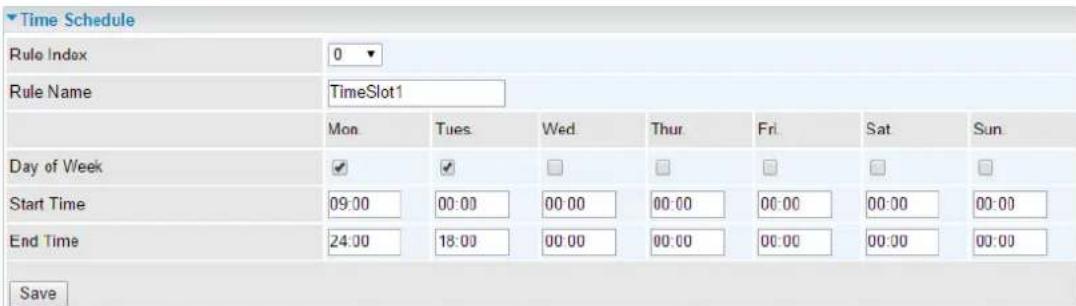

Time Schedule 90

Mail Alert 91

Access Management 92

Device Management 92

SNMP 93

Remote System Log 94

Universal Plug & Play 95

Dynamic DNS (DDNS) 96

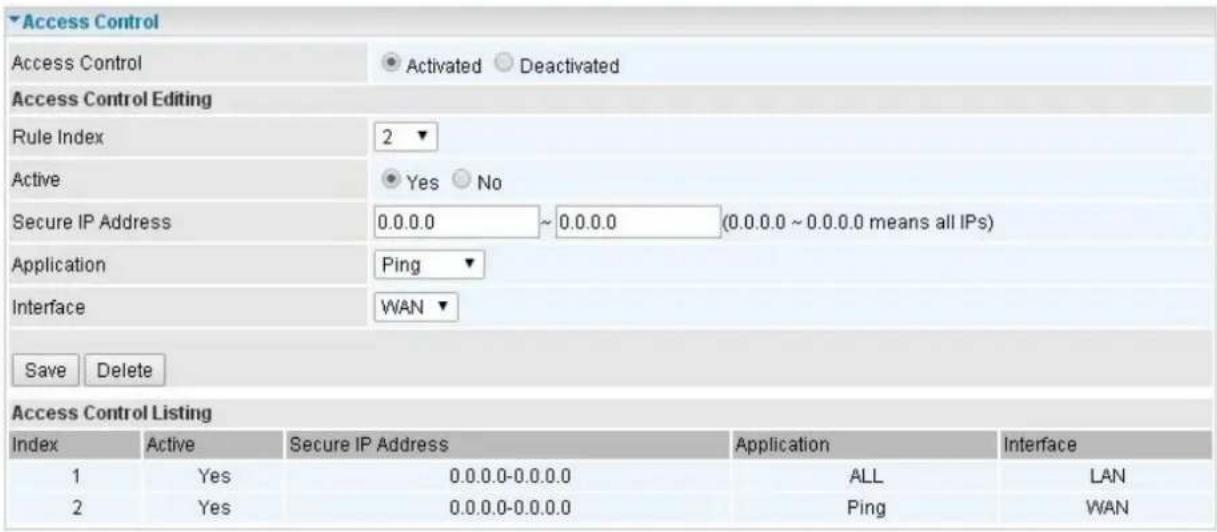

Access Control 98

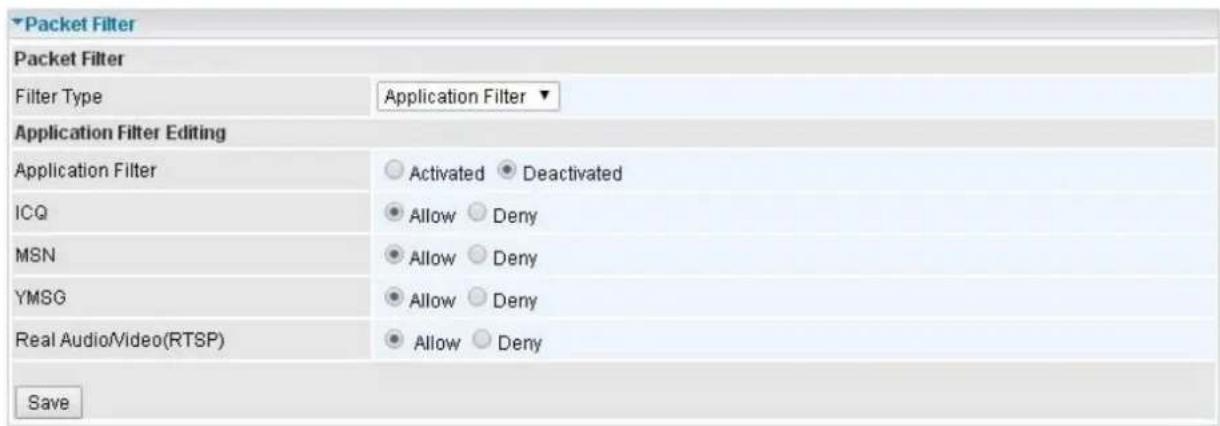

Packet Filter....100

CWMP (TR-069).... 104

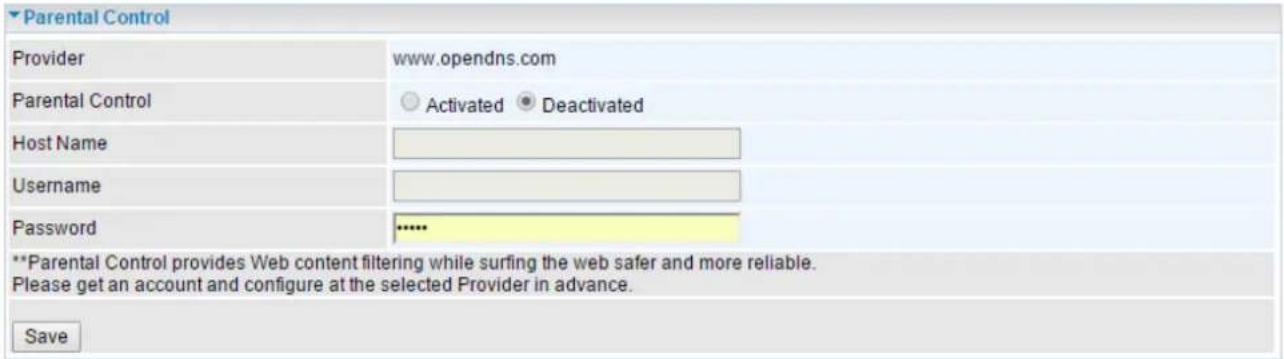

Parental Control 106

Maintenance 107

User Management 107

Time Zone....111

Firmware & Configuration 112

System Restart.... 113

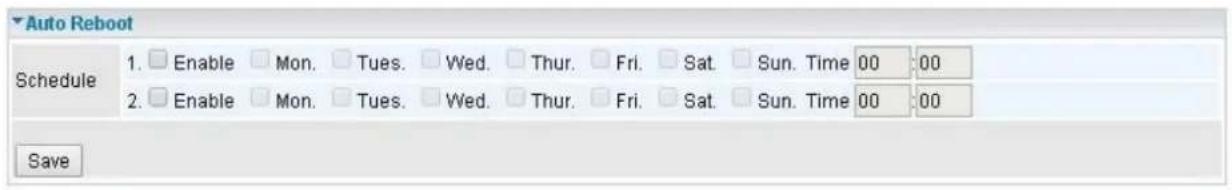

Auto Reboot 114

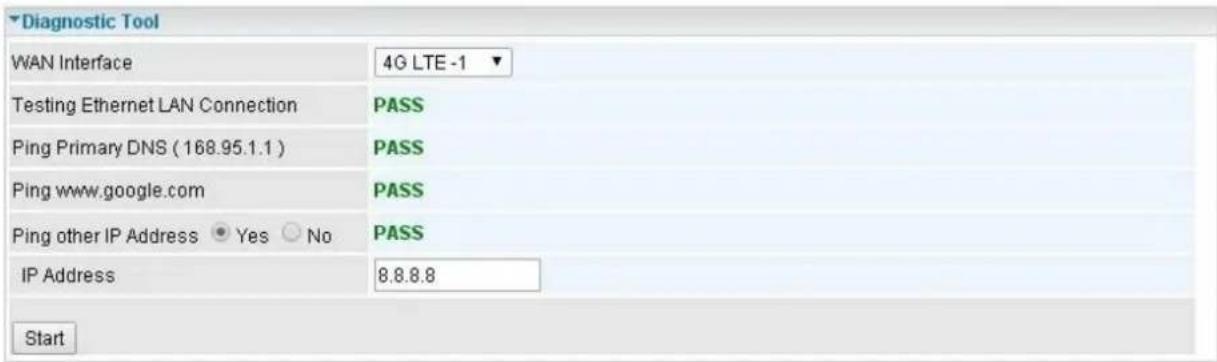

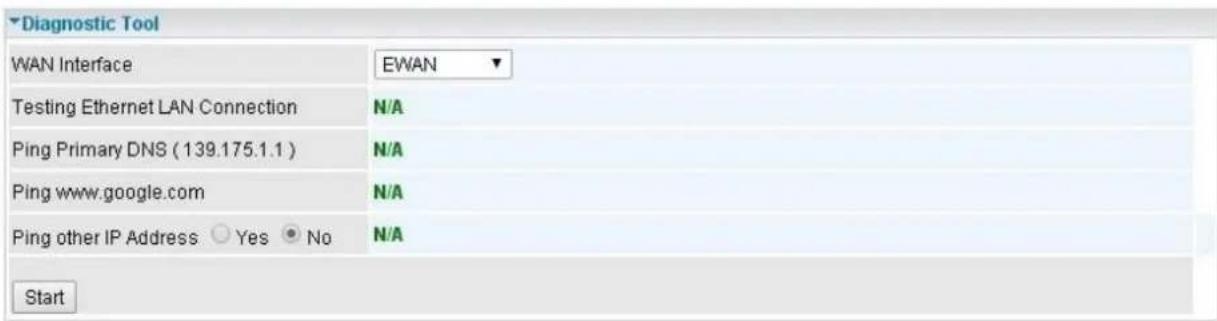

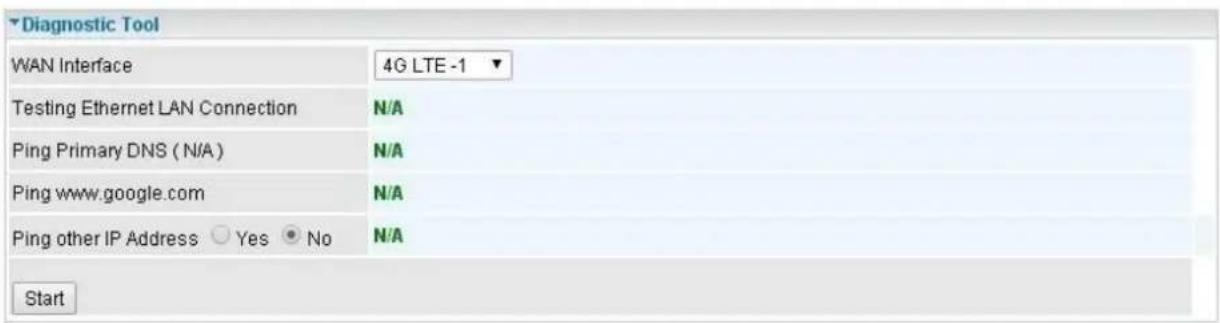

Diagnostics Tool.... 115

CHAPTER 5: TROUBLESHOOTING .....116

Problems with the Router 116

Problem with LAN Interface 116

Recovery Procedures....117

APPENDIX: PRODUCT SUPPORT & CONTACT 118

FCC STATEMENT.... 119

CHAPTER 1: INTRODUCTION

Introduction to your Router

Congratulations on your purchase of the BEC 4700FWB (RidgeWave® 5GHz Base Station).

This unit is an Outdoor Wireless Broadband Router, offers a cost-effective alternative by utilizing the license-free 5GHz and bridging with existing fiber-base infrastructure providing secure, reliable performance Wi-Fi connectivity and coverage to outside locations and harsh environment where cannot get service at required speed. The rugged, compact IP68 rated enclosure enables it to stand up to dirt, harmful ingress of water, humidity and extreme temperatures for years of dependable operation.

Lightweight, Compact and unobtrusive Design

With multiple mounting options and a lightwegithed, it is easily to install the BEC 4700 by single person. The BEC 4700 also has a built-in passive Gigabit Power of Ethernet (GPoE) so both data and power can be sent from the unit.

Designed for Challenging / Rugged Deployments

The BEC 4700 is designed for the toughest industrial environments. With IP67 hardened enclosure with industrial-grade components, the BEC 4700 can be installed in manufacturing plants, industrial automation, stadiums, convention halls, stadium facilities, school campuses, etc.

New Experience with Wi-Fi Speed and Coverage

With the next wireless generation, 802.11ac, integrated in the BEC 4700, the router delivers fast Wi-Fi speeds of up to 2000Mbps. The BEC 4700 supports a link rate up to 300Mbps in 2.4GHz frequency range & 1700Mbps in 5GHz range and is also backward compatible with existing 802.11 a / b / g / n wireless equipment in the network. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over Wireless LAN. BEC 4700 also supports the Wi-Fi Protected Setup (WPS) standard for easy and secure establishment of a wireless home network. If the user's network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function expands the wireless network without needing any external wires or cables.

IPv6 Supported

Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4. IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use it in IPv6 environment no need to change device. The dual-stack protocol implementation in an operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6 protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in modern operating systems supporting IPv6.

Quick Start Wizard

Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you connected to the Internet immediately.

Firmware Upgradeable

Device can be upgraded to the latest firmware through the WEB based GUI.

Features & Specifications

• Concurrent 2.4GHz & 5GHz Wi-Fi Connections
- Firewall security with DoS prevention and SPI
• Quality of Service control
- Syslog monitoring
- Ease of Use with Quick Installation Wizard
- Ideal for boat marina, campgrounds, RV parks, public parks, urban space, remote connectivity

Operational Mode

- Bridge or Routed mode

Network Protocols and Features

• IPv4, IPv6 or IPv4 / IPv6 Dual Stack
  • NAT, static (v4/v6) routing and RIP-1 / 2
• DHCPv4 / v6
  • Universal Plug and Play (UPnP) Compliant
  • Dynamic Domain Name System (DDNS)

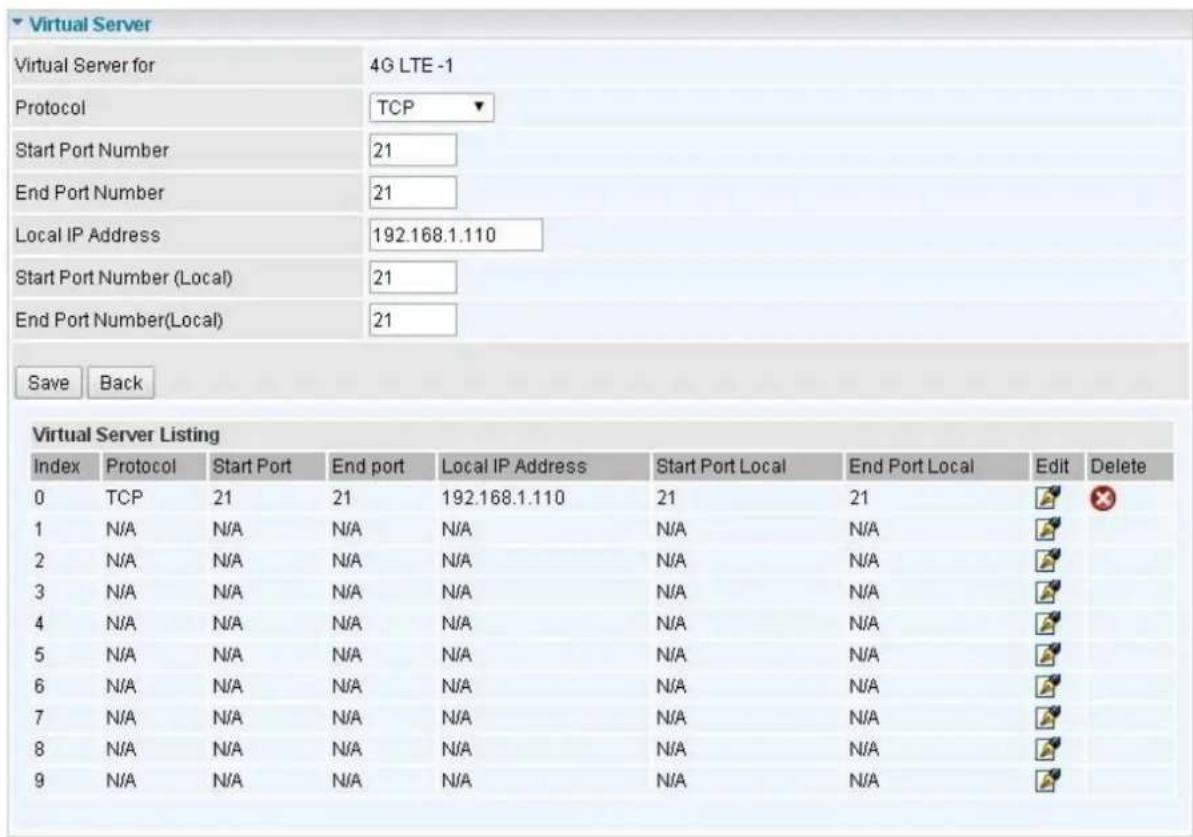

  • Virtual Server and DMZ
• SNTP, DNS proxy

Firewall

• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
- DoS attack prevention including Land Attack, Ping of Death, etc
- Access control
• IP&MAC filter, URL Content Filter
- Password protection for system management
- VPN pass-through

Quality of Service Control

• Supports the DiffServ approach
- Traffic prioritization based-on protocol, port number and IP address

Wireless Radio

• Wireless Standard (IEEE) : 802.11a/n/ac and 802.11i / d / e / w / h / k / r / s(Draft)
  • Frequency: 4.9 - 5.85GHz
  • MIMO: 4 x 4 : 4 MIMO
• Modulation: OFDM up to 256-QAM
  • Max. Phy Data Rate up 1.7Gbps
  • Max. Output Power: 30±2 dBm (EIRP)
  • Channel Bandwidth: 20 / 40 / 80 MHz
• Sensitivity (MCS 0): -84 dBm @ 80 MHz
  :-87 dBm @ 40 MHz and -90 dBm @ 20 MHz

Wireless Antennas

• Frequency Range: 5150-5850MHz
• Gain: 18 x 4 dBi, VSWR: ≤ 1.6
- Beamwidth: 65 ± 5^ (Horizontal) 7 ± 2^ (Vertical)
- Polarization Type: ± 45^
• Front-to-Back Ratio: >28 dB
- Dimensions: 5.04" (W) x 39.37" (H) x 2.28" (D) (128mm x 1000 mm x 58mm)
• Weight: 3.5kg (7.72lbs)
• Rated Wind Velocity: 140km/h

Wireless LAN

• Operating Modes: AP Router and Repeater
• Selectable Channel Bandwidth: 20 / 40 / 80 MHz
  • Security: WPA-PSK, WPA2-PSK, Mixed WPA / WAP2-PSK (TKIP/AES)

Management

• Quick Installation wizard
• Web-based GUI for Remote and local Management
• Access control by services or protocols
• Firmware upgrade and configuration data upload and download via web-based GUI and Cloud.
• BECentral® Cloud Management
• Syslog Monitoring

Hardware Specifications

Physical interface

• (2) Gigabit Ethernet Interfaces.

: EWAN

: LAN/PoE

- Wireless N-Type Connectors with Arrester

: (4) External 5GHz N-Type Antennas

- Reset Button

• LED Indicators: Power/Boot, LAN(PoE), WAN, WI-Fi Internet

Physical Specifications

- Dimensions (W*H*D): 8.5" x 7.5" x 3"(257mm x 227mm x 91mm)

• Weight: 2kgs (4.4lbs) (Without Mount)

- Industrial-grade IP68 and Vent integration enclosure

- Top cover material UL-746C compliant for UV-resistant

Application Diagram

CHAPTER 2: PRODUCT OVERVIEW

Important Note for Using This Router

Attention

√ Do not remove, open or repair the case yourself. Contact with your Internet Service Provider or have it repaired at a qualified service center.
√ Use the supplied PoE (Power-over-Ethernet) injector for indoor only or with any 802.3at capable PoE injectors to connect with the BEC 4700.
√ It is mandatory to earth ground the BEC 4700. Improper grounding not only could damage the unit but also all equipments connected to it.

Package Contents

√ The BEC 4700FWB 5GHz Base Station x 1

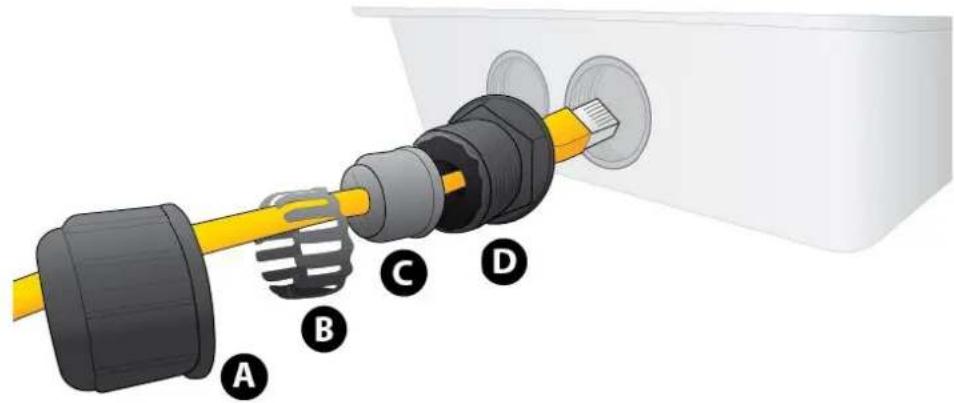

√ M25 Cable Gland x 2
√ Quick Start Guide x 1
√ Outdoor LAN Cable x 1
√ Gigabit Power-over-Ethernet (PoE) Injector x 1
√ Grounding Wire x 1
√ 5GHz Wi-Fi Antenna x 4
√ Mounting Kit x 1

Device Description

LED		MEANING
1	Resest Button	After the device is powered on, press it 6 seconds or above: to restore to factory default settings (this is used when you cannot login to the router, e.g. forgot your password)
2	5GHz WIFI LED	Green	Wireless connection established
		Blinking	Data being transmitted / received
3	Power LED	Green	System is up and ready
		Red	Boot failure
4	Internet LED	Green	IP address is received. WAN connection is ready
		Red	IP request failed
		Off	Either in bridged mode or WAN connection is not available
PORT & LED		MEANING
5	Gb Ethernet LAN	Use an outdoor Ethernet cable to connect with any Ethernet equipment.
		Green	Transmission speed is at Gigabit speed (1000Mbps)
		Orange	Transmission speed is at 10/100Mbps
		Blinking	Data being transmitted/received
6	Gb Ethernet WAN / PoE IN	WAN & PoE interface. Connect with the supplied 802.3at Gb PoE injector to provide power & data.
		Green	Transmission speed is at Gigabit speed (1000Mbps)
		Orange	Transmission speed is at 10/100Mbps
		Blinking	Data being transmitted/received
7	WIFI Antenna Connectors (5GHz)	Screw the supplied Wi-Fi antennas onto those 4 antenna connectors.

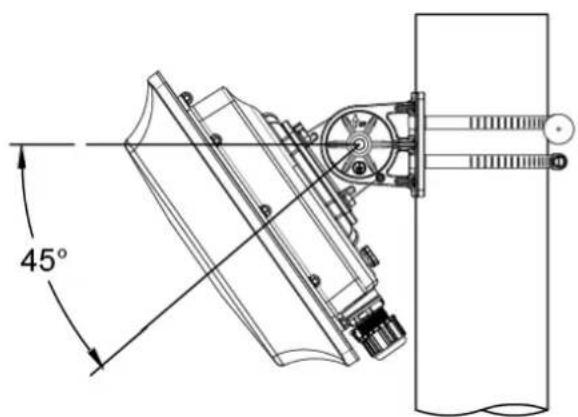

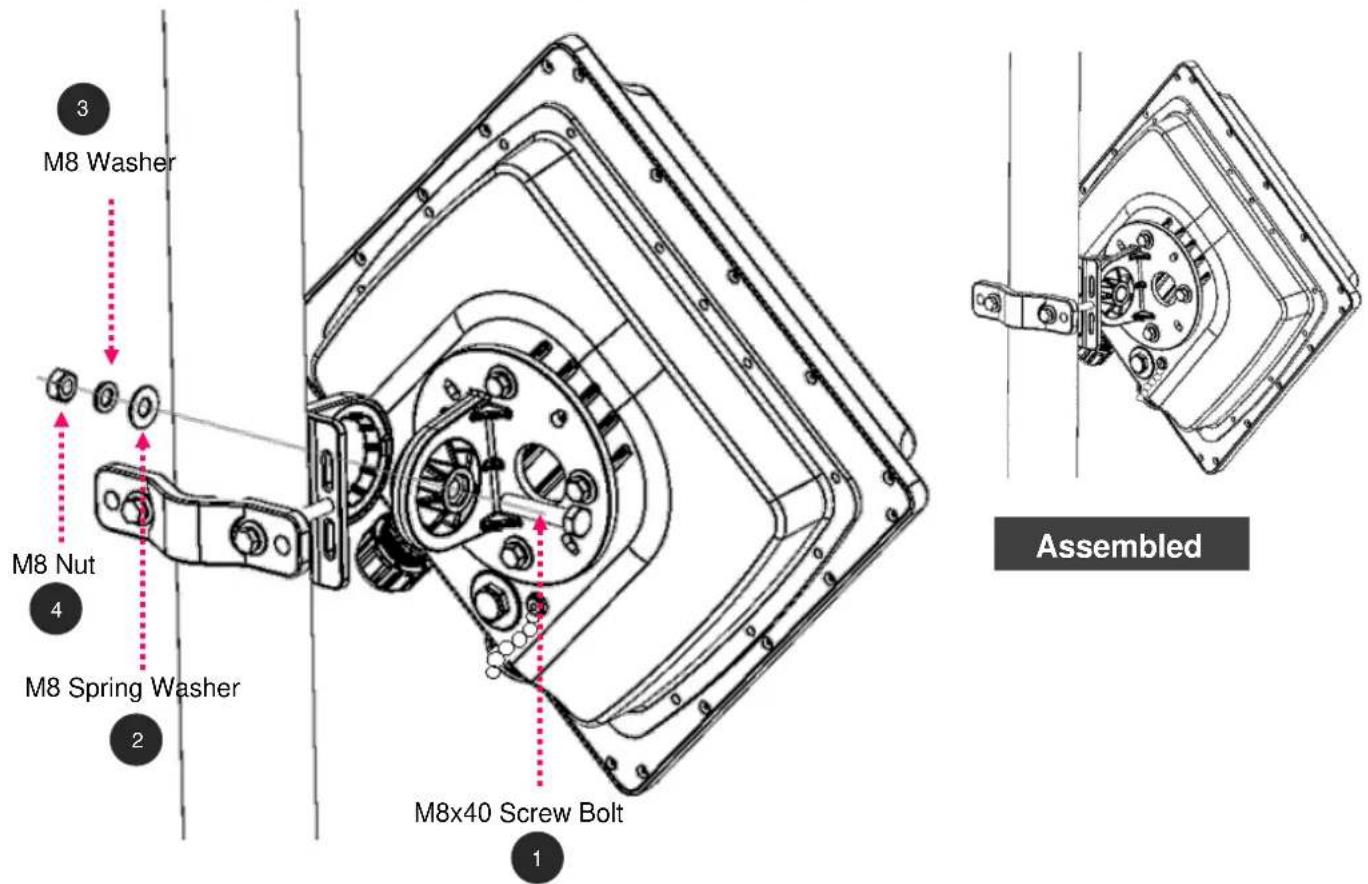

Mounting Kit Installation

Mounting Kit includes:

Articulation Pole x 1
◆ T-formed Bracket x 1
◆ Stainless Hose Clamp x 2
◆ M8x40 Screw Bolt x 1
M8 Nut x 1
◆ M8 Washer x 1
◆ M6 Washer x 4
◆ Spring Washer M8 x 1
◆ Spring Washer M6 x 4
◆ M6x16 Screw x 4

Articulation Pole x 1

M8 Nut x 1

T-form Bracket x 1

M8 Washer x 1

M6 Washer x 4

Spring Washer M8 x 1

M8x40 Screw Bolt x 1

M6 x 16 Screw x 4

For Wall Mount Installation, you'll need:

◆ Wood Screw x 4
◆ Wood / Gyprock x 4

Wood Screw x 4
Wood / Gyprock Plug x 4

For Pole Mount Installation, you'll need:

W-Bar x 1
◆ M6 x 60 Screw Bolts x 2
◆ M6 Washer x 2
◆ Spring Washer x 2
◆ Stainless Hose Clamp x 2

W-Bar x 1

Hose Clamp x 2

M6 x 60 Screw Bolt x 2

M6 Washer x 2

Spring Washer M6 x 2

1. Attach the Articulation Pole to the Enclosure

Attach the articulation pole to the back of the BEC 4700FWB enclosure using the supplied M6 screws, M6 spring washers and M6x16 screws which are included in the mounting kit.

2. Wall or Pole Mount Installation

2.1 Mounting on Wall

Fix the T-formed Bracket to the wall by using wood screws and Gyprock plugs.

2.2 Mounting on a Pole

2.2.1 Mounting for pole smaller than 1.5" (38mm)

Attach the T-formed Bracket and the W-bar to the pole then use M6x60 bolts, M6 spring washers and M6 washers to fix the mounting kit onto the pole.

2.2 Mounting on a Pole (Cont.

2.2.1 Mounting for Pole 3" (80mm) or above

Technical diagram of a mechanical assembly with red arrows indicating motion or force direction (no text or symbols)

Use the stainless hose clamps through the T-formed Bracket.

Technical line drawing of a mechanical assembly with no visible text or symbols

Fix the T-formed Bracket to the pole by using the supplied stainless hose clamps. Use a flat-head screwdriver to turn the head of the screw clockwise to tighten it.

3. Install the Articulation Pole with the T-formed Bracket

Attach the articulation pole (BEC 4700FWB enclosure) to the T-formed bracket using the supplied M8 nut, M8 spring washer, M8 washer and M8x40 screw bolt.

Router Installation Instructions

1. Power on your BEC 4700

Step 1: Assemble M25 cable gland

A

B

C

D

Step 2:

Unscrew the WAN/PoE IN port and insert the supplied outdoor Ethernet cable (RJ-45) through material A-D, and then connect the RJ-45 Ethernet cable into the WAN/PoE IN port.

Step 3:

3.1: Insert Ⓐ at the back end of Ⓓ
3.2: clip Ⓑ on Ⓒ
3.3: keep Ⓑ close to Ⓓ
3.4: then tighten Ⓐ.

Diagram showing a cable being inserted into a connector, with no text or symbols present.

Step 4:

Powering via PoE Injector: Insert the other end of outdoor Ethernet cable (RJ-45) to the supplied Gigabit PoE injector Data+Power port. Connect another Ethernet cable (RJ-45) directly to the Data port and the other end of cable to a switch or broadband router.

Powering via a PoE Switch: Connect the Ethernet cable (RJ-45) from the 4700FWB directly to a PoE port on the switch.

2. Grounding the BEC 4700FWB to Complete the Installation

Attach the grounding wire to the BEC 4700FWB and tighten the screw

3. Position Adjustment

Adjust the 4700FWB until it reaches the desire elevation and depression angle, then tight the M8 nut (see Install the Articulation Pole with the T-formed Bracket for more information)

Completed

System Recovery Procedures

The purpose is to allow users to restore the BEC 4700 to its initial stage when the device is outage, upgraded to a wrong / broken firmware, cannot access to the GUI with wrong username and/or password, etc.

Step 1 – Configure your PC Network IP Address

Before performing the system recovery, assign this IP address and Netmask to your PC, 192.168.1.100 and 255.255.255.0 respectively.

Step 2 – Reset your BEC 4700 Device

2.1 Power off your BEC 4700
2.2 Power on the BEC 4700 while pushing the RESET button with a small pointed object (such as paper clip, needle, toothpick, and etc.).
2.3 When the POWER LED turns RED, keep holding and pushing the RESET button for more 6 seconds then release it. The INTERNET LED will flash in GREEN afterward.

Step 3 – Restore your BEC 4700 Device

With INTERNET light flashes green, BEC 4700 is in recovery mode and ready for a new Firmware.

3.1 Open a web browser and type the IP address, 192.168.1.1, to access to the recovery page.
NOTE: In the recovery mode, BEC 4700 will not respond to any PING or other requests.
3.2 Browse to the new Firmware image file then click Upload to start the upgrade process.
3.3 INTERNET LED turns red means the Firmware upgrade is in process.
DO NOT power off or reboot the device, it would permanently damage your BEC 4700.
3.4 INTERNET LED turns green after the Firmware upgrade completed
3.5 Power cycle on & off to regain access to the BEC 4700.

CHAPTER 3: BASIC INSTALLATION

The router can be configured with your web browser. A web browser is included as a standard application in the following operating systems: Windows 7 / 8 / 10, Linux, Mac OS, etc. The product provides an easy and user-friendly interface for configuration.

PCs must have an Ethernet interface installed properly and be connected to the router either directly or through an external repeater hub and have TCP/IP installed or configured to obtain an IP address through a DHCP server or a fixed IP address that must be in the same subnet as the router. The default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any attached PC must be in the same subnet and have an IP address in the range of 192.168.1.1 to 192.168.1.253). The best and easiest way is to configure the PC to get an IP address automatically from the router using DHCP. If you encounter any problems accessing the router's web interface it may also be advisable to uninstall any kind of software firewall on your PCs, as they can cause problems accessing the 192.168.1.254 IP address of the router. Users should make their own decisions on how to best protect their network.

Please follow the steps below for your PC's network environment installation. First of all, please check your PC's network components. The TCP/IP protocol stack and Ethernet network adapter must be installed. If not, please refer to your Windows-related or other operating system manuals.

Attention

Any TCP/IP capable workstation can be used to communicate with or through the BEC 4700. To configure other types of workstations, please consult the manufacturer's documentation.

Network Configuration – IPv4

Configuring PC in Windows 10 (IPv4)

1. Click .

2. Click

1. Then click on Network and Internet.

1. Under Related settings, select Network and Sharing Center

Related settings

Change adapter options

Change advanced sharing options

Network and Sharing Center

HomeGroup

Internet options

Windows Firewall

1. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.

2. Select the Local Area Connection, and right click the icon to select Properties.

1. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties.

1. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows 7/8 (IPv4)

1. Go to Start. Click on Control Panel.

2. Then click on Network and Internet.

3. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.

1. Select the Local Area Connection, and right click the icon to select Properties.

1. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties.

1. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows Vista (IPv4)

1. Go to Start. Click on Network.

2. Then click on Network and Sharing Center at the top bar.

3. When the Network and Sharing Center window pops up, select and click on Manage network connections on the left window panel.

1. Select the Local Area Connection, and right click the icon to select Properties.

1. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties.

1. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Network Configuration – IPv6

Configuring PC in Windows 10 (IPv6)

1. Click .
2. Click Settings
3. Then click on Network and Internet.
4. Under Related settings, select Network and Sharing Center
5. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.
6. Select the Local Area Connection, and right click the icon to select Properties.

Related settings

Change adapter options

Change advanced sharing options

Network and Sharing Center

HomeGroup

Internet options

Windows Firewall

1. Select Internet Protocol Version 6 (TCP/IPv6) then click Properties.

1. In the TCP/IPv6 properties window, select the Obtain an IPv6 address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows 7/8 (IPv6)

1. Go to Start. Click on Control Panel.

2. Then click on Network and Internet.

3. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.

4. Select the Local Area Connection, and right click the icon to select Properties.

1. Select Internet Protocol Version 6 (TCP/IPv6) then click Properties.

1. In the TCP/IPv6 properties window, select the Obtain an IPv6 address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows Vista (IPv6)

1. Go to Start. Click on Network.

2. Then click on Network and Sharing Center at the top bar.

3. When the Network and Sharing Center window pops up, select and click on Manage network connections on the left window pane.

1. Select the Local Area Connection, and right click the icon to select Properties.

1. Select Internet Protocol Version 6 (TCP/IPv6) then click Properties.

1. In the TCP/IPv6 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Default Settings

Before configuring the router, you need to know the following default settings.

Web Interface: (Username and Password)

Administrator

√ Username: admin
√ Password: admin

If you ever forget the username/password to login to the router, you may press the RESET button up to 6 seconds then release it to restore the factory default settings.

Caution: After pressing the RESET button for more than 6 seconds then release it, to be sure you power cycle the device again.

Device LAN IP Settings

√ IP Address: 192.168.1.254
√ Subnet Mask: 255.255.255.0

DHCP Server:

√ DHCP server is enabled.
√ Start IP Address: 192.168.1.100
√ IP pool counts: 100

Information from Your ISP

Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind of service is provided, Dynamic IP address, Static IP address, PPPoE ir Bridge Mode).

Gather the information as illustrated in the following table and keep it for reference.

PPPoE	Username, Password, Service Name, and Domain Name System (DNS) IP address (it can be automatically assigned by your ISP when you connect or be set manually).
Dynamic IP Address	DHCP Client (it can be automatically assigned by your ISP when you connect or be set manually).
Static IP Address	IP address, Subnet mask, Gateway address, and Domain Name System (DNS) IP address (it is fixed IP address).

CHAPTER 4: DEVICE CONFIGURATION

Login to your Device

Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click "Go", a username and password window prompt appears.

The default username & password is "admin" & "admin" respectively for the Administrator.

NOTE: This username / password may vary by different Internet Service Providers.

Congratulations! You have successfully logged on to your BEC 4700

Once you have logged on to your BEC 4700 via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which includes:

Section	Status	Quick Start (Wizard Setup)	Configuration
Sub-Items	Device Info		Interface Setup- Internet- LAN- Wireless 2.4G / 5G- Wireless 2.4G / 5G MAC Filter- Wireless 5G Repeater- LoopbackHotspot- General Setting- Built-in User Account- Authorized of Client- Walled Garden- Advertisement- Hotspot Status Log- CustomizationAdvanced Setup- Firewall- Routing- NAT- VRRP- Static DNS- QoS- Time Schedule- Mail AlertAccess Management- Device Management- SNMP- Syslog- Universal Plug & Play (UPnP)- Dynamic DNS- Access Control- Packet Filter- CWMP (TR-069)- Parental Control- BECentral ManagementMaintenance- User Management- Certificate Management- Time Zone- Firmware & Configuration- System Restart- Auto Reboot- Diagnostic Tool
	System Status
	System Log
	Wireless Status
	Hotspot Status
	Statistics
	DHCP Table
	ARP Table
	VRRP

Please see the relevant sections of this manual for detailed instructions on how to configure your BEC 4700.

Status

Device Info

It provides brief status summary of the device.

Device Information
Model Name	BEC 4700A
Firmware Version	1.04.1.348
MAC Address	00:04:ed:47:01:10
Date-Time	Mon Apr 10 01:41:22 2017
System Up Time	1 hour 41 mins

Physical Port Status
EWAN	×
Ethernet	√
Wireless 2.4G	√
Wireless 5G	√

WAN
Interface	Protocol	Connection	IP Address	Default Gateway
EWAN ▼	PPPoE	Not Connected	/

IP Address	Subnet Mask/Prefix Length	DHCP Server
192.168.1.254	255.255.255.0	Enable / 192.168.1.100~192.168.1.199Enable / Stateless

Wireless 2.4G
Mode	SSID	Channel	Security
802.11b+g+n	BEC110	6	Mixed WPA2/WPA-PSK

Wireless 5G
Mode	SSID	Channel	Security
802.11ac	BEC111	153	Mixed WPA2/WPA-PSK

Device Information

Model Name: Name of the router for identification purpose.

Firmware Version: Software version currently loaded in the router.

MAC Address: A unique number that identifies the router.

Data Time: Setup correct time on the BEC 4700 with your PC. Check on Time Zone section for more configuration information.

System Uptime: Display how long the BEC 4700 has been powered on.

Physical Port Status

Physical Port Status : Display available connection interfaces supported in the MX-221P.

WAN

Interface: List current available WAN connections.

Protocol: Display selected WAN connection protocol

Connection: The current connection status.

IP Address: WAN port IP address.

Default Gateway: The IP address of the default gateway.

LAN

IP Address: LAN port IPv4 address.

Subnet Mask/Prefix Length: Display LAN port IP subnet mask of IPv4 and/or Prefix length of IPv6.

DHCP Server: Display LAN DHCP status of IPv4 and IPv6.

▶ Enable / 192.168.1.100\~199: DHCPv4 server status on or off / DHCP IP range.
▶ Enable / Stateless: DHCPv6 server status on or off / DHCPv6 server Type.

Wireless

Mode: Display selected Wireless mode.

SSID: Display the name of the Wireless AP(s) to use.

Channel: Display radio frequency to be used for this wireless link.

Security: Display security method to be used for this wireless link.

System Status

System status displays the current router system (CPU and Memory) usage.

System Status
CPU
Usage	16%
Memory
Total	61092 kB
Free	21304 kB
Cached	16072 kB
Refresh

CPU

Usage: Display the amount of CPU's processing capacity is being used in percentage (%). Higher the % rate may result in slow Internet loading, experiencing video lags, etc. To reduce high CPU consumption by resetting the device, power off and on, an easiest way to regain the service.

Memory

Total / Free / Cached (in Kbyte): Display the memory consumptions in kilobytes (kB).

Click Refresh button to update the status.

System Log

In system log, you can check the operations status and any glitches to the router.

Refresh: Press this button to refresh the statistics.

Backup: Press to save the System log, log.cfg, to your PC.

Wireless Status

Wireless 2.4G Status
MAC	SSID	RSSI	Rx Rate	Tx Rate	Connected Time	Host Name	IP Address	Expire Time
Wireless 5G Status
MAC	SSID	RSSI	Rx Rate	Tx Rate	Connected Time	Host Name	IP Address	Expire Time
86:88:20:17:1e:fe	BEC111	-69	325 Mbps, MCS:7, 80 MHz	260 Mbps, MCS:5, 80 MHz	00:00:9	OlincyNBkllPhone	192.168.1.100	0 days 23:59:50
Wireless 5G Repeater Status
MAC			SSID		RSSI		Connected Time
Refresh

MAC: The MAC of the connected wireless device.

SSID: Display the total bytes transmitted till the latest second for the current connection for the current connection.

RSSI: Display the signal strength between the wireless client and the AP (Access Point).

RX / TX Rate: Display the current data reception (RX) and transmission (TX) rate, in Mbps, of the Wi-Fi client can use. Also display the MCS (Modulation and Coding Scheme) index and Channel Bandwidth are used. If 20MHz Channel Bandwidth is bing used, the maximum rate is MCS7 (65Mbps) or MCS15 (150Mbps). If it is in 40Mhz Channel, then th emaximum rate is MCS7 (150Mbps) or MCS15 (300Mbps).

Connected Time: Display the total amount of time the wireless client has connected with the wireless AP.

Host Name: Display the hostname of the Wi-Fi client.

IP Address: The LAN IP address assigned to the wireless device.

Expire Time: Display remaining time before connection expires or timeout.

Refresh: Click to refresh the statistics.

Hotspot Status

The status table displays a list of connected Wi-Fi clients via the hotspot.

Hotspot Status
Action	MAC Address	IP Address	Authenticated	User Name	Duration Time	Idle Time	Upload Bandwidth	Download Bandwidth	Download Data Usage	Upload Data Usage	Total Data Usage
Drop	98:01:A7:5B:4D:1C	10.0.0.3	Not	-	0/0	0/0	0/0	0/0	0/0	0/0	0/0
Drop	38:89:2C:17:4E:FE	10.0.0.2	Authorized	-	22/3600	2/180	0%/0	0%/0	0/0	0/0	0/0
Refresh

Action: Click Drop to discount the user connection to the Wi-Fi network.

MAC Address: The MAC of the connected wireless device.

IP Address: The LAN IP address assigned to the wireless device.

Authentication: Identification of the wireless device is being authorized or not.

User Name: The authentication username used to login to the hotspot. Go to Built-in User Account for detailed login account list.

Duration Time (remaining time / available session time interval): Display remaining interval available before session expires/timeout.

Idle Time (current idle time / total idle timeout period): Display current idle time of the Wi-Fi device. If it reaches to total idle timeout period, the Internet connection will get disconnected immediately.

Upload / Download (used / available bandwidth in %): Display current used bandwidths, in upload and download, out of the maximum allow usage in %.

Total Data Usage: Dispaly total data usage of the Wi-Fi user.

Refresh: Click to refresh the statistics.

Statistics

Ethernet WAN

Statistics
Traffic Statistics
Interface	EWAN Ethernet Wireless 5G
Transmit Statistics		Receive Statistics
Transmit Frames	0	Receive Frames	0
Transmit Multicast Frames	0	Receive Multicast Frame	0
Transmit Total Bytes	0	Receive Total Bytes	0
Transmit Collision	0	Receive CRC Errors	0
Transmit Error Frames	0	Receive Under-size Frames	0
Traffic Speed
Transmit Speed	0.00KBps	Receive Speed	0.00KBps
Refresh			Auto Refresh None ▼

Traffic Statistics

Interface: List all available network interfaces in the router. You are currently checking on the physical status of the WAN port.

Transmit Statistics

Transmit Frames: Display the number of frames transmitted until the latest second.

Transmit Multicast Frames: Display the number of multicast frames transmitted until the latest second.

Transmit Total Bytes: Display the number of bytes transmitted until the latest second.

Transmit Collision: Numbers of collisions have occurred on this port.

Transmit Error Frames: Display the number of error packets on this port.

Receive Statistics

Receive Frames: Display the number of frames received until the latest second.

Receive Multicast Frames: Display the number of multicast frames received until the latest second.

Receive Total Bytes: Display the number of bytes received until the latest second.

Receive CRC Errors: Display the number of error packets on this port.

Receive Under-size Frames: Display the number of under-size frames received until the latest second.

Traffic Speed

Transmit Speed: Display the data rate can be transferred to the server, the Broadband Internet Service Provider.

Receive Speed: Display the data rate receives from the Broadband Internet Service Provider.

Refresh: Click to manually refresh the data.

Auto Reresh: Select a time interval to refresh the data automatically or none to disable the feature.

Ethernet

Traffic Statistics
Interface	EWAN	Ethernet	Wireless 5G
Transmit Statistics		Receive Statistics
Transmit Frames	9885	Receive Frames	7710
Transmit Multicast Frames	1896	Receive Multicast Frame	462
Transmit Total Bytes	8735356	Receive Total Bytes	829147
Transmit Collision	0	Receive CRC Errors	0
Transmit Error Frames	0	Receive Under-size Frames	0
Traffic Speed
Transmit Speed	0.28KBps	Receive Speed	0.26KBps
Refresh			Auto Refresh None ▼

Traffic Statistics

Interface: List all available network interfaces in the router. You are currently checking on the physical status of the Ethernet port.

Transmit Statistics

Transmit Frames: Display the number of frames transmitted until the latest second.

Transmit Multicast Frames: Display the number of multicast frames transmitted until the latest second.

Transmit Total Bytes: Display the number of bytes transmitted until the latest second.

Transmit Collision: Numbers of collisions have occurred on this port.

Transmit Error Frames: Display the number of error packets on this port.

Receive Statistics

Receive Frames: Display the number of frames received until the latest second.

Receive Multicast Frames: Display the number of multicast frames received until the latest second.

Receive Total Bytes: Display the number of bytes received until the latest second.

Receive CRC Errors: Display the number of error packets on this port.

Receive Under-size Frames: Display the number of under-size frames received until the latest second.

Traffic Speed

Transmit Speed: Display the data rate can be transferred to the server, the Broadband Internet Service Provider.

Receive Speed: Display the data rate receives from the Broadband Internet Service Provider.

Refresh: Click to manually refresh the data.

Auto Reresh: Select a time interval to refresh the data automatically or none to disable the feature.

Wireless

Statistics
Traffic Statistics
Interface	EWAN Ethernet Wireless 5G
Transmit Statistics		Receive Statistics
Transmit Frames	5315	Receive Frames	5235
Transmit Error Frames	0	Receive Error Frames	0
Transmit Drop Frames	0	Receive Drop Frames	0
Traffic Speed
Transmit Speed	0.12KBps	Receive Speed	0.08KBps
Refresh			Auto Refresh None ▼

Traffic Statistics

Interface: List all available network interfaces in the router. You are currently checking on the physical status of the Wireless 5G.

Transmit Statistics

Transmit Frames: Display the number of frames transmitted until the latest second.

Transmit Error Frames: Display the number of error frames transmitted until the latest second.

Transmit Drop Frames: Display the number of drop frames transmitted until the latest second.

Receive Statistics

Receive Frames: Display the number of frames received until the latest second.

Receive Error Frames: Display the number of error frames received until the latest second.

Receive Drop Frames: Display the number of drop frames received until the latest second.

Traffic Speed

Transmit Speed: Display the data rate can be transferred to the server, the Wireless AP.

Receive Speed: Display the data rate receives from the Wireless AP.

Refresh: Click to manually refresh the data.

Auto Reresh: Select a time interval to refresh the data automatically or none to disable the feature.

DHCP Table

DHCP table displays the devices connected to the router with clear information.

DHCP Table
Index	Host Name	IP Address	MAC Address	Expire Time
1	Billion-HC-ee	192.168.1.101	00:C0:9F:D1:E1:CA	0days 23:36:1

Index #: The numeric indicator for devices using dynamic IP addresses.

Host Name: Show the hostname of the PC.

IP Address: The IP allocated to the device.

MAC Address: The MAC of the connected device.

Expire Time: The total remaining interval since the IP assignment to the PC.

ARP Table

This section displays the router's ARP (Address Resolution Protocol) Table, which shows the mapping of Internet (IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way of determining the MAC address of the network interface of your PCs to use with the router's Firewall - MAC Address Filter function. See the Firewall section of this manual for more information on this feature.

#	IP	MAC Address
1	192.168.1.11	###

Index #: The numeric indicator for the ARP table.

IP Address: It is IP Address of internal host that join this network.

MAC Address: The MAC address of internal host.

VRRP Status

VRRP Status
Current Status	N/A
Current Master	N/A

Current Status: Display current VRRP status, Master or Backup.

Current Master: Display the IP address of the Master.

Quick Start

This is a useful and easy utility to help you to setup the router quickly and to connect to your ISP (Internet Service Provider) with only a few steps. It will guide you step by step to setup password, time zone, wireless, and WAN settings of your device. The Quick Start Wizard is a helpful guide for the first-time users to the device.

For detailed instructions on configuring WAN settings, see refer to the Interface Setup section.

Click NEXT to move on to Step 1.

Step 1 – Password

Set new password of the "admin" account to access for router management. The default is "admin". Once changed, please use this new password next time when accessing to the router. Click NEXT to continue.

Step 2 – Time Zone

Choose your time zone. Click NEXT to continue.

Step 3 – Wireless

Set up your wireless connection if you want to connect to the Internet wirelessly on your PCs. Click NEXT to continue.

Step 4 – ISP Connection Type

Set up your WAN Internet connection.

Input all relevant parameters from your ISP.

Click Next to continue.

If selected EWAN / PPPoE, please enter PPPoE account information provided by your ISP. Click NEXT to continue.

Step 5 – Quick Start Completed

The Setup Wizard has completed. Click on BACK to make changes or correct mistakes. Click NEXT to save the current settings and complete the Quick Start setups.

▼Quick Start - Quick Start Completed !!

Quick Start Completed !!

Saved Changes.

Go back to the Status > Device Info to view the status.

Configuration

Click to access and configure the available features in the following: Interface Setup, Hotspot, Advanced Setup, Access Management, and Maintenance.

These functions are described in the following sections.

Interface Setup

Here are the features under Interface Setup: Internet, LAN, Wireless, Wireless MAC Filter and Wireless 5G Repeater.

Internet

EWAN

Internet
WAN Interface	EWAN ▼
Status	○ Activated ○ Deactivated
IPv4/IPv6
IP Version	○ IPv4 ○ IPv4/IPv6 ○ IPv6

Status: Select to enable or disable the WAN service.

IPv4/IPv6

IP Version: Choose IPv4, IPv4/IPv6, or IPv6 based on your environment. If you don't know which one to choose from, please choose IPv4/IPv6 instead.

ISP Connection Type
ISP	Dynamic IP Address Static IP Address PPPoE
802.1q Options
802.1q	Activated Deactivated
VLAN ID	0 (range: 0~4095)

ISP Connection Type:

ISP: Select the encapsulation type your ISP uses.

▶ Dynamic IP: Select this option if your ISP provides you an IP address automatically.
▶ Static IP: Select this option to set static IP information. You will need to enter in the Connection type, IP address, subnet mask, and gateway address, provided to you by your ISP. Each IP address entered in the fields must be in the appropriate IP form. IP address from by four IP octets separated by a dot (xx.xx.xx.xx). The Router will not accept the IP address if it is not in this format.

▶ PPPoE: Select this option if your ISP requires you to use a PPPoE connection.

802.1q Options

802.1q: When activated, please enter a VLAN ID.

VLAN ID: It is a parameter to specify the VLAN which the frame belongs. Enter the VLAN ID identification, tagged: 0-4095.

PPPoE (If selected PPPoE as WAN Connection Type; otherwise, skip this part)

ISP Connection Type
ISP	Dynamic IP Address Static IP Address PPPoE
802.1q Options
802.1q	Activated Deactivated
VLAN ID	0 (range: 0~4095)
PPPoE
Username
Password	......
Bridge Interface for PPPoE	Activated Deactivated
Connection Setting
Connection	Always On (Recommended) Connect Manually
TCP MSS Option	TCP MSS 0 bytes(0 means use default)

Username: Enter the username provided by your ISP.

Password: Enter the password provided by your ISP.

Bridge Interface for PPPoE: When “Activated”, the device will gain WAN IP from your ISP with the PPPoE account. But if your PC is connected to the router working as a DHCP client, in this mode, the device acts as a NAT router; while if you dial up with the account within your PC, the device will then work as a bridge forwarding the PPPoE information to the PPPoE server and send the response to your PC, thus your PC gets a WAN IP working in the internet.

Connection Setting

Connection:

▶ Always On: Click on Always On to establish a PPPoE session during start up and to automatically re-establish the PPPoE session when disconnected by the ISP.
- Connect Manually: Select Connect Manually when you don't want the connection up all the time.

TCP MSS Option: Enter the maximum size of the data that TCP can send in a segment. Maximum Segment Size (MSS).

IP Options

IP Common Options

Default Route: Select Yes to use this interface as default route interface.

TCP MTU Option: Enter the maximum packet that can be transmitted. Default MTU 0 means it is set to 1492 bytes.

IPv4 Options

Get IP Address: Choose Static or Dynamic

Static IP Address: If Static is selected in the above field, please enter the specific IP address you get from ISP and the following IP subnet mask and gateway address.

IP Subnet Mask: The default is 0.0.0.0. User can change it to other such as 255.255.255.0. Type the subnet mask assigned to you by your ISP (if given).

Gateway: Enter the specific gateway IP address you get from ISP.

NAT: Enable to allow BEC 4700 to assign private network IPs to all devices in the network for get Internet access.

Dynamic Route:

▶ RIP Version: (Routing Information protocol) Select this option to specify the RIP version, including RIP-1, RIP-2.
▶ RIP Direction: Select this option to specify the RIP direction.

• None is for disabling the RIP function.
• Both means the router will periodically send routing information and accept routing information then incorporate into routing table.
• IN only means the router will only accept but will not send RIP packet.

- OUT only means the router will only send but will not accept RIP packet.

IGMP Proxy: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group. Choose whether enable IGMP proxy.

IPv6 options (only when choose IPv4/IPv6 or just IPv6 in IP version field above):

IPv6 Address: Type the WAN IPv6 address from your ISP.

Obtain IPv6 DNS: Choose if you want to obtain DNS automatically.

Primary/Secondary: if you choose Disable in the Obtain IPv6 DNS field, please type the exactly primary and secondary DNS.

MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a Multicast Management protocol for IPv6 multicast packets.

When router's Internet configuration is finished successfully, you can go to status to get the connection information.

Click Save to apply the settings.

LAN

A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building.

IPv4 Parameters

IP Address: Enter the IP address of Router in dotted decimal notation, for example, 192.168.1.254 (factory default).

IP Subnet Mask: The default is 255.255.255.0. User can change it to other such as 255.255.255.128.

Alias IP Address: This is for local networks virtual IP interface. Specify an IP address on this virtual interface.

Alias IP Subnet Mask: Specify a subnet mask on this virtual interface.

IGMP Snooping: Select Activated to enable IGMP Snooping function, Without IGMP snooping, multicast traffic is treated in the same manner as broadcast traffic - that is, it is forwarded to all ports. With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that group.

Dynamic Route: Select the RIP version from RIP1 or RIP2.

DHCPv4 Server

DHCP (Dynamic Host Configuration Protocol) allows individual clients to obtain TCP/IP configuration at start-up from a server.

DHCPv4 Server
DHCPv4 Server	Disabled Enabled Relay
Start IP	192.168.1.100
IP Pool Count	100
Lease Time	86400 seconds (0 sets to default value of 259200)
DNS Relay	Automatically Manually
Primary DNS
Secondary DNS
Option 66
Option 160

DHCPv4 Server: If set to Enabled, your BEC 4700 can assign IP addresses, default gateway and

DNS servers to the DHCP client.

▶ If set to Disabled, the DHCP server will be disabled.
If set to Relay, the BEC 4700 acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients. Enter the IP address of the actual, remote DHCP server in the Remote DHCP Server field in this case.
- When DHCP is used, the following items need to be set.

Start IP: This field specifies the first of the contiguous addresses in the IP address pool.

IP Pool Count: This field specifies the count of the IP address pool.

Lease Time: The current lease time of client.

DNS Relay:

▶ Select Automatic detection or
▶ Manually specific Primary and Secondary DNS IP addresses

Primary / Secondary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the subnet mask.

Option 66: Set the IP or hostname of the TFTP server for devices, like IPTV Set Box, to get configuration settings from the TFTP server.

Option 160: Set the IP or hostname of the TFTP server for devices, like IPTV Set Box, to get configuration settings from the TFTP server. (The option 160 is an extended feature in DHCP option, similar to option 66, but using http or https protocols.)

Fixed Host

In this field, users can map the specific IP (must in the DHCP IP pool) for some specific MAC, and this information can be listed in the following table.

Fixed Host
IP Address
MAC Address

IP Address: Enter the specific IP. For example: 192.168.1.110.

MAC Address: Enter the responding MAC. For example: 00:0A:F7:45:6D:ED

When added, you can see the ones listed as showed below:

Fixed Host Listing
Index	IP Address	MAC Address	Delete
1	192.168.1.110	00:04:ED:01:01:10

IPv6 Parameters

The IPv6 address composes of two parts, thus, the prefix and the interface ID.

IPv6 Parameters
Interface Address/Prefix Length	/
MLD Snooping	○ Activated ● Deactivated
DHCPv6 Server
DHCPv6 Server	○ Disable ● Enable
DHCPv6 Server Type	● Stateless ○ Stateful
Start Interface ID
End Interface ID
Lease Time	seconds(0 sets to default value of 4800)
Router Advertisements	○ Disable ● Enable

Interface Address / Prefix Length: Enter a static LAN IPv6 address. If you are not sure what to do with this field, please leave it empty as if contains false information it could result in LAN devices not being able to access other IPv6 device. Router will take the same WAN's prefix to LAN side if the field is empty.

DHCPv6 Server

DHCPv6 Server
DHCPv6 Server	Disable Enable
DHCPv6 Server Type	Stateless Stateful
Start Interface ID
End Interface ID
Lease Time	seconds(0 sets to default value of 4800)
Router Advertisements	Disable Enable

There are two methods to dynamically configure IPv6 address on hosts, Stateless and Stateful.

Stateless auto-configuration requires no manual configuration of hosts, minimal (if any) configuration of routers, and no additional servers. The stateless mechanism allows a host to generate its own addresses using a combination of locally available information (MAC address) and information (prefix) advertised by routers. Routers advertise prefixes that identify the subnet(s) associated with a link, while hosts generate an "interface identifier" that uniquely identifies an interface on a subnet. An address is formed by combining the two. When using stateless configuration, you needn't configure anything on the client.

Stateful configuration, for example using DHCPv6 (which resembles its counterpart DHCP in IPv4.) In the stateful auto configuration model, hosts obtain interface addresses and/or configuration information and parameters from a DHCPv6 server. The Server maintains a database that keeps track of which addresses have been assigned to which hosts.

DHCPv6 Server: Check whether to enable DHCPv6 server.

DHCPv6 Server Type: Select Stateless or Stateful. When DHCPv6 is enabled, this parameter is available.

▶ Stateless: If selected, the PCs in LAN are configured through RA mode, thus, the PCs in LAN are configured through RA mode, to obtain the prefix message and generate an address using a combination of locally available information (MAC address) and information (prefix) advertised by routers, but they can obtain such information like DNS from DHCPv6 Server.
▶ Stateful: If selected, the PCs in LAN will be configured like in IPv4 mode, thus obtain addresses

and DNS information from DHCPv6 server.

Start interface ID: enter the start interface ID. The IPv6 address composed of two parts, thus, the prefix and the interface ID. Interface is like the Host ID compared to IPv4.

End interface ID: enter the end interface ID.

Leased Time (seconds): the leased time, similar to leased time in DHCPv4, is a time limit assigned to clients, when expires, the assigned ID will be recycled and reassigned.

Router Advertisement: Check to Enable or Disable the Issue Router Advertisement feature. This feature is to send Router Advertisement messages periodically which would multicast the IPv6 Prefix information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We suggest enabling this field.

Click Save to apply the settings.

Wireless (2.4GHz)

This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to the wired LAN.

NOTE: WLAN1 / 2 / 3 / 4 Interface refers to as SSID1 / 2 / 3 / 4 Wi-Fi networks.

Access Point Settings

Wireless 2.4G Site Survey
Access Point Settings
Access Point	● Activated ○ Deactivated
AP MAC Address	00:04:ED:45:00:04
Wireless Mode	802.11b+g+n ▼
Channel	UNITED STATES ▼ 06 ▼ Current Channel : 6
Beacon Interval	100 (range: 20~1000)
RTS/CTS Threshold	2347 (range: 1500~2347)
Fragmentation Threshold	2346 (range: 256~2346, even numbers only)
DTIM Interval	1 (range: 1~255)
TX Power	100 (range:1~100)
IGMP Snooping	● Yes ○ No

Site Survey: Click to view all other available Wireless-AP devices near the BEC 6500.

Wireless 2.4G
Site Survey
CH	SSID	BSSID	Security	Signal (%)
1	J M	cc:28	WPA1PSK/WPA2PSK	0
4	DTS	66:bb	WPA1PSK	0
5	wlan-ap	ee:d4	WPA1PSK/WPA2PSK	100
Refresh	Back

▶ CH (Channel): Channel ID used.
▶ SSID: The name of the wireless AP.
▶ BSSID: The MAC address of the wireless AP.
▶ Security: The security mode in the wireless AP.
▶ Singal (%): Singal strength of the wireless AP. Signal increases means the wireless AP is closer to your BEC 6500 and may cause interferences.

Access Point: Default setting is set to Activated. If you want to close the wireless interface, select Deactivated.

AP MAC Address: The MAC address of wireless AP.

Wireless Mode: The default setting is 802.11b+g+n (Mixed mode). If you do not know or have both 11g and 11b devices in your network, then keep the default in mixed mode. From the drop-down manual, you can select 802.11g if you have only 11g card. If you have only 11b card, then select

802.11b and if you only have 802.11n then select 802.11n.

Channel: The range of radio frequencies used by IEEE 802.11b/g/n wireless devices is called a channel. There are Regulation Domains and Channel ID in this field. The Channel ID will be different based on Regulation Domains. Select a channel from the drop-down list box.

Beacon Interval: The Beacon Interval value indicates the frequency interval of the beacon. Enter a value between 20 and 1000. A beacon is a packet broadcast by the Router to synchronize the wireless network.

RTS/CTS Threshold: The RTS (Request to Send) threshold (number of bytes) for enabling RTS/CTS handshake. Data with its frame size larger than this value will perform the RTS/CTS handshake. Enter a value between 1500 and 2347.

Fragmentation Threshold: The threshold (number of bytes) for the fragmentation boundary for directed messages. It is the maximum data fragment size that can be sent. Enter a value between 256 and 2346, even number only.

DTIM Interval: This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication Message (DTIM).

TX Power: The transmission power of the antennas, ranging from 1-100, the higher the more powerful of the transmission performance.

IGMP Snooping: Enable or disable the IGMP Snooping function for wireless. Without IGMP snooping, multicast traffic is treated in the same manner as broadcast traffic - that is, it is forwarded to all ports. With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that group."

11n Settings

Channel Bandwidth: Select 20 MHz, 40 MHz, or 20/40 MHz for the channel bandwidth. The wider the Channel bandwidth the better the performance will be.

Extension Channel (20/40 MHz Only): Select either Auto or Above the control channel.

Guard Interval: Select either 800nsec or Automatic for the guard interval. The guard interval is here to ensure that data transmission do not interfere with each other. It also prevents propagation delays, echoing and reflections. The shorter the Guard Interval, the better the performance will be. We recommend users to select Auto.

MCS (Modulation and Coding Scheme): There are options 0\~15 and AUTO to select from. AUTO is recommended.

SSID Settings

Available SSID: User can determine how many virtual SSIDs to be used. Default is 1, maximum is 4.

SSID Index: Select the number of SSIDs you want to use; up to 4 SSIDs are available in the list.

SSID: The SSID is the unique name of a wireless access point (AP) to be distinguished from another. For security propose, change the default SSID to a unique ID name to the AP which is already built-in to the router's wireless interface. Make sure your wireless clients have exactly the SSID as the device, in order to get connected to your network.

Broadcast SSID: Select Yes to make the SSID visible so a station can obtain the SSID through passive scanning. Select No to hide the SSID in so a station cannot obtain the SSID through passive scanning.

Client Isolation: (Known as AP Isolation) After enabling this feature, all Wi-Fi clients connect to the same Access Point, in the same local wireless network, cannot interact with each another.

SSID Activated: Select the time period during which the SSID is active. Default is always which means the SSID will be active all the time without time control. See Time Schedule to set the timeslot to flexibly control when the SSID functions.

Security Settings

Security Settings
Security Type	Mixed WPA2/WPA-PSK ▼
WPA Algorithms	TKIP+AES ▼
Pre-Shared Key	14F812CE (8~63 characters or 64 Hex string)
Key Renewal Interval	600 seconds (10 ~ 4194303)

Security Type: You can disable or enable wireless security for protecting wireless network. The default type of wireless security is OPEN and to allow all wireless stations to communicate with the access points without any data encryption.

To prevent unauthorized wireless stations from accessing data transmitted over the network, the router offers secure data encryption, known as WEP and WPA.

There are five alternatives to select from: Open (no security protected), WEP 64-bit, WEP 128-bit, WPA-PSK, WPA2-PSK and Mixed WPA/WPA2-PSK. If you require high security for transmissions, please select WPA-PSK, WPA2-PSK or WPA/WPA2-PSK.

▶ Security Type - WEP

WEP Authentication Method: WEP authentication method, there are two methods of authentication used, Open System authentication (OPENWEB) and Share Key authentication (SHAREDWEB). We suggest you select OPENWEB.

Key 1 to Key 4: Enter the key to encrypt wireless data. To allow encrypted data transmission, the WEP Encryption Key values on all wireless stations must be the same as the router. There are four keys for your selection. The input format is in HEX style, 5 and 13 HEX codes are required for 64-bitWEP and 128-bitWEP respectively.

If you chose WEP 64-bit, then enter any 5 ASCII characters or 10 hexadecimal characters ("0-9", "A-F").

If you chose WEP 128-bit, then enter 13 ASCII characters or 26 hexadecimal characters ("0-9", "A-F").

You must configure all four keys, but only one key can be activated at any one time. The default key is key 1.

NOTE: When you enable WPS function, this WEP function will be invalid. And if you select one of WEP-64Bits/ WEP-128Bits, the following prompt box will appear to notice you.

▶ Security Type - WPA-PSK / WPA2-PSK / Mixed WPA & WPA2

WPA Algorithms: TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption System) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers.

Pre-Shared key: The key for network authentication. The input format should be 8-63 ASKII characters or 64 hexadecimal characters

Key Renewal Interval: The time interval for changing the security key automatically between wireless client and AP.

WDS Settings

WDS Settings
AP MAC Address	60:03:47:23:F2:00
WDS Mode	○ Activated ● Deactivated
WDS Peer MAC #1	00:00:00:00:00:00
WDS Peer MAC #2	00:00:00:00:00:00
WDS Peer MAC #3	00:00:00:00:00:00
WDS Peer MAC #4	00:00:00:00:00:00

WDS (Wireless distributed system) is a wireless access point mode that enables wireless link and communication with other access point. It is easy to be installed, just define the peer's MAC of the connected AP.

WDS Mode: select Activated to enable WDS feature and Deactivated to disable this feature.

MAC Address: Enter the AP MAC addresses (in XX:XX:XX:XX:XX format) of the peer connected AP.

Click Save to apply settings.

Wireless MAC Filter

The MAC filter screen allows you to configure the router to give exclusive access to up to 8 devices (Allow Association) or exclude up to 8 devices from accessing the router (Deny Association). Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:AA:BB:00:00:02.

You need to know the MAC address of the devices you wish to filter.

SSID Index: Select the targeted SSID you want the MAC filter rules to apply to.

Active: Select Activated to enable MAC address filtering.

Action: Define the filter action for the list of MAC addresses in the MAC address filter table.

• Select Deny to block access to the AP, MAC addresses not listed will be allowed to access the router.
• Select Allow to permit access to the router, MAC addresses not listed will be denied access to the router.

MAC Address: Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the wireless station that are allowed or denied access to the specified in these address fields.

Click Save to apply the settings.

Wireless 5GHz

Access Point Settings

Wireless 5G Site Survey
Access Point	Activated Deactivated
AP MAC Address	00:04:ED:47:01:11
Channel	UNITED STATES ▼ 153 ▼ Current Channel 153
Beacon Interval	100 (range: 20~1000)
RTS/CTS Threshold	2347 (range: 1500~2347)
Fragmentation Threshold	2346 (range: 256~2346, even numbers only)
DTIM Interval	1 (range: 1~255)
Channel Bandwidth	20 MHz ▼

Site Survey: Click to view all other available Wireless-AP devices near the BEC 6500.

Site Survey
CH	SSID	BSSID	Security	RSSI
153		08.61.02.04.75	WPA2	6
153	wlan-ap_5G	20.06.07.07.d5	WPA/WPA2	26
Refresh	Back

▶ CH (Channel): Channel ID used.
▶ SSID: The name of the wireless AP.
▶ BSSID: The MAC address of the wireless AP.
▶ Security: The security mode in the wireless AP.

▶ RSSI Singal (%): Singal strength of the wireless AP. Signal increases means the wireless AP is closer to your BEC 6500 and may cause interferences.

Access Point: Default setting is set to Activated. If you want to close the wireless interface, select Deactivated.

AP MAC Address: The MAC address of wireless AP.

Wireless Mode: The default setting is 802.11b+g+n (Mixed mode). If you do not know or have both 11g and 11b devices in your network, then keep the default in mixed mode. From the drop-down manual, you can select 802.11g if you have only 11g card. If you have only 11b card, then select 802.11b and if you only have 802.11n then select 802.11n.

Channel: The range of radio frequencies used by IEEE 802.11b/g/n wireless devices is called a channel. There are Regulation Domains and Channel ID in this field. The Channel ID will be different based on Regulation Domains. Select a channel from the drop-down list box.

Beacon Interval: The Beacon Interval value indicates the frequency interval of the beacon. Enter a value between 20 and 1000. A beacon is a packet broadcast by the Router to synchronize the wireless network.

RTS/CTS Threshold: The RTS (Request to Send) threshold (number of bytes) for enabling RTS/CTS handshake. Data with its frame size larger than this value will perform the RTS/CTS handshake. Enter

a value between 1500 and 2347.

Fragmentation Threshold: The threshold (number of bytes) for the fragmentation boundary for directed messages. It is the maximum data fragment size that can be sent. Enter a value between 256 and 2346, even number only.

DTIM Interval: This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication Message (DTIM).

Channel Bandwidth: Select 20 MHz, 40 MHz or 80MHz for the channel bandwidth. The wider the Channel bandwidth the better the performance will be.

SSID Settings

SSID Settings
SSID index	1 ▼
SSID	BEC111
Broadcast SSID	Yes No
Clients Isolation	Yes No

SSID Index: 5GHz only support up to 1 SSID.
SSID: The SSID is the unique name of a wireless access point (AP) to be distinguished from another. For security propose, change the default SSID to a unique ID name to the AP which is already built-in to the router's wireless interface. Make sure your wireless clients have exactly the SSID as the device, in order to get connected to your network.
Broadcast SSID: Select Yes to make the SSID visible so a station can obtain the SSID through passive scanning. Select No to hide the SSID in so a station cannot obtain the SSID through passive scanning.
Client Isolation: (Known as AP Isolation) After enabling this feature, all Wi-Fi clients connect to the same Access Point, in the same local wireless network, cannot interact with each another.

WPS Settings

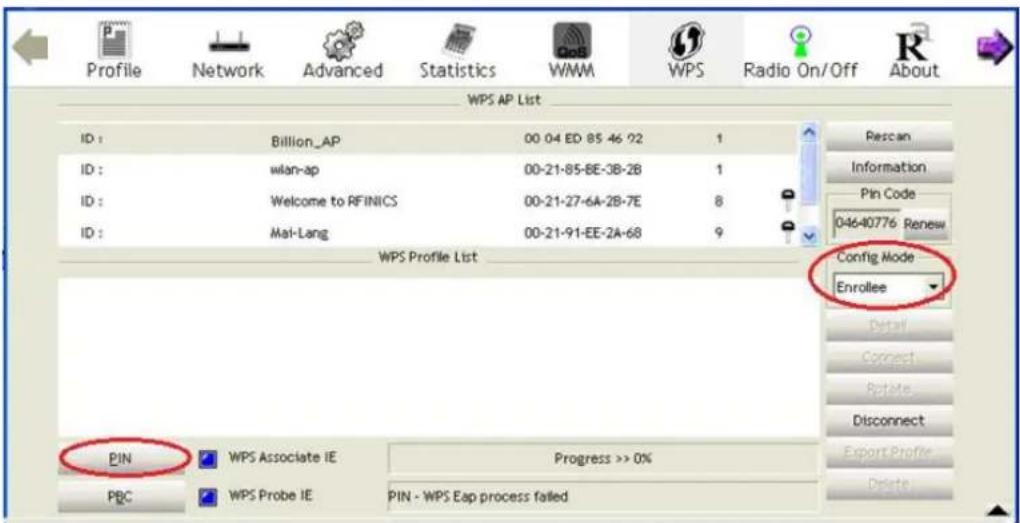

WPS (Wi-Fi Protected Setup) feature is a standard protocol created by Wi-Fi Alliance. This feature greatly simplifies the steps needed to create a Wi-Fi network for a residential or an office setting. WPS supports 2 types of configuration methods which are commonly known among consumers: PIN Method (Personal Information Number) & PBC Method (Push Button Configuration). BEC 4700 offers PIN Method only.

WPS Settings
Use WPS	Yes No
WPS state	Configured
WPS mode	PIN code
AP PIN code	40982205 Generate
Enrollee PIN code
WPS progress	WPS_INITIAL Start WPS

Use WPS: Yes to enable the WPS.

WPS State: Configured means Wi-Fi clients will use the default security setting of the SSID.

WPS Mode: Pin Code means enrollee PIN code is required.

WPS Progress: Click Start WPS to begin the WPS pairing process.

Security Settings

Security Settings
Security Type	OPEN▼
WDS Settings	OPEN
AP MAC Address	WPA2-PSK
WDS Mode	Mixed WPA2/WPA-PSKed
WDS Peer MAC #1

Security Type: You can disable or enable wireless security for protecting wireless network. The default type of wireless security is OPEN and to allow all wireless stations to communicate with the access points without any data encryption.

▶ Security Type - WPA-PSK / WPA2-PSK / Mixed WPA & WPA2

Security Settings
Security Type	Mixed WPA2/WPA-PSK ▼
WPA Algorithms	TKIP+AES ▼
Pre-Shared Key	346D5447	(8~63 characters or 64 Hex string)

WPA Algorithms: TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption System) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers.

Pre-Shared key: The key for network authentication. The input format should be 8-63 ASKII characters or 64 hexadecimal characters

WDS Settings

WDS Settings
AP MAC Address	60:03:47:23:F2:00
WDS Mode	○ Activated ● Deactivated
WDS Peer MAC #1	00:00:00:00:00:00
WDS Peer MAC #2	00:00:00:00:00:00
WDS Peer MAC #3	00:00:00:00:00:00
WDS Peer MAC #4	00:00:00:00:00:00

WDS (Wireless distributed system) is a wireless access point mode that enables wireless link and communication with other access point. It is easy to be installed, just define the peer's MAC of the connected AP.

WDS Mode: select Activated to enable WDS feature and Deactivated to disable this feature.

MAC Address: Enter the AP MAC addresses (in XX:XX:XX:XX:XX format) of the peer connected AP.

Click Save to apply settings.

Example: WPS using PIN Method (Personal Information Number)

PIN Method – Configure BEC 4700 as a Registrar

1. Jot down the client's Pin (e.g. 04640776) from the WPS utility (e.g. Ralink Utility)

1. Enter the Enrollee (Client) PIN code and then press Start WPS.

1. Go back to the wireless client's WPS utility (e.g. Ralink Utility).

Set the Config Mode as Enrollee, press the WPS button on the top bar, select the AP (e.g. Billion_AP) from the WPS AP List column. Then press the PIN button located on the middle left of the page to run the scan.

1. The client's SSID and security setting will now be configured to match the SSID and security setting of the registrar, the BEC 4700 router.

PIN Method – Configure BEC 4700 as an Enrollee

1. Jot down the AP PIN Code (e.g. 03454435) from the BEC 6300VNL. Press Start WPS.

1. Launch the wireless client's WPS utility (e.g. Ralink Utility). Set the Config Mode as Registrar. Enter the PIN number in the PIN Code (e.g. 03454435) column then choose the correct AP (e.g. Billion_AP) from the WPS AP List before pressing the PIN button to run the scan.

1. The router's (AP's) SSID and security setting will now be configured to match the SSID and security setting of the registrar (client).

Wireless 5G MAC Filter

The MAC filter screen allows you to configure the router to give exclusive access to up to 8 devices (Allow Association) or exclude up to 8 devices from accessing the router (Deny Association). Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:AA:BB:00:00:02.

You need to know the MAC address of the devices you wish to filter.

Active: Select Activated to enable MAC address filtering.

Action: Define the filter action for the list of MAC addresses in the MAC address filter table.

• Select Deny to block access to the AP, MAC addresses not listed will be allowed to access the router.
• Select Allow to permit access to the router, MAC addresses not listed will be denied access to the router.

MAC Address: Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the wireless station that are allowed or denied access to the specified in these address fields.

Click Save to apply the settings.

Wireless 5G Repeater

Use the BEC 4700 as a repeater to extend the wi-fi signal of the primary AP.

Manually Fill-in

SSID: Enter the SSID of the primary AP.

Security Type: Enter the Wi-Fi security type of the primary AP.

WPA Algorithms: Enter the WPA algorithms of the primary AP.

Pre-Shared Key: Enter the Wi-Fi password/pre-shared key of the primary AP.

Automatically

Site Survey: Click to view all other available Wireless-AP devices near the BEC 4700. Select the desired AP you wish to extend the signal.

▶ CH (Channel): Channel ID used.
▶ SSID: The name of the wireless AP.
▶ BSSID: The MAC address of the wireless AP.
▶ Security: The security mode in the wireless AP.
▶ Singal (%): Singal strength of the wireless AP. Signal increases means the wireless AP is closer to your BEC 6500 and may cause interferences.

Click Save to apply settings.

Loopback

Loopback interface is a widely known virtual interface, not the physical interface, on router and is highly robust and always up. The loopback interface has its own IP and subnet mask, often used for router management as Telnet management IP and involved in BGP as BGP Update-Source and OSPF as Router ID.

IP Address: Enter a dedicated IP address for the loopback interface.

IP Subnet Mask: Enter the subnet mask for the loopback interface.

Click Save to apply settings

Hotspot

The Wi-Fi hotspot offers Internet access for mobile devices like smart phones, laptops, or smart pad to connect wirelessly in public locations such as in coffee shops, train station, airport, hotel, and much more. A captive portal with a login page will prompt on the mobile devices and require all Wi-Fi clients to accept the term of use before accessing to the Internet.

NOTE 1: It is ideal to change the Wi-Fi Hotspot (SSID) security type to OPEN (no encryption). Go to Wireless >> Security Settings

General Setting

Hotspot: Activate to enable the Wi-Fi hotspot feature.

Interface: All available Wi-Fi APs (SSIDs) in the BEC 4700.

IP Address: The IP address for the Wi-Fi hotspot network.

IP Subnet Mask: Enter the subnet of the network.

Primary / Secondary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the subnet mask.

Login Mode: Two (2) types of login modes to join the network.

▶ Authentication: Username and Password (credential) is required to join the hotspot network. Go down to the Authentication section below and select a method.
- Agreement: No Username and Password is required. Automatically login to the hotspot network after accepting and agreeing to the terms ("Terms") of use.

Redirect URL after Successful Login: Enter the URL (http:// is not required). After Wi-Fi client is successful login to the network, the page will get redirected to this URL.

OR leave it blank to stay in current page.

NOTE: This new URL will be added to the Walled Garden automatically.

Authentication

Authentication Methods: Two (2) network authentication methods, local built-in user account or a remote, external RADIUS server. If the credential matches, the Wi-Fi client is granted access to the network.

▶ RADIUS (an external authentication server)

Primary RADIUS Server: The main IP address of the server.
Secondary RADIUS Server: The backup IP address of the server, if any.
▶ Shared Secret Key: Enter the shared Secret given by the server

Built-in User Account (local database handled by the BEC 4700)

Go to the Built-in User Account to setup account usernames and passwords for the hotspot.

Authentication Protocol: Manually specify CHAP (Challenge Handshake Authentication Protocol) or PAP (Password Authentication Protocol). When using PAP, the password is sent unencrypted, while CHAP encrypts the password before sending, and also allows for challenges at different periods to ensure that an intruder has not replaced the client.

Session Settings

Session Settings
Session Timeout	3600	seconds (0~86400,0:disable)
Idle Timeout	180	seconds (0~86400,0:disable)
Upload Bandwidth	0	Kbps (0~5120,0:not limited)
Download Bandwidth	0	Kbps (0~5120,0:not limited)
Maximum Download Data Usage	0	MBytes (0~5120,0:not limited)
Maximum Upload Data Usage	0	MBytes (0~5120,0:not limited)
Maximum Total Data Usage	0	MBytes (0~5120,0:not limited)

Session Timeout (in seconds): The time period of a Wi-Fi client is allowed to access to the Internet. After this timeout period, a new authentication is required.

Idle Timeout (in seconds): The allowed inactivity time of a Wi-Fi client. After this timeout period, a new authentication is required.

Upload / Download Bandwidth (in Kbps): The maximum upload and download link speed, value range from 0 \~ 5120Kbps; 0 means no speed limitation.

Maximum Upload / Download Data Usage (in MBytes): Pre-configure a maximum upload and download data allowed for each session. value range from 0 \~ 5120MB; 0 means no speed limitation.

Maximum Total Data Usage (in MBytes): Pre-configure total data usage allowed for each session. value range from 0 \~ 5120MB; 0 means no speed limitation.

Captive Portal

UAM Server: Select a server you wish to use, Build-in, External or Socifi. Fill in the blanks to use External UAM server.

Login URL: Enter the login URL offered by the UAM server.

Shared Secret: Set the shared secret password offered.

NAS ID: An assigned string for identification.

Location Name: An assigned string for identification.

Click Save to apply the settings

Built-in User Account

It is a local database on the router with pre-defined user accounts authorized by the BEC 4700 to grant and provide Wi-Fi hotspot access for Wi-Fi capable devices/users.

16, maximum, accounts are allowed.

Rule Index: The numeric rule indicator. The maximum entry is up to 16.

Active: Select Yes to enable the rule of the account.

Username / Password: Create a username and password for this user account.

Save: Click the Save button to apply the settings

Delete: Use the Rule Index to select an unwanted rule then click Delete button to remove it from the Account list.

Authorized of Client

Add and predefine a trusted wireless MAC address of a Wi-Fi capable device for an immediate hotspot/Internet access. Hotspot/Internet access requires no authentication.

16, maximum, accounts are allowed.

Authorized of Client: Select Activated to enable this feature.

Rule Index: The numeric rule indicator. The maximum entry is up to 16.

Active: Select Yes to enable the rule of the client.

MAC Address: Enter the wireless MAC address of the Wi-Fi device.

Save: Click the Save button to apply the settings

Delete: Use the Rule Index to select an unwanted rule then click Delete button to remove it from the Client list.

Walled Garden

Add and predefine websites (domain names) or web IP address to allow Wi-Fi devices / clients to access to. Web site access requires no authentication.

16, maximum, websites / domains are allowed.

Rule Index: The numeric rule indicator. The maximum entry is up to 16.

Active: Select Yes to enable the rule of the walled garden.

Domain name or IP Address: Enter a valid website, either the domain name (http:// is not required) or IP address

Save: Click the Save button to apply the settings

Delete: Use the Rule Index to select an unwanted rule then click Delete button to remove it from the Walled Garden list.

Advertisement

Add pop-ups ads and redirects to BEC 4700 Wi-Fi Hotspot, and only a random ad will be displayed per a login.

16, maximum, ads are allowed.

Advertisement: Select Activated to enable this feature.

Mode: Two (2) web advertising methods are available.

Frame: Redirect to a random ad site, a full-page ad, before reaching to the login page. This full-page ad will get redirect to the login page after 5-10 seconds.
▶ Popups: A random pop-up ad display in a separate window after the login page.

Rule Index: The numeric rule indicator. The maximum entry is up to 16.

Active: Select Yes to enable the rule.

URL: Enter a valid

Save: Click the Save button to apply the settings

Delete: Use the Rule Index to select an unwanted rule then click Delete button to remove it from the Walled Garden list.

Hotspot Status Log

Record all hotspot access information and e-mail the statistics report of the hotspot clients in a specific duration.

Session Log: Select Activated to enable this feature.

Log Session Data in every (minute): Input session log time duration, (min)1 to (max) 60 minutes.

Mail Session Log File in every (minute): BEC 4700 will send all access information, such as access IP addresses, NAT tables, etc., to the administrator's mailbox in the specific time/minute.

NOTE: Please set up a dedicated or administrator e-mail account to receive Hotspot access information in the Mail Alert.

Customization

Allow modification to some of the captive portal settings.

Customization	○ Activated ● Deactivated
Title	HotSpot
Login Subtitle	Welcome to my HotSpot!
Login Successfully Message	Success
Footnote	This service is provided for free and used at your own risk.
Show Logo	○ Activated ● Deactivated
Terms and Conditions
Terms Part1	Terms Part1
Terms Part2	Terms Part2
Terms Part3	Terms Part3
Terms and Conditions TextBox can not accept newline.
Save

Customization: Select Activated to enable this feature.

Title: The Banner message. Default is "Hotspot"

Login Subtitle: Default is "Welcome to my Hotspot"

Term Part 1 / 2 / 3: Create your own Terms and Conditions. To use default, same terms, please skip this part.

NOTE: No newline is accepted in each text box.

Login Successfully Message: BEC 4700 will send all access information, such as access IP addresses, NAT tables, etc., to the administrator's mail box in the specific time/minute.

Login Successfully Message: A greeting message after successful login to the Wi-Fi hotspot. Default is "Success!"

Footnote: Additional information, if needed.

Default is "This service is provided for free and used at your own risk."

Show Logo: Select Activated to display company Logo on the portal. (To change logo, please contact with BEC technical support for more information)

Advanced Setup

Advanced Setup provides advanced features including Firewall, Routing, NAT, Static DNS, Time Schedule, Mail Alert and Remote System Log for advanced users.

Firewall

Your router includes a firewall for helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet.

Firewall: To automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack.

▶ Enabled: Activate your firewall function.
▶ Disabled: Deactivate the firewall function.

SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.

▶ Enabled: Activate your SPI function.
▶ Disabled: Deactivate the SPI function.

Click Save to apply the settings

Static Routing

This is static route feature. You are equipped with the capability to control the routing of all the traffic across your network. With each routing rule created, user can specifically assign the destination where the traffic will be routed to.

Index	Destination IP Address	Subnet Mask	Gateway IP Address	Metric	Interface	Edit	Drop
0	100.87.150.196	255.255.255.252	0.0.0.0	0	ppp12
1	100.72.1.208	255.255.255.248	0.0.0.0	0	ppp11
2	192.168.1.0	255.255.255.0	0.0.0.0	0	br0
3	127.0.0.0	255.255.0.0	0.0.0.0	0	lo
4	239.0.0.0	255.0.0.0	0.0.0.0	0	br0
5	0.0.0.0	0.0.0.0	100.72.1.209	0	ppp11

Index #: The numeric route indicator.

Destination IP Address: IP address of the destination network

Subnet Mask: The subnet mask of destination network.

Gateway IP Address: IP address of the gateway or existing interface that this route uses.

Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15.

Interface: Media/channel selected to append the route.

Edit: Edit the route; this icon is not shown for system default route.

Drop: Drop the route; this icon is not shown for system default route.

Add Route

Destination IP Address: This is the destination subnet IP address.

Destination Subnet Mask: The subnet mask of destination network.

Gateway IP Address or Interface: This is the gateway IP address or existing interface to which packets are to be forwarded.

Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15.

Click Save to add this route

NAT

The NAT (Network Address Translation) feature transforms a private IP into a public IP, allowing multiple users to access the internet through a single IP account, sharing the single IP address. NAT break the originally envisioned model of IP end-to-end connectivity across the internet so NAT can cause problems where IPSec/ PPTP encryption is applied or some application layer protocols such as SIP phones are located behind a NAT. And NAT makes it difficult for systems behind a NAT to accept incoming communications.

NAT Status: Enabled. (Disabled if WAN connection is in BRIDGE mode)

VPN Passthrough: VPN pass-through is a feature of routers which allows VPN client on a private network to establish outbound VPNs unhindered.

SIP ALG: Enable the SIP ALG when SIP phone needs ALG to pass through the NAT. Disable the SIP ALG when SIP phone includes NAT-Traversal algorithm.

Interface: Select a WAN interface connection to allow external access to your internal network.

Service Index: Associated to EWAN interface marking each EWAN service (0-7), to select which EWAN service the DMZ and Virtual server are applied to.

Click DMZ Edit or Virtual Server Edit to move on to set the DMZ or Virtual Server parameters, which are represented in the following scenario.

DMZ

NOTE: This feature disables automatically if WAN connection is in BRIDGE mode or NAT is being turned OFF.

The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets will be checked by the Firewall and NAT algorithms then passed to the DMZ host, when a packet received does not use a port number used by any other Virtual Server entries.

DMZ for (via a WAN Interface): Allows outside network to connect in and communicate with internal LAN devices via this WAN interface

DMZ:

▶ Enabled: Activate the DMZ function.
▶ Disabled: Deactivate the DMZ function.

DMZ Host IP Address: Give a static IP address to the DMZ Host when Enabled radio button is checked. Be aware that this IP will be exposed to the WAN/Internet.

Click Save to apply the settings

Virtual Server

NOTE: This feature disables automatically if WAN connection is in BRIDGE mode or NAT is being turned OFF.

Virtual Server is also known as Port Forwarding that allows BEC 4700 to direct all incoming traffic to the servers on the LAN.

Configure a virtual rule in BEC 4700 for remote users accessing services such as Web or FTP services via the public (WAN) IP address that can be automatically redirected to local servers in the LAN network. Depending on the requested service (TCP/UDP port number), the device redirects the external service request to the appropriate server within the LAN network.

Virtual Server for: Indicate the related WAN interface to allow outside network to connect in and communicate with internal LAN devices.

Protocol: Choose the application protocol.

Start / End Port Number: Enter a port or port range you want to forward.

(Example: Start / End: 1000 or Start: 1000, End: 2000).

The starting port must be greater than zero (0). The end port must be greater than or equal to the start port.

Local IP Address: Enter your server IP address in this field.

Start / End Port Number (Local): Enter the start / end port number of the local application (service).

Examples of well-known and registered port numbers are shown below. For further information, please see IANA's website at http://www.iana.org/assignments/port-numbers

Well-known and Registered Ports

Port Number	Protocol	Description
21	TCP	FTP Control
22	TCP & UDP	SSH Remote Login Protocol
23	TCP	Telnet
25	TCP	SMTP (Simple Mail Transfer Protocol)
53	TCP & UDP	DNS (Domain Name Server)
69	UDP	TFTP (Trivial File Transfer Protocol)
80	TCP	World Wide Web HTTP
110	TCP	POP3 (Post Office Protocol Version 3)
443	TCP & UDP	HTTPS
1503	TCP	T.120
1720	TCP	H.323
7070	UDP	RealAudio

Attention

Using port forwarding does have security implications, as outside users will be able to connect to PCs on your network. For this reason you are advised to use specific Virtual Server entries just for the ports your application requires, instead of using DMZ. As doing so will result in all connections from the WAN attempt to access to your public IP of the DMZ PC specified.

If you have disabled the NAT option in the WAN-ISP section, the Virtual Server function will hence be invalid.

If the DHCP server option is enabled, you have to be very careful in assigning the IP addresses of the virtual servers in order to avoid conflicts. The easiest way of configuring Virtual Servers is to manually assign static IP address to each virtual server PC, with an address that does not fall into the range of IP addresses that are to be issued by the DHCP server. You can configure the virtual server IP address manually, but it must still be in the same subnet as the router.

Example: How to setup Port Forwarding for port 21 (FTP server)

If you have an FTP server in your LAN network and want others to access it through WAN.

Step 1: Assign a static IP to your local computer that is hosting the FTP server.

Step 2: Login to the Gateway and go to Configuration / Advanced Setup / NAT / Virtual Server.

FTP server uses TCP protocol with port 21.

Enter "21" to Start and End Port Number. The BEC 4700 will accept port 21 requests from WAN side.

Enter the static IP assigned to the local PC that is hosting the FTP server. Ex: 192.168.1.102

Enter "21" to Local Start and End Port number. The BEC 4700 will forward port 21 request from WAN to the specific LAN PC (Example: 192.168.1.102) in the network.

Step 3: Click Save to save settings.

Static DNS

The Domain Name System (DNS) is a hierarchical naming system built on a distributed database for computers, services, or any resource connected to the Internet or a private network associates various information with domain names assigned to each of the participating entities. Most importantly, it translates domain names meaningful to humans into the numerical identifiers associated with networking equipment for the purpose of locating and addressing these devices worldwide.

An often-used analogy to explain the Domain Name System is that it serves as the phone book for the Internet by translating human-friendly computer hostnames into IP addresses. For example, the domain name www.example.com can be translated into the addresses 192.0.32.10 (IPv4).

IP Address: The IP address you are going to give a specific domain name.

Domain Name: The friendly domain name for the IP address.

Click Save to apply your settings.

Time Schedule

The Time Schedule supports up to 16 timeslots which helps you to manage your Internet connection. In each time profile, you may schedule specific day(s) i.e. Monday through Sunday to restrict or allowing the usage of the Internet by users or applications.

This Time Schedule correlates closely with router's time, since router does not have a real time clock on board; it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server from the Internet.

Time Index: The rule indicator (0-15) for identifying each timeslot.

Name: User-defined identification for each time period.

Day of Week: Mon. to Sun. Specify the time interval for each timeslot from "Day of Week".

Start Time: The starting point of the interval for the timeslot, anytime in 00:00 – 24:00.

End Time: The ending point of the interval for the timeslot, anytime in 00:00 – 24:00.

Click Save to apply your settings.

Example, you can add a timeslot named "TimeSlot1" which features a period from 9:00 of Monday to 18:00 of Tuesday.

Another TimeSlot2 spanning from 09:00 to 18:00 of Wednesday

Mail Alert

Mail alert is designed to keep system administrator or other relevant personnel alerted of any unexpected events that might have occurred to the network computers or server for monitoring efficiency. With this alert system, appropriate solutions may be tackled to fix problems that may have arisen so that the server can be properly maintained.

Server Information
SMTP Server
Username
Password	......
Sender's E-mail	(Must be [e-mail])
SSL/TLS	Enable
Port	25 (1~65535)
Accont Test
WAN IP Change Alert
Recipient's E-mail	(Must be [e-mail])
3G/4G LTE Usage Allowance
Recipient's E-mail	(Must be [e-mail])
HotSpot Session Log
Recipient's E-mail	(Must be [e-mail])
Apply

SMTP Server: Enter the SMTP server that you would like to use for sending emails.

Username: Enter the username of your email account to be used by the SMTP server.

Password: Enter the password of your email account.

Sender's Email: Enter your email address.

SSL/TLS: Check to whether to enable SSL encryption feature.

Port: the port, default is 25.

Account Test: Click the button to test the connectivity and feasibility to your sender's e-mail.

Recipient's Email (WAN IP Change Alert): Enter a valid e-mail address to receive an alert message when WAN IP change has been detected.

Recipient's Email (3G/4G-LTE Usage Allowance): Enter a valid e-mail address to receive an alert message when the 3G over Usage Allowance occurs.

Hotspot Session Log: Enter a valid e-mail address to receive hotspot access information.

Click Apply button to save your settings

Access Management

Features including Device Management, SNMP, Universal Plug & Play, Dynamic DNS, Access Control, Packet Filter, CWMP (TR-069), and Parental Control.

Device Management

Device management offers users a way to change the embedded web server accessing port, default 80. User can change the http port to 8080 or something else here.

Click Save to apply the settings.

SNMP

Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. The BEC 4700 serves as a SNMP agent that allows a manager station to manage and monitor the router through the network.

SNMP: Select to enable SNMP feature.

Get Community: Type the Get Community, which is the password for the incoming Get-and-GetNext requests from the management station.

Set Community: Type the Set Community, which is the password for incoming Set requests from the management station.

Trap Manager IP: Enter the IP of the server receiving the trap message (when some exception occurs) sent by this SNMP agent.

SNMPv3: Enable to activate the SNMPv3.

User Name: Enter the name allowed to access the SNMP agent.

Access Permissions: Set the access permissions for the user; RO--read only and RW--read and writer.

Authentication Protocol: Select the authentication protocol, MD5 and SHA. SNMP agent can communicate with the manager station through authentication and encryption to secure the message exchange. Set the authentication and encryption information here and below.

Authentication Key: Set the authentication key, 8-31 characters.

Privacy Protocol: Select the privacy mode, DES and AES.

Privacy Key: Set the privacy key, 8-31 characters.

Click Save to apply the settings.

Remote System Log

Remote System Log: Select Activated to enable this feature

Server IP Address: Assign the remote log server IP address.

Server UDP Port: Assign the remote log server port, 514 is commonly used.

Click Save to apply the settings

Universal Plug & Play

UPnP offers peer-to-peer network connectivity for PCs and other network devices, along with control and data transfer between devices. UPnP offers many advantages for users running NAT routers through UPnP NAT Traversal, and on supported systems makes tasks such as port forwarding much easier by letting the application control the required settings, removing the need for the user to control advanced configuration of their device.

Both the user's Operating System and the relevant application must support UPnP in addition to the router.

UPnP: Select this checkbox to activate UPnP. Be aware that anyone could use an UPnP application to open the web configuration's login screen without entering the BEC 4700's IP address

Auto-configured: Select this check box to allow UPnP-enabled applications to automatically configure the BEC 4700 so that they can communicate through the BEC 4700, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application.

Click Save to apply the settings.

Dynamic DNS (DDNS)

The Dynamic DNS function allows you to alias a dynamic IP address to a static hostname, allowing users whose ISP does not assign them a static IP address to use a domain name. This is especially useful for hosting servers via your internet connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time. This dynamic IP address is the WAN IP address of the router, which is assigned to you by your ISP.

Here users can register different WAN interfaces with different DNS Providers.

If you do not have a DDNS account, please choose a DDNS Service Provider from the list then go to their website to create an account first.

Dynamic DNS: Select this check box to activate Dynamic DNS.

Service Provider: Select from drop-down menu for the appropriate service provider, for example: www.dyndns.org.

My Host Name: Type the domain name assigned to your BEC 4700 by your Dynamic DNS provider.

Username / Password: Enter the user name and password of the account you created with this service provider.

Wildcard support: Select this check box to enable DYNDNS Wildcard.

Period: Set the time period on how often the BEC 4700 will update the DDNS server with your current external IP address.

Click Save to apply the settings.

Example: How to register a DDNS account

If you do not have an account with Dynamic DNS, please go to www.dyndns.org to register an account first.

User test1 register a Dynamic Domain Names in DDNS provider http://www.dyndns.org/.

DDNS: www.hometest.com using username/password test/test

Access Control

Access Control Listing allows you to determine which services/protocols can access the BEC 4700 interface from which computers. It is a management tool aimed to allow IPs (set in secure IP address) to access specified embedded applications (Web, etc, user can set) through some specified interface (LAN, WAN or both). User can have an elaborate understanding in the examples below.

The maximum number of entries is 16.

Access Control: Select whether to make Access Control function available.

Rule Index: The numeric rule indicator. The maximum entry is up to 16, ranging from 0 to 15.

Active: Yes to activate the rule.

Secure IP Address: The default 0.0.0.0 allows any client to use this service to manage the BEC 4700. Type an IP address range to restrict access to the client(s) without a matching IP address.

Application: Choose a service that you want to all access to all the secure IP clients. The drop-down menu lists all the commonly used applications.

Interface: Select the access interface. Choices are LAN, WAN and Both.

Click Save to apply the settings.

By default, the "Access Control" has two default rules.

Default Rule 1: (Index 1), a rule to allow only clients from LAN to have access to all embedded applications (Web, FTP, etc). Under this situation, clients from WAN cannot access the router even from Ping.

Default Rule 2: (Index 2), an ACL rule to open Ping to WAN side.

Packet Filter

You can filter the packages by MAC address, IP address, Protocol, Port number and Application or URL.

Filter Type - IP & MAC Filter

IP & MAC Filter Editing

Rule Index: The numeric rule indicator.

Individual Active: Select Yes to activate the rule.

Action: This is how to deal with the packets matching the rule. Allow please select White List or block selecting Black List.

Interface: Select to determine which interface the rule will be applied to.

Direction: Select to determine whether the rule applies to outgoing packets, incoming packets or packets of both directions.

Type: Choose type of field you want to specify to monitor. Select "IPv4" for IPv4 address, port number and protocol. Select "IPv6" for IPv6 address, port number and protocol. Select "MAC" for MAC address.

Source IP Address: The source IP address of packets to be monitored. 0.0.0.0 means "Don't care".

Source Subnet Mask: Enter the subnet mask of the source network.

Source Port Number: The source port number of packets to be monitored. 0 means "Don't care".

Destination IP Address: The destination IP address of packets to be monitored. 0.0.0.0 means "Don't care".

Destination Subnet Mask: Enter the subnet mask of the destination network.

Destination Port Number: This is the Port that defines the application. (E.g. HTTP is port 80.)

DSCP: DSCP: Differentiated Services Code Point, it is recommended that this option be configured by an advanced user or keep 0. (0 means Don't care.)

Protocol: Specify the packet type (TCP, UDP, ICMP, and ICMPv6) that the rule applies to.

IP/MAC Filter Listing

Index #: The numeric rule indicator.

Active: Whether the connection is currently active.

Interface: show the interface the rule applied to.

Direction: show the direction the rule applied to.

Source IP (IPv6) Address/Mask (Prefix): The source IP address or range of packets to be monitored.

Destination IP (IPv6) Address/Mask (Prefix): This is the destination subnet IP address.

Source MAC Address: show the MAC address of the rule applied.

Source Port: The source port number of packets to be monitored.

Destination Port: This is the Port or Port Ranges that defines the application.

DSCP: show the set DSCP.

Protocol: It is the packet protocol type used by the application. Select either TCP or UDP or ICMP or ICMPv6

Click Save to apply the settings.

◆ Filter Type - Application Filter

Application Filter: Select this option to Activated/Deactivated the Application filter.

ICQ: Select this option to Allow/Deny ICQ.

MSN: Select this option to Allow/Deny MSN.

YMSG: Select this option to Allow/Deny Yahoo messenger.

Real Audio/Video (RTSP): Select this option to Allow/Deny Real Audio/Video (RTSP).

Click Save to apply the settings.

Filter Type- URL Filter

URL Filter: Select Activated to enable URL Filter.

URL Filter Rule Index: The numeric rule indicator.

Individual Active: To give control to the specific URL access individually, for example, you want to prohibit access to www.yahoo.com, please first press Activated in "URL Filter" field, and also Yes in "Individual Active" field; if some time you want to allow access to this URL, you simply select No in individual active field. In a word, the command serves as a switch to the access of some specific URL with the filter on.

URL (Host): Specified URL which is prohibited from accessing.

Click Save to apply the settings.

CWMP (TR-069)

CWMP, short for CPE WAN Management Protocol, also called TR069 is a Broadband Forum technical specification entitled CPE WAN Management Protocol (CWMP). It defines an application layer protocol for remote management of end-user devices. It defines an application layer protocol for remote management of end-user devices.

As a bidirectional SOAP/HTTP based protocol it can provides the communication between customer premises equipment (CPE) and Auto Configuration Server (ACS). It includes both a safe configuration and the control of other CPE management functions within an integrated framework. In the course of the booming broadband market, the number of different internet access possibilities grew as well (e.g. modems, routers, gateways, set-top box, VoIP-phones). At the same time the configuration of this equipment became more complicated –too complicated for end-users. For this reason, TR-069 was developed. It provides the possibility of auto configuration of the access types. Using TR-069 the terminals can get in contact with the Auto Configuration Servers (ACS) and establish the configuration automatically and let ACS configure CPE automatically.

CWMP: Select activated to enable CWMP.

ACS Login Information

URL: Enter the ACS server login URL.

User Name: Specify the ACS User Name for ACS authentication to the connection from CPE.

Password: Enter the ACS server login password.

Connection Request Information

Path: Local path in HTTP URL for an ACS to make a Connection Request notification to the CPE.

Username: Username used to authenticate an ACS making a Connection Request to the CPE.

Password: Password used to authenticate an ACS making a Connection Request to the CPE.

Periodic Inform Config

Periodic Inform: Select Activated to authorize the router to send an Inform message to the ACS automatically.

Interval(s): Specify the inform interval time (sec) which CPE used to periodically send inform message to automatically connect to ACS. When the inform interval time arrives, the CPE will send inform message to automatically connect to ACS.

NATT Config - This is a proprietary feature provided by BEC. May leave them in blank, no configuration is required.

NATT Server: By BEC administrator only.

NATT Period: By BEC administrator only.

Click Save to apply the settings.

Parental Control

This feature provides Web content filtering offering safer and more reliable web surfing for users especially for parents to protect network security and control the contents for children at home.

To activate this feature, please log on to www.opendns.com to get an OpenDNS account first.

Parent Control Provider: Hosted by www.opendns.com

Parent Control: Enable the feature by clicking the Activated

Host Name: It is the domain name of your OpenDNS. If you don't have one, please leave it blink.

Username / Password: Put down your OpenDNS account username and password

Click Save to apply the settings.

Maintenance

Maintenance equipments the users with the ability of maintaining the device as well as examining the connectivity of the WAN connections, including User Management, Time Zone, License, Firmware & Configuration, System Restart, Auto Reboot, Diagnostic Tool, and Ignition Sensing.

User Management

User Management provides the Administrator with the ability to grant access control and manage GUI login credentials for each user.

There are two access management levels, Administrator and User.

The default root account, Administrator (admin), has full access to all the features listed and ability to create other accounts with features to allow other users to access to. The User account is with limited access (specified by advanced users with admin account) to the GUI.

Total of 8 accounts can be created to grant access to manage the BEC 4700 via the web page.

Administrator Account

admin/admin is the root/default account username and password.

NOTE: This username / password may vary by different Internet Service Providers.

User Setup

Index: The numeric account indicator. The maximum entry is up to 8 accounts.

User Name: Create account(s) user name for GUI management.

New Password: Enter a new password for this user account.

Confirmed Password: Re-enter the new password again; you must enter the password exactly the same as in the previous field

FTP Authority Setup

FTP Access: Enable to grant the user access to the FTP server.

Permission: Set the operation permission for the user, Read/Write or Read.

SAMBA Authority

SAMBA Access: Enable to grant the user access to the SAMBA server.

Permission: Set the operation permission for the user, Read/Write or Read.

Web GUI Permission

Login using the Administrator account, you will have the full accessibility to manage & control your gateway device and can also create user accounts for others to control some of the open configuration settings.

User Account

user/user is the default user account username and password

NOTE: This username / password may vary by different Internet Service Providers.

User Account
Index	2 ▼
Username	user
New Password	-
Confirm Password	-
FTP Authority Setup
FTP Access	○ Enable ● Disable
Permission	○ Read/Write ● Read
SAMBA Authority Setup
SAMBA Access	○ Enable ● Disable
Permission	○ Read/Write ● Read
Web GUI Permission
Guest Account	○ Enable ● Disable
Interface Setup	● Enable ○ Disable
Advanced Setup	● Enable ○ Disable
Access Management	● Enable ○ Disable
Maintenance	● Enable ○ Disable
**Please restart the Storage server after config changed**
Save Delete
User Account Listing
Index	User Name	FTP Access	FTP Permission	SAMBA Access	SAMBA Permission
1	admin	Enable	Read/Write	Enable	Read/Write
2	user	Disable	Read	Disable	Read

User Account Setup

Index #: The numeric account indicator. The maximum entry is up to 8.

User Name: Users can create account(s) to give it (them) access to SAMBA and FTP.

New Password: Password for the user account.

Confirm Password: Re-enter the password.

FTP Authority Setup

FTP Access: Enable to grant the user access to the FTP server.

Permission: Set the operation permission for the user, Read/Write or Read.

SAMA Authority Setup

SAMBA Access: Enable to grant the user access to the SAMBA server.

Permission: Set the operation permission for the user, Read/Write or Read.

Web GUI Permission

Guest Account: Enable to create this new guest account.

Interface Setup / Advanced Setup / Access Management Setup / Maintenances: Enable to grant this user access to these features.

When someone accesses to the BEC 4700 using this "user" account, he/she can only manage and configure the features that is pre-selected in Web GUI Permission for this account.

Click Save to apply the settings.

Time Zone

With default, BEC 4700 does not contain the correct local time and date.

There are several options to setup, maintain, and configure current local time/date on the BEC 4700. If you plan to use Time Schedule feature, it is extremely important you set up the Time Zone correctly.

Synchronize time with: Select the methods to synchronize the time.

▶ NTP Server automatically: To synchronize time with the SNTP servers to get the current time from an SNTP server outside your network then choose your local time zone. After a successful connection to the Internet, BEC 4700 will retrieve the correct local time from the SNTP server this is specified.
PC's Clock: To synchronize time with the PC's clock.
▶ Manually: Enter the Date and Time manually.

◆ Date: Month / Date / Year. Month – 1 \~ 12 (January \~ December).
◆ Time: Hour: Minute: Second

Time Zone: Choose the time zone of your location. This will set the time difference between your time zone and Greenwich Mean Time (GMT).

Daylight Saving: Select this option if you use daylight savings time.

NTP Server Address: Enter the IP address of your time server. Check with your ISP/network administrator if you are unsure of this information.

Firmware & Configuration

Firmware is the software that controls the hardware and provides all functionalities which are available in the GUI. This software may be improved and/or modified; your BEC 4700 provides an easy way to update the code to take advantage of the changes.

To upgrade the firmware of the BEC 4700, you should download or copy the firmware to your local environment first. Click “Choose File” to specify the path of the firmware file. Then, click “Upgrade” to start upgrading process. After completing the firmware upgrade, the BEC 4700 will automatically restart and run the new firmware.

Upgrade: Choose Firmware or Configuration you want to update.

System Restart with:

• Current Settings: Restart the device with the current settings automatically when finishing upgrading.
  ▶ Factory Default Settings: Restart the device with factory default settings automatically when finishing upgrading.

File: Type in the location of the file you want to upload in this field or click Browse to find it.

Choose File: Click "Choose File" to find the configuration file or firmware file you want to upload. Remember that you must extract / decompress / unzip the .zip files before you can upload them.

Backup Configuration: Click Backup button to back up the current running configuration file and save it to your computer in the event that you need this configuration file to be restored back to your BEC 4700 device when making false configurations and want to restore to the original settings.

Upgrade: Click "Upgrade" to begin the upload process. This process may take up to two minutes.

DO NOT turn off or power cycle the device while firmware upgrading is still in process.

Improper operation could damage your BEC 4700.

System Restart

Click System Restart with option Current Settings to reboot your router.

If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to restore to factory default settings.

You may also restore your router to factory settings by holding the small Reset pinhole button on the back of your router in about more than 6s seconds whilst the router is turned on.

Auto Reboot

Schedule an automatic reboot for your BEC 4700 to ensure proper operation and best performance. This reboot will only reboot with current configuration settings and not overwrite any existing settings.

Click Save to apply the settings

Example: Schedule BEC 4700 to reboot at 10:00pm (22:00) every weekday (Monday thru Friday) and reboot at 9:00am on Saturday and Sunday.

Diagnostics Tool

The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides.

3G/4G-LTE

Click START to begin to diagnose the connection.

EWAN

Click START to begin to diagnose the connection.

Chapter 5: Troubleshooting

If your BEC 4700 is not functioning properly, you can refer to this chapter for simple troubleshooting before contacting your service provider support. This can save you time and effort but if symptoms persist, consult your service provider.

Problems with the Router

Problem	Suggested Action
None of the LEDs is on when you turn on the router	Check the connection between the router and the adapter. If the problem persists, most likely it is due to the malfunction of your hardware. Please contact your service provider or BEC for technical support.
You have forgotten your login username or password	Try the default username "admin" and password "admin". If this fails, you can restore your router to its factory settings by pressing the reset button on the device rear side.

Problem with LAN Interface

Problem	Suggested Action
Cannot PING any PC on LAN	Check the Ethernet LEDs on the front panel.The LED should be on for the port that has a PC connected. If it does not lit, check to see if the cable between your router and the PC is properly connected. Make sure you have first uninstalled your firewall program before troubleshooting.
	Verify that the IP address and the subnet mask are consistent for both the router and the workstations.

Recovery Procedures

Problem

Suggested Action

- The front LEDs display incorrectly- Still cannot access to the router management interface after pressing the RESET button.- Software / Firmware upgrade failure

Before starting recovery process, please configure the IP address of the PC as 192.168.1.100 and proceed with the following step-by-step guide.1. Power the router off.2. Press reset button and power on the router, once the Power lights Red, keeping press reset button over 6 seconds.3. Internet LED flashes Green, router entering recovery procedure and router's IP will reset to Emergency IP address (Say 192.168.1.1).4. Open browser and access http://192.168.1.1 to upload the firmware.5. Internet LED lit Red, and router starts to writ firmware into flash. Please DO NOT power off the router at this step.6. Internet LED lit Green when successfully upgrade firmware.7. Power cycle off/on the BEC 4700

APPENDIX: PRODUCT SUPPORT & CONTACT

If you come across any problems please contact the dealer from where you have purchased the product.

Contact BEC @ http://www.bectechnologies.net

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

♦ Reorient or relocate the receiving antenna.
♦ Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. . This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

Co-location statement

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
