USER MANUAL D5500 VIVITEK

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2008

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

All other product names used in this manual are the properties of their respective owners and are acknowledged.

Important Safety Information

Congratulations on purchasing the Vivitek DLP ^® projector!

Important:

It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example:

"Push the Menu button on the remote control to open the Main menu."

Remote Control

Some remote controls have a laser for pointing out items on a screen.

DANGER: Do not point the laser in the eyes. Doing so can damage the eyes permanently.

General Safety Information

Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in the unit. For servicing, contact qualified service personnel.
➢ Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.

Power Safety

▶ Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. See Replacing the Lamps on page 83 for clear and safe instructions for this procedure. Before replacing the lamp:

▶ Unplug the power cord.
- Allow the lamp to cool for about one hour.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

Cleaning the Projector

➢ Unplug the power cord before cleaning. See Cleaning the projector on page 81.
- Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the Regulatory Compliance section on page 106.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services.

Main Features

• Lightweight unit, easy to pack away and transport.
• Compatible with all major video standards including NTSC, PAL, and SECAM.
• A high brightness rating allows for presentations in daylight or in lit rooms.
  • Supports resolutions up to SXGA+ at 16.7 million colors to deliver crisp, clear images.
• Flexible setup allows for front, rear projections.
  • Line-of-vision projections remain square, with advanced keystone correction for angled projections.
• Input source automatically detected.

About this manual

This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print sections that are relevant to your needs.

Table of Contents

INTRODUCTION....1

PACKING CHECKLIST .... 1

VIEWS OF PROJECTOR PARTS....2

Front-right View 2

Top view....3

Bottom view....4

TOP FEATURES....5

Lens Controls....5

OSD Controls and Status LEDs 6

TERMINAL PANEL FEATURES....8

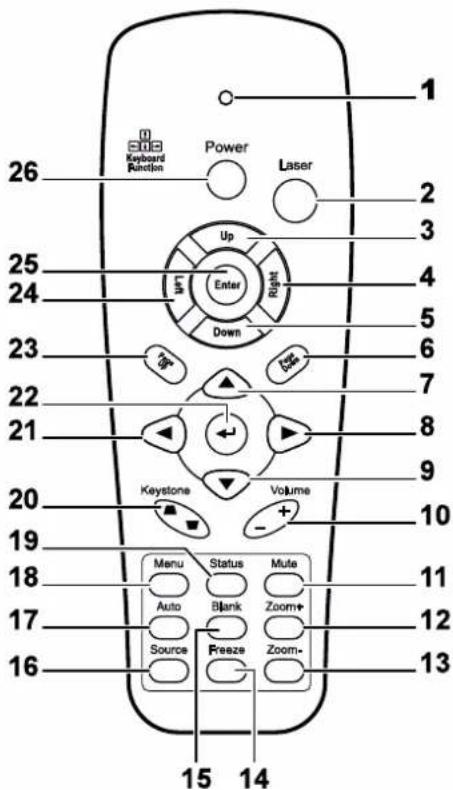

REMOTE CONTROL PARTS 10

REMOTE CONTROL OPERATING RANGE....12

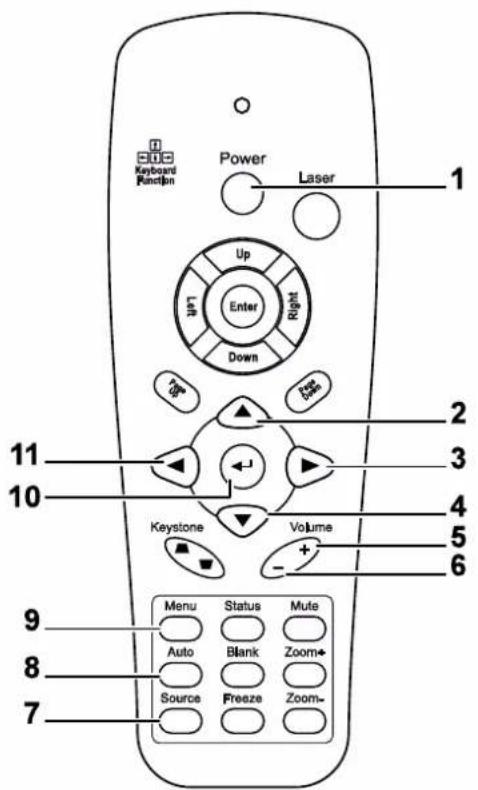

PROJECTOR AND REMOTE CONTROL BUTTONS....12

Remote Control....12

SETUP AND OPERATION....13

INSERTING THE REMOTE CONTROL BATTERIES 13

INSTALLING OR REMOVING THE OPTIONAL LENS 14

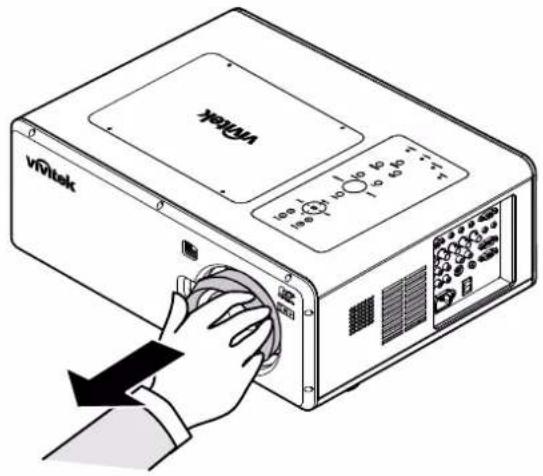

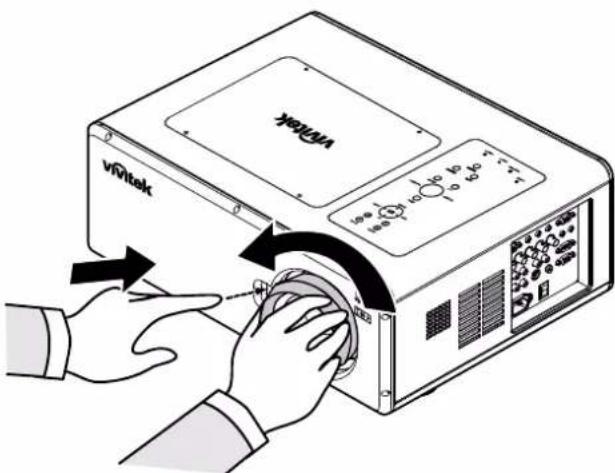

Removing the Existing Lens From the Projector 14

Installing the New Lens....15

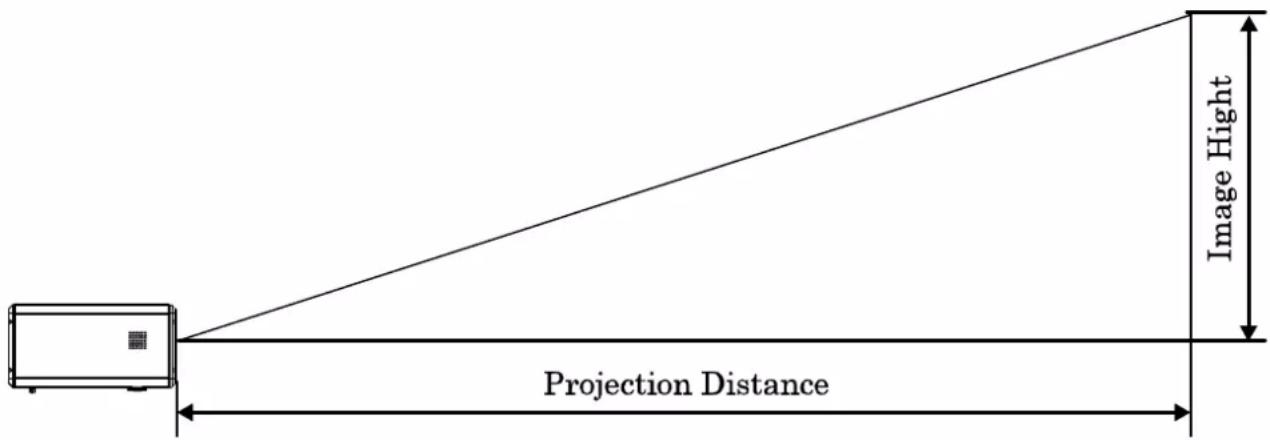

THROW DISTANCE AND SCREEN SIZE 16

INSTALLING THE OPTIONAL COLOR WHEEL 18

MAKING CONNECTIONS....21

Connecting Your PC or Macintosh Computer 21

Connecting an External Monitor 22

Connecting Your DVD Player with Component Output 23

Connecting Your VCR or Laser Disc Player 24

PROJECTING AN IMAGE (BASIC OPERATION)....25

TURNING ON THE PROJECTOR 25

Note on Startup Screen (Menu Language Select screen).... 26

SELECTING AN INPUT SOURCE 27

ADJUSTING THE PICTURE POSITION AND PICTURE SIZE 28

Adjusting Picture Position Manually 28

Lens Shift Adjustable Range 29

From the Remote Control Unit 30

Adjusting the Projector Level 32

OPTIMIZING AN RGB IMAGE AUTOMATICALLY 33

Adjusting the Image Using AUTO.... 33

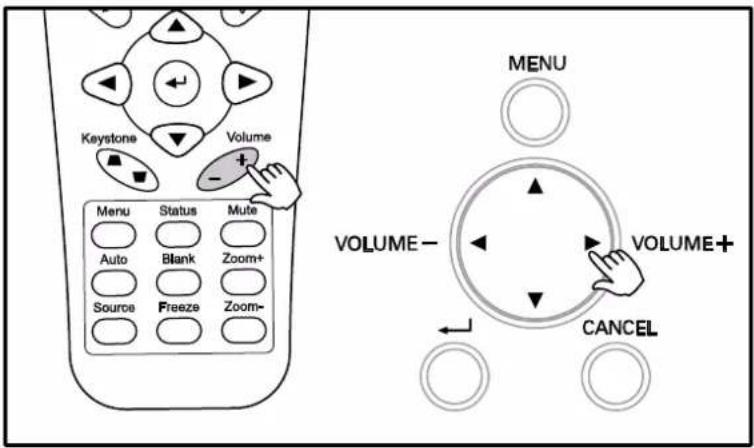

ADJUSTING VOLUME UP AND DOWN 34

TURNING OFF THE PROJECTOR 35

About Direct Power Off 36

After Use 36

CONVENIENT FEATURES....37

TURNING OFF THE IMAGE AND SOUND 37

FREEZING A PICTURE 37

ADJUSTING THE FOCUS/ZOOM MANUALLY 38

Adjusting by Using the OSD Control Panel.... 38

CHANGING LAMP MODE....39

Changing Lamp Mode by Using the Projector's OSD Control Panel.... 39

GETTING INFORMATION....40

ADJUSTING POSITION/TOTAL DOTS/FINE SYNC 41

Adjusting Position/Total Dots/Fine Sync by using the OSD Control Panel.... 41

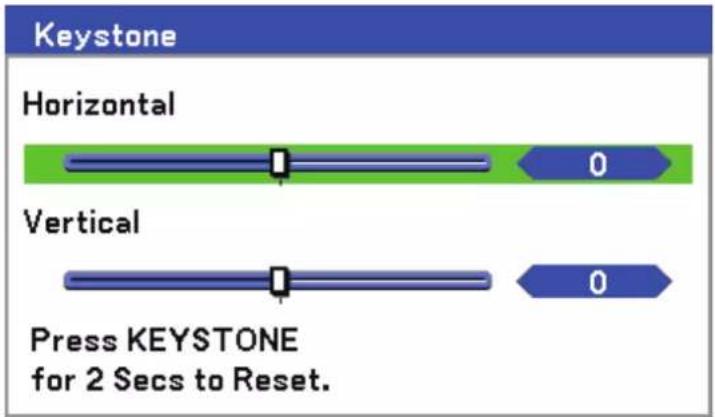

Correcting Keystone by Using the Remote Control 42

PREVENTING THE UNAUTHORIZED USE OF THE PROJECTOR 44

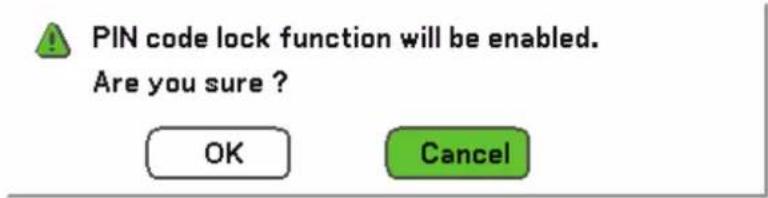

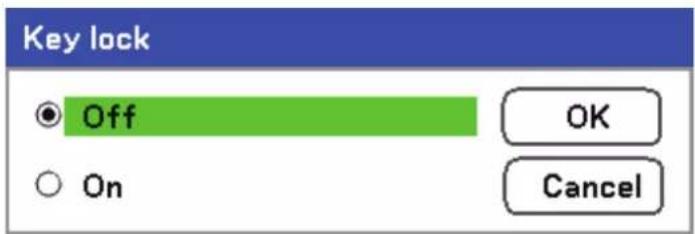

Locking the Projector 44

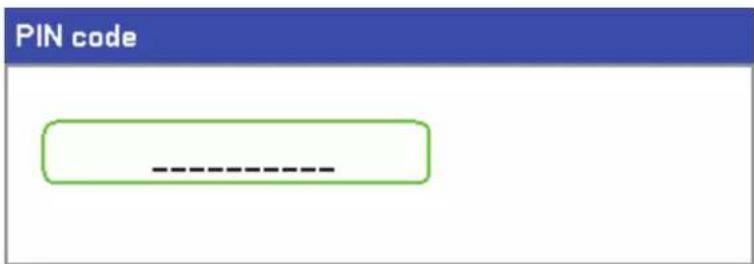

Unlocking the Projector....45

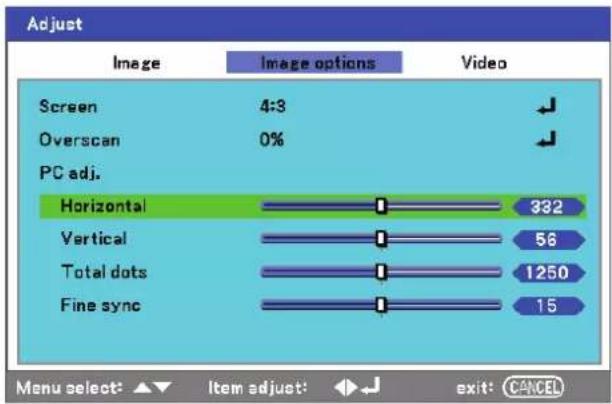

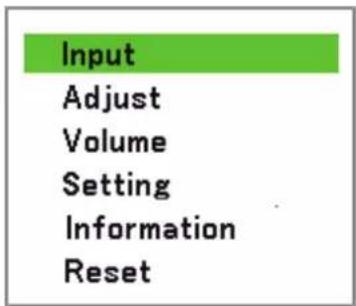

Navigating the OSD 47

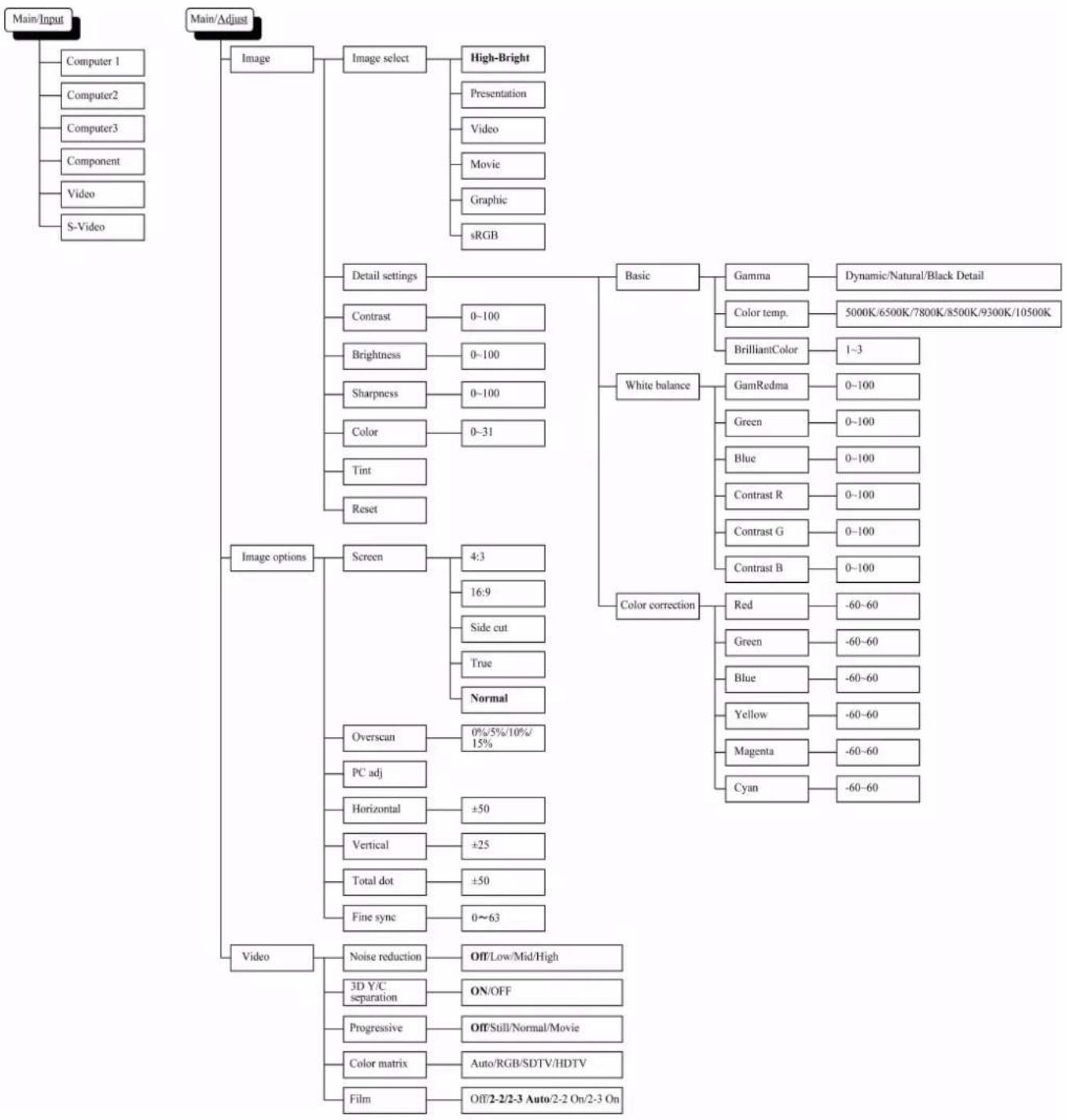

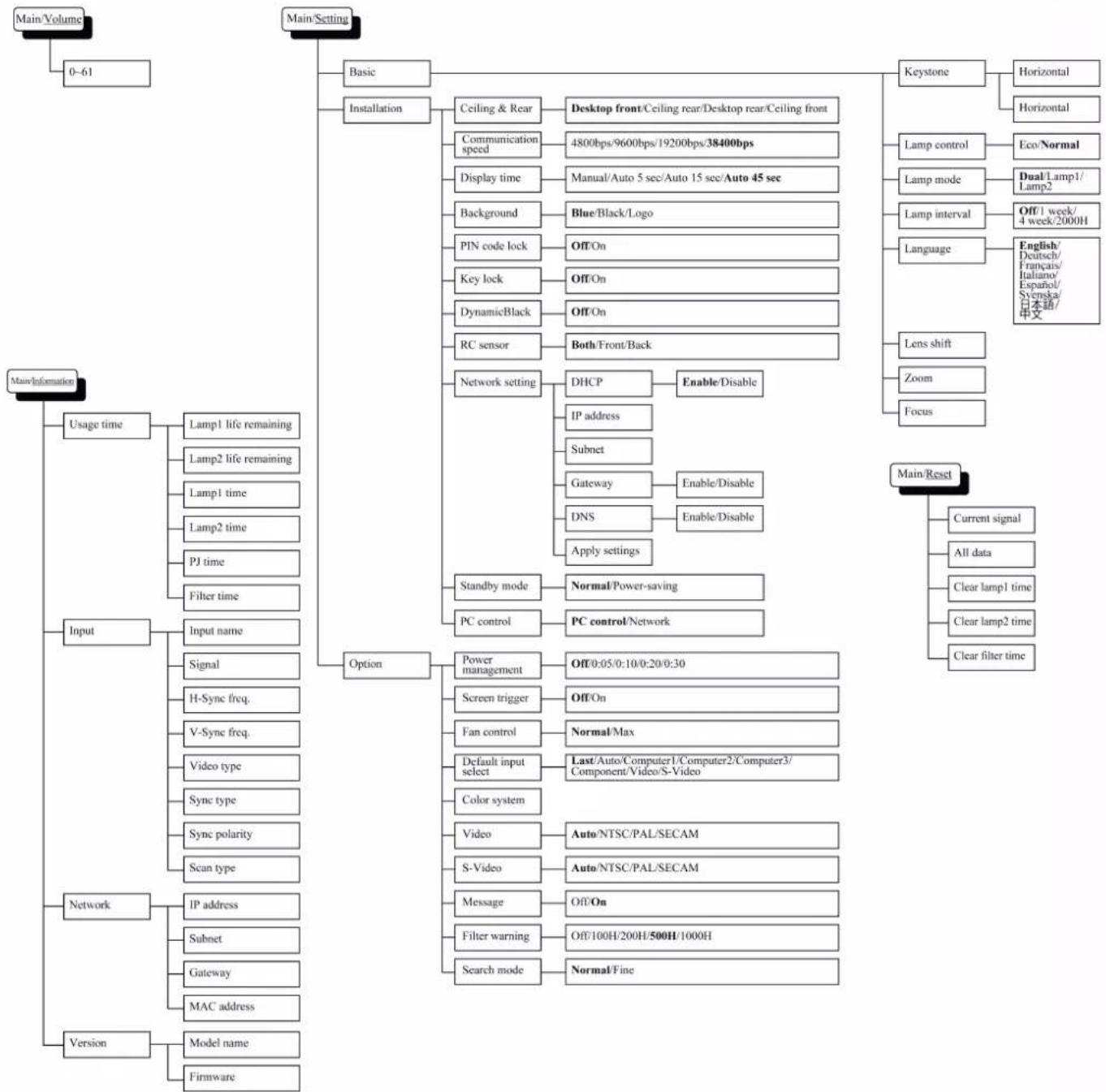

MENU TREE 49

MENU ELEMENTS 51

INPUT MENU DESCRIPTIONS AND FUNCTIONS 52

ADJUST MENU DESCRIPTIONS AND FUNCTIONS....53

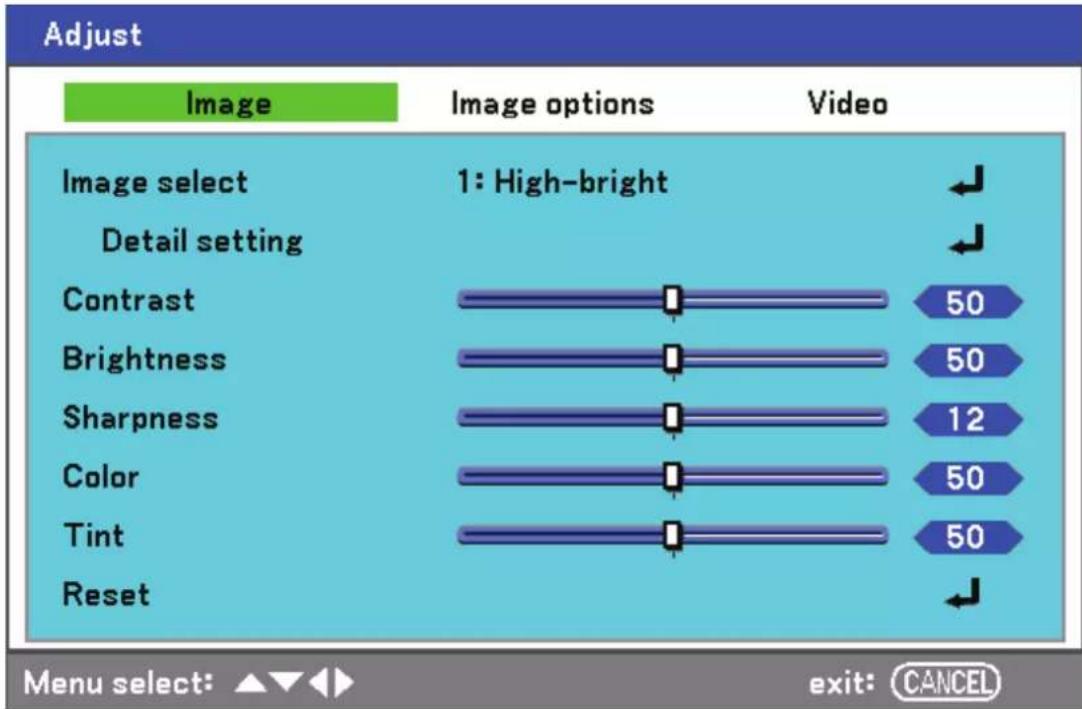

Image menu....53

Image options menu 54

Video menu 56

DETAIL SETTING MENU DESCRIPTIONS AND FUNCTIONS 59

Basic 59

White balance....61

Color correction....62

SETTING MENU DESCRIPTIONS AND FUNCTIONS 63

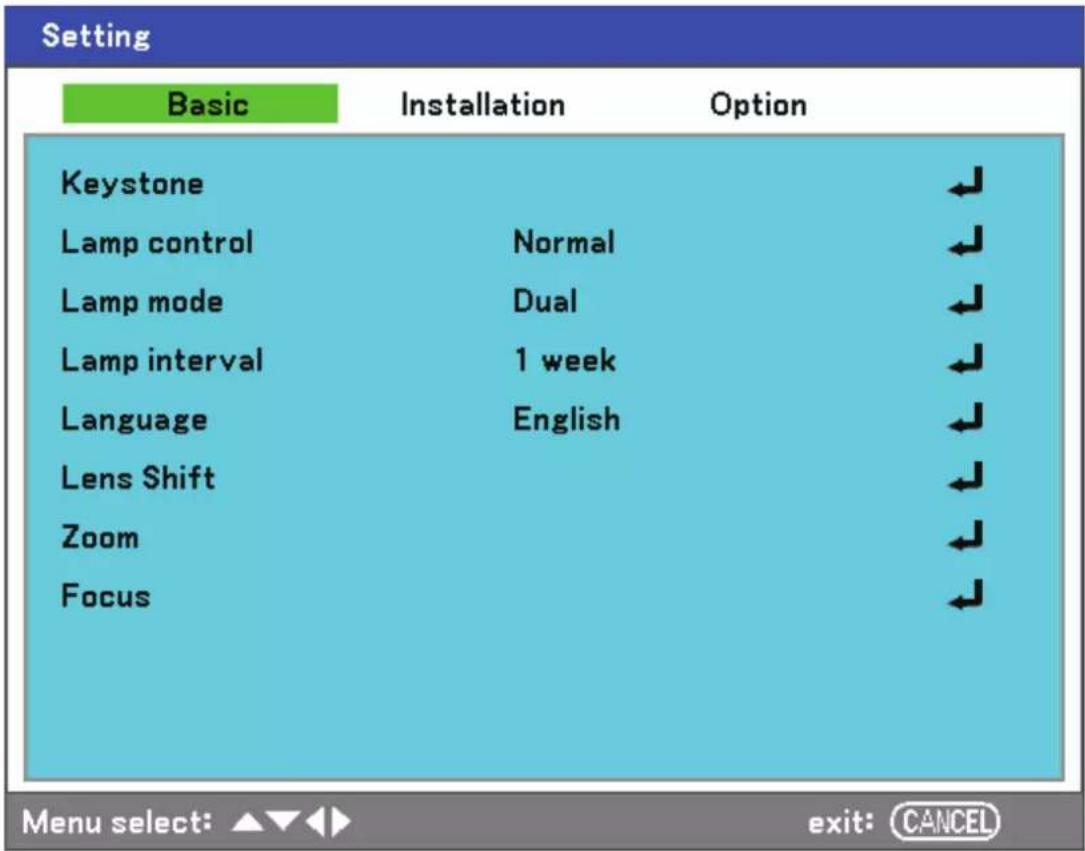

Basic....63

Installation....66

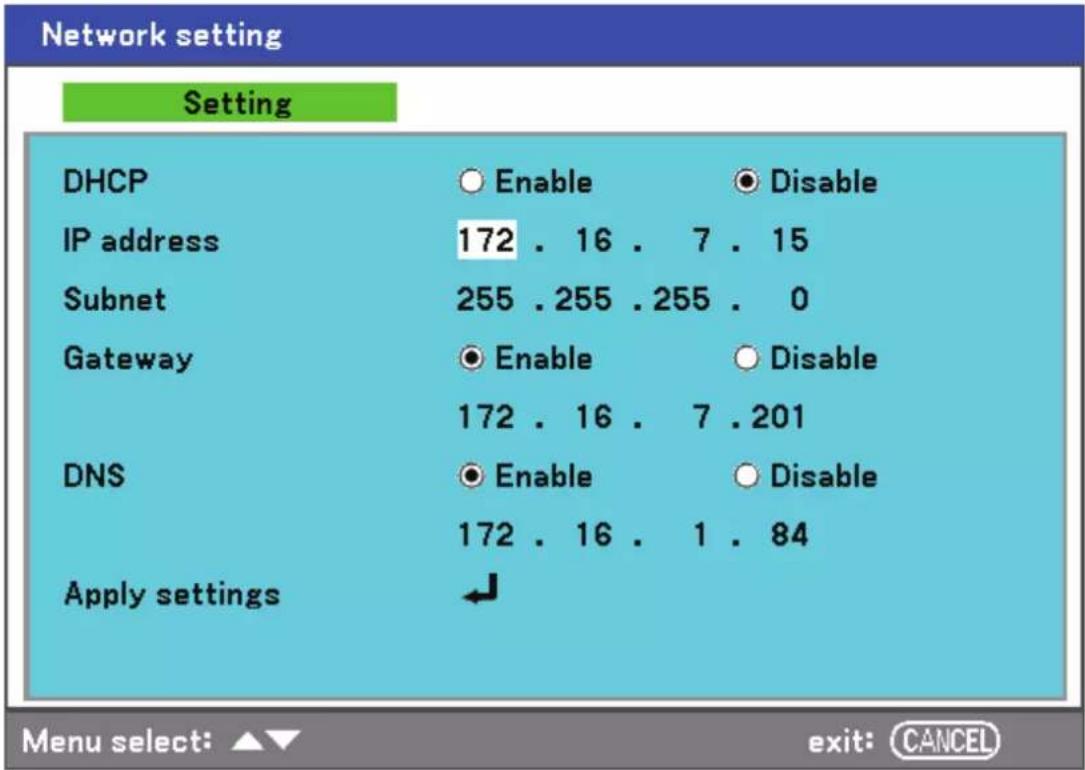

Network setting 71

Option 72

INFORMATION MENU DESCRIPTIONS AND FUNCTIONS 76

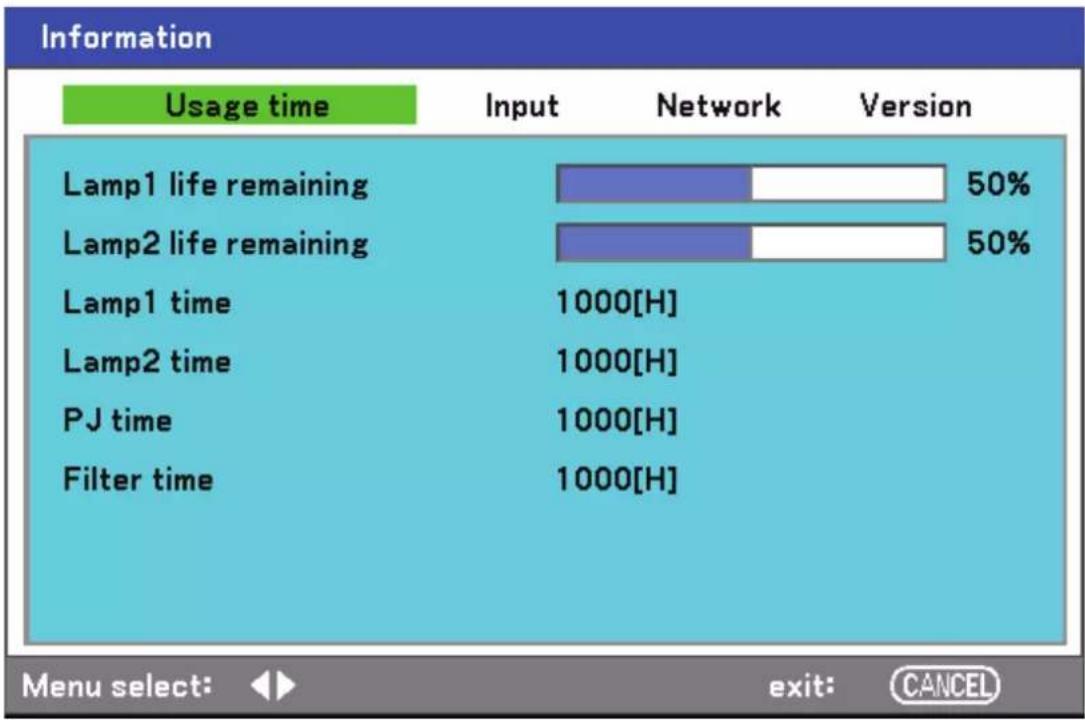

Usage time 76

Input 77

Network....78

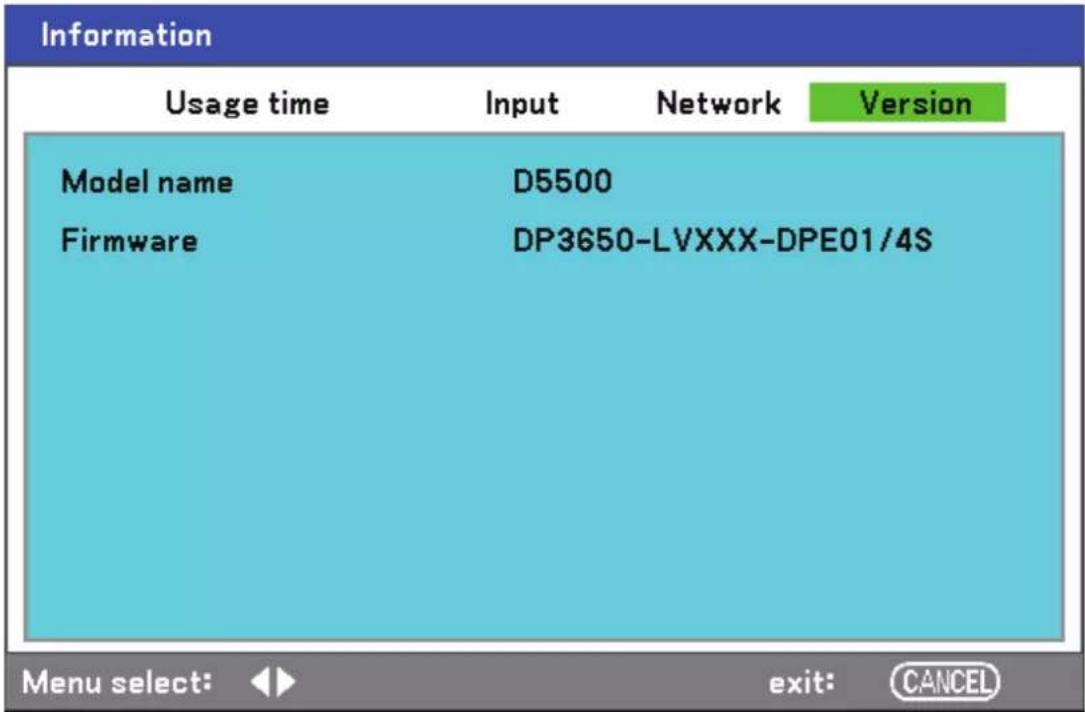

Version....79

RESET MENU DESCRIPTIONS AND FUNCTIONS....80

MAINTENANCE....81

CLEANING THE PROJECTOR 81

Cleaning the Cabinet 81

Cleaning the Lens 81

Cleaning the Filters 82

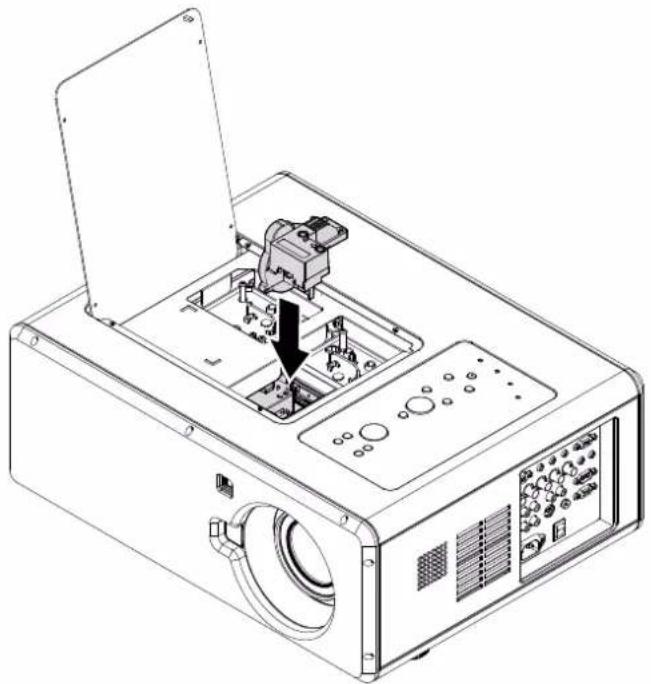

Replacing the Lamps....83

Resetting the Lamp Time Counter 86

APPENDIX....87

TROUBLESHOOTING 87

Indicator Messages 87

Common Problems and Solutions 88

Tips for Troubleshooting....88

IMAGE PROBLEMS....89

Lamp Problems 89

Remote Control Problems....90

Audio Problems....90

HAVING THE PROJECTOR SERVICED 90

SPECIFICATIONS....91

PROJECTOR SPECIFICATIONS....91

Optical Specifications 91

Electrical Specifications 92

Mechanical Specifications 93

Environmental Considerations 93

Optional Parts....93

CABINET DIMENSIONS 94

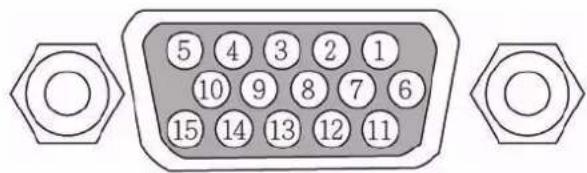

PIN ASSIGNMENTS OF MINI D-SUB 15 PIN INPUT CONNECTOR....95

COMPATIBLE INPUT SIGNAL LIST 96

PC CONTROL CODES AND CABLE CONNECTIONS 97

Functional Execution Command Table....98

Status Read Command Table 99

SCREEN TRIGGER....100

OPERATION USING HTTP BROWSER....101

Overview 101

Preparation Before Use 101

Handling of the Address for Operation by Using a Browser.... 101

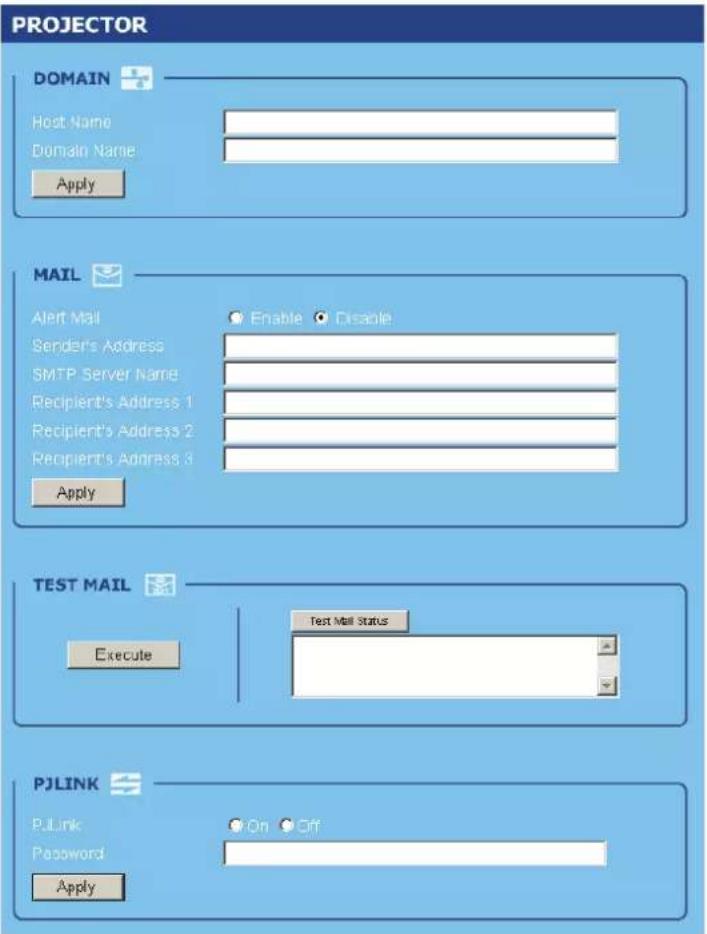

Configuring Network Settings.... 102

Structure of the HTTP Server.... 104

REGULATORY COMPLIANCE....106

FCC WARNING....106

CANADA 106

SAFETY CERTIFICATIONS....106

EN 55022 WARNING....106

INTRODUCTION

Packing Checklist

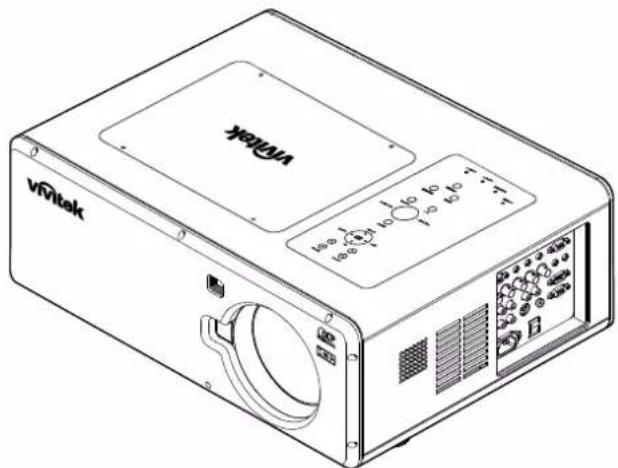

Carefully unpack the projector and check that the following items are included:

VRVita Vinitak

DLP PROJECTOR

Diagram of a remote control with labeled buttons and battery batteries for data access.

REMOTE CONTROL (WITH TWO AAA BATTERIES)

POWER CORD

Line drawing of a U88222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222Schematic diagram of the USB cable with two connectors and a terminal connector (no text or symbols present)

VGA

QUICK START GUIDE

CD-ROM (THIS USER'S MANUAL)

LENS HOLE CAP (INSTALLED)

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

Caution:

Avoid using the projector in dusty environments.

Views of Projector Parts

Front-right View

1 2 3 vVitek 10 9 8 7 6 5 4 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	Lamp cover Remove cover to replace lamp or color wheel		83
2.	OSD control panel See	OSD Controls and Status LEDs	6
3.	I/O connector panel Connect various input devices		8
4.	Intake vent Lamp cooling vent – do not obstruct
5.	Speakers Built-in stereo speakers
6.	Height adjuster Adjusts level of projector		32
7.	Lens Remove lens cap before use
8.	Lens cap Covers lens to protect when not in use
9.	Lens release button Press the release button before removing the lens
10.	IR receiver Receiver for IR signal from remote control		10

Important:

Grill openings on the projector allow for good air circulation, which keeps the projector lamp cool.

Do not obstruct any of the grill openings.

Top view

1 2 3 4 5 6 7 8 vivitek

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	Lens control panel See	Lens Controls	5
2.	Right-hand speaker Right-hand speaker
3.	Lamp cover Remove cover to replace lamp or color wheel		83
4.	Exhaust vent Exhaust vent – do not obstruct
5.	Rear intake vent Rear cooling intake – do not obstruct
6.	OSD control panel See	OSD Controls and Status LEDs	6
7.	Left intake vent Left-hand cooling intake – do not obstruct
8.	Left-hand speaker Left-hand speaker

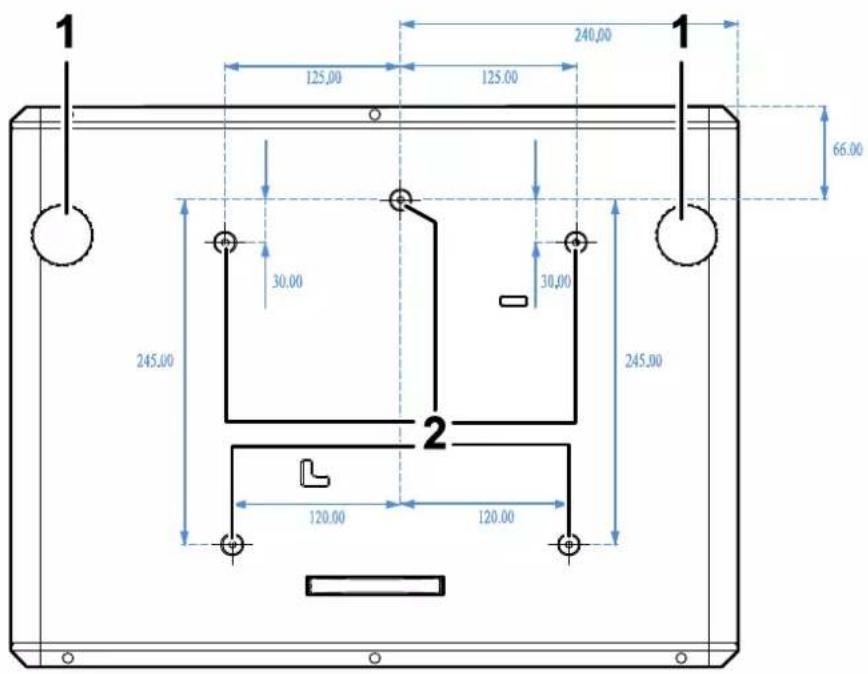

Bottom view

1 125.00 125.00 240.00 66.00 30.00 30.00 245.00 245.00 120.00 120.00 2

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	Height adjusters Adjust	projection height	32
2.	Ceiling support holes	Contact your dealer for information on mounting the projector on a ceiling

Note:

When installing, ensure that you use only UL Listed ceiling mounts.

Caution:

With ceiling installation, use approved mounting hardware & M4 screws; maximum depth of screw: 12 mm; distance from ceiling/ wall: 20 cm (0.7 feet) for proper ventilation; distance from fluorescent lamps: at least 1 m (3 feet) front and back of the projector. For permanent installations, follow local codes.

Top Features

Lens Controls

ITEM	LABEL	DESCRIPTION	SEE PAGE:

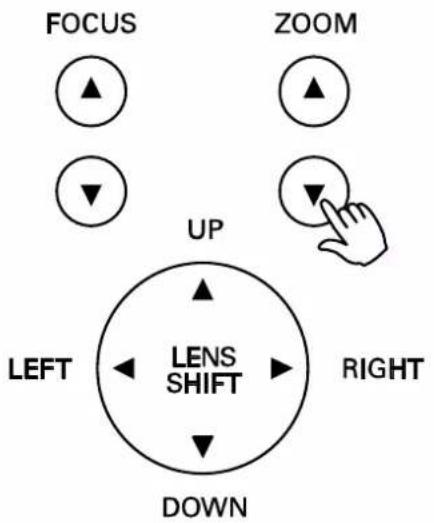

1.	ZOOM Increase/decrease projected image size		38
2.	UP CURSOR	Move image left, right, up, or down
3.	RIGHT CURSOR
4.	DOWN CURSOR
5.	LEFT CURSOR
6.	FOCUS Focus the projected image		38

OSD Controls and Status LEDs


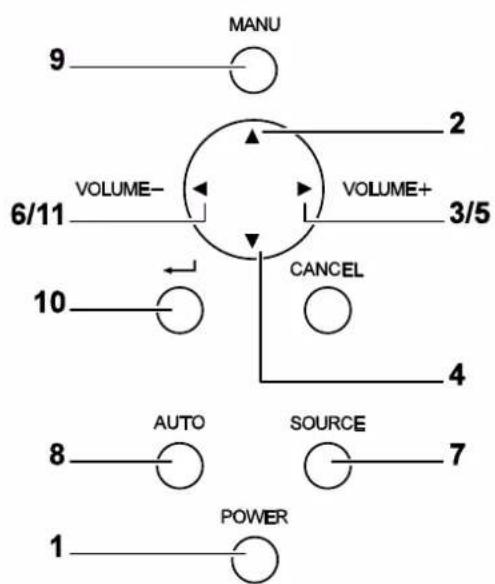

ITEM	LABEL	DESCRIPTION		SEE PAGE:
1.	MENU Open / Close the OSD			47
2.	UP/ DOWN/ LEFT/ RIGHT BUTTONS	Navigate and change settings in the OSD		47
3.	RIGHT CURSOR/ VOLUME INCREASE	Increase volume		34
4.	CANCEL Exit the On-Screen Display (OSD)			47
5.	SOURCE Detects the input device			27
6.	POWER	Turn the projector on or off (main power switch must be turned on first).Press to place the projector in standby mode.		25
7.	LAMP 2 (LED)	Green	See Indicator Messages	87
		Flashing
8.	LAMP 1 (LED)	Green	See Indicator Messages	87
		Flashing
9.	WARNING (LED)	Green	See Indicator Messages	87
		Red
		Orange
		Flashing
	POWER (LED)	Green	See Indicator Messages	87
		Orange
		Flashing
11.	AUTO Optimize image size, position, and resolution			33
12.	←	Select or change settings in the OSD		47
13.	LEFT CURSOR/VOLUME DECREASE	Decrease volume		34

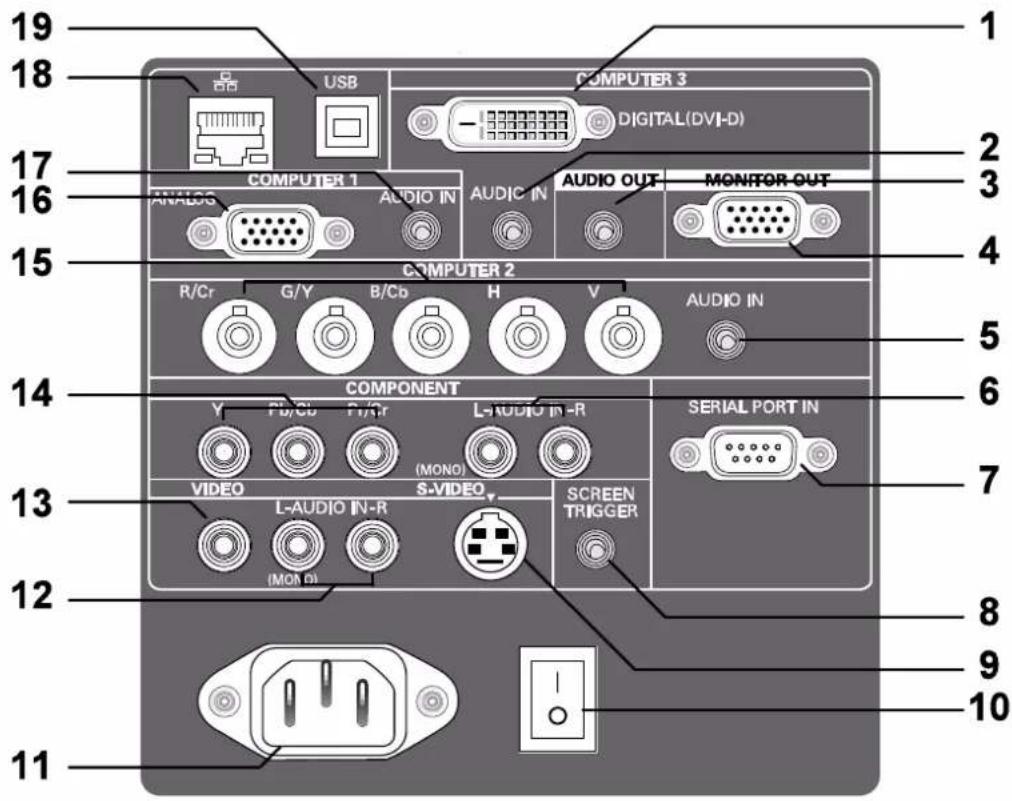

Terminal Panel Features

19 18 USB COMPUTER 3 DIGITAL(DVI-D) 17 COMPUTER 1 ANALOG AUDIO IN AUDIO IN AUDIO OUT MONITOR OUT 15 COMPUTER 2 R/Cr G/Y B/Cb H V AUDIO IN COMPONENT Y Fb/Cb F/Ay L-AUDIO IN-R (MONO) SERIAL PORT IN 14 VIDEO S-VIDEO SCREEN TRIGGER 13 L-AUDIO IN-R (MON D) 12 11

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	COMPUTER 3 IN	Connect the DVI-D cable (not supplied) from a computer	21
2.	AUDIO IN (COMPUTER 3)	Connect the audio cable (not supplied) from the input device
3.	AUDIO OUT Audio loop-thru
4.	MONITOR OUT Connect to a monitor
5.	AUDIO IN (COMPUTER 2)	Connect the audio cable (not supplied) from the input device
6.	AUDIO IN [L (MONO)/R] (COMPONENT)	Connect an RCA audio cables (not supplied) from the input device right and left channels
7.	SERIAL PORT IN Installation control		97
8.	SCREEN TRIGGER	When connected to the screen through a commercially available cable, the screen deploys automatically on start up of the projector. The screen retracts when the projector is powered off (see notes below)	100
9.	S-VIDEO	Connect a commercially available S-video cable from a video device	24

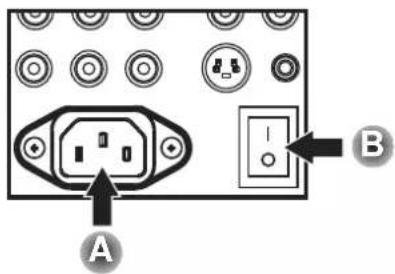

10.	POWER SWITCH Turn	on/off the projector	35
11.	AC IN Connect the supplied power cable		25
12.	AUDIO IN [L (MONO)/R] (VIDEO)	Connect RCA audio cables (not supplied) from the input device right and left channels. This audio jack is shared with S-Video input.	24
13.	VIDEO IN	Connect a composite video cable (not supplied) from a video device to the yellow RCA jack	23
14.	COMPONENT IN (Y, Pb/Cb, Pr/Cr)	Connect a component video enabled device	23
15.	COMPUTER 2 IN (R/Cr, G/Y, B/Cb, H, V)	Connect RGBHV or Component signal from computer or component video enabled device	24
16.	COMPUTER 1 IN Connect a VGA cable (supplied) from a computer		21
17.	AUDIO IN (COMPUTER 1)	Connect the audio cable (not supplied) from the input device
18.	LAN Connect a LAN cable (not supplied) from a computer
19.	SERVICE	Connect the USB cable (not supplied) from a computer. For service personnel only.

Note:

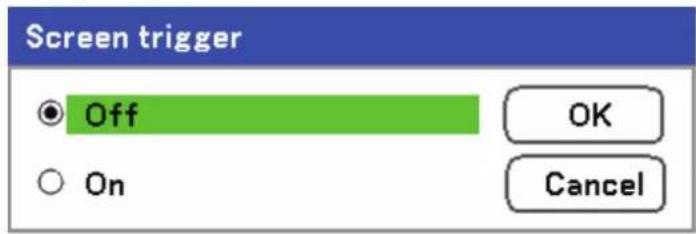

• To use this feature, you must turn on the Screen Trigger function on the OSD.
- Screen controllers are supplied and supported by screen manufacturers.
- Do not use this jack for anything other than intended use.

Remote Control Parts

1 26 Keyboard Rotation Power Laser 2 Up Left Enter Right Down 5 23 6 7 22 8 21 Keystone Volume 9 10 19 18 11 17 12 16 15 14 Menu Status Mute Auto Blank Zoom+ Source Freeze Zoom- 13

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user's manual describes the functions based on the remote control.

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	Status LED Lights when the remote control is used
2.	Laser Use as on screen pointer. DO NOT POINT IN EYES.
3.	Up Up arrow when connected through USB to a PC
4.	Right Right arrow when connected through USB to a PC
5.	Down Down arrow when connected through USB to a PC
6.	Page Down Page down when connected through USB to a PC
7.	Up cursor Navigates and changes settings in the OSD		47
8.	Right cursor	Navigates and changes settings in the OSD	47
9.	Down cursor
10.	Volume +/- Adjusts volume		34
11.	Mute Mutes the built-in speaker
12.	Zoom+ Zoom in
13.	Zoom-	Zoom out
14.	Freeze Freeze/unfreezes the on-screen picture
15.	Blank Makes the screen blank
16.	Source Detects the input device
17.	Auto Auto adjustment for phase, tracking, size, position
18.	Menu Opens the OSD		47
19.	Status	Opens the OSD Status menu (the menu only opens when an input device is detected)
20.	Keystone top/bottom Corrects image-trapezoid (wider top/bottom) effect		42
21.	Left cursor Navigates and changes settings in the OSD		47
22.	Enter Changes settings in the OSD		47
23.	Page Up Page up when connected through USB to a PC
24.	Left	Left arrow when connected through USB to a PC
25.	Enter Enter key when connected through USB to a PC
26.	Power	Turns the projector on or off	25

Note:

The remote control can only interface with a computer when connected to the computer through a USB cable connection. The computer cable connects a computer to the projector for display purposes only.

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control; however, the buttons on the projector are limited in use. The following illustration shows the corresponding buttons on the remote control and on the projector.

Remote Control

SODB Keyboard Function Power Laser Up Enter Right Down 1 2 3 4 5 6 11 10 Keystone Volume - + Menu Status Mute Auto Blank Zoom+ Source Freeze Zoom- 7

Some buttons on the projector have two functions. For example, item 6/11 on the projector functions as both the volume down button and as the left cursor key in OSD menus.

Inserting the Remote Control Batteries

1. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Technical diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

1. Insert the supplied batteries taking note of the polarity (+/-) as shown here.

Diagram of a remote control box with two batteries and arrows indicating rotation (no text or symbols)

1. Replace the cover.

Technical diagram of a mechanical component with an arrow indicating a specific section (no text or symbols present)

Caution:

1. Only use AAA batteries. (Alkaline is better).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the battery when not using the projector for prolonged periods.

Installing or Removing the Optional Lens

Caution:

• Do not shake or place excessive pressure on the projector or the lens components as the projector and lens components contain precision parts.
• When shipping the projector with the optional lens, remove the optional lens before shipping the projector. The lens and the lens shift mechanism may encounter damage caused by improper handling during transportation.
• Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop, and turn off the main power switch.
• Do not touch the lens surface when removing or installing the lens.
• Keep fingerprints, dust or oil off the lens surface. Do not scratch the lens surface.
  • Work on a level surface with a soft cloth under it to avoid scratching.
• If you remove and store the lens, attach the lens cap to the projector to keep off dust and dirt.

Removing the Existing Lens From the Projector

1. Pull out the lens cap.

Vintek 16 o 1 16 o 2 16 o 3 16 o 4 16 o 5 16 o 6 16 o 7 16 o 8 16 o 9 16 o 10 16 o 11 16 o 12 16 o 13 16 o 14 16 o 15 16 o 16 16 o 17 16 o 18 16 o 19 16 o 20 16 o 21 16 o 22 16 o 23 16 o 24 16 o 25 16 o 26 16 o 27 16 o 28 16 o 29 16 o 30 16 o 31 16 o 32 16 o 33 16 o 34 16 o 35 16 o 36 16 o 37 16 o 38 16 o 39 16 o 40 16 o 41 16 o 42 16 o 43 16 o 44 16 o 45 16 o 46 16 o 47 16 o 48 16 o 49 16 o 50 16 o 51 16 o 52 16 o 53 16 o 54 16 o 55 16 o 56 16 o 57 16 o 58 16 o 59 16 o 60 16 o 61 16 o 62 16 o 63 16 o 64 16 o 65 16 o 66 16 o 67 16 o 68 16 o 69 16 o 70 16 o 71 16 o 72 16 o 73 16 o 74 16 o 75 16 o 76 16 o 77 16 o 78 16 o 79 16 o 80 16 o 81 16 o 82 16 o 83 16 o 84 16 o 85 16 o 86 16 o 87 16 o 88 16 o 89 16 o 90 16 o 91 16 o 92 16 o 93 16 o 94 16 o 95 16 o 96 16 o 97 16 o 98 16 o 99 16 o 100

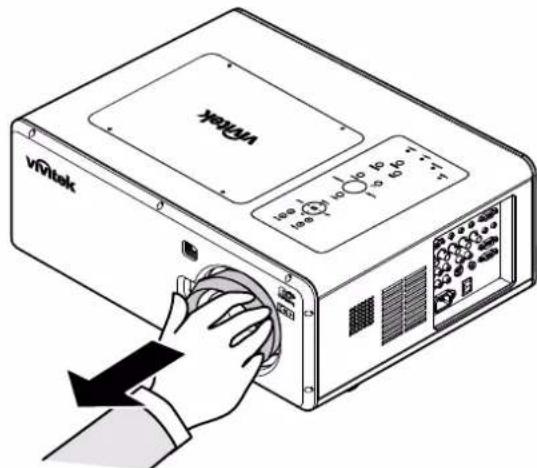

1. Push the LENS RELEASE button all the way in and rotate the lens counterclockwise. The existing lens will be disengaged.

vVitok vVitok

1. Pull out the existing lens slowly.

Vitek Vitek

Caution: When installing the lens into the projector, be sure to remove the lens cap from the back of the optional lens before installing the optional lens into the projector. Failure to do so will cause damage to the projector.

Installing the New Lens

1. Pull out the existing lens slowly.

Vintek Label

1. Rotate the lens clockwise until it clicks into place.

Vinitak 10Ω 1 10Ω 2 10Ω 3 10Ω 4 10Ω 5 10Ω 6 10Ω 7 10Ω 8 10Ω 9 10Ω 10 10Ω 11 10Ω 12 10Ω 13 10Ω 14 10Ω 15 10Ω 16 10Ω 17 10Ω 18 10Ω 19 10Ω 20 10Ω 21 10Ω 22 10Ω 23 10Ω 24 10Ω 25 10Ω 26 10Ω 27 10Ω 28 10Ω 29 10Ω 30 10Ω 31 10Ω 32 10Ω 33 10Ω 34 10Ω 35 10Ω 36 10Ω 37 10Ω 38 10Ω 39 10Ω 40 10Ω 41 10Ω 42 10Ω 43 10Ω 44 10Ω 45 10Ω 46 10Ω 47 10Ω 48 10Ω 49 10Ω 50 10Ω 51 10Ω 52 10Ω 53 10Ω 54 10Ω 55 10Ω 56 10Ω 57 10Ω 58 10Ω 59 10Ω 60 10Ω 61 10Ω 62 10Ω 63 10Ω 64 10Ω 65 10Ω 66 10Ω 67 10Ω 68 10Ω 69 10Ω 70 10Ω 71 10Ω 72 10Ω 73 10Ω 74 10Ω 75 10Ω 76 10Ω 77 10Ω 78 10Ω 79 10Ω 80 10Ω 81 10Ω 82 10Ω 83 10Ω 84 10Ω 85 10Ω 86 10Ω 87 10Ω 88 10Ω 89 10Ω 90 10Ω 91 10Ω 92 10Ω 93 10Ω 94 10Ω 95 10Ω 96 10Ω 97 10Ω 98 10Ω 99 10Ω 100

Throw Distance and Screen Size

Example of GB940G:

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 40 inches (1 m) measured diagonally when the projector is roughly 65 inches (1.7 m) from the wall or screen. The largest the image can be is 500 inches (12.7 m) when the projector is about 843 inches (21.4 m) from the wall or screen.

Projection Distance Image Hight

Screen Size GC805G GB942G GB940G
Diagonal Width Height						0.77 1.33 - 1.79 1.78 - 2.35
						Distance
[inches]	[m]	[inches]	[m]	[inches]	[m]	[inches]	[m]	[inches]		[m]		[inches]		[m]
40	1.02	32	0.81	24	0.61			41.7 - 56.8		1.06 - 1.44		55.8 - 74.4		1.42 - 1.89
50	1.27	40	1.02	30	0.76	30.7	0.78	52.6 - 71.5		1.34 - 1.82		70.4 - 93.7		1.79 - 2.38
60	1.52	48	1.22	36	0.91	37.1	0.94	63.5 - 86.1		1.61 - 2.19		85.0 - 112.9		2.16 - 2.87
67	1.70	54	1.36	40	1.02	41.6	1.06	71.1 - 96.4		1.81 - 2.45		95.2 - 126.4		2.42 - 3.21
72	1.83	58	1.46	43	1.10	44.9	1.14	76.6 - 103.7		1.94 - 2.63		102.5 - 136.0		2.60 - 3.45
80	2.03	64	1.63	48	1.22	50.0	1.27	85.3 - 115.4		2.17 - 2.93		114.1 - 151.3		2.90 - 3.84
84	2.13	67	1.71	50	1.28	52.6	1.34	89.6 - 121.3		2.28 - 3.08		120.0 - 159.0		3.05 - 4.04
90	2.29	72	1.83	54	1.37	56.5	1.44	96.2 - 130.1		2.44 - 3.30		128.7 - 170.6		3.27 - 4.33
100	2.54	80	2.03	60	1.52	63.0	1.60	107.0 - 144.7		2.72 - 3.68		143.3 - 189.8		3.64 - 4.82
120	3.05	96	2.44	72	1.83	75.9	1.93	128.8 - 174.0		3.27 - 4.42		172.5 - 228.2		4.38 - 5.80
150	3.81	120	3.05	90	2.29	95.3	2.42	161.5 - 218.0		4.10 - 5.54		216.2 - 285.9		5.49 - 7.26
180	4.57	144	3.66	108	2.74	114.6	2.91	194.1 - 261.9		4.93 - 6.65		260.0 - 343.6		6.60 - 8.73
200	5.08	160	4.06	120	3.05	127.6	3.24	215.9 - 291.2		5.48 - 7.40		289.1 - 382.0		7.34 - 9.70
210	5.33	168	4.27	126	3.20			226.8 - 305.9		5.76 - 7.77		303.7 - 401.3		7.71 - 10.19
240	6.10	192	4.88	144	3.66			259.5 - 349.8		6.59 - 8.89		347.5 - 458.9		8.83 - 11.66
261	6.63	209	5.30	157	3.98			282.3 - 380.6		7.17 - 9.67		378.1 - 499.3		9.60 - 12.68
270	6.86	216	5.49	162	4.11			292.1 - 393.8		7.42 - 10.00		391.2 - 516.6		9.94 - 13.12
300	7.62	240	6.10	180	4.57			324.8 - 437.7		8.25 - 11.12		435.0 - 574.3		11.05 - 14.59
350	8.89	280	7.11	210	5.33			379.2 - 511.0		9.63 - 12.98		507.9 - 670.4		12.90 - 17.03
400	10.16	320	8.13	240	6.10			433.7 - 584.3		11.02 - 14.84		580.8 - 766.5		14.75 - 19.47
450	11.43	360	9.14	270	6.86			488.1 - 657.5		12.40 - 16.70		653.7 - 862.6		16.60 - 21.91
500	12.70	400	10.16	300	7.62			542.6 - 730.8		13.78 - 18.56		726.6 - 958.7		18.46 - 24.35

Screen Size GB949G GB957G
Diagonal Width Height						2.22 - 4.43 4.43 - 8.3
						Distance
[inches]	[m]	[inches]	[m]	[inches]	[m]	[inches]	[m]		[inches]	[m]
40	1.02	32	0.81	24	0.61	69.4 - 142.3	1.76 - 3.61		139.2 - 266.9	3.54 - 6.78
50	1.27	40	1.02	30	0.76	87.8 - 178.9	2.23 - 4.54		175.3 - 335.0	4.45 - 8.51
60	1.52	48	1.22	36	0.91	106.2 - 215.5	2.70 - 5.47		211.5 - 403.1	5.37 - 10.24
67	1.70	54	1.36	40	1.02	119.0 - 241.2	3.02 - 6.13		236.8 - 450.8	6.01 - 11.45
72	1.83	58	1.46	43	1.10	128.2 - 259.5	3.26 - 6.59		254.8 - 484.9	6.47 - 12.32
80	2.03	64	1.63	48	1.22	142.9 - 288.8	3.63 - 7.34		283.7 - 539.4	7.21 - 13.70
84	2.13	67	1.71	50	1.28	150.3 - 303.5	3.82 - 7.71		298.2 - 566.6	7.57 - 14.39
90	2.29	72	1.83	54	1.37	161.3 - 325.4	4.10 - 8.27		319.9 - 607.5	8.12 - 15.43
100	2.54	80	2.03	60	1.52	179.7 - 362.1	4.56 - 9.20		356.0 - 675.6	9.04 - 17.16
120	3.05	96	2.44	72	1.83	216.4 - 435.3	5.50 - 11.06		428.3 - 811.8	10.88 - 20.62
150	3.81	120	3.05	90	2.29	271.6 - 545.2	6.90 - 13.85		536.6 - 1016.1	13.63 - 25.81
180	4.57	144	3.66	108	2.74	326.7 - 655.1	8.30 - 16.64		645.0 - 1220.5	16.38 - 31.00
200	5.08	160	4.06	120	3.05	363.5 - 728.3	9.23 - 18.50		717.3 - 1356.7	18.22 - 34.46
210	5.33	168	4.27	126	3.20	381.9 - 765.0	9.70 - 19.43		753.4 - 1424.8	19.14 - 36.19
240	6.10	192	4.88	144	3.66	437.0 - 874.9	11.10 - 22.22		861.8 - 1629.1	21.89 - 41.38
261	6.63	209	5.30	157	3.98	475.6 - 951.8	12.08 - 24.18		937.7 - 1772.2	23.82 - 45.01
270	6.86	216	5.49	162	4.11	492.2 - 984.7	12.50 - 25.01		970.2 - 1833.5	24.64 - 46.57
300	7.62	240	6.10	180	4.57	547.3 - 1094.6	13.90 - 27.80		1078.6 - 2037.8	27.40 - 51.76
350	8.89	280	7.11	210	5.33	639.2 - 1277.8	16.24 - 32.46		1259.2 - 2378.3	31.98 - 60.41
400	10.16	320	8.13	240	6.10	731.1 - 1460.9	18.57 - 37.11		1439.9 - 2718.9	36.57 - 69.06
450	11.43	360	9.14	270	6.86	823.0 - 1644.0	20.90 - 41.76		1620.5 - 3059.4	41.16 - 77.71
500	12.70	400	10.16	300	7.62	914.9 - 1827.2	23.24 - 46.41		1801.2 - 3400.0	45.75 - 86.36

Caution:

Ceiling installation must be done by a qualified professional. Contact your dealer for more information.

It is not recommended you install the projector yourself.

Only use the projector on a solid, level surface. Serious injury and damage can occur if the projector is dropped.

Do not use the projector in an environment where extreme temperature occurs. The projector must be used at temperatures between 41 degrees Fahrenheit (5 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius).

Screen damage will occur if the projector is exposed to moisture, dust or smoke.

Do not cover the vents on the projector. Proper ventilation is required to dissipate heat. Damage to the projector will occur if the vents are covered.

Installing the Optional Color Wheel

The projector comes with a four-segment color wheel installed. An additional six-segment color wheel is optional. To replace the color wheel (located under the lamp cover adjacent to lamp 1) refer to the following guide.

Note:

Wait until the lamp house and the color wheel cool off.

1. Remove the four screws (A) on the lamp cover.

2. Lift the lamp cover in the direction of the arrow (B).

3. Unscrew the retaining screws (x 4) on the four-segment color wheel.

Diagram of an electronic device with labeled components and a directional arrow indicating rotation or movement.

Technical line drawing of an open industrial machine with internal components and a cylindrical component inserted (no text or symbols visible)

1. Lift the color wheel in the direction shown.

Technical line drawing of an open projector with internal components and a black arrow indicating a component (no text or symbols present)

1. Insert the six-segment color wheel

Technical line drawing of an electronic device with a black arrow pointing to a component (no text or symbols present)

1. Close the lamp cover and secure the retaining screws as shown.

Technical diagram of an electronic device with labeled components and a curved arrow indicating rotation or adjustment.

Storing Unused Color Wheel:

Keep the unused color wheel in the zipper bag in which the 6-segment color wheel (not supplied) was packaged.

This bag prevents dust from falling or collecting on the color wheel.

Making Connections

Connecting Your PC or Macintosh Computer

Enabling the computer's external display:

Displaying an image on the notebook PC's screen does not necessarily mean it outputs a signal to the projector. When using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usually, the combination of the Fn-key along with one of the 12 function keys activates the external display.

To connect a PC or Macintosh computer to the projector, refer to the following guide.

1. Connect a computer to the projector through one of the three available input data connections before turning on the PC or the projector. The best signal order (from best to least suitable) is as follows:

- Computer 3 in (see Terminal Panel Features on page 8) is a digital signal and offers the best connection to your computer.

Note:

The DVI (DIGITAL) connector (COMPUTER 3) accepts VGA (640 x 480), 1152 x 864, XGA (1024 x 768), SXGA (1280 x 1024@up to 60Hz) and SXGA+(1400 x 1050 @ up to 60Hz).

• Computer 2 in (see Terminal Panel Features on page 8) is an analog signal; use a DSUB-15 cable-to-5BNC connection.
• Computer 1 in as shown below (see Terminal Panel Features on page 8) is an analog signal that uses a standard RGB computer cable.

Diagram showing connection between a device panel and a device labeled 'Phone' with connected cables and ports.

1. Turn on the projector and select the chosen method of connection from the source menu before turning on the PC (see Selecting an Input Source on page 27).
2. Turn on the PC.

Note:

Failure to follow the above steps may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC.

Connecting an External Monitor

Connect an external monitor to the projector through RGB out connections as shown below (see Terminal Panel Features on page 8).

Diagram showing connection between a computer monitor and an electronic device with labeled ports and connectors

Connecting Your DVD Player with Component Output

To connect a DVD Player to the projector, refer to the following guide.

1. Connect the DVD Player to the projector as shown below before turning on the Player or the projector.

1. Turn on the projector and select Component from the source menu before turning on the DVD Player (see Selecting an Input Source on page 27).

2. Turn on the DVD Player.

Note:

Refer to your DVD player's user's manual for more information about your DVD player's video output requirements.

Connecting Your VCR or Laser Disc Player

To connect your VCR or Laser Disc Player, refer to the following diagram.

Note:

Refer to your VCR or laser disc player user's manual for more information about your device's requirements. Images may not be displayed correctly when using an S-Video or Video connection to fast-forward or fast-rewind scanning.

The AUDIO IN RCA jack is shared between VIDEO IN and S-VIDEO IN.

PROJECTING AN IMAGE (BASIC OPERATION)

Turning on the Projector

Once the projector is correctly located and the power cable and other connections are in place, it is important that the projector is powered on correctly in order to avoid damage to components and unnecessary wear and tear. Refer to the following guide to power on the projector.

1. Connect the power cable (A). Press the main power switch to the on (I) position as shown (B). All four LEDs light orange, then the Lamp1 and 2 LEDs turn off and the Warning LED lights green.

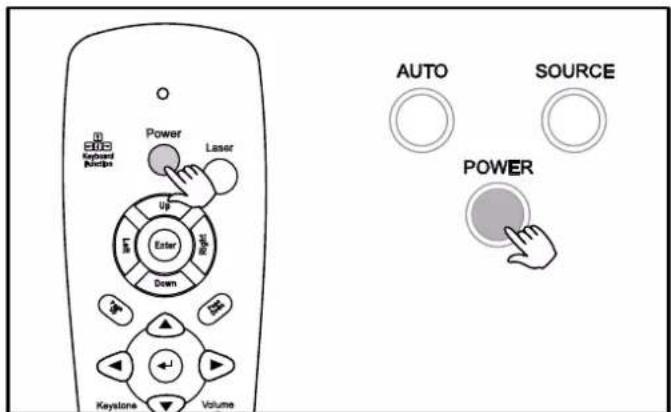

2. Press the POWER button once (see OSD Controls and Status LEDs on page 6). The Power LED flashes green and the internal cooling fan starts.
3. After approximately 10 seconds, the Lamp1 and Lamp2 LEDs light green and the Power LED flashes more rapidly.
4. Once the power LED is lit a solid green, the projector is ready for use.

Diagram of an electronic device rear panel with labeled ports A and B, showing internal components and connections.

Note: If any of the LEDs remain flashing or blink there may be a problem with the startup. Please refer to the Troubleshooting section on page 87.

Note on Startup Screen (Menu Language Select screen)

In the first instance of powering on the projector, the language menu is displayed to select the default language.

Please select a menu language.

Please select a menu language.	English
Wählen Sie bitte die Menü Sprache aus.	Deutsch
S'il vous plaît choisir la langue de menu.	Français
Per favore scegliere la lingua del menu.	Italiano
Escoja por favor el idioma de menú.	Español
Välj menyn språken.	Svenska
メニュー言語を選択してください。	日本語
请选择菜单语言。	中文

Select "UP", "DOWN" & "SELECT"

Select the required default language using the ▲ or ▼ buttons on the OSD menu panel or the remote control unit and press ←.

Note:

The language select screen only appears on the first instance of power on. All subsequent operations assume the selected default language. To change the default see page 65.

Selecting an Input Source

The Input Source can be selected from the projector's control panel or from the remote control unit. Refer to the following guide to select the Input Source.

1. Press Menu on the OSD control panel or on the remote control unit to display the Main Menu. Scroll to the Input menu using ▲or▼ and press ←.

Note:

Return to the projected image by pressing Cancel twice.

Input Adjust Volume Setting Information Reset

1. Select the required source using ▲ or ▼ and press ←.

Adjusting the Picture Position and Picture Size

The Picture Position and Picture Size can be adjusted manually from the lens control panel or from the remote control unit. Refer to the following guides to adjust Picture Position manually.

Adjusting Picture Position Manually

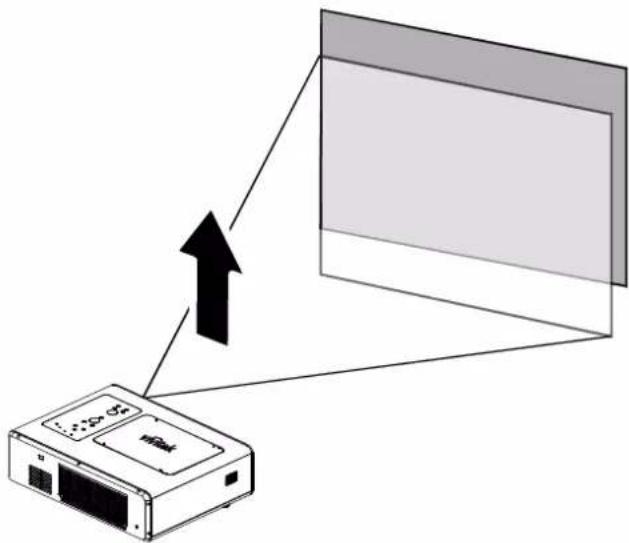

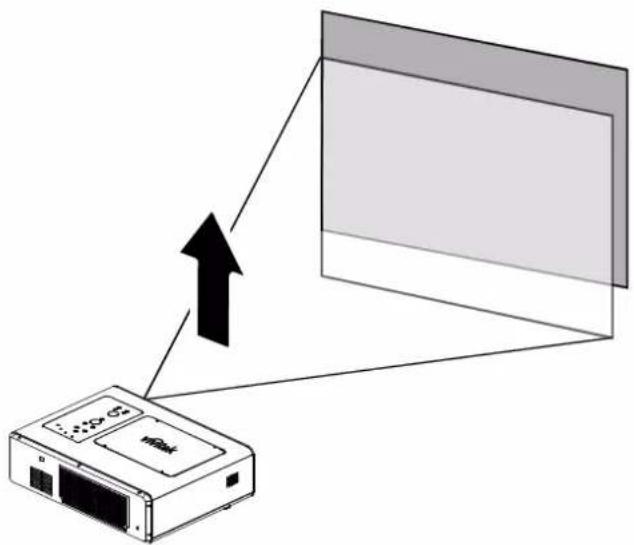

1. Press the Lens Shift keypad on the projector in any direction to bring up the Lens Shift window.

2. Press the directional key as required to shift the image. Releasing the directional arrow will re-center the cursor.

3. To alter the picture size, press Menu and select the Adjust menu using ▲ or ▼. Press ← to open the Adjust menu. Press ◀ or ▶ to select Image Options followed by ▲ or ▼ to select Screen. Press ←.

Lens Shift

Diagram showing a device with an upward arrow pointing to a screen, likely illustrating a system or data flow.

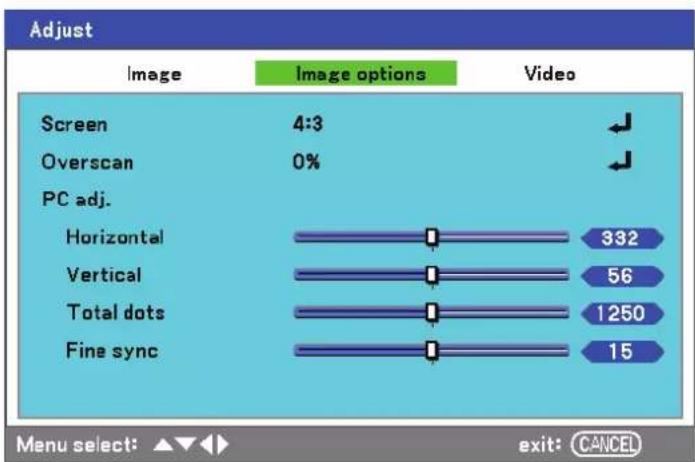

Adjust Image Image options Video Screen 4:3 Overscan 0% PC adj. Horizontal 332 Vertical 56 Total dots 1250 Fine sync 15 Menu select: ▲▼▶ exit: CANCEL

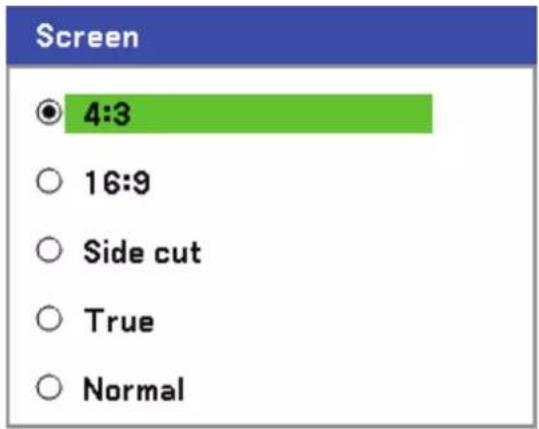

1. The Screen window is displayed. Select the desired picture size using ▲ or ▼ and press ←.

Screen 4:3 16:9 Side cut True Normal

1. When finished, press Cancel to return to the projected image.

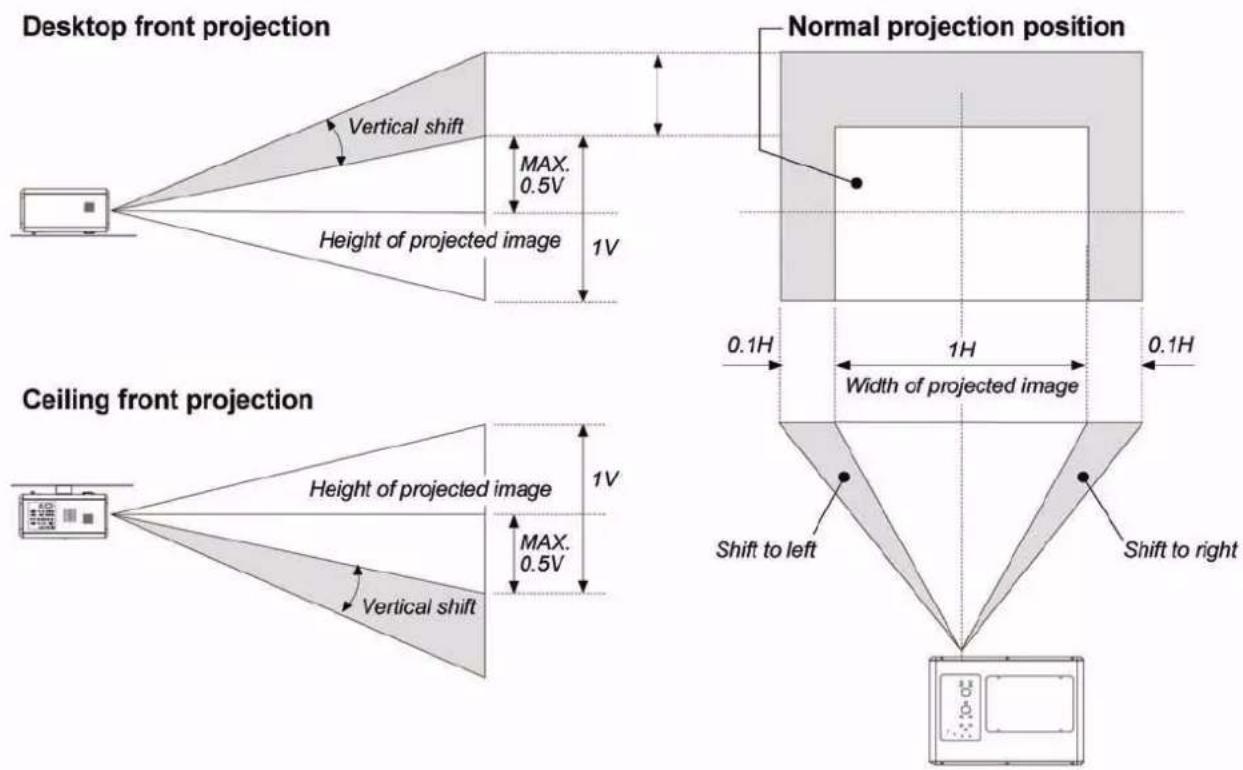

Lens Shift Adjustable Range

The adjustable range for lens shift is tabulated below and subject to the conditions listed.

Note:

The drawings below apply to the standard lens (GB940G) only.

Desktop front projection Vertical shift MAX. 0.5V Height of projected image 1V Normal projection position 0.1H 1H 0.1H Width of projected image Ceiling front projection Height of projected image MAX. 0.5V Vertical shift Shift to left Shift to right

From the Remote Control Unit

1. Press Menu and select the Setting menu using ▲or▼. Press ← to open the Setting menu. Press ◀or▶ to select Basic followed by ▲or▼ to select Lens Shift. Press ←.

Setting Basic Installation Option Keystone Lamp control Normal Lamp mode Dual Lamp interval 1 week Language English Lens Shift Zoom Focus Menu select: ▲▼◀ exit: CANCEL

1. The Lens Shift window displays.

Lens Shift

1. Press the directional buttons as required to shift the image. Re-leasing the directional arrow will re-center the cursor.

Diagram showing a device with an upward arrow pointing to a screen, indicating direction or interaction between the device and screen.

1. To alter the picture size, press Menu and select the Adjust menu using ▲ or ▼. Press ← to open the Adjust menu. Press ◀ or ▶ to select Image Options followed by ▲ or ▼ to select Screen. Press ←.

Adjust Image Image options Video Screen 4:3 Overscan 0% PC adj. Horizontal 332 Vertical 56 Total dots 1250 Fine sync 15 Menu select: ▲▼▶ exit: CANCEL

1. Select the desired picture size using ▲ or ▼ and press ←.

Screen ● 4:3 ○ 16:9 ○ Side cut ○ True ○ Normal

1. When finished, press Menu to return to the projected image.

Adjusting the Projector Level

1. To raise the level of the projector, twist the adjusters clockwise.

2. To lower the level of the projector, lift the projector and twist the adjusters counter clockwise.

Line drawing of a vintage VfVitok device with control panel and rotary buttons (no text or symbols on body)

Line drawing of a Vintek VR headset with control panel and rotary buttons (no text or symbols on body)

Optimizing an RGB Image Automatically

Adjusting the Image Using AUTO

To optimize an RGB image automatically refer to the following guide.

Press the Auto button on the remote control (see Remote Control Parts on page 10) or the AUTO button on the OSD control panel to optimize an RGB image automatically.

This adjustment may be necessary when you connect your computer for the first time.

Adjusting Volume Up and Down

The volume can be adjusted from the OSD Control Panel or with the Remote Control unit. Refer to the following as a guide.

1. Press the Volume +/- buttons on the remote control or the ◀▶ buttons on the OSD control panel. The volume level is displayed on screen.

2. Use the Volume +/- buttons or the ◀▶ buttons on the OSD control panel to adjust the level.

Keystone Volume Menu Status Mute Auto Blank Zoom+ Source Freeze Zoom- MENU VOLUME- VOLUME+ CANCEL

Volume 32

Turning off the Projector

Once the projector is no longer required, it is important to shut it down correctly to avoid damage or unnecessary wear and tear to the projector.

Note:

• Do not unplug the power cable from the wall outlet or projector when the projector is powered on. Doing so can cause damage to the AC IN connector of the projector and (or) the prong plug of the power cable. To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and a breaker.
• Do not turn off the AC power supply within 10 seconds of making adjustment or setting changes and closing the menu. Doing so can cause loss of adjustments and settings and return to default.

Refer to the following guide to shut down the projector.

1. Press the POWER button once. The Power Off window displays.

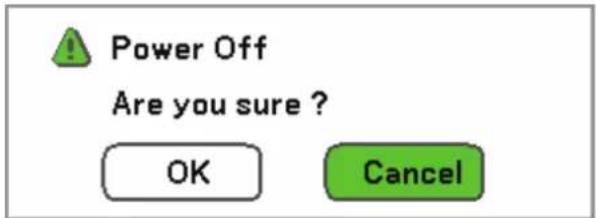

Power Off Are you sure ? OK Cancel

1. Press the POWER button or again on the OSD control panel or remote control to verify power off. The cooling fans continue to operate (cooling-off time) and the power LED flashes orange. The cooling fans stop operating when the projector turns off.

O Keyboard Punchtop Power Laser Up Right Enter Down Keystone Volume AUTO SOURCE POWER

1. The projector enters Standby mode when the power LED lights orange and the warning LED lights green.

Please wait a moment.

1. Press the Main Power switch to the off position (O) to turn off the projector.

About Direct Power Off

The projector has a feature called "Direct Power Off". This feature allows the projector to be turned off (even when projecting an image) using a power strip equipped with a switch and a breaker.

Note:

Before using Direct Power Off, be sure to allow at least 20 minutes immediately after turning on the projector and starting to display an image.

After Use

Preparation: Make sure that the projector is turned off.

1. Unplug the power cable.
2. Disconnect any other cables.
3. Return the height adjusters to their original, minimum position.
4. Cover the lens with the lens cap.

Turning Off the Image and Sound

The projected image and sound can be turned off for short periods of time with the remote control. This feature is useful for breaking up presentations or for other brief interruptions in projections. To turn off the picture and image, refer to the following guide.

1. Press the Blank button on the remote control once (see Remote Control Parts on page 10).
2. The image does not display.
3. To resume projection, press the Blank button once more.

Note:

For extended periods of time it is recommended that the projector be powered off.

Freezing a Picture

The projected image can be frozen for short periods of time by using the remote control. This feature is useful for capturing still images from movies or freezing an animation at a particular point. To freeze the projected image, refer to the following guide.

1. Press the Freeze button on the remote control once (see Remote Control Parts on page 10).
2. The screen freezes.
3. To resume, press the Freeze button once more.

Note:

For extended periods of time it is recommended that the projector be powered off.

Adjusting the Focus/Zoom Manually

The focus and zoom can be adjusted manually from the projector focus/zoom panel. Refer to the following guides to adjust the focus and zoom manually.

Adjusting by Using the OSD Control Panel

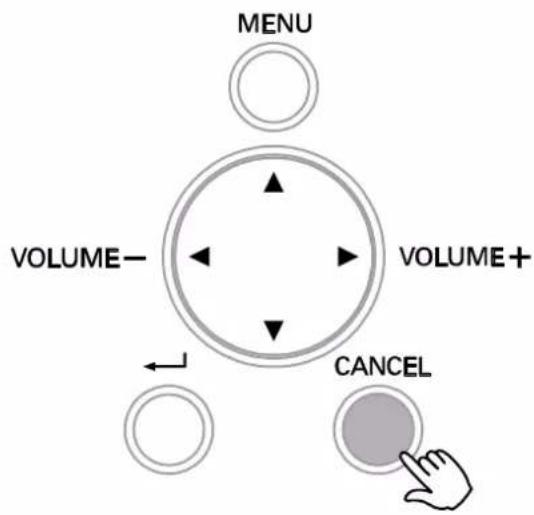

1. Press the Focus or Zoom button on the projector panel to display the appropriate window.

FOCUS ZOOM UP LEFT LENS SHIFT RIGHT DOWN

1. Adjust the Focus/Zoom using the increase and decrease buttons as required.

1. Press Cancel to return to the projected image.

Changing Lamp Mode

The projector has two lamp modes available, Normal and Eco. The Normal mode is used for everyday standard projection, whereas the Eco mode is used for saving power and lamp life. To change the Lamp Mode, refer to the following guides.

Changing Lamp Mode by Using the Projector's OSD Control Panel

1. Press Menu on the projector's OSD control panel to display the Main menu. Scroll to the Setting menu using ▲ or ▼ and press ←.

Input Adjust Volume Setting Information Reset

1. Select the Basic tab using ◀or▶ and select Lamp control using ▲or▼. Press ←.

Setting Basic Installation Option Keystone Lamp control Normal Lamp mode Dual Lamp interval 1 week Language English Lens Shift Zoom Focus Menu select: ▲▼▼ exit: CANCEL

1. From the Lamp control window, select Normal or Eco using ▲or▼. Select OK and press ←.

Lamp control Normal OK Eco Cancel

Note: When the projector is in Eco mode, brightness may be affected. Normal Mode: 100% Brightness Eco Mode: approx. 85% Brightness

Getting Information

The Information screen provides details on the life of consumable items within the projector as well as other information such as software version. To access the Information screen, refer to the following guide.

1. Press Menu on the projector's OSD control panel or remote control to display the Main Menu. Scroll to the Information menu using ▲or▼ and press ←.

Input Adjust Volume Setting Information Reset

1. The Usage time menu is displayed as the default view. The menu items in this screen are for display and cannot be modified.

Information Usage time Input Network Version Lamp1 life remaining 50% Lamp2 life remaining 50% Lamp1 time 1000[H] Lamp2 time 1000[H] PJ time 1000[H] Filter time 1000[H] Menu select: exit: CANCEL

1. Press Cancel or Menu to return to the projected image.

Adjusting Position/Total Dots/Fine Sync

The Position/Total dots/Fine sync and Keystone Correction can be adjusted manually from the projector's control panel or from the remote control unit. Refer to the following guides to adjust the Keystone Distortion manually.

Adjusting Position/Total Dots/Fine Sync by using the OSD Control Panel

1.

Press the Menu button to display the Main menu. Select the Adjust menu using ▲ or ▼ and press ← to display the Adjust menu.

Input Adjust Volume Setting Information Reset

2.

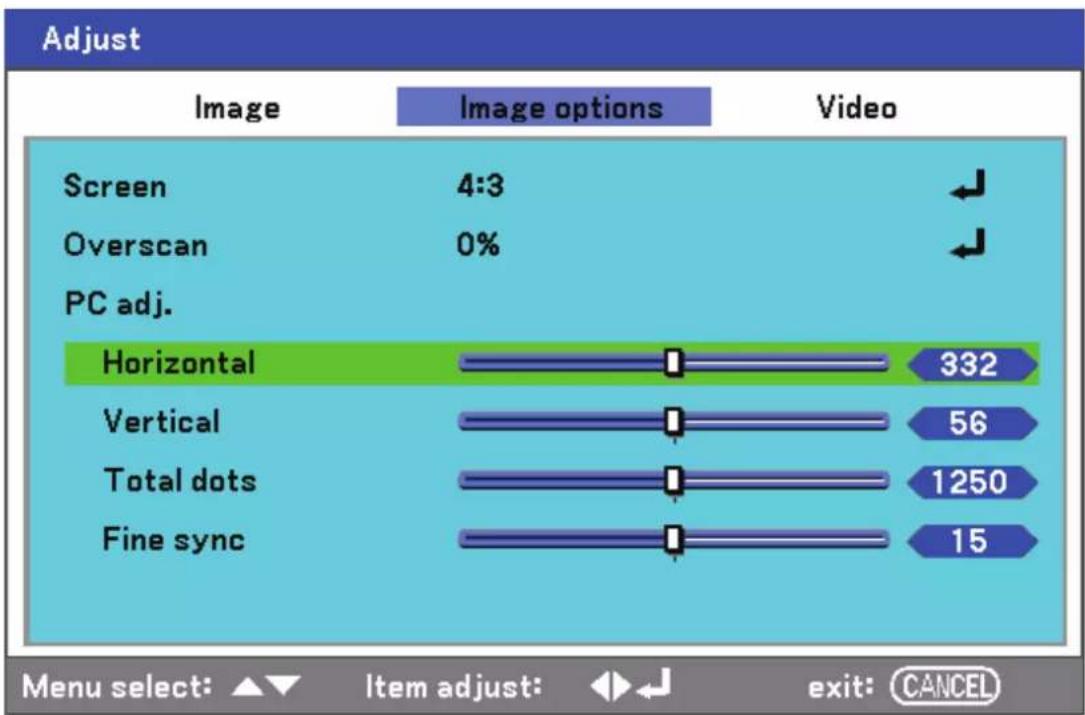

From the Adjust menu, press ◀or▶ to select Image Options and scroll using ▲or▼ to Horizontal, Vertical, Total dots, or Fine sync.

Adjust Image Image options Video Screen 4:3 Overscan 0% PC adj. Horizontal 332 Vertical 56 Total dots 1250 Fine sync 15 Menu select: ▲▼▶ exit: CANCEL

3.

Adjust the Horizontal, Vertical, Total dots, or Fine sync sliding bars using the select ▲▼◀▶ buttons.

4.

Press Cancel or Menu to return to the projected image.

Correcting Keystone by Using the Remote Control

Important:

When adjusting the keystone, place the projector in the following position.

• Horizontal: set to the lens center
• Vertical: set to the maximum top

1. Press the Keystone button to display the Keystone window.

Keystone Horizontal 0 Vertical 0 Press KEYSTONE for 2 Secs to Reset.

1. Adjust the Horizontal and Vertical sliding bars using the select ▲▼◀▶ buttons.
2. Adjust the slide bars until the screen trapezoid is a regular shape (see diagram).

1. Press Cancel or Menu to return to the projected image.

Note:

Holding down the Keystone button for 2 seconds resets the default keystone values.

Keystone Max. +/- 35° approx. Max. +/- 40° approx.

The following are conditions under which the maximum angle is achieved:

■ When the standard lens (GB940G) is used
- When the lens shift is set to H for center and V for 0.5 shift.
- When the lens shift is used and yet you do not get the above-mentioned condition (H for center and V for 0.5 shift), you cannot adjust the lens shift correctly.
■ Image is projected in Wide mode
■ Resolution is XGA

Note:

Higher resolution than XGA narrows the adjustable range.

Menu items should be set as follows:

■ Aspect Ratio ..... 4:3

Horizontal and Vertical are adjusted separately.

A combination of both adjustments narrows the adjustable range.

Preventing the Unauthorized Use of the Projector

The projector has a built-in security feature to lock the OSD control panels and deny remote control operation. The security feature has no default keyword; in the first instance of enabling the security feature, the user must define a keyword.

Locking the Projector

To setup the security keyword, refer to the following guide.

1. Press Menu on the OSD control panel on the projector or remote control to display the Main menu. Scroll to the Setting menu using ▲or▼ and press ←.

Input Adjust Volume Setting Information Reset

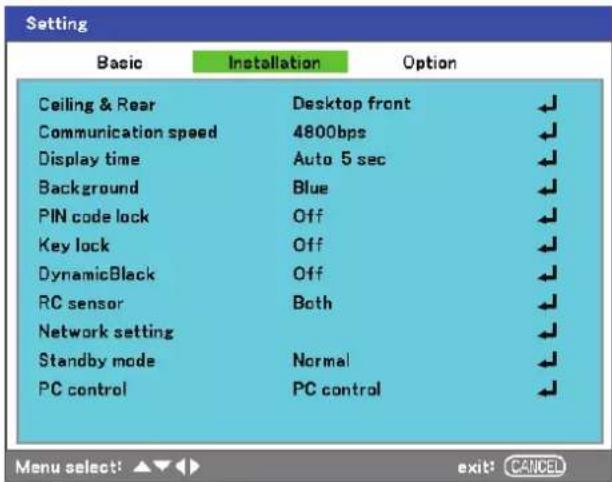

1. The Setting menu is displayed. Select the Installation tab using ◀or▶.

Setting Basic Installation Option Ceiling & Rear Desktop front Communication speed 4800bps Display time Auto 5 sec Background Blue PIN code lock Off Key lock Off DynamicBlack Off RC sensor Both Network setting Standby mode Normal PC control PC control Menu select: ▲▼◀ exit: CANCEL

1. Select PIN code lock using ▲or▼. Press ←. You are prompted to enable the PIN code lock function. Select On using ▲or▼. Select OK and press ←.

Setting Basic Installation Option Ceiling & Rear Desktop front Communication speed 4800bps Display time Auto 5 sec Background Blue PIN code lock Off Key lock Off DynamicBlack Off RC sensor Both Network setting Standby mode Normal PC control PC control Menu select: ▲▼ Item adjust: ▶▼ exit: CANCEL

1. The PIN code window is displayed. Enter a PIN code between 4 and 10 characters using ▲▼◀▶. The PIN code characters change to “*”. Press ←.

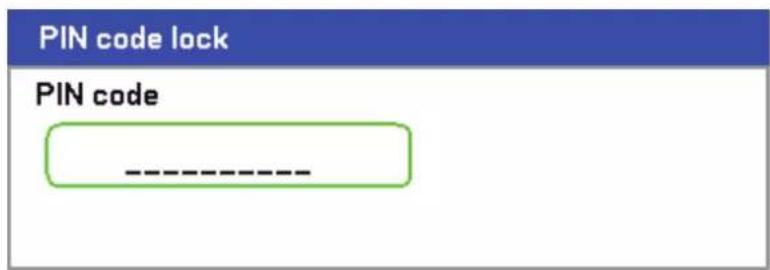

PIN code lock PIN code --------

1. Once a successful PIN code is entered, a confirmation screen is displayed. Enter the same password as the previous step and write it down for later reference. Press ←. A security activation message is displayed. Select Cancel or Menu to return to the Setting menu or select OK to enable security.

PIN code lock function will be enabled. Are you sure ? OK Cancel

Caution: When you have set or changed the PIN code, take a memo and keep it securely. If you forget your PIN code, the projector can no longer be started. Contact your dealer or the service center.

Unlocking the Projector

To unlock the projector, refer to the following guide.

1. When the projector is locked, either by request during operation or at start up, the locked message is displayed.

Projector is locked! Enter your PIN code.

1. To unlock the projector, press Menu on the control panel or remote control. The PIN code window is displayed. Enter the previously defined PIN code to activate the projector.

PIN code ------------------

Using the Physical Lock

Using the Kensington Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable.

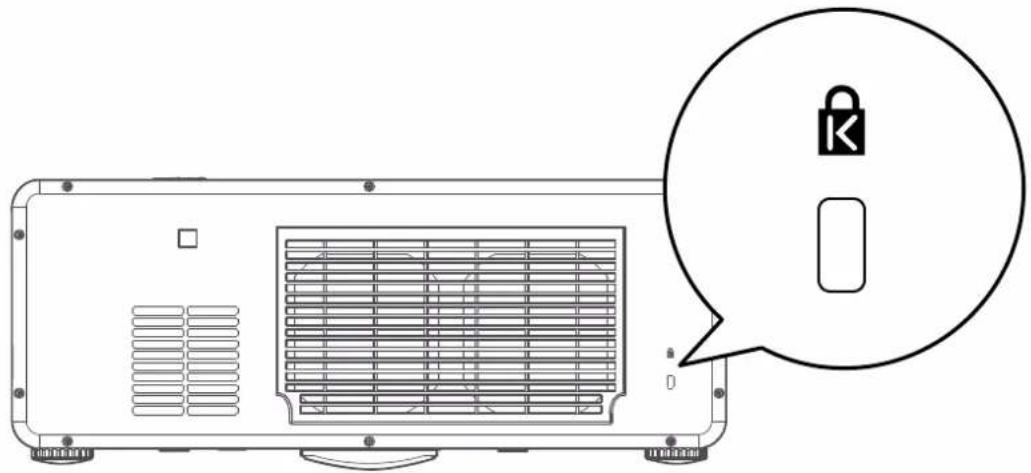

Diagram of a portable air conditioner unit with a speech bubble containing a lock icon (no text or symbols on the device itself)

Using the Menus

The projector has an On-Screen Display (OSD) that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the remote control and on the projector.

1. To open the OSD, press the Menu button on the OSD control panel or remote control. There are six initial menus. Press the cursor ▲or▼ buttons to move through the initial menus and ← to enter the desired menu.

Input Adjust Volume Setting Information Reset

1. Press the cursor ◀ or ▶ button to move through secondary menus.

Adjust Image Image options Video Screen 4:3 Overcan 0% PC adj. Horizontal 332 Vertical 56 Total dots 1250 Fine sync 15 Menu select: ▲▼◀ exit: CANCEL

1. Press ▲ or ▼ to select menu items and ◀ or ▶ to change values for settings. Press ← to confirm the new setting.

Adjust Image Image options Video Screen 4:3 Overscan 0% PC adj. Horizontal 332 Vertical 56 Total dots 1250 Fine sync 15 Menu select: ▲ Item adjust: ▶ exit: CANCEL

1. Press Cancel or Menu to close the OSD or leave a submenu.

Menu Tree

Use the following illustrations to quickly find a setting or determine the range for a setting.

    H["Main/Adjust"] --> I["Image"]
    I --> J["Image select"]
    J --> K["High-Bright"]
    K --> L["Presentation"]
    K --> M["Video"]
    K --> N["Movie"]
    K --> O["Graphic"]
    K --> P["sRGB"]

    H --> Q["Detail settings"]
    Q --> R["Contrast"]
    R --> S["0~100"]
    Q --> T["Brightness"]
    T --> U["0~100"]
    Q --> V["Sharpness"]
    V --> W["0~100"]
    Q --> X["Color"]
    X --> Y["0~31"]
    Q --> Z["Tint"]
    Z --> AA["Reset"]

    H --> AB["Image options"]
    AB --> AC["Screen"]
    AC --> AD["4:3"]
    AC --> AE["16:9"]
    AC --> AF["Side cut"]
    AC --> AG["True"]
    AC --> AH["Normal"]

    AB --> AI["Overscan"]
    AI --> AJ["0%/5%/10%/15%"]

    H --> AK["Video"]
    AK --> AL["Noise reduction"]
    AL --> AM["Off/Low/Mid/High"]

    AK --> AN["3D Y/C separation"]
    AN --> AO["ON/OFF"]

    AK --> AP["Progressive"]
    AP --> AQ["Off/Still/Normal/Movie"]

    AK --> AR["Color matrix"]
    AR --> AS["Auto/RGB/SDTV/HDTV"]

    AK --> AT["Film"]
    AT --> AU["Off/2-2/2-3 Auto/2-2 On/2-3 On"]

    R --> AV["Basic"]
    AV --> AW["Gamma"]
    AW --> AX["Dynamic/Natural/Black Detail"]
    AX --> AY["Color temp."]
    AY --> AZ["5000K/6500K/7800K/8500K/9300K/10500K"]
    AX --> BA["BrilliantColor"]
    BA --> BB["1~3"]

    V --> BC["White balance"]
    BC --> BD["GamRedma"]
    BD --> BE["0~100"]
    BC --> BF["Green"]
    BF --> BG["0~100"]
    BC --> BH["Blue"]
    BH --> BI["0~100"]
    BC --> BJ["Contrast R"]
    BJ --> BK["0~100"]
    BC --> BL["Contrast G"]
    BL --> BM["0~100"]
    BC --> BN["Contrast B"]
    BN --> BO["0~100"]

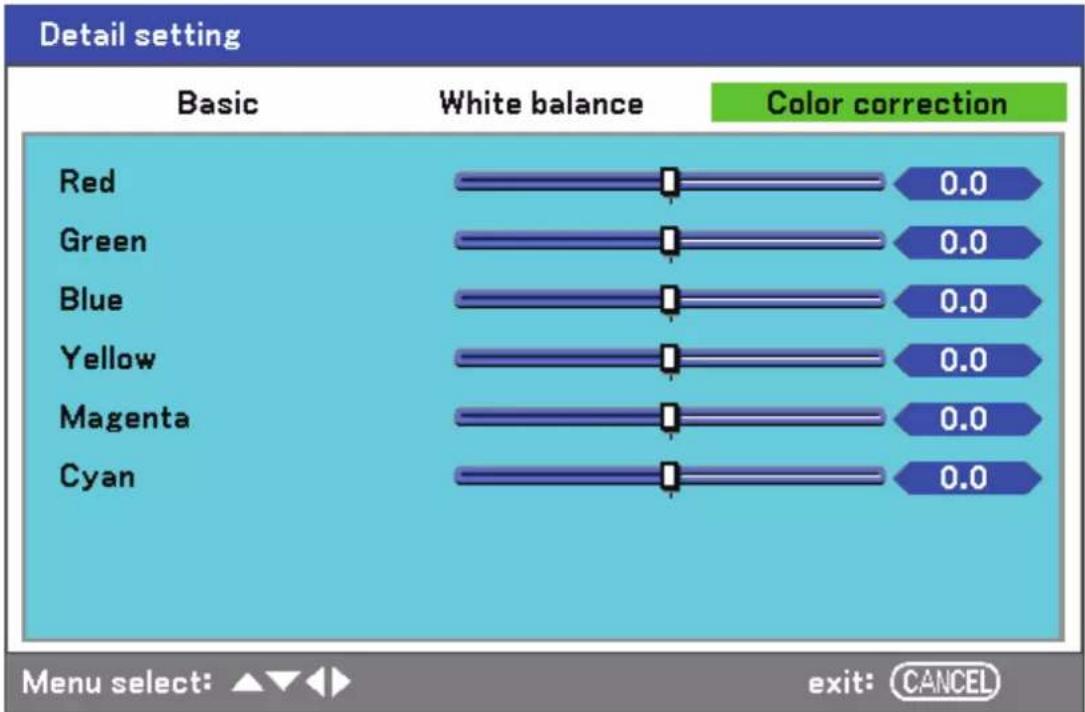

    AC --> BP["Color correction"]
    BP --> BQ["Red"]
    BQ --> BR["-60~60"]
    BP --> BS["Green"]
    BS --> BT["-60~60"]

    AC --> BU["Normal"]

    AI --> BV["Overscan"]
    AI --> BW["PC adj"]

    AJ --> BX["Horizontal"]
    BX --> BY["±50"]

    AJ --> BZ["Vertical"]
    BZ --> CA["±25"]

    AJ --> CB["Total dot"]
    CB --> CC["±50"]

    AJ --> CD["Fine sync"]
    CD --> CE["0~63"]


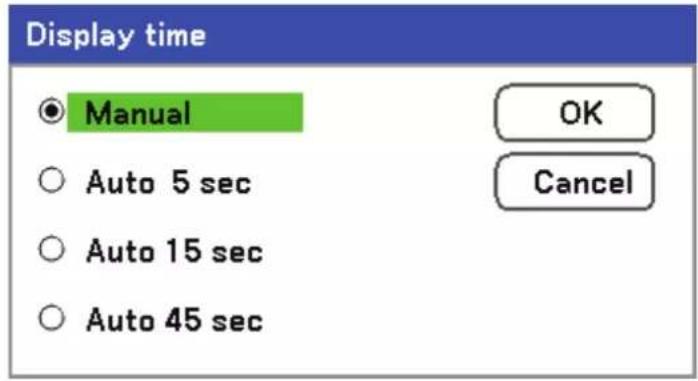

    F --> J["Display time"]
    J --> K["Manual/Auto 5 sec/Auto 15 sec/Auto 45 sec"]
    F --> L["Background"]
    L --> M["Blue/Black/Logo"]
    F --> N["PIN code lock"]
    N --> O["Off/On"]
    F --> P["Key lock"]
    P --> Q["Off/On"]
    F --> R["DynamicBlack"]
    R --> S["Off/On"]

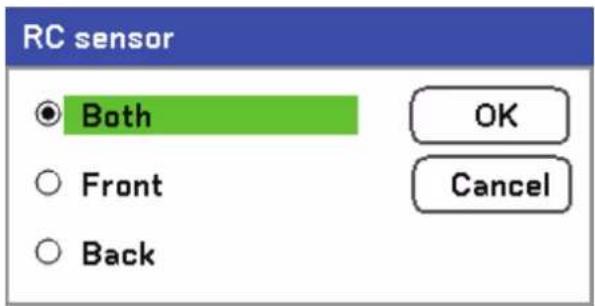

    F --> T["RC sensor"]
    T --> U["Both/Front/Back"]
    F --> V["Network setting"]
    V --> W["DHCP"]
    W --> X["Enable/Disable"]
    V --> Y["IP address"]
    V --> Z["Subnet"]
    V --> AA["Gateway"]
    V --> AB["DNS"]
    V --> AC["Apply settings"]
    V --> AD["Standby mode"]
    AD --> AE["Normal/Power-saving"]
    V --> AF["PC control"]
    AF --> AG["PC control/Network"]
    H --> AH["Lamp control"]
    H --> AI["Lamp mode"]
    AI --> AJ["Dual/Lamp1/Lamp2"]
    I --> AK["Lamp interval"]
    I --> AL["Language"]
    AL --> AM["English/Deutsch/Français/Iltaliano/Espanol/Svenska/日本語/中文"]
    M --> AN["Lens shift"]
    N --> AO["Zoom"]
    N --> AP["Focus"]

    Q --> AQ["Option"]
    AQ --> AR["Power management"]
    AR --> AS["Off/0:05/0:10/0:20/0:30"]
    AQ --> AT["Screen trigger"]
    AT --> AU["Off/On"]
    AQ --> AV["Fan control"]
    AV --> AW["Normal/Max"]
    AQ --> AX["Default input select"]
    AX --> AY["Last/Auto/Computer1/Computer2/Computer3/Component/Video/S-Video"]
    AQ --> AZ["Color system"]
    AQ --> BA["Video"]
    BA --> BB["Auto/NTSC/PAL/SECAM"]
    AQ --> BC["S-Video"]
    BC --> BD["Auto/NTSC/PAL/SECAM"]

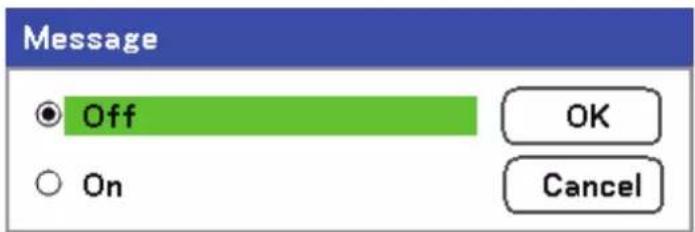

    AQ --> BE["Message"]
    BE --> BF["Off/On"]
    AQ --> BG["Filter warning"]
    BG --> BH["Off/100H/200H/500H/1000H"]
    AQ --> BI["Search mode"]
    BI --> BJ["Normal/Fine"]

    K --> BK["Keystone"]
    BK --> BL["Horizontal Horizontal Horizontal"]

    AL --> BM["Lamp control"]
    BM --> BN["Eco/Normal"]

    AL --> BO["Lamp mode"]
    BO --> BP["Dual/Lamp1/Lamp2"]

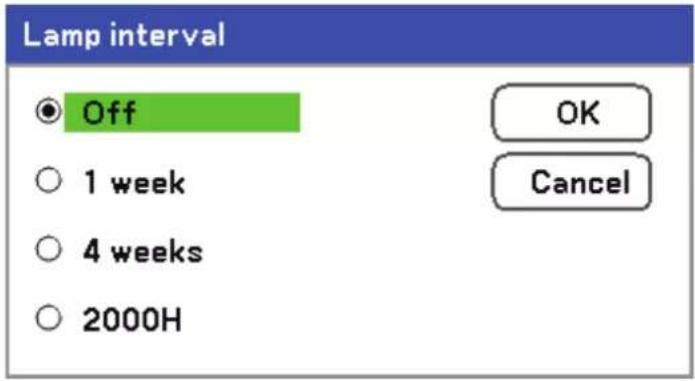

    AL --> BQ["Lamp interval"]
    BQ --> BR["Off/1 week/4 week/2000H"]

    AL --> BS["Language"]
    BS --> BT["English/Duutsch/Français/Iltaliano/Espanol/Svenska/日本語/中文"]

    AQ --> BU["Standby mode"]
    BU --> BV["Normal/Power-saving"]

    AU --> BW["PC control"]
    BW --> BX["PC control/Network"]

    BY["Input"] --> BZ["Input name"]
    BZ --> CA["Signal"]
    CA --> CB["H-Sync freq."]
    CB --> CC["V-Sync freq."]
    CC --> CD["Video type"]
    CD --> CE["Sync type"]
    CE --> CF["Sync polarity"]
    CF --> CG["Scan type"]

    BH --> DH
    BH --> BI

    AU --> ID["Option"]

    AE --> AE1
    AE1 --> AE2

    AF --> AE2
    AF2 --> AE3

    AG["Network"] --> AH["IP address"]
    AH --> AH1
    AH1 --> AH2
    AH1 --> AH3
    AH1 --> AH4
    AH1 --> AH5
    AH1 --> AH6
    AH1 --> AH7
    AH1 --> AH8
    AH1 --> AH9
    AH1 --> AH10

    AI["Version"] --> AJ["Model name"]
    AJ --> AJ1
    AJ1 --> AJ2

    AK --> AK1
    AK1 --> AK2

    AL --> AL1
    AL1 --> AL2

    AM["Main/Reset"] --> AN
    AN --> AO

    AP["Main/Information"] --> AQ

Menu Elements

Some menus and windows contain large amounts of information in a small area. Refer to the following guide to navigate through options more easily.

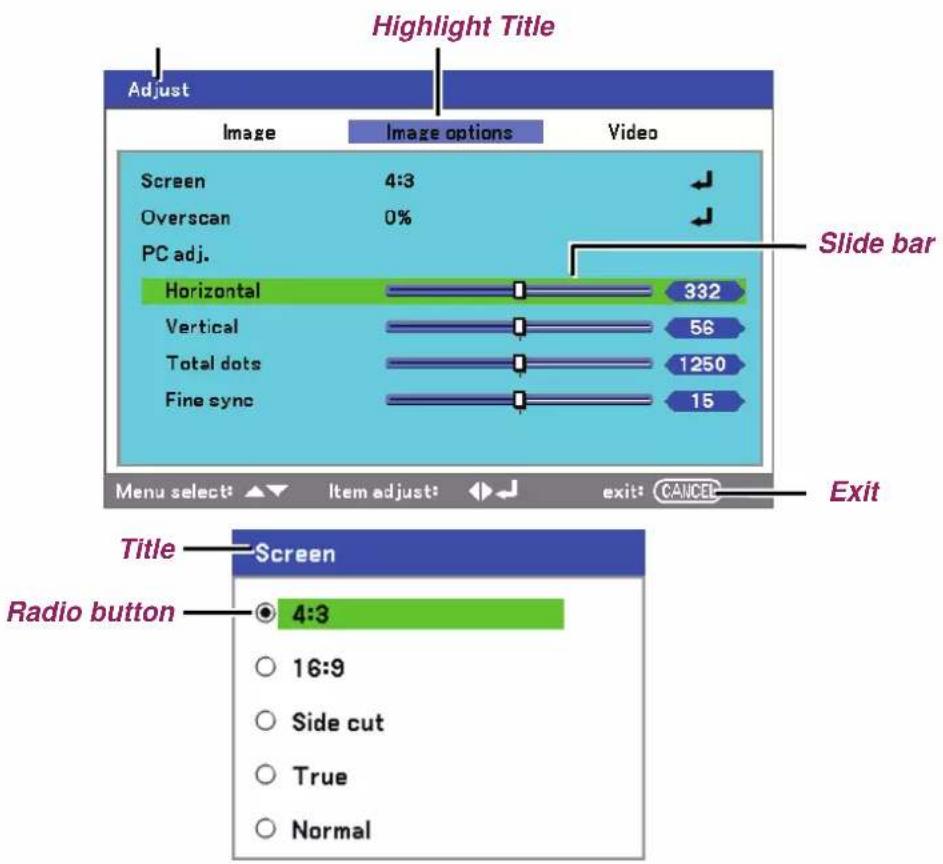

Highlight Title Adjust Image Image options Video Screen 4:3 Overscan 0% PC adj. Horizontal 332 Vertical 56 Total dots 1250 Fine sync 15 Slide bar Menu select Item adjust exit: Cancel Exit Title Screen Radio button 4:3 16:9 Side cut True Normal

Menu windows or dialog windows typically contain the following elements:

ITEM LABEL DESCRIPTION
1.	Title Indicates the menu title.
2.	Highlight	Indicates the selected menu or item.
3.	Radio button Click this round button to select an option in a dialog box.
4.	Slide bar Indicates a representation of adjustable values.
5.	Exit Return to the previous menu.

Input Menu Descriptions and Functions

The Input menu displays all supported image sources.

Computer1
○ Computer2
○ Computer3
○ Component
○ Video
○ S-Video

Select the required source from the menu using ▲ or ▼ and press ← to confirm.

LABEL DESCRIPTION
Computer 1	Select the source connected to the Computer 1 input(see Connecting Your PC or Macintosh Computer on page 21).
Computer 2	Select the source connected to the Computer 2 input(see Connecting Your PC or Macintosh Computer on page 21).
Computer 3	Select the source connected to the Computer 3 input(see Connecting Your PC or Macintosh Computer on page 21).
Component	Select the source connected to the Component input(see Connecting Your DVD Player with Component Output on page 23).
Video	Select the source connected to the Video input(see Connecting Your VCR or Laser Disc Player on page 24).
S-Video	Select the source connected to the S-Video input(see Connecting Your VCR or Laser Disc Player on page 24).

Adjust Menu Descriptions and Functions

The Adjust menu contains overall projector settings for image output such as sharpness, overscan and color matrix.

Three tabs are accessible through the Adjust menu, Image, Image Options and Video.

Image menu

The Image tab is used to alter picture settings and can be accessed from the Adjust menu.

Adjust Image selection 1: High-bright Detail setting Contrast Brightness Sharpness Color Tint Reset Video 50 50 12 50 50 ← Menu select: ▲▼◀ exit: CANCEL

The following table lists all functions with a description and the default setting.

LABEL DESCRIPTION
Image select	Select a set of preset values using ◀ or ▶ from the list. Notice that the below values will change depending on the preset selection.
Detail setting	See Detail Setting Menu Descriptions and Functions on page 59.
Contrast	Adjust the Contrast value using ◀or▶ to highlight the differences between light and dark areas of the picture.
Brightness	Adjust the Brightness value using ◀or▶ to lighten or darken the picture.
Sharpness	Adjust the Sharpness value using ◀or▶ to sharpen or blur the borders between colors and objects.
Color	Adjust the Color value using ◀or▶ to increase or decrease color input to the picture.
Tint	Adjust the Tint value using ◀or▶ to increase or decrease the color hue of the picture.
Reset The settings and adjustments are set to initial factory settings.

Image options menu

The Image Options tab is used to configure image options such as screen positioning and aspect ratio. Access the Image Options tab in the Adjust menu.

Adjust Image Image options Video Screen 4:3 Overscan 0% PC adj. Horizontal 332 Vertical 56 Total dots 1250 Fine sync 15 Menu select: ▲ Item adjust: ▶ exit: CANCEL

The following table lists all functions with a description and the default setting.

LABEL DESCRIPTION
Screen	Select Screen using ◀or▶ from the list (see page 55).
Overscan	Set the Overscan value using ◀or▶ (see page 55).
PC adj.	Adjust the position values using the slides HVorizontal: Adjusts the image location horizontally using ◀or▶.Vertical: Adjusts the image location vertically using ◀or▶.Total dots: Fine tune a computer image or remove any vertical banding that might appear.Fine sync: Adjust the clock phase or reduce video noise, dot or cross talk.Note:Only useFine syncafter the total dots settings have been modified.

Screen

The Screen option allows for the adjustment of the aspect ratio to alter the appearance or ratio of the projected image.

Screen ● 4:3 ○ 16:9 ○ Side cut ○ True ○ Normal

4:3 – Standard TV screen (4:3), proportionally four units wide for every three units high, no matter the size of the screen.

16:9 – A wide-screen aspect ratio for video.

Side cut – Crops the image.

True - Displays the current image in its true resolution.

Normal – Displays the current image in its aspect ratio.

Overscan

Video images normally exceed the size of the display screen. The edge of the picture may or may not be displayed correctly. The border area that is cropped can be adjusted by using the Overscan option.

Set the overscan percentage between 0 - 15% to compensate for different screen sizes.

Video menu

The Video tab is used to configure image options such as film. Access the Video tab in the Adjust menu.

Adjust Image Image options Video Noise reduction Off 3D Y/C separation Off Progressive Off Color matrix Auto Film Off Menu select: ▲▼◀ exit: CANCEL

The following table lists all functions with a description and the default setting. A detailed description follows the table.

LABEL DESCRIPTION
Noise reduction Select	Noise reduction mode (see page 57).
3D Y/C separation	Select 3D Y/C separation mode (see page 57).
Progressive Select Progressive mode (see page 57).
Color matrix Select Color matrix mode (see page 58).
Film Select Film mode (see on page 58).

Noise reduction

Select the level of noise reduction required.

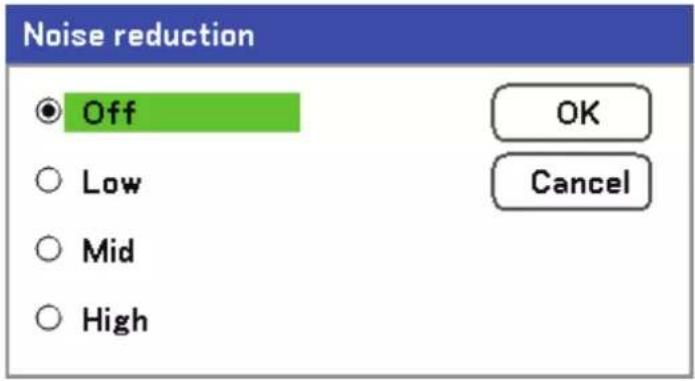

Noise reduction Off Low Mid High OK Cancel

Range: Off, Low, Mid, High.

3D Y/C separation

3D Y/C Separation separates composite signal to Y (brightness) signal and C (color) signal, and can help to produce clearer and sharper images without overlapping colors (rainbow effect).

3D Y/C separation Off On OK Cancel

Set 3D Y/C Separation On or Off.

Progressive

Progressive converts an interlaced image to a progressive scan image.

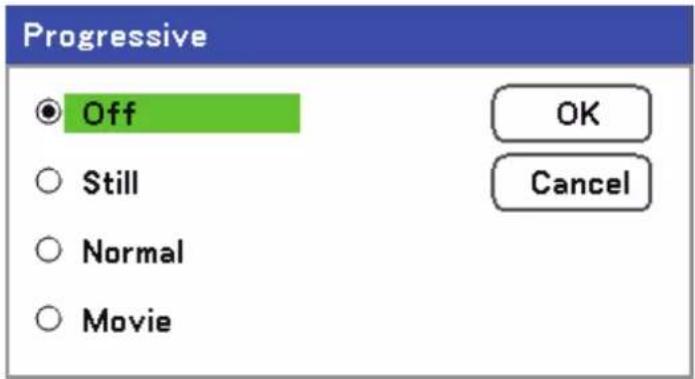

Progressive Off Still Normal Movie OK Cancel

Select the form of Deinterlacing required from:

Still – Select for stills such as slide projections or screen shots.

Normal – Select Normal for non-specialized projection.

Movie – Select for movie projection.

Color matrix

Color Matrices define the amount of the three-color components R (red), G (green), and B (blue) in a single point in color space.

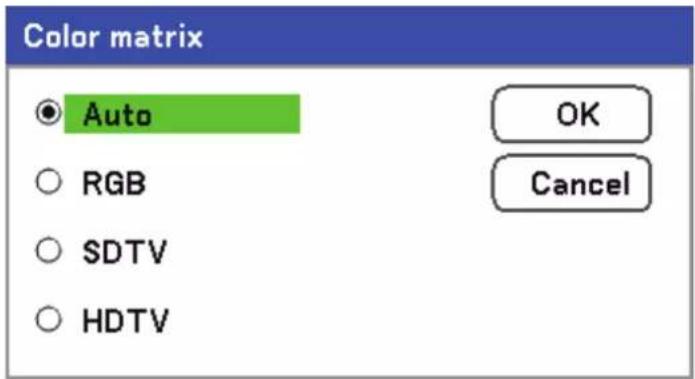

Color matrix ● Auto ○ RGB ○ SDTV ○ HDTV OK Cancel

Select from the following:

Auto - Auto selects the color matrix.

RGB – Sets the color matrix to RGB, use for PC monitor or camera imaging.

SDTV – Sets the color matrix to SDTV, use for Standard Definition imaging.

HDTV – Sets the color matrix to HDTV, use for High Definition imaging.

Film

Film aids in converting motion picture film images into video. The process adds additional frames to the picture in order to increase the frame rate.

Note:

This feature is only available when Progressive is turned on and SDTV signal is selected.

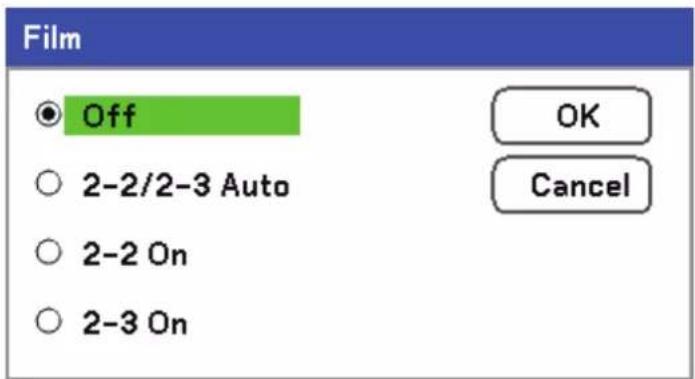

Film Off 2-2/2-3 Auto 2-2 On 2-3 On OK Cancel

Select from the following:

Off – Film mode is turned off.

2-2/2-3 Auto – Detects pull-down correction method.

2-2 On – Uses 2-2 pull-down correction method.

2-3 On - Uses 2-3 pull-down correction method.

Detail Setting Menu Descriptions and Functions

The Detail setting menu contains basic and advanced color adjustment options such as gamma correction, color contrast and color correction.

Basic

The Basic tab contains general setting such as gamma correction and color temperature. Access to the Basic tab is through the Detail setting menu.

Detail setting Basic White balance Color correction Gamma Dynamic Color temp. 6500 BrilliantColor 4 Menu select: ▲▼▶ exit: CANCEL

The following table lists all functions with a brief description.

LABEL DESCRIPTION
Gamma Select Gamma	Correction mode (see page 60).
Color temp.	Move the slider bar left or right to set the color temperature value in Kelvin (K).Compensate for the amount of light available. Daylight is approximately 5500K.
BrilliantColor	Move the slider bar left or right to set the BrilliantColorTMvalue. BrilliantColor extends the exposure range and sharpens detail for grain free images.

Gamma

Gamma enables adjustment to the light intensity (brightness) of an image in order to match the source more closely.

Gamma Dynamic OK Natural Cancel Black detail

Select from the following:

Dynamic - Allows the projector to alter the gamma correction automatically.

Natural – Attempts to emulate the original source as closely as possible.

Black detail – Black detail highlights boundaries between light and dark areas of the image more clearly.

White balance

White Balance allows the projector to compensate for different colors of light being emitted by different light sources.

Detail setting Basic White balance Color correction Red 50 Green 50 Blue 50 Contrast R 50 Contrast G 50 Contrast B 50 Menu select: ▲▼▶ exit: CANCEL

The following table lists all functions with a brief description.

LABEL DESCRIPTION

Red Set the value to compensate for red light sources.

Green Set the value to compensate for green light sources.

Blue Set the value to compensate for blue light sources.

Contrast R Set the Contrast R value to compensate for red light sources.

Contrast G Set the Contrast G value to compensate for green light sources.

Contrast B Set the Contrast B value to compensate for blue light sources.

Color correction

The Color correction tab enables the adjustment of color values in an image to remove unwanted effects, improve color, characteristics or add more of a particular color.

Detail setting Basic White balance Color correction Red 0.0 Green 0.0 Blue 0.0 Yellow 0.0 Magenta 0.0 Cyan 0.0 Menu select: ▲▼◀ exit: CANCEL

The following table lists all functions with a brief description.

LABEL DESCRIPTION
Red	Increase or decrease the amount of red in the projected output using ◀ and ▶.
Green	Increase or decrease the amount of green in the projected output using ◀ and ▶.
Blue	Increase or decrease the amount of blue in the projected output using ◀ and ▶.
Yellow	Increase or decrease the amount of yellow in the projected output using ◀ and ▶.
Magenta	Increase or decrease the amount of magenta in the projected output using ◀ and ▶.
Cyan	Increase or decrease the amount of cyan in the projected output using ◀ and ▶.

Setting Menu Descriptions and Functions

The Setting menu contains the most often used settings during installation and options to customize the general output of the projector. Three tabs are accessible through the Setting menu, Basic, Installation and Option.

Basic

The Basic tab contains general setup options such as lamp mode and OSD language settings and can be accessed with the projector control panel or with the remote control unit.

Setting Basic Installation Option Keystone Lamp control Normal Lamp mode Dual Lamp interval 1 week Language English Lens Shift Zoom Focus Menu select: ▲▼◀ exit: CANCEL

The following table lists all functions with a brief description.

LABEL DESCRIPTION
Keystone	Adjust the Keystone trapezoid (see Keystone page 64).
Lamp control Select	Lamp control. Range: Normal or Eco.
Lamp mode Select	Lamp configuration. Range: Dual, Lamp1 or Lamp2.
Lamp interval Select	Lamp interval. Range: Off, 1 week, 4 weeks or 2000 hours.
Language	Select the OSD language (see Language on page 65).
Lens Shift	Displays the Lens Shift window (see Adjusting Picture Position Manually on page 28).
Zoom	Displays the Zoom window (see Adjusting the Focus/Zoom Manually on page 38).
Focus	Displays the Focus window (see Adjusting the Focus/Zoom Manually on page 38).

Keystone

The keystone trapezoid can be adjusted by selecting this option.

Keystone Horizontal 0 Vertical 0 Press KEYSTONE for 2 Secs to Reset.

Select Horizontal or Vertical using ▲or▼ then, use ◀or▶ to adjust the projected image appearance as required.

Note:

When adjusting the keystone, place the projector in the following position.

• Horizontal: set to the lens center
• Vertical: set to the maximum top

Lamp control

Select Normal or Eco from the lamp mode window. The lamp life can be extended by using the Eco mode and the fan noise can be reduced.

Lamp control Normal OK Eco Cancel

Lamp mode

Select the lamps to be used for projection.

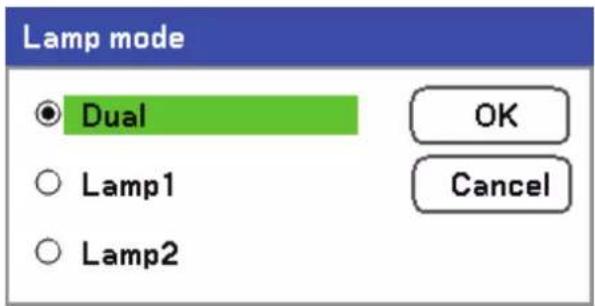

Lamp mode Dual OK Cancel Lamp1 Lamp2

Select from the following:

Dual – Uses both lamps simultaneously.

Lamp1 – Uses Lamp1 only.

Lamp2 – Uses Lamp2 only.

Lamp interval

The period of time for regulating lamp usage when not in dual lamp mode.

Lamp interval Off 1 week 4 weeks 2000H OK Cancel

Select from the following:

Off, 1 week, 4 weeks and 2000H

Language

Select the OSD language to be used.

Language English Deutsch Français Italiano Español Svenska 日本語 中文 OK Cancel

Select from the following:

English
German
French
Italian
Spanish
Swedish
Japanese
■ Simplified Chinese

Installation

The Installation tab contains menu options for various setup conditions such as orientation and remote sensor mode and is accessed through the Setting menu.

Setting
Basic	Installation	Option
Ceiling & Rear	Desktop front
Communication speed	4800bps
Display time	Auto 5 sec
Background	Blue
PIN code lock	Off
Key lock	Off
DynamicBlack	Off
RC sensor	Both
Network setting
Standby mode	Normal
PC control	PC control

The following table lists all functions with a brief description.

LABEL DESCRIPTION
Ceiling & Rear	Select from four projection methods depending on projection site (see Ceiling & Rear page 67).
Communication speed	Select Communication speed. Range: 4800bps, 9600bps, 19200bps, 38400bps
Display time	Select Display time. Range: Manual, Auto 5s, Auto 15s, Auto 45s
Background	Select Background appearance when there is no signal. Range: blue, black or logo
PIN code lock	Set PIN code lock On/Off (see PIN Code Lock on page 68).
Key lock	Set Control panel lock On/Off. Note:This Control Panel Lock does not affect the remote control functions.When the control panel is locked, pressing and holding the Cancel button on the projector cabinet for about 10 seconds. The setting will change to Off.
DynamicBlack	DynamicBlackTM improves the black level of the projector. Black level is the darkest part of a picture and varies between viewing devices and environments. Set DynamicBlack on/off.
RC sensor	Set RC sensor fields.Range: Both, Front, Back
Network setting	Opens Network preferences tab (see Network setting on page 69).
Standby mode	Select Standby mode.Range: Normal and Power-saving
PC control	Enables the path selection for PC control.Range: PC control or Network.

Ceiling & Rear

Ceiling & Rear enables you to set how the projected image is displayed.

Select from the following:

Desktop Front – Standard forward facing projection (Default setting).

Desktop Rear – Standard rear projection. Enables the projector to produce the image from behind the screen by reversing the image.

Ceiling Front – Forward facing ceiling mounted projection. Enables ceiling mounted projection by inverting the image.

Ceiling Rear – Rear ceiling mounted projection. Enables ceiling mounted projection from behind the screen by inverting and reversing the image.

Communication speed

Select communication speed to set the baud rate of the connection.

Note:

Longer cable connections may require lower settings.

Communication speed

4800bps

9600bps

19200bps

38400bps

OK

Cancel

Select from the following options:

4800bps
9600bps
19200bps
38400bps

Note:

In the Network mode, Communication Speed function is not available.

Display time

Sets the amount of time a menu is displayed.

Display time ● Manual ○ Auto 5 sec ○ Auto 15 sec ○ Auto 45 sec OK Cancel

Select from the following:

Manual – Menus stay on screen until the Menu button is pressed again.

Auto 5 secs—Menu is displayed for 5 seconds.

Auto 15 secs – Menu is displayed for 15 seconds.

Auto 45 secs – Menu is displayed for 45 seconds.

Background

Background enables you to display a blue/black screen when there is no signal. The default background is blue.

Background Blue Black Logo OK Cancel

Select from the following:

Blue
Black
- Logo

PIN Code Lock

See Preventing the Unauthorized Use of the Projector on page 44.

PIN code lock function will be enabled.

Are you sure?

Key lock

Turn On/Off the Key Lock function for cabinet buttons.

Note:

• This Control Panel Lock does not affect the remote control functions.
• When the control panel is locked, press and holding the Cancel button on the projector cabinet for about 10 seconds. The setting will change to Off.

Key lock Off On OK Cancel

DynamicBlack

DynamicBlack ^TM enables you to improve the black level of the projector.

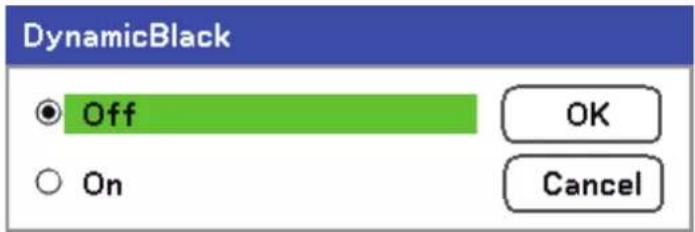

DynamicBlack Off On OK Cancel

RC sensor

Set the operating range for the wireless remote control.

RC sensor ● Both ○ Front ○ Back OK Cancel

Select from the following:

Both
Front
■ Back

Network Setting

See Network setting on page 71.

Standby mode

There are two standby modes available: Normal and Power-saving. Power-saving mode allows you to put the projector in the standby condition to consume less power than Normal.

Standby mode Normal Power-saving OK Cancel

Note:

Be sure to connect the projector and computer while the projector is in standby mode and before turning on the computer.

Select from the following:

Normal
Power-saving

Note:

The HTTP server functions are not available during Power-saving mode.

The MONITOR OUT function is not available during Power-saving mode.

Control through the PC Control connector and Network mode is not available during Power-saving mode. For PC control and Network mode of the projector it is recommended to leave the projector in the Normal mode.

Normal mode: POWER indicator: Orange light

WARNING indicator: Green light

Power-saving mode: POWER indicator: Orange light

WARNING indicator: Off

PC control

This function enables you to select the path for PC control (see PC Control Codes and Cable Connections on page 97).

PC control ● PC control ○ Network OK Cancel

Note:

In the Network mode, Communication Speed function is not available.

Select from the following:

PC control
Network

Network setting

The Network setting menu is accessed by using the Setup/Installation menu and contains the general LAN settings.

Network setting Setting DHCP IP address Subnet Gateway DNS Apply settings Enable Disable 172 . 16 . 7 . 15 255 . 255 . 255 . 0 Enable Disable 172 . 16 . 7 . 201 Enable Disable 172 . 16 . 1 . 84 ← Menu select: ▲▼ exit: CANCEL

The following table lists all functions with a description and the default setting.

LABEL DESCRIPTION
DHCP	Select either a static IP (Disable) or DHCP IP (Enable) setting by selecting the appropriate radio button.
IP address Displays the	P address.
Subnet Displays the subnet mask.
Gateway	Enable or disable the network gateway setting. Click on the radio button to change the setting.
DNS	Enable or disable the DNS server settings. Click on the radio button to change the setting.
Apply settings Apply and save settings.

Option

The Option tab contains miscellaneous setup menu settings such as Power management and Default input select and can be accessed by using the Setting menu.

Setting
Basic	Installation	Option
Power management	Off
Screen trigger	Off
Fan control	Max
Default input select	Last
Color system
Video	Auto
S-Video	Auto
Message	Off
Filter warning	Off
Search mode	Fine

The following table lists all functions with a description and the default setting.

LABEL DESCRIPTION
Power management	Select the amount of time the projector remains idle before powering down. Range: Off, 0:05, 0:10, 0:20, 0:30
Screen trigger	Set this item to On to enable the projector to automatically lower the projection screen when powering on. Range: On or Off
Fan control	Select Fan control. Range: Normal or Max (see Fan control page 73)
Default input select	Select the default input for projection. Range: Last, Auto, Computer1, Computer2, Computer3, Component, Video, S-Video
Color System	Video—select the Video Color System from Auto, NTSC, PAL, and SECAM.
	S-Video— select the S-Video Color System from Auto, NTSC, PAL, and SECAM.
Message	This option turns on or off messages. Range: Off or On
Filter warning	Set this item to on to have the projector display a message when the air filter needs servicing. Range: Off, 100[H], 200[H], 500[H], 1000[H]
Search mode	This feature sets the Auto Adjust mode. Range: Normal, Fine

Power management

Power management enables the projector to automatically turn off if there is no signal received by any input.

Power management Off 00:05 00:10 00:20 00:30 OK Cancel

Select from the following:

Off
5 minutes
10 minutes
20 minutes
30 minutes

Screen trigger

Set Screen trigger to On to enable the projector to automatically lower the projection screen when powering on. When powering off, Screen trigger stops sending a low voltage trigger to the screen controller and the screen goes up.

Screen trigger Off On OK Cancel

Fan control

Fan control is used to set the speed of the internal cooling fan. Set Fan Speed to Max in altitudes over 1500 meters (5000 feet).

Fan control Normal OK Max Cancel

The Fan control option default is Normal, which enables the projector to automatically detect fan requirements. For higher temperature locations or prolonged use, the Max option is available to provide greater cooling capacity.

Default input select

The Default input is the image source that the projector will search for automatically on startup.

Default input select Last Auto Computer1 Computer2 Computer3 Component Video S-Video OK Cancel

Last – Uses the most recently used image source.

Auto - Auto detects the default image source.

Computer1/2/3 – Uses Computer1, 2 or 3 as the default image source.

Component – Uses last component as the default image source.

Video – Uses last video input as default image source.

S-Video – Uses last S-video input as default image source.

Message

This option turns on or off messages. Even though selecting [Off], the following message will appear. "Projector is locked" when the projector security is unlocked, the message will disappear.

Message Off On OK Cancel

Filter warning

Set Filter warning to have the projector display a message when the air filter needs servicing.

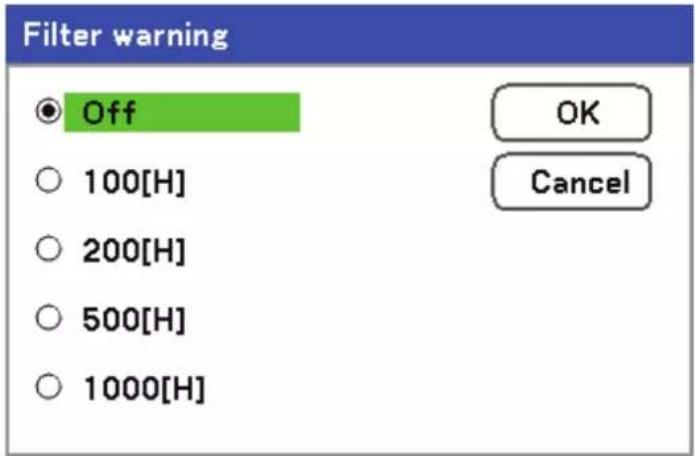

Filter warning Off 100[H] 200[H] 500[H] 1000[H] OK Cancel

The message below shows when this function is activated.

Please clean filter.

Search mode

This feature sets the Auto Adjust mode so that the RGB image can be automatically or manually adjusted for noise and stability. You can automatically make adjustments in two ways: [Normal] and [Fine].

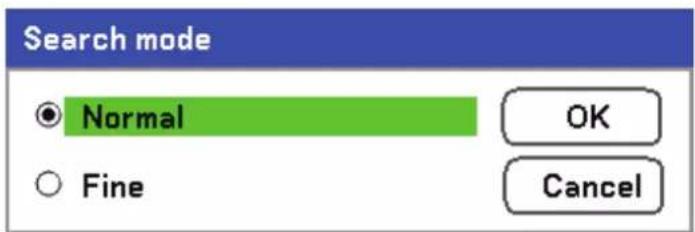

Search mode Normal Fine OK Cancel

Normal: The RGB image will be automatically adjusted. Normally select this option (Default).

Fine: Select this option if fine adjustment is needed. It takes more time to switch to the source than the Normal settings.

Information Menu Descriptions and Functions

The Information menu provides only screens for the quick access of menus. The Information menu contains four distinct tabs.

Usage time

The Usage time tab displays information about lamp usage and remaining lamp life.

The following table lists all items with a description.

LABEL DESCRIPTION

Lamp1 life remaining Displays the Lamp1 life remaining as a percentage.

Lamp2 life remaining Displays the Lamp2 life remaining as a percentage.

Lamp1 time Displays the Lamp1 total usage in hours.

Lamp2 time Displays the Lamp2 total usage in hours.

PJ time Displays the projector total usage in hours.

Filter time Displays how many hours the filter has been used.

Input

The Input tab displays various source and frequency values at a glance.

Usage time	Input	Network	Version
Input name	Computer2
Signal	1024x768
H-sync. freq.	48.36[kHz]
V-sync. freq.	60.00[Hz]
Video type	---
Sync type	Separate sync
Sync polarity	H:(-)V:(-)
Scan type	Non-Interlace

The following table lists all items with a description.

LABEL DESCRIPTION
Input name	Displays the Input Terminal that is presently being used (see Default input select on page 74).
Signal Displays the Source name of the signal presently being used.
H-sync. freq. Displays Horizontal frequency in KHz.
V-sync. freq. Displays Vertical frequency in Hz.
Video type Displays Video type.
Sync type Displays Sync type.
Sync polarity Displays Sync polarity.
Scan type Displays Scan type.

Network

The Network tab displays LAN settings as previously defined (see Network setting on page 71).

Information
Usage time	Input	Network	Version
IP address	192.168.10.10
Subnet	255.255.255.0
Gateway	0.0.0.0
MAC address	00:30:13:04:9E:01

Version

The Version tab displays all the version and product details of the projector and associated software (for display only).

Information Usage time Input Network Version Model name D5500 Firmware DP3650-LVXXX-DPE01/4S Menu select: exit: CANCEL

The following table lists all items with a description.

LABEL DESCRIPTION

Model name Displays Product ID.

Firmware Displays Firmware version and Color Wheel currently installed (4-seg or 6-seg).

Reset Menu Descriptions and Functions

Occasionally, circumstances may require that factory defaults be reset, for demonstration purposes for example, or when components are replaced.

The Reset menu contains options for returning settings to the factory default and is accessed by using the Main menu.

Reset Current signal All data Clear lamp1 time Clear lamp2 time Clear filter time

The following table lists all items with a description.

LABEL DESCRIPTION
Current signal	Reset the adjustments for current signal to factory-preset levels. All items in Ad-just can be reset.
All data	Resets all options to factory default regardless of when they were changed. Reset all the adjustments and settings for all the signals to the factory preset ex-cept Language, Background, Key lock, Security, Network Mode, Communication Speed, Lamp life remaining, Lamp time, and Filter time.
Clear lamp1 time Reset	amp1 time	These options should only be used when compo-nents are cleaned or replaced (see Maintenance on page 81)
Clear lamp2 time Reset	amp2 time
Clear filter time Reset filter	hours

Cleaning the projector

Cleaning the Cabinet

Refer to the following guide to clean the projector cabinet.

1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent and wipe the cabinet.
3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

Cleaning the Lens

Refer to the following guide to clean the projector lens.

1. Apply a little optic lens cleaner to a clean, lint free cloth (do not apply the cleaner directly to the lens).
2. Lightly wipe the lens in a circular motion.

Line drawing of a Vinitek projector with a hand cleaning the front panel (no text or symbols on the device itself)

Caution:

Do not use abrasive cleaners or solvents.

To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Filters

The projector uses three filters to keep the fans free of dust and other particles, and should be cleaned every 500 hours of operation. In dusty environments, it is recommended to clean the filters more frequently. If the filter is dirty or clogged, your projector may overheat. When the message below is displayed, the filters must be cleaned.

Please clean filter.

Note:

When the Please clean filter message is displayed, please clean all three filters at the same time to synchronize the Filter time display.

The Filter Message item should be enabled in the Options menu. Refer to Option on page 72.

Refer to the following guide to clean the filters.

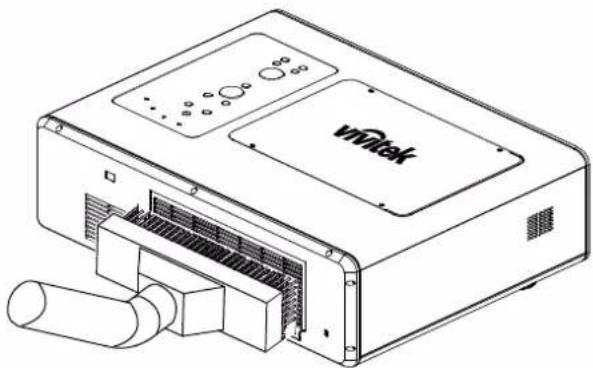

1. The left-side and rear filters can be cleaned as demonstrated in the following images.

Note: Only clean the outside of the exhaust vents with a vacuum cleaner.

Vinitak Vinitak

Technical line drawing of a heating unit with heat exchanger and cooling unit (no text or symbols)

1. The rear exhaust vent can be accessed as shown.

Line drawing of a vintage computer with ventilation slots and a Vintek logo (no text or symbols on the device itself)

Once the filters are cleaned, please reset the filter hours by using the Clear filter time option in the Reset Menu Descriptions and Functions on page 80.

Replacing the Lamps

When a lamp reaches the end of it's usable life, the following message is displayed. Replace the lamp.

The lamp has reached the end of its usable life. Please replace the lamp.

The projection lamps should be replaced when they burn out. They should only be replaced with a certified replacement part, contact your local dealer if unsure.

Note:

1. Lamps are positioned differently. Take care not to force the lamps when replacing.
2. Installation of both lamp modules (Lamp 1 and Lamp 2) is required to operate the projector in dual or single lamp mode. If only a single lamp module is installed, the projector's lamp will not turn on and will appear as a lamp failure.
3. Lamps last approximately 2000-2100 hours (2500-2600 hours in Eco mode) and the End of lamp life message is displayed during the lamps' final 100 hours of operational life. Please replace during 2000-2100 hour.

Important:

1. The lamp contains a certain amount of mercury and should be disposed of according to local ordinance regulations.
2. Avoid touching the glass surface of the new lamp: doing so may shorten its operation life.

Caution:

Lamp Handling Precautions

• This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.
• Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps.
• If the projector indicates that the lamp should be replaced, i.e., if LAMP 1 and/or LAMP 2 light up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp with LAMP 1 and/or LAMP 2 lighted may increase the risk of lamp explosion.
• A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

If a lamp explodes, the following safety precautions should be taken:

Disconnect the projector's AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer.

Important:

a. The lamp contains a certain amount of mercury and should be disposed of according to local ordinance regulations.
b. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life.

Warning:

Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to do so could result in a severe burn.

Note:

Safety glasses should be worn when replacing the lamp while the projector is ceiling mounted.

1. Remove the four screws on the lamp cover (A), and lift the lamp cover as shown (B).

Diagram of a device with labeled components and directional arrows, including a button labeled A and B.

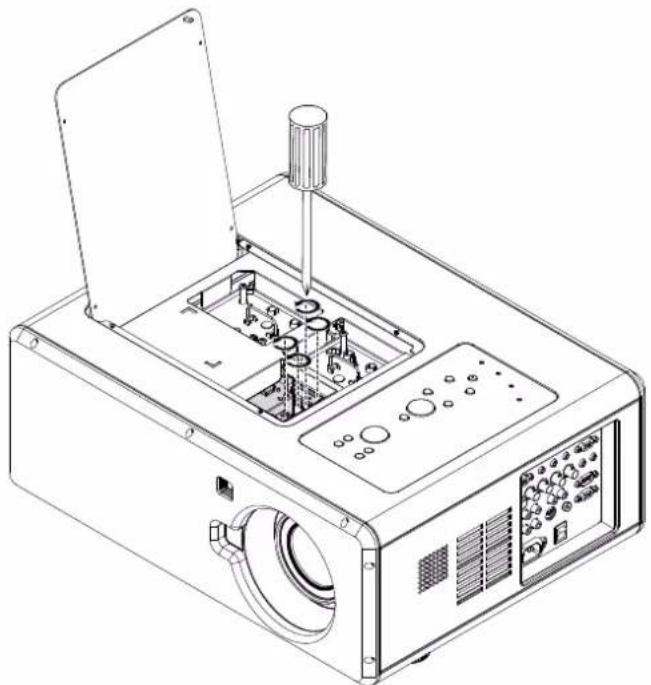

1. Loosen the two captive screws on the lamp module (A). Lift the module handle up as shown (B).

Technical diagram of an electronic device with labeled components A and B, showing internal components and control panel.

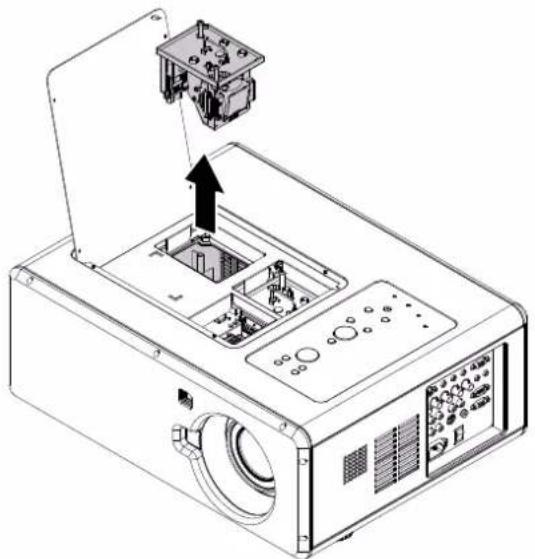

1. Pull firmly on the module handle in the direction shown to remove the lamp.

Technical line drawing of an electronic device with a mounted component and control panel (no text or symbols)

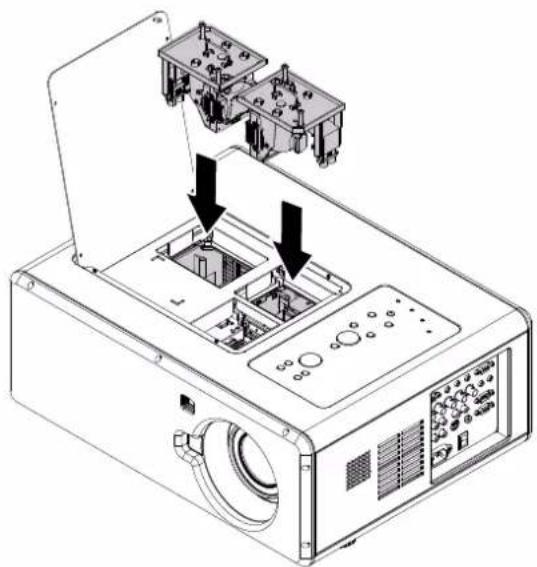

1. Reverse steps 1 to 3 to install the new lamp module(s) and replace the lamp cover.

Technical line drawing of an electronic projector with internal components and mounting bracket (no text or symbols)

Resetting the Lamp Time Counter

After replacing the lamp(s), the lamp hour counter(s) should be reset to zero. Refer to the following guide:

1. Press the Menu button on the OSD control panel or Remote Control to open the Main menu.

Input Adjust Volume Setting Information Reset

1. Press the ▲ or ▼ button to move to the Reset menu and press ←.

2. The Reset menu is displayed. Select Clear lamp1 time or Clear lamp2 time as required using ▲ or ▼ and press ←.

3. A confirmation box is displayed. Select OK using ◀ or ▶ and press ← to reset the selected Lamp hours to zero.

Reset Current signal All data Clear lamp1 time Clear lamp2 time Clear filter time

Are you sure ? OK Cancel

Troubleshooting

Indicator Messages

Several indicator messages are used by the projector to alert users of problems with setup or internal parts. The LEDs on the top surface of the projector show the status of the WARNING and lamp 1/2 as well as the general working order of the projector through the WARNING LED (see OSD Controls and Status LEDs on page 6 for location). The following tables describe the various states of the 4 LEDs.

The POWER LED

PROJECTOR STATUS	LED CONDITION	LED SEQUENCE	PROJECTOR CONDITION
AC off Off Off Off
Cooling	Orange	0.5 secs on 0.5 secs off	After power off
Power up sequence Green blink		0.5 secs on 0.5 secs off	Start up
Standby	Orange	on	On
Power on Green on On	On

The WARNING LED

PROJECTOR STATUS	LED CONDITION	LED SEQUENCE	PROJECTOR CONDITION
Normal condition	Off Off	Power on
Cover ERROR	Red 1 time blink (repeatedly)	0.5 secs on2.5 secs off	ERROR
Temperature ERROR	Red 2 times blink (repeatedly)	(0.5 secs ON > 0.5 secs OFF) * 2 > 2.0 secs OFF	ERROR
Power ERROR	Red 3 times blink	(0.5 secs ON > 0.5 secs OFF) *3 > 2.0 secs OFF	ERROR
Fan ERROR	Red 4 times blink (repeatedly)	(0.5 secs ON > 0.5 secs OFF) * 4 > 2.0 secs OFF	ERROR
Keylocked (when push key)	Orange light up	On	Keylocked function enabled
Standby (Power-saving)	Off	Off	Standby (Power-saving)
Standby (Normal)	Green light	On	Standby (Normal)

The LAMP LEDs

PROJECTOR STATUS	LED CONDITION	LED SEQUENCE	PROJECTOR CONDITION
Lamp off Off Off Lamp off
End of the lamp life Red blink		0.5 secs on0.5 secs off	Replace lamp
No lamp	Red 1 time blink(repeatedly)	0.5 secs on2.5 secs off	ERROR
Lamp ERROR	Red 6 times blink(repeatedly)	(0.5 secs ON > 0.5 secs OFF) * 6 > 2.0 secs OFF	ERROR
Cooling lamp Orange blink		0.5 secs ON > 0.5 secs OFF	Switching lamp1 and 2
Re-light up sequence Green blink		0.5 secs ON > 0.5 secs OFF	Start up
Lamp life over Red on On Replace lamp
Eco mode Orange on On Power on
Normal mode Green on On Power on

Common Problems and Solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.

Often the problem is something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.

- Ensure the projector is turned on.

- Ensure all connections are securely attached.

- Ensure the attached device is turned on.

- Ensure a connected PC is not in suspend mode.

- Ensure a connected notebook computer is configured for an external display. (This is usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly.

Try to pinpoint the problem to avoid replacing non-defective parts.

For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.
2. Press the AUTO button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the specified range.
4. Check that the projector lens is clean.
5. Remove the lens cover.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control to correct the problem.

Problem: The image is reversed or upside down

- Check the Ceiling & Rear setting on the Setting menu of the OSD.

Problem: The image is streaked

1. Set the Total dots and Fine sync. settings on the Adjust menu of the OSD to the default settings.
2. To ensure the problem is not caused by a connected PC's video card, connect to another computer.

Problem: The image is flat with no contrast

1. Adjust the Contrast setting on the Adjust menu of the OSD.
2. Adjust the Brightness setting on the Adjust menu of the OSD.

Problem: The color of the projected image does not match the source image.

- Adjust the Color temp. and Gamma settings on the Detail setting menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Remove the lens cap.
7. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the projector. When the Power LED is orange, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.
8. Ensure that the remote control code conforms to the projector's code.
9. Ensure that the reset switch in the compartment lid on back of the remote control is set to use position.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem. The information may be useful to the service personnel. Return the projector to the place you purchased it.

Projector Specifications

This section provides technical information about the projector's performance.

Optical Specifications

ITEM DESCRIPTION
Projection system Single DLP® chip, 4 segment color wheel
Resolution	1024 x 768 pixels* (up to UXGA @ 60 Hz, up to SXGA+ @ 60 Hz on DVI-D)
Lamp 260 W AC (230 W in Eco mode), Dual lamp system
Image size (diagonal)	50" - 200" / 1.27m - 5.08m (GC805G)40" - 500" / 1.02m – 12.7m (GB942G, GB940G, GB949G, GB957G)
Lens options	GC805G: Power focus, throw ratio 0.77:1, F2.0, f=11.4 mmGB942G: Power zoom and focus, throw ratio 1.33-1.79:1, F1.8-2.3, f=19.3-25.8 mmGB940G: Power zoom and focus, throw ratio 1.78-2.35:1, F1.7-1.9, f=26-34 mmGB949G: Power zoom and focus, throw ratio 2.22-4.43:1, F2.1-2.9, f=32-63 mmGB957G: Power zoom and focus, throw ratio 4.43-8.3:1, F2.2-3.1, f=63.5-117.4 mm
Lens shift Vertical + 0.5V, Horizontal +/- 0.1H (GB942G, GB940G, GB949G, GC805G)

*Effective pixels are more than 99.99%

Electrical Specifications

ITEM DESCRIPTION
Inputs	1 Analog RGB (Mini D-Sub 15P), 1 Analog RGB R/Cr, G/Y, B/Cb, H, V (BNC x 5), 1 Digital RGB (DVI-D 24P), 1 Component Y, Cb/Pb, Cr/Pr (RCA x 3), 1 Component (Mini D-Sub 15P) shared with COMPUTER 1 IN, 1 S-Video (Mini DIN 4P), 1 Video, 3 Stereo Mini Audio, 2 (L/R) RCA Audio
Outputs	1 RGB (Mini D-Sub 15P), 1 Stereo Mini Audio, 1 Screen Trigger
Control 1 PC Control Port (D-Sub 9P)
USB Port 1 B Type (for Service)
LAN Port RJ-45
Video Compatibility	NTSC, NTSC4.43, PAL, PAL-60/N/M/B/G/H/I), SECAM, HDTV: 1080i, 720p, SDTV: 576p, 576i, 480p, 480i
Scan Rate	Horizontal: 15 kHz, 31 to 90 kHz (RGB: 31 kHz or over) Vertical: 50 Hz to 85 Hz
Video Bandwidth RGB: 100 MHz (-3dB)
Color Reproduction 16.7 million colors simultaneously, Full color
Horizontal Resolution NTSC / NTSC4.43 / PAL / PAL-M / PAL-N / PAL60: 540 TV linesSECAM: 300 TV linesRGB: 1024 dots (H) x 768 dots (V)
External Control	RS232, IR, LAN
Sync Compatibility	Separate Sync / Composite Sync / Sync on G
Built-in Speakers	3W x 2
Power Requirement 100 - 240V AC, 50/60Hz
Input Current 7.7A
Power Consumption	655W in Dual Lamp Normal mode / 580W in Dual Lamp Eco mode350W in Single Lamp Normal mode / 315W in Single Lamp Eco mode< 30W in Standby mode Normal< 5W in Standby mode Power saving

Mechanical Specifications

ITEM DESCRIPTION
Dimensions	19.9" (W) x 7.6" (H) x 15.2" (D)505 mm (W) x 192 mm (H) x 385 mm (D)(not including protrusions)
Weight 45.1 lb/20.5 kg

Environmental Considerations

ITEM DESCRIPTION
Operational Temperatures	41° to 104°F / 5° to 40°C, 10% to 90% humidity (non-condensing)
Storage Temperatures	14° to 140°F (-10° to 60°C), 5% to 90% humidity (non-condensing)

Optional Parts

The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer.

Standard Zoom Lens : GB940G

Long Zoom Lens : GB949G

Ultra Long Zoom Lens : GB957G

Short Zoom Lens : GB942G

Fixed Short Zoom Lens : GC805G

Cabinet Dimensions

517.00 397.00

240.00 125.00 365.00 365.00 120.00 120.00 365.00 125.00 365.00

vivitek 205.70

Pin Assignments of Mini D-Sub 15 Pin Input Connector

5 4 3 2 1 10 9 8 7 6 15 14 13 12 11

Signal Levels

Video signal: 0.7Vp-p (Analog)

Sync signal: TTL level

PIN NUMBER	RGB SIGNAL (ANALOG)	YCBCR SIGNAL
1	Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4	Ground
5	Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 No Connection
12 Bi-directional DATA (SDA)
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock

Compatible Input Signal List

The following table shows compatible signal types, their resolution and frequency refresh rates.

Horizontal: 15kHz, 31kHz to 90 kHz

Vertical: 50 Hz to 85 Hz

SIGNAL		RESOLUTION (DPI)	FREQUENCY REFRESH RATE (KHZ)	FREQUENCY REFRESH RATE (HZ)
NTSC	-	-		15.73
PAL - - 15.63 50.00
PAL60 - - 15.73 60.00
SECAM - - 15.63 50.00
VESA D 640 x 480 31.47 59.94
MAC D 640 x 480 35.00 66.67
VESA D 640 x 480 37.86 72.81
VESA D 640 x 480 37.50 75.00
VESA D 640 x 480 43.27 85.01
VESA D 800 x 600 35.16 56.25
VESA D 800 x 600 37.88 60.32
VESA D 800 x 600 48.08 72.19
VESA D 800 x 600 46.88 75.00
VESA D 800 x 600 53.67 85.06
MAC D 832 x 624 49.72 74.55
VESA D 1024 x 768 48.36 60.00
VESA D 1024 x 768 56.48 70.07
MAC D 1024 x 768 60.24 74.93
VESA D 1024 x 768 60.02 75.03
VESA D 1024 x 768 68.68 85.00
VESA D 1152 x 864 67.50 75.00
VESA D 1280 x 960 60.00 60.00
VESA D 1280 x 1024		63.98 60.02
VESA	D 1400 x 1050		65.30 60.00
HDTV (1080i)(1125i)	-	1920 x 1080	33.75	60.00 Interlace
HDTV (1080i)(1125i)	-	1920 x 1080	28.13	50.00 Interlace
HDTV (720p)(750p)	-	1280 x 720 45.00	60.00 Progressive
HDTV (720p)	-	1280 x 720 37.50	50.00 Progressive
SDTV (576p)(625p)	- - 31.25 50.00 Progressive
SDTV (480p)(525p)	- - 31.47 59.94 Progressive
DVD YCbCr	- - 15.73 59.94 Interlaced
DVD YCbCr - - 15.63	50.00 Interlaced

Note:

Images above flagged with "D" are supported by digital signal.

An image with higher or lower resolution than the projector's native resolution (1024 x 768) will be compressed.

Some Composite and Sync on Green signals may not be displayed correctly.

Signals other than those specified in the table above may not be displayed correctly. If this should happen, change the refresh rate or resolution on your PC. Refer to Display Properties help section of your PC for procedures.

PC Control Codes and Cable Connections

This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port.

1. Connect a RS-232C serial cross cable to SERIAL PORT IN on the projector and serial port on the PC.
2. Launch a communication software provided with PC and setup the communication condition as follows:

Baud rate : 38400 bps

Parity check : none

Stop bit : 1

Flow control : none

Data bit : 8

1. Type the command for controlling the projector and then enter the "Enter" key.

Diagram showing connection between a computer interface with two connected VGA connectors and a separate USB port labeled in Chinese.

Example:

When you want to change the input to Computer 2, Type "C" "0" "6" "Enter."

The below table shows the typical command lists for controlling the projector. Please consult your local dealer for further information of another commands.

Functional Execution Command Table

COMMAND	FUNCTION
C00 Turn the projector ON C3A Pointer RIGHT
C01	Turn the projector OFF (immediately OFF)
C05 Selects Computer 1 C3C Pointer UP
C06 Selects Computer 2 C3D Pointer DOWN
C07 Selects Computer 3 C3F Enter
C08	Selects Component
C09	Volume UP C47
C0A	Volume DOWN
C0B Audio mute ON
C0C Audio mute OFF
C0D Video mute ON
C0E Video mute OFF
C0F Aspect 4:3
C10 Aspect 16:9
C1C Menu ON
C1D Menu OFF
C33	Selects Video C90
C34	Selects S-video

Status Read Command Table

COMMAND	FUNCTION
CR0	Status Read
CR6	Temperature Read

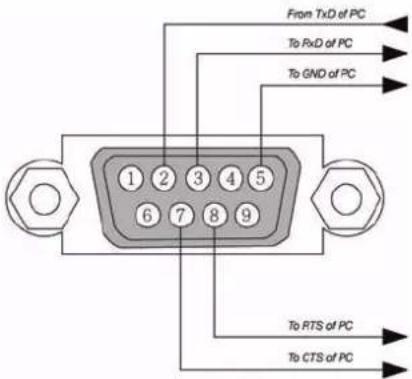

PC Control Connector (DIN-9P)

From TxD of PC To RxD of PC To GND of PC 1 2 3 4 5 6 7 8 9 To RTS of PC To CTS of PC

Note:

1. Pin 1, 4, 6 and 9 are not used.
2. Jumper "Request to Send" and "Clear to Send" together on both ends of the cable to simplify the cable connection.
3. For long cables, it is recommended to set communication speed within projector menus to 9600 bps.

Screen Trigger

When the projector is powered ON the screen trigger output sends a low voltage trigger to the screen controller and the screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger to the screen controller and the screen will go up.

Note:

To use this feature, you must turn on the Screen Trigger function. See Screen Trigger on page 73 for more information.

Stereo mini cable (not supplied)

Tip (12V) Ring (0V) Sleave (ground. 0V)

Note:

Screen controllers are supplied and supported by screen manufacturers.

Note:

Do not use this jack for anything other than intended use.

Operation Using HTTP Browser

Overview

The use of HTTP server functions will allow control of the projector from a web browser without the installation of special software. Please be sure to use "Microsoft Internet Explorer 4.x" or a higher version for the web browser. (This device uses "JavaScript" and "Cookies" and the browser should be set to accept these functions. The setting method will vary depending on the version of browser. Please refer to the help files and the other information provided in your software).

Access is gained to the HTTP server functions by specifying the following address in the entry column of the URL:

http:///index.html

http:///lanconf.html

Note:

The display or button responses can be slowed down or operation may not be accepted depending on the settings of your network. Should this happen, consult your network administrator. The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and repeat. If you still can't get any response, turn off and back on the projector.

Preparation Before Use

Make network connections, set up the projector and confirm that it is complete before engaging in browser operations (see Network setting on page 69 for more information).

Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be reflected in operation. It is recommended that a proxy server not be used unless it is unavoidable.

Handling of the Address for Operation by Using a Browser

Regarding the actual address that is entered for the address or entered to the URL column when operation of the projector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the projector has been registered to the domain name server by a network administrator, or the host name corresponding to the IP address of the projector has been set in the "HOSTS" file of the computer being used.

Example 1:

When the IP address of the projector is 192.168.73.1, access is gained to the HTTP server functions by specifying http://192.168.73.1/index.html for the address or the entry column of the URL.

Configuring Network Settings

The Network Settings screen is displayed as follows:

http:///lanconf.html

PROJECTOR DOMAIN Host Name Domain Name Apply MAIL Alert Mail Sender's Address SMTP Server Name Recipient's Address 1 Recipient's Address 2 Recipient's Address 3 Apply TEST MAIL Execute Test Mail Status PJLINK PJLink Password Apply On Off

DOMAIN

Host Name: Type in a hostname. Up to 60 alphanumeric characters can be used.

Domain Name: Type in domain name of the network connected to the projector. Up to 60 alphanumeric characters can be used.

Apply: Click to reflect the entries.

MAIL

Alert Mail: Click "Enable" to enable Alert Mail feature. This option notifies your computer of an error message via e-mail when using wired LAN. The error message will be notified when the projector lamp has reached the end of its usable life or an error occurs in the projector.

Sender's Address: Specify the sender's address. Up to 60 alphanumeric and symbols, characters can be used.

SMTP Server Name: Type in the SMTP server name to be connected to the projector. Up to 60 alphanumeric characters can be used.

Recipient's Address 1 to 3: Type in your recipient's address. Up to 60 alphanumeric and symbols characters can be used.

Apply: Click to apply the settings.

TEST MAIL

Send a test mail to check if your settings are correct. Click to "Execute" to enable this feature.

Test Mail Status Button: Click to display the test result.

Sample of a message sent from the projector:

Projector Name: X X X X

Lamp 1 or 2 Hours Used: xxxx [H]

The lamp is at the end of its usable life. Please replace the lamp.

Note:

If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient's Address is correctly set.

Unless any one of the [Sender's Address], [SMTP Server's Name] or [Recipient's Address 1-3] is selected, [Test Mail] is not available.

PJLINK

This option allows you to set a password when you use the PJLink feature.

On/Off: Enable or disable the password.

Password: Enter a password (up to 32 characters)

Note:

PJLink is a standardization of protocol used for controlling projectors of different manufacturers. This standard protocol is established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005.

The projector supports all the commands of PJLink Class 1.

PROJECTOR INPUT	PJLINK INPUT	PARAMETER
Computer 1 RGB 1 1
Computer 2 RGB 2 12
Video	VIDEO	1
S-Video	VIDEO	2
Component	VIDEO	3 23
Computer 3 DIGITAL	31

21 22

Structure of the HTTP Server

Once the projector is connected to a network and configured correctly, the following screen is displayed through the web browser.

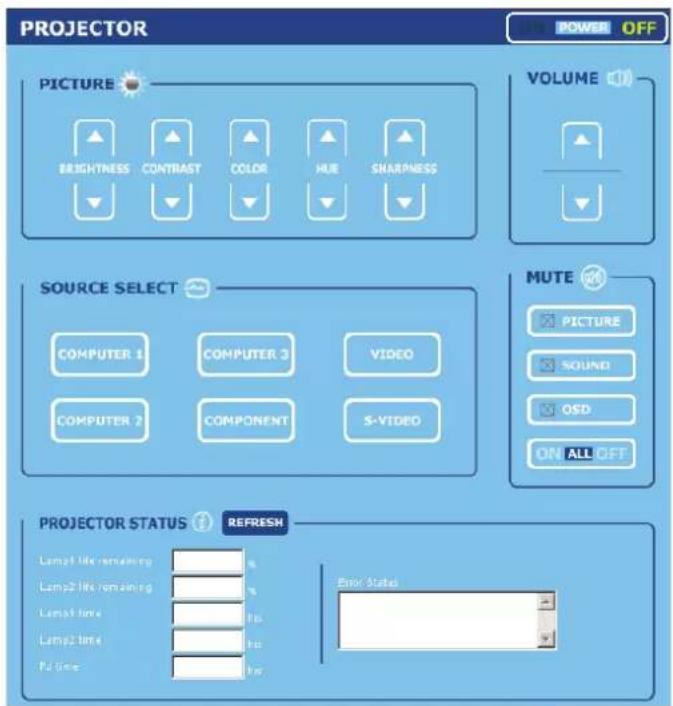

http:///index.html

PROJECTOR POWER OFF PICTURE BRIGHTNESS CONTRAST COLOR HUE SHARPNESS VOLUME SOURCE SELECT COMPUTER 1 COMPUTER 3 VIDEO COMPUTER 2 COMPONENT S-VTODE MUTE PICTURE SOUND OSD ON ALL OFF PROJECTOR STATUS REFRESH Lamp1 like remaining Lamp2 like remaining Lamp3 time Lamp4 time PJ Time Error Status

FUNCTION SETTING DESCRIPTION
POWER Panel ON	OFF	This controls the power to the projector
VOLUME Panel ▲ –	Increases the volume adjustment value▼ – Decreases the volume adjustment value	This controls the volume of the projector
MUTE Panel PICTURE ON – Mutes the videoPICTURE OFF – Cancels the video mutingSOUND ON – Mutes the audioSOUND OFF – Cancels the audio mutingOSD ON – Mutes the on-screen displayOSD OFF – Cancels the muting of the on-screen displayALL ON – Mutes each of the video, audio, and on-screen display functionsALL OFF – Cancels the muting of each of the video, audio, and on-screen display functions	This controls the mute functions of the projector
PICTURE Panel	BRIGHTNESS ▲▼ – Increases or decreases the brightness adjustment valueCONTRAST ▲▼ – Increases or decreases the contrast adjustment valueCOLOR ▲▼ – Increases or decreases the color adjustment valueTINT ▲▼ – Increases or decreases the hue adjustment valueSHARPNESS ▲▼ – Increases or decreases the sharpness adjustment value	Controls the video adjustments of the projector
SOURCE SELECT Panel	COMPUTER1 – Switches to the COMPUTER 1 IN connectorCOMPUTER2 – Switches to the COMPUTER 2 IN connectorCOMPUTER3 – Switches to the COMPUTER 3 IN connectorCOMPONENT – Switches to the COMPONENT IN connectorsVIDEO – Switches to the VIDEO IN connectorS-VIDEO – Switches to the S-VIDEO IN connector	This switches the input connector of the projector
PROJECTOR STATUS Panel	Refresh – Updates the panel with the latest information availableLamp1 life remaining – Displays the remaining life of Lamp 1 as a percentageLamp2 life remaining – Displays the remaining life of Lamp 2 as a percentageLamp1 time – Displays the number of hours Lamp 1 has been usedLamp2 time – Displays the number of hours Lamp 2 has been usedPJ time – Displays the number of hours the project has been usedError Status – Displays the status of errors occurring within the projector	This displays the status of selected projector functions

Note:

The functions that can be controlled will vary depending on the signal being input to the projector (see Selecting an Input Source on page 27 for more information).

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could void the user's authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian IECS-003.

Safety Certifications

UL (file no: E134786) (UL60950-1/CSA60950-1), EMC, CE, CCC, and EK.

EN 55022 Warning

This is a Class B product. In a domestic environment, it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room, or auditorium.
