USER MANUAL ILHSF8 Dacor

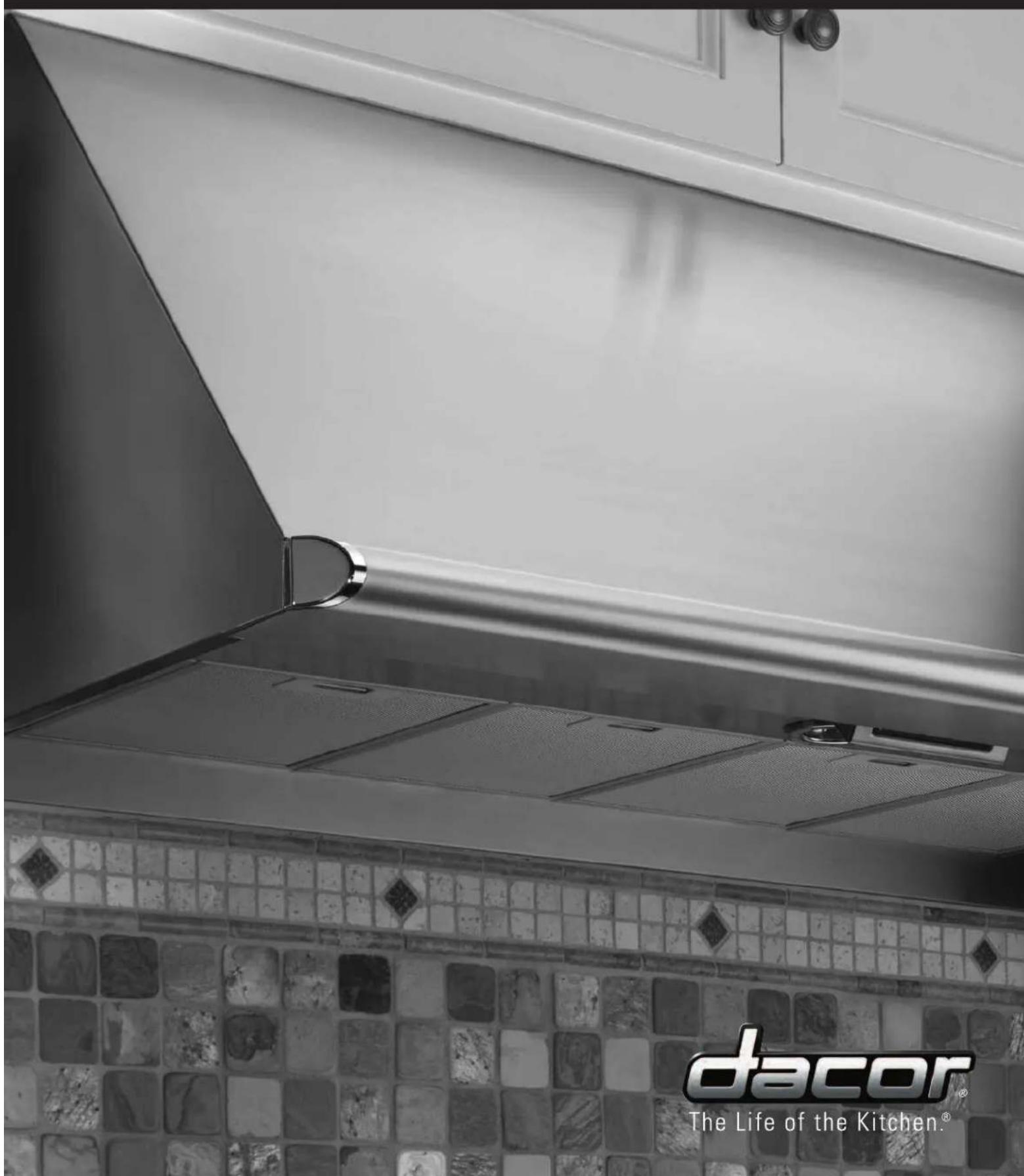

Ventilation Solutions

Dacor ILHSF8 - Ventilation Solutions - 1

dacor®

The Life of the Kitchen.®

Ventilation Facts

POLLUTANTS TO REMOVE FROM THE KITCHEN	Heat, Odors, Grease,Gases, Steam & Smoke

FACTORS THAT NEGATIVELY INFLUENCE VENTILATION	Open Windows & Doors, Air Conditioning VentsCeiling Fans, Island Cooking, Foot Traffic

GENERAL RULE OF THUMB	100 CFM for every 10,000 BTU(*Increase if duct run is long or complicated)

Two Types of Ventilation		Power Sources Factors to Consider
1 OVERHEAD	Hoods Powerpacks Over-the-Range Microwaves (OTR)	Internal Blowers External Blowers: REMP3, REMP16 ILHSF8, ILHSF10 (Over-the-Range models internal blower only)	Width & Depth of Cooking Product Capture Area: Width, Height & Depth Mounting Height (see chart) Blower Size Duct Diameter: Use Manufacturer's Recommendation Duct Length (see chart)

2DOWNDRAFT	RV	Internal Blowers: CABP3 (RV only)	Width & Depth of Cooking ProdBlower Size
	ERV	External Blowers:REMP3, REMP16	Duct Diameter:Use Manufacturer's Recommendation

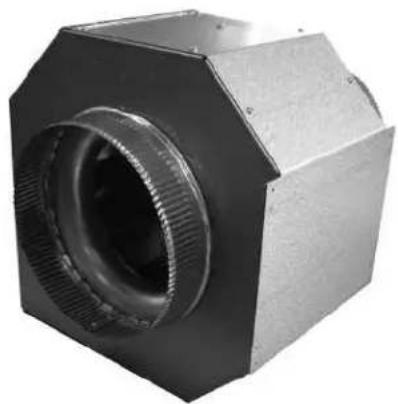

	ERV-ER	In-Line Blowers:ILHSF8, ILHSF10	Duct Length (see chart)HVAC Experts recommend
	PRV

Ventilation Facts

RECOMMENDED MOUNTING HEIGHTS

Hoods: EH/EHR/MH - Bottom of the hood should be 25" minimum above the cooktop surface. DHI, DHW, PHW - Bottom of the hood should be 30" minimum above the cooktop surface.PowerPacks (with SS Liner): Bottom of liner should be 36" from the finished counter.OTR (above electric cooking): Top of microwave should be 34" above the finished counter. OTR (above gas cooking): Top of microwave should be 36" above the finished counter. (36" mandatory above ERD30, ER30D, ER30DSR and EGR30)*In hoods or Powerpacks, if you must install the hood higher than the recommended height, it is very important that you increase the size (width) of the hood and the power (CFM) to provide the best possible ventilation.

RECOMMENDED DUCT LENGTHS(VARIES BY PRODUCT)

Elbows & Transitions count extra-you must add to straight to get the total duct run.90°, 8" Round=7' 45°, 8" Round=3' 90°, Rectangle=15'90°, 10" Round=5' 45°, 10" Round=2' 90°, Flat Rectangle Elbow=20Straight Transition, 8" or 10" Rd4"x103 Rectangle = 4'Elbow Transition, 8" or 10" Rd4"x103" Rectangle = 25'8" Round: 60' max10" Round: 50' max31/4"x10" Rectangle: 50' max

DO'S & DONT'S

Keep duct run as short as possible. Whenever possible, use round duct instead of rectangle. Do not use back to back elbows-24" minimum between elbow Do not use flex duct. Do not use duct smaller then the recommended size- and never Seal ductwork with duct tape and use screws to support we Match roof or wall cap with duct size. In Pro, Island cooking, we recommend you oversize the hood a minimum of 6." Support and insulate duct to reduce all noise and vibration

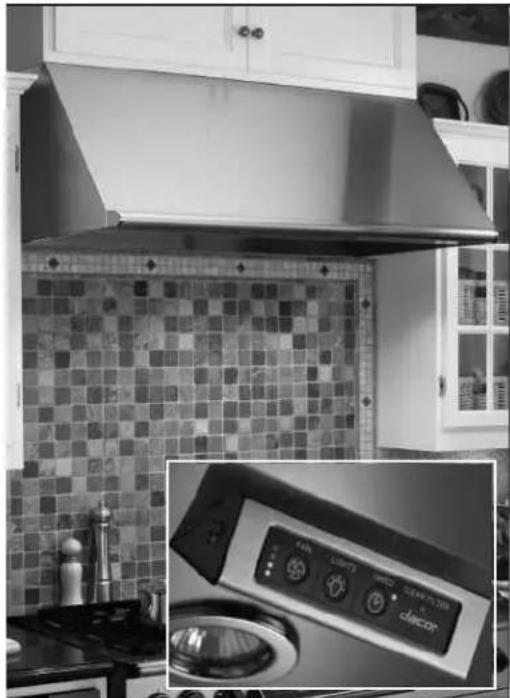

Pro-Style Hoods

18" Epicure Hoods8" High, 26" Deep

EH5418, EH4818, EH4218, EH3618, EH3018, EHR5418, EHR4818, EHR4218, EHR3618, EHR3018

Dacor ILHSF8 - Pro-Style Hoods - 1

WIDTHS

54", 48", 42", 36" and 30"

FINISHES

Stainless Steel in standard Chrome trim. Three trim finish options are available in Black Chrome, Brass or Copper.

INTERNAL POWERED-EH MODELS

600 CFM (582 CFM at 0.0" static pressure) - EH4218, EH3618 & EH30:1200 CFM (1164 at 0.0" static pressure) - EH5418, EH4818

EXTERNAL POWERED-EHR MODELS (REMOTE BLOWER OPTION) - only one blower allowed per installation)

EHR3018 or EHR3618- Use REMP3 or REMP16; ILHSF8 or ILHSF10 EHR4218, EHR4818 or EHR5418 - Use REMP16 or ILHSF10

VENTING

Vents out the top (vertically) or back (horizontally)

42", 36" & 30" hoods - 8" round single outlet

54" & 48" hoods - 8" round dual outlets, may use AHT10 to transit into a single 10" round exhaust

CONTROLS

Hood switch will control integrated or remote blowers at 4 speed settings

DUCT COVERS

Available in all standard widths-6," 12" or 18" heights

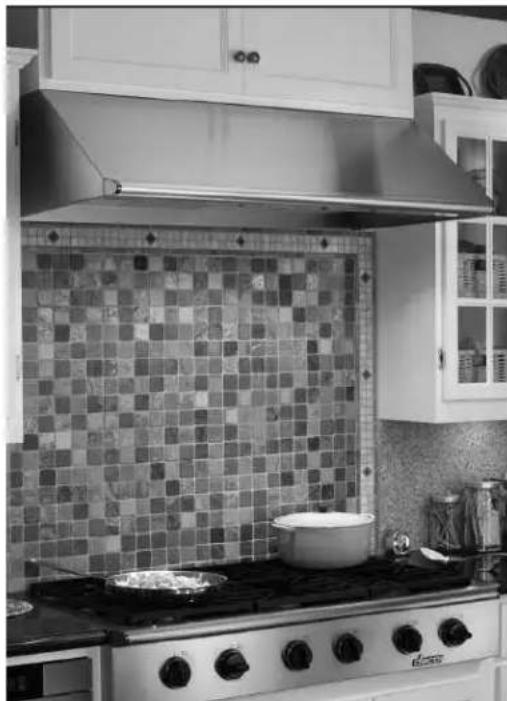

12" Epicure Hoods 12" High" 26eep

EH4812, EH4212, EH3612, EH3012

EHR4812, EHR4212, EHR3612, EHR3012

Dacor ILHSF8 - DUCT COVERS - 1

WIDTHS

48", 42", 36" and 30"

FINISHES

Stainless Steel in standard Chrome trim. Three trim finish options are available in Black Chrome, Brass or Copper.

INTERNAL POWERED-EH MODELS

600 CFM (582 CFM at 0.0" static pressure) - EH4212 or EH3612 or EH3012

1200 CFM (1164 at 0.0" static pressure) - EH4812

EXTERNAL POWERED-EHR MODELS (REMOTE BLOWERS OPTION-only one blower allowed per installation)

EHR4212 or EHR3612 or EHR3012 - Use REMP3; ILHSF8 EHR4812 - Use REMP16; ILHSF10

VENTING

Vents out the top (vertically) or back (horizontally)

30", 36" or 42" hoods-8" round single outlet

48" hoods - 8" round dual outlets, may use AHT10 to transition into a single 10" round exhaust

CONTROLS

Hood switch will control integrated or remote blowers at 4 speed settings

DUCT COVERS

Available in all standard widths-6," 12" or 18" heights

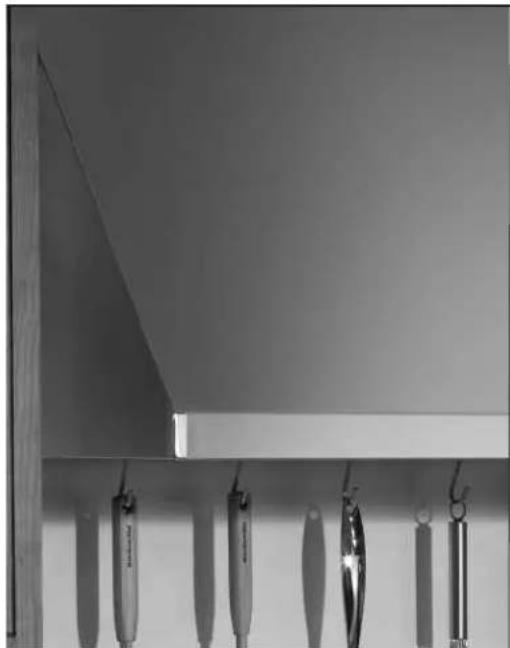

Millennia Hoods

18" Millennia Hoods 18" High," Deep MH4818, MH3618, MH3018

Dacor ILHSF8 - Millennia Hoods - 1

WIDTHS

48", 36" and 30"

FINISH

Stainless Steel

INTERNAL POWERED-MH MODELS

600 CFM (582 CFM at 0.0" static pressure) - MH3618 or MH3018

1200 CFM (1164 at 0.0" static pressure) - MH4818

VENTING

Vents out the top (vertically) or back (horizontally)

36" & 30" hoods- 8" round single outlet

48" - 8" round dual outlets, may use AHT10 to transition

into a single 10" round exhaust

CONTROLS

Hood switch will control integrated blowers at 4 speed settings.

DUCT COVERS

Available in all standard widths-6," 12" or 18" heights

12" Millennia Hoods 12" High" Deep MH4812, MH3612, MH3012

Dacor ILHSF8 - DUCT COVERS - 1

WIDTHS

48", 36" and 30"

FINISH

Stainless Steel

INTERNAL POWERED-MHD MODELS

600 CFM (582 CFM at 0.0" static pressure) - MH3012 or MH3612

1200 CFM (1164 at 0.0" static pressure) - MH4812

VENTING

Vents out the top (vertically) or back (horizontally)

36" & 30" hoods-8" round single outlet

48" hoods - 8" round dual outlets, may use AHT10 to transition

into a single 10" round exhaust

CONTROLS

Hood switch will control integrated blowers at 4 speed settings

DUCT COVERS

Available in all standard widths - 6," 12" or 18" heights

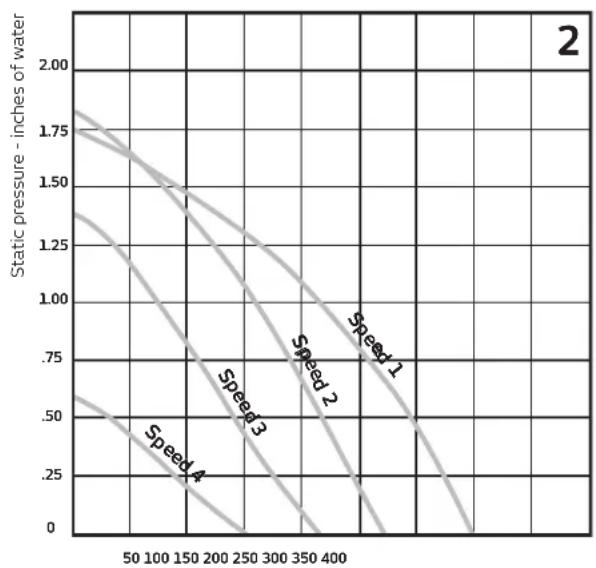

Blower Performance Curves EH and MH Hoods

∅ 146mm 4-speed

Centrifugal Blower

Dacor ILHSF8 - Blower Performance Curves EH and MH Hoods - 1

line

| Speed | X Value | Static pressure (inches of water) | |-------|---------|-----------------------------------| | Speed 4 | 195 | 2.40 | | Speed 3 | 325 | 2.10 | | Speed 2 | 455 | 1.80 | | Speed 1 | 545 | 1.50 | | S | 5 | 0.60 |

Dacor ILHSF8 - Blower Performance Curves EH and MH Hoods - 2

line

| Speed | Static pressure (inches of water) | |-------|----------------------------------| | Speed 1 | 1.80 | | Speed 2 | 0.75 | | Speed 3 | 0.50 |

Dacor ILHSF8 - Blower Performance Curves EH and MH Hoods - 3

line

| Speed | Static pressure (inches of water) | | ------- | --------------------------------- | | Speed1 | 1.50 | | Speed2 | 1.25 | | Speed3 | 0.75 | | Speed4 | 0.50 |

Dacor ILHSF8 - Blower Performance Curves EH and MH Hoods - 4

line

| Speed | Value | |-------|-------| | $ | 0.90 | | $ | 1.20 | | $ | 1.50 | | $ | 1.80 | | $ | 2.10 | | $ | 2.40 | | $ | 2.70 | | $ | 3.00 | | $ | 3.30 | | $ | 3.60 | | $ | 3.90 | | $ | 4.20 | | $ | 4.50 | | $ | 4.80 | | $ | 5.10 | | $ | 5.40 | | $ | 5.70 | | $ | 6.00 | | $ | 6.30 | | $ | 6.60 | | $ | 6.90 | | $ | 7.20 | | $ | 7.50 | | $ | 7.80 | | $ | 8.10 | | $ | 8.40 | | $ | 8.70 | | $ | 9.00 | | $ | 9.30 | | $ | 9.60 | | $ | 9.90 | | $ | 10.20 | | $ | 10.50 | | $ | 10.80 | | $ | 11.10 | | $ | 11.40 | | $ | 11.70 | | $ | 12.00 | | $ | 12.30 | | $ | 12.60 | | $ | 12.90 | | $ | 13.20 | | $ | 13.50 | | $ | 13.80 | | $ | 14.10 | | $ | 14.40 | | $ | 14.70 | | $ | 15.00 | | $ | 15.30 | | $ | 15.60 | | $ | 15.90 | | $ | 16.20 | | $ | 16.50 | | $ | 16.80 | | $ | 17.10 | | $ | 17.40 | | $ | 17.70 | | $ | 18.00 | | $ | 18.30 | | $ | 18.60 | | $ | 18.90 | | $ | 19.20 | | $ | 19.50 | | $ | 19.80 | | $ | 20.10 | | $ | 20.40 | | $ | 20.70 | | $ | 21.00 | | $ | 21.30 | | $ | 21.60 | | $ | 21.90 | | $ | 22.20 | | $ | 22.50 | | $ | 22.80 | | $ | 23.10 | | $ | 23.40 | | $ | 23.70 | | $ | 24.00 | | $ | 24.30 | | $ | 24.60 | | $ | 24.90 | | $ | 25.20 | | $ | 25.50 | | $ | 25.80 | | $ | 26.10 | | $ | 26.40 | | $ | 26.70 | | $ | 27.00 | | $ | 27.30 | | $ | 27.60 | | $ | 27.90 | | $ | 28.20 | | $ | 28.50 | | $ | 28.80 | | $ | 29.10 | | $ | 29.40 | | $ | 29.70 | | $ | 30.00 | | $ | |

Millennia Hoods

WIDTHS 60", 54", 48", 42" & 36"

FINISH Stainless Steel

INTERNAL POWERED

1200 CFM (1164 at 0.0" static pressure) - DHI602, DHI542, DHI482

600 CFM (582 CFM at 0.0" static pressure) - DHI421, DHI361

VENTING

Vents out the top (vertically), 8" round

WIDTHS 48", 42", 36" & 30"

FINISH Stainless Steel

INTERNAL POWERED

1200 CFM (1164 at 0.0" static pressure) - DHW482-1200 CFM 600 CFM (582 CFM at 0.0" static pressure) - DHW421, DHW361 & DHW301

VENTING

Vents out the top (vertically), 8" round

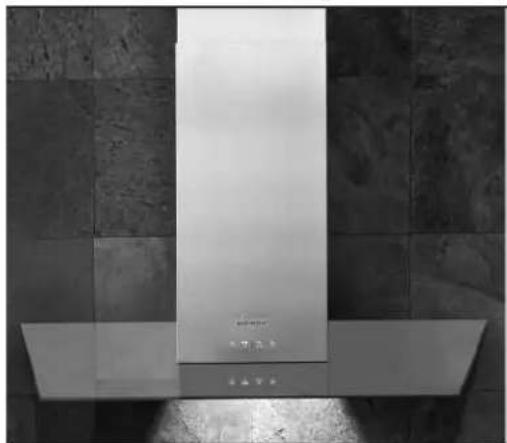

Millennia Chimney Hoods PHW plus choice of PHG36 or PHG30 Glas

Dacor ILHSF8 - VENTING - 1

WIDTHS 36" & 30"

FINISHES PHW is in Stainless and must order the Glass Canopy either PHG36 or PHG30 in 6 Preference Color Options: Anthracite Gray (AG), Titanium Silver (TS), Sterling Grey (SG), Slate Green (GN), Blue Water (BU) and Black (BK) to complete the hood.

INTERNAL POWERED

600 CFM (582 CFM at 0.0" static pressure) - PHW + PHG36+ Color Choice 600 CFM (582 CFM at 0.0" static pressure) - PHW + PHG30+ Color Choice

VENTING

Vents out the top (vertically), 8" round

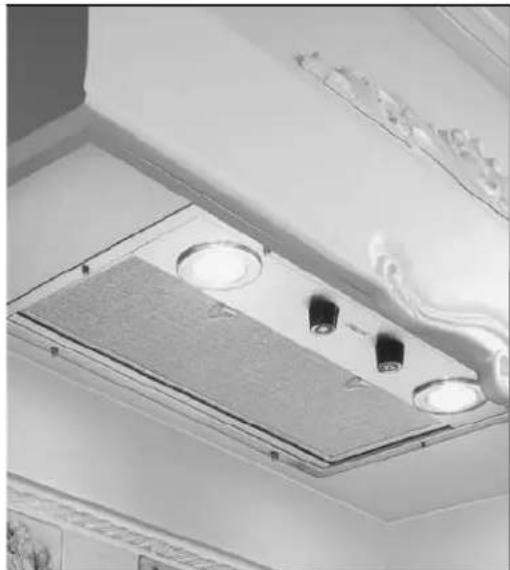

PowerPacks

IVS1 or IVSR1
Dacor ILHSF8 - PowerPacks - 1

DIMENSIONS

22 ^5 / 8 " wide, 12 4 " deep, 6" high

INTERNAL POWERED-IVS1

600 CFM (582 CFM at 0.0" static pressure)

EXTERNAL POWERED-IVSR1 (REMOTE BLOWER OPTION - only one blower allowed per installation)

Use REMP3- 600 CFM (572 CFM at 0.0" static pressure)

Use ILHSF8- 600 CFM (650 CFM at 0.0" static pressure)

VENTING

Vents out the top (vertically)– 8" round

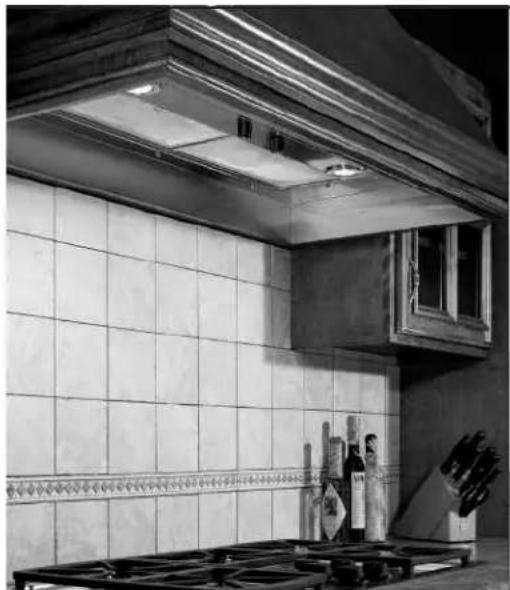

OPTIONAL STAINLESS STEEL LINERS

IHL36 for 36" Decorative Hoods

IHL30 for 30" Decorative Hoods

IVS2 or IVSR2
Dacor ILHSF8 - OPTIONAL STAINLESS STEEL LINERS - 1

DIMENSIONS

34 ^1/2 " wide, 12 ^1/2 " deep, 6" high

INTERNAL POWERED-IVS2

1200 CFM (1164 at 0.0" static pressure)

EXTERNAL POWERED-IVSR2 (REMOTE BLOWER OPTION - only one blower allowed per installation)

Use REMP16-1000 CFM (980 CFM at 0.0" static pressure)

Use ILHSF10-1100 CFM (1116 CFM at 0.0" static pressure)

VENTING

Vents out the top (vertically)-(2) 8" round ducts

Use Dacor ATD10 transition to (1) 10" round exhaust

OPTIONAL STAINLESS STEEL LINERS

IHL54 for 54" Decorative Hoods

IHL48 for 48" Decorative Hoods

IHL42 for 42" Decorative Hoods

Blower Performance Curve IVS1

IVS1
Dacor ILHSF8 - Blower Performance Curve IVS1 - 1

line

| Time Point | Static pressure (inches of water) | | ---------- | --------------------------------- | | 100 | 0.42 | | 200 | 0.38 | | 300 | 0.32 | | 400 | 0.25 | | 500 | 0.20 | | 600 | 0.15 | | 700 | 0.10 | | 800 | 0.05 | | 900 | 0.02 | | 1000 | 0.01 |

Airflow CFM (Cubic feet/minute)

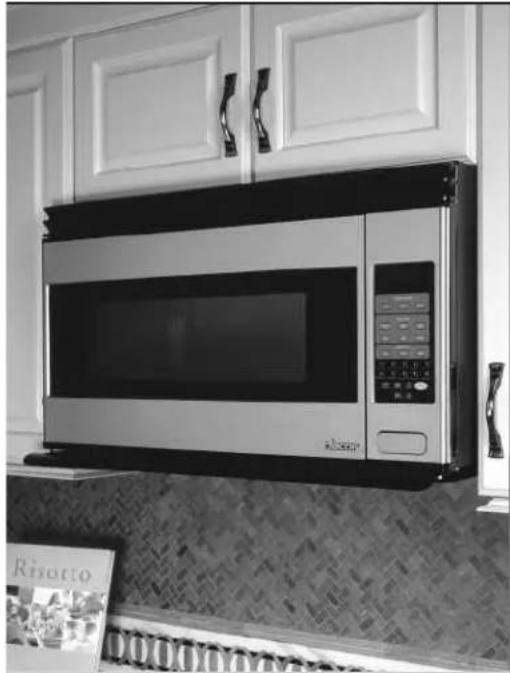

Over the Range Microwaves

PMOR3021
Dacor ILHSF8 - Over the Range Microwaves - 1

FINISHES

Stainless Steel, Black or White

INTERNAL POWERED

300 CFM

VENTING

Vents out the top (vertically) or the back (horizontally) 3 ^1/4 " x 10" rectangle duct

SPECIAL NOTES

Factory set for NON-VENTED MODE (Recirculating before installation) Must turn motor 1/4 turn to change to VENTED

Only "UL" approved Over the Range Microwave/Hood to go over 30" wide gas or electric products. Must use deflector shield (supplied) and proper mounting height.

PCOR30
Convection Model
Dacor ILHSF8 - SPECIAL NOTES - 1

FINISHES

Stainless Steel, Black or White

INTERNAL POWERED

300 CFM

VENTING

Vents out the top (vertically) or the back (horizontally) 3 ^1/4 " x 10" rectangle duct

SPECIAL NOTES

Factory set for NON-VENTED MODE (Recirculating before installation) Must turn motor 1/4 turn to change to VENTED

Only "UL" approved Over the Range Microwave/Hood to go over 30" wide gas or electric products. Must use deflector shield (supplied) and proper mounting height.

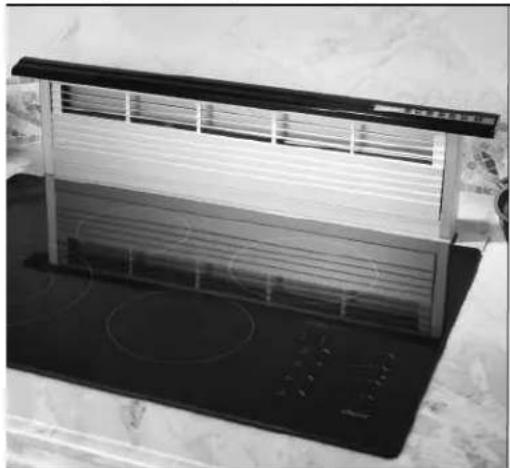

Downdraft Systems

RV46, RV36, RV30

Dacor ILHSF8 - Downdraft Systems - 1

SIZES 46," 36" & 30"

FINISHES Stainless Steel, Black or White

INTERNAL POWERED Use CABP3 blower-600 CFM

EXTERNAL POWERED (REMOTE BLOWER OPTION - only one blower allowed per installation)

REMP3-600 CFM, 8" round duct (572 CFM at 0.0" static pressure) REMP16-1000 CFM, 10" round duct (980 CFM at 0.0" static pressure)

ILHSF8-600 CFM (650 CFM at 0.0" static pressure), 8" round duct

ILHSF10-1100 CFM (1116 CFM at 0.0" static pressure), 10" round duct

VENTING

Three options: right or left sides, or bottom

SPECIAL NOTES See pages 12, 13 and 16 for selection of products to match this downdraft system.

ERV30/36/48, ERV36-ER, ERV48-ER

Dacor ILHSF8 - ERV30/36/48, ERV36-ER, ERV48-ER - 1

SIZES 48" 36" & 30"

FINISHES Stainless Steel only

EXTERNAL POWERED (REMOTE BLOWER OPTION - only one blower allowed per installation)

REMP3-600 CFM, 8" round duct (572 CFM at 0.0" static pressure) REMP16-1000 CFM, 10" round duct (980 CFM at 0.0" static pressure)

ILHSF8-600 CFM (650 CFM at 0.0" static pressure), 8" round duct ILHSF10-1100 CFM (1116 CFM at 0.0" static pressure), 10" round duct

VENTING

Transition ATD-2 included

Four optional exhaust directions: right or left sides, bottom or back

SPECIAL NOTES See pages 12, 13 and 16 for selection of products to match this downdraft system.

ERV48-ER is designed for ER48D Range only

ERV36-ER is designed for ER36D Range only

PRV46, PRV36, PRV30

Dacor ILHSF8 - PRV46, PRV36, PRV30 - 1

SIZES 46," 36" & 30"

FINISHES Stainless Steel, Black or White

EXTERNAL POWERED (REMOTE BLOWER OPTION - only one blower allowed per installation)

REMP3-600 CFM, 8" round duct (572 CFM at 0.0" static pressure) REMP16-1000 CFM, 10" round duct (980 CFM at 0.0" static pressure) ILHSF8-600 CFM (650 CFM at 0.0" static pressure), 8" round duct ILHSF10-1100 CFM (1116 CFM at 0.0" static pressure), 10" round duct

VENTING

Transition ATD-2 included

Four optional exhaust directions: right or left sides, bottom or back

SPECIAL NOTES See pages 12, 13 and 16 for selection of products to match this downdraft system.

Accessories

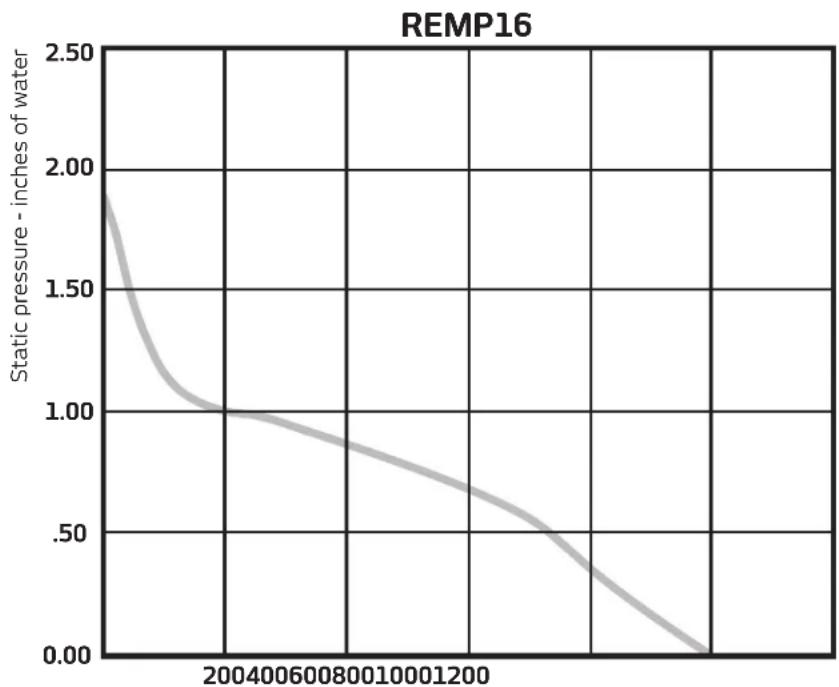

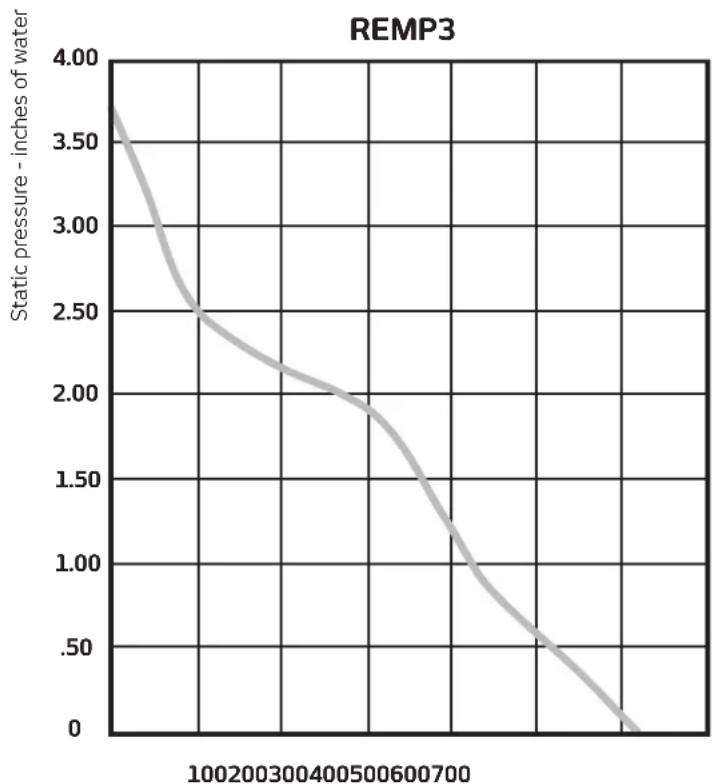

Remote Blower

Dacor ILHSF8 - Remote Blower - 1

REMP3 (shown) - 600 CFM

REMP16 - 1,000 CFM

APPLICATIONS:

Use with EHR, IVSR, RV, ERV or PRV systems

Internal Blower

Dacor ILHSF8 - Internal Blower - 1

CABP3 - 600 CFM

APPLICATIONS:

Install with RV model downdrafts only

Stainless Steel Liners for PowerPacks

Dacor ILHSF8 - Stainless Steel Liners for PowerPacks - 1

SIZES

Available in five widths: 54," 48," 42," 36" & 30"

IHL36 & IHL30

Use with IVS1 & IVSR1

IHL54, IHL48 & IHL42

Use with IVS2 & IVSR2

Stainless Steel Duct Covers

Dacor ILHSF8 - Stainless Steel Duct Covers - 1

SIZES

Available in five widths: 54," 48," 42," 36" & 30"All widths available in three heights: 6," 12" & 18

Transition Duct

Dacor ILHSF8 - Transition Duct - 1

ATD10

Use with all IVS2 & IVSR2. Use with EHD, EHDR4809, EHDR4209 & MHD4809. Used to connect dual exhaust into a single 10" round exhaust.

Transition Duct

Dacor ILHSF8 - Transition Duct - 1

AHT10

Use with EH5418, EHR5418, EH4818, EHR4818, EH4812, EHR4812, MH4818, & MH4812. Used to connect dual exhaust into a single 10" round exhaust.

Remote Control Speed Switch

Dacor ILHSF8 - Remote Control Speed Switch - 1

ARSC

Install as remote control for all blower systems except EH/EHR/MH Hoods

ARLC

To control lights except EH/EHR/MH Hoods

ARSLC

To control both blower & lights except EH/EHR/MH Hoods

Blower Performance Curve REMP3

Dacor ILHSF8 - Blower Performance Curve REMP3 - 1

line

| x_value | Static pressure - inches of water | | ------- | --------------------------------- | | 100200300400500600700 | 3.70 | | (approx) | 2.50 | | (approx) | 2.00 | | (approx) | 1.50 | | (approx) | 1.00 | | (approx) | 0.50 | | (approx) | 0.00 |

Airflow CFM (Cubic feet/minute)

Blower Performance Curve REMP16

Dacor ILHSF8 - Blower Performance Curve REMP16 - 1

line

| x | Static pressure - inches of water | | ------ | --------------------------------- | | 2004 | 1.9 | | 2006 | 1.0 | | 2008 | 0.9 | | 2010 | 0.7 | | 2012 | 0.5 | | 2014 | 0.3 | | 2016 | 0.1 |

Airflow CFM (Cubic feet/minute)

Blower Performance Curve CABP3

Dacor ILHSF8 - Blower Performance Curve CABP3 - 1

line

| x_value | Static pressure - inches of water | | ------- | --------------------------------- | | 100 | 3.6 | | 200 | 3.0 | | 300 | 2.5 | | 400 | 2.0 | | 500 | 1.5 | | 600 | 1.0 | | 700 | 0.5 | | 800 | 0.0 |

Airflow CFM (Cubic feet/minute)

In-Line Blowers

ILHSF8

Dacor ILHSF8 - ILHSF8 - 1

POWER

600 CFM (650 CFM at 0.0" static pressure)

VENTING

8" round duct

APPLICATIONS

In-line Blower for a remote application

MAKE-UP OR REPLACEMENT AIR SYSTEM

Have your builder contact their HVAC contractor to see if this is required in your area.

ILHSF10

Dacor ILHSF8 - ILHSF10 - 1

POWER

1100 CFM (1116 CFM at 0.0" static pressure)

VENTING

10" round duct

APPLICATIONS

In-line Blower for a remote application

MAKE-UP OR REPLACEMENT AIR SYSTEM

Have your builder contact their HVAC contractor to see if this is required in your area.

Creating the Proper Ventilation System 1

Select Cooking Product

COOKING PRODUCT	MODEL	HOOD	INTEGRATED VENT SYSTEM	OVER THE RANGE (OTC)	RAISED VENT SYSTEM
	ER48D	EH5418 or EHR5418EH4818 or EHR4818EH4812 or EHR4812MH4818, MH4812DHI542, DHI482, DHW482	IVS2 or IVSR2Plus IHL54 or IHL43	NA	ERV48-ER(must use remote blower)
	ER36D	EH4218 or EHR4218EH4212 or EHR4212EH3618 or EHR3618EH3612 or EHR3612MH3618, MH3612DHI421, DHI361DHW421, DHW361PHW+PHG36+Color	IVS2 or IVSR2 +IHL42IVS1 or IVSR1 +IHL36	NA	ERV36-ER(must use remote blower)
	ER30DSRER30DERD30EGR30	EH3618 or EHR3618EH3612 or EHR3612EH3018 or EHR3018EH3012 or EHR3012MH3618 or MH3018MH3612 or MH3012DHI361DHW361, DHW301PHW+PHG36+ColorPHW+PHG30+Color	IVS1 or IVSR1 +IHL36IVS1 or IVSR1 +IHL30	PCOR30 orPMOR3021withILHSF8 andARSC (withdeflectorshield)	ERV30 with ERD30, ER30DSR(EGR30 not approved for use with downdraft)(must use remote blower)
	ESG486EG486	EH5418 or EHR5418EH4818 or EHR4818EH4812 or EHR4812MH4818, MH4812DHI542, DHI482, DHW482	IVS2 or IVSR2Plus IHL54 or IHL43	NA	ERV48(must use remote blower)
	ESG366EG366	EH4218 or EHR4218EH4212 or EHR4212EH3618 or EHR3618EH3612 or EHR3612MH3618, MH3612DHI421, DHI361, DHW421, DHW361	IVS2 or IVSR2 + IHL42IVS1 or IVSR1 + IHL36	NA	ERV36(must use remotblower)
	SGM466	EH4818 or EHR4818EH4812 or EHR4812MH4818, MH4812DHI482, DHW482	IVS2 or IVSR2Plus IHL54 or IHL43	NA	RV46(CABP3 or remotblower)PRV46(must use remotblower)

Creating the Proper Ventilation System 2

Selecting Cooking Product

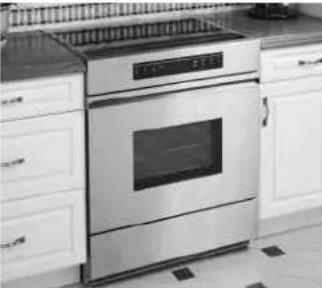

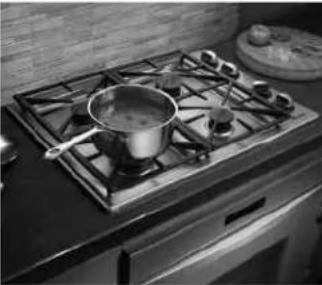

COOKING PRODUCT MODEL	HOOD		INTEGRATED VENT SYSTEM	OVER THE RANGE (OTR)	RAISED VENT SYSTEM
	RGC365SGM365	EH4218 or EHR4218EH4212 or EHR4212EH3618 or EHR3618EH3612 or EHR3612MH3618 or MH3612DHI421 or DHI361DHW421 or DHW361PHW+PHG36+Color	IVS2 or IVSR2 IHL42IVS1 or IVSR1 IHL36	NA	ERV36 or RV36(with appropriate remote blower)PRV36(must use remote blower)
	RGC304SGM304	EH3618 or EHR3618EH3612 or EHR3612EH3018 or EHR3018EH3012 or EHR3012MH3618 or MH3612MH3018 or MH3012DHI361DHW361 or DHW301PHW+PHG36+ColorPHW+PHG30+Color	IVS1 or IVSR1 IHL36or IHL30	PCOR30 or PMOR3021(add ILHSF8 & ARSC if you want 600 CFM)	ERV30 or RV30(with appropriate blower)PRV30(must use remote blower)
	METB365-1ETT365-2	EH4218 or EHR4218EH4212 or EHR4212EH3618 or EHR3618EH3612 or EHR3612MH3618 or MH3612DHI421or DHI361DHW421 or DHW361PHW+PHG36+Color	IVS2 or IVSR2 IHL42IVS1 or IVSR1 IHL36	NA	ERV36 or RV36(with appropriate blower)PRV36(must use remote blower)
	MET304ETT304-1	EH3618 or EHR3618EH3612 or EHR3612EH3018 or EHR3018EH3012 or EHR3012MH3618 or MH3612MH3018 or MH3012DHI361DHW361 or DHW301PHW+PHG36+ColorPHW+PHY30+Color	IVS1 or IVSR1+ IHL36 or IHL30	PCOR30 or PMOR3021(add ILHSF8 & ARSC if you want 600 CFM)	ERV30 or RV30(with appropriate blower)PRV30(must use remote blower)
	MRES30S	EH3618 or EHR3618EH3612 or EHR3612EH3018 or EHR3018EH3012 or EHR3012MH3618 or MH3612MH3018 or MH3012DHI361DHW361 or DHW301PHW+PHG36+ColorPHW+PHP30+Color	IVS1 or IVSR1+ IHL36 or IHL30	PCOR30 or PMOR3021(add ILHSF8 & ARSC if you want 600 CFM)	ERV30(must use remote blower)PRV30(must use remote blower)

Creating the Proper Ventilation System 3

Build the Ventilation Package

STEP: 1		2		3	4	5
SelectVent System /Model		SelectBlower		Duct SizeNeeded(minimum)	Max Lengthfor 1 BlowerSystem	DetermineDuct LengthIncl. Elbows& Trans.
VENT SYSTEMS	MODEL	INTERNALPOWER	REMOTEPOWER	DUCT SIZE	MAXLENGTH	DUCTLENGTH	COMMENTS
18" Pro HoodInternal Blower	EH4218EH3618EH3018	Included 600CFM (582 at0.0" staticpressure)	NA	(one)8" round	60'
18" Pro HoodInternal Blower	EH5418EH4818	Included1200 CFM(1164 at0.0" staticpressure)	NA	(two)8" roundAHT10 maybe used totransition toa single 10"duct exhaust	50' for 10'60' for 8"		Ask builderaboutmake-upair
18" Pro HoodExternal Blower	EHR4218EHR3618EHR3018	NA	REMP3REMP16ILHSF8ILHSF10	(one)8" round	60'		Only oneblower isallowed
18" Pro HoodExternal Blower	EHR5418EHR4818	NA	REMP16orILHSF10	(two)8" roundAHT10 maybe used totransition to asingle 10"duct exhaust	50' for 10'60' for 8"		Ask builderaboutmake-up airOnly oneblower isallowed.
12" Pro HoodInternal Blower	EH4212EH3612EH3012	Included 600CFM (582 at0.0" staticpressure)	NA	(one)8" round	60'
12" Pro HoodInternal Blower	EH4812	Included 1200CFM (1164 at0.0" staticpressure)	NA	(two)8" roundAHT10 may beused totransition to asingle 10" ductexhaust	50' for 10'60' for 8"		Ask builderaboutmake-up air
12" Pro HoodExternal Blower	EHR4212EHR3612EHR3012	NA	REMP3REMP16ILHSF8ILHSF10	(one)8" round	60'		Only oneblower isallowed
12" Pro HoodExternal Blower	EHR4812	NA	REMP16ILHSF10	(two)8" roundAHT10 may beused totransition to asingle 10" ductexhaust	50' for 10'60' for 8"		Ask builderaboutmake-up air.Only oneblower isallowed.

Creating the Proper Ventilation System 4

Build the Ventilation Package

1		2		3	4	5
SelectVent System/Model		SelectBlower		Duct SizeNeeded(minimum)	Max Lengthfor 1 BlowerSystem	Determine DuctLength Incl.Elbows & Trans.
VENT SYSTEMS	MODEL	INTERNALPOWER	REMOTEPOWER	DUCT SIZE	MAXLENGTH	DUCTLENGTH	COMMENTS
	MH3618MH3018	Included 600CFM (582 at0.0" staticpressure)	NA	(one)8" round	60'
	MH4818	Included1200 CFM(1164 at0.0" staticpressure)	NA	(two)8" roundAHT10 maybe used to transition toa single 10"exhaust	50' for 10"60' for 8"		Ask builderaboutmake-upair
	MH3612MH3012	Included 600CFM (582 at0.0" staticpressure)	NA	(one)8" round	60'
	MH4812	Included1200 CFM(1164 at0.0" staticpressure)	NA	(two)8" roundAHT10 maybe used to transition toa single 10"exhaust	50' for 10"60' for 8"		Ask builderaboutmake-upair
	DHI602DHI542DHI482	Included1200 CFM(1164 at0.0" staticpressure)	NA 8"	round 50'
	DHI421DHI361	Included 600CFM (582 at0.0" staticpressure)	NA 8"	round 60'
MillenniaChimney Hood	DHW482	Included 1200CFM (1164 at0.0" staticpressure)	NA 8"	round
MillenniaChimney Hood	DHW421DHW361DHW301	Included 600CFM (582 at0.0" staticpressure)	NA 8"	round
	PHW +PHG36ORPHG30 (colored glass)	Included 600CFM (582 at0.0" staticpressure)	NA 8"	round 50'

Creating the Proper Ventilation System 5

Build the Ventilation Package

1STEP: 2				3		4	5	6
SelectVent System/Model		SelectBlower		Select Liner & Transition		Duct Size Needed (minimum)	Max Length for 1 Blower System	Determine Duct Length Incl. Elbows & Trans.
VENT SYSTEMS	MODEL	INTERNAL POWER	REMOTE POWER	LINER	TRANSITION	DUCT SIZE	MAX LENGTH	DUCT LENGTH	COMMENTS
PowerPacksInternal & External	IVS1	Included 600 CFM(582 at 0.0" static pressure)	NA	IHL36 or IHL30	8"Round		60'		Ask builder about make-up air
	IVS2	Included 1200 CFM(1164 at 0.0" static pressure)	NA	IHL54, IHL48IHL42 or IHL40	ATD10	10" round	50'
	IVSR1	NA	REMP3ILHSF8	IHL36 or IHL30	NA	8" round	60'
	IVSR2	NA	REMP16ILHSF10	IHL54, IHL48IHL42 or IHL40	ATD10	10" round	50'		Ask builder about make-up air
Over the RangeMicrowaves	PMOR3021PCOR30	Included 300CFM	NA	NA NA		314" × 10" rectangle	40'
Downdraft RV	RV30	CABP3	REMP3REMP16ILHSF8ILHSF10	NA NA		314" × 10" rectangle	40'		Ask builder about make-up air if unit is over 1000 CFM
Downdraft ERV	ERV48ERV36ERV30ERV48-ERERV36-ER	NA	REMP3REMP16ILHSF8ILHSF10	NA NA		314" × 10" rectangle	40'		Ask builder about make-up air if unit is over 1000 CFM
Downdraft PRV	PRV46PRV36PRV30	NA	REMP3REMP16ILHSF8ILHSF10	NA NA		314" × 10" rectangle	40'		Ask builder about make-up air if unit is over 1000 CFM
