Product Type	Belt-Drive Turntable with Bluetooth
Model	PVTTBT8
Brand	Pyle
Dimensions (W x D x H)	17.2 x 13.8 x 5.1 inches
Weight	10.5 lbs (4.8 kg)
Power Supply	AC 100-240V, 50/60Hz (external adapter)
Platter Speed	33⅓ and 45 RPM
Drive System	Belt drive
Tonearm	Straight aluminum tonearm with counterweight
Cartridge	Moving Magnetic (MM) phono cartridge (replaceable)
Bluetooth	Built-in Bluetooth 5.0 for wireless streaming
Outputs	RCA line out, built-in stereo speakers
USB Recording	USB port for direct recording to computer
Additional Features	Auto-stop, adjustable pitch control, dust cover
Maintenance	Clean stylus with soft brush; keep belt free of oil
Safety	Do not expose to moisture; unplug when not in use
Spare Parts Availability	Replacement stylus and belts available online
Included Accessories	Dust cover, slip mat, RCA cable, power adapter
General Information	Designed for vinyl playback; compatible with Bluetooth speakers

Frequently Asked Questions - PVTTBT8 Pyle

How do I connect the turntable to Bluetooth speakers?

Turn on the turntable and set it to Bluetooth mode. On your Bluetooth speaker, enter pairing mode. Select 'PVTTBT8' from the available devices. Once paired, audio will stream wirelessly.

Can I replace the cartridge on the PVTTBT8?

Yes, the cartridge is a standard Moving Magnetic (MM) type and can be replaced. Refer to the manual for compatibility and installation instructions.

What speeds does the turntable support?

The turntable supports 33⅓ and 45 RPM records. Use the speed selector switch to change between them.

How do I record vinyl to my computer via USB?

Connect the turntable's USB port to your computer using the provided USB cable. Use audio recording software (e.g., Audacity) to capture the audio. Select 'USB Audio Device' as the input source.

Why is the turntable not playing sound through the built-in speakers?

Ensure the turntable is powered on and the volume is turned up. Check that the stylus is properly placed on the record. If still no sound, try connecting external speakers via the RCA output.

How do I adjust the tonearm counterweight?

Rotate the counterweight at the back of the tonearm to achieve the recommended tracking force (typically 2-3 grams for the included cartridge). Use a stylus force gauge for accuracy.

What is the auto-stop function?

Auto-stop automatically stops the platter rotation when the record finishes playing. This prevents unnecessary wear on the stylus and record.

How do I clean the stylus?

Use a soft carbon fiber brush or stylus cleaning gel. Gently brush from back to front to remove dust. Never use alcohol or harsh chemicals.

What type of records can I play?

You can play standard 12-inch LPs (33⅓ RPM) and 7-inch singles (45 RPM) with the included adapter for 45s.

Does the PVTTBT8 have a built-in preamp?

Yes, the turntable has a built-in phono preamp. You can switch between 'Phono' and 'Line' modes. Use 'Line' for non-phono inputs or Bluetooth.

USER MANUAL PVTTBT8 Pyle

Orange portable cassette tape kit with open lid and black case, no visible text or symbols

PVTTBT8

Retro Belt-Drive Bluetooth Turntable with

USB-to-PC Connection

TURNTABLE PARTS

1. Tone Arm
2. Speakers
3. Tone Arm Rest
4. Function Selection Knob
5. Power/Volume Control Switch
6. Power Led Light Indicator
7. BT Led light indicator
8. Internal Battery Charging Led light Indicator
9. Speaker Buckles
10. Turntable Player Lock
11. Handle
12. Stylus/cartridge
13. Turntable platter
14. Speaker Cable
15. 3.5mm line-in Jack
16. RCA output Jack
17. USB Jack to PC for recording
18. Speed Selection Switch
19. Power Adaptor Jack

POWER ON THE UNIT

Connect the power adaptor to an electrical outlet (120V-60Hz); Or make sure that the rechargeable battery has been fully charged. Then, turn the Power/Volume Control knob clockwise to switch on the unit. The Power led light indicator will light up(6).

CHARGING INTERNAL BATTERY

Once connected to the power adaptor, the internal battery is atomically charging, the red led light indicator(8) will light red. Once fully charged, the charging led light indicator(8) will turn off.

PLAY A RECORD

1. Open the suitcase by unlock the 3 buckles(9, 10)
2. Turn the function selection knob (4) to Phono mode
3. Place a record on the turntable (13) and set the player speed (18) to match the record speed (33/45). NOTE: when playing a single (a 45 rpm record) and/or records with large centre holes, use the 45 rpm adaptor (packed together with the instruction manual).
4. Remove the tone arm (1) from the rest (3), push lift lever backward to raise the tone arm and gently move the tone arm to the desired position over the record. The turntable will begin to spin when the tone arm is above record. Slowly lower onto the desired position on the record to begin playing the record.
5. Turn the volume control(5) to adjust the volume level.
6. For best performance and product maintenance, unplug the turntable when not in use.

PLAY BLUETOOTH

1. Turn the function selection knob (4) to BT mode. The BT light indicator(7) will flash with Blue led light.
2. Open the BT audio source and connect with "Speaker". Once connected, the BT light indicator will flash only in blue color.
3. Control the BT audio source to select songs and volume for playback.

LINE IN

1. Turn the function selection knob (4) to LINE IN mode. Connect the 3.5mm line-in jack (15) which is located at the rear of the unit. Connect the other end of the aux cable (not included) to your aux source.

2. Control the Line-in audio source to select songs and volume for playback.

RECORD YOUR VINYL TO YOUR WINDOWS PC

Audacity Recording Software

Your USB turntable is compatible with any recording software that supports USB Audio devices.

We have included Audacity, which is free software, distributed under the General Public

License(GPL), However you may prefer to use a variety of 3rd party software packages.

BEFORE STARTING THE SOFTWARE

Make sure that your USB turntable is plugged into the computer with the supplied USB cable, and both the computer and the turntable are plugged in and on. Refer to the USB turntable quick start instruction manual included before proceeding with software installation.

TO INSTALL SOFTWARE ( BOTH PC AND MAC)

RECORDING INTO A COMPUTER

1. Press the Record Button

2. Start playback on the USB turntable. You will see the waveform of the audio on the screen as it is recording. You will hear the audio coming from the output of your computers soundcard.

No Audio? - go back to the preference menu (Figure 1) and make sure you have “Software Play through” selected and the speaker volume up on your computer.

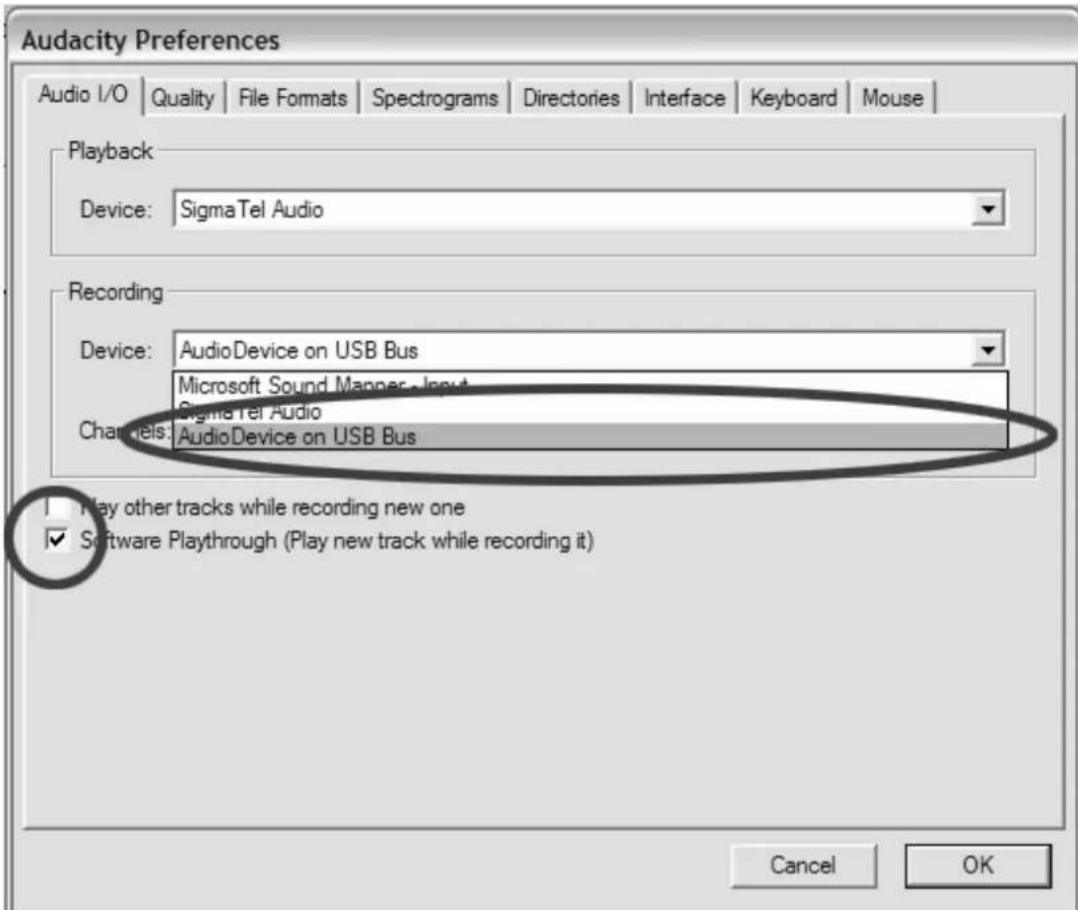

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playback Device: Sigma Tel Audio Recording Device: AudioDevice on USB Bus Microsoft Sound Mapper - Input Sigma Tel Audio Channels: AudioDevice on USB Bus Play other tracks while recording new one Software Playthrough (Play new track while recording it) Cancel OK

Figure 1: Select USB Audio Device from Preferences

1. Play through the entire track/album you desire to record.

4. Press Stop

1. SAVE YOUR FILE NOW by clicking on 'File' -> 'Save Project'. Select the destination and file

name for the project and click 'Save'.

1. You have completed the recording process. (See Figure 2)

Audio File Edit View Project Generate Effect Analysis Help Audio Trace Stereo, 441000Hz 32-bit Real Rate: 50% L O R 1.0 0.5 0.0 -0.5 -1.0 1.0 0.5 0.0 -0.5 -1.0

Figure 2: Recording Sample

Adjusting Your Audio Level (Optional)

1. Select your entire recording by selecting "Edit", then "Select...", then click "All". You can also use Ctrl+A on a PC or APPLE+A on a Macintosh to quickly select all.

Audacity File Edit View Project Generate Effect Analyze Help Undo Delete Ctrl+Z Can't Redo Ctrl+Y Cut Ctrl+X Copy Ctrl+C Paste Ctrl+V Trim Ctrl+T Delete Ctrl+K Silence Ctrl+L Split Duplicate Ctrl+D Select... Find Zero Crossings Z Selection Save Selection Restore Move Cursor... Snap-To... All Ctrl+A Start to Cursor Cursor to End

Figure 3:
Figure 3: Select All

1. Select the "Effect" menu and choose the desired effect. There are various types of effects which

are described further in the software's help section as well as on the web (See Figure 4).

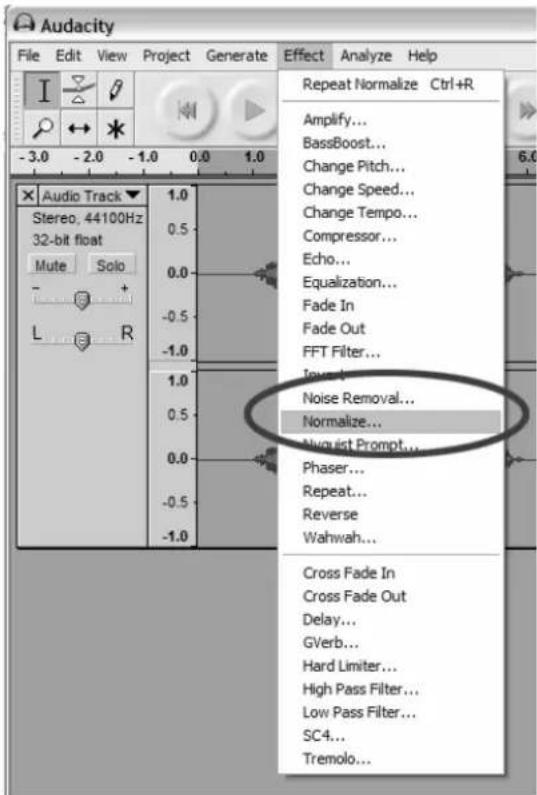

Audacity File Edit View Project Generate Effect Analyze Help Repeat Normalize Ctrl+R Amplify... BassBoost... Change Pitch... Change Speed... Change Tempo... Compressor... Echo... Equalization... Fade In Fade Out FFT Filter... Impact Noise Removal... Normalize... Naquist Prompt... Phaser... Repeat... Reverse Wahwah... Cross Fade In Cross Fade Out Delay... GVerb... Hard Limiter... High Pass Filter... Low Pass Filter... SC4... Tremolo...

Figure 4: Effect Drop Down List

b. Normalize should be used to have the correct volume on the recording. (See Figure 5)

Normalize Normalize by Dominic Mazzoni ✓ Remove any DC offset (center on 0 vertically) ✓ Normalize maximum amplitude to -3 dB Preview Cancel OK

Figure 5: Normalize

Cleaning Your Audio (Optional)

1. Drag the cursor over a portion of the audio track which contains noise. We recommend using the beginning or the end of a track where there is no music and only noise. (See Figure 6)
2. Select "Noise Removal" from the "Effect" drop down menu to bring up the "Noise Removal" window. (See Figure 7)
3. Click "Get Noise Profile". The Noise Removal window will now close automatically.
4. Select the entire track of audio you wish to remove noise from.

If you wish to clean up the entire recording, use "Select All" under the "Edit Menu" (See Figure 3)

1. Repeat Step 2 to bring up the "Noise Removal" Window.
2. Adjust the amount of audio that you would like to filter by moving the slider in the “Noise Removal” window. We recommend using the minimum noise removal for optimum sound. Note: you can preview the audio before removing the noise by clicking on ‘Preview’.
3. Click on 'Remove Noise'.

Cleaning Your Audio (Optional)

1. Drag the cursor over a portion of the audio track which contains noise. We recommend using the beginning or the end of a track where there is no music and only noise. (See Figure 6)
2. Select "Noise Removal" from the "Effect" drop down menu to bring up the "Noise Removal" window. (See Figure 7)
3. Click "Get Noise Profile". The Noise Removal window will now close automatically.
4. Select the entire track of audio you wish to remove noise from. If you wish to clean up the entire recording, use "Select All" under the "Edit Menu" (See Figure 3)
5. Repeat Step 2 to bring up the "Noise Removal" Window.
6. Adjust the amount of audio that you would like to filter by moving the slider in the “Noise Removal” window. We recommend using the minimum noise removal for optimum sound. Note: you can preview the audio before removing the noise by clicking on ‘Preview’.
7. Click on 'Remove Noise'.

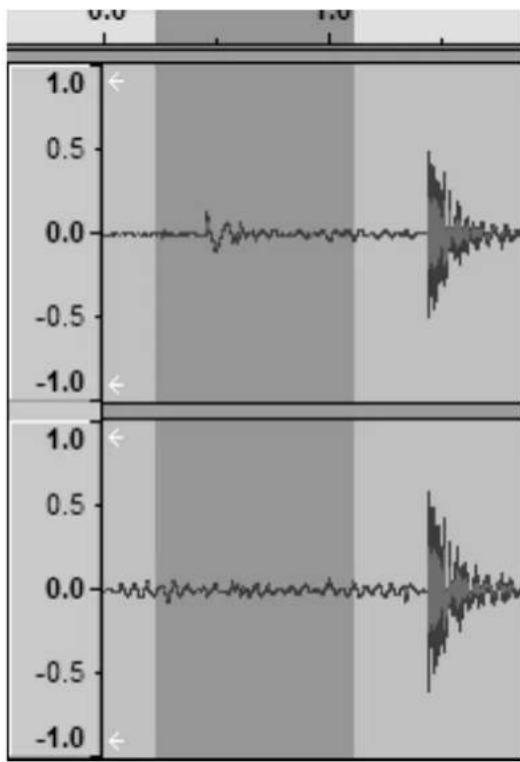

Figure 6: Selecting Noise in Track

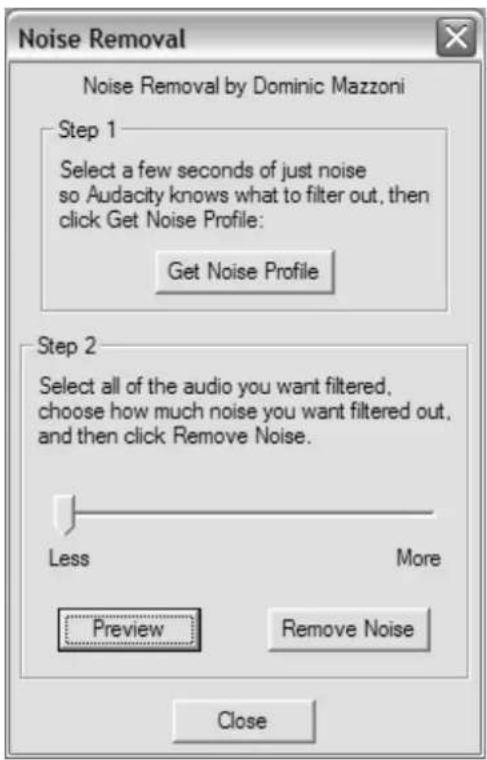

Noise Removal Noise Removal by Dominic Mazzoni Step 1 Select a few seconds of just noise so Audacity knows what to filter out, then click Get Noise Profile: Get Noise Profile Step 2 Select all of the audio you want filtered, choose how much noise you want filtered out, and then click Remove Noise. Less More Preview Remove Noise Close

Figure 7: Noise Removal Window

TIPS FOR BETTER TURNTABLE PERFORMANCE

1. When opening or closing the turntable cover, handle it gently, gripping it either at the centre or at each side.
2. Do not touch the needle tip with your fingers; avoid bumping the needle against the turntable platter or record edge.
3. Frequently clean the needle tip-use a soft brush in a "back-to-front" motion only.
4. If you must use a needle cleaning fluid, use very sparingly.
5. Gently wipe the dust cover and turntable housing with a soft cloth. Use only a small amount of mild detergent to clean the turntable and dust cover.
6. Never apply harsh chemicals or solvents to any part of the turntable system.
