USER MANUAL PT1945RW PLANTRONICS

The information contained in this document is subject to change without notice.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced, translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission. Windows is a registered trademark of Microsoft, Inc. Other brand or product names are trademarks of their respective holders.

The test results show that this device meets the FCC rules. Those limits are set to protect residential areas from the devices with harmful emission. This device will produce, use and radiate radio frequency energy. In addition, failure to follow the user's manual to install or use this device might produce harmful interference with radio communication. Not withstanding the foregoing, it does not guarantee that this type of harmful interference does not occur in some special installations. The interference caused by this device to the reception of radio or television signals may be verified by turning it on and off. Any changes or modifications to this TFT LCD would void the user's authority to operate this device.

Important Recycle Instructions:

Lamp(s) inside this product contains mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

For more information on how to recycle your product, please visit WWW.PLANARSYSTEMS.COM/GREEN.

Table of Contents

Usage Notice

Precautions ...... 1

Introduction

About PT1945R/PT1945RW/PT1945S 2

Touch Screen for PT1945R/PT1945RW/PT1945S 2

Package Overview 3

Installation

Product Overview 4

Front View 4

PT1945R/PT1945S Bottom View 4

PT1945RW Bottom View 4

Start Your Installation 5

Connecting the Display (Figure 8.1)....7

(Figure 8.1) 8

Kensington Security Slot 9

VESA Mount Your Monitor 10

Remove the Deskstand 11

User Controls

Side Panel Controls 12

How to Use the OSD Menus 13

On-Screen Display Menus 14

Appendix

Troubleshooting 15

Warning Signal 16

No Signal 16

Going to Sleep 16

Out of Range 16

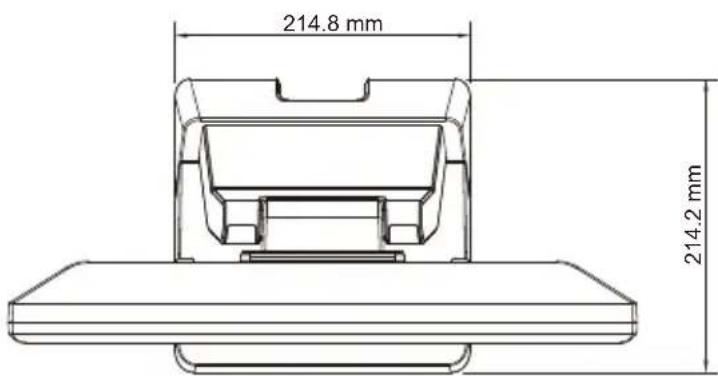

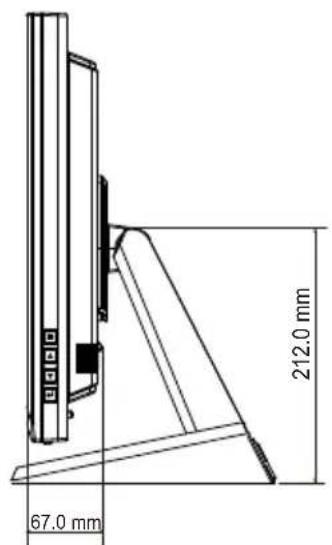

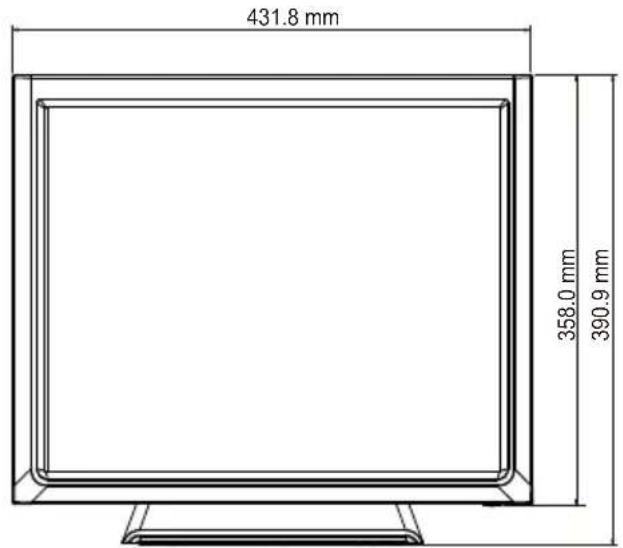

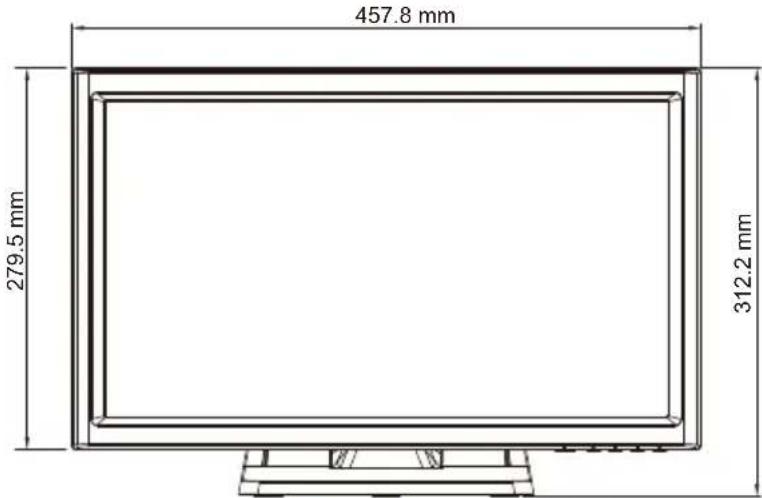

Product Dimensions 17

Compatibility Modes 19

PT1945R/PT1945S....19

PT1945RW....20

Touch Screen Driver Installation 21

PT1945R/PT1945RW/PT1945S Optional Calibration Tool Install....21

PT1945R/PT1945RW/PT1945S Install Instructions 22

Product Registration and Technical Support 24

Usage Notice

Warning - To prevent the risk of fire or shock hazards, do not expose this product to rain or moisture.

Warning - Please do not open or disassemble the product as this may cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's manual to maximize the life of your unit.

Do:

• Turn off the product before cleaning.
• Touch screen surface may be cleaned using a soft clean cloth moistened with mild window glass commercial cleaners or 50/50 mixture of water and isopropyl alcohol.
• Use a soft cloth moistened with mild detergent to clean the display housing.
• Use only high quality and safety approved AC/DC adapter.
• Disconnect the power plug from AC outlet if the product is not going to be used for an extended period of time.

Don't:

• Do not touch the LCD display screen surface with sharp or hard objects.
• Do not use abrasive cleaners, waxes or solvents for your cleaning.

• Do not operate the product under the following conditions:

• Extremely hot, cold or humid environment.

• Areas susceptible to excessive dust and dirt.
• Near any appliance generating a strong magnetic fi eld.
• In direct sunlight.

Introduction

About PT1945R/PT1945RW/PT1945S

The PT1945R/PT1945RW/PT1945S is a 19" flat panel screen with an active matrix, thin-fi Im transistor (TFT) liquid crystal display (LCD).

Features include:

• Direct Analog signal input
  • Active matrix TFT LCD technology
  • PT1945R/S - 1280 x 1024 SXGA resolution
  • PT1945RW -1366 x 768 WXGA resolution
  • 19" viewable display area
  • PT1945R/S - 31.47 \~ 80 KHz horizontal scan
  • PT1945RW - 31.47 \~ 60.02 KHz horizontal scan
  • 56 \~ 75 Hz high refresh rate
  • PT1945R/S - 0.294mm x 0.294mm pixel pitch
  • PT1945RW - 0.3mm x 0.3mm pixel pitch
  • Auto adjustment function
  • Multilingual OSD user controls
  • Kensington security slot
  • 100 mm VESA mount
• Removable base for fl exible mounting solutions.
  • Build-in audio-1W x 2

- PT1945R/PT1945RW - 5-wire resistive touch screen with dual RS-232 Serial/USB controller.

- PT1945S - SAW touch screen with dual RS-232 Serial/USB controller

Touch Screen for PT1945R/PT1945RW

• Analog 5-wire resistive touch screen for finger and stylus input
  • Surface: Anti-glare treatment
  • Interface: Dual RS-232 Serial/USB controller
  • Transmittance: 82%±5%
• Driver: Windows® 7, VISTA, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Linux, Apple® Mac OS

Touch Screen for PT1945S

• Surface Acoustic Wave (SAW) touch screen for finger and stylus input
  • Surface: Anti-glare treatment
• Interface: Dual RS-232 Serial/USB controller
  • Transmittance: 92±5%
• Driver: Windows® 7, VISTA, XP, 2000, ME, 98, NT4.0, CE, XP Embedded, Linux, Apple® Mac OS

Package Overview

Line drawing of a flat-screen computer monitor with blank screen (no text or symbols)

LCD Display

Line drawing of a cable with multiple connectors (no text or symbols)

Power Cord

Line drawing of a multi-pin cable with connectors (no text or symbols)

VGA Signal Cable

Line drawing of a USB cable with connector port (no text or symbols)

USB Cable (A to B)

Line drawing of a multi-pin Ethernet cable with two connectors (no text or symbols)

RS-232 Cable

Audio-in Cable

Line drawing of a connected electrical component with wires (no text or symbols)

DC Power Supply (for PT1945RW only)

Touch Screen Driver Installation CD-ROM

Landing Strip

PHILIPS XEOLOGY INNOVATION INNOVATION USER'S GUIDE PHILIPS

User's Guide

Screw

Installation

Product Overview

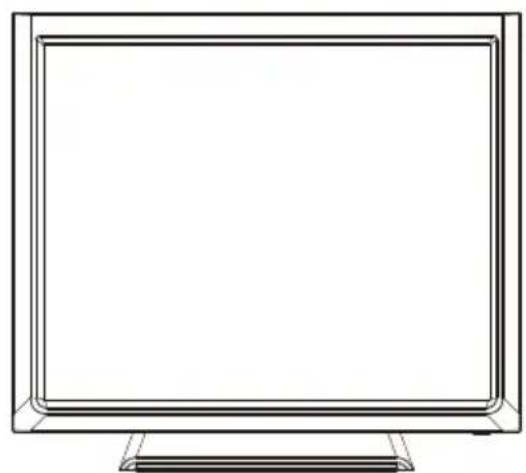

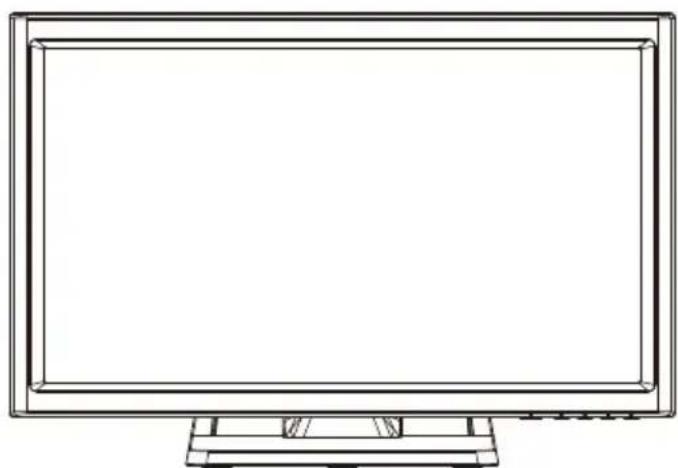

• Front View


Line drawing of a flat-screen computer monitor with no text or symbols

PT1945R/PT1945S

Line drawing of a flat-screen computer monitor with no text or symbols on the screen or side

PT1945RW

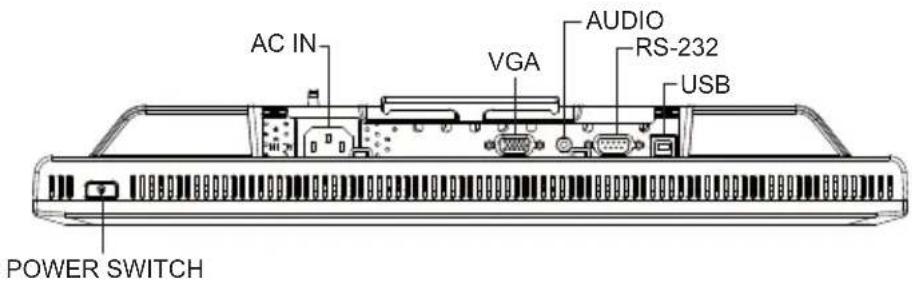

• PT1945R/PT1945S Bottom View

AC IN VGA AUDIO RS-232 USB POWER SWITCH

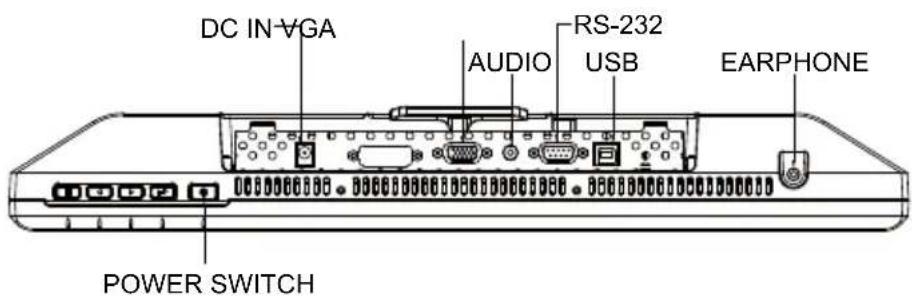

• PT1945RW Bottom View

DC IN-VGA AUDIO RS-232 USB EARPHONE POWER SWITCH

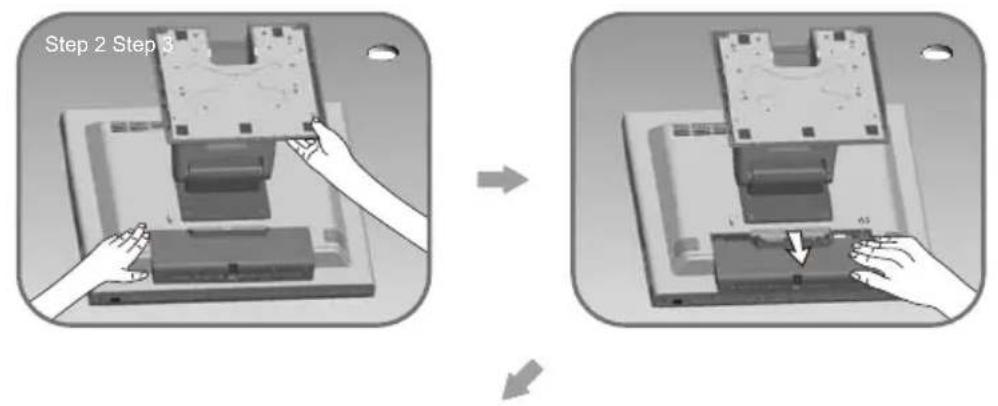

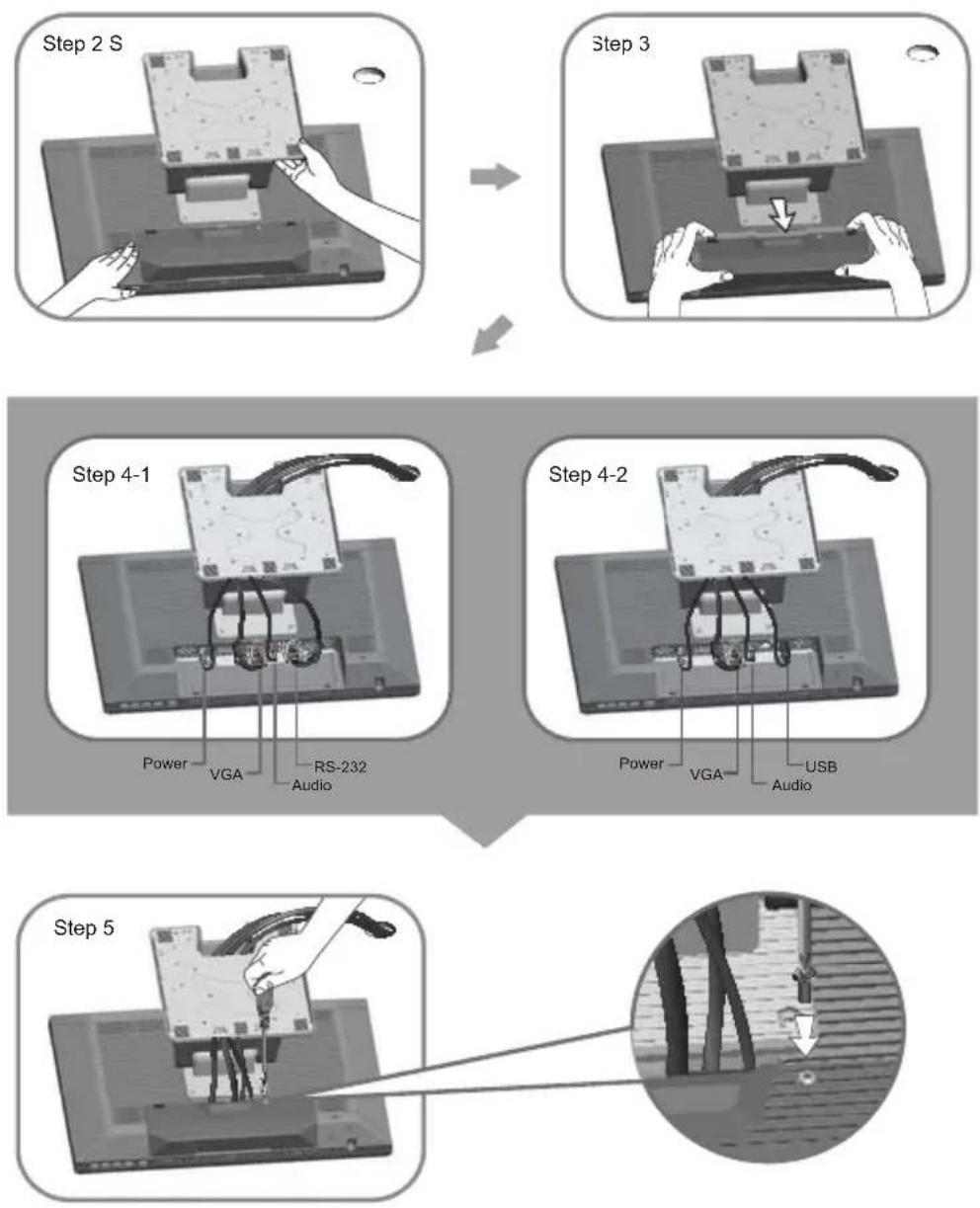

Start Your Installation

Please follow these instructions so that you can hookup the cables to associated connector.

1. Lay the LCD fl at on an even surface.
2. Move the stand into position as seen in the step 2 diagram.

3. Remove the cable cover as seen in the step 3 diagram.

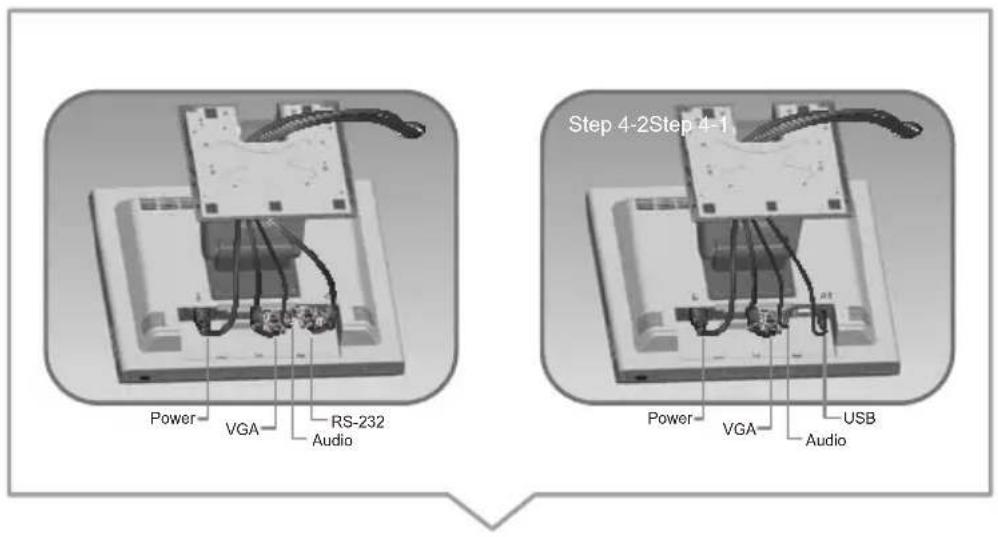

4. Connect the cables to the appropriate connectors as seen in the step 4 diagram. Use step 4-1 diagram if using the RS-232 serial connector. Use the step 4-2 diagram if using the USB connector.

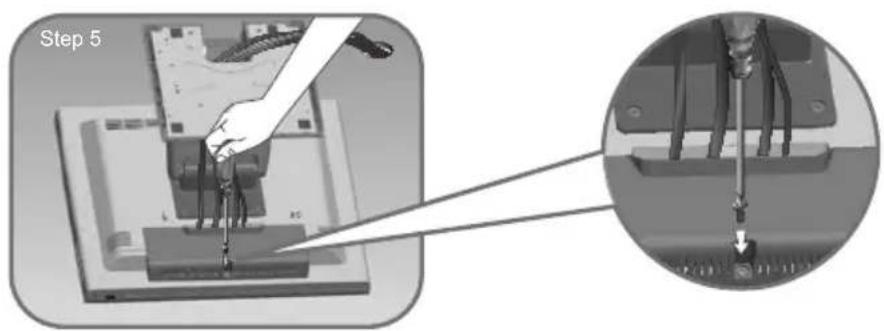

5. Position all cables under the cover lip as seen in the step 5 diagram.

6. Re-attach the cable cover. Remove the screw (CBM M3x6) from the accessory box, and insert the screw into the cable cover and monitor as seen in the step 5 diagram.

PT1945R/PT1945S

Mechanical assembly diagram showing a hand operating a component with a magnified inset highlighting the detail (no text or symbols present)

PT1945RW

Connecting the Display (Figure 8.1)

To setup this display, please refer to the following figure and procedures.

1. Be sure all equipment is turned off.
2. Connect the AC power cord to the power connector on the monitor and the other end into an electrical outlet (8.1).
3. Connect the D-SUB cable from the display's VGA input connector to the D-SUB connector of your host computer and tighten the screws (8.1).
4. Connector the audio-in cable from the audio input port of your display to the audio out port of your computer (8.1).
5. Connect the RS-232 or USB cable from the RS-232 or USB port of your display to the RS-232 port or USB port (8.1) of your computer.
6. Configure the touch screen. Refer to the "Touch Screen Driver Installation" section on page 21.
7. Once the touch screen is configured, the monitor is ready for use.

Notice!

To ensure the LCD display works well with your computer, please configure the display mode of your graphics card to make it less than or equal to 1280 x 1024 resolution and make sure the timing of the display mode is compatible with the LCD display.

We have listed the compatible “Video Modes” of your LCD display in the appendix (on page 19) for your reference.

(Figure 8.1)

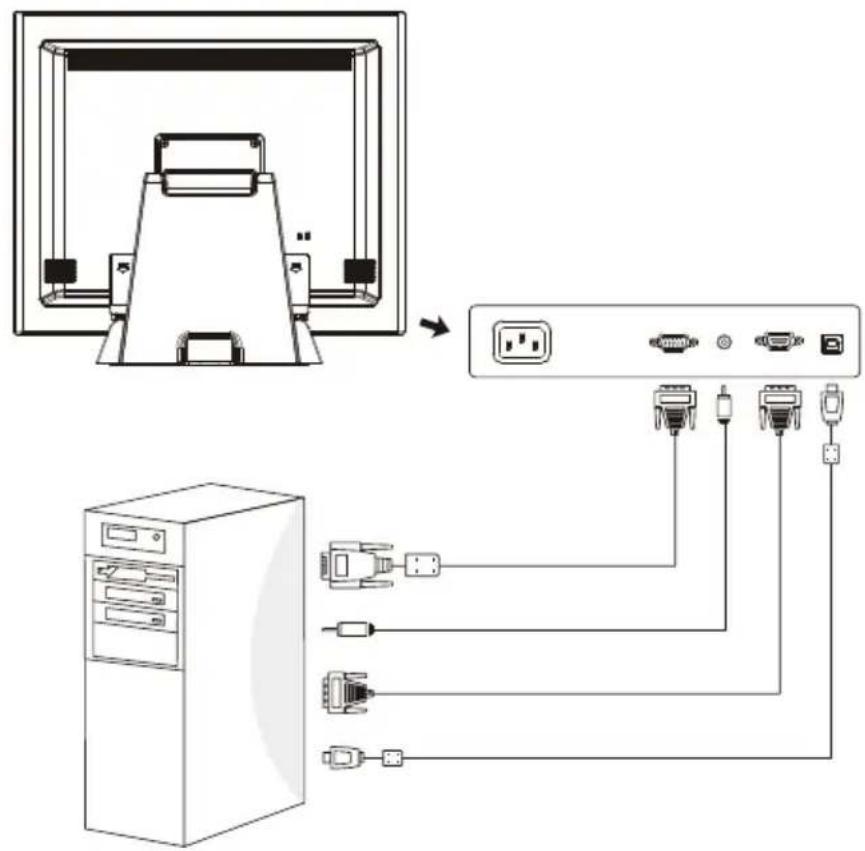

PT1945R/PT1945S

Diagram showing connection between a computer tower, switch, and server with labeled ports and connections

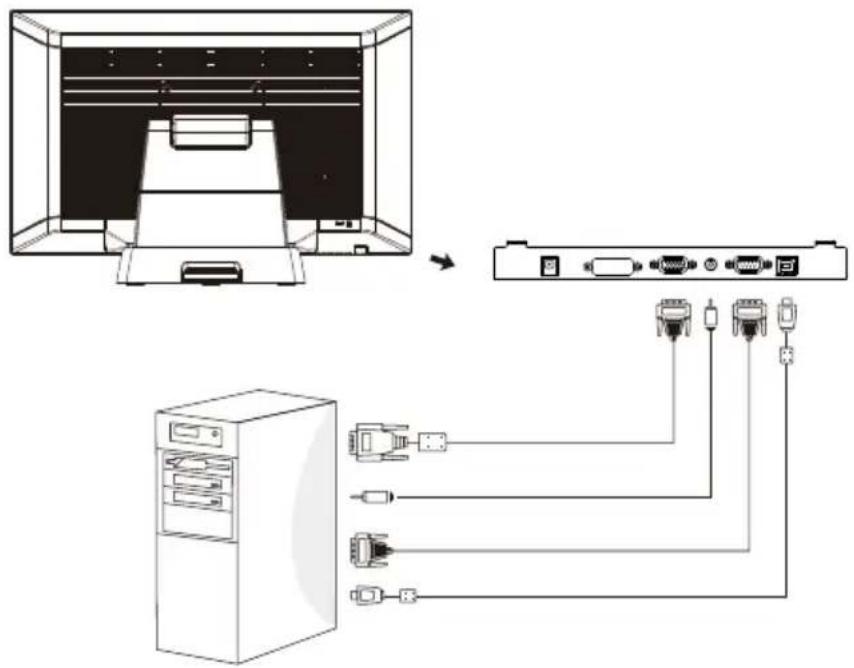

PT1945RW

Diagram showing computer monitor setup with connected D-sub and VGA ports, including a server tower and cable routing.

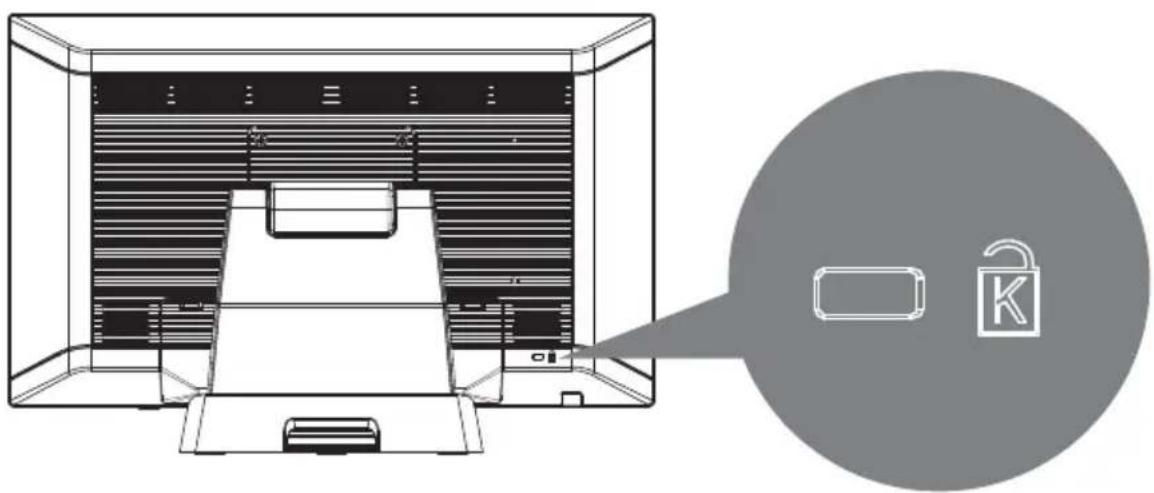

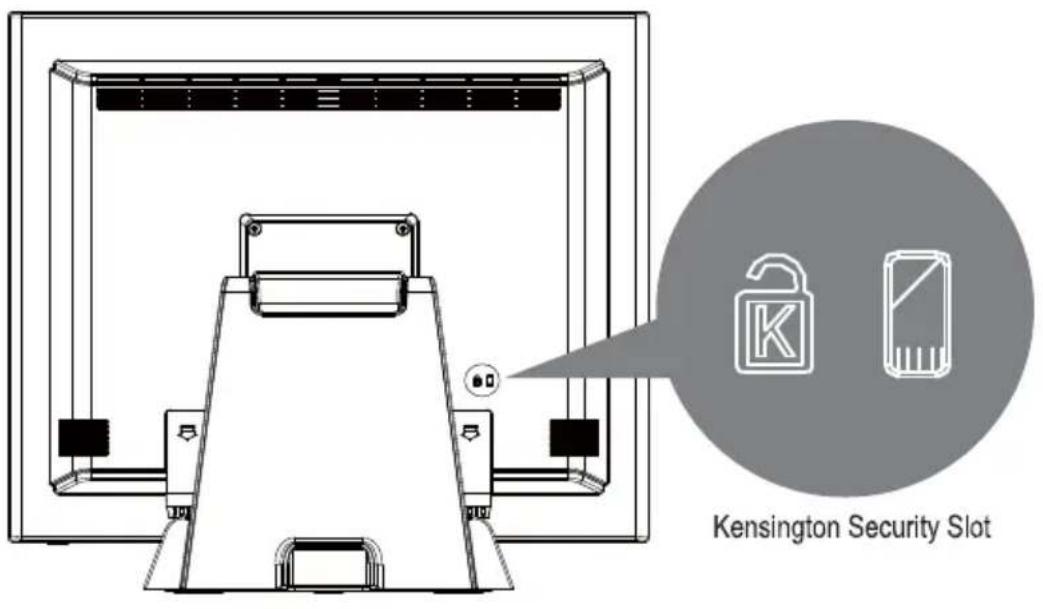

Kensington Security Slot

The monitor can be secured to your desk or any other fixed object with Kensington lock security products. The Kensington lock is not included.

PT1945R/PT1945S

KENSINGTON SECURITY Slot

PT1945RW

Top-down schematic of a computer room with an open door and internal seating, connected to a lock icon (no text or symbols present)

Kensington Security Slot

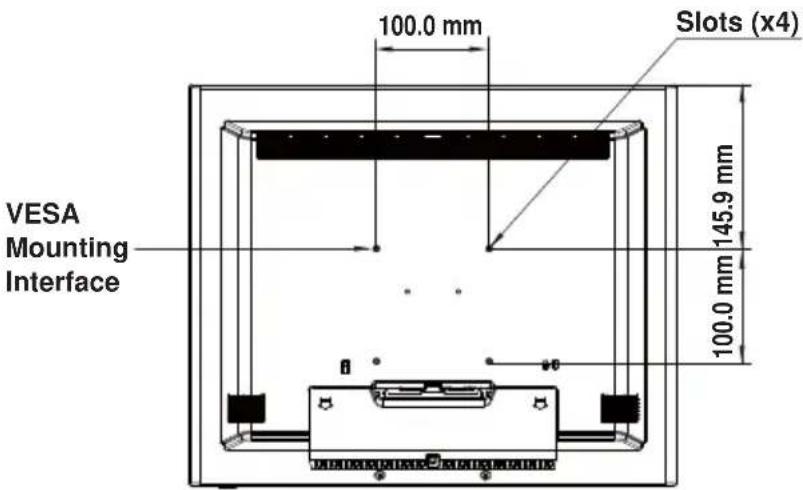

VESA Mount Your Monitor

This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which defines a physical mounting interface for flat panel monitors, and corresponding with the standards of flat panel monitor mounting devices, such as wall and table arms. The VESA mounting interface is located on the back of your monitor.

To mount the monitor on an UL-listed certified swing arm or other mounting fixture, follow the instructions included with the mounting fi xture to be used.

PT1945R/PT1945S

100.0 mm Slots (x4) VESA Mounting Interface 145.9 mm 100.0 mm

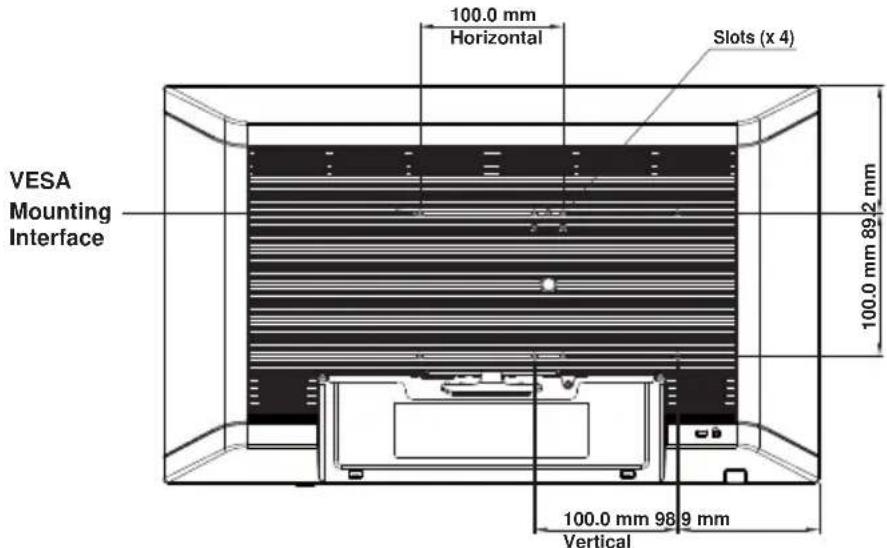

PT1945RW

100.0 mm Horizontal Slots (x 4) VESA Mounting Interface 100.0 mm 89 2 mm 100.0 mm 98 9 mm Vertical

Warning!

Please select the proper screws!

The distance between the back cover surface and the bottom of the screw hole is 11 mm. Please use four M4 screws diameter with proper length to mount your monitor.

Please note: the mounting stand must be able to support at least 11 lbs (5Kg).

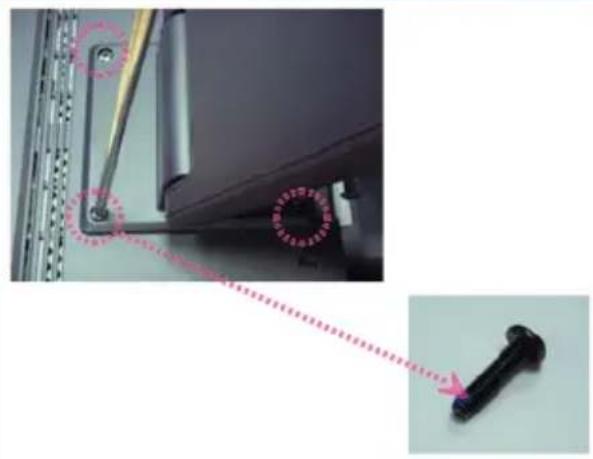

Remove the Deskstand

PT1945R/PT1945S

Close-up of a mechanical component with a highlighted section and a close-up of a black bolt (no visible text or symbols)

Remove 4 screws and then remove hinge.

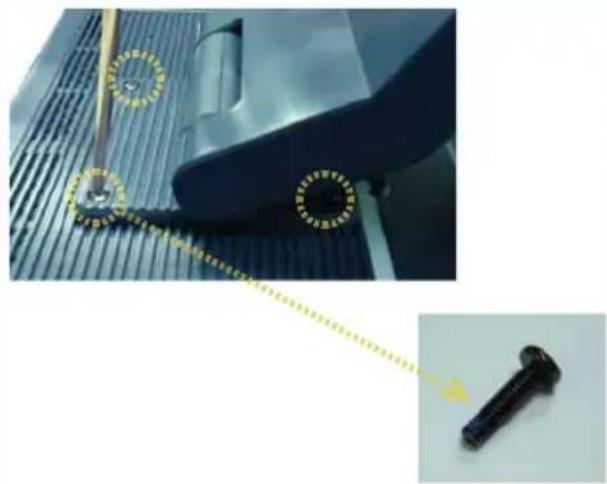

PT1945RW

Close-up of a mechanical component with highlighted parts and a close-up view of a bolt (no text or symbols visible)

Remove 4 screws and then remove hinge.

User Controls

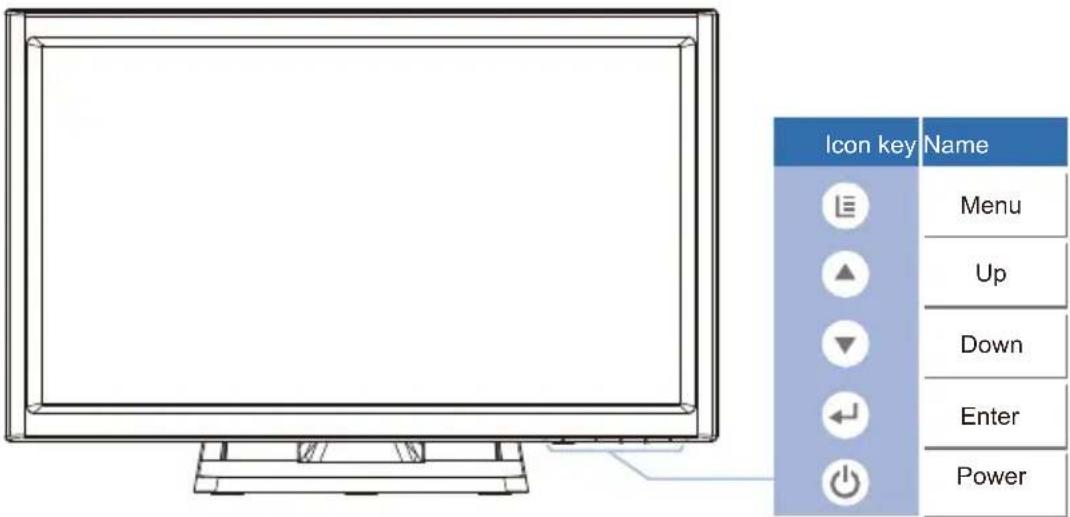

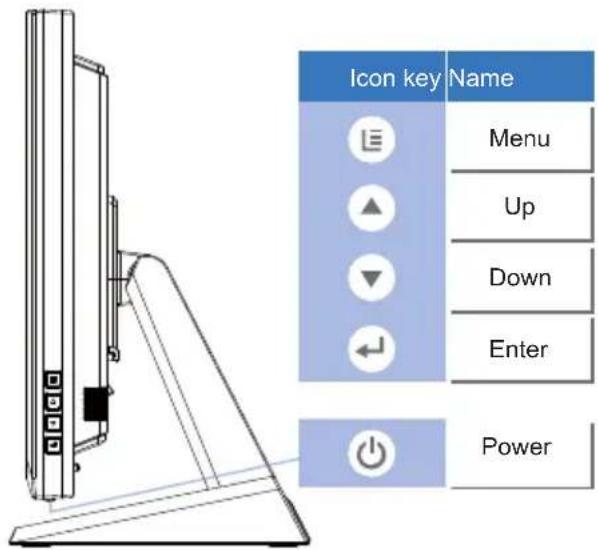

Side Panel Controls

PT1945R/PT1945S

Icon key Name Menu Up Down Enter Power

PT1945RW

Icon key Name Menu Up Down Enter Power

OSDKey	Menu off status Menu on status
≡	Menu appear Menu disappear/ return to main item
▲	Brightness Main item select up/ Adjust up
▼	Mute Main item select down/ Adjust down
←	Enter/Select sub-item function
⏻	Power On/Off

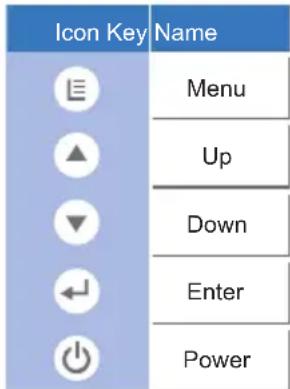

How to Use the OSD Menus

Icon Key Name Menu Up Down Enter Power

1. Press the "MENU" button to pop up the "on-screen menu" and press "Up" or "Down" button to select among the six functions in the main menu.
2. Choose the adjustment items by pressing the "Enter" button.
3. Adjust the value of the adjustment items by pressing the "Up" or "Down" button.
4. With the OSD menu on screen, press "Menu" button to return main menu or exit OSD.
5. The OSD menu will automatically close, if you have left it idle for a pre-set time.
6. To Lock the OSD / Power menu buttons, please follow the instructions below.

(Please note: the monitor has to be turned ON with a valid signal pre-set)

(a.) Press "Menu" key, the OSD menu will pops upon display.
(b.) Press and hold the “Menu” key again with the OSD menu on the screen, the OSD menu will disappear. Then press the “Power” key 1 time while the menu key is still being pressed. The “Lock/Unlock” menu will appear for 3 seconds.
(c.) Use the "Enter" key to select OSD or Power setting then set at "Lock" by pushing the "UP" or "Down" button.
(d.) When the "UP" or "Down" button is released, the previous setting will be saved and exit the "Lock/Unlock" menu automatically.

1. To Unlock the OSD / Power menu buttons, please follow the instructions below.

(Please note: the monitor has to be turned ON with a valid signal pre-set)

(a.) Press and hold the "Menu" key then press the "Power" key simultaneously, the "Lock/Unlock" menu will appear for 3 seconds.
(b.) Use the "Enter" key to select OSD or Power setting then set at "Unlock" by pushing the "UP" or "Down" button.
(c.) When the "UP" or "Down" button is released, the previous setting will be saved and exit the "Lock/Unlock" menu automatically.

Please note:

a. When the OSD Lock function is selected, this indicates that all the buttons except "power" button are now disabled.
b. When the Power Lock function is selected, this indicates that the power key is disabled; user can not to turn off the monitor by "Power" key.

On-Screen Display Menus

Main OSD Menu:

ITEM CONTENT

Contrast The monitor luminance level control.

Brightness The monitor backlight level control.

Auto Adjust Fine-tune the image to full screen automatically.

Left/Right Moving screen image horizontal position to left or right.

Up/Down Moving screen image vertical position to up or down.

Horizontal size The screen image horizontal dot clock adjustment.

Fine The screen image pixel phase adjustment.

OSD Left/Right Moving OSD menu horizontal position to left or right.

OSD Up/Down Moving OSD menu vertical position to up or down.

OSD Time out OSD auto-disappear time selection.

OSD Language OSD menu language selection. (English, French, Japanese, Deutsch, Spanish, Italian, Traditional Chinese and Simplifi ed Chinese)

Factory Reset Factory default value restored.

RGB Color temperature selection. (9300K, 6500K, 5500K, 7500K, User)

Volume Audio volume adjustment.

Mute Audio On/Off control.

Appendix

Troubleshooting

If you are experiencing trouble with the LCD display, refer to the following. If the problem persists, please contact your local dealer or our service center.

Problem: No image appears on screen.

▶ Check that all the I/O and power connectors are correctly and well connected as described in the "Installation" section.
▶ Make sure the pins of the connectors are not crooked or broken.

Problem: Partial Image or incorrectly displayed image.

▶ Check to see if the resolution of your computer is higher than that of the LCD display.
▶ Reconfigure the resolution of your computer to make it less than or equal to 1280 x 1024 for PT1945R/S.
▶ Reconfigure the resolution of your computer to make it less than or equal to 1366 x 768 for PT1945RW.

Problem: Image has vertical 1 ickering line bars.

▶ Use "Fine" to make an adjustment.
▶ Check and reconfigure the display mode of the vertical refresh rate of your graphic card to make it compatible with the LCD display.

Problem: Image is unstable and £1 ickering

▶ Use "Horizontal size" to make an adjustment.

Problem: Image is scrolling

▶ Check and make sure the VGA signal cable (or adapter) is securely connected.
▶ Check and reconfigure the display mode of the vertical refresh rate of your graphics card to make it compatible with the LCD display.

Problem: Vague image (characters and graphics)

▶ Use "Fine" to make an adjustment. If this problem persists, use "Horizontal size" to make an adjustment.

Warning Signal

If you see warning messages on your LCD screen, this means that the LCD display cannot receive a clean signal from the computer graphics card.

Below are the three kinds of Warning Signal. Please check the cable connections or contact your local dealer or Planar for more information.

No Signal

This message means that the LCD display has been powered on but it cannot receive any signal from the computer graphics card. Check all the power switches, power cables, and VGA signal cable.

Going to Sleep

The LCD display is under the power saving mode. In addition, the LCD display will enter power saving mode when experiencing a sudden signal disconnecting problem.

The monitor can be activated by pressing any key on the keyboard, triggering the mouse or touching the screen.

Out of Range

This message means that the signal of the computer graphic card is not compatible with the LCD display. When the signal is not included in the “Video Modes” list we have listed in the Appendices of this manual, the LCD monitor will display this message.

Product Dimensions

PT1945R/PT1945S

431.8 mm 358.0 mm 390.9 mm

Front View

67.0 mm 212.0 mm

Side View

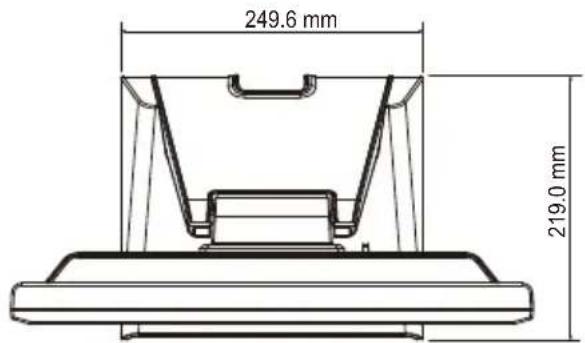

249.6 mm 219.0 mm

Top View

457.8 mm 279.5 mm 312.2 mm

Front View

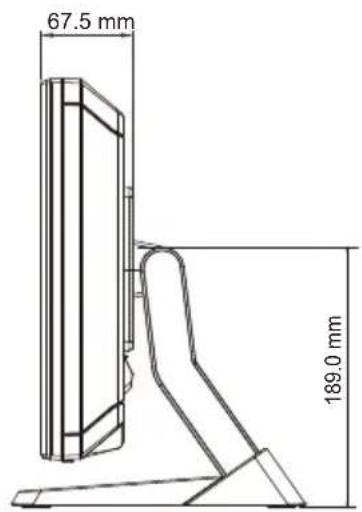

67.5 mm 189.0 mm

Side View

214.8 mm 214.2 mm

Top View

Compatibility Modes

PT1945R/PT1945S

Mode Resolution H-Frequency (KHz) V-Frequency (Hz)

IBM VGA 720X400 31.47 70

IBM VGA 640X480 31.47 60

Apple MacII 640X480 35.00 66

VESA VGA 640X480 37.86 72

VESA VGA 640X480 37.50 75

VESA VGA 800X600 35.16 56

VESA VGA 800X600 37.88 60

VESA VGA 800X600 48.08 72

VESA VGA 800X600 46.88 75

Apple Mac 832X624 49.72 75

VESA XGA 1024X768 48.36 60

VESA XGA 1024X768 56.48 70

VESA XGA 1024X768 60.02 75

VESA SXGA 1280X1024 64.00 60

VESA SXGA 1280X1024 80.00 75

VESA SXGA 1152X864 67.50 75

VESA SXGA 1280X960 60.00 60

PT1945RW

Mode Resolution H-Frequency (KHz) V-Frequency (Hz)

IBM VGA 720X400 31.47 70

IBM VGA 640X480 31.47 60

Apple MacII 640X480 35.00 66

VESA VGA 640X480 37.86 72

VESA VGA 640X480 37.50 75

VESA VGA 800X600 35.16 56

VESA VGA 800X600 37.88 60

VESA VGA 800X600 48.08 72

VESA VGA 800X600 46.88 75

Apple Mac 832X624 49.72 75

VESA XGA 1024X768 48.36 60

VESA XGA 1024X768 56.48 70

VESA XGA 1024X768 60.02 75

VESA WXGA 1280X768 47.77 60

VESA WXGA 1366X768 47.70 60

Touch Screen Driver Installation

The PT1945R/PT1945RW/PT1945S is available with both RS232 and USB connections. The touch driver is located on the enclosed CD-ROM for these operating systems: Windows ^® 7, VISTA, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Linux, Apple ^® Mac OS.

Please Note: The PT1945R/PT1945RW/PT1945S is Microsoft® Windows® HID (Human Interface Device) compatible if you use the USB touch screen interface. No additional software driver is required for general operation of the touch screen. A calibration tool can be installed for improved touch position accuracy. See “Optional Calibration Tool Install” section for more information.

PT1945R/PT1945RW/PT1945S Optional Calibration Tool Install:

If you would like to use the Optional Calibration Tool, follow the instructions below. Please note: the calibration tool supports Windows ^® 7, VISTA, XP, XP Embedded, 2000, 98 and ME operating systems via USB only.

1. Open the CD-ROM.
2. Select the monitor size and then model name.
3. Click on the "Load Utility" button that appears to the right of the model name.
4. The HID calibration tool will automatically open. From here the user can choose to do the following:
   a. 4 Points Calibration
   b. 9 Points Linearization
   c. 25 Points Linearization
   d. Clear
   e. Draw Test

f. Advanced. In the Advanced settings area the user may do the following:

i. Adjust the Double Click Area.
ii. Enable auto right click and adjust the auto right click time.
iii. Choose to be either in the HID Mouse Mode or HID Digitizer Mode (Windows® Vista only).
iv. Simply click the "Apply" button once the settings are finalized.

PT1945R/PT1945RW/PT1945S Install Instructions:

If you are using a PC running Windows ^® 7, VISTA, XP, 2000, ME, 98, NT4.0, follow the instructions below:

1. Power on the PC.
2. Be sure the USB or the RS-232 Serial cable is connected from the PC to the LCD display.
3. Open the CD-ROM.
4. Follow the step-by-step instructions as shown on the pop-up windows.

If you are using a PC running Windows® XP Embedded, follow the instructions below:

Express:

1. Power on the computer.
2. Make sure that the RS232 or USB cable is connected to the computer.
3. Be sure that your EWF is disabled. If your EWF is enabled, please disable the EWF by using the EWF Manager command.
4. Once the EWF is disabled click on the XP driver on the CD-ROM and follow the step-by-step instructions as shown on the pop-up windows.

Custom:

1. Power on the computer.
2. Make sure that the RS232 or USB cable is connected to the computer.
3. Follow the step-by-step instructions found in the zipped file on the CD-ROM.

If you are using a PC running Windows ^® CE, follow the instructions below:

1. Power on the computer.
2. Make sure that the RS232 or USB cable is connected to the computer.
3. Using Platform Builder, build an image file by following the step-by-step instructions found in the zipped file on the CD-ROM.

If you are using a PC running Linux or Apple® Mac OS, follow the instructions below:

1. Power on the computer.
2. Make sure that the RS232 or USB cable is connected to the computer.
3. Follow the step-by-step instructions found in the zipped file on the CD-ROM.

When changing the Touch Interface (RS-232 or USB), please follow instructions below.

1. Uninstall the touch driver.
2. Re-start the computer.
3. Remove the original Touch Interface (RS-232 or USB).
4. Connect the computer to the Touch Interface (RS-232 or USB) that you would like to use.
5. Load the Touch Driver CD, then follow the step-by-step instructions as show on monitor.

PLEASE NOTE!

Don't plug in both the RS-232 and USB cables!

Doing so may cause a driver conflict, making your touch screen inoperable.

Product Registration and Technical Support

Register Your Planar Products Today

Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html.

Cables, Replacement Lamps, Accessories

To find cables, replacement lamps and accessories for your Planar projector, LCD monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com or find other stores who carry Planar products at http://www.planar.com/howtobuy.

Technical Support

Visit Planar at http://www.planar.com/support for product registration, operations manuals, touch screen drivers, warranty information and access to Planar's Technical Library for online troubleshooting.

To speak with Planar Customer Support please have you model and serial number available and dial:

Planar Support

Tel: 1-866-PLANAR1 (866-752-6271) or [phone] outside the US.

Hours: 24 hours a day, 7 days a week.

Toll or long distance charges may apply.

Planar Systems, Inc.

Customer Service

24x7 Online Technical Support: http://www.planar.com/support

1195 NW Compton Drive

Beaverton, OR 97006-1992

Tel: 1-866-PLANAR1 (866-752-6271) or [phone] outside the United States.

Hours: 24 hours a day, 7 days a week

© 2011 Planar Systems, Inc. 5/11 Planar is a registered trademark of Planar Systems, Inc.

Other brands and names are the property of their respective owners.

Technical information in this document is subject to change without notice.

020-1022-00E

820490065105
