Product Type	Mini Bluetooth Party Speaker
Brand	Monoprice
Model	111919
Driver	4-ohm 6.5" full-range driver
Amplifier Power	13 watts @ 1% THD
Frequency Response (AUX)	65 Hz - 16 kHz
Sensitivity (AUX)	-22 dB
Signal-to-Noise Ratio	>90 dB
Battery	12V, 2.6Ah internal
Charge Time	~8 hours
Playback Time	Up to 4 hours
Power Adapter	15 VDC, 2000mA, center/tip positive
Bluetooth Profile	A2DP
Bluetooth ID	MP-Mini Party Spk
Microphone Input	1/4" (6.35mm) TRS balanced
AUX Input	Stereo RCA (unbalanced)
USB Charging Output	5 VDC, 500mA
Dimensions (H x W x D)	11.0 x 9.1 x 8.3 inches
Weight	10.6 lbs (4.8 kg)
Controls	Volume knobs (MIC, AUX, Master), Bluetooth button, Power switch
Indicators	Bluetooth LED (off/on/flashing), Charge LED, Battery Level LED
Color	Black
FCC Compliance	Class B digital device
CE Compliance	Yes

Frequently Asked Questions - 111919 MONOPRICE

How do I pair my Bluetooth device?

Press and hold the Bluetooth Button until the Bluetooth LED begins to flash. The system is now in pairing mode. On your device, select MP-Mini Party Spk from the list. If a PIN is required, enter 0000.

How do I charge the internal battery?

Ensure the speaker is turned on, then connect the included AC adapter to the DC IN socket. The CHARGE LED will indicate charging. A full charge takes approximately 8 hours.

What is the playtime on a full charge?

The speaker can play for up to 4 hours on a full charge, depending on volume and usage.

How do I adjust volume for microphone and music?

Use the MIC VOLUME knob for microphone volume, AUX VOLUME for line-level and Bluetooth input, and MASTER VOLUME for overall output.

Can I charge my phone or other device using this speaker?

Yes, the USB Charge port provides 5 VDC, 500mA output for charging mobile devices.

What type of microphone can I use?

The MIC input is a 1/4" (6.35mm) TRS balanced jack, compatible with dynamic microphones.

What does the Bluetooth LED indicate?

If the LED is off, no connection; solid on means connection is active; flashing indicates the speaker is in pairing mode.

How do I turn the speaker off?

Slide the Power Switch to the off position to power down the speaker.

What are the power adapter requirements?

The DC power input requires 15 VDC with 2000mA (for model 111919) and a center/tip positive connector.

Is the speaker portable?

Yes, it features a built-in rechargeable battery and weighs 10.6 lbs (4.8 kg), making it suitable for portable use.

USER MANUAL 111919 MONOPRICE

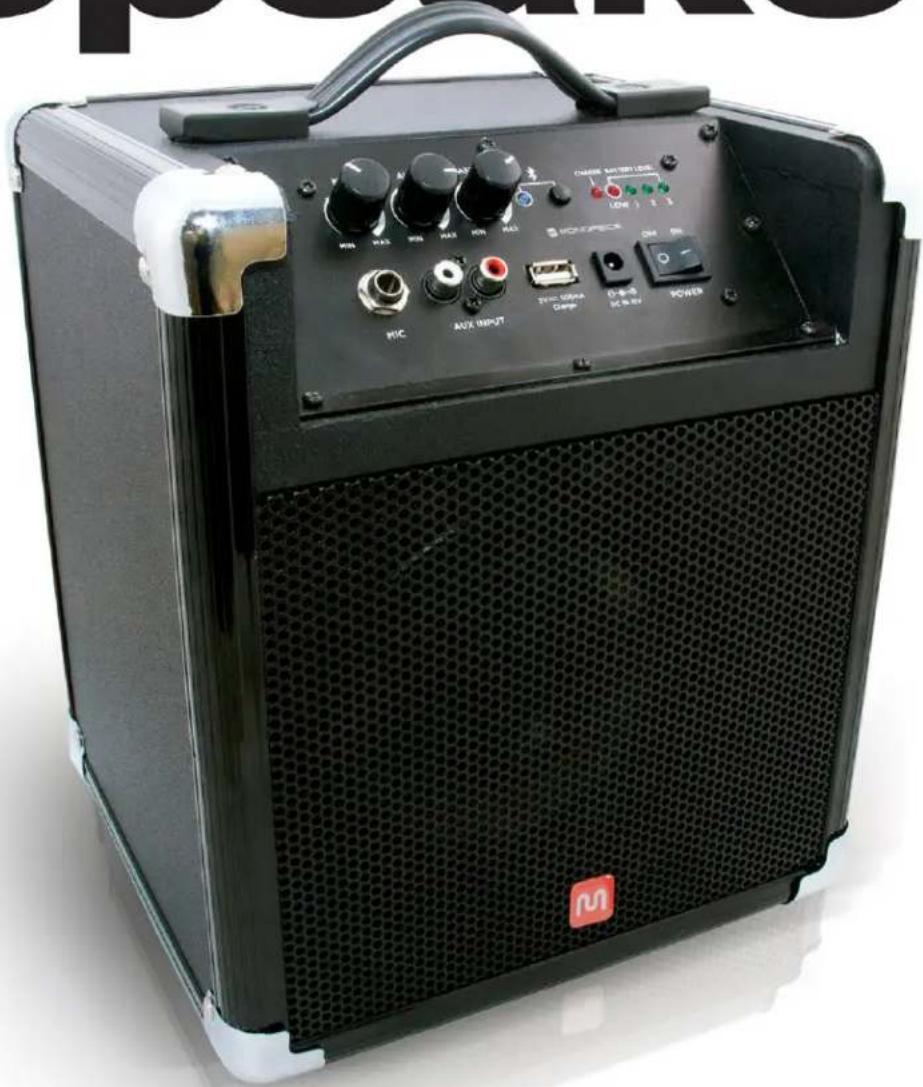

Mini Bluetooth Party Speaker

Black audio amplifier box with external control panel and labeled buttons (no readable text beyond branding)

11919

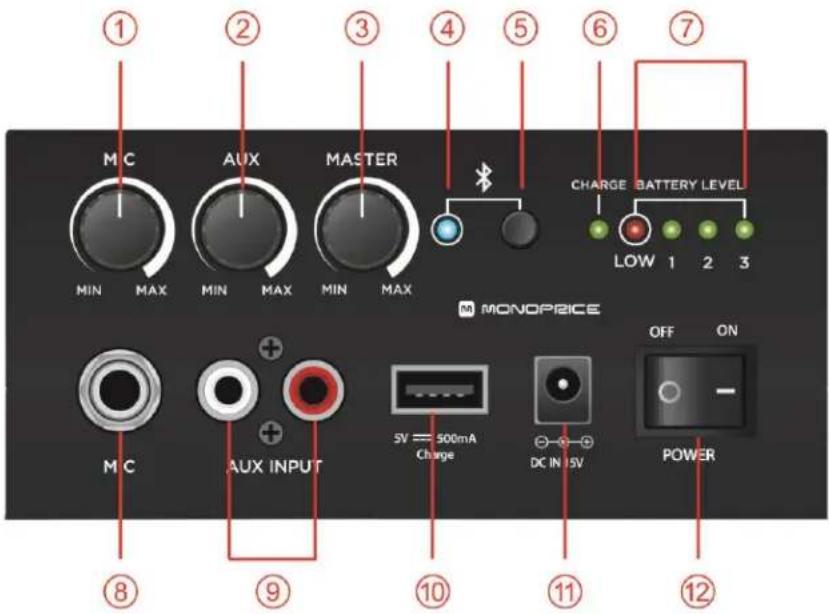

Front Panel Controls and Connections

1. MIC VOLUME: Controls the volume level of the microphone input.
2. AUX VOLUME: Controls the volume level of the line level AUX input as well as the wireless Bluetooth input.
3. MASTER VOLUME: Controls the overall volume level. Note that the MIC and AUX inputs are simultaneously active and are mixed together into the single master output.
4. Bluetooth LED: Indicates the status of the Bluetooth connection, as follows:

a. OFF: No connection
b. ON: Connection OK
c. Flashing: In pairing mode

1. Bluetooth Button: Used to open or close a Bluetooth connection or to put the system into Bluetooth pairing mode.

a. Pairing: Press and hold the Bluetooth Button until the Bluetooth LED begins to flash. The system is now in pairing mode. In the list of available Bluetooth devices, select the MP-Mini Party Spk entry. If you are asked for a PIN or password, enter 0000.
b. Open: If you have a device that was last paired with the speaker, press and hold the Bluetooth Button for about 3 seconds to open/reactivate the connection
c. Close: You can close an active connection by pressing and holding the Bluetooth Button for about 3 seconds.

1. CHARGE: Indicates that the internal battery is being charged. The unit must be turned on in order to charge the battery.

2. BATTERY LEVEL: Indicates the current charge level of the built-in battery. If the red LED is lit, the battery should be charged immediately. Failure to charge the battery when it is depleted can cause damage to the battery and/or speaker system.

3. MIC: 1/4" TRS balanced microphone level input.
4. AUX INPUT: Line-level auxiliary input using RCA stereo pair.
5. USB Charge: USB port for charging mobile devices. 5 VDC, 500mA output.
6. DC IN: DC power socket for connecting the included AC adapter. Requires a 15 VDC input with either 2A (11919) or 1A (11922) current level. The DC connector is center/tip positive.
7. Power Switch: Powers the system on/off.

Specifications
Model	11919
Driver	4-ohm 6.5" full-range driver
Amplifier Power	13 watts @ 1% THD
Frequency Response (AUX)	65Hz ~ 16kHz
Sensitivity (AUX)	-22dB
Signal-to-Noise Ratio	>90dB
Battery	12V, 2.6Ah
Power Adapter	15 VDC, 2000mA, center/tip positive
Microphone Input	1/4" (6.35mm) TRS balanced
AUX Input	Stereo RCA (unbalanced)
Supported Bluetooth Profile	A2DP
Bluetooth ID	MP-Mini Party Spk
Time for Full Charge	about 8 hours
Playback Time	up to 4 hours
Dimensions	(H X W X D) 11.0" X 9.1 " X 8.3"
Weight	10.6 lbs. (4.8kg)

FCC Compliance Statement:

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Modifications: Any modifications made to this device that are not approved by Monoprice, Inc. may void the authority granted to the user by the FCC to operate this equipment.

CE Compliance Statement:

This product is in compliance with CE directives and bears the CE mark. For detailed information on specific directives please contact Customer Service or sales office or distributor.

WEEE Directive Compliance Statement:

This symbol on the product or on its packaging indicates that the product must not be disposed of with normal household waste. Instead, it is your responsibility to dispose of your waste equipment by arranging to return it to a designated collection point for the recycling of waste electrical and electronic equipment. By separating and recycling your waste equipment at the time of disposal you will help to conserve natural resources and ensure that the equipment is recycled in a manner that protects human health and the environment.
