Product Type	Portable MP3 Player
Brand	Memorex
Model	MMP8550
Storage Capacity	512 MB Internal Flash Memory
Display	1.5-inch Monochrome LCD
Dimensions	3.5 x 2.5 x 0.5 inches
Weight	50 g (with battery)
Power Source	1 x AAA Battery (not included)
Battery Life	Up to 10 hours playback
Audio Formats	MP3, WMA, WAV
FM Radio	Yes, with presets
Voice Recording	Built-in microphone, WAV format
Playback Modes	Normal, Repeat, Shuffle, Intro
Equalizer Presets	Rock, Pop, Classic, Jazz, Normal
Connectivity	USB 2.0 (Mini-B)
Headphone Jack	3.5 mm stereo
Supported OS	Windows 98 SE/Me/2000/XP
Care & Cleaning	Wipe with dry soft cloth; avoid moisture
Safety	Keep away from heat; do not disassemble
Spare Parts	Battery compartment; USB cable
Repairability	Limited; contact support for battery replacement
General	MP3 player with FM radio and voice recording

Frequently Asked Questions - MMP8550 MEMOREX

How do I transfer music to the Memorex MMP8550?

Connect the player to your computer using the USB cable. The device will appear as a removable drive. Drag and drop MP3 files into the 'Music' folder. For Windows 98, you may need to install drivers.

Can I use rechargeable AAA batteries?

Yes, the MMP8550 works with both standard and rechargeable AAA batteries. However, the player does not have a charging circuit, so batteries must be charged externally.

Why is my player not turning on?

Check that the battery is inserted correctly (observe polarity) and has enough charge. Try a fresh battery. If still not working, connect to USB power (some models require USB for initial activation).

How do I use the FM radio?

Press the 'Mode' button to switch to FM mode. Use the '<<' and '>>' buttons to scan channels. Press and hold the 'Play/Pause' button to auto-scan and save presets.

What file formats are supported?

The player supports MP3, WMA, and WAV audio files. Playlist files (.m3u) are also supported. Ensure files are not DRM-protected.

How do I reset the device?

If the player freezes, remove the battery for 10 seconds and reinsert it. Alternatively, press the small reset button on the side using a paperclip.

Can I record voice?

Yes, press and hold the 'Record' button to start recording. Release to stop. Files are saved in WAV format in the 'Record' folder. Recording quality is 8-bit mono.

How many songs can it hold?

With 512 MB internal memory, you can store approximately 120 songs at 128 kbps MP3 quality. Actual number depends on file size.

Why are some songs not playing?

Ensure files are in supported format and not corrupted. The player may not play files with bitrates above 320 kbps. Re-transfer the files or convert them to a lower bitrate.

How to set the equalizer?

Press the 'Menu' button and navigate to 'EQ Settings'. Choose from Rock, Pop, Classic, Jazz, or Normal. Press 'Play/Pause' to confirm.

USER MANUAL MMP8550 MEMOREX

Is it live or is it Memorex?™

MMP8550

User's Guide

256 MB MP3/WMA

Digital Audio Player

Circular button with a white play triangle icon at center (no text or symbols)

Before operating this product, please read these instructions completely.

PRECAUTIONS

COPYRIGHT:

- Distributing copies of MP3, WMA with DRM or WAV tracks without permission is a violation of international copyright laws.

SAFETY:

• Vibration experienced during walking or exercising will not affect the player. However, dropping the player or dropping a heavy object on the player may result in damage or sound distortion.
• Avoid spilling any liquid onto or into the player.
• Do not leave the player in a location near heat sources; in a location subject to direct sunlight, excessive dust, sand, moisture, rain or mechanical shock; on an unlevel surface; or in a car with the windows closed during periods of excessive heat.

ROAD SAFETY:

- Do not use headphones while driving, cycling or operating any motorized vehicle. It may create a traffic hazard and it is illegal in some areas. It can be potentially dangerous to play your headset at a high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

FCC WARNING:

- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Shield cable must be used with this unit to ensure compliance with class B FCC limits.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

Dear Customer:

Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

- Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:

90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

We Want You LISTENING For A Lifetime

EIA EST. 1924

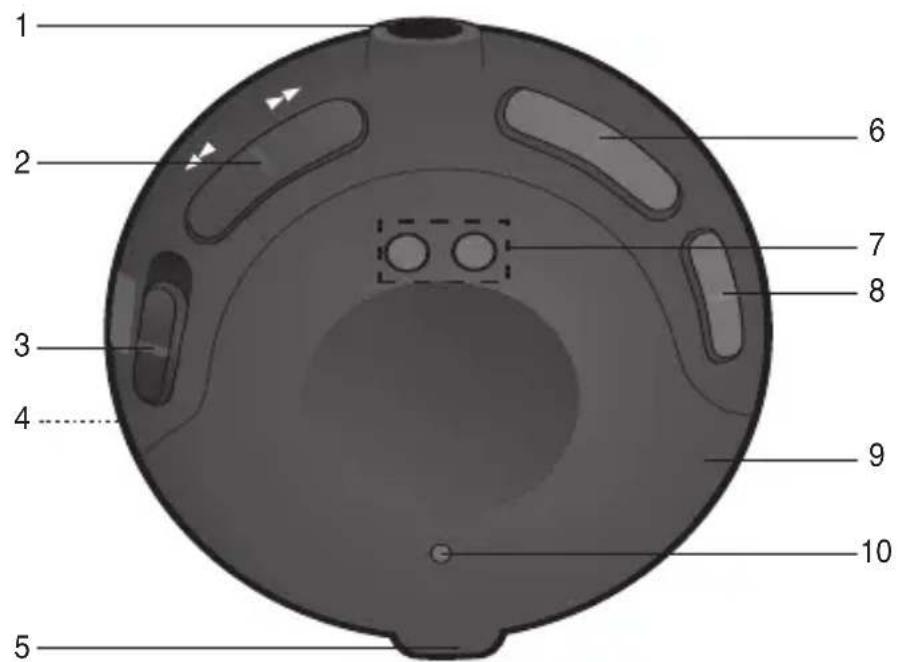

LOCATION OF CONTROLS

1 2 3 4 5 6 7 8 9 10

1. Headphone Jack

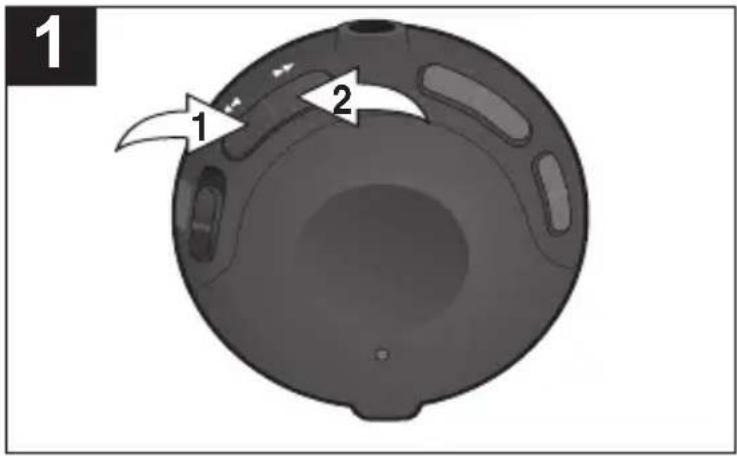

2. Skip/Search 🔊/▶ Buttons

3. Function (OFF/ON/MIX) Switch

4. PLAY/PAUSE ▶II Button (Reverse Side of Unit)

5. USB Port

6. VOLUME +/- Buttons

7. Strap Hole (For neck/hand strap; strap is not included)

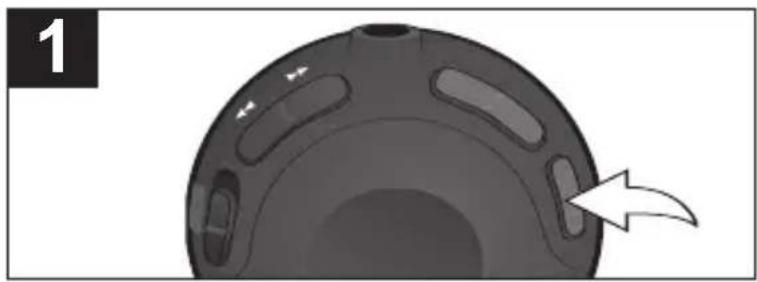

8. LOCK Switch

9. Reset Button (Inside the Recess Hole)
10. LED (Function) Indicator

POWER SOURCE

This player has a built-in Lithium Polymer rechargeable battery. It is recommended that the battery be fully charged before using for the first time and when the battery is low (when low, the LED indicator will blink red slowly). In these cases, charge/recharge the battery as follows:

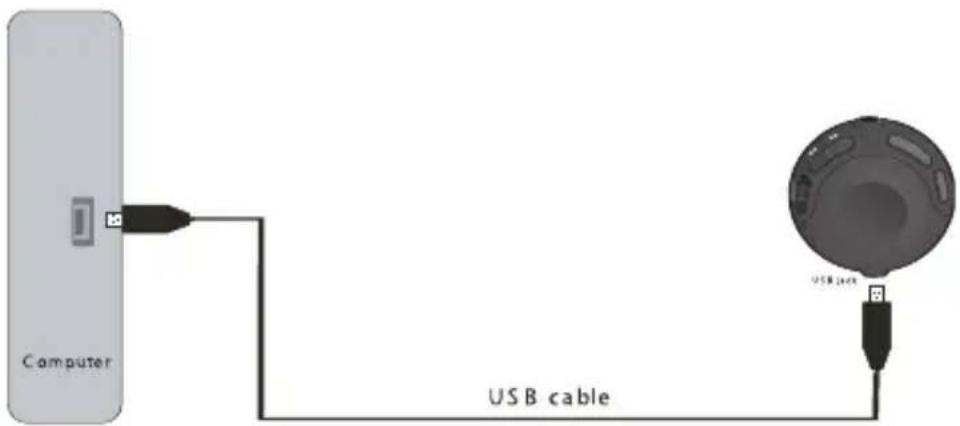

1. Connect your player to the USB port on your computer using the USB cable as shown. Then the battery will charge automatically. The LED indicator will light red when charging and will light green when fully charged.

Computer USB cable USB pack

NOTES:

• It takes approx. three hours to charge the battery from empty to full. When fully charged, the unit can playback for approx. 12 hours.
• When charging the battery, you can only use your computer to transfer files to the player; the player's other functions will be unavailable.

INSTALL "DIGITAL AUDIO PLAYER" SOFTWARE

TO INSTALL THE "DIGITAL AUDIO PLAYER" CD SOFTWARE

For Windows ME, Windows2000 or Windows XP:

Windows will automatically detect the audio player without installing the CD software when the USB cable is connected.

For Macintosh OSX:

Macintosh OSX will automatically detect the audio player without installing the CD software. Do not install the software when using a Macintosh.

For Windows98SE:

The USB mass storage function will not be activated without driver installation. To activate the USB mass storage function, please use the installation CD-Rom to install the driver.

For Windows 98SE, if you are connecting your player to your computer for the first time, please follow these instructions:

Procedure to Install Player Driver

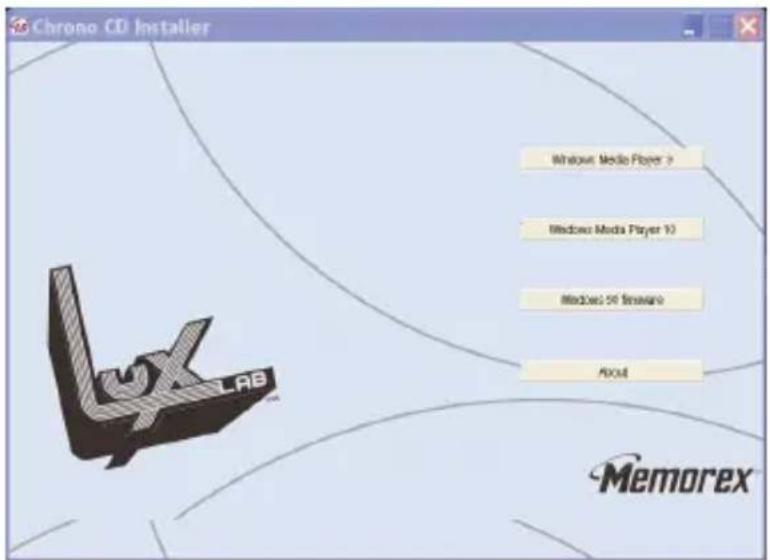

1. Insert the Installation CD-Rom into the CD Drive, then the installation screen will appear. If the installation screen doesn't automatically appear, double-click my computer then double-click on the CD drive, then the installation screen will appear. Click on the Windows 98 firmware icon. Then click on the MMP8550 icon.

Chrono CD Installer Microsoft Media Player 2 Windows Media Player 10 Windows 50 Software Microsoft Memorex

WINDOWS 98 DRIVER INSTALLATION

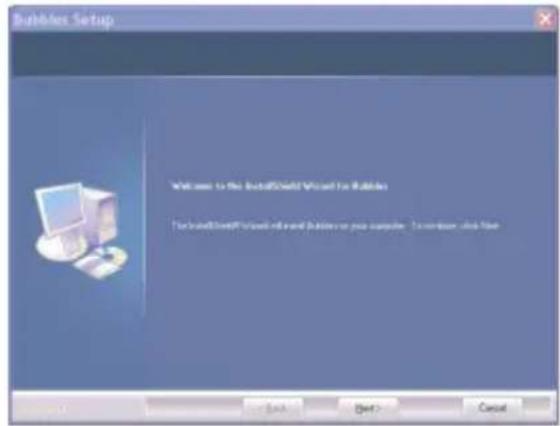

1. At the Welcome screen, click NEXT.

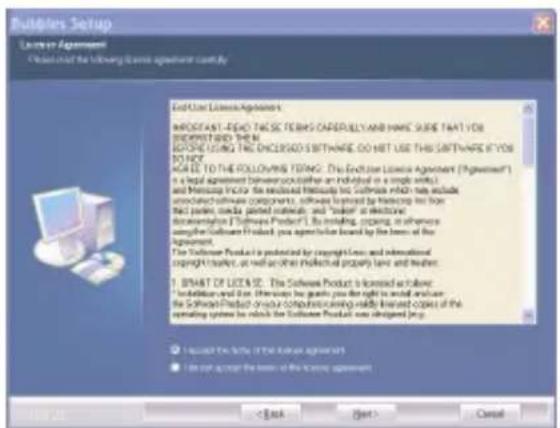

2. Read the License Agreement. If you accept the terms of the License Agreement, select and dot the circle at the left of "I accept the terms of the license agreement". Then click NEXT.

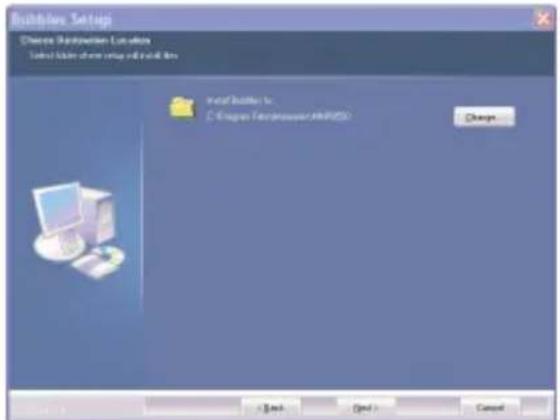

3. At the Setup screen, click NEXT. It is recommended to leave the destination folder as it is.

Bubbles Setup Welcome to the InstallShield Wizard for Bubbles For InstallShield Wizard referred to Bubbles or your computer - 2x100x78 x98 x99 Back Next > Cancel

Buildups Setup License Agreement C:\Users\the\Software\aqmodular\countly End-Use License Agreement IMPORTANT: PEND THESE TERMS CEREBILLY AND NAME, SURE THAT YOU BEFOREST HERE. NOTE: USING THIS DISCLOSED SOFTWARE. DO NOT USE THIS SOFTWARE IF YOU TO NOT. FOR IT TO THE FOLLOWING TESTING: The End-Use License Agreement ("Agreement") is a legal agreement between you either an individual in a simple site, and Message Inc. for the released https://www.rsc.org.uk software which may be exclude software components, software logged by https://rsc.org.uk/ for their pages, media, printed materials, and "admin" at electronic documentation ("Software Product"). By publishing, copyright, or software software Software Product: you are approved by the herein of the agreements. The Software Product is protected by copyright loss and informational copyright material, as well as other intellectual property law and legal. 1. PART OF LICENSE 32: The Software Product is licensed at license: * Indicate and/or. Otherwise the legally free right to install an insurance the Software Product structure computer saving rights limited copies of the operating system to match the Software Product's original (e.g. □ Request the title of the License Agreement ■ Do you accept the letter of the license agreement < Back Next > Cancel

Buildings Setup Change Distribution Locations Select files where setup will install files Install Building to: C:\Program Files\Microsoft\MP2033 Change (Cash Edit Cancel)

WINDOWS 98 DRIVER INSTALLATION (CONTINUED)

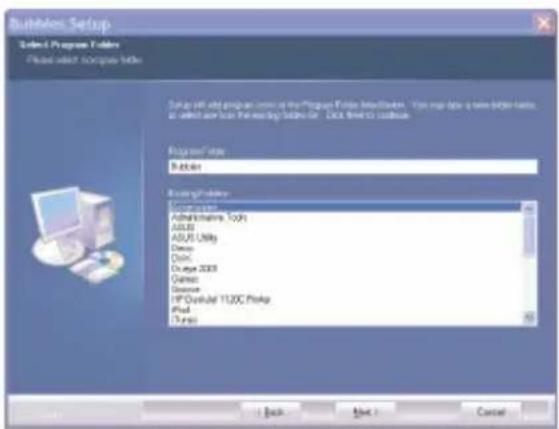

1. At the Program Folder screen, click NEXT. It is recommended to leave the program folder as it is.

Bubble Setup Ordered Program Files Planned select computer files Setup will adjust program name as the Program Files (*.txt). You may use a new folder file. or select any other programming files or .txt files to continue. Program name: Bubble Programming Universe Administrative Tools ASUS ASUS 3.0Mg Dako Disk Dako 2008 Gains Search HP Desktop T1.0C Pickup iPad iTunes Back Next > Cancel

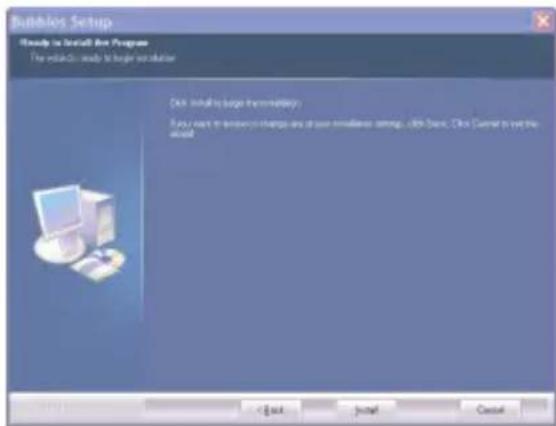

1. Click "Install" to start the installation.

Bubble Setup Ready to Install Box Programs The installation ready to upgrade collaboration Disk including large immiscuity If you want to remove changes and at your immalliance settings, click Back, Close Cancel to exit the account. < Back Next Cancel

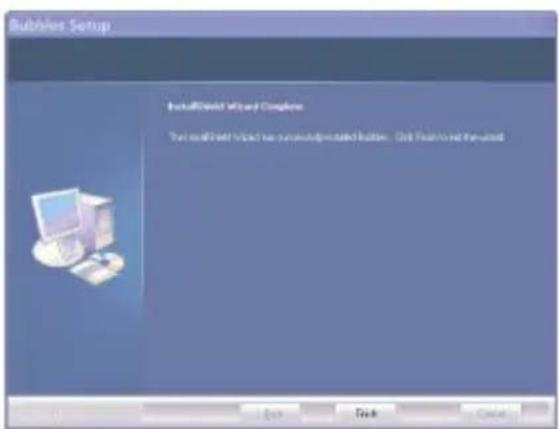

1. When finished, the InstallShield Wizard Complete screen will appear. Click FINISH to exit the Install program and complete the Windows 98 Driver installation.

Bubble Setup InstallShield Wizard Complete This installed Wizard has successfully installed solution. Click Finish to not be used

WINDOWS MEDIA PLAYER 10 INSTALLATION

Windows Media Player 10 is for use with Windows XP only. For Windows ME and Windows 2000, please install Windows Media Player 9. For Windows 98SE, please visit www.Microsoft.com to download the corresponding Windows Media Player for your computer.

Once you have installed Windows Media Player 10, you can transfer MP3 files, WMA files, WMA files with DRM 9 or DRM 10 to your player using the "Sync" function.

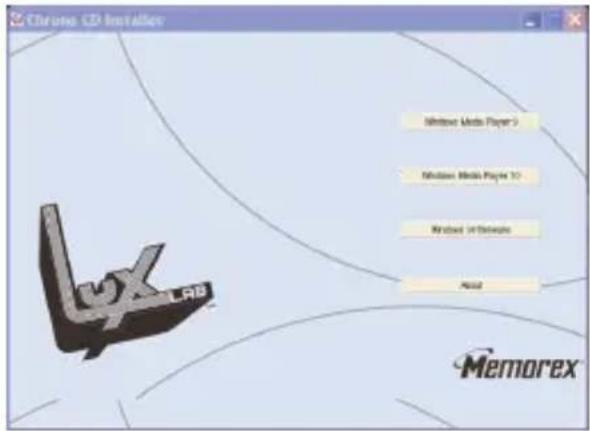

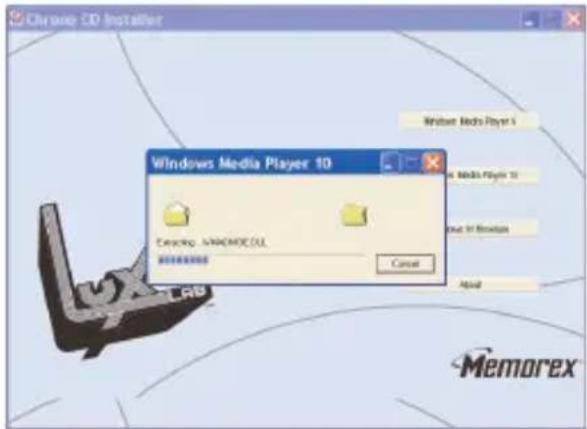

1. Insert the Installation CD-Rom into the CD Drive, then the installation screen will appear. If the installation screen doesn't automatically appear, double-click "My Computer" then double-click on the CD drive, then the installation screen will appear. Click on the Windows Media Player 10 Setup icon.

2. Installation will begin.

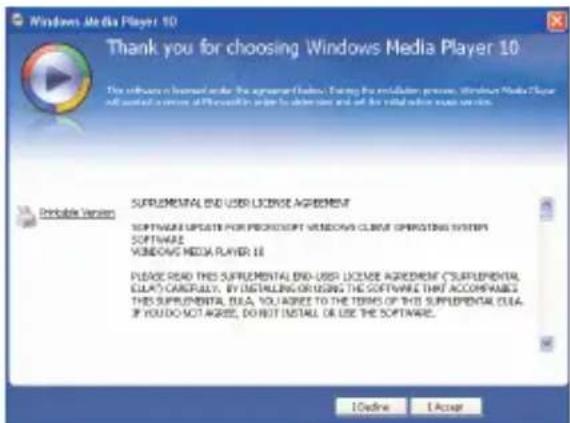

3. Read the License Agreement, then click I ACCEPT.

Chrome CS Installer LUX LAB Windows Media Player 3 Windows Media Player 10 Windows 67 Series Add Memorex

Chrome CD Installer Windows Media Player 10 Creating ANGOCOOL Microsoft Cancel Microsoft Media Player 10 Out of Broadcast Add Memorex

Windows Media Player 10 Thank you for choosing Windows Media Player 10 This software is learned under the agreement below. During the installation process, Windows Media Player will also receive a copy of Microsoft's file to drive new and set the initial online setup service. Supplemental End User License Agreement SOFTWARE UPDATE FOR MICROCIPT WINDOWS CLINT OPERATING SYSTEM SOFTWARE WINDOWS MEDIA PLAYER 16 PLEASE READ THIS SUPPLEMENTAL END-USER LICENSE AGREEMENT (SUPPLEMENTAL ELAT) CAREFULLY. BY INSTALLING OR USING THE SOFTWARE THAT ACCOMPANIES THIS SUPPLEMENTAL ELLA, YOU ARE TO THE TERMS OF THIS SUPPLEMENTAL ELLA. IF YOU DO NOT AGRIS, DO NOT INSTALL OR USE THE SOFTWARE. 1 Online 1 Accept

WINDOWS MEDIA PLAYER 10 INSTALLATION (CONT.)

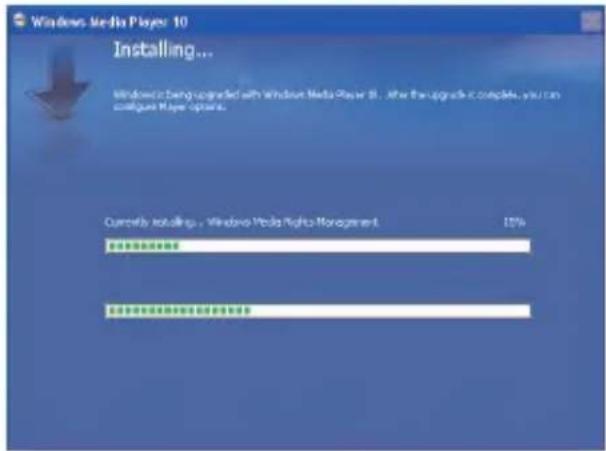

1. Installation will continue.

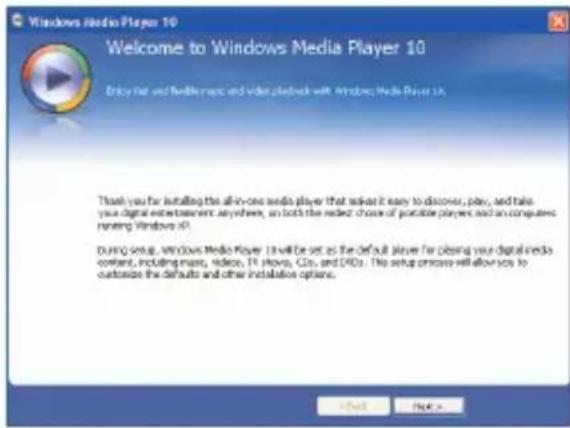

2. At the Welcome screen, click NEXT.

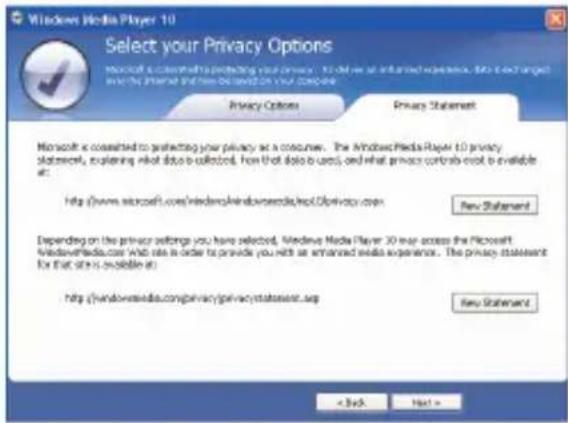

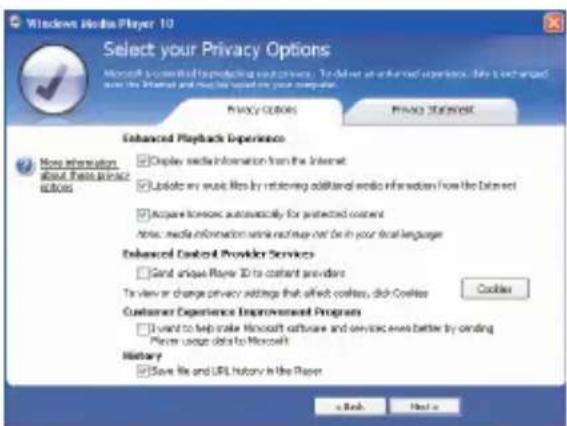

3. Select the desired privacy options.

Windows Media Player 10 Installing... Windows is being upgraded with Windows Media Player 8. After the upgrade it complete, you can configure Mayer options. Currently installing - Windows Media Rights Management 15% 已安装到您安装程序 已安装到您安装程序的程序和您需要安装程序

Windows Media Player 10 Welcome to Windows Media Player 10 Enjoy the media player and video playback with Windows Media Player 10 Thank you for installing the all-in-one media player that solves it easy to discover, play, and take your digital entertainment anywhere, as both the reader choose of portable players and an computer running Windows 10. During setup, Windows Media Player 10 will be set as the default player for closing your digital media content, including music, video, TV shows, CDs, and CDs. The setup process will allow you to customize the defaults and other installation options.

Windows Media Player 10 Select your Privacy Options Microsoft content is protecting your privacy. To deliver an enhanced experience, data is exchanged over the Internet and must be updated on your computer. Privacy Options Privacy Settings Enhanced Playback Experience More information about their service options ■ Display media information from the Internet ■ Update my music files by maintaining additional media information from the Internet ■ Acquire licenses automatically for protected content Note: media information works read may not be in your local language Enhanced Context Provider Services ■ Send unique Player ID to client providers To view or change privacy settings that affect clients, click Cookies Cookies Customer Experience Improvement Programs ■ I used to help make Microsoft software and services even better by sending PCer using data to Microsoft History ■ Save file and URL history in the Player

WINDOWS MEDIA PLAYER 10 INSTALLATION (CONT.)

1. Click on Privacy Statement to view the Statement, if desired. When finished, click Next.

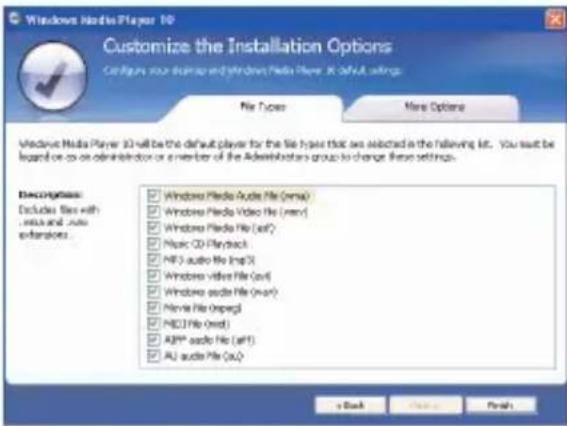

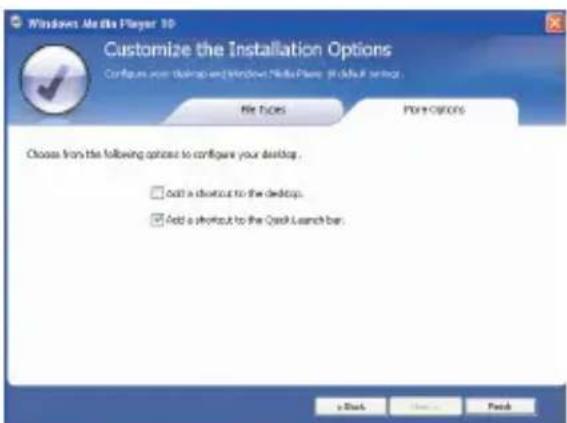

2. Read the instructions and tick the check boxes as desired. Then click on More Options and tick the check boxes as desired.
3. Click "Finish" to finish the installation of the Windows Media Player 10.

Windows Media Player 10 Select your Privacy Options Microsoft is considered to protect your privacy as a course. The Windows Media Player 10 privacy statement, enabling what data is collected, how that data is used, and what privacy controls exist to be available at: http://www.microsoft.com/webtools/kindowsmedia/locate/privacy.com New Statement Depending on the privacy settings you have selected, Windows Media Player 10 map access the Microsoft windowsmedia.com who rate is order to provide you with an enhanced media experience. The privacy statement for that site is available at: http://windowsmedia.com/privacy/privacy statement.asp New Statement < Back Next >

Windows Media Player 10 Customize the Installation Options Configure your installed and Windows Media Player 10 default settings. File Types New Options Description: Includes files with . value and . auto enhancements. Windows Media Audio File (exe) Windows Media Video File (exe) Windows Media File (exe) Music CD Playback NFC audio file (mp3) Windows video file (cmd) Windows audio file (xan) Movie File (mpag) PBO File (cmd) APP audio file (xlt) AU audio file (au) a Back Finish

Windows Media Player 3D Customize the Installation Options Configure your desktop and Windows Media Player (Default server) File Names Port Options Choose from the following options to configure your desktop : Add a shortcut to the desktop. Add a shortcut to the Quick-Search bar.

DOWNLOADING AND TRANSFERRING FILES

TRANSFERRING FILES

You can download digital music files from the Internet or use encoding software to convert music that you have on an audio CD into MP3 or WMA format. Once these files are stored on your computer you can easily copy them to your player.

For Windows XP, if you already installed Windows Media Player 10, you can transfer music files (MP3, WMA, WMA files with DRM 9 or DRM 10) to the player through the "Sync" function of Windows Media Player 10. Connect your computer to the USB port on your computer using the USB cable. "MPT Player" or "MMP8550" will appear in your "My Computer" folder which indicates the player is connected. Then, follow the procedure on page 16 to transfer music files to the player.

For Windows ME, Windows 2000, Windows 98 or Windows XP (without Windows Media Player 10), transfer music files as follows:

1. Connect your player to the USB port on your computer using the USB cable as shown on page 6.
2. A "Removable Disk" window will automatically pop-up on your computer screen.
3. To add more files and songs to your player, simply drag and drop MP3 or WMA files from anywhere on your computer into the "Removable Disk" window.

IMPORTANT: A WMA file with DRM 9 or DRM 10 will not play back if you directly drag and drop it into the "Removable Disk" window. You must use Windows Media Player 10 to transfer copy-protected files as described on page 16.

DOWNLOADING AND TRANSFERRING FILES (CONT.)

TRANSFERRING AUDIO FILES TO YOUR DIGITAL AUDIO PLAYER USING A MACINTOSH COMPUTER

Make sure to use a Macintosh computer with an operating system of 10.0 or layer to transfer audio files.

1. Turn on your computer.
2. Turn on your digital audio player.
3. Connect the smaller end of the cable to the USB jack on the player and the larger end of the cable to the USB port on your Macintosh.
4. Your computer will automatically recognize your player and mount a hard disk icon onto your desktop.
5. Locate the folder where your audio files are stored on your computer's hard drive. Simply drag and drop the audio files onto the mounted hard disk drive icon of your digital audio player located on your desktop.
6. After you have finished your transfer, put away the digital audio player hard disk icon(s) by dragging it to the Trash icon or Control-click its icon and choose Eject from the File menu or select Eject from the File drop-down menu located at the top of your screen. You can also use the keyboard shortcuts by selecting the digital audio player hard disk icon and pressing the Command-E keys.
7. Your player is ready to play the files you transferred.

DOWNLOADING AND TRANSFERRING FILES (CONT.)

For Windows XP, you can also utilize the previously installed Windows Media Player 10 software to convert music on an audio CD into MP3 or WMA format as follows:

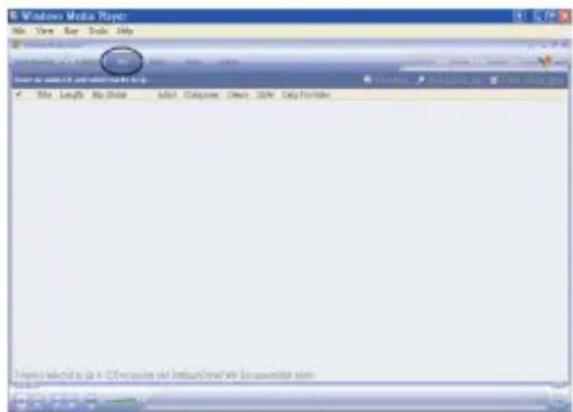

1. Open the Windows Media Player 10 Browser, then click on the "Rip" icon on the top tool bar. Insert a Music CD into the CD-Rom drive of your computer.

NOTE: For Windows 98SE, Windows ME and Windows 2000, please use the Windows Media Player 9 to convert music on an audio CD into MP3 or WMA format.

Windows Media Player File View Help Tools Help View the Web Page at 12:00:00 AM Title Length By Change Add Copy Date Draw Date Follow Progress selected to be a CDK process and installed via Aerospace Web

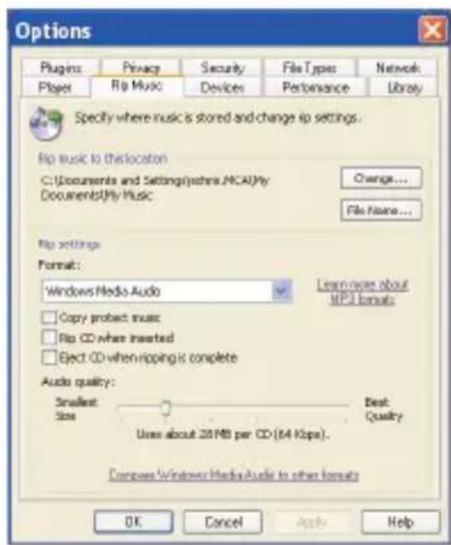

1. Click on the "Tools" menu option at the top menu bar, then click on "Options"; the Option setting menu will appear. Click on Rip Music and set the Rip Music to the desired location on your computer. Then, set the desired format for the newly ripped music (MP3 format or Windows Media Audio format). Adjust the audio quality as desired. When finished, click "OK" to confirm the settings.

2. Click on the "Rip Music" icon to start ripping the music to your computer.

3. When the music tracks are ripped; connect the player to your computer. Open the "MPT Player" or "MMP8550" window and open the ripped music location window.

4. To add the transferred/ripped music files/songs to your player simply drag and drop the MP3 and/or WMA files into the "MPT Player" or "MMP8550" window.

5. When the files are finished loading into the player, follow the "Safely Remove Hardware" procedure as shown on page 17.

Options Plugins Privacy Security File Types Network Player Rip Music Devices Personance Library Specify where music is stored and change ip settings. Rip music to this location C:\Documents and Settings\paths.NCA\My Documents\My Music Change... File Name... Rip settings Format: Windows Media Audio Copy project music Rip CD when inserted Eject CD when ripping it complete Audio quality: Smallest Size Best Quality Uses about 28 MB per CD (64 Kbps). Compose Windows Media Audio to other formats OK Cancel Apply Help

DOWNLOADING AND TRANSFERRING FILES (CONT.)

TRANSFERRING MP3/WMA FILES AND WMA FILES WITH DRM 9 OR DRM 10 USING THE WINDOWS MEDIA PLAYER 10 (FOR WINDOWS XP ONLY)

To transfer MP3 files/WMA files/WMA files with DRM 9 or 10 to the player, follow the procedure described below using the previously installed Windows Media Player 10. Before beginning the procedure please turn the unit on and connect the unit to the computer as previously described.

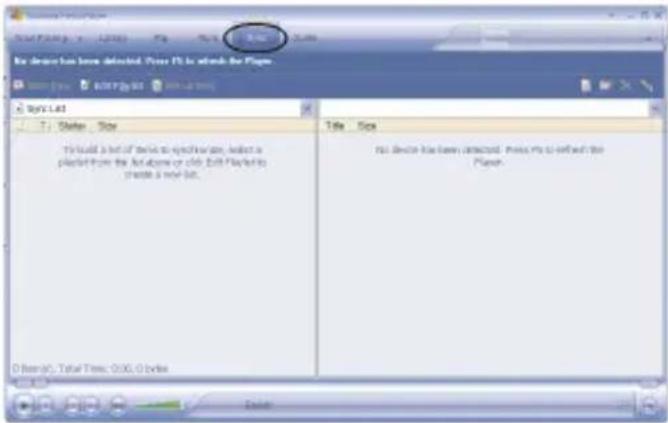

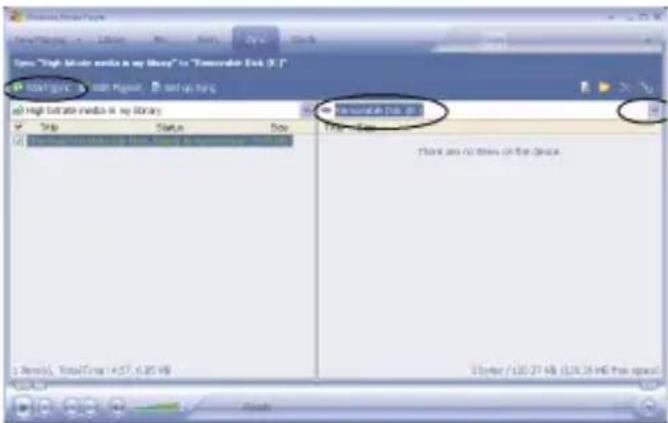

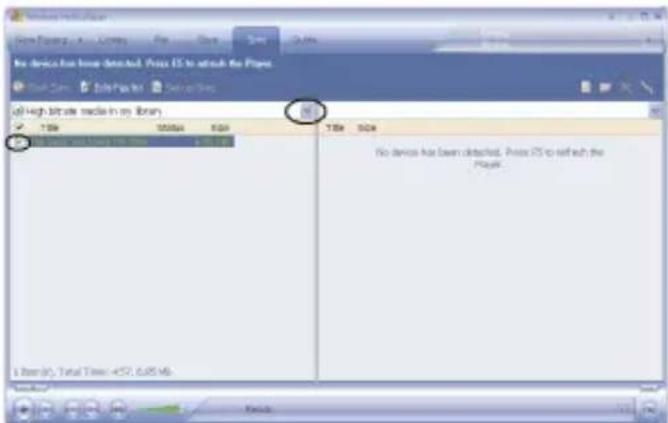

1. Open the "Windows Media Player Browser 10" and click on "Sync".
2. Click on the "Sync List" pull-down menu to locate the music files you wish to download. Then make sure to tick the box next to the files.
3. Select the Portable Device (MPT player or MMP8550) that you want to copy to from the right side drop-down menu. Click "Start Sync" to start transferring music files to the player.
4. After finished transferring all the desired files to your unit, follow the "Safely Remove Hardware" procedure on the next page.

NOTES:

• For WMA files with DRM 10, you can only use Windows Media Player 10 to transfer files to your player.
• For Windows ME and Windows 2000, please use Windows Media Player 9 to transfer WMA files with DRM 9 to the player. For Windows 98SE, please visit www.Microsoft.com to download the corresponding Windows Media Player to transfer music files to the player.

Sino It draws has been detected. Times is to switch the Player. Title: Sino Title: 100 Name: Tatal Time: 0:00, G before

No device has been detected. Press ES to attach the Player All High bitrate media in my Brain 1286 10004 624 758 524 No device has been detected. Press ES to attach the Player 1 Book(s), Total Time: <57, 6:85 Mb

New Media Player Open "High-Music media in my library" to "Temoorate Eink 3.1.1" http://www.tome.org/10000000000000000000000000000000000000000000000000000000000000000000000000000000000000 high-music media in my library Trip Status Size There are no items on the device 2 March, July 27, 2014 (12:35 PM) this special

SAFELY REMOVE HARDWARE

SAFELY REMOVING YOUR PLAYER FROM THE COMPUTER

NOTE: To avoid damage to your player or data loss, always follow the procedure listed below before disconnecting your player from the USB port on your computer.

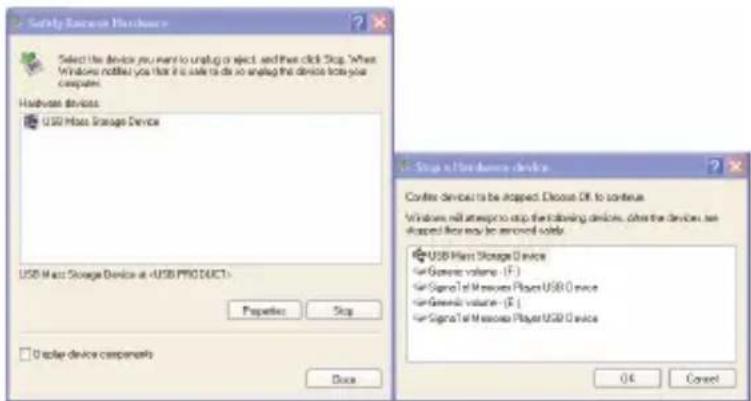

Using your mouse, double click the "Safely Remove Hardware" icon on the task bar.

From the "Safely Remove Hardware" window, select "USB Mass Storage Device" and click the "Stop" button. The "Stop a Hardware Device" window will pop-up as shown:

'Safely Remove Hardware' icon

Safety Resource Hardware Select the device you want to unplug or reject, then click Shop. When Windows notifies you that it is able to do so unplug the device lists your computers. Hardware devices: USB Max Storage Device USB Max Storage Device at Properties Stop Display device components Data Help Stop in Hardware device Connector devices to be dropped. Choose OK to continue. Windows will attempt to stop the following devices, other the devices are stopped here may be removed solely. USB Max Storage Device or General volume (F:) or Sigma Tel Maxware Player USB 0 device or General volume (E:) or Sigma Tel Maxware Player USB 0 device 0.4 Cancel

Click "OK". When the "Safe to Remove Hardware" window is displayed, you may remove the player from the USB cable or remove the USB cable from the computer.

NOTES:

• If the "Safely Remove Hardware" icon is not displayed on the task bar, please double click on My Computer. Right click on "Removable Disk" and left click on "Eject". Then it is safe to remove the player from the computer.
• The "Safely Remove Hardware" procedure is not necessary for Win98 and Win98SE users.
• If you are using Windows XP and the Windows Media Player 10 software is already installed, then you do not need to follow the above “Safely Remove Hardware” procedure.

OPERATION

Close-up of a dark, curved object with a white arrow pointing to a small circular feature (no text or symbols visible)

Turn the unit on by sliding the Function switch to the ON position; the LED indicator will light green for a few seconds, then it will blink green and the unit will be in the Pause mode. Slide the Function switch to MIX (Random) position (to randomly playback the music files). To turn the unit off, slide the Function switch to the OFF position; the LED indicator will turn off.

LOCK SWITCH

Close-up of a black circular object with a white arrow pointing to a small rounded feature (no text or symbols visible)

Slide the LOCK switch to the LOCK position to lock the buttons. This is useful when you do not want the file changed by accidentally pressing a button. Slide the LOCK switch to the opposite position (unlock) to cancel the Lock function.

NOTE:

- Make sure the LOCK switch is in the Unlock position (not in the LOCK position); otherwise, when you slide the Function switch to the ON or MIX position, the unit will not turn on.

LED (FUNCTION) INDICATOR

During Playback Light on green

Pause Flashing green

Battery Low Flashing red

Press the Volume +/- Buttons

Skip Track/File Flash once green

High-Speed Music Search Flash repeatedly green

Charging the Battery (connected to computer) Light on red

Fully Charged (connected to computer)

No Files in the Player Red and green light flashing intervals

Flash once green

OPERATION (CONTINUED)

TO LISTEN TO MP3s/WMAs/WAVs

1

Close-up of a curved mechanical component with a white arrow pointing to a small circular feature (no text or symbols visible)

Turn the unit on by sliding the Function switch to the ON position; the LED indicator will light green for a few seconds, then it will blink green and the unit will be in the Pause mode. If you want to playback the music files randomly, slide the Function switch to the MIX (Random) position.

2

Circular button with a play button and arrow icon, no text or symbols present

Press the PLAY/PAUSE ▶II button to start playback. If the Function switch is set to MIX, the unit will randomly play the files on the player. If the Function switch is set to the ON position, the unit will start playback on the first file OR on the last file played before it was turned off.

3

Close-up of a dark, curved object with two circular features and a white arrow pointing to it (no text or symbols)

Press the VOLUME +/- buttons to increase or decrease the volume.

4

Close-up of a car wheel rim with a curved arrow pointing to the side (no text or symbols)

To stop playback and turn the unit off, slide the Function switch to the OFF position.

NOTE:

• See pages 7 through 16 for information on uploading MP3, WMA and WAV files to this unit.

NOTES:

• (AUTO RESUME): Each time you turn off the unit, when the unit is turned back on, this unit will resume at the beginning of the last track which was playing before turning off.
• (AUTO POWER OFF): When all the music files have been played, the unit will pause playback and the LED (Function) indicator will flash green. After two minutes, the unit will turn off automatically and the LED (Function) indicator will turn off. To turn on the unit again, slide the Function switch to the OFF position and wait for a few seconds. Then slide the Function switch to the ON or MIX position; the LED (Function) indicator will flash green again.

OPERATION (CONTINUED)

TO PAUSE PLAYBACK

1

Circular button with a play button icon and an arrow pointing right (no text or symbols)

During playback, if you wish to pause the file momentarily, press the PLAY/PAUSE ▶II button; playback will pause and the LED indicator will blink green.

2

Circular button with a white play button and arrow icon (no text or symbols)

Press the PLAY/PAUSE ▶II button again to resume playback; the sound will return and the LED indicator will light green.

FORWARD/REVERSE SKIP

1

Close-up of a mechanical component with a white arrow pointing to a feature (no text or symbols visible)

During playback, press the Skip/Search ➤ button to advance the player to the beginning of the next file. Press the Skip/Search ➤ button repeatedly to advance the player to higher-numbered files.

2

Close-up of a mechanical component with a curved arrow pointing to a specific area (no text or symbols visible)

During playback, press the Skip/Search button to move the player back to the beginning of the currently playing file. Press the Skip/Search button repeatedly to move the player back to lower-numbered files.

OPERATION (CONTINUED)

HIGH-SPEED MUSIC SEARCH

1 1 2

During playback, press and hold the Skip/Search 🔊① or ➕② button to move the player forward or backward within a file to locate a specific musical passage. The player will move forward or backward at high speed as long as the button is held. When you release the button, normal playback will resume.

TROUBLESHOOTING GUIDE

If you experience a problem with this unit, check the chart below before calling for service.

SYMPTOM CAUSE SOLUTION
Unit will not Battery is low on. described on page 6.	low/empty. Recharge battery as page 6.
	Power is not turned Slide on. ON or MIX position.	the Function switch to
No sound. Headphones	are not Insert headphones inserted.
	Volume is set too Raise low. Volume + button.	the volume using the
	The MP3 or WMA files are corrupted. files.	Download uncorrupted
	No files are in the Upload player.	d files to the unit as described on pages 13-16.
The computer is not recognizing the player.	The player is not securely connected.	Make sure player is securely connected.
	Win98 Driver isn't installed or computer is not compatible.	Install Win98 driver and/or see pages 7-12 for compatibility.
WMA files with DRM can't playback.	Incorrect downloading methods.	See page 16 to download WMA files with DRM.

TROUBLESHOOTING GUIDE (CONTINUED)

SYMPTOM CAUSE SOLUTION
No buttons work.	The Lock feature is Deactivate Lock feature as activated. described on page 18.
	Unit needs to be reset Reset unit and/or or firmware needs to be updated. pages 24-25.
Unit acting erratically. Unit needs to be reset Reset unit and/or or firmware needs to be updated. pages 24-25.

FORMATTING THE PLAYER

Formatting the Player

WARNING! Do not format this player unless it stops working and you are instructed to do so by technical support personnel.

1. Use the USB cable to connect the player and the computer.
2. Double click on My Computer, then right click "MPT Player", "MMP8565" or "Removable Disk" and left click on "Format".
   3a. For "MPT Player" or "MMP8550", at the "Format" window, click OK to confirm and the player will start to format (see figure to the right). When finished, click "OK" to close the Format window.

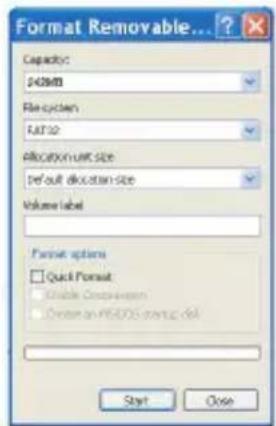

Format Removable... Capacity: 242MB Recycle: FAT32 Allocation unit size Default allocation size Value label Format options □ Quick Format □ Enable Compression □ Draw an FADOS points on disk Start Close

Format window for "Removable Disk"

WARNING: Formatting will answer ALL data on the device. This may include any settings stored on the device. To format the device, click OK. To quit, click Cancel. OK Cancel

Format window for "MPT Player" or "MMP8550"

3b. For "Removable Disk", at the "Format" window, select "FAT 32" from the file system pull-down menu, then click "Start" to format the unit (see figure above).

NOTE: Make sure you have selected "FAT 32" at the file system pull-down menu; otherwise, after formatting, the player will not work properly. Then, click OK to confirm and the player will start to format. When finished, click "Close" to close the Format window.

UPDATING THE FIRMWARE

WARNING! Do not update the firmware unless you are experiencing problems with your digital audio device. Incorrect or faulty firmware installation will cause the player to stop functioning.

1. Download the updated firmware at www.memorexelectronics.com.
2. Unzip the file, then double click setup.exe in the Desktop folder to install the software to your computer.
3. Connect the player to the computer using the supplied USB cable and the installation screen will appear. (If the installation screen does not appear, unplug the USB cable and turn off the unit). Connect to the computer again and press and hold the Power On/Off/Stop button until the installation screen appears.
4. Follow the on-screen instructions to install the driver.
5. When finished, click START and locate the newly installed software "Bubbles" and select "Firmware Download".

RESETTING THE UNIT

If the unit acts erratically, reset the unit by inserting a thin object (such as a paper clip) into the recessed RESET button. For the RESET button, see page 5 for the button's location.

SPECIFICATIONS

Audio Frequency Range 20Hz–20KHz

Headphones Output 5mW, 32ohm (Max. Vol)

S/N Ratio 85db (MP3)

File Support MP3 MPEG 1/2/2.5 Layer 3

WMA Windows Media Audio (WMA file with

DRM 9 or DRM 10)

Bit Rate 32kbps–320kbps (MP3)

32kbps-192kbps (WMA)

General Dimension 2.3 inches (diameter) x 0.63 inches

(thickness)

Weight 1 ounce

USB USB 2.0

Built-in Memory 256MB

Max. Playtime Approx. 12 hours

Supported OS

Win ME, 2000, XP and Mac OSX

Win 98SE (Driver is required)

Operating Temperature

23^ F to 104^ F (-5^ C to 40^ C)

Rechargeable Battery

Li-Polymer Rechargeable Battery

DC 3.7V, 280mAh

Specifications are subject to change without notice.

FOR FIRMWARE UPGRADE, PLEASE VISIT OUR WEBSITE AT WWW.MEMOREXELECTRONICS.COM TO CHECK IF THERE IS NEW FIRMWARE AVAILABLE.

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT

WWW.MEMOREXELECTRONICS.COM

OR CONTACT CUSTOMER SERVICE AT [phone].

PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR TO MEMOREX.

FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT 1-800-321-6993.

Memcorp, Inc.

Weston, FL

Printed in China

Visit our website at www.memorexelectronics.com
