Product Type	Portable DVD Player
Brand	Impecca
Model	DVP774-2
Display Screen Size	9 inches (diagonal)
Display Type	TFT LCD, swivel 180°
Resolution	800 x 480 pixels
Dimensions	Approx. 10.6 x 7.5 x 1.6 inches (27 x 19 x 4 cm)
Weight	2.6 lbs (1.2 kg) including battery
Power Source	Rechargeable Li-ion battery (7.4V, 2200mAh) + AC/DC adapter (input 100-240V, output 9V/1.5A)
Battery Life	Up to 3 hours of playback
Charging Time	Approx. 4 hours
Disc Compatibility	DVD, DVD±R/RW, CD, CD-R/RW, MP3, JPEG, DivX
Media Inputs	USB 2.0, SD/MMC card slots
Audio & Video Output	AV output (composite), headphone jack (3.5mm)
Audio & Video Input	AV input
Region Code	1 (North America) or region-free (check label)
Parental Control	Yes, with password protection
Remote Control	Included (CR2025 battery)
Additional Accessories	Car adapter, AC adapter, AV cable, user manual
Maintenance & Cleaning	Wipe with a soft, dry cloth. Do not use liquids or abrasive cleaners.
Safety Precautions	Keep away from moisture, heat sources, and direct sunlight. Use only provided chargers.
Spare Parts & Repairability	Contact Impecca support or authorized service centers. Battery and adapter are replaceable.
Warranty	1-year limited warranty

Frequently Asked Questions - DVP774-2 Impecca

How do I charge the DVP774-2 battery?

Connect the AC adapter to the DC input on the player and plug into a wall outlet. The charging indicator will light up. A full charge takes about 4 hours. You can also charge using the included car adapter.

Can I play DVDs from different regions?

The DVP774-2 is typically region-locked to Region 1 (North America). However, some units may be region-free. Check the label on the device or contact Impecca support to confirm. If locked, it will not play discs from other regions.

How do I connect the player to a TV?

Use the included AV cable (composite RCA). Connect the yellow plug to video, red to audio (right), and white to audio (left) on both the player and TV. Set the TV to the correct input source. The player will display the movie on both its own screen and the TV.

Why is my player not reading a disc?

First, check that the disc is clean and free of scratches. Ensure the disc is inserted correctly with the label facing up. Try a different disc. If the problem persists, the lens may be dirty. Use a lens cleaning disc. If still not working, contact Impecca support.

How do I use the USB/SD playback feature?

Insert a USB drive or SD card with compatible files (MP3, JPEG, DivX) into the corresponding slot. Press the MODE/SOURCE button on the remote or front panel to select USB or SD. Use navigation buttons to browse and play files.

The screen is blank or shows 'No Disc'. What should I do?

Make sure the player is powered on and a disc is inserted. If the screen is blank, check the brightness settings. Press the DISPLAY button to cycle through display modes. If 'No Disc' appears, clean the disc or try a known good disc. The laser lens may be faulty.

Can I use headphones with this player?

Yes, there is a 3.5mm headphone jack on the side of the player. When headphones are connected, the built-in speakers are muted. Be careful of volume levels to avoid hearing damage.

How do I set parental controls?

Press the SETUP button on the remote, go to 'Parental Control' or 'Rating', and enter the default password (usually 0000 or 8888). Select a rating level (e.g., PG-13). To lock/unlock, enter the password each time. Write down your password.

My player turns off unexpectedly. What's wrong?

The battery may be low. Check the battery indicator and recharge if needed. The player may also have an auto-off feature after a period of inactivity (e.g., 5 minutes if paused). This can be disabled in the setup menu under 'Auto Power Off'.

How do I reset the player to factory settings?

With the player on, press the SETUP button. Navigate to 'Default' or 'Factory Reset' and confirm. Some models require pressing a small reset button (use a paperclip) near the power input. Wait for the player to reboot. All settings will be cleared.

USER MANUAL DVP774-2 Impecca

Black-and-white photo of a portable PC with a car displayed on screen (no visible text or symbols)

Table Of Contents

Safety Precaution 1

Package 2

Main Features 2

Main Unit Controls 3

System Connection 4

The Remote Control 7

Basic operation 9

System Setup 17

Specification 21

Troubleshooting 22

Safety Precaution

Thank you for choosing our portable DVD player. The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. Please read the manual carefully prior to use and keep it well for future reference.

Remind user to be careful to avoid electric shock

Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

1) Please read the instruction manual carefully and follow all the requirements of safe operation to operate the device.

2) Do not use this unit near water. Do not place the unit over any container with liquid inside.

3) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

4) Unplug this unit during lightning storms or when unused for long time.

5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use liquid detergent or aerosol.

6) Only use accessories specified by the manufacturer.

7) Refer all servicing to qualified service personnel, servicing is required when the unit has been damaged in any way. Such as power supply cord or plug damaged, liquid spilled or objects falling into the unit, exposed to moisture, not operating normally. Don't try to repair the machine by yourself because of the danger of high voltage and electric shock.

8) Do not use irregular shaped discs such as heart or star-shaped discs as they may cause to the unit malfunction.

Package

DVD Player	1
Remote Control with battery	1
AV Cable(DVD to TV)	1
AC/DC Power Adapter	1
Cigarette Lighter Adapter	1
User Manual	1
Earphone	1

Main Features

● High brightness color 7" LCD screen
● Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc
● Built-in stereo speaker
● Built-in rechargeable Lithium polymer battery
● Support PAL or NTSC system
● Support Multi-language OSD, speed forward/backward, repeat function
- Zoom in/out function

Main Unit Controls

1. SETUP button
   2.MODE button
   3.PLAY/PAUSE button
   4.STOP button
2. ▲ (◀)/▼ ⬤( ◀◀ )▶
   6.OK button
   7.Open knob
   8.DC IN 9-12V
3. Power ON/OFF switch
   10.AV OUT
4. Earphone jack
   12.Volume knob
5. SD card slot
   14.USB port
6. Rating label position

System Connection

Powering and installation

Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the unit, then plug the other end into the AC power receptacle. Please refer to the following illustration.

Diagram of a device with connected power and socket connections (no text or symbols)

If using car cigarette lighter adaptor to connect to the power: Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket. See illustration below.

Line drawing of a device rear panel with ports and cables, no text or symbols present

Note:

1. Car cigarette lighter adaptor is not recommended to recharge the battery.
   2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.
2. The mains plug is used as the disconnect device, the disconnect device should remain readily operable.

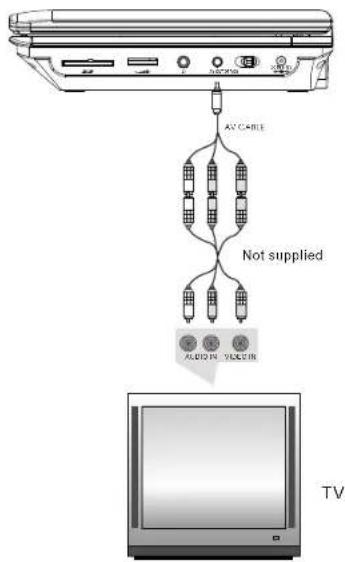

Connecting to TV

You can also connect the unit to TV to enjoy high quality picture and stereo sound. Please refer to the following illustration:

Please use AV cable to connect the machine and the TV. Make sure it is connected correctly.

Connecting with external Speaker

The unit can be connected with external speaker. Please see the following illustration.

Note:
There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channel.

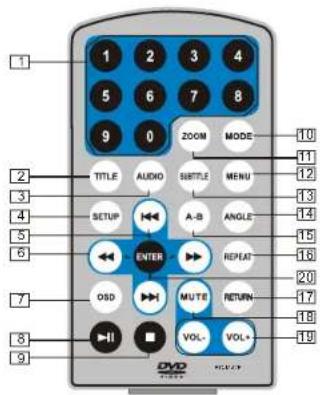

The Remote Control

1. Number button
2. TITLE(To display title information)
3. AUDIO(To select audio language)
4. SETUP(To go to or exit setup menu)
5. Previous/Next button(To go to previous/next chapter or scene during playing)
6. Fast forward/backward button(To scan forward/backward at 2,4,8,16,or 32 times)
7. OSD(To display disc information during playing such as elapsed and remaining time)
8. ▶ PLAY/PAUSE
9. ■ STOP(press once to stop playback, then press ▶ to resume playback from the point where you stopped; press stop button twice to stop playback completely)

10. MODE(To select the source)

11. ZOOM(To zoom in/out the image during the playback)

12. MENU(To enter or exit root menu)
13. SUBTITLE(To select subtitle language when playing DVD disc)
14. ANGLE(To change viewing angle when playing disc with multi-angle)
15. A-B(Repeat a specific portion from point A to B, press it again to cancel repeat playing)
16. REPEAT(To repeat playing title, chapter or track)
17. RETURN(To return to the main menu)
18. MUTE(To turn to mute)
19. VOL +/- (To adjust the volume)
20. ENTER(To confirm)

The Use of Remote Control

Please put the battery into the remote control as per below illustration.

CR2025 CR2025

When using remote control, make sure the infrared window is pointed to infrared receiving window of the machine. The distance between machine and remote control must be within 3 metres. Please refer to the following illustration.

Note:

1. To avoid falling off or place near damp environment.
2. To avoid infrared receiving window of the unit being under direct sunlight.
3. Please use a new battery to replace old one if the remote control doesn't work.

Basic Operation

Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3.

1. In the Source Mode, you can press to select and ENTER key to enter the source you want.

1. Open the disc door and insert a disc into the door with the label side facing up.
2. Close the disc door. The unit will load the disc and start playing.
3. Press" ■ "once to stop playback; press" ▶ "to resume playback from the point where you stopped; press" ■ "twice to stop playback completely.
4. During playback, press"▶"to pause; press it again to resume playback.
5. When the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.
6. For some DVD disc with Title or Chapter menu, press"MENU"button to entermenu page, and use"◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀▶

Note:

Please do not disconnect USB devices or plug out SD/MMC cards while they are working with the unit. Functional failure may occur in case of wrong operations.

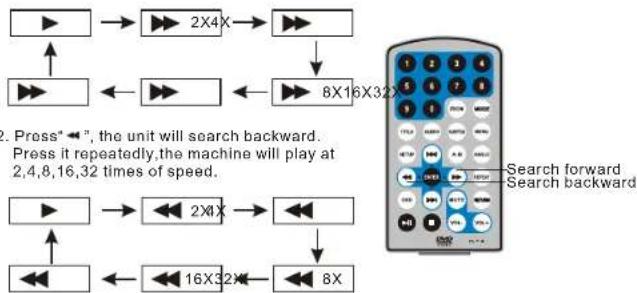

Fast forward and fast backward

When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or backward.

1. Press▶, the unit will search forward. Press it repeatedly, the machine will play at 2, 4, 8, 16, 32 times of speed.

Repeat playing

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeat playing one chapter, title or the whole disc.

For DVD disc, press "repeat" button, user can repeat playing one Chapter; press it again to repeat playing Title; press it the third time to repeat playing the whole disc.

For MP3 disc, press "repeat" button to repeat playing present file; press it again to repeat playing the folder; press it the third time to cancel repeat function.

For CD/VCD disc, press "repeat" button repeatedly to repeat the track and the whole disc.

Repeat playing of favorite scene

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3.user can repeatedly play a specific section.

During playback, press "A-B" button at a point A, then press this button again in point B, the unit will automatically repeat playing the part between "A-B"

Press it the third time, the unit will return to normal playback.

During playing DVD disc with multi-angle, press "Angle" button to change the display angle. Note:

The function is available only for discs with multi-angle.

Zoom in/ out

When playing disc of DVD,MPEG4,SVCD,VCD,user can zoom in or zoom out the image.

During playback, press "Zoom" button, the image will be enlarged; press it again the image will be enlarged again; press it fourth time, the image will zoom out, press it repeatedly and the image will return to normal status.

When the image is enlarged, user can press "«/»/«/»" to move the image.

Playing JPEG file in data disc

1. Place a JPEG disc into the tray, the unit will start reading and play.
2. Press "to select a JPEG file and press" ENTER button to confirm.
   Note: you can press "MENU" to return to the folder list. Press ▶ or "ENTER" to preview the file selected.
3. To rotate the picture counter-clockwise, press "";Press" to rotate the picture clockwise.
4. Press OSD button when viewing pictures, you can select different refresh mode as follows:

1 from top to bottom
2. from bottom to top
3. from left side to right side
4. from right side to left side
5 from left top to right bottom
6. from right top to left bottom
7 from left bottom to right top
7. from left bottom to right top 8. from right bottom to left top
8. from right bottom to left top 9. from horizontal center to both sides
10 from vertical center to both sides
10. from vertical center to both side 11. from top and bottom to center
11. from top and bottom to center
12.from right and left to center
13.from four window's top side to bottom side
14.from four window's left side to right side
15.from 4 edges to center

1. During viewing files, "may appear when pressing"angle"or"Subtitle"or"Audio" or"A-B"or"Title"etc; in this situation these options are unavailable to operate.

2. When viewing JPEG files, press "■", pictures will be displayed in thumbnail mode, press "◀◀◀◀◀◀◀" or "ENTER" button to select one picture to view.

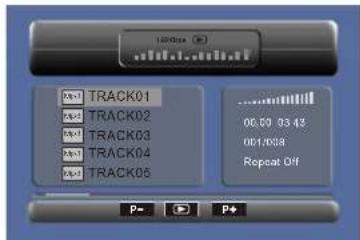

Playing MP3 files in data disc

Place MP3 disc into the disc door. Press "◀◀◀" or "ENTER" button to choose an MP3 file;Press "◀◀" or "ENTER" button to play the file selected.

SD/MMC/USB main menu

Four stylized 3D blocks of varying sizes arranged horizontally on a dark background (no text or symbols)

After entering the SD/MMC or USB, the system will show Main Menu which includes 4 Function ICONS. You can select them by press key to confirm." "ENTER"

Browser Mode Please refer to P14 for detail explanation

Photo Mode Please refer to P14 -15 for detail explanation

Music Mode Please refer to P15 for detail explanation

Movie Mode Please refer to P16 for detail explanation

Note: Media cards formatted in exFAT file system are not supported.

Browser mode

In the Browser Mode, the system will show the list of file and folder.

"◀", "▶key:ENB@Rnd play
“▶”: Enter the folder
“◀”: Quit the folder

Note:

If you want to return to the Main Menu, please make sure the system is in list of file or folder status, then press "RETURN" KEY.

Photo mode

Grid of grayscale landscape photos including landscapes, mountains, and animals (no text or symbols)

In the Photo Mode, the System will show the thumbnail Mode first.

"◀", "▶", "select and" ENYER

Slide Show: play the JPEG.

Menu: Enter the Help Menu.

Prev:Page Up

Next:Page Down.

When playing JPEG :

1. Torotate the picture counter-clockwise, press "◀"; Press"▶" to rotate the picture clockwise

2. Press OSD button when viewing pictures, you can select different refresh mode as follows:

3. from top to bottom

4. from bottom to top
5. from left side to right side
6. from right side to left side
7. from left top to right bottom
8. from right top to left bottom
9. from left bottom to right top
10. from right bottom to left top
11. from horizontal center to both sides
    [10] from vertical center to both sides
12. from top and bottom to center
13. from right and left to center
14. from four window's top side to bottom side
    14 from four window's left side to right side

15. from 4 edges to center

16. During viewing files,""may appear when pressing"Angle"or"Subtitle"or"Audio" or"A-B"or"Title"etc:in this situation these options are unavailable to operate.

17. When viewing JPEG files, press "■" and "RETURN" key, pictures will be displayed in thumbnail mode, press "◀◀◀◀◀◀" or "ENTER" button to select one picture to view.

Note:

If you want to return the Main Menu, please press"RETURN"key in the thumbnail mode.

Music mode

In the Music Mode, the system will show the list of music file, like Mp3 and so on. Press "SELECT ENTER".

Press "to fast forward /backward MP3 during playing.

Press to select the function button when in stop status.

Page-:Page Up.

:pla

Page+:Page Down

Note: Press*Return*Key to Return to the Main Menu.

Movie mode

In the Movie Mode, the system will show the list of Movie file, like AVI and so on.

"◀◀", "KeyENTeR and Play.

When playing movie you can press MENU and Return Key to back to the list of movie file status. And if you want to Return to the Main Menu, Please Press Return key in list of Movie file status.

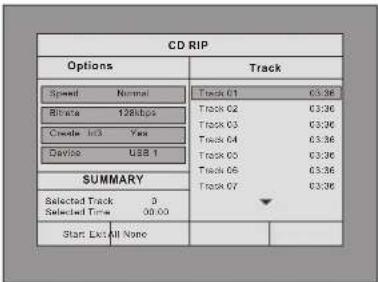

CD RIPPING

During playing the CD/HDCD disc, you can enter CD Ripping function. By pressing subtitle button, DVD player will be able to change the CD format into MP3 format, and then store it in the USB or SD card.

Speed: In this item, you can set the rip speed: Normal or Fast.

Bitrate: In this item, you can set the bitrate. It has 6 choices, 128Kbps, 192Kbps, 256Kbps, 320Kbps, 96Kbps and 112Kbps.

Create ID3: In this item, you can create ID3 when playing CD text.

Device: This item indicates whether USB or SD CARD is connected with DVD player.

Exit: Exit to the previous menu

All: Select all the files in the disc for conversion and storage.

None: Cancel the selection

Start: Move the cursor to the item and press "ENTER" button, the conversion begins.

During the converting, you can select "CANCEL" to stop it.

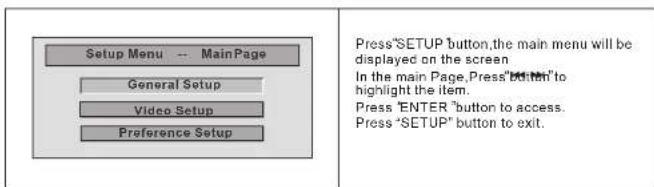

System Setup

General Setup Page

	TV display:Enter this option, user can set screen display format(Nomal/PS, Nomal/LB, Wide)The default is "Wide"Note:☆ The function depends on the display ratio with which the DVD disc is recorded.☆ Please choose "Wide(16:9) when using a 16:9 wide screen TV set.
	Angle Mark:Enter this option to set the angle during playback.Optional setting:ON,OFFThe default is:ON
	OSD Language:In the option user can set OSD menu language(English,French,German,Italian).The default:English
	Screen Saver:Enter this option to set whether to activate the screen saver function.The default is ON.

Video Setup Page

	TV Type:Enter this option to select TV type(PAL,NTSC)The default is PAL.
	Set the Video Quality of AV OUT
	Set the Video Quality of PANEL

Preference Page

Preference Setup
Audio	ENG	English
Subtitle	Off	French
Disc Menu	ENG	German
Parental		Italian
Default

	Subtitle:Select your preferred language to show the subtitles on the screen.The default is OFFThe subtitle languages depend on the information available on each disc,You can also change the subtitle language during playback by press the SUBTITLE button.
	Disc Menu:This function allows you to choose the menu language stored on the disc.The default is English.Note:the disc menu languages depend on the information available on the disc.
	Parental:Enter this option to set the parental control level to some unsuitable disc scenes being watched by the children.Optional parental control levels: KID SAFE, G, PG,PG 13,PGR, R, No17, ADULT.The default is ADULT.The default password:8888.
	Default:Select this item and pressEN#S#n to reset.

Specification

Compatible disc: DVD/VCD/CD/MP3/MPEG4

Signal system: PAL/NTSC

Panel size: 7 inch

Frequency response: 20 Hz to 20 kHz

Video output: 1 Vp-p/75Ohm, unbalanced

Audio output: 1.4Vrms/10kOhm

Audio S/N: Better than 80dB

Dynamic range: Better than 85dB

Laser: Semiconductor Laser, Wave Length: 650nm/795nm

Power source: DC 9-12V

Power consumption: 10 W

Operating temperature: 0\~40°C

Weight: 0.72kg

Dimensions : 210 x 162 x 40 mm

Battery Type: Li Polymer

Note:

1. The quality and speed for reading JPEG photos depend on the resolution and compression ratio of the photos. Some JPEG photo may not be played due to the disc quality and the formats.

2. Some DVD+R/RW, DVD-R/RW, CD-R/RW disc may not be played due to the quality on burning conditions.

Rechargeable battery use

The machine utilize s long-life Li polymer battery for portable power supply. The battery has no "Memory Effect" and thus can be recharged safely regardless of whether the battery is fully or partially discharged. It's enough to recharge no longer than 3H each time, fully recharged battery can last about 2 hours with earphone.

Precautions related to Battery Recharge

The battery can be only recharged when turning power to OFF state, and keep continuous power supply, the red light will be on, and the light will turn yellow when it's fully charged.

Using and Maintaining Rechargeable Battery

1. The normal working temperature is:0°G-40

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing, it's normal, while avoid long time playing and unattendance;

4. Avoid having the unit collide with any objects, and place away from all possible heat sources or damp areas.

Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Troubleshooting

PROBLEM	SOLUTION
No sound or distorted sound	Make sure the machine is connected properly.Make sure all cables are securely inserted into the appropriate jacks.
Can't advance through a movie	You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.
The icon 7 appears on screen	The feature or action cannot be completed at this time because:1.The disc's software restricts it.2.The disc's software doesn't support the feature (e.g., angles)3.The feature is not available at the moment.4.You've requested a title or chapter number that is out of range.
Picture is distorted	The disc might be damaged.Try another disc;it is normal for some distortion to appear during forward or reverse scan.
No forward or reverse scan	Some discs have sections that prohibit rapid scanning or chapter skip;If you try to skip through the warning information and credits at the beginning of a movie,you won't be able to.This part of the movie is often programmed to prohibit skipping through it.

If at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic equipment Directive)

Owing to continuous improvement, no prior notice will be given regarding changes on above feature and spec.
