Product Type	Flip Cellphone
Model	AX5450
Network Technology	CDMA (800 MHz, 1.9 GHz)
Display	8-line backlit LCD with status icons
Keypad	19-key alphanumeric
Camera	VGA (640x480) with self-timer, multishot, color effects, fun frames
Memory	500 phonebook entries, 116 messages
Battery	Rechargeable Li-Ion (LG LGLI-ACLM/L)
Talk Time	Up to several hours (depends on usage)
Standby Time	Up to several days (depends on usage)
Charger	AC adapter (model AC-100 or 8102)
Dimensions	Approx. 3.5 x 2 x 1 in (typical flip phone)
Weight	Approx. 3.5 oz (typical)
Languages	English, Spanish
Data Connectivity	USB data cable, serial data cable, 1X packet data
Messaging	SMS, MMS, Voicemail
Special Features	Speed dial, voice dial, T9 text input, schedule, alarm, calculator, world clock
Safety Certifications	FCC Part 15, SAR 1.32 W/kg (head), 0.686 W/kg (body)
Warranty	1 year limited (parts and labor)

Frequently Asked Questions - AX5450 LG

How do I turn on the LG AX5450?

Press and hold the END/PWR key for a few seconds until the red light flashes.

How do I charge the battery?

Use only LG-approved chargers (AC adapter model AC-100 or 8102). Plug the charger into the phone and an AC outlet. The battery charges fully in about 5 hours.

What should I do if my phone gets wet?

Turn it off immediately and remove the battery. If the phone does not work after drying, take it to an LG Authorized Service Center.

How can I save a contact with a pause?

Enter the phone number, then press the Right Soft Key Pause to insert a hard pause (P) or 2-second pause (T). Continue entering digits and save the contact.

Can I use the phone while it is charging?

It is not recommended as it may short-circuit the phone and cause electric shock or fire. Unplug the charger before use.

How do I set the phone to vibrate only?

In standby mode, press and hold the Manner Mode/Silence All Mode key for 3 seconds to enable Manner Mode (vibrate). Press again for Silence All Mode (no sound, only light).

What is the maximum capacity of the phonebook?

The phonebook can store up to 500 entries, each with up to 5 phone numbers (48 digits each).

How do I take a selfie?

Use the mirror on the top front of the phone. When your image is centered, press the volume control key to take the photo.

My phone does not charge. What should I check?

Ensure you are using an LG-approved charger. Clean the battery contacts. If the battery is old, replace it. Do not expose the charger to direct sunlight or high humidity.

Is the phone safe to use near medical devices?

RF emissions may affect pacemakers and hearing aids. Keep the phone at least 6 inches away from medical devices. Turn it off in healthcare facilities when instructed.

USER MANUAL AX5450 LG

AX5450 Cellular Phone

Front view of a silver LG flip phone with visible digital display and antenna (no text or symbols on device body)

AX5450

WARNING! To reduce the possibility of electric shock, do not expose your phone to high humidity areas, such as a bathroom, swimming area, etc.
Caution: Use only LG-approved batteries and phone chargers to avoid the damage to the phone. Using other batteries or chargers voids your warranty and may cause an explosion.
Caution: Do not use batteries and phone chargers for other than their intended purposes.
Never store your phone in temperatures less than -4°F or greater than 122°F, such as outside during a snowstorm or in your car on a hot day. Exposure to excessive cold or heat may result in phone malfunction, damage and/or failure.
Use caution when using your phone near other electronic devices. RF emissions from your mobile phone may affect nearby inadequately shielded electronic equipment. Consult manufacturers of any personal medical devices such as pacemakers and hearing aides to determine if they are susceptible to interference from your mobile phone. Turn off your phone in a medical facility or at a gas station.

IMPORTANT! Please read the TIA safety information in chapter 5 before using your phone.

AX5450

Contents

Introduction 7

Important Information 7

Check Accessories 7

Bodily Contact During Operation .....8

Vehicle-Mounted External Antenna 9

FCC Part 15 Class B Compliance .....9

Battery Safety 9

Battery Disposal 10

Charger and Adapter Safety 10

Getting Started ....11

Phone Components 11

Phone Overview 12

Using the Battery Pack 14

Installing the Battery ....14

Removing the Battery 14

Battery Charge Level 15

Battery Information and Care 15

Screen Icons 17

Phone Menu Reference 18

Accessories 20

Battery 20

Cigarette Lighter Charger 20

Headset 20

Hands-Free Car Kit (Portable) .....21

AC Adapter 21

Serial Data Cable 21

USB Data Cable 21

Safety Information 23

Explosion, Shock, and Fire Hazards .....23

General Warnings and Cautions .....24

Technical Details 26

Basic Functions .....29

Turning the Phone On and Off 29

Turning the Phone On .....29

Turning the Phone Off .....29

Making a Call 30

AX5450

Correcting Dialing Mistakes .....31

Receiving Calls 31

Using Manner, Silence All, and Lock Mode .....31

Manner Mode (Quick) .....31

Silence All Mode (Quick) 32

Lock Mode (Quick) 32

Call Waiting 33

Mute 33

Redialing Calls 33

Adjusting the Volume 34

Power Save Mode 34

Signal Strength 34

Speed Dialing 35

Caller ID 35

Additional Functions....37

Entering information using T9 Text Input .....37

Input mode 37

Key Functions 38

Changing Letter Case ....39

Example: Using T9 Text Input .....40

Using the NEXT Key .....40

Adding Words to the T9 Database .....41

Examples Using Abc (Multi-tap) Text input .....42

Phone Book Features 42

Personal Phone Book Memory 42

Saving Numbers in Your Phone Book .....43

Retrieving Numbers 44

Making a call from Your Phone Book 44

Advanced Phone Book Features 45

Pause 45

Storing a number with pauses 45

Prepending a Stored Number 46

Dynamic Search 47

Menu Features ....49

General Guidelines 49

Camera 50

Take Photo 50

Gallery 51

AX5450

Send Photo Msg 52

Photo Inbox 52

Photo Outbox 53

Photo Saved 54

Photo Settings 55

Erase All 56

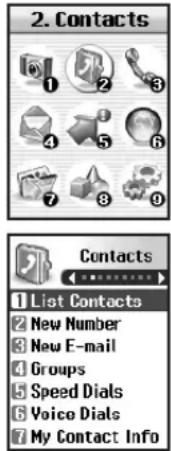

Contacts 57

List Contacts 57

New Number 57

New E-mail 58

Groups 58

Speed Dials 58

Voice Dials 59

My contact Info 60

Recent Calls 60

Dialed Calls 61

Received Calls 61

Missed Calls 61

Erase Calls 62

Call Timer 62

1x Packet Counter 63

Messages 63

Message Menu 64

New Message Alert 64

Voice Mail 65

New Message 65

Inbox 68

Out of Memory Warning 69

Outbox 70

Message Status Reference .....72

Saved 72

Msg Settings 73

Erase All 75

Axcess 76

Get Apps ....77

Get Info 78

Mobile web 78

Start Browser 78

AX5450

Web Messages 82

Web Settings 82

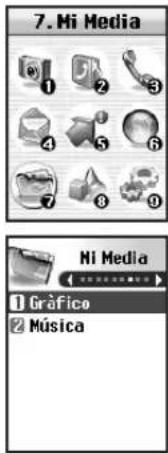

My Media 83

Graphics 83

Music 84

Tools 84

Schedule 84

Alarm Clock 85

Voice Memo 86

My Shortcut 86

Notepad 87

Ez Tip Calc .87

Calculator 87

World Clock 88

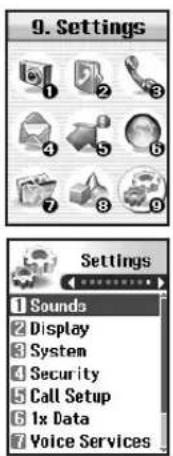

Settings 88

Sounds 88

Display 92

System 97

Security 99

Call Setup 102

1X Data 106

Voice Services 108

Location 110

Phone Info 110

Safety Guidelines ....113

TIA Safety Information 113

Exposure to Radio Frequency Signal .....113

FDA Consumer Update ....118

Consumer Information on SAR 130

LIMITED WARRANTY STATEMENT .....132

Index 135

AX5450

Introduction

Congratulations on your purchase of the advanced and compact AX5450 cellular phone, designed to operate with the latest digital mobile communication technology, Code Division Multiple Access (CDMA). Along with the many advanced features of the CDMA system such as greatly enhanced voice clarity this phone offers:

● Large, easy-to-read, 8-line backlight LCD with status icons.
- Paging, messaging, voice mail, and caller ID.
19-key keypad.
- Long battery stand-by and talk time.
- Menu-driven interface with prompts for easy operation and configuration.
- Any key answer, auto answer, auto retry, one-touch and speed dialing with 199 memory locations.
● Bilingual (English and Spanish).

Important Information

This user's manual provides important information on the use and operation of your phone. Please read all the information carefully prior to using the phone for the best performance and to prevent any damage to or misuse of the phone. Any unapproved changes or modifications void your warranty.

Check Accessories

Your mobile phone comes with an AC adapter and a rechargeable battery. Please verify that these accessories are included.

FCC RF Exposure Information

WARNING! Read this information before operating the phone.

In August 1996, the Federal Communications (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards.

CAUTION

Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could impair call quality, damage the phone, void your warranty and/or result in violation of FCC regulations.

Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin a minor burn may result. Contact your local dealer for a replacement of antenna.

Bodily Contact During Operation

This device was tested for typical use with the back of the phone kept 3/4 in (2 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 3/4 inches (2 cm) must be maintained between the user's body and

the back of the phone, including the antenna whether extended or retracted. Third-party belt-clips, holsters, and similar accessories containing metallic components should not be used. Avoid the use of accessories that cannot maintain 3/4 in (2 cm) distance between the user's body and the back of the phone and have not been tested for compliance with FCC RF exposure limits.

Vehicle-Mounted External Antenna

(Optional, if available.)

A minimum distance of 8 in (20 cm) must be maintained between the user / bystander and the vehicle-mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, visit the FCC website at www.fcc.gov.

FCC Part 15 Class B Compliance

This device and its accessories comply with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that causes undesired operation.

Battery Safety

• Do not disassemble.
• Do not short-circuit.
• Do not expose to high temperatures : 60 °C (140 °F)
• Do not incinerate.

Battery Disposal

• Please dispose of your battery properly or take it to your local wireless carrier for recycling.
• Do not dispose of your battery in fire or with hazardous or flammable materials.

Charger and Adapter Safety

• Using the wrong battery charger could damage your phone and void your warranty.
  ● The charger and adapter are intended for indoor use only.
• Do not expose the battery charger or adapter to direct sunlight or use it in places with high humidity, such as a bathroom.

AX5450

1 Getting Started

Phone Components

The following shows key components of your mobile phone.

Phone Overview

1. Earpiece
2. Flip Design Flip open the case to answer an incoming call and close to end the call.
3. Message Key Use to retrieve or send voice and text messages.
4. SEND Use to place or answer calls.
5. Side Keys Use to adjust the key beep volume in standby mode and the earpiece volume during a call.
6. Headset Jack
7. Manner Mode/Silence All Mode Key Use to set the Manner Mode by pressing and holding the 📄 for about 3 seconds while in standby mode.

Note: The manner mode you select remains in effect even when you turn the phone off and back on.

1. LCD Screen Displays messages and indicator icons.
2. Soft Keys

Left Soft Key

Use to display the function setting menu.

Right Soft Key

Use to select an action within a menu.

1. Camera Key OK Use to access the camera menu, take pictures and activate a highlighted option in the menus and submenus in the phone.

2. Navigation Key Use for quick access to phone functions:

Text and voice mail notification messages.

Schedule

Axcess

Mini Browser

1. END/PWR Use to turn the power on/off and to end a call. Using this key, you can return to the main menu display screen.
2. Back Press to delete a single space or character. Press and hold to delete entire words. Press this key once in a menu to go back one level.
3. Alphanumeric Keypad Use to enter numbers and characters and choose menu items.
4. Lock Mode Key Use in standby mode to set the lock function by pressing and holding the

key for about 3 seconds.

1. Microphone

Using the Battery Pack

Note: It is important to charge the battery fully before the initial use of the phone.

The phone comes with a rechargeable battery. Keep the battery charged while not in use in order to maximize talk and standby time when using the phone.

Installing the Battery

To install the battery, insert the bottom of the battery into the opening on the back of the phone. Then push the battery down until the latch clicks.

Removing the Battery

Turn the power off. Lift the release latch to detach the battery.

Diagram of a flip phone with labeled slot (no text or symbols on the device itself)

Battery Charge Level

The battery charge level is shown at the top right of the LCD screen.

Fully Charged
Fully Discharged

When the battery charge level becomes low, the low battery sensor alerts you in three ways: sounding an audible tone, blinking the battery icon, and displaying LOW BATTERY WARNING! If the battery charge level becomes exceedingly low, the phone automatically switches off and any function in progress is not saved.

Battery Information and Care

1. Never use an unapproved battery since this could damage the phone and / or battery and could cause the battery to explode.
2. The battery does not need to be fully discharged before recharging.
3. Use only LG approved chargers specific to your phone model since they are designed to maximize battery life.
4. Do not disassemble or short-circuit the battery.
5. Keep the battery's metal contacts clean.
6. Replace the battery when it no longer provides acceptable performance. The battery can be recharged several hundred times before replacement.

7. Recharge the battery after long periods of non-use to maximize battery life.

8. Do not expose the battery charger to direct sunlight or use it in areas of high humidity such as a bathroom.

9. Battery life will decrease if exposed to extreme hot or cold temperatures.
10. Battery life will vary due to usage patterns and environmental conditions.
11. The use of extended backlighting, MiniBrowser, and data connectivity kits affect battery life and talk/standby times.

Screen Icons

Icons	Descriptions
	Displays the strength of the signal received by the phone and current signal strength is indicated by the number of bars displayed on the screen.
	No service. The phone is not receiving a system signal.
	In use. A call is in progress.* No icon indicates the phone is in standby mode.
	Digital indicatorDigital service is available.
	Roaming The phone is outside of the home service area.
	1x service.
	New voicemail.
	New text & voice message.
	New text message.
	Location on mode.
	E911 only mode.
	Charge level: Indicates battery charge level.
	New picture message.
	Transmit/Receive(Packet data mode).
	Transmit/Receive(Dormant mode).
	Transmit/Receive(Circuit data mode).

Phone Menu Reference

Press Left Soft Key Menu. Press to

Camera

1.Take Photo

1. Gallery

2. Send Photo Msg

3. Photo Inbox

4. Photo Outbox

5. Photo Saved

6. Photo Settings

7. Auto Save

8. Auto Delete

9. Auto Receive

10. Pix Msg Alert

5.Text Entry Mode

1. Quick-Text

2. Erase All

3. Inbox

4. Outbox

5. Saved

6. All

Contacts

1. List Contacts

2. New Number

3. New E-mail

4. Groups

5. Speed Dials

6. Voice Dials

7. My Contact Info

Recent Calls

1. Dialed Calls

2. Received Calls

3. Missed Calls

4. Erase Calls

5. Dialed Calls

6. Received Calls

7. Missed Calls

8. All Calls

9. Call Timer

10. Last Call

11. Home Calls

12. Roam Calls

13. All Calls

14. 1x Packet Counter

Messages

1. Voice Mail

2. New Message

3. Inbox

4. Outbox

5. Saved

6. Msg Settings

7. Auto Save

8. Auto Delete

9. Callback #

10. Msg Alerts

11. Signature

12. Direct View

13. Entry Mode

14. Edit Voice Mailbox #

15. Erase All

16. Inbox

17. Outbox

18. Saved

19. All

Axcess

1. Get Apps

2. Get Info

Mobile Web

1. Start Browser

2. Web Messages

3. Web Settings

4. Prompt

5. Alert Beep

My Media

1. Graphics

2. Music

Tools

1. Schedule

2. Alarm Clock

3. Alarm 1

4. Alarm 2

5. Alarm 3

6. Quick Alarm

7. Voice Memo

8. My Shortcut

9. Notepad

10. Ez Tip Calc

11. Calculator

12. World Clock

Settings

1. Sounds

2. Ringers

3. Key Tone

4. Volume

5. Alerts

6. Power On/Off Tone

7. Display

8. Banner

9. Backlight

10. Screens

11. Menu Style

12. Clocks

13. Theme Colors

14. Fonts

15. Language

16. Power Saver

17. Status Light

18. System

19. Select System

20. Set NAM

21. Auto NAM

22. Serving System

23. Security

24. Lock Phone

25. Restrict

26. Emergency #s

27. Change Code

28. Erase Contacts

29. Reset Default

30. Call Setup

31. Auto Retry

32. Answer Call

33. Auto-Answer

34. One-Touch Dial

35. Voice Privacy

36. Auto Volume

7.TTY Mode

1. 1X Data

2. Data/Fax

3. Select Port

4. Port Speed

5. Voice Services

6. Voice Dial Prompt

7. Answering Machine

8. Train Words

9. Location

10. Location On

11. E911 Only

12. Phone Info

13. My Phone Number

14. S/W Version

15. Icon Glossary

16. Shortcut Help

AX5450

Accessories

There are a variety of accessories available for your mobile phone. You can select these options according to your personal communication requirements. Consult your local dealer for availability.

Battery

Two batteries are available for standard and extended battery charge. (LGLI-ACLM, LGLI-ACLL)

Cigarette Lighter Charger

You can operate the phone and trickle charge the phone's battery from your vehicle by using the cigarette lighter charger, model CLC-42W. It takes 5 hours to charge a completely discharged battery.

Headset

Connects to your phone, allowing hands-free operation. Includes ear-piece and microphone. (Headset 1000)

AX5450

Hands-Free Car Kit (Portable)

The hands-free car kit, model PHF-50W enables you to attach the phone to the power jack in your car, providing you with hands-free operation. It can charge a completely discharged battery in 5 hours.

Electronic device with coiled cable, earable sensor, and cable cord (no visible text or symbols)

AC Adapter

This adapter, model AC-100(or 8102), can be used to charge the battery anywhere there is an AC outlet

Serial Data Cable

Connect your phone to your PC. (LG-DC200DJ)

USB Data Cable

Connect your phone to your PC. (LG-USB8000)

Safety Information

Please read and observe the following information for the safe and proper use of your phone and to prevent any unanticipated damage. Also, keep the user's manual in an accessible place at all the times after reading it.

Explosion, Shock, and Fire Hazards

• Unplug the power cord and charger during lightning storms to avoid electric shock or fire.
• Do not use your phone in high explosive areas as the phone may generate sparks.
• Do not put your phone in a place subject to excessive dust and keep the minimum required distance between the power cord and heat sources.
• Unplug the power cord prior to cleaning your phone, and clean the power plug pin when it is dirty.
• Do not damage the power cord by bending, twisting, pulling, or heating. Do not use the plug if it is loose as it may cause a fire or an electric shock.
• When using the power plug, ensure that it is firmly connected. If it is not, it may cause excessive heat or fire.
• Do not place any heavy items on the power cord. Do not allow the power cord to be crimped as it may cause fire or electric shock.
• Do not disassemble the phone.
• Do not place or answer calls while charging the phone as it may short-circuit the phone and/or cause electric shock or fire.

AX5450

• If you put your phone in a pocket or bag without covering the receptacle of the phone (power plug pin), metallic articles (such as a coin, paperclip or pen) may short-circuit the phone. Always cover the receptacle when not in use.
• Do not short-circuit the battery. Metallic articles such as a coin, paperclip or pen in your pocket or bag may short-circuit the + and – terminals of the battery (metal strips on the battery) upon moving. Short-circuits of the terminal may damage the battery and cause an explosion.
• Do not disassemble the battery as it may cause electric shock, short-circuit, or fire.
• Do not expose the phone to excessive vibration or a sharp impact.
• Never place your phone in a microwave oven as it will cause the battery to explode.

General Warnings and Cautions

• Store the battery in a place out of reach of children.
• Using a damaged battery or placing a battery in your mouth may cause serious injury.
• Do not place items containing magnetic components such as a credit card, phone card, bank book or a subway ticket near your phone. The magnetism of the phone may damage the data stored in the magnetic strip.
• Do not hold or let the antenna come in contact with your body during a call.

AX5450

• Talking on your phone for a long period of time may reduce the call quality due to heat generated during use.
• When the phone is not used for a long period time, store it in a safe place with the power cord unplugged.
• Only use the batteries, antennas, and chargers provided by LG. The warranty will not be applied to products provided by other suppliers.
• Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference in this phone.
• Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty.
• Use only the antenna provided or approved by LG. Unauthorized antennas, modifications or attachments may affect the quality of phone call, damage the phone or result in a violation of FCC regulations.
• Do not use the cellular phone if the antenna is damaged. If the damaged antenna gets in contact with the skin, it may cause a slight burn. Please contact LG Authorized Service Center to replace the damaged antenna.
• Do not use the cellular phone in areas where its use is prohibited. (For example: aircraft).
• Do not expose the cellular phone to high temperatures or high humidity.
• Do not immerse your cellular phone in water. If this happens, turn it off immediately and remove the battery. If the phone does not work, take it to an LG Authorized Service Center.

Technical Details

TheAX5450 is a dual-band phone that operates on both Code Division Multiple Access (CDMA) frequencies: cellular services at 800 MHz, and Personal Communication Services (PCS) at 1.9 Ghz.

CDMA technology uses a feature called DSSS (Direct Sequence Spread Spectrum) that enables the phone to keep communication from being crossed and to use one frequency channel by multiple users in the same specific area. This results in a 10-fold capacity increase when compared with analog mode. In addition, features such as soft / softer handoff, hard Handoff, and dynamic RF power control technologies combine to reduce call interruptions. The Cellular and PCS CDMA networks consist of MSO (Mobile Switching Office), BSC (Base Station Controller), BTS (Base station Transmission System), and MS (Mobile Station). The following table lists some major CDMA standards.

CDMA Standard	Designator Description
Basic Air Interface	TIA/EIA-95ATSB-74ANSI J-STD-008TIA/EIA-IS2000	CDMA Dual-Mode Air Interface14.4kbps radio link protocol and inter-band operationsIS-95 adapted for PCS frequency band cdma2000 1xRTTAir Interface
Network	TIA/EIA/IS-634TIA/EIA/IS/651TIA/EIA/IS-41-CTIA/EIA/IS-124	MAS-BSPCSC-RSIntersystem operationsNom-signaling data comm.
Service	TIA/EIA/IS-96-BTIA/EIA/IS-99TIA/EIA/IS-637TIA/EIA/IS-657IS-801	Speech CODECAssign data and faxShort message servicePacket dataPosition DeterminationService (gpsOne)
Performance	TIA/EIA/IS-97TIA/EIA/IS-98ANSI J-STD-018ANSI J-STD-019TIA/EIA/IS-125	Cellular base stationCellular mobile stationPCS personal stationPCS base stationSpeech CODEC

* TSB -74: Protocol between an IS-95A system and ANSI J-STD-008
1xRTT system receives twice as many subscribers in the wireless section as IS-95. Its battery life is twice as long as IS-95. High-speed data transmission is also possible.

AX5450

AX5450

2 Basic Functions

Turning the Phone On and Off

Turning the Phone On

1. Install a charged battery pack or connect the phone to an external power source such as a cigarette lighter adapter or car kit.
2. Press for a few seconds until the red light in the middle of the phone flashes.

NOTE: Like any other radio device, avoid any unnecessary contact with the antenna while your phone is on.

Turning the Phone Off

1. Press and hold until the display turns off.

Making a Call

When you make a call, follow these simple steps:

1. Make sure the phone is turned on. If not, press

1. Enter the phone number, with area code (if needed).

2. Press 📄. If the phone is locked, enter the lock code.

Call Failed - indicates that the call did not go through.

Restricted - indicates outgoing calls are in restricted mode. You can only dial phone numbers saved in the Emergency or Phone Book list.

To turn off this function:

Menu->9wxz Settings->4cm Security->Enter

Lock Code -> 2ABC Restrict -> Off -> OK

1. Press to make the call.

If one-touch is enabled, type in the phone book speed dial number or hold the last digit until the call is made.

NOTE: The phone number and entry name appear on the display when you type in the speed dial number and hold the last digit.

Correcting Dialing Mistakes

If you make a mistake while dialing a number, press BACK once to erase the last digit entered or hold down at least two seconds to delete all digits.

Receiving Calls

1. When the phone rings or vibrates press to answer.

If you press 📄 the side keys while the phone is ringing, the ringing or vibration is muted for that call.

1. Press on twice to end the call.

Using Manner, Silence All, and Lock Mode

Manner Mode (Quick)

Use the Manner Mode in public places.

1. When in the Standby Mode, activate the Manner Mode quickly by pressing 🙏 for 3 seconds.

When the Manner Mode is set, the key tones are silent, and the phone is set to vibrate.

NOTE: The phone remains in Manner Mode even if you turn it off and back on.

NOTE: To cancel Manner Mode, press ✦ to switch into Silence All or Normal Mode.

Silence All Mode (Quick)

1. From the Manner Mode you can activate the Silent All Mode quickly by pressing 📄 for 3 seconds.

When the Silence All Mode is set, the key tones are quiet and the lamp blinks instead of the phone ringing or vibrating.

NOTE: To cancel the Silent All Mode, press to switch into Manner Mode or Normal Mode.

Lock Mode (Quick)

Use the Lock Mode to prevent others from using your phone.

1. In standby mode, to activate the lock mode quickly, press ## for 3 seconds. Lock mode setting is displayed.

NOTE: To cancel the Lock Mode, Press Left Soft Key ☐, Unlock, then enter your 4 digit password.

Call Waiting

If your cellular service offers call waiting, while a call is in progress you may hear two beeps indicating another incoming call. When call waiting is enabled, you may put the active call on hold while you answer the other incoming call. Check with your cellular service provider for information about this function.

1. Press to receive a waiting call.
2. Press again to switch between calls.

Mute

The mute function prevents the other party from hearing your voice, but allows you to hear the other party.

1. Press Right Soft Key, Mute, during a call.
2. To cancel Mute, press Right Soft Key ▪ again.

Redialing Calls

1. Press to redial the last number in your call history. The last 30 numbers are stored in the call history list and you can also select one of these to redial.

Adjusting the Volume

Use the side keys to adjust the earpiece, ringer, and key beep volumes. The upper key is used to increase the volume and the lower key is used to decrease the volume.

• You may adjust the earpiece volume during a call.
• The ringer volume can be adjusted through the menu.
• The key beep volume is adjusted through the menu.

Power Save Mode

When the phone is in an area without service for 15 minutes, it stops searching for service and enters into Power Save Mode. When your phone activates this feature, Power Save is displayed on the screen. The phone automatically checks for service periodically or you can check manually by pressing any key.

Signal Strength

Call quality depends on the signal strength in your area. The signal strength is indicated on the screen as the number of bars next to the signal strength icon: The more bars, the better the signal strength. If the signal quality is poor, move to an open area. If you are in a building, the reception may be better near a window.

Speed Dialing

Speed dialing is a convenient feature that allows you to make phone calls quickly and easily (Number 1 is always for Voicemail).

1. Enter a speed dial number from 2 to 199.

2. Pres

OR

Press the first digit and then press and hold the key of the last digit.

Your phone recalls the phone number from your personal directory, displays it briefly and then dials it.

Caller ID

Caller ID lets you know who is calling by displaying the number of the person calling when your phone rings. If the caller's name and number are already stored in your phone book, the corresponding name appears with the number.

Check with your service provider to ensure they offer this feature.

AX5450

AX5450

3 Additional Functions

Entering information using T9 Text Input

You can edit the Banner, Scheduler, Short Message, and Phone Book using T9 Text Input.

Input mode

T9 Text Input provides five modes for entering text, numbers, special characters, and punctuation.

T9Word (T9) Mode

Type text using one keystroke per letter. The phone translates keystrokes into common words by using the letters on each key and a compressed database.

Abc (Multi-tap) Mode

Use Abc mode to add words to the T9 database.

123 (Numbers) Mode

Type numbers using one keystroke per number. To change to 123 mode in a text entry field, press Right Soft Key until 123 mode is displayed.

Symbols Mode

Insert special characters or punctuation. You may use any of the 35 special characters. When the cursor is located where you want the special character, switch to Symbols Mode. Press the Navigation Key 📋 to cycle through and select the characters.

AX5450

Smiley Mode (SMS and e-mail only)

When the cursor is located where you want to add a smiley, switch to the smileys mode. Press the

Navigation Key cycle through and select a smiley.

Key Functions

Left Soft Key: Press to display or select menu options.

Right Soft Key: Press to scroll through the menus in the following order : Abc->123->Symbol->Help->T9En->Abc.

Shift: Use to change case.

Text: In T9 mode, press one key per letter to enter text.

Numbers: In 123 mode, press once to enter numbers.

Next: In T9 mode, press to display other matching words.

Punctuation In T9 mode, press to insert punctuation in a word and complete a sentence.

Space: Press to complete a word or insert a space.

Clear: Press to delete a single space or character. Hold to delete entire words.

AX5450

Press the Navigation Key 📋cycle through and select from the following characters:

Smiley ModeSymbols Mode

Changing Letter Case

There are three options for selecting letter case:

Only the first letter is capitalized.

Caps Lock (T9EN/Abc)

Press change to Caps Lock. All subsequent letters are capitalized.

Lower case (T9en/abc)

Press 📄 in to change to lower case. All subsequent letters are in lower case.

Example: Using T9 Text Input

Typing In T9 Mode

To type the message "Call the office" follow these steps:

1. Press: Right Soft Key ▼ change the case to T9Word Mode.
2. Press: .2ABC 2ABC 5IKL 5IKL
3. Press: tcomplete the word and add a space.
4. Press: 8TUV 4CHI 3DEF #space 6MNO 3DEF 3DEF 4CHI 2ABC 3DEF.
5. The display shows: Call the office.

Using the NEXT Key

After you have finished entering a word, if the word displayed is not the one you want, press 📄 display additional choices of words from the database.

For example:

1. Press: . 4GH 6MNO 6MNO 3DEF
2. The display shows the word Good.
3. Press: . ONEXT
4. The display gives you additional choices such as: Home, Gone, Hood, etc.

Adding Words to the T9 Database

If a word is not in the T9 database, add it by using Abc (Multi-tap) mode text entry. The word is automatically added to the T9 database when you return to T9 mode.

For example, follow these steps:

1. Press: Right Soft Key to change case to Abc (multi-tap) mode.
2. Press: 2ABC 2ABC 6MNO 6MNO 6MNO 7PORS
3. Display: Bop
4. Press: Right Soft Key ▪ to change letter case to T9 mode and then the word Bop is added to the T9 database.
5. Press: to ease the existing word.
6. Press: 2ABC 6MNO 7PORS
7. Display: Cop
8. Press: ONEXT ONEXT
9. Display: Bop

Examples Using Abc (Multi-tap) Text input

To type a new message, follow these steps:

1. Press: Right Soft Key to change case to Abc mode.
2. Press: to *range to Abc Caps Lock mode.
3. Press: . 5 IKL 5 IKL 5 IKL 4 GM
4. Display: Lg

Phone Book Features

You can store up to 500 entries in your phone book with easy access to your most frequently dialed phone numbers.

Personal Phone Book Memory

The phone has 500 personal phone book memory locations where you can store up to 5 phone numbers of up to 48 digits.

Saving Numbers in Your Personal Phone Book

1. Input the phone number that you want to save (up to 32 digits).
2. Press Left Soft Key Save, the submenu appears.
3. Select Label on the sub-menu and press OK
4. Select your desired label types Home, Office, Mobile, Pager, Fax, None using
5. Enter a name for the phone number(up to 22 characters). If you do not want to enter a name, press OK to go to the next step.
6. You may select the desired ID ring type and secret and
7. Press Left Soft Key Save. A confirmation prompt displays.

AX5450

Retrieving Numbers

Retrieving by Name Search

1. Press Right Soft Key Contacts.
2. Press Right Soft Key Options.
3. Select Find Name.
4. Enter the character(s) that you want to search for such as the first letters of the name.
5. You see a list of matches.
6. Press OK to see more information in that entry, or press 10% to place the call.

Making a call from Your Phone Book

You can place a call from any memory location either by using speed dialing or by entering the phone number and pressing 📄.

Advanced Phone Book Features

Pause

When you call automated systems such as voice mail or credit billing numbers, you often have to enter a series of numbers. Instead of entering these numbers by hand, you can store the numbers in your phone book separated by pauses using special characters (P, T)

There are two different types of pauses that you can use when storing a number; hard and 2-second:

Hard pause (P)

The phone stops dialing until you press Left Soft Key ☐ Resume to advance to the next number.

2-sec pause (T)

The phone waits two seconds before sending the next string of digits.

Storing a number with pauses

1. Press Left Soft Key Menu.
2. Press Contacts.
3. Press N€45 Number.
4. Enter the phone number.
5. Press Right Soft Key Pause to select hard/2-sec pause.
6. Enter additional number(s) (e.g., pin number or credit card number).

AX5450

1. Press a? choose select label by using .
2. Enter a name for the phone number(up to 22 characters). If you do not want to enter a name, press 📞 go to the next step.
3. You can select the desired Speed dial/Voice dial/Group/Ringer/Msg Ringer/Memo/Picture Id/Secret/URL using
4. Press Left Soft Key Done. A confirmation prompt displays.

Prepending a Stored Number

Prepend can be used if you are out of your home system area and need to add the area code to an existing phone book number. When a phone book entry or message callback number shows up on the display, you can add to the beginning of the original number. However, you cannot edit the original number.

1. Recall a number in memory.
2. Enter the prepend digits and the phone number.

3.

AX5450

Dynamic Search

Dynamic search compares entered letters against the entries in the phone book and then displays a matching list in descending order. You can then select a number from the list to call.

AX5450

AX5450

4 Menu Features

General Guidelines

1. Press Left Soft Key menu. Nine menu items will appear on the display screen.
2. Press to through the list of menu features.
3. Press the appropriate number key corresponding to the menu item that you want to select. The sub-menu list will then appear on the screen.
4. Press the appropriate number key corresponding to the sub-menu you want to access.
5. Use to select your preferred setting. Press BACK to go back one step while accessing the menu or selecting a setting.
6. Press to have the settings or press to cancel without saving.

Camera (Menu 1)

Quick Access to Camera Feature

You can access the camera feature directly by pressing for approximately 3 seconds.

Take Photo (Menu 1-1)

1. From the menu, select Camera.
2. Press 1 ke Photo.
3. Press Right Soft Key Options to view the list.

NOTE: Use adjust the zoom function (x1, x2 and x4 at Lo resolution, x1 and x2 at Med resolution, and only x1 at Hi resolution).

NOTE: To take a photo of yourself, use the mirror on the top front of the phone. When your image is centered in the mirror, take the photo using the volume control key.

1. Select an option with

• Self Timer -(5 sec/10 sec)
• Resolution -(Low 160x120/Med 320x240/Hi 640x480)
- Brightness - (EV-2 to EV+2)
- White Balance -(Auto/Sunny/Cloudy/Tungsten/Florescent)
• File Quality -(Economy/Normal/High)
- Shutter Sound -(Shutter/Chime/No Sounds)

•Color Effects - (Normal/Antique/Black&White/Negative)
- Fun Frames - (Frame 1\~5/None): Allows you to take photos with a pre-made foreground.
- Multishot - (5 shots/3 shots): Allows you to take multiple photos without interruption. When you put the resolution on high, you do not have 5 shots/3 shots, you only get 2 multishots.

1. Take a picture by pressing OK or you can press a Side Key I.
2. Press Left Soft Key · Save to save the photo.
3. Press Right Soft Key ☐ Reject or retake the photo.

NOTE: "XX/XX" on the upper right corner of the LCD screen shows how many photos you have taken and the maximum number you can take.

Gallery (Menu) 1.-2ABC

Allows you to view photos that are stored in the phone.

1. From the menu, select Camera.
2. Press 📋lery.
3. Press Right Soft Key ▶ Options to view the list.
4. Select an option with
5. Send
   • Online Album
6. Set As - (Contacts/Wallpaper/Power On/Power Off)
   •Enlarge
   Lock
7. Rename

AX5450

AX5450

• Erase
• Erase All
  Picture Info

5.

- Press Left Soft Key 📁 Camera to take a photo OK.

Send Photo Msg (Menu) 1-3 DEF

1. From the menu, select Camera.
2. Press 3 OFF Send Photo Msg and OK to enter mobile number and/or E-mail
3. Edit subject/text by selecting OK
4. Select a picture file and sound file by selecting OK
5. Press Right Soft Key ▪ Send (2).

Photo Inbox (Menu 1-4)

1. From the menu, select Camera.
2. Press 4GH Photo Inbox to view Photo Inbox.

Options

•Erase

Lock

1. Select a message with
2. Press 2k view the message.

Reply

- Pix Msg

- Text Only

Options

• Pix Msg Info - Save Quick-Text
• Play Again - Save Pix Msg
• Save Pix
• Forward
• Save Sound
• Erase
• Save Address

Pix Msg Status Reference

1. From the menu, select Camera.
2. Press 5 JL Photo Outbox to view Photo Outbox.

◆Resend
Options

- Erase -Lock

1. Select a message with
2. Press view the message.

Send to
Options

• Pix Msg Info - Save Sound
• Play Again - Save Address

AX5450

1. From the menu, select Camera.

2. Press 500 to Saved.

Resume

Options

- Erase -Lock

1. Select a message with

2. Press view the message.

Resume

Options

1. From the menu, select Camera.
2. Press Photo Settings.
3. Select an option with

Auto Save (Menu 1.-7PORS 1.-

With this feature on, messages are automatically saved in the outbox when transmitted.

Auto Delete (Menu) - 7PORS 2ABC

With this feature on, old read messages are automatically deleted when you exceed storage limit.

Auto Receive (Menu 1 - 7 PORS 3 DEF

With this feature on, picture messages will automatically be received by your phone. With this feature off, you will be asked if you want to Accept your new Pix Msg.

Pix Msg Alert (Menu 1) - 7PORS 4GH

Allows you to select the alert type for a new picture message. Alert types are Silent, Vibrate Once, Vibrate and Sound, Custom Ring Tone, Low Beep Once, Low Beeps, Loud Beep once and Loud Beeps.

Text Entry Mode (Menu 1) - 7PORS 5JKL

Allows you to select the default input method including T9Word, Abc, 123.

Quick-Text (Menu 1-7PORS 6MNO)

Display, edit, and add Canned Messages.

Erase All (Menu 1-8ruv)

This allows you to erase all picture messages stored in your Inbox, Outbox or Saved Msgs folders. You can also erase all messages stored in these folders at the same time.

1. From the menu, select Camera.

2. Press 8 ^ruv Erase All.

3. Press 1 - inbox to erase all messages stored in the Inbox

4. Press 2ABC Outbox to erase all messages stored in the Outbox
5. Press 3 Off saved to erase all messages stored in the Saved Items folder
6. Press 4011 to erase all messages stored in the Inbox, Outbox, and Saved Items folder

NOTE: Locked messages cannot be erased.

NOTE: If the memory is full, no more messages can be received until enough memory space becomes available. The message NOT ENOUGH MEMORY is displayed and new messages are not accepted.

Contacts (Menu 2ABC)

List Contacts (Menu 2ABC 1.)

Allows you to view the list of entries in Contacts.

1. Press Left Soft Key ▪Menu.
2. Press 210:ntacts.

3. Press 1-1t Contacts.

4. Press Right Soft Key Options, and then press OK

• Find Name/Find Number/Find Speed Dial/Find Group/Find E-mail/Send message/Erase

1. You may register a new phone number by pressing Left Soft Key ☐ New.

New Number (Menu 2ABC 2ABC)

Allows you to add a new number into Contacts.

1. Press Left Soft Key ▪Menu.
2. Press 2ABC Contacts.
3. Press 2ABC New Number.
4. Enter the number and press OK
5. Select the label you want and press OK [S].
6. Enter the Name and press OK.
7. Select either Speed Dial or Voice Dial and press OK

New E-mail (Menu 2ABC 3DEF)

You can save E-mail addresses.

1. Press Left Soft Key ▪Menu.
2. Press 2Contacts.
3. Press Review E-mail.
4. Enter the E-mail address and press OK
5. Enter the Name and press OK

Groups (Menu 2ABC 4CH)

Allows you to enter a new group, change the name of a group, or delete a whole group.

1. Press Left Soft Key ▪Menu.
2. Press 2/contacts.
3. Press 4400 ups.
4. Highlight the Group you wish to view and then press OK.
5. To add a new group to the list, press Left Soft Key ☐ Add; to delete a group or to change the name, press Right Soft Key ☐ Options.

Speed Dials (Menu 2ABC 5JKL)

Allows you to set the speed dial keys for the designated phone numbers.

1. Press Left Soft Key ☐Menu.

2. Press 218:ntacts.

3. Press Speed Dials.
4. Either select the number you wish to speed dial, or enter the number you want and press OK

Voice Dials (Menu 2ABC 6MND)

Allows you to view the list of numbers that have been programmed with voice dialing or add a voice dial tag to a number in Contacts.

1. Press Left Soft Key ▪Menu.
2. Press 2102ntacts.
3. Press VANCE Dials.

How to Use: Record the voice dial tags by following the phone's prompts. When recording the voice tag, place the phone in a normal phone use position with the speaker by your ear and the microphone near your mouth.

NOTE: Recordings should be made in a quiet place using a clear voice. Hands-free car kits or headsets should be avoided when recording.

My Contact Info (Menu 2ABC 7PORS)

Allows you to enter your own virtual business card to be used in e-mails or SMS messages.

1. Press Left Soft Key ☐Menu.
2. Press 2 Contacts.
3. Press 7 vs Contact Info.
4. Select the feature you want to edit by highlighting it and pressing OK

Recent Calls (Menu 300)

Allows you to view a list of the last phone numbers or Phone Book entries for calls you placed, accepted, or missed. It is continually updated as new numbers are added to the beginning of the list and the oldest entries are removed from the bottom of the list.

NOTE: To view a quick list of all your recent calls, press from the main menu.

indicates an outgoing call.
indicates an incoming call.
indicates a missed call.

Dialed Calls (Menu 301-1)

Allows you to view the list of outgoing calls; up to 30 numbers and entries.

1. Press Left Soft Key ▪Menu.
2. Press Recent Calls.
3. Press ▪led Calls.
4. Highlight the entry you wish to view and press OK or you may place a call by pressing .

Received Calls (Menu 3 DEF 2ABC)

Allows you to view the list of incoming calls; up to 30 numbers and entries.

1. Press Left Soft Key Menu.
2. Press Percent Calls.
3. Press Received Calls.
4. Highlight the entry you wish to view and press OK, or you may place a call by pressing .

Missed Calls (Menu 3 DEF 3 DEF)

Allows you to view the list of missed calls; up to 30 numbers and entries.

1. Press Left Soft Key ▪Menu.
2. Press Percent Calls.

AX5450

1. Press Fssed Calls.
2. Highlight the entry you wish to view and press OK, or you may place a call by pressing .

Erase Calls (Menu 3 DEF 4GHI)

Allows you to erase the call history list.

1. Press Left Soft Key ▪Menu.
2. Press 5 cent Calls.
3. Press 40mm Erase Calls.
4. Select the list of calls you wish to erase and press OK.
5. Press either 1 Erase, or 2 Cancel and press OK.

Call Timer (Menu 3 DEF 5 JKL)

Allows you to view the duration of calls.

1. Press Left Soft Key ☐Menu.
2. Press 7ENT Calls.
3. Press 5.0 Timer.
4. Select from Last Call/Home Calls/Roam Calls/All Calls, and press OK.

1x Packet Counter (Menu 3 DEF 6MNO)

Allows you to view the duration of calls.

1. Press Left Soft Key ☐Menu.
2. Press Recent Calls.
3. Press Packet Counter.
4. Select from Received/Transmitted/Total and press OK

Messages (Menu 4cm)

Text messages, pages, and the voicemail box become available as soon as the phone is powered on. You can access the above types of messages using the message key

In addition, you can make a call to the callback number by pressing during a message check.

The phone can store up to 116 messages (1 voice message: 50 inbox text messages, 50 outbox text messages, 15 saved text messages) with up to 160

characters per message. Users may read and edit messages saved in the outbox during transmission and send them.

Check whether your carrier provides the above features.

AX5450

Character limits: The AX5450 supports up to 160 characters per message including header information. Limits to available characters per message may exist; please check with your service provider for system capabilities.

The information that is stored in the message is determined by phone mode and service capability. You can check types of messages by pressing the message key ☐.

Message Menu

● Voice Mail: Shows the number of messages in voice mail box.
- New Message: Sends a message.
- Inbox: Shows the list of received messages.
- Outbox: Shows the list of sent messages.
- Saved: Shows the list of saved and draft messages.
- Msg Settings: Selects alert type for new messages.
- Erase All: Deletes all stored messages.

New Message Alert

There are four ways your phone alerts you to new messages.

1. The phone displays the message on the screen.
2. One of four ring types is heard if selected.

AX5450

1. The red light blinks.
2. The message icon is displayed on the display screen ☐ in the case of an urgent message, the icon will flash and displays Urgent message.

NOTE: If you receive the same message twice, your phone deletes the older one and the new one is stored as a DUPLICATE.

Voice Mail (Menu 4cm 1-)

Allows you to view new voice messages recorded in the voice mailbox. Once you exceed the storage limit, the old messages are overwritten. When you have a new voice message, your phone alerts you.

Checking your Voice Mail box

1. Press Left Soft Key ▪Menu.
2. Press Message.
3. Select Voice Mail.
4. To delete information press Left Soft Key ▪ Clear and then select Clear.

New Message (Menu 4CH 2ABC)

You can send text messages, pages, and e-mail transmissions.

Text messages: Transmits text (with or without numbers).

Page messages: Transmits only numbers without text.

To send a message, enter an SMS phone number to Address 1.

To send e-mail, enter recipient's e-mail address.

Menu

Address 1: This feature allows multi-sending of up to 10 total addresses.

Select Options by using Right Soft Key

There are 6 optional menus of Send, Priority, Add Sign, Callback#, Deferred, Validity, Save and Delete.

1. Press Left Soft Key ☐Menu.

2. Press Message.

3. Select Message.

4. Enter the recipients address. The address can be typed in or taken from a Phone Book entry.

5. Enter the message. The text can be entered using the keypad or by selecting Canned Msg with Right Soft Key ☐ Insert Quick-Text.

Canned Msgs

There are 11 "predefined" phrases included in the Canned Msg option. You can also add up to 6 of your own phrases.

1. Select Options using Right Soft Key ▪ after entering the number of other party and the content with the Navigation Key. Select the item with OK.

Send Allows you to send the message.

Priority Allows you to give priority to message. Normal or Urgent.

Callback # Allows you to insert a pre-programmed callback number with your message.

Deferred Allows you to delay sending the message until the programmed time frame.

Validity Indicates the validity of message delivery to the Short Message Center (SMC) without being transmitted to the destination address for certain periods of time. Those messages will be deleted within the programmed time frame. Validity time frames are as follows: Default, 30 minutes, 1 hour, 2 hours, 12 hours, 1 day, 2 days, and 3 days.

Save

If you select Send, it notifies you that the message was sent successfully.

NOTE: If you send an SMS message to a phone without SMS, you will still be notified that the message was sent, however the message will not be received.

Inbox (Menu 4CHI 3DEF)

Received text messages, page messages, and e-mail lists may be searched and the contents may be viewed. Received messages are displayed from newest to oldest.

To view the list of the received messages:

1. Press Left Soft Key Menu.
2. Press v message.
3. Select I 5014 x.
4. Erase/Lock pop up is displayed by pressing Right Soft Key

Reply w Copy Replies to the SMS with the original message attached.

Forward Forwards a received message to others. After recipients are entered, the message can be forwarded.

Erase Deletes the selected message from the Inbox.

Save Address Stores the callback number, e-mail address, and numbers in user data included in the received message into your Phone Book. You can store the received number information in the corresponding number list in the Phone Book.

For an e-mail address, select the option New Entry and Old Entry. The new e-mail address may overwrite an old address entry. For new entries, an e-mail address may be stored with the new memory number.

Save Quick-Text Save the message into the Canned message list.

Save Message Save Inbox message into the Saved Folder.

Lock/Unlock Locks or unlocks the selected message. Locked messages cannot be deleted by the Erase Inbox, Erase Outbox and Erase All functions.

Out of Memory Warning

If the memory is full, no more messages can be received until enough memory space becomes available. The message NOT ENOUGH MEMORY is displayed and new messages are not accepted.

Outbox (Menu 4CH 4CH)

Up to 50 sent messages can be stored in the Outbox. Users may view lists and contents of sent messages in this menu and may also verify whether the transmission was successful or not.

1. Press Left Soft Key ☐Menu.
2. Press Message.
3. Select 4 box.
4. Erase/Lock pop up is displayed by pressing Right Soft Key

Resend Allows you to retransmit the selected message.

Erase Use to delete a selected message in the Outbox.

Save Address Stores the callback number, e-mail address, and numbers in user data included in the received message into your Phone Book. You can store the received number information in the corresponding number list in the Phone Book. For an e-mail address, select the option New Entry and Old Entry. The new e-mail address may overwrite an old address entry.

For new entries, an e-mail address may be stored with the new memory number.

Save Quick-Text Use to save the draft message in the canned message.

Save Message Save outbox message into the Saved folder.

Lock/Unlock Lock a message so that it is not erased if the Erase Inbox or Erase All feature is used.

Cancel Cancels the transmitted message.

Status Code Checks the sent message information (MSG ID/Err Class/Cause Code).

Message Status Reference

Icons		Descriptions
	Sent	Messages saved in Short Message Center (SMC) have been transmitted.
	Fail	Indicates a failed message transmission.
	Delivery	Message has been delivered.
	Cancel	After transmission to message center has occurred, messages that have not been delivered may be canceled by transmitting cancel message.
	Save	Indicates that messages are only stored in the Outbox and have not been transmitted.
	Multi-sending	Indicates more than one designated recipient.
	Pending	Transmission is unavailable in a no service area. Messages are pending transmission. Pending messages are transmitted automatically when digital mode becomes available.

Saved (Menu 4CH 5IKL)

Displays all the saved and draft messages.

1. Press Left Soft Key ☐Menu.
2. Press Message.
3. Select \$50ed.

Draft Message: Displays the list of messages which have failed to send.

Saved Message: Displays the list of saved messages in Inbox/Outbox.

Msg Settings (Menu 4CH 6MNO)

1. Press Left Soft Key ▪Menu.
2. Press Message.
3. Select Using Settings.

Alert, default callback number, Auto Save and Auto Delete may be configured for receiving new messages.

The phone alerts you in 3 ways when you receive a new message:

• By displaying a message on the screen.
• By sounding a beep or vibrating.
• By blinking.

Auto Save (Menu 2GM 6MNO 1-

With this feature on, messages are automatically saved in the Outbox when transmitted.

Auto Delete (Menu 4GM 6MNO 2ABC

With this feature on, read messages are automatically deleted when you exceed the storage limit.

Callback # (Menu 4)GHI 6MNO 3DEF

Allows you to automatically send a designated callback number when you send a message.

Msg Alerts (Menu

Allows you to select the alert type for a new message. Alert types are VoiceMail Alert, Text Msg Alert, E-mail Alert and Page Alert.

Signature

You may edit the signature you want to automatically send with your messages.

Direct View (Menu

Allows you to directly display the content when receiving a message.

Entry Mode (Menu

Allows you to select the default input method including T9 Word, Abc, 123.

Edit Voice Mailbox # (Menu

Allows you to manually enter the access number for Voice Mail Service. This number should be only used when VMS access number is not provided from the network.

Quick-Text (Menu

Display, edit, and add Canned Messages.

Erase All (Menu 4CHI 7PORS)

This allows you to erase all text messages stored in your Inbox, Outbox or Saved Msgs folders. You can also erase all messages stored in these folders at the same time.

• Press In! to erase all messages stored in the Inbox.
• Press O2 box to erase all messages stored in the Outbox.
• Press Sued to erase all messages stored in the Saved Items folder.
• Press A 4:0 erase all messages stored in the Inbox, Outbox, and Saved Items folder.

Axcess (Menu 5JKL)

Axcess allows you to do more than just talk on your phone. Axcess is a technology and service that allows you to download and use applications on your phone. With Axcess, it is quick and easy to personalize your phone to your lifestyle and tastes. Just download the applications that appeal to you. With a wide range of software available, from Ring Tones to games productivity tools, you can be assured that you can find something useful, practical, or down right entertaining.

Plus, there are constantly new applications being created for your use.

You can download applications and use Axcess anywhere on the your carrier's network, as long as your handset has a digital signal available.

Most applications do not use a network connection while in use. While downloading an application, any incoming calls will automatically be sent to your voicemail, if available. If you do not have voicemail, downloading will not be interrupted by an incoming call, however the caller will receive a busy signal.

When using an application an incoming call will automatically pause the application and allow you to answer the call. When you complete your call, you can resume using the application.

You can personalize your phone by adding new applications and by removing old ones, at any time.

If you need more memory, but still want to be able to access the application later, try using Disable. Disabling keeps the application usage and purchase information, but removes it from memory. To restore an application, go to Options, select the application and click on Restore.

Only removing an application deletes it completely from the memory of the phone. To restore an application once it has been removed will require that you pay and download it again.

Start: allows you to download selected applications while displaying the Axcess application list relayed from the Axcess server in connection. Gives you information about the Axcess selection key.

Get Apps (Menu) 5 ML 1-

1. Press Left Soft Key ☐Menu.
2. Press success.
3. Select Apps.

Main display of Axcess will appear.

1. Select [Axcess] Icon and press OK

Start: allows you to download selected applications while displaying the Axcess application list relayed from the Axcess server in connection.

Get Info

Gives you information about the Axcess selection key.

NOTE : Pressing the left arrow key Axcess.

Mobile Web (Menu 6MNO)

The MiniBrowser feature allows you to view internet content, especially designed for your mobile phone. Access and selections within this feature are dependent upon your service provider. For specific information on MiniBrowser access through your phone, contact your service provider.

Start Browser (Menu 6MNO 1.)

1) A reminder of the charge will appear; press OK Yes to launch MiniBrowser, if required.

2) After a few seconds, you see the Home Page.

Ending Minibrowser Session

You can end a Minibrowser session by pressing 📄.

Navigating through the Browser

While using MiniBrowser on-screen items may be presented in one of the following ways:

• numbered options.
• links embedded in content.
  • text or numbers.

You can act on the options or the links by using the Soft Keys just below the display screen.

Navigation

Scrolling

You can use scroll through the content if the current page does not fit on one screen. The currently selected item is indicated by a cursor on the screen.

Fast Scrolling

Press and hold to quickly move the cursor up and down on the current screen.

Scrolling by page

Press the Side Keys to move up and down a page at a time.

Home Page

To go to the Home Page, press and hold

View Browser Menu

Press and hold C# use the browser menu.

Clearing out text/number entered

When entering text or numbers, press BACK clear the last number, letter or symbol. Press and hold BACK to clear the input field completely.

Selecting and activating items

If the items on a page are numbered, you can use your numeric keypad or you can select the items by moving the cursor and pressing the appropriate Soft Keys.

Soft Keys

To navigate to different screens or select special functions, use the Soft Keys. Note that the function associated with the Soft Keys can change for each page and depends on each highlighted item.

Left Soft Key

Left Soft Key is used primarily for first options or selecting an item but its function may change, depending on the content displayed.

Right Soft Key

Right Soft Key ▪ used primarily for secondary options or a menu of secondary options.

Entering Text, Numbers, or Symbols

When you are prompted to enter text, the current text entry method appears on Right Soft Key's Alpha, Symbol, Number, Word or Smart.

To change the input mode, use Right Soft Key To create an upper case character, use The current text method appears on Right Soft Key is ALPHA or SMART and allows you to shift to input case sensitivity.

Initiating a phone call from MiniBrowser

You can make a phone call from MiniBrowser if the site you are using supports the feature (the phone number may be highlighted and Left Soft Key appears as Call).

The browser connection is terminated when you initiate the call. After you end the call, your phone returns to the screen from which you initiated the call.

Using Bookmarks

You can bookmark many individual pages for easy access at a later time. Bookmarks save you time by reducing the number of steps it takes to access a desired page.

To create a bookmark:

Go to the page that you want to mark. On the browser menu, select Mark Site or press and hold #

If the page has a title, it is automatically used for the name of the bookmark. When the bookmark is saved you can change the bookmark name if you choose. Selecting Save saves the name and adds the page to the bottom of your list of bookmarks.

AX5450

A message appears confirming that the bookmark is added to the list. Select Left Soft Key ⚙ Ok to return to the screen that you marked to resume navigation within the MiniBrowser.

This function is dependent upon the html coding of the page and determined by the website.

Finding a bookmark

From the Home Page, press and hold the number associated with the bookmark in the bookmark list.

Web Messages (Menu 6MNO 2ABC)

If there are any browser messages the list is displayed.

Web Settings (Menu 6MNO 3DEF)

Prompt 6MNO 3INLE[...]

You can specify whether you want the phone to display warning prompts while using the MiniBrowser.

The first prompt occurs prior to making a MiniBrowser call; you are informed that there is a charge and asked if you still want to launch the browser. This step is used to prevent accidental activation of the browser since all subscribers are provided with the browser automatically.

The second prompt asks if you want to exit the browser, after you press 🔒.

AX5450

• At Start: You only see the prompt asking whether or not to start.
• At End: You see the prompt asking to stop.
• Both: You see the prompts asking whether to start and stop.
  ● None: No warning prompts are displayed.

Alert Beep (Menu iMNO 3 DEF 2ABC

There are 3 alert options. Mute, 2 Beeps and 4 Beeps options are provided in this menu. The user may select a browser alert sound.

My Media (Menu 7PORS)

Graphics (Menu 7PORS 1-)

Allows you to choose the background to be displayed on the phone.

1. Press Left Soft Key ☐Menu.
2. Press 7PORS My Media.
3. Press 1- Graphics.
   bear_heart/elvis birthday_sm/hi_pig_sm/love_you_cat_sm/martini/party_time_sm/roses/sorry_monster_sm/sun/surfing

Music (Menu 7PORS 2ABC)

Allows you to choose the ring tones to be heard for incoming calls.

1. Press Left Soft Key ▪Menu.
2. Press J vs Media.
3. Press Music.
4. Beethovens_fifth/Dreamsequence/Ode_to_joy/Rainforest/Train

Tools (Menu 8TV)

Schedule (Menu 8nv 1-)

Scheduler Functions

Scheduler keeps your agenda convenient and easy to access. Simply store your appointments and your phone alerts you with a reminder of your appointment. You can also take advantage of the Alarm Clock feature.

NOTE : Scheduler will not alert you during a call, when transmitting SMS, or when connecting up. After exiting, it will sound the reminder.

Allows you to input your schedule. If you input the time and memo, an alarm rings at the set time.

1. Press Left Soft Key ▪Menu.
2. Press 840 pls.
3. Press Schedule.

NOTE : Pressing the Navigation key 📋 the left from Standby mode is a hot key to Schedule.

How to use buttons

Moves cursor to the left.
Moves cursor to the right.
Moves to the previous week.
Moves to the next week.

Alarm Clock (Menu 8TUV 2ABC)

1. Press Left Soft Key ▪Menu.
2. Press Books.
3. Select Arm Clock.
4. Select the alarm you want to edit.
5. Set the time for alarm and press Left Soft Key Save.

AX5450

- The current time will be displayed in the upper portion of the screen.

1. You can change the alarm mode and alarm ringer type using 📋
2. At the alarm time, "Alarm x" will be displayed on the LCD screen and the alarm will sound.

Voice Memo (Menu 8TUV 3DEF)

Allows you to listen to, add, and erase short verbal reminders.

1. Press Left Soft Key ☐Menu.
2. Press & Is.
3. Select Voice Memo.
4. Press Left Soft Key flew to record a new voice memo.

My Shortcut (Menu 8tuv 4cm)

1. Press Left Soft Key Menu.
2. Press &Ms.
3. Select Market Shortcut.

AX5450

Notepad (Menu 8 TV 5 IKL)

Allows you to read, add, edit, and erase notes to yourself.

1. Press Left Soft Key ▪Menu.
2. Press 📄vols.
3. Select Nonepad.
4. Press Left Soft Key · Add to write a new note.

Ez Tip Calc (Menu 8TUV 6MNO)

1. Press Left Soft Key ▪Menu.
2. Press Books.
3. Select Tip Calc.

Calculator (Menu 8 TUV 7 PORS)

Calculate simple mathematical computations. (Can enter numbers up to the second decimal place.)

1. Press Left Soft Key ☐Menu.
2. Press 📋 is.
3. Select Zinculator.

NOTE: Calculations can be made with up to 32 characters at one time (e.g. 63+78-21 would be 8 characters).

World Clock (Menu 8TUV 8TUV)

Is useful if you need to make a call to another country and you are not sure about the time difference.

1. Press Left Soft Key ☐ Menu.
2. Press 8TUV Tools.
3. Select 8tv World Clock.

Settings (Menu 9WXYZ)

Sounds (Menu 9xxx1-)

Ringers (Menu 9xyz 1-1-)

1. Press Left Soft Key ▪ Menu.
2. Press Settings.
3. Press 1- Sounds and then press fingers.
4. Select Caller ID/No Caller ID/Restrict.
5. Then press save the sound.

Key Tone (Menu 7xxx 1-2ABC

To set the Key Tone length and touch tone playback speed:

1. Press Left Soft Key ·Menu.
2. Press Settings.
3. Press 1— Sounds and then press 2ABC Key Tone.
4. Set Normal/Long with and then press OK.

Normal Sends out a tone for a fixed period of time even if you keep the key pressed.

Long Sends out a continuous tone for as long as you keep the key pressed.

NOTE: Dual-Tone Multi Frequency (DTMF) Signaling by the simultaneous transmission of two tones, one from a group of low frequencies and another from a group of high frequencies. Each group of frequencies consists of four frequencies. Setting Key Beep length to Long will extend the DTMF tone. Press Menu, then press 9XYZ, 1-, 2ABC Key Tones using 📂n select Long. Press OK

AX5450

Volume

)

1. Press Left Soft Key ▪Menu.

2. Press Sentings.

3. Press 📋inds and then press

Volume.

1. Select Ringer/Earpiece/ Key Beep.

2. Adjust the volume of the ringer with

1. Then press save the Volume.

Alerts

)

Any of the four Alert options can be turned on or off.

1. Press Left Soft Key Menu.

2. Press Settings.

3. Press 1-Sounds and then press 4CH Alerts.

- Check each option and turn it off if not desired.

Service Change (Menu 9wxz 1.-40HI 1-)

Alerts you when service changes. When you enter a service area, the phone displays Entering Service Area message. When you leave a service area, the phone displays Leaving Service Area message.

Minute Beep (Menu 9WXYZ 1.-4GHz 2ABC)

Alerts you 10 seconds before the end of every minute during a call.

AX5450

Call Connect (Menu 9WXYZ 1-4GHI 3DEF)

Alerts you when the call is connected.

Back To Top(Menu 9wxz 1-4GH 4GH)

Alerts you when you scroll through the end of a menu list.

1. Select an option and press OK

2. Set Off/On with and then press . OK

Power On/Off Tone (Menu 9 xyz 1-5 iKL

Set power On/Off tones.

1. Press Left Soft Key ☐Menu.

2. Press Settings.

3. Press 1-Sounds and then press 5 mL Power On/ Off Tone.

4. Set Off/On with and then press . OK

Display (Menu 9WXYZ 2ABC)

Banner 9vxyz 2A13eJ

Allows you to enter a string of up to 16 characters to be displayed on the LCD screen.

1. Press Left Soft Key ☐Menu.

2. Press Settings.

3. Press 2 play and then press

4. Enter a Banner and then press

1- Banner.

Backlight 9wxyz 2A17e2VH

Allows you to set the duration for leaving the backlight on.

1. Press Left Soft Key ▪Menu.

2. Press Settings.

3. Press 2ABC Display and then press 2ABC Backlight.

Timer

• 7 seconds turns the backlight off 7 seconds after the last key was pressed.
• 15 seconds turns the backlight off 15 seconds after the last key was pressed.
• 30 seconds turns the backlight off 30 seconds after the last key was pressed.
  ● Always off means that the backlight is never on.

• On flip open means that the backlight is always on while cellcase is open.

• Choose an option and press OK

Screens (Menu 5)WXYZ 2ABC 3DEF

Allows you to choose the kind of background to be displayed on the phone.

1. Press Left Soft Key ▪Menu.
2. Press 📄tings.
3. Press 20 play and then press 3 DEF Screens.
4. Select Wallpaper/Power On/Power Off.
5. Select from 7 different screens and press Left Soft Key Save.

Menu Style (Menu 9vxyz 2ABC 4CHI

Allows you to choose whether you want the menu to show as a list or as icons.

1. Press Left Soft Key ▪Menu.
2. Press Settings.
3. Press 215 play and then press Men40mm Style.
4. Select Icon or List and press ↙.

Clocks (Menu

Allows you to choose the kind of clock to be displayed on the LCD screen.

1. Press Left Soft Key ☐Menu.
2. Press Settings.
3. Press 2ABC Display and then press 5JKL Clocks.
4. Select Normal/Analog or Digital and press Left Soft Key Save.

Theme Colors (Menu

Allows you to choose the color of the background screen.

1. Press Left Soft Key ☐Menu.
2. Press Sentings.

3. Press 2 play and then press Ther Colors.

4. Select an option and press OK

Default/Green/Violet/Orange

Fonts (Menu

Allows you to choose the size and color of the number font.

1. Press Left Soft Key ▪Menu.
2. Press Settings.

3. Press 2ABC Display and then press 7PORS Fonts.
   Calling Digits (Menu 9WXYZ 2ABC 7PORS 1.-')

4. Select Size/Color.

5. Press until you find the size or the color you desire.
6. Picks to save.

Text Editor (Menu

1. Select Size/Color.

2. Press until you find the size or the color you desire.

3. Pos to save.

Language (Menu 4WXYZ 2ABC 8TUV

Set the bilingual feature according to your preference. Choose between English and Spanish.

1. Press Left Soft Key ☐Menu.
2. Press Settings.
3. Press 2 play and then press 8 TV Language.
4. Set English/Spanish with 🏠 then press OK

Power Saver (Menu \$'WXYZ 2ABC 9WXYZ

Display and buttons are lighted for a designated length of time, allowing you to use your mobile phone in the dark with convenience.

1. Press Left Soft Key Menu.
2. Press #tings.
3. Press 2 play and then press 9 Power Saver.
4. Select an option and press OK

- 2 min/10 min/30 min/Always On

Status Light (Menu \$WXYZ 2ABC ONEXT

1. Press Left Soft Key ☐Menu.
2. Press Settings.
3. Press Play and then press ONEXT Status Light
4. Select an option and press OK

System (Menu 9WXYZ 3DEF)

Select System (Menu 9WXYZ 3DEF 1-)

This function enables you to set up the phone producer's management environment. Leave this setting as the default unless you want to alter system selection as instructed by your service provider.

1. Press Left Soft Key ☐Menu.
2. Press Settings.
3. Press System and then press 1-Select System.
4. Select an option and press OK

●Home Only/Automatic A/Automatic B

Set NAM (Menu 4)WXYZ 3DEF 2ABC

Select the phone's NAM (Number Assignment Module) if the phone is registered with multiple service providers.

1. Press Left Soft Key ☐Menu.
2. Press Settings.
3. Press 3 DEF System and then press 2 ABC Set NAM.
4. Select NAM1 or NAM2 and press OK

Auto NAM (Menu 5WXYZ 3DEF 3DEF

Allows the phone to automatically switch between programmed telephone numbers corresponding to the service provider area.

1. Press Left Soft Key ☐Menu.
2. Press Sentings.
3. Press 3 OFF System and then press 3 OFF Auto NAM.
4. Select On or Off and press OK

Serving System (Menu 4)WXYZ 3 DIF 4CHI

You can identify the channel number of a system that is served and a SID Number. This information is only for technical support.

1. Press Left Soft Key ▪Menu.
2. Press Greetings.
3. Press 3 DEF System and then press 4 CHI Serving System.

Security (Menu 9WXYZ 4CHI)

Lock Phone (Menu \$WXYZ 4CM 1-

Keeps your phone from unauthorized use. Once the phone is locked, it is in restricted mode until the lock code is entered. This allows you to receive phone calls and still make emergency calls. The Lock Code/Password on your phone is 0000 by default.

You can modify the lock code using the New Lock code within the Security menu.

1. Press Left Soft Key · Menu and then press 9wxz Settings.
2. Press Security.
3. Enter the four-digit Lock code.
4. Press 1-ck Phone.
5. Select an option and press OK

- Unlock means that the phone is never

locked (Lock mode can be used). When locked, you can receive incoming calls or make only emergency calls.

• Lock means that the phone is always locked.
• On Power Up means the phone is locked when it is turned on.

Restrict

)

1. Press Left Soft Key · Menu and then press 9wxz Settings.
2. Press Security.
3. Enter the four-digit Lock code.
4. Press District.
5. Select On or Off with and then press OK

If you set it to On you can only place calls to emergency numbers and phone numbers stored in the phone book. You can still receive calls in the restrict mode.

Emergency #s (Menu

You can call emergency numbers and 911, even when the phone is locked or restricted. To enter 3 emergency numbers:

1. Press Left Soft Key · Menu and then press 9wzz Settings.
2. Press security.
3. Enter the four-digit Lock code.
4. Press Emergency #s.

1. Select emergency number using
2. Enter an emergency number.
3. Pr OK

Change Code (Menu

Allows you to enter a new four-digit lock code number.

1. Press Left Soft Key · Menu and then press 9wxz Settings.
2. Press Security.
3. Enter the four-digit Lock code.
4. Press 4 Orange Code.
5. For confirmation, it will ask you to enter the new lock code again.

Erase Contacts (Menu

1. Press Left Soft Key · Menu and then press 9wzz Settings.
2. Press Security.
3. Enter the four-digit Lock code.
4. Press 5 ms se Contacts.
5. Select Erase all #s and press OK
6. Press Left Soft Key · Menu and then press 9wzz Settings.
7. Press Security.
8. Enter the four-digit Lock code.
9. Press 5 ms se Contacts.
10. Select Erase all #s and press OK

Reset Default (Menu

1. Press Left Soft Key · Menu and then press 9mm Settings.

2. Press Security.

3. Enter the four-digit Lock code.

4. Press 5set Default.

5. Press OK to select Revert and press .

Call Setup (Menu 9WXYZ 5JKL)

Auto Retry (Menu

Allows you to set the length of time the phone waits before automatically redialing a number when the attempted call fails.

1. Press Left Soft Key ☐Menu.

2. Press #tings.

3. Press Setup and then press Retry.

1. Select an option and press OK
2. Off/Every 10 seconds/Every 30 seconds/ Every 60 seconds.

Answer Call (Menu

Allows you to determine when to answer the phone.

1. Press Left Soft Key ☐Menu.

2. Press Settings.

3. Press 5:1 Setup and then press Answer Call.

1. Select an option and press OK

- Flip Open/Any Key/SEND Only

Auto-Answer

)

Allows you to select the ring type before the phone automatically answers a call.

1. Press Left Soft Key ☐Menu.

2. Press Settings.

3. Press Setup and then press Auto-Answer.

1. Select an option and press OK

Off

● After 1 ring When you have an incoming call, the phone automatically responds after 1 ring.
- After 3 rings When you have an incoming call, the phone automatically responds after 3 rings.
- Answering Machine The phone automatically responds with the answering machine.

One-Touch Dial (Menu 9WZZ 5JKL 4CHI)

1. Press Left Soft Key ☐Menu.
2. Press Settings.
3. Press Setup and then press 4cm One-Touch Dial.
4. Select Enable or Disable and press OK

Voice Privacy (Menu 9WXYZ 5JKL 5JKL)

Set the voice privacy feature for CDMA calls as Enhanced or Standard. CDMA offers inherent voice privacy. Check with your service provider for availability of the enhanced voice privacy mode.

1. Press Left Soft Key ☐Menu.
2. Press Settings.
3. Press Setup and then press Voice Privacy.
4. Select Enhanced or Standard and press OK

Auto Volume (Menu 9WXYZ 5JKL 6MNO)

This feature provides a better audio experience by enabling the Auto Volume feature to control the dynamic range and volume of the sending and receiving voice across different levels of speaker and environments.

1. Press Left Soft Key ▪Menu.
2. Press Settings.
3. Press 5:1 Setup and then press 6MNO Auto Volume.
4. Select On or Off and press OK

TTY Mode (Menu 9WXYZ 5JKL 7PORS

Users can attach a TTY device and communicate with parties also using a TTY device. A phone with TTY support is able to translate typed characters to voice. Voice can also be translated into characters and then displayed on the TTY.

1. Press Left Soft Key ☐Menu.
2. Press 📄tings.
3. Press 5 Call Setup and then press 7 Pons TTY Mode.
4. Select an option and press OK

- TTY Full / TTY + TALK / TTY + HEAR / TTY Off.

1X Data (Menu 9WXYZ 6MNO)

Data/Fax

)

In the Data/Fax setting, you can use your phone to transmit data and faxes. Wireless data communication services refers to the utilization of subscriber terminals for access to the internet with personal computers or laptops at 19.2 Kbps or at a maximum of 230.4 Kbps. The connection speed depends on your carrier's network and other variables. Contact communication information specifications must match the network.

1. Press Left Soft Key ☐Menu.

2. Press Settings.

3. Press 6. No Data and then press

Data/ Fax.

1. Select an option and press OK

- Off/Fax In Once/Fax In Always/Data In Once/ Data In Always

NOTE:The Data Connection Kit allows you to connect your PC or PDA to your LG wireless phone, freeing you from having to locate a telephone outlet. You can send or receive an e-mail, a fax, or access the Internet anytime, anywhere.

Select Port (Menu 9WXYZ 6MNO 2ABC

1. Press Left Soft Key ☐Menu.
2. Press 📄tings.
3. Press 6MNO 1X Data and then press 2ABC Select Port.
4. Select an option and press OK

USB/RS-232C(COM Port)/Closed

Port Speed (Menu 9WXYZ 6MNO 3DEF

This setting enables you to set the port speed.

1. Press Left Soft Key ☐Menu.
2. Press #tings.
3. Press 6MNO 1X Data and then press 3DBF Port Speed.
4. Select an option and press OK

19200/115200/230400

Set the port speed based on your carrier's network. Contact your carrier to determine the maximum available speed.

NOTE: When using the 1X HSPD data service via an RS-232C data cable, the port speed is set to 115,200. (230,400 is not supported). When using the 1X HSPD data service via a USB data cable, you may get better port speed if the port speed is set to 230,400 rather than 115,200.

Voice Services (Menu 9WXYZ 7PORS)

Voice Dial Prompt (Menu 9WXYZ 7PORS 1-)

Allows you to set the command for voice dialing.

1. Press Left Soft Key ☐Menu.

2. Press 9wxyz Settings.

3. Press 7Voice Services and then press Voice Dial Prompt.

4. Select an option and press

● Key press/Flip open/Disable

Answering Machine (Menu 9WXYZ 7PORS 2ABC)

1. Press Left Soft Key Menu.
2. Press 9WXYZ Settings.
3. Press Service Services and then press Answering Machine.

4. Select an option and press OK

5. Speaker on: You can hear the other party during the recording of the answering machine.

6. Speaker off: You cannot hear the other party during the recording of the answering machine.

Train Words (Menu 4)WXYZ 7PORS 3DEF

Allows you to help your phone distinguish your voice when using voice commands.

During the voice recognition process, if you cannot clearly recognize the words Yes or No, you can record your own voice with this feature.

1. Press Left Soft Key ☐Menu.
2. Press 📄tings.
3. Press 7PORTS Voice Services and then press 3DEF Train Words.
4. Select Yes or No and press OK.
5. If you have selected Yes, you can record Yes according to the message of the phone.
6. Select Train or Un-train and press OK
7. If you chose Un-Train, press I… and follow the voice prompts. or If you chose Un-train, press I… train.

Location (Menu) 9WXYZ 8TUV

Menu for GPS (Global Positioning System: Satellite assisted location information system)mode.

1. Press Left Soft Key ☐Menu.
2. Press Settings.
3. Press Rotation
4. Select an option and press OK

- Location On/E911 Only

NOTE: GPS satellite signals are not always transmitted, especially under bad atmospheric and environmental conditions, indoors or otherwise.

Phone Info (Menu 9WXYZ 9WXYZ)

My Phone Number (Menu 9xxx 9xxx 1.-

Use to display your phone number on the screen.

1. Press Left Soft Key ▪ Menu.
2. Press Startings.
3. Press Phone Info and then press 1- My Phone Number.

S/W Version (Menu 9vxyz 9vxyz 2ABC

Allows you to view the software, PRL, ERI, and browser version.

1. Press Left Soft Key ·Menu.
2. Press Settings.
3. Press 📂ione Info and then press 2ABC S/W Version.

Icon Glossary (Menu 9WXYZ 9WXYZ 3DEF

Allows you to view all the icons and their meanings.

1. Press Left Soft Key ☐Menu.
2. Press Settings.
3. Press 4: one Info and then press 3 DEF Icon Glossary.

Shortcut Help (Menu 5wxyz 9wxyz 4GHI

Allows you to view condensed information about using the phone.

1. Press Left Soft Key ▪Menu.
2. Press Settings.
3. Press 9v77 Phone Info and then press 4cm Shortcut Help.

- From the Standby screen, press BACK

AX5450

5 Safety Guidelines

AX5450

TIA Safety Information

The following is the complete TIA Safety Information for Wireless Handheld phones.

Exposure to Radio Frequency Signal

Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.

In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies:

ANSI C95.1 (1992) *

NCRP Report 86 (1986)

ICNIRP (1996)

Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1).

The design of your phone complies with the FCC guidelines (and those standards).

Antenna Care

Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone and may violate FCC regulations.

Phone Operation

NORMAL POSITION: Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder.

Tips on Efficient Operation:

For your phone to operate most efficiently:

Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed.

American National Standards Institute; National Council on Radiation Protection and Measurements; International Commission on Non-Ionizing Radiation Protection

Driving

Check the laws and regulations on the use of wireless telephones in the areas where you drive and always obey them. Also, if using your phone while driving, please observe the following:

- Give full attention to driving -- driving safely is your first responsibility;

• Use hands-free operation, if available;
• Pull off the road and park before making or answering a call if driving conditions or the law so require.

Electronic Devices

Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone.

Pacemakers

The Health Industry Manufacturers Association recommends that a minimum separation of 6 in be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research.

Persons with pacemakers:

• Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON;
• Should not carry the phone in a breast pocket
• Should use the ear opposite the pacemaker to minimize the potential for interference
• Should turn the phone OFF immediately if there is any reason to suspect that interference is taking place.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider [or call the customer service line to discuss alternatives.] Optional for each phone manufacturer.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.

Health Care Facilities

Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may use equipment that could be sensitive to external RF energy.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle.

You should also consult the manufacturer of any equipment that has been added to your vehicle.

Posted Facilities

Turn your phone OFF in any facility where posted notices so require.

Aircraft

FCC regulations prohibit using your phone while in the air. Switch OFF your phone before boarding an aircraft.

Blasting Areas

To avoid interfering with blasting operations, turn your phone OFF when in a "blasting area" or in areas posted: "Turn off two-way radio". Obey all signs and instructions.

Potentially Explosive Atmosphere

Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not always marked clearly. Potential areas may include: fueling areas (such as gasoline stations); below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or particles (such as grain, dust, or metal powders); and any other area where you would normally be advised to turn off your vehicle engine.

For Vehicles Equipped with an Air Bag

An air bag inflates with great force. DO NOT place objects, including either installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.

FDA Consumer Update

The U.S. Food and Drug Administration's Center for Devices and Radiological Health Consumer Update on Mobile Phones:

1. Do wireless phones pose a health hazard?

The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the standby mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not

been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.

2. What is the FDA's role concerning the safety of wireless phones?

Under the law, the FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, the FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace, or recall the phones so that the hazard no longer exists.

Although the existing scientific data do not justify FDA regulatory actions, the FDA has urged the wireless phone industry to take a number of steps, including the following:

• Support needed research into possible biological effects of RF of the type emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and

AX5450

• Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.

The FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:

o National Institute for Occupational Safety and Health
o Environmental Protection Agency
o Occupational Safety and Health Administration
o National Telecommunications and Information Administration

The National Institutes of Health participates in some interagency working group activities, as well.

The FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. The FCC relies on the FDA and other health agencies for safety questions about wireless phones.

The FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are

AX5450

typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the subject of the safety questions discussed in this document.

3. What kinds of phones are the subject of this update?

The term “wireless phone” refers here to handheld wireless phones with built-in antennas, often called “cell”, “mobile”, or “PCS” phones. These types of wireless phones can expose the user to measurable radiofrequency energy (RF) because of the short distance between the phone and the user’s head.

These RF exposures are limited by FCC safety guidelines that were developed with the advice of the FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called “cordless phones,” which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures far below the FCC safety limits.

4. What are the results of the research done already?

The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal

AX5450

experiments investigating the effects of radiofrequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.

Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phone RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.

AX5450

5. What research is needed to decide whether RF exposure from wireless phones poses a health risk?

A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but 10 or more years follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop — if they do — may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.

6. What is the FDA doing to find out more about the possible health effects of wireless phone RF?

The FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high

AX5450

priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).

The FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The project has also helped develop a series of public information documents on EMF issues.

The FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. The FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts with independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.

7. How can I find out how much radio frequency energy exposure I can get by using my wireless phone?

All phones sold in the United States must comply

AX5450

with Federal Communications Commission (FCC) guidelines that limit radio frequency energy (RF) exposures. The FCC established these guidelines in consultation with the FDA and the other federal health and safety agencies. The FCC limit for RF exposure from wireless telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC limit is consistent with the safety standards developed by the Institute of Electrical and Electronic Engineering (IEEE) and the National Council on Radiation Protection and Measurement. The exposure limit takes into consideration the body's ability to remove heat from the tissues that absorb energy from the wireless phone and is set well below levels known to have effects. Manufacturers of wireless phones must report the RF exposure level for each model of phone to the FCC. The FCC website (http://www.fcc.gov/oet/rfsafety) gives directions for locating the FCC identification number on your phone so you can find your phone's RF exposure level in the online listing.

8. What has the FDA done to measure the radio frequency energy coming from wireless phones?

The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for measuring the radio frequency energy (RF) exposure from wireless phones and other wireless handsets with the participation and

AX5450

leadership of FDA scientists and engineers. The standard, “Recommended Practice for Determining the Spatial-Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques,” sets forth the first consistent test methodology for measuring the rate at which RF is deposited in the heads of wireless phone users. The test method uses a tissue-simulating model of the human head. Standardized SAR test methodology is expected to greatly improve the consistency of measurements made at different laboratories on the same phone. SAR is the measurement of the amount of energy absorbed in tissue, either by the whole body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of matter. This measurement is used to determine whether a wireless phone complies with safety guidelines.

9. What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?

If there is a risk from these products — and at this point we do not know that there is — it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.

AX5450

If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.

Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.

10. What about children using wireless phones?

The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.

Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted

AX5450

that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.

11. What about wireless phone interference with medical equipment?

Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, the FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by the FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI.

The FDA has tested hearing aids for interference from handheld wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs

AX5450

when a person uses a “compatible” phone and a “compatible” hearing aid at the same time. This standard was approved by the IEEE in 2000.

The FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, the FDA will conduct testing to assess the interference and work to resolve the problem.

12. Where can I find additional information?

For additional information, please refer to the following resources:

FDA web page on wireless phones (http://www.fda.gov/cdrh/phones/index.html)

Federal Communications Commission (FCC) RF Safety Program (http://www.fcc.gov/oet/rfsafety)

International Commission on Non-Ionizing Radiation Protection (http://www.icnirp.de)

World Health Organization (WHO) International EMF Project (http://www.who.int/emf)

National Radiological Protection Board (UK) (http://www.nrpb.org.uk/)

Consumer Information on SAR

(Specific Absorption Rate)

This Model Phone Meets the Government's Requirements for Exposure to Radio Waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. Because the phone is designed to operate at multiple power levels to use only the power required to reach the network, in general, the closer you are to a wireless base station antenna, the lower the power output.

Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 1.320 W/kg and when worn on the body, as described in this user guide, is 0.686 W/kg (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure.

The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID BEJAX5450. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) website at http://www.wow-com.com.

* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

LIMITED WARRANTY STATEMENT

1. WHAT THIS WARRANTY COVERS:

LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions:

(1) The limited warranty for the unit and enclosed accessories shall be a period of one (1) year from the date of original purchase. The remaining warranty period for the unit being repaired or replaced shall be determined by presentation of the original sales receipt for the purchase of the unit.

(2) The limited warranty extends only to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser / end user.

(3) The limited warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories, and all Canadian Provinces.

(4) The external housing and cosmetic parts shall be free of major defects at the time of shipment and, therefore, shall not be covered under these limited warranty terms.

(5) Upon request from LG, the consumer must provide information satisfactory to LG to prove the date of purchase or exchange.

(6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty.

2. WHAT THIS WARRANTY DOES NOT COVER:

(1) Defects or damage resulting from use of the product in other than its normal and customary manner.
(2) Defect or damage from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping, blown fuses, or spills of food or liquid.
(3) Breakage or damage to antennas unless caused directly by defects in material or workmanship.
(4) Alleged defects or malfunctions of the product if the Customer Service Department at LG was not notified by the consumer during the applicable limited warranty period.
(5) Products, which have had the serial number, removed or

AX5450

made illegible.

(6) This limited warranty is in lieu of all other warranties, express or implied either in fact or by operations of law, statutory or otherwise, including but not limited to any implied warranty of marketability merchantability or fitness for a particular use.
(7) Damage resulting from use of non-LG approved accessories.
(8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use.
(9) Products operated outside published maximum ratings.
(10) Products used or obtained in a rental program.
(11) Consumables (such as fuses).

3. STATE LAW RIGHTS:

No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY OR MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.LG INFOCOMM U.S.A., INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY OR MERCHANTABILITY APPLICABLE TO THIS PRODUCT.

Some states do not allow the exclusive of limitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

4. HOW TO GET WARRANTY SERVICE:

To obtain warranty service, please call the following telephone number from anywhere in the continental United States:

Tel. [phone] or visit www.lgeservice.com. Please call or write for the location of the LGE authorized service center nearest you and the procedures for obtaining warranty claims.

LG Electronics Service

201 James Record Road Huntsville, AL 35824

Index

123 (Numbers) Mode 37

A

Abc (Multi-tap) Mode 37

Accessories 20

Adapter 10,21

Alarm Clock 85

Alert 55, 74

Alert Beep 83

Alerts 90

Antenna 9, 114

Auto Call 103

Auto Delete 73,55

Auto Receive 55

Auto Retry 102

Auto Save 73,55

Auto Volume 104

B

Backlight 92

Banner 92

Battery 9, 14, 20

Battery Charge 15

Blasting Areas 117

Bookmarks 81

Browser 78

C

Camera 50

Calculator 87

Caller ID 35

Calling 30

Call Timer 62

Caps Lock 39

Case 39

Cautions 24

children 127

Cigarette Lighter Charger

21

Components 11

Contacts 57

D

Data/Fax 106

Database 41

Dialing Mistakes 31

Direct View 74

Display 92

Driving 114

E

Electronic Devices 115

E-mail address 58

Emergency # 100

Erase All 56,75

Erase Contacts 101

Explosion 23

Exposure 113, 126

F

FDA 118

Fire Hazards 23

Fonts 95

G

Gallery 51

Groups 58

Get Apps 77

Get Info 78

H

Hands-Free Car Kit 21

Health Care Facilities 116

Hearing Aids 116

Help 112

Holster 21

|

Inbox 68

Info 110

Initial Cap 39

K

Key Tone 89

L

Language 96

List Contacts 57

Location 110

Lock 99

Lock Mode 31, 32

Lower case 39

M

Manner Mode 31

Medical Devices 116

medical equipment 128

Menus 18

Messages 63

Missed Calls 61

Mobile Web 78

Msg Alert 74

Msg Settings 73

Mute 33

N

Navigating 79

NEXT 40

0

Off 29

On 29

One-Touch 104

Outbox 70

P

Pacemakers 115

Pause 45

Phone Book 42, 43

Phone Components 11

Photo Msg 52

Photo Settings 55

Power Save 34

Prepending 46

Prompt 82

R

Radio Frequency Signal

113

Receiving Calls 31

Redialing 33

Restrict 100

Reset Default 102

Retrieving Numbers 44

RF Exposure 8

Ringers 88

S

S/W Version 111

Safety 23

Saved 72

Saving Numbers 43

Schedule 84

Screen Icons 17

Security 99

Send Photo Msg 51

Settings 88

Signal Strength 34

Signature 74

Silence All Mode 31, 32

Sounds 88

Specific Absorption Rate 130

Speed Dials 58

Speed Dialing 35

Symbol Mode 37

System 97

T

T9 37

T9En (T9) Mode 37

Take Photo 50

Technical Details 26

Text Input 37

Tone 89

Travel Charger 20

TTY Mode 105

V

Vehicles 116

Voice 59,65

Volume 34, 90

P/N: MMBB0106301(1.0) DATE: 2003.9.3

W

Warnings 24

WARRANTY 132

Web Messages 82

Web Settings 82

LG Electronics

Front view of a silver LG flip phone with a digital display showing 9:00, no visible text or symbols on the device body.

AX5450

Technical Details 28

This is an advanced and compact phone which has diverse features as follows:

Completamente cargado
Completamente descargado

The hands-free car kit, model PHF-50W, enables you to attach the phone to the power jack in your car, providing you with hands-free operation. It can charge a completely discharged battery in 5 hours.

Adaptador de AC

Cable de datos

CDMA technology adopts DSSS (Direct Sequence Spread Spectrum). DSSS enables the phone to keep communication from being crossed and to use one frequency channel by multiple users in the same specific area, resulting in a 10 fold increase in capacity when compared with the analog mode currently used. Soft/Softer Handoff, Hard Handoff, and Dynamic RF power control technologies are combined into this phone to reduce call interruptions.

Modo Abc (Multi-tap)

Tecla suave 2: Press to scroll through the menús in the following order : Pala. T9 -> Abc -> 123 -> Símbols -> Smiley

Aplazado Allows you to delay sending the message until the programmed time frame.

Msj Alerta (Menú 4CHI 6MNO 4CHI

bear_heart/elvis birthday_sm/ hi_pig_sm/love_you_cat_sm/ martini/party_time_sm/roses/ sorry_monster_sm/sun/surfing

1. Presione la tecla suave 1 Fijar para establecer.

- Fijar Contactos/Fijar Papel tapiz/Fijar Encendido/Fijar Apagado

- Beethovens_fifth/Dreamsequence/Ode_to_joy/Rainforest/Train

1. Presione la tecla suave 1 Fijar para establecer.

● Fijar Contactos/Fijar Ilam. ID/Fijar Sin iiam. ID/Fijar Restringir

Fijar NAM (Menú WXYZ 3 DE 2ABC

Tips on Efficient Operation:

American National Standards Institute; National Council on Radiation Protection and Measurements; International Commission on Non-Ionizing Radiation Protection.

LG Electronics Service

201 James Record Road Huntsville, AL 35824

Índice

A

Accesorios 22

Adaptador de AC 22

Additional Funciones 39

Agenda 44

Alarma 93

Alertas 98

Technical Details 28
