Product Type	Extension Column for Floor/Ceiling Mount
Brand	Chief
Model	ODAC0203B
Weight Capacity	300 lbs (136 kg)
Max Design Moment	2000 ft-lbs
Moment Length	23 in (min) to 36 in (max)
Intended Use	Outdoor with UL listed flat panel mounts and ODA330 plate (not included)
Material	Steel (assumed for outdoor use)
Installation Requirements	Two people or mechanical lifting device; structural support must hold 5x combined weight
Compatible Mounts	OLCM1U, OXCM1U, OLCM2X1U, OLCB1U, OXCB1U, OLCB2X1U
Compatible Plate	ODA330 (not included)
Safety Certifications	UL listed (mount and plate), column itself not UL evaluated for moment
Inspection Frequency	Annually and after major weather events
Environmental Resistance	Outdoor (wind, snow, rain, hail)
Warranty	Refer to manufacturer

Frequently Asked Questions - ODAC0203B Chief

What is the maximum weight capacity of the Chief ODAC0203B extension column?

The maximum weight capacity is 300 lbs (136 kg), but it may be limited by the lowest-rated component in the mounting system.

What is the maximum moment rating for the ODAC0203B?

The maximum design moment is 2000 ft-lbs. The moment length ranges from 23 inches to 36 inches.

Which floor/ceiling plate is compatible with the ODAC0203B?

It is designed for the Chief ODA330 floor/ceiling plate (sold separately).

What mounts can be attached to the ODAC0203B column?

Compatible mounts include Chief models: OLCM1U, OXCM1U, OLCM2X1U, OLCB1U, OXCB1U, OLCB2X1U (all UL listed).

Is the ODAC0203B suitable for outdoor use?

Yes, it is intended for outdoor applications and must be used with outdoor-rated mounting systems.

How often should the ODAC0203B be inspected?

Inspect the column and supporting structure at least once per year and immediately after any major weather event (e.g., storms, heavy snow).

Can I route cables through the column?

Yes, the column allows for optional cable routing through the interior.

What tools are required for installation?

Installation requires standard tools (e.g., wrenches, screwdrivers). A mechanical lifting device or two people are recommended for safe handling.

Does the ODAC0203B have a UL rating?

The column itself has not been evaluated by UL for moment ratings, but it is intended for use with UL listed components.

What is the warranty for Chief ODAC0203B?

Warranty details are provided by Milestone AV Technologies. Contact the manufacturer for specific terms.

USER MANUAL ODAC0203B Chief

INSTALLATION INSTRUCTIONS

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

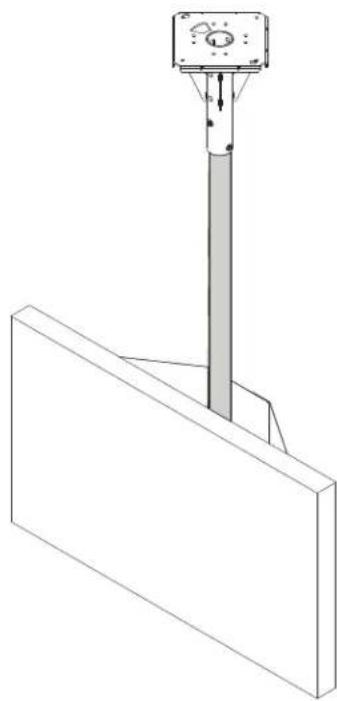

Technical line drawing of a mechanical assembly with a vertical rod and mounting bracket (no text or symbols)

Outdoor Floor/Ceiling Pipe

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

MOMENT: A MOMENT is a product of force and distance. It is calculated by multiplying the force applied by install drop length. See Dimensions drawings for further details.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all accessories are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this accessory can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this accessory is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the accessory.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to mounting system cannot exceed 300 lbs (136 kg).

NOTE: "Moment" ratings have NOT been evaluated by UL.

WARNING: Exceeding the maximum moment can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the mounting system does not exceed a moment of 2000 ft-lbs. See table below for specific column specifications.

COLUMN MODEL	Weight capacity	Moment Length (IN) (ML)	Max Design Moment (FT-LBS) (MDM)
ODAC0203B	300 lbs (136 kg) 23	min - 36 max 2000
ODAC0304B	300 lbs (136 kg) 33	min - 48 max 2000
ODAC0405B	300 lbs (136 kg) 45	min - 60 max 2000
ODAC0506B	300 lbs (136 kg) 57	min - 72 max 2000
ODAC0708B	300 lbs (136 kg) 81	min - 96 max 2000

WARNING: The weight capacity of the ODA mounting systems may be LIMITED to the lowest weight capacity of any component located between the ODA330 ceiling plate and the flat panel display(s).

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Use this mounting system with other outdoor products only.

WARNING: Always use two people or a mechanical lifting device to safely lift and position equipment.

WARNING: Due to exposure to outdoor elements such as strong wind gusts, heavy snow, hail, rain, etc., the mounting system and its supporting structure must be inspected at least once per year and immediately following any major weather event. If evidence of excessive wear, deterioration or any other unsafe condition is observed this product must be taken out of service immediately!

NOTE: The ODAC Series columns are intended to be used with UL listed flat panel floor/ceiling mounts (not included): OLCM1U, OXCM1U, OLCM2X1U, OLCB1U, OXCB1U, OLCB2X1U and UL Listed ODA Floor/Ceiling Plate ODA330 (not included).

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

TOOLS REQUIRED FOR INSTALLATION

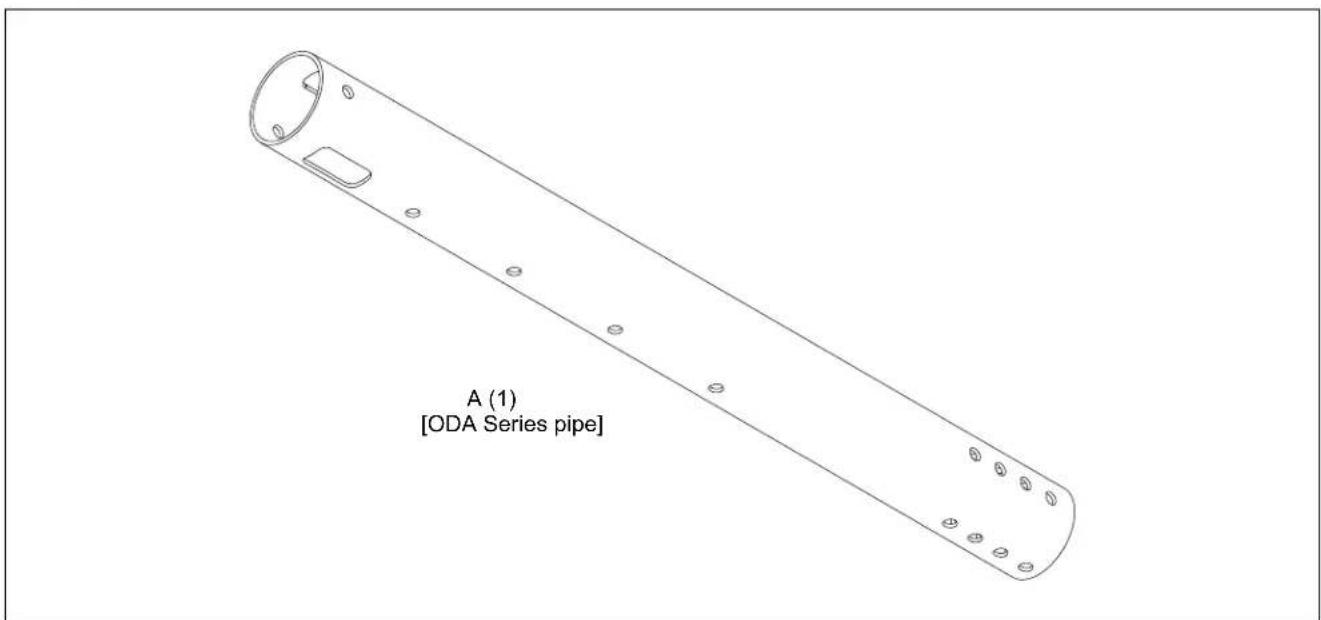

PARTS

INSTALLATION

IMPORTANT ! : The following procedure assumes that the UL Listed ODA330 assembly (not included) has been properly installed following instructions provided with ODA330 assembly.

1. OPTIONAL: Route cables/conduits through extension column (A).
2. Insert column (A) in to ODA330 floor/ceiling plate (not included) until holes align for installation. (See Figure 1)

Figure 1

1. Attach pipe (A) to ODA330 using hardware provided with ODA330 plate. (See Figure)

IMPORTANT ! : Make sure spacers are properly oriented to fit around pipe with the lines vertical.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to mounting system cannot exceed 300 lbs (136 kg).

1. Install outdoor ceiling mount and display to pipe (A) following installation instructions included with mount.
