USER MANUAL HMX-S10BN SAMSUNG

High Definition Digital Camcorder

www.samsung.com/register

HMX-S10BN/HMX-S15BN/HMX-S16BN

before reading this user manual

SAFETY WARNINGS

What the icons and signs in this user manual mean;

WARNING	Means that there is a potential risk of death or serious injury.
CAUTION	Means that there is a potential risk of personal injury or damage to the product.
CAUTION	To reduce the risk of fire, explosion, electric shock, or personal injury when using your camcorder, follow these basic safety precautions.
	Means hints or referential pages that may be helpful when operating the camcorder.
PRECHECK	Settings required before using a function.

These warning signs are here to prevent injury to you and others.

Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

PRECAUTIONS

Warning!

• When using the AC power adapter with your camcorder, connect the adapter to an outlet with protective grounding.
• Do not expose the camcorder battery to direct sunlight, heaters, radiators, fire, or any other source of excessive heat.

Caution

If you replace the battery with the wrong battery, you can cause an explosion. Replace only with the same battery or an equivalent type.

If you plug the AC adapter into a 240V AC outlet, be sure to use a suitable plug adapter.

About this user manual

Thank you for purchasing this Samsung Camcorder. Please read this user manual carefully before you use the camcorder and keep it handy for future reference. Should your camcorder fail to operate correctly, refer to Troubleshooting.

This User Manual covers HMX-S10, HMX-S15, and HMX-S16 models.

• The HMX-S15 and HMX-S16 have a 32GB, and a 64GB built-in storage media (SSD) respectively with a built-in WIFI module but also use memory cards.
• The HMX-S10 models do not have built-in storage media (SSD) and use memory cards. Although some features of HMX-S10 models are different, they operate in the same way.
• Illustrations of model HMX-S10 are used in this user manual.
• The displays in this user manual may not be exactly the same as those you see on the LCD screen.
• Designs and specifications of the camcorder and other accessories are subject to change without any notice.
• In this user manual, the icon or symbol in the parenthesis appearing in a description of a submenu item indicates it will appear on the screen when setting the corresponding item.

Ex) Submenu item of "iSCENE"ge 61

- "Sports": Recording people or objects in motion. (If set, the corresponding icon (will appear on the screen.)

The following terms are used in this manual:

• ‘Scene’ refers to the point where you press the Record Start/Stop button to start recording until you press again to pause the recording.
• The terms ‘photo’ and ‘still image’ are used interchangeably with the same meaning.

Before using this camcorder

• This camcorder records video in H.264 (MPEG4 part10/AVC) format and in High Definition Video (HD-VIDEO) or Standard Definition Video (SD-VIDEO).
• You can play back and edit the video recorded by the camcorder on a personal computer with the built-in software in this camcorder.
• Please note that this camcorder is not compatible with other digital video formats.
• Before recording important video, make a trial recording.

Play back your trial recording to make sure the video and audio have been recorded properly.

- Recorded contents may be lost due to a mistake when handling this camcorder or memory card, etc. Samsung shall not be responsible for compensation for damages due to the loss of recorded contents.

before reading this user manual

- Make a backup of important recorded data.

Protect your important recorded data by copying the files to a PC. We also recommend you copy it from your PC to other recording media for storage. Refer to the software installation and USB connection guide.

- Copyrights: Please note that this camcorder is intended for individual use only.

Data recorded on the storage media in this camcorder using other digital/analog media or devices is protected by the copyright act and cannot be used without permission of the owner of the copyright, except for personal enjoyment. Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.

• We recommended you use the camcorder at least once a month to maintain its performance and life.
• Check the image resolution before developing photos.
• Make sure to check all functions of the camcorder before recording to prevent recording failure.
• This wireless equipment may have radio interference in operation so it cannot support life safety services.
• For Open Source licenses information, refer to the "Opensource-S10.pdf" in the provided CD-ROM.

Notes regarding trademarks

• All the trade names and registered trademarks mentioned in this manual or other documentation provided with your Samsung product are trademarks or registered trademarks of their respective holders. Furthermore, “TM” and “®” are not mentioned in each case in this manual.
• The SD logo is a trademark. The SDHC logo is a trademark.
• Microsoft®, Windows®, Windows Vista®, Windows® 7, and DirectX® are either registered trademarks or trademarks of the Microsoft Corporation in the United States and/or other countries.
• Intel®, Core™, Core 2 Duo®, and Pentium® are the registered trademarks or trademarks of the Intel Corporation in the United States and other countries.
• AMD and Athlon™ are either registered trademarks or trademarks of AMD in the United States and other countries.
• Macintosh, Mac OS are either registered trademarks or trademarks of Apple Inc. in the United States and/or other countries.
• YouTube is a trademark of Google Inc.
  • Flickr is a trademark of Yahoo.
  • Facebook is a trademark of Facebook Inc.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• Adobe, the Adobe logo, and Adobe Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
• Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.
• DLNA and DLNA logo are trademarks of the Digital Living Network Alliance.
• AllShare ^TM is a Samsung's trademark.

important safety instructions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Warning

To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.

Caution

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachment/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

important safety instructions

1. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
2. VENTILATION:

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register. This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

1. POWER SOURCES:

The CAMCORDER should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. A CAMCORDER is intended to be operated from battery power, or other sources, refer to the operating instructions.

1. GROUNDING OR POLARIZATION:

This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug.

1. POWER-CORD PROTECTION:

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit.

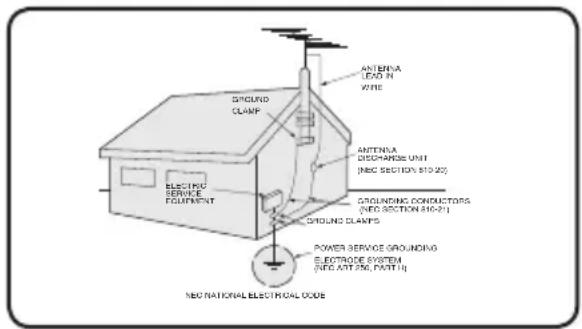

1. OUTDOOR ANTENNA GROUNDING:

CAMCORDER, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire and supporting structure, grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See figure below.

1. LIGHTNING:

For added protection of this CAMCORDER during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the CAMCORDER due to lightning and powerline surges.

1. POWER LINES:

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

23. OVERLOADING:

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

24. OBJECTS AND LIQUIDS:

Never push objects of any kind into this CAMCORDER through openings as they may touch dangerous voltage points or short out a part that could result in a fire or electric shock. Never spill liquids of any kind onto the CAMCORDER. Should spillage occur, unplug unit and have it checked by a technician before use.

25. SERVICING:

Do not attempt to service this CAMCORDER yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

26. DAMAGE REQUIRING SERVICE:

Unplug this CAMCORDER from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If any liquid has been spilled onto, or objects have fallen into the CAMCORDER.
c. If the CAMCORDER has been exposed to rain or water.
d. If the CAMCORDER does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the CAMCORDER to its normal operation.
e. If the CAMCORDER has been dropped or the cabinet has been damaged.
f. When the CAMCORDER exhibits a distinct change in performance, this indicates a need for service.

27. REPLACEMENT PARTS:

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer and having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

28. SAFETY CHECK:

Upon completion of any service or repairs to this CAMCORDER, ask the service technician to perform safety checks to determine that the CAMCORDER is in safe operating order.

1. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.

2. If this power supply is used at 240V ac, a suitable plug adaptor should be used.

important safety instructions

USER INSTALLER CAUTION:

Your authority to operate this FCC certified equipment could be voided if you make changes or modifications not expressly approved by this party responsible for compliance to part 15 FCC rules.

NOTE:

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. For details see lamprecycle.org, eiae.org, or call 1-800-Samsung (7267864)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help and for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: "How to Identify and Resolve Radio-TV Interference Problems." This Booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 004-000-00345-4.

FCC Warning

The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions;

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

safety information

The safety precautions illustrated below are to prevent personal injury or material damages. Heed all instructions carefully.

WARNING

Means that there is a potential risk of serious personal injury.

CAUTION

Means that there is a potential risk of personal injury or damage to the product

Prohibited action. Do not touch the product.

Do not disassemble the product.

This precaution must be kept.

Unplug from the power supply.

WARNING

Cartoon illustration of a character reacting to a small electronic device (no text or symbols present)

Do not overload outlets or extension cords as this may result in abnormal heat or fire.

Using the camcorder at temperatures over 60^ C(140°F) may result in fire. Keeping the battery at a high temperature may cause an explosion.

Cartoon illustration of a smiling phone with hands reaching out, showing water droplets (no text or symbols)

Do not allow water or metal and inflammable matter to enter the camcorder or AC power adaptor. Doing so may pose a fire hazard.

Simple line drawing of two animals on a blue surface with a sign reading 'JANG' (no text or symbols on animals)

No sand or dust! Fine sand or dust entering the camcorder or AC power adaptor could cause malfunctions or defects.

No oil! Oil entering the camcorder or AC power adaptor could cause electric shock, malfunctions or defects.

Do not aim the camcorder directly into the sun. Doing so could cause eye injuries, as well as lead to malfunctioning of internal parts of the product.

Do not bend the powercord or damage the AC power adaptor by pressing on it with a heavy object. There may be a risk of fire or electric shock.

Illustration of a hand using a power plug to test a wall-mounted electrical outlet with lightning (no text or symbols)

Do not disconnect the AC adaptor by pulling on its power-cord, as this could damage the power-cord.

Do not use the AC adaptor if it has damaged, split or broken cords or wires. Doing so may cause fire or electric shock.

safety information

Do not connect the AC adaptor unless the plug can be fully inserted with no part of the blades exposed.

Keep the camcorder away from water when used near the beach or pool or when it rains. There is a risk of malfunction or electric shock.

Keep the power-cord unplugged when not in use or during lightning storms. There is a risk of fire.

If the camcorder malfunctions, immediately detach the AC adaptor or battery from the camcorder. There is a risk of fire or injury.

Do not dispose of battery in a fire as it may explode.

Keep the used lithium battery or memory card out of the reach of children. If the lithium battery or memory card is swallowed by children, consult physician immediately.

When cleaning the AC adaptor, unplug the power-cord. There is a risk of malfunction or electric shock.

Do not attempt to disassemble, repair, or modify the camcorder or the AC adaptor to avoid a risk of fire or electric shock.

Never use cleaning fluid or similar chemicals. Do not spray cleaners directly on the camcorder.

Do not plug or unplug the power cord with wet hands. There is a risk of electric shock.

If the camcorder makes an abnormal sound, or smell or smokes, unplug the power-cord immediately and request service from a Samsung service center. There is a risk of fire or personal injury.

Do not press the surface of the LCD with force, or hit it with a sharp object. If you push the LCD surface, display unevenness may occur.

Cartoon illustration of a smiling face emerging from a computer monitor, with a blue lightning bolt nearby (no text or symbols)

Do not drop or expose the camcorder, battery, AC adaptor or other accessories to severe vibrations or impact. This may cause a malfunction or injury.

Simple line drawing of a telescope on a tripod with no text or symbols

Do not use the camcorder on a tripod (not supplied) in a place where it is subject to severe vibrations or impact.

Cartoon illustration of a smiling refrigerator with steam rising, sun in background (no text or symbols)

Do not use the camcorder in direct sunlight or near heating equipment. The heat may cause a malfunction or injury.

Cartoon illustration of a car with a person inside, showing a blue sun icon (no text or symbols)

Do not leave the camcorder in a closed vehicle for a long time, where the temperature is very high.

Illustration of a mechanical component emitting smoke or vapor (no text or symbols)

Do not expose the camcorder to soot or steam. Thick soot or steam could damage the camcorder case or cause a malfunction.

Cartoon illustration of a smiling phone with a hand gesture, surrounded by floating bubbles (no text or symbols)

Do not use the camcorder near dense exhaust gas generated by gasoline or diesel engines, or corrosive gas such as hydrogen sulphide. Doing so may corrode the external or internal terminals, disabling normal operation.

Do not expose the camcorder to insecticide. Insecticide entering the camcorder can cause the camcorder to operate abnormally. Turn the camcorder off and cover it with vinyl sheet, etc. before using insecticide.

Do not expose the camcorder to sudden changes in temperature or high humidity. There is also a risk of defect or electric shock when using outdoors during lightning storms.

Cartoon illustration of a smiling smartphone with open lid and frowning face (no text or symbols)

Do not place the camcorder with the open LCD screen down

Do not wipe the camcorder body with benzene or thinner. The exterior coating could peel off or the case surface could deteriorate.

Hand-drawn sketch of a smiling digital device with open screen and face, no text or symbols present

Do not leave the LCD screen open when not using the camcorder.

safety information

Do not hold the camcorder by the LCD monitor when lifting it. The LCD screen could detach and the camcorder may fall.

Illustration of a television set, a flat-screen device, and a small electronic device emitting sound waves (no text or symbols)

Do not use the camcorder near a TV or radio. This could cause noise on the TV screen or the radio.

Do not use the camcorder near sources of strong radio waves or magnetism such as speakers or a large motor. Noise from these sources can distort the video or audio you are recording.

Use Samsung-approved accessories only. Using products from other manufacturers may cause overheating, fire, explosion, electric shock or personal injuries caused by abnormal operation.

Place the camcorder on a stable surface that is well ventilated.

Keep important data separately. Samsung is not responsible for data loss.

Only use the adaptor plug in a socket that is easily accessible. If any problem occurs with the product, you must pull the plug out of the socket to disconnect the power completely. Turning off the power button on the product does not completely disconnect the power.

contents

QUICK START GUIDE

07

GETTING TO KNOW THE CAMCORDER

11

GETTING STARTED

20

11 What's included with your camcorder
12 Location of controls
14 Using the remote control
16 Identifying the screen displays

20 Attaching/detaching the battery

21 Charging the battery
22 Checking the battery state

25 Turning your camcorder on/off
26 Switching to the power saving mode
27 Setting the operation modes
27 Using the display( □) button
28 Using the touch panel

29 Setting the time zone and date/time for the first time
30 Selecting the languages

31 Selecting the storage media (HMX-S15/S16 only)

32 Inserting / ejecting a memory card (not supplied)
33 Selecting a suitable memory card (not supplied)
35 Recordable time and capacity
36 Attaching the grip belt
36 Adjusting the lcd screen
37 Basic camcorder positioning
37 Attaching the ferrite core

38 Recording videos

40 Capturing photos during video recording
41 Recording photos
42 Recording with ease for beginners (Smart auto)
43 Capturing photos while playing back videos
44 Zooming
45 Setting the anti-shake (OIS: optical image stabilizer)
46 Using back light compensation mode

BASIC PLAYBACK

49

USING THE MENU ITEMS

55

ADVANCED RECORDING

61

47 Using the flash
48 Using the manual dial

49 Changing the playback mode
50 Playing back videos
53 Viewing photos

55 Handling menus and quick menus

57 Menu items
60 Quick menu items

61 iSCENE
62 Resolution
63 Slow Motion
64 White Balance
65 ISO
66 Aperture
67 Shutter
68 EV
69 Super C.Nite
70 Focus
71 Face Detection
72 Magic Touch
73 Metering
73 xvYCC
74 Digital Effect
75 Fader
76 Tele Macro
77 Cont. Shot
77 Wind Cut
78 Zoom MIC
79 Voice Reduction
79 MIC Level
80 Digital Zoom
80 Self Timer
81 Time Lapse REC

ADVANCED PLAYBACK

83

83 Play Option
83 Background Music
84 Highlight
85 i VIEW
86 Story-board Print
86 Slide Show Start

87 Slide Show Music

87 Slide Show Interval

88 Slide Show Effect

88 File Info

SYSTEM SETTING

89 LCD Brightness

89 LCD Enhancer

90 Guideline

90 Date/Time Display

91 TV Type

91 TV Display

92 HDMI TV Out

92 Auto LCD Off

93 Remote

93 PC Software

94 USB Connect

94 TV Connect Guide

95 Anynet+ (HDMI-CEC)

96 Storage Type (HMX-S15/S16 Only)

96 Storage Info

97 Format

97 File No.

98 Time Zone

98 Date/Time Set

99 Date Type

99 Time Type

100 Beep Sound

100 Shutter Sound

101 Auto Power Off

102 Quick On STBY

103 Manual Dial

103 REC Lamp

104 Default Set

104 Language

105 Demo

EDITING VIDEO CLIPS

106 Deleting a section of a video (partial delete)

107 Dividing a video

108 Combining videos

FILE MANAGEMENT

109 Protection from accidental erasure

110 Deleting files

111 Copying files (HMX-S15/S16 only)

contents

WIRELESS NETWORK CONNECTION AND CONFIGURATION (HMX-S15/S16 ONLY)

112

USING THE WIRELESS NETWORK (HMX-S15/S16 ONLY)

116

CONNECTING TO A TV

122

DUBBING VIDEOS

126

PRINTING PHOTOS

127

USING WITH A WINDOWS COMPUTER

129

TROUBLESHOOTING

MAINTENANCE & ADDITIONAL INFORMATION

SPECIFICATIONS

112 Auto connecting to a network
114 Manual network connection
115 Device information

116 Playing videos/photos on the TV screen
117 Sharing the videos/photos
118 Setting up the optimal network configuration for DLNA streaming
119 Saving the videos/photos to a PC
120 Transferring videos and photos between other devices
122 Connecting to a high definition TV with HDMI
124 Connecting to a regular TV
125 Viewing on a TV screen
126 Dubbing to a vcr or DVD/HDD recorder
127 Direct printing with a PictBridge printer
129 What you can do with a windows computer
130 Using the intelli-studio program
134 Using as a removable storage device
136 Warning indicators and messages
142 Symptoms and solutions
151 Maintenance
152 Using your camcorder abroad
153 Specifications

quick start guide

This quick start guide introduces the basic operation and features of your camcorder. See the reference pages for more information.

You can record videos in H.264 format!

You can record videos in H.264 format that are convenient to email and share with your friends and family. You can also take photos with your camcorder.

STEP1: Get ready

1. Attach the battery to the camcorder. page 20

- Align the battery grooves with the battery compartment, and then slide the battery into place in the direction of the arrow.

1. Charge the battery fully. ➕page 21

- The battery is fully charged when the CHG (charging) indicator light turns green.

1. Insert a memory card. →page 32

- You can use commercially available SDHC (SD High Capacity) or SD memory cards with this camcorder.

- Set the appropriate storage media. →page 31 (HMX-S15/S16 only)

Illustration of a portable electronic device with a screen and antenna (no text or symbols visible)

STEP2: Record with your camcorder

quick start guide

Recording videos Recording photos

Your camcorder uses advanced H.264 compression technology give you the clearest video quality.

1. Open the LCD screen.

- Your camcorder turns on when you open the LCD screen.

1. Select the Video record (💡) mode by pressing the MODE button.

2. Press the Recording start/stop button.

• To stop recording, press the Recording start/stop button.

Photo of a baby sitting on sandy ground, no visible text or symbols

1. Open the LCD screen.
2. Select the Photo record (☐) mode by pressing the MODE button.
3. Press the PHOTO button lightly to adjust the focus, then press it fully (a shutter click sounds).

Illustration of a woman holding a small object, two children playing with balloons and a dog (no text or symbols)

Baby sitting on a sandy beach, no visible text or symbols

Using 'Quick On STBY' by opening/closing the LCD screen.

When you close the LCD screen during standby, your camcorder goes to Quick On STBY mode (power saving mode). You can start recording quickly when you open the LCD screen. page 102

• Your camcorder is compatible with H.264 format "1080/60i (SF)" which provides highly detailed, beautiful images.
• The default setting is "1080/60i (SF)". You can also record with SD (standard definition) video quality.
• You can also take photos in the Video record mode. page 40

STEP3: Play back videos or photos

Viewing videos or photos on the LCD screen

You can find your desired recordings quickly by using the thumbnail index view.

1. Touch the Play (☐) tab on the LCD screen in STBY mode.
2. Touch the desired thumbnail (☐/☐/☐) tab, then touch the desired image.

Photo of a baby sitting on a sandy beach with camera interface overlay (no readable text or symbols)

Grid of nine photos showing various activities including skiing, skateboarding, and outdoor scenes, with no visible text or symbols.

Viewing on a high definition TV

You can enjoy HD (high definition) videos. →page 122

Illustration of two people watching a TV on a sofa, with a camera and microphone visible (no text or symbols)

You can also play back videos on a SD (standard definition) image quality TV. →page 124

STEP4: Save recorded videos or photos

Simple and fun! Enjoy the various features of Intelli-studio on your Windows computer.

Using the Intelli-studio program built into your camcorder, you can import videos/photos into your computer, and edit or share the videos/photos with your friends and family.

For details, see pages 129\~135.

Illustration of a person using a laptop with a camera nearby (no text or symbols)

quick start guide

Importing and viewing videos/photos from the camcorder to your PC

1. Launch the Intelli-studio program by connecting the camcorder to your PC via USB cable.

- The new file saving window appears with the Intelli-studio main window. Click "Yes", the uploading procedure will start.

1. The new files are saved to your PC and registered under "Contents Manager" in the Intelli-studio program.

• You can arrange the files by different criteria such as Face, Date, etc.

1. Double-click a file to start playback.

Sharing the videos/photos onto YouTube/Flickr/FaceBook

Share your contents with the world by uploading videos and photos directly to a web site with one click.

Click "Share (☐) → "Upload" tab on the browser. →page 133

The Intelli-studio runs automatically when you connect the camcorder to a Windows computer if you have set "PC Software: On". ➤ page 93

STEP5: Delete videos or photos

If the storage media is full, you cannot record new videos or photos. Delete videos or photos that you have saved to a computer from the camcorder's storage media. Then you can record new videos or photos on newly freed up space.

Touch the Play (☐) tab → Menu (☐) tab → "Delete" on the LCD screen. → page 110

getting to know the camcorder

Your new camcorder comes with the following accessories. If any of these items is missing from your box, call Samsung's Customer Care Center.

Line drawing of a DSLR camera with lens and external grip (no text or symbols)

Model name	Internal memory	Color	Memory card slot	LCD screen Lens		Wi Fi module
HMX-S10BN	- Black			Color / Touch panel	Optical zoom ratio: x15(Intelli zoom ratio: x18)Digital zoom ratio: x10(Video recording mode only)	-
HMX-S15BN	32GB Black Color	/ To Yes panel		Yes
HMX-S16BN	64GB Black Color	/ Touch panel		Yes

• Although some features of the models are different, they operate in the same way.

Checking your accessories

Battery (IA-BP210E) (AD43-00196A)	Remote control & button type battery (AD59-00169A)	AC power adaptor (AA-MA9 type) (AD44-00151A)	Audio/Video cable (AD39-00155A)	Mini HDMI cable (AD39-00159A)
USB cable (AD39-00169A)	Ferrite Core (3301-001502)	User manual CD (AD46-00340A)	Quick start guide (AD68-05193A)

USB cable

Ferrite Core

User manual CD

Quick start guide

• The exact appearance of each item may vary by model.
• The contents may vary depending on the sales region.
• Parts and accessories can be purchased after consulting with your local Samsung dealer. SAMSUNG is not responsible for reduced battery life time or malfunctions caused by any unauthorized use of accessories such as the AC power adaptor or the batteries.
• A memory card is not included. See page 33 for memory cards compatible with your camcorder.
• Your camcorder includes the user manual CD and printed quick start guide.

getting to know the camcorder

LOCATION OF CONTROLS

Front/Left

① Remote control sensor
② Recording indicator
③ Built-in flash
4 Lens
⑤ Manual button/dial
6 ZOOM MICROPHONE SYSTEM
⑦ Flash (④) button
⑧ Anti-shake (OIS) (.)button
⑨ Display ( ) button
10 SMART AUTO / VIEW button

11 Backlight ( ) button
12 AV jack (Composite)
13 HDMI jack
14 USB jack
15 Jack cover () HDMI AV
16 Power (💡) button
17 TFT LCD screen (Touch screen)
18 Recording start/stop button
19 Zoom (W/T) button

During a recording, be careful not to block the internal microphone and lens.

① Memory card cover
② Memory card slot
③ MODE button / Mode indicator

④ Zoom (W/T) lever
⑤ PHOTO button
6 Built-in speaker
⑦ Internal microphone

8 Recording start/stop button
9 Charging (CHG) indicator
10 Jack cover (MIC DC IN
11 DC IN jack
12 External microphone (MIC) jack
13 Battery release switch
14 Tripod receptacle
15 Grip belt hook

getting to know the camcorder

USING THE REMOTE CONTROL

You can operate the camcorder at a distance with a remote control.

① REC (Recording start/stop) button
② Display ( ) button
③ Skip (⚡) button
4 Stop ( ) button
5 MENU button
6 Control (\~// /) buttons
⑦ PHOTO button
⑧ Zoom (W/T) button
9 Search (✗) button
10 Slow playback (▶) button
11 Play/Pause ( ) button

Remove the insulation sheet before using the remote control!

Remove the insulation sheet before using the remote control as shown in the illustration.

The remote control may malfunction or not work when two buttons are pressed at the same time.

• The buttons on the remote control function the same as those on the camcorder.
• You can use the remote control conveniently when recording yourself with the camcorder fixed on a tripod (not supplied).
• When using the remote control, point it to the receiver of the camcorder.

Installing the button type battery (CR2025) in the remote control

1. Turn the battery holder counter clockwise (as indicated with (◎) mark) using a coin to open it.

• The battery holder opens.

1. Insert the battery into the battery holder with the positive (+) terminal facing down, and then it firmly until you hear a locking sound.

2. Place the battery holder back in the remote control. Match its (◎) mark with the (○) mark on the remote control, and then turn the battery holder clockwise to lock it.

Diagram showing a rotating disk with an arrow indicating rotation, no text or symbols present

Diagram of a device casing with a blue arrow indicating rotation, no text or symbols present

- There is a danger of explosion if you replace this battery with the wrong type of battery. Replace only with the same or equivalent type.

- The button battery has a expected lifetime of 5 to 6 months, depending on how much you use the remote control.

- You can purchase a replacement CR2025 type button battery at your local Samsung dealer.

- Do not pick up the battery using tweezers or other metal tools. This will cause a short circuit.

• To avoid the risk of explosion, do not recharge, disassemble, heat, or immerse the battery in water.

- Keep the button type battery out of the reach of the children. Should the battery be swallowed, consult a doctor immediately.

getting to know the camcorder

IDENTIFYING THE SCREEN DISPLAYS

The available functions vary depending on the operation mode you have selected. Different indicators appear depending on the setting values.

PRECHECK!

• This On Screen Display (OSD) is shown in the Video record mode only.
• Select the Video record (💡) mode by pressing the MODE button. → page 27

Video record mode

Indicator Meaning
	Video record mode / Smart Auto mode
F2JB1/30 / [IMAGE]	Manual aperture*, Manual shutter*/Super C.Nite*
	iSCENE
	Exposure value*
	White Balance
	Digital Effect
	Fader*, xvYCC
	Play tab

Center of the LCD screen

Indicator Meaning
STEY / ●/ [IMAGE]	Operating status (standby / recording) / Self Timer*
000000	Time counter (video recording time)
[307Min]	Remaining recordable time
1Sec/24Hr	Time Lapse REC*
	Face Detection frame
	Touch Point
	Optical zoom / Digital zoom
	Quick menu tab

Right of the LCD screen

Indicator Meaning
	Storage media (memory card or internal memory (HMX-S15/S16 only))
	Battery info. (remaining battery level)
	Manual focus* / Touch Point* / Face Detection, Video resolution / Slow Motion*
	Tele Macro, Video quality
	LCD Enhancer, Wind Cut
	Voice Reduction, Zoom MIC, MIC Level
	Back light, Anti-shake (OIS)
	Time Zone (visit), Date/Time
	Wireless Networking tab (HMX-S15/S16 only), Menu tab

• Settings of functions marked with * are not retained when the camcorder is turned off.
• The on-screen indicators are based on an 32GB SDHC memory card capacity.
  • The screen displayed above is for explanation purposes and may differ from your actual display.
• For warning indicators and messages, see pages 136\~141
• The icons illustrated above and their positions can be changed without notice for better performance.

PRECHECK!

• This On Screen Display (OSD) is shown in the Photo record mode only.
• Select the Photo record (☐) mode by pressing the MODE button. → page 27

Photo record mode

Left of the LCD screen

Center of the LCD screen

Indicator Meaning
	Operating status (focus / recording)/Self Timer*
	Face Detection frame
	Magic Touch point
	Optical zoom
	Quick menu tab

Right of the LCD screen

Indicator Meaning
(WWC6) /	Photo record mode / Smart Auto mode
[0VAX]	Manual aperture*, Manual shutter*
Iv=4	iSCENE
Iv=4 +0.3EV	Exposure value*
Iv=4	White Balance
Iv=4	ISO
Iv=4	Digital Effect
Iv=4	Play tab

Indicator Meaning
	Image counter (total number of photo the camcorder can now record)
	Storage media (memory card or internal memory (HMX-S15/S16 only))
	Battery info. (remaining battery level)
	Manual focus* / Magic Touch* /Face Detection, Video quality
	Tele Macro, Metering
	LCD Enhancer, Flash
	Cont. Shot, Back light
	Anti-shake (OIS)
	Time Zone (visit), Date/Time
	Wireless Networking tab (HMX-S15/S16 only), Menu tab

• Settings of functions marked with * are not retained when the camcorder is turned off.
• The total number of photos the camcorder can record is based on available space in the storage media.
• The number of photos the camcorder can record may remain the same if the available space in the storage media rarely changes after recording.
• The maximum number the image counter can display is "9999."

getting to know the camcorder

PRECHECK!

• This On Screen Display (OSD) is shown in the Video play mode only.
• Select the Play (☐) tab on the LCD screen to select the Video play (☐, ☐, ☐) mode. → page 49

Video play mode

Top of the LCD screen

Indicator Meaning
	Video play mode
	Operating status (play, pause, etc.) / Highlight
000005/000050	Time code (elapsed time/recorded time)
100_0001	File name (file number)
	Storage media (memory card or internal memory (HMX-S15/S16 only))
	Battery info. (remaining battery level)
	Playback progress bar
	Play Option
	Erase protection
	Video resolution
	Video quality
	LCD Enhancer

Bottom of the LCD screen

Indicator Meaning
	Background music
	Volume tab / Play related function tab(frame advance)
	Return tab
	Play related function tab (skip/search/playback/pause/slow playback)
	Menu tab
12:00 AMJAN/01/2010	Date/Time

The On-Screen Display icons and controls, such as the play control, volume, and return tab appear briefly. They reappear when you touch anywhere on the screen.

PRECHECK!

• This On Screen Display (OSD) is shown in the Photo play mode only.
• Select the Play (P) tab on the LCD screen to select the Photo play ( ) mode. →page 49

Photo play mode

Top of the LCD screen

Indicator Meaning
	Photo play mode
	Slide show / Playback zoom (X1.1~X8.0)
1/10	Photo image counter (current image / total number of recorded images)
100_0001	File name (file number)
	Storage media (memory card or internal memory (HMX-S15/S16 only))
	Battery info. (remaining battery level)
	Erase protection
	Photo resolution
	LCD Enhancer

Bottom of the LCD screen

Indicator Meaning
	Volume tab (when activating slide show)
	Return tab
	Previous image/Next image tab
	Slide show start tab
12:00 AMJAN/01/2010	Date/Time
	Menu tab

The On-Screen Display icons and controls, such as the play control, volume, and return tab appear briefly. They reappear when you touch anywhere on the screen.

getting started

ATTACHING/DETACHING THE BATTERY

Purchase extra batteries to allow continuous use of your camcorder.

To attach the battery

Align the battery grooves with the battery compartment, and then slide the battery into place in the direction of the arrow.

To detach the battery

Slide the Battery release switch and pull out the battery.

- Gently slide the Battery release switch in the direction as shown in the figure.

• Samsung is not responsible for problems that are caused by using unapproved batteries. If you use batteries from other manufacturers, there is a danger of overheating, fire, or explosion.
• Detach the battery from the camcorder with care to prevent it from falling.

CHARGING THE BATTERY

You can charge the battery using the AC power adaptor or USB cable.

PRECHECK!

Before starting the following procedure, make sure that the battery is attached in your camcorder.

To charge the battery with the AC power adaptor

1. Press the Power (button to turn off the camcorder. → page 25

2. Open the jack cover and connect the AC power adaptor to the DC IN jack.

3. Connect the AC power adaptor to a wall socket.

- The charging (CHG) indicator lights up and charging starts. After the battery is fully charged, the charging (CHG) indicator turns green.

To charge the battery with the USB cable

1. Press the Power (button to turn off the camcorder. → page 25

2. Open the jack cover.

3. Connect the included USB cable to the USB jack on the camcorder and to a USB jack on a running PC.

- The charging (CHG) indicator lights up and charging starts. After the battery is fully charged, the charging (CHG) indicator turns green.

• Please make sure that there are no foreign substances on plug and in the socket when you connect the AC power supply to the camcorder.
• Charging the battery at low temperature may take longer or the battery may fail to fully charge (green indicator will not turn on).

• The battery is not charged during the power saving mode, which may keep the mode indicator on or flashing. Start charging the battery after turning off the camcorder by pressing the Power (☐) button.
  • We recommend you charge the battery pack in a place with an ambient temperature of 10^ C \~ 30^ C ( 50^ F\~ 86^ F).
• When charging, if both the USB cable and AC power adaptor are connected, the AC power adaptor will override the USB.
• The camcorder does not operate with USB power only. Use the power adaptor or battery to operate the camcorder.
• When charging using the USB jack, charging time may depend on the type of USB host (PC).

getting started

CHECKING THE BATTERY STATE

You can check the charging state and remaining battery capacity.

To check the charging state

The color of the LED indicates the power or charging state.

Charging (CHG) indicator

The color of the charging indicator shows the charging state.

Charging state	Remaining battery capacity is below 5%	Charging Fully charged Error
LED color	(Red)	(Orange) (Green) (Red/blink)

Battery level display

The battery level display shows the amount of battery power remaining in the battery.

Battery level indicator	State Message
	Fully charged -
	25~50% used -
	50~75% used -
	75~95% used -
	95~98% used -
	Exhausted (flickers):The device will soon turn off.Change the battery as soon as possible.	-
-	The device will be forced to turn off after 3 seconds.	“Low Battery”

• The figures below are based on a fully charged battery at a normal temperature. Low ambient temperature may affect the use time.
• Battery capacity decreases over time and through repeated use. Keep the camcorder turned off while not operating it.
• Store the battery separately when finished charging or when not using it for a long time. This will help extend the life of the battery.
• The battery is charged over 95% after about 2 hours, and the indicator color changes to green. It takes about 2 hours and 40 minutes for the battery to charge 100%.

Available running time for the battery

Battery type IA-BP210E
Charging time Using the AC power adaptor: approx. 160 min.Using the USB cable: approx. 390 min.
Video resolution HD SD
Continuous recording time	Approx. 90min. Approx. 120min.
Playback time Approx. 110min. Approx. 130min.

• Charging time: Approximate time in minutes required to fully charge a completely exhausted battery.
• Recording/Playback time: Approximate time available when you have fully charged the battery. 'HD' stands for high definition image quality and 'SD' stands for standard image quality.
• The time is only for reference. Times shown above are measured under Samsung's test conditions. Your times may differ, depending on your usage and conditions.
• The recording and playback times will be shorter when you use your camcorder in low temperatures.
  • We recommend using the AC power adaptor when using the Time Lapse REC function.

Continuous Recording (without zoom)

The continuous recording time above shows the available recording time when you record without using any other function after recording starts.

The battery pack may discharge 2-3 times faster than this reference if you use the record start/stop frequently and the zoom functions, and then playback your recordings. Prepare additional charged battery pack(s) to cover the time you are planning to record on the camcorder.

The charging time will vary depending on the remaining battery level.

getting started

About the battery

- Battery Properties

A lithium-ion battery is small-sized and has a high capacity. Low ambient temperature (below 10^ C) may shorten its life-span and affect its function. Before recording in low temperatures, put the battery into your pocket to warm it, then install it in the camcorder.

- Make sure to store the battery separately after use.

• A small amount of battery power is consumed when the battery is stored in the camcorder even if the camcorder power is off.
• If the battery is installed and left in the camcorder for a long time, the battery discharges. If this occurs, you may not be able to use the battery, even if you charge it fully.
• Keep the battery out of reach of children.
• If the battery is not used for a long time, fully charge the battery and use it up on your camcorder once per 6 months to maintain proper function.

- Charge an extra battery before using the camcorder outdoors.

• The cold temperature may shorten the length of time you can use the battery before needing to recharge it.
• Carry the supplied AC power adaptor to charge the battery while travelling.

- Check whether the battery terminal is damaged if the battery falls or is dropped.

- If you install a battery with the damaged terminal into the camcorder, you can damage the camcorder.

- Remove the battery and the memory card from the camcorder and disconnect the AC power adaptor after use.

• Store the battery in a stable, cool and dry place. (Recommended temperature: 59^ F \~ 77^ F ( 15^ C\~ 25^ C), recommended humidity: 40%\~60%)
• Temperatures that are too high or too low shorten the battery lifetime.
• The battery terminals can become rusty or malfunction if the battery is stored in a smoky or dusty location.

- Do not throw the battery into fire.

- Heating or burning the battery may cause an explosion.

- Throw away the dead battery into a recycling bin.

• The battery lifetime is limited.

• Battery capacity decreases over time and through repeated use. If decreased usage time between charges becomes significant, it is probably time to replace the battery with a new one.
• Each battery's life is affected by storage, operating, and environmental conditions.

Using an AC power source

We recommend that you use the AC power adaptor to power the camcorder from a household AC outlet when you set function settings, play back, or edit images, or use it indoors. Make the same connections as you do when charging the battery. ▶page 21

• Make sure to turn off the camcorder before disconnecting the AC power adaptor. Otherwise, you can damage the storage media or data.
• Use a nearby wall outlet when using the AC power adaptor. Disconnect the AC power adaptor from the wall outlet immediately if any malfunction occurs while using your camcorder.
• Do not use the AC power adaptor in a narrow space, such as between a wall and furniture.

• Be sure to use the specified AC power adaptor to power the camcorder. Using other AC power adaptors could cause electric shock or result in fire.
• The AC power adaptor can be used around the world. An AC plug adaptor is required in some foreign countries. If you need one, purchase it from your distributor.

basic operation of the camcorder

1. Open the LCD screen to turn on the camcorder.

2. Your camcorder turns on automatically when you open the LCD screen.
   • The lens opens automatically when the camcorder turns on.

3. You can also turn the camcorder on by pressing the Power (💡) button.

4. Set the date and time when using your camcorder for the first time. page 29

5. To turn off the camcorder, press the Power (◎) button for about one second.

- Closing the LCD screen will not turn off the camcorder.

• The camcorder operates the self-diagnosis function when you turn it on. If a warning message appears, refer to 'warning indicators and messages' (pages 136\~141) and take corrective action.
• If you close the LCD screen when the power is on, the power saving mode activates. page 26

When using this camcorder for the first time

When you use your camcorder for the first time or reset it, the time zone screen appears at start-up. Select your geographical location and set the date and time. page 29 If you do not set the date and time, the time zone screen appears every time you turn on the camcorder.

basic operation of the camcorder

SWITCHING TO THE POWER SAVING MODE

If you need to use camcorder for the extended time, setting the following functions prevents unnecessary energy consumption.

Quick On STBY Mode in the STBY mode

- The camcorder switches to "Quick On STBY" mode when the LCD screen is closed. →page 102

Sleep Mode in the play mode (includes the thumbnail index view)

- The camcorder switches to the sleep mode when the LCD screen is closed, and then, if idle for more than 20 minutes, the camcorder turns off. However, if "Auto Power Off: 5 Min" is set, the camcorder turns off in 5 minutes. - If you open the LCD screen during sleep mode, the sleep mode ends and the camcorder returns to the last operation mode used.

- The power saving mode does not work in the following situations:

• When the camcorder has a cable connection. (Audio/Video, Mini HDMI, USB, or AC power adaptor, etc.)
• While recording, playing back, or displaying a slideshow.
• When the LCD screen is opened.

- The camcorder consumes less battery power in the power saving mode. However, if you plan to use the camcorder for an extended time, we recommend you turn off the camcorder by pressing the Power (☐) button when not using it.

You can switch the operating mode in the following order each time you press the

MODE button: Video mode (→ Photo mode (→)

- Each time the operation mode changes, the respective mode indicator lights turn on.

- Touching the Play (☐) tab in the record mode switches the record mode to the play mode.

Mode Mode indicators Functions

Video mode		To record and play videos.
Photo mode		To record and play photos.

USING THE DISPLAY(1) BUTTON

You can switch the on-screen information display mode.

Switching the information display mode

Press the Display(☐) button.

The full and minimum display modes alternate.

Full display mode

The on-screen information is displayed on the full screen.

Minimum display mode

Only operation status is displayed on the LCD screen.

Simple line drawing of a monitor with control panel (no text or symbols)

- Warning indicators and messages may appear, depending on the recording conditions.

- The Display (☐) button does not work in the thumbnail, menu, and network screens.

basic operation of the camcorder

The touch panel lets your playback and record with a simple touch of your finger. Place your hand on the rear side of the LCD screen to support it. Then, touch the items displayed on the screen.

Touch

Slightly touch the items to select or execute with your finger.

Drag

Drag the touch screen to left or right to select the desired items or files.

• Do not place a protective film on the LCD screen.
• If you leave a film attached for a long while, strong adhesion between the film and the surface of the screen may cause a malfunction of the touch panel.

• Be careful not to accidentally press the buttons near the LCD panel while using the touch panel.
• The tabs and indicators that appear on the LCD screen depend on the current recording/playback status of your camcorder.
• The camcorder does not recognize touches if you touch more than two points on the screen at the same time. Touch one point at a time.
• If you use a tool, such as a pen or pencil, the camcorder may not recognize the touch properly.

first time settings

SETTING THE TIME ZONE AND DATE/TIME FOR THE FIRST TIME

Set the date and time of your local area when turning on this camcorder for the first time.

1. Open the LCD screen to turn on the camcorder.

2. Your camcorder turns on automatically when you open the LCD screen.

3. The time zone ("Home") screen appears based on Lisbon, London (Greenwich Mean Time).

4. Select the time zone, then touch the (ok) tab.

- Select the time zone by touching the (A)/(V)/(X) tab on the LCD screen.

1. Set the date.

- Set the date by touching the corresponding item or dragging it up or down.

1. Touch the time ( ) tab, then set the time.

- Set the time by touching the corresponding item or dragging it up or down.

1. Make sure the clock is correctly set, then touch the (ok) tab.

• The message "Date/Time Set" appears.

• You can set the year up to 2037, based on the "Home" item.
• Set "Date/Time Display" to On. →page 90
• You can change the time zone and date/time options in the setting menu. →pages 98\~99
• Activating the (*) icon moves the time forward by 1 hour.

Built-in rechargeable battery - Your camcorder includes a built-in rechargeable battery that retains the date and time settings even after the power is turned off.

- If the battery is depleted, the current date/time values are reset to the default values. If this occurs, you need to recharge the built-in rechargeable battery (see below), and then re-set the current date and time.

Charging the built-in rechargeable battery

• The built-in battery is always recharged while your camcorder is connected to the AC power or while the battery is attached.
• If the camcorder is not in use for about 2 weeks and you have not connected the AC power or the battery to it, the built-in battery fully discharges. If this occurs, charge the built-in battery by connecting the camcorder to the supplied AC adaptor for 24 hours.
  (四)公司治理结构与制度 1. 公司治理结构和制度的制定
• If the camcorder is not in use for about 2 weeks and you have not connected the AC power or the battery to it, the built-in battery fully discharges. If this occurs, charge the built-in battery by connecting the camcorder to the supplied AC adaptor for 24 hours.
• If the camcorder is not in use for about 2 weeks and you have not connected the AC power or the battery to it, the built-in battery fully discharges. If this occurs, charge the built-in battery by connecting the camcorder to the supplied AC adaptor for 24 hours.
• If the camcorder is not in use for about 2 weeks and you have not connected the AC power or the battery to it, the built-in battery fully discharges. If this occurs, charge the built-in battery by connecting the camcorder to the supplied AC adaptor for 24 hours.
• If the camcorder is not in use for about 2 weeks and you have not connected the AC power or the battery to it, the built-in battery fully discharges. If this occurs, charge the built-in battery by connecting the camcorder to the supplied AC adaptor for 24 hours.
• If the camcorder is not in use for about 2 weeks and you have not connected the AC power or the battery to it, the built-in battery fully discharges. If this occurs, charge the built-in battery by connecting the camcorder to the supplied AC adaptor for 24 hours.

first time settings

SELECTING THE LANGUAGES

You can select the language in which the camcorder displays the menu screen or messages. The language setting is retained when the camcorder is powered off.

1. Touch the Menu (→ Setting ( )tab.

2. Touch the up ( )/down ( ) tab until "Language" is displayed.

3. Touch "Language," and then touch the desired OSD language.

- You can view the language list more by touching the (☐) tab.

1. Touch the (ok) tab to complete the setting.

- The menu screen and messages are displayed in the language you selected.

Supported languages

English Português Polski			Ελληνικά	日本語
한국어	Nederlands	Čeština	Srpski	Iny
Français Svenska Slovensky Hrvatski Türkçe
Deutsch	Suomi	Magyar	Українська	ایرانی
Italiano	Norsk	Română Русский		العربية
Españo	Dansk	Български	中文	لالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالالاaa

• "Language" options may be changed without prior notice.
• The camcorder retains the language you select even when not connected to the battery or AC power.
• The date and time format may change depending on the language you selected.

getting ready to start recording

SELECTING THE STORAGE MEDIA (HMX-S15/S16 ONLY)

You can record videos and photos in the internal memory or a memory card. Select the desired storage media before starting recording or playback.

PRECHECK!

• You can use SD or SDHC cards in your camcorder. (However, some cards are not compatible, depending on the memory card manufacturer and memory card type.)

• Before inserting or ejecting the memory card, turn the camcorder off.

• Touch the Menu (BU) → Other setting (Tab).

• Touch "Storage Type."
• Touch the desired storage media.

Submenu items

• Internal Memory (IN): When using the internal memory (SSD, Solid State Drive).
• Card (☐): When using the memory card (SD or SDHC card).

• Do not format the storage media (internal memory or memory card) on a PC.
• When you insert a memory card, the storage media setup screen appears. Touch "Yes" if you want to use a memory card, or "No" if not.
• Do not remove the power (battery or AC power adaptor) when accessing storage media to record, playback, format, delete, etc. The storage media and its data may be damaged.
• Do not eject a memory card while it is being used in the camcorder. The memory card and its data may be damaged.
• SSD based on flash memory has been adopted as internal memory for the camcorder.

getting ready to start recording

INSERTING / EJECTING A MEMORY CARD (NOT SUPPLIED)

To insert a memory card

1. Open the memory card cover.

2. Insert the memory card into the card slot until it softly clicks.

- Make sure that the terminal portion is facing left and the camcorder is placed as shown in the figure.

1. Close the memory card cover.

To eject a memory card

1. Open the memory card cover.

2. Gently push the memory card to eject it.

3. Close the memory card cover.

- To avoid the data loss, turn off the camcorder by pressing the Power ( ) button for one second before inserting or ejecting the memory card.

- Be careful not to push the memory card too hard. The memory card may suddenly pop out.

Your camcorder supports only SD (Secure Digital) and SDHC (Secure Digital High Capacity) cards. A card's compatibility with the camcorder may vary depending on the manufacturer and the type of memory card.

SELECTING A SUITABLE MEMORY CARD (NOT SUPPLIED)

Compatible memory cards

• This camcorder can be used with SD (Secure Digital) and SDHC (Secure Digital High Capacity) cards. We recommend you use an SDHC (Secure Digital High Capacity) card. SD cards up to 2GB are supported by this camcorder. Normal operation is not guaranteed with SD cards bigger than 2GB.
• MMC (Multi Media Card) and MMC Plus are not supported.
• Compatible memory card capacity: SD 1GB \~ 2GB, SDHC 4GB \~ 32GB
• Use compatible memory card brands. Others are not guaranteed to work. A list of compatible brands is below:

- SDHC/SD cards: Panasonic, SanDisk, TOSHIBA

• For video recording, use a memory card that supports faster write speeds (above SDHC Class 6 card).
• SD/SDHC memory cards have a mechanical write-protection switch. Setting the switch prevents accidental erasure of files recorded on the card. To enable writing, move the switch up in the direction of the terminals. To set write protection, move the switch down.

Usable memory card (1GB\~32GB)

SDHC (Secure Digital High Capacity) cards

- SDHC (Secure Digital High Capacity) memory card

• An SDHC card is a higher version (Ver. 2.00) of the SD card and supports capacities above 2GB.
• SDHC cards cannot be used with current SD enabled host devices.

Common cautions for memory cards

• Damaged data may not be recoverable. We recommend you make a back-up of important data separately on the hard disk of your PC.
• Turning the power off or removing a memory card during an operation such as formatting, deleting, recording, and playback may cause data loss.
• After you modify the name of a file or folder stored in the memory card using your PC, your camcorder may not recognize the modified file.

getting ready to start recording

Handling a memory card

• We recommend that you power off before inserting or removing the memory card to avoid data loss.
• We can not guaranteed that you can use memory cards formatted by other devices. When you format a card, be sure to format the memory card using this camcorder.
• You must format newly-purchased memory cards, memory cards with data that your camcorder cannot recognize, and cards with data saved by other devices. Note that formatting erases all data on the memory card.
• If you cannot use a memory card that has been used with another device, format it with your camcorder. Note that formatting erases all information on the memory card.
• A memory card has a certain life span. If you cannot record new data, you have to purchase a new memory card.
• Do not bend, drop, or subject the card to strong impacts.
• Do not place foreign substances on the memory card terminals. Use a soft dry cloth to clean the terminals if required.
• Do not paste anything other than the label provided with the card on the label pasting area of the card.
• Do not use a damaged memory card.
• Be careful to keep the memory card out of the reach of children, who might swallow it.

The camcorder supports SD and SDHC memory cards, giving you a wider choice of cards to choose from!

The data storage speed may differ, depending on the manufacturer and production system.

• SLC (single level cell) system: faster write speed enabled.
• MLC (multi level cell) system: only lower write speed is supported.

For best results, we recommend using a memory card that supports a faster write speed.

Using a lower write speed memory card for recording video may cause difficulties when storing.

You may even lose your video data during the recording.

In an attempt to preserve every bit of the recorded video, the camcorder forcibly stores the video on the memory card and displays a warning:

"Low speed card. Please record at a lower resolution."

If you are unavoidably using a low speed memory card, the resolution and quality of the recording may be lower than the set value. page 62

The higher the resolution and quality, the more memory the camcorder uses.

• Samsung is not responsible for data loss due to misuse.
  • We recommend using a memory card case to prevent data loss from motion or static electricity.
  • After a period of use, the memory card may get warm. This is normal and is not a malfunction.

Listed below are the available video recording times and the number of photos the camcorder can take, by memory size and resolution. Refer to the recordable video time and the number of photos when recording videos or taking photos.

Recordable time available for video

Resolution	Memory card / Internal memory*						Internal memory*
	1GB 2GB 4GB 8GB 16GB 32GB 64GB
1080/60i (XF) 5 10	21	42	84	167	337
1080/60i (SF)	7		14		29	60	121 236 474
1080/60i (F) 11 22	45	92	185	364	731
1080/30p 7 14 29	60	121	236	474
720/60p 11 22 45	92	185	364	731
480/60p 23 47 99	200	404	790	1587

(Unit: Approximate minutes of recording)

Recordable number of photos

Resolution	Memory card / Internal memory*						Internal memory*
	1GB 2GB	4GB 8GB	16GB 32GB	64GB
[10M] 4224x2376 (16:9)	166	333	676	1376	2828	5522	9999
[5M] 2960x1664 (16:9)	262	524		1063	2149	4444	8678
[3M] 2224x1664 (4:3)	367	734	1489	3008	6222	9999	9999
[2M] 1920x1080 (16:9)	573	1147	2326	4701	9722	9999	9999
[VGA] 640x480	1530	3059	6205	9999	9999	9999	9999

(Unit: Approximate number of images)

1GB ÷ 1,000,000,000 bytes : Actual formatted capacity may be less as the internal firmware uses a portion of the memory.

• Actual recording times may differ depending on the recording conditions and the subject.
- The higher the quality and resolution, the more memory the camcorder uses.
- Lower resolution and quality increases the recording time, but the image quality may suffer.
- The bit rate automatically adjusts to the image being recorded. Accordingly, the recording time may vary.
• Memory cards bigger than 32GB may not operate normally.
- The maximum number of recordable photo and video files is 9999, respectively.
- The recording length of a Time Lapse REC may vary depending on settings.
- Items marked with * are available only with HMX-S15/S16 models.

getting ready to start recording

ATTACHING THE GRIP BELT

Adjust the length of grip belt so that the camcorder is stable when you press the Recording start/stop button with your thumb.

If you make the grip belt too tight and use excessive force to insert your hand, the grip belt hook of the camcorder may be damaged.

ADJUSTING THE LCD SCREEN

The wide LCD screen on your camcorder offers high quality image viewing.

1. Open the LCD screen with your finger.

• The screen opens up to 90°.

1. Rotate the LCD screen towards the lens.

- You can rotate it up to 180^ towards the lens and up to 90^ backward. To view recordings more conveniently, rotate the screen by 180^ towards the lens, then fold it back to the body.

Excessive rotation may damage the connective hinge between the screen and the camcorder.

Clean fingerprints or dust on the screen with a soft cloth.

BASIC CAMCORDER POSITIONING

Use both hands while taking a video or photo to prevent the camcorder from shaking. Try to avoid any slight movement while shooting.

Adjusting the shooting angle

Aim the camcorder as shown in the illustration.

1. Hold the camcorder with your both hands.
2. Put your hand through the grip belt.
3. Make sure your footing is stable and there is no danger of colliding with another person or object.
4. Aim and focus as shown in the illustration.

We recommend you keep the sun behind you while shooting.

Illustration of a person using a camera to observe, with a sun and sun icon in the background (no text or symbols)

ATTACHING THE FERRITE CORE

Attach the ferrite core to the cables. The ferrite core reduces interference.

1. To open the ferrite core, release the stoppers on both ends of the ferrite core.
2. Attach the ferrite core to the cable near its connector as shown in the figure.
3. Close the ferrite core until it clicks shut.

Take care not to damage the cable.

basic recording

RECORDING VIDEOS

This camcorder supports both High Definition (HD) and Standard Definition (SD) image resolutions. Set your desired resolution before recording. →page 62

PRECHECK!

• Insert a memory card. page 32
• Set the appropriate storage media. (HMX-S15/S16 only) →page 31

• Select the Video record (💡) mode by pressing the MODE button. → page 27

• Select a subject to record.

• Adjust the LCD panel to the best angle for recording.

• Use the Zoom lever or Zoom button to adjust the size of the subject. →page 44

• Press the Recording start/stop button.

• The recording (●) indicator appears and recording starts.

1. To stop recording, press the Recording start/stop button again.

Baby sitting on sandy beach with camera app overlay (no readable text or symbols)

Two recording start/stop buttons to suit your preference!

This camcorder features two Recording start/stop buttons. One is on the rear side of the camcorder, the other is on the LCD screen. Select the one that works best for you.

Photo of a baby sitting on sandy ground with camera interface overlay (no readable text or symbols)

Using the external microphone (not supplied)

When you use the built-in microphone for recording, the microphone may record the mechanical noise of the camcorder. When you record in a quiet environment, we recommend that you use an external microphone.

Connect an external microphone (not supplied) to the external microphone jack of this camcorder.

• The internal microphone is automatically turned off when you attach an external microphone.
• Zoom MIC and Voice Reduction functions are automatically turned off.
• The sensitivity level may differ depending on the microphone. Use the MIC Level menu to find the appropriate recording sound level. Otherwise, loud sounds may produce distortion.

• If power is interrupted or an error occurs during recording, the video may not be recorded/edited.
• Samsung is not responsible for any damage caused by a failure of normal recording or playback operation because of memory card error.
  • Note that damaged data cannot be recovered.
• Do not turn off the camcorder or remove the memory card while accessing the storage media. Doing so may damage the storage media or the data in the storage media.

• Videos are compressed in the H.264 (MPEG-4.AVC) format.
- Eject the battery when you have finished recording to prevent unnecessary battery power consumption.
- For the on-screen information display, see page 16
- For approximate recording time, see page 35.
- Sound is recorded from the internal stereo microphone above the top of the lens. Make sure that the microphone is not blocked. Also, when using a zoom microphone, be careful not to cover the internal zoom microphone on the left of the camcorder.
- Before recording an important video, make sure to test the recording function to see if there any problems with the audio or video recording.
- For various functions available during recording, see "Video/photo record menu items." → pages 61\~82
- If the power cable/battery is disconnected or recording is disabled during recording, the system is switched to the data recovery mode. While data is being recovered, no other function is enabled.
- The brightness of the LCD screen can be adjusted in the menu options. Adjusting the LCD screen does not affect the image being recorded. →page 89
- The menu setting tabs shown on the LCD screen do not affect the image being recorded.

basic recording

CAPTURING PHOTOS DURING VIDEO RECORDING

You can capture photos at the video STBY mode or during video recording with the touch of a button. It is convenient to record a video and photo at the same time without switching modes.

PRECHECK!

• Insert a memory card. page 32
• Set the appropriate storage media. (HMX-S15/S16 only) page 31
• Select the Video record (💡) mode by pressing the MODE button. → page 27

To capture photos during video recording

1. Press the Recording start/stop button.

2. The recording (●) indicator will display and recording will start.

3. Aim the camcorder at the scene you want, then press the PHOTO button.

4. When the (▶▶▶) indicator disappears, the photo image is recorded without a shutter sound.
   • Video keeps recording, even while photos are taken.

Baby sitting on a sandy beach with camera app interface (no readable text or symbols in the image)

1. To stop recording, press the Recording start/stop button again.

To capture photos in video standby mode

Align the subject in the frame in video standby mode, then press the PHOTO button.

- When the (▶▶▶) indicator appears and your hear a shutter sound, the photo image is recorded.

Baby sitting on sandy beach with camera app interface overlay (no readable text or symbols in main image area)

- You cannot capture photos under the following condition:

• During a time lapse recording.
• During slow motion recording.
• The flash is not available while the camcorder is capturing photos in video record mode.
• The resolution of the captured photos depends on the resolution of the video as follows:

Video resolution Resolution of captured photo
1080/60i (XF), 1080/60i (SF), 1080/60i (F), 1080/30p	1920x1080720/60p
480/60p

RECORDING PHOTOS

You can take photos and store them in the storage media. Set the desired resolution before recording. →page 35

PRECHECK!

• Insert a memory card. page 32
• Set the appropriate storage media. (HMX-S15/S16 only) page 31

• Select the Photo record ( 🔒 ) mode by pressing the MODE button. → page 27

• Select a subject to record.

• Adjust the LCD panel to the best angle for recording.

• Use the Zoom lever or Zoom button to adjust the size of the subject. →page 44

• Adjust the subject at the center of the LCD screen, and half-press the PHOTO button.

• Your camcorder adjusts to the ideal aperture and focus automatically (if "Aperture" and "Focus" are set to "Auto" → pages 66, 70).

• When the subject is in focus, the (●) indicator appears green. If it appears red, readjust the focus.

• Fully press the PHOTO button.

- The shutter sound is heard (when "Shutter Sound: On" is set), and the photo is recorded.

Baby sitting on sandy beach with camera interface overlay (no readable text or symbols)

Baby sitting on a sandy beach, no visible text or symbols

• Recordable number of photos varies depending on the photo resolution. page 35
  • Audio is not recorded when your take photos.
• If focusing is difficult, use the manual focus or the Magic Touch function. ➔ pages 70, 72
• Do not turn off the camcorder or remove the memory card when taking photos as it may damage the storage media or data.
• Adjust the brightness of the LCD screen using menu items. Adjusting the brightness does not affect the recorded image. →page 89
• For on-screen display information, see page 17.
• For advanced recording, see pages 61\~82
• Photo files conform to the DCF (Design rule for Camera File system) standard, established by JEITA (Japan Electronics and Information Technology Industries Association.)

basic recording

RECORDING WITH EASE FOR BEGINNERS (SMART AUTO)

User-friendly SMART AUTO optimizes your camcorder to the recording conditions automatically, providing beginners with the best performance.

1. Press the SMART AUTO button.

• Smart Auto (☐/☐) and Anti-shake (☐ indicators appear on the LCD screen.
  • In the photo recording mode, the smart flash (icon appears.

2. Align your subject in the frame.

• The camcorder automatically detects the scene (Landscape, etc.) and adjusts the camcorder settings accordingly.
  • The appropriate scene icon appears on the LCD screen.

	Appears when recording at night. (Night)		Appears when taking photos using close-up. (Macro)
	Appears when recording people outdoors at night. (Night Portrait)		Appears when taking photos of clear skies. (Blue sky)
	Appears when recording images of landscapes with backlighting. (Backlight)		Appears when taking photos of forested areas. (Natural green)
	Appears when recording people under backlight condition. (Backlight Portrait)		Appears when taking photos of sunsets. (Sunset)
	Appears when recording people. (Portrait)		Appears when the camcorder and subject are stationary for a while. (Tripod)
	Appears when recording a very bright scene. (White)		Appears when taking photos of actively moving subjects. (Action)
	Appears when recording an outdoor scene. (Landscape)

Nighttime photo of a lit arch bridge with a blue arrow pointing to the sky (no text or symbols visible)

3. Press the Recording start/stop button or PHOTO button. ➔ pages 38, 41

4. To cancel Smart Auto mode, press the SMART AUTO button again.

• Buttons unavailable during Smart Auto operation:
  Menu (tab, Quick menu ( ) tab, etc. Most settings are automatically adjusted in Smart Auto mode. To set or adjust functions on your own, release the Smart Auto mode first.
• When the camcorder fails to recognize the recording situations, it records in the basic setting ( / ).
• The camcorder may not select the correct scene depending on shooting conditions, such as camcorder shake, lighting, and distance to the subject.
  • The camcorder recognizes a night scene only when you are taking photos with the flash off.
• The camcorder may not detect the portrait mode depending on the orientation or the brightness of faces.
• Tripod ( )mode is detected only when you are recording scenes or portraits at night.
• The Action (★) mode is available under most conditions, except for scenes and portraits at night.
• Tripod ( ) mode may not be recognized depending on the subject's movement even if you are using a tripod.
• When recording more than one scene at the same time, Smart Auto prioritizes scenes in the following order: a) If White and Portrait can be applied at the same time, then Portrait is selected and the corresponding icon appears. b) If White and Backlight can be applied at the same time, then Backlight is selected and the corresponding icon appears.

CAPTURING PHOTOS WHILE PLAYING BACK VIDEOS

You can capture photos during video playback.

PRECHECK!

Touch the Play (☐) tab on the LCD screen to select the Video play

mode. →page 49

1. Recorded videos appear in a thumbnail index view.

- Touch the left ( )/right ( ) tab to move to the previous/next page.

1. Touch the video clip you want.

• The selected video is played.

1. Press the PHOTO button halfway at the scene you want to capture.

• The playback screen is paused.

1. Press the PHOTO button fully down.

- The captured still image is recorded in JPEG format.

Grid of nine photo thumbnails showing people in various activities including beach, swimming, and outdoor scenes (no text or symbols visible)

Baby sitting on a slope in a studio (no visible text or symbols)

1. When the photo is recorded on the storage media, touch the Return (☐) tab to view the thumbnail index.

- Touch the Photo ( ) tab to view the recorded photos. → page 53

The resolution of the captured photos depends on the resolution of the video as follows:

Video resolution Resolution of captured photo
1080/60i (XF), 1080/60i (SF), 1080/60i (F), 1080/30p	1920x1080
720/60p 1280x720
480/60p 720x408
Slow Motion: [SD]300Frame/Sec, [SD]600Frame/Sec	368x208, 192x112

basic recording

ZOOMING

Use the zoom function for close-up or wide-angle recording. This camcorder allows you to record using 15x optical power zoom, 18x Intelli-zoom, and digital zoom.

To zoom in To zoom out

Press the T (zoom) button on the LCD panel or slide the zoom lever towards T (telephoto).

• The distant subject is gradually magnified and can be recorded.
• The hightest zoom magnification ratio is 18x in the normal zoom-in.

Press the W (zoom) button on the LCD panel or slide the zoom lever towards W (wide angle).

• The subject moves further away.
- The smallest zoom ratio is the subject's original size in the zoom-out.

Zoom speed

When using the zoom function, you can decrease zoom speed by slowly moving the Zoom (W/T) lever. Moving it faster increases the zoom speed. However, you cannot adjust the zoom speed when using the Zoom (W/T) button on the LCD panel.

• Using the optical zoom does not degrade the image quality and clarity.
- Use the digital zoom when you want to zoom beyond the optical zoom range (Video recording mode only). -page 80
- Focusing may become unstable when you record with a fast zoom or zoom into a subject standing too far away. If this occurs, use the manual focus function. page 70
- The minimum possible distance between camcorder and subject while maintaining sharp focus is about 1cm (about 0.4 inches) for wide angle and about 50cm (about 19.7 inches) for telephoto. If you want to shoot the object close to the lens at a wide angle, use the Tele Macro function. page 76
- When using the zoom function while holding the camcorder in your hand, use Anti-shake (OIS) for stable recording. → page 45
- Frequent use of the zoom function consumes more power.
• The camcorder can record the sound of the zoom mechanism.

SETTING THE ANTI-SHAKE (OIS: OPTICAL IMAGE STABILIZER)

Use the Anti-shake (OIS: Optical Image Stabilizer) function to compensate for unstable images caused by shaking movements when holding the camcorder.

Press the Anti-shake (OIS) (💡) button to toggle the Anti-shake (OIS) mode between On and Off.

Illustration of a digital camera with a hand icon and a speech bubble (no text or symbols)

Photo of a baby sitting on sandy ground with camera interface overlay (no readable text or symbols)

Use the Anti-Shake function in the following cases

• When recording while walking or when recording in a moving car.
• When recording with the zoom function.
• When recording subjects of a small size.

Two side-by-side photos of a person on a skateboard under clear blue sky, no text or symbols visible

• When turned on, the Smart Auto mode automatically sets Anti-shake (OIS) to On.
• Gross camcorder shake may not be entirely corrected even if Anti-shake is set to On. Firmly hold the camcorder with both hands.
• When this function is set to On, the actual movement of the subject and the movement displayed on the screen may be slightly different.
• When recording in dark lighting at high magnification while this function is set to On, after-images may stand out. In this case, we recommend using a tripod (not supplied) and turning Anti-shake to Off.

basic recording

USING BACK LIGHT COMPENSATION MODE

When a subject is lit from behind, this function will compensate for the lighting so that the subject is not too dark.

Press the Back light (💡) button to toggle the back light mode between On and Off.

Illustration of a digital camera with a speech bubble containing a circular icon (no text or symbols present)

Photo of a baby sitting on a beach with a blue triangle overlay (no text or symbols)
