USER MANUAL HMX-QF33 SAMSUNG

For video recording, use a memory card that supports faster write speeds.

Recommended Memory Card: 6MB/s (Class 6) or above.

Important safety instructions

	CAUTION
	RISK OF ELECTRIC SHOCK.DO NOT OPEN.	!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER SERVIOING TO QUALIFIEDSERVICE PERSONNEL.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Warning

To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.

Caution

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.

4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Operate in accordance with the manufacturer's instructions.
8 Do not place near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at the plug, at wall outlets, and at the point where the cord exits from the apparatus.
11 Only use attachment/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover.
13 Unplug this apparatus during lightning storms or when you leave it unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15 Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquid, such as a vase, on this apparatus.

16 VENTILATION:

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface or on or near a radiator or heat register. This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

17 POWER SOURCES:

Operate the CAMCORDER using only the types and sources of power indicated on the label. If you are not sure of the type of power supplied to your home, consult your local power company. This CAMCORDER is intended to be powered by a rechargeable battery or by its power supply. Refer to the operating instructions.

18 GROUNDING OR POLARIZATION:

This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug (a plug having a third pin for grounding). If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug.

19 POWER-CORD PROTECTION:

Route power supply cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to the plug, areas around wall outlets, and the point where the cord exits from the unit.

20 LIGHTNING:

To protect the CAMCORDER during a lightning storm or when you leave it unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the CAMCORDER due to lightning and powerline surges.

21 OVERLOADING:

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

22 OBJECTS AND LIQUIDS:

Never push objects of any kind into the CAMCORDER through the openings in its case. The objects may touch dangerous voltage points or short out a part that could result in a fire or electric shock. Never spill liquids of any kind onto the CAMCORDER. Should spillage occur, unplug the unit and have it checked by a technician before use.

23 SERVICING:

Do not attempt to service this CAMCORDER yourself. Opening or removing the covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

24 DAMAGE REQUIRING SERVICE:

Unplug this CAMCORDER from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If any liquid has been spilled onto or objects have fallen into the CAMCORDER.
c. If the CAMCORDER has been exposed to rain or water.
d. If the CAMCORDER does not operate normally when you follow the operating instructions. Do not continue to adjust the controls. Improper adjustment of the controls may result in severe damage. If this occurs, it will often require extensive work by a qualified technician to restore the CAMCORDER to its normal operation.
e. If the CAMCORDER has been dropped or the case has been damaged.
f. When the CAMCORDER exhibits a distinct change in performance.

25 REPLACEMENT PARTS:

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

26 SAFETY CHECK:

After the CAMCORDER has been serviced or repaired, ask the service technician to perform safety checks on the unit to confirm that the CAMCORDER is in safe operating order.

27 To prevent damage which may result in a fire or shock hazard, do not expose this appliance to rain or moisture.
28 Before using the power supply with a 240V AC wall outlet, attach a plug adaptor that matches the design of local wall outlets to the power supply's plug.

USER INSTALLER CAUTION:

Your authority to operate this FCC certified equipment could be voided if you make changes or modifications not expressly approved by this party responsible for compliance to part 15 FCC rules.

NOTE:

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. For details see lamprecycle.org, eae.org, or call 1-800 Samsung (7267864)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA "Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate".

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Recrient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help and for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: "How to Identify and Resolve Radio-TV Interference Problems." This Booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 004-000-00345-4.

FCC Warning

The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Before reading this user manual

Before reading this user manual, review the following.

Safety warnings

Icon Definition Meaning
	Warning	There is a potential risk of death or serious injury.
	Caution	There is a potential risk of personal injury or damage to the product.

Icons used in this manual

Icon Definition Meaning
	Caution	To reduce the risk of fire, explosion, electric shock, or personal injury when using your camcorder, follow these basic safety precautions.
	Note	Here are hints or page number references you will find helpful when you operate the camcorder.
	Definition	Here are additional definitions or information you will find helpful when you operate the camcorder.

These warning icons are here to prevent injury to you and others or to help you operate your camcorder better. Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

Precautions

Warning!

• When using the AC power adaptor with your camcorder, connect the adaptor to an outlet with protective grounding.
• Do not expose the camcorder battery to direct sunlight, heaters, radiators, fire, or any other source of excessive heat.

Caution

If you replace the battery with the wrong battery, you can cause an explosion. Replace only with the same battery or an equivalent type.

If you plug the AC adaptor into a 240V AC outlet, be sure to use a suitable plug adaptor that matches the design of local wall outlets.

Proper recording etiquette

• Do not record videos or photos of people without their authorization or consent.
• Do not record videos or photos in forbidden recording places.
  • Do not record videos or photos in private places.

Important information on use

About this user manual

Thank you for purchasing this Samsung Camcorder. Please read this user manual carefully before you use the camcorder and keep it handy for future reference. Should your camcorder fail to operate correctly, refer to Troubleshooting. → pages 109\~120

This User Manual covers HMX-QF30, HMX-QF33, HMX-QF300, HMX-QF310, and HMX-QF320 models.

• Illustrations of model HMX-QF30 are used in this user manual.
- Although some features of HMX-QF30, HMX-QF33, HMX-QF300, HMX-QF310, and HMX-QF320 are different, they operate in the same way.
- The displays in this user manual may not be exactly the same as those you see on the LCD screen.
- The design and specifications of the camcorder and other accessories are subject to change without notice.
- Before use, read the 'Safety information' carefully and then operate the product properly.
- In this manual, a 'memory card (card)' means an SD, SDHC, or SDXC.
- In this user manual's function description tables, the icon shown in a description of a submenu item indicates it will appear on the screen when you set the corresponding function.
Ex) Tele Macro submenu item → page 98
- On 📋): Set to record close-up images of very small objects.
If set to On, the corresponding icon (▼) will appear on the screen.
- Samsung is not responsible for any injury or damage caused by not following the user manual.

Before using this camcorder

• This camcorder records video in H.264 (MPEG4/AVC) format.
- You can play back and edit the video recorded by the camcorder on a personal computer using the internal software of this camcorder.
- Please note that this camcorder is not compatible with other digital video formats.
• Before recording an important video, make a trial recording.
Play back your trial recording to make sure the video and audio have been recorded properly.
- Recorded contents may be lost due to errors in handling the camcorder or memory card, etc.
Samsung will not provide compensation for damages caused by the loss of recorded contents.
• Make a backup of important recorded data.
Protect your important recorded data by copying the files to a PC. We also recommend you copy them from your PC to other recording media for storage. Refer to the software installation and USB connection guide.
- Copyrights: Please note that this camcorder is intended for individual use only.
Data recorded on the storage media in this camcorder using other digital/analog media or devices is protected by the Copyright Act and cannot be used without permission of the owner of the copyright, except for personal enjoyment. Even if you record an event such as a show, performance, or exhibition for personal enjoyment, we strongly recommend that you obtain permission beforehand.

• The wireless version of this camcorder may emit radio interference. Avoid using it near pacemakers and similar medical equipment.
• Always use caution when transferring files via Wi-Fi. There is a danger that your data could be intercepted.
• Take the appropriate security precautions when using wireless network products. Samsung is not responsible for any damages that may arise from security problems caused by the failure to implement security measures or from unavoidable circumstances associated with the use of a wireless network.

Notes regarding trademarks

• All the trade names and registered trademarks mentioned in this manual or other documentation provided with your Samsung product are trademarks or registered trademarks of their respective holders. Furthermore, “TM” and “®” are not mentioned in each case in this manual.
  • The SD, SDHC and SDXC logos are trademarks of SD-3C, LLC.
• Microsoft, Windows ^® , Windows Vista ^® , Windows ^® 7, and DirectX ^® are either registered trademarks or trademarks of the Microsoft Corporation in the United States and/or other countries.
• Intel, Core™, Core 2 Duo³, and Pentium³ are the registered trademarks or trademarks of the Intel Corporation in the United States and other countries.
• AMD and Athlon™ are either registered trademarks or trademarks of AMD in the United States and other countries.
• Macintosh, Mac OS are either registered trademarks or trademarks of Apple Inc. in the United States and/or other countries.
  • YouTube is a trademark of Google Inc.
  • Flickr is a trademark of Yahoo.
  • Facebook is a trademark of Facebook Inc.

• Twitter is a trademark of twitter Inc.
• Picasa is a trademark of Google Inc.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
- Adobe, the Adobe logo, and Adobe Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
- Wi-Fi, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.
• AllShare™ is a Samsung's trademark.
• Ustream is a trademark of Ustream Inc.

Safety information

The safety precautions illustrated below are to prevent personal injury or material damages. Hood all instructions carefully.

WARNING There is a potential risk of death or serious injury.

Do not overload outlets or extension cords as this may result in abnormal heat or fire.

Using the camcorder at temperatures over 140°F (60°C) may result in fire. Keeping the battery at a high temperature may cause an explosion.

Do not allow water, metal or inflammable matter to enter the camcorder or AC power adaptor. Doing so may pose a fire hazard.

No sand or dust! Fine sand or dust entering the camcoroor or AC power adaptor can damage both units and cause them to malfunction.

No oil! Oil entering the camcorder or AC power adaptor can damage both units, cause them to mellunction, and poses a risk of electric shock.

Do not aim the carncorder directly into the sun. Doing so could cause eye injuries and cause internal parts of the product to malfunction.

Do not bond the power cord or damage the AC power adaptor by pressing on it with a heavy object. A damaged power cord or power supply can cause a fire and poses a risk of electric shock.

Do not disconnect the AC adaptor by pulling on its power cord. This can damage the power cord.

Do not use the AC adaptor if it has damaged, split, or broken cords or wires. A damaged power cord can cause a fire and poses a risk of electric shock.

WARNING There is a potential risk of death or serious injury.

Do not plug in the AC adaptor unless the plug can be fully inserted into the wall outlet with no part of the blades exposed.

Do not dispose of the battery in a fire. The heat from the fire could cause the battery to explode.

Never use cleaning fluid or similar chemicals to clean the camcorder. Do not spray cleaners directly on the camcorder. Doing so may pose a fire hazard.

Keep the camcorder away from water when using it near the beach or pool or when it rains. Getting water inside the camcorder can cause it to malfunction and poses a risk of electric shock.

Do not plug in or unplug the power cord with wet hands. You could receive an electric shock.

Keep the used lithium battery or memory card out of the reach of children. If the lithium battery or memory card is swallowed by a child, consult a physician immediately.

Keep the power supply's power-cord unplugged when not using the power supply or during lightning storms. There is a risk of fire.

When cleaning the AC adaptor, unplug the power-cord. Leaving the adaptor plugged in can cause it to malfunction and poses a risk electric shock.

If the camcorder emits an abnormal sound or smell or smokes, unplug the power-cord immediately and request service from a Samsung service center. There is a risk of fire or personal injury.

If the camcorder malfunctions, immediately detach the AC adaptor or battery from the camcorder. There is a risk of fire or injury.

To avoid a risk of fire or electric shock, do not attempt to disassemble, repair, or modify the camcorder or the AC adaptor.

CAUTION There is a potential risk of personal injury or damage to the product.

Do not press the surface of the LCD with force, or hit it with a sharp object. If you press or strike the LCD surface, you can cause display unovenness or damage the display.

Do not drop or expose the camcorder, battery, AC adaptor, or other accessories to severe vibrations or impact. Severe vibration or impact can cause these items to malfunction and lead to personal injury.

Do not use the camcorder on a tripod (not supplied) in a place where it is subject to severe vibrations or impact.

Do not use the camcorder in direct sunlight or near heating equipment. Excess heat can cause the camcorder to malfunction and lead to personal injury.

Do not leave the camcorder in a closed vehicle for a long time where the temperature is very high.

Do not expose the camcorder to soot or steam. Thick soot or steam could damage the camcorder case or cause a malfunction.

Do not use the carncorder near dense exhaust gas generated by gasoline or diesel engines, or near a corrosive gas such as hydrogen sulfide. Doing so may corrode the external or internal terminals, disabling normal operation.

Do not expose the camcorder to insecticide. Insecticide entering the camcorder could cause the product to operate abnormally. Turn the camcorder off and cover it with vinyl sheet, etc. before using insecticide.

Do not expose the camcorder to sudden changes in temperature or high humidity. Use care when operating the camcorder outdoors during a lightning storm. Rapid temperature changes and high humidity can damage the camcorder and lightning storms pose the threat of electric shock.

Do not put the camcorder down with the LCD screen open.

Do not wipe the camcorder body with benzene or thinner. The exterior coating could peel off or the surface could deteriorate.

Do not leave the LCD screen open when not using the camcorder.

Safety information

CAUTION There is a potential risk of personal injury or damage to the product.

Do not hold the camcorder by the LCD monitor when lifting it. The LCD screen could detach and the camcorder may fall.

Do not use the camcorder near a TV or radio: This could cause distortion on the TV screen or interference in the radio broadcasts.

Do not use the camcorder near sources of strong radio waves or magnetism such as speakers or large motors. Noise from those sources could distort the video or audio you are recording.

Use Samsung approved accessories only. Using products from other manufacturers may lead to overheating, fire, explosion, electric shock or personal injuries caused by abnormal operation.

Place the camcorder on a stable surface that is well ventilated.

Store important data separately from the camcorder on a PC, DVD disc, CD disc, etc. Samsung is not responsible for data loss.

Only plug the adaptor plug into a socket that is easily accessible. If any problem occurs with the product, you must pull the plug out of the socket to disconnect the power completely. Turning off the power button on the product does not completely disconnect the power.

Manufacturers of unauthorized accessories compatible with this camcorder are responsible for their own products. Use the optional accessories according to their safety instructions, Samsung is not responsible for any malfunctions, for fires or electric shocks, or for damage caused by unauthorized accessories.

Contents

Getting Started 11

Unpacking 12

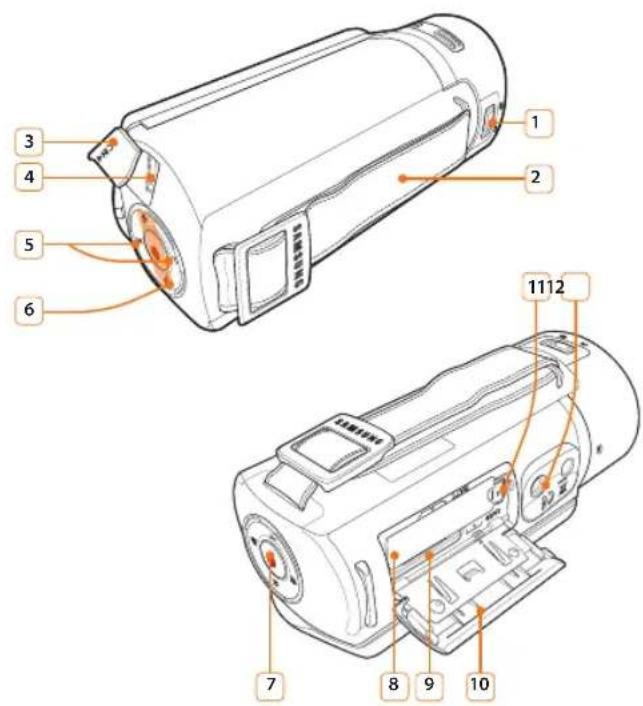

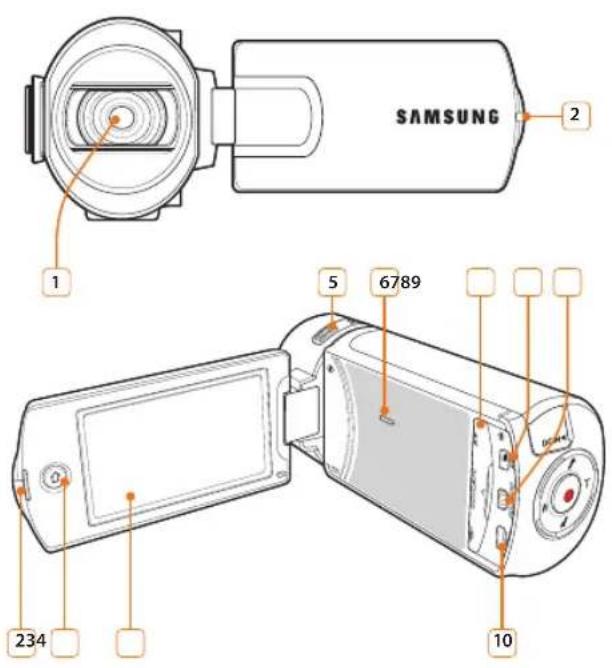

Camcorder layout....13

Inserting/Ejecting the battery and memory card....15

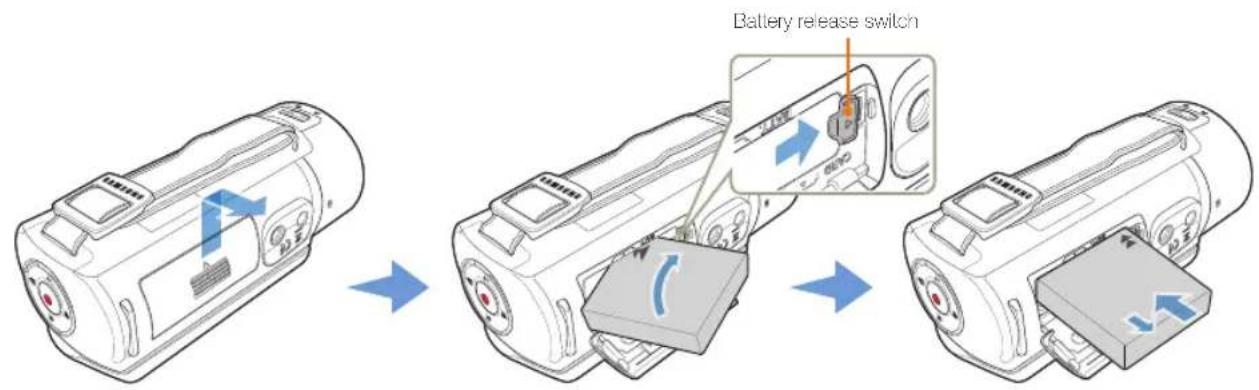

Inserting/ejecting the battery....15

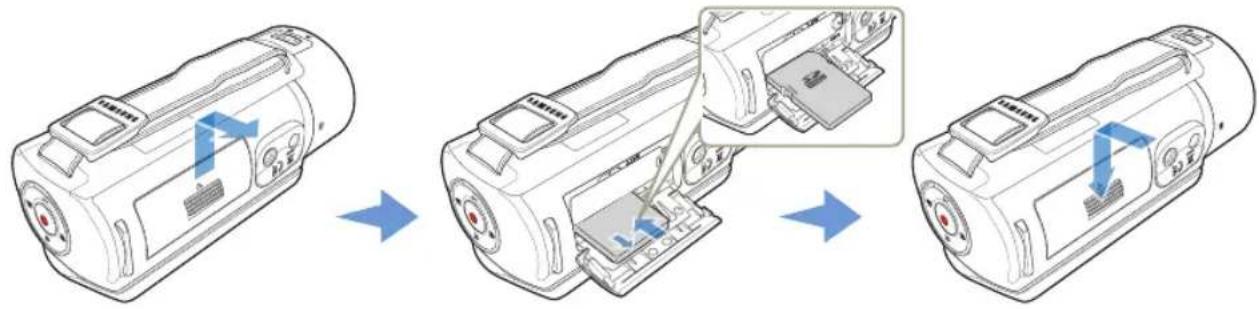

Inserting/ejecting a memory card (not supplied)....16

Charging the battery....20

Checking the battery state 21

Turning your camcorder on/off 24

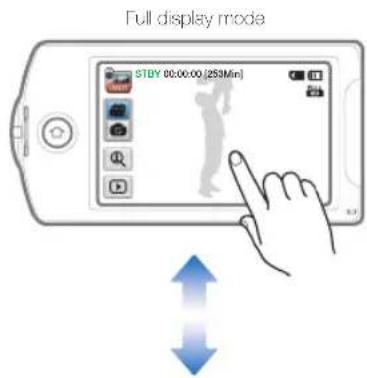

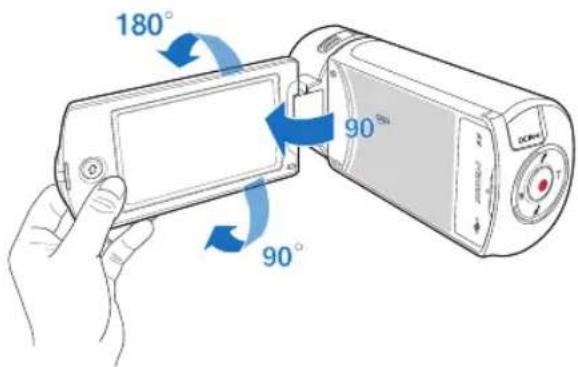

Using the touch screen 25

Performing the initial setup.... 28

Selecting the language....29

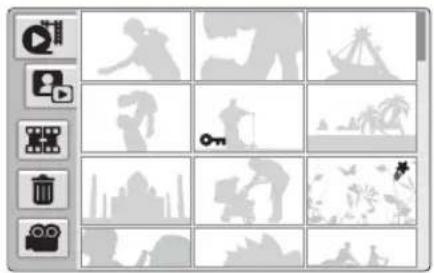

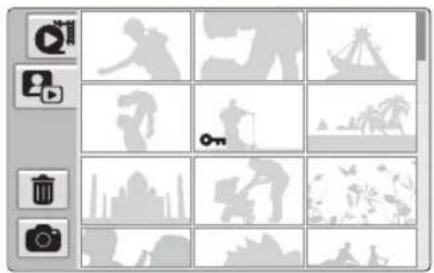

Learning icons....30

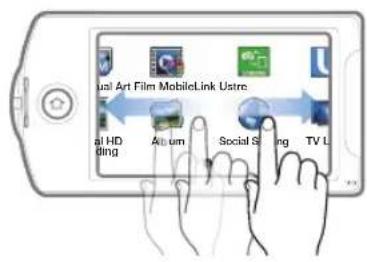

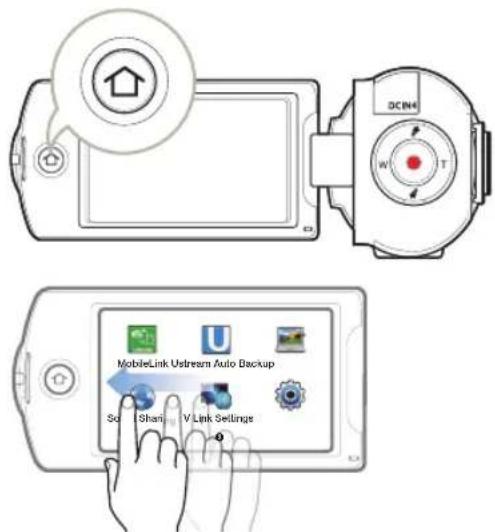

Using the Home screen....34

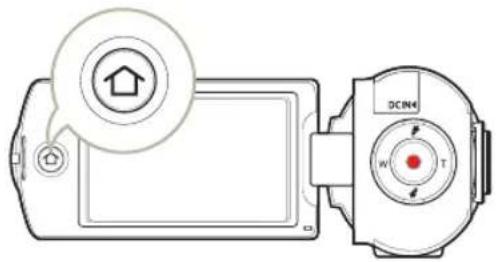

Accessing the Home screen 34

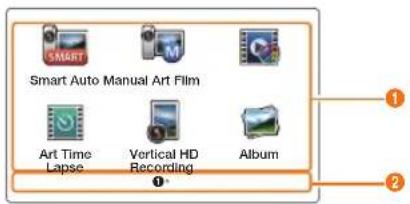

Icons on the Home screen 34

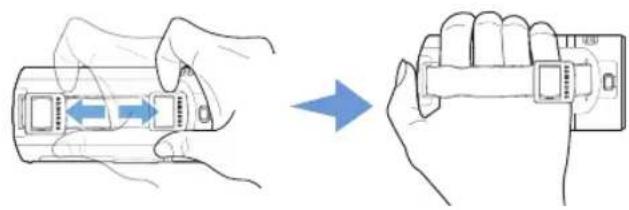

Using the grip belt 35

Basic functions....36

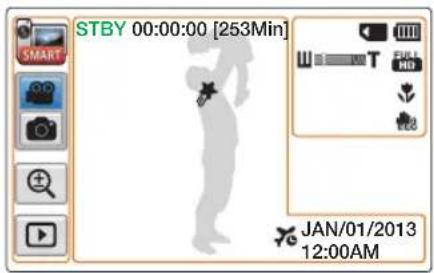

Recording videos.... 37

Recording videos in portrait mode 39

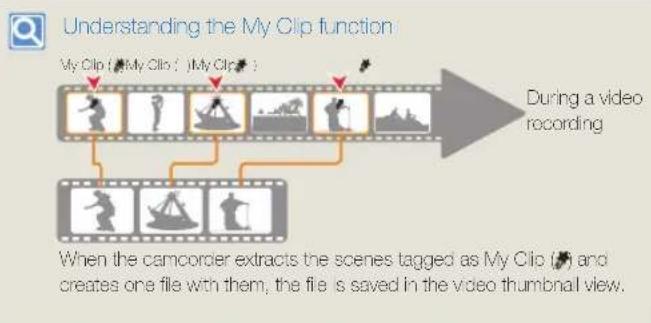

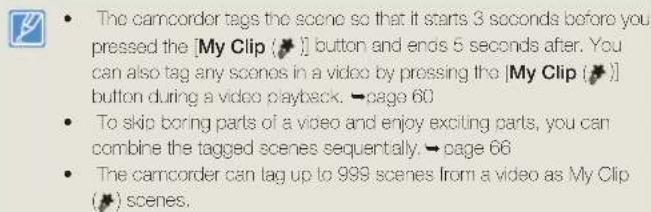

Tagging great moments while recording (My Clip function) ..... 40

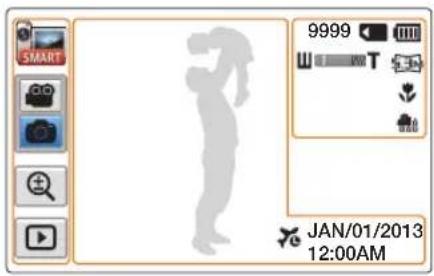

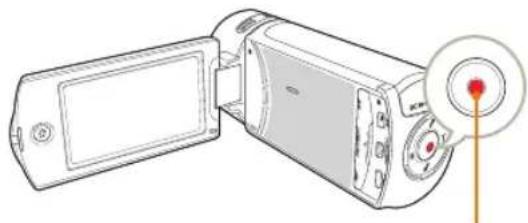

Recording photos....41

Recording with ease for beginners (SMART AUTO)......42

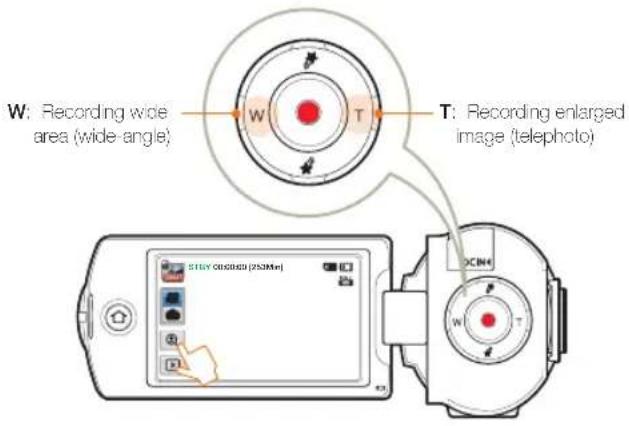

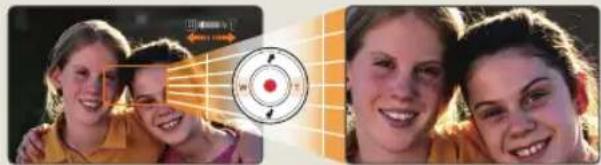

Zooming 43

Extended functions....44

Using the Manual modes 45

White Balance 45

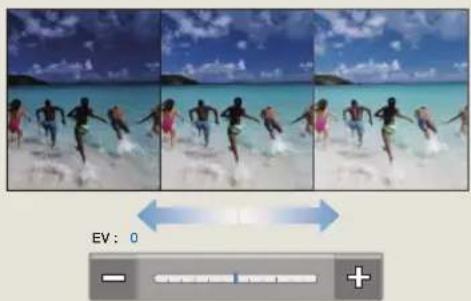

EV (Exposure Value) 46

Back Light 47

Focus 48

Super C.Nite 49

Self Timer....50

Cont. Shot 50

Using the Art Film modes....51

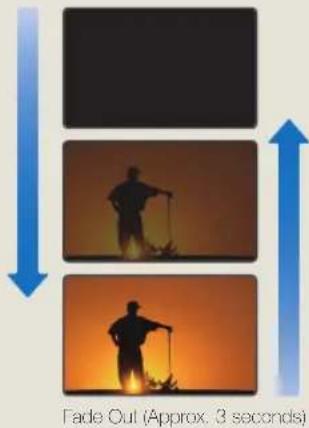

Fader 51

Digital Effect 52

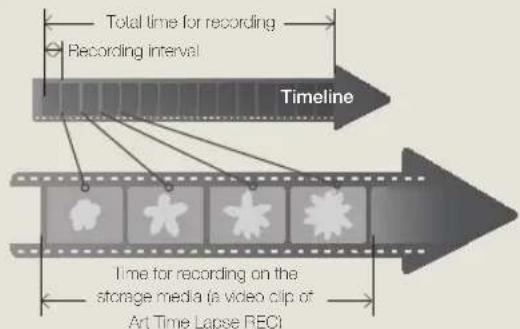

Using the Art Time Lapse mode....53

Playback/Editing 55

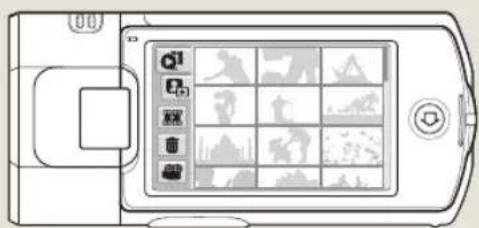

Viewing videos or photos in playback mode....56

Starting the playback mode....56

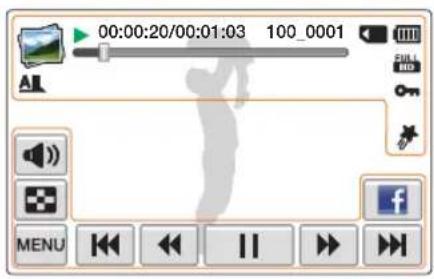

Playing back videos 57

Tagging great moments during playback....60

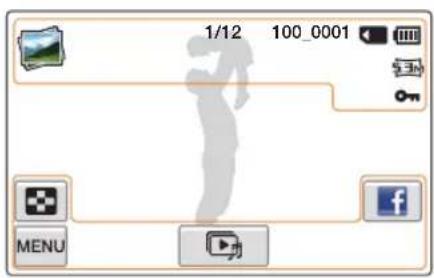

Viewing photos....61

Editing videos or photos 63

Share 63

Delete 65

Delete My Clip....66

My Clip Creation 66

Protect 67

Smart BGM 67

Contents

Divide....68

Combine 69

File Info....70

Wireless network 71

Connecting to a WLAN and configuring network settings...72

Connecting to a WLAN 72

Configuring the network settings....73

Manually setting the IP address 74

Network connection tips 75

Entering text 75

Sending videos or photos to a smart phone....76

Broadcasting live streaming video from your camcorder.... 77

Using video or photo sharing web sites....79

Accessing a web site....79

Uploading videos or photos.... 79

Viewing videos or photos on a TV Link-enabled TV......80

Using Auto Backup to send videos or photos 81

Installing the program for Auto backup on your PC 81

Sending videos or photos to a PC 81

About the Wakeup on LAN (WOL) feature....82

Using with other devices 84

Connecting to a TV....85

Connecting to a high definition TV with HDMI 85

Connecting to a regular TV....86

Viewing on a TV screen....87

Dubbing videos to VCR or DVD/HDD recorders 88

Transferring files to your Windows computer....89

Transferring files with Intelli-studio....90

Transferring files by connecting the camcorder as a removable disk....94

Settings 96

Settings menu 97

Accessing the settings menu 97

Shooting 98

Playback 99

Display....102

Connectivity.... 104

General 105

Appendixes....108

Troubleshooting....109

Warning icons and messages 109

Symptoms and solutions....114

Maintenance....121

Using your camcorder abroad....123

Glossary 124

Specifications....125

Getting Started

Learn about your camcorder's layout, icons, and home screen.

Unpacking 12

Camcorder layout....13

Inserting/Ejecting the battery and memory card....15

Inserting/ejecting the battery....15

Inserting/ejecting a memory card (not supplied)....16

Charging the battery....20

Checking the battery state 21

Turning your camcorder on/off 24

Using the touch screen 25

Performing the initial setup.... 28

Selecting the language....29

Learning icons....30

Using the Home screen....34

Accessing the Home screen 34

Icons on the Home screen 34

Using the grip belt 35

Unpacking

Your new camcorder comes with the following accessories. If any of these items is missing from your box, call Samsung's Customer Care Center.

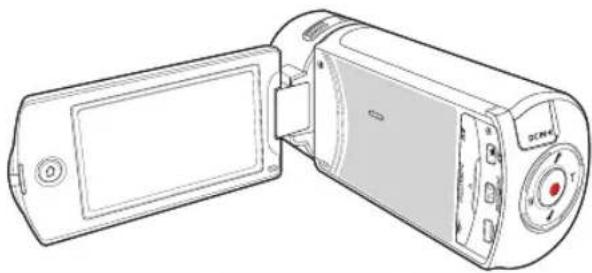

Line drawing of a digital camera with an open screen and control panel (no text or symbols)

Model name Internal memory Lens

HMX-QF30HMX-QF33HMX-QF300HMX-QF310HMX-QF320

No

X20 (Optical)X40 (Digital)

• Although some features of the models are different, they operate in the same way.
  • The exact appearance of each item may vary by model.
  • The contents may vary depending on the sales region.
• You can purchase parts and accessories. Consult your local Samsung dealer.
• SAMSUNG is not responsible for reduced battery life time or malfunctions caused by any unauthorized use of accessories such as the AC power adaptor or the batteries.
• A memory card is not included. See page 17 for memory cards compatible with your camcorder.

Checking your accessories

Battery

(BF125A) (AD43 00197A)

AC power adaptor

(AA-MA3) (AD44 00151A)

USB cable

(AD39-00194A)

Audio/Video cable

(AD39-00184A)

Quick start guide

(AD68-07565A)

Optional accessories

Micro HDMI cable

(AD39-00179A)

External battery charger

(A-BC9UA4)

Carrying case

(AD69-00929A)

Memory card/

Memory card adapter

Camcorder layout

Top/Front/Left

1 Lens
2 Charging indicator

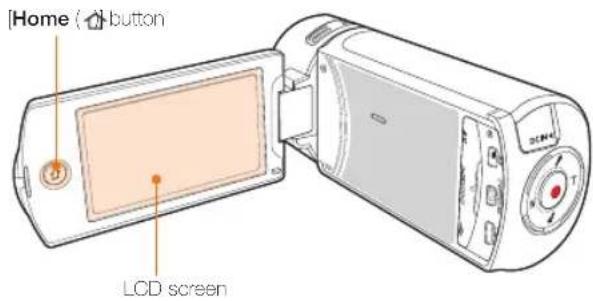

3 Home (button
4 LCD screen (Touch screen)
5 Internal microphone
6 Internal speaker
7 Jack cover (AV/HDMI/micro USB)
8 AV (Audio/Video) jack
9 HDMI jack
10 micro USB jack

Be careful not to cover the internal microphone and lens during recording.

Rear/Right/Bottom

1 Lens open/close switch
2 Grip bolt
3 Jack cover (DC IN)
4 DC IN jack
5 Zoom (TAW) button

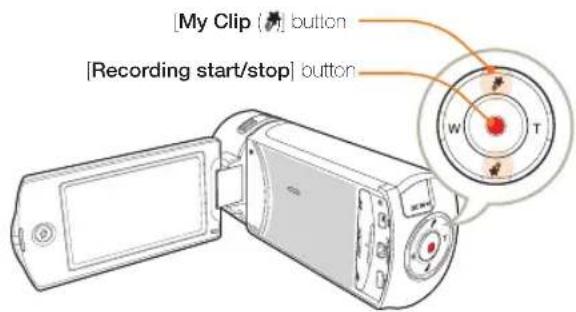

6 My Clip (*/*) button

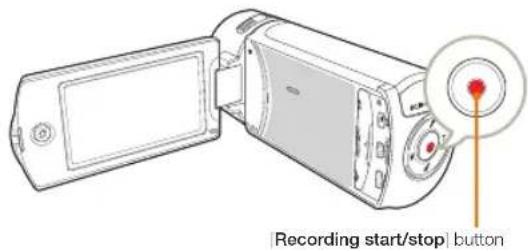

7 Recording start/stop button
8 Battery slot
9 Memory card slot
10 Battery/Memory card cover
11 Battery release switch
12 Tripod receptacle

Inserting/Ejecting the battery and memory card

Inserting/ejecting the battery

To insert the battery

1 Slide, and then open the battery slot cover as shown in the figure.
2 Insert the battery into the battery slot until it locks.

- Make sure that the SAMSUNG logo is facing down and the battery is placed as shown in the figure.

3 Close the battery slot cover.

To eject the battery

1 Slide, and then open the battery slot cover as shown in the figure.
2 Slide the Battery release switch in the direction shown in the figure, and then pull out the battery.
3 Close the battery slot cover.

• Samsung is not responsible for problems that are caused by using unapproved batteries. If you use batteries from other manufacturers, there is a danger of overheating, fire, or explosion.
  • Purchase extra batteries to allow continuous use of your camcorder.

Inserting/ejecting a memory card (not supplied)

To insert a memory card

1 Slide, and then open the memory card cover as shown in the figure.
2 Insert the memory card into the card slot until it softly clicks.
- Make sure that the label portion of the card is facing up and the camcorder is placed as shown in the figure.
3 Close the memory card cover.

To eject a memory card

1 Slide, and then open the memory card cover as shown in the figure.
2 Gently push the memory card to eject it.
3 Close the memory card cover.

• To avoid the data loss, turn off the camorder by pressing and holding the [Home (☐)] button before inserting or ejecting the memory card.
- Be careful not to push the memory card too hard. The memory card may suddenly pop out.

Compatible memory cards

• You can use SD, SDHC, and SDXC cards with this camcorder. We recommend you use an SDHC card. This camcorder supports SD cards up to 2GB. We cannot guarantee normal operation with SD cards bigger than 2GB.
  • MMC (Multi Media Card) and MMC Plus are not supported.
  • Compatible memory card capacity:
• SD: 1GB\~2GB
  SDHC: 4GB\~32GB
• SDXC: \~up to 64GB
• When you use unauthorized memory cards, the camcorder cannot record videos correctly and your recordings may be lost.
• The memory cards released after the release date of this camcorder may not be compatible with the camcorder.
• To ensure stable operation, use 6MB/S (Class 6) or above memory cards.
• SD/SDHC/SDXC memory cards have a mechanical write-protection switch. Setting the switch prevents accidental crasure of files recorded on the card. To enable writing, move the switch up in the direction of the terminals. To set write protection, move the switch down.
• SDHC/SDXC cards are a higher version of SD memory cards and provide more memory capacity than SD memory cards.
  • SD cards can be used with current SD enabled host devices.

Usable memory card (1GB\~64GB)

Using the memory card adaptor

To use a micro memory card with a computer or a card reader you must attach it to or insert it into an adaptor.

Handling a memory card

• Damaged data may not be recoverable. We recommend you make a back-up of important data separately on the hard disk of your PC.
• Turning the power off or removing a memory card during an operation such as formatting, deleting, recording, and playback may cause data loss.
• If you modify the name of a file or folder stored in the memory card with your PC, your camcorder may not recognize the modified file.
• The memory card does not support any data recovery mode. Therefore, care should be taken in case the memory card is damaged while recording.
• Make sure to format the memory card on this camcorder. If the memory card had been formatted by a PC or other device, using it on this camcorder without reformatting it on the camcorder may result in trouble with recording and/or playback. Samsung is not responsible for damage to recorded contents caused by a failure to format the memory card properly.
• You have to format newly-purchased memory cards and memory cards with data that your camcorder cannot recognize or with data saved by other devices. Note that formatting orasos all data on the memory card and deleted data cannot be recovered.
• A memory card has a certain life span. If you cannot record new data, you have to purchase a new memory card.
  • Do not bond, drop, or subject the card to strong impacts.
• Do not place foreign substances on the memory card terminals. Use a soft dry cloth to clean the terminals if required.
• Do not paste anything other than the label provided with the card on the label pasting area of the card.
  • Do not use a damaged memory card.
• Be careful to keep the memory card out of the reach of children, who might swallow it.

The camcorder supports SD, SDHC, and SDXC memory cards, giving you a wider choice of cards!

The data storage speed of cards may differ, depending on the manufacturer and production system.

- SLC (single level cell) system: faster write speed enabled. - MLC (multi level cell) system: only lower write speed is supported

For best results, we recommend using a memory card that supports a faster write speed.

Using a lower write speed memory card for recording video may cause difficulties when storing.

You may even lose your video data during the recording. In an attempt to preserve every bit of the recorded video on a low speed card, the camcorder forcibly stores the video on the memory card and displays a warning:

Low speed card. Please record at a lower resolution.

If you are unavoidably using a low speed memory card, the resolution and quality of the recording may be lower than the value you set.

page 98

The higher the video resolution and quality, the more memory the camcorder uses.

• Samsung is not responsible for data loss due to misuse, including loss caused by any PC virus.
• We recommend using a memory card case to avoid data loss that can be caused by moving the card or by static electricity.
• After a period of use, the memory card may get warm. This is normal and is not a malfunction.

Recording time available for video in minutes

Resolution	Storage media (Capacity)
	1GB 2GB 4GB 8GB 16GB 32GB 64GB
Full HD 1080/60i	7	14	30	61	123	247	497
HD 720/60p	10	21	42	86	174	349	702
Web/HD 9	19	40	81	167	336	665

(Unit: Approximate minutes of recording)

Recordable number of photos

Resolution	Storage media (Capacity)
	1GB 2GB 4GB	8GB 16GB	32GB	64GB
5.3M 3072X1728	878 1847	2832 5770	9999	9999
2M 1920X1080	1097 2309	4602 9352	9999	9999

(Unit: Approx male number of images)

1GB = 1,000,000,000 bytes : Actual formatted capacity may be less as the internal firmware uses a portion of the memory.

• Actual recording times may differ depending on the recording conditions and the subject.
• The higher the quality and resolution, the more memory the camcorder uses.
• Lower resolution and quality increases the recording time, but the image quality may suffer.
• The bit rate automatically adjusts to the image being recorded. Accordingly, the recording time may vary.
  • Memory cards bigger than 64GB may not operate normally.
• The maximum video file size is 1.8GB. When a video file exceeds 1.8GB, a new video file is created automatically.
• When recording in Web/HD resolution, you can record a video up to 10 minutes.
• The maximum number of recordable photo and video files is 9999, respectively.
• The recording length of Art Time Lapse may vary depending on settings.

Charging the battery

Charge the battery using the AC power adaptor or the USB cable.

The charging indicator lights up and charging starts. After the battery is fully charged, the charging indicator turns green.

Using the AC power adaptor

Connect the AC power adaptor to the camcorder properly, and then plug the AC power adaptor in the wall outlet.

Illustration of a digital camera connected to a cable via a plug (no text or symbols)

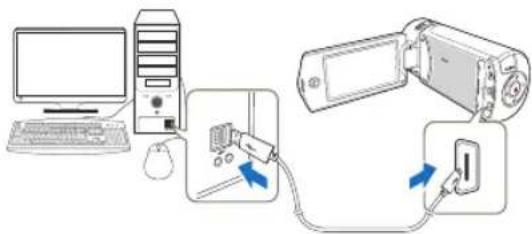

Using the USB cable

Connect the USB cable to the camcorder properly, and then connect the other end to a USB port of a PC.

• Make sure that there are no foreign substances on the plug and in the socket when you connect the AC power supply to the camcorder.
• Make sure to turn off the camcorder before disconnecting the AC power adaptor. Otherwise, you can damage the storage media or data.
• Use a nearby wall outlet when using the AC power adaptor. Disconnect the AC power adaptor from the wall outlet immediately if any malfunction occurs while using your camcorder.
• Do not place the AC Adaptor in a confined space when you use it, such as between a wall and a piece of furniture.

• When charging, if both the USB cable and AC power adaptor are connected, the AC power adaptor will override the USB.
• You cannot operate the camcorder using USB power only. Use the AC power adaptor or battery to power the camcorder.
• USB charging time may depend on the type of USB host on your PC.
• If you use the camcorder while you are charging the battery, charging may take longer.
• Be sure to use the included AC power adaptor to power the camcorder. Using other AC power adaptors could cause electric shock or result in fire,
• You can use the AC power adaptor around the world. However, you will need an AC plug adaptor that matches the design of local wall outliers in some foreign countries. If you need an adaptor, purchase it from your distributor.

Checking the battery state

You can check the charging state and remaining battery capacity.

To check the charging state

The color of the LED indicates the power or charging state.

LED color Description

(1 ə)	Charging
( )	Fully charged
(Orange Blink)	Error

Battery level display

The battery level display shows the amount of battery power remaining in the battery.

Battery level icon	State Message
(K274)	Fully charged -
(D4K0)	25~50% used -
(K000)	50~75% used -
(W248)	75~95% used -
(T477)	95~98% used -
- (K334)	Exhausted (flockers): The camcorder will be forced to turn off after 3 minutes. Change the battery as soon as possible.
	After 3 seconds, the camcorder turns off. Low Battery

The figures above are based on a fully charged battery at a normal temperature. Low ambient temperature may affect the use time.

Available charging and running time for the battery

Battery type BP125A
Charging time	Using the AC power adaptor: approx. 130 min. Using the USB cable: approx. 270 min.
Video resolution Full HD HD
Continuous recording time Approx.	105 min. Approx. 120 min.
Playback time Approx.	140 min. Approx. 160 min.

- Charging time: Approximate time in minutes required to fully charge a completely exhausted battery.

• Recording/Playback time: Approximate time available when you have fully charged the battery.

• Times shown above are measured under Samsung's test conditions. Your times may differ, depending on your usage and conditions.

Continuous Recording (without zoom)

The continuous recording time above shows the available recording time when you record without using any other function after recording starts. The battery may discharge 2-3 times faster than this reference if you use the recording start/stop, the zoom, and the playback functions. Prepare additional batteries with the expectation that the actual recording time is about 1/3 to 1/2 of the times listed above.

Using an AC power source

We recommend that you use the AC power adaptor to power the camcorder from a household AC outlet when recording and playing the camcorder indoors. The connection is the same as that for battery charging. →page 20

• The charging time will vary depending on the charge remaining in the battery.
  • Depending on your PC specifications, the charging time can be prolonged.
• The battery is charged over 95% after about 2 hours, and the indicator color changes to green. It takes about 2 hours and 40 minutes for the battery to charge 100%.
• The recording and playback times will be shorter when you use your camcorder in low temperatures.
• We recommend using the AC power adaptor when using the Art Time Lapse function.

About the battery

- Battery properties

A lithium-ion battery is small-sized and has a high capacity. Low ambient temperature (below 50°F (10°C)) may shorten its usage time and affect its function. Before recording in low temperatures, put the battery into your pocket to warm it, then install it in the camcorder.

• Make sure to store the battery separately after use.

• A small amount of battery power is consumed when the battery is stored in the camcorder even if the camcorder power is off.
• The battery may be completely discharged, if it has been installed and left in the camcorder for a long period of time. If this occurs, the battery may not fully operate even if you charge it.
• If the battery is not used for a long time, fully charge the battery and then, using your camcorder, drain the charge completely once every 3 months to keep the battery functioning properly. To store the battery, remove it from your camcorder and put it in a cool, dry place.

- Charge an extra battery before using the camcorder outdoors in cold temperatures.

• The cold temperature may shorten the available recording time.
• Carry the supplied AC power adaptor to charge the battery while travelling.

- Check whether the battery terminal is damaged if the battery falls or is dropped.

- If you install a battery with the damaged terminal into the camcorder, you can damage the camcorder.

- Remove the battery and the memory card from the camcorder and disconnect the power adaptor after use.

• Store the battery in a stable, cool and dry place. (Recommended temperature: 59°F\~77°F (15°C\~25°C), recommended humidity: 40%\~60%)
• Temperatures that are too high or too low shorten the battery lifetime.
• The battery terminals can become rusty or malfunction if the battery is stored in a smoky or dusty location.

• Recycle or dispose of your dead batteries properly.

• The battery lifetime is limited.

• Battery capacity decreases over time and through repeated use. If decreased usage time between charges becomes significant, it is probably time to replace the battery with a new one.
• Each battery's life is affected by storage, operating, and environmental conditions.

Turning your camcorder on/off

1 Turn on the camcorder by opening the LCD screen.

• Your camcorder turns on automatically when you open the LCD screen.
• To turn the camcorder on when the LCD screen is already open, press and hold the [Home (↑)] button.

2 To turn off the camcorder, press and hold the [Home (☐) button.

- Your camcorder turns off even when you close the LCD screen.

• The camcorder operates the self-diagnosis function when you turn it on. ➤ pages 109-113
• If the Quick On STBY function is set to 5 Min and you close the LCD screen when the power is on, the power saving mode activates. →page 106
• The camcorder turns on automatically if you connect the AC power adaptor or insert the battery into the camcorder with the LCD screen open.

When using this camcorder for the first time

When you use your camcorder for the first time or reset it, the time zone screen appears at start-up. Select your geographical location and then set the date and time. ▶page 28 If you do not set the date and time, the time zone screen appears every time you turn on the camcorder.

Using the touch screen

The touch screen lets you playback and recording with a simple touch of your finger. Place your hand on the rear side of the LCD screen to support it. Then, touch the items displayed on the screen.

Drag

Drag the touch screen up, down, left, or right to select the desired items or files.

Touch

Lightly touch items with your finger to select or execute.

• Do not place any protective film on the LCD screen.
• If you leave a film attached for a long time, strong adhesion between the film and the surface of the screen may cause a malfunction of the touch screen.

• Be careful not to accidentally press the button near the LCD screen while using the touch screen.
• The tabs and icons that appear on the LCD screen depend on the current recording/playback status of your camcorder.
• The camcorder does not recognize touches if you touch more than two points on the screen at the same time. Touch one point at a time.

Switching the information display mode

You can switch the on-screen information display mode.

Each time you touch the LCD screen, the full and minimum display modes alternate.

Minimum display mode

Warning icons and messages may appear, depending on the recording conditions. ➤ pages 109-113

Adjusting the LCD screen

The wide LCD screen on your camcorder offers high quality image viewing.

1 Open the LCD screen with your finger.

• The screen opens up to 90°.

2 Rotate the LCD screen towards the lens.

- You can rotate it up to 180° towards the lens and up to 90° backward. To view recordings more conveniently, rotate the screen by 180° towards the lens, then fold it back to the body.

When you reverse and close the LCD screen by rotating it to 180° towards the lens, the camcorder switches to the playback mode automatically.

Excessive rotation may damage the connective hinge between the screen and the camcorder.

Clean fingerprints or dust on the screen with a soft cloth.

Performing the initial setup

Set the date and time of your local area when turning on this camcorder for the first time.

1 Open the LCD screen to turn on the camcorder.

- The time zone (Home) screen appears based on Lisbon and London (Greenwich Mean Time).

3 Touch the up or down arrows to set the date.

4 Touch the Time (9) tab, and then set the time.

5 Make sure the clock is correctly set, and then touch the OK tab.

• The date/time setting is complete.

• You can set the year up to 2037, based on Home.
- Set Date/Time Display to On. page 103
- Activating the icon moves the time forward by 1 hour.

Internal rechargeable battery

• Your camcorder includes a internal rechargeable battery that retains the date and time settings even after the power is turned off.
• If the battery is depleted, the current date/time values are reset to the default values. If this occurs, you need to recharge the internal rechargeable battery (see below), and then re-set the current date and time.

Charging the internal rechargeable battery

• The internal battery is always recharged while your camcorder is connected to AC power or while the battery is attached.
• If you have not used the camcorder for about 2 weeks and you have not connected the AC power or the battery to it, the internal battery fully discharges. If this occurs, charge the internal battery by connecting the camcorder to the supplied AC adaptor for 24 hours.

Selecting the language

You can select the language in which the camcorder displays the menu screen or messages. The camcorder retains the language setting even when you turn it off.

1 Press the [Home (☐) button, and then drag the Home screen left.

2 Touch Settings → General → Language.

3 Touch the desired language.

4 Touch the Return (←)tab to complete the setting.

- The camcorder displays the menus screen and messages in the language you selected.

• Language options may be changed without prior notice.
- The caricorder relains the language you select even when not connected to the battery or AC power.
- The date and time format may change depending on the language you selected.

Learning icons

The available functions vary depending on the operation mode you have selected. Different icons appear depending on the setting values.

Video recording mode

Left of the LCD screen

Icon Description
	Smart Auto mode/Manual mode/Art Film mode/Art Time Lapse mode/Vertical HD Recording mode
	Video/Photo recording mice lao
	Zoom tab
	Playback tab

Center of the LCD screen

Icon Description
STBY/●/II	Operating status (standby/recording/pause)
00:00:00	Time counter (video recording time)
[253Min]	Remaining recordable time
	My Clio
	Time Zone (Visit)
JAN/01/2013 12:00 AM	Date/Time

Right of the LCD screen

Icon Description
	Storage media (Memory card)
	Battery information (remaining charge level)
	Optical zoom/Digital zoom bar
	Video resolution
	Tele Macro
	OS Duo

• The icons are based on an 32GB SDHC memory card capacity.
- The screen above is an example and may differ from the actual display.
- For warning icons and messages, see pages 109-113
- The illustrated items above and their positions can be changed without notice to improve performance.

Photo recording mode

Left of the LCD screen

Icon Description
	Smart Auto mode/Manual mode/Art Film mode
	Video/Photo recording mode tab
	Zoom tab
	Playback tab

Center of the LCD screen

Icon Description
	Time Zone (Visit)
JAN/01/2013 12:00 AM	Date/Time

Right of the LCD screen

Icon Description
9999	Photo image counter (total number of recordable photos)
	Storage media (Memory card)
	Battery information (remaining charge level)
	Optical zoom/Digital zoom bar
	Photo resolution
	Tele Macro
	OS Duo

• The total number of recordable photos is based on available space on the storage media.
  • The largest number the OSD Image Counter can display is 9999.

Video playback mode: Thumbnail view

Grid of grayscale abstract icons representing various human and landscape scenes (no text or symbols)

Icon Description
	Video thumbnail view tab
	Photo thumbnail view tab
	Combine tab
	Delete tab
	Video recording mode tab

Icon Description
	Lerase protection
	My Clip

Video playback mode: Single view

Top of the LCD screen

Icon Description
	Video playback mode
▶/II	Operating status (playback/pause etc.)
00:00:20/00:01:03	Time code (elapsed time/recorded time)
100_0001	File name (File number)
	Storage media (memory card)
	Battery information (remaining battery level)
	Playback progress bar
	Video resolution
	Video playback option
	Erase protection
	My Clio

Bottom of the LCD screen

Icon Description
	Volume tab
	Thumbnail view tab
MENU	MENU tab
	Payback related function tab(skp/search/pause/playback/slow playback/frame by frame playback)
	Share tab

Photo playback mode: Thumbnail view

Grid of grayscale silhouette icons representing various activities (e.g., running, walking, city skyline) with no visible text or symbols.

Icon Description
	Video thumbnail view tab
	Photo thumbnail view tab
	Delete tab
	Photo recording mode tab

Icon Description
	Erase protection

Photo playback mode: Single view

Top of the LCD screen

Icon Description
	Photo playback mode
1/12	Photo image counter (current image/total number of recorded images)
100_0001	File name (file number)
	Storage media (memory card)
	Battery information (remaining battery level)
	Photo resolution
	Erase protection

Bottom of the LCD screen

Icon Description
	Thumbnail view tab
MENU	MENU tab
	Slide show start tab
	Share tab

Using the Home screen

Accessing the Home screen

You can select an operating mode or access the settings menu by touching the icons on the Home screen.

Press the [Home (☐)] button to access the Home screen.

No. Description

1	Touch an icon to access a mode or function.Drag or flick your finger on the LCD screen to move to the next page.
2	The number of the current page (1, 2)

Icons on the Home screen

Icon Description
	Smart Auto: Record a video or photo using a scene mode selected automatically by the camcorder. ➔page 42
	Manual: Record a video or photo using functions you set manually. ➔pages 45~50
	Art Film: Record a video or photo using items for a fun and unique look. ➔pages 51~52
	Art Time Lapse: Record a time lapse video using Art Time Lapse functions. ➔pages 53~54
	Vertical HD Recording: Record a video in portrait mode. ➔page 39
	Album: Views videos or photos using playback or editing functions. ➔pages 56~70
	MobileLink: Send videos or photos to a smart phone using MobileLink. ➔page 76
	Ustream: Broadcast live streaming video to the world from your camcorder. ➔page 77~78
	Auto Backup: Send videos or photos to a PC using Auto Backup. ➔pages 81~83
	Social Sharing: Upload videos or photos to share web silos. ➔page 79
	TV Link: View videos or photos on a TV Link-enabled TV. ➔page 80
	Settings: Adjust settings to match your preferences. ➔pages 97~107

Using the grip belt

Adjust the length of the grip belt so that the carncorder is stable when you press the [Recording start/stop] button with your thumb.

Illustration showing a hand holding a smartphone with a blue arrow indicating the left side of the screen (no text or symbols present)

90° Vertical grip

Select Vertical HD Recording to record in a vertical position.

→page 39

Rotate your camcorder to the vertical position.

180° Switch grip

The camcorder is designed so you can use it conveniently with either your right or left hand. If you want to use this function, set Switch Grip to On in the Settings menu. →page 106

Hand holding a medical device with a screen displaying a physical model (no visible text or symbols)

If you make the grip belt too tight and use excessive force to insert your hand, the grip belt hook of the camcorder may be damaged.
- When you change the Switch Grip direction while recording, the recording may be temporarily interrupted.

Basic functions

Learn about basic functions for video and photo shooting.

Recording videos.... 37

Recording videos in portrait mode 39

Tagging great moments while recording (My Clip function) ..... 40

Recording photos....41

Recording with ease for beginners (SMART AUTO)......42

Zooming 43

Recording videos

Learn how to record videos easily and quickly in the video recording mode.

1 In STBY mode, touch the Video recording mode (eTab.

2 Select a subject to record.

• Adjust the LCD screen to the best angle for recording.
• Use the [Zoom (T/W)] button or Zoom (☐) tab on the LCD screen to adjust the size of the subject. → page 43

3 Press the [Recording start/stop] button.

• The recording (●) icon appears and recording starts.

4 To stop recording, press the [Recording start/stop] button again.

Recording pause/resume

The camcorder allows you to pause temporarily while recording a video. With this function, you can record your favorite scenes as a single video.

Touch the Pause ( ) tab to pause while recording. Touch the Recording ( ) tab to resume.

Recording videos

• If the power is interrupted or an error occurs during recording, the video may not be recorded/edited.
  • Samsung is not responsible for any damage caused by a failure of normal recording or playback operation because of memory card error.
  • Note that damaged data cannot be recovered.
• Do not turn off the camcorder or remove the memory card while accessing the storage media. Doing so may damage the storage media or the data in the storage media.

• Videos are compressed in the H.264 (MPFG-4.AVO) format.
- Eject the battery when you have finished recording to prevent unnecessary battery power consumption.
• For the on-screen information display, see page 30.
• For approximate recording time, see page 19.
• Sound is recorded by the internal stereo microphone located on the front of the camcorder. Make sure that the microphone is not blocked.
- Before recording an important video, make sure to test the recording function to see if there any problems with the audio or video recording.
• For various functions available during recording, see pages 45\~54.
- If the power cable/battery is disconnected or recording is disabled during recording, the system is switched to the data recovery mode. While data is being recovered, no other function is enabled. When the recording time is short, the data recovery might fail.
- You can adjust the brightness of the LCD screen in the menu options. Adjusting the LCD screen does not affect the image being recorded. -page 102
- The menu setting tabs shown on the LCD screen do not affect the image being recorded.
• The [Home ↑] button cannot be used during video recording.
- Recording videos in a quiet environment increases microphone sensitivity that may record surrounding ambient noise. The increasing microphone sensitivity can let the camcorder record zoom noises during zooming (the sound of the zoom mechanism etc).
- When you record indoors or in the dark places, ISO sensitivity is automatically adjusted. If the recording environment is too dark, this can cause interference effects on images and prevent images from being recorded correctly. We recommend you use a professional camcorders such as an infrared camcorder when recording at night.
- Images can be distorted if the OIS Duo function is enabled and the camcorder is mounted on a tripod or fixed in place. Turn off the OIS Duo function when the camcorder is mounted on a tripod.

Recording videos in portrait mode

The camcorder can record videos in portrait mode. Set your camcorder to the vertical position.

1 Press the [Home (button) → touch Vertical HD Recording.

- The camcorder switches to portrait mode (vertical position).

2 Rotate the camcorder to 90° for vertical recording.

3 Select a subject to record.

4 Press the [Recording start/stop] button.

• The recording (●) icon appears and recording starts.

5 To stop recording, press the [Recording start/stop] button again.

In portrait mode, you can record videos in Full HD (1920x1080/60) resolution only.

Tagging great moments while recording (My Clip function)

Using the My Clip function, you can tag good scenes while recording, and then extract the scenes tagged as My Clip (✗) from a long video later for viewing.

1 In STBY mode, touch the Video recording mode (eatab.

2 Select a subject to record.
3 Press the [Recording start/stop] button.

• The recording (●) icon appears and recording starts.

4 Press the [My Clip (✗)] button every great moment while recording.

• The camcorder tags the scene as My Clip (✗).

5 To stop recording, press the [Recording start/stop] button again.

Recording photos

Learn how to capture photos easily and quickly in the photo recording mode.

Diagram of a digital camera with a red indicator light on the screen (no text or symbols present)

|Recording start/stop| button

1 In STBY mode, touch the Photo recording mode (Tab.

2 Select a subject to record.

• Adjust the LCD screen to the best angle for recording.
• Use the [Zoom (T/W)] button or Zoom (☐) lab on the LCD screen to adjust the size of the subject. → page 43

3 Center the subject in the LCD screen, and then press the [Recording start/stop] button.

• The shutter sound is heard and the photo is recorded.

Abstract grayscale spiral pattern with a central white circle (no text or symbols)

Do not turn off the camcorder or remove the memory card when taking photos as it may damage the storage media or data.

• The recordable number of photos varies depending on the photo resolution. →page 19
  • The camcorder does not record audio when you take photos.
• You can adjust the brightness of the LCD screen in the menu options. Adjusting the LCD screen does not affect the image being recorded. →page 102
  • For on-screen display information, see page 31.
  • For various functions available during recording, see pages 45-52.
• Photo files conform to the DCF (Design rule for Camera File system) standard, established by JFITA (Japan Electronics and Information Technology Industries Association.)

Recording with ease for beginners (SMART AUTO)

User-friendly SMART AUTO optimizes your camcorder to the recording conditions automatically, providing beginners with the best performance.

1 Press the [Home (☐) button → touch Smart Auto.

2 Align your subject in the frame.

• The camcorder automatically detects the scene (Landscape, etc.) and adjusts the camcorder settings accordingly.
  • The appropriate scene icon appears on the LCD screen.

3 To record the video or photo, press the [Recording start/stop] button.

Icon Description
	Appears when the camcorder fails to recognize the recording situations.
	Appears when recording at night. (Night)
	Appears when recording images of landscapes with backlighting. (Backlight)
	Appears when recording people. (Portrait)
	Appears when recording a very bright scene. (White)
	Appears when recording an outdoor scene. (Landscape)
	Appears when recording images using close-up. (Macro)
	Appears when recording images of clear skies. (Blue sky)
	Appears when recording images of forested areas. (Natural green)
	Appears when recording images of sunsets. (Sunset)

• Most settings are automatically adjusted in the Smart Auto mode. To set or adjust functions on your own, select Manual on the Home screen.
• The camcorder may not select the correct scene depending on shooting conditions, such as camcorder shake, lighting, and distance to the subject.
• The camcorder may not detect the portrait mode depending on the orientation or the brightness of faces.

Zooming

This camcorder allows you to record using optical X20 zoom and digital X40 zoom by pressing the Zoom (T/W) button or touching the Zoom (☐) tab on the LCD screen.

To zoom in

Press the Zoom (T) button (telephoto). Or touch the Zoom (☐) tab, and then touch the Telephoto (☐) tab.

• The distant subject is gradually magnified.
• The highest zoom magnification ratio is X20 in the normal zoom-in.

To zoom out

Press the [Zoom (W)] button (wide-angle). Or touch the Zoom (☐) tab, and then touch the Wide-angle (☐) tab.

• The subject gets smaller and further away.
• The smallest zoom ratio is the subject's original size in the zoom-out.

Example of zoom-in/out

W: Wide-angle T: Telephoto

Two smiling young women posing with a target symbol and light rays, no visible text or symbols

• Using the optical zoom function does not degrade the image quality and clarity.
• Use the digital zoom function when you want to zoom more than the optical zoom range. page 99
• Focusing may become unstable when you record with a last zoom or zoom into a subject standing too far away. If this occurs, use the manual focus function. (Video recording mode only) →page 48
• The minimum distance you can have between the camcorder and subject while maintaining sharp focus is about 1cm (about 0.4 inches) for wide angle and about 1m (about 40 inches) for telephoto. If you want to shoot the subject close to the lens at a wide angle, use the Tele Macro function. page 88
• Frequent use of the zoom function consumes more power.
  The camcorder can record the sound of the zoom mechanism
• The Zoom (☐) tab on the LCD screen moves slowly and the [Zoom (T/W)] button moves more quickly. Use the Zoom (☐) tab on the LCD screen to use the zoom function with accuracy.

Extended functions

Learn how to record a video and photo by selecting a mode.

Using the Manual modes 45

White Balance 45

EV (Exposure Value) 46

Back Light 47

Focus 48

Super C.Nite 49

Self Timer....50

Cont. Shot 50

Using the Art Film modes....51

Fader 51

Digital Effect 52

Using the Art Time Lapse mode....53

Using the Manual modes

White Balance

The color of your image depends on the type and quality of the light source. If you want the color of your image to be realistic, select a white balance setting that matches the kind of light illuminating your scene.

1 Press the [Home (button) → touch Manual → White Balance (tab.

2 Touch the desired submenu item.

Icon Description

	Auto: Adjusts the white balance automatically according to the recording conditions.
	Daylight: Use outdoors in normal daylight. Adjusts the white balance according to outdoor lighting conditions.
	Cloudy: Use when recording in the shade or cloudy weather.
	Fluorescent: Use when recording under white fluorescent lights.
	Tungsten: Use when recording under halogen lamps and incandescent lights.
	Custom WB: Manually adjust the white balance to match the light source or situation.

To set the white balance manually

1 In Manual mode, touch White Balance ( ☐ab Custom WB ( ☐) tab.

• The Set White Balance icon appears.

2 Fill the screen with a white object, and then touch the OK tab.

- The white balance setting is stored. - The stored white balance setting will be applied the next time you record.

Illustration of hands holding a device with a magnified view (no text or symbols visible)

• When setting the white balance manually, the subject must be white, otherwise, your camcorder may not detect an appropriate setting value.
  • The adjusted setting remains until you set the white balance again.
• During normal outdoor recording, setting to Auto may provide better results.
• Cancel the digital zoom function for clear and precise setting. →page 99
• Reset the white balance if light conditions change.

EV (Exposure Value)

Depending on the intensity of the ambient light, your videos and photos may be too bright or dark. In these cases, you can adjust the exposure to get a better video and photos.

1 Press the [Home (☐) button → touch Manual → EV (☐) tab.

2 Touch the - / + tab to adjust the setting values. • The setting values range from -2.0 to +2.0

Understanding EV (Exposure Value)

Exposure value is the total amount of light allowed to fall on the photographic medium (Image sensor) during the process of taking videos or photos. The higher the number, the greater the exposure. For example, +0.3 lets in more light than -0.3.

Group of people running on a beach under blue sky, with visual arrows indicating direction and battery control (no text or symbols on main subjects)

Back Light

When a subject is it from behind, this function compensates for back lighting so that the subject does not appear too dark.

1 Press the [Home (button → touch Manual → Back Light (tab.

2 Touch the desired submenu item.

Icon Description

F_OFF	Off: Disables the function.
F_	On: Backlight compensation brightens the subject.

Back lighting causes the subject to be darker than the background

• The subject is in front of a window.
- The person you want to record is wearing white or shiny clothes and is placed against a bright background. The person's face is too dark to distinguish his/her features.
• The subject is outdoors and the background is overcast.
• The light sources are too bright.
• The subject is in front of a snowy background.

Two side-by-side photos of a smiling woman wearing a straw hat (no text or symbols visible)

Focus

The camcorder usually focuses on a subject automatically (auto focus). When you turn the camcorder on, focus is always set to automatic. You can also set the focus manually.

1 In STBY mode, touch the Video recording mode (Tab.
2 Press the [Home (button) → touch Manual → Focus (tab.
3 Touch the desired submenu item.

Icon Description
	Auto: In most situations, it is better to use the automatic focus feature, as it lots you concentrate on the creative side of your recording.
	Manual: You may need to focus manually under conditions in which automatic focusing is difficult or unreliable. To adjust the focus, place and hold your finger on the <▼ for a nearer subject, and on the □□> tab for a farther subject. The nearer or farther icon (▼/ □appears when focus adjustment reaches the end. The camcorder applies the adjusted value right after you touch the <▼ or □tab.

• The Auto Focus (AF) setting is useful when you operate the zoom function because you might not be able to keep accurate focus after the zoom ratio has been changed.
• When the camcorder exits from Manual mode or switches to the photo recording mode, the Focus function is automatically set to Auto.

Using the Manual modes

Super C.Nite

You can adjust the shutter speed when recording a slow moving object or recording a brighter image in dark places without compromising color.

1 In STBY mode, touch the Video recording mode (Tab.
2 Press the [Home (button) → touch Manual → Super C. Nite (tab).
3 Touch the desired submenu item.

Icon Description
	Off: Disables the function.
	Normal: The shutter opens for 1/60 of a second in the normal mode and automatically switches to open for 1/30 of a second in a dark place. Use this function to get bright images in a dark place.
	Super: The shutter opens for 1/60 of a second in the normal mode and automatically switches to open for 1/15 of a second in a dark place. Use this function to get bright images in a darker place.

Images you record when using Super C.Nite may not appear smooth because the camcorder has recorded them at a low shutter speed.

Self Timer

When the self-timer is enabled, there is a time delay of 10 seconds before recording starts. You can take photos of yourself.

1 In STBY mode, touch the Photo recording mode (Tab.
2 Press the [Home (button → touch Manual → Self Timer (OFF) tab.
3 Touch the desired submenu item.

Icon Description

OFF	Off: Disables the function.
	10 Sec: There is a time delay of 10 seconds after you press the [Recording Start/Stop] button.

• The camcorder automatically turns the Self Timer function off after it has been used once. You must turn it on each time you want to use it.
• When the camcorder exits from Manual mode, the Self Timer function is automatically set to Off.

Cont. Shot

The Continuous Shot function lets you capture up to eight photos in rapid succession.

1 In STBY mode, touch the Photo recording mode (Tab.
2 Press the [Home (button → touch Manual → Cont. Shot (tab.
3 Touch the desired submenu item.

Icon Description

	Off: The camcorer records only one photo image.
	On: When you press the [Recording start/stop] button, the camcorer can take up to 8 photos in one second.

• When an error occurs (Card Full, etc.) during continuous shot, the recording stops and an error message appears.
• When the Cont. Shot is On, the photo resolution is fixed at 2M 1920x1080.
• When the camcorder exits from Manual mode, the Cont. Shot function is automatically set to Off.

Using the Art Film modes

Fader

You can give your recording a professional look by using special effects such as fade in at the beginning of a sequence or fade out at the end of a sequence.

1 In STBY mode, touch the Video recording mode (Tab.
2 Press the [Home (button) → touch Art Film → Fader (tab.
3 Touch the desired submenu item.

Icon Description

	Off: Disables the function.
	On: When you start or stop recording, the recording lades in or lades out accordingly.

Recording a video with Fade effect

Fade In (Approx.3 seconds)

Fade in

With Fader set to On, press the [Recording start/stop] button. The recording starts with a dark screen, and then the image and sound lade in.

Fade out

With Fader set to On, press the [Recording start/stop] button to stop recording. The image and sound fade out, the screen goes black, and then the recording stops.

• The camcorder automatically turns the Fader function off after it has been used once. You must reset it each time you want to use it.
• When the camcorder exits from the Art Film mode, the Fader function is automatically set to Off.

Digital Effect

Using the Digital Effect function gives your recording a creative look.

1 Press the [Home (▲) button → touch Art Film.

- Touch the Digital Effect ( ) tab in the video recording mode.

2 Touch the desired submenu item.

- You can view the hidden items by dragging the LCD screen left or right or touching the < / Tab.

You can also apply digital effects in order easily by shaking the camcorder in the Art Film mode. You do not need to set the Digital Effect function manually, →page 99

Icon Description
	Off: Without any Digital Effect, a normal, natural image is displayed during recording or playback.
	Black & White: This mode changes the image to black and white.
	Sepia: This mode gives the image a reddish brown look.
	Negative: This mode reverses the colors, creating a negative image.
	Art: This mode helps adjust for facial Imperfections.
	Noir: This mode creates a stronger image by increasing contrast.
	Western: This mode creates a faded and old lim vintage look.
	Dazzle: This mode creates a brighter image by increasing color saturation.
	Ghost: This mode creates a drawn out image effect like an apparition or ghost. (Video recording mode only)

Using the Art Time Lapse mode

Using the Art Time Lapse function, you can set the camcorder to add emotion and something different experience on a dry and boring time lapse video.

1 Press the [Home (button) → touch Art Time Lapse.
2 Touch the desired menu.

3 Touch the MENU (MENU) tab.
4 Touch the desired submenu.

5 Touch the desired submenu item.
6 After setting the Art Time Lapse mode, press the [Recording start/stop] button.

• The Art Time Lapse recording starts.

• In Art Time Lapse mode, you can record videos in 1920x1080/30p resolution only.
• Press the [Recording start/stop] button if you want to stop recording in the Art Time Lapse mode.

Icon Description
[0770]	Normal: Set to record frames at an interval that you define. Interval: An image of a scene is captured once every 0.1, 0.5, 1, 3, or 5 seconds.
[7083]	Jumping: Set to record frames of a jumping time lapse video at an interval that you define. Interval: The scene is recorded for 3 seconds in every 1, 3, 5, 10, or 20 seconds. Audio is also recorded.
[0421]	Zooming: Set a zoom effect for a time lapse video. Interval: An image of a scene is captured once every 0.1, 0.5, 1, 3, or 5 seconds. Zoom: Adds the zoom in/out effect to a time lapse video.
[832W]	Panning: Set a panning effect for a time lapse video. Interval: An image of a scene is captured once every 0.1, 0.5, 1, 3, or 5 seconds. Direction: Adds the panning effect (left/right/up/down) to a time lapse video.
[79KC]	Zooming + Panning: Set a zoom and panning effect to add them simultaneously. Interval: An image of a scene is captured once every 0.1, 0.5, 1, 3, or 5 seconds. Direction: Adds the panning effect (left/right/up/down) to a time lapse video. Zoom: Adds the zoom in/out effect to a time lapse video.
[647X]	Night: Set night motion for a time lapse video.

Example of Art Time Lapse recording

The Art Time Lapse function records image frames at a predefined interval over the total recording time to produce a time-lapse video.

Art Time Lapse is useful for filming the following subjects:

• Blooming flowers
  • A bird building a nest
  • Clouds rolling by in the sky

• During Art Time Lapse recording, the Super C.Nite function does not work.
• Art Time Lapse recording is turned off once recording is finished. To start another Art Time Lapse mode, repeat steps 1 to 6.
- 30 captured images compose a video of 1 second length. Since the minimum length of a video that your camcorner can save is one second, the interval defines the total minimum recording time for the Art Time Lapse mode. For example, if you set the interval to 5 Sec, you need to set the recording time for the Art Time Lapse mode to at least 2 minutes and 30 seconds to record a minimum video length of 1 second (30 Images).
• You cannot pause recording during Time lapse recording.
• Audio is not recorded during Art Time Lapse recording. (Audio is recorded only during Jumping recording in Art Time Lapse mode.)
- The maximum video file size is 1.8GB. When a video file exceeds 1.8GB, a new video file is created automatically.
• We recommend using the power adaptor instead of the battery for Art Time Lapse.
- If the battery charge is exhausted during Art Time Lapse recording, the camcorder saves recording up to that point and switches to standby mode. After a while, it displays a warning message, and then turns off automatically.
- If the storage mode becomes full during Art Time lapse recording, the camcorder switches to the standby mode after saving the recording up to the maximum memory available.
• During Art Time Lapse recording, the Switch Grip function does not work.

Playback/Editing

Learn how to play back and edit videos and photos.

Viewing videos or photos in playback mode....56

Starting the playback mode....56

Playing back videos 57

Tagging great moments during playback....60

Viewing photos....61

Editing videos or photos 63

Share 63

Delete 65

Delete My Clip....66

My Clip Creation 66

Protect 67

Smart BGM 67

Divide....68

Combine 69

File Info....70

Viewing videos or photos in playback mode

Starting the playback mode

You can switch to the playback mode by selecting Album on the Home screen. You can also switch the operation mode directly into the playback thumbnail display by touching the Playback ( ) tab on the LCD screen.

• The most recently created file is highlighted in the thumbnail view.
- The camcorder selects the thumbnail display options based on the standby mode that was last used. However, you can choose the video or photo thumbnail view display options by touching the Video thumbnail view (□) or Photo thumbnail view (□) tab on the LCD screen.

Using the Playback (☐) tab

Grid of grayscale silhouette icons arranged in 4x4 layout, no text or symbols present
