Le Fit - Smartphone LOGICOM - Free user manual and instructions

Product Type	Smartphone
Brand	Logicom
Model	Le Fit
Dimensions	165 x 76 x 8.5 mm
Weight	190 g
Battery Capacity	4000 mAh
Operating System	Android
Display Size	6.5 inches
Resolution	720 x 1600 pixels
Processor	Quad-core 1.6 GHz
RAM	2 GB
Storage	32 GB
Rear Camera	8 MP
Front Camera	5 MP
Connectivity	4G, Wi-Fi, Bluetooth 4.0
Sensors	Proximity, Accelerometer
Battery Type	Li-Ion, removable
Charging	microUSB, 5V/1A
Care and Cleaning	Wipe with a soft, dry cloth
Safety	Keep away from water and extreme temperatures; use only original charger
Spare Parts & Repairability	Battery and screen replaceable by authorized service

Frequently Asked Questions - Le Fit LOGICOM

How do I insert the SIM card?

Turn off the device. Locate the SIM tray on the side edge. Use the ejection tool to push into the small hole and remove the tray. Place the SIM card in the tray with the gold contacts facing down, then reinsert the tray.

How can I extend battery life?

Reduce screen brightness, disable unused connectivity (Wi-Fi, Bluetooth), close background apps, and enable battery saver mode in Settings.

What should I do if the phone freezes?

Press and hold the power button for about 10 seconds until the device restarts. If the issue persists, perform a factory reset from recovery mode (volume up + power button).

How do I take a screenshot?

Press the power button and volume down button simultaneously for 2 seconds. The screenshot will be saved in the Gallery app.

Can I expand the storage?

Yes, the device supports microSD cards up to 128 GB. Insert the card in the dedicated slot in the SIM tray.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, turn on Wi-Fi, select your network, enter the password and tap Connect.

Is the phone waterproof?

No, the Logicom Le Fit is not waterproof. Avoid exposure to water and moisture.

How do I reset the phone to factory settings?

Backup your data first. Go to Settings > System > Reset options > Erase all data (factory reset). Confirm with your PIN or password.

What type of charger does it use?

The device uses a microUSB charger with output 5V/1A. Use only the original charger to avoid damage.

How do I update the software?

Go to Settings > System > System update > Check for updates. If an update is available, download and install it over Wi-Fi.

USER MANUAL Le Fit LOGICOM

Photo representative only

QUICK START GUIDE

Logicom Le Fit

Smartphone 3G/GPS/WIFI/BT

Trademarks

Google, Android, Google Play, and other marks are a trademark of Google LLC; Oreo is a trademark of Mondelez Internaonal, Inc. group.

Adobe Flash Player Copyright(C) 1996-2011 Adobe Systems Incorporated. All rights reserved. Adobe and Flash are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO

(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR
(ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A

VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://MPEGLA.COM

Facebook, the Facebook logo, and the F logo are trademarks or registered trademarks of Facebook, Inc.

Foursquare is the registered trademark of Foursquare Labs, Inc.

This soware is parally based on the work of the Independent JPEG Group.

The MPEG Layer-3 audio encoding technology and patents are licensed by Fraunhofer IIS and Thomson.

THIS PRODUCT IS LICENSED UNDER THE MPEG4 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO

(i) ENCODE VIDEO IN COMPLIANCE WITH THE MPEG4 STANDARD ("MPEG4 VIDEO") AND/OR

(ii) DECODE MPEG4 VIDEOS THAT WAS ENCODED BY A CONSUMER ENGAGED

IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE MPEG4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://MPEGLA.COM

SD, SDHC, microSD and the microSDHC logos are trademarks of SD-3C, LLC.

The Twier name, logo, Twier T, Tweet, and Twier bird are trademarks of Twier, Inc. in the United States and other countries.

THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO

(i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD ("VC-1 VIDEO") AND/OR

(ii) DECODE VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO.

NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.

SEE HTTP://WWW.MPEGLA.COM

Wi-Fi, the Wi-Fi CERTIFIED logo, WPA, WPA2 and Wi-Fi Protected Setup are trademarks or registered trademarks of Wi-Fi Alliance.

Windows Media is either a registered trademark or trademark of Microso Corporaon in the United States and/or other countries.

All other names of systems, products and services are trademarks or registered trademarks of their respective owners. The symbols ((TM)) or (R) are not used in this guide.

Got everything?

• 1 x Smartphone
• 1 x Chargeur adaptateur secteur – USB universel – (Model: NB-0501000EU; 5V 1A) (SHENZHEN NANBANG ELECTRONICS CO., LTD; 2/3F, A1 Buliding, Linpokeng Industrial Area, Haosi, Shangjing Street, Baoan District, SHENZHEN, Guangdong 518100, P.R. China)
• 1 x USB cable
• 1 x Quick start guide
• 1 x Pedestrian kit

NOTE: The packaging materials, such as the adhesive tape, plasc lm, string and labels, are not part of this product.

WARNING: For your safety, please do not remove the screen's protectve lm, located under the anstac lm (with tab). It protects your screen against slight scratches and provides opmum protecon if the phone is dropped.

Logicom accepts no responsibility for personal injury sustained following removal of the protecve lm by the consumer. Note that this protecve lm does not increase the robustness of the product. For replacement of the protecve lm, please consult a specialist Smartphone dealer.

Android Oreo Go edion

Congratulaons,

Your new Logicom phone is running Android™ Oreo™ (Go edion)!

Android Oreo (Go edion) is built leaner, faster, and safer than ever before, so you can go bigger in everything you do. Android Oreo (Go edion) is built around 5 hero features:

Hero feature 1: More storage

Hero feature 2: Better performance

Hero feature 3: Data savings

Hero feature 4: Security

Hero feature 5: Endless options

Hero feature 1 : More storage

Built to use less. Brand new apps designed for lighter updates and downloads, create more space while significantly improving performance. Your device also comes with Files Go: an app by Google to free up more space on your phone.

Hero feature 2 : Beer performance

By building a faster, smoother OS with enhanced apps (and a few new ones), you can email, get answers, nd direcons and play games faster than ever.

Your device comes with the following Go edion apps embedded:

Google Go: Google Go makes it easy to nd popular queries, top websites and apps, trending images and GIFs at blazing speed, with minimal typing.

Files Go: Files Go is a storage management app that helps you free up space on your phone, nd les faster and share them easily with others. It gives personalized suggestions depending on how you interact

with the phone, and it can back up les to Google Drive or any other cloud storage plaorm, without taking up much room on your phone.

Gboard: Gboard has everything you'd expect from a great keyboard—best-in-class accuracy, auto-correcon, and suggesons—plus voice typing, Glide Typing, mullingual typing, and even Google Search, built right in. No more app switching; just search and share, right from your keyboard. And don't forget

GIFs, emoji, and more language variees than any other keyboard (220 ^* ), including transliteraon for 26 Indian languages and voice typing in 9 of them.

Gmail Go: The Gmail you love, now lighter and just as fast. Gmail Go saves you me and keeps your messages safe. Get your messages instantly via nocaons, read and respond online and oine, and nd any message quickly.

Google Maps Go: Google Maps Go is designed to run smoothly on devices with limited memory and on unreliable networks, without compromising speed. It provides your locaon, real-me trac updates, direcons, and train, bus, and city transit informaon. You can even search and nd phone numbers,

addresses, and other informaon about millions of places.

Chrome: Smart personalized recommendations: Find arcs and web apps tailored to your interests on the new tab page. Fast and secure: Download videos, pictures, and enre webpages with just one tap and protect your phone with Google Safe Browsing that shows warnings to you before you enter dangerous

sites. Save mobile data: With Chrome Data Saver turned on by default, you can save up to 60% mobile data on videos and websites.

Hero feature 3: Data savings

With a built-in data manager and more opons to help you save, there are now more ways than ever to stay in control of your data. Because data is meant to be enjoyed, not just used.

Data Saver: Manage which apps get to use your data and when, it's like having your own sidekick, but for data.

Peer-to-Peer Sharing: Share your favorite content from anywhere. Laugh, play, and send videos using Files Go, all without impacing your data.

Hero feature 4: Security

Android Oreo (Go edion) and Google Play Protect keep your device clean and your data safe.

Every Android device with the Google Play Store comes with Google Play Protect – built-in mobile security that keeps your device in check along with over 2 billion devices scanned daily: Around the clock device scans keep your smartphone protected, and the scans are optimized for low data use so they don't waste your data.

It scans all installs, even when you're oine: no matter where you download them from, even when you're oine.

Find My Device features built-in:

If your device is lost or stolen, you can track it down, set a passcode or wipe it clean, just by signing into your Google account from another device.

Android Oreo (Go edion) has the same key security features as Android Oreo, protecng your device

24/7.

Hero feature 5: Endless opons

Enjoy millions of the latest Android apps, games, music and more with recommended apps for your phone at the forefront of the Play Store.

1. Descripon of the Smartphone.

1 - Front camera
2 - Rear camera & ash
3 - Volume
4 - ON/OFF buon
5 - Jack
6 - Micro USB port
7 - Speakers

2. Inserng a SIM card

Your Smartphone is a mobile phone with dual SIM card, which enables you to use two lines on the same Smartphone. Your smartphone has two SIM slots (SIM 1 and SIM 2).

To insert the SIM card(s):

• Switch o the phone and remove the rear cover and baery.
• Insert the SIM card correctly into the relevant card slots. Observe the direcon of inseron of cards, the contacts to the outside.
• SIM 1 uses a micro-SIM card and SIM 2 uses a micro-SIM card.

CAUTION: The 3G funcon can only be used on one SIM card.

- Then replace the SIM compartment in place.

3. Inserng a MicroSD

It is possible to increase the internal memory of the Smartphone device with a MicroSD card. (Maximum 32GB MicroSD card).

• Switch o the phone and remove the rear cover and baery.
• Insert the memory card into the relevant slot.
• Then replace the baery and cover.

CAUTION: Inserng or removing a SIM card or a MicroSD card requires the Smartphone to be completely switched o.

4. Charging the baery

Installing the baery:

• Remove the rear cover of your Smartphone.
• Insert the baery ensuring that the image shown here is facing you.
• Replace the rear cover of the Smartphone.

CAUTION: Risk of explosion if baery is replaced by an incorrect type.

Model: M45009D (Li-ion - 3,8V - 2000mAh)

To replace the baery, please enquire with the aer-sales service of your dealer.

Dispose of used baeries according to the instrucons.

Charging the baery:

• To charge the baery, connect the USB cable (supplied) to the USB port of your Smartphone and the other end to the mains adaptor (supplied). Then connect the mains adaptor to a power outlet.
  • The baery charge icon illuminates during charging and indicates the charge status.
• When the baery is fully charged, you can disconnect the USB cable from the device then from the power outlet.

IMPORTANT:

• The Smartphone is only recharged via its USB port.
• Ensure your Smartphone is fully discharged before charging it for the rst me.
• The baery must be charged for at least 5 to 8 hours when rst charged.
• Aer a long period without use, It should be necessary to do many cycles of charging / discharging to obtain maximum power capacity

Note: You can use the device when it is being charged. In this case, the baery may take longer to charge fully.

Safety informaon for charging the baery:

• To recharge the baery, only use the mains adaptor supplied with your device. Do not use any other power supply or electrical device.
• The power outlet to which the device is connected must be near the equipment and must always be easily accessible.
• Always wait at least 5 seconds aer switching o the device before restarng it. Switching the device o and then back on again immediately may damage the electrical circuits.
• Do not disassemble, open or shred the baery contents. Do not dispose of baeries in re or water. Do not charge the baery if the room temperature exceeds 45° C. Keep the baery in a clean and dry place. Avoid leaving the baery under sunlight.
• Do not short circuit the baery. Do not keep the battery in a place where it can be shorted by other metal objects.
• Keep the baery away from children, in case of swallowed, consult a doctor immediately. In case of baery leak, take care to not allow the liquid come in contact with skin or eyes, if this case happens, wash thoroughly with water and consult a doctor.
  • For all repairs or to replace the battery, consult a qualified technician.
• The lifeme of the baery depends largely on how you use it. Do not expose the baery to temperatures less than 0° C or greater than 60° C. Its performance may be altered.
• Significant electromagnec interference or electrostac discharge may cause malfuncon or loss of data. If the device is not working properly, restart the Smartphone or unplug the mains adaptor from the power outlet then plug it in again.
• Remove when it's possible the baery when the Smartphone is not used during a long period.
• Dispose of the baery and the Smartphone separately. Do not put the baery in the household waste, for further informaon about recycling of the baery, contact your municipality, your local waste or the store where you purchased the product.

5. Create a Google Account

When you rst start your phone, you will be asked to create a GOOGLE account. Follow the phone instrucons to create your account. You will need an internet conncon to proceed with the dierent steps; the internet conncon is oponal but it is strictly recommended to use it when creang your account.

Cauon: Forgeng or losing your Google login credenals will permanently block your Smartphone if it is restarted. In case of forgeng or loss, the product warranty will not take eect for such negligence. Indeed, even a "reset" cannot solve this problem.

As a precauon, write down your Google Account Address and Password:

ACCOUNT ADDRESS:

PASSWORD:

Geng Started

1. Switching the Smartphone on and o

• To switch the Smartphone on, press the On/O buon located on the side of the Smartphone for 3 seconds.
• If the Smartphone is switched on, press for less than a second on the buon to put the device into standby mode. Press it again to leave standby mode.
• To switch o the Smartphone, press the On/O buon for 3 seconds unl a menu appears, then touch the O buon and conrm.

2. Locking / unlocking SIM cards

Your Smartphone is a dual SIM Smartphone. It enables you to phone using two lines from the same device.

There are two SIM card slots.

• When you start up your phone, the laer invites you to enter the PIN codes of your two SIM cards in succession. (SIM1 then SIM 2)
• The "emergency call" funcon enables you to call an emergency number without entering the PIN code.

WARNING: We advise you to write here the PIN codes of your SIM cards. Logicom cannot be held responsible for any loss or omission of these codes.

CODE PIN SIM 1 : ____

CODE PIN SIM 2 : ____

3. Locking / unlocking the screen

To unlock the screen:

• Press the power key on your phone.
• Hold and drag the unlock icon to the right to unlock the device.

You can congregate the screen lock by adding a password or paern to be replicated when unlocking your Smartphone.

CAUTION: Forgeng your screen lock password, PIN code or paern permanently blocks your Smartphone

If this is forgoen or lost, the product warranty will not cover such an oversight. Even a "reset" cannot solve the problem. As a precauon, take a note of your password or paern.

PASSWORD:

If you choose the diagram, you can draw it here, clearly specifying the starng and ending points, as well as the direcon of movement:

4. Making a call

NOTE: It is impossible to make or receive a call on the two SIM cards at the same me.

For example, if you are on a call on the SIM 1 line, those trying to contact you on SIM 2 will automatically be diverted to voicemail.

• Tap the icon on the main menu or the home screen to dial the number of your choice.
• Tap the operator icon to call with SIM 1 or SIM 2.
• Press the +/- buons to adjust the call volume.
• When you want to end a call, press the icon.

5. Receiving a call

- When a call is received, you can answer it by two means:

○ Either by sliding your nger over the 📞 icon (while phone is locked)
- Either by clicking on "answer" buon on the top of the screen (while phone is unlocked)

• When a call is received, you can dismiss it and send an automated text message by sliding 📁 icon.
• When a call is received, you can dismiss it by touching the 🔔 icon or the “dismiss” buon on top of the screen

- When you want to end a call, press the icon.

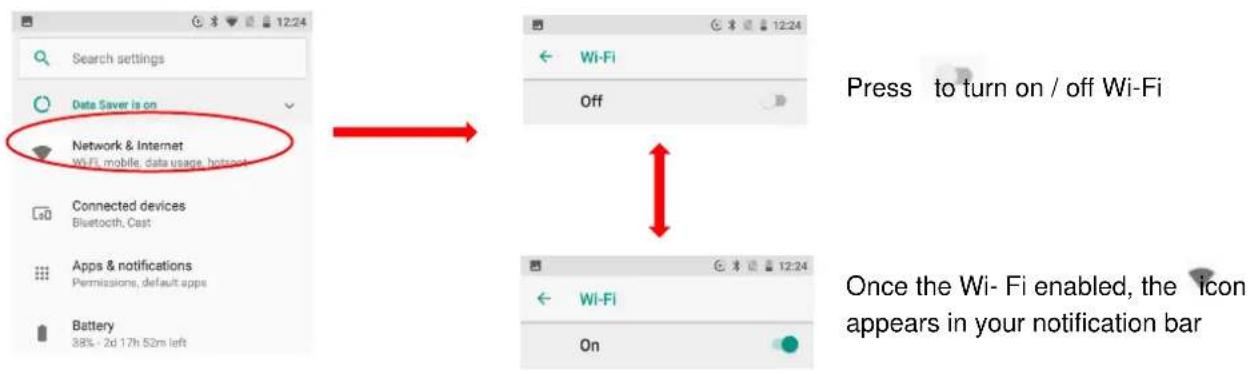

6. Enable / Disable the Wi-Fi conncon

NOTE: To limit your exposure to electromagnec elds we recommend you disable Wi-Fi when not in use.

In the sengs, press to acvate the Wi-Fi. The device automacally searches the available Wi-Fi networks. Click on the network of your choice to acvate it and connect to it. You can also acvate this funcon from the nocaons panel. The icon is displayed in the system tray when you are connected to a wireless internet network or when wireless internet networks are detected by the device.

NOTE: Most Wi-Fi networks are locked with a password (WEP or WPA2 PSK key). To connect to a locked Wi-Fi network, click on it and enter the password for your network in the dialogue box which is displayed on the screen. The WEP or WPA2 PSK key for a Wi-Fi network is generally noted on a label located on the back of your internet modem.

NOTE: Restart your Smartphone if necessary.

7. Enable / Disable Bluetooth conneccon

NOTE: To limit your exposure to electromagnec elds we recommend you disable Bluetooth when not in use.

In the sengs, press to acvate the Bluetooth. You can also acvate this funcon from the nocaons panel.

8. Reset

If you want to reset your smartphone, you can do a reset of data from the operang system Android™.

WARNING: A reset data erase all your personal data, all contacts in your phone and the applicaons you have installed. That is why we recommend that you make a backup of your data before starng the procedure.

However the informaon stored on the external memory card will not be erased.

To do a reset of the data, you have two opons:

Reset the device by seng menu :

In Sengs, click "Backup & reset", then "Factory data reset".

Click "Reset phone" and conrm "Erase everything".

The smartphone will turn o and on reboong the system will reset.

Reset the device in "recovery mode":

Switch off your device and then hold the "On / Off" button and press the Volume "+" button.

This menu is not tactile.

To navigate, use the Volume button to move.

To validate an action, use the "On / Off" button.

Select "wipe data/factory reset", after selecting "Confirm", the smartphone will reset.

Select "reboot system now", the system will reboot.

NOTE: If you encounter any problems with the product, rst do a system reset before returning it to aer sales service.

9. Downloading an applicaon

Your Smartphone is supplied with on-line store, Google Play Store enabling you to download applicants such as ulies and games.

To access these to the store, tap the Play Store icon

NOTE: The availability of access to Google Play Store depends on your phone operator and the country in which you are located. Access to the on-line store requires an account to be created.

LOGICOM shall under no conditions be responsible for the content on the on-line store. The product warranty will not cover any malfuncon due to an applicaon from on-line stores.

Warning on using the phone while driving

In France, in accordance with Arcle R412-6-1 of the French highway code, drivers are not permitted to use handheld phones whilst the vehicle is moving.

The penalty for non-compliance with this arcle is a ne and point penalty on your driving licence.

It is also forbidden to wear any system such as earphones, pedestrian kits, headsets, headphones, susceptible to limit the aenon or the hearing of the drivers.

NOTE: this legislaon applies only in France. During trips abroad, please refer to the legislaon in place in your country of origin before travelling.

Listening safety

• Before using the pedestrian kit, check that the volume is not set to maximum to prevent hearing loss
- The high volume sengs are intended for individuals with reduced hearing capacity and not for those with normal hearing.
- Do not use the pedestrian kit while driving.
- Adjust the volume so that you can hear the sounds around you.

- Listening to a portable audio player at high volumes can damage your hearing and lead to hearing impairment (deafness, ringing ears, nnitus and hyperacusis). In order to prevent these risks it is recommended not to use the device at full volume; use must not exceed one hour per day.

- This product complies with the EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 standard "Informaon technology equipment - Safety - Part 1: General requirements" in accordance with the order of 25 July 2013 implementing Arcle L. 5232-1 of the French public health code concerning portable audio players.

- Do not use pre-amplied or amplified models of headphones or earphones (i.e. with individual volume control and/or self-powered by baeries), as they do not ensure adherence to the maximum volume.

- To prevent possible hearing damage, do not listen at high volume levels for long periods.

Electromagnec waves safety informaon (SAR)

Your Smartphone is designed to not exceed the radio wave limits recommended by the European authorities. These limits include safety margins to ensure the protecon of all persons regardless of their age or health.

The SAR (specific absorpon rate) of mobile phones quanes the maximum level of exposure of the user to electromagnec waves, for aural use. French legislaon spulates that the SAR must not exceed 2 W/kg averaged over 10g of issue.

The value of the SAR is determined on the basis of the highest level of radio frequencies emitted during laboratory tests.

The actual value of the SAR during use of the smartphone is lower than this level.

The value of the SAR of the smartphone can vary according to the following factors: how far/close the phone is to a relay antenna, use of accessories and others.

The maximum SAR level of your Smartphone is given in the following table:

Posion	Connecvity	SAR value
Head	GSM900 / DCS1800 / WCDMA900 / WCDMA2100	0.274 W/kg
Body (Separaon distance 0.5 cm)	GSM900 / DCS1800 / WCDMA900 / WCDMA2100	0.813 W/kg

Body-worn SAR tesng has been carried out at a separaon distance of 0.5cm. This device is in accordance with the regulaons regulang the exposure at radio frequencies when it is used at a minimal distance of 0.5cm from the body.

NOTE: The SAR value may vary, depending on naonal reporng and tesng requirements and the network band.

- Do not use your Smartphone in certain locaons such as aircraft, hospitals, service staons and professional garages or while driving a vehicle. The electromagnec waves from the Smartphone can disrupt the performance of electronic devices used in these locaons.

We recommend that you switch o your phone or switch it to ight mode in these locaons to avoid interference.

- If you use an electronic implant (pacemakers, insulin pumps, neurosmulators, etc.), please keep a distance of 15cm between the Smartphone and your electronic implant.

- When using a pedestrian kit, pregnant women should keep the phone away from their abdomen and teenagers should keep the phone away from their lower abdomen.

Advice to reduce the level of exposure to radiaon:

- Please use your Smartphone where recepon is good to reduce the quantity of radiaon received (avoid using in an underground car park or when travelling (train or car)).

- A recepon icon indicates the quality of recepon on your phone. A 4-full display means that recepon is good

• Use of a pedestrian kit also allows the level of exposure to be reduced.

- To limit the bad consequences of the exposure to a prolonged radiaon, we advise teenagers to hold the phone away from their lower abdomen, the pregnant women to hold the phone away from their belly.

Safety and care informaon

- Read these instrucons carefully.

- Keep these instrucons.

- Follow all these instrucons.

- Heed the warnings.

- Clean only with a so cloth (dry or slightly damp).

- Do not aempt to disassemble the device; it would no longer be covered by the warranty.

- Do not bring sharp objects directly into contact with the surface and do not spray any cleaning product directly onto the screen.

- Do not exert excessive pressure on the screen and do not put objects on it. This could damage the screen.

- Use the spare parts specied by the manufacturer.

• Aer any service or repair carried out on this product, ask the technician to perform a safety check.

• Use only the spare parts/accessories specied by the manufacturer.

- Refer to a qualified person for any repairs. Repair is required if the device is damaged in some manner or other, if the power cord or plug is damaged, if liquid has been spilled or objects have fallen on the device, or if the device has been exposed to rain or moisture, or has been dropped.

- Do not expose the device to direct sunlight or other source of extreme heat or cold.

- Respect the privacy of others when using your Smartphone.

- Keep the device away from all metal objects (coins, keys, etc.).

- Do not leave near a magnec eld as this could cause data to be lost or could damage the device.

- Do not drop the device.

- Do not expose the device to shocks, fricon or impact.

- In order to prevent data loss, remember to make a (computer or paper) back-up of informaon saved on the device.

- To prevent interference, do not use the device near other electronic devices, a pacemaker or medical equipment.

• Operang temperature: 0-40°C.

NOTE: In order to reduce any risk of re or electric shock:

- Do not expose this device to rain or moisture.

- Do not expose the product to water droplets or to splashes and do not place any object lled with liquid, such as a vase, on the device.

- Do not use the product near ammable or explosive materials.

- The power plug is used to disconnect the device and must always be easily accessible.

- In order to completely disconnect the device from the electricity supply, the power plug must be disconnected from the power outlet.

- Do not aempt to override the safety features of the polarised plug or the earth connection. A polarised plug has two pins, one of which is wider than the other. A plug with an earth conncon has two at pins and a third round pin for the earth conncon. The widest pin and the third pin constute the important safety features designed to protect you. If you cannot manage to fully insert the plug into the wall outlet, contact your electrician to replace the obsolete wall socket.

- Disconnect this device during electrical storms or when not in use for an extended period.

- Switch o the device in places presenng risk of explosion and when travelling by plane.

- Do not touch the power cord with wet hands and do not pull on the charger to disconnect it.

- The power cord must be placed so that it will not be stepped on or crushed particularly at the outlet, where it is plugged in or where it is connected to the device.

- Do not overload the power outlet. Use the power supply only as indicated.

- Do not install this device near heat sources such as electric hobs, cookers or others (including amplifiers).

Epilepsy warning

Please read before using a video game or allowing your children to use one.

Some people are susceptible to epilepc seizures or loss of consciousness when exposed to certain ashing lights or light paerns in everyday life. Such people may have a seizure while watching television images or playing certain video games. This may happen even if the person has no medical history of epilepsy or has never had any epilepc seizures. If you or anyone in your family has ever had symptoms related to epilepsy (seizures or loss of consciousness) when exposed to ashing lights, consult your doctor prior to playing. We advise that parents should monitor the use of video games by their children. If you or your child has the following symptoms while playing a video game, disconnue use IMMEDIATELY and consult your doctor: dizziness, blurred vision, eye or muscle twitches, loss of consciousness, disorientaon, any involuntary movement or convulsion.

Precauons to take during use of any video game:

• Do not sit too close to the screen. Sit a good distance away from the television screen, as far away as the length of the cable allows.
• Preferably play the game on a small television screen. Avoid playing if you are red or have not had much sleep.
  • Make sure that the room in which you are playing is well lit.
  • Rest for ten to fifteen minutes per hour while playing a video game.

Technical informaons

Technologies	Frequency range	Transmit power max
FM receiver	87.5 – 108MHz	N/A (Only Receiver)
2G	GSM900 – DCS 1800	E-GSM900: 32.24 dBmDCS1800: 29.31 dBm
3G	WCDMA 900 – WCDMA 2100	WCDMA 2100: 21.47dBmWCDMA 900: 22.86dBm
Bluetooth	2402MHz ~ 2480MHz	GFSK: 5.53dBm (EIRP) π/4 DQPSK: 3.12dBm (EIRP)8DPSK: 3.14dBm (EIRP)
Wi 2.4 Ghz	2412MHz ~ 2472MHz	802.11b: 15.98 dBm (EIRP)802.11g: 13.94 dBm (EIRP)802.11n20: 11.11 dBm (EIRP)802.11n40: 9.99dBm

Recycling

The symbol shown here and on the product means that the product is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life.

The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landll.

Product disposal instrucons for residential users:

If you no longer use the device, remove and dispose of the baery, as well as the device, in compliance with the local recycling procedures. For more informaon please contact your local authority or the retailer where the product was purchased.

Product disposal instrucons for business users:

Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal.

Simplified EU declaraon of conformity

CE

Hereby, LOGICOM SA – 55 rue de Lisbonne – 75008 PARIS, declare that the radio equipment type smartphone GPS/FM/WIFI/BT/GSM/3G model Le Fit is in compliance with Direcve 2014/53/UE.

The full text of the EU declaraon of conformity is available at the following internet address:

hps://www.logicom-europe.com/ce-doc

The warranty scope of applicaon

If you encounter any problems:

A contact form and complete FAQ are available on our website:

www.logicom-europe.com

If none of these plaorms does solve your problem, contact your retailer.

The LOGICOM supplier warranty is valid for normal use of the device as denied in the instrucons.

This warranty excludes damage caused by external circumstances.

Specifically, the warranty does not apply if the device is damaged as a result of a bump or drop, an operang error, a conncon that does not comply with these instrucons, lightning, a surge, or inadequate protecon against heat, humidity, or freezing temperatures.

The warranty is applicable only in metropolitan France.

• The warranty does not cover user manuals or applicaons, sengs, content or data of any kind.
• The warranty does not cover normal usury of the product. (Screens, baeries and camera)
• The warranty does not cover damage to the product due to misuse, including in particular those caused by objects, a pressure drop.
• The warranty does not cover any use of the label with the precautions outlined in the manual.
• The warranty does not cover defects caused to the product with another product connected or used with an accessory or soware not provided by Brish Telecom.
• The warranty does not cover any damage to the baery.
• The warranty does not cover the product or its accessories if it has been disassembled or modified in any way.
• The warranty does not cover any unidenable product by serial number or (s) number (s) IMEI. If its elements have been removed, altered or defaced, the warranty does not apply.
• The warranty does not cover damage done to the product caused by exposure to moisture, conditions that extreme heat or cold, corrosion, oxidaon, with any liquid whatsoever.
• The warranty does not cover any damage to (s) player (s) or SIM MicroSD reader.

The legal warranty for hidden defects applies in compliance with Arcles 1641 et seq. of the French Civil Code.

Made in PRC

© 2019 Logicom SA.
