KX-MB1667CN - Printer PANASONIC - Free user manual and instructions

Product Type	Multifunction laser printer (print, copy, scan, fax)
Model Numbers	KX-MB1663CN, KX-MB1665CN, KX-MB1666CN, KX-MB1667CN, KX-MB1678CN, KX-MB1679CN
Print Technology	Laser
Functions	Print, copy, scan, fax
Supported Paper Sizes	A4, Letter, Legal, B5 (JIS), B5 (ISO)
Paper Types	Plain paper, thin paper, thick paper
Connectivity	USB 2.0, Ethernet (LAN) (models KX-MB1666/1667/1678/1679)
Scan File Formats	TIFF, JPEG, BMP, PDF
Scan Destinations	Email, FTP, SMB folder, OCR, file
Automatic Document Feeder (ADF)	Yes (for scanning/copying multi-page documents)
Display Language	English selectable (feature #110)
Toner/Drum Replacement	Separate toner cartridge and drum unit (replace as needed)
Cleaning	Clean white platen glass, ADF roller, and document cover
Safety Warnings	Fuser unit becomes hot; do not touch. Rear cover also becomes warm.
Paper Jam Removal	Open front or rear cover to clear jammed paper; use green lever
Power Supply	AC 110-240 V, 50/60 Hz (typical for laser MFP)
Dimensions (approx.)	420 x 370 x 240 mm (W x D x H)
Weight (approx.)	9.5 kg
Print Speed	Up to 18 ppm (typical for monochrome laser)
Print Resolution	600 x 600 dpi (typical)

Frequently Asked Questions - KX-MB1667CN PANASONIC

How do I clear a paper jam in the KX-MB1667CN?

Open the front or rear cover depending on the jam location. Use the green lever to release pressure, gently remove the paper, then close the cover. Press Stop to clear the error.

How do I replace the toner cartridge?

Open the front cover, remove the drum unit, then pull out the old toner cartridge. Unpack the new one, shake it gently, and insert it into the drum. Reinstall the drum and close the cover.

The printer displays 'Add Toner' but I just replaced it. What should I do?

Ensure the toner cartridge is correctly seated and the protective tape is removed. If the message persists, try turning the printer off and on. If still present, the drum may need replacement.

How do I clean the scanner glass?

Open the document cover and wipe the glass and white backing plate with a soft, dry cloth. For stubborn marks, use a slightly damp cloth with mild detergent, then dry thoroughly.

Can I print on both sides (duplex)?

This model does not have automatic duplex printing. You can manually print on both sides by feeding the paper again after the first side prints.

How do I connect the printer to my computer via USB?

Connect the USB cable to the printer (port located on the back) and to your computer. Install the drivers from the included CD or Panasonic website. The printer should be automatically detected.

Why is my fax not sending?

Check that the phone line is connected to the LINE jack and the other device (if any) to EXT. Ensure the fax number is correct and the receiving machine is ready.

How do I scan to email?

Configure email settings via the printer's menu: set SMTP server, port, and authentication. Then press SCAN, select Email, enter the recipient, and send.

The printer prints blank pages. What could be wrong?

Remove and reinstall the toner cartridge. Check if the drum is properly seated. If the toner is low, replace it. Also, clean the corona wire inside the printer (refer to manual).

How do I reset the printer to factory defaults?

Press Menu # then 1 1 0, select Reset, and confirm. Note: This will clear all custom settings, including stored phone numbers and network configurations.

USER MANUAL KX-MB1667CN PANASONIC

型号

KX-MB1663CN KX-MB1665CN KX-MB1666CN KX-MB1667CN KX-MB1678CN KX-MB1679CN

You can select English for the display and report (feature #110, page 51).

最佳使用建议

日常维护

非法复印

- 复印特定文稿属于非法行为。

⑦ 记录纸支架 ⁴

⑧ 话筒

⑨ 话筒线

① 记录纸出口

* 此图片的型号是 KX-MB1666 KX-MB1667 KX-MB1678 KX-MB1679。

2 取出预装在本机内的硒鼓（①）。

- 通过中央把手握住硒鼓。

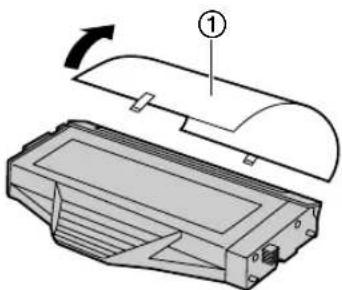

3 从硒鼓上取下保护纸（①）。

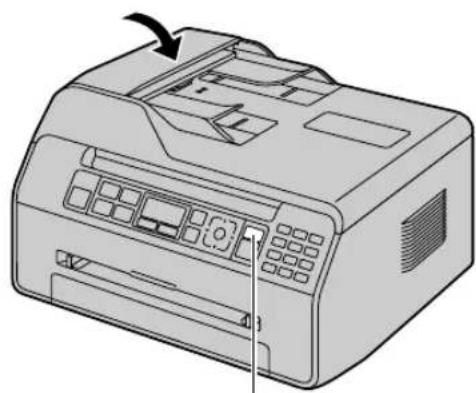

6 关上前盖。

何时补充墨粉/何时更换硒鼓

何时补充墨粉

① [分机接口] 插孔

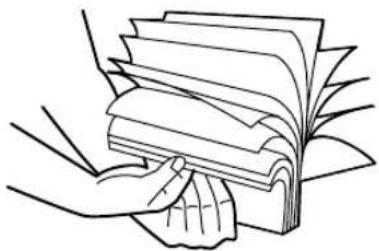

2 在装入记录纸之前翻松以免卡纸。

1. 简介和安装

3 装入记录纸，打印面朝下（①）。

重要事项：

5 将进纸盘插入木机中。

注释：

进纸盘注意事项

- 不要让进纸盘掉落。

注释：

- 若要从手动进纸盘打印：

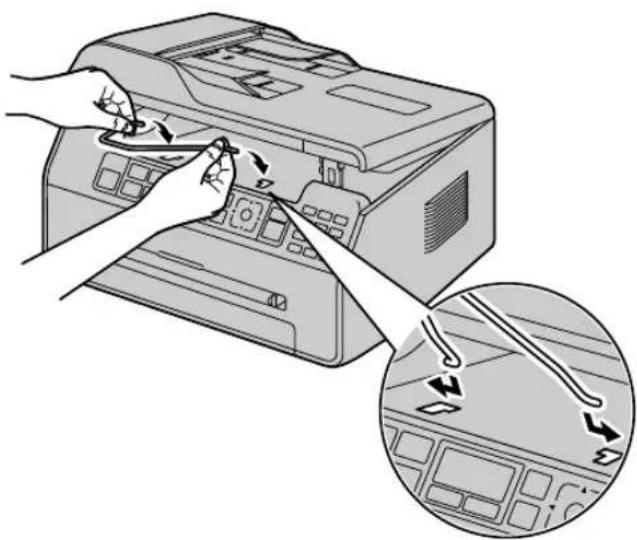

2 安装接收文件支架。

注释：

4 KX-MB1663 KX-MB1665:

转到步骤5。

KX-MB1666 KX-MB1667 KX-MB1678

KX-MB1679, USB 连接:

KX-MB1666 KX-MB1667 KX-MB1678

KX-MB1679, LAN 连接:

扫描方式	TIFF JPEG BMP PDF
“阅览器”*1	● ● ● ●
“文件”*1	● ● ● ●
“电子邮件”*1	● ● - ●
“OCR”*1	● ● ● -
“电子邮件地址”*2*3	● ● - ●
“FTP 服务器”*2*3	● ● - ●
“SMB 文件夹”*2*3	● ● - ●

使用自动送稿器：

原稿 缩小的复印件

5.2.2 分页复印

KX-MB1666 KX-MB1667 KX-MB1678 KX-MB1679

情况 1:

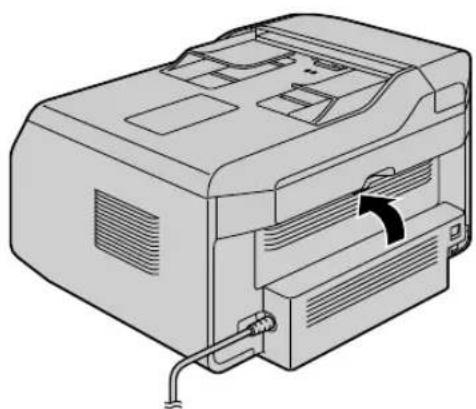

当记录纸在后盖内部卡住时：

1. 打开后盖（①）。

注意：

- 熔融装置（②）会变热。请勿触摸。

注释：

- 后盖（③）附近也会变暖。

11. 卡纸

1. 将绿色推杆（①）向上推到原来的位置。

1. 关上后盖。

- 打开并盖上前盖以清除错误信息。

情况 2:

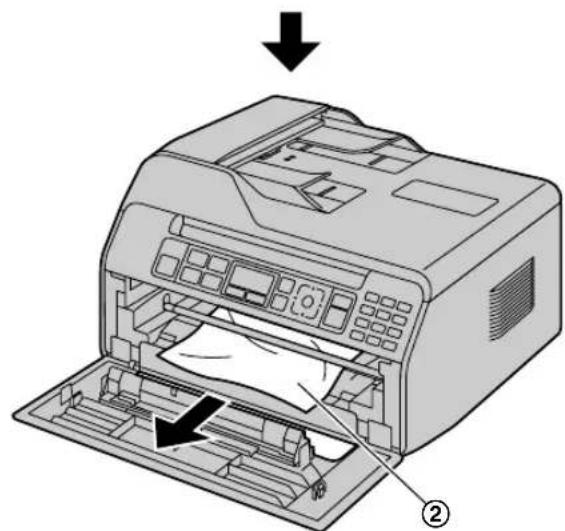

当记录纸在前盖内部卡住时：

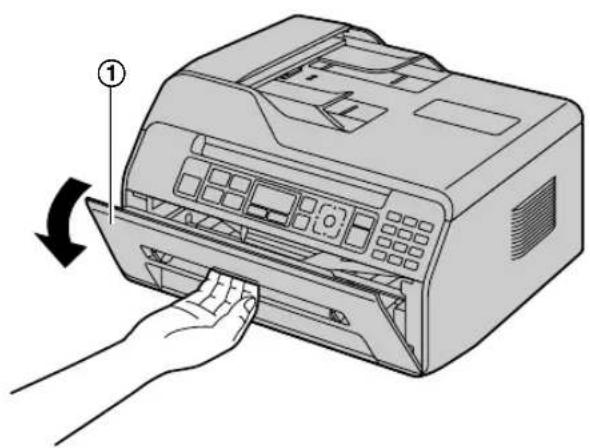

1. 打开前盖（①）。

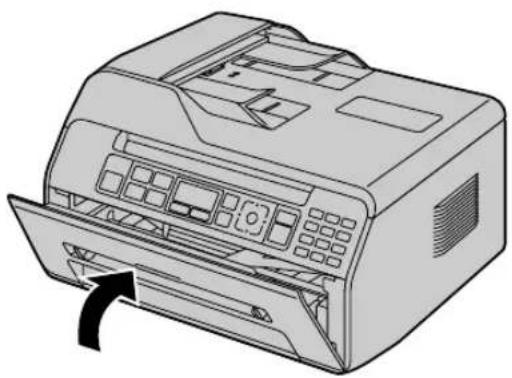

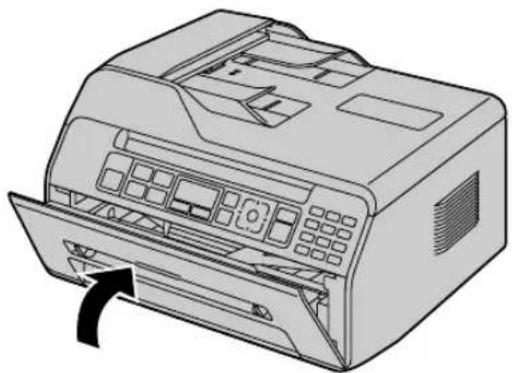

1. 关上前盖。

3 将进纸盘插入本机中。

注释：

注释：

- 注意不要损坏透明塑料片（①）。

2 小心地取出卡住的文稿（①）。

当文稿在文稿入口附近卡住时：

当文稿在文稿出口附近卡住时：

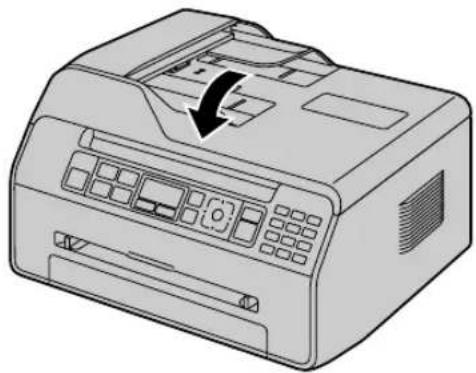

3 关上 ADF 盖。

【停止】

- 请按【停止】清除此信息。

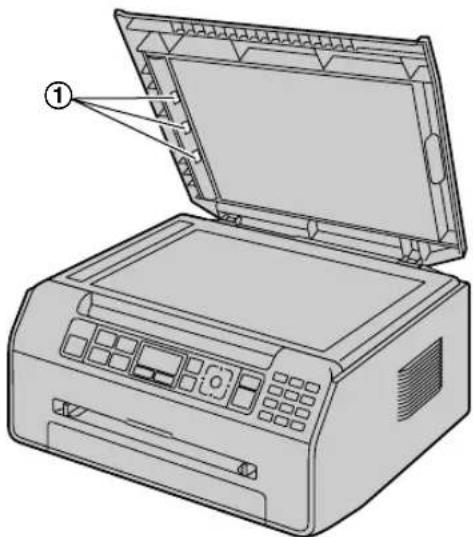

12.1 清洁白色盖板和玻璃

注意：

- 注意不要损坏透明塑料片（①）。

3 关上文稿盖。

12.2 清洁送稿器滚筒

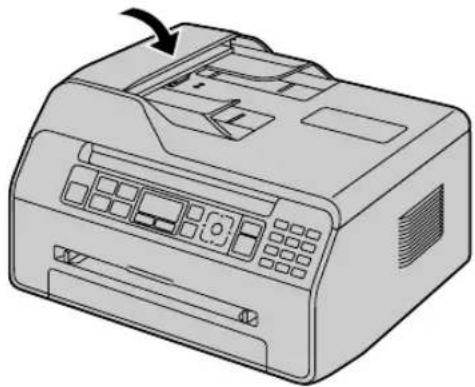

4 关上 ADF 盖。

5 重新连接电源线。

13.1 参考列表和报告

您可打印出以下列表和报告供您参考。

- “安装设定表”

- “电话号码表”

- “通讯报告”

- “多站点发送编程表” *1

- “打印机测试”

- “来电显示表”

- “电子邮件地址列表” *1

- “FTP 服务器列表” *1

- “SMB 文件夹表” *1

- “WLAN状态列表”*2

- “部门打印数量”

WPA/WPA2-PSK (TKIP/AES)

开放系统（WEP64/WEP128）

WPS:

注释：

- 本说明书采用的图片和图示为简图。

记录纸规格

普通纸/薄纸/厚纸尺寸：

A4: 210 mm × 297 mm

Letter: 216 mm × 279 mm

Legal: 216 mm × 356 mm ^*1

B5(JIS): 182 mm × 257 mm ^*1

B5(ISO): 176 mm × 250 mm*1

示例 2

注释：
