BP-522 - Camera Battery Watson - Free user manual and instructions

Product Type	Li-ion Battery Pack
Brand	Watson
Model	BP-522
Battery Chemistry	Lithium-ion
Operating Temperature	15°F to 105°F (-10°C to 40°C)
Storage Temperature	59°F (15°C) recommended
Storage Charge Level	Approximately 40%
Safety Feature	Internal self-resetting fuse
Safety Feature	Protection circuit against over-temperature
Charging Instructions	Refer to camcorder or digital camera manual
Cleaning	Use a clean, soft, dry cloth
Storage Condition	Cool, dry place away from moisture
Warranty	1 year limited warranty
Warranty Provider	Gradus Group
Customer Service Phone	212-594-2353
Website	www.poweredbywatson.com
Precautions	Do not short circuit, open, incinerate, or expose to moisture
Disposal	Do not incinerate; follow local regulations for battery disposal

Frequently Asked Questions - BP-522 Watson

How should I store the Watson BP-522 battery when not in use?

Remove the battery from your device and store it in a cool, dry place at approximately 40% charge. The recommended storage temperature is 59°F (15°C). Do not store in a freezer.

Can I use any charger to charge this battery?

No, always follow the charging instructions in your camcorder or digital camera manual. Using an incompatible charger may damage the battery.

Why does the battery get hot during charging or use?

It is normal for the battery to become warm. However, if it becomes excessively hot, stop use immediately and allow it to cool. The battery has a safety circuit that disables use at very high temperatures.

What is the warranty period for the Watson BP-522?

This product is warranted to be free from defects for one (1) year from the original purchase date, or 30 days after replacement, whichever occurs later.

Can I open the battery case?

No, under no circumstance should you attempt to open the battery case. Doing so may cause damage or injury.

What is the safe operating temperature range?

The battery should be used at temperatures between 15°F (-10°C) and 105°F (40°C). Using it outside this range may activate the safety circuit or cause damage.

What should I do if the battery run time has shortened?

When operation time has noticeably shortened, the battery may need to be replaced. This is a normal sign of aging.

Can I store the battery in a refrigerator?

Yes, you may store the battery in a refrigerator, but do not store it in a freezer. The ideal storage temperature is 59°F (15°C).

How do I clean the battery terminals?

Use a clean, soft, dry cloth to gently wipe the terminals and the battery surface.

What safety features does the Watson BP-522 have?

The battery includes an internal self-resetting fuse and a safety circuit that prevents use at very high temperatures. However, avoid short circuits as they may still cause damage.

USER MANUAL BP-522 Watson

Please read before using this equipment.

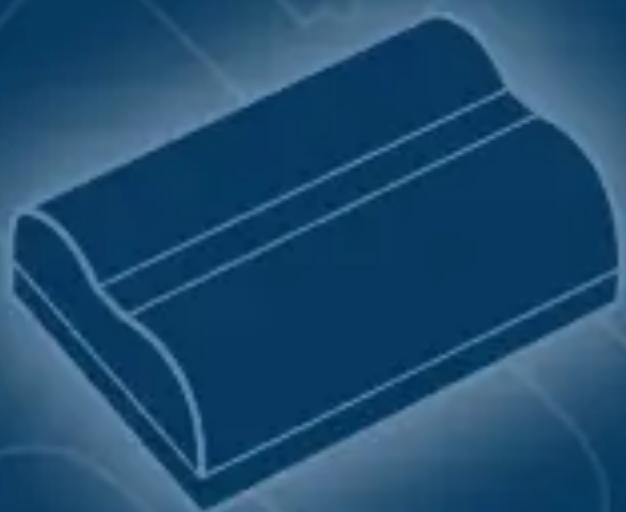

Blue 3D illustration of a folded or layered object with smooth edges and no visible text or symbols

Abstract geometric pattern with yellow and white shapes (no text or symbols)

Thank you for purchasing the Watson Li-ion Battery Pack.

Browse through this manual for information and useful tips on how to use your new equipment.

SAFETY INSTRUCTIONS:

- Charge the battery pack before use. Read your camcorder or digital camera manual for charging instructions.

- When not in use, remove the battery pack from its device and store in a cool, dry place.

- Do not short circuit the terminals. This battery is protected with an internal self-resetting fuse, but short circuits may still cause severe damage to the battery. Be careful where you set the battery down.

• Under no circumstance attempt to open the battery case.
- Do not expose the battery to rain or moisture.

- Keep away from fire. Do not incinerate. Battery may explode in the presence of fire.

- Do not drop battery or expose it to strong shocks.

- Do not use at temperatures below 15°F (-10°C) or above 105°F (40°C). Use of the battery at very high temperatures will activate a safety circuit, disallowing use.

- Running time depends on the power demanded. Stated manufacturer run times are developed in simple laboratory tests of non-stop recording. Real-life use of zoom, automatic focus, tape review, etc., all demand extra power and shorten run time.

TO MAXIMIZE BATTERY PERFORMANCE

• Make sure the battery is fully charged before use.
- Clean the battery and terminals with a clean, soft, dry cloth.
• The battery may be warm during use on recharging. This is normal.
- When storing the battery for an extended period, be sure that it is not completely charged, nor completely discharged.

The ideal level is a 40% charge. This is approximate; the closer the battery is to this level, the better it will hold its charge during storage. The battery should be stored in a cool, dry place. The recommended temperature for storage is 59°F (15°C). You may store a battery in a refrigerator. Do not store batteries in a freezer.

- Remove the battery from your equipment when not in use. Some electronic equipment will draw current even when the switch is off.

- When operation time has noticeably shortened, the battery may need to be replaced.

ONE-YEAR LIMITED WARRANTY

This Watson product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function. This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state. To obtain warranty coverage, contact the Watson Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Watson along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.poweredbywatson.com or call Customer Service at 212-594-2353.

WATSON™ A Gradus Group Brand

Product warranty provided by the Gradus Group. Watson is a registered trademark of the Gradus Group. © 2016 Gradus Group LLC. All Rights Reserved.

WATSON

www.poweredbywatson.com
