NP-QM71D - Camera Battery Watson - Free user manual and instructions

Product Type	Camera Battery
Brand	Watson
Model	NP-QM71D
Compatible with	Select Sony camcorders (NP-QM71D compatible)
Battery Chemistry	Lithium-Ion (Li-Ion)
Nominal Voltage	7.2 V
Capacity	2760 mAh / 19.9 Wh
Dimensions (W x H x D)	Approx. 70.0 x 38.4 x 20.6 mm
Weight	Approx. 200 g
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Charging Method	Use compatible Sony charger (e.g., BC-TRP)
Charge Time	Approx. 3-4 hours (depending on charger)
Number of Cells	2
Overcharge Protection	Built-in protection circuit
Short Circuit Protection	Yes
Maintenance	Keep contacts clean; avoid extreme temperatures; store partially charged (40-60%)
Replacement Part Number	NP-QM71D, NP-QM71, NP-QM70
Package Contents	1 battery, 1 plastic terminal cover
Safety Warnings	Do not disassemble, incinerate, or short circuit. Keep away from children. Dispose of properly.

Frequently Asked Questions - NP-QM71D Watson

Is the Watson NP-QM71D battery compatible with my Sony camcorder?

The NP-QM71D battery is designed to work with Sony camcorders that accept the NP-QM71D battery pack. Check your camcorder's manual or look for 'NP-QM71D' in the specifications. Popular compatible models include HDR-HC9, DCR-HC96, and others.

What is the capacity of this battery?

The battery has a capacity of 2760 mAh (19.9 Wh), providing extended recording time compared to smaller batteries.

How do I charge the Watson NP-QM71D?

Use a compatible Sony battery charger, such as the BC-TRP or similar model, designed for NP-QM series batteries. Plug the charger into a wall outlet, insert the battery, and the LED will indicate charging status.

Can I use this battery with a charger from another brand?

It's recommended to use a charger specifically designed for NP-QM71D batteries. While some third-party chargers may work, they risk improper charging or damage. Check for compatibility information.

How long does it take to fully charge?

Charging time is typically about 3 to 4 hours with a standard charger. Faster chargers may reduce this time.

How should I store the battery when not in use?

Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, maintain a charge level of about 40-60%. Avoid fully discharging before storage.

Is the battery protected against overcharging or short circuits?

Yes, the battery has a built-in protection circuit to prevent overcharging, overdischarging, and short circuits. However, always use a quality charger.

What do the LED indicators mean?

LED indicators vary by charger. Typically, a solid red/orange light indicates charging, and green light indicates fully charged. Consult your charger's manual for exact meanings.

Can I use this battery in extreme temperatures?

The battery operates safely between 0°C to 40°C (32°F to 104°F). Using it outside this range may reduce performance or cause damage. Store between -20°C to 60°C.

How do I dispose of this battery?

Lithium-ion batteries must be recycled. Do not throw in household trash. Take to a designated battery recycling center or follow local regulations for electronic waste.

USER MANUAL NP-QM71D Watson

Please read before using this equipment.

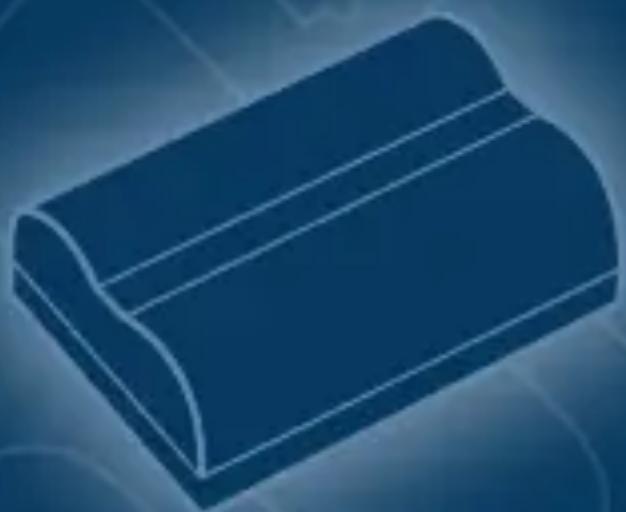

Blue 3D-rendered object resembling a folded or layered object with smooth edges (no text or symbols)

Abstract geometric pattern with yellow and white shapes (no text or symbols)

Thank you for purchasing the Watson Li-ion Battery Pack.

Browse through this manual for information and useful tips on how to use your new equipment.

SAFETY INSTRUCTIONS:

- Charge the battery pack before use. Read your camcorder or digital camera manual for charging instructions.

- When not in use, remove the battery pack from its device and store in a cool, dry place.

- Do not short circuit the terminals. This battery is protected with an internal self-resetting fuse, but short circuits may still cause severe damage to the battery. Be careful where you set the battery down.

• Under no circumstance attempt to open the battery case.
- Do not expose the battery to rain or moisture.

- Keep away from fire. Do not incinerate. Battery may explode in the presence of fire.

- Do not drop battery or expose it to strong shocks.

- Do not use at temperatures below 15°F (-10°C) or above 105°F (40°C). Use of the battery at very high temperatures will activate a safety circuit, disallowing use.

- Running time depends on the power demanded. Stated manufacturer run times are developed in simple laboratory tests of non-stop recording. Real-life use of zoom, automatic focus, tape review, etc., all demand extra power and shorten run time.

TO MAXIMIZE BATTERY PERFORMANCE

• Make sure the battery is fully charged before use.
- Clean the battery and terminals with a clean, soft, dry cloth.
• The battery may be warm during use on recharging. This is normal.
- When storing the battery for an extended period, be sure that it is not completely charged, nor completely discharged.

The ideal level is a 40% charge. This is approximate; the closer the battery is to this level, the better it will hold its charge during storage. The battery should be stored in a cool, dry place. The recommended temperature for storage is 59°F (15°C). You may store a battery in a refrigerator. Do not store batteries in a freezer.

- Remove the battery from your equipment when not in use. Some electronic equipment will draw current even when the switch is off.

- When operation time has noticeably shortened, the battery may need to be replaced.

ONE-YEAR LIMITED WARRANTY

This Watson product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function. This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state. To obtain warranty coverage, contact the Watson Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Watson along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.poweredbywatson.com or call Customer Service at 212-594-2353.

WATSON™ A Gradus Group Brand

Product warranty provided by the Gradus Group. Watson is a registered trademark of the Gradus Group. © 2016 Gradus Group LLC. All Rights Reserved.
