USER MANUAL CRV-5-W Genaray

3D rendering of a white rectangular electronic device with black casing and mounting base, against a golden bokeh background (no text or symbols visible)

genaray®

CRV-5-W INTRODUCTION

THANK YOU FOR CHOOSING GENARAY.

The CRV-5-W Curved LED On-Camera Light provides you with powerful and portable illumination that can be used in a variety of settings. It features curved, wide-angle lighting with up to 140° of coverage, 128 bright LEDs, and 3200 to 5600 K variable color temperature. You’ll enjoy flicker-free dimming and an included magnetic diffuser panel, making the Genaray CRV-5-W Curved On-Camera Light a great choice for professional photography and videography.

PRECAUTIONS

• Do not attempt to disassemble, repair, or perform any unauthorized modifications on the device.
• Do not handle with wet hands, immerse in liquids, or expose to water and rain; electric shock or fire may result.
• The device contains small parts which may pose a choking hazard; keep out of reach from children.

• Do not operate the device in the presence of flammable gas or vapors.

• Do not use this product if it emits smoke or a strange odor; turn off the power to avoid personal injury, and contact customer service.

• Do not intentionally stare or gaze at the LED light panel while the device is on.
• Do not use or leave the device in conditions of extreme heat, high humidity, or severe cold.
• All images are for illustrative purposes only.

On/off switch Battery status LED Green: Fully charged Red: Charging USB-C port Dimming wheel Genaray CRV-5-W 5in. Curved LED Power: 5W Voltage: Li-ion 3.7V Genaray CRV-5-W 5in. Curved LED Light Li-ion 3.7V Color- Color-temperature wheel

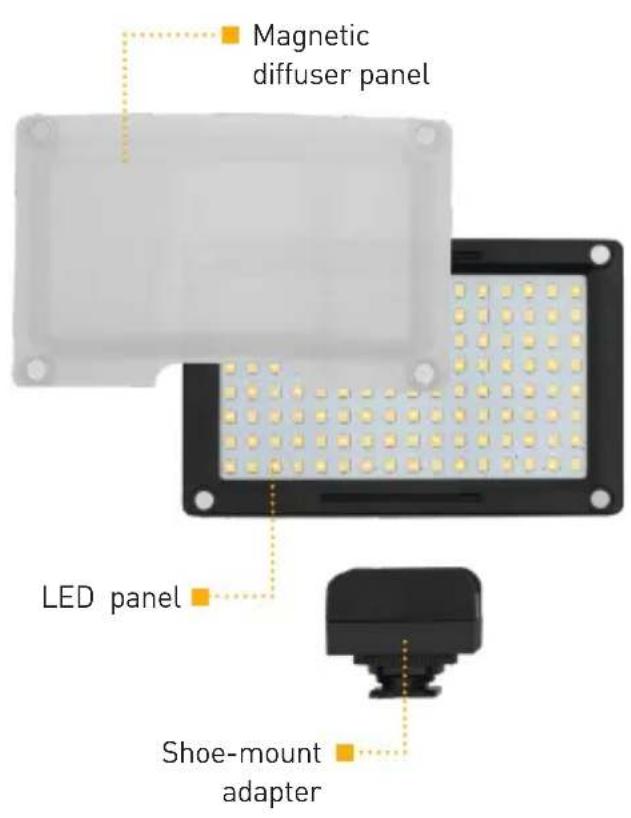

Magnetic diffuser panel LED panel Shoe-mount adapter

Also included: USB-C cable

Carrying case G' genaray.

PRODUCT SPECIFICATIONS

LED Count: 128

Color Temperature:

3200 K (±200 K) to 5600 K (±300 K)

Illuminance:

5600 K (with diffusion panel): 175 lx @ 3 ft. 5600 K (without diffusion panel): 249 lx @ 3 ft. 3200 K (with diffusion panel): 150 lx @ 3 ft. 3200 K (without diffusion panel): 215 lx @ 3 ft.

CRI: ≥95

TLCI: ≥96

Beam Angle: 140° with diffuser panel 120° without diffuser panel

Dimming: 10% to 100%

Watts: 5 W

Voltage: DC 5 V

LED Life: 40,000 hr.

Continuous Working Time: Approx. 1.5 hr.

Battery Type: Built-in rechargeable lithium battery

Battery Capacity: 2500 mAh

Battery Voltage: 3.7 V

Battery Lifetime: 500 recharge cycles

Battery Recharge Time: Up to 5 hr.

Mount: Mounting foot with 1/4"-20 socket

Dimensions (H × W × D): 2.9 × 4.7 × 1.4 in. (7.5 × 11.9 × 3.7 cm)

Weight: 6 oz. (169 g)

ONE-YEAR LIMITED WARRANTY

This GENARAY product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Genaray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information, or to arrange service, visit www.genaray.com or contact us at [e-mail].

© 2018 Genaray. All Rights Reserved.

Other product and corporate names mentioned herein are trademarks of their respective holders.
