USER MANUAL HPS-A40 Polsen

THREE-LEVEL BASS ADJUSTMENT HEADPHONES

Black multi-band headboard headphones with visible brand logo and branding (no text or symbols on the headset body)

PRODUCT MANUAL

POLSEN®

THANK YOU FOR CHOOSING POLSEN.

Polsen's HPS-A40 headphones are designed for studio tracking and mixing, as well as DJ and personal monitoring applications. The 40 mm Neodymium drivers deliver a wide frequency response with high sensitivity for accurate and detailed audio.

The HPS-A40 headphones feature a unique three-step bass adjustment switch on each driver that allows you to adjust the low end to your taste. Each step adds 3 dB at 200 Hz, the heart of bass frequencies. With less bass, vocals and speech are clearer and more understandable. Increasing the bass adds texture and depth to music and soundtracks.

The headphone's over-the-ear design offers sound isolation in noisy environments. Each earphone swivels up to 90 degrees for convenient one-ear monitoring. The single-sided detachable cable terminates with a 1/8-inch (3.5 mm) mini plug and comes with a 1/4-inch adapter for compatibility with portable devices and computers, as well as home stereos, headphone amps, and mixing boards. Thick replaceable ear cushions and a padded headband provide comfort throughout long monitoring sessions.

PRECAUTIONS

• Keep this unit away from water and any flammable gases or liquids
• Clean the unit with only a soft, dry cloth.
  • Make sure that this product is intact and that there are no missing parts.
• Be mindful of your surrounding environment when using this product. Do not use this product while driving an automobile, operating machinery, or performing other tasks that require your undivided attention.
  • All images are for illustrative purposes only.

Protect your hearing

Exposure to high sound pressure levels may cause permanent hearing loss. Avoid listening at high volumes for extended periods.

Symptoms of noise-induced hearing loss may include persistent ringing, pain, itching, or inflammation of the ears, and difficulty understanding speech.

For more information visit:

http://www.osha.gov/SLTC/noisehearingconservation/

https://www.cdc.gov/nceh/hearing_loss/

Please note: Government URLs are subject to change. If these links don't connect you to the right information, we recommend that you visit www.cdc.gov and www.osha.gov or do an Internet search for the phrase "hearing loss."

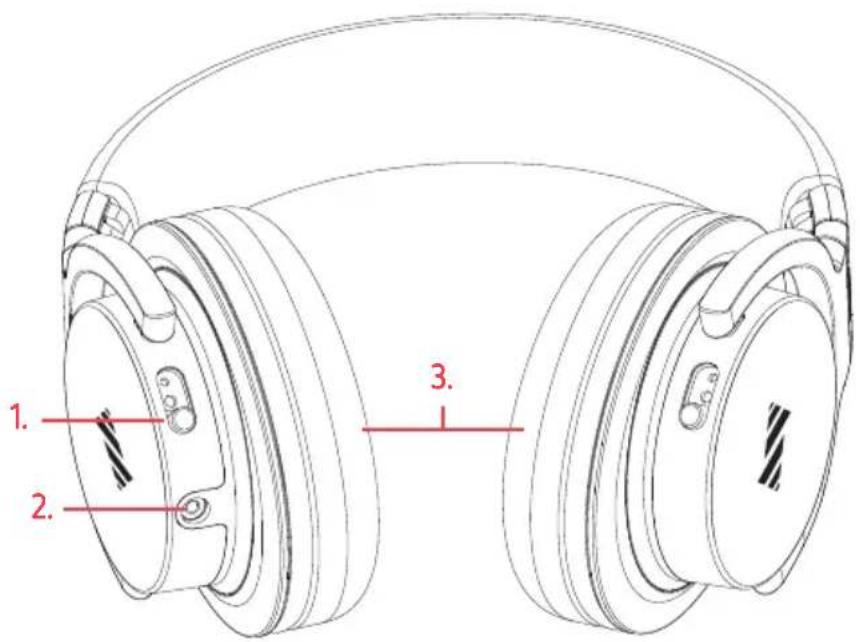

OVERVIEW

1. 3-level bass adjustment switch
2. 2.5 mm input jack
3. Replaceable ear cushions

Also Included:

Detachable cable

Screw-on 1/4-inch adapter

Carry pouch

1. 2. 3.

CONNECTING THE HPS-A40

Plug the included cable's 2.5 mm connector into the input jack on the headphones.

Plug the cable's 1/8-inch (3.5 mm) connector into a device such as a smartphone, MP3 player, portable stereo,

or computer.

Use the 1/8 to 1/4-inch adapter to connect your headphones to devices with a 1/4-inch headphone jack such as an amplifier, home stereo, or mixing board.

ADJUSTING THE BASS LEVEL

Each side of the headphone has a three-step bass adjustment selector.

Up (no exposed vents): subtle bass

For the least amount of bass, use this setting for clearer and more intelligible vocals and speech. Music tracks sound bright and present

Abstract line drawing with curved and elongated shapes, no text or symbols present

with this setting.

Middle (one exposed vent): +3 dB of bass

This setting adds a subtle boost to the low frequencies. It adds dimension and depth to your audio.

Pure technical line drawings of mechanical components without any text, numbers, or symbols

Down (two exposed vents): +6 dB of bass

This setting gives the bass frequencies an extra boost. It's good for contemporary music and adds depth and richness to live music performance, as well as jazz and classical recordings.

SPECIFICATIONS

TYPE Circumaural, closed back

FREQUENCY RESPONSE 10 Hz to 20 kHz

IMPEDANCE 32 Ω ±15%

SENSITIVITY 96 dB ±3 dB @ 1 kHz

MAXIMUM POWER RATING 20 mW

RATED POWER 10 mW

MAGNET TYPE Neodymium

DRIVER DIAMETER 1.6 in. (40 mm)

CABLE DIAMETER 0.16 in. (4 mm)

CABLE LENGTH 6.2 ft. (1.9 m)

WEIGHT 8.4 oz. (237 g)

ONE-YEAR LIMITED WARRANTY

This Polsen product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Polsen Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Polsen along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.polsenaudio.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Polsen is a registered trademark of the Gradus Group. © 2018 Gradus Group LLC. All Rights Reserved.

POLSEN® A Gradus Group Brand
