Product Type	Wireless Remote Control (Flash Trigger)
Model	Cruiser
Brand	Impact
Category	Remote Control for Monolight
Compatible Cameras	Canon, Nikon, Sony (with TTL and HSS support)
Wireless Frequency	2.4 GHz
Operating Range	328 ft (100 m)
Channels	8 (1 to 8)
Groups	3 (A, B, C)
Modes	TTL, Manual, EV compensation
Sync Modes	First-curtain sync, Second-curtain sync, High-speed sync (HSS)
Power Output Adjustment	1/10-stop increments, rapid scroll by holding buttons
Modeling Light Control	On/Off, 100% or 50% brightness, per group
Test Flash	Yes, via Test button
Sound Alert	On/Off toggle
Display	LCD screen with illumination (auto-off after 20 sec)
Connections	3.5 mm sync port, Micro-B USB (for firmware updates)
Power Source	2 x AAA 1.5V (alkaline, lithium, or NiMH)
Dimensions (W x H x D)	3 x 2.37 x 2 in (7.6 x 6 x 5.2 cm)
Weight (with batteries)	3.2 oz (90.7 g)
Mounting	Hot-shoe mount with locking collar
FCC Compliance	Part 15 of FCC rules
Warranty	One-year limited warranty from original purchase
Cleaning	Wipe with soft dry cloth; avoid liquids and solvents
Spare Parts / Repairability	Batteries user-replaceable; other repairs by authorized service
General Info	Brand: Impact, Model: Cruiser, Category: Remote Control

Frequently Asked Questions - Cruiser Impact

How do I install batteries in the Impact Cruiser remote?

Open the battery compartment and insert two AAA batteries following the polarity icons. Use alkaline, lithium, or NiMH batteries.

Is the Impact Cruiser compatible with Sony cameras?

Yes, the Cruiser works with Sony cameras. However, check impactstudiolighting.com for specific compatibility details on TTL and HSS modes.

What is the operating range of the Cruiser?

The wireless range is up to 328 feet (100 meters) in open conditions via 2.4 GHz transmission.

How do I switch between TTL and Manual mode?

Press the Mode button on the controller to toggle between TTL and Manual. In TTL mode, you can adjust EV compensation using the +/- buttons.

How can I fire a test flash?

Press the Test button on the controller to trigger a test flash from the connected monolight.

Can I control the modeling light with the Cruiser?

Yes, press the Modeling light button to turn the modeling light on/off for the selected group. You can also set brightness to 100% or 50% by pressing and holding.

How many channels and groups can I use?

The Cruiser supports 8 channels (1-8) and 3 groups (A, B, C). Press the Channel button to change channels and Group buttons to select or enable/disable groups.

What do the sync options (FCS, SCS, HSS) mean?

FCS (First-curtain sync) fires the flash at the start of the exposure, SCS (Second-curtain sync) at the end, and HSS (High-speed sync) allows flash use at shutter speeds faster than the sync speed. Use the Sync button to select.

How do I enable or disable a group?

Press and hold the corresponding Group button (A, B, or C) to toggle that group on or off. The selected group is outlined on the LCD.

What should I do if the remote stops responding?

Check that batteries are fresh and installed correctly. Ensure the remote is securely mounted on the camera's hot-shoe. Try changing channels if interference occurs. If issues persist, contact Impact customer service.

USER MANUAL Cruiser Impact

Thank you for choosing Impact.

The Impact Cruiser Wireless Controller is a compact wireless 2.4 GHz transmitter that provides the Cruiser TTL 500 Monolight with TTL and high-speed sync (HSS) functionality. It allows you to control and trigger the flash from a distance of 358 feet (100 m) via 2.4 GHz wireless transmission. It also sets channels, groups, and adjusts flash and modeling lamp output.

The Cruiser Wireless Controller is compatible with most Canon, Nikon, and Sony cameras.

Overview

LCD screen:

1. Modeling light
2. Output power
3. Manual/TTL
4. FCS, SCS, HSS indicator
5. Channel
6. Sound
7. Group

Overview (continued)

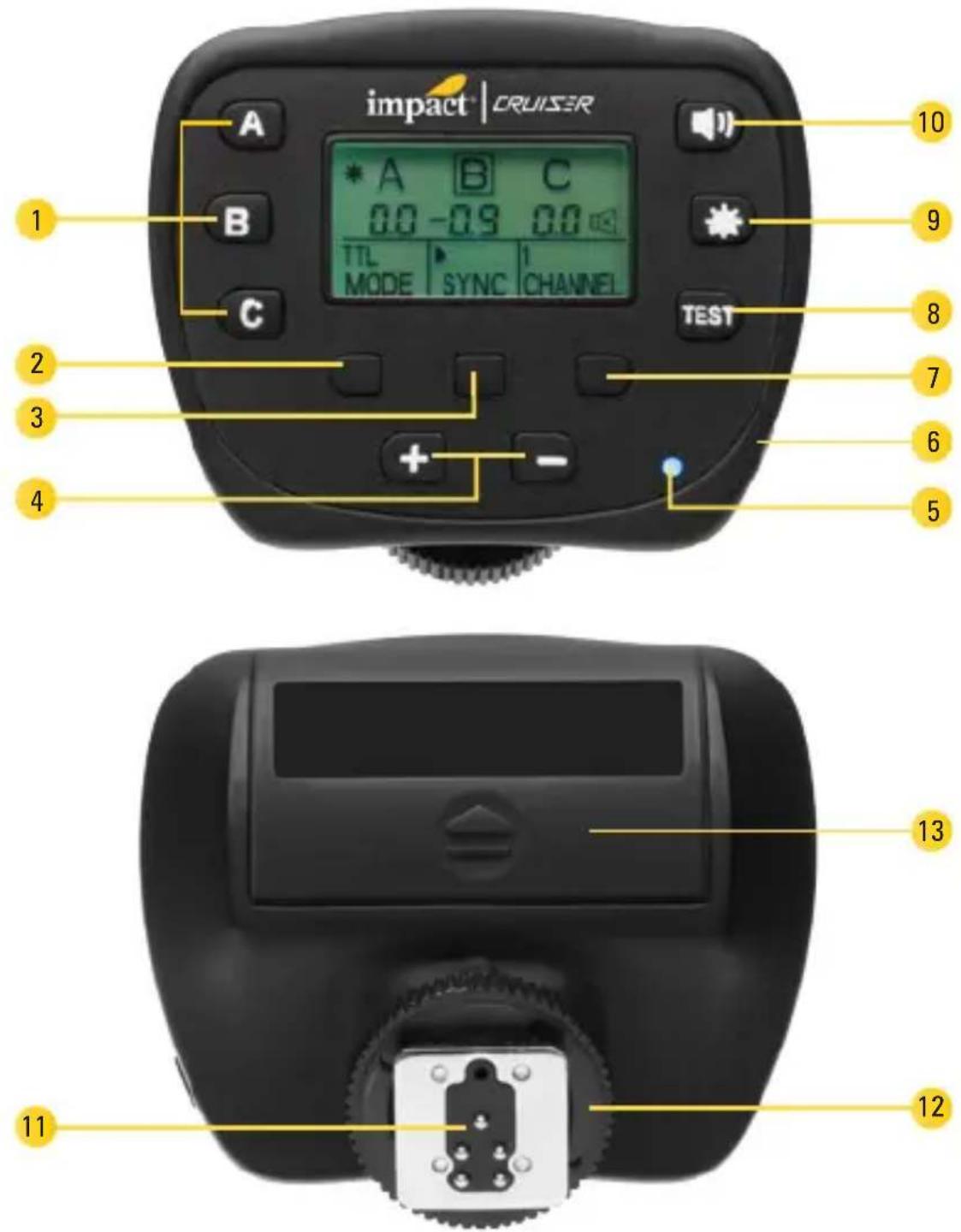

Controller:

1. Group buttons

Press to select group A, B, or C. The selected group is outlined. Press and hold to enable or disable a group.

2. Mode button

Selects Manual or TTL mode.

3. Sync button

(Canon and Sony)

Selects between first-curtain sync, second-curtain sync, and high-speed sync (HSS). Go to impactstudiolighting.com for information on the Cruiser's compatibility with Sony cameras.

4. Plus (+) and minus (-) buttons

Raises and lowers the output power of the selected channel. Press to change power in increments of 1/10-stop. Press and hold to rapidly scroll

through the power range.

In TTL mode, press to adjust EV compensation.

5. Power LED

Indicates when power is on.

6. Power button

7. Channel button

Selects channels 1 to 8.

8. Test button

Fires a test flash.

9. Modeling light button

Turns the modeling light on and off for the selected group, and selects between 100% and 50% brightness. The modeling light can be set independently for each group.

10. Sound button

Turns the alert sound on and off.

11. Mounting foot

12. Locking collar

13. Battery compartment

Overview (continued)

Instructions

Getting Started

1. Install two AAA batteries into the battery compartment, following the orientation icons in each battery slot.
2. Loosen the locking collar by turning it counterclockwise.
3. Insert the mounting foot into the camera's hot-shoe mount. Make sure it is completely inserted into the shoe.
4. Tighten the locking collar by turning it clockwise until secure.
5. Make sure your camera has the appropriate settings. Consult the camera's user manual to set features for TTL and HSS modes.
6. Press the power button. The LED screen and the power LED will light up.

Note: After approximately 20 second of inactivity, the LCD screen's illumination will go out as a power-saving measure.

Specifications

Frequency 2.4 GHz
Channels 8 (1 to 8)
Groups 3 (A, B, C)
Connections 3.5 mm sync port, Micro-B USB
Operating range 328 ft. (100 m)
Dimensions 3 × 2.37 × 2 in. (7.6 × 6 × 5.2 cm)
Weight (with batteries) 3.2 oz. (90.7 g)
Battery 2 × AAA 1.5 V alkaline, lithium, or NiMH batteries

FCC DECLARATION OF CONFORMITY:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

One-Year Limited Warranty

This Impact product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Impact Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Impact along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.impactstudiolighting.com or call Customer Service at 212-594-2353.
