EABKF1 - Audio accessory SHURE - Free user manual and instructions

Product Type	Audio Adapter / Cable
Brand	Shure
Model	EABKF1
Connector Type	3.5 mm (1/8") TRS to 6.35 mm (1/4") TS
Cable Length	0.3 m (1 foot)
Gender	Male to Female
Material	Gold-plated connectors, PVC jacket
Weight	20 g
Compatibility	Headphones, amplifiers, mixers with 6.35 mm input
Impedance	50 Ω (nominal)
Frequency Response	20 Hz – 20 kHz
Shielding	Braided copper shield
Operating Temperature	-10 °C to 60 °C
Storage Temperature	-20 °C to 70 °C
Color	Black
Maintenance	Wipe with a dry, lint-free cloth. Do not use solvents.
Safety	Do not expose to moisture or extreme temperatures.
Spare Parts	Contact Shure customer service or authorized dealers.
Warranty	2 years from date of purchase

Frequently Asked Questions - EABKF1 SHURE

What is the Shure EABKF1 used for?

The Shure EABKF1 is a 3.5 mm to 6.35 mm audio adapter that allows you to connect headphones or devices with a 3.5 mm plug to equipment with a 6.35 mm jack, such as amplifiers, mixers, or audio interfaces.

Is the Shure EABKF1 compatible with all headphones?

Yes, it works with any headphone or device that has a standard 3.5 mm TRS output and requires a 6.35 mm TS connection. It is commonly used with Shure SE series earphones and other monitoring headphones.

What materials are used in the Shure EABKF1?

The adapter features gold-plated connectors for corrosion resistance and a PVC jacket for durability. The connectors are robust and designed for frequent use.

How long is the cable on the Shure EABKF1?

The cable length is approximately 0.3 meters (1 foot), which is ideal for connecting a portable device to a larger audio system without excess cable clutter.

Does the Shure EABKF1 affect sound quality?

No, the adapter is designed to be neutral and should not degrade audio quality. Gold-plated connectors ensure reliable signal transfer with minimal loss.

Can I use the Shure EABKF1 with a microphone?

It depends on the microphone. For dynamic microphones with a 3.5 mm output, it may work, but for condenser microphones requiring phantom power, this adapter is not suitable.

How do I clean the Shure EABKF1?

Clean the connectors and cable with a dry, lint-free cloth. Do not use liquids or abrasive cleaners as they may damage the contacts.

Is the Shure EABKF1 covered by a warranty?

Yes, Shure provides a 2-year limited warranty from the date of purchase against defects in materials and workmanship. Keep your receipt as proof.

Where can I buy spare parts or replacements for the Shure EABKF1?

Contact Shure customer service or visit an authorized dealer. The adapter is widely available online and in electronics stores.

Can I use the Shure EABKF1 with a smartphone?

If your smartphone has a 3.5 mm headphone jack, you can connect it to equipment with a 6.35 mm input using this adapter. For phones without a headphone jack, a separate adapter is required.

USER MANUAL EABKF1 SHURE

EA-SS -- Earphone Sleeves

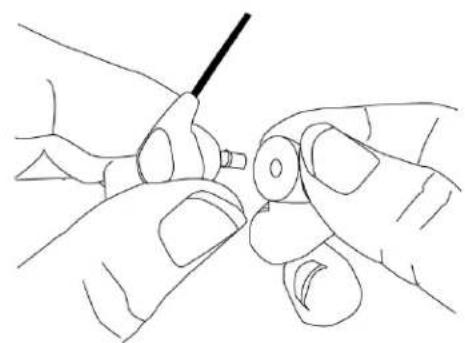

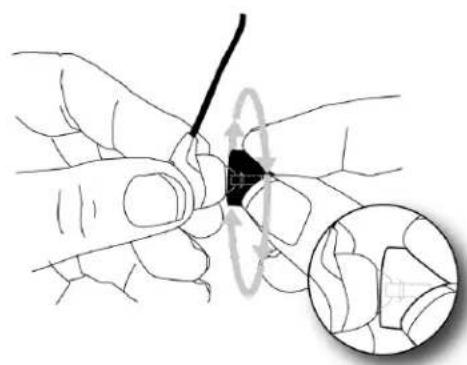

Changing Earphone Sleeves

Use a combination of twisting and pulling to remove sleeves.

Make sure that the sleeve completely covers the nozzle. If the nozzle is exposed, the sleeve is not properly installed.

Illustration of a hand holding a small object with a pen, showing a magnified inset (no text or symbols)

Line drawing of two hands assembling a small mechanical component (no text or symbols)

Foam Sleeves:

When using the foam sleeves, compress the sleeve between your fingers before inserting it into the ear canal. Hold the earphone in place for about ten seconds while the foam expands and creates a tight seal.

Three black cylindrical objects with circular tops, arranged horizontally (no text or symbols)

Triple-Flange Sleeves and Flex Sleeves:

These should be cleaned regularly with an antiseptic wipe.

Hygiene

• Keep the earphones and sleeves as clean and dry as possible.
• Use a clean soft cloth to clean the earphones and sleeves before each use.
  • To clean sleeves, remove them from earphones, gently rinse in warm water and air dry.*
• Black foam sleeves require a longer drying time. Inspect for damage and replace if necessary.
  • Ear sleeves must be completely dry before reusing.
  • To sanitize the earphones and sleeves wipe them with a mild antiseptic. Do not use alcohol-based disinfectants.
• Discard and replace sleeves immediately if they do not fit properly, become brittle or start to break apart.
• Replace sleeves when signs of wear become apparent.

Note: Do not clean orange/yellow foam sleeves.

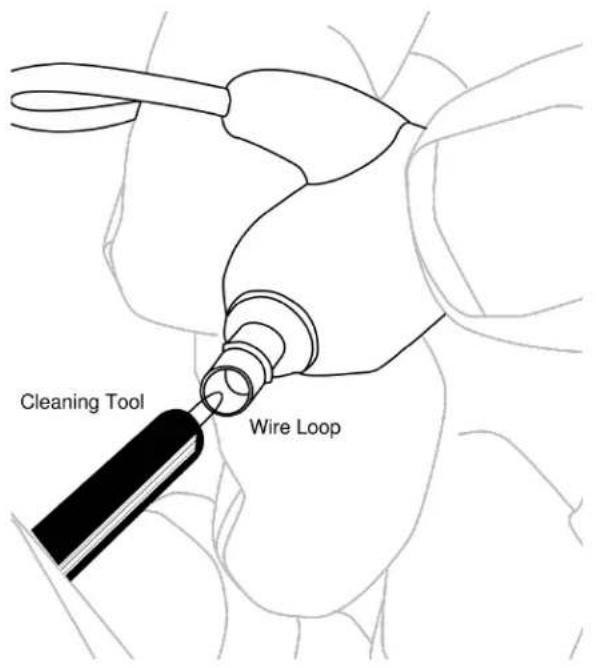

Cleaning the Earphone Nozzle

If you notice a change in sound quality, remove the sleeve and check the nozzle of your earphone. If nozzle is blocked, clear obstruction by using wire loop end of cleaning tool.

If no obstruction is found or if sound quality does not improve, replace the sleeve with a new sleeve.

When cleaning, do not force any object through the earphone nozzle! This will damage the earphone sound filter.

The cleaning tool is only to be used to clean the earphones. Any other use, such as using the tool to clean ears or foam sleeve, could result in injury.

This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
