USER MANUAL RS20AKXBW00 Roper

Line drawing of various kitchen appliances including a microwave oven, stove, and built-in oven (no text or symbols)

A Note To You 2

Important Safety Instructions 3

Parts And Features 4

Before Using Your Refrigerator 6

Using Your Refrigerator 8

Caring For Your Refrigerator 20

Food Storage Guide 24

If You Need Assistance Or Service 26

Warranty 28

1-800-44-ROPER Call us with questions or comments.

NO-FROST REFRIGERATOR-FREEZERS

4194

MODELS RS20AK RS22AW RS25AW

RS20DK RS22BR

A Note To You

Thank you for buying a Roper® appliance.

You purchased a quality, world-class home appliance. Years of engineering experience went into its manufacturing. To ensure that you enjoy many years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information on how to operate and maintain your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This will help us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the use of each symbol.

WARNING

This symbol will help alert you to such dangers as personal injury, burns, fire and electrical shock.

CAUTION

This symbol will help you avoid actions which could cause product damage (scratches, dents, etc.) and damage to your personal property.

Our toll-free number, 1-800-44-ROPER (1-800-447-6737), is available 24 hours a day.

If you ever have a question concerning your appliance's operation, or if you need service, first see "If You Need Assistance Or Service" on page 26. If you need further help, feel free to call us. When calling, you will need to know your appliance's complete model number and serial number. You can find this information on the model and serial number label (see diagrams on pages 4 and 5). For your convenience, we have included a handy place below for you to record these numbers, the purchase date from the sales slip and your dealer's name and telephone number. Keep this book and the sales slip together in a safe place for future reference.

Model Number ____

Dealer Name ____

Serial Number

Dealer Phone ____

Purchase Date ____ ____ ____

Important Safety Instructions

WARNING

To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:

• Read all instructions before using the refrigerator.
• Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous ... even if they will "just sit in the garage a few days."
  If you are getting rid of your old refrigerator, do it safely.
• Never allow children to operate, play with, or crawl inside the refrigerator.

- Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.

• FOR YOUR SAFETY •

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

• Install and level the refrigerator on a floor that will hold the weight and in an area suitable for its size and use.
- Do not install the refrigerator near an oven, radiator or other heat source.
- Do not use the refrigerator in an area where the room temperature will fall below 55^ F (13°C).
- Keep the refrigerator out of the weather.
- Connect the refrigerator only to the proper kind of outlet, with the correct electrical supply and grounding.
- Do not load the refrigerator with food before it has time to get properly cold.
- Use the refrigerator only for the uses described in this manual.
• Properly maintain the refrigerator.
- Be sure the refrigerator is not used by anyone unable to operate it properly.

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts and features are located and what they look like.

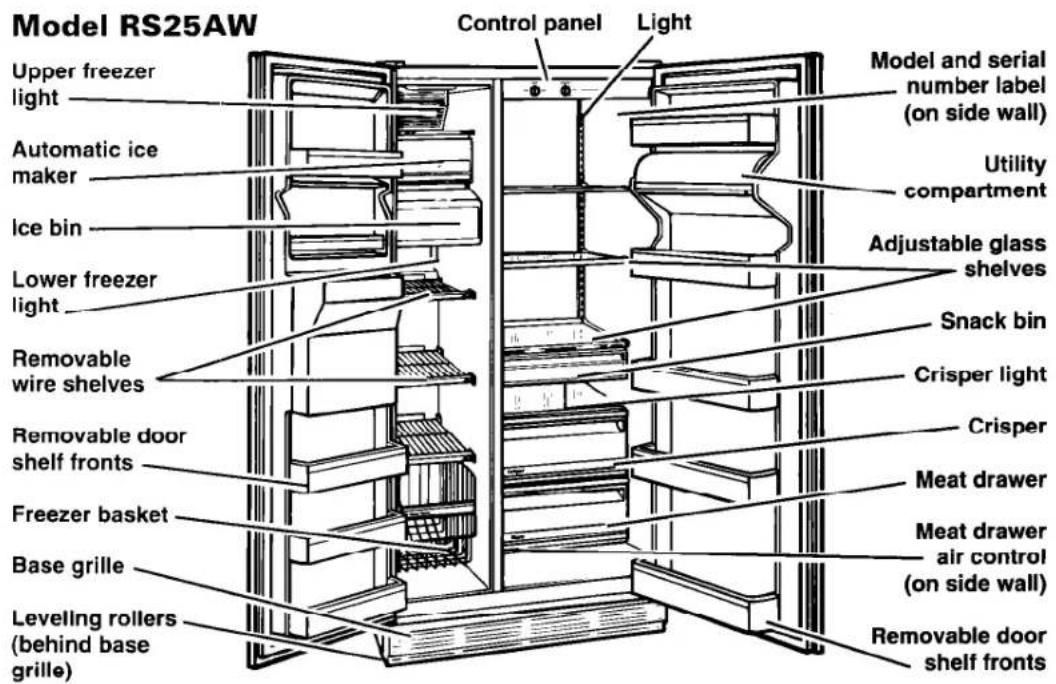

Model RS25AW Control panel Light Upper freezer light Automatic ice maker Ice bin Lower freezer light Removable wire shelves Removable door shelf fronts Freezer basket Base grille Leveling rollers (behind base grille) Model and serial number label (on side wall) Utility compartment Adjustable glass shelves Snack bin Crisper light Crisper Meat drawer Meat drawer air control (on side wall) Removable door shelf fronts

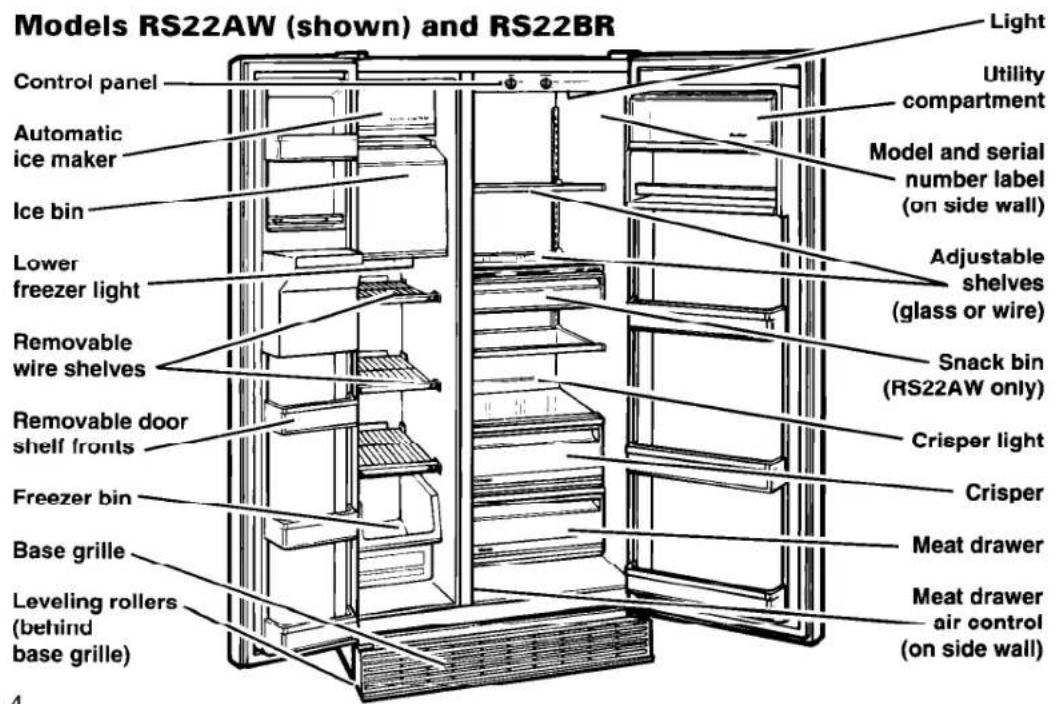

Models RS22AW (shown) and RS22BR Control panel Automatic ice maker Ice bin Lower freezer light Removable wire shelves Removable door shelf fronts Freezer bin Base grille Leveling rollers (behind base grille) Light Utility compartment Model and serial number label (on side wall) Adjustable shelves (glass or wire) Snack bin (RS22AW only) Crisper light Crisper Meat drawer Meat drawer air control (on side wall)

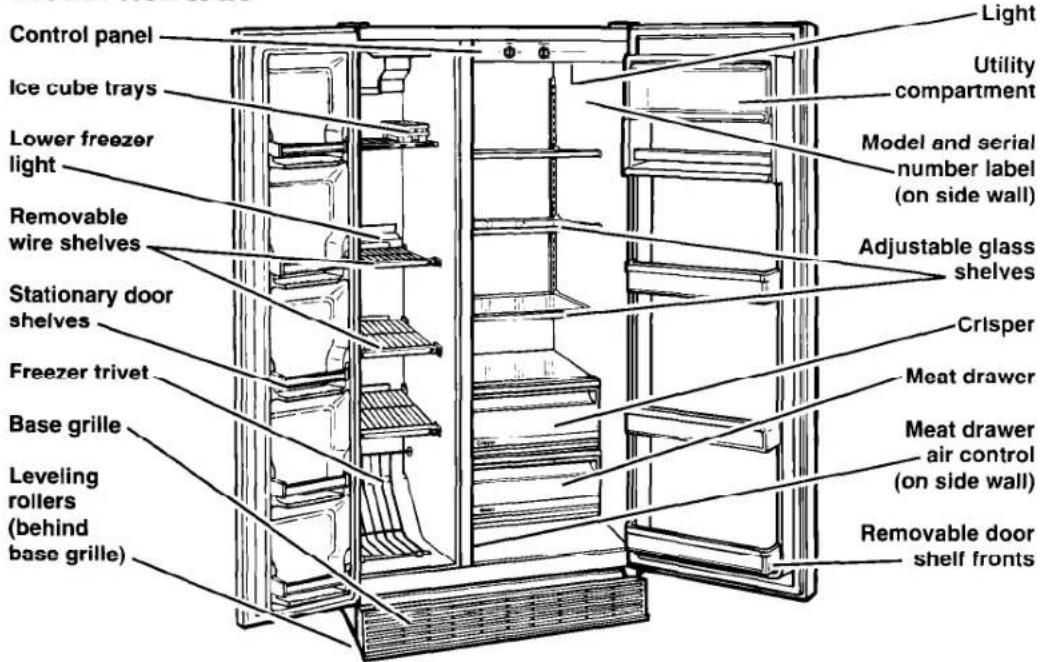

Model RS20AK

Control panel Ice cube trays Lower freezer light Removable wire shelves Stationary door shelves Freezer trivet Base grille Leveling rollers (behind base grille) Light Utility compartment Model and serial number label (on side wall) Adjustable glass shelves Crisper Meat drawer Meat drawer air control (on side wall) Removable door shelf fronts

Model RS20DK

Control panel Ice cube trays Lower freezer light Removable wire shelves Stationary door shelves Freezer trivet Base grille Leveling rollers (behind base grille) Light Utility compartment Model and serial number label (on side wall) Adjustable wire shelves Crisper Meat drawer Meat drawer air control (on side wall) Stationary door shelves

Before Using Your Refrigerator

It is important to prepare your refrigerator for use. This section tells you how to clean it, connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except the model and serial number label) before using the refrigerator.

To remove any remaining glue:

- Rub briskly with thumb to make a ball, then remove.

OR

- Soak area with liquid hand-dishwashing detergent before removing glue as described above. Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners. These can damage the material. See "Important Safety Instructions" on page 3.

NOTE: Do not remove any permanent instruction labels inside your refrigerator. Do not remove the Tech Sheet fastened under the refrigerator at the front.

Cleaning it before use

After removing all packaging materials, clean your refrigerator before using it, if necessary. See cleaning instructions on pages 20-21.

Plugging it in

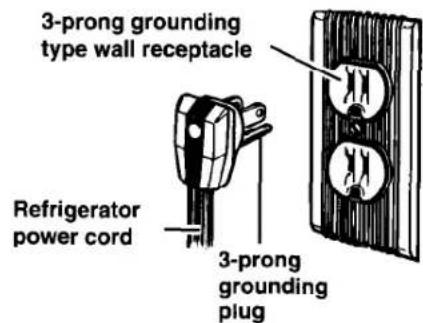

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and properly grounded electrical supply is required. It is recommended that a separate circuit serving only this appliance be provided. Use a receptacle which cannot be turned off with a switch or pull chain. Do not use an extension cord.

See Electrical Requirements and Grounding Instructions Sheet in your Literature Package.

3-prong grounding type wall receptacle Refrigerator power cord 3-prong grounding plug

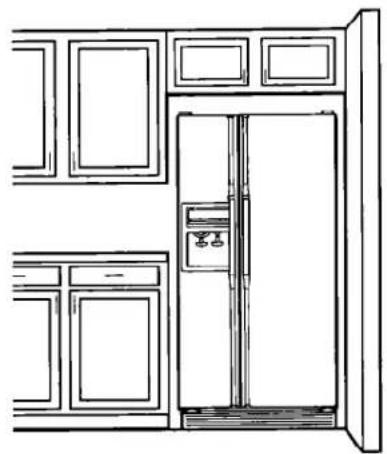

Installing it properly

1. Allow 12 inch (1.25 cm) space on each side and at the top of the refrigerator for ease of installation.
2. If the refrigerator is to be against a wall, you might want to leave extra space on the hinge side closest to the wall so the door can be opened wider.
3. The refrigerator can be flush against the wall.

Line drawing of a double-door refrigerator with front and back doors, no text or symbols present

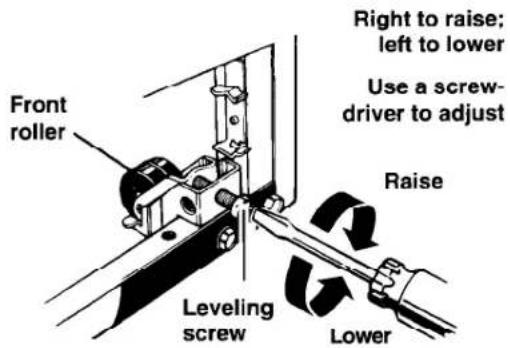

Leveling it

Your refrigerator has 2 front leveling screws—one on the right and one on the left. To adjust one or both of these, follow the directions below.

1. Remove base grille. (See page 17.)
2. To raise front, turn screw clockwise.
3. To lower front, turn screw counterclockwise.
4. Check with level.
5. Replace base grille. (See page 17.)

Front roller Right to raise; left to lower Use a screw-driver to adjust Raise Leveling screw Lower

Using Your Refrigerator

In This Section

Page

Setting the controls 8

Changing the control settings....9

Removing the door shelf fronts .....9

Removing the door trim ....10

Adjusting the refrigerator shelves ..10

Removing the snack bin .....11

Removing the crisper and crisper cover ....11

Removing the meat drawer and cover....12

Adjusting the meat drawer temperature....12

Removing the freezer bin/basket ....12

Page

Removing the freezer shelves ..... 13

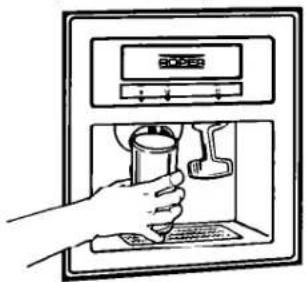

Using the ice and water dispensers....13

Using the automatic ice maker......14

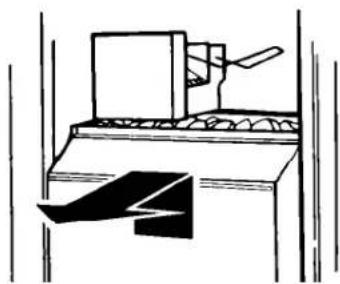

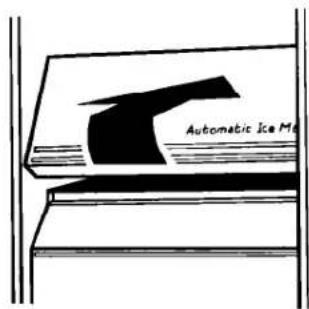

Removing the ice maker storage bin 15

Solving common ice maker/dispenser problems ....16

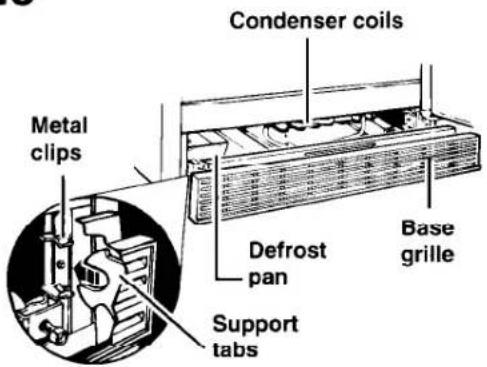

Removing the base grille ....17

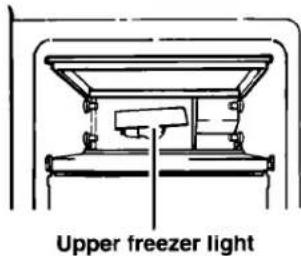

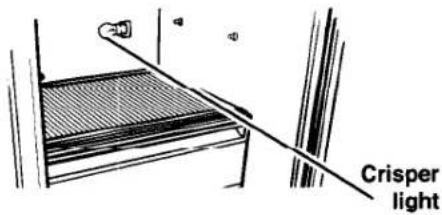

Changing the light bulbs .....17

Understanding the sounds you may hear ....19

Saving energy 19

To obtain the best possible results from your refrigerator, it is important that you operate it properly. This section tells you how to set the controls, remove and adjust some of the features in your refrigerator, and how to save energy.

Setting the controls

Controls for the refrigerator and freezer are in the refrigerator. When you plug in the refrigerator for the first time:

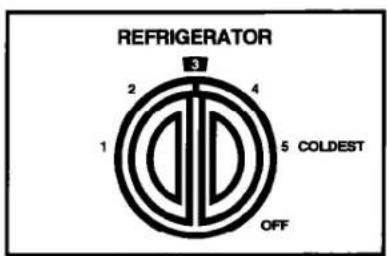

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from 1 (warmest) to 5 (coldest).

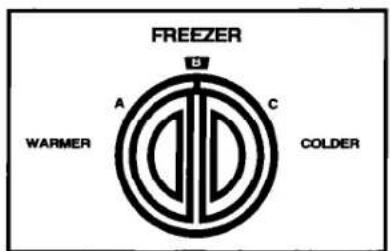

1. Set the Freezer Control to B.

Freezer Control adjustments range from A (warmest) to C (coldest).

1. Give the refrigerator time to cool down completely before adding food. This may take several hours.

The settings indicated above should be correct for normal, household refrigerator usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm. If you need to adjust these settings, see "Changing the control settings" on page 9.

NOTE: The Automatic Exterior Moisture control continuously guards against moisture build-up on the outside of your refrigerator cabinet. This control does not have to be set or adjusted.

REFRIGERATOR 1 2 3 4 5 COLDEST OFF

FREEZER A B C WARMER COLDER

Changing the control settings

If you need to adjust temperatures in refrigerator or freezer, use the settings listed in the chart below as a guide. If you have questions, call our toll-free number, 1-800-44-ROPER.

• Adjust the Refrigerator Control first
• Wait at least 24 hours between adjustments.
• Then adjust the Freezer Control if needed.

CONDITION:	REASON:	RECOMMENDEDCONTROL SETTINGS:
Refrigeratorsectiontoo warm	Door opened oftenLarge amount of food addedRoom temperature too warm	RefrigeratorFreezer	4A
Freezersectiontoo warm	Door opened oftenLarge amount of food addedVery cold room temperature(can't cycle often enough)	RefrigeratorFreezer	3C
Refrigeratorsectiontoo cold	Controls not set correctlyfor your conditions	RefrigeratorFreezer	2B
Ice notmade fastenough	Heavy ice usageVery cold room temperature(can't cycle often enough)	RefrigeratorFreezer	3C
Bothsectionstoo warm	Door opened oftenLarge amount of food addedVery warm or very cold roomtemperatures	RefrigeratorFreezer	4B

Removing the door shelf fronts (on some models)

Remove the door shelf fronts for easier cleaning.

To remove shelf fronts:

1. Remove all items from the shelf.
2. Pull out on the inside tab at each end of the shelf front.
3. Pull shelf front straight out.

To replace shelf fronts:

1. Line up each end of the shelf front with the button on the door liner wall.
2. Push shelf front straight back until it snaps securely into place.
3. Replace items on the shelf.

Simple line drawing of a door handle with an arrow indicating left motion (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Removing the door trim (dispenser area)

(on some models)

Remove the trim above the dispenser area for easier cleaning.

To remove trim:

1. Remove all items from the shelf.
2. Pull straight up at each end of the trim.

Pure mechanical diagram showing a curved bracket with an upward arrow, no text or symbols present

To replace trim:

1. Line up each end of the trim above the trim pocket opening in the door liner wall.
2. Push the trim straight down until it stops.
3. Replace items on the shelf.

Pure mechanical diagram showing a lever and curved component with an arrow indicating direction (no text or symbols)

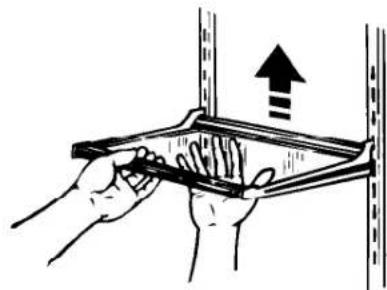

Adjusting the refrigerator shelves

Adjust the shelves to match the way you use your refrigerator. Glass shelves are strong enough to hold bottles, milk, and other heavy food items.

To remove the shelves:

1. Remove items from the shelf.
2. Tilt shelf up at front.
3. Lift shelf up at back.
4. Pull shelf straight out.

To replace the shelves:

1. Guide the rear shelf hooks into the slots in the shelf supports on the back liner wall.
2. Tilt front of shelf up until hooks drop into slots.
3. Lower front of shelf to a level position.

Illustration of hands using a tool to lift a metal component with an upward arrow (no text or symbols)

Glass shelves are heavy. Be careful.

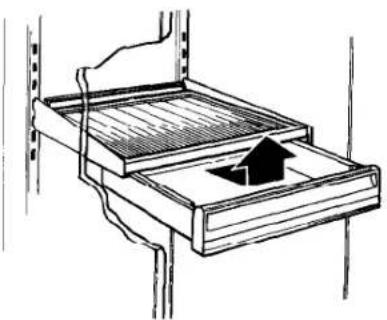

Removing the snack bin

(on some models)

To remove the snack bin:

1. Slide snack bin straight out to the stop with an even, constant motion.
2. Lift the front.
3. Slide bin out the rest of the way.
4. Replace in reverse order.

Diagram of a mechanical assembly with a central arrow indicating direction (no text or symbols present)

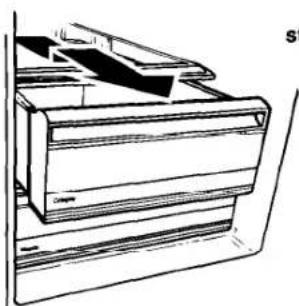

Removing the crisper and crisper cover

To remove the crisper:

1. Slide the crisper straight out to the stop.
2. Lift the front slightly.
3. Slide out the rest of the way.
4. Replace in reverse order.

Line drawing of a refrigerator with a side panel and frontrest (no text or symbols)

Pull out to the stop, lift the front and pull again.

To remove the cover:

1. Hold cover firmly with both hands and lift front of cover off supports.
2. Lift cover out by pulling up and out.

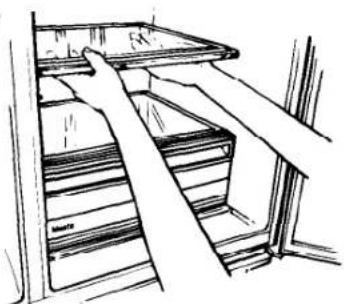

To replace the cover:

1. Fit back of cover into notch supports on walls of refrigerator.
2. Lower front into place.

Lift the cover front, then the back.

Line drawing of a person handling a tray of shelves (no text or symbols)

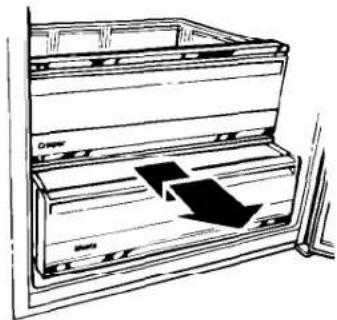

Removing the meat drawer and cover

To remove the meat drawer:

1. Slide the meat drawer straight out to the stop.
2. Lift the front slightly.
3. Slide out the rest of the way.
4. Replace in reverse order.

To remove the cover:

1. Remove the crisper, the crisper cover and the meat drawer.
2. Tilt front of cover up.
3. Lift cover at back and pull straight out.
4. Replace in reverse order.

Pull out to the stop, lift the front and pull again.

Copper Bare

Adjusting the meat drawer temperature

Cold air flows against the meat drawer through an opening between the freezer and the refrigerator. This helps keep the meat drawer colder than the rest of the refrigerator for better storage of meats.

Slide the control to let more or less cold air through.

Simple line drawing of a wall-mounted electrical meter with bidirectional arrow indicating left-side motion (no text or symbols)

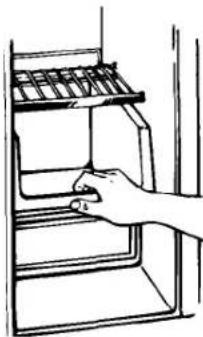

Removing the freezer bin/basket

To remove the bin/basket:

1. Slide out to the stop.
2. Lift the front to clear the stop.
3. Slide out the rest of the way.

To replace the bin/basket:

1. Place on the slides.
2. Make sure the wire stops clear the front of the slides.
3. Slide in all the way.

Line drawing of a hand placing a tray into a refrigerator (no text or symbols)

Pull out to the stop, lift the front and pull again.

Removing the freezer shelves

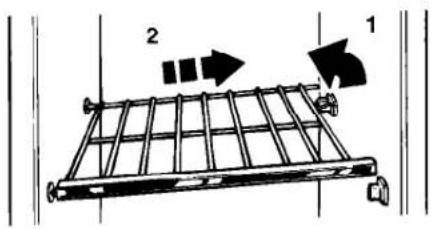

To remove the shelf:

1. Lift right side of shelf off supports.
2. Slide shelf out of shelf support holes.
3. Replace in reverse order.

Diagram showing a structural frame with labeled components and directional arrows indicating movement or force

Using the ice and water dispensers

(Model RS22BR - ice dispenser only)

WARNING

Personal Injury Hazard

Tumbling ice and pressure can break a fragile glass. Use a sturdy glass when dispensing ice or water.

Failure to do so could result in personal injury or breakage.

Ice dispenses from the ice maker storage bin in the freezer. When you press the dispenser bar, a trapdoor opens in a chute between the dispenser and the ice bin. Ice moves from the bin and falls through the chute. When you release the dispenser bar, a buzzing sound may be heard for a few seconds as the trapdoor closes. The dispenser system will not operate when the freezer door is open.

To dispense ice:

1. Press a sturdy glass against the ice dispenser bar. Hold glass close to dispenser opening so ice does not fall outside of glass.
2. Remove the glass to stop dispensing.

NOTE: The first few batches of ice may have an off-flavor from new plumbing and parts. Throw the ice away. Also, take large amounts of ice from the ice bin, not through the dispenser.

Model RS22BR (ice only)

Diagram showing a hand inserting a cup into a device with a digital display and a label '2000' visible on the screen.

Models RS22AW and RS25AW (ice and water)

Hand inserting a cup into a digital washing machine (no text or symbols visible)

The water dispenser

Chilled water comes from a tank behind the meat drawer. It holds approximately 1½ quarts (1.5 L).

When the refrigerator is first hooked up, press the water dispenser bar with a sturdy glass or jar until you draw and discard 2 to 3 quarts (1.9 to 2.8 L). The water you draw and discard rinses the tank and pipes.

Allow several hours to chill a new tankful.

NOTE: The small tray beneath the dispenser is designed to evaporate small spills. There is no drain in this tray. Do not pour water into it.

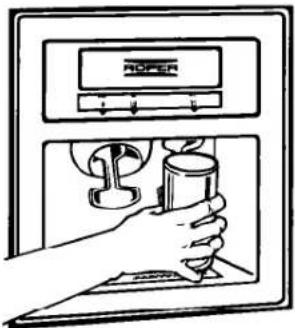

To dispense water:

1. Press a sturdy glass against the water dispenser bar.
2. Remove the glass to stop dispensing.

NOTE: Dispense enough water every week to maintain a fresh supply.

Models RS22AW and RS25AW (ice and water)

Illustration of a hand holding a cup inside a washing machine (no text or symbols)

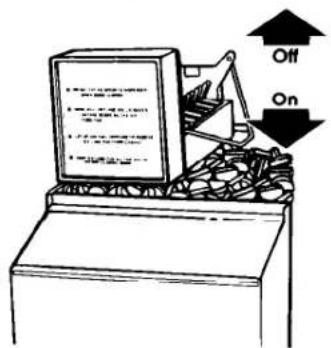

Using the automatic ice maker

Here are a few things you will want to know about your automatic ice maker.

- The ON/OFF lever is a wire signal arm. DOWN to make ice automatically. UP to shut off the ice maker.

NOTE: Do not turn ice maker on until it is connected to the water supply. Instructions for ice maker water supply hook up are attached to the back of the refrigerator cabinet.

• It is normal for ice crescents to be attached by a corner. They break apart easily.
• The ice maker will not operate until the freezer is cold enough to make ice. This can take overnight.
• If ice is not being made fast enough and more ice is needed, turn the Refrigerator Control toward a higher number. Wait a day and, if necessary, turn the Freezer Control toward C.

Diagram showing a computer monitor with text labels and directional arrows labeled 'On' and 'Off', indicating a process or operation.

UP to stop ice maker.

DOWN to start ice maker.

Removing the ice maker storage bin

(on some models)

Remove, empty and clean the storage bin if:

• the ice dispenser has not, or will not, be used for a week or more.
• a power failure causes ice in the bin to melt and freeze together.
  • the ice dispenser is not used regularly.

To remove ice bin:

1. Pull the covering panel out from the bottom and slide it to the rear.

Automatic Ice Mesh

1. Lift the signal arm so it clicks into the OFF (up) position. Ice can still be dispensed, but no more can be made.

Simple line drawing of a mechanical setup with an open box, a propeller, and an upward arrow (no text or symbols)

1. Lift the front of the storage bin and pull it out.
2. Empty the ice bin. Use hot or warm water to melt the ice if necessary. Never use anything sharp to break up ice in the bin. This can damage the bin and dispenser mechanism.
3. Wash with mild detergent. Rinse well. Do not use harsh or abrasive cleaners or solvents.
4. When replacing the bin, make sure it is pushed in all the way. Then push the signal arm down to the ON position to restart ice production.

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Solving common ice maker/dispenser problems

PROBLEM	CAUSE	SOLUTIONS
Ice dispenser won't work	Freezer door openIce bin not properly installedWrong ice in binDispenser not used for extended periods, causing ice cubes to melt together	Close the freezer door.Make sure bin is pushed in all the way.Use only crescents from ice maker.Shake the bin occasionally to keep cubes separated and to increase storage room.Dump old ice and make a new supply.
Ice dispenser stops working	Ice dispenser bar held in too long	Wait about 3 minutes for the dispenser motor to reset.Large amounts of ice should be taken from the bin, not through the dispenser.
Off-taste or odor in ice	Ice attracts airborne odors: old iceWater qualityFoods not properly wrappedIce bin and freezer may need cleaningPlumbing to ice makerNew ice maker	Dump old ice and make a new supply.Store excess ice in covered container.Water containing minerals (such as sulfur) may require a filter to remove.Good water quality is important for good ice quality. Try to avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt from a malfunctioning softener) can damage the ice maker mold and lead to poor ice quality. If a softened water supply cannot be avoided, make sure the water softener is operating properly and well maintained.Wrap properly. See pages 24 and 25.Clean freezer and ice bin. See cleaning chart on pages 20 and 21.Follow Installation Instructions for proper ice maker water supply hook up. (See back of refrigerator cabinet.)The first few loads of ice from a new ice maker may have an off-taste. Dump ice and make a new supply.

Removing the base grille

To remove the grille:

1. Open both doors.
2. Pull base grille forward to release the support tabs from the metal clips.
3. Do not remove Tech Sheet fastened behind the grille.

To replace the grille:

1. Line up grille support tabs with metal clips.
2. Push firmly to snap into place.
3. Close the doors.

See cleaning instructions for defrost pan and condenser coils on page 21.

Condenser coils Metal clips Defrost pan Base grille Support tabs

Changing the light bulbs

WARNING

Electrical Shock Hazard

Before removing a light bulb, either unplug the refrigerator or disconnect the electricity leading to it at the main power supply.

Failure to do so could result in personal injury.

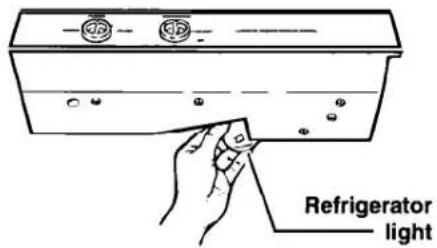

To change refrigerator light:

1. Disconnect refrigerator from power supply.
2. Reach behind the Control Console to remove bulb.
3. Replace bulb with a 40-watt appliance bulb.
4. Reconnect refrigerator to power supply.

Refrigerator light

continued on next page

USING YOUR REFRIGERATOR

To change crisper light (on some models):

1. Disconnect refrigerator from power supply.
2. Pull top of light shield forward until it snaps free.
3. Lower light shield to clear bottom supports.
4. Pull light shield straight out to remove.
5. Replace bulb with a 40-watt appliance bulb.
6. Replace light shield in reverse order.
7. Reconnect refrigerator to power supply.

Crisper light

To change the upper freezer light (RS25AW only):

1. Disconnect refrigerator from power supply.
2. Lift top of light shield up and pull shield out.
3. Replace bulb with a 40-watt appliance bulb.
4. Place light shield over bulb and snap shield into place.
5. Reconnect refrigerator to power supply.

Upper freezer light

To change lower freezer light:

1. Disconnect refrigerator from power supply.
2. Push in sides of light shield until it snaps free.
3. Replace bulb with a 40-watt appliance bulb.
4. Replace light shield.
5. Reconnect refrigerator to power supply.

NOTE: Not all commercial appliance bulbs will fit your refrigerator. Be sure to replace a bulb with one of the same size and shape.

Freezer light

Understanding the sounds you may hear

Your new refrigerator may make sounds that your old one didn't. Because the sounds are new to you, you might be concerned about them. Don't be. Most of the new sounds are normal. Hard surfaces like the floor, walls and cabinets can make the sounds seem louder.

The following describes the kinds of sounds that might be new to you, and what may be making them.

Slight hum, soft hiss

You may hear the refrigerator's fan motor and moving air.

Clicking or snapping sounds

The thermostat makes a definite click when the refrigerator stops running. It also makes a sound when the refrigerator starts. The defrost timer will click when the defrost cycle starts.

Water sounds

When the refrigerator stops running, you may hear gurgling in the tubing for a few minutes after it stops. You may also hear defrost water running into the defrost water pan.

Ice maker sounds

• trickling water
• thud (clatter of ice)
  You may hear buzzing (from the water valve), trickling water and the clatter of ice dumped into the bin.

Running sounds

Your refrigerator has a high-efficiency compressor and motor. It will run longer than older designs. It may even seem to run most of the time.

Saving energy

You can help your refrigerator use less electricity.

• Check door gaskets for a tight seal. Level the cabinet to be sure of a good seal.
• Clean the condenser coils regularly.

• Open the door as few times as possible. Think about what you need before you open the door. Get everything out at one time. Keep food organized so you won't have to search for what you want. Close door as soon as food is removed.

• Go ahead and fill up the refrigerator, but don't overcrowd it so air movement is blocked.

• It is a waste of electricity to set the refrigerator and freezer to temperatures colder than they need to be. If ice cream is firm in the freezer and drinks are as cold as your family likes them, that's cold enough.
• Make sure your refrigerator is not next to a heat source such as a range, water heater, furnace, radiator or in direct sunlight.

Caring For Your Refrigerator

In This Section

Page

Page

Cleaning your refrigerator .....20

Power interruptions....23

Vacation and moving care 22

Your refrigerator is built to give you many years of dependable service. However, there are a few things you can do to help extend its product life. This section tells you how to clean your refrigerator and what to do when going on vacation, moving or during a power outage.

Cleaning your refrigerator

Both the refrigerator and freezer sections defrost automatically. However, clean both about once a month to prevent odors from building up. Wipe up spills right away.

To clean your refrigerator, turn the Refrigerator Control to OFF, unplug it, take out all removable parts and clean the refrigerator according to the following directions.

WARNING

Personal Injury Hazard

Refrigeration system tubes are located near the defrost pan and can become hot. Remove and install defrost pan carefully.

Failure to do so could result in personal injury.

PART	WHAT TO USE	HOW TO CLEAN
Removable parts(shelves, crisper,etc.)	Sponge or cloth with mild detergent and warm water	• Hand wash, rinse and dry thoroughly.
Outside	Sponge, cloth or paper towel with mild detergent, warm water and an appliance wax (or good auto paste wax)	• Wash outside of cabinet. Do not use abrasive or harsh cleaners.• Rinse and dry thoroughly.• Wax painted metal surfaces at least twice a year. Apply wax with a clean, soft cloth. Waxing painted metal surfaces provides rust protection. Do not wax plastic parts.
Inside walls(allow freezer to warm up so cloth won't stick)	Sponge, soft cloth or paper towel with baking soda or mild detergent and warm water	• Wash with mixture of warm water and:– mild detergent, or– baking soda (2 tablespoons [26 g] to 1 quart [.95 L] of water).• Rinse and dry thoroughly.

CARING FOR YOUR REFRIGERATOR

PART	WHAT TO USE	HOW TO CLEAN
Door liners and gaskets	Sponge, soft cloth or paper towel with mild detergent and warm water	Wash, rinse and dry thoroughly.DO NOT USE cleaning waxes, concentrated detergents, bleaches or cleaners containing petroleum on plastic parts.
Plastic parts (covers and panels)	Soft, clean sponge or soft, clean cloth with mild detergent and warm water	Wash, rinse and dry thoroughly.DO NOT USE paper towels, window sprays, scouring cleansers or flammable fluids. These can scratch or damage material. See “Important Safety Instructions” on page 3.
Defrost pan	Sponge or cloth with mild detergent and warm water	Remove base grille. (See page 17.)To remove defrost pan, lift pan over wire brace (remove tape; if any).Wash, rinse and dry thoroughly.Replace with notched corner to the rear.Push it in all the way.Make sure defrost pan drain tube is pointing into pan.Replace base grille.
Condenser coils	Vacuum cleaner with extended narrow attachment	Remove base grille.Vacuum coils when dusty or dirty. Coils may need to be cleaned as often as every other month.Replace base grille.
Floor under refrigerator	Floor cleaners	Roll refrigerator out only as far as the water supply line allows.Clean floor.Roll refrigerator back into place.Check to see if the refrigerator is level.

Vacation and moving care

Short vacations

No need to shut off the refrigerator if you will be away for less than four weeks.

1. Use up any perishables.
2. Freeze other items.
3. If you have an automatic ice maker:
4. Raise signal arm to OFF (up) position.
5. Shut off water supply to icemaker.
6. Empty the ice bin.

Long vacations

If you will be gone a month or more:

1. Remove all food from the refrigerator.
2. If you have an automatic ice maker:
3. Turn off the water supply to the ice maker at least one day ahead of time.
4. When the last load of ice drops, turn off the ice maker. Make sure all ice has dispensed out of the ice maker mechanism.
5. Unplug the refrigerator.
6. Clean it, rinse well and dry.
7. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

WARNING

Personal Injury Hazard

Do not allow children to climb on, play near or climb inside the refrigerator when the doors are blocked open.

They may become injured or trapped.

To restart refrigerator, see "Using Your Refrigerator" on page 8.

Moving

When you are moving the refrigerator to a new home:

1. If you have an automatic ice maker:
2. Turn off the water supply to the ice maker at least one day ahead of time.

3. Disconnect the water line.
   • After the last load of ice drops, lift the signal arm to the OFF (up) position.

4. Remove all food from the refrigerator.

5. Pack all frozen food in dry ice.

6. Unplug the refrigerator.

7. Clean it thoroughly. Rinse well and dry.

8. Take out all removable parts, wrap them well, and tape them together so they don't shift and rattle.

9. Screw in the leveling rollers.

10. Tape the doors shut and tape the power supply cord to the cabinet.

When you get to your new home, put everything back and refer to page 6. Also, remember to reconnect the water supply line.

Power interruptions

If electricity goes off, call the power company. Ask how long power will be off.

1. If service will be interrupted 24 hours or less, keep both doors closed. This helps food stay frozen.

2. If service will be interrupted longer than 24 hours:

(a) Remove all frozen food and store in a frozen food locker.

OR

(b) Place 2 lbs. (0.9 kg) of dry ice in freezer for every cubic foot of freezer space. This will keep food frozen for 2 to 4 days. Wear gloves to protect your hands from dry ice burns.

OR

(c) If neither a food locker or dry ice is available, use or can perishable food at once.

1. A full freezer stays cold longer than a partly filled one. A freezer full of meat stays cold longer than a freezer full of baked goods. If food contains ice crystals, it may be safely refrozen, although the quality and flavor may be affected. If the condition of the food is poor, or if you feel it is unsafe, dispose of it.

Questions ?

Call our toll-free telephone number, 1-800-44-ROPER.

Food Storage Guide

There is a correct way to package and store refrigerated or frozen food. To keep food fresher, longer, take the time to study these recommended steps.

Storing fresh food

Wrap or store food placed in the refrigerator in airtight and moisture-proof material. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check code date to ensure freshness.

Leafy vegetables

Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.

Vegetables with skins (carrots, peppers)

Store in crisper, plastic bags or plastic container.

Fruit

Wash, let dry and store in refrigerator in plastic bags or crisper. Do not wash or hull berries until they are ready to use. Sort and keep berries in their original container in a crisper, or store in a loosely closed paper bag on a refrigerator shelf.

Eggs

Store without washing in egg bin provided, or in the original carton on an interior shelf.

Milk

Wipe milk cartons. For best storage, place milk on interior shelf.

Butter or margarine

Keep opened butter in covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.

Cheese

Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.

Leftovers

Cover leftovers with plastic wrap or aluminum foil. Plastic containers with tight lids can also be used.

Meat

Store most meat in original wrapping as long as it is airtight and moisture-proof. Rewrap if necessary. See the following chart for storage times.

TYPE	APPROXIMATE TIME(DAYS)*
Chicken	1 to 2
Ground beef	1 to 2
Steaks and roasts	3 to 5
Cured meats	7 to 10
Bacon	5 to 7
Cold cuts	3 to 5
Variety meats	1 to 2

*If storing meat longer than the times given, follow the directions for freezing.

NOTE: Use fresh fish and shellfish the same day as purchased.

Storing frozen food

The freezer section is designed for storage of commercially frozen food and for freezing food at home.

NOTE: For further information about preparing food for freezing or food storage times, contact your local Cooperative Extension Service or check a freezer guide or reliable cookbook.

Packaging

The secret of successful freezing is in the packaging. The way you close and seal the package must not allow air or moisture in or out. Packaging done in any other way could cause food odor and taste transfer throughout the refrigerator and drying of frozen food.

Packaging recommended for use:

• Rigid plastic containers with tight-fitting lids
- Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
- Plastic-coated paper
• Non-permeable plastic wraps (made from a saran film)

Follow package or container instructions for proper freezing methods.

Do not use:

• Bread wrappers
  • Non-polyethylene plastic containers
• Containers without tight lids
• Waxed paper
  • Waxed-coated freezer wrap
• Thin, semi-permeable wrap

The use of these wrappings could cause food odor, taste transfer and drying of frozen food.

Freezing

Do not expect your freezer to quick-freeze any large quantity of food. Put no more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 pounds of food per cubic foot of freezer space). Leave enough space for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality of the food, the type of packaging or wrap used (airtight and moisture-proof) and the storage temperature, which should be 0^ F (-17.8°C).

If You Need Assistance Or Service

Performance problems often result from little things you can fix without tools. Please read the chart below before calling for service on your appliance.

1. Before calling for assistance ...

Listed in this chart are the most common problems consumers run into with their appliances. Please read through this and see if it can solve your problem.

PROBLEM	CHECK THE FOLLOWING
Your refrigerator will not operate	Is the power supply cord firmly plugged into a live circuit with proper voltage?Has a household fuse or circuit breaker blown/tripped?Is the Refrigerator Control set to the OFF position?
The lights do not work	Is the power supply cord firmly plugged into a live circuit with proper voltage?Has a household fuse or circuit breaker blown/tripped?Is a bulb burned out?
The ice maker does not work	Is the freezer cold enough to make ice? It could take overnight for the freezer to reach the proper temperature.Is the ON/OFF lever in the ON (down) position? (See page 14.)Is the water valve turned on?Does the water line have a clog or leak?
You hear unfamiliar sounds or a rattling/jingling noise	Is something on top of or behind the refrigerator?Some new sounds are normal. See “Understanding the sounds you may hear” on page 19.
There is water in the defrost pan	This is normal on hot, muggy days. Make sure the refrigerator is level so the pan does not overflow.
The motor seems to run too much	Are the condenser coils dirty?Has the door been opened often? Has a large amount of food been added at one time? The motor naturally runs longer if these things happen.Is the room hot? If the room is too warm, the motor runs longer to keep the unit cool.

2. If you need assistance^ ...

Call our toll-free telephone number. Dial free from anywhere in the U.S.A.:

1-800-44-ROPER (1-800-447-6737)

and talk with one of our trained consultants.

The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.

For further information, write to:

Mr. William Clark

Consumer Assistance Representative Roper Brand Appliances 2000 M-63

Benton Harbor, MI 49022

Please include a daytime phone number in your correspondence.

3. If you need service\* ...

Contact the dealer from whom you purchased the appliance or the authorized servicer in your area. For help finding an authorized servicer in your area, call our toll-free telephone number in Step 2.

4. If you need FSP® replacement parts ...

FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Roper® appliance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new Roper appliance.

To locate FSP replacement parts in your area, refer to Step 3 above or call our toll-free telephone number in Step 2.

5. If you are not satisfied with how the problem was solved ...

- Contact the Major Appliance Consumer Action Panel (MACAP). MACAP is a group of independent consumer experts that voices consumer views at the highest levels of the major appliance industry.

- Contact MACAP only when the dealer, authorized servicer and Roper Brand Appliance warrantor have failed to resolve your problem.

Major Appliance Consumer Action Panel 20 North Wacker Drive Chicago, IL 60606

• MACAP will in turn inform us of your action.

\*When asking for help or service:

Please provide a detailed description of the problem, your appliance's complete model and serial numbers, and the purchase date. (See page 2.) This information will help us respond properly to your request.

ROPER® Refrigerator Warranty

LENGTH OF WARRANTY	WE WILL PAY FOR
FULL ONE-YEAR WARRANTY(from date of purchase)	FSP® replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by an authorized Roper service company.
FULL FIVE-YEAR WARRANTY(from date of purchase)	FSP replacement parts and repair labor for the sealed refrigeration system (compressor, evaporator, condenser, drier or connecting tubing) which we find to be defective in materials or workmanship. Service must be provided by an authorized Roper service company.
WE WILL NOT PAY FOR
A. Service calls to:1. Correct the installation of your refrigerator.2. Instruct you how to use your refrigerator.3. Replace house fuses or correct house wiring or plumbing.4. Replace owner accessible light bulbs.B. Repairs when your refrigerator is used in other than normal, single-family household use.C. Pickup and delivery. Your refrigerator is designed to be repaired in the home.D. Damage to your refrigerator caused by accident, misuse, fire, flood, acts of God, or use of products not approved by us.E. Repairs to parts or systems caused by unauthorized modifications made to the appliance.5/93

This Roper appliance is warranted by Whirlpool Corporation. Under no circumstances shall it be liable under this warranty for incidental or consequential damages and all implied warranties are limited to the same time period stated in the express warranties for Roper Brand Appliances. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of implied warranties, so this limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may also apply. For details, please contact your authorized Roper distributor or military exchange.

If you need service, first see the "Assistance or Service" section of this book. After checking "Assistance or Service," additional help can be found by calling our toll-free telephone number, 1-800-44-ROPER (1-800-447-6737), from anywhere in the U.S.A.

Printed on recycled paper-10% post consumer waste 50% recovered materials
