Product Type	Children's Digital Watch
Brand	Spin Master
Model	Cahill SP-5033-05
Display Type	LCD Digital
Case Diameter	Approx. 3.5 cm
Strap Material	Silicone
Weight	Approx. 35 g
Battery Type	CR2032 (3V Lithium)
Battery Life	Up to 12 months
Water Resistance	Splash proof (not submersible)
Functions	Time, Date, Alarm, Stopwatch
Age Recommendation	Ages 5+
Safety Notes	Contains small components; not for children under 3 years
Cleaning Instructions	Wipe with a soft, damp cloth; do not use chemicals
Battery Replacement	Use coin cell CR2032; ensure correct polarity
Repair	Not user-serviceable; contact Spin Master support
Warranty	Limited 1-year manufacturer warranty

Frequently Asked Questions - Cahill SP-5033-05 Spin Master

How do I set the time on the Cahill SP-5033-05 watch?

Press and hold the Mode button for 3 seconds until the hour digits flash. Use the Set button to adjust the hour, then press Mode again to switch to minutes. After setting, press Mode to confirm and return to normal display.

What type of battery does the watch use and how do I replace it?

The watch uses a CR2032 lithium coin cell battery. To replace, remove the back cover (use a small screwdriver if needed), remove the old battery, and insert a new one with the positive (+) side facing up. Ensure the rubber seal is properly placed for water resistance.

Is the watch waterproof?

The watch is splash proof and can withstand rain or handwashing, but it is not submersible. Do not wear while swimming or bathing.

How do I set the alarm?

Press the Mode button until the alarm icon appears. Press and hold Mode until the hour digits flash, then use Set to adjust. Press Mode to switch to minutes and adjust. Press Mode twice to exit. Press Set while in alarm display to toggle the alarm on/off.

What is the recommended age for this watch?

The watch is recommended for children aged 5 and above due to small parts and the battery compartment.

How do I clean the watch?

Wipe the watch with a soft, damp cloth. Do not use soap, alcohol, or abrasive cleaners. Avoid getting moisture into the buttons or case.

The display is blank. What should I do?

First, try pressing any button to wake the display. If still blank, the battery may be drained. Replace the battery with a CR2032 cell. If the issue persists, contact Spin Master support.

Can I use the stopwatch function?

Yes, press Mode until the stopwatch icon appears. Press Set to start, press again to stop, and press and hold Set to reset.

What is the warranty period?

The watch comes with a limited 1-year warranty from the date of purchase. Keep the receipt for any claims.

Can I adjust the strap length?

Yes, the silicone strap has multiple adjustment holes. Remove the buckle pin, cut the strap to the desired length (if needed), and reattach the buckle. Ensure the strap is not too tight on the wrist.

USER MANUAL Cahill SP-5033-05 Spin Master

HOUR HAND MINUTE HAND SCREW DOWN CROWN 45 8 15 AUTOMATIC W8200M 30 DATE SECOND HAND

AUTOMATIC 3 HANDS WITH DATE

CAHILL COLLECTION SP 5033

PLEASE READ THE FOLLOWING BEFORE UNSCREWING THE CROWN:

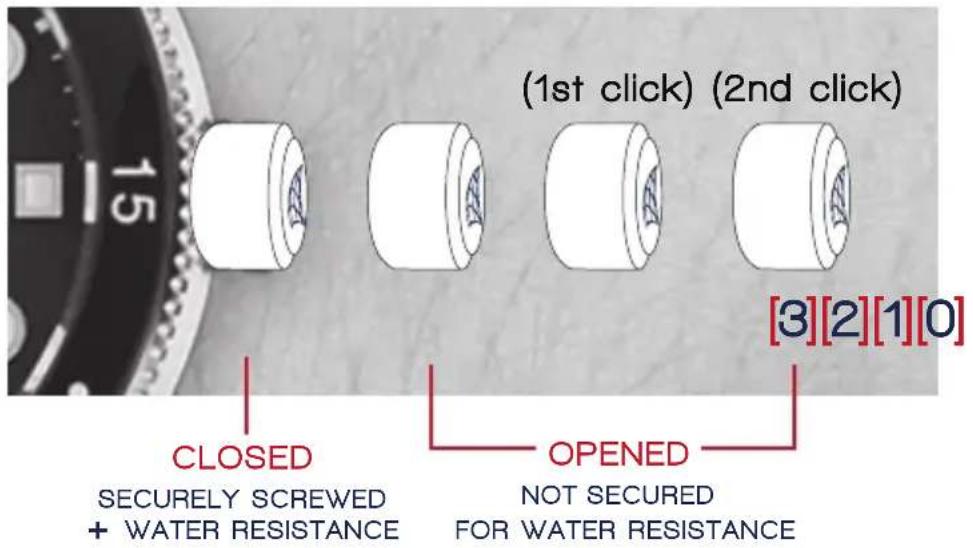

SCREW DOWN CROWN

Screw-down crowns are used to ensure water resistance. ALWAYS be certain that your crown is securely screwed down (Position [0] is secured. Positions [1], [2] and [3] are not secured for water resistance). Do NOT unscrew your crown while you are in any environment where moisture is present.

(1st click) (2nd click) CLOSED SECURELY SCREWED + WATER RESISTANCE (3)[2][1][0] OPENED NOT SECURED FOR WATER RESISTANCE

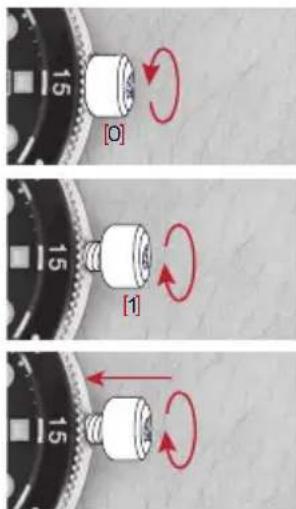

DO NOT PULL THE CROWN UNLESS IT IS UNSCREWED FIRST:

15 [O]

TO UNSCREW: Turn the crown anti clockwise until it turns freely without tension.

Once the crown is fully unscrewed, it automatically sets itself into position [1]. GENTLY pull the crown out to the other desired positions for watch setting (see specific operating instructions on the following pages).

15 [1] 15

TO SCREW: Push the crown ALL THE WAY IN (towards the watch) THEN begin to turn clockwise until it is securely screwed down.

NOTE: Failure to SECURELY screw down the crown after setting the watch may affect its water resistance.

BEFORE YOU USE THIS WATCH, IT IS RECOMMENDED THAT YOU MANUALLY WIND THE MAINSPRING TO START IT MOVING.

THIS WATCH IS AN AUTOMATIC WATCH EQUIPPED WITH A MANUAL WINDING MECHANISM.

[0] [1]

WINDING THE MAINSPRING

1. Unscrew the crown by turning it anti-clockwise.

2. When it is in position [1], turn the crown clockwise to wind. Wind 15 20 times and it will start to move naturally after shaking slightly.

3. Push the crown in then screw it securely.

• This watch MUST be worn for at least 8 (Eight) hours each day to ensure it is fully wound. An automatic watch will only wind when the watch is on your wrist and your arm moves. Winding the watch by the crown will put power on the spring but not enough to allow the watch to function fully. If your watch stops overnight or loses time it means it is not being fully wound.

[0] [3] [0]

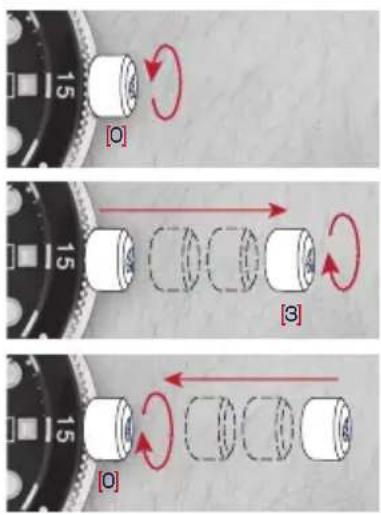

HOW TO SET THE TIME

1. Unscrew the crown and pull it out to position [3].
2. Turn the crown to set the correct time.
3. Push the crown in then screw it securely.

* Take a.m./p.m. into consideration when setting the hour and minute hands to the desired time.
* Always be certain that your crown is SECURELY SCREWED; this will prevent moisture from entering in.

[0] [15] [2] [15] [0]

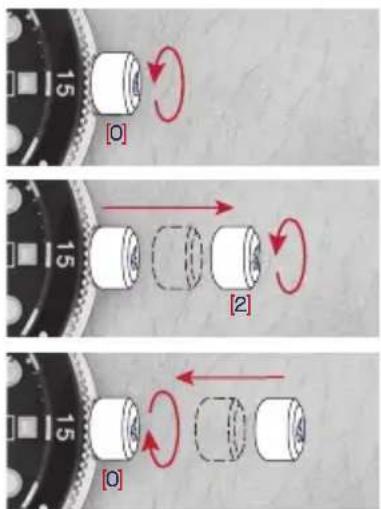

HOW TO SET THE DATE

1. Unscrew the crown and pull it out to position [2].
2. Turn the crown anti-clockwise to set the correct date.
3. Push the crown in then screw it securely.

* Do not set the date between 9:00 P.M. and 4:00 A.M.

WATER RESISTANCE

Note that the water resistance chart serves only as a guide (please refer to the water resistance chart on the next page). Actual water resistance may vary depending on a number of factors including water temperature, water salinity, and use under water.

The water resistance of your timepiece may eventually be compromised over time with general wear and tear and use of your timepiece under adverse conditions.

Always remember to employ the screw down crown if available to maintain the water resistancy of your timepiece. Warranty may be voided if the screw down crown has not been properly employed.

Note that you should never wear your watch in a jacuzzi or steam room where steam may enter the case despite the water tight seals used to protect your watch. This may cause condensation inside your watch which may effect and damage the inner workings of your watch.

*Spinnaker watches, its manufacturer, brand owner or any of its affiliated companies accept no liability for death or injury resulting from use, misuse or failure on the part of this watch.

WATER RESISTANCE CHART

	30M/3ATM	50M/5ATM	100M/10ATM	150M/15ATM	200M/20ATM	300M/30ATM	500M/50ATM	1000M/100ATM
SPLASH/SHOWERING
SWIMMING/BATHING
SWIMMING/SNORKELING/WATER SPORTS
FREEDIVING
SCUBADIVING
PROFESSIONALDEEP SEA DIVING

WATER RESISTANCE: 20ATM
