Prior to Fitting the Controlled Performance Series Speakers

CAUTION: These Controlled Performance loudspeakers can only be fixed into plasterboard (dry-lined) or suspended ceilings/ walls with a thickness of up to 45mm (1 ^3/4 ). Solid wall installation will require channeling out and frame work constructed to provide a structure for the Tri Grip ^ dog legs to clamp to. For safety reasons, if you are unsure of your ability to provide a secure and safe fixing, do not attempt to fix these speakers, please obtain the services of a competent and qualified trades person.

CAUTION: Ensure that there are no water pipes or electricity cables running within the wall structure before cutting the speaker apertures. Work from secure steps and avoid trailing wires.

Over Tightening Warning

ATTENTION INSTALLERS:

Do not over-tighten the Tri-Grip Dog Leg clamps. Over tightening the clamping mechanism on any in ceiling/ in wall speaker can result in damage to the speaker mounting hardware, ceiling/ wall or speaker frame, and/ or deflection in the speaker frame during installation.

If you notice any of the above during installation, you have overtightened the Tri Grip dog leg. Back off the mounting screw until deflection is reduced to allow the product to sit firmly against the ceiling / wall.

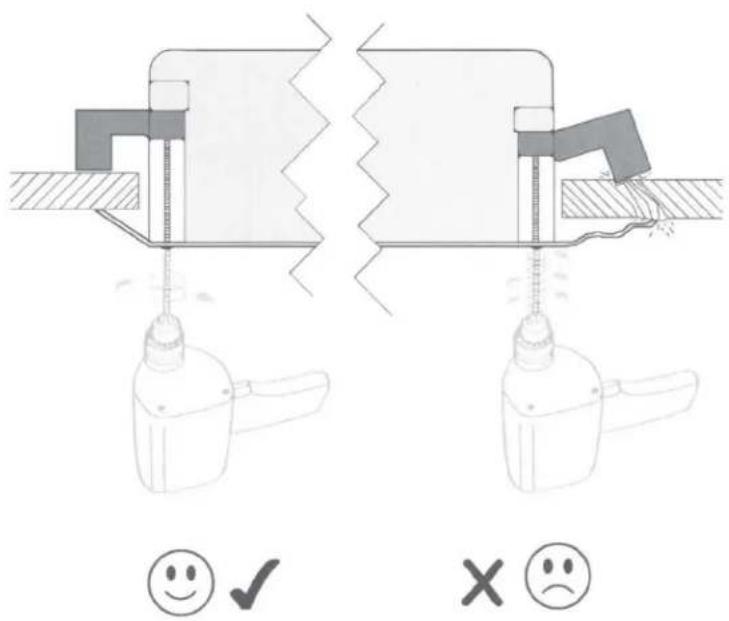

Do not exceed 5Kgf/cm (4.34 lbf/inch.) or 0.5 NM when tightening the Tri Grip dog leg screws.

When are using a cordless screwdriver/ drill to install this product ensure the clutch is set to it's lowest setting to avoid from over-tightening and damaging the mounting hardware.

Diagram illustrating correct and incorrect ways to process a mechanical or electrical component, with smiley and sad face indicators below.

Painting the Grilles

NOTE: If choosing to paint the grille, we recommend you follow these simple steps:

1. Remove the membrane scrim from the inside of the grille.
2. Paint all grilles required for the installation with the same batch of paint (if they are to be the same colour). Spray paint is easier to apply or use a stippling action when brushing to avoid blocking the holes of the grille.
3. When dry, attach the spare membrane scrim (supplied) into the inside of the grille.
4. Fit the grille to the speaker (s).

Fitting the Controlled Performance Loudspeakers

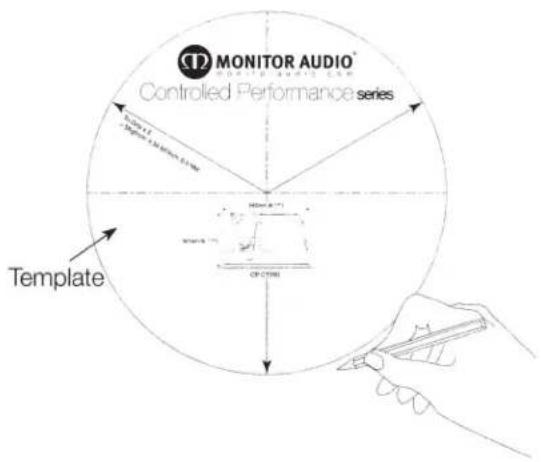

1 Draw around template and mark centre lines if necessary

MONITOR AUDIO® Controlled Performance series Template

2 Cut around marked line

Line drawing of a hand holding a small object inside a circular frame (no text or symbols)

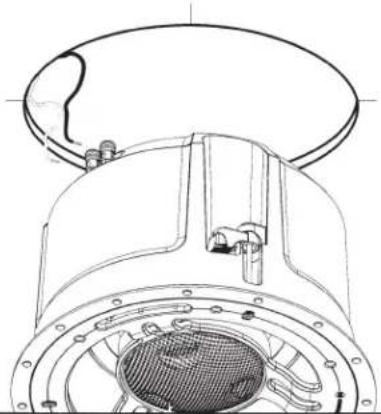

3 Connect speaker cables by pushing down on the terminals and clamping the bare wire in the through hole.

Technical line drawing of a mechanical component with no visible text or symbols

4 Guide speaker into cut out

Technical diagram of a mechanical component with concentric rings and mounting holes (no text or symbols)

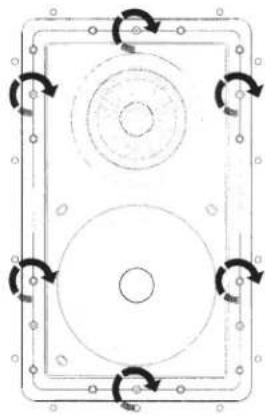

5 Tighten 3 Tri-Grip screws on the inceiling models or the 6 Tri-Grip screws on the in wall models.
!
See over tightening warning.

Circular mechanical component diagram with four curved arrows indicating rotational or directional motion (no text or symbols)

Pure technical diagram of a rectangular frame with circular cutouts and directional arrows, no text or symbols present.

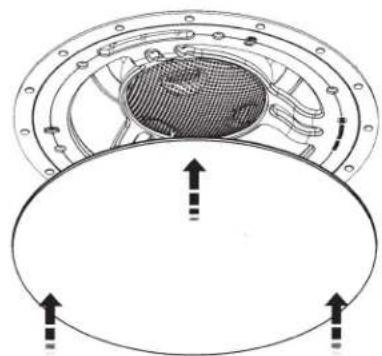

6 Fit grilles. They are held in place magnetically and should 'snap' into place.

Diagram of a mechanical or electrical component with concentric circular layers and directional arrows, no visible text or symbols.
