USER MANUAL Dress 1382 Sekonda

InstructionGuide and

2YearGuarantee

IS01

Contents

1ServiceandRepairs/SettingtheTime–AM/PM

2WaterResistancy 3–12OperationandAdjustment

Forfreebraceletadjustingservice,returnthewatch totheaddressbelow.

T.P.(UK)Ltd,AlexanderHouse,ChartwellDrive,Wigston,LeicesterLE182EZ

Formaximumprotection,pleasekeepyourwatch initspresentationboxwhennotinuse.

ImportantNote It is important to identify your watch correctly. If, after reading this Instruction Guide, you have any further questions regarding the use, operation or adjustment of your watch, please call us during office hours on 01162882500

SERVICEANDREPAIRS

YourSEKONDAwatchisguaranteedagainstdefectsinmaterials andworkmanshipforaperiodof2yearsfromthedateof purchase. During this period, wewillexchangeorrepair, atourdiscretion, any defective components.

IMPORTANT-NotcoveredbyGuarantee

1. Batteries, strapsandbracelets.
2. Damagecausedbyaccident, misuseorlackofcare.
3. Waterpenetrationexceptinwatchesmarked as "WaterResistant". (seepage2).

SERVICINGANDREPAIRSUNDERGUARANTEE

Pleasepostyourwatch,togetherwiththeRetailer'sSalesRe- ceiptorProofofPurchase,thecompletedGuaranteesliponthe backcoverofthisbooklet,andabriefnotetoexplainthenature ofthefault,byRegisteredPostorRecordedDeliverytothead-dressshown.Donotsendthepresentationboxasthiswillnotbe returned.

SERVICINGANDREPAIRSOUTSIDEOFGUARANTEE

Availableatareasonablechargeafteranestimatehasbeen sentbySEKONDA.SendyourwatchtousbyRegisteredPost orRecordedDeliverytotheaddresssshownontheinsidefront cover.

SETTINGTHECORRECTTIME(AM/PM)—DATEWATCHES

• IftheDATEchangeswhenthehandsareturnedpast 12o'clock,thetimeshownis“am”.
• IftheDATEdoesnotchange,thetimeshownis"pm".

WATERRESISTANCY

If your watch is water resistant, it will clearly state "Water Resistant" or have a static water pressure indication (eg "30/50/100 metres") on the daily and/or caseback.

IfitisNOTmarkedaswaterresistant, it should not be allowed to come into contact with water or beworn in condition that could expose it to moisture (egwashing, heavy rainetc). Certain chemicals in water may damage the watch seals. Tomaintain its water resistance, were recommend that your watch is serviced and re-sealed at least every 12 months by SEKONDA.

IMPORTANTButtonsmustnotbeoperatedwhilein contactwithwater.

WATERRESISTANTorRESISTANT TO30METRES

Suitablefornormaleverydayuseandwillresist exposuretosplashesandrain;itisNOTdesigned tobeusedwhilebathingorswimming.

WATERRESISTANTTO50METRES

As30metresplusbathingorswimming.

WATERRESISTANTTO100METRES

As50metrespluspoolsidedivingandsnorkelling, butNOThighboardorscubadiving.

WATERRESISTANTTO200METRES

As100metresplusscubadiving, but NO Thighboard diving.

MODELSWITHASCREW-DOWNCROWN (BUTTON)

Unlockthecrownbyturningitanti-clockwiseuntilfree. Lockitbypressinginwhileturningclockwise.WATER RESISTANCEislostwhenthecrownisintheUN-LOCKEDposition.

QuartzanaloguewatchesdoNOT requirewinding.

Thebuttonisusedforhand/functionsettingonly.When inuse,ensurethatthebuttonispushedFULLYINto position“A”.Failuretodosocanresultinexcessive batterydrainordamagetothehandsetting/date mechanism.

The instructions and diagramson the following pages are designed to demonstrate the adjustment of all models within our range.

Yourwatchmaynothaveallofthecharacteristics shownandmayhaveotherbuttonsanddialsinadditiontothoseshownonindividualdiagrams.

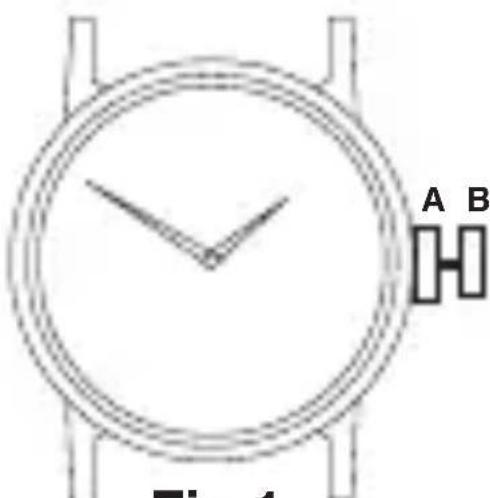

QUARTZNON-DATEWATCH TIMESETTING:

• Pullbuttonouttoposition“B”.
• Advancehandstocorrecttime.
• Returnbuttontoposition“A”.

Fig 1

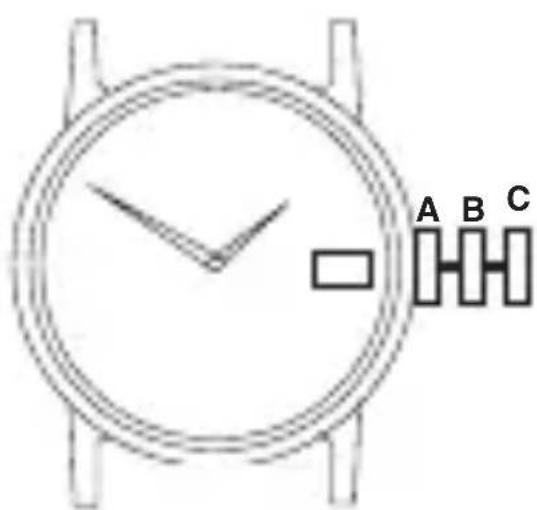

QUARTZDATEWATCH DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnclockwiseoranti-clockwisetosetcorrectdate.
• Returnbuttontoposition“A”.

NOTE: Donotusethisfunctionbetween8.30pm and1.30amasdatechangecycleisinprogress.

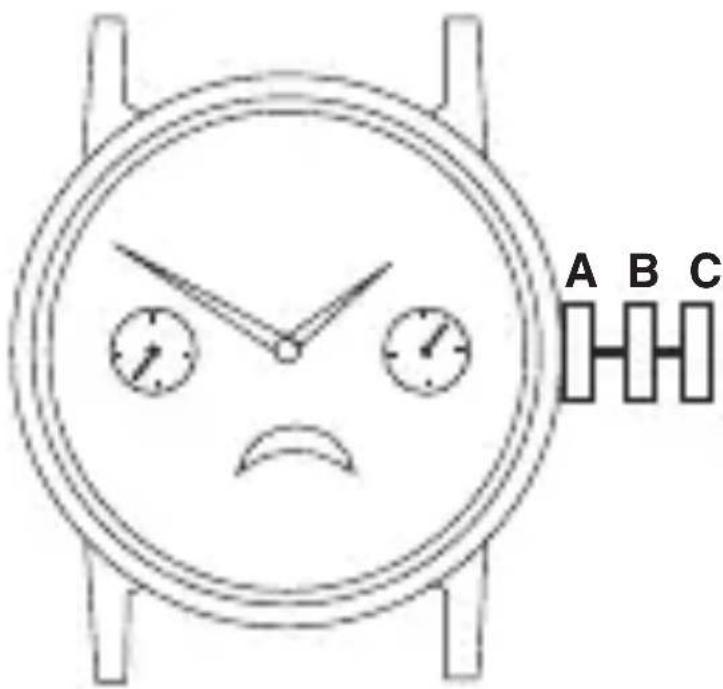

DAY/DATEMOONPHASEWATCH MOONPHASESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwisetosetcorrectmoonphase (seeenclosedleafletfordatesofmoonphase).
• Returnbuttontoposition“A”.

DATECORRECTION:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetosetdate.
• Returnbuttontoposition“A”.

DAY/TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnhandsforwardsuntilcorrectdayandtimearereached.
• Returnbuttontoposition“A”.

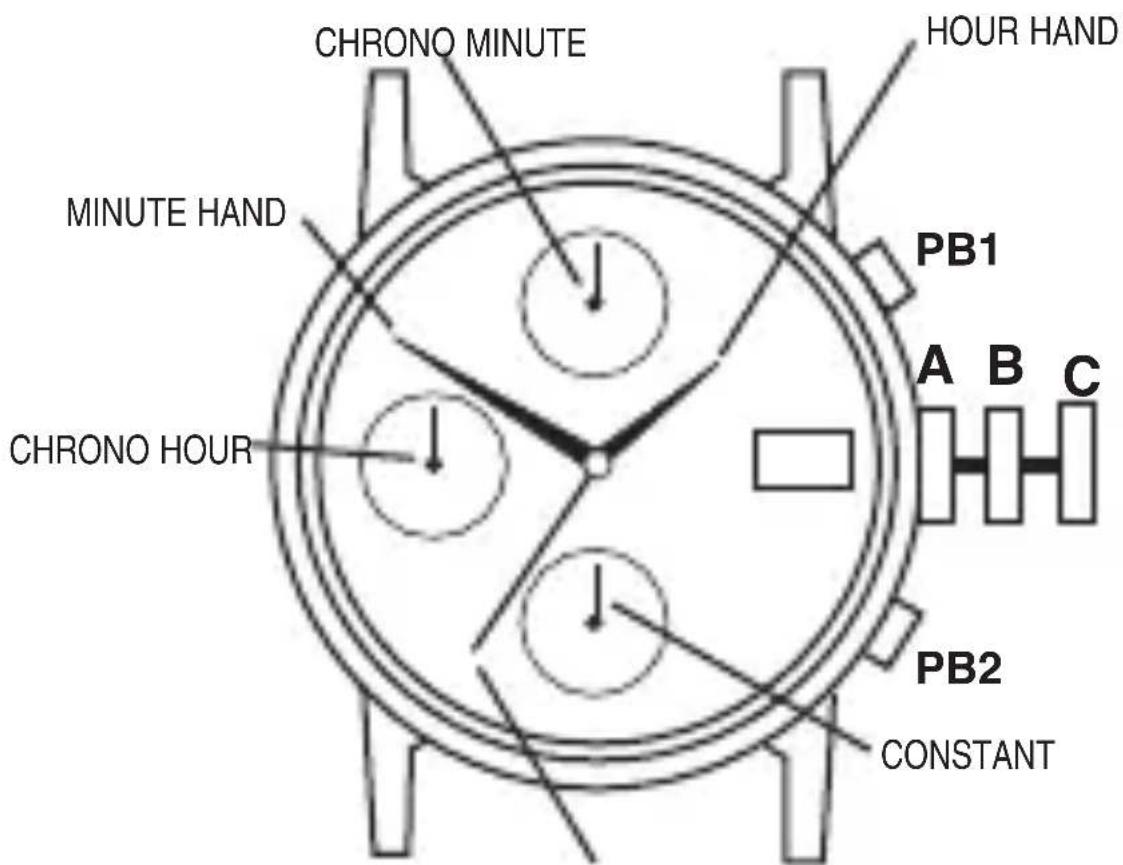

QUARTZ3EYECHRONOGRAPHWITHDATE TIME/DATESETTING:

Seeinstructionsonpages4and5.

OPERATINGCHRONOGRAPH:

• PushPB1tostart/stopchronograph.
• PushPB2toreset.

CHRONOGRAPHZERORESET:

• Pullbuttonouttoposition'C' (Chronosecondhandsreturntozeroposition).
• PushPB1tosetChronosecondhand to12.00(zero)position.
• Returnbuttontoposition'A'.
• PushPB2tosetChronominuteto12.00(zero)position.

HAND DISPLAYS

CHRONO SECONDS NOTE: Thishandshouldbeat zero(12o'clockposition) whenchronoisnotinuse.

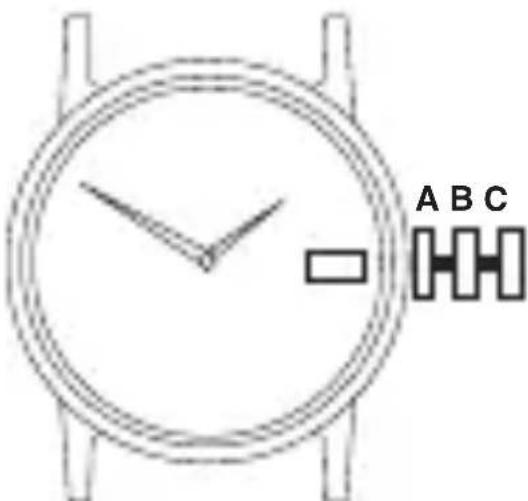

QUARTZDAY/DATEWATCHES TIMESETTING:

• Pullbuttonouttoposition“C”.
• Advancehandstocorrecttime.
• Returnbuttontoposition“A”.

DAY/DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnclockwiseoranti-clockwisetosetcorrectdate.
• Turnclockwiseoranti-clockwisetosetcorrectday.

NOTE:DaysoftheweekcanbesetinEnglishor Spanish. Oncesetthewatchwillautomatically indicatethedayinthechosenlanguage.

- Returnbuttontoposition“A”.

NOTE: Donotsetday/datebetween8.30pm and5.00amasday/datechangecycleisinprogress.

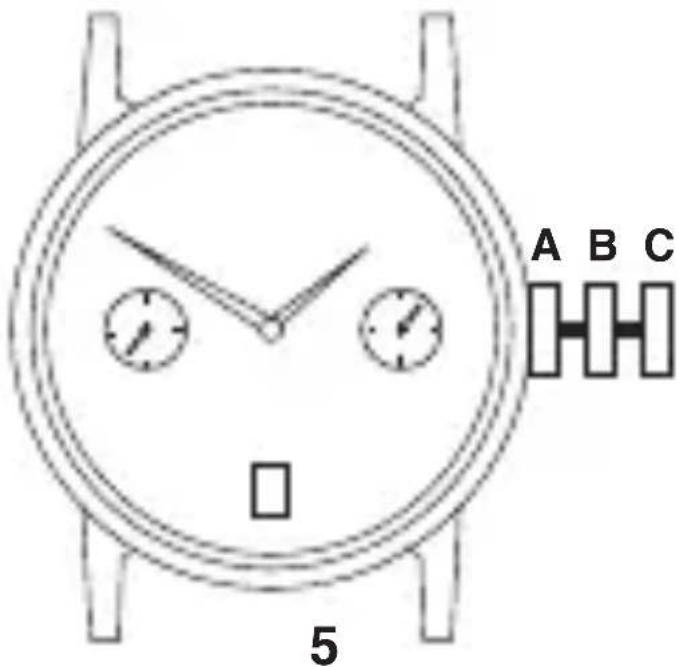

QUARTZ“TWO-EYE”(MONTH&DAY)WITHDATEWATCH DAY&TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnbuttontoadvancehandsuntildaychanges; repeatuntilcorrectdayandtimeisshown.
• Returnbuttontoposition“A”.

DATE&MONTHSETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwiseuntilmonthchanges (every31days).
• Repeat until correct month and date areshown.
• Returnbuttontoposition“A”.

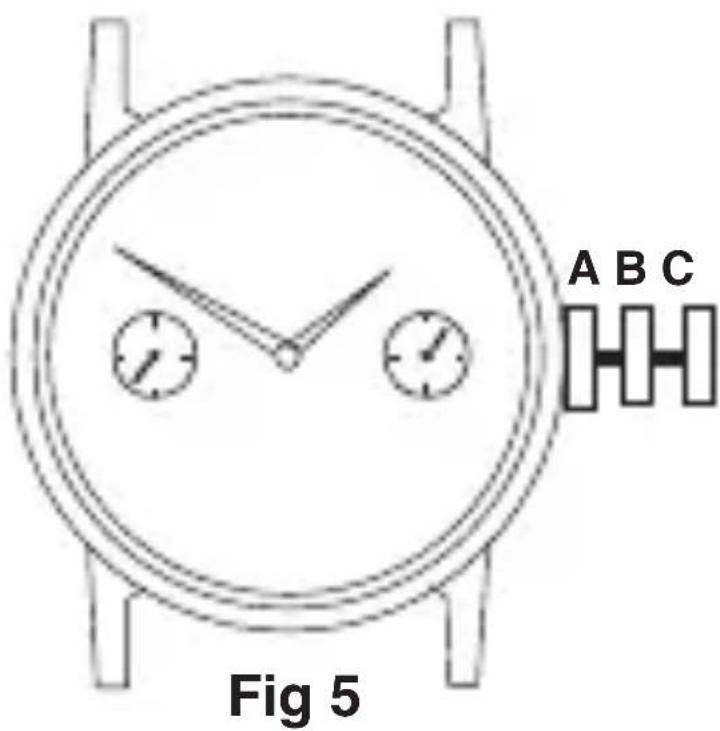

QUARTZ“TWO-EYE”(DAY&DATE)WATCH

IMPORTANT-Thepositionoftheday/date"eyes"referredtoin theseinstructionsMAYBEREVERSEDoncertainModels.

DATEINRIGHTEYE-DAY&TIMESETTING:

• Pullbuttonouttoposition“C”.
• Turnbuttontoadvancehandsuntildaychanges; repeatuntilcorrectdayandtimeisshown.
• Returnbuttontoposition"A".

QUARTZ“TWO-EYE”(DAY&DATE)WATCH(continued) DATEINRIGHTEYE(continued) DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwiseuntildatechanges.
• Repeatuntilcorrectdateisshown.
• Returnbuttontoposition“A”.

DATEINLEFTEYE TIMESETTING:

• Pullbuttonouttoposition"C".
  •Turnbuttontoadvancehands.
• Returnbuttontoposition“A”.

DAY/DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetosetcorrectDAY.
• TurnbuttonclockwisetosetcorrectDATE.
• Returnbuttontoposition“A”.

MODELSWITHELECTROLUMINESCENT DISPLAY(E.L.D.)FACILITY

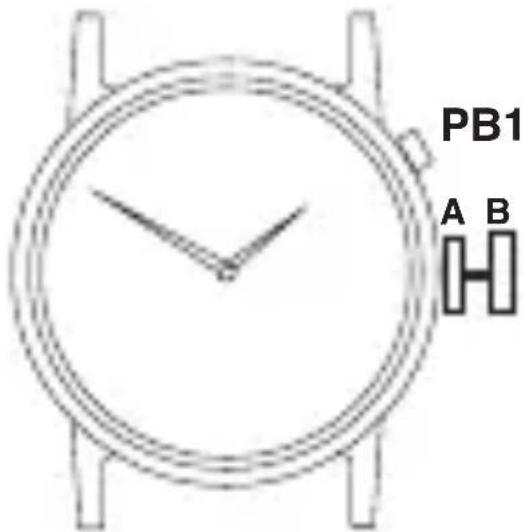

NON-DATEMODELS

TIMESETTING:

•Seeinstructionsonpage4.

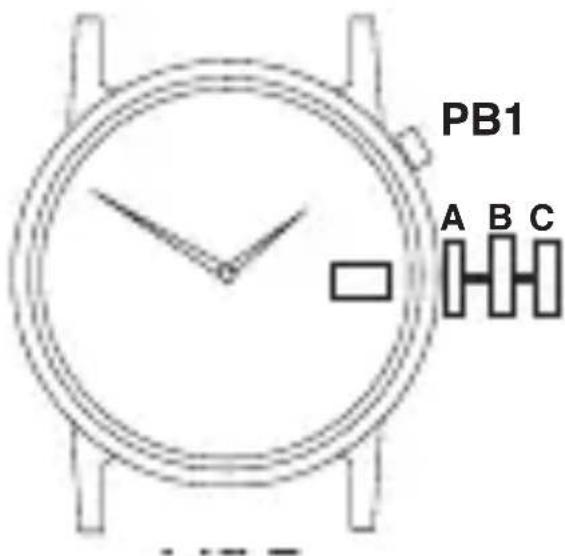

DATEMODELS

TIME/DATESETTING:

•Seeinstructionsonpages4and5.

E.L.D.DISPLAY

- PressPB1toactivatedisplay (Displayonlyvisibleinsubduedlight).

Note: Displayshouldonlybeactivatedfor shortperiods, e.g. 1 or 2 seconds as excessive use will greatly reduce the life of the battery.

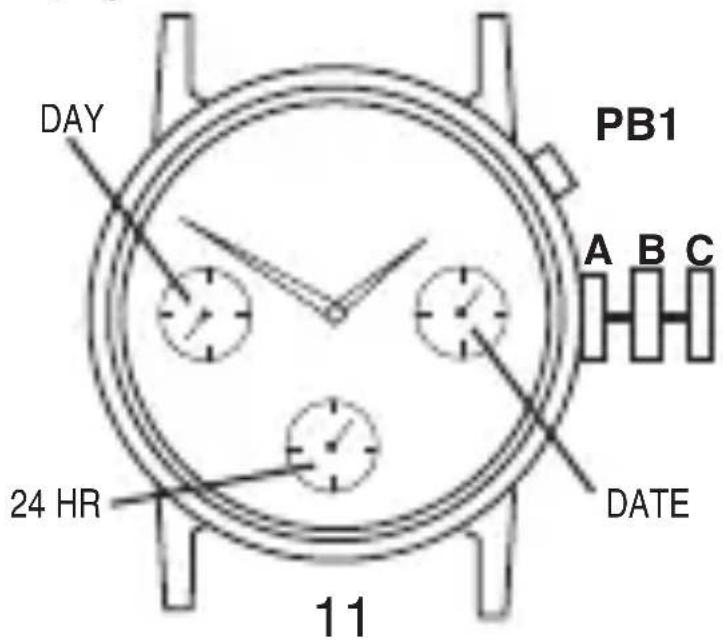

E.L.D.-THREEEYEWITHDAY-DATE- 24HOURFUNCTIONS DAYSETTING:

• Pullbuttonouttoposition"C".
• Turnbuttonclockwisetoadvancehands.
• Continueuntilcorrectdayisshown.
• Returnbuttontoposition"A".

NOTE: Datechangetakesplacebetweenapproximately midnight and 5.30am.

TIME/24HRFUNCTIONSETTING:

• Pullbuttonouttoposition"C".
• Turnbuttonclockwisetosetthehour,minuteand24 hourhandstothecorrecttime.*Whensettingthehour hand,besuretocheckthatthe24hourhandisset properly.(E.G.12midnight=24.00hrs)
• Returnbuttontoposition“A”.

NOTE: Whensettingtheminutehandfirstadvanceit4to 5minutesaheadofthedesiredtimeandthenturnitback totheexactminute.

DATE(QUICKCHANGEFUNCTION)SETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetoadvancedatehand tocorrectdate.
• Returnbuttontoposition“A”.

E.L.D.DISPLAY:

Seeinstructionsonpage10.

B

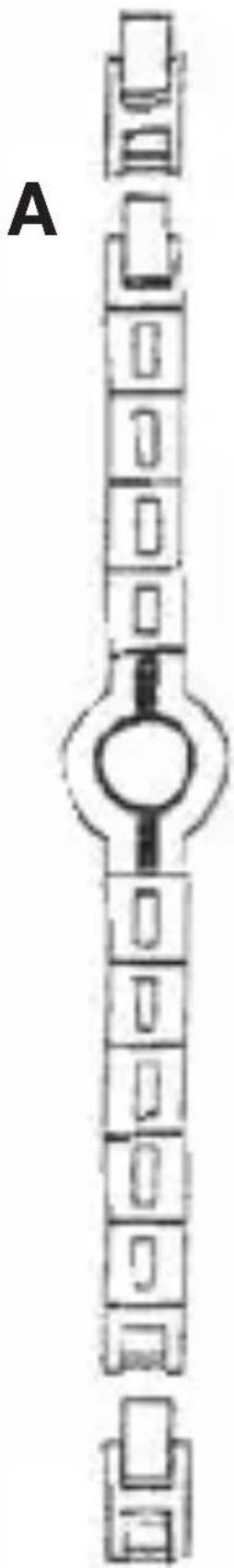

MULTIPLECLASPS

Someofourbraceletmodelsare nowfittedwithamultipleclasp systemwhichisdesignedtomake braceletadjustmenteasierforyou.

Toreducethesizeofthebracelet simplyopenandremoveoneor bothoftheadjustableclasps indicatedas(A)and(B)onthe diagram.

Shouldyoufeelthatyourbracelet isinneedoffurtheradjustment, pleasefollowtheproceduresinIn-struction3ofthebraceletgaugein- cluduedinthisleaflet.

Guarantee

BlockCapitals

Name

Address

PostCode

DaytimePhone

T.P.(UK)Ltd,AlexanderHouse,ChartwellDrive,Wigston,LeicesterLE182EZ

Important

Thisguaranteeshouldberetainedbytheownerof thewatchandshouldbesenttoSekondatogether withthewatchand£4.00tocoverhandlingand postagewhenserviceunderguaranteeisrequired. Pleaserefertopage1oftheinstructionguidefor furtherinformationonserviceunderguarantee. Thisguaranteedoesnotaffect yours tatutoryrights.

RetailersStampifrequiredorfullnameandaddress

AttachReceptorProofofPurchase; failuretoattachmayinvalidateguarantee. Thisguaranteedoesnotaffectyour statutoryrights.

IS01/10-10
