Product Type	Electric Knife
Brand	Swan
Model	SP10130N
Input Voltage	220-240V
Frequency	50/60Hz
Power Consumption	120 Watts
Number of Blade Sets	2 (Fine Serrated & Coarse Serrated)
Blade Material	Stainless Steel
Safety Features	Double Insulated, Auto Shut-off (Release Switch)
Cleaning	Blades Dishwasher Safe; Power Handle Wipe Only
Storage	Comes with Blade Sleeve
Warranty	2 Years
Intended Use	Household and Similar Applications
Weight	Approx. 1.0 kg
Dimensions (LxWxH)	Approx. 30 x 8 x 5 cm
Cord Length	Approx. 1.0 m
Accessories	Fine Tooth Blades, Coarse Tooth Blades, Blade Sleeve
Country of Origin	China (assumed)

Frequently Asked Questions - SP10130N SWAN

How do I attach the blades to the power handle?

Align the rivet on one blade with the slot on the other, slide together. Then insert both blade handles into the holes on the power handle until you hear two clicks.

Can I wash the blades in the dishwasher?

Yes, the blades are dishwasher safe. However, do not wash the power handle in the dishwasher; wipe it with a damp cloth only.

What are the two blade sets used for?

Use the fine tooth blades for bread, meat, and other foods. Use the coarse tooth blades for frozen foods.

How do I remove the blades after use?

Unplug the knife. Hold the blade handles by the hollows with one hand and press the Ejector Button with the other. Then pull the blades out carefully.

Is the electric knife safe to use?

Yes, it is double insulated and has a safety switch that stops blades when released. Always unplug before cleaning or changing blades.

Can I use the knife continuously for a long time?

Avoid continuous operation for long periods to prevent motor overheating. Allow the appliance to cool down if it becomes hot.

What is the voltage and power rating?

It operates on 220-240V, 50/60Hz, and consumes 120 Watts.

How long is the warranty?

The product is guaranteed for 2 years from the date of original purchase against faulty materials or workmanship. Proof of purchase is required.

Can I use an extension cord with this knife?

It is not recommended. If necessary, use an extension lead suited to the power consumption to avoid overheating.

How should I store the electric knife?

After cleaning, insert the blades into the Blade Sleeve and store in a cool, dry, ventilated place.

USER MANUAL SP10130N SWAN

Electric Knife

Model: SP10130 (all colours)

Helpline

01733 404703

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
• Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
  • Never immerse the unit in water or any other liquid for cleaning purposes.
• Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.
• The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use the appliance on a gas or electric cooking top or over or near an open flame.
• Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
• This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
• Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
• The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
• In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
• Your appliance must never be switched on through an external timer or any kind of separate remote control system
• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environments, bed and breakfast type environments.
  • DO NOT blend hot oil or meat
  • Take great care when handling the blade
• Do not continuously operate the mixer too long. The motor may overheat. If the surface of the blender has been very hot, it may need time to cool down. After reducing to room temperature, the blender can be operated again. Avoid operating without load for long periods as the bearings could overheat.

CAUTION: DO NOT IMMERSE THE MOTOR UNIT IN WATER

TECHNICAL DATA

Description: Electric Knife

Model: SP10130N

Input Voltage: 220-240V

Frequency: 50/60Hz

Power consumption: 120 Watts

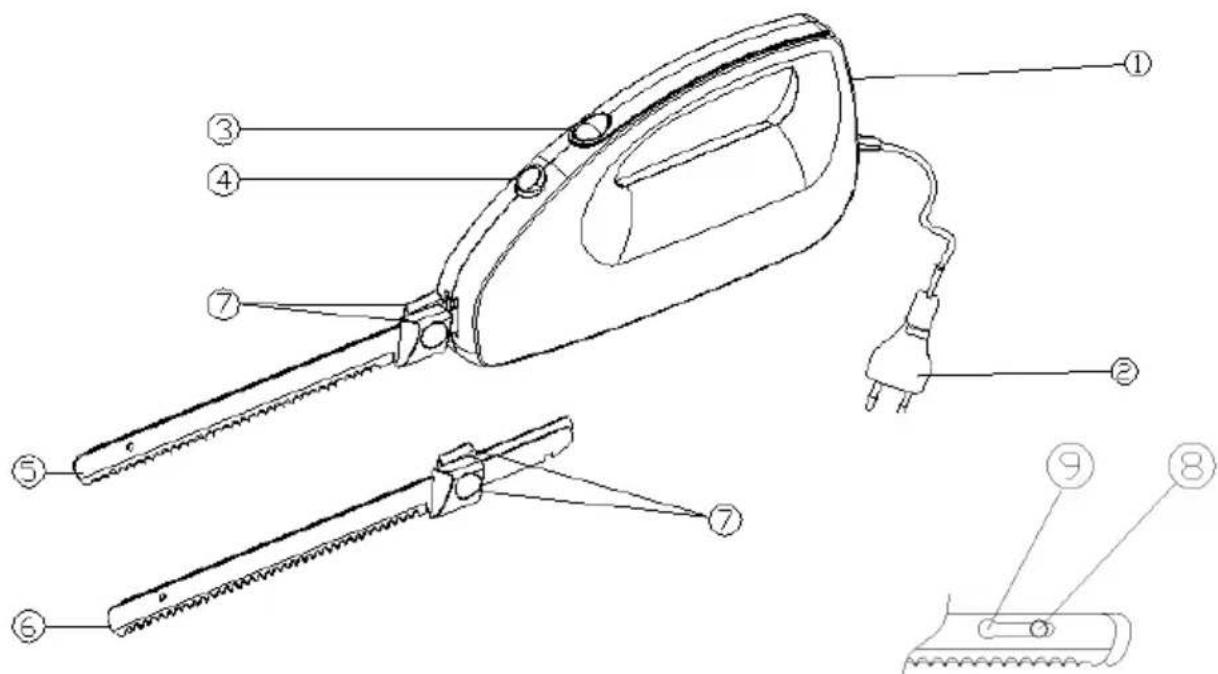

1. Power Handle
2. Power Cord Assembly
3. Power Switch Button
4. Ejector Button
5. FinelySerrated Blades Assembly

6. Widely Serrated Blades Assembly

7. Blade Handle Hollow

8. Rivet
9. Sliding Slot

Use the fine tooth blade for most food types. Use the coarse blade for frozen food

USING YOUR ELECTRIC KNIFE

1. Remove all packaging. Take away the Blade Sleeve carefully. Wash the blades in warm, soapy water. Rinse and dry thoroughly. PLEASE BE CAREFUL WHEN HANDLING THE BLADES AS THEY ARE EVERY SHARP
2. Attach the two blades together or by inserting the Rivet on one blade into the round socket of the Slot on the other and sliding them together along the slot
3. Grasp the two hollows of the blade handles and insert the blades into the blade holding holes in the Power Handle. Push both blades into place with two clicks.
4. Plug in the appliance.
5. Hold the Power Handle. Place the Electric Knife directly on the food to be cut.
6. Press Power Switch Button, the blades will begin to slice.
7. When you have finished cutting, stop the Electric Knife by releasing the Power Switch Button immediately.
8. Unplug from electrical outlet before remove the cutting blades. Grasp the two hollows of the blade handles by one hand and press the Ejector Button by the other hand. Then carefully pull the two blades from the holding holes.

BLADES

There are 2 sets of blades with this product. As a general rule, use the fine tooth blades for bread, meat & other food stuff. Use the course tooth blade for frozen food stuff

CLEANING

1. Always switch off and unplug before cleaning.
2. Remove the blades from the Power Handle before washing. Slide the blade with a rivet along the slot in the other to separate the two blades.
3. Wipe the Power Handle with a damp cloth, then dry.
4. Never immerse Power Handle in water or other liquid or use abrasives.
5. Wash the blades in warm soapy water, then dry thoroughly
6. TAKE GREAT CARE WHEN HANDLING THE BLADES AS THEY ARE VERY SHARP
7. The blades can be cleaned in a dishwasher.

Note: Do not clean any part of the Electric Knife in the dishwasher

STORAGE

Insert the blades into the Blade Sleeve carefully, store in a cool, dry and ventilating place.

We Swan Products Ltd declare that this product conforms to the following product legislation in accordance with the following directive(s):

2004/108/EC The EMC Directive (the Electromagnetic Compatibility Directive).
2006/95EC. The LVD Directive (Low Voltage Directive).
2011-65-EU. The RoHS directive (Restriction of Hazardous Substances Directive)
EC 1935/2004 Food Contact
125/2075 Eco design

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
- The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
- Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH PIN

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
