Product Type	Range hood (extractor hood)
Brand	Neff
Model	I99C68W1GB
Operating Modes	Exhaust air mode and air recirculation mode (requires activated carbon filter)
Controls	Control panel with buttons and remote control (23AE 12V battery)
Fan Settings	3 fan settings plus intensive setting (P) for 4 minutes
Special Functions	Intermittent mode (10 min/hour for 24 hours), run-on function (10 min at setting 1)
Lighting	LED lights, dimmable, replaceable only by service technician
Filter Type	Metal mesh grease filters (washable); optional activated carbon filter for recirculation
Filter Cleaning	Grease filter: clean at least every 2 months (dishwasher or hand wash)
Saturation Signal	Indicates when grease filter needs cleaning (symbol) or activated carbon filter replacement (ℓ symbol + beep)
Maximum Installation Height	2000 metres above sea level
Safety Features	Fire risk warnings, anti-backdraft, child safety (8+ years supervised)
Energy Efficiency	Tips: use only when needed, select appropriate setting, clean filters regularly
Disposal	Environmentally-friendly disposal per WEEE directive 2012/19/EU
Accessories	Activated carbon filter for recirculation mode (sold separately)

Frequently Asked Questions - I99C68W1GB NEFF

How do I clean the metal mesh grease filters?

Clean the grease filters at least every 2 months. Remove them by pressing the lock and pulling them out. Wash by hand in hot soapy water using a brush, or place them loosely in the dishwasher. Let them dry completely before reinstalling. Never operate the appliance without the grease filter.

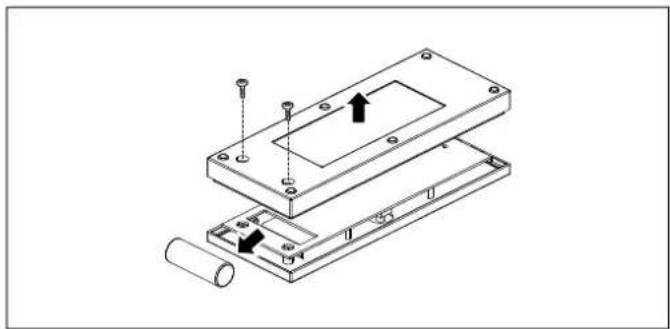

How do I replace the batteries in the remote control?

Unscrew the cover on the back of the remote control. Remove old batteries and insert new 23AE 12V batteries, ensuring correct polarity. Reattach the cover and tighten screws. Dispose of old batteries according to local regulations.

How do I connect the remote control to the appliance?

If the remote control loses connection (e.g., after battery change), press and hold the + button on the remote while connecting the appliance to the mains power. A long audible signal indicates successful pairing. If no signal within 30 seconds, repeat the process.

What does the saturation signal mean?

The symbol indicates the grease filter needs cleaning. The ℓ symbol with a beep indicates the activated carbon filter needs replacement. Reset the signal after cleaning/replacing by switching off the fan or following the reset procedure in the manual.

How do I switch between exhaust air mode and recirculation mode?

For recirculation mode: switch off the appliance, then press and hold the and ♂ buttons simultaneously until the indicator lights up. For exhaust mode (default): press and hold the ○ and ⚙→| buttons until the ≡ indicator lights up.

How do I activate intermittent mode?

Intermittent mode runs the hood for 10 minutes every hour for 24 hours. On the control panel, press ○ and + buttons at the same time until I appears. Use + or - to set the fan speed, then confirm by pressing ○ and + again. Using the remote, press the ⏻ button, set speed, and confirm with ⏻ again.

What should I do if the appliance does not work?

Check that the plug is connected to the mains, there is no power cut, and the circuit breaker has not tripped. If the fuse is faulty, replace it. If the problem persists, contact Neff after-sales service with the product number (E no.) and production number (FD no.).

Can I replace the LED lights myself?

No. Defective LED lights must be replaced only by the manufacturer, its customer service, or a licensed technician. Do not attempt to replace them yourself.

How do I install the activated carbon filter for recirculation mode?

The activated carbon filter is not supplied with the appliance. You can order it as an accessory from Neff or authorised retailers. Installation instructions are provided in the CleanAir air recirculation module printed supplement. Typically, it fits into the hood after removing the grease filters.

What safety precautions should I take when using the range hood?

Ensure adequate fresh air when using exhaust mode with fuel-burning appliances to avoid backdraft. Never flambé under the hood. Clean grease filters regularly to prevent fire. Keep children at least 8 years old supervised. Do not use high-pressure cleaners or steam cleaners.

USER MANUAL I99C68W1GB NEFF

Man in a light blue shirt preparing food at a kitchen (no visible text or symbols)

Extractor hood

Instruction manual

I92C67N1GB, I99C68N1, I99C68N1GB, I99C68W1GB, I92C67N1

Table of contents

Important safety information .... 3

Environmental protection 5

Saving energy 5

Environmentally-friendly disposal 5

Operating modes 6

Exhaust air mode 6

Air recirculation 6

Operating the appliance 6

Controls 6

Setting the fan 7

Intensive setting 7

Intermittent mode 7

Run-on function 7

Lighting 7

Saturation signal 8

Cleaning and maintenance 8

Cleaning agents 8

Cleaning the metal mesh grease filters ..... 9

Removing metal grease filter 9

Installing the metal mesh grease filter 9

Replacing the batteries in the remote control .....9

Trouble shooting 10

Customer service....10

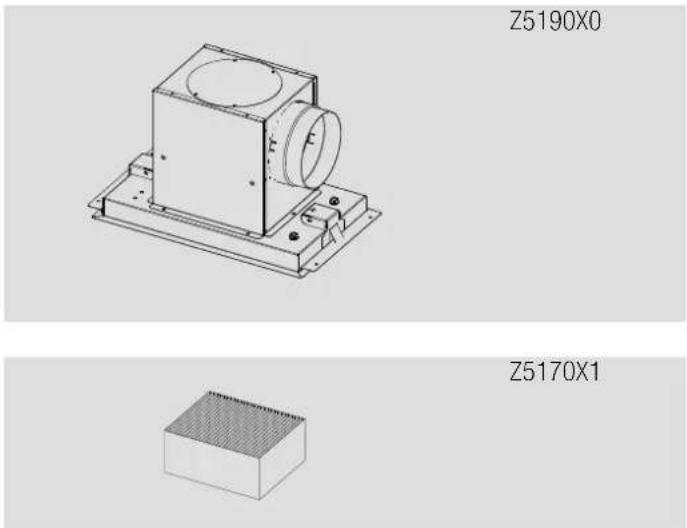

Accessories for air recirculation mode ..... 11

Additional information on products, accessories, replacement parts and services can be found at www.neff-international.com and in the online shop www.neff-eshop.com

Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.

This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improper use or incorrect operation.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

Warning – Danger of suffocation!

Packaging material is dangerous to children. Never allow children to play with packaging material.

⚠ Warning – Danger of death!

Risk of poisoning from flue gases that are drawn back in.

Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.

Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney). In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space.

■ Adequate incoming air must therefore always be ensured.
■ An incoming/exhaust air wall box alone will not ensure compliance with the limit.

Safe operation is possible only when the partial vacuum in the place where the heat-producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means.

Simple line drawing of a house with a checkmark and airflow indicators (no text or symbols)

In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.

Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.

⚠ Warning – Risk of fire!

■ Grease deposits in the grease filter may catch fire.

Clean the grease filter at least every 2 months.

Never operate the appliance without the grease filter.

■ Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is available. There must be no flying sparks.
■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
- When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.
- Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer than 15 minutes. One large burner of more than 5 kW (wok) is equivalent to the power of two gas burners.

⚠ Warning – Risk of burns!

The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.

⚠ Warning – Risk of injury!

■ Components inside the appliance may have sharp edges. Wear protective gloves.
■ Items placed on the appliance may fall down. Do not place any objects on the appliance.
■ The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.

⚠ Warning – Risk of electric shock!

■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

Causes of damage

Caution!

Risk of damage due to corrosion. Always switch on the appliance while cooking to avoid condensation. Condensate can produce corrosion damage.

Always replace faulty bulbs to prevent the remaining bulbs from overloading.

Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.

Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.

Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.

Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).

Environmental protection

Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.

Saving energy

■ Only switch the ventilation on when necessary. You do not need to switch the ventilation on when cooking something for a short time that does not have a strong smell.
■ Select a fan setting according to what you are cooking.
■ Switch the ventilation off again after cooking.
■ Cleaning the grease filter regularly will increase the efficiency of the ventilation.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Operating modes

Exhaust air mode

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

Note: The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

■ Before conveying the exhaust air into a non-functioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible.
■ If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.

Air recirculation

The air which is drawn in is cleaned by the grease filters and an activated carbon filter, and is conveyed back into the kitchen.

Note: To bind odours in air recirculation mode, you must install an activated carbon filter. The different options for operating the appliance in air recirculation mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from customer service or from the Online Shop.

Operating the appliance

Notes

■ Press the buttons briefly to activate the various functions. The function you are trying to select will not be activated if you hold the button down for too long.
■ The appliance will emit a beep to confirm that a button has been pressed.

Note: Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.

Controls

Use the remote control to set and adjust the various different functions of your appliance.

Note: The remote control requires 23AE 12 V batteries. For information on how to insert the batteries, refer to the section entitled→ "Cleaning and maintenance" on page 8

Note: Heat and penetrating moisture may damage the remote control. Never expose the remote control to intense heat or moisture.

Remote control

Operating buttons

Explanation
	Light on/off/dimming
	Intermittent ventilation
	Fan run-on
+	Increase fan setting
-	Decrease fan setting

Connecting the remote control to the appliance

If the appliance cannot be operated with the remote control, e.g. after the battery has been changed, the connection between the remote control and the appliance must be re-established.

1. Press and hold the + button.
2. Attach the appliance to the mains voltage. A long audible signal sounds. The remote control has been connected to the appliance.

Note: If no audible signal sounds within 30 seconds, repeat this procedure.

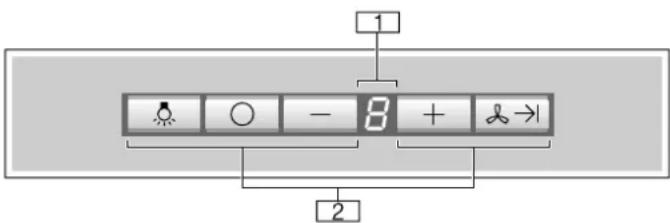

Extractor hood's control panel

Fan settings display

Operating buttons

Operating buttons

Explanation
	Light on/off/dimming
	Switch the extractor hood on and off
-	Decrease fan setting
+	Increase fan setting
	Fan run-on

Setting the fan

Note: Always adjust the setting according to the current conditions. To eliminate strong cooking smells, select a high fan setting.

Switching on

1. Press the + button.
   The fan will start at fan setting 2.
2. Press the + or - button to set a different fan setting.

Note: The appliance has three fan settings and an intensive setting. To set the lowest setting, press — once. If you press it more than once, the appliance will switch off again.

Switching off

Press the — button until the appliance switches off. or press the ○ button.

Intensive setting

You can use the intensive setting if there is a large build-up of odours and fumes/vapours.

Press and hold the + button until P appears in the fan settings display.

Note: Intensive mode runs for four minutes. Once this time has elapsed, the appliance will switch back to fan setting 2.

Intermittent mode

Intermittent mode automatically switches on the extractor hood for 10 minutes every hour. The function switches itself off again after 24 hours.

This function can be activated from the control panel or using the remote control.

Note: If intensive mode or the run-on function has been activated, the intermittent function will not be available.

Switching on intermittent mode from the control panel

1. Press the ○ and + buttons at the same time. I will appear on the display.
2. Press the + or - button to set a different fan setting.
3. Press the and + buttons at the same time to confirm the fan setting for intermittent mode.

Switching on intermittent mode using the remote control

1. Press the ⏻ button. I will appear on the display.
2. Press the + or - button to set a different fan setting.
3. Press the ⏻ button to confirm the fan setting for intermittent mode

Note: Pressing any of the buttons (except the button for the light) will deactivate intermittent mode.

Run-on function

The run-on function allows the extractor hood to continue running for a few minutes after it has been switched off. This eliminates any remaining cooking smells. The extractor hood will then switch itself off automatically.

Switching on

Note: If intensive mode has been activated, the run-on function will not be available.

Press the ⚙→| button on the control panel or the ⏻ button on the remote control.

The fan will run for 10 minutes at setting 1 and a dot will flash on the display during this time. Then the fan will switch itself off automatically.

Switching off

Press the ○ or ⚙→| button on the control panel or the ⏻ button on the remote control for the extractor hood.

This will deactivate the run-on function immediately.

Lighting

Press the ⚙ button on the control panel or the ⚙ button on the remote control.

Saturation signal

The following will happen when the filters are saturated:

■ The symbol appears in the display: Clean the metal grease filter
■ The ℓ symbol appears in the display and a signal sounds: Replace the activated charcoal filter

See the "CleanAir air recirculation module" printed supplement or the section entitled→ "Cleaning and maintenance" on page 8

Resetting the saturation signal

When the fan is switched off, the signal is also switched off.

The relevant filter(s) should be cleaned now if you have not already done so.

Switching over the appliance to air recirculation

1. Switch off the appliance.
2. Press the and ♂ buttons on the control panel at the same time until the indicator lights up. Then release the buttons.

The indicator will go out shortly afterwards. The electronic controller has now been switched over to air recirculation mode.

Switching over the appliance to air extraction

Note: The default setting is air extraction mode.

1. Switch off the appliance.
2. Press the ○ and ⚙→| buttons on the control panel at the same time until the ≡ indicator lights up. Then release the buttons.

The indicator will go out shortly afterwards. The electronic controller has now been switched over to air extraction mode.

Cleaning and maintenance

Warning – Risk of burns!

The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.

Warning – Risk of electric shock!

Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.

Warning – Risk of electric shock!

Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

Warning – Risk of injury!

Components inside the appliance may have sharp edges. Wear protective gloves.

Cleaning agents

To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Do not use any of the following:

■ Harsh or abrasive cleaning agents,
■ Cleaning agents with a high alcohol content,
■ Hard scouring pads or cleaning sponges,
■ High-pressure cleaners or steam cleaners.

Wash new sponge cloths thoroughly before use.

Follow all instructions and warnings included with the cleaning agents.

Area Cleaning agent

Stainless steel Hot soapy water:
	Clean with a dish cloth and then dry with a soft cloth.
	Clean stainless steel surfaces in the grind direction only.
	Special stainless steel cleaning products are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth.
Painted surfaces	Hot soapy water:
	Clean using a damp dish cloth and dry with a soft cloth/towel.
	Do not use any stainless steel cleaners.
Aluminium and plastic	Glass cleaner:
	Clean with a soft cloth.
Glass Glass cleaner:
		Clean with a soft cloth. Do not use a glass scraper.
Controls Hot soapy water:
		Clean using a damp dish cloth and dry with a soft cloth/towel.
		Risk of electric shock caused by penetrating moisture.
		Risk of damage to the electronics from penetrating moisture. Never clean operating controls with a wet cloth.
		Do not use any stainless steel cleaners.

Cleaning the metal mesh grease filters

These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.

Warning – Risk of fire!

Grease deposits in the grease filter may catch fire.

Clean the grease filter at least every 2 months.

Never operate the appliance without the grease filter.

Notes

■ Do not use any aggressive, acidic or alkaline cleaning agents.
■ When cleaning the metal mesh grease filters, also clean the holder for the metal mesh grease filters in the appliance using a damp cloth.
■ The metal mesh grease filters can be cleaned in the dishwasher or by hand.

By hand:

Note: You can use a special grease solvent for stubborn dirt. It can be ordered via the Online Shop.

■ Soak the metal mesh grease filters in a hot soapy solution.
■ Clean the filters with a brush and then rinse them thoroughly.
■ Leave the metal mesh grease filters to drain.

In the dishwasher:

Note: If the metal mesh grease filters are cleaned in the dishwasher, slight discolouration may occur. This has no effect on the function of the metal mesh grease filters.

■ Do not clean heavily soiled metal mesh grease filters together with utensils.
■ Place the metal mesh grease filters loosely in the dishwasher. The metal mesh grease filters must not be wedged in.

Removing metal grease filter

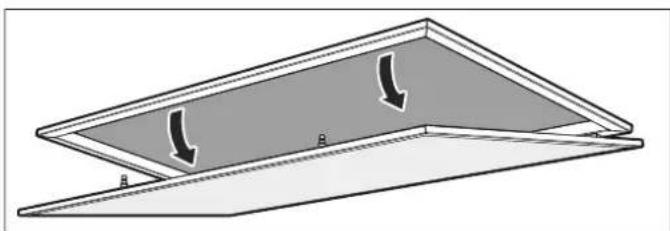

1. Open the filter cover by pulling it downwards.

Notes

• The filter cover is heavy. Hold the filter cover with both hands.
• Open the filter cover slowly and carefully.

Diagram of a folded panel or tray with two curved arrows indicating direction, no text or symbols present.

1. Press the lock on the metal grease filters.

Note: To avoid causing damage, do not bend the metal grease filter.

Simple line drawing of a door frame with an arrow indicating upward motion (no text or symbols)

1. Take the metal grease filter out of the holder.
   Note: Fat may accumulate in the bottom of the metal grease filter. Hold the metal grease filter level to prevent fat from dripping out.
2. Clean the appliance from the inside.
3. Clean the metal grease filter and let it dry before refitting it.

Installing the metal mesh grease filter

1. Insert metal grease filter.
   While doing this, place your other hand under the metal grease filter.
2. Fold up metal grease filter and engage the lock.
3. Close the filter cover upwards.
   Note: Ensure that the filter cover lock engages correctly.

Replacing the batteries in the remote control

Exploded view diagram of a mechanical assembly with mounting holes and a cylindrical component (no text or symbols)

1. Undo screws.
2. Remove cover.
3. Remove the batteries.
4. Correctly insert the new batteries (23AE 12 V).
5. Dispose of flat or faulty batteries according to local regulations.

Note: Do not dispose of batteries in general household waste.

Trouble shooting

Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.

Warning

Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

LED lights

Defective LED lights must only be replaced by the manufacturer, their customer service department or a licensed technician (electrician).

Malfunction table

Fault Possible cause Solution
The appliance does not work	The plug is not plugged into the mains	Connect the appliance to the power supply
	Power cut Check whether other kitchen appliances are working
	The fuse is faulty Check in the fuse box to make sure that the fuse for the appliance is in working order
The lighting is not working	The LED lights are defective	Call the after-sales service
The symbol appears in the display and a signal sounds.	The activated charcoal filter is saturated.	Replace the filter; see the "CleanAir air recirculation module" printed supplement
The remote control is not working	The battery is flat	Replace the batteries in the remote control.→ "Cleaning and maintenance" on page 8
The appliance is not responding to the remote control	The remote control is not connected to the appliance	Connect the remote control to the appliance.→ "Cleaning and maintenance" on page 8

Customer service

When calling us, please quote the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate bearing these numbers can be found on the fan module.

You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.

E no. FD no.

After-sales service

Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice GB 0344 892 8989

Calls charged at local or mobile rate.

IE 01450 2655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

Accessories for air recirculation mode

(not supplied)

Technical drawing of a mechanical component with two views: top shows a cylindrical housing, bottom shows a rectangular base (no text or symbols)

Blurred image of a person in formal attire, no visible text or symbols

Register your product online

www.neff-international.com

Constructa Neff

Vertriebs-GmbH

Carl-Wery-Straße 34

D-81739 München

9001255380

970412
