SK28020N - Kettle SWAN - Free user manual and instructions

Product Type	Electric Kettle
Brand	Swan
Model	SK28020N (all colours)
Colour	Various (stainless steel with black handle)
Input Voltage	220-240V
Frequency	50Hz
Power Consumption	1850-2200 Watts
Capacity	1.7 litres (estimated)
Dimensions (approx)	24 x 18 x 21 cm (estimated)
Weight (approx)	1.2 kg (estimated)
Material	Stainless steel body, plastic handle and lid
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Concealed Heating Element	Yes (standard)
Water Gauge	Yes, with MIN and MAX lines
Lid Type	Locking lid
Power Cord Length	Approx 0.8 m (estimated)
Base Type	3-prong plug (UK)
Cleaning / Maintenance	Descale regularly; wipe exterior with mild detergent
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Warranty	2 years (UK and Eire only)
Included Accessories	Kettle and base only

Frequently Asked Questions - SK28020N SWAN

How do I use the Swan SK28020N kettle for the first time?

Remove all packaging, fill the kettle with water to the MAX level, boil, and discard the water. This removes any manufacturing residues. Then fill again and use as normal.

What is the capacity of the Swan SK28020N kettle?

The kettle has a capacity of approximately 1.7 litres, enough for about 7 cups of tea.

How do I descale the kettle?

Use a commercial descaling product (tablets, powder, or liquid) following the manufacturer's instructions. Alternatively, use a mixture of vinegar and water. Rinse thoroughly after descaling.

Can I immerse the kettle in water for cleaning?

No, never immerse the kettle, base, or power cord in water or any liquid. Wipe the exterior with a soft, damp cloth and mild detergent.

What safety features does the kettle have?

The kettle has auto shut-off when the water boils and boil-dry protection to prevent damage if operated without water.

What should I do if the kettle stops working?

Check that it is plugged in and the power switch is pressed. If it still doesn't work, contact an authorised service agent. Do not attempt to repair it yourself.

What is the warranty period for the Swan SK28020N?

The kettle comes with a 2-year guarantee from the date of purchase, valid in the UK and Eire. It covers faulty materials or workmanship, not wear and tear or misuse.

Can I use the kettle with an extension cord?

Extension cords are not recommended. If necessary, use a cord rated for the appliance's power (1850-2200W) and place it safely to avoid tripping.

What type of plug does the kettle have?

The kettle is supplied with a UK 13 Amp plug that must be earthed. For other countries, use a suitable adaptor and consult a qualified electrician.

How do I dispose of the kettle at the end of its life?

Do not dispose of it with household waste. Take it to a local Civic Amenity site for recycling. Visit www.recycle-more.co.uk or www.recyclenow.co.uk for information.

USER MANUAL SK28020N SWAN

Dome Kettle

Model: SK28020 (all colours)

Helpline

01733 404703

v1.1

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
- Incorrect operation and improper use can damage the appliance and cause injury to the user.
- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
- Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
• Never immerse the unit in water or any other liquid for cleaning purposes.
- Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.
- The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
- Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
- Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
- Do not use the appliance on a gas or electric cooking top or over or near an open flame.
- Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
- This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

• Do not carry the appliance by the power cord.
- Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
• Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
- Ensure that the unit is switched off after use.
- The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
- In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
- Your appliance must never be switched on through an external timer or any kind of separate remote control system
- This appliance is intended to be used in household and similar applications such as: staff kitchen areas, in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments
• DO NOT IMMERSE IN WATER

TECHNICAL DATA

Description: Dome Kettle

Model: SK28020 (all colours)

Input Voltage: 220-240V

Frequency: 50Hz

Power consumption: 1850-2200 Watts

Swan

Swan

HOW TO USE

Before first use

Remove all packaging

It is important to ensure the correct plug adaptor is used when operating in a country not using the UK 13 Amp socket system. If in doubt, consult a qualified electrician.

Fill the kettle with water via the spout. You can also fill the kettle by lifting the locking lid. Ensure the lid is firmly closed after filling.

Check that the water level is between the MIN and MAX lines on the water gauge.

PLEASE DO NOT OVERFILL THE KETTLE PAST THE MAX LEVEL. DOING SO POSES A SCALDING RISK.

Place the kettle on its base, Connect the plug to the mains supply and press the power switch down

The kettle will switch itself off once the water has boiled

If this is the first time you have used the kettle, discard the water from the first boiling.

CLEANING & MAINTENANCE

This product requires very little maintenance. However, if you live in a hard water area, it will be necessary to de-scale the kettle from time to time.

Most supermarkets sell de-scaling tablets, powders or liquids.

These are inexpensive, easy to use and perfect for ensuring your kettle provides many years of faithful service.

An excessive build up of limescale will damage your kettle and increase the boiling time/electricity consumption!

For cleaning external surfaces, a soft cloth moistened with a mild detergent solution is all that is required.

DO NOT USE ABRASIVE OR STRONG CHEMICAL CLEANERS DO NOT IMMERSE ANY PART OF THE PRODUCT IN WATER

ALWAYS ENSURE THE PRODUCT IS UNPLUGGED FROM THE MAINS SUPPLY AND COMPLETELY COOL BEFORE CLEANING.

Swan

Swan

DOCUMENTATION

We Swan Products Ltd declare that this product conforms to the following product legislation in accordance with the following directive(s):

2004/108/EEC The EMC Directive (the Electromagnetic Compatibility Directive). 2006/95EC. The LVD Directive (Low Voltage Directive).

2011-65 EU. The RoHS directive (Restriction of Hazardous Substances Directive) EC 1935/2004 Food Contact

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
- The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or [earth symbol] and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

Swan

5K28020_IM.ind 6-7 06/11/2014 11:39

DISPOSAL OF UNIT

Appliances bearing the symbol shown. Here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-mone.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in

August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

SWAN BRAND HERITAGE

Did you know...

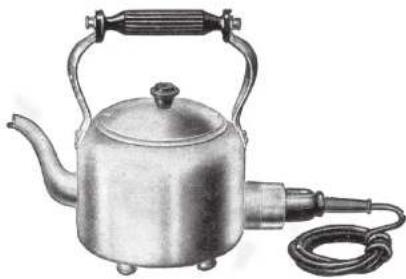

In 1933 Swan were the first to develop an electric heating element that could be immersed in water. This led to the Swan kettle range that could boil up to six pints of water in just over nine minutes - pretty hot for the time! These days it takes about two minutes for a Swan kettle to boil.

Swan

www.swan-brand.co.uk

Scan this QR code to hear about our story

We love what we do

we're proud of our quality

Find us on Facebook

Copyright © Swan Products Ltd. PO Box 3117, Stoke-on-Trent ST4 9GD
