SK34030TEN - Kettle SWAN - Free user manual and instructions

Product Type	Electric Jug Kettle
Brand	Fearne by Swan
Model	SK34030TEN (Truffle colour)
Capacity	1.7 litres
Power Rating	3000W
Voltage / Frequency	220-240V ~ 50/60Hz
Dimensions (approx.)	Height: 23 cm, Width: 22 cm, Depth: 15 cm
Weight (approx.)	1.2 kg
Material	Plastic body with stainless steel heating element
Colours Available	Pale Honey, Lily, Peacock, Truffle
Cord Length	Approximately 0.75 m
Auto Shut-Off	Yes, when water reaches boiling point
Boil-Dry Protection	Yes, automatic shut-off if insufficient water
Water Level Indicator	Yes, on side of kettle
Removable Filter	Yes, to prevent scale in drinks
360° Rotation Base	Yes (cordless serving)
Safety Features	Boil-dry protection, auto shut-off, cool-touch handle
Cleaning Instructions	Descale periodically; wipe exterior with damp cloth; do not immerse
Warranty	2 years from date of original purchase (UK & Eire only)
Spare Parts	Filter (SK34030TEN006) and others available

Frequently Asked Questions - SK34030TEN SWAN

How do I use the kettle for the first time?

Fill the kettle to the max mark with water, boil, then discard the water and rinse with cold water before first use.

What is the maximum water level?

Do not fill above the bottom of the MAX mark on the water level indicator. Overfilling may cause boiling water to spill.

Why does the kettle turn off before boiling?

This may be due to insufficient water (boil-dry protection). Ensure at least one cup of water is used. Also check the lid is closed properly.

How do I descale the kettle?

Use a descaling product (tablets, powder, or liquid) available at supermarkets. Follow the product instructions. Descaling removes limescale and maintains efficiency.

Can I open the lid while water is boiling?

No, do not open the lid while water is boiling to avoid steam burns. Wait until the kettle has switched off and cooled.

What does the boil-dry protection do?

If the kettle is accidentally switched on without enough water, a boil-dry device automatically shuts it off. Wait for the kettle to cool before refilling.

How do I clean the filter?

Remove the filter and rinse under running water. Clean with a soft brush if necessary. Reinsert when dry. Clean whenever deposits are visible.

Is the kettle suitable for all voltage systems?

The kettle is designed for 220-240V ~50/60Hz. Check your local voltage matches the rating label before plugging in.

What does the 2-year warranty cover?

The warranty covers defects due to faulty materials or workmanship from the date of original purchase. It does not cover wear and tear, misuse, or consumable parts. Proof of purchase required.

Can I use the kettle with the power base from another model?

No, use only the power base supplied with this kettle. Mismatched bases may cause safety hazards or improper operation.

USER MANUAL SK34030TEN SWAN

PEACOCK

Team by Swan

PALE HONEY

1.7 LITRE

JUG KETTLE CARE & USE INSTRUCTIONS

Model: SK34030 (all colours)

FEATURING TEN DELICIOUS FAVOURITES

We love what we do

We're proud of our quality

www.fearnebyswan.co.uk

LILY

"Breakfast is the most important meal of the day for me. If I didn't eat it, I'd feel rotten and start the day off on the wrong foot.

Mornings can be very busy with a lot of rushing around so making things as organised and slick as possible is key."

"it also has the added benefit of looking gorgeous"
Fearn

PEACOCK

PALE HONEY

Team by Swan

1.7 LITRE JUG KETTLE CARE & USE INSTRUCTIONS

IMPORTANT SAFEGUARDS 04

WHAT'S IN THE BOX 05

HOW TO USE 06

CLEANING & MAINTENANCE 07

WARRANTY 08

BS PLUG 08

TECHNICAL INFORMATION 09

SPARE PARTS 09

DELICIOUS FAVOURITES 10

AFFIX YOUR RECEIPT 22

DISPOSAL OF THE PRODUCT 22

TRUFFLE

LILY

IMPORTANT SAFEGUARDS

When using your Fearne by Swan 1.7 Litre jug kettle especially when children are present, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. To protect against electrical shock, do not immerse the plug or the power base in water or other liquids.
3. Unplug the power base from the wall socket when not in use, before repositioning and before cleaning. Allow the kettle to cool down fully before cleaning and before storing away.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Do not use outdoors.
6. Do not let the cord hang over the edge of the table/counter or touch hot surfaces.
7. Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.
8. Do not touch hot surfaces of the kettle. Always use the handle.
9. Do not open the lid while the water is boiling.
10. Take care when pouring. Pour slowly, and do not overfill the kettle.
11. Ensure that the lid is closed before switching the kettle on, otherwise it may not automatically switch off.
12. Check that the kettle is properly located on the power base before switching it on.
13. Do not switch on unless the kettle is filled to the min level.
14. Do not fill above the bottom of the max mark on the water level indicator.
15. Remove the kettle from its power base before filling or pouring.
16. Do not place the kettle, power base or mains lead on or near any hot surface, hotplate, hot hob or burner.

17. Do not use the kettle for any purpose other than heating water.

18. Use the kettle only with power base supplied (and vice versa).

19. Always disconnect the appliance from the supply if it's left unattended.
20. Please handle with care to avoid injury, never misuse the appliance.
21. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
22. Water can remain hot for a considerable time after boiling and can present a scald hazard. Keep the kettle, the power base, and the mains lead away from the edge of worktops and out of the reach of children.

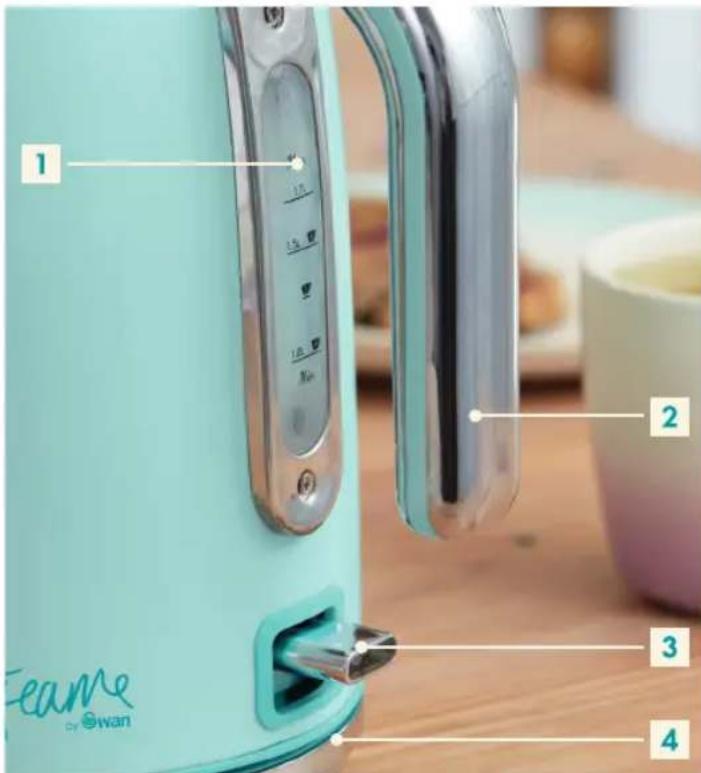

WHAT'S IN THE BOX

1. Water level indicator
2. Handle

3. On / Off switch

4. Power base

5. Lid

6. Filter

7. Main kettle body

8. Spout

HOW TO USE THE JUG KETTLE

Before using the kettle for the first time, fill to the max mark and boil, then discard the boiled water and rinse the kettle out with cold water.

1. Position the power base as close to a wall socket as possible.
2. Remove the kettle from the power base. If the switch has been pushed down inadvertently, it will spring up, into the "OFF" position.
3. Caution: If water inside the kettle has just boiled, it will be full of steam, which will escape as soon as the lid is opened.

4. Open the lid and fill the kettle via the lid aperture. Watch the level in the water level indicator. You must use at least one cup of water, but the water level must be below the max mark.

5. Caution: Do not overfill the kettle.

6. Close the lid. Checking that it is fully closed.

7. Check that the switch is in the "OFF" position before plugging the power base into the wall socket. Gently position the kettle on the power base, and switch on the wall socket.

8. Press the switch down. The switch will light up, and the kettle will start to heat up.

9. When the water has boiled the kettle will switch off automatically, the switch will return to the "OFF" position and the light will go out.

10. To avoid the risk of splashing, pour slowly and do not over-tilt the kettle.

11. If you need to switch the kettle off at any time before the water boils, simply lift it from the power base and set it down again. The switch will pop up, into the "OFF" position.

IMPORTANT SAFETY NOTES

When you lift the kettle from the base, you may see moisture on the surface of the base. This is the steam used to switch the kettle off automatically, which then condenses and is allowed to escape via vents in the underside of the kettle, do not lift it backwards, as this may allow water to pass through the steam aperture on to the control area.

Should this occur, the kettle must be allowed to dry before use.

Caution: If the kettle is accidentally switched on when it does not contain sufficient water, a boil-dry device will automatically switch it off. Wait until the kettle has cooled down before filling, as the element will be hot and spitting may occur.

CLEANING & MAINTENANCE

It will be necessary to de-scale the kettle from time to time. Limescale deposits in water will build up inside the kettle and stick to the internal surfaces. This will reduce the efficiency of the kettle, damage the seals, interfere with the quiet boil function and in extreme cases, void your warranty.

Most supermarkets sell de-scaling tablets, powders or liquids.

These are inexpensive, easy to use and perfect for ensuring your kettle provides many years of faithful service.

For cleaning external surfaces, a soft cloth moistened with a mild detergent solution is all that is required.

DO NOT USE ABRASIVE OR STRONG CHEMICAL CLEANERS DO NOT IMMERSE ANY PART OF THE PRODUCT IN WATER

ALWAYS ENSURE THE PRODUCT IS UNPLUGGED FROM THE MAINS SUPPLY AND COMPLETELY COOL BEFORE CLEANING.

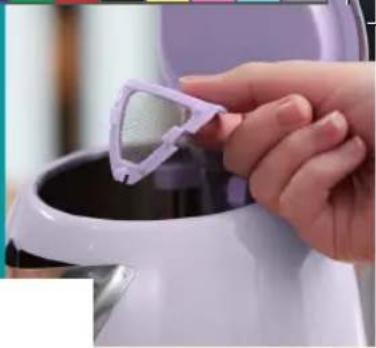

WATER FILTER

Scale particles that remain in the water may give it a cloudy or greasy appearance. The filter fitted to your kettle will prevent these parties passing into your drink. Ensure the filter is kept clean and clear of deposits otherwise the performance of your kettle may be affected and your drinks may contain scale particles. You should clean the filter whenever there are any noticeable deposits left on it, and especially if pouring is affected in any way.

2 YEAR WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

1. The product must be returned to the retailer with proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this instruction guide.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, damage, misuse or consumable parts.
5. Swan Products Ltd has limited liability for incidental or consequential loss or damage.
6. This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE......NEUTRAL

BROWN......LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

TECHNICAL INFORMATION

Model: SK34030

220-240V \~50/60Hz 3000W

Distributed by Swan Products Ltd,

PO Box 3117, Stoke-on-Trent, ST4 9GD

© 2017 Swan Products Ltd

Made in China

SPARE PARTS

When ordering spare parts, please use the references below:

SK34030HON006

Filter (Pale honey)

SK34030LYN006

Filter (Lily)

SK34030PKN006

Filter (Peacock)

SK34030TEN006

Filter(Truffle)

"I get loads out of making food! The whole process brings me joy. From chopping, mixing, just that whole lovely cathartic process and then the best bit, eating it."

Feame

MAKES 1 JAR OF 240g

CASHEW AND PECAN BUTTER

INGREDIENTS

150g raw unsalted cashew nuts 100g raw pecan nuts Sea salt

PREP TIME: 10 MINS PLUS COOLING TIME

METHOD

Preheat the oven to 180°C / 160°C fan / 350°F / gas mark 4.

Spread the nuts out on a baking tray and roast in the oven for 6-7 minutes, or until a shade darker and aromatic, taking care not to let them burn. Once roasted, remove the nuts and leave to cool completely.

Add the cooled nuts into the Fearne by Swan food processor and blitz until the nuts transform into a creamy smooth butter. Depending on the strength of your processor, this can take anything from 3 – 6 minutes, as the natural oils within the nuts slowly release, aiding the process. Add in a good pinch of salt to taste and blitz to combine.

Transfer to an airtight container.

SERVES 4

BEETROOT DIP WITH CARROT AND RED PEPPER

INGREDIENTS

5 raw beetroot

3 tbsp Greek or soy yoghurt

2 tbsp tahini

Juice and zest of half a lemon

2 tbsp extra virgin olive oil, plus more to serve

1 tsp fresh thyme leaves

Sea salt and pepper

1 tbsp coriander leaves, to serve

Carrot and red pepper batons, to serve

PREP TIME: 15 MINS

COOKING TIME: 60 MINS

METHOD

Preheat the oven to 200°C / 180°C fan / gas mark 6.

Wrap the beetroot in foil and roast for 50 - 60 minutes until completely tender. Remove, peel off the skin and leave to cool completely.

Add the cooled beetroot to the Fearne by Swan food processor together with the yoghurt, tahini, lemon zest and juice, olive oil and thyme and blitz until smooth. Season to taste with salt and pepper. Thin with one tablespoon of water at a time until you reach your desired consistency.

Serve with the coriander leaves and olive oil drizzled over and the carrot and red pepper batons to dip into.

Fearne By Swan

SERVES 4

SWEET POTATO HUMMUS

INGREDIENTS

1 large sweet potato

1 x 400g tin chickpeas, drained and rinsed

2 garlic cloves, peeled 100g tahini

Zest and juice of half a lemon

3 tbsp extra virgin olive oil, plus extra to drizzle over

1/2 tsp ground cumin, plus extra to sprinkle over

1/2 tsp ground coriander

1 tsp sea salt

1 tbsp flat leaf parsley leaves, roughly chopped

PREP TIME: 15 MINS

COOKING TIME: 45 MINS

METHOD

Preheat the oven to 200°C / 180°C fan / gas mark 6.

Wrap the sweet potato in foil and roast for 40 – 50 minutes until completely tender. Remove, cut in half lengthways, scoop out the flesh and leave to cool completely. Discard the skin.

In the Fearne by Swan food processor blitz together the sweet potato flesh and the remaining ingredients, apart from the parsley, until completely smooth. Thin with one tablespoon of water at a time until you reach your desired consistency.

Taste and adjust the seasoning if necessary with a little more salt. Serve in a bowl with a little ground cumin and parsley scattered over and some olive oil drizzled on top.

Fearne By Swan

SERVES 4

LENTIL WINTER WARMER SOUP

INGREDIENTS

1 tbsp olive oil
2 onions, finely chopped
2 tsp ground cumin
4 garlic cloves, crushed
1 litre vegetable stock
2 potatoes, diced
1 carrot, peeled and diced
200g baby plum tomatoes
120g red lentils
Sea salt and pepper
1 tbsp extra virgin olive oil
1 tbsp flat leaf parsley,
roughly chopped

PREP TIME: 10 MINS

COOKING TIME: 40 MINS

METHOD

Put the oil into a large pot set over a medium heat. Add in the onion and cumin and sauté for 5 minutes. Add in the garlic and sweat out for another 5 minutes until the onion is translucent. Season well with salt and pepper.

Add in the stock, potato, carrot, tomatoes and lentils and bring to a boil. Skim off any foam that rises to the surface. Reduce the heat and simmer for 30 - 35 minutes until the vegetables and lentils are cooked through. Taste and adjust the seasoning with salt and pepper if necessary. This will depend on the quantity of salt in the vegetable stock you used, so make sure to add a little at a time, tasting as you go.

Using the Fearne by Swan 3-in-1 stick blender, process the soup until completely smooth. Divide between bowls, drizzle over a little extra virgin olive oil and scatter with parsley.

Serve immediately with flaked almonds and a little sea salt.

1.7 LITRE JUG KETTLE CARE & USE INSTRUCTIONS

MAKES 16

CORN FRITTERS WITH HONEY YOGHURT

INGREDIENTS

120g white spelt flour

1/2 tsp baking powder

100ml milk

1 egg, lightly beaten

100g onion, very finely chopped

400g corn, drained and rinsed

15g parsley, finely chopped

20g mint, finely chopped

1.5 tsp ground cumin

Sea salt and pepper

Olive or vegetable oil to fry

250g Greek yoghurt

2 tbsp honey

PREP TIME: 15 MINS

COOKING TIME: 10 MINS

METHOD

Place the flour and baking powder in a large bowl, using either the Fearne by Swan hand mixer or stand mixer slowly whisk in the milk and beaten egg, until well combined with no lumps. Add in the onion, corn, parsley, half the chopped mint, ground cumin, 1 tsp sea salt and a few grindings of black pepper. Stir everything together to combine.

Place 1 tbsp of olive or vegetable oil in a large, non-stick frying pan and set over a medium-high heat. Once hot, add on 2 level tbsp's of batter for each fritter and flatten into little rounds. Fry in batches, without over crowding the pan, for about 3 minutes on each side, until they are golden brown and cooked through.

Combine together the yoghurt, honey and remaining mint and season with salt and pepper. Plate up a little stack of fritters (about 4 per person) and serve with the yoghurt on the side for dipping into.

SERVES 8 - 10

SPELT AND SEED LOAF

INGREDIENTS

500g wholegrain spelt flour

1 tsp baking powder

1 tsp bicarbonate of soda

1 tsp sea salt

100g sunflower seeds

20g chia seeds

60g raisins

1 tbsp maple syrup

550ml tepid water

PREP TIME: 5 MINS

COOKING TIME: 60 MINS

METHOD

Preheat the oven to 200° C / 180° C fan / 400° F / gas mark 6. Lightly grease a 1kg loaf tin and line with baking parchment.

Add all the dry ingredients to the bowl of the Fearne by Swan stand mixer fitted with a dough hook, and mix everything together on a low speed. Add in the maple syrup and water and mix on a slightly higher speed until just combined.

Pour into the loaf tin and bake in the oven for 50 minutes, then carefully remove the loaf from its tin and continue to bake for a further 10 minutes.

Remove the loaf from the oven and leave to cool. Once cool cut into slices and enjoy with butter or coconut oil and jam.

Fearne By Swan

SERVES 8 - 10

NUT & SEED ENERGY BAR

INGREDIENTS

300g dark chocolate, min 70%
130g jumbo oats
130g raw cashew nuts
200g pitted dates
4 tbsp brown rice syrup
60g almond, cashew or peanut butter
3 tbsp pumpkin seeds
3 tbsp sunflower seeds
2 tbsp linseeds
3 tbsp coconut oil, melted

EQUIPMENT

24cm x 16cm baking tray or Tupperware box, lined with cling film.

PREP TIME: 15 MINS

PLUS COOLING TIME

METHOD

Preheat the oven to 180° C / 160° C fan / 350° F / gas mark 4.

Roast the oats and cashew nuts for 8 - 10 minutes until a shade darker and aromatic. Remove and leave to cool completely.

Place the dates, brown rice syrup and almond butter into the Fearne by Swan food processor and process down to a paste.

Add in the oats, cashew nuts, seeds and melted coconut oil and pulse on and off until the nuts and seeds are roughly chopped and all the mixture has come together.

Transfer the mixture to the lined baking tray and flatten out with the back of a wet spoon until well compacted and smooth. Cover and refrigerate for 2 hours or until very well chilled.

When ready to serve, slice into bars. Store in an airtight container for up to a week.

SERVES 8 - 10

BANANA BREAD

INGREDIENTS

120g coconut oil or unsalted butter, at room temperature

200g coconut palm sugar

2 eggs, beaten

4 very ripe bananas, peeled and mashed with a fork

2 tbsp rice milk

350g white or wholegrain spelt flour

1/2 tsp fine sea salt

1 tsp baking powder

1 tsp bicarbonate of soda

60g walnuts, roughly chopped

PREP TIME: 15 MINS

COOKING TIME: 70 MINS

METHOD

Preheat the oven to 180° C / 160° C fan / 350° F / gas mark 4. Grease a 20cm x 10cm loaf tin and line with baking parchment.

In the bowl of the Fearne by Swan stand mixer fitted with a paddle beater, cream together the coconut oil or butter and sugar until light and fluffy, then gradually beat in the eggs, mashed banana and milk until well combined.

In another bowl combine together the remaining ingredients. Gradually mix this in, until it has just come together.

Transfer the mixture to the lined loaf tin and bake for about 55-65 minutes, until a skewer comes out clean. If the top is browning too quickly, cover with tinfoil. Cool in the tin for 10 minutes, then turn out onto a wire rack to cool completely. Serve in slices as it is, or with a little butter.

1.7 LITRE JUG KETTLE CARE & USE INSTRUCTIONS

SERVES 12

CHOCOLATE AND ALMOND CAKE

INGREDIENTS

300g dark chocolate, min 70% cocoa solids

225g coconut oil or unsalted butter

100g pitted medjool dates 6 eggs

100g ground almonds

200g coconut palm sugar

1 tsp vanilla extract

1/4 tsp sea salt, plus extra to serve

Cocoa powder to dust

2 tbsp flaked almonds

PREP TIME: 15 MINS

COOKING TIME: 45 MINS

METHOD

Preheat the oven to 160° C / 140° C fan / gas mark 3 and grease and line a 22cm round spring form tin.

Melt 250g of the chocolate and coconut oil or butter in a heatproof bowl over barely simmering water.

Meanwhile, add the medjool dates and 2 of the eggs to the Fearne by Swan food processor and blitz until the dates are very finely chopped, transfer to the bowl of the Fearne by Swan stand mixer with a whisk attachment.

Whisk in the remaining 4 eggs, ground almonds, coconut palm sugar, vanilla and salt. Increase the speed to high and whisk in the melted chocolate and coconut oil until everything has come together, resulting in a thick, shiny mixture.

Pour the mixture into the cake tin and bake for 35-45 minutes, or until the cake is set but with a little wobble in the centre. Cover with foil if the top is browning too quickly. Leave the cake to cool completely, then remove from the tin.

To serve, dust the cake with cocoa powder and sprinkle over the flaked almonds and a little sea salt.

MAKES 8 - 10

BLUEBERRY SCONES

INGREDIENTS

350g white spelt flour, plus extra for rolling

1/2 tsp sea salt

1 tsp baking powder

1 tsp bicarbonate of soda

90g coconut oil

or unsalted butter

150g blueberries

50ml maple syrup

120ml rice milk

1/2 tsp apple cider vinegar

1 tsp vanilla extract

1 egg, beaten

TO SERVE

Salted butter or coconut oil Jam or almond butter

EQUIPMENT

5cm plain or fluted pastry cutter

PREP TIME: 15 MINS

METHOD

Preheat the oven to 220° C / 200° C fan / gas mark 7 and line a baking tray with parchment paper.

In a bowl combine together the flour, salt, baking powder and bicarbonate of soda. Rub in the butter or coconut oil until it looks like breadcrumbs. Stir in the blueberries.

In a separate bowl combine together the maple syrup, rice milk, apple cider vinegar and vanilla extract. Add the dry and wet mixture to the Fearne by Swan stand mixer fitted with a dough hook and combine together quickly. Bring the dough together into a ball using your hands.

Turn the dough out onto a heavily floured work surface and roll or pat out (with floured hands) to a thickness of about 4cm. Dip the pastry cutter into flour and stamp out as many scones as possible. Gather up the remaining dough, roll out again and stamp out the remaining scones, you should have 8-10. Arrange on the baking tray, brush the tops with beaten egg and place in the centre of the oven, bake for 15 - 18 minutes until golden brown in colour and a skewer comes out clean. Cover with foil if browning too quickly.

Remove to a wire rack and leave to cool a little. Serve warm with your favourite jam, almond butter and some coconut oil or butter. Store in an airtight container and consume within 2 days.

Fearne By Swan

Affix your store receipt for safe keeping.

We love what we do

We're proud of our quality

NOTES

The device complies with the European Directives 2014/35/EU, 2014/30/EU and 2009/125/EC.

At the end of its service life, this product may not be disposed of in the normal household waste, but rather must be disposed of at a collection point for recycling electrical and electronic devices. The materials are recyclable according to their labelling. You make an important contribution to protecting our environment by reusing, recycling or utilising old devices in other ways. Please ask the municipal administration where the appropriate disposal facility is located.

AND ALL THINGS FEARNE, GO TO:

www.fearnebyswan.co.uk

BAKE HAPPY WITH FEARNE ONLINE:

Team by Swan

www.fearnebyswan.co.uk

HELPLINE: 0333 220 6074

EMAIL: [e-mail]

Copyright © 2017

Swan Products Ltd. PO Box 3117,

Stoke-on-Trent ST4 9GD
