SR16220PN - Kettle SWAN - Free user manual and instructions

Product Type	Electric Kettle
Brand	Swan
Model	SR16220PN
Capacity	1.7 Liters
Power	220-240 V, 50/60 Hz, 2000 W
Dimensions (H x W x D)	24 x 22 x 18 cm
Weight	1.2 kg
Material	Stainless Steel Body, Plastic Lid and Handle
Heating Element	Concealed Stainless Steel
Filter	Removable Scale Filter
Auto Shut-Off	Yes, when water reaches boiling point
Boil-Dry Protection	Yes, automatically switches off if operated without water
Cord Length	0.75 m
360° Base	Yes, cordless swivel base
Illuminated Water Window	Yes, blue light indicator
Lid Opening	One-touch button for wide opening
Comfort Grip Handle	Ergonomic, cool-touch handle
Cleaning Instructions	Wipe exterior with damp cloth; descale interior regularly with vinegar or citric acid
Safety Certification	CE approved
Guarantee	1 year from date of purchase
Included Accessories	Kettle, Power Base, Instruction Manual

Frequently Asked Questions - SR16220PN SWAN

What is the capacity of the Swan SR16220PN kettle?

The Swan SR16220PN kettle has a capacity of 1.7 liters, perfect for making up to 7 cups of hot beverages.

Does the kettle have an automatic shut-off feature?

Yes, the kettle features auto shut-off that activates when the water reaches boiling point, ensuring safety and energy saving.

What type of heating element does it use?

The kettle uses a concealed stainless steel heating element, which ensures fast boiling and easy cleaning.

How do I clean the kettle?

To clean the kettle, wipe the exterior with a damp cloth. For descaling, fill the kettle with a mixture of vinegar and water or use a descaling agent, boil, and rinse thoroughly.

Is the kettle cordless?

Yes, the kettle is cordless when lifted off the base. It sits on a 360° swivel base, making it easy to pick up and place from any angle.

What is the power rating of the SR16220PN?

The kettle operates at 220-240 V, 50/60 Hz, with a power output of 2000 W for quick boiling.

Does the kettle have a water level indicator?

Yes, it features an illuminated water window with markings, allowing you to see the water level easily.

Can I use the kettle with a voltage converter?

It is recommended to use the kettle only with the specified voltage. Do not use a voltage converter as it may damage the appliance or cause safety hazards.

Is there a filter to prevent limescale in my drink?

Yes, the kettle includes a removable scale filter that traps limescale particles, ensuring cleaner water in your cup.

What should I do if the kettle boils dry?

The kettle has boil-dry protection that automatically switches it off if operated without enough water. Allow it to cool before refilling.

USER MANUAL SR16220PN SWAN

Important Safeguards

Do not connect your appliance to the electricity supply until all packing and transit protectors have been removed.

Leave to stand upright for at least 4 hours before switching on to allow compressor oil to settle

This cooler must only be used for its intended purpose i.e the storing cooling of drinks in bottles, cans or plastic containers. It is not designed for foodstuff to be in direct contact with the internal surfaces.

Do not dispose of the appliance on a fire. Your appliance contains non CFC/HFC natural substances in the cooling system and in the insulation, which are potentially flammable if exposed to fire. Therefore, take care not to damage, the cooling circuit or pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire or potential ignition source and immediately ventilate the room where the appliance is situated.

We suggest you contact your local authority for disposal information and facilities available. See installation section for information on suitable location.

On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.

Ensure that the plug remains readily accessible. Do not use multiple adaptor or extension cables

Failure to observe these instructions may invalidate your right to free service during the guarantee period.

WARNING: Ensure adequate ventilation around the appliance. Do not site close to heat sources.

Important Safeguards

WARNING: Do not damage the refrigerant circuit.

We suggest you keep these instructions in a safe place for easy reference.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The plug must be accessible after the installation.

Children should be supervised to ensure that they do not play with the appliance.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility company

This appliance should only be connected to an earthed, switched mains socket. Do not use an extension cord with this appliance

Installation Notes

It is important that upon receipt you stand your appliance upright for at least 4 hours before switching on to allow the system to settle.

1. The appliance should not be tilted more than 45 degrees when you move it. Do not use force on any part such as the condenser, the door or handle. They could distort and affect the operation of the cooler. Ensure ALL packaging is removed before installation

1. Make sure there is enough ventilation space around product

1. The appliance should not be installed near external heat sources eg direct sunshine - or external moisture sources.

Installation Notes

1. Ensure the supply voltage of socket is same as rating label.
2. The plug must be properly inserted to the wall socket.
3. The mains supply socket must be earthed - preferably with a switch. If it is not earthed, do NOT install this appliance there. Do not use an extension cord
4. The product is equipped with adjustable feet. Once the product is in place, adjust these to ensure the fridge is level and doesn't rock.

DO NOT SITE THE PRODUCT WHERE THE AMBIENT TEMPERATURE IS LIKELY TO DROP BELOW 5 DEGREES CENTIGRADE - EG: GARAGE OR SHED

First Time Use

1. It is important that upon receipt you stand your appliance upright for at least 4 hours before switching on to allow the system to settle
2. When using the cooler for the first time, set the thermostat to setting 3 or 4. When the refrigeration system starts, you will hear the quiet hum of the compressor. You may also hear the circulation of liquids and gases. This is normal on first start up, Generally it will take 2-3 hours for the appliance to reach temperature. Once temperature has been reached then put the beverages inside.

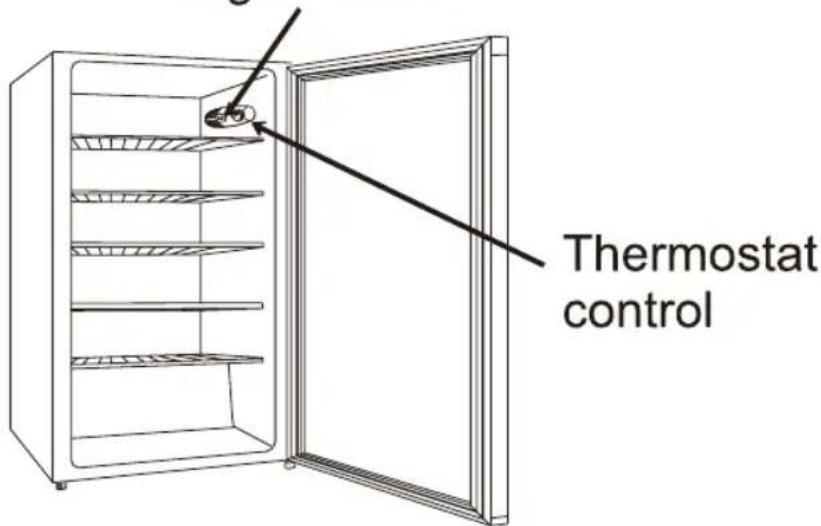

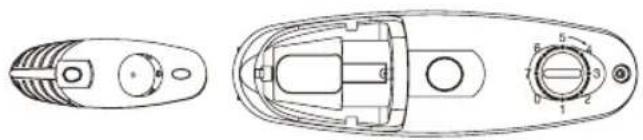

3. See below for location of thermostat and light switch on this model.

Light switch

Reversing the Door

The door of the cooler can be reversed quite easily. See the illustration below. It is best if you have a friend help you due to the weight, and to assist with alignment.

NOTE: Since reversing the door requires it to be inverted so the hinge mounts line up, it will result in your Swan logo being upside down! Contact our service line if you need to order another one. Always unplug the cooler before reversing the door.

1. Support the door from the bottom
2. Remove the 6 screws that affix the hinges and spacers to the cabinet frame
3. Place the door on a flat, padded surface to prevent scratching
4. Remove the 6 screws that affix the hinges to the door
5. Remove the blanking plugs from the opposite side and use those to plug the holes exposed by the removal of the hinge from the cabinet frame
6. Screw the hinges to the opposite side of the door
7. Pick up the door and carefully align it with the cabinet holes
8. Screw the remaining 6 screws in to both hinges and the 2 spacers into the cabinet to secure the door.

Troubleshooting

Condensation on outside of door Humidity	in the room is high. This is also to be expected if the room is very warm
Condensation on the inside of the cabinet	This is also caused by high humidity. You can minimise this by only keeping the door open only as long as you need to .
Too cold/not cold enough inside the cabinet	Adjust thermostat up or down accordingly. Make sure nothing is stopping the door from sealing properly
No power to cooler Check power cord, power supply or on/off switch

Cleaning & Maintenance

DAILY CLEANING

The outside of your refrigerator can be cleaned using a soft cloth moistened with a mild detergent solution. Wipe dry with kitchen towel.

Do not use chemical or abrasive cleaners on any part of your refrigerator as these could permanently damage or discolour the surfaces.

INTERNAL CLEANING

Wipe up any internal spills immediately with a soft cloth moistened with a mild detergent solution. Dry thoroughly.

SHELVES AND GUARDS

Any shelves can be removed and cleaned separately.

DOOR SEALS

Ensure that the door seals are kept free from debris at all times. If they don't seal properly this can waste energy and cause refrigeration unit to over run

Service and Spares

If you experience any problems at all with your cooler or require spare parts, expert help is just a phone call away!

0333 220 6050

You will need to quote the model number of your appliance to hand.

Specifications

Total capacity: 115 L

Energy A+

Dimensions: 55 x 55 x 84 cm

Climate class: N (normal)

Weight: 35.06 kg

Back plate: Metal

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN

LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recyclenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

Warranty

This product is guaranteed for one year from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty product will be repaired, refunded or replaced at our discretion.

The following conditions apply:

The product must have been purchased from new. Proof of purchase will be required The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for household and similar purposes such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

The appliance has not been altered, serviced, dismantled or otherwise interfered with by any person not authorised by Swan.

Any repair work must be undertaken by us or our appointed agent.

Any parts removed during repair work or any appliance that is replaced becomes our property. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has no liability for incidental or consequential loss or damage. Food value is NOT covered by the warranty.

This guarantee is valid in the UK and Eire Only.
