TBD913SV - Oven Tricity Bendix - Free user manual and instructions

Product Type	Double Oven (Top Oven + Main Fan Oven)
Brand / Model	Tricity Bendix TBD913SV
Dimensions (H x W x D)	897 mm x 592 mm x 563 mm (excluding handles and knobs)
Weight	55 kg
Electrical Connection	230-240 V AC 50 Hz, 4.5-4.9 kW
Top Oven Volume	33 litres (small)
Main Oven Volume	61 litres (medium)
Energy Efficiency Class (Top Oven)	B (conventional)
Energy Efficiency Class (Main Oven)	B (forced air convection)
Energy Consumption (Top Oven)	0.80 kWh (conventional)
Energy Consumption (Main Oven)	0.94 kWh (forced air convection)
Cooking Functions	Dual Grill, Top Oven (conventional), Main Fan Oven, Defrost
Timer Features	Electronic programmer: minute minder, automatic cooking (start/stop), manual override, key lock
Grill Type	Dual circuit grill (full or centre section)
Cooling System	Cooling fan for controls (operates during grill/oven use, runs on after switch-off)
Oven Lighting	Internal oven light (25W 300°C SES bulb)
Cleaning & Maintenance	Removable outer door glass; vitreous enamel interior; dishwasher-safe grill pan (except handle)
Safety Features	Child lock via timer, anti-tilt shelves, cool-touch door, auto shut-off on timer
Installation Type	Built-in (requires cabinet with min. 560-565 mm width)
Accessories Included	Grill pan with handle, grill pan grid, 1 cranked shelf, 2 straight shelves
Warranty	12 months (standard), European cover available
Certification	CE compliant (Directives 73/23/EEC, 89/336/EEC, 93/68/EEC)

Frequently Asked Questions - TBD913SV Tricity Bendix

How do I set the time of day on the oven timer?

Press and hold the Minute Minder and Manual Selector buttons simultaneously. Turn the increase control until the correct 24-hour time is displayed. The AUTO symbol will go out.

What should I do if the oven does not heat up?

First, ensure the appliance is switched on at the wall and the main fuse is working. If the problem persists, switch off at the wall, allow the oven to cool for a couple of hours, then switch on again. If it still fails, contact Service Force.

How can I use the dual grill efficiently?

Select the full grill function for large quantities or the centre section only for smaller portions. Turn the temperature control to the hottest setting (or lower for gentler cooking). Always leave the grill door open during use and preheat for a few minutes before sealing steaks.

Can I use the timer to automatically switch the oven on and off?

Yes. Press the Cooking Hours button to set the duration, then the Stop Time button to set when cooking should end. The oven will automatically start and stop at the programmed times. After cooking, return to manual by pressing the Manual Selector button.

How do I clean the oven door glass?

For the outer glass, open the door, loosen the two top screws, tilt the glass towards you, lift it off the bottom brackets, and clean with hot soapy water. For inner glass, use a soft cloth and mild detergent. Avoid abrasive cleaners. Do not remove the door assembly.

What is the defrost feature and how do I use it?

The Defrost function uses the fan oven to thaw frozen foods gently. Turn the main oven temperature control to the defrost setting. Place food in a single layer and turn halfway through. Use for delicate items like gateaux or small meat portions. Always cook immediately after thawing.

How do I replace the oven light bulb?

Disconnect the appliance from the power supply. Remove the shelves. Use a flat blade screwdriver to prise off the glass cover. Unscrew the old bulb (anti-clockwise) and fit a new 300°C 25W small Edison Screw bulb (part number 572 491 5431-00/1). Replace the glass and restore power.

Why is there condensation on the oven door?

Condensation is normal during cooking. Steam from food hits the cooler outer surfaces. Wipe it away regularly to prevent discolouration. Always stand back when opening the door to release steam.

What are the recommended temperatures for fan oven cooking?

Fan oven cooking generally requires 20-25°C lower temperatures than conventional ovens. Refer to the cooking chart on page 25 for specific foods. For example, biscuits at 180-190°C fan, Victoria sandwich at 160-170°C fan.

How do I lock the oven to prevent accidental use?

Press and hold the Minute Minder and Increase buttons for 3-8 seconds until 'On' appears. Turn the control clockwise to change to 'Of'. The key symbol will display. To unlock, repeat the process turning to 'On'. The key symbol will disappear.

USER MANUAL TBD913SV Tricity Bendix

PLEASE READ THIS INSTRUCTION BOOKLET BEFORE USING THE APPLIANCE

MODEL NO. TBD913

Voltage: 230-240 Volts AC 50Hz

Wattage: 4.5-4.9kW

Height: 897mm

Width: 592mm

Depth: 563mm

(excluding handles and knobs)

Weight: 55kg

CE This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC.

	Manufacturer TRICITY BENDIX
	Model Number		TBD913
Top Oven	Energy Efficiency on a Scale A (more efficient) to G (less efficient) (4)		B
		ConventionalEnergy Consumption in kWh (1)
		Forced air Convection	0.8
	Useable Volume - Litres		33
	Oven Size (2)		Small
	Load - Minutes	ConventionalTime Taken to 'Cook' Standard
		Forced air Convection	43
	The Area of the largest Baking Sheet -cm2 (3)		1440
Bottom Oven	Energy Efficiency on a Scale A (more efficient) to G (less efficient) (5)		B
	Energy Consumption in kWh (1)	Conventional
		Forced air Convection 0.94
	Useable Volume - Litres 61
	Oven Size (2)		Medium
	Time Taken to 'Cook' Standard Load - Minutes	Conventional
		Forced air Convection 50
	The Area of the largest Baking Sheet -cm2 (3)		1440

(1) Based on test results for a standard load in accordance with EN50304 (2) Small:12l<35l Medium:35l<65l Large: 65l+ (3) Surface Area of Shelf (4) Conventional Function unless stated (5) Forced Air Convection Function unless stated

CONTENTS

Technical Details 2

Contents 3

Safety 5

Before Installation 5

During Operation 5

After Use 6

General 6

Installation Instructions 7

Things You Need to Know 7

Warnings 7

Things to Note 7

Getting Things Ready 7

Choice of Electrical Connection 7

Preparing Cabinet for Fitting Oven 7

Recommended Cabinet Dimensions 8

How to Finish Unpacking 9

Tools Required 9

Making the Electrical Connections 9

Preparing Cable 9

To Remove Cover of Mains Terminal 9

Connecting to the Mains Terminal 10

Connecting to a Hob or Cooker Point 10

Checking Electrical Connections 10

Fitting Into The Cabinet 11

Introduction 12

Getting to Know Your Oven 12

Rating Plate 13

General Notes on Using the Ovens 13

About Condensation and Steam 13

Cookware 13

The Cooling Fan for the Controls 13

Control Panel Indicator Neons 13

Helpful Hints when Buying and Preparing Food 13

Grill and Oven Furniture 14

The Oven Timer 15

The Dual Grill 19

Uses of the Dual Grill 19

Selecting the Dual Grill 19

Things to Note 19

The Grill Pan and Handle 19

Hints and Tips 20

Grilling Chart 20

CONTENTS

The Top Oven 21

Uses of the Top Oven 21

Selecting the Top Oven 21

Things to Note 21

To Fit the Top Oven Shelf 21

Hints and Tips 22

The Main Fan Oven 23

Uses of the Fan Oven 23

Selecting the Fan Oven 23

Things to Note 23

To Fit the Main Oven Shelves 23

Hints and Tips 24

Oven Cooking Chart 25

Roasting Chart 26

Defrost Feature 27

Uses of Defrost Feature 27

Selecting Defrost 27

Things to Note 27

Hints and Tips 27

Care and Cleaning 28

Cleaning Materials 28

Cleaning the Outside of the Appliance 28

Cleaning Inside the Ovens and Grill Compartment 28

Cleaning the Grill and Oven Furniture 28

Cleaning the Door Glass 28

Cleaning Between the Outer and Inner Door Glass 29

To Remove the Outer Glass 29

To Replace the Outer Glass 29

To Clean the Inner Glass Door Panels 29

Replacing the Oven Light Bulb 30

Something Not Working? 31

Service and Spare Parts 32

Guarantee Conditions 33

Notes 34

SAFETY

THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT YOU UNDERSTAND THEM ALL BEFORE INSTALLING OR USING THE APPLIANCE.

PLEASE READ CAREFULLY

BEFORE INSTALLATION

This appliance is heavy and care must be taken when moving it.

Ensure that all packaging, both inside and outside the appliance, has been removed before the appliance is used.

Do not try to lift or move the appliance by pulling the door handles. Refer to installation instructions.

The appliance must be installed according to the instructions supplied. Any electrical installation work must be undertaken by a qualified electrician or competent person.

It is dangerous to alter or modify the specifications of the appliance in any way.

Do not allow young children to play with any part of the packaging.

After installation, please dispose of the packaging with due regard to safety and the environment. Your local authority can arrange this.

DURING OPERATION

This appliance is not intended to be operated by means of an external timer or separate remote control system.

Do not use this appliance if it is in contact with water. Never operate it with wet hands.

This appliance is designed to be operated by adults. Young children must not be allowed to tamper with the appliance or play with the controls.

During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven.

CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away.

Take great care when heating fats and oils, as they will ignite if they become too hot.

This appliance has been designed for cooking edible foodstuffs only, and must not be used for any other purposes.

Never place plastic or any other material which may melt in the oven.

Ensure cooking utensils are large enough to contain foods to prevent spillages and boil overs.

Take care to follow the recommendations given for tending the food when grilling. Use the handle provided in the recommended way.

Always use oven gloves to remove and replace food in the oven.

Ensure that you support the grill pan when it is in the withdrawn or partially withdrawn position.

Ensure that all vents are left unobstructed to ensure ventilation of the oven.

You must ensure that the grill control is in the 'OFF' position when the timer control has been set for automatic cooking.

Ensure the anti-tilt shelves are put in place correctly. Refer to instructions on pages 21 and 23.

Never line any part of the appliance with foil. Do not allow heatproof cooking material, e.g. roasting bags, to come into contact with oven elements.

Always stand back from the appliance when opening the oven door to allow any build up of steam or heat to release.

Stand clear when opening the drop down oven door. Do not allow it to fall open - support it using the door handle, until it is fully open.

Never leave the appliance unattended when the oven doors are open.

Do not place sealed cans or aerosols inside the oven. They may explode if they are heated.

AFTER USE

Ensure that all control knobs are in the OFF position when not in use.

For hygiene and safety reasons this appliance should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan.

Do not leave utensils containing foodstuffs, e.g. fat or oil in or on the appliance in case it is inadvertently switched ON.

Cookers and hobs become very hot, and retain their heat for a long period of time after use. Children should be kept well away from the appliance until it has cooled.

GENERAL

Under no circumstances should any repairs be carried out by an inexperienced person as this may cause injury or serious malfunction.

This appliance should be serviced by an authorised service Engineer and only genuine approved spare parts should be used. Details of servicing and repair arrangements are supplied on page 32 of this book.

Do not stand on the appliance or on the open oven door.

Do not hang towels, dishcloths or clothes from the appliance or its handle. They are a safety hazard.

Always allow the cooling fan to cool the appliance down before switching off at the wall prior to carrying out any cleaning or maintenance work.

Only clean this appliance in accordance with the instructions given in this book.

Your safety is of paramount importance.

Therefore, if you are unsure about any of the meanings of these WARNINGS contact the:

Customer Care Department Telephone [phone]

THINGS YOU NEED TO KNOW

WARNINGS:

• This appliance must be installed by a qualified electrician/competent person. Safety may be impaired if installation is not carried out in accordance with these instructions. • This appliance must be earthed.
• Do not remove the screws from the earth tab extending from the oven mains terminal block (Fig. 6).
• Before connecting the appliance make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This is situated on the front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable).
• Do not alter the electrical circuitry of this appliance.

THINGS TO NOTE

• This appliance is designed to be fitted in cabinets of the recommended dimensions as shown (Fig.2).
• If your cabinet interior dimension is between 565-570mm the oven may still be fitted. However, a minor modification to the cabinet will be required to reduce the aperture size down to 560-565 mm, to allow the product to be securely screwed into the cabinet.
• The dimensions given provide adequate air circulation around the unit within the cabinet, ensuring compliance with BS EN60-335.
• Enquiries regarding the installation of the cooker point, if required, should be made to your Regional Electricity Company to ensure compliance with their regulations.
• The appliance socket switch should be outside the cabinet but within 2m of the appliance to make it accessible to switch off the appliance in case of an emergency.
• To protect the hands, wear gloves when lifting the oven into its housing.

NOTE: HOUSE CIRCUIT

Earth leakage and continuity tests must be carried out before the appliance is connected to the mains supply and re-checked after fitting.

GETTING THINGS READY

CHOICE OF ELECTRICAL CONNECTION

There are three possible ways to connect your appliance. In each case, the appliance should be operated using at least 6 mm² twin core and earth PVC insulated multicore cable. Please choose the most appropriate method after reading the different options:

a) By connecting to a cooker point (having a double pole isolating switch with at least 3 mm contact separation in all poles and neutral) and protected with a fuse or miniature circuit breaker at your mains fuse box.

Subject to Regional Electricity Companies regulations, if you wish to connect the oven and hob to the power supply, you may use one of the following two methods:

b) By connecting the appliance together with a hob directly to a cooker point(s), having a double pole isolating switch with at least 3 mm contact separation in all poles and neutral. c) If you wish to connect an oven and a hob to a cooker point, you can by connecting the oven and hob separately to the cooker point. Oven and hob units should be separately connected to a cooker point. See Fig. 1.

Fig. 1

NOTE: It is good practice to:

• Fit an Earth Leakage Circuit Breaker to your house wiring.
• Wire your appliance to the latest IEE regulations.

PREPARING CABINET FOR FITTING OF OVEN

• Make sure that the cabinet is the correct size for the appliance to be fitted (Ref. Fig. 2).
• If the size is between 565-570 mm, then the cabinet should be modified so that at the screw fixing points the recommended dimension of at least 560-565 mm is maintained. The modification should ideally be localised to ensure that after screw fitment the oven is securely fixed into position.
• The cabinet must be stable and level by firmly securing it to the wall or floor. If necessary, make arrangements to ensure the shelf upon which the oven will rest is level.
• When the appliance is installed, ensure a minimum gap of 2 mm is maintained between the trim on the bottom edge of the appliance and any corresponding door/panel underneath.

Cross section through cabinet showing oven positioned

FIG. 2 BUILT-IN INSTALLATION

HOW TO FINISH UNPACKING

• Place the packed appliance next to the cabinet in which it will be installed.
• Remove the appliance packing except for the bottom tray, which should be left in position until the appliance is ready to be fitted into its cabinet.

NOTE: It is imperative that the appliance is left in the base to protect both the appliance and the floor.

Ensure the owner is given these operating instructions.

TOOLS REQUIRED

The following tools will be needed, and it helps to assemble them before starting to install your oven:

A terminal screwdriver (3 mm wide blade)

A pozidrive screwdriver

Pliers

Wire strippers

Knife

Side cutters

Adhesive tape

Tape measure

MAKING THE ELECTRICAL CONNECTIONS

Important: Switch off at the mains, miniature circuit breaker, and if appropriate, remove the fuse before commencing any electrical work.

PREPARING THE CABLE

We recommend you use a new length of cable to ensure your safety.

- Ensure you have the correct length of cable appropriate to the wiring method you are using. When fitting new cable, allow sufficient cable for removal of the unit at a later date, should it be necessary.

- Score, but do not cut through, around the sheathing with a knife 100mm (4in) from each end of the cable and break through to the encased wires by bending the cable backwards and forwards to fatigue the sheathing.

- Carefully score down from each end of the cable sheathing along the length of the bare earth wire (if a cut was made along the length of the live or neutral wires, it might cut into their sheathing) to the cuts already made.

- Carefully prise open the sheathing at each end of the cable to expose the encased wiring.

TO REMOVE THE COVER OF THE MAINS TERMINAL

From the rear of the appliance, remove the mains input terminal cover to gain access to the terminal block.

- First remove the retaining screw with a pozidrive screwdriver. See Fig. 3.

- Prise the cover loose using a screwdriver in position (1) then lever it off with a screwdriver in position (2) at either side. See Fig. 4.

- Lift cover and remove screw from cable clamp. See Fig. 5.

CONNECTING TO MAINS TERMINAL

Warning: This appliance must be earthed.

• Make connection as shown in Fig. 6 by proceeding as follows:-

• Preform wires to the appropriate shape to suit fitting into the mains terminal block.
• Strip inner insulation on wires using wirestrippers.
• Twist the bared wires using pliers.
• Cut bared wires 10mm away from the end of the inner insulation. Where uninsulated Earth wires are used ensure they are suitably sheathed to leave 10mm bare wire to fit into the terminal.
• Clamp bare wires into the relevant terminal and check they are held by tugging each one in turn.
• Clamp the mains cable securely ensuring 5mm of the outer insulation is inside the terminal block and that the wires are not taught but not so slack as to cause any fouling. See Fig. 6.
• Place fuse/miniature circuit breaker in circuit and switch on at mains.

CONNECTING TO A HOB OR COOKER POINT

WARNING: THIS APPLIANCE MUST BE EARTHED

- Either follow in general terms the instructions for connecting to the terminal block or refer to the hob suppliers installation instructions.

Feed the cable through the cabinet and arrange to route the cable away from the appliance which may become hot.

CHECKING ELECTRICAL CONNECTIONS

Correct electrical connection can be confirmed when switching on the appliance as the electronic minute minder timer will be flashing.

NOTE: HOUSE CIRCUIT

Earth leakage and continuity tests must be carried out before the appliance is connected to the mains supply and re-checked after fitting.

FITTING INTO THE CABINET

IMPORTANT: Ensure that the oven is switched off at the wall before any further work is carried out.

• Using a tape measure establish the internal width of the cabinet. Refer to page 7 if greater than 565mm.
• Position the appliance in front of the cabinet. See Fig. 7.
• Take out all oven furniture before installation to reduce the weight you need to lift. The oven door should be taped up to keep it closed whilst lifting.
• To place the appliance into the cabinetry follow the procedure below:
• N.B. Two people will be required to carry out the lifting procedure.

a) Each person should squat either side of the appliance. b) Tilt the appliance so that your hands can support the underside of the appliance. Warning: Do not attempt to lift this appliance by the handles. c) Keeping your back straight, raise the appliance to the cabinet by straightening at the knees. d) Rest the rear underside of the appliance on the cabinet floor while your hands support the front. e) The appliance can be pushed fully into the cabinet. Take care to avoid fouling the mains lead. f) Ensure the appliance is central in the cabinet and level. g) Do not remove spacers fitted behind fixing holes. h) When the appliance is fully housed screw the stability screws (supplied with the appliance) into the side of the cabinet taking care not to distort the side trims (See Fig 8). It is advisable to turn each screw alternatively to avoid damaging the trims. i) Switch on the appliance then refer to the operating instructions in the following pages.

GETTING TO KNOW YOUR OVEN

A - Oven Programmer Timer B - Main Oven Indicator Neon C - Main Oven Temperature Control D - Top Oven Indicator Neon E - Function Control F - Top Oven Temperature Control

INTRODUCTION

RATING PLATE

This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively, the rating plate may also be found on the back or top of some models (where applicable).

The appliance must be protected by a suitably rated fuse or circuit breaker. The rating of the appliance is given on the rating plate.

Do not remove the rating plate from the appliance as this may invalidate the guarantee.

GENERAL NOTES ON USING THE OVENS

We suggest that you run the oven elements for 10–15 minutes at 220°C to burn off any residue from their surfaces. The procedure should be repeated with the grill for approximately 5–10 minutes. During this period an odour may be emitted, it is therefore advisable to open a window for ventilation.

ABOUT CONDENSATION AND STEAM

When food is heated it produces steam similar to a boiling kettle. The oven is vented to allow some of this steam to escape. However, always stand back from the appliance when opening the oven door to allow any build up of steam or heat to release.

If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away condensation and also soilage from surfaces.

COOKWARE

Baking trays, oven dishes etc., should not be placed directly against the grid covering the fan at the back of the oven.

Do not use baking trays larger than 30cm x 35cm (12" x 14") as they will restrict the circulation of heat and may affect performance.

THE COOLING FAN FOR THE CONTROLS

The cooling fan comes on immediately when the grill is switched on and after a short time when either of the ovens are in use. It runs on after the controls are switched off until the appliance has cooled. During the initial period the cooling fan may turn ON and OFF, this is quite normal.

Do not switch the appliance off at its power point until the cooling fan has cooled the appliance down.

CONTROL PANEL INDICATOR NEONS

The light indicates whether the ovens are switched ON. The neons also indicate when the set temperature has been reached.

If the neons do not operate as the instructions indicate the controls have been incorrectly set. Return all controls to zero and re-set following the instructions for the required setting.

HELPFUL HINTS WHEN BUYING AND PREPARING FOOD

Care must be taken when handling foods in the home. Always follow the basic rules of food hygiene to prevent bacterial and microbial growth and cross contamination when preparing, reheating, cooking, cooling, defrosting and freezing foods:-

1. Avoid buying chilled or frozen products if you cannot store them straight away. The use of an insulated container when shopping is advisable.
2. When you arrive home, place perishable foods in the refrigerator or freezer immediately. Ensure they are well covered to prevent them drying out and to prevent any possible cross contamination with bacteria from raw to cooked foods.
3. In the kitchen keep work tops, chopping boards and utensils clean with hot soapy water between preparation stages. Ideally, keep one chopping board for raw meat and another for other foods. Keep your dish cloths and tea towels clean.

GRILL AND OVEN FURNITURE

The following items of grill and oven furniture have been supplied with the appliance. If you require replacements of any of the items listed below please contact your local Service Force Centre, quoting the relevant part number.

1 grill pan (311409401)

1 grill pan handle (311468100)

NOTE

If you require an additional handle for your grill pan, this can be ordered from your local Service Force Centre by quoting part number 311479800\6.

1 grill pan grid (311419801)

1 cranked shelf (for grilling and top oven cooking only)

2 straight shelves (for main oven cooking)

THE OVEN TIMER

The Electronic Timer

KEY

A Minute Minder Button

B Cooking Hours Button

C Stop Time Button

D Manual Selector Button

E Decrease/Increase Control

F Key Symbol

G Cooking Symbol

H Bell Symbol

I Auto Symbol

NOTE:

The time of day must be set before the oven will operate manually.

1. Set The Time Of Day

When the electricity supply is first switched ON, the display will flash both 0.00 and AUTO as Fig. 1.

Press the two buttons marked (☐) and (→), while holding them down turn the increase control knob (-) (+) until the correct time on the 24 hour clock is reached, e.g. 10.00am as Fig. 2. The AUTO symbol will go out.

2. The Minute Minder

The minute minder gives an audible reminder at the end of any period of cooking up to 23 hrs 59 mins. It is not part of the automatic control.

To set, press the minute minder button (☐) and the digital display will read 0.00 and the bell symbol will glow as Fig. 3.

While holding the minute minder button down turn the increase control (+) until the display indicates the interval to be timed, e.g. 1 hr 45 mins as Fig. 4. If necessary turn the decrease control (-) to achieve the correct time interval.

NOTE: This must be completed within 4 seconds of first pressing the minute minder button.

Release the minute minder button and the display will return to the time of day after 5 seconds.

Whilst the minute minder is set the bell symbol ( ) is displayed.

During the operation of the minute minder, the remaining time period can be shown in the display by pressing the minute minder button ( 🔒 ) as Fig. 5.

The minute minder will sound intermittently for up to 2 minutes at the end of the timed period. The sound can be stopped by pressing any of the 4 left-hand side buttons.

3. How To Set The Oven Timer Control

When using the timer control for the very first time, it is advisable to let it operate while you are at home. The displays can be checked to show that it is operating correctly and you will feel confident to leave a meal to cook automatically in the future.

A) To Set The Timer To Switch On And Off Automatically

i) Ensure the electricity supply is switched ON and that the correct time of day is displayed, e.g. 9 a.m. as Fig. 6. ii) Place food in oven. iii) To set the length of cooking time, press the cooking hours button (→) and while holding it down, turn the increase control (+) until the required length of cooking time is displayed, e.g. 2 hrs 15 mins as Fig. 7. If necessary turn the decrease control (-) until the correct time interval is achieved. iv) Release the buttons. The AUTO symbol and cooking symbols will glow.

Remember, this must be completed within 4 seconds of first pressing the cooking hours button.

v) Set the STOP time. Press the stop time button (→) while holding it down, turn the increase control (+) until the required stop time is displayed, e.g. 12.15 p.m. as Fig. 8. If necessary turn the decrease control (-) until the correct time interval is achieved. vi) Release the buttons the cooking symbol will go out and the time of day will be displayed. vii) Set the main oven control to the required temperature and select the required function.

NOTE: When the automatic timed period starts the main oven indicator neon will turn ON and OFF during cooking.

B) To Set The Timer To Switch Off Only

i) Ensure the electricity supply is switched ON and that the correct time of day is displayed, e.g. 10.00 a.m. as Fig. 9. ii) Place food in oven. iii) To set the length of cooking time, press the cooking hours button (→) while holding it down, turn the increase control (+) until the required length of cooking time is displayed, e.g. 2 hrs 15 mins as Fig. 10. Turn the decrease control (-) if necessary. iv) Release the buttons. The Cooking Symbol and the AUTO symbol will glow and the time of day will be displayed. v) Set the oven temperature. vi) To check the stop time during the cooking period, simply press the stop time button (→) and the stop time will be displayed, as Fig. 11.

4. To Return the Appliance To Manual After An Automatic Programme

To return the appliance to manual operation after an automatic programme, follow the steps given below.

At the end of a timed cooking period, the AUTO symbol will flash and a bleeper will sound for up to 2 minutes. This can be stopped by pressing any of the buttons as Fig. 12.

Turn oven control to the OFF position. The AUTO symbol will continue to flash.

Press (🔊) button. The AUTO symbol will go out as Fig. 13.

5. To Cancel An Automatic Programme

A programme may be cancelled by returning the cooking hours to zero. Press the cooking hours button (→) then turn (-) button until 0.00 is displayed as Fig. 14.

The AUTO symbol will now flash and acts as a reminder to reset the appliance to manual.

6. Things To Note

The time of day cannot be altered whilst the AUTO symbol is lit.

During the hours of 10 p.m. (22.00 hrs) and 6 a.m. the display will glow dim. If a function is selected the display will glow brighter until the function is complete. It will then revert back to the dim mode.

In the event of an interruption of the electricity supply, the timer will reset itself to zero, and all programming will be cancelled.

7. Automatic Cooking

It is advisable to leave food in the main oven for as short a time as possible before automatic cooking. Always ensure commercially prepared food is well within its use by date and that home prepared food is fresh and of good quality.

When cooking is complete, do not leave food to stand in the main oven, but remove and cool it quickly if the food is not to be consumed immediately.

Always ensure food in the main oven has been covered before cooking if it is not possible to remove food immediately after cooking.

Follow the cooking instructions on packets of prepared and cooked chilled foods, but be prepared to adjust cooking time and temperatures to suit your particular oven. For example, the fan oven generally requires 20-25°C lower temperature than conventional ovens.

Always ensure that cooked chilled foods are thoroughly re-heated until they are piping hot throughout.

If not eaten straight away after cooking, food should be cooled as quickly as possible (within one hour) and then refrigerated or frozen as required. (Do not put hot food into a Refrigerator or Freezer).

8. LOCK FEATURE - MAIN OVEN ONLY

To Lock The Oven Using The Timer.

Press and hold buttons ( 🔒 ) and ( |→|) for 3 - 8 seconds.

'On' will appear in the display as shown in Fig 15.

Turn the Decrease/Increase control clockwise to change the display to 'Of'.

The key symbol (♀) appears in the display.

The oven will now not operate.

After a few seconds, the time of day will show in the display as shown in Fig 16.

Wait 3 seconds before selecting another function.

To Unlock The Oven

Press and hold buttons (🔊) and (|→|) for 3-8 seconds.

'Of' will appear in the display as shown in Fig 17.

Turn the Decrease/Increase control clockwise to change the display to 'On'.

The key symbol (♀) will go out.

After a few seconds, the time of day will show in the display.

The oven can now be operated normally.

THE DUAL GRILL

USES OF THE DUAL GRILL

CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY.

The grill is a dual circuit grill which means that the whole area of the grill can be used or, for economy purposes the centre section only can be used when cooking smaller quantities of food.

SELECTING THE DUAL GRILL

- Select the grill function for full grill

- Select the grill function for centre section only

- Turn the temperature control knob to the right as far as it will go. This is the hottest setting.

- To use the grill at lower settings, turn the temperature control knob so that 120°C or 150°C on the knob lines up with the off dot on the panel.

THINGS TO NOTE

THE GRILL DOOR MUST BE LEFT OPEN DURING GRILLING.

1. The cooling fan for the controls will operate in conjunction with the grill.
2. The inner grill element may appear to glow slightly brighter than the outer element. This is quite normal.
3. The dual grill operates independently of the oven.

THE GRILL PAN AND HANDLE

The grill pan is supplied with a removable handle.

To attach the handle, place the wirework under the cut out in the pan so that the metal plate hooks over the top of the grill pan.

Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to remove the grill pan handle during grilling.

To remove the handle, slide the handle to the right and lift the handle away from the cut out on the grill pan.

Place the grill pan on the shelf so that the pan is positioned centrally beneath the grill.

HINTS AND TIPS

• In order to become acquainted with the performance of the Dual Grill it is advisable to check food regularly when grilling.
• Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.
• Adjust the height of the grilling grid and grill pan runner position to allow for different thicknesses of foods.
• Most food should be placed on the grill pan grid in the 'high' position in the grill pan to allow maximum circulation of air around the food.
• Accompaniments such as tomatoes and mushrooms may be placed underneath the grid when grilling meats.

• When toasting bread use the cranked shelf in position 2 with the grid in the high position.
• Preheat the grill on a full setting for a few minutes before sealing steaks or toasting. Adjust the heat setting and the shelf as necessary during cooking.
• The food should be turned over during cooking as required.
• When using the centre section of the dual grill, ensure food is positioned centrally on the grill pan grid in the grill pan.
• Cook meat thoroughly – use a meat thermometer if preferred, which penetrates the joint to check that the centre temperature has reached the required temperature (see table below).

MEAT TEMPERATURES
Beef	Rare - 60°CMedium - 70°CWell Done - 80°C
Pork Well Done - 80°C
Lamb Medium - 70°CWell Done - 80°C

NOTE:

If you require an additional handle for your grill pan, this can be ordered from your local Service Force Centre by quoting part number 311479800\6.

GRILLING CHART

FOOD SHELF	GRILL TIME	(mins in total)
Bacon Rashers 2 4-6
Beefburgers 2 10
Chicken Joints	2	10-15
Chops – Lamb	2	30-40
Pork	2
Fish Whole	2	15-20
Trout Mackerel	2	20-30
Fillets – Plaice/Cod	2	15-25
Kebabs	2 15
Kidneys – Lamb/Pig	2	20-30
Liver Lamb/Pig	2	8-12
Sausages	2	20-30
Steaks – Rare	2 6-12
Medium	2	12-16
Well Done 2	14-20
Toasted sandwiches	1 3-4

Shelf positions are counted from the bottom of the oven upwards.

The times quoted above are given as a guide and should be adjusted to suit personal taste.

THE TOP OVEN

USES OF THE TOP OVEN

The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche.

The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use the lowest setting on the top oven temperature control.

SELECTING THE TOP OVEN

- Turn the top oven function selector to

- Turn the top oven temperature control to the required setting.

THINGS TO NOTE

1. The top oven indicator neon will glow until the oven has reached the desired temperature and then go out. It will turn ON and OFF periodically during cooking showing that the temperature is being maintained.
2. The cooling fan for the controls may operate after a period of time.

TO FIT THE TOP OVEN SHELF

The cranked shelf MUST only be used in the top oven compartment, but a straight shelf from the main oven may be used to provide alternative positions.

The shelf should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected.

HINTS AND TIPS

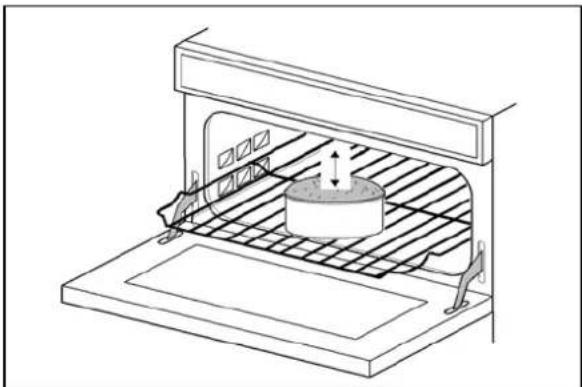

- There should always be at least 2.5cm (1") between the top of the food and the element. This gives best cooking results and allows room for rise in yeast mixtures, Yorkshire puddings etc.

- When cooking cakes, pastry, scones, bread etc., place the tins or baking trays centrally on the shelf directly below the element.

Dishes, tins and trays should not be placed directly on oven base as it becomes very hot and damage will occur.

- Ensure that food is placed centrally on the shelf and there is sufficient room around the baking tray/dish to allow for maximum circulation.

- Stand dishes on suitably sized baking trays to prevent spillage onto the oven base and to help reduce cleaning.

- The material and finish of the baking tray and dishes will affect the degree of base browning of the food. Enamelware, dark, heavy or non-stick utensils increase base browning. Shiny aluminium or polished steel trays reflect the heat away and give less base browning.

- DO NOT use the grill pan as a baking tray as this will increase base browning of the food.

- Because of the smaller cooking space, lower temperatures and shorter cooking times are sometimes required. Be guided by the recommendations on page 25.

- For economy, leave the door open for the shortest possible time, especially when placing food into a pre-heated oven.

THE MAIN FAN OVEN

USES OF THE FAN OVEN

PREHEATING

The fan oven quickly reaches its temperature, so it is usually not necessary to preheat the oven. However, without preheating, you may need to add an extra 5–10 minutes to the recommended cooking times. For recipes that require high temperatures, such as bread, pastries, scones, soufflés, etc., best results are achieved if the oven is preheated first. For best results when cooking frozen or chilled ready meals, always preheat the oven first.

COOKING TEMPERATURES

Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures recommended in the chart on page 25. As a guide, reduce temperatures by about 20°C–25°C for your own recipes that use a conventional oven.

BATCH BAKING

The fan oven cooks evenly on all shelf levels, which is especially useful when batch baking.

SELECTING THE FAN OVEN

- Turn the main fan oven temperature control to the required setting.

THINGS TO NOTE

1. The main oven indicator neon will glow until the oven has reached the desired temperature and then go out. It will turn ON and OFF periodically during cooking, showing that the temperature is being maintained.
2. The oven fan will operate continually during cooking.
3. The cooling fan for the controls may operate after a period of time.
4. The internal oven light will come on.

TO FIT THE MAIN OVEN SHELVES

The shelves should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected. Only use straight shelves in the main oven.

HINTS AND TIPS

- Arrange the shelves in the required positions before switching the oven ON. Shelves are numbered from the bottom upwards.

- When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf, this will allow the heat to circulate freely for the best cooking results.

- When batch baking one type of food e.g. Victoria sandwich cakes, those of similar size will be cooked in the same time.

- It is recommended that when baking larger quantities, the shelf positions should be evenly spaced to suit the load being cooked. A slight increase in cooking time may be necessary.

- DO NOT place baking trays directly on the oven base as it interferes with the oven air circulation and can lead to base burning; use the lower shelf position.

- The use of excessively high temperatures can cause uneven browning. It may be necessary to reduce temperatures slightly. Refer to the recommendations given in the oven cooking chart, see page 25.

OVEN COOKING CHART

The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperature by 10°C to suit individual preferences and requirements.

		FAN OVEN TOP OVEN
FOOD SHELF		POSITION	COOKINGTEMP °C	SHELFPOSITION	COOKINGTEMP°C	APPROXCOOK TIME (m)
Biscuits		Shelf	180 - 190	1 crk.	170 - 190	10 - 20
Bread			200 - 220	1 crk.*	200 - 220	25 - 30
Bread rolls/buns			200 - 220	1 crk.	200 - 220	15 - 20
Cakes: Small & Queen			160 - 170	1 crk.	180 - 190	18 - 25
	Sponges 160 - 170 1 crk.	160 - 170 18 - 20
	Victoria Sandwich positions	160 - 170 1 crk.	160 - 170	18 - 25
	Madeira 140 - 150 1 crk.	140 - 150 1 1/4 - 1 1/2 h
	Rich Fruit 130 - 140 1 crk.	130 - 140 2 1/4 - 2 1/2 h
	Christmas are not 130 - 140 1 crk.	130 - 140 1 crk.	140 - 3 - 4 1/2 h			depends on size
	Gingerbread		140 - 150 1 crk.	140 - 150	1 1/4 - 1 1/2 h
	Meringues critical	80 - 100 1 crk.	90 - 100	2 1/2 - 3h
	Flapjack		170 - 180 1 crk.	170 - 180	20 - 25
	Shortbread		130 - 140 1 crk.	140 - 150	45 - 65
Casseroles:	Beef/Lamb	but ensure	140 - 160	1 crk.*	140 - 160	2 1/2 - 3h
	Chicken		180 - 190	1 crk.*	180 - 190	1 1/4 - 1 1/2 h
Convenience Foods		Follow manufacturer's instructions
Fish		that oven	170 - 190 1 crk.	170 - 190	20 - 30
Fish Pie (Potato Topped)			190 - 200	1 crk.*	190 - 200	20 - 25
Fruit Pies, Crumbles			190 - 200 1 crk.	190 - 200	40 - 50
Milk Puddings			130 - 140 1 crk.	140 - 150	1 1/2 - 2h
Pasta Lasagne etc.		shelves are	190 - 200 1 crk.	170 - 180	40 - 45
Pastry: Choux		190 - 200	1 crk.	180 - 190	30 - 35
	Eclairs, Profiteroles		170 - 180 1 crk.	170 - 180	20 - 30
	Flaky/Puff Pies	evenly	210 - 220	1 crk.*	210 - 220	25 - 40
Shortcrust	Mince Pies		170 - 180 1 crk.	170 - 180	15 - 20
	Meat Pies		190 - 210	1 crk.*	190 - 210	25 - 35
	Quiche, Tarts, Flans	spaced	180 - 210 1 crk.	180 - 200	25 - 45
Roasting Meat, Poultry			160 - 180	1 crk.*	160 - 180	see roasting chart
Scones		when more	210 - 220 1 crk.	220 - 230	8 - 10
Shepherd's Pie			190 - 200	1 crk.*	190 - 200	30 - 40
Soufflés			170 - 180 1 crk.	170 - 180	20 - 30
Vegetables:	Baked Jacket Potatoes	than one is	180 - 190	1 crk.	180 - 190	1 - 1 1/2 h
	Roast Potatoes		180 - 190 1 crk.	180 - 190	1 - 1 1/2 h
Yorkshire Puddings:	Large Individual	used	210 - 220	1 crk.	200 - 210	25 - 40
			200 - 210 1 crk.	200 - 210	15 - 25

crk. = Cranked shelf * or on a straight shelf on the oven base Note: Shelf positions are counted from the bottom of the oven. Do Not use the cranked shelf from the grill in the fan oven.

ROASTING CHART
INTERNAL TEMPERATURES –Rare : 50-60°C; Medium : 60-70°C; Well done : 70-80°C
MEAT	TOP/FAN OVEN	COOKING TIME
Beef 160-180°C		20-35 minutes per 1/2 kg (1lb)and 20-35 minutes over
Beef, boned 160-180°C	25-35 minutes per 1/2 kg (1lb)and 25-35 minutes over
Mutton and Lamb 160-180°C	25-35 minutes per 1/2 kg (1lb)and 25-35 minutes over
Pork and Veal 160-180°C	30-40 minutes per 1/2 kg (1lb)and 30-40 minutes over
Ham 160-180°C	30-40 minutes per 1/2 kg (1lb)and 30-40 minutes over
Chicken 160-180°C	15-20 minutes per 1/2 kg (1lb)and 20 minutes over
Turkey and Goose 160-180°C	15-20 minutes per 1/2 kg (1lb) upto 31/2 kg (7lb) then 10 minutesper 1/2 kg (1lb) over 31/2 kg (7lb)
Duck 160-180°C	25-35 minutes per 1/2 kg (1lb)and 25-30 minutes over
Pheasant 160-180°C	35-40 minutes per 1/2 kg (1lb)and 35-40 minutes over
Rabbit 160-180°C	20 minutes per 1/2 kg (1lb)and 20 minutes over
Potatoes with meat	160-180°C according to size
Potatoes without meat	180-190°C according to size

The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments may be required to allow for personal requirements and the shape and texture of the meat. However, lower temperatures and longer cooking times are recommended for less tender cuts or larger joints.

Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30 min. cooking time.

DEFROST FEATURE

USES OF DEFROST FEATURE

This main oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones, etc.

It is preferable to thaw fish, meat and poultry slowly in the fridge. However, this process can be accelerated by using the defrost function.

SELECTING DEFROST

Small or thin fish fillets, frozen peeled prawns, cubed or minced meat, liver, thin chops, steaks etc., can be thawed in 1 – 2 hours.

A 1kg/2¼lb oven ready chicken will be thawed in approximately 5 hours. Remove the giblets as soon as possible during the thawing process.

Joints of meat up to 2kg/4½lb in weight can be thawed using the defrost function.

ALL JOINTS OF MEAT AND POULTRY MUST BE THAWED THOROUGHLY BEFORE COOKING.

ALWAYS COOK THOROUGHLY IMMEDIATELY AFTER THAWING.

• Turn the main fan oven temperature control to the defrost setting.
• The oven fan and internal oven light will come on. • The cooling fan does not operate.

THINGS TO NOTE

Care must always be taken when handling foods in the home. Always follow the basic rules of food hygiene to prevent bacterial growth and cross contamination when defrosting, preparing, cooking, cooling and freezing foods.

HINTS AND TIPS

- Place the frozen food in a single layer where possible and turn it over halfway through the defrosting process.

• The actual speed of defrosting is influenced by room temperature. On warm days defrosting will be faster than on cooler days.
• DO NOT leave food at room temperature once it is defrosted. Cook raw food immediately or store cooked food in the fridge, once it has cooled.

BEFORE CLEANING ALWAYS ALLOW THE COOLING FAN TO COOL THE APPLIANCE DOWN BEFORE SWITCHING OFF AT THE ELECTRICITY SUPPLY.

CLEANING MATERIALS

Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer.

Cleaners that contain bleach should NOT be used as they may dull the surface finishes. Harsh abrasives should also be avoided.

CLEANING THE OUTSIDE OF THE APPLIANCE

DO NOT use abrasive cleaning materials e.g. Hob Brite, Brillo pads or scourers on painted or printed finishes as damage may occur. Cleaners that contain bleach should NOT be used as they may dull the surface finishes. Regularly wipe over the control panel, oven doors and cooker sides using a soft cloth and liquid detergent.

DO NOT ATTEMPT TO REMOVE ANY OF THE CONTROL KNOBS FROM THE APPLIANCE AS THIS MAY CAUSE DAMAGE AND IS A SAFETY HAZARD.

Under no circumstances should the door assembly be detached from the product for cleaning. Please refer to the cleaning instructions.

CLEANING INSIDE THE OVENS AND GRILL COMPARTMENT

The vitreous enamel coating in the fan oven / top oven and grill compartment can be cleaned using normal oven cleaners or aerosol oven cleaners with care. Ensure that the manufacturers instructions are followed and that all parts are well rinsed afterwards.

Aerosol cleaners must not come into contact with the door seal as this may cause damage.

CLEANING THE GRILL AND OVEN FURNITURE

All removable parts, except the grill pan handle, can be washed in the dishwasher.

The grill pan, grill pan grid, and oven shelves may be cleaned using a soap-impregnated steel wool pad. Soaking first in hot soapy water will make cleaning easier.

CLEANING THE DOOR GLASS

To prevent damaging or weakening the door glass panels, avoid the use of the following:

• Household detergents and bleaches - Impregnated pads unsuitable for non-stick saucepans - Brillo/Ajax pads or steel wool pads • Chemical oven pads or aerosols - Rust removers - Bath/Sink stain removers

CLEANING BETWEEN THE OUTER AND INNER DOOR GLASS

Under no circumstances should the door assembly be detached from the product for cleaning. Please refer to the cleaning instructions.

The outer door glass is removable for cleaning.

TO REMOVE THE OUTER GLASS

1. Open the oven door slightly to gain access to the two cross-head screws on the top of the oven door.
2. Loosen the two screws using a Pozidrive screwdriver.

1. Hold the door glass securely with one hand before removing the screws completely with the other hand. The screws and washers retain the trim on the top of the grill/top oven door. Note the position of the trim on the door.
2. Using both hands, gently tilt the top of the door glass towards you, lift slightly to disengage the locators from the two bottom brackets. The door will remain in a parked position at an angle of approximately 30 degrees.
3. Clean the outer and inner glass using hot soapy water or Hob Brite may be used with care. DO NOT use Hob Brite on the Stainless Steel or painted finishes. DO NOT try to clean the foil which is inside the door. The foil is there to help keep the door cool, if it is damaged it will not work. Ensure that all parts are well rinsed and thoroughly dried before attempting to replace the outer door.

TO REPLACE THE OUTER GLASS

1. Open the oven door with care and place in the park position at an angle of approximately 30 degrees.

1. Holding the oven glass with both hands, gently place the locators into the holes of the brackets at the bottom of the oven door.
2. Push the top of the oven glass towards the oven door, ensuring the screw location holes line up.
3. Ensure the trim is correctly positioned on the top oven/grill door.
4. Hold the glass in place at the top of the door. Insert the cross head screws into the location holes. Give the screws one turn to ensure the glass is secure.
5. Tighten the screws positively with a Pozidrive screwdriver before closing the oven door.

Do not attempt to use the oven without the glass being in place.

If the door glass panel becomes chipped or has deep scratches, the glass will be weakened and must be replaced to prevent the possibility of the panel shattering. Please contact your local Service Force Centre who will be pleased to advise further.

TO CLEAN THE INNER GLASS DOOR PANELS

Clean the inner glass door panels using a soft cloth and hot water to which a little washing up liquid has been added. If the inner panel is heavily soiled, Hob Brite may be used. Do not use abrasive cleaning materials on the door glass. Ensure that all parts are well rinsed and thoroughly dried before attempting to replace the glass.

REPLACING THE OVEN LIGHT BULB

The type of bulb required is a 300°C 25 watt small Edison Screw. Part number 572 491 5431-00/1 (Available through your local Service Force Centres).

CAUTION: DISCONNECT THE APPLIANCE FROM THE ELECTRICITY SUPPLY BEFORE REPLACING THE BULB.

Open the door and remove the shelves to enable easy access to the oven light assembly. Insert a flat blade screwdriver between the oven side and glass which covers the bulb.

Support the glass with your hand and prise out sufficiently to release the glass cover. Unscrew the bulb in an anti-clockwise direction until it is possible to remove the bulb with ease.

Fit the new bulb by turning in a clockwise direction until it is secure. Ensuring the indent to the flange is pointing to the rear of the oven, replace the glass by pushing it firmly into the hole to cover the bulb assembly.

Replace the shelves. Restore the electricity supply and adjust the time of day and clock as necessary.

SOMETHING NOT WORKING?

Before calling an Engineer please carry out the following checks, you may be able to solve the problem without the expense of an Engineer.

If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the appliance is under guarantee.

The grill, oven and timer do not work:

* Check that the appliance has been wired in and is switched on at the wall. * Check that the main cooker fuse is working.

If you have checked the above:

* Switch OFF appliance at the wall and allow the appliance to cool for a couple of hours. * Switch ON again. The appliance should now be working normally.

The grill works but the main oven does not:

* Check that the grill control is in the OFF position. * Switch OFF at the wall to allow the oven to cool. Check that the oven is now working normally.

The top oven and grill work but the main oven does not.

* Switch OFF at the wall to allow the oven to cool. Check that the oven is now working normally.

The clock and minute minder do not work.

* Check that the operating instructions for the timer are being closely followed.

The grill does not work or cuts out after being used for a long period of time.

* Leave the oven to cool for a couple of hours. Check that the grill is now operating normally. Ensure that the door is left open during grilling. * If the cooling fan fails the grill will not operate correctly. Please call your local Service Force Centre.

The oven temperature is too high or too low:

* Check that the recommended temperatures are being used (see page 25). Be prepared to adjust the temperature up or down by 10°C to achieve the results you want. * Care should be taken if using an oven thermometer to check oven temperatures as they may be inaccurate.

The following factors should be considered.

* Ensure you purchase an accurate, good quality instrument. * Ovens will cycle about a set temperature and will not be constant.

If the oven is not cooking evenly.

* Check that the appliance is correctly installed and that it is level. * Check that the recommended temperatures and shelf positions are being used.

The oven light fails to illuminate:

* Refer to page 30 'Replacing the Oven Light Bulb'.

The oven fan is noisy:

* Check that the oven is level. * Check that bakeware and shelves are not vibrating in contact with the back panel in the oven.

SERVICE AND SPARE PARTS

SERVICEFORCE

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:-

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working".

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The model and serial number of the appliance (found on the rating plate).
5. The purchase date.

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

CUSTOMER CARE DEPARTMENT

For general enquiries concerning your Tricity Bendix appliance, or for further information on Tricity Bendix products, please contact our Customer Care Department by letter or telephone at the address below:-

Customer Care Department

Tricity Bendix

55 – 77 High Street

Slough

Berkshire

SL1 1DZ

Tel: [phone] (*)

*calls to this number may be recorded for training purposes.

STANDARD GUARANTEE CONDITIONS

We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Service Force Centre.
• Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.
• Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis [phone]

Germany Nürnberg [phone]

Italy Pordernone [phone]

Sweden Stockholm [phone]

UK

Slough

[phone]

NOTES

NOTES

Consumer care telephone number 08705 950950

IMPORTANT NOTICE

In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice.

This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed.

TBD 913 - 311577003

© Electrolux plc 2003

From the Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
