USER MANUAL FR880TS Campomatic

Caution: Read and follow all safety and operating instruction before first use of this product.

Campomatic S.R.L. Via Configliachi 5/B . 35031, Abano Terme (Padova), ITALIA

WWW.CAMPOMATIC.COM

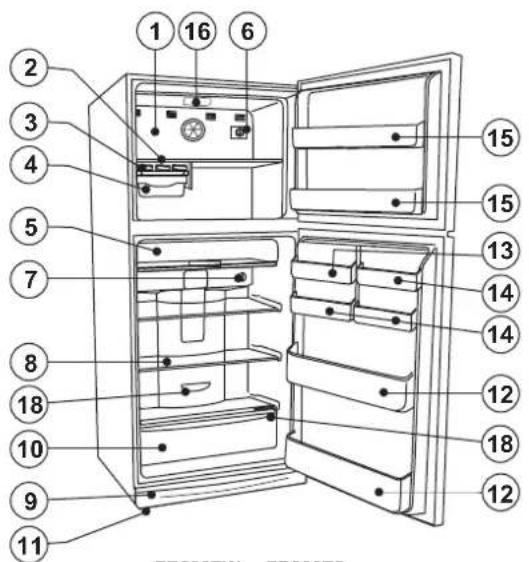

Features

مقومات

1 16 6 2 3 4 5 7 8 10 9 11 15 15 13 14 14 12 18 12 FR800TX FR800TX

FR880TW, FR880TS

Freezer Compartment1.

Where to place your refrigerator

1. Select a place with strong, level floor. If the floor is not quite level, adjust the height of the screw accordingly.

2. Allow five inches of space between the refrigerator's back and the wall.

3. Avoid direct sunlight and heat. Direct sunlight may affect the enamel coating. Heat sources nearby will cause higher electricity consumption.

4. Avoid very moist place. Too much moisture in the air will cause frost to form very quickly on the evaporator, and the refrigerator will have to be defrost very frequently.

5. Don't connect multiple appliances to one outlet. It may cause fire. To avoid the possibility of electrical shock, ground the refrigerator properly. The earth screw is located on the rear side of the refrigerator.

6. In case of customer desire to add the ground wire with Earth Screw junction earth symbol ⊕ at the back of the refrigerator. Should attach the ground wire to metal pipe or to cover screw of the wall receptacle or to a rod buried at least 2.4 meters in the ground

این تضع ثلاجتك

1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the inside with a damp cloth.
2. Keep the door open and plug the AC cord into an electricity outlet. The interior lamp should light.
3. Turn the thermostat dial to "7" or "MAX". Close the door and let the refrigerator operate for 15-20 minutes.
4. After about 20 minutes open the refrigerator door. Test and see whether the unit is refrigerating properly by placing your hand in front of the cold air outlet. If cold air is flowing into the refrigerator, the unit is functioning properly.
5. If the test run is not satisfactory. Check your electricity supply (blown fuse?). If the source of trouble can't be located, contact your dealer or your Authorized Service Center.

Note : In extremely humid places, attach a ground wire for extra safety. The ground wire terminal is located at the rear left corner of the refrigerator.

Sound of flowing is noticeable. This sound is caused by the refrigerant flowing into the refrigerating device. It does not denote a malfunction.

اعمل اختبار تشغيل

● Refrigerated air goes down at the rear of the fresh food compartment and rises up at the front. Then, store the foodstuffs such as fish and meats which require quick refrigeration to the rear of the compartment.
● Leave spaces among foodstuffs to help air circulation.
● Foodstuffs which are easily dried should be well wrapped with waxed paper, aluminum foil or plastic film.
● Wrap fish and smoked meats in moisture-vaper-proof material to prevent transfer for odors.
● Pre-cool hot foods, wrap them with plastic film or put them in the airtight receptacle.
● Wipe the water on the surface of the bottles before storing them.
- Be sure not to store bottles such as beer, cokes, etc. in the freezer compartment.
- Do not put vegetables which are liable to freeze at the rear part of the shelves.
- If planning to keep fresh fish and meats for a long period, wrap them in freezer paper and store in the freezer compartment.

دVisual Thompson

The refrigerator is equipped with 2 independent controls to control the degree of cooling of the Freezer & Refrigerator Compartment.

- Freezer Compartment

MIN.: Minimum Setting for fairly cold in freezer compartment.

MED.: Medium Setting for colder in freezer compartment.

MAX.: Maximum Setting for the coldest in freezer compartment.

● Refrigerator Compartment

MIN.: Minimum Setting for fairly cool in compartment. refrigerator

MED.: Medium Setting for cooler in compartment.refrigerator

MAX.: Maximum Setting for the coolest in compartment. refrigerator

How to remove ice cubes

Ice cubes are made in twist ice maker, turn the lever clockwise to empty the ice into ice cube box.

Store the ice cubes in the ice cube box. Do not store wet ice cubes or they will stick together.

Do not use the "ice cube box" as an ice making tray, or it will be damaged.

ضبط درجة الحرارة

Simple line drawing of a hand cleaning a shelf with a brush (no text or symbols)

How to defrost

The defrosting will automatically operate. No manual control is required.

The defrosted water will drain into evaporation tray and automatically evaporate by tube evaporator condenser.

The evaporation tray should be cleaned once a month.

Cleaning the vaporator rayET

Since dust accumulated on the vaporation ray will decrease ET the evaporation efficiency, remove the tray to clean.

If the tray is not securely in place, defrosted water may spill or the evaporation process may be hindered.

• Slide Cap to the right hand ("HUMID" appears) for appropriate moisture and temperature to maintain freshness of fruits and vegetable.
• Slide Cap to the left hand ("COOL" appears) for rapidly cool fruits and vegetable.

Cleaning and maintenance

Your refrigerator does not require any special maintenance. To clean the inside, use a soft cloth with water, mild soap suds, or some mild detergent.

Wash ice cube tray, evaporation tray and shelves in a mild detergent solution and dry with a soft towel.

Stains on the outside can also be removed with a soft cloth and some mild detergent.

● Removable parts may be rinsed with water.
- Don't forget to clean the door gasket, especially the bottom gasket is liable to dirty.
● Wipe the door with a dry cloth when water splashes or it rusts.

- Occasionally remove dust and other particles which may collect at the back of the refrigerator and the condenser under the cabinet to keep heat radiating efficiency high. For safety, unplug the refrigerator before cleaning.

الصيانة والتنظيف

If the illuminating does not work properly and in case of the replacement lamp is needed, it had better be replaced by its service agent or similarly qualified person in order to avoid a hazard.

Freezer Compartment

For models : With Freezer Lamp

PROCEDURE :

• Disconnect the plug of the refrigerator from the outlet.
  ● Take the lamp off by turning it counterclockwise.
  ● Change the bulb with 10W, E12 characteristic.
• Replace lamp and turn it clockwise.

Refrigerator Compartment PROCEDURE :

• Disconnect the plug of the refrigerator from the outlet.
  ● Take the lamp off by turning it counterclockwise. Change the bulb with 15W, E14 characteristic.
• Replace lamp and turn it clockwise.

Caution: To prevent any breakage do not over tighten the lamp to socket. It is highly recommended to have the service agent or qualified person to do the lamp replacement.

• Do not use inflammable sprays such as lacquer and paint near the refrigerator, because there is a danger of igniting.
• Do not operate the refrigerator in the presence of explosive gas to avoid a fire or an explosion by ignition of the electric contact of the refrigerator.
  ● Be careful no to splash water on the back of the refrigerator the insulation of electric parts will be impaired by water.
• Do not touch the sides and the back of cabinetthe refrigerator and the mechanical parts at the back of the refrigerator, because their temperature is high.
• If the unit is turned off or unplugged, you must allow at least seven minutes before restarting or replugging the unit.
• Do not use acids, chemical thinner, gasoline or benzine for cleaning any part of the refrigerator. Boiling water and benzine are especially harmful for plastic parts.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• If the illuminating lamp does not work properly. The replacement of lamp is able to do by disconnect the power supply, detach the shield light cover then remove the lamp from the lamp socket, replace the lamp and reassembly the lamp.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• Do not use mechanical devices or other means to accelerate the defrosting process.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• This fridge is Cyclopentane insulation, should be kept away from heat or flame when it isn't properly used.
  ● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible for their safety.
  ● Children should be supervised to ensure that they do not play with the appliance. Be ensure this refrigerator is disposed off correctly, you will help prevent potential negative consequences of environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detail, please contact your local city office or your household waste disposal service.
