KS22AR - Aaaa Campomatic - Free user manual and instructions

Product Type	Chest Freezer
Brand	Campomatic
Model	KS22AR
Capacity	200 L
Dimensions (W x D x H)	800 x 600 x 850 mm
Weight	35 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	210 kWh/year
Climate Class	N
Freezing Capacity	12 kg/24h
Temperature Range	-18°C to -24°C
Control Type	Mechanical Thermostat
Defrost Type	Manual
Noise Level	42 dB
Refrigerant	R600a
Door Hinge	Top Lid
Lockable Lid	Yes
Defrost Water Drain	Yes
Compressor Warranty	5 years
Safety Features	Overload protection, thermal fuse

Frequently Asked Questions - KS22AR Campomatic

How do I set the temperature on my Campomatic KS22AR freezer?

The Campomatic KS22AR uses a mechanical thermostat. Turn the dial inside the freezer to adjust the temperature. A higher number means a colder temperature. Typically, setting it to '3' or '4' is sufficient for normal use.

How do I defrost the freezer?

The KS22AR requires manual defrosting. Unplug the freezer, remove all food, and leave the lid open. Place towels or a container to collect water. Do not use sharp objects to remove ice. Once defrosted, clean and dry the interior before restarting.

What is the capacity of the Campomatic KS22AR?

The Campomatic KS22AR has a capacity of 200 liters, suitable for storing approximately 140 kg of frozen food.

Is the freezer lockable?

Yes, the KS22AR has a lockable lid. Use the provided key to lock and unlock the freezer for added security.

What should I do if the freezer is not freezing properly?

Check that the thermostat is set correctly, the lid is fully closed, and the condenser coils are not dusty. Ensure the freezer is not overloaded and has adequate ventilation. If the problem persists, contact a qualified technician.

How do I clean the Campomatic KS22AR?

Unplug the freezer and remove all food. Clean the interior with a mild detergent and warm water. Do not use abrasive cleaners. Dry thoroughly before restarting. Clean the exterior with a soft damp cloth.

What is the energy consumption of the KS22AR?

The Campomatic KS22AR consumes approximately 210 kWh per year, which is energy efficient for a freezer of this size.

How long can food be stored in the freezer during a power outage?

A full freezer can keep food frozen for about 24 hours if the lid remains closed. A half-full freezer will keep food frozen for about 12 hours. Do not open the lid unnecessarily.

What is the noise level of the KS22AR?

The Campomatic KS22AR operates at a noise level of approximately 42 dB, which is quiet and suitable for indoor use.

Where can I find spare parts for the Campomatic KS22AR?

Spare parts can be ordered from authorized Campomatic service centers or online retailers. Common parts include the thermostat, lid seal, and compressor. Use the model number KS22AR for identification.

USER MANUAL KS22AR Campomatic

Modern stainless steel kettle with black handle and control dial, no visible text or symbols on the device itself.

Made in China

INSTRUCTION MANUAL

Caution: Read and follow all safety and operating instruction before first use of this product.

Campomatic S.R.L. Via Configliachi 5/B . 35031, Abano Terme (Padova), ITALIA

WWW.CAMPOMATIC.COM

DESIGN

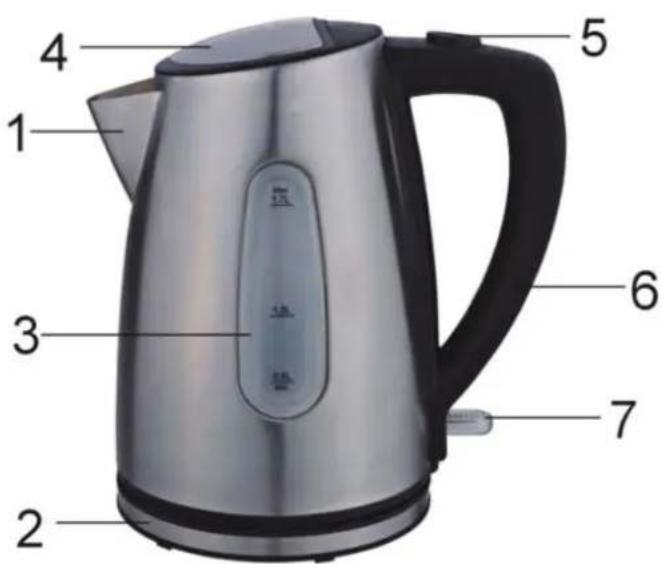

Labeled diagram of a stainless steel coffee kettle with numbered parts for identification

1. Spout
2. Base station
3. Water window with water level
4. Lid
5. Unlocking button for the lid
6. Handle
7. On/Off switch with indicator lamp

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight,

humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
  • Use only original spare parts.
• Pay careful attention to the following “Special Safety Instructions”.

Special Safety Instructions for this Machine

• Use only cold water when filling.
• The water level must be between the MAX. and MIN. marks! If the kettle is overfilled, boiling water may be ejected, which might arise a hazard to the user.
• CAUTION-Ensure that the kettle is switched off before removing it from its stand.
• The kettle is only to be used with the stand provided.
  • The appliance must not be immersed.
• The appliance can only be used for household only.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Always ensure that the lid is tightly closed.
• The base and exterior of the machine must not become wet.

First Use of the Machine

Please read these operating instructions carefully and keep them in a safe place. Before using for the first time, boil fresh water at least twice in the appliance. Use only water

without any additives or ingredients.

Use

1. Place the machine on a flat surface.
2. Open the kettle by pressing the button on the handle. Then fill in some water. The water level can be read off using the water level indicator on the kettle. Please do not overfill the kettle.
3. Close the lid by releasing the button on the handle.
4. Place the kettle flush on the base.

Electrical Connection

1. Switch the kettle on with the switch in the handle bottom. The indicator lamp lights up.
2. The kettle switches off automatically when the water has boiled. Now disconnect the kettle from the mains power supply. Always hold the lid closed when pouring the water out. Beware of scalding!

Cleaning

• Always pull out the plug from the socket before cleaning!
- The exterior of the machine should be cleaned, if necessary, with a slightly damp cloth without additives.

Decalcification

• The frequency of the decalcifying operation depends on the hardness of the water and on how often the appliance is used.
  • If the machine switches off before the water boils, it probably needs to be decalcified.
• Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions.

Power supply: 220-240V\~50-60Hz, 1850-2200W

اول استعمال للابريق

Labeled diagram of a stainless steel coffee kettle with numbered parts for identification

Exterior view of a stainless steel kettle with black handle and control panel (no text or symbols visible)

صنع في الصين

كتيب التعليمات
