Product Type	Freestanding Refrigerator-Freezer
Brand	Whirlpool
Model	ARZ 9370
Total Net Capacity	330 L
Fridge Net Capacity	240 L
Freezer Net Capacity	90 L
Energy Class	A+
Annual Energy Consumption	290 kWh
Noise Level	42 dB
Climate Class	N-ST
Defrost Type	Auto defrost (fridge), Manual (freezer)
Cooling System	Fan-assisted (No Frost) in fridge
Controls	Electronic with LED display
Shelves	4 adjustable glass shelves
Door Bins	3 adjustable door bins
Freezer Drawers	3 drawers
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	65 kg
Voltage / Frequency	220-240 V / 50 Hz
Reversible Door	Yes

Frequently Asked Questions - ARZ 9370 WHIRLPOOL

What is the ideal temperature setting for the fridge and freezer?

For optimal preservation, set the fridge to 4°C and the freezer to -18°C. Use the electronic control panel to adjust.

How do I clean the refrigerator?

Unplug the appliance and remove all food. Use a soft cloth with warm water and mild detergent. Avoid abrasive cleaners. Dry thoroughly before plugging back in.

Why is my refrigerator not cooling properly?

Check if the temperature settings are correct, ensure the door is fully closed, and the condenser coils are clean. Also allow proper ventilation around the appliance.

How to replace the interior light bulb?

Unplug the fridge. Locate the light cover, gently pry it off, and replace the bulb with a max 15W E14 type. Reattach the cover and plug back in.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions. You will need a screwdriver and possibly a helper.

How much clearance is needed around the refrigerator?

Leave at least 5 cm at the back, 10 cm on the sides, and 10 cm above for proper air circulation.

What does the alarm sound mean?

The alarm may sound if the door is left open for too long, or if the internal temperature rises excessively. Close the door firmly or check the temperature settings.

How to defrost the freezer?

If your model has a manual defrost freezer, remove all food, unplug the fridge, and leave the door open. Place towels to absorb water. Do not use sharp objects to remove ice.

Where are the spare parts available?

Spare parts such as shelves, drawers, and door bins can be ordered from Whirlpool's official website or authorized dealers. Use the model number ARZ 9370.

How to save energy with this refrigerator?

Place the fridge away from heat sources, keep the door closed as much as possible, regularly clean the condenser coils, and avoid overfilling.

USER MANUAL ARZ 9370 WHIRLPOOL

Your new appliance is exclusively for domestic use.

The freezer compartment ✦*** can be used for freezing fresh and cooked food, making ice cubes, and storing frozen and deep-frozen food; defrosting is a manual procedure.

The refrigerator compartment, which has an automatic defrost feature, is used for the storage of fresh food and beverages.

To get the most out of your new appliance, read the user handbook thoroughly. The handbook contains a description of the appliance and useful tips for storing food.

Keep this handbook for future consultation.

1. After unpacking the appliance, make sure that the door shuts properly. Any damage must be reported to your dealer within 24 hours after delivery of the appliance.

2. Wait at least two hours without moving the appliance before switching on. This will give the refrigerant circuit time to settle and operate efficiently.

3. Installation of the appliance and electrical connections must be carried out by a qualified electrician, in accordance with the manufacturer's instructions and local regulations.

SAFEGUARDING THE ENVIRONMENT

1. Packing

The packaging material is entirely recyclable, and marked with the recycling symbol. Follow local regulations for scrapping.

Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.

2. Appliance

The appliance is made using recyclable materials. Dispose of the appliance in conformity with local environmental regulations.

Make the appliance unusable by cutting off the power cord. The appliance must be delivered to an authorised collection centre for the recovery of refrigerant gas.

Information:

This appliance does not contain CFCs (replaced with R134a) or HFCs (replaced with R600a - Isobutane). For more information, refer to the identification data plate affixed to the appliance.

Abstract black-and-white sketch of a four-leaf clover (no text or symbols)

PRECAUTIONS AND GENERAL RECOMMENDATIONS

• Use the refrigerator compartment only for storing fresh food and beverages and use the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• Do not cover or obstruct the air vents of the appliance.
• Do not store liquids in glass containers in the freezer compartment - danger of bursting.
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer compartment - risk of "cold" burns.
• Do not allow children to play or hide inside the appliance - risk of becoming trapped and suffocating.
• Before servicing or cleaning the appliance, unplug it from the mains or disconnect the electrical power supply.
• The power cable may only be replaced by an authorised person.

Declaration of conformity

- This appliance is intended to come into contact with foodstuffs and conforms to D.L. 108 of 25.01.1992 (European Directive 89/109/EEC).

Appliances with Isobutane (R600a)

Isobutane is a natural gas having low environmental impact. Caution is required, however, since isobutane is flammable. Therefore, it is essential to ensure that refrigerant pipelines are not damaged.

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

This appliance is a refrigerator with a freezer compartment.

Defrosting of the refrigerator compartment is completely automatic.

The refrigerator can operate at ambient temperature between +10°C and +38°C. Optimal performance is obtained at temperatures between +16°C and +32°C.

Switching on the refrigerator for the first time Insert the plug into the mains socket.

The thermostat is used to adjust the temperature of both compartments: refrigerator and freezer.

How to adjust the temperature of the compartments:

1. For correct operation and optimum storage of food, follow instructions given in the enclosed product sheet for thermostat adjustment.

2. To adjust the temperature in the refrigerator compartment, turn the thermostat control knob:

- lowest numbers 1-2/MIN for the LEAST COLD internal temperatures;

- highest numbers 5-7/MAX for the COLDEST internal temperatures.

Thermostat set to ●: no operation, no light.

Note:

The ambient air temperature, frequency of door opening and the position of the appliance can affect internal temperatures. These factors must be taken into account when setting the thermostat.

How to use the refrigerator compartment

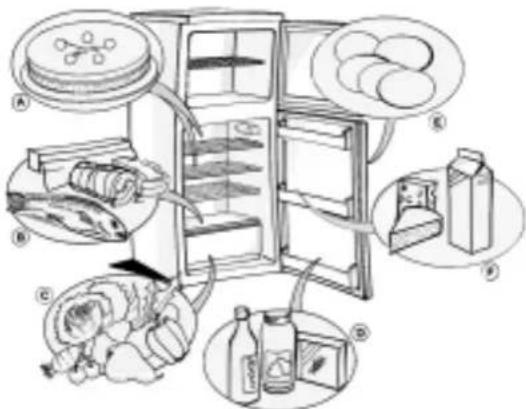

Position the food as illustrated in the figure.

A Cooked food

B Fish, meat

C Fruit and vegetables

D Bottles

E E g g s

F Butter, cheese and dairy products

Notes:

• The space between the shelves and the rear wall of the refrigerator compartment must be unobstructed to allow circulation of air.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
• Do not place hot food in the refrigerator or freezer.
  • Store liquids in closed containers.

- Storing vegetables with a high water content can result in condensation in the crisper drawer: this will not affect the correct operation of the appliance.

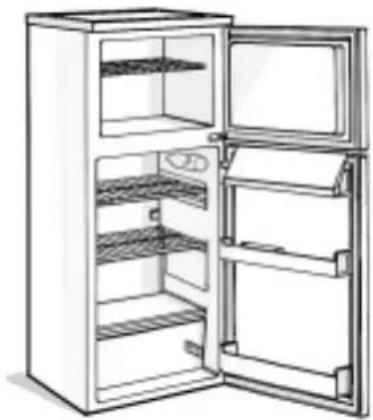

Line drawing of a double refrigerator with open doors and shelves (no text or symbols)

Diagram illustrating the internal components of a refrigerator with labeled parts including oven, milk carton, and food items.

The freezer is a *far compartment.

This compartment can be used to store frozen foods for the period of time indicated on packaging. The freezer can also be used to freeze fresh food by positioning it on the rack; place frozen food in the lower part of the compartment so that there is no contact with fresh food that has yet to be frozen.

The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate.

Important:

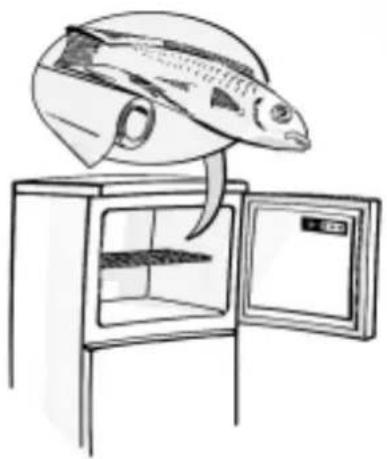

Before freezing, wrap and seal fresh food in:

• aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
• In the event of a power cut, the freezer compartment will maintain a sufficiently low temperature for food storage. However, it is advisable to avoid opening the compartment door during such periods.

Important:

The table alongside shows the recommended maximum storage time for frozen fresh foods. When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Place the items in the freezer compartment as soon as you get home.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.
  • Always observe the storage information on the package.

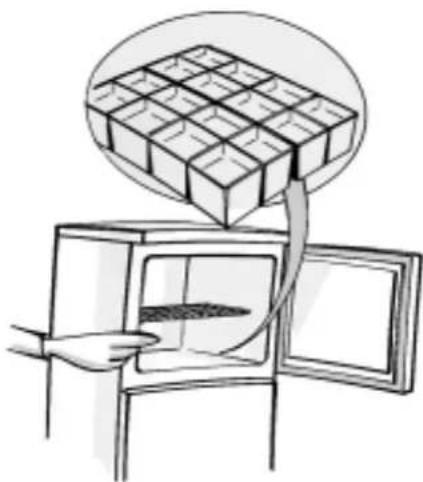

Making ice cubes

- Fill the ice cube tray 3/4 with water and place it at the bottom of the freezer compartment. Do not use sharp or pointed instruments to detach the tray if it is stuck to the compartment bottom.

Illustration of a fish-shaped container with a lid above an open refrigerator (no text or symbols)

MONTHS FOOD

1-3
4-7
8-12

Illustration of a hand inserting a cube into a microwave oven with a magnified view (no text or symbols)

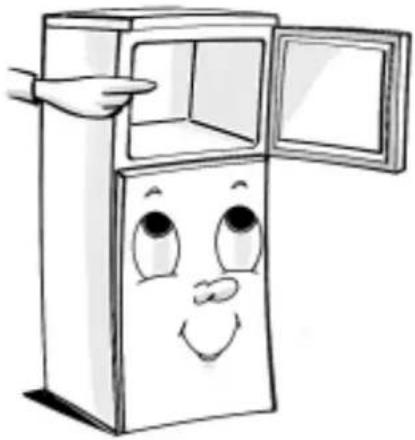

HOW TO DEFROST AND CLEAN THE FREEZER COMPARTMENT

Defrost the freezer compartment once or twice a year, or when the ice on the walls reaches a thickness of about 3 mm. If possible, carry out defrosting when the compartment is nearly empty.

• Remove the food from the low temperature compartment, wrap in a newspaper and group together in a cool place or in a portable cooler.
• Disconnect the appliance from the mains power supply.
• Leave the door open to allow the frost to melt.
• Remove the defrost water from the compartment bottom.
• Clean the interior with a sponge dampened in lukewarm water and neutral detergent. Do not use abrasive products.
  • Rinse the interior and dry thoroughly.

Note: Do not use sharp or pointed metal instruments to scrape off ice; do not heat the freezer compartment artificially.

Cartoon illustration of a smiling open refrigerator with eyes and a smile (no text or symbols)

HOW TO CLEAN THE REFRIGERATOR COMPARTMENT

Periodically clean the inside of the refrigerator compartment.

Defrosting of the refrigerator compartment is completely automatic.

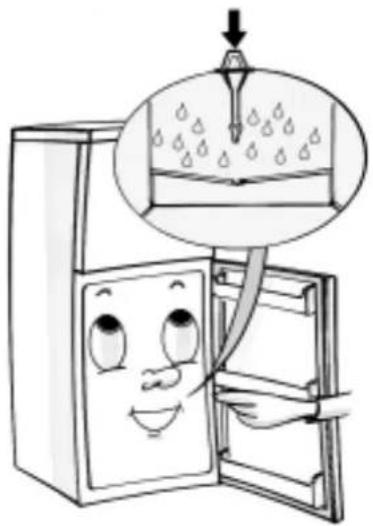

Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress.

The defrost water is automatically routed to a drain outlet and into a container from which it evaporates.

Clean the defrost water drain outlet regularly using the tool supplied with the appliance in order to ensure defrost water is removed correctly.

Before carrying out any cleaning operations, unplug the appliance.

• Use a sponge dampened in lukewarm water and/or neutral detergent.
• Rinse the interior and dry with a soft cloth. Do not use abrasive products.

Illustration of a smiling refrigerator with water droplets inside, showing a hand holding a tool above it (no text or symbols)

CARE AND MAINTENANCE

For built-in appliances

• Periodically clean air vents with a vacuum cleaner or a brush (see figure A).
- Clean the outside using a soft cloth.

Freestanding appliances

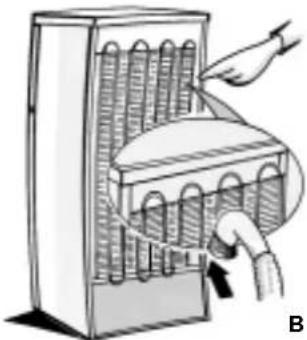

• Periodically clean the condenser at the rear of the appliance with a vacuum cleaner or a brush (see figure B).

Prolonged disuse

1. Empty the refrigerator and freezer compartments.
2. Disconnect the appliance from the mains power supply.
3. Defrost the freezer compartment, and clean and dry both compartments.
4. Leave the doors open to prevent formation of unpleasant odours.

Cartoon illustration of a smiling rectangular box with eyes and a smile, pointing to the side (no text or symbols)

Illustration of a hand inserting a component into a device with a curved panel (no text or symbols)

TROUBLESHOOTING GUIDE

1. The appliance is not working.

• Is there a power failure?
- Is the plug properly inserted in the mains socket?
• Is the double-pole switch on?
- Has the fuse blown?
• Is the power cord in perfect condition?
• Is the thermostat set to ● (Stop)?

1. Temperature inside the compartments is not low enough.

• Is the door shut properly?
- Is the appliance installed near a heat source?
• Is the thermostat setting correct?
- Are the air circulation grilles blocked?

1. Temperature inside the refrigerator compartment is too low.

• Is the thermostat setting correct?

1. Water collects at the bottom of the refrigerator compartment.

• Is the defrost water drain blocked?

1. The inside light is not working.

Perform the checks for problem 1, then:
- Disconnect the appliance from the mains power supply. To inspect the bulb, refer to the instructions and illustration on the attached table.
- Check the bulb and, if necessary, replace it with one of the same type.
Replace using maximum 15W bulb.

1. Excessive frost build-up in the freezer compartment.

• Is the door shut properly?
• Is food obstructing proper door closure?

Notes:

• The front edge of the appliance may be hot. This prevents the formation of condensation and is not a defect.
  • Gurgling and hissing noises due to expansion in the refrigerant circuit are normal.

AFTER-SALES SERVICE

Before contacting After-Sales Service:

1. See if you can solve the problem yourself with the help of the "Troubleshooting guide".
2. Switch the appliance on again to see if the problem has been solved. If it has not, disconnect the appliance from the power supply and wait for about an hour before switching on again.
3. If the problem persists after this course of action, contact After-sales Service. Specify:

• the nature of the problem
- the model
- the Service number (the number after the word SERVICE on the data plate on the inside of the appliance)
- your full address
- your telephone number and area code

SERVICE

0000 000 00000

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

INSTALLATION

• Install the appliance away from heat sources.
• Install the appliance in a dry, well-ventilated place.
- Do not obstruct the top and bottom vent zones.
- Clean the inside (see "How to clean the refrigerator compartment").
• Fit the accessories supplied.

Electrical connection

• Electrical connections must be made in accordance with local regulations.
• Voltage and power consumption are indicated on the rating plate (at the side of the crispers).

Freestanding appliances

(not built-in)

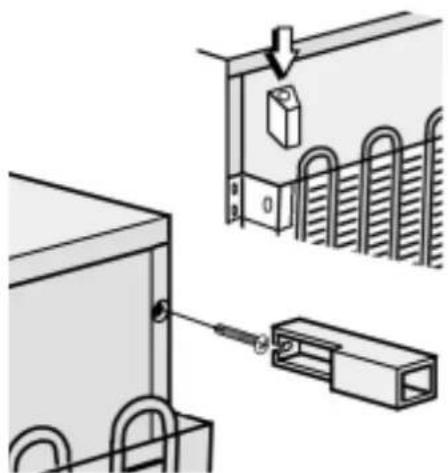

• Fit the spacers (if supplied) on the rear of the condenser positioned at the back of the appliance (see figure).
• To optimize appliance efficiency, leave a 5 cm gap above the appliance and make sure that adjacent kitchen units are sufficiently distanced to allow air circulation.
• Ensure that the appliance is level, using the front adjustment feet if necessary.

• Regulations require that the appliance is earthed.

The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders.

• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.
  • Do not use extension leads or adaptors.

Disconnecting the appliance

It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket.

Technical diagram showing a mechanical assembly with a spring-loaded component and a hanging part (no text or symbols present)

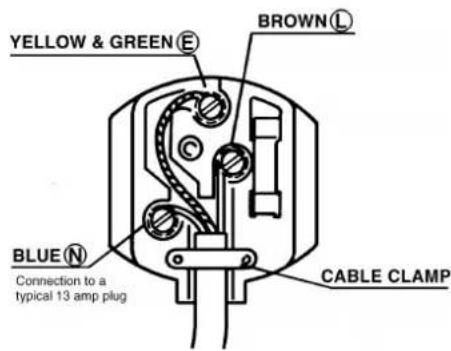

ELECTRICAL CONNECTION

For Great Britain only

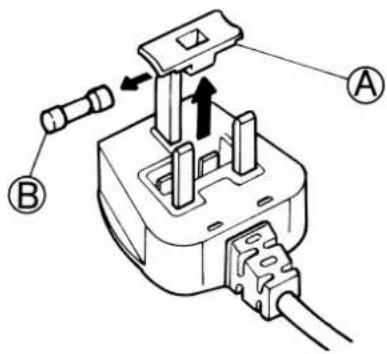

Technical diagram of a plug-in socket with labeled components A and B, showing internal wiring and adjustment arrows.

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B).
2. Fit replacement 13A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

Connection to a rewirable plug

If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of in order to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.

A suitable alternative plug should then be fitted to the cable.

The wires in the mains lead are coloured in accordance with the following code:

BLUE - "NEUTRAL" ("N")

BROWN - "LIVE" ("L")

GREEN AND YELLOW - "EARTH" ("E")

1. The GREEN AND YELLOW wire must be connected to the terminal in the plug which is marked with the letter "E" or by the Earth symbol or coloured green or green and yellow.
2. The BLUE wire must be connected to the terminal which is marked with the letter "N" or coloured black.
3. The BROWN wire must be connected to the terminal which is marked with the letter "L" or coloured red.

YELLOW & GREEN® BROWN® BLUE® Connection to a typical 13 amp plug CABLE CLAMP

For the Republic of Ireland only

- The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type. In this case, the wire which is coloured GREEN AND YELLOW must be connected to the EARTH contact, and the two wires to the two pins, irrespective of colour. The supply to the socket must be fitted with a 16 amp fuse.
