USER MANUAL Total Control Multi Set 402053EE MORPHY RICHARDS

smart ideas for your home

TOTAL

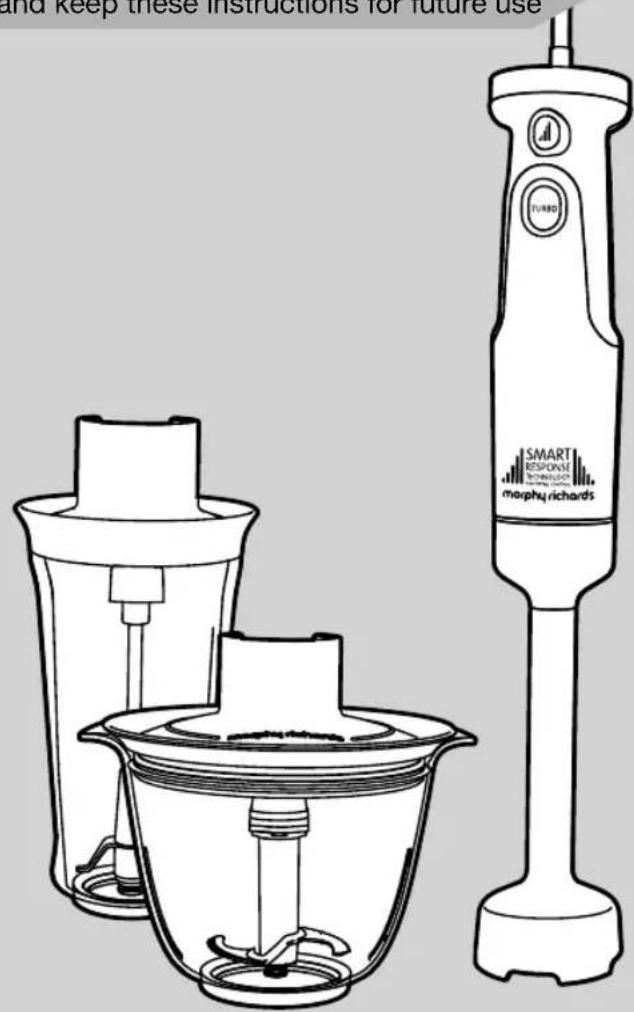

CONTROL Hand Blender Preparation Set

Please read and keep these instructions for future use

download the free app

Download on the App Store

ANDROID APP ON Google play

For competitions, product hints and tips and more join us at

www.morphyrichards.co.uk/blog

www.facebook.com/morphyrichardsuk

@loveyourmorphy

www.morphyrichards.com

* Register online for your 2 year guarantee. See the back of this instruction book for details (UK and Ireland customers only). ** Applies to serrator blade only. See back of this instruction book for details.
*** Independently tested by CATRA using the International Standard Cutting Test System to ISO 8442.5 vs a standard plain edge blade.

The use of any electrical appliance requires the following common sense safety rules.

Please read these instructions carefully before using the product.

This appliance can be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

This appliance shall not be used by children.

Keep the appliance and cord out of reach of children.

Do not blend for longer than the time periods recommended in 'Usage' on page 9.

Always disconnect from the supply if left unattended and before assembling, dissembling or cleaning.

For ‘Care And Cleaning’, please refer to page 10.

Avoid touching moving parts. Keep hands, hair and clothing, and utensils away from the attachment blades during operation, to prevent personal injury and/or damage to the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

In addition, we offer the following safety advice.

Do not use outdoors or in a bathroom.

Always locate your appliance away from the edge of the worktop.

Do not place the bowl used with the appliance on a highly polished wooden surface as damage may occur to the surface.

Do not let the mains cable hang over the edge of the worktop where a child could reach it.

Do not let the lead run across an open space e.g. between a low socket and a table.

Do not let the cable run across a cooker or other hot area which might damage the cable.

The mains cable should reach from the socket to the base unit without straining the connections.

Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

Do not use the appliance for anything other than its intended purpose.

WARNING: The blender blades are very sharp. Handle with care when using and cleaning.

Do not clean the attachments under running water while they are in position.

IMPORTANT: Allow hot liquids to cool before adding to the blender, always ensure the lid is fitted correctly.

Be careful whilst hot liquid is blending or poured into the blender as it can be ejected due to sudden steaming.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating Current).

Should the fuse in the mains plug require changing, a 3 amp BS1362 fuse must be fitted.

Thank you for your recent purchase of this Morphy Richards Total Control Hand Blender Preparation Set.

Your Hand Blender Preparation Set comes with a number of attachments. Please read the instructions for information on how to use each attachment thoroughly before use.

Remember to visit www.morphyrichards.co.uk to register your products two year guarantee.

Health And Safety ....

Introduction ....

Total Control ....

Product Overview ....

Before First Use ....

Using Your Hand Blender ....

Using Your Chopping Bowl ....

Using Your Smoothie Beaker ....

Suitable Foods ....

Usage

Attachments ....

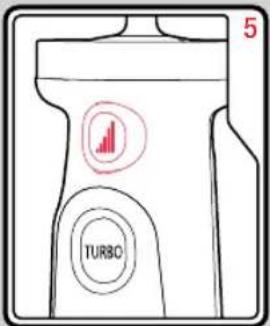

Turbo Button ....

Blending In A Saucepan ....

Hints & Tips ....

Care And Cleaning ....

Contact Us ....

Notes ....

Recipes ....

Notes ......

Guarantee ....

TOTAL CONTROL

Introducing the Total Control Hand Blender – the simple way to bring confidence to your cooking.

The Total Control Hand Blender allows you to create delicious smoothies and shakes, blend soups and sauces with the confidence and reassurance the Smart Response Technology delivers.

Smart Response Technology allows you to have Total Control of the blending process with the simple squeeze of a button. The Smart Response Technology gently feeds power into the blender as you need it, there are no sudden jerks or splatters, giving you complete confidence in the kitchen.

Close-up of a black and silver mechanical component with a handle and circular base (no visible text or symbols)

Choose the speed that best suits the job at hand using the simple twist motion Speed Control, there are 8 to choose from. Even when using a higher speed you can feel assured that the Smart Response Technology feeds power in gradually building to your chosen speed for the job at hand.

When you have blended to your desired consistency simply release the button and the Total Control Hand Blender will steadily slow down and stop, ensuring no splash and no suction.

Total Control Hand Blender, giving you the power to create with confidence.

Close-up of a handheld electric shaver with black and white casing, showing internal components and a handle (no text or symbols visible)

Variable Speed Control

Precision Control Trigger Ergonomic Soft Grip Handle

650 Watt Motor

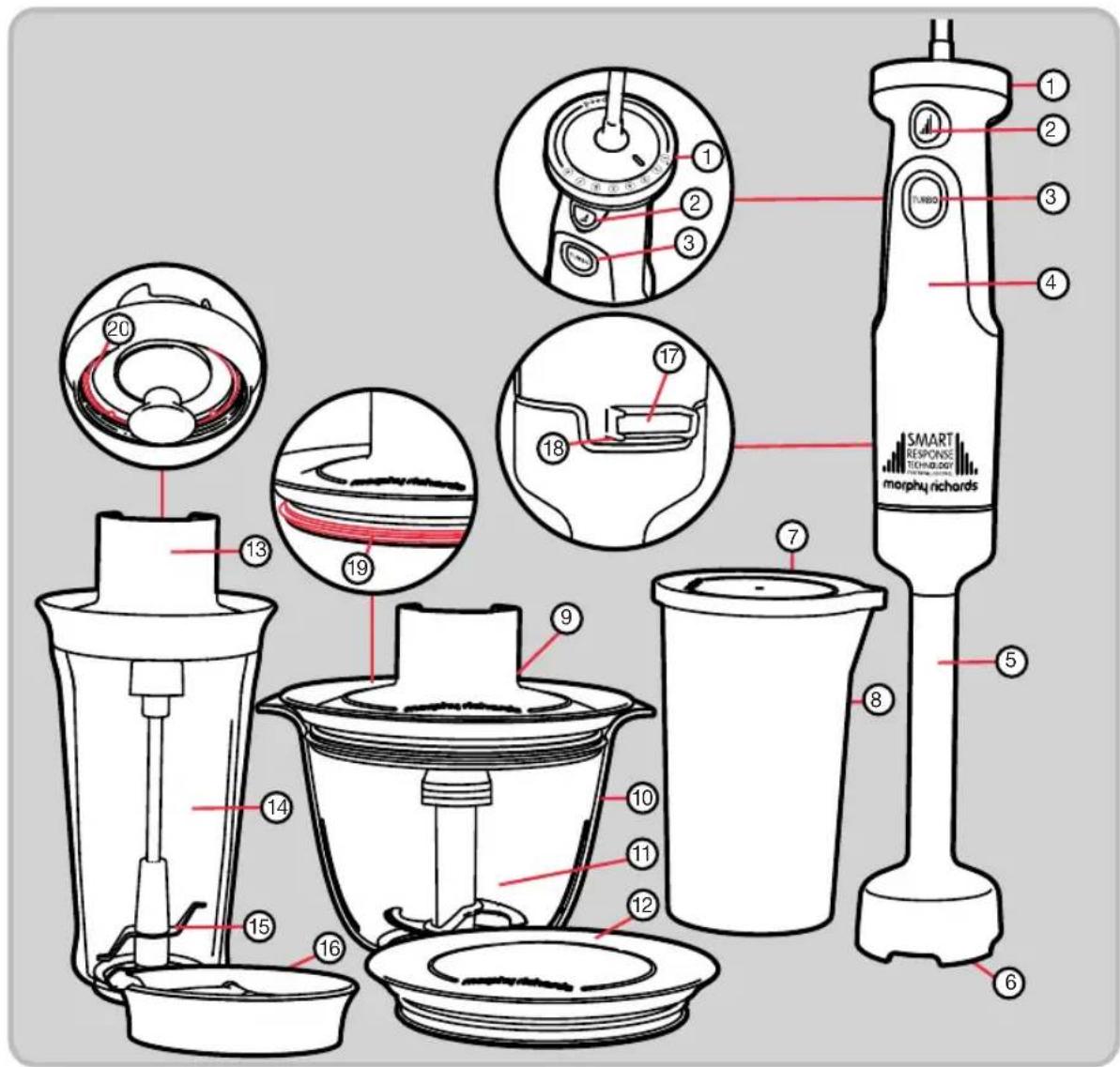

(1) Variable Speed Control
(2) Precise Control Trigger
(3) Turbo Button
(4) Main Unit
(5) Blending Leg
(6) Serrator Blade
(7) Beaker Lid
(8) Beaker
(9) Chopping Bowl Blending Lid

(10) Chopping Bowl (x3)
(11) Chopping Serrator Blade
(12) Chopping Bowl Lid (x2)
(13) Smoothie Blending Lid
(14) Smoothie Beaker (x2)
(15) Smoothie Blade
(16) Sports Lid (x2)
(17) Attachment Release Button

(18) Heel Rest
(19) Safety Seal
(20) Smoothie Safety Seal

WARNING: Carefully unpack your Hand Blender Preparation Set as the blades are very sharp.

Wash all parts except the Main Unit, Chopping Bowl Blending Lid and Smoothie Blending Lid in hot soapy water before use. Dry all parts thoroughly before use.

Do not fully submerge the Blending Leg in water. Wash only the Serrator Blade head .

Wipe the Chopping Bowl Blending Lid and Smoothie Blending Lid with a hot damp cloth to clean. Do not immerse in water.

Do not immerse the Main Unit in water.

Diagram of a connector being inserted into a socket, showing red motion arrows (no text or symbols)

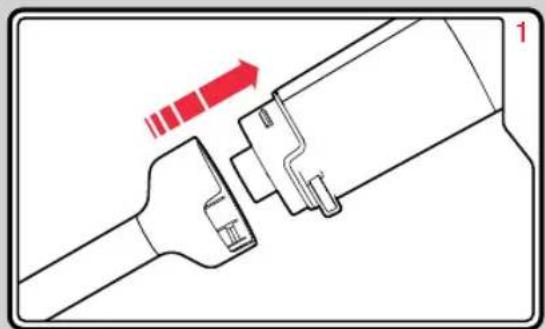

Attach the Blending Leg (5) to the Main Unit (4) and push to lock into place.

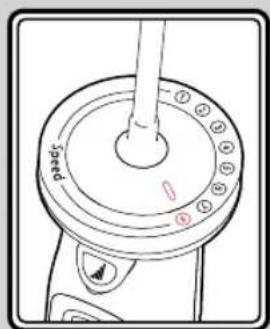

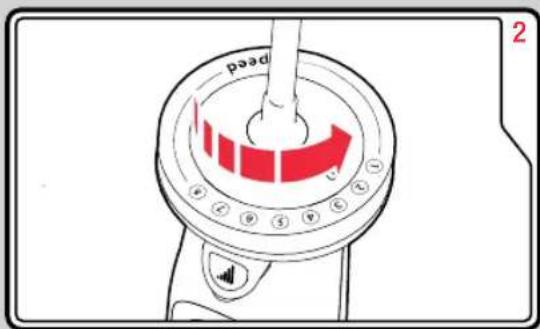

Select the speed on the Variable Speed Control (1). Your Hand Blender will not start unless the Precise Control Trigger (2) or Turbo Button (3) is pressed.

Place the Blending Leg into the food to be blended. We recommend using the Beaker (8) for the best results.

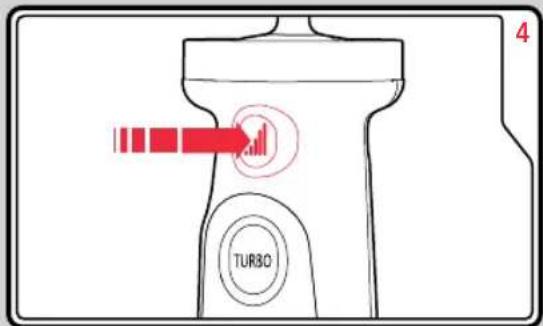

Press the Precise Control Trigger to begin blending. The speed will increase the harder you press the button.

Technical diagram of a mechanical component with concentric circles and a central cross-section (no text or symbols)

Release the Precise Control Trigger to stop. Allow the blades to slow and stop BEFORE removing your Hand Blender from the food.

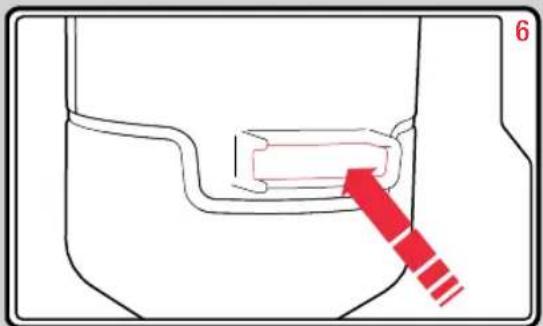

Unplug the Main Unit from the mains. Press the Attachment Release Button (17) and remove the Blending Leg from the Main Unit for cleaning.

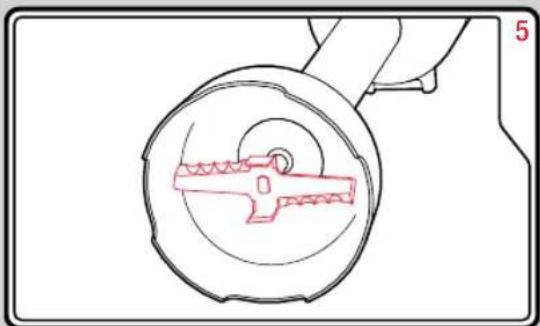

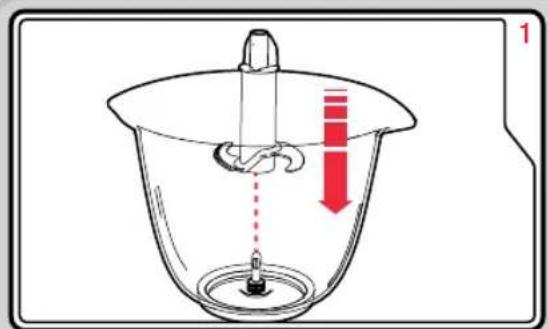

CAREFULLY insert the Chopping Serrator Blade (11) into the Chopping Bowl (10). WARNING: Blades are sharp.

Line drawing of a plant with flowers and leaves on a leafy base (no text or symbols)

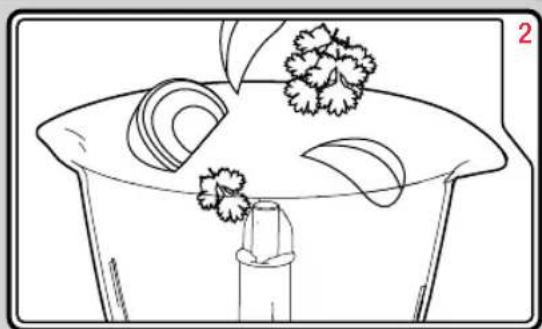

Place the food you wish to chop into the Chopping Bowl. Do not fill more than half full.

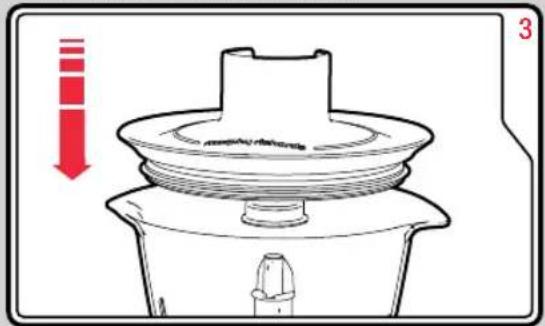

Ensure the Safety Seal (19) is in place and push the Chopping Bowl Blending Lid (9) onto Chopping Bowl. Push to secure into place.

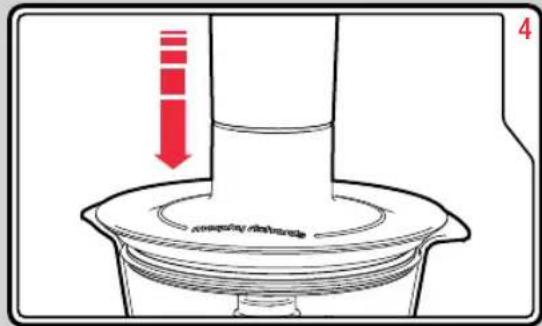

Attach the Main Unit (4) onto the Lid. The Main Unit will not lock onto the Chopping Bowl Blending Lid for safety reasons.

Select a high speed on the Variable Speed Control (1) and press and hold the Precise Control Trigger (2) to start. Do not open the Lid while in use.

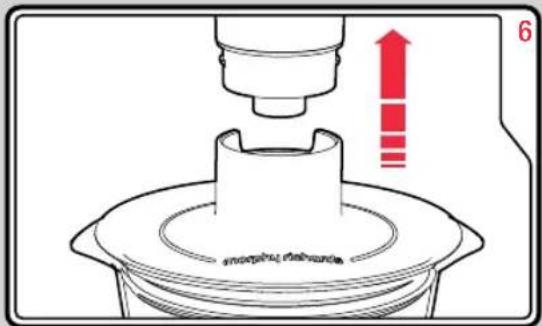

Allow your Hand Blender to completely stop before detaching the Main Unit from the Chopping Bowl Blending Lid. Lift away to remove.

Technical line drawing of a mechanical component with a red upward arrow indicating motion or direction (no text or symbols)

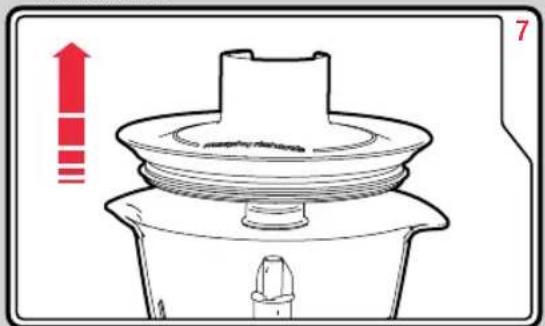

Remove the Chopping Bowl Blending Lid from the Chopping Bowl.

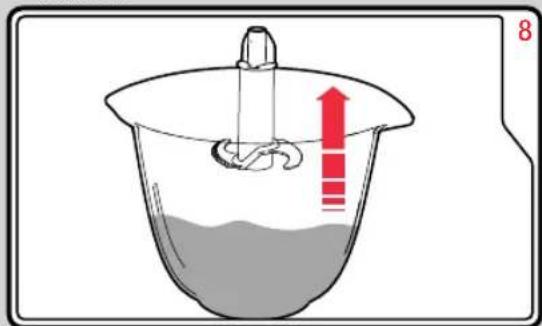

CAREFULLY remove the Chopping Serrator Blade before emptying the food from the bowl.

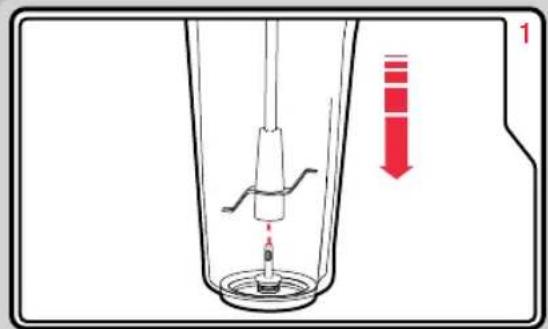

CAR EFULLY insert the Smoothie Blade(15) into the Smoothie Beaker (14).

Illustration of a jar with berries and tomatoes, no text or symbols present

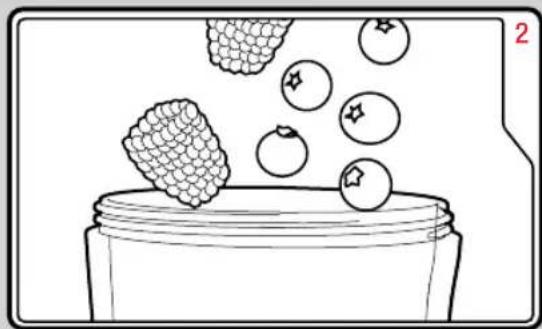

Add your ingredients to the Smoothie Beaker. To aid blending, add soft fruit first.

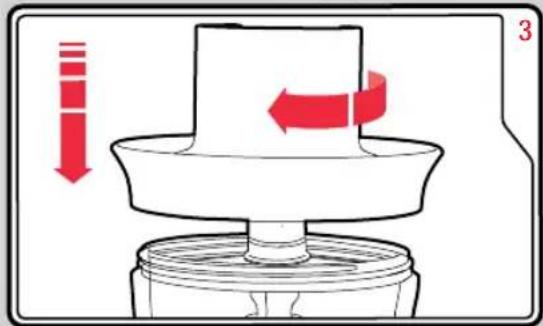

Ensure the Smoothie Safety Seal (20) is in place (see page 11). Screw the Smoothie B ending Lid (13) onto the Smoothie Beaker.

Diagram of a mechanical component with a red arrow indicating downward motion (no text or symbols present)

Attach the Main Unit (4) onto the Lid. The Main Unit will not lock onto the Smoothie Blending Lid for safety reasons. Hold the Smoothie Beaker when blending.

Select speed 8 on the Variable Speed Control (1) and press and hold the Precise Control Trigger (2) to start. Do not open the Lid while in use.

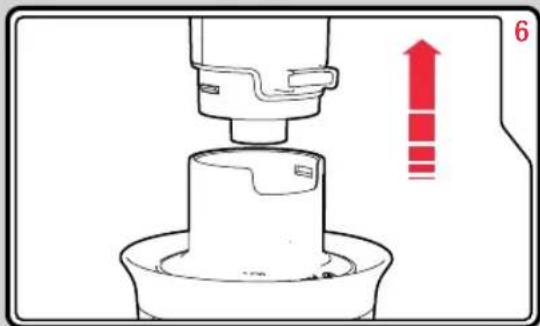

Allow your Hand Blender to completely stop before detaching the Main Unit. Lift away from the Smoothie Blending Lid to remove.

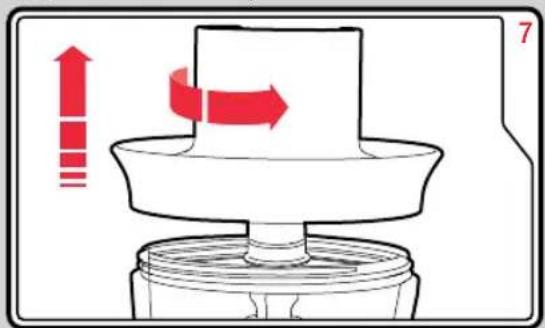

Unscrew the Smoothie Blending Lid from the Smoothie Beaker.

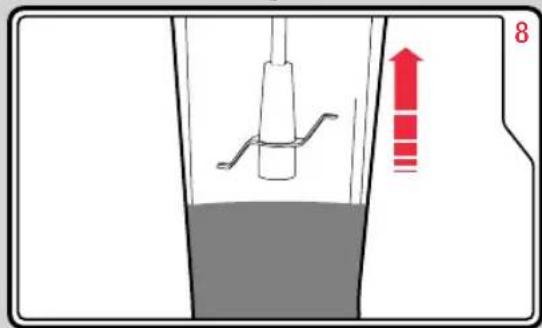

CAREFULLY remove the Smoothie Blade from the Beaker before drinking. Attach the Sports Lid (16) to enjoy your drink on the go.

The amounts listed below should be used as a guide.

The Chopping Bowl should not be filled more than half full.

Blending Leg	Soup or Sauce		4	40-60 seconds
Blending Leg^*	Milkshake	450ml	4-5	20-30 seconds
Blending Leg^*	Ice	3 cubes	8	5-15 seconds
Blending Leg^*	Carrots with water	200g 300ml	6	40-60 seconds
Chopping Bowl	Onion	200g	7	5-10 seconds
Chopping Bowl	Carrot	200g	7	5-15 seconds
Chopping Bowl	Herbs	50g	7	5-15 seconds
Chopping Bowl	Stewing Beef	100g	8	25-30 seconds
Chopping Bowl	Nuts	100g	8	15-20 seconds
Smoothie Beaker	Soft Fruits	500ml	8	20-30 seconds
Smoothie Beaker	Milkshake	500ml	8	20-30 seconds

*When using the Beaker supplied

WARNING: Your Hand Blender Set is designed for intermittent use. Do not use continuously for more than 90 seconds. Allow to cool down for a minimum of 5 minutes before further use.

Do not use the Smoothie Beaker for more than 60 seconds.

The Blending Leg is designed for pureeing foods such as soups, sauces, milkshakes, smoothies, baby food or crushing ice.

The Blending Leg is not suitable for grinding hard items such as coffee beans.

The Chopping Bowl is suitable for chopping nuts, vegetables, meat, herbs, boiled eggs and dried bread. The chopping bowl should be used on higher speeds for optimal performance.

The Smoothie Beaker is designed for smoothies and drinks on the go.

The Smoothie Beaker is not suitable for grinding coffee beans or hard foods. After Blending in the Smoothie Beaker, remove the Smoothie Blade and attach the Sports Lid to enjoy on the go.

Do not use the Smoothie Beaker to only crush ice without other ingredients. Do not use more than 2 ice cubes.

Do not use with hard vegetables such as potatoes or carrots.

If you have any leftovers, use the Bowls and Beakers with the supplied Lids to store food safely.

When sealing the Sports Lid, press down on the centre of the top instead of the edge to ensure a proper seal. Please ensure the beaker is kept upright at all times.

WARNING: No attachments are suitable for use in a microwave, oven, dishwasher or freezer.

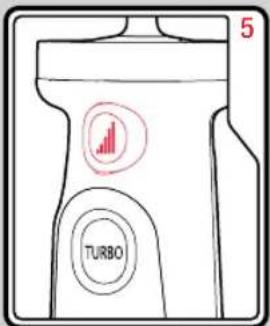

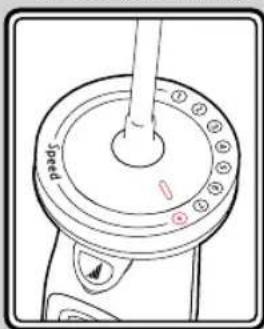

Your Hand Blender has 8 different speeds utilising Total Control technology, as well as a Turbo Button. Press the Turbo Button to run your Hand Blender at high speed for intermittent bursts.

Note: The Chopping Bowl attachment works best with the Variable Speed Control set to a high speed setting or when using the Turbo Button.

Do not use a non stick pan. The Blending Leg may damage the non stick coating.

Remove the saucepan from the heat.

To avoid excessive splashing, place the Blending Leg into the food before switching your Hand Blender on.

Hold the pan steady with your other hand, select the desired speed and lightly press the Precise Control Trigger. Start slowly, and increase the speed as needed using the Precise Control Trigger.

Move the Blades through the food using an up and down motion.

Allow the Blades to stop moving before removing from the pan.

WARNING: Lifting the Serrator Blade out of the food while running, or using a high speed setting in a small pan could splash hot liquid. Extra care should be taken when using your Hand Blender in this manner.

Do not insert your Hand Blender into the food past the join between the Main Unit and the Blending Leg.

Ensure the power cable does not touch any hot surfaces (including the side of the pan).

When blending foods with strong colour (eg. carrots), the plastic parts of the appliance may become discoloured. Wipe with cooking oil to clean any discoloured parts. Wash thoroughly in hot soapy water before re-using.

When blending using the Blending Leg , start the process by inserting the Blending Leg into the ingredients. This will ensure all the ingredients are pulled into the blade to be processed. Gently rotate the Blending Leg, lifting it up and down in the ingredients. Continue this movement until the mixture is of the desired consistency. Do not remove from the liquid while the blades are in motion.

Do not lift the Blending Leg out of the mixture completely when running, as splashing may occur.

While using the Chopping Bowl you may need to scrape the sides of the bowl down using a silicone spatula partway through blending.

When making a smoothie, add the fruit to the Smoothie Beaker first. It will be closer to the Smoothie Blade and will blend first.

WARNING: Always unplug the appliance from the mains socket before cleaning and maintenance.

WARNING: Handle the blades with care as they are sharp.

Wash all parts except the Main Unit, Chopping Bowl Blending Lid and Smoothie Blending Lid in hot soapy water, dry immediately.

Clean the Main Unit with a damp cloth and dry all the parts thoroughly.

WARNING: Never immerse the Main Unit in water or any other liquid.

Do not fully submerge the Blender Leg in water, wash only the Serrator Blade head .

No parts are dishwasher safe.

The Chopping Bowl Blending Lid (9) and Chopping Bowl Lid (12) both feature a Safety Seal. This is to prevent leakage from your Chopping Bowl (10) when in use and for during storage.

Always ensure the Safety Seal is in place before use. Failure to do so could cause damage to the appliance.

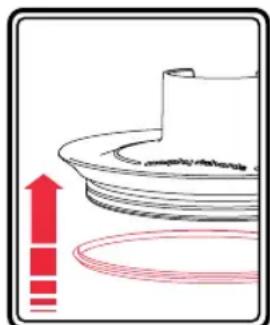

The Safety Seal only needs to be removed for cleaning (if required). After cleaning ensure the

Simple line drawing of a container with a red upward arrow and a circular base (no text or symbols)

Simple line drawing of a mechanical component with layered structure (no text or symbols)

seal is reattached as directed before using your Total Control Hand Blender

When reattaching the Safety Seal, ensure that it is pressed tightly into the first channel in the Lids (see diagram). The 'lip' on the Safety Seal should be pointed outwards, and not twisted within the channel. Ensure the Safety Seal is correctly located before use.

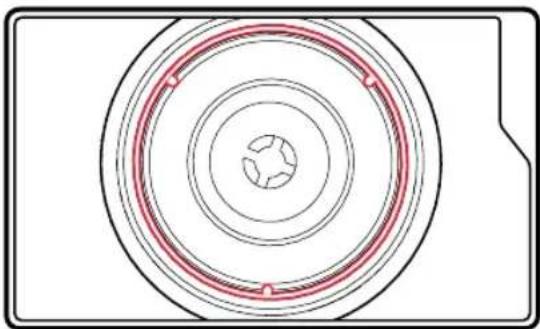

The Smoothie Blending Lid and Sports Lids both feature a Safety Seal. This is to prevent leakage when in use and for during storage.

Always ensure the Smoothie Safety Seal is in place before use. Failure to do so could cause leakage or damage to the appliance.

The Smoothie Safety Seal only needs to be removed for cleaning (if required). After cleaning ensure the seal is reattached as directed before use.

Pure concentric circular diagram with no text, numbers, or symbols

When reattaching the Smoothie Safety Seal, ensure that it is pressed tightly into the channel in the Lids (see diagram). The 'tabs' on the Safety Seal should be pointed inwards. Ensure the Safety Seal is correctly located before use.

If you are having a problem with your appliance, please call our Helpline, as we are more likely to be able to help than the store you purchased the item from.

Please have the product name, model number and serial number to hand when you call to help us deal with your enquiry quicker.

UK Helpline: 0344 871 0944

IRE Helpline: 1800 409 119

Spares: 0344 873 0710

If you have any questions or comments, or want some great tips or recipe ideas to help you get the most out of your products, join us online:

Blog: www.morphyrichards.co.uk/blog

Facebook: www.facebook.com/morphyrichardsuk

Twitter: @loveyourmorphy

Website: www.morphyrichards.com

Close-up of a plated dish featuring sliced noodles and garnish (no visible text or symbols)

Close-up of a bowl filled with granular food, possibly corn or rice, with foil partially visible (no text or symbols)

Close-up of a glass bowl containing a creamy mixture with three berries (no text or symbols visible)

Close-up of a bowl of creamy soup with a small piece of meat in the center (no text or symbols visible)

We have developed delicious recipes for you to try with your new Total Control Hand Blender Set. From smoothies to pesto there is something to suit every taste.

The recipes provided give you only a few suggestions of what you can make with your Hand Blender and its attachments. When you are used to working with your Hand Blender you will be able to easily adapt recipes for use from your favourite cookbooks.

1 ripe banana (approx 90g) peeled, cut into chunks

65g strawberries washed, dried, hulled

2 ice cubes

135ml apple juice

200g low fat vanilla yogurt

Add all the ingredients to the Beaker in the order listed.

Fit the Blending Leg to the Main Unit and select speed 4 on the Variable Speed Control.

Place the Blending Leg into the bottom of the beaker and gently press the Precise Control Trigger. Move the Hand Blender up and down in the Beaker for 20-30 seconds, until the smoothie is blended.

80g fresh raspberries

100g vanilla ice cream

200ml semi skimmed milk

Add all the ingredients to the Beaker in the order listed.

Fit the Blending Leg to the Main Unit and select speed 4 on the Variable Speed Control.

Place the Blending Leg into the bottom of the beaker and gently press the Precise Control Trigger. Move the Hand Blender up and down in the Beaker for 20-30 seconds, until the milkshake is blended.

Serves: 4

25g butter or margarine

2 medium leeks (285g), sliced

1 small onion (100g), finely chopped

500g potatoes, thinly sliced

1.1 litres vegetable stock

1 tsp mixed herbs

1 tsp salt

Black pepper

Chives to garnish

Crusty bread to serve

Melt the butter in a large saucepan (do not use non-stick), and add the leeks and onion. Gently fry without browning for 10 minutes, stirring occasionally.

Add the potatoes, stock, herbs and seasoning, bring to the boil. Cover and simmer gently for 30 minutes or until tender.

Allow to cool slightly then fit the Blending Leg to the Main Unit. Turn the Variable Speed Control to 4.

Place the Blending Leg into the pan and using the Precise Control Trigger, blend the soup until smooth, approximately 50 – 60 seconds. This can be done in the pan as long as the pan does not have a non stick coating.

Check the seasoning and garnish with a few snipped chives and serve with crusty bread.

Serves: 4

1 onion (130g) finely chopped

1 garlic clove, crushed

12 green chilli, de-seeded and finely chopped

1½ tbsp extra virgin olive oil

100g bacon, rind removed and chopped

400g can plum tomatoes

100ml (120g) passata

2 tbsp white wine

Salt and freshly ground black pepper

Fresh boiled pasta to serve

Parmesan cheese to serve

Place the oil in a large saucepan (do not use non-stick), and heat for a few minutes.

Gently fry the onion, garlic and chilli for 2-3 minutes without browning, stirring occasionally with a wooden spoon.

Add the chopped bacon to the pan and fry for a further minute.

Place the lid on the pan and cook over a medium heat for 5 minutes.

Add the plum tomatoes, passata and wine, season with a little salt and pepper to taste.

Place the lid on the pan and simmer gently for 25 minutes, or until the onions are tender.

Ten minutes before the sauce is ready, cook the pasta according to the pack instructions.

Use the Blending Leg at speed 4 on the Variable Speed Control to make a smooth sauce. This can be done in the pan as long as the pan does not have a non stick coating. Start the hand blender using the Precise Control Trigger, gently moving it across the pan until the desired consistency is achieved. For a smooth sauce, this should take about a minute.

Drain the pasta then stir the sauce through it. Heat through if necessary then serve immediately with Parmesan cheese.

Serves: 4

2 tbsp olive oil

1 onion (130g), chopped

2 carrots (160g), diced, small

2 celery sticks (80g), finely chopped

1 garlic clove, crushed

1 leek (120g), chopped

1 yellow pepper, diced

1 red pepper, diced

2x 400g cans chopped tomatoes

12 tbsp balsamic vinegar

2 tsp oregano

1 tsp mixed herbs

Salt and pepper

Fresh boiled pasta to serve

Parmesan cheese to serve

Heat the oil in a large saucepan (do not use non-stick) and gently cook the onion, carrot, celery, garlic and leek for 5 minutes without browning. Stir occasionally.

Place the lid on the pan and cook for 20 minutes, stirring occasionally. Add the chopped peppers and cook gently for a further 10 minutes with the lid on.

Add the tomatoes, herbs and vinegar to the pan. Season with salt and pepper and simmer with the lid on for 45 minutes, or until the carrot and celery are softened.

Cook the pasta according to the pack instructions.

Use the Blending Leg at speed 4 on the Variable Speed Control to make a smooth sauce. This can be done in the pan as long as the pan does not have a non stick coating. Start the hand blender using the Precise Control Trigger, gently moving it across the pan until the desired consistency is achieved. For a smooth sauce, this should take about a minute.

Drain the pasta then stir the sauce through it. Heat through if necessary then serve immediately with Parmesan cheese.

250ml 350ml

1/2-1	1/2-1	red chilli, halved with a few seeds
150g	225g	ripe cherry tomatoes, halved
1	112	limes, juiced

20g

30g

fresh coriander,roughly cut to fitinside the Bowl

Pinch Pinch Sea salt

Pinch Pinch Fresh ground pepper

Fit the blade into the Chopping Bowl.

Put all ingredients into the bowl in the order listed left.

Attach the Chopping Bowl Blending Lid and Main Unit. Blend using the Precise Control Trigger on speed 7 for 10 seconds. Scrape down the bowl with a spatula if necessary then blend again for a further 5-10 seconds.

Pour into a serving bowl and allow to stand for an hour or so before serving. This allows flavour to develop and froth to subside.

Serve with tortilla chips.

Note: It is possible to make a 350ml quantity in the bowl if desired.

50g pine nuts

12 garlic clove

25g Parmesan, grated

30g fresh basil, leaves only

50ml extra virgin olive oil

Juice of half a lemon

Salt and fresh ground pepper

Fit the blade into the Chopping Bowl.

Put all ingredients into the bowl in the order listed.

Attach the Chopping Bowl Blending Lid and Main Unit. Blend using the Precise Control Trigger on speed 7 for 15 seconds. Scrape down the bowl with a spatula if necessary then blend again for a further 15-30 seconds.

Note: The consistency of the pesto may be thinned by adding a little lemon juice and olive oil, according to taste.

Serve as an accompaniment to spaghetti bolognese, or stirred through mashed potatoes.

Note: To store fresh pesto place in an airtight container and cover the surface with a little olive oil before refrigerating.

75g cherry tomatoes

12 fresh red chilli, de seeded

65g fresh coriander with stalks

1 ripe avocado, halved, stoned and skin removed

Juice of 12 - 1 lime (according to taste)

Salt and pepper to taste

Fit the Blade into the Chopping Bowl.

Cut each avocado half into two.

Put all the ingredients into the bowl in the order listed. Fit the Chopping Bowl Blending Lid and Main Unit.

Blend using the Precise Control Trigger on speed 7 for 15 seconds. Scrape down the sides of the bowl with a spatula then blend again for a further 15 seconds until smooth.

Adjust seasoning to taste.

Serves: 4

For the Jalfrezi Paste

2 cloves garlic, halved

1 x 3cm piece fresh ginger, peeled and cut into 4 pieces
1 fresh green chilli (25g) stalk removed and cut into 4 pieces
12g fresh coriander
1 tsp coriander
1 tsp brown mustard seed
1 tsp fenugreek powder
2 tsp cumin seed
1 tsp turmeric
12 tsp salt
2 tbsp groundnut oil
2 tbsp tomato puree
2 tbsp water
2 tsp paprika

For the Curry

2 tbsp oil

240g onion, sliced

500g chicken breast cut into chunks

1 x 400g tin chopped tomatoes
200ml water
1 medium green pepper, sliced

Fit the Blade into the Chopping Bowl.

To make the paste, place all the paste ingredients into the chopping bowl in the order listed.

Fit the Chopping Bowl Blending Lid and Main Unit. Blend on speed 7 scraping the sides of the bowl down from time to time until finely chopped, (around 30-40 seconds).

For the curry; heat the oil in a medium sized pan and gently fry the onions with the lid on for 10 minutes until golden.

Add the diced chicken and fry until browned / sealed.

Add the fresh Jalfrezi paste and stir over medium heat for 3 minutes.

Add the tinned tomatoes, water and sliced pepper and cook for 1 hour. Remove the lid if necessary to reduce the liquid.

Serve with boiled rice and naan breads.

Makes: 10 skewers (Serves: 4-5)

3 chicken breasts

20g fresh coriander

1 large red chilli (seeds included), cut into 4 pieces

1 garlic clove, cut in half

5 tbsp (rounded) peanut butter

Dash of soy sauce

3cm piece fresh ginger peeled and chopped into 4 pieces

Zest and juice (50ml) of 2 limes

A little water

Salt and pepper

Fit the Blade into the Chopping Bowl. Soak 10 wooden skewers in cold water.

Place all ingredients except the water into the Chopping Bowl, fit the Chopping Bowl Blending Lid and Main Unit.

Using speed 7 depress the Precise Control Trigger fully in three bursts of 10-15 seconds. Check the consistency, scraping the sides of the bowl down with a plastic spatula if necessary. Continue until well blended.

Add water until the mixture is soft enough to drop off a spoon by the count of 3.

Cut the chicken into small chunks, and thread 8 pieces onto the pre-soaked wooden skewers.

Rub the marinade into the chicken. Cover and refrigerate for a few hours or overnight.

Grill under a preheated hot grill turning frequently until all juices run clear.

150g strawberries, hulled and halved

2 scoops of vanilla ice cream (50g)

250ml semi-skimmed milk

Insert the Smoothie Blade into the Smoothie Beaker.

Place the strawberries in the bottom of the Smoothie Beaker, add the ice cream and milk.

Attach the Smoothie Blending Lid and Main Unit. Blend on speed 8 for 4 short bursts, totalling 30 seconds.

Serve immediately.

70g strawberries, hulled and halved

70g blueberries

40g raspberries

40g cherries, pitted

200ml apple juice

Insert the Smoothie Blade into the Smoothie Beaker.

Add all the ingredients to the Smoothie Beaker.

Attach the Smoothie Blending Lid and Main Unit. Blend on speed 8 in short bursts, totalling 30 seconds.

Serve immediately.

2 ice cubes

50g frozen cherries

200g low fat vanilla yogurt

150ml semi skimmed milk

Insert the Smoothie Blade into the Smoothie Beaker.

Place the ingredients into the Smoothie Beaker in the order listed.

Attach the Smoothie Blending Lid and Main Unit. Blend on speed 8 in short bursts for 30 seconds.

Serve immediately.

1 small ripe banana, sliced (80g, peeled)

2 level tbsp drinking chocolate powder

150g low fat vanilla yogurt

200ml semi skimmed milk

Insert the Smoothie Blade into the Smoothie Beaker.

Place the sliced banana into the Smoothie Beaker, followed by the remaining ingredients.

Attach the Smoothie Blending Lid and Main Unit. Blend on speed 8 in 3 short bursts, totalling 20-30 seconds.

Serve immediately.

3 ice cubes

6 scoops low fat frozen vanilla yogurt (150g)

200ml cold strong coffee

Insert the Smoothie Blade into the Smoothie Beaker.

Place the ingredients into the Smoothie Beaker in the order listed.

Attach the Smoothie Blending Lid and Main Unit. Blend on speed 8 in short bursts for up to 30 seconds.

Serve immediately.

FP402503 MUK Rev 2 05/15

The 'Serrator Blade' is warranted to be free from defects in materials and workmanship for life. This warranty covers the original purchaser only and is not assignable or transferable to any other party. This warranty is available to consumers who use the 'Serrator Blades' for non-commercial household purposes. This warranty does not cover any damage caused by accident, misuse or any use other than as described in your owner's manual, or damage resulting from failure to maintain and clean this product as specified in your owner's manual.

Your standard one year product guarantee is extended for an additional 12 months when you register the product within 28 days of purchase with Morphy Richards. If you do not register the product with Morphy Richards within 28 days, your product is guaranteed for 1 year. To validate your 2 year guarantee register with us online at

Or call our customer registration line

N.B. Each qualifying product needs to be registered with Morphy Richards individually.

Please note that the 2 year guarantee is only available in the UK and Ireland. Please refer to the one year guarantee for more information.

It is important to retain the retailer's receipt as proof of purchase. Staple your receipt to this back cover for future reference.

Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no.

Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase, it should be returned to the place of purchase for it to be replaced.

If the fault develops after 28 days and within 12 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown.

You may be asked to return a copy of proof of purchase.

Subject to the exclusions set out below (see Exclusions), the faulty appliance will then be repaired or replaced as appropriate and dispatched usually within 7 working days of receipt.

If, for any reason, this item is replaced or repaired during the 1 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 1 year guarantee, the appliance must have been used according to the instructions supplied. For example, crumb trays should have been emptied regularly.

Morphy Richards shall not be liable to replace or repair the goods under the terms of either the Lifetime Blade Guarantee or the 1 or 2 Year Guarantee where:

The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer's recommendations or where the fault has been caused by power surges or damage caused in transit.

The appliance has been used on a voltage supply other than that stamped on the products.

Repairs have been attempted by persons other than our service staff (or authorised dealer).

The appliance has been used for hire purposes or non domestic use.

The appliance is second hand.

Morphy Richards reserves the right not to carry out any type of servicing under the guarantee at its discretion

Batteries and damage from leakage are not covered by the guarantee.

These guarantees do not confer any rights other than those expressly set out above and do not cover any claims for consequential loss or damage. These guarantees are offered as an additional benefit and do not affect your statutory rights as a consumer. Morphy Richards products are intended for household use only. See usage limitations within the location safety instructions.

Morphy Richards has a policy of continuous improvement in product quality and design. The company, therefore reserves the right to change the specification of it's models at any time.

For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste.

Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country

morphy richards

The After Sales Division

Morphy Richards Ltd

Mexborough, South Yorkshire,

England, S64 8AJ

Helplines (office hours)

UK 0344 871 0944

Spare Parts 0344 873 0710

Republic of Ireland 1800 409 119

www.morphyrichards.com

CE
