USER MANUAL CB-30 DataVideo

Illustration of a coiled cable with multiple connectors (no text or symbols)

HD/SD 30M/50M ALL IN

ONE CABLE W/O POWER

CB-30/ CB-31

Quick Start Guide

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.

7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord's rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked "Do Not Remove" may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;
e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Datavideo warrants that the equipment it manufactures shall be free from defects in material and workmanship for a period of 12 months from the date of product purchased. If equipment fails due to such defects, Datavideo will, at its option, repair or provide a replacement for the defective part or product.

Equipment that fails after the warranty period, has been operated or installed in a manner other than that specified by Datavideo, or has been subjected to abuse or modification, will be repaired for time and material charges at the Buyer's expense.

This warranty does not affect your statutory rights within the Country of purchase.

Disposal

For EU Customers only - WEEE Marking.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

This symbol on the product indicates that it will not be treated as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office.

Feature

• 1 x RJ-45 Ethernet cable
• 1 x 5 XLR transmission cable for intercom communication
• 1 x 5C-2V 75 Ω for video
• 1 x 3C-2V 75 Ω for return video
• Available in 30 meters and 50 meters

RJ-45 5-PIN XLR BNC SDI BNC CV BNC CV BNC SDI 5-PIN XLR RJ-45

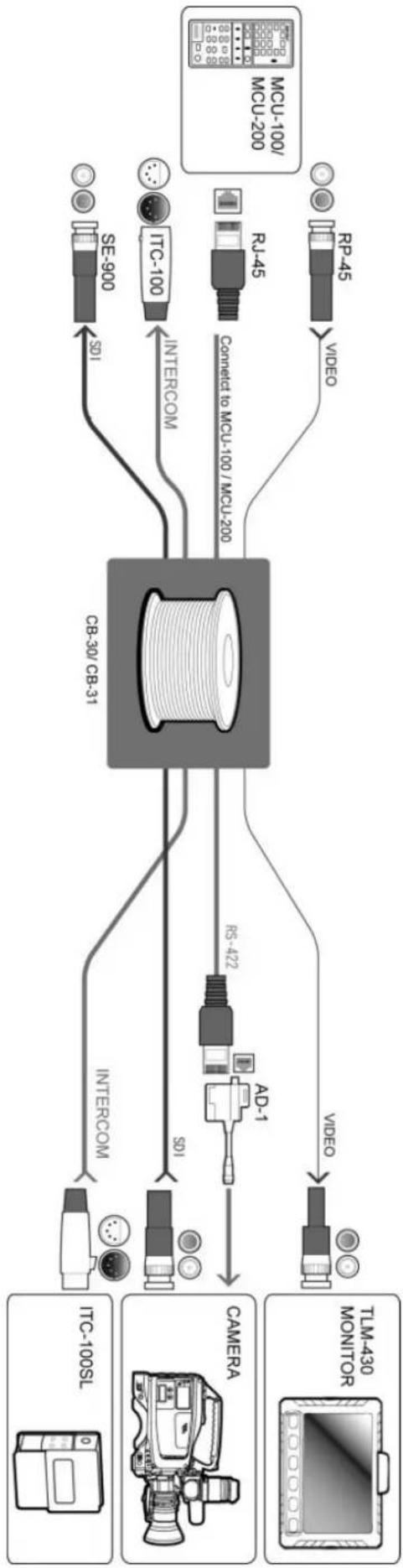

CB-30/ 31 Setup Diagram

All in one cable (CB-30/ CB-31) Package included Velcro, how to use please see as below.

Black-and-white photo of a tripod-mounted camera with visible cables and a red laser beam, placed on a plain floor (no text or symbols)

Close-up of a black cable with a red arrow pointing to its cable, attached to a mechanical device (no visible text or symbols)

This Velcro can let you fixed cable on the tripod.

Specifications

HD/SDSDI video Cable	• BNC Male to another BNC Male connector• 3C-2V Coaxial Cable
Watch backvideo Cable	• BNC Male to another BNC Male connector• 1.5C-2V Coaxial Cable
Intercom Cable	• 5Pin XLR Female to another 5Pin XLR Male connector• Connector ITC-100 to ITC-100SL(Belt pack)
Ethernet Cable(CB-30, CB-31 Only)	• RJ-45 signal transmission
Distance	• CB-30: 30M, CB-31: 50M
OperatingTemperature	• -25°C to 55°C (-13°F to 131°F)
Humidity	• 10% to 90% (non condensing)
Weight	• Approx. CB-30: 6kg/13.2lbs, CB-31: 9.5kg/21lbs

Electrical Characteristics

Model CB-30 (30M) CB-31 (50M)
Conductor	3C2V		1.5C2V	3C2V
Test Patten	HD-SDI SD-	SDI SD/ Composite HD-SDI SD-	SDI SD/ Composite
Cable loss	< 4dB < 3.8dB < 3% < 6.5dB		< 5.5dB < 15%
Timing Jitter	< 0.2UI	< 0.1UI		< 0.2UI	< 0.1UI
Alignment Jitter	< 0.2UI	< 0.1UI		< 0.2UI	< 0.1UI

Service & Support

It is our goal to make owning and using Datavideo products a satisfying experience. Our support staff is available to assist you to set up and operate your system. Contact your local office for specific support requests. Plus, please visit www.datavideo.com to access our FAQ section.

Datavideo Taiwan

Datavideo Technologies Co. Ltd

10F. No. 176, Jian 1st Rd., Chung Ho

District, New Taipei City 235, Taiwan,

R.O.C.

Tel: [phone]

Fax: [phone]

Units1 & 2 Waterside Business Park

Hadfield, Glossop, Derbyshire

SK13 1BE, UK

Tel:[phone]

Fax:[phone]

E-mail:[e-mail]

Datavideo USA

Datavideo Corporation

7048 Elmer Avenue

Whittier, CA 90602,

U.S.A.

Tel:[phone]

Fax:[phone]

E-mail:[e-mail]

Datavideo China

Datavideo Technologies China Co

101,NO.618,LiuYing Rd,Zhabei District,

Shanghai, China

Tel: [phone]

Fax: [phone]

E-mail:[e-mail]

Datavideo Singapore

Datavideo Technologies (S) PTE Ltd

No. 178 Paya Lebar Road #06-03

Singapore 409030

Tel:[phone]

Fax:[phone]

E-mail:[e-mail]

Datavideo Hong Kong

Datavideo Hong Kong Ltd

G/F.,26 Cross Lane

Wanchai, Hong Kong

Tel: [phone]

Fax: [phone]

Datavideo Technologies India Pvt Ltd

A-132, Sec-63, Noida-201307,

Uttar Pradesh (UP), India.

Tel:[phone]

Fax:[phone]

E-mail: [e-mail]

QR code image containing encoded data, no visible human-readable text

Please refer to our website for update the latest version manual.

www.datavideo.com/Cables/CB-30
