Product Type	DVD/VCR Combo Deck
Brand	Panasonic
Model	PV-D4732S
Power Supply	120 V AC, 60 Hz
Power Consumption	32 W (On), 4 W (Off)
Video System	NTSC
Video Head System	4 rotary heads helical scanning
Audio Track	1 mono (Normal), 2 channels (Hi-Fi)
Tuner	VHF 2-13, UHF 14-69, Cable (Midband, Superband, Hyperband, Lowband, Ultraband)
Input Terminals	Audio/Video Line Input (Front), RF Input
Output Terminals	Audio/Video Line Output, S-Video Output (DVD only), Component Video Output (DVD only), Audio Output 2 (L,R), RF Output
Digital Audio Output	Optical (Dolby Digital, dts, Linear PCM)
Disc Playback	DVD-Video, Video CD, CD, MP3 CD-R/RW
Tape Playback	VHS (SP/LP/SLP)
Recording Features	Timer Recording, One Touch Recording
Special Features	Built-in Head Cleaner, Digital Auto Picture, Digital Auto Tracking, V-Lock Control, Multi-Brand Remote Control
Dimensions (W x H x D)	430 x 118 x 364 mm (16-15/16 x 4-5/8 x 14-5/16 inches)
Weight	6.9 kg (15.2 lbs)
Operating Temperature	5°C - 40°C (41°F - 104°F)
Operating Humidity	10% - 75%
Accessories	Remote Control, 2 'AA' batteries, RF Coaxial Cable
DVD Region Code	1
Laser Class	Class I (CLASS II inside)
Safety Standards	ENERGY STAR, FCC Compliant

Frequently Asked Questions - PV-D4732S PANASONIC

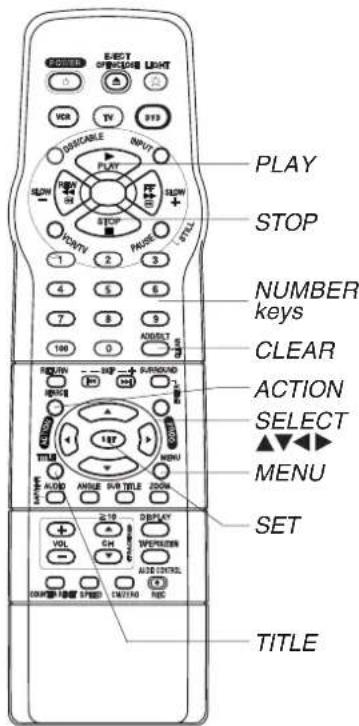

How do I set the clock on my Panasonic PV-D4732S?

Press ACTION to display the MENU. Use ▲▼ to select 'SET CLOCK', press SET. Choose 'MANUAL' or 'AUTO CLOCK SET'. For manual, set date, time, and DST using ▲▼ and SET. Press ACTION to start the clock.

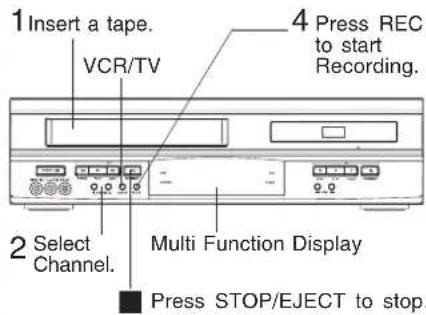

How do I record a TV program?

Insert a tape with record tab. Select the channel using CH ▲▼ or NUMBER keys. Press SPEED to choose SP, LP, or SLP. Press REC to start recording. Press STOP to end. For One Touch Recording, press REC repeatedly to set recording length (30 min to 4 hours).

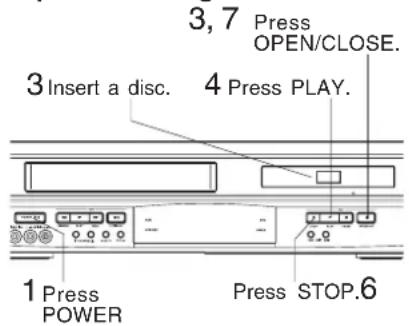

How do I play a DVD?

Press POWER and DVD to select DVD mode. Press OPEN/CLOSE, place the disc label side up, and press OPEN/CLOSE again. Press PLAY to start. If a menu appears, use ▲▼◀▶ and SET to select an option.

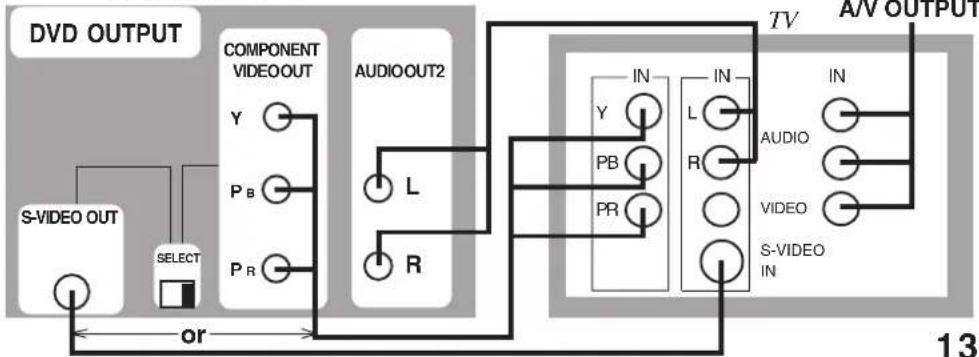

How do I connect the DECK to my TV?

Use the supplied RF coaxial cable to connect the VHF/UHF OUT TO TV jack on the DECK to the antenna input on your TV. For better quality, connect an AV cable from the VIDEO OUT and AUDIO OUT jacks to your TV's AV inputs. Set the TV to channel 3 or 4 (RF) or the appropriate video input.

What disc formats are supported?

The DECK plays DVD-Video (region 1 or ALL), Video CD, CD, and MP3 files on CD-R/RW. It does not play DVD-RAM, DVD-ROM, CD-ROM, CDV, CD-G, or Photo CDs.

How do I use timer recording?

Press PROG to display the program list. Use ▲▼ to select a program number and press SET. Set the date, start/stop time, channel, and tape speed using ▲▼ and SET. Press PROG to exit. The TIMER indicator lights up. Ensure a tape with record tab is inserted and the clock is set correctly.

Why is my playback picture noisy?

Possible causes: dirty video heads, improper tracking, or weak signal. Try using a head cleaning cassette. Adjust tracking with CH ▲▼ buttons during playback. If using an antenna, adjust the antenna or check connections. For VCR mode, set VCR/TV selector to 'VCR'.

How do I clean the video heads?

Use a 'dry' type head cleaning cassette (recommended: Panasonic NV-TCL30PT). Insert the cleaning cassette and press PLAY. Follow the cleaning tape instructions carefully. Excessive use can shorten head life. The DECK also has a built-in head cleaner that activates when loading/unloading a cassette.

How do I use the multi-brand remote control?

To control a TV, hold down the TV button and enter the brand code (e.g., Panasonic=01, 02). To control a Cable/DSS box, hold down DSS/CABLE and enter the code. Then press POWER to test. Refer to the code list in the manual. Repeat after battery replacement.

What does the VCR lock feature do?

When activated, VCR LOCK prevents all operations except timer recording and tape ejection. To activate, hold REC on the DECK for 7 seconds in Stop mode with no tape inserted. To deactivate, repeat. The lock cancels automatically after 24 hours if the clock is set.

USER MANUAL PV-D4732S PANASONIC

DOUBLEFEATURE™ Omnivision VHS

Panasonic®

DVD/VCR DECK

Operating Instructions

Model No. PV-D4732/PV-D4732S

Connections and Initial Setup Procedures are on pages 12 to 17.

As an ENERGY STAR® Partner, Matsushita Electric Corporation of America has determined that this product or product model meets the ENERGY STAR® guidelines for energy efficiency.

Please read these instructions carefully before attempting to connect, operate or adjust this product. Please save this manual.

Spanish Quick Use Guide is included. (Guía para rápida consulta en español está incluida.)

LSQT0618B

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Important Safeguards and Precautions

FOR YOUR SAFETY, READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL WARNINGS IN THE MANUAL AND ON THE UNIT

INSTALLATION

1 POWER SOURCE CAUTION

Operate only from a power source indicated on the unit or in this manual. If necessary, have your Electric Utility Service Company or Video Products Dealer verify the power source in your home.

2 POLARIZED OR GROUNDING PLUG

As a safety feature, this product comes with either a polarized power cord plug (one blade is wider than the other), or a three-wire grounding type plug. POLARIZED PLUG CAUTION:

This plug will only fit into an outlet one way. If you cannot fully insert the plug, try reversing it. If it still will not fit, have an electrician install the proper wall outlet. Do not defeat the safety feature by tampering with the plug. GROUNDING PLUG CAUTION:

This plug will only fit into a three-hole grounding outlet. If necessary, have an electrician install the proper outlet. Do not defeat the safety feature by tampering with the plug.

3 POWER CORD

Make sure power cords are routed so that they are not likely to have anything rest on them, roll over them, or be in the way of walking traffic. If an extension cord is used, make sure it also has either a polarized or grounded plug and that the cords can be securely connected. Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualified service technician. Overloaded outlets and extension cords are fire hazards and should be avoided.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat generated during operation. If they are blocked, heat build-up inside the unit can cause failures that may result in a fire hazard or heat damage to cassettes or discs.

For protection, follow these rules:

a. Never cover ventilation slots or the unit while in use, or operate the unit when placed on a bed, sofa, rug, or other soft surface.

b. Avoid built-in installation, such as a book case or rack, unless proper ventilation is provided.

5 PLACEMENT: AVOID EXTREMELY HOT LOCATIONS OR SUDDEN TEMPERATURE CHANGES

Do not place the unit over or near heater or radiator, in direct sunlight, inside closed vehicles, in high temperature [over 104°F (40°C)], or in over 75% humidity. If the unit is suddenly moved from a cold place to a warm one, moisture may condense in the unit and on the tape causing damage. Never subject the unit to vibration, impact, or place it so that the surface is tilted as internal parts may be seriously damaged.

6 TO AVOID PERSONAL INJURY

- Do not place unsecured equipment on a sloping surface.

- Do not place this unit on any support that is not firm, level, and adequately strong. The unit could fall causing serious injury to a child or adult and damage to the unit.

- An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance combination to overturn.

- Carefully follow all operating instructions and use the manufacturer's recommended accessories when operating this unit or connecting it to any other equipment.

2

OUTDOOR ANTENNA INSTALLATION

1 SAFE ANTENNA AND CABLE CONNECTION

If an outside antenna or cable system is connected to the equipment, be sure the antenna or cable system is grounded so as to provide some protection against built-up static.

charges and voltage surges. Section 810 of the National Electric Code, ANSI/NFPA 70 (in Canada, Part 1 of the Canadian Electrical Code) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in to an antenna discharge unit, size and location of antenna discharge electrodes, and requirements for

2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR CIRCUITS An outside antenna system should be located well away from power lines, electric light or power circuits and where it will never come into contact with these power sources if it should happen to fall. When installing an outside antenna, extreme care should be taken to avoid touching power lines, circuits or other power sources as this could be fatal. Because of the hazards involved, antenna installation should be left to a professional.

If the unit has been in storage or moved to a new location, refer first to the INSTALLATION section of these safeguards. 1 KEEP THE UNIT AWAY FROM WATER OR MOISTURE OF ANY KIND

If the unit has been in storage or moved to a new location, refer first to the INSTALLATION section of these safeguards. 1. KEEP THE UNIT AWAY FROM WATER OR MOISTURE OF ANY KIND.

2 IF EQUIPMENT IS EXPOSED TO RAIN, MOISTURE, OR STRONG IMPACT, unplug the unit and have it inspected by a qualified service technician before use.

During a lightning storm, whether indoors or outdoors, or before leaving the unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system.

During a lightning storm, whether indoors or outdoors, or before leaving the unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system.

4 WHEN THE UNIT IS PLUGGED IN

- Never expose the unit to rain or water. DO NOT OPERATE if liquid has been spilled into the unit. Immediately unplug the unit, and have it inspected by a service technician. Fire and shock hazards can result from electrical shorts caused by liquid contact inside.

- Never drop or push any object through openings in the unit. Some internal parts carry hazardous voltages and contact can cause electric shock or fire hazard. Do not put any foreign object on the disc tray.

- Avoid placing the unit directly above or below your TV set as this may cause electrical interference. Keep all magnets away from electronic equipment.

5 USING ACCESSORIES

Use only accessories recommended by the manufacturer to avoid risk of fire, shock, or other hazards.

6 CLEANING THE UNIT

Unplug the unit. Then, use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air that could over-spray, or seep into the unit and cause electrical shock. Any substance such as wax, adhesive tape, etc. may mar the cabinet surface. Exposure to greasy, humid, or dusty areas may adversely affect internal parts.

SERVICE

1 DO NOT SERVICE THIS PRODUCT YOURSELF

If, after carefully following the detailed operating instructions, this product does not operate properly, do not attempt to open or remove covers, or make any adjustments not described in the manual. Unplug the unit and contact a qualified service technician.

2 IF REPLACEMENT PARTS ARE REQUIRED

Make sure the service technician uses only parts specified by the manufacturer, or those having the same safety characteristics as the original parts. The use of unauthorized substitutes may result in fire, electric shock, or other hazards.

3 HAVE THE SERVICE TECHNICIAN PERFORM A SAFETY CHECK After any service or repairs to the unit, request the service technician to conduct a thorough safety check as described in the manufacture's service literature to ensure that the unit is in safe operating condition.

WARNING: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock.

Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

CAUTION:

UNIT IS A CLASS I LASER PRODUCT

HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD

CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE UNIT CORRECTLY INSTRUCTED.

WHEN THIS UNIT IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION:

LASER RADIATION

WHEN OPEN DO NOT

STARE INTO BEAM.

ATTENTION:

LASER RADIATION

IF OPEN

DO NOT STARE

INTO THE BEAM

(Inside of product)

FCC NOTE:

This equipment has been tested and found to comply with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver.

This equipment has been tested and found to comply with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver.

If necessary, consult the dealer or an experienced radio/TV technician for help. The user may find the booklet, "Something About Interference," available from FCC local regional offices, helpful.

To assure continued compliance, (example- use only shielded interface cables when connecting to other devices.) Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

To assure continued compliance, (example: use only shielded interface cables when connecting to other devices.) Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

FCC Warning: Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

Region Management Information:

This DECK is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DECK, this DECK cannot play this disc.

The Region number for this DECK is 1.

Before Using

Congratulations

on your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you years of enjoyment. Please fill in the information below. The serial number is on the tag located on the back of your DECK.

• Date of Purchase
• Dealer Purchased From ____
• Dealer Address
• Dealer Phone No.
• Model No.
• Serial No

Accessories

□ Remote Control LSSQ0345 (PV-D4732) LSSQ0352 (PV-D4732S)

□ Batteries 2 "AA"

RF Coaxial Cable VJAS0196

To order accessories, call toll free 1-800-332-5368.

Loading the Batteries

1) Open cover.

2) Insert batteries as marked.

3) Close cover.

Battery replacement caution

• Do not mix old and new batteries.
• Do not mix alkaline with manganese batteries.

Disc formats supported by this DECK

DECK can play back discs bearing any of the following marks:

DVD

3" (8 cm) disc / 5" (12 cm) disc

Video CD

3" (8 cm) disc / 5" (12 cm) disc

CD

3" (8 cm) disc / 5" (12 cm) disc

Discs which cannot be played

• DVD with Region No. other than "1" or "ALL" • DVD of PAL system • DVD-R/DVD-RAM • DVD-ROM • CD-ROM - CDV • CD-G

Do not try to play Photo CD.

DVD is a registered trademark.

VIDEO

Disc Handling

Handling precautions

• Only hold disc by edges as shown below. Fingerprints, dirt and scratches can cause skipping and distortion.
• Do not write on label side of disc.
• Never use record cleaning sprays, benzine, thinner, static electricity prevention liquids, or any other solvent.
• Be careful not to drop or bend disc.

• Do not place more than 1 disc on disc tray.
• Do not try to close disc tray when disc is not properly placed. • Always store discs in their proper cases when not in use.

To clean disc surface

With a soft, damp (water only) cloth, gently wipe from the center hole to the outer edge as shown below. (Wiping in a circular pattern will scratch the surface.)

If disc is brought from a cold to a warm environment, moisture may form on the disc

Wipe away moisture with a soft, dry, lint-free cloth before using disc. (See above.)

Improper disc storage

Discs could be damaged if stored or left in areas:

• exposed to direct sunlight. • that are humid or dusty. - near heat (i.e. heater, radiator, etc.).

4

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Table of Contents

DVD / VCR

Important Safeguards and Precautions 2,3

Before Using 4

DECK & Cassette Information 6,7

Location of Controls 8 \~ 10

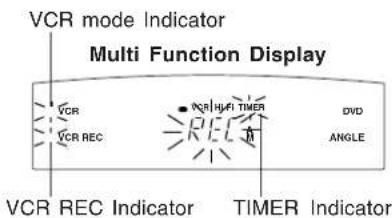

Displays (On Screen Displays and Multi Function Display) 11

Connections 12-15

Initial Setup for Basic Connections (Ready to Play) 16, 17

VCR

Reset Language, Channels, Clock, VCR's Output Channel 18, 19

Playback/Record on a Tape 20, 21

DVD

Basic DVD Operation 22, 23

Timer Recording 24, 25

MTS Broadcast/VHS Hi-Fi Stereo System 26, 27

Multi-Brand Control Feature 28, 29

Tape Operation (Search System) 30-32

Special VCR Features 33, 34

Copying Your Tapes (Dubbing) 35

Disc Operation 36-40

DVD Operation using On-Screen Displays 41, 42

MP3 Playback Operation 43

DVD Lock Feature 44

Settings for DVD Operation 45-47

Language Code List 48

DVD / VCR

Warning and Instruction Displays 49

Before Requesting Service....50, 51

Limited Warranty 52, 53

Customer Services Directory 53

Spanish (Español) Quick Use Guide....54-59

Index ...... Back Cover

(Connection)

Initial Setup

Operation

Basic

Operation

VCR

Operation

DVD

Information

For Your

DECK & Cassette Information

Head Cleaning

Playing older or damaged tapes may eventually cause video heads to become clogged.

Video Head Clog Sensor

During playback, this screen appears if clogging is detected. To remove screen, press PLAY on the remote or DECK.

• Use "dry" type head cleaning cassette only. (Part No. NV-TCL30PT is recommended.)
• Follow cleaning tape instructions carefully. Excessive use of tape can shorten head life.
• If head clog symptoms persist, contact your nearest Factory Servicenter or authorized Servicenter (see p. 52).

Prevent Accidental Tape Erasure

Break off the tab to prevent recording.

Record Tab Screwdriver

To record again

Cover the hole with cellophane tape.

Built-in Head Cleaner

A clean video head helps produce a clear picture.

So, we have equipped your DECK with a built-in, non-chemical head cleaning system that helps prevent clogging of the video heads. Cleaning is performed each time you load or unload a video cassette.

- This feature is preventative only. If your video heads are seriously clogged, consider the use of a chemical non-abrasive head cleaning kit or take your DECK to a Servicenter.

Record/Playback Time

Only use tapes with the VHS mark in this DECK.

Tape Speed Setting	Type of Video Cassette
			T160T120
SP(Standard Play)	1 Hour 2	Hours	2 Hours40 Minutes
LP(Long Play)	2 Hours	4 Hours	5 Hours20 Minutes
SLP(SuperLongPlay)	3 Hours	6 Hours 8	Hours

Cleaning DECK

Use a soft cloth or dusting attachment of a vacuum cleaner to remove dust from the ventilation holes on the back sides and bottom of the cabinet. Plastic surfaces are easily scratched and can be marred by alcohol and various solvents. Avoid excessive use of oil-based furniture polishes since the materials used in the cabinet will accumulate more dust. We recommend using a non-abrasive, antistatic cleaner and polisher.

Features for a Quality Picture (VCR)

Digital Auto Picture

Automatically controls the video output signal for less noise depending on the tape condition.

Digital Auto Tracking

Continuously analyzes the signal and adjusts for optimum picture quality.

Manual Tracking Control

(to reduce picture noise)

Use during Playback and Slow Motion mode to reduce picture noise. Press CH (TRACKING) ▲/▼ on the remote control or on DECK until the picture clears up. To return to Auto Tracking, press POWER off, then on again a few seconds later.

→

V-Lock Control (to reduce picture jitter)

In Still mode, CH (TRACKING) ▲/▼ operate as a V-Lock control.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

6

Specifications

Power Source: 120 V AC, 60 Hz

Power Consumption: Power On: Approx. 32 watts, Power Off: Approx. 4 watts

Video Signal: EIA Standard NTSC color

Video Recording System: 4 rotary heads helical scanning system

Audio Track: 1 track (Normal), 2 channel (Hi-Fi Audio Sound)

Tuner:

Broadcast Channels: VHF 2 \~ 13, UHF 14 \~ 69

CABLE Channels: Midband A through I (14 \~ 22), Superband J through W (23 \~ 36)

Hyperband AA \~ EEE (37 \~ 64), Lowband A-5 \~ A-1 (95 \~ 99)

Special CABLE channel 5A (01), Ultraband 65 \~ 94, 100 \~ 125

Input/Output Terminal: Audio/Video Line Input/Output, RF Input/Output

Input Terminal: Audio/Video Line Input (Front)

Output Terminal: S-Video Output (DVD only), Component Video Output (DVD only)

Audio Output 2 (L), (R)

Operating Temperature: 5 °C \~ 40 °C (41 °F \~ 104 °F)

Operating Humidity: 10 % - 75 %

Weight: 6.9 kg (15.2 lbs).

Dimensions: 430 (W) x 118 (H) x 364 (D) mm 16-15/16" (W) x 4-5/8" (H) x 14-5/16" (D) inch

Discs Played

(1) DVD-VIDEO Disc

5" (12 cm) single-sided single-layer, 5" (12 cm) single-sided double-layer, 5" (12 cm) double-sided double-layer (one layer per side), 3" (8 cm) single-sided single-layer, 3" (8 cm) single-sided double-layer, 3" (8 cm) double-sided double-layer (one layer per side), 5" (12 cm) disc, 3" (8 cm) disc, Digital Optical Connector, Laser power: CLASS II

Digital Audio Output:

Pickup: Wavelength: 655 nm (DVD), 790 nm (Video CD/CD)

Note: Designs and specifications are subject to change without notice.

Definition of Terms (DVD)

Angle: Some DVD discs feature scenes simultaneously shot from different angles. The ANGLE button can be used to view the scene from different angles. (ANGLE Indicator lights on DECK when a scene recorded at different angles is detected.)

Chapter Number: Titles are subdivided into numbered sections. You can quickly search for a favorite scene using these numbers.

DVD: A high-density optical disc on which high-quality pictures and sound have been digitally recorded. DVD incorporates new video compression technology (MPEG II) and high-density recording technology which allow entire movies to be recorded with incredible playback quality.

Playback Control: With Video CD (version 2.0), scenes or information may be selected for viewing or listening from an interactive menu that appears on the TV screen.

Subtitles: Written dialogue which appears at the bottom of the screen.

Time Number: The elapsed play time from the start of a disc or title. Use to quickly find scenes. (May not work with some discs.)

Title Number: For DVD discs with two or more titles, the title is numbered as title 1, title 2, etc.

Track Number: Numbers assigned to tracks on Video CDs and CDs to allow specific tracks to be quickly located.

Video CD: CD containing picture and sound with same quality level as video tape. This DECK also supports Video CDs with playback control (version 2.0).

This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Location of Controls

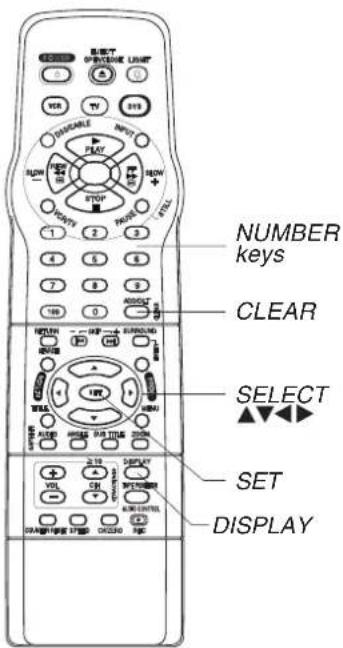

Light Tower Universal Remote Control

Light button: When Light button is pressed, (DVD, TV, VCR, PLAY, STOP, REW, FF) buttons will light up for 5 seconds for easy button location.

If no button is pressed in 5 seconds, the light goes out to conserve the battery.

EJECT button: When this button is pressed in VCR mode, the tape is ejected. This button is inoperative if pressed during recording. If pressed in DVD mode, the disc tray opens or closes.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

c. DVD Function mal: Others

Location of Controls (continued)

Rear View of DECK

AC Power Plug

- While plugged into an AC outlet, this DECK consumes 4 W of electrical power in off mode.

Bold: VCR Function

Italic: DVD Function

Bold Italic VCR and DVD Functions

The following table shows the status of the output jacks when in VCR or DVD mode.

	Video OutputAudio Out 1Audio Out 2	ComponentVideo Output	S-VIDEO OUT
VCR	YES	N/A	N/A
DVD	YES	YES←SELECT SW(Switchable)→YES

Note

- PROG functions on the remote are not available when using Component Video Output and S-VIDEO OUT.

Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.

10

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Displays (On Screen & Multi Function)

On Screen Displays (VCR)

Function & Channel Displays

CH 08

When a function button is pressed, e.g. PLAY, or you change channels, a 5-second display appears.

Blank Tape/ No Video Signal Indications

Whenever a blank section of a tape comes up in Play mode, or when the selected channel has no broadcast signal with Weak Signal Display Feature (p. 33) set to OFF, the TV screen will turn solid blue.

(Connection)

Initial Setup

VCR Status & Clock Displays To display or remove the overlay at right,

press DISPLAY.

Multi Function Display

VCR Indicator

Lights up when the VCR/TV selector is set to VCR.

Power Indicator

Lights up when power is on.

VCR mode Indicator

Lights up when DECK is in VCR mode.

VCR REC Indicator

Lights up during recording.

Clock/Status/Channel/Speed Display

Displays the current time. Briefly displays VCR status when a function button is pressed. Briefly displays the channel number, or "L1" or "L2" when a channel or line input is selected. Briefly displays the recording speed when SPEED is pressed.

Hi-Fi Indicator

Lights up when Hi-Fi audio is monitored in Play mode.

VCR VCR REC

VCR HFR TIMER 12:30 A M

DVD ANGLE

AM

Lights up before noon. PM is not displayed.

Timer Indicator

Lights up when DECK is set for Timer Recording, or when One Touch Recording (OTR) is used. Flashes when Timer Recording is set, but a tape has not been inserted into DECK and when a power interruption occurs during Timer Programming.

DVD mode Indicator

Lights up when DECK is DVD mode.

ANGLE Indicator

Lights up when a scene recorded at different angles is detected. See p. 37. (DVD only).

Connections

Basic Connections

• If your TV has AUDIO and VIDEO IN terminals, connect them to DECK for higher quality picture and sound.
• You can enjoy stereo sound even if your TV is not stereo by connecting a stereo amplifier to DECK.
• Connect DECK and TV with an RF Coaxial Cable ⓐ (supplied) or an AV Cable ⓑ (not supplied) as shown in the figure below.

WARNING

When using "Nut type" RF coaxial cables, tighten with fingers only. Overtightening may damage terminals.

Note to CABLE system installer

This reminder is provided to call the CABLE system installer's attention to Article 820-40 of the NEC in USA (and to the Canadian Electrical Code in Canada) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Other Connections

■ With a Cable Box (DECK→Cable Box→TV)

■ Connect With Two Cable Boxes

You Cannot

• view any (including scrambled) channel. • use Remote Control to select channels without using Multi-brand control feature.

• record scrambled channels.

You Can

• You cannot record and view both scrambled and unscrambled channels if additional equipment is added. This connection requires: two converter boxes, an A/B switch, and a 2-way splitter.

• view a channel other than the one selected for any type of recording.

• do a Timer recording of a channel unless you select it on the Cable Box.

Connections For DVD Only

① Connect AUDIO OUT2 (L, R) to the AUDIO IN (L, R) of the TV (audio input for COMPONENT or S-VIDEO mode). ② If your TV has COMPONENT VIDEO INPUT, set SELECT SW to COMPONENT VIDEO OUT. If your TV does not have COMPONENT VIDEO INPUT but has S-VIDEO INPUT, set SELECT SW to S-VIDEO OUT.

Note: The picture will not be displayed if the SELECT SW is not set to the correct video output.

③ When in DVD mode, set your TV to either COMPONENT VIDEO IN or S-VIDEO IN.

Notes: You can watch DVDs through the S-VIDEO or COMPONENT VIDEO, VHF/UHF OUT TO TV, and VIDEO OUT connections to your TV. The VCR and TUNER pictures are available only from the VIDEO OUT and VHF/UHF OUT TO TV connections to your TV.

- PROG functions on the remote are not available when using S-VIDEO OUT and COMPONENT Video Output. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.

DVD/VCR DECK

Connections (continued)

Audio Connections

Ready Checklist

☐ Turn down the volume, then turn DECK, as well as other equipment to be connected, off before proceeding with connection. ☐ Do not block ventilation holes of any of the equipment and arrange them so that air can circulate freely. ☐ Read through the instructions before connecting other equipment. ☐ Ensure that you observe the color coding when connecting audio and video cables.

■ DECK → Amplifier → Speaker

Enjoying digital audio output from the digital audio output connector Notes on audio output from the optical digital audio output connector

Disc	Sound recording format	Optical digital audio output from connector
DVD	Dolby Digital	Dolby Digital bitstream (1-5.1 ch)or OFF (no output)* 1
	Linear PCM(48/96 kHz 16/20/24bit)	Linear PCM (2ch)(48 kHz sampling/16 bit only)* 2 or no output* 1
	dts	Bitstream or no output* 1
Video CD	MPEG 1	PCM (44.1 kHz sampling)
CD	Linear PCM	Linear PCM (44.1 kHz sampling)
MP3	MP3	Linear PCM (It depends on the MP3 file)

*1 The type of audio output from the connector can be selected by the Settings for DVD Operation. (See p. 46.) *2 Sound having 96 kHz sampling is converted into 48 kHz sampling when it is output from the DECK's optical digital audio output connector.

For your reference:

• Dolby Digital is a digital sound compression technique developed by the Dolby Laboratories Licensing Corporation. Supporting 5.1-channel surround sound, as well as stereo (2-channel) sound, this technique enables a large quantity of sound data to be efficiently recorded on a disc.
• Linear PCM is a signal recording format used in CDs. While CDs are recorded in 44.1 kHz/16 bit, DVDs are recorded in 48 kHz/16 bit up to 96 kHz/24 bit.
• If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that provide full 5.1 channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark. For information on Panasonic or Technics Dolby Pro Logic Surround Sound Decoders please contact your local dealer.

Manufactured under license from Dolby Laboratories.

"Dolby," "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

Confidential Unpublished Works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.

14

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

■ DECK → Dolby Digital Decoder → Amplifier → Speaker

or

DECK → dts (digital theater systems) Decoder → Amplifier → Speaker

When DVDs recorded in Dolby Digital or dts are played, Dolby Digital bitstream or dts bitstream is output from the DECK OPTICAL digital audio output connector. When DECK is connected to a Dolby Digital decoder or dts decoder, you can enjoy theater-quality audio in your home. [An optical digital audio cable (optional) is required when an optional Dolby Digital decoder or dts decoder is used.]

(Connection)

Initial Setup

Notes on connecting an optical digital audio cable (optional)

- Firmly connect the cable to the connector.

Caution for optical digital audio output connector:

• When connecting an amplifier (with an optical digital input connector) which does not contain the Dolby Digital or dts decoder, be sure to select "OFF" at "Dolby Digital" and "OFF" at "dts" of the Settings for DVD Operation "AUDIO OUTPUT" (see p. 46). Otherwise, any attempt to play DVDs may cause such a high level of noise that it may be harmful to your ears and damage your speakers.
• When a dts decoder is connected, please select "Bitstream" at "dts" of the Settings for DVD Operation "AUDIO OUTPUT". If "OFF" is selected, there will be no sound. (See p. 46). • Video CDs and CDs can be played as usual. Note:
• Some dts decoders which do not support DVD-dts interface may not work properly with DECK.

Initial Setup for Basic Connections (Ready to Play)

Before doing Initial Setup

1 Turn TV on. 2 See connections ① RF Coaxial Cable Connection and ② AV Cable Connection on p. 12.

Set TV to channel 3.

Set TV to VIDEO.

3 [DECK → TV]

• Go to "Doing Initial Setup (Ready to Play)." (See below.) [Cable Box → DECK → TV], [DSS → DECK → TV]
• Turn on Cable Box and set it to your Public Broadcasting Station (PBS) channel in your time zone.
• If you use a DSS Receiver, it must be turned off.

Doing Initial Setup (Ready to Play)

1 Press VCR on remote for VCR mode. 2 Plug DECK Power Cord into AC wall outlet. DECK comes on and auto channel and clock set starts.

• If screen below does not appear, check DECK - TV connection and, if TV is tuned to channel 3, try switching it to channel 4.
• To change VCR's output channel, please refer to "VCR's Output Channel" on p. 19.

Plugging the AC Power Plug into an AC outlet

Continued on next page...

16

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

3 Settings are made automatically. When setup is done, this screen appears.

9/29/2002 SUN 2:20PM DST:ON

SETTING : CH 10

AUTO CLOCK SET

COMPLETED

If "AUTO CLOCK SET IS INCOMPLETE" appears, manually set clock. See below.

(Connection)

Initial Setup

If Auto Clock Set was incomplete.

1 Press ACTION* on remote to display CLOCK screen.

2 Press ▲▼ to select the month and SET to set. In the same manner, select and set the date, year, time, and DST (Daylight Saving Time).

3 Press ACTION to start clock and exit.

Reset Language, Channels, Clock

VCR's

1

Press ACTION* to display MENU. - PROGRAM functions are not available when using COMPONENT Video Output and S-VIDEO OUT. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROGAM.

2

Language

1) Press ▲▼ select language item.

2) Press SET repeatedly.

For Spanish

For French

For English

3) Press ACTION to exit.

Channels

1) Press ▲▼ to select "SET UP CHANNEL," and press SET.

2) Press ▲▼ to select "ANTENNA," then press SET to set your antenna system ("TV" or "CABLE").

3) Press to select "AUTO SET," then press SET.

- If you use a Cable Box, set it to the PBS channel in your time zone.

• After Channel Auto Set is finished, Auto Clock Set will be performed.

Clock

1) Press ▲ to select "SET CLOCK," and press SET.

2) Press ▲▼ to select "MANUAL," and press SET. (For Auto Clock Set, select "AUTO CLOCK SET.")

("TIME ZONE ADJUST" appears only when auto clock is set.)

3) Press ▲ and to select, then set the date, time, and DST (Daylight Saving Time).

4) Press ACTION to start Clock and exit this mode.

For assistance, please call: 1-800-211-PANA(7262) or send e-mail to: [e-mail]

VCR's Output Channel

*Important: If a remote control button does not work when pressed, press the VCR button on the remote and try the button again.

Time Zone Adjust

(Only when Auto Clock is set.)

1) Press ▲ to select "SET CLOCK," and press SET.

2) Press ▲ to select "TIME ZONE ADJUST,"

and press SET to subtract or add hour(s) as necessary.

3) Press ACTION twice.

- "TIME ZONE ADJUST" returns to "0" if clock is set manually.

VCR's Output Channel

1) Press to select "VCR'S OUTPUT CH.," and press SET.

2) Press SET.

3) Press ACTION.

• To make corrections, repeat steps 1) to 3).

Add or Delete a Channel

To add a channel: Select the channel with the NUMBER keys and press ADD/DLT.

CHANNEL 08 ADDED

To delete a channel: Select the channel with the CH ▲▼ or NUMBER keys and press ADD/DLT.

CHANNEL 08 DELETED

DST (Daylight Saving Time)

The DECK automatically adjusts the clock for DST. (See p. 17.)

Spring (First Sunday in April) DST:ON → Sets the clock ahead one hour.

Autumn (Last Sunday in October) DST:ON → Turns the clock back one hour.

• If your area does not observe Daylight Saving Time, select DST:OFF.
• Keep these time changes in mind when programming the DECK for timer recordings.

Playback/Record on a Tape

Ready Checklist

☐ All connections are made (pp. 12 \~ 15). TV and DECK are plugged in. TV is on and tuned to CH3, 4, or VIDEO. ☐ Remote is in VCR mode. (Press VCR.)

Playback a Tape

1 Insert a tape.

- DECK power comes on. The VCR mode and "VCR" indicator light up on Multi Function Display.

2 Press PLAY* to play a tape.

- If tape has no rec. tab (p. 6), auto play begins.

Special Features During Play

Forward/Reverse Scene Search

→ Press FF/SLOW+ or REW/SLOW-.

→ Press PLAY to release.

After search has begun, each additional press of FF or REW changes speed as shown below.

[SLP]: Approx. 21X ↔ Approx. 9X

[LP]: Approx. 9X ↔ Approx. 7X

[SP]: Approx. 7X <> Approx. 3X

If at 21X, 9X, or 7X speed the picture is interrupted, change speed to 9X, 7X, or 3X.

Notes

• Picture interruption may occur with some TVs. - FF and REW search speed may vary depending on current tape position.

■ Still (Freeze) Picture

→Press PAUSE/STILL. →Press PLAY to release.

■ Frame by Frame Picture

→Press PAUSE/STILL in Still mode. →Press PLAY to release.

Slow Motion Picture

→Press FF/SLOW+ (increase speed) or REW/SLOW- (decrease speed) in Still mode. →Press PLAY to release.

3 Press STOP to stop a tape.

■ Press REW/SLOW- or FF/SLOW+ in Stop mode to rewind or fast forward a tape.

■ Press EJECT on remote, or STOP/EJECT on DECK to eject a tape.

Notes

• These features work best in SP or SLP mode. • The sound will be muted. - To reduce picture noise, see "Manual Tracking Control" on p. 6. • After DECK is in Still or Slow mode for 3 minutes, it will switch to Stop mode automatically to protect the tape and the video head.

Playback using DECK buttons

■ Press STOP/EJECT to stop and/ or eject a tape.

20

For assistance, please call: 1-800-211-PANA(7262) or send e-mail to: [e-mail]

Record on a Tape

1 Insert a tape with a record tab (p. 6).

- DECK power comes on. The VCR mode and "VCR" indicator light up on Multi Function Display.

Press CH ▲▼r NUMBER keys

to select the channel.

- For "LINE" input, see p. 35. - If channel is over 100, press 100 key then press the remaining 2 digits.

Press SPEED

to select the record speed (p. 6).

SP = Standard Play LP = Long Play SLP = Super Long Play

• Speed appears on-screen and on Multi Function Display.

Press REC

to start recording. (The VCR REC indicator lights up on Multi Function Display),

- To edit out unwanted scenes, press PAUSE/STILL to pause, and again to resume recording. - You cannot view another channel during recording.

5 Press STOP

to stop recording.

■ One Touch Recording (recording in progress),

▶ Press REC repeatedly to set the recording length ▶ (30 min. ~ 4 hours).

- DECK shuts off after the preset record length.

Record one station, watch another,

→ press VCR/TV ("VCR" goes out on Multi Function Display), → select channels at TV (recording continues).

■ Select Channels at DECK (In STOP or REC. PAUSE mode),

→ press VCR/TV ("VCR" lights up on Multi Function Display), → select channels at DECK.

■ Play a disc while recording a tape.

→ insert a disc during recording, → press DVD, and then press PLAY.

Notes

• It is not possible to record from DVD/Video CD/CD to VHS tape using DECK.
• Watching one channel and recording another is not possible when using Cable Box or DSS Receiver. • After 5 minutes in Pause mode, DECK stops to protect a tape and video heads.

This video recorder, equipped with HQ (High Quality) system, is compatible with existing VHS equipment. Only use tapes with the VHS mark. Only tapes tested and inspected for use in 2, 4, 6, and 8 hour machines are recommended.

Note

Remove loose or peeling labels from tapes to prevent tape jam.

Operation

Basic

Record using DECK buttons

Basic DVD Operation

Ready Checklist

☐ All connections are made. (pp. 12–15) ☐ DECK is plugged in. ☐ If DECK is connected to an audio amplifier, turn the stereo system's power on.

Operation using DECK buttons

*1 Interactive DVD... May include multiple camera angles, stories, etc. *2 Video CD with playback control... Particular scenes or information can be interactively selected from a menu that appears on the screen.

Press POWER* on the remote or DECK.

Press DVD to select DVD mode.

- If a disc is already inserted, go to step 4. (Depending on the disc, playback may start automatically.)

Press OPEN/CLOSE,

and then place a disc into the disc tray.

- Hold disc by its edges only (p. 4) with printed side up and use guides to place into tray. Use ① 3" (8 cm) or ② 5" (12 cm) disc.

Press PLAY to start playing. Disc tray closes automatically.

- You may also close tray by pressing OPEN/CLOSE. - Data reading time differs with each disc.

If an interactive DVD or a Video CD with playback control is used and TITLE MENU appears, go to step 5.

Press ▲▼◀▶ or NUMBER keys (see below) to select title, and press SET to play.

Using NUMBER keys starts playing automatically.

1 digit number 1 ••• 1 2 digit number 12 ••• 10 1 2 3 digit number 123 •••100 1 2 3

Press SKIP ▶ or | to go to next or previous menu screen.

- SKIP function not available with all discs. Please refer to disc jacket for operation information.

To return to menu (play stops)

Press TITLE, MENU, or RETURN. (DVD) Press RETURN. (Video CD)

Press STOP to stop playing.

Press OPEN/CLOSE to eject the disc.

22

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

■Forward/Reverse Scene Search Press FF/SLOW+ or REW/SLOW- during play.

Press PLAY to release.

• Starting forward/reverse search during play started from menu on Video CDs may recall menu.
• Search speed, slow at first, increases with each additional press of the button up to 5 levels.

■Forward/Reverse Chapter/Track Skip Press SKIP ▶▶| or |◀◀ SKIP during play. Each press skips a chapter (DVD) or track (Video CD/CD).

• Pressing SKIP once midway through a chapter/track returns to the start of that chapter/track. Each additional press skips back one chapter/track.
• Pressing SKIP ▶ for I during play started from menu on Video CDs may recall menu.

■Still Picture or Pause

Press PAUSE/STILL during play. Press PLAY to release.

• DVD/Video CD : DECK will enter still picture mode.
• CD : DECK will enter pause mode.

■Frame by Frame Picture (DVD/Video CD)

Press PAUSE/STILL in still mode. Press PLAY to release.

• Each press advances picture one frame. - Hold button down for consecutive frame advance. - Whether pictures are advanced by "FRAME" or "FIELD" is selected automatically. (See p. 47)

■Slow Motion Picture (DVD/Video CD) Press FF/SLOW+or REW/SLOW- in still mode

Press PLAY to release.

• Slow motion speed, slow at first, is increased with each additional press of the button up to 5 levels.
• Reverse slow motion is not available for Video CDs.
• When 📂 appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

Surround Sound System

SURROUND ON

SURROUND OFF

Press SURROUND to set Surround sound. To cancel, press SURROUND.

Note

- Surround sound effects is available in DVD mode only.

Resume Function

DECK memorizes the point where STOP is pressed (▶flashes on screen). Press PLAY to resume play from this point. Pressing STOP again or opening the tray cancels RESUME, however, RESUME is not canceled when power is turned off and on. - RESUME works only with discs for which elapsed play time is displayed during play.

Auto-Power Off Function

Power turns off after DECK has been in Stop mode (DVD) for about 5 minutes.

Enjoy Video CDs featuring playback control without using menus (Video CDs only)

1. Do steps 1-4 (previous page). When menu appears, press STOP.
2. Press NUMBER keys to select desired track (play begins).
3. Check disc for track numbers.
4. Press "1" to start at beginning of disc.

To Resume Menu use,

Press STOP and press PLAY, then the menu will be displayed.

Now, go to step 5 (previous page).

Notes

• Please read the disc jacket for operation information.
• If a single sided disc is placed in upside down, "PLEASE CHECK THE DISC, AND FOR STAINS OR SCRATCHES ON DISC" is displayed.
• Remove disc and press DECK POWER off when not in use.
• Disc continues to rotate with menu displayed even after play is done. Press STOP to clear menu display when finished with menu.

Operation

Basic

Timer Recording

Ready Checklist

☐ All connections are made (pp. 12 ~ 15). □ TV and DECK are plugged in. □ Clock set correctly. □ Tape has rec.tab. (p. 6) ☐ Remote is in VCR mode. (Press VCR.) □ Sufficient tape remaining for rec time.

1

Press PROG*

to display Program.

Example

Today

1) To set record DATE, press ▲▼ to select: 1~31= one time, or DAILY= MON~ FRI, or WEEKLY= same time each week and press SET. • See selection order left. 2) To set remaining items, press ▲▼ to select and press SET to set START/ STOP time CH(channel) or LINE input (p. 35), and tape speed (SP, LP, SLP).

Press PROG

to end programming.

To Enter More Programs, press ▲▼

to select and press SET

to set an unused program number, and then repeat step 2.

Or

Press PROG

to exit.

• The "Timer" indicator lights up on the DECK.
• You can do Timer Recording with the power on or off.
• "TIMER REC WILL START SOON" appears on-screen for 2 minutes before Timer Recording starts. If the DECK is in DVD mode, no message appears, but the VCR REC indicator, the VCR mode indicator, and "REC" will flash on the Multi Function Display.

For assistance, please call: 1-800-211-PANA(7262) or send e-mail to: [e-mail]

Review, Replace, or Clear Program Contents:

(Recording is not in progress)

1. Press PROG to display the Program List.

Press ▲▼ to select the number and press SET to display.

To cancel a Timer Recording in progress...

Hold down STOP on VCR mode for a few seconds to cancel the Timer Recording.

(The "TIMER" indicator goes out on the Multi Function Display.)

- Any future daily or weekly recording will be performed as programmed.

3. To Replace a program...

Repeat Step 2 (p. 24) to set new programs.

or To Clear program...

Press ADD/DLT.

4 Press PROG to end the programming.

Notes

• If you are using a Cable Box, the VCR's channel for Timer Recording must be set to the Cable Box input channel and Cable Box must be manually set to the desired channel. Cable Box power must be left on.
• 2 minutes before Timer Recording is performed, "PLEASE PREPARE FOR TIMER REC" appears and Timer Indicator flashes. Be sure a cassette with record tab is loaded and DECK is in Stop mode.
• If a power interruption occurs while programming the timer, the timer program(s) may be canceled. If "TIMER PROGRAMS WERE LOST DUE TO POWER INTERRUPTION" appears on-screen, please re-enter the timer programs.
• If the start time for Timer Recording comes up during recording and playing back, Timer Recording will not be performed.

Important notes when using DSS Receiver

• When recording programs via DSS Receiver, DSS Receiver must be left on.
• When recording programs via an antenna or cable, DSS Receiver must be turned off.

MTS Broadcast/ VHS Hi-Fi Stereo System

Connection

Make the Audio/Video Connection as shown on pp. 12 \~ 15.

- You can use TV connected to a Stereo amplifier and speakers instead of Stereo TV.

Receivable Broadcast Types

The following are possible audio broadcast types and on-screen displays.

The signal being received is indicated with an “E” mark while the selected audio mode is indicated with an arrow.

To display the broadcast signal being received,

press DISPLAY*.

MTS Stereo and SAP broadcast

Multi-channel Television Sound Stereo (main language) and Secondary Audio Program (sub language) broadcasts are being received simultaneously. Select STEREO or SAP audio mode.

MTS Stereo broadcast

Multi-channel Television Sound Stereo broadcast. Select STEREO audio mode.

If stereo broadcast is weak and display flickers, select MONO audio mode for possible better results.

SAP broadcast

Secondary Audio Program (sub language) broadcast. Select SAP audio mode for the sub language.

MONO broadcast

Normal monaural sound broadcast.

Equipped with dbx®-TV Noise Reduction for true MTS reproduction. dbx®-TV Noise Reduction is required for good stereo separation and audio fidelity. dbx® is a registered trademark, and is licensed by dbx® Technology Licensing.

For assistance, please call: 1-800-211-PANA(7262) or send e-mail to: [e-mail]

Audio Mode for Recording

1 Press AUDIO (SAP/Hi-Fi)

to display audio mode.

(Display disappears after 5 seconds.)

2

Press AUDIO (SAP/Hi-Fi) repeatedly to select desired mode.

• Refer to "Receivable Broadcast Types" on p. 26.
• Arrow indicates selection.

3 Do a recording. See p. 21.

Audio Mode for Playback

1 Start playback. See p. 20.

2 Press AUDIO (SAP/Hi-Fi) to display audio mode.

• Arrow indicates selection.

Press AUDIO (SAP/Hi-Fi) repeatedly to select desired mode.

• Select "HIFI (L/R)" or "HIFI (L)" or "HIFI (R)" to listen to stereo recordings in stereo sound. Select "NORMAL" for monaural sound.
• Display disappears after 5 seconds.

Notes

• Only tapes recorded in Hi-Fi stereo will playback with true stereo sound. Standard stereo tapes will playback in monaural sound.
• To listen to Hi-Fi stereo playback, the DECK AUDIO (L/R) jacks must be connected to a stereo TV or an external stereo amplifier and speakers. (See pp. 12, 14, 15.)
• If tracking is adjusted during playback, Hi-Fi audio may revert to normal audio.
• Hi-Fi and normal audio playback volume level may differ.

Multi-Brand Control Feature

Multi-Brand Control Setup

The Remote Control can be set to control some TV and Cable Box/DSS functions.

1 Find your TV and Cable Box/DSS Receiver Brand Code Number on the following page.

2 ■ Setup for TV control, →hold down TV button, →enter code with NUMBER keys.

Setup for Cable or DSS control, →hold down DSS/CABLE button, →enter code with NUMBER keys. • If code number is 100 or greater, →e.g., press 1 - 0 - 2 for 102.

3 Confirm code entry, →press POWER to turn selected unit on or off. • See table below for controllable functions in each mode.

Notes - Repeat setup after remote battery replacement. - Remote will not control every TV, Cable Box, or DSS made by the manufacturer listed. If you get no response, your particular unit cannot be controlled. There are NO additional codes for the products listed. If your product is not listed, then the remote is not compatible with that product.

Using Multi-Brand Control

After the remote is set up, you can select VCR, DVD, TV, or DSS/CABLE for the desired function.

Press VCR, DVD, TV, or DSS/CABLE on the remote. (The table below shows the available remote buttons for each mode.)

Mode\Unit	DVD/VCR TV		CABLE/ DSS
DVD/VCR	All	VOL +/-	—
TV	EJECT/OPEN/CLOSE*, DISPLAY, PLAY, STOP, FF/SLOW+, REW/SLOW-, VCR/TV, PAUSE/STILL, SKIP, AUDIO, CM/ZERO, TAPE POSITION, COUNTER RESET, SPEED, REC	POWER, INPUT, NUMBER keys, ENTER, CH ▲,▼ VOL +/-	—
CABLE/DSS		VOL +/-	POWER, ENTER, NUMBER keys (except 100key), CH ▲▼

* Bold: VCR Function Bold Italic: VCR and DVD Functions Italic: DVD Function Normal: TV, Cable Box, or DSS Receiver

Notes

• Not all functions listed may be controllable.
• In TV or DSS/CABLE mode, it may be necessary to press ENTER after pressing NUMBER keys for channel selection.

28

For assistance, please call: 1-800-211-PANA(7262) or send e-mail to: [e-mail]

TV Brand Code Numbers

Panasonic....01, 02	Sylvania....05	JVC....11
Quasar....01, 02	Sharp....06, 07	Hitachi....12
RCA....03	Sony....08	Mitsubishi....07, 13
GE....03	Toshiba....09	Samsung....14
Zenith....04	Sanyo....10	Gold Star....15, 16, 17
Magnavox....05	Fisher....10

Cable Box Brand Code Numbers

Archer	44, 06, 01, 120, 05, 63, 126
Cableview	29, 09, 01, 63, 120, 44, 42, 3052, 04, 124, 126
Citizen	44, 52, 30, 63, 42, 04, 124, 126
Curtis	08, 09, 25, 61, 53, 87
Century	44, 51, 75, 59, 126
Cabletenna	29, 09, 01, 63, 120, 44, 126
Cable Cinema	29, 09, 01, 63, 120, 44, 126
Diamond	29, 09, 01, 63, 120, 44, 126
Eagle	62, 40, 22, 13, 58, 20, 26, 107
Eastern	28, 29, 130
Explorer	08, 09, 25, 61, 53, 87
Gemini	30, 04, 124
General Electric	01, 57, 120
General Instruments .	01, 84, 83, 34, 03, 02, 04, 55
65, 66, 67, 68, 120, 106, 121, 122, 115, 117, 118, 124
Gerrard	44, 51, 75, 59
GC Electronics	44, 42, 63, 29, 30, 52, 04124, 126
Hamlin	41, 14, 15, 28, 102, 104, 103, 130
Hitachi	31
Jerrold	01, 84, 83, 34, 03, 02, 04, 55, 65, 6667, 68, 120, 106, 121, 122, 115, 117, 118, 124
Jasco	30, 04, 124
Macom	31
Magnavox	26, 112
Matsushita	17, 16, 08, 87, 109
Movietime	32, 39, 42, 44, 126, 38, 40
Maestro	74, 35
NEC	40, 19, 38, 32
NSC	40, 19, 38, 32
Novavision	08, 09, 25, 61, 53, 87
Next Level	01, 84, 83, 34, 03, 02, 04, 55, 6566, 67, 68, 120, 106, 121, 122
Oak	46, 11, 129, 101

Oak Sigma	46, 11, 129, 101
Panasonic	17, 16, 08, 87, 109
Philips	23, 24, 20, 13, 07, 50, 128, 129
Pioneer	06, 05, 12
Pulsar	04, 42, 63, 44, 30, 52, 124, 126
Quest	06, 05, 12
Radio Shack	44, 51, 75, 59, 126
RCA	17, 16, 08, 87, 109
Realistic	44, 51, 75, 59, 126
Recoton	44, 51, 75, 59, 126
Regal	41, 14, 15, 28, 102, 104, 103, 130
Regency	28, 29, 130
Rembrandt	44, 42, 63, 29, 01, 32, 39, 120, 126
Samsung	42, 06, 32, 05, 40
Scientific Atlanta	08, 09, 25, 61, 53, 87
Sheritech	27
Signal	26, 112
SL Marx	42, 06, 32, 40, 43, 44, 52, 63, 126
Sprucer	17, 16, 08, 87, 109
Standard Components	32, 39, 42, 44, 126
Stargate	04, 42, 32, 40, 63, 44, 30, 52, 06
	124, 126
Sylvania	19, 18
Teknika	74, 35
Telecaption	77, 127
Teleview	40, 19, 38, 32, 42, 06
Texscan	19, 18
Tocom	34, 33, 01, 42, 66, 120
Toshiba	36
Unika	44, 42, 63, 29, 01, 126, 120
Universal	52, 43, 44, 63, 42, 126
Viewstar	62, 40, 22, 13, 58, 20, 26, 107
Videoway	07, 23, 50, 129
Vidtek	64
Zenith	07, 23, 50, 129

DSS Brand Code Numbers

Toshiba	90	Optimus	94, 95
Hitachi/ Hughes	91, 99	Panasonic	96
Primestar	92	ProScan	97
Drake	93	RCA	97
Magnavox	94, 95	SONY	98, 105
Uniden	94, 95

Important Notes

• Due to changes in infra-red commands used by manufacturers, some brands have several codes. If your unit does not respond to the first code, please try the next one.
• Some TV, Cable Box, and DSS Receiver brands require you to turn on the power manually.

Tape Operation

Search System

For each recording, an invisible index mark is placed on the tape. A program index and information are also included for timer recordings. These marks are used to access or scan recordings.

Index Search

1

INDEX SEARCH

ENTER INDEX NUMBER :1 USING 1 - 9 KEYS

FORWARD SEARCH:FF REVERSE SEARCH:REW NEXT :SEARCH EXIT :STOP

Press SEARCH*

to display SEARCH in Stop or Play mode, and then press NUMBER keys

to select recording number.

• To calculate number, see below.

Press FF/SLOW+ or REW/SLOW- on the remote to start search.

2

INDEX SEARCH

FORWARD SEARCH: FF REVERSE SEARCH: REW

Play begins at search end.

To search forward or back 1 index,

press FF/SLOW+ or REW/SLOW- on the remote while screen left is displayed (10 sec.).

• To cancel, press PLAY or STOP.

To Calculate Index Number

Example 1:

To go to rec. 2 from rec. 4, enter 3 and press REW.

Example 2:

To go to rec. 6 from rec. 2, enter 4 and press FF.

NOTE: ↓ indicates start points of each recording.

Note

- If Index Search is started very close to an index mark, that index mark may not be counted in the search.

Program End Search

Locates end point of recording for continuity.

Press SEARCH twice to display SEARCH in Stop or Play mode.

PROGRAM END SEARCH

SEARCH START : FF

EXIT :SEARCH

Press FF/SLOW+

on the remote to start PROGRAM END SEARCH.

• To cancel, press PLAY or STOP.

Examples of Program End Search.

Fig. 1

Fig. 2 Fig. 3

the current tape position Press SEARCH button

Upon locating end point,

→search continues 7 sec. past end point, →tape rewinds to 10 sec. before end point, →tape plays to end point and stops. 4

Note

- If Program End Search is started very close to an index mark, that mark may be skipped over.

30

For assistance, please call: 1-800-211-PANA(7262) or send e-mail to: [e-mail]

Auto Operation Functions

■ Auto Play

Insert a tape → Power comes on, → Play starts if there is no record tab (see p. 6).

■ Auto Rewind

Play Fast Forward]→ Tape end → Rewind

■ Play Auto Eject

(Repeat Play must be off) Play → Tape end → Rewind → Tape ejects if there is no record tab

Commercial Skip

VCR fast forwards (skips) over 1~3 minutes of recorded tape.

1 Press CM/ZERO in Play mode.

- The skip time can be changed by pressing CM/ZERO repeatedly as shown by the figure below.

- No indication appears on-screen.

Operation

VCR

Tape Operation (continued)

Repeat Play

Set to playback a recording over and over.

1 Press ACTION* to display MENU.

Press ▲▼ to select "SET UP VCR," and press SET.

Press ▲▼ to select "REPEAT PLAY," and press SET to set "ON" or "OFF."

- Play repeats at tape end or if unrecorded portion over 30 sec. is detected.

4 Press ACTION twice to return to normal screen.

Note

- For repeat play in DVD mode, see page 42.

Zero Search

To quickly return to a specified tape location.

1 Press DISPLAY during play to display Counter.

Press COUNTER RESET at desired position to reset to "0:00:00".

3 Continue to record, playback etc.

4 Press STOP.

Press CM/ZERO in Stop mode to start Zero Search.

- DECK will go into FF or REW mode and stop at the last point the Counter was set to 0:00:00.

32

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Special VCR Features

*Important: If a remote control button does not work when pressed, press the VCR button on the remote and try the button again.

VCR Lock Feature

When set to ON, all operations except for timer record and tape eject are prohibited. Useful for households with small children.

To turn on, hold down REC on DECK in Stop mode with no tape inserted for 7 seconds. (Please ignore "NO CASSETTE" warning.)

VCR LOCK ACTIVATED

To turn off, repeat above.

VCR LOCK OFF

- VCR Lock cancels in 24 hours if clock is set.

REC

Weak Signal Display Feature

When "ON," picture is displayed regardless of signal strength.

1 Press ACTION to display MENU.

Press ▲▼ to select "SET UP CHANNEL," and press SET.

Press ▲▼ to select "WEAK SIGNAL DISPLAY," and press SET to set "ON" or "OFF."

- ON: Picture is displayed regardless of signal condition, and may not always be clearly visible. OFF: Screen turns solid blue when signal is weak or non-existent.

- Selecting ON has no effect on connected equipment with blue back feature.

4 Press ACTION twice to return to normal screen.

Auto Shut-Off Feature

The power shuts off at a preset time.

1 Press ACTION to display MENU.

Press ▲▼ to select "SET UP VCR," and press SET.

Press ▲▼ to select "AUTO SHUT-OFF." Press SET repeatedly to change shutoff time as shown below.

4 Press ACTION twice to return to normal screen.

Note

- The shut-off countdown will not function during Play or Record.

Operation

VCR

Special VCR Features (continued)

Remote Warning Feature

If Multi-brand feature is used (p. 28), and this feature is set to on, a warning appears whenever an invalid key is pressed in TV, DSS or CABLE mode.

1 Press ACTION* to display MENU.

Press ▲▼ to select "SET UP VCR," and press SET.

Press ▲▼ to select "REMOTE WARNING," and press SET to set "ON" or "OFF."

- If "OFF," remote warning will not appear when invalid key is pressed.

4 Press ACTION twice to return to normal screen.

*Important: If a remote control button does not work when pressed, press the VCR button on the remote and try the button again.

Tape Position and Tape Status Feature

To find out the present tape position and amount of tape remaining. Tape position is displayed for VHS-C type cassettes, tapes under 30 minutes long, and some other tapes, but the position is not correct.

1 Press TAPE POSITION to detect current tape position.

• "DETECTING TAPE POSITION" is displayed only when a cassette is first inserted, and it takes several seconds for correct tape position to appear.
• The present tape position indication and amount of tape remaining (according to tape speed) is displayed.
• Tape remaining time display may not be precise.

2 Press TAPE POSITION to return to normal screen.

Note

This function cannot display exact amount of tape remaining for tapes 30 minutes or less, or for tapes over 120 minutes in length.

34

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Copying Your Tapes (Dubbing)

Connection

VCR/ Camcorder (Hi-Fi)

DVD/VCR DECK

TV

Front of DECK

(Audio/Video In Terminals on the front of DECK are available)

① Connect VIDEO OUT terminal on Playing VCR to VIDEO IN terminal on DECK. To monitor the dubbing, also connect TV as shown. ② Connect "L" and "R" AUDIO OUT terminals on Playing VCR to "L" and "R" AUDIO IN terminals on DECK. In place of Playing VCR, you can use other equipment, such as a Camcorder. Simply connect the unit's Audio/Video outputs to DECK.

Playing (Source) VCR

1

Insert a pre-recorded tape.

Recording (Editing) DECK

Insert a blank tape with record tab.

2

Press INPUT to set DECK Input mode to LINE for Video Input. (See "Selecting the Input Mode" below.)

3

Press PLAY, then PAUSE/STILL immediately to enter PLAY/PAUSE mode.

Press REC, then PAUSE/STILL immediately to enter REC/PAUSE mode.

The operation of steps 4 and 5 must be done on the playing and recording VCRs at the same time.

Press PLAY to start dubbing. Playing VCR starts playback.

Press PAUSE/STILL to start dubbing. DECK starts recording.

Press STOP to stop dubbing.

Press STOP to stop dubbing.

■ To Monitor Dubbing on TV

1. Turn TV on and tune to the Recording VCR channel (CH 3 or CH 4). 2. Set the VCR/TV Selector on DECK to "VCR."

Selecting the Input Mode

Method 1: Press INPUT repeatedly. Channel Number ↔ LINE1 ↔ LINE2. Method 2: Press CH ▲/▼. Display will change as below.

Note

- Dubbing tapes protected with Copy Guard will result in poor quality recordings.

• "L1" or "L2" lights up on Multi Function Display (about 4 seconds) when LINE1 or LINE2 is selected. • LINE1: For rear audio/video connection. LINE2: For front audio/video connection.

Caution: Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

- Please note that some tapes cannot be dubbed on DECK. Also, it is not possible to dub DVD/Video CD/CD to VHS tapes using DECK.

Disc Operation

Subtitle Language (DVD only)

You can select a different subtitle language (if offered) than the one set at the Settings for DVD Operation. (See p. 45.)

1

Press SUB TITLE*

in Play mode to display the subtitle selection on-screen.

• Display disappears after 5 seconds. - When no subtitles are offered, “-” will be displayed instead of the language number.

2

Press ▲▼

to select a language.

Press ▶ (or ◀)

to set.

Press ▲▼

to select "ON" or "OFF."

Number of subtitle language being played back.

Notes

• If after several presses of the button the language does not change, language selection is not offered on the disc.
• When power is turned on again or disc is removed, subtitles revert to initial setting language. If the initial language is not recorded on the disc, the disc's priority language will appear.

Audio Soundtrack Language (DVD only)

You can change the audio soundtrack language, selected at the Settings for DVD Operation, to a different language if available. (See p. 45.)

(This operation works only with discs on which multiple audio soundtrack languages are recorded.)

1

Press AUDIO

in Play mode to display the audio selection on-screen.

• Display disappears after 5 seconds.

Audio attribute 1 type, sampling frequency, bit No. of the disc.

2

Press ▲▼

to select desired language.

Number of the audio soundtrack language being played back.

Ready Checklist

☐ Please read "Basic DVD Operation" on p. 22.

[Subtitle language (No.)]

[Audio sound track language (No.)]

ENG	English
FRA	French
DEU	German
ITA	Italian
ESP	Spanish
NLD	Dutch
SVE	Swedish
NOR	Norwegian
DAN	Danish
POR	Portuguese
RUS	Russian
JPN	Japanese
CHI	Chinese
KOR	Korean
MAL	Malay
VIE	Vietnamese
THA	Thai
*	Other

- Change the No. by pressing ▲▼, and press SET.

[Audio attribute 1 type, sampling frequency, bit No. of the disc (see p. 46).]

LPCM	96KHz or 48KHz	16blt	Linear PCM disc
		20bit
		24blt
Dolby Digital dts	1ch - 5.1ch		Dolby Digital disc dts disc
	1ch - 5.1ch

Notes

• If, after several presses of the AUDIO button the language does not change, language selection is not offered on the disc.
• When power is turned on again or disc is removed, language reverts to initial setting. If this language is not recorded on the disc, the language recorded will be heard.
• If, after several presses of the AUDIO button the language does not change, language selection is not offered on the disc.
• When power is turned on again or disc is removed, language reverts to initial setting. If this language is not recorded on the disc, the language recorded will be heard.

Notes

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

When 📊 appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

Notes

• The ANGLE Indicator lights up on DECK when a scene recorded at different angles is detected. • The angle number can be set beforehand so that the angle is switched whenever the ANGLE Indicator lights up.

Notes

• The subtitle cannot be enlarged nor can its position be changed.
• The picture zoom feature does not work with a Video CD.
• During picture zoom, "ZOOM1" or "ZOOM2" is displayed on-screen.
• Zooming, on some discs, may result in poor picture quality, or may not operate at all.

Multiple Angle Viewing (DVD only)

DVDs may contain scenes shot from multiple camera angles allowing the same scene to be viewed at different angles. You can view these angles, if available, using the ANGLE button.

1

Press ANGLE

in Play mode to display the angle selection on-screen.

• Display disappears after 5 seconds.

2

Press ▲▼

to select the desired angle.

Number of angle being played back.

Vocal Selection for Karaoke Discs (DVD/Video CD)

1

Press AUDIO in Play mode to display the audio screen.

2

Press ▲▼r

to select as shown below, and

press ▶ (or ◀) to set. (DVD only)

• DVD Karaoke (1 vocal) VOCAL ON→VOCAL OFF • DVD Karaoke (2 vocals) VOCAL V1 + V2—VOCAL V1—VOCAL V2—VOCAL OFF • Video CD

Picture Zoom (DVD only)

You can enlarge specific portions of a picture and select the zoom ratio using the ZOOM button during DVD playback.

Press ZOOM repeatedly to change display as follows.

- You can enlarge the center portion of the image to one of 2 magnifications.

■ Use the ▲, ▼, ◀ and ▶ buttons to move the position up, down, left and right.

Operation

DVD

Disc Operation (continued)

Title Menu (DVD only)

Some DVDs have more than one title, e.g. movies. If the disc offers a title menu, you can select the desired title number. (Operation may vary according to the disc.)

1

Press TITLE*

in Play mode to display the title screen.

2

Press ▲▼▶

NUMBER keys to select a title, and press SET or PLAY to start playing.

- "Pressing SET or PLAY" is not necessary when using NUMBER keys.

DVD Menu (DVD only)

DVDs may offer a special menu. This menu may include guides to unique contents, audio/subtitle languages, etc. Although contents and operation may vary, the following steps show basic steps for using the menu.

1

Press MENU

in Play mode to display DVD MENU.

2

Press ▲▼◀▶

NUMBER keys to select an item, and press SET or PLAY to perform. • "Pressing SET or PLAY" is not necessary when using NUMBER keys. Repeat step 2 if there is more than one menu.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

38

Program Play (Video CD/CD)

You can program specific tracks and order of play.

1 Press ACTION to display MENU.

Press ▲▼ to select "PLAY MODE," and press SET to display.

Press ▲▼ to select "PROGRAM PLAY," and press SET to display.

Press ▲▼◀▶ to select a track number (Track numbers on disc are displayed.), and press SET.

- Repeat step 4 to select another track. - The selected track is added on the right side.

Press ▲▼◀▶ to select "START," and press SET to start play of programs in the sequence selected.

• To cancel, press STOP during play, then press CLEAR.

Notes

• Up to 15 tracks can be programmed.
• “◀” or “▶” (depending on disc) indicates additional PROGRAM PLAY screen. Press ▲▼◀▶ for next or previous screen.
• To clear the last program one by one Press ▲▼◀▶ to move to “CLEAR LAST” and press SET. (Pressing CLEAR on remote control also clears last program.)
• To clear all programs Press ▲▼◀▶ to move to “CLEAR ALL” and press SET. (Programs are also cleared when the power is turned off or the disc is removed.)

Ready Checklist

□ DECK is in DVD mode, press DVD. □ Video CD or CD is inserted.

Program Repeat Play (Video CD/CD)

1 Do operation steps 1 through 5 at left on this page. 2 Press DISPLAY to display Disc Information screen. (Disc Information Screen)

3 Press DISPLAY to display DECK Information screen. 4 Press SET to enter Select mode. "REPEAT OFF" will flash. (DECK Information Screen)

5 Press ▲▼ to select "DISC REPEAT." (DECK Information Screen)

6 Press SET to set mode. ("DISC REPEAT" will stop flashing.) To cancel, select "REPEAT OFF" in step 5, then press SET.

Operation

DVD

Disc Operation (continued)

Random Play (Video CD/CD)

Tracks are played in a random order.

1 Press ACTION* to display MENU.

2 Press ▲▼

to select "PLAY MODE," and press SET to display.

3 Press ▲▼ to select "RANDOM PLAY," and press SET to begin random play. • To cancel, press STOP during play, then press CLEAR.

Setting the Sound Output Level

Audio recorded on a DVD or Video CD often incorporates a dynamic range of sound. This means that, when compared to a music CD, etc., the average volume is generally lower and the peaks may be higher. This unit can be set so that the average volume is increased automatically.

Ready Checklist

☐ DECK is in DVD mode, press DVD.

*Important:

If a remote control button does not work when pressed, press the DVD button on the remote and try the button again.

Press AUDIO CONTROL repeatedly to change "ON" ↔ "OFF."

• "ON" or "OFF" lights up on Multi Function Display (about 3 seconds) when press AUDIO CONTROL.

	Audio Control “OFF”	Audio Control “ON”
DVD /Video CD	Volume level is low.	Volume level is increased automatically when played back.
Music CD	____	____

• "ON" is set ..... When a DVD or Video CD is played back, the average volume is increased.
• "OFF" is set .... The volume level recorded on the disc is played back just as it is.

Notes

• When audio equipment is connected, setting the Sound Output level to "OFF" is recommended.
• If the sound becomes abnormal while playing a disc, set the Sound Output level to "OFF."

40

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

DVD Operation using On-Screen Displays

When DISPLAY is pressed, On-Screen Displays show disc information (title/chapter/track number, elapsed playing time) and DECK information (repeat play, play mode).

1 Press DISPLAY in Play or Stop mode to display "On-Screen Displays."

• Each press of DISPLAY changes the on-screen display as follows. (refer to p. 42.)

Note

DISPLAY button does not function while DVD TITLE MENU is displayed.

2 Press ▲(▼r ) ◀▶ to select an item, and press SET.

3 Press ▲▼ to select the setting, and press SET.

• For some functions the setting will be registered immediately without pressing SET.
• When numbers are displayed (e.g. title number), NUMBER keys are also available.

To make corrections, press ▲▼ and SET repeatedly to move to the error, then correct.

- Pressing ▶ is effective for elapsing time instead of the above buttons. Press ▶ repeatedly to delete the error, then correct.

To return to normal screen, press CLEAR or DISPLAY repeatedly.

Ready Checklist

☐ DECK is in DVD mode, press DVD.

Operation

DVD

Notes

• When DISPLAY button is pressed during playback of a Video CD with Playback control, NUMBER keys are not available on the displayed screen. In this case, press DISPLAY again to remove the displayed screen.
• When ⑧ appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

DVD Operation using On-Screen Displays (continued)

Detailed Descriptions of each On-Screen Display

■Disc information screen (for DVD)

1. TITLE No.

- Change the No. by pressing ▲▼* or NUMBER keys, and press SET.

2. Chapter No.

- Change the No. by pressing ▲▼ or NUMBER keys, and press SET.

3. Disc currently being played

4. Elapsed playing time

The screen may be changed by selecting the elapsed time. - Change the elapsed time by pressing NUMBER keys. e.g., press 0 - 1 - 2 - 3 - 4 - 5 for 01 : 23 : 45. • This function does not work with some discs.

■ Disc information screen (for Video CD/CD)

A.Track No.

- Change the No. by pressing ▲▼ or NUMBER keys, and press SET.

B.Playback control ON/OFF

[Video CD with playback control only]

ON	Video CD menu play is displayed.
OFF	Video CD menu play is cleared.

C. Disc currently being played

Video CD

CD

D. Elapsed playing time

Note

• Track No. and the elapsed playing time are not displayed during play started from menu of Video CDs with playback control.
• When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

■ DECK information screen (for DECK)

- Change the desired mode during play by pressing ▲▼, and press SET.

a. Repeat Play

DVD	CHAPTER REPEAT	TITLE REPEAT	REPEAT OFF
Video CD/CD	TRACK REPEAT	DISC REPEAT	REPEAT OFF

b. Play mode [Video CD/CD only] (See p. 39 or 40.)

PROGRAM PLAY	program play
RANDOM PLAY	random play
----	normal play

For your reference

• CHAPTER/TITLE REPEAT PLAY (DVD)

- TRACK/DISC REPEAT PLAY (Video CD/CD)

Note

- For repeat play in VCR mode, see p. 32.

42

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

MP3 Playback Operation

*Important: If a remote control button does not work when pressed, press the DVD button on the remote and try the button again.

MP3 Playback

You can use this unit to play MP3 format audio recorded for personal use with a computer etc. onto a CD-R or CD-RW. Play may not be possible in some cases due to the condition of the recording.

1 Press POWER on the remote or DECK.

2 Press OPEN/CLOSE, and then place a MP3 disc into the disc tray. Press OPEN/CLOSE to close.

3 MP3 MENU is displayed and playback is started automatically. (The MP3 CD directory is displayed.)

■Forward/Reverse Search Press FF/SLOW+ or REW/SLOW- during play. Press PLAY to release.

- Search speed, slow at first, increases with each additional press of the button up to 4 levels.

■Forward/Reverse Track Skip Press SKIP▶▶I or I◀◀ SKIP during play. Each press skips a track.

- If pressed within first 3 seconds of playback, skips to the previous track. If over 3 seconds, returns to first of that track. (I◀◀ SKIP only.)

- Only the SKIP▶▶I or I◀◀ SKIP button can be used for track skip selection during playback. Place unit into Stop mode before performing folder/file selection (see above right.)

4 Press STOP to stop playing.

5 Press OPEN/CLOSE to eject the disc. The MP3 MENU is closed automatically.

■MP3 playback (During STOP mode)

1) Press ▲▼ to select an MP3 file (♪) 2) Press SET or PLAY to start playback.

■Select folder (During STOP mode)

1) Press ▲▼ to select a folder (☐). 2) Press SET to display files/folders contained in the folder.

■Select parent folder (During STOP mode)

1) Press ▲▼ to select a folder (☐). 2) Press SET to make changes to the previous directory display.

Note

- Folder area operation cannot be done. Only file area operation is possible.

■Select PLAY MODE (During STOP mode)

1) Press ◀▶ to move cursor to PLAY MODE. 2) Press ▲▶ select the desired PLAY MODE (see below).

[PLAY MODE]

NORMAL:

All MP3 files are selected and played back one time only.

SINGLE REPEAT:

The selected MP3 file is played back repeatedly.

FOLDER REPEAT:

The MP3 files contained in the selected folder are played back repeatedly. However, folders below the selected folder are not played back.

DISC REPEAT:

All MP3 files are played back repeatedly.

DVD Lock Feature

*Important: If a remote control button does not work when pressed, press the DVD button on the remote and try the button again.

You can prevent playback of DVDs of a specific rating level which may be unsuitable for children.

- Some DVDs are encoded with a rating level. If the disc rating is higher (stricter) than the one you preset, playback will be prohibited.

DVD Lock (DVD only)

A 4-digit code must be entered to view a blocked program or change rating settings.

1 Press ACTION* to display MENU.

2

Press ▲▼

to select "PARENTAL LOCK," and press SET to display.

3

1) Press NUMBER keys to enter your secret code. 2) Enter same secret code again for confirmation. 3) Press SET to display.

To Make Corrections Press ▶ repeatedly to move the cursor. Press NUMBER keys to make the correction.

• Step 2) not necessary when changing rating or secret code. • Take care that you are not observed entering the secret code.

4

Press ▲▼◀▶ to select rating level, and press SET to select “LOCKED” or “UNLOCKED.”

LEVEL 0 : LOCK ALL, Playback of all DVDs, CDs and Video CDs is prohibited. (Use to prohibit play of mature theme DVDs not encoded with rating level.)

LEVEL 1 : mature theme DVDs

LEVEL 2 : DVDs expressly for children can be played back.

LEVEL 3 to 7 : DVDs for general audiences/children can be played back. (DVDs with mature content are prohibited.)

LEVEL 8 : NO LIMIT: (Factory preset) All DVDs can be played back.

5

Press ACTION twice to end setup.

Ready Checklist

DECK is in DVD mode, press DVD.

Caution

Discs not encoded with rating level will play even if the jacket states it is for mature audiences. For these discs, the DVD Lock Ratings will not work.

After DVD Lock is set and a blocked DVD is played, this message will appear. The message may differ depending on the disc.

To continue viewing a blocked program for now, Press ▲▼ to select "YES" and SET. Then, enter your 4 digit secret code. When "NO" is selected, blocked programs cannot be viewed.

Change your secret code

• You will need your current code. Do steps 1-2 on the left. Enter the current secret code. Press CLEAR to clear the code. Do step 4 to enter the new code.

Note

• DO NOT forget your secret code.

44

For assistance, please call: 1-800-211-PANA(7262) or send e-mail to: [e-mail]

Settings for DVD Operation

1 Press ACTION to display MENU.

Press ▲▼ to select an item, and press SET.

DISC LANGUAGES (See below) All languages offered on the disc can be set. If the language not offered is set, the original disc language will be selected.

AUDIO OUTPUT (See p. 46.) You can set the audio output that comes from the digital audio output terminal.

STILL MODE (See p. 47.) To select "FIELD" (Field still) or "FRAME" (Frame still) to prevent jitter or make small text or fine patterns clearly visible in a still picture. When "AUTO" is set, "FIELD" or "FRAME" is selected automatically.

TV MODE (See p. 47.) To select whether the video material for a wide-screen will be played back in the Pan & Scan style, Letterbox style, or 16:9 style.

Disc Languages (DVD only)

To select and set the language of the audio soundtrack, subtitles, or title/DVD menus for all discs to be played.

Press ▲▼ to select "DISC LANGUAGES," and press SET to display screen.

Press ▲▼ to select an item, and press SET repeatedly for the desired language. (Please refer to the right.)

5 Press ACTION to redisplay the DVD menu and go to step 2 to set up another item. Or, press ACTION twice to exit.

Once initial settings are done, they remain in memory (even after power off) until changed. This means the DECK will operate under the same conditions (especially for DVDs) each time.

Ready Checklist □ DECK is in DVD mode, press DVD.

"AUDIO" selections

(Factory preset: English) To select the audio soundtrack language. English/Spanish/French/Japanese Original: Original disc language OTHER ****: Other language selection*1

"SUBTITLE" selections (Factory preset: AUTO) To select the subtitle language. AUTO: Same language selected for "AUDIO"

- If the language set for "AUDIO" is used in playback, subtitles will not appear. - If another language is used during playback, the subtitles will appear in the language selected at "AUDIO" setup.

English/Spanish/French/Japanese OTHER ****: Other language selection*1

"MENUS" selections (factory preset: English) To select the language used in title menus or DVD menus. English/Spanish/French/Japanese OTHER ****: Other language selection*1

To enter OTHER **** code number, Press NUMBER keys (Please refer to language codes on p. 48). To make corrections, press ▶ repeatedly to delete the language code number, and correct. * If the selected language is not offered, the original disc language is selected.

Operation

DVD

Settings for DVD Operation (continued)

Audio Output

Select the digital output to be output from the optical digital audio output connector of DECK.

1 Press ACTION* to display MENU.

2

Press ▲▼

to select "AUDIO OUTPUT," and

press SET to display screen.

3

Press ▲▼

to select an item, and

press SET

repeatedly for output. (See below.)

■ "LPCM (DVD)" selections

OFF: Linear PCM of less than 48 kHz/16 bit is output. When playing DVDs recorded in linear PCM of over 48 kHz/20 bit or 96 kHz, no digital audio is output. (Factory preset)

PCM: When playing DVDs recorded in linear PCM of 48 kHz/20 bit/24 bit or 96 kHz, digital audio converted to 48 kHz/16 bit is output. (Digital output of PCM audio is restricted to 48 kHz/16 bit or below for copyright protection.)

■ "Dolby Digital" selections

Bitstream: Dolby Digital bitstream (1ch-5.1ch) is output. (Factory preset)

OFF: No output.

■ "dts" selections

Bitstream: dts bitstream is output. (Factory preset) OFF: No output.

■ "DRC (Dynamic Range Compression)" selections

OFF: Normal audio range is selected. (Factory preset)

ON: For dynamic sound even at low volume, this is useful for late-night listening. [Dolby Digital DVDs only].

■ "SURROUND" selections

Surround Sound creates the effect of sound coming from non-existent rear speakers even when only connected to a 2-channel stereo system.

OFF: No Surround Sound effect. (Factory preset) ON: Surround Sound effect.

4 Press ACTION to redisplay DVD menu and go to step 2 to setup another item. Or, press ACTION twice to exit.

Ready Checklist

☐ DECK is in DVD mode, press DVD.

Type of amplifier to be connected	Recommended setting
	LPCM (DVD)	Dolby Digital	dts
No amplifier is connected	OFF	OFF	OFF
AV amplifier (with digital audio input connector) without Dolby Digital/dts decoder	PCM*1	OFF*2	OFF*2
AV amplifier including Dolby Digital decoder	PCM*1	Bitstream	OFF
AV amplifier including Dolby Digital/dts decoder	PCM*1	Bitstream	Bitstream*3

- Make settings according to amplifier connected to optical audio output as shown in above table.

- When a dts decoder is not connected, to enjoy dts DVD, please select audio output other than dts at the dts DVD menu screen. Otherwise, there will be no sound.

*1 Audio Output 2 from DECK is converted to 48 kHz/16 bit in addition to audio from digital audio output. To enjoy high quality sound at 48 kHz/20 bit /24 bit or 96 kHz, connect the amplifier or decoder directly to the Audio Output 2 connectors, not to the Digital Audio Output connector. [Select "OFF" at the "LPCM (DVD)".]

*2 When connecting an amplifier (with an optical digital input connector) which does not contain the Dolby Digital or dts decoder, be sure to select "OFF". If "Bitstream" is selected, starting DVD play may cause such a high level of noise as to be harmful to your ears and damage the speakers.

*3 When a dts decoder is connected, please select "Bitstream" in "dts". If "OFF" is selected, there will be no sound.

Notes

- Turn off other surround effects when using this surround effect.

- For optimum effect, the distance between DECK and the listener should be about 3 or 4 times the distance between the right and left front speakers.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Still Mode

Set to reduce jitter in a displayed still picture or a motion picture.

1 Press ACTION to display MENU.

Press ▲▼ to select "STILL MODE," and press SET repeatedly for mode. (See below.)

AUTO: "FIELD" (Field still) or "FRAME" (Frame still) is automatically selected during the still mode. (Factory preset)

FIELD: "FIELD" (Field still) is always selected. This setting will reduce jitter when compared with "AUTO" on some discs.

FRAME: "FRAME" (Frame still) is always selected. Some texts and fine patterns will be seen clearly when compared with "AUTO" on some discs.

3 Press ACTION to exit this mode.

TV Mode

Set the screen display style for wide-screen video material playback.

1 Press ACTION to display MENU.

Press ▲▼ to select "TV MODE," and press SET repeatedly for mode. (See below.)

Pan & Scan 4:3 (Factory preset): Wide-screen video data is played in Pan & Scan style (left and right of screen is trimmed.) • Video data not formatted in Pan & Scan will play in letterbox style.

Letterbox 4:3: Wide-screen video data is played in Letterbox style (top and bottom of screen has black margin).

16:9: Set "16:9" when using Wide-screen TV.

3 Press ACTION to exit this mode.

Example

• Pan & Scan (Factory preset)

- Letterbox

Operation

DVD

47

Language Code List

Enter the appropriate code number for the initial settings "AUDIO", "SUBTITLE" and/or "MENUS" (see p. 45).

Code	Language	Code	Language	Code	Language	Code	Language
6565	Afar	7079	Faroese	7678	Lingala	8375	Slovak
6566	Abkhazian	7082	French	7679	Laothian	8376	Slovenian
6570	Afrikaans	7089	Frisian	7684	Lithuanian	8377	Samoan
6577	Ameharic	7165	Irish	7686	Latvian, Lettish	8378	Shona
6582	Arabic	7168	Scots Gaelic	7771	Malagasy	8379	Somali
6583	Assamese	7176	Galician	7773	Maori	8381	Albanian
6588	Aymara	7178	Guarani	7775	Macedonian	8382	Serbian
6590	Azerbaijani	7185	Gujarati	7776	Malayalam	8385	Sundanese
6665	Bashkir	7265	Hausa	7778	Mongolian	8386	Swedish
6669	Byelorussian	7273	Hindi	7779	Moldavian	8387	Swahili
6671	Bulgarian	7282	Croatian	7782	Marathi	8465	Tamil
6672	Bihari	7285	Hungarian	7783	Malay	8469	Telugu
6678	Bengali; Bangla	7289	Armenian	7784	Maltese	8471	Tajik
6679	Tibetan	7365	Interlingua	7789	Burmese	8472	Thai
6682	Breton	7378	Indonesian	7865	Nauru	8473	Tigrinya
6765	Catalan	7383	Icelandic	7869	Nepali	8475	Turkmen
6779	Corsican	7384	Italian	7876	Dutch	8476	Tagalog
6783	Czech	7387	Hebrew	7879	Norwegian	8479	Tonga
6789	Welsh	7465	Japanese	7982	Oriya	8482	Turkish
6865	Danish	7473	Yiddish	8065	Panjabi	8484	Tatar
6869	German	7487	Javanese	8076	Polish	8487	Twi
6890	Bhutani	7565	Georgian	8083	Pashto, Pushto	8575	Ukrainian
6976	Greek	7575	Kazakh	8084	Portuguese	8582	Urdu
6978	English	7576	Greenlandic	8185	Quechua	8590	Uzbek
6979	Esperanto	7577	Cambodian	8277	Rhaeto-Romance	8673	Vietnamese
6983	Spanish	7578	Kannada	8279	Romanian	8679	Volapük
6984	Estonian	7579	Korean	8285	Russian	8779	Wolof
6985	Basque	7583	Kashmiri	8365	Sanskrit	8872	Xhosa
7065	Persian	7585	Kurdish	8368	Sindhi	8979	Yoruba
7073	Finnish	7589	Kirghiz	8372	Serbo-Croatian	9072	Chinese
7074	Fiji	7665	Latin	8373	Singhalese	9085	Zulu

Warning and Instruction Displays

These displays will alert you to a missed operation or provide further instructions.

CautionOSD		Page
PLEASE SET CLOCK BY PRESSING ACTION KEY	If you attempt to set or review a Timer Recording and the Clock is not set...	24
PLEASE PREPARE FOR TIMER REC	If DECK is not in Stop mode or a cassette with record tab is not inserted 2 minutes before a Timer Recording is about to begin...	2425
CHECK CASSETTE RECORD TAB	If you press REC on the remote control or DECK, and a cassette is inserted with no record tab...	6
NO CASSETTE	If you press PLAY, FF, REW, or REC on the remote control or DECK without a cassette inserted...	2021
TO CANCEL TIMER REC HOLD DOWN STOP KEY FOR APPROX 3 SEC	If you press STOP or POWER during a Timer Recording...(visible in VCR mode only)	25
VIDEO HEADS MAY NEED CLEANING PLEASE INSERT HEAD CLEANING CASSETTE OR REFER TO MANUAL END : PLAY	If head cleaning becomes necessary while playing back a tape...	6
VCR LOCK ACTIVATED	If you press a function button other than STOP/EJECT or POWER while DECK is in VCR Lock mode...	33
REMOTE CONTROL IS SET TO CABLE/DSS MODE USE VCR : VCR KEY USE DVD : DVD KEY	If you press an invalid key on the remote while in CABLE/DSS mode...	282934
REMOTE CONTROL IS SET TO TV MODE USE VCR : VCR KEY USE DVD : DVD KEY	If you press an invalid key on the remote while in TV mode...	282934
PLEASE CHECK THE DISC, AND FOR STAINS OR SCRATCHES ON DISC	If you press PLAY, or DECK reads data from a stained or scratched disc in DVD mode. Also, if the type of disc is other than DVD, Video CD or CD...	4
IT IS PROHIBITED TO COPY DVD/VIDEO CD/CD TO VHS	If you press REC in DVD mode...	21

Information

For your

Before Requesting Service

Check the following points if you are having trouble with your DECK.

Power	Correction
No power...	Completely insert Power Plug into an AC outlet.Set POWER button to on.Make sure power source is active.
Power turns itself off...	Auto power-off (shutoff) occurs after about 5 min.in DVD mode with no operation, or if there is nobroadcast signal in TV or Playback mode.Turn the power back on. (pp. 23, 33)
Recording & Playback	Correction
TV program cannot be recorded...	Check connections between DECK, external antenna, and TV.Check channel selections.Make sure your antenna system (CABLE or TV) is correctly set. (Channels [p. 18])Make sure cassette record tab is intact. (p. 6)
Timer recording cannot be performed...	Confirm that clock is set to current time and date.Make sure Cable/DSS box (if used) is left on and tuned to channel to be recorded.Set recording start/stop times correctly. (p. 24)Timer recording may not be performed or continued if a power interruption occurs before or during a Timer Recording, even after power is restored.
There is no playback picture, or the playback picture is noisy or contains streaks...	Select channel 3 or 4 on TV to match VCR output channel (3 or 4) (p. 16) or select LINE.Set VCR/TV selector to “VCR.”Adjust TRACKING control in either direction. (p. 6)Try Head Cleaning. (p. 6)
During Special effects playback, picture may contain some vertical jitter when using a TV with an Automatic Vertical Hold Control...	Set TV’s Vertical Hold Control to MANUAL, then adjust.
DECK cannot be controlled...	Make sure DECK power is on.Check Remote batteries.Make sure VCR LOCK is set to off. (p. 33)Make sure Remote is in proper mode.(p. 28)Make sure Timer Recording is not in progress.
Remote Control	Correction
DECK cannot be remote controlled...	Make sure DECK power is on.Make sure Remote is in VCR mode.Aim Remote Control directly at remote sensor on DECK. (p.9)Avoid any object blocking signal path.Check Remote batteries. (p. 4)Exposing DECK remote sensor to direct fluorescent or outdoor light may cause signal interference.
PROG buttons do not respond...	PROG functions are not available in COMPONENT Video Output and S-VIDEO OUT. Set TV to either RF IN or VIDEO IN. (p. 10)Check Remote batteries. (p. 4)Press VCR or DVD button for DVD/VCR mode. (p. 28)

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [e-mail]

Check the following points if you are having trouble with your DECK.

DVD/ Video CD/ CD	Correction
Play fails to start even when PLAY is pressed...	This DECK cannot play discs other than DVDs,Video CDs and CDs.The disc may be dirty and require cleaning.
Play starts but then stops immediately...	Be sure disc is installed with label side up.
Picture is distorted during rapid advance or rapid reverse...	The picture will be somewhat distorted at times: this is normal.
No Forward/Reverse Scene Search play...	Some discs may have sections which prohibit Forward/Reverse Scene Search. (p. 23)
Play does not start even when title is selected...	Confirm the “DVD LOCK” setting. (p. 44)
Audio soundtrack and/or subtitle language is not the one selected at the initial settings...	If the audio soundtrack and/or subtitle language selected at DVD initial settings does not exist on the disc, it will not be accessible.
No subtitles...	Subtitles appear only when available on disc.“OFF” is selected at the changing subtitle language. Select “ON” at the “Subtitle Languages” section (p. 36) to display the subtitles.
Alternative audio soundtrack (or subtitle) language cannot be selected...	Alternative language cannot be selected with discs which do not contain more than one language.For some discs, alternative language cannot be selected with the AUDIO or SUB TITLE button.Try selecting it from the DVD MENU if available.
Angle cannot be changed...	This function is dependent on software availability. Even if disc has multiple angles, they may be recorded for specific scenes only (ANGLE indicator on DECK lights up). (p. 37)
Miscellaneous	Correction
Programs cannot be viewed on TV...	Make sure TV is set to output of DECK.Check connections between DECK, external antenna, and TV.Set VCR/TV selector to “TV.” (p. 21)Make sure proper signal source is selected.
Video cassette cannot be inserted...	Insert the cassette with window side up; record tab facing you.
Video cassette ejects when a recording is started or the power is turned off for timer recording...	Make sure cassette record tab is intact. (p. 6)
In Stop mode, the motor (CYLINDER) continues to rotate...	To enable Quick play mechanism, the cylinder will rotate for about 3 minutes. This reduces response time from Stop to Play mode.
The disc cannot be removed..	First, unplug DECK. Then, prepare a rigid wire (e.g. an extended paper clip) and, applying moderate force, insert it straight into the hole at the base of the tray. The tray will eject a little. Now, pull the tray all the way out and remove the disc. (p. 9)

If you cannot resolve the problem, please call the Customer Call Center for product assistance at 1-800-211-PANA (7262).

To locate an authorized servicenter, please call toll free 1-800-211-PANA (7262).

or send e-mail to : [e-mail]

information

For your

Limited Warranty

PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF MATSUSHITA ELECTRIC

CORPORATION OF AMERICA

One Panasonic Way Secaucus, New Jersey 07094

PANASONIC SALES COMPANY, DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.

AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic/Quasar Video Products

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product	Parts	Labor	Service	Contact Number
Camcorder	One (1) Year (except CCD Image Sensor)CCD Image Sensor - 6 (Six) Months	Ninety (90) DaysNinety (90) Days	Carry-In or Mail-In	1-800-211-PANA(7262)
DVD/VCR Deck, A/V Mixer	One (1) Year	Ninety (90) Days	Carry-In or Mail-In	1-800-211-PANA(7262)
TV/VCR, TV/DVD, TV/DVD/VCR Combination	One (1) Year (except CRT)CRT - Two (2) Years	Ninety (90) DaysNinety (90) Days	Carry-In: 21" CRT and SmallerIn-Home or Carry-In: 22" CRT and Larger	1-800-211-PANA(7262)
TV/HDR Combination	One (1) Year (except CRT)CRT - Two (2) Years	Ninety (90) DaysNinety (90) Days	In-Home or Carry-In	1-888-843-9788
Rechargeable Batteries (in exchange for defective item)	Ten (10) Days	Not Applicable	Carry-In or Mail-In	1-800-211-PANA(7262)
Tape (in exchange for defective item)	Five (5) Days	Not Applicable	Carry-In or Mail-In	1-800-211-PANA(7262)
Memory Cards (in exchange for defective item)	Ninety (90) Days	Not Applicable	Carry-In or Mail-In	1-800-211-PANA(7262)

During the "Labor" warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. You must carry-in or mail-in your product or arrange for in-home service, as applicable, during the warranty period.

If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold "as is". A purchase receipt or other proof of the original purchase date is required for warranty service.

Carry-In, Mail-in or In-Home Service

For Carry-In, Mail-In or In-Home Service (as applicable) in the United States call toll free contact number listed above or visit Panasonic Web Site: http://www.panasonic.com

For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax [phone].

In-Home service, if applicable, requires clear, complete and easy access to the product by the authorized servicer and does not include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be completed in-home, but will require that the product, or parts of the product, be removed for shop diagnosis and/or repair and then returned.

For assistance, please call: 1-800-211-PANA (7262) or send e-mail to: [e-mail]

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing fixed images (including, among other things, letterbox pictures on standard 4:3 screen TV's, or non-expanded standard 4:3 pictures on wide screen TV's, or onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY

BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer, loss of media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor. PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

Customer Services Directory

For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquiries please contact:

1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 9 am-7 pm, EST. or send e-mail: [e-mail]

Web Site: http://www.panasonic.com

You can purchase parts, accessories or locate your nearest servicenter by visiting our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only)

Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032

(Monday-Friday 6 am-5 pm; Saturday 6 am-10:30 am, PST)

(Visa, MasterCard, Discover Card, American Express, Check)

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory Servicenter:

Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Phone [phone] Fax [phone]

information

For your

As of February 2002

Spanish Quick Use Guide/ Guía para rápida consulta

Para Ant/Cable-DECK-TV

ADD/DELETE button (Add or Delete a Channel) .8, 19

Audio Broadcast types (Stereo/SAP/Mono) .... 26

Audio Mode (Playback, Recording) 27

Auto Operation Functions 31

Auto Shut-Off 33

B Batteries 4

C Channel ("SET UP CHANNEL") 18

Channel Up/Down, Tracking/V-Lock Button ... 6, 8

Clock ("SET CLOCK") 18

Commercial Skip 31

Connections 12 \~ 15

Copy Your Tapes (Dubbing) 35

COUNTER RESET button 8,32

Customer Services Directory 53

D DISPLAY button 8, 11

DSS/CABLE mode button 8, 28

DST (Daylight Saving Time) 19

E EJECT button 8, 20

ENTER button (For tuning TV Channel) 8, 28

F FAST FORWARD/SEARCH button 8, 20

H Head Cleaning 6

I Index Search 30

Indicator (Multi Function Display) 11

Initial Setup (Ready to Play) 16, 17

INPUT button 8, 35

L Limited Warranty 52, 53

Location of Controls (Remote, DECK) 8-10

M Multi-Brand Control 28, 29

On-Screen Displays (VCR) 11

One Touch Recording 21

P PAUSE/STILL button (Still Picture) ......8, 20

PLAY button (Playback a Tape) 8, 20

POWER button 8

PROG button (PROGRAM) 8, 24

Program Clear, Review, Replace 25

Program End Search 30

Q Quality Picture 6

R REC button (Record on a Tape) 8, 21

Record Tab 6

Remote Sensor 9

Remote Warning 34

Repeat Play 32

REWIND/SEARCH button 8, 20

S SAP/Hi-Fi 27

SEARCH (Index and Program End Search) ... 30

Servicenter List 52

SLOW+/SLOW- button (Slow Motion Picture) 8, 20

Spanish Quick Use Guide 54-59

Specifications 7

SPEED button 8, 21

Still (Freeze) Picture 20

STOP button 8, 20

T Tape Position, Tape Status 34

Timer Recording 24

Trouble Shooting 50, 51

TV mode button 8, 28

V VCR Lock 33

VCR mode button 8, 28

VCR/TV button 8, 9, 21

VOLUME +/- button (TV Volume) 8, 28

W Warning and Instruction Displays 49

Weak Signal Display 3

Z ZERO SEARCH button 8,32

DVD

A ACTION button 8,45

ANGLE button (Multiple Angle Viewing) .....8, 37

AUDIO CONTROL button 8,40

AUDIO button (Audio Soundtrack Language) ..8, 36

Audio Output (For Selecting Audio Output) ... 46

Auto Power Off Function 23

C CLEAR button 8, 39, 44

Component Video Output 10, 13

D Disc Languages 45

DISPLAY button ("On-Screen Display") ..... 8, 41

DVD Menu 38

DVD mode button....8, 28

DVD Lock Ratings 44

F Frame by Frame Picture 23

Forwards/Reverse Chapter/Track 23

Forwards/Reverse Scene Search.... 23

K Karaoke (Vocal Selection for Karaoke Discs).... 37

L Language Code List 48

M MENU button (To display DVD Menu) .....8, 38

MP3 43

Multiple Angle Viewing 37

OPEN/CLOSE button....8, 22

Optical Digital Audio Output 10, 15

P PLAY button (Play a Disc) 8, 22

Program Play (For Video CD/ CD) 39

R Random Play (For Video CD/ CD) 40

Repeat Play 42

Resume Function 23

RETURN button 8,22

SEARCH button

(Forward/Reverse Scene Search) 8, 23

(Forward/Reverse Chapter/Track) 8, 23

SLOW+/SLOW- button (Slow Motion Picture) 8, 23

Sound Output Level 40

STILL button (Still Picture or Pause) 8, 23

Still Mode (For selecting "FIELD" or "FRAME") ... 47

STOP button 8,22

SUBTITLE button

(For selecting Subtitle Language) 8, 36

SURROUND button 8,23

S-Video Out 10, 13

T TITLE button (Title Menu) 8,38

TV Mode (For selecting the screen display style) .... 47

V Video CD 23

Z ZOOM button (Picture Zoom) 8, 37

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company ("PSC"),

Division of Matsushita Electric of Puerto Rico, Inc.

Printed in Indonesia

LSQT0618B

S0302-1052
