USER MANUAL WALLSTSI2 StarTech.com

Wall-Mounted Sit-Stand Workstation | Dual Monitor Mount | Keyboard Tray

Mechanical arm assembly with articulated arms and a central vertical support (no visible text or symbols)

Actual product may vary from photos

User Manual

SKU#: WALLSTSI2

For the latest information and specifications visit

www.startech.com/WALLSTSI2

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Warning Statements

• Make sure that you assemble this product according to the instructions.
• Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: 42.5 lb. (20.5 kg).
• This product is intended for indoor use only and should not be used outdoors.

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mensagens de aviso

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements

Safety Measures

- Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.

Mesures de sécurité

Compliance Statements....1

Warning Statements....2

Safety Statements....4

Product Diagram....6

Product Dimensions ....7

Product Rotation....8

Product Information 9

Specifications....9

Package Contents 10

Requirements 11

Installation 12

Mounting the Sit-Stand Workstation 12

Attaching the Mouse Pad....17

Attaching the Wrist Rest....18

Attaching the Hook-and-Loop Strip....19

Attaching the Keyboard Tray 20

Attaching a Monitor....22

Attaching the Monitor Mount 22

Adjusting the Monitor Tilt 25

Adjusting the Spring Arm Tension 25

Adjusting the Keyboard Tilt....27

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

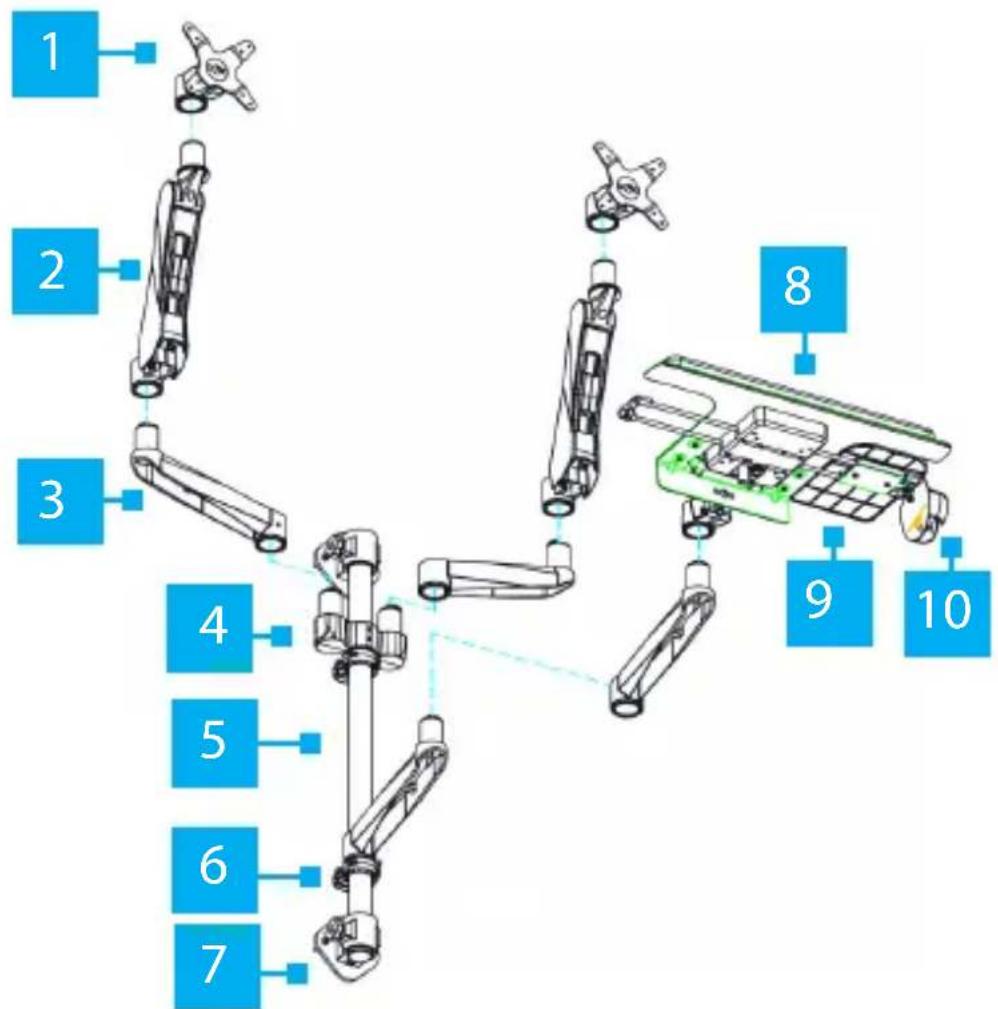

Product Diagram

1	Monitor Mount	6	Cable-Management Clip
2	Spring Arm	7	Wall-Mount Bracket
3	Swivel Arm	8	Keyboard Tray
4	Monitor Shoulder	9	Mouse Pad
5	Aluminum Pole	10	Mouse Holder

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

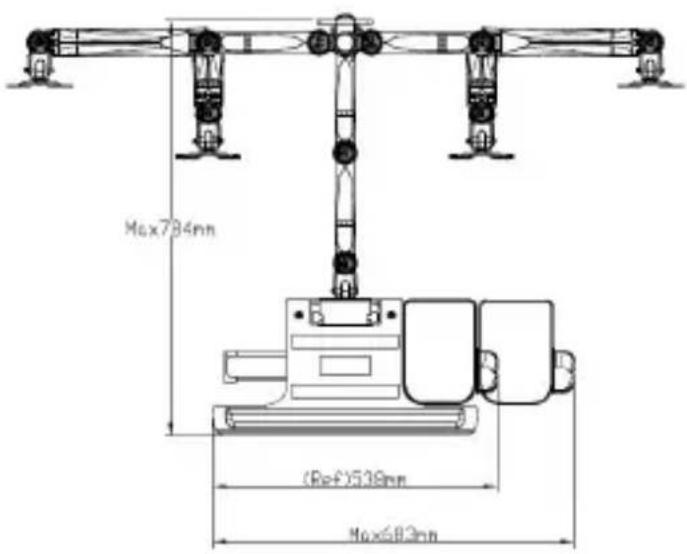

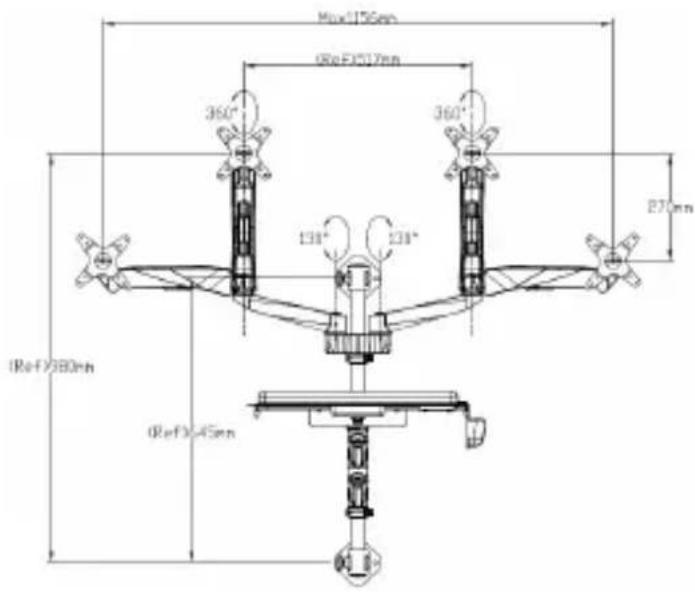

Product Dimensions

Max 650mm Max401nm 208mm 41mm 270mm Max417mm Max742mm

Max156mm (Ref)307mm 360° 360° 270mm (Ref)380mm (Ref)45mm

Max784mm (Ref)539mm Max683mm

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

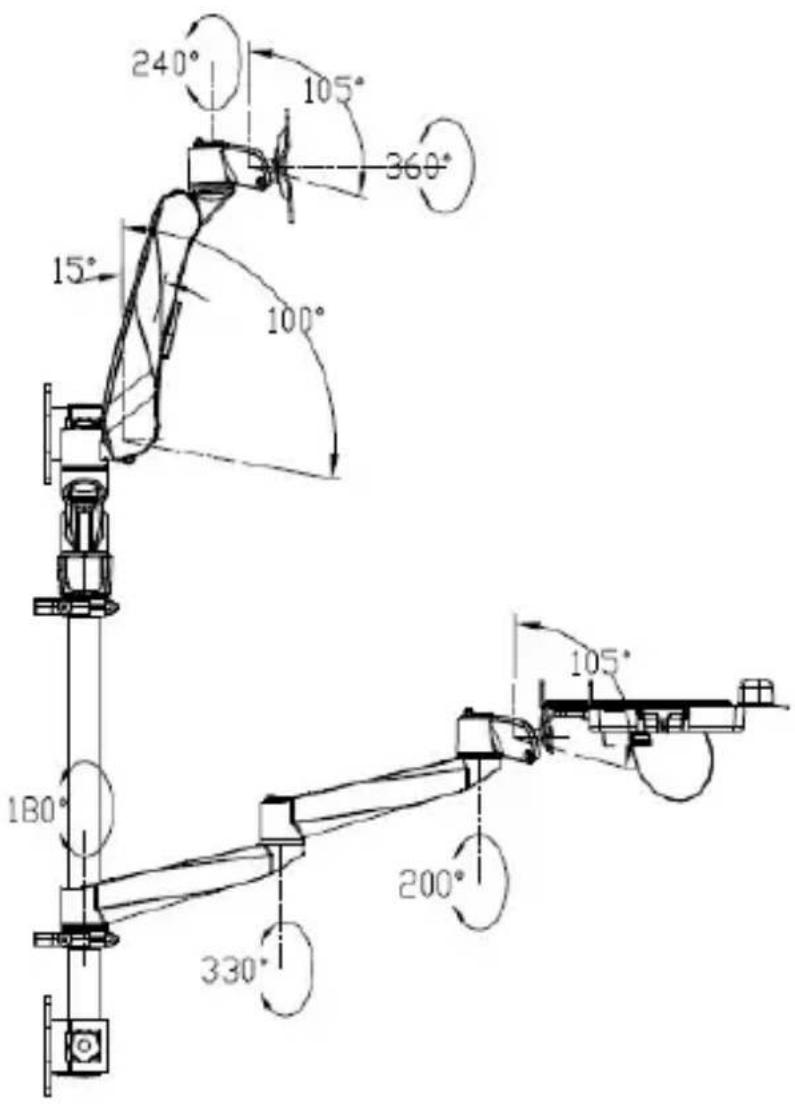

Product Rotation

240° 105° 360° 15° 100° 180° 200° 330°

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Specifications

Type of measurement Measurement
VESA mounting hole pattern 75x75	100x100
Tilt +90° to -15°
Screen size Maximum 762 mm (30in.)
Rotate 360°

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Swivel +120° to -120°

Simple icon of a rectangular frame with an arrow indicating rotation or refresh (no text or symbols)

Package Contents

• Aluminum Pole x 1
  • Wall-Mount Bracket x 1
• Spring Arms x 2
  • Swivel Arms w/ Logo x 2
• Swivel Arms x 2
  • Monitor Mounts x 2
• Wall Screws x 4
  • Wall Screw Anchors x 4
• Hand Screws x 8
• Keyboard Tray x 1
  • Cable-Management Clips x 3
• Wrist Rest x 1
• Mouse Holder x 1
• Mouse Tray x 1
• Mouse Tray Fixed Plate x 1
• Hook-and-Loop Strip x 1
  • Anti-Slip Rubber Strips x 2

• Wall-Mount Bracket w/ Lock Plate x 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

• M3 Hex Key x 2
• M6 Hex Key x 2
  • M4x8 mm Screws x 2
  • EVA Mouse Pad x 1
  • Monitor Shoulder x 1
• User Manual x 1

Requirements

• Phillips Head Screwdriver x 1
- Drill with Drill Bit x 1
• Writing Utensil x 1
- Level x 1

Installation

Mounting the Sit-Stand Workstation

Notes: Make sure when mounting the Sit-Stand Workstation that you mount the bottom Wall-Mount Bracket w/ Lock Plate first and slide the Aluminum Pole into the Wall-Mount Bracket w/ Lock Plate before mounting the top Wall-Mount Bracket.

Product mounting should be completed by a certified professional as per the local safety and building code guidelines.

Wall structures vary, and it's important to make sure that the type of structure and mounting hardware that you're using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage.

1. Before installing the Sit-Stand Workstation onto the mounting surface, contact a professional contractor.
2. After consulting a professional, the Sit-Stand Workstation can be mounted using the Mounting Hardware included.
3. Using two of the Wall Screws, mount the bottom Wall-Mount Bracket on the mounting surface.
4. (Optional) While mounting, use Wall Screw Anchors if required.
5. Remove the decorative cover from the bottom of the Aluminum Pole. The decorative cover will be located on the end of the Aluminum Pole that has the notch.
6. Slide the Aluminum Pole into the bottom Wall-Mount Bracket, making sure that you align the notch in the

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

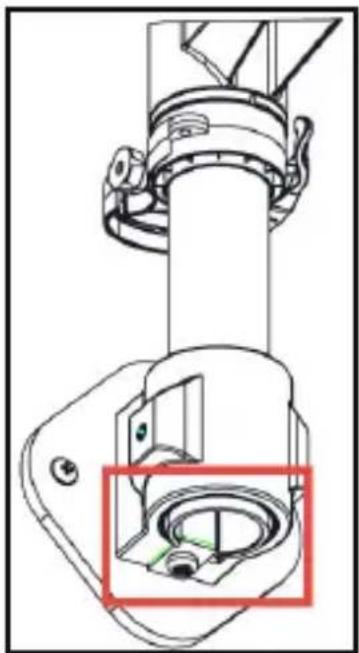

Aluminum Pole with the notch in the Bottom Lock Plate.

Technical line drawing of a mechanical assembly with a highlighted circular component (no text or symbols)

Sliding the Aluminum Pole into the Bottom Lock Plate

1. Secure the Aluminum Pole in place by tightening the Adjustment Knob on the Wall-Mount Bracket.
2. Slide one of the Cable-Management Clips onto the Aluminum Pole, sliding the Cable-Management Clip to the bottom of the Aluminum Pole.
3. Use the Adjustment Clip to tighten or loosen the tension of the Cable-Management Clip.

Note: You do not need to hold the nut of the other side of the Cable-Management Clip while tightening or loosening.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. When the Cable-Management Clip is at the right tension, snap the Adjustment Clip closed to secure the Cable-Management Clip to the Aluminum Pole.

2. Slide one of the Swivel Arms onto the bottom of the Aluminum Pole, so that it is resting on the Cable-Management Clip.

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Installing the Swivel Arm

1. Tighten the Swivel Arm using the Adjustment Screw located on the side of the Swivel Arm. Be careful not to over-tighten the Swivel Arm. The Swivel Arm should be secure but free enough to rotate.

2. Repeat steps 8 - 10 to install the other Cable-Management Clip.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Slide the Monitor Shoulder onto the Aluminum Pole until it is resting right above the Cable-Management Clip. Ensure that the Hex Screws on the Monitor Shoulder are facing forward.
2. Using a Hex Key, tighten the two Hex Screws on the Monitor Shoulder. Be careful not to over-tighten the Monitor Shoulder.

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Installing the Monitor Shoulder/Cable Management Clip

1. If required, the third Cable-Management Clip can be installed on the Aluminum Pole.

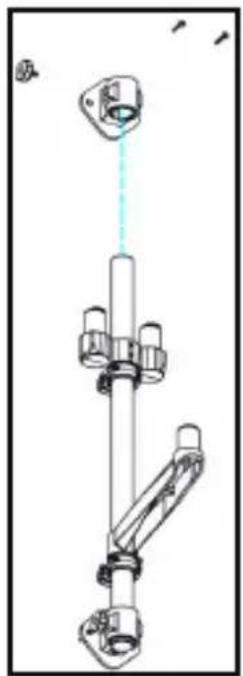

2. Slide the top Wall Bracket over the Aluminum Pole.

3. Using two of the Wall Screws, mount the top Wall-Mount Bracket on the mounting surface.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Secure the Aluminum Pole in place by tightening the Adjustment Knob on the Wall-Mount Bracket.

Technical line drawing of a mechanical assembly with no visible text or symbols

Installing the Top Wall-Mount Bracket

1. Insert the decorative plug into the bottom of the Aluminum Pole. Make sure to align the notch on the decorative plug with the Bottom Lock Plate.

Mechanical assembly diagram showing a shaft and housing with a dashed line indicating a measurement or alignment point (no text or symbols present)

Inserting the Decorative Plug

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attaching the Mouse Pad

1. Determine which side of the Keyboard Tray you want to position the Mouse Tray.

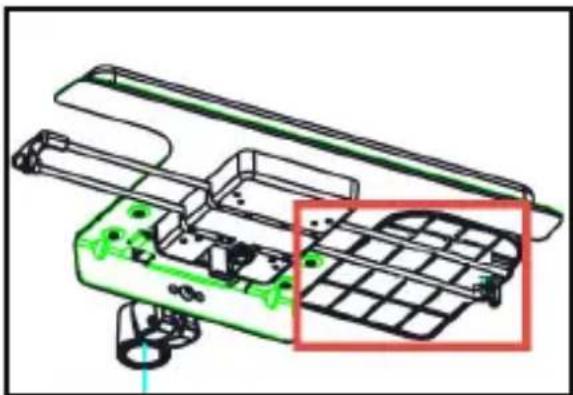

2. Align the Mouse Tray with the two metal prongs on either side of the Keyboard Tray.

Technical diagram of a mechanical assembly with green components and a highlighted grid pattern (no text or symbols)

Aligning the Mouse Tray with the Metal Prongs

1. While holding the Mouse Tray in place, turn the Keyboard Tray over.
2. Align the screw holes on the Mouse Tray Fixed Plate with the screw holes on the bottom of the Mouse Tray.

Technical diagram of a mechanical assembly with green and black components, no visible text or symbols

Aligning the Mouse Tray Fixed Plate with the Mouse Tray

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Insert the M4x8 mm Screws through the Mouse Tray Fixed Plate and into the Mouse Tray.

2. Using a Phillips Head Screwdriver tighten the Mouse Tray Fixed Plate Screws, be careful not to over-tighten the screws.

3. (Optional) You can attach the EVA Mouse Pad onto the Mouse Tray, by removing the backing from the EVA Mouse Pad and affixing it to the surface of the Mouse Tray.

4. (Optional) You can hang the Mouse Holder off of the side of the Mouse Tray.

3D mechanical assembly diagram showing green components and a highlighted component (no text or symbols)

Hanging the Mouse Holder off of the side of the Mouse Tray

Attaching the Wrist Rest

- Remove the backing from the Wrist Rest and while applying pressure, attach it to the bottom of the Keyboard Tray (in the location your wrists wound normally rest while typing on a keyboard).

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attaching the Hook-and-Loop Strip

The Hook-and-Loop Strip is designed to help hold the Keyboard in place on the Keyboard Tray.

1. If necessary, cut the Hook-and-Loop Strip to fit the length of your keyboard.

2. Separate the two sides of the Hook-and-Loop Strip.

3. Remove the backing from both of the Hook-and-Loop Strips and while applying pressure fix one strip to the top of the Keyboard Tray and the other strip on the bottom of the Keyboard, making sure to align the two strips.

Attaching the Keyboard Tray

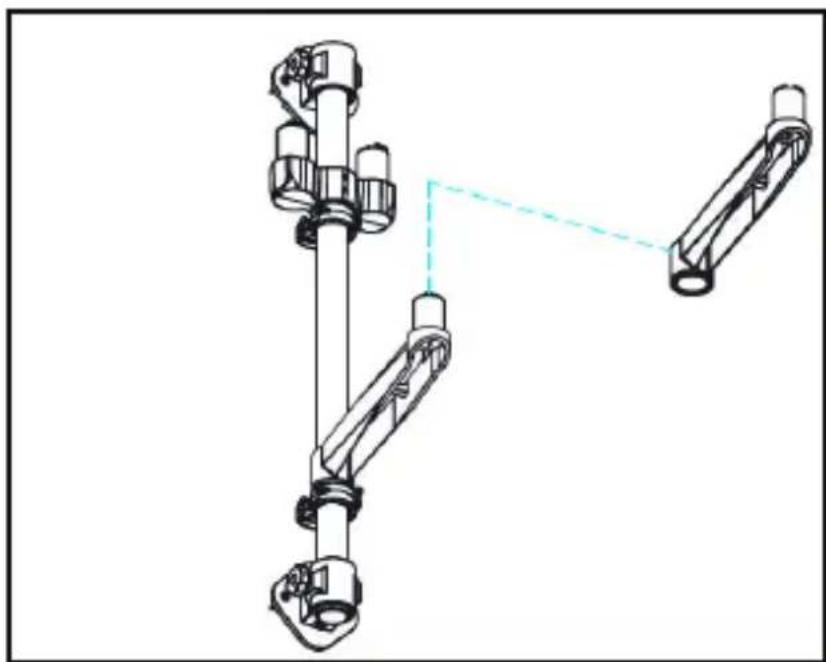

1. Align the Mounting Hole on the third Swivel Arm with the Mounting Peg on the bottom Swivel Arm.

2. Slide the Mounting Hole on the Swivel Arm over the Mounting Peg until it clicks in place.

Mechanical linkage diagram showing three connected components with a dashed line indicating connection (no text or symbols)

Attaching the Swivel Arm to the Mounting Peg

1. Using the Hex Key (included), tighten the Hex Screw on the side of the Swivel Arm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Align the Mounting Hole on the Keyboard Tray with the Mounting Peg on the Swivel Arm that was attached in step 2. Slide the Mounting Hole on the Keyboard Tray over the Mounting Peg until it clicks in place.

Technical diagram of a mechanical assembly with green highlighted components and a blue arrow indicating a motion or force (no text or symbols present)

Attaching the Keyboard Tray

1. Using the Hex Key, tighten the Hex Screw on the side of the Keyboard Tray next to the mounting hole. Do not over-tighten, to allow for keyboard swivel.

Note: The Keyboard Tray supports up to a maximum 2.5 kg.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attaching a Monitor

1. Align the Mounting Hole (x 4) on the Monitor Mount with the mounting holes on the back of the Monitor.
2. Insert the Hand Screws through the Monitor Mount and into the back of the Monitor.
3. Using your fingers tighten the Hand Screws.

Warning! Do not over-tighten the screws. If you encounter resistance while you're tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.

1. Repeat steps 1 - 3 to attached the second Monitor.

Attaching the Monitor Mount

Note: Attaching the Monitor Mount may require two people.

The Monitor Mounts can support up to a maximum of 9 kg per mount.

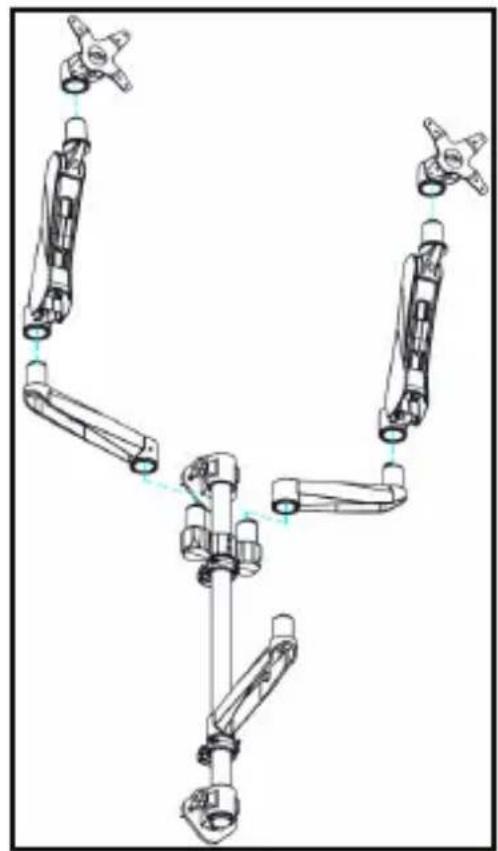

1. Align the Mounting Hole on the Swivel Arm w/ Logo with the Mounting Peg on the top of the Monitor Shoulder.

2. Slide the Mounting Hole on the Swivel Arm w/ Logo over the Mounting Peg until it clicks into place.

3. Align the Mounting Hole on the Spring Arm with the Mounting Peg on the top of the Swivel Arm w/ Logo.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Slide the Mounting Hole on the Spring Arm over the Mounting Peg until it clicks into place.

Diagram of a Y-shaped mechanical assembly with multiple articulated arms and joints (no text or labels)

Attaching the Spring Arm

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

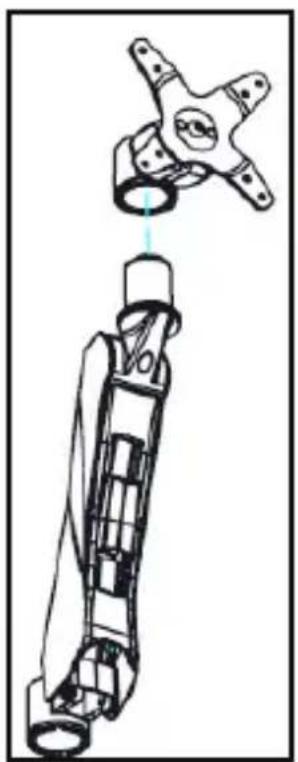

1. While supporting the weight of the Monitor, carefully align the Mounting Hole on the Monitor Mount with the Mounting Peg on the top Spring Arm.
2. Slide the Mounting Hole on the Monitor Mount over the Mounting Peg until it clicks into place.

Technical line drawing of a mechanical assembly with no visible text or symbols

Attaching the Monitor Mount

1. Using the Hex Keys, adjust the swivel tension of the Monitor Mount by loosening or tightening the Hex Screws located on the Monitor Mount next to the mount hole.

2. Repeat steps 1 - 7 to attach the second Monitor Mount.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Adjusting the Monitor Tilt

- While supporting the weight of the Monitor, use the Hex Key (included) to loosen or tighten the Hex Screw on the side of the Monitor Mount, until the tension can hold the weight of the Monitor but it is still adjustable.

Note: The screw cap located on the opposite side of the Hex Screw is not used for tilt adjustments.

Adjusting the Spring Arm Tension

- Using the large Hex Key, adjust the tension of the Spring Arm by loosening or tightening the recessed Hex Screw located at the top of the Spring Arm next to the mounting peg.

- Adjust the tension of the Spring Arm until the Spring Arm is capable of holding the weight of the attached Monitor at the desired height.

Diagram of a mechanical device with a red arrow indicating direction, no visible text or symbols

Adjusting the Spring Arm Tension

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

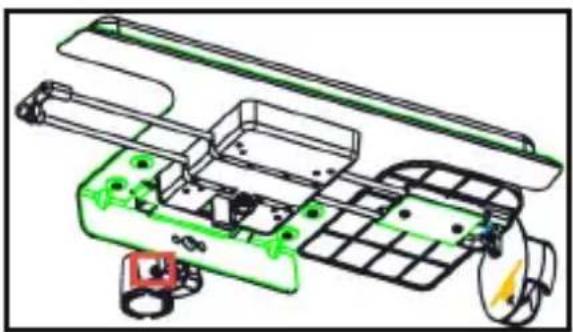

Adjusting the Keyboard Tilt

- While supporting the weight of the Monitor, use the Hex Key (included) to loosen or tighten the Hex Screw on the side of the Monitor Mount, until the tension can hold the weight of the Keyboard but it is still adjustable.

Technical line drawing of a mechanical assembly with green and black components (no text or symbols)

Adjusting the Keyboard Tray Tilt

Note: The screw cap located on the opposite side of the Hex Screw is not used for tilt adjustments.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Hard-to-find made easy. At StarTech.com, that isn't a slogan. It's a promise.

StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You'll be connected to the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.

Reviews

Share your experiences using StarTech.com products, including product applications and setup, what you love about the products, and areas for improvement.

StarTech.com Ltd.

45 Artisans Cres.

London, Ontario

N5V 5E9

Canada

FR: fr.startech.com

DE: de.startech.com

StarTech.com LLP

2500 Creekside Pkwy.

Lockbourne, Ohio

43137

U.S.A.

ES: es.startech.com

NL: nl.startech.com

StarTech.com Ltd.

Unit B, Pinnacle

15 Gowerton Rd., Brackmills

Northampton

NN4 7BW

United Kingdom

IT: it.startech.com

JP: jp.startech.com
