USER MANUAL NO12SABB6D-A Neutrik

Circular logo with white stylized 'T' and curved line elements on teal background (no text or symbols)

SETTING STANDARDS

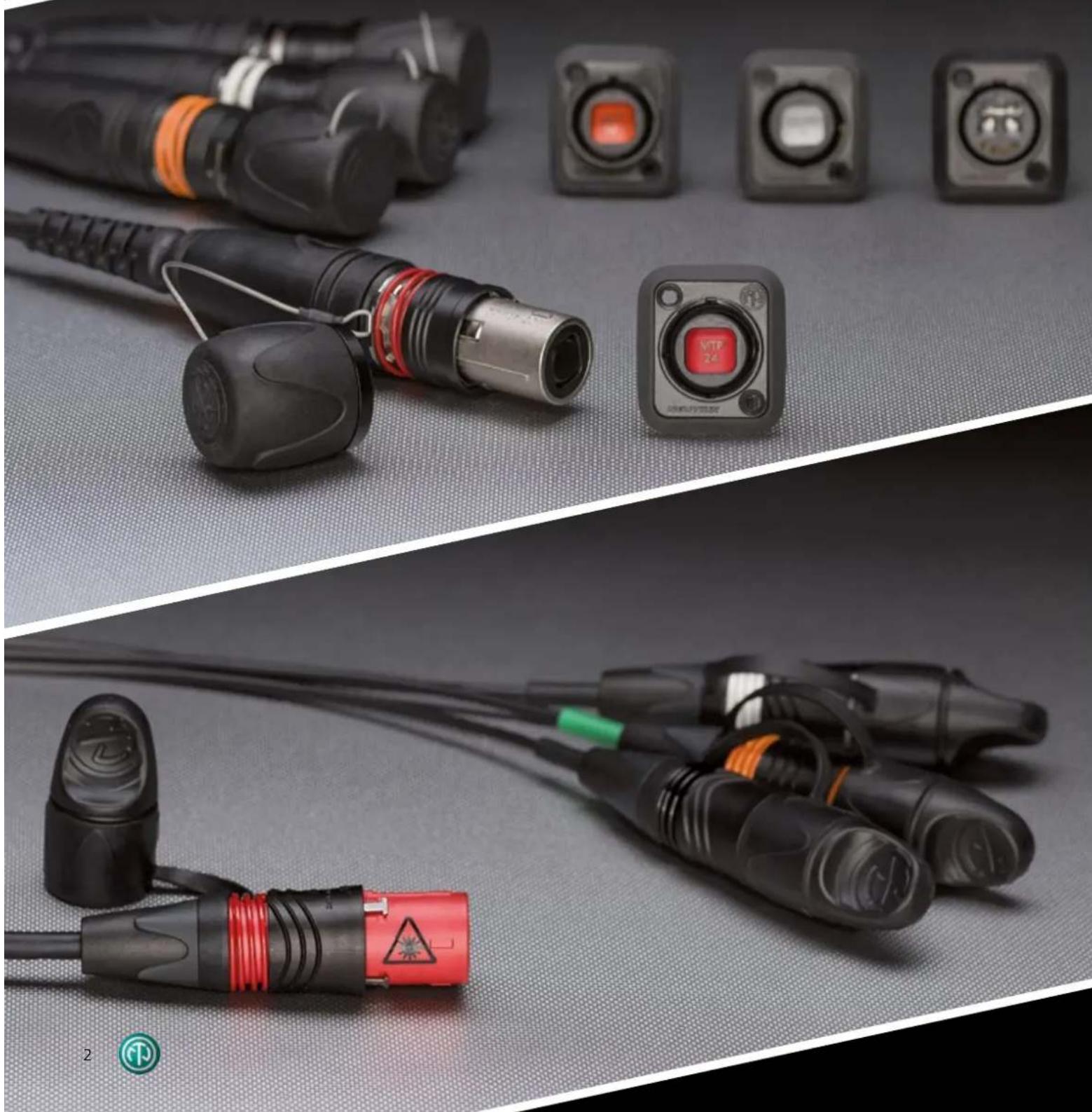

Two sets of black electronic components with connectors and a red control panel, displayed on a textured surface (no text or symbols visible)

Introduction 4

opticalCON Design Criteria 5

opticalCON ADVANCED / LITE 6

opticalCON Chassis 7

opticalCON Mobile Field Cables 8

opticalCON Custom Cable Assembly 10

opticalCON ADVANCED Cable Connectors 12

Features & Benefits 13

opticalCON DUO ADVANCED 14

opticalCON QUAD ADVANCED 16

opticalCON MTP ^® 12 ADVANCED 18

opticalCON MTP * 24 ADVANCED 20

opticalCON SPLIT & POWER SPLIT Cables 22

Breakout Adapter 24

Accessories for opticalCON ADVANCED 25

opticalCON LITE Cable Connectors 26

Features & Benefits 27

opticalCON DUO LITE 28

opticalCON QUAD LITE 30

opticalCON MTP 12 LITE 32

opticalCON MTP 24 LITE 34

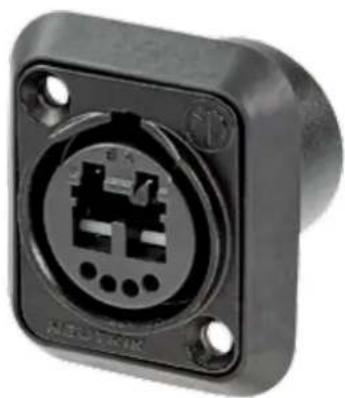

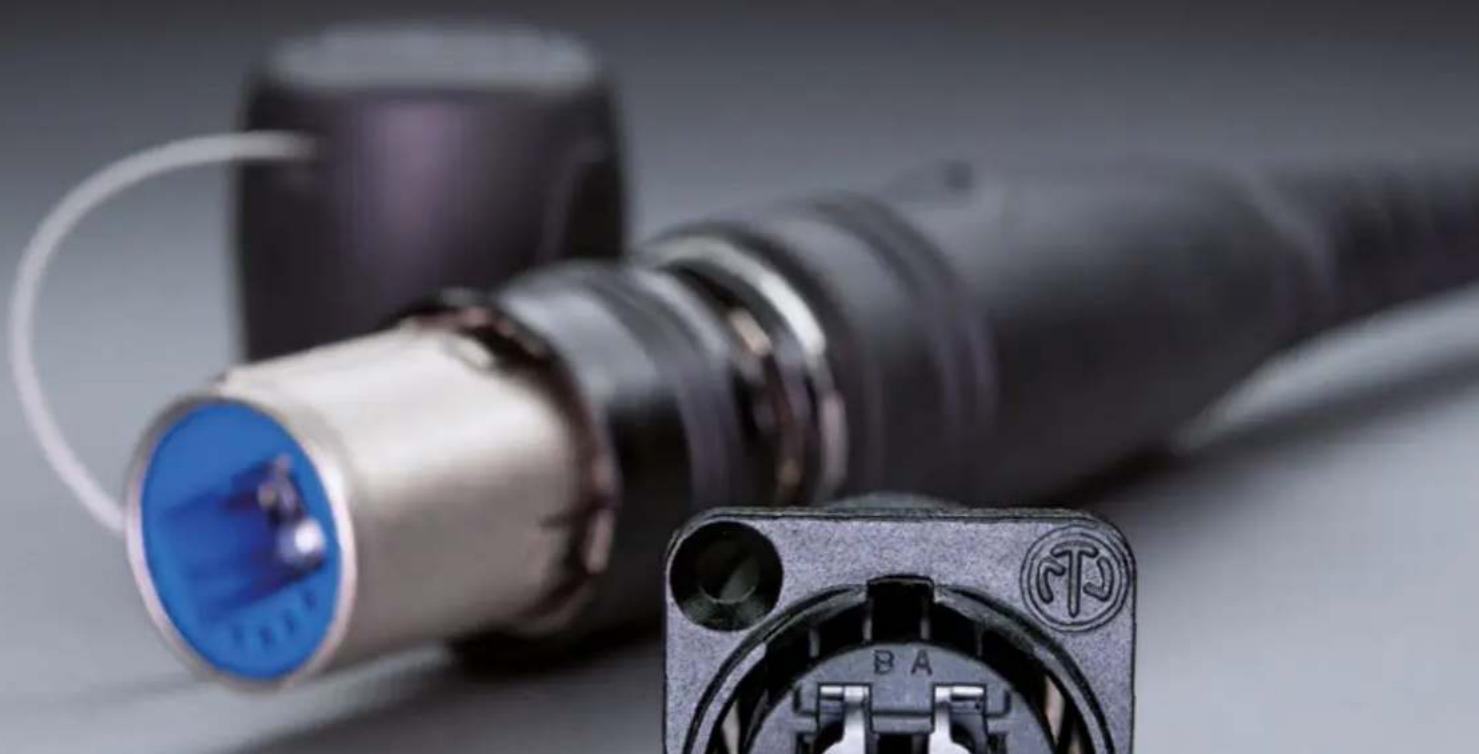

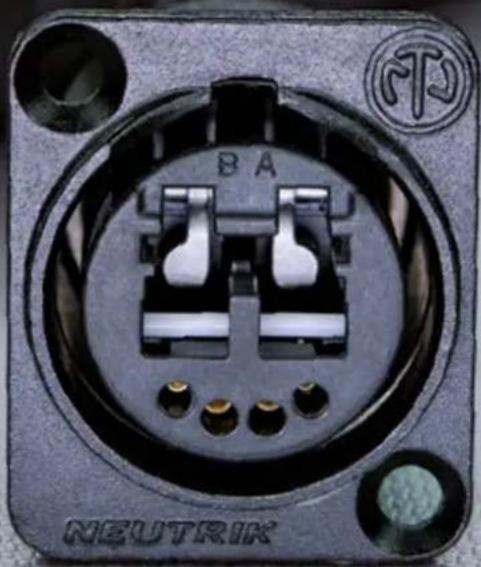

opticalCON ADVANCED Chassis Connectors 36

Features & Benefits 37

opticalCON DUO ADVANCED Chassis 38

opticalCON QUAD ADVANCED Chassis. 40

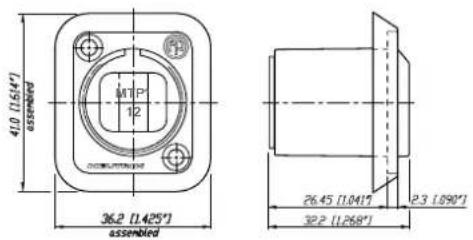

opticalCON MTP ^® 12 ADVANCED Chassis 42

opticalCON MTP 24 ADVANCED Chassis 44

Accessories for Chassis 46

opticalCON Coupler 46

opticalCON Transceiver Adapter 47

opticalCON Breakout Adapter 47

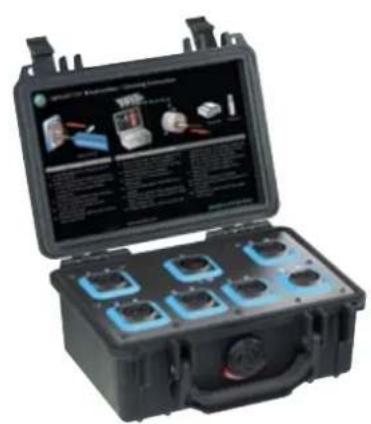

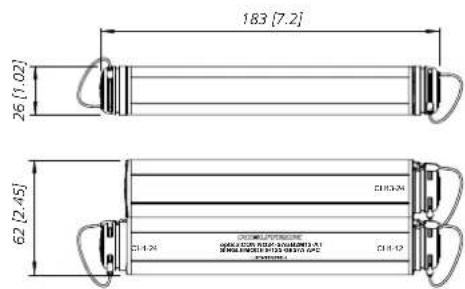

opticalCON Breakout Box 48

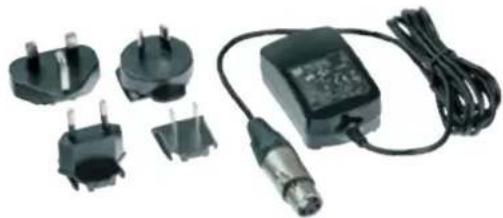

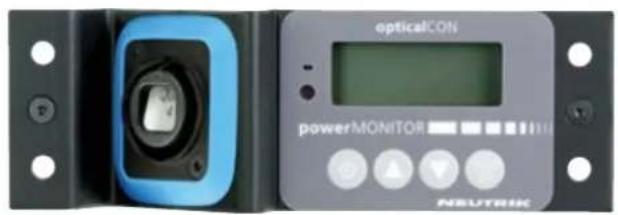

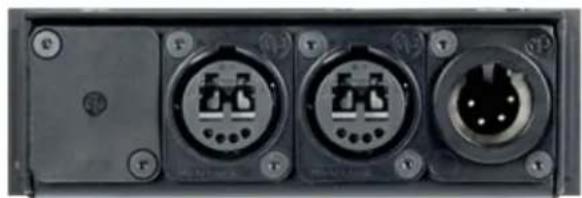

opticalCON powerMONITOR 50

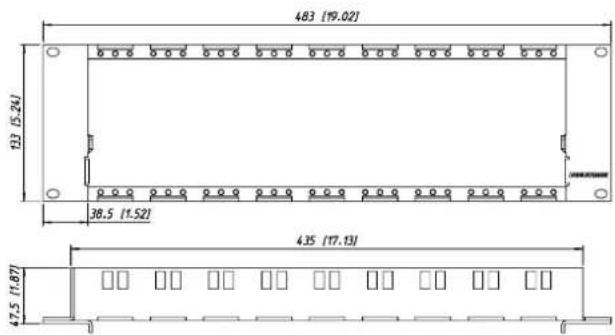

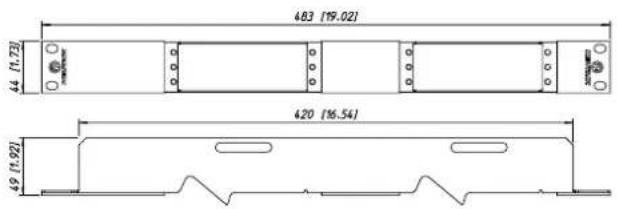

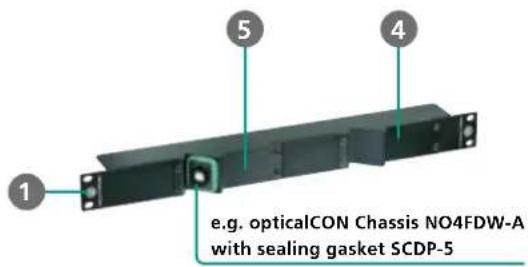

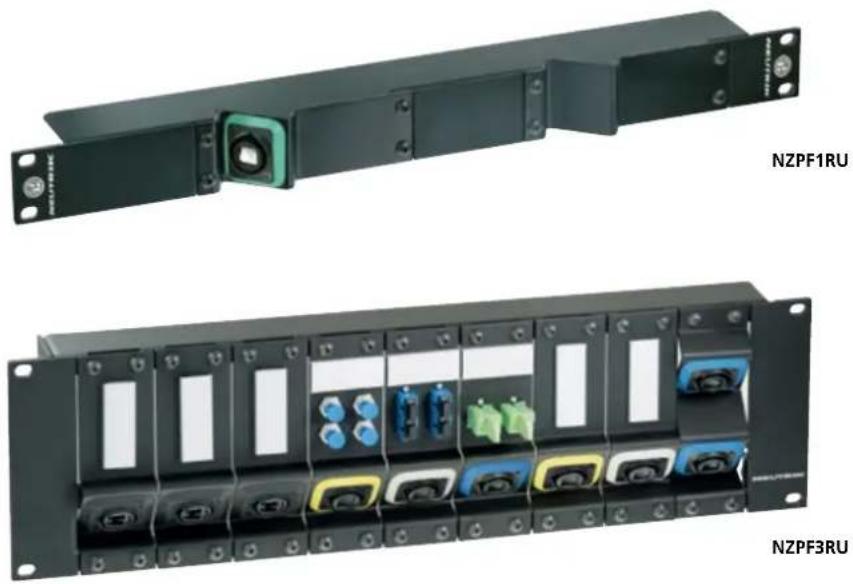

opticalCON Panel Solutions 52

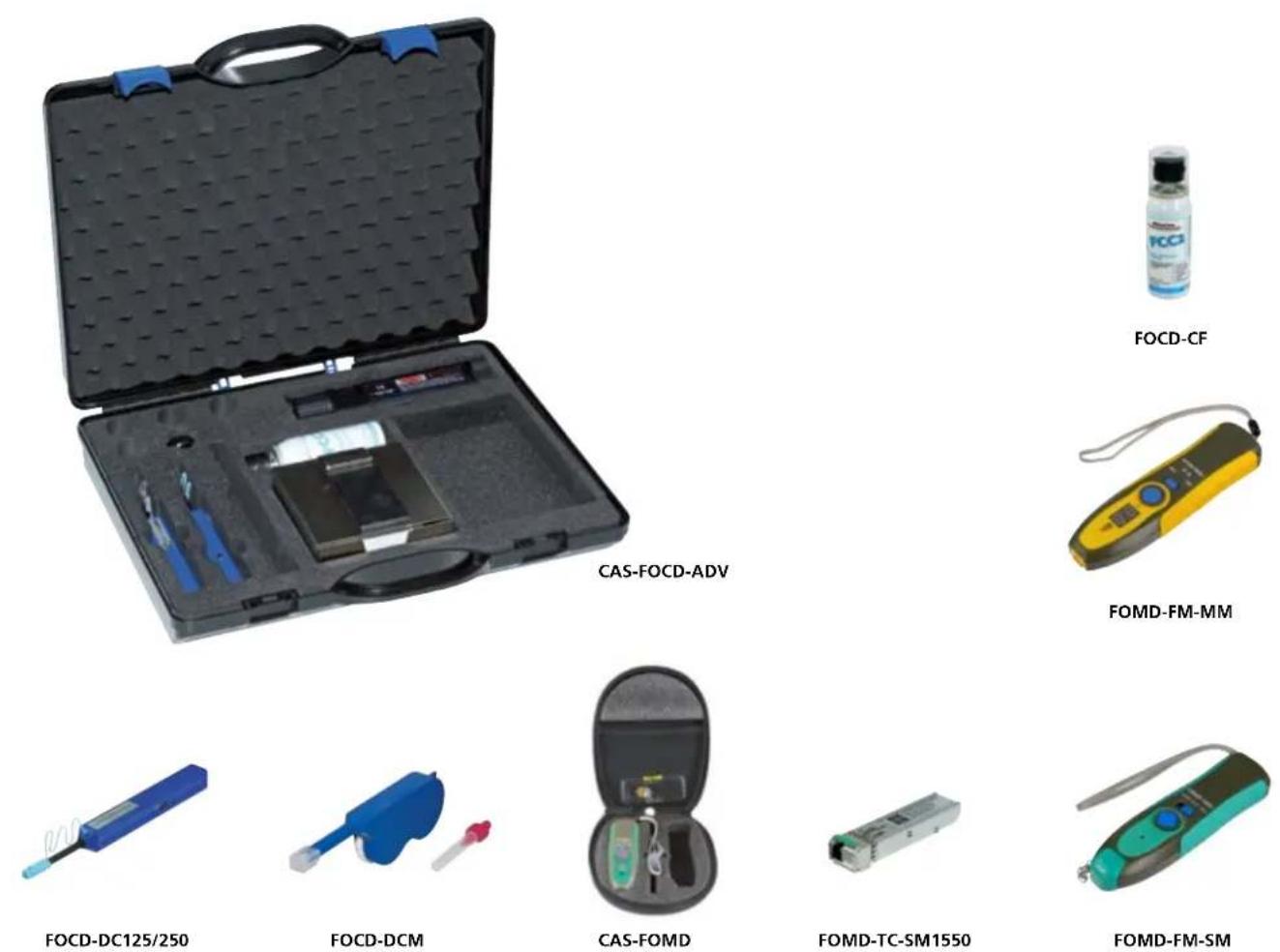

Fiber Optic Measurement & Cleaning Kit 54

The applications for fiber are extensive

Close-up of black and red electronic connectors with a central indicator light, placed on a textured surface (no text or symbols visible)

A few years ago, the use of fiber optic cabling in professional AV applications was limited to such special cases as HD broadcast cameras. Since then, the AV industry's adoption of fiber optics has increased immensely. Today, fiber optics are widely used for digital signal transmission in pro audio, professional broadcast, and the touring / rental industries.

As pro audio and broadcast equipment has evolved from analog to digital data transmission, the industry has attempted to adapt connectors originally designed for data communication (e.g. RJ45 connectors for electrical transmission). Today, that trend continues with fiber optic connectors. However, conventional data communication fiber optic connectors (ST, SC, LC, etc.) have a risk of failure when they are deployed in AV applications. These conventional data connectors are optimized for permanent, one-time connection. They were never designed for mobile applications or to handle high mating cycles in harsh environments. Alternative connectors, originally developed for military applications, have not been cost effective and have been deficient either in regards to dust protection and maintenance and/or in their attenuation and return loss characteristics.

Neutrik understood these deficiencies and solved the various issues associated with mobile fiber optic connectivity when it launched its opticalCON® fiber optic line in 2005. The opticalCON® design is based on a unique concept which combines low maintenance, high mating cycles, and a safe connection in the field. As a result, opticalCON® has gained wide acceptance in the pro audio and professional broadcast industries. Both well known equipment manufacturers and key industry users have put their trust in opticalCON® for many years.

opticalCON®

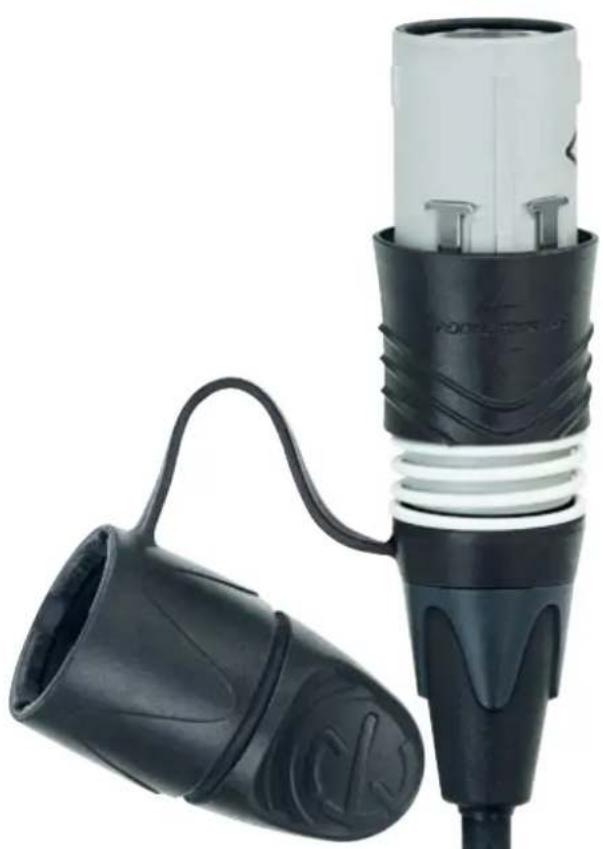

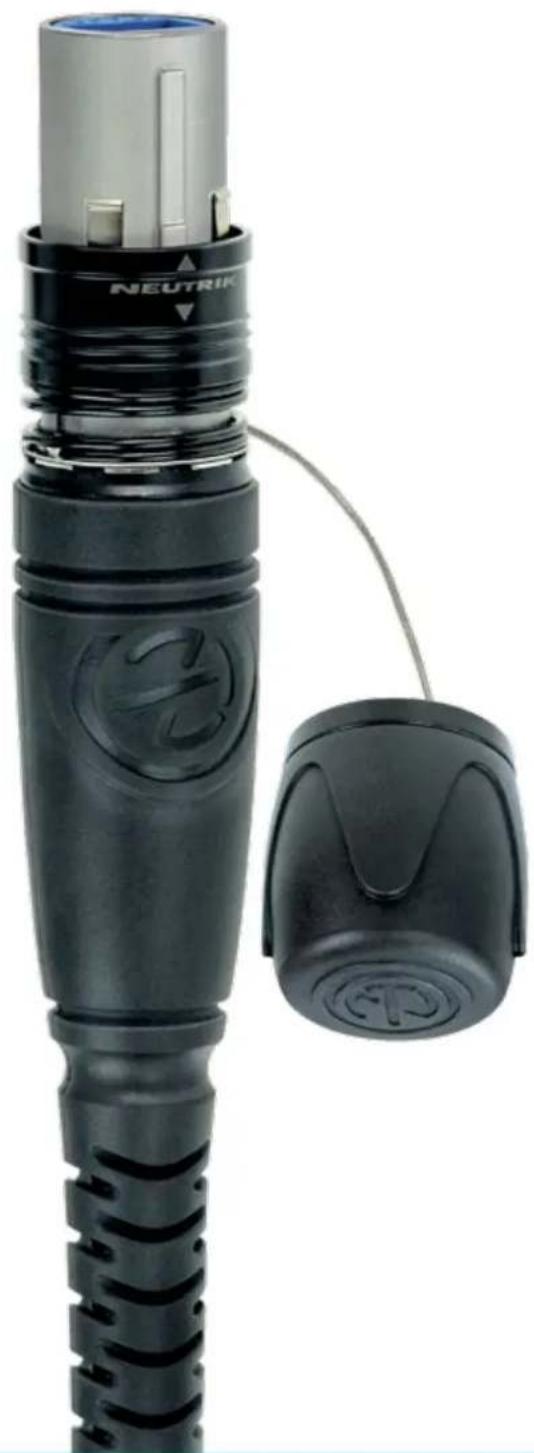

opticalCON® Design Criteria

The need for rugged fiber optic connections continues to grow rapidly, driven by such technologies as ultra high definition (UHD) 4K or 8K television signals running at data rates of up to 24 Gb/s. To accommodate these higher bandwidth signals, the Society of Motion Picture & Television Engineers (SMPTE) has standardized opticalCON ^® connectors as the rugged fiber optic interface for mobile high definition television broadcasting where robust and reliable solutions are required.

Neutrik's opticalCON® system became the fiber optic standard in various markets.

UHD 4K8K

SMPTE standard ST2091-1

opticalCON® ADVANCED DUO is an LC-based fiber optic connection system which is typically used for equipment connections. With built-in, automatic dust shutters and a rugged housing, the fibers are always dust protected, and high mating cycles in harsh environments are achieved. Compatibility with conventional LC connectors at both the front and the rear of the chassis connectors offers users the choice of using either cost-effective, standard LC patch cables or else ruggedized opticalCON cables.

Following on the success of opticalCON ADVANCED DUO, the opticalCON® ADVANCED QUAD series, also an LC-based connector system, doubles the fiber count to offer a rugged point-to-point connection. opticalCON® QUAD has been successfully deployed in applications such as data routing for touring / live rental, including especially OB (outdoor broadcast) applications.

opticalCON® ADVANCED MTP® increases the number of fibers in one connector up to 24 and is the ideal solution for point-to-point multi-fiber signal transmission.

As an alternative to opticalCON MTP's single 12 or 24-fiber connector, Neutrik offers a wide variety of SPLIT cable configuration. opticalCON® SPLIT offers an alternative for users of opticalCON® DUO or QUAD chassis connectors, providing advantages in regards to field assembly and potential repair cost.

Finally, Neutrik's opticalCON® LITE connectors offer a cost effective and lightweight solution. The unique design of opticalCON® LITE's tactical patch cable allows extreme bending without fiber breakage and absorbs high lateral forces. As a result, the opticalCON® LITE is an ideal choice for such permanent and semi-permanent installations as server rooms, patch fields, and indoor cabling.

opticalCON® LITE opticalCON

ADVANCED

Close-up of a black plastic water dispenser with a coiled spring and handle, no visible text or symbols

Close-up of a black NEUTRIK connector with attached cable, showing internal components and no visible text or symbols.

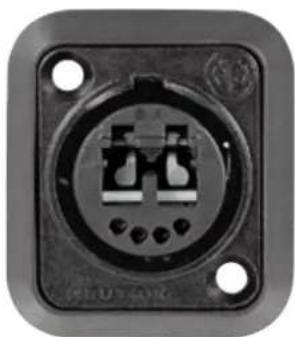

Close-up of a black square electrical connector with two internal slots and four mounting holes (no text or symbols visible)

opticalCON® DUO

2-channel fiber optic connection system

QUAD 4

opticalCON® QUAD

4-channel fiber optic connection system

MTP 12

opticalCON® MTP 12

12-channel fiber optic connection system

MTP 24

opticalCON® MTP®24

24-channel fiber optic connection system

ADVANCED Cable

opticalCON DUO

Rugged and lightweight 2-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi- and single mode (PC or APC), military approved.

opticalCON DUO X-TREME

2-channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armoured cable construction, excellent cable retention due to aramid yarn, black PUR outer jacket.

opticalCON DUO ARMORED

Extra rugged and lightweight stainless steel, jacket absorbs lateral forces up to 200 kg/cm². Ultra flexible due to the special spring shape construction, available in multi- and single mode (PC or APC).

opticalCON DUO HYBRID

Extra rugged hybrid cable with 2 multimode channels and 4 x 0.75 mm ^2 copper conductors, GFK strength member and aramid yarn as cable retention.

opticalCON DUO SMPTE

SMPTE cable with 2 single mode channels (PC or APC), 2 x AWG 24 and 4 x AWG 20 stranded copper conductors, overall copper braided shield and stainless steel strength member, 120 kg/km.

Ultra flexible, cost effective and lightweight (65 kg/km) low voltage hybrid cable with 2 single mode channels and 2 x AWG 16 copper conductors, aramid yarn cable retention.

opticalCON QUAD

Rugged and lightweight 4-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi- and single mode (PC or APC).

opticalCON QUAD X-TREME

4-channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armoured cable construction, excellent cable retention due to aramid yarn, black PUR outer jacket.

opticalCON QUAD ARMORED

Extra rugged and lightweight stainless steel jacket absorbs lateral forces of 200 kg/cm². Ultra flexible due to the special spring shape construction, available in multi- and single mode (PC or APC).

2M / 2S (A)

X2M / X2S (A)

XX2M / XX2S (A)

H1

S1 (A)

S5 (A)

4M / 4S (A)

X4M / X4S (A)

XX4M / XX4S (A)

opticalCON MTP® 12 & SPLIT

Rugged and lightweight 12-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multimode PC and singlemode APC.

opticalCON MTP® 24 & SPLIT

24-channel mobile field cable with excellent cable PUR outer jacket, available in multimode PC and singlemode APC.

opticalCON MTP® 12 X-TREME & SPLIT

12-channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armoured cable construction, excellent cable retention due to aramid yarn, black PUR outer jacket.

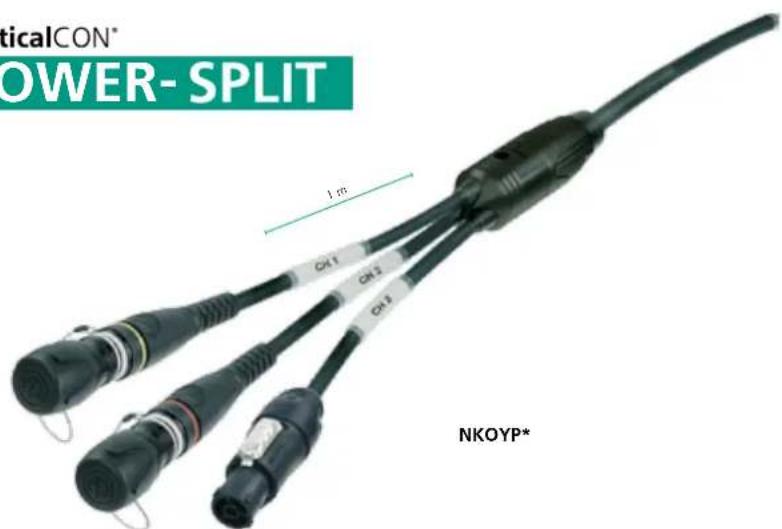

opticalCON POWER-SPLIT

Extra rugged hybrid cable up to 8 single mode channels and 2 x 1.5 mm² copper conductors, 1.5 mm² shield, 2 opticalCON cable connectors and 1 powerCON cable connector.

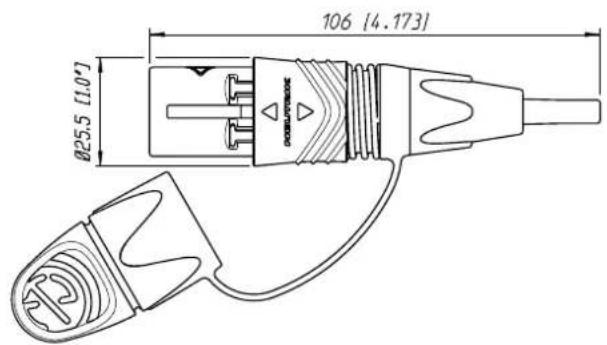

LITE Cable

opticalCON DUO LITE

Rugged and lightweight 2-channel patch cable, excellent cable retention due to aramid yarn, black PVC outer jacket, available in multi- and singlemode (PC or APC), suitable for permanent and temporary installation.

opticalCON QUAD LITE

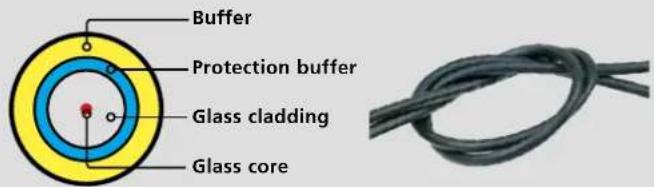

Lightweight tactical patch cable, 4 x 900/125 micron fibers, rugged cable retention due to aramid yarn, black PVC outer jacket, available in multi- and singlemode (PC or APC), designed for permanent or semi-permanent installations.

opticalCON MTP® 12 LITE

Rugged tactical patch cable, 12x 250/125 micron fibers, aramid yarn for appropriate cable retention, black PVC outer jacket, available in multimode PC and singlemode (APC), suitable for permanent or semi-permanent installations.

opticalCON MTP® 24 LITE

Rugged tactical patch cable, 24 x 250/125 micron fibers, aramid yarn for appropriate cable retention, black PVC outer jacket, available in multimode PC and singlemode (APC), suitable for permanent or semi-permanent installations.

12M / 12S (A)

24M / 24S (A)

X12M / X12S (A)

P8M / P8S (A)

2M-L / 2S (A)

4M-L / 4S (A)

12M-L / 12SA

24M-L / 125A

opticalCON ^® ADVANCED

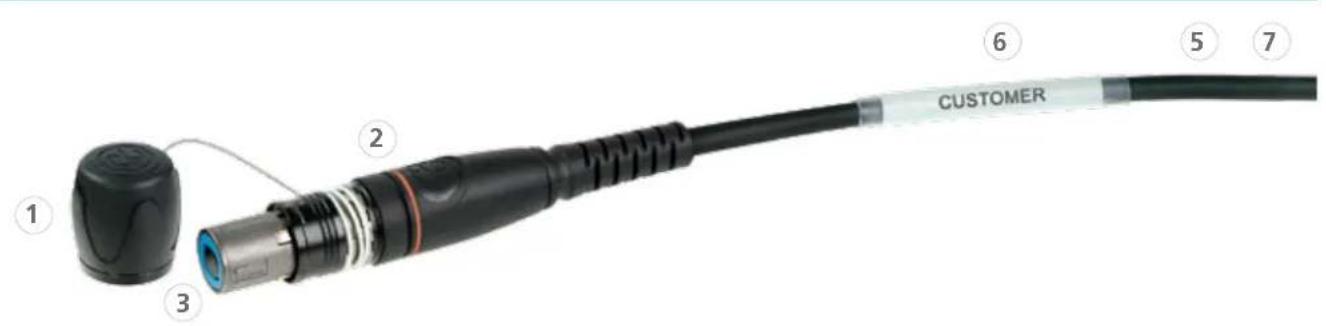

CUSTOMER ① ② ③ ⑥ ⑤ ⑦

opticalCON® LITE

Close-up of a black cable with orange connectors and a green connector, labeled with numbers ②, ③, and ⑤ (no text or symbols on the cable itself)

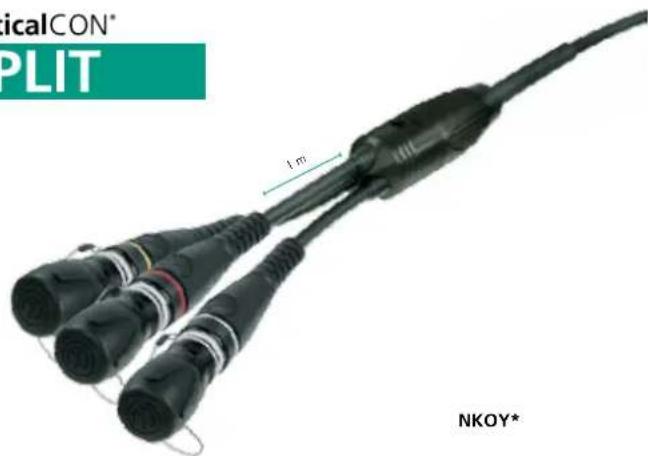

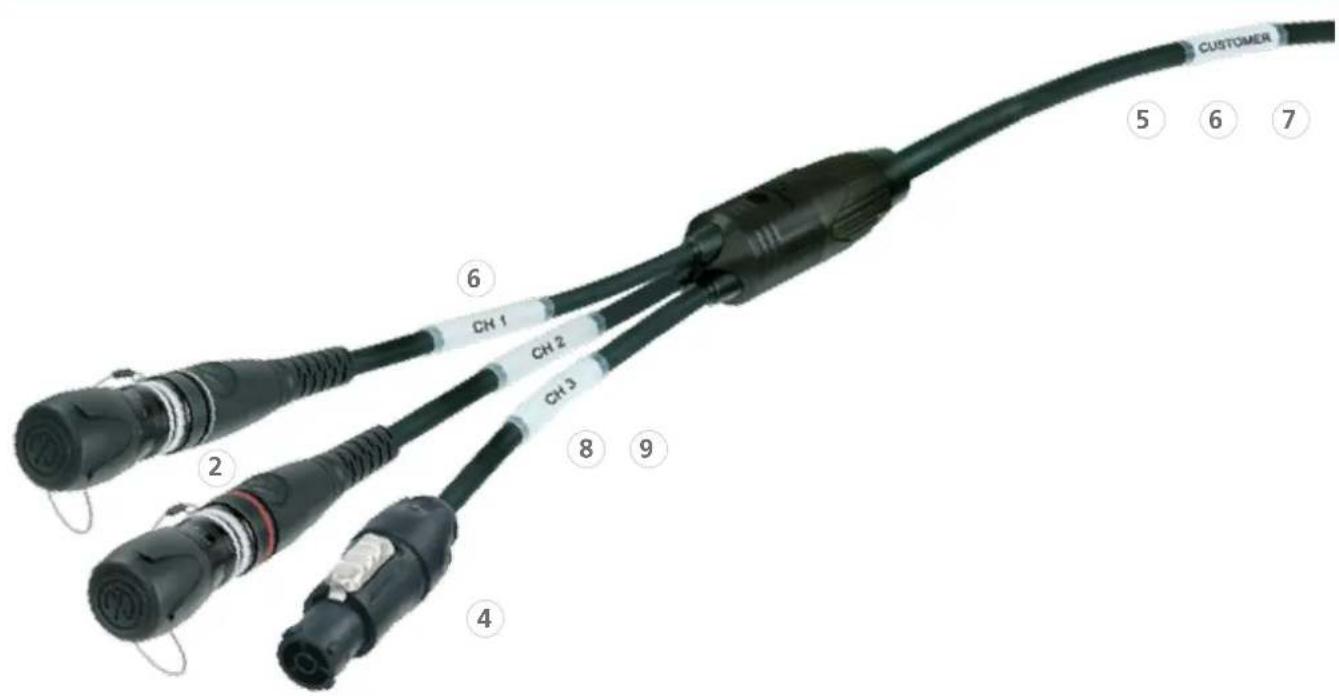

opticalCON® Split

CUSTOMER CH 1 CH 2 CH 3 ⑤ ⑥ ⑦ ② CH 2 ⑧ ⑨ ④

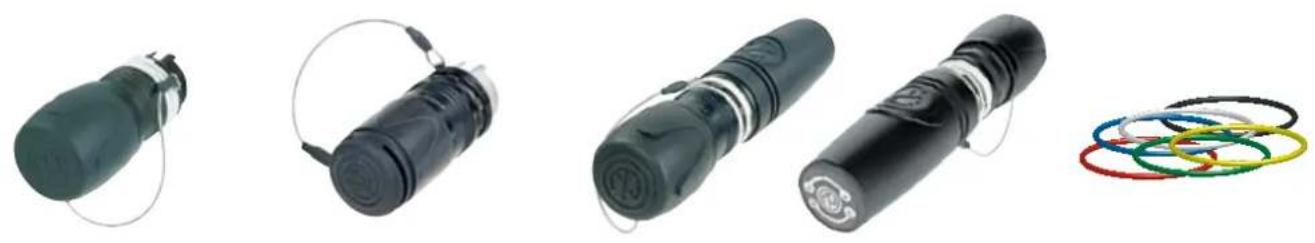

Rubber protection cover

Noise cancelling rubber protection cover for opticalCON cable connectors, including front housing.

Custom color coding

Color coding ring for opticalCON cable connectors.

Crossed fiber wiring (A-A), (B-B)

Pure electrical circuit lines without any symbols

Neutrik standard: wiring acc. IEC 11801

Pure electrical circuit lines without any symbols

Power IN / OUT

With the Neutrik powerCON mains connector NAC3MX-W-TOP (IN) / NAC3FX-W-TOP (OUT).

NAC3MX-W-TOP

NAC3FX-W-TOP

Breakout assembly

standard split length x:

Standard split length x:

DUO/QUAD 30 cm (1 ft.)

MTP 12 60 cm (2 ft.)

MTP 24 1 m (3 ft.)

Custom cable & Split text labeling

- Custom labeling

- 1 or 2 lines

- Split text to color

Female assembly on cable drums

Cable extension solution eliminating the need for couplers.

Custom split length

Standard: length 1 m

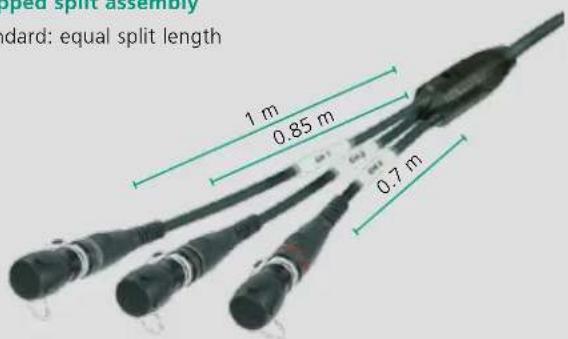

Stepped split assembly

Standard: equal split length

Speed split assembly Standard: equal split length 1 m 0.85 m 0.7 m

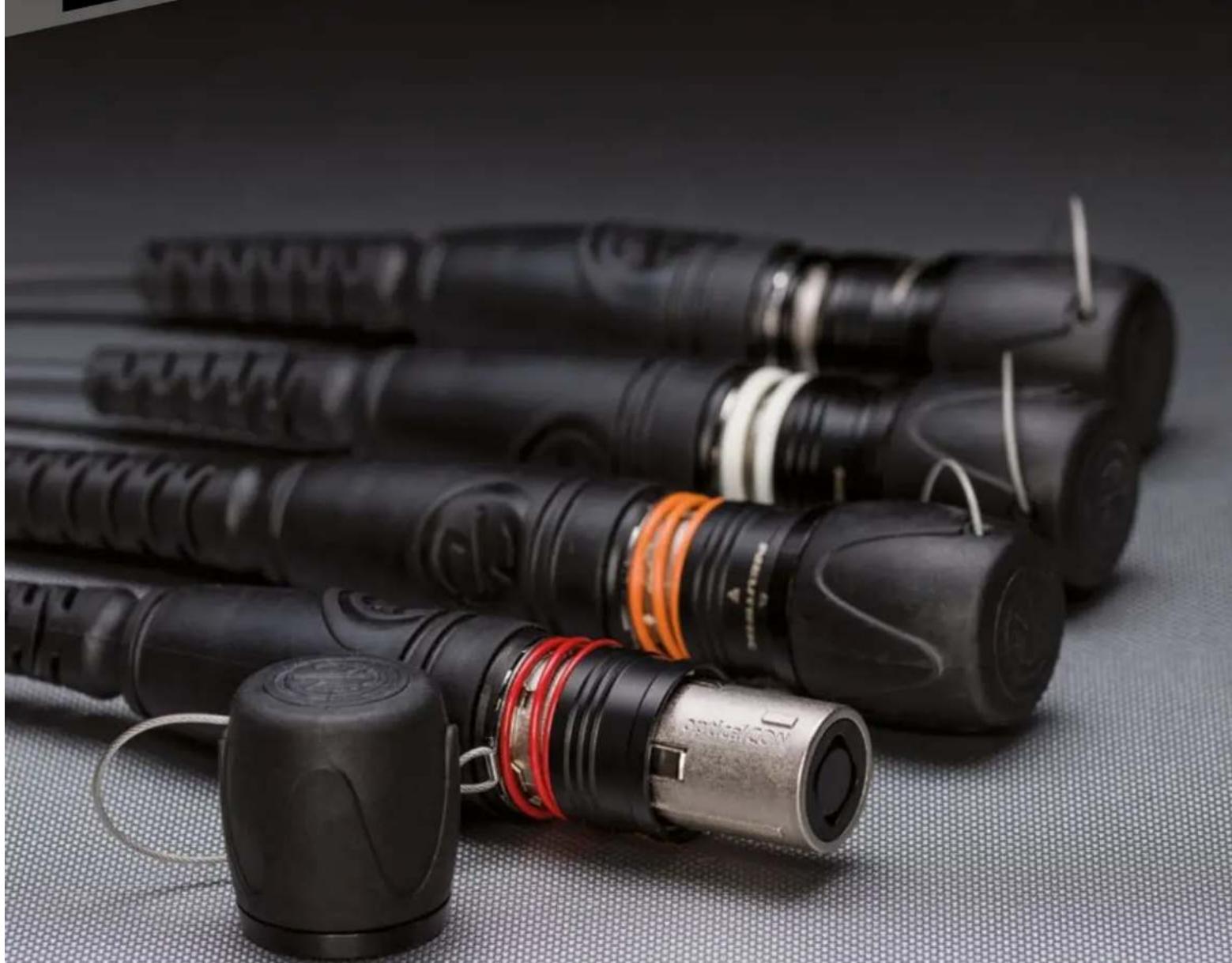

opticalCON® ADVANCED CABLE CONNECTORS

Stack of black and red handheld devices on a textured surface, no visible text or symbols

Mobile use Rugged Low maintenance High performance

opticalCON DUO

2 fibers
4 copper contacts
4 fibers
12 fibers
24 fibers

opticalCON MTP* 12 o

ticalCON MTP 24

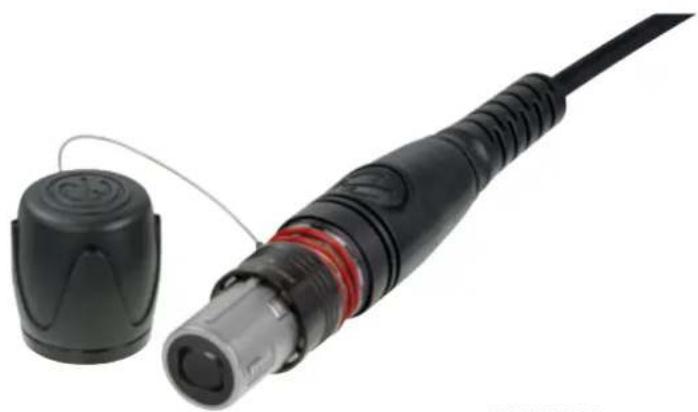

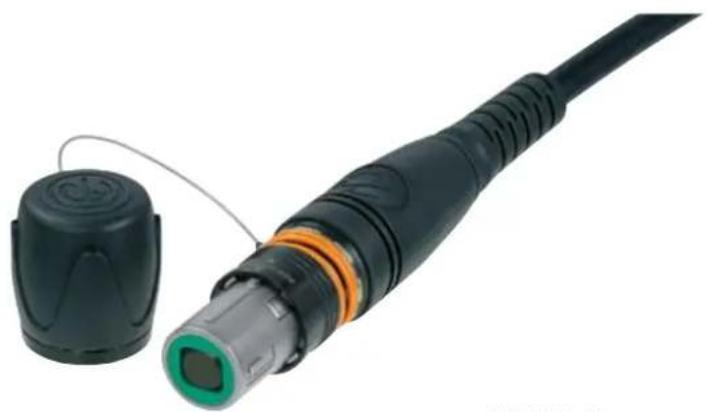

opticalCON® DUO ADVANCED

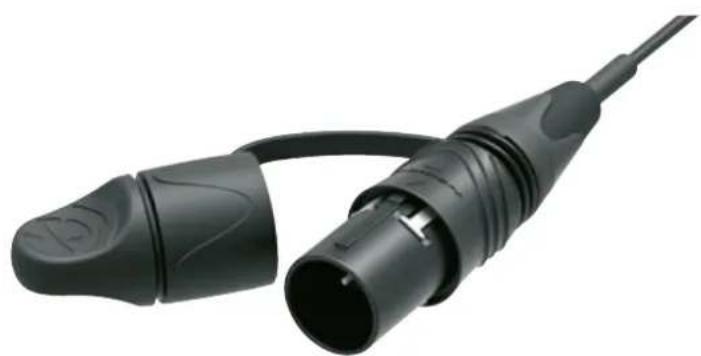

Cable Connector Assembly

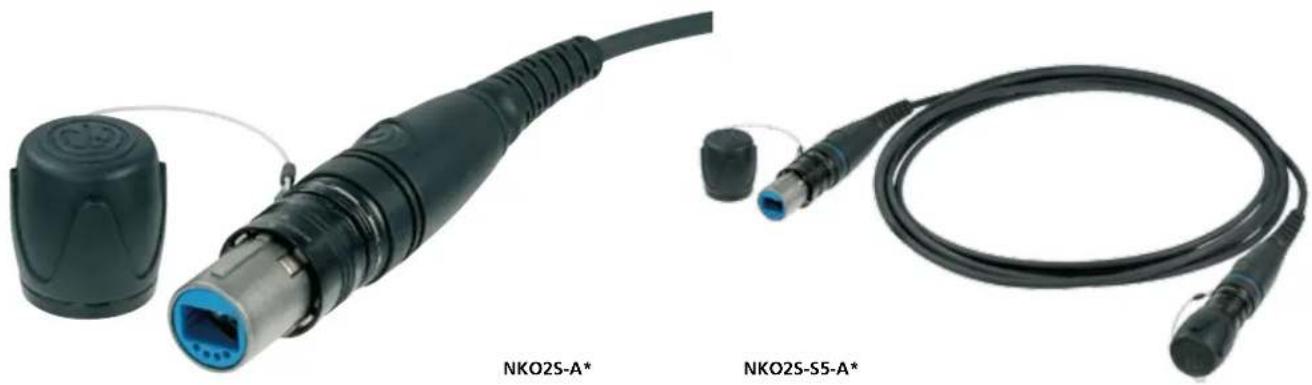

Two black electronic devices with connectors and labeled NKO2S-A* and NKO2S-S5-A* (no additional text or symbols visible)

• Ruggedized and dirt-protected 2-channel fiber optic connection system
• Cable connector features rugged metal housing and heavy-duty cable retention
• Automatic sealing shutter with silicone gasket to protect the LC's
• Dust and water resistant according to IP65 in mated condition
• Accommodates standard optical LC-Duplex connectors
- Field repairable
• Easy to clean, no special tools required
- Reliable Push-Pull locking mechanism
• Cable connector comes pre-assembled with a choice of mobile field cables
- Range of 3 hybrid cables for powered applications:

• SMPTE cable for indoor UHD camera routing applications ^1
• Hybrid multimode cable
  – Light weight low voltage camera / SM hybrid cable for ENG / SNG applications

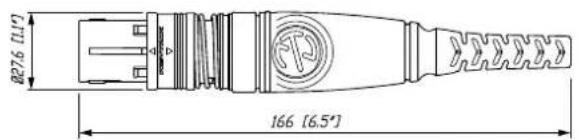

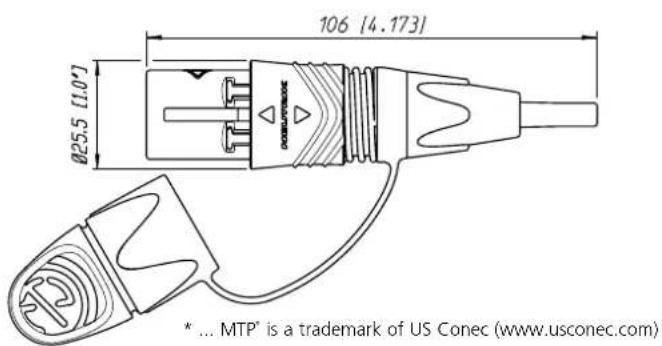

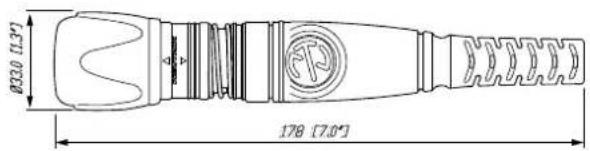

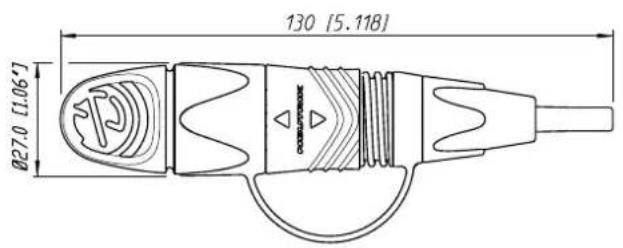

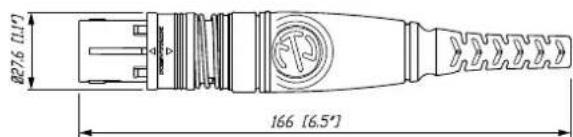

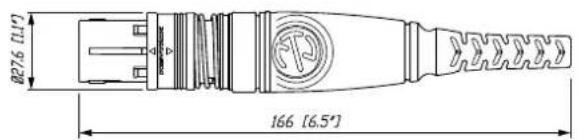

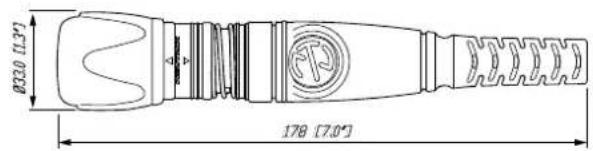

827.6 (11.1") 166 (6.5")

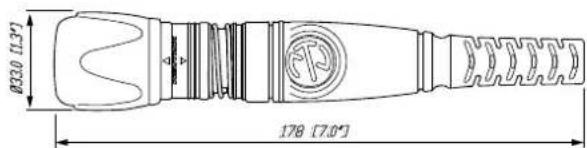

R320 [1.3"] 178 (7.0")

Technical Data Optical Cable Connector
Optical connector LC-Duplex

Fiber	Multimode, Singlemode PC / APC	●
Insertion loss	< 0.45 dB / connection ●
min. Return loss	MM PC > 25 dB	●
	SM PC > 50 dB	●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force		< 45 N	●
Lifetime (mating cycles)		> 5'000	●
Cable retention force	Fiber only	> 500 N	●
	Hybrid	> 500 N	●
	SMPTE	> 500 N	●

ELECTRICAL

Number of electrical contacts		4
Rated current	6 A	NKO2M-H1
	contact 1+4 10 A	NKO2S(A)-S1
Contact resistance	<7 mΩ	●
Insulation resistance - initial:	>10 GΩ	●
- after damp heat test:	>1 GΩ	●
Dielectric strength	1500 V dc	●
Rated voltage	50 V ac	●

MATERIAL

Shell	Zinc diecast (ZnAl4Cu1),black chrome plating	●
Insert / Insulation	Polyamid PA 6, PBT 30% GR,PBT 50% GR	●
Insert colour	MM: black, SM PC: blue,SM APC: green	●
Contacts	- male: Brass (CuZn39Pb3)	●
Contact surface	Gold (gal 0.2 μm Au over 2 μm Ni)	●
Strain relief	Brass, Ni plated	●
Bushing	ZnAl4Cu1	●
Boot	EPDM, rubber boot	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flammability	UL94 HB	●
Solderability	complies with IEC 68-2-20	●
Protection class	in mated condition IP65	●

1. Not compatible to SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage. For detailed information ask for the White Paper "opticalCON @ SMPTE Indoor Applications".

Technical Data Cables

	2M	2S (A)	2M-H1	2S (A) - S1	2S (A) - S5	X2M	X2S (A)	XX2M	XX2S (A)
Max. number of fibers	2	2	2	2	2	2	2	2	2
Mode - Multimode PC	●	-	●	-	-	●	-	●	-
- Single mode PC / APC	-	●	-	●	●	-	●	-	●
Fiber - 50 / 125-OM3	●	-	●	-	-	●	-	●	-
- 9 / 125-G657A2	-	●	-	●	●	-	●	-	●
Bend optimized fiber	●	●	-	●	●	●	●	●	●
Laser optimized fiber	●	N/A	-	N/A	N/A	●	N/A	●	N/A
Copper wires
- AWG 16	-	-	-	-	2x	-	-	-	-
- AWG 18 (0.75 mm2)	-	-	4x	-	-	-	-	-	-
- AWG 20	-	-	-	4x	-	-	-	-	-
- AWG 24	-	-	-	2x	-	-	-	-	-
Outer shield
- Copper braid	-	-	-	●	-	-	-	-	-
- Coated glass yarn	-	-	-	-	-	●	●	-	-
- Stainless steel Jacket	-	-	-	-	-	-	-	●	●
Strength member
- GFK	-	-	●	-	-	-	-	-	-
- Stainless Steel	-	-	-	●	-	-	-	-	-
Cable retention
- Aramid yarn	●	●	●	-	●	●	●	●	●
- Crimp type	-	-	-	●	-	-	-	-	-
Overall diameter (mm)	5.0	5.0	8.9	9.2	7.3	9.2	9.2	10.5	10.5
Jacket - PUR black matte	●	●	●	●	●	●	●	●	●
Optical connector
- LC-Duplex	●	●	●	●	●	●	●	●	●
- LC based	-	-	-	-	-	-	-	-	-
Min. bending radius (cm)	5.0	5.0	8.9	10.0	7.5	9.2	9.2	10.5	10.5
Weight (kg / km)	21	23	78	120	65	79	79	131	133
Attenuation (dB / km)
Bandwidth (MHz-km)	@850 nm - 1,483@1310 nm - 1,479@1310 nm - 1,458
	@850 nm - 1,483@1310 nm - 1,479@1310 nm - 1,458

Ordering & Packaging options with max. cable length see on the part number generator - www.neutrik.com

0

1

2

3

4

5

6

-0... Airpool
-1... opticalICON Case
-2... Drum Schill GT310
-3... Drum Schill GT380
-4... Drum Schill HT582
-5 Drum Schill GT450
-6 Drum Schill SK4812

opticalCON® QUAD ADVANCED

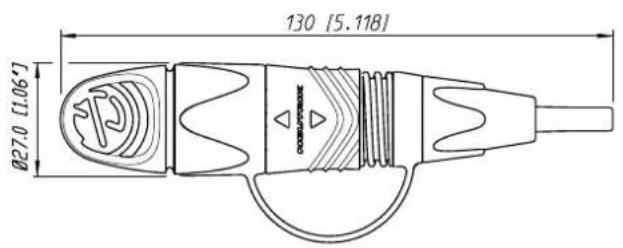

Cable Connector Assembly

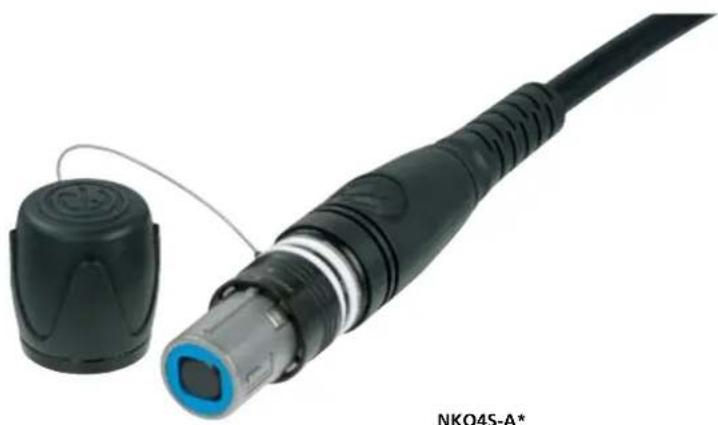

Close-up of a black NKO4S-A* cable connector with a blue circular connector and a small black housing (no text or symbols on the device itself)

• Ruggedized and dirt-protected 4-channel fiber optic connection system
- For point-to-point multichannel routing
• Cable connector features rugged all-metal housing and heavy-duty cable retention
• Innovative special shutter guarantees low maintenance
• Dust and water resistant according to IP65 in mated condition
• Easy to clean, no special tools required
- Reliable Push-Pull locking mechanism
- Cable connector comes pre-assembled with a choice of mobile field cables
- Field repairable

R27.6 [1.1"] 166 [6.5°]

Ø20 [1.3"] 178 [7.0"]

Technical Data Optical Cable Connector

Optical connector PC
Fiber	Multimode, Singlemode PC / APC	●
Insertion loss	< 0.45 dB / connection ●
min. Return loss	MM PC > 25 dB	●
	SM PC > 50 dB	●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	> 5'000	●
Cable retention force Fiber only	> 500 N	●

MATERIAL

Shell	Zinc diecast (ZnAl4Cu1),black chrome plating	●
Insert / Insulation	Polyamid PA 6, PBT 30% GR,PBT 50% GR	●
Insert colour	MM: black, SM PC: blue,SM APC: green	●
Strain relief	Brass, Ni plated ●
Bushing	ZnAl4Cu1	●
Boot	EPDM, rubber boot	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flammability	UL94 HB	●
Protection class	in mated condition IP65	●

Technical Data Cables

	4M	4S (A)	X4M	X4S (A)	XX4M	XX4S (A)
Max. number of fibers	4	4	4	4	4	4
Mode - Multimode PC	●	-	●	-	●	-
- Single mode PC / APC	-	●	-	●	-	●
Fiber - 50/125-OM3	●	-	●	-	●	-
- 9/125-G657A2	-	●	-	●	-	●
Bend optimized fiber	●	●	●	●	●	●
Laser optimized fiber	●	N/A	●	N/A	●	N/A
Outer shield
- Copper braid	-	-	-	-	-	-
- Coated glass yarn	-	-	●	●	-	-
- Stainless steel Jacket	-	-	-	-	●	●
Strength member
- GFK	-	-	-	-	-	-
- Stainless Steel	-	-	-	-	-	-
Cable retention
- Aramid yarn	●	●	●	●	●	●
- Crimp type	-	-	-	-	-	-
Overall diameter (mm)	5.8	5.8	9.2	9.2	10.5	10.5
Jacket - PUR black matte	●	●	●	●	●	●
Optical connector
- LC-Duplex	-	-	-	-	-	-
- LC based	●	●	●	●	●	●
Min. bending radius (cm)	5.8	5.8	9.2	9.2	10.5	10.5
Weight (kg / km)	31	31	88	88	141	141
Attenuation (dB / km)
Bandwidth (MHz-km)
Refraction index

Packaging options and max. cable length see on the part number generator - www.neutrik.com

0

1

2

3

4

5

6

-0... Airspool
-1... opticalCON Case
-2... Drum Schill GT310
-3... Drum Schill GT380
-4... Drum Schill HT582
-5... Drum Schill GT450
-6... Drum Schill SK4812

opticalCON® MTP® 12 ADVANCED

Cable Connector Assembly

Close-up of a black cable connector with a small circular component attached, no visible text or symbols.

NKO12SA-A*

• Ruggedized and dirt-protected 12-channel fiber optic connection system
- For point-to-point multichannel routing based on MTP technology
• Cable connector features rugged metal housing and heavy-duty cable retention
• Spherical shutter guarantees low maintenance
• Dust and water resistant according to IP65 in mated condition
• Easy to clean, no special tools required
- Reliable Push-Pull locking mechanism
• Cable connector comes pre-assembled with a choice of mobile field cables
- Wiring Type A

The MTP ^® is a multichannel fiber optic connector based on MPO (“Multifiber Push On”) technology (IEC-61754-7). Breakout / Master cables to standard connectors as LC, SC, ST are available in various length.

R27.6 [1.1"] 166 [6.5"]

R230 [1.3"] 178 [7.0"]

* ... MTP* is a trademark of US Conec (www.usconec.com)

Technical Data Optical Cable Connector

Optical connector MTP
female
Fiber	Multimode, Singlemode APC	●
Insertion loss	< 0.9 dB / connection	●
min. Return loss	MM PC > 25 dB	●
	SM APC > 60 dB	●
Wiring	Type A	●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	>2'500	●
Cable retention force	Fiber only >500 N	●

MATERIAL

Shell	Zinc diecast (ZnAl4Cu1),black chrome plating	●
Insert / Insulation	PA 6POM, PC, PEI	●
Insert colour	MM; black, SM PC: blue,SM APC: green	●
Strain relief	Brass, Ni plated ●
Bushing	ZnAl4Cu1	●
Boot	EPDM, rubber boot	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flammability	UL94 HB	●
Protection class	in mated condition IP65	●

Technical Data Cables

		12M	12SA	X12M	X12SA
Max. number of fibers		12	12	12	12
Mode - Multimode PC		●	-	●	-
- Single mode PC / APC		-	●	-	●
Fiber - 50/125-OM3		●	-	●	-
- 9/125-G657A2		-	●	-	●
Bend optimized fiber		●	●	●	●
Laser optimized fiber		●	N/A	●	N/A
Outer shield
- Copper braid		-	-	-	-
- Coated glass yarn		-	-	●	●
- Stainless steel Jacket		-	-	-	-
Strength member
- GFK		-	-	-	-
- Stainless Steel		-	-	-	-
Cable retention
- Aramid yarn		●	●	●	●
- Crimp type		-	-	-	-
Overall diameter (mm)		8.2	8.2	10.9	10.9
Jacket - PUR black matte		●	●	●	●
Optical connector
- LC-Duplex		-	-	●	●
- LC based		●	●	●	●
Min. bending radius (cm)		8.2	8.2	10.9	10.9
Weight (kg / km)		60	60	103	103
Attenuation (dB / km)		@850 nm - 2.5@1300 nm - 0.5	@1310 nm - 0.5@1550 nm - 0.3	@850 nm - 2.5@1300 nm - 0.5	@1310 nm - 0.5@1550 nm - 0.3
Bandwidth (MHz-km)		@850 nm > 1500@1300 nm ≥500		@850 nm > 1500@1300 nm ≥500
Refraction index		@850 nm - 1.462@1300 nm - 1.477	@1310 nm - 1.467@1550 nm - 1.467	@850 nm - 1.482@1300 nm - 1.477	@1310 nm - 1.467@1550 nm - 1.467

Packaging options and max. cable length see on the part number generator - www.neutrik.com

0

1

●

●

●

●

6

-0... Airspool
-1... opticalCON Case
-2... Drum Schill GT310
-3... Drum Schill GT380
-4... Drum Schill HT582
-5... Drum Schill GT450
-6... Drum Schill SK4812

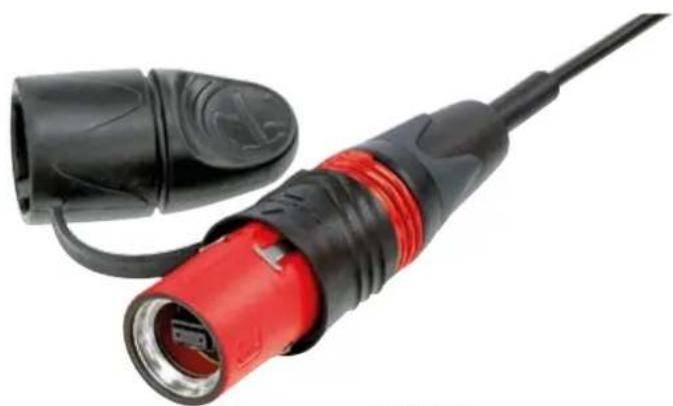

opticalCON® MTP®24 ADVANCED

Cable Connector Assembly

Close-up of a black cable connector with a red and gray internal component, alongside a smaller black housing (no text or symbols visible)

NKO24M-A*

• Ruggedized and dirt-protected 24-channel fiber optic connection system
- For point-to-point multichannel routing based on MTP technology
• Cable connector features rugged metal housing and heavy-duty cable retention
• Spherical shutter guarantees low maintenance
• Dust and water resistant according to IP65 in mated condition
• Easy to clean, no special tools required
- Reliable Push-Pull locking mechanism
• Cable connector comes pre-assembled with a choice of mobile field cables
- Wiring Type A

R276 [1.1"] 166 [6.5"]

Ø20 [1.37] 178 [7.0°]

* ... MTP* is a trademark of US Conec (www.usconec.com)

Technical Data Optical Cable Connector

Optical connector MTP
female
Fiber	Multimode, Singlemode APC	●
Insertion loss	< 0.9 dB / connection	●
min. Return loss	MM PC > 25 dB	●
	SM APC > 60 dB	●
Wiring	Type A	●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	>2'500	●
Cable retention force	Fiber only >500 N	●

MATERIAL

Shell	Zinc diecast (ZnAl4Cu1),black chrome plating	●
Insert / Insulation	PA 6POM, PC, PEI	●
Insert colour	MM: black, SM PC: blue,SM APC: green	●
Strain relief	Brass, Ni plated ●
Bushing	ZnAl4Cu1	●
Boot	EPDM, rubber boot	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flammability	UL94 HB	●
Protection class	in mated condition IP65	●

Technical Data Cables

	24M	24SA
Max. number of fibers	24	24
Mode - Multimode PC	●	-
- Single mode PC / APC	-	●
Fiber - 50 / 125-OM3	●	-
- 9 / 125-G657A2	-	●
Bend optimized fiber	●	●
Laser optimized fiber	●	N/A
Outer shield
- Copper braid	-	-
- Coated glass yarn	-	-
- Stainless steel Jacket	-	-
Strength member
- GFK	-	-
- Stainless Steel	-	-
Cable retention
- Aramid yarn	●	●
- Crimp type	-	-
Overall diameter (mm)	7.0	7.0
Jacket - PUR black matte	●	●
Optical connector
- LC-Duplex	-	-
- LC based	●	●
Min. bending radius (cm)	8.2	8.2
Weight (kg / km)	43	43
Attenuation (dB / km)	@850 nm - 2.5@1300 nm - 0.5	@1310 nm - 0.5@1550 nm - 0.3
Bandwidth (MHz-km)	@850 nm >1500@1300 nm ≥ 500
Refraction index	@850 nm - 1.482@1300 nm - 1.477	@1310 nm - 1.467@1550 nm - 1.467

Packaging options and max. cable length see on the part number generator - www.neutrik.com

0

1

●

●

●

●

6

-0... Airspool
-1... opticalCON Case
-2... Drum Schill GT310
-3... Drum Schill GT380
-4... Drum Schill HT582
-5... Drum Schill GT450
-6... Drum Schill SK4812

opticalCON® Split Cables

SPLIT & POWER SPLIT Cables

opticalCON®

SPLIT

icalCON* PLIT 1 m NKOY*

• opticalCON multichannel solution based on opticalCON DUO, QUAD or MTP ^a connectors
• Maximum flexibility, combining up to 12-channel
- Custom configurations available
• 1m SPLIT fanout
• Color coding for channel identification
• Field assembly possible
• XTREME version available

opticalCON®

POWER-SPLIT

ticalCON® POWER-SPLIT 1 m CH1 CH2 CH3 NKOYP*

• 2-, 4-, 6- and 8-channel assembly available
- Custom made cable, optimized for ENG / SNG applications
• Hybrid fiber / copper solution
- Custom Configurations
• Up to 240 Vac (16 A) power transportation possible

Technical Data Optical Cable Connector

Optical connector		PC
Fiber	Multimode, Singlemode PC / APC	●
Insertion loss	< 0.45 dB / connection	●
min. Return loss	MM PC > 25 dB	●
	SM PC > 50 dB	●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	> 5'000	●
Cable retention force Fiber only	> 500 N	●

MATERIAL

Shell	Zinc diecast (ZnAl4Cu1),black chrome plating	●
Insert / Insulation	Polyamid PA 6, PBT 30% GR,PBT 50% GR	●
Insert colour	MM: black, SM PC: blue,SM APC: green	●
Strain relief	Brass, Ni plated ●
Bushing	ZnAl4Cu1	●
Boot	EPDM, rubber boot	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flammability	UL94 HB	●
Protection class	in mated condition IP65	●

Technical Data Cables

	12M	12S (A)	X12M	X12S (A)	P8M	P8S (A)
Max. number of fibers	12	12	12	12	8	8
Mode - Multimode PC	●	-	●	-	●	-
- Single mode PC / APC	-	●	-	●	-	●
Fiber - 50/125-OM3	●	-	●	-	●	-
- 9/125-G657A2	-	●	-	●	-	-
Bend optimized fiber	●	●	●	●	●	●
Laser optimized fiber	●	N/A	●	N/A	●	N/A
Copper wires
- 3 x 1.5 mm2	-	-	-	-	●	●
Outer shield
- Copper braid	-	-	-	-	●	●
- Coated glass yarn	-	-	●	●	-	-
- Stainless steel Jacket	-	-	-	-	-	-
Strength member
- GFK	-	-	-	-	-	-
- Stainless Steel	-	-	-	-	-	-
Cable retention
- Aramid yarn	●	●	●	●	●	●
- Crimp type	-	-	-	-	-	-
Overall diameter (mm)	8.2	8.2	10.9	10.9	11.7	11.7
Jacket - PUR black matte	●	●	●	●	●	●
Optical connector
- LC-Duplex	-	-	●	●	●	●
- LC based	●	●	●	●	●	●
Min. bending radius (cm)	8.2	8.2	10.9	10.9	12.1	12.1
Weight (kg / km)	60	60	103	103	138	138
Attenuation (dB / km)	@850 nm - 2.5@1300 nm - 0.5	@1310 nm - 0.5@1550 nm - 0.5	@850 nm - 2.5@1300 nm - 0.5	@1310 nm - 0.5@1550 nm - 0.5	@850 nm - 2.3@1300 nm - 0.6	@1310 nm - 0.33@1550 nm - 0.19
Bandwidth (MHz-km)
Refraction index	@850 nm - 1.462@1300 nm - 1.477	@1310 nm - 1.467@1550 nm - 1.467	@850 nm - 1.482@1300 nm - 1.477	@1310 nm - 1.467@1550 nm - 1.467	@850 nm - 1.482@1300 nm - 1.477	@1310 nm - 1.467@1550 nm - 1.467
Power solution 240V ac/16A	-	-	-	-	●*	●*

Packaging options and max. cable length see on the part number generator - www.neutrik.com

0

1

2

3

4

5

6

-0... Airspool

-1... opticalCON Case
-2... Drum Schill GT310
-3... Drum Schill GT380
-4... Drum Schill HT582
-5... Drum Schill GT450
-6... Drum Schill SK4812

Ordering Information

Breakout Adapter

MTP Breakout / Master Cable

Custom MTP® patch / master cable (LC / ST / SC)

• Low loss breakout cable
• Grade A premium ferrules
• LC (APC) / SC, ST breakout connector available
• Standard split length: 61 cm
• High performance USCONEC Elite® Male MTP® ferrule
• Interferometer measurement to guarantee high ferrule performance

High performance MTP ^® breakout cable for permanent and temporary installations. Standard premium grade A LCs (single-mode PC; multimode PC) guarantee low insertion loss values. 61 cm long fan-out for easy fiber breakout to any opticalCON DUO or QUAD chassis.

NKOB12SA-A-0-**	MTP	* 12 / LC - patch cable, Singlemode PC
NKOB12M-A-0-**	MTP	* 12 / LC - patch cable, Multimode PC
NKOB24SA-A-0-**	MTP	* 24 / LC - patch cable, Singlemode PC
NKOB24M-A-0-**	MTP	* 24 / LC - patch cable, Multimode PC

Attribute:

BO [ ] ... breakout connectors (ST, SC), APC on request

* ... Fiber optic transmission parameters exceeding standard quality, suitable for measurement applications.

Notice: Standard for out configuration comes with LC (PC) connectors.

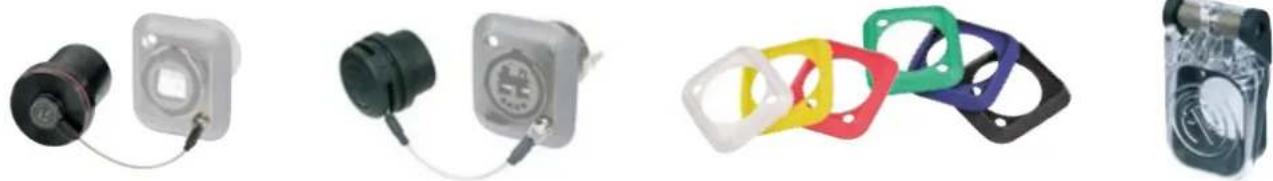

Accessories for Cable Connector

Four black-and-white Olympic-themed objects with Olympic rings, displayed against white background (no text or symbols)

NOR-*NAO4ML-ASCNO*X-A

SCNO*X-A	Rubber coated protection cover for opticalCON cable connectors, including black chrome front housing
SCNO*X-A-NC	Light weight noise cancelling rubber protection cover for opticalCON cable connectors, including front housing
SCNO*X-R11	Rubber coated protection cover for opticalCON cable connectors, ruthenium plated front housing, upgrade kit old connector
NOR-*	Color coding ring for cable connector chassis
NAO4ML-A	opticalCON QUAD LOOP connector, multimode
NAO4SL-A	opticalCON QUAD LOOP connector, singlemode

*: 0- black, 1- brown, 2- red, 3-orange, 4- yellow, 5- green, 6- blue, 7- violet, 8- grey, 9- white

0 1 2 3 4 5 6 7 8 9

1): find part numbers on www.neutrik.com

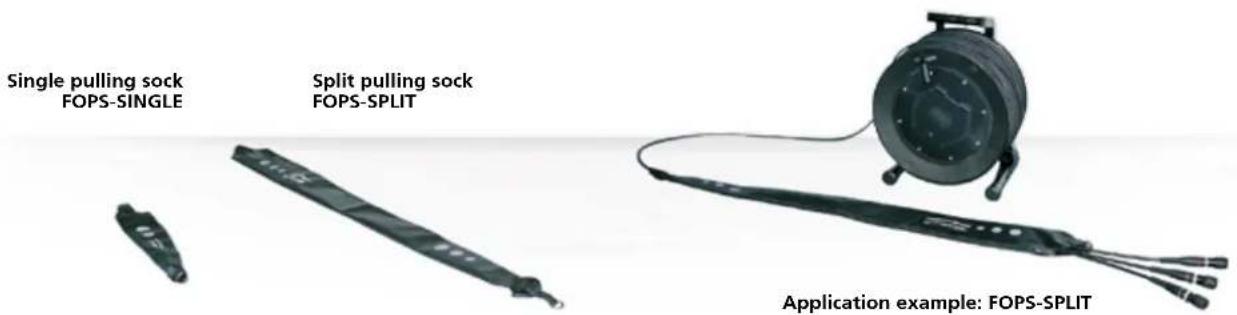

opticalCON Pulling Solutions

Single pulling sock FOPS-SINGLE Split pulling sock FOPS-SPLIT Application example: FOPS-SPLIT

• Pulling sock simplifies installation
• Pulling force >100 ~kg
  • Protects connectors in mated / unmated condition

FOPS-SPLIT	Split cable pulling sock
FOPS-SINGLE	Single cable pulling sock for DUO / QUAD or MTP	" cables.

opticalCON® LITE CABLE CONNECTORS

Three electronic device components with warning symbols and a cable, displayed against a dark background (no readable text or labels)

Small form factor Tactical patch cable Safe connection Cost effective

opticalCON DUO LITE
opticalCON QUAD LITE
opticalCON MTP®12 LITE
opticalCON MTP ^® 24 LITE

• 2 x 1.25 mm LC-ferrules
• 4 x 1.25 mm LC-ferrules
• 12 fiber - MTP® ferrule
24 fiber - MTP ✉ ferrule

opticalCON® DUO LITE

Cable Connector Assembly

Close-up of a black electric vehicle charging plug with cable (no text or symbols visible)

NKO2M-L*

• 2-channel fiber optic connection system
- Cost optimized fiber connection for semi and permanent installations
• Waterproof acc. to IP65 safety standard in mated condition
- Small form factor
- Push-Pull locking mechanism for save connection
• Easy to clean, no special tools required
- Compatible with standard opticalCON DUO chassis NO2-4FDW-A*

Tactical Patch Cable

Conventional patch cables are sensitive in terms of under cutting the minimum bending radius and lateral pressure.

Neutrik's tactical patch cables feature unique fiber design including a protection buffer which allows bendings with minimal radius and increased lateral pressure.

Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.

Buffer Protection buffer Glass cladding Glass core

130 [5.118] Ø27.0 [1.06]

Ø25.5 [1.07] 106 [4.173]

Technical Data Optical Cable Connector

Optical connector LC-Duplex
Fiber	Multimode, Singlemode PC / APC	●
Insertion loss	< 0.45 dB / connection ●
min. Return loss	MM PC > 25 dB	●
SM PC	> 50 dB ●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	>2'500	●
Cable retention force	Fiber only >500 N	●
	Hybrid >500 N	●
	SMPTE >500 N	●

MATERIAL

Shell	PBT 30% GR	●
Insert / Insulation	PBT 30% GR	●
Strain relief	Brass, Ni plated	●
Bushing	PA6	●
Boot	EPDM, rubber boot	●
Split sleeve	Ceramics	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flammability	UL94 HB	●
Protection class	in mated condition IP65	●

Technical Data Cables

	2M	2S(A)
Max. number of fibers	2	2
Mode - Multimode PC	●	-
- Single mode PC / APC	-	●
Fiber - 50 / 125-OM3	●	-
- 9 / 125-G657A2	-	●
Bend optimized fiber	●	●
Laser optimized fiber	●	-
Cable retention
- Aramid yarn	●	●
- Crimp type	-	-
Overall diameter (mm)	3.0	3.0
Jacket - PUR black matte	●	●
Optical connector
- LC-Duplex	-	-
- LC based	●	●
Min. bending radius (cm)	3.0	3.0
Weight (kg / km)	9	9
Attenuation (dB / km)	Ⓞ850 nm < 3.0 Ⓞ1300 nm < 1.0	Ⓞ1310 nm < 0.35 Ⓞ1550 nm < 0.21
Bandwidth (MHz-km)	Ⓞ850 nm >1500 Ⓞ1300 nm >500	Ⓞ850 nm >1500 Ⓞ1300 nm >500
Refraction index	Ⓞ850 nm - 1.481 Ⓞ1300 nm - 1.476	Ⓞ1310 nm - 1.467 Ⓞ1550 nm - 1.468

Accessories for Cable Connector

	SCNKO-L
	NOR-*
SCNKO-L	Rubber dirt protection for opticalCON LITE cable connector (spare part)
NOR-*	Color coding ring for cable connector chassis
	*: 0- black, 1- brown, 2- red, 3-orange, 4- yellow, 5- green, 6- blue, 7- violet, 8- grey, 9- white
	0	1	2	3	4	5	6	7	8	9

Packaging options and max. cable length see on the part number generator - www.neutrik.com

0

opticalCON® QUAD LITE

Cable Connector Assembly

Close-up of a black and white cable connector with a separate open lid (no text or symbols visible)

NKO4M-L*

• 4-channel fiber optic connection system
• Waterproof acc. to IP65 safety standard in mated condition
- Push-pull locking mechanism
• Recommended for point-to-point connection
• Easy to clean, no special tools required
- Tactical patch cable
• Compatible with standard opticalCON ADVANCED NO4FDW-A chassis

130 [5.118] Ø27.0 [1.06]

Ø25.5 [10*] 106 (4.173)

Technical Data Optical Cable Connector

Optical connector PC
Fiber	Multimode, Singlemode PC / APC	●
Insertion loss	< 0.45 dB / connection ●
min. Return loss	MM PC > 25 dB	●
SM PC	> 50 dB	●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	>2'500	●
Cable retention force	Fiber only >500 N	●
	Hybrid >500 N	●
	SMPTE >500 N	●

MATERIAL

Shell	PBT 30% GR	●
Insert / Insulation	PBT 30% GR	●
Strain relief	Brass, Ni plated	●
Bushing	PA6	●
Boot	EPDM, rubber boot	●
Split sleeve	Ceramics	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flammability	UL94 HB	●
Protection class	in mated condition IP65	●

Technical Data Cables

	4M	4S(A)
Max. number of fibers	4	4
Mode - Multimode PC	●	-
- Single mode PC / APC	-	●
Fiber - 50 / 125-OM3	●	-
- 9 / 125-G657A2	-	●
Bend optimized fiber	●	●
Laser optimized fiber	●	-
Cable retention
- Aramid yarn	●	●
- Crimp type	-	-
Overall diameter (mm)	3.5	3.5
Jacket - PUR black matte	●	●
Optical connector
- LC-Duplex	-	-
- LC based	●	●
Min. bending radius (cm)	3.5	3.5
Weight (kg / km)	14	12
Attenuation (dB / km)	Ⓞ850 nm < 3.0 Ⓞ1300 nm × 1.0	Ⓞ1310 nm < 3.0 Ⓞ1550 nm × 1.0
Bandwidth (MHz-km)	Ⓞ850 nm >1500 Ⓞ1300 nm >500	Ⓞ850 nm >1500 Ⓞ1300 nm >500
Refraction index	Ⓞ850 nm - 1.481 Ⓞ1300 nm - 1.476	Ⓞ850 nm - 1.481 Ⓞ1300 nm - 1.476

Accessories for Cable Connector

	SCNKO-L
	NOR-*
SCNKO-L	Rubber dirt protection for opticalCON LITE cable connector (spare part)
NOR-*	Color coding ring for cable connector chassis
	*: 0- black, 1- brown, 2- red, 3-orange, 4- yellow, 5- green, 6- blue, 7- violet, 8- grey, 9- white
	0	1	2	3	4	5	6	7	8	9

Packaging options and max. cable length see on the part number generator - www.neutrik.com

0

-0... Only airspool packaging available

opticalCON® MTP®12 LITE

Cable Connector Assembly

Close-up of an orange and black electrical connector with a green cable (no text or symbols visible)

NKO12SA-L*

• 12-channel MTP® based fiber optic connection system
• Waterproof acc. to IP65 safety standard in mated condition
• Recommended for multi-signal transmission
• Push-pull locking mechanism
- Custom color coding
• Rugged housing
- Rubber protection cap
• Compatible with standard opticalCON ADVANCED NO12FDW-A chassis

130 [5.118] Ø27.0 [1.06]

106 (4.173) Ø25.5 (1.0°) * ... MTP' is a trademark of US Conec (www.usconec.com)

Technical Data Optical Cable Connector

Optical connector MTP		*ELITE
female
Fiber	Multimode, Singlemode APC	●
Insertion loss	< 0.9 dB / connection	●
min. Return loss	MM PC > 25 dB	●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	>1'500	●
Cable retention force	Fiber only >500 N	●
	Hybrid >500 N	●
	SMPTE >500 N	●

MATERIAL

Shell	PBT 30% GR	●
Insert / Insulation	PC, PEI	●
Strain relief	Brass, Ni plated	●
Bushing	PA6	●
Boot	EPDM, rubber boot	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flammability	UL94 HB	●
Protection class	in mated condition IP65	●

Technical Data Cables

	12M	12SA
Max. number of fibers	12	12
Mode - Multimode PC	●	-
- Single mode PC / APC	-	●
Fiber - 50 / 125-OM3	●	-
- 9 / 125-G657A2	-	●
Bend optimized fiber	●	●
Laser optimized fiber	●	-
Cable retention
- Aramid yarn	●	●
- Crimp type	-	-
Overall diameter (mm)	3.5	3.5
Jacket - PUR black matte	●	●
Optical connector
- LC-Duplex	-	-
- LC based	●	●
Min. bending radius (cm)	3.5	3.5
Weight (kg / km)	12.0	12.0
Attenuation (dB / km)	Ⓞ850 nm < 3.0 Ⓞ1300 nm ≥ 1.0	Ⓞ1310 nm < 3.0 Ⓞ1550 nm ≥ 1.0
Bandwidth (MHz-km)	Ⓞ850 nm ≥ 1500 Ⓞ1300 nm ≥ 500	Ⓞ850 nm ≥ 1500 Ⓞ1300 nm ≥ 500
Refraction index	Ⓞ850 nm - 1.481 Ⓞ1550 nm - 1.476	Ⓞ1310 nm - 1.481 Ⓞ1550 nm - 1.476

Accessories for Cable Connector

Close-up of a metallic cylindrical device with a black connector and pointed tip, shown against a white background (no text or symbols visible)

SCNKO-L

NOR-*

SCNKO-L Rubber dirt protection for opticalCON LITE cable connector (spare part)

NOR-* Color coding ring for cable connector chassis

*: 0- black, 1- brown, 2- red, 3-orange, 4- yellow, 5- green, 6- blue, 7- violet, 8- grey, 9- white

0

1

2

3

A

5

6

7

8

9

Packaging options and max. cable length see on the part number generator - www.neutrik.com

0

-0... Only airspool packaging available

opticalCON® MTP®24 LITE

Cable Connector Assembly

Close-up of a black and red electrical plug connector with a cable, no visible text or symbols.

NKO24M-L*

• 24-channel MTP® based fiber optic connection system
• Waterproof acc. to IP65 safety standard in mated condition
• Recommended for multi-signal transmission
- Push-pull locking mechanism
- Custom color coding
- Rugged housing
- Rubber protection cap
• Compatible with standard opticalCON ADVANCED NO24FDW-A chassis

130 [5.118] Ø27.0 [1.06]

106 (4.173) Ø25.5 (1.0) * ... MTP' is a trademark of US Conec (www.usconec.com)

Technical Data Optical Cable Connector

Optical connector MTP		*ELITE
female
Fiber	Multimode, Singlemode APC	●
Insertion loss	< 0.9 dB / connection ●
min. Return loss	MM PC > 25 dB	●
	SM APC > 60 dB ●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	>1'500	●
Cable retention force	Fiber only >500 N	●
	Hybrid >500 N	●
	SMPTE >500 N	●

MATERIAL

Shell	PBT 30% GR	●
Insert / Insulation	PC, PEI	●
Strain relief	Brass, Ni plated	●
Bushing	PA6	●
Boot	EPDM, rubber boot	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flammability	UL94 HB	●
Protection class	in mated condition IP65	●

Technical Data Cables

	24M	24SA
Max. numbers of fibers	24	24
Mode - Multimode PC	●	-
- Single mode PC / APC	-	●
Fiber - 50 / 125-OM3	●	-
- 9 / 125-G657A2	-	●
Bend optimized fiber	●	●
Laser optimized fiber	●	-
Cable retention
- Aramid yarn	●	●
- Crimp type	-	-
Overall diameter (mm)	3.5	3.5
Jacket - PUR black matte	●	●
Optical connector
- LC-Duplex	-	-
- LC based	●	●
Min. bending radius (cm)	3.5	3.5
Weight (kg / km)	12.0	12.0
Attenuation (dB / km)	Ⓞ850 nm < 3.0 Ⓞ1300 nm ≥ 1.0	Ⓞ1310 nm < 3.0 Ⓞ1550 nm ≥ 1.0
Bandwidth (MHz-km)	Ⓞ850 nm ≥ 1500 Ⓞ1300 nm ≥ 500	Ⓞ850 nm ≥ 1500 Ⓞ1300 nm ≥ 500
Refraction index	Ⓞ850 nm - 1.481 Ⓞ1550 nm - 1.476	Ⓞ1310 nm - 1.481 Ⓞ1550 nm - 1.476

Accessories for Cable Connector

Close-up of a metallic cylindrical device with a black connector and pointed tip, shown against a white background (no text or symbols visible)

SCNKO-L

NOR-*

SCNKO-L	Rubber dirt protection for opticalCON LITE cable connector (spare part)
NOR-*	Color coding ring for cable connector chassis
	0- black, 1- brown, 2- red, 3-orange, 4- yellow, 5- green, 6- blue, 7- violet, 8- grey, 9- white

Packaging options and max. cable length see on the part number generator - www.neutrik.com

0

-0... Only airspool packaging available

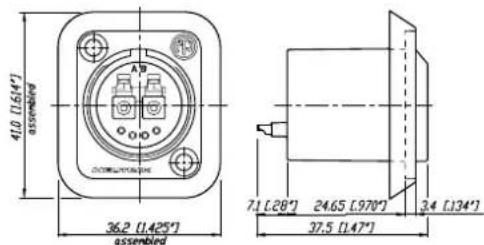

opticalCON® CHASSIS CONNECTORS

Close-up of a metallic connector with blue circular lens and a black terminal block labeled 'BA' (no readable text or symbols beyond branding)

Close-up of a black NEUTRIK connector socket with two white terminal blocks and gold pins (no readable text or symbols beyond branding)

Small form factor

Automatic sealing shutter

Simple integration

Close-up of a black electrical connector with a circular socket and mounting holes (no visible text or symbols)

Close-up of a black electrical connector with internal circuitry and gold connectors (no text or symbols visible)

opticalCON DUO

opticalCON QUAD

NO2-4FDW-A NO12FDW-A NO24FDW-ANO4FDW-A

Standard LC connector Standard LC connector MTP

opticalCON MTP* 12 o

^® ELITE MALE connector MTP

ticalCON MTP 24

* ELITE MALE connector

opticalCON® DUO ADVANCED

Chassis Connector

Close-up of a black square electronic component with a circular connector and four mounting holes (no visible text or symbols)

Close-up of a black electrical connector with internal ports and mounting flange (no visible text or symbols)

NO2-4FDW-A with SCDP-0

• Ruggedized and dirt-protected 2-channel fiber optic connection system
- Shutter with silicon gasket protects optical connection from dust and dirt
• Suggested OEM equipment connectors due to LC front compatibility
- Accommodates standard LC connectors on the rear for simple installation
• IP65 ingress protection in mated condition with SCDP-*
- Connection on the front side either by rugged opticalCON or standard LC connector

Example: opticalCON DUO Chassis with transceiver adapter and SFP tranceiver

Exploded view of a mechanical component showing internal parts and housing (no text or symbols visible)

NAO2*-SFP-LC

41.0 [1.64°] assembled 36.2 [1.425°] assembled 7.1 [28°] 24.65 [970°] 37.5 [1.47°] 3.4 [1.34°]

Technical Data Optical Chassis Connector

Optical connector		LC-DuplexFeedthrough
Fiber	Multimode, Singlemode PC / APC	●
Insertion loss	< 0.45 dB / connection
min. Return loss	MM PC > 25 dB	●
	SM PC > 50 dB	●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	> 5'000	●

ELECTRICAL

Number of electrical contacts	4 (5)
Rated current	6 A	●
	10 A (contact 1+4)	●
Contact resistance	<7 mΩ	●
Insulation resistance - initial:	>10 GΩ	●
- after damp heat test:	>1 GΩ	●
Dielectric strength	1500 V dc	●
Rated voltage	50 V ac	●

MATERIAL

Shell	Zinc diecast (ZnAl4Cu1), black chrome plating	●
Insert / Insulation	Polyamid PA 6, PBT 30% GR	●
Insert colour	MM: black, SM PC: blue; SM APC: green	●
Contacts	female: Brass (CuZn39Pb3)	●
Contact surface	Gold (gal 0.2 μm Au over 2 μm Ni)	●
Split sleeve	Ceramics	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flamability	UL94 HB	●
Solderability	complies with IEC 68-2-20	●
Protection class	in combination with SCDP-* in mated condition IP65	●

1 ... Not compatible to SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage. For detailed information ask for the White Paper "opticalCON @ SMPTE Indoor Applications".
^2 ... Shell ground contacts

opticalCON DUO Chassis

	Type	Plating	Fiber	Solder contacts	Shell ground contact	Wiring
NO2-4FDW-A	Chassis	Black Chrome	2	4	-	-
NO2-4FDW-1-A	Chassis	Black Chrome	2	4	1	-

opticalCON® QUAD ADVANCED

Chassis Connector

Close-up of a black square electronic component with a central display and mounting holes (no visible text or symbols)

Close-up of a black plastic electrical connector with three internal slots (no text or symbols visible)

NO4FDW-A with SCDP-0

• Ruggedized and dirt-protected 4-channel fiber optic connection system
- For point-to-point multichannel routing
- Laser protective metal shutter seals dust proof with two-component rubber gasket
• IP65 ingress protection in mated condition with SCDP-*
• Accommodates standard LC connectors on the rear for simple installation

410 (1.624°) 4 QUAD 36.2 (1.425°) assembled

26.45 (1.0417) 32.2 (1.268°) 2.3 (1.090°)

Technical Data Optical Chassis Connector

Optical connector		PC
		Feedthrough
Fiber	Multimode, Singlemode PC / APC	●
Insertion loss	< 0.45 dB / connection	●
min. Return loss	MM PC > 25 dB	●
	SM PC > 50 dB	●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force	< 45 N		●
Lifetime (mating cycles)	> 5'000		●

MATERIAL

Shell	Zinc diecast (ZnAl4Cu1), black chrome plating	●
Insert / Insulation	Polyamid PA 6, PBT 30% GR	●
Insert colour	MM: black, SM PC: blue; SM APC: green	●
Split sleeve	Ceramics	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flamability	UL94 HB	●
Protection class	in combination with SCDP-* in mated condition IP65	●

opticalCON QUAD Chassis

	Type	Plating	Fiber	Solder contacts	Shell ground contact	Wiring
NO4FDW-A	Chassis	Black Chrome	4	-	-	-

opticalCON® MTP® 12 ADVANCED

Chassis Connector

Close-up of a black square electronic component with an orange square button and mounting holes (no visible text or symbols)

Close-up of a black plastic connector with a central port and mounting holes (no text or symbols visible)

NO12FDW-A with SCDP-0

• Ruggedized and dirt-protected 12-channel fiber optic connection system
- For point-to-point multichannel routing
- Laser protective metal shutter seals dust proof with two-component rubber gasket
• IP65 ingress protection in mated condition with SCDP-*
- Accommodates standard MTP® ELITE MALE connectors on the rear for simple installation*

410 [1.654°] asssembled MTP 12 36.2 [1.425°] assembled 26.45 [1.041°] 2.3 [1.890°] 32.2 [1.268°]

* ... MTP* is a trademark of US Conec (www.usconec.com)

Technical Data Optical Chassis Connector

Optical connector MTP		*ELITE female
	Feedthrough
Fiber	Multimode, Singlemode APC	●
Insertion loss	< 0.9 dB / connection	●
min. Return loss	MM PC > 25 dB	●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force	< 45 N		●
Lifetime (mating cycles)	>2'500		●

MATERIAL

Shell	Zinc diecast (ZnAl4Cu1), black chrome plating	●
Insert / Insulation	Polyamid PA 6, PBT 30% GR	●
Insert colour	MM: black, SM PC: blue; SM APC: green	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flamability	UL94 HB	●
Protection class	in combination with SCDP-* in mated condition IP65	●

opticalCON MTP®12 Chassis

	Type	Plating	Fiber	Solder contacts	Shell ground contact	Wiring
NO12FDW-A	Chassis	Black Chrome	12	-	-	-

opticalCON® MTP®24 ADVANCED

Chassis Connector

Close-up of a black square electronic component with a red square button labeled 'MP 24' (no additional text or symbols visible)

Close-up of a black plastic connector with a central port and mounting holes (no text or symbols visible)

NO24FDW-A with SCDP-0

• Ruggedized and dirt-protected 24-channel fiber optic connection system
- For point-to-point multichannel routing
- Laser protective metal shutter seals dust proof with two-component rubber gasket
• IP65 ingress protection in mated condition with SCDP-*
- Accommodates standard MTP* ELITE MALE connectors on the rear for simple installation*

410 [1.654°] asssembled MTP 24 36.2 [1.425°] assembled 26.45 [1.041°] 2.3 [1.890°] 32.2 [1.268°]

* ... MTP* is a trademark of US Conec (www.usconec.com)

Technical Data Optical Chassis Connector

Optical connector		MTP® ELITE femaleFeedthrough
Fiber	Multimode, Singlemode APC	●
Insertion loss	< 0.9 dB / connection	●
min. Return loss	MM PC > 25 dB	●
	SM APC > 60 dB	●

MECHANICAL

Insertion / withdrawal force	< 45 N	●
Lifetime (mating cycles)	>2'500	●

MATERIAL

Shell	Zinc diecast (ZnAl4Cu1), black chrome plating	●
Insert / Insulation	Polyamid PA 6, PBT 30% GR	●
Insert colour	MM: black, SM PC: blue; SM APC: green	●

ENVIRONMENTAL

Operating temp.	-40°C to +75°C	●
Flamability	UL94 HB	●
Protection class	in combination with SCDP-* in mated condition IP65	●

opticalCON MTP®24 Chassis

	Type	Plating	Fiber	Solder contacts	Shell ground contact	Wiring
NO24FDW-A	Chassis	Black Chrome	24	-	-	-

Accessories for Chassis

SCCD-WSCDP-*SCNO-FDW-A

SCNO-FDW-A	Rugged sealing cover for opticalCON chassis connectors
SCD-NC	Rubber sealing cover for opticalCON chassis connectors
SCDP-*	D-Size sealing gaskets for chassis, color coding according to ANSI/TIA-568-3-D Standard
SCCD-W	Spring-loaded cover to seals D-size chassis connectors, IP65 rated

*: 0- black, 1- brown, 2- red, 3-orange, 4- yellow, 5- green, 6- blue, 7- violet, 8- grey, 9- white

^16 :find part numbers on www.neutrik.com

COUPLER

Weatherproof opticalCON coupler (adapter) for cable extensions.

Electronic device with black housing and blue internal panel, connected to a black connector (no visible text or symbols)

NAO2S-H1W-A

Black rectangular device with a light bulb and two circular components attached (no visible text or symbols)

NAO4MW-A

Black and green handheld device with orange lens and ear connector (no visible text or symbols)

NAO12SAW-A

Black rectangular device with red light source and attached black connector (no visible text or symbols)

NAO24MW-A

	Type	Colour	Plating	Fiber	Solder contacts	Shell ground contact	Wiring
NAO2M-H1W-A	Coupler	black	black	2 x LC-Duplex Multimode PC	4 x 0.75 mm^2	● ISO/IEC 11801
NAO2S-H1W-A	Coupler	blue	black	2 x LC-Duplex Singlemode PC	4 x 0.75 mm^2	● ISO/IEC 11801
NAO2SA-H1W-A	Coupler	green	black	2 x LC-Duplex Singlemode APC	4 x 0.75 mm^2	● ISO/IEC 11801
NAO2SA-H1W-AX	Coupler	green	black	2 x LC-Duplex Singlemode APC	4 x 0.75 mm^2	●	crossed
NAO4MW-A	Coupler	black	black	4 x Multimode PC	-	-	ISO/IEC 11801
NAO4MW-AX	Coupler	black	black	4 x Multimode PC	-	-	crossed
NAO4SW-A	Coupler	blue	black	4 x Singlemode PC	-	-	ISO/IEC 11801
NAO4SW-AX	Coupler	blue	black	4 x Singlemode PC	-	-	crossed
NAO4SAW-A	Coupler	green	black	4 x Singlemode APC	-	-	ISO/IEC 11801
NAO4SAW-AX	Coupler	green	black	4 x Singlemode APC	-	-	crossed
NAO4SW-A-X	Coupler	red	black	4 x Singlemode PC	-	-	ISO/IEC 11801
NAO12MW-A	Coupler	black	black	12 x Multimode PC	-	-	Type A
NAO12SAW-A	Coupler	green	black	12 x Singlemode APC	-	-	Type A
NAO24MW-A	Coupler	black	black	24 x Multimode PC	-	-	Type A
NAO24SAW-A	Coupler	green	black	24 x Singlemode APC	-	-	Type A

TRANSCEIVER ADAPTER

The opticalCON Transceiver Adapter connects an opticalCON chassis (NO2-4FDW*) and a LC SFP transceiver. NAO2*-SFP-LC consists of two LC-SFP adapters, 2 flat gaskets (1 mm and 2 mm) and one NO2-4FDW-A without copper contacts.

MM Transceiver Adapter grey

SM Tranceiver Adapter blue

SM APC Tranceiver Adapter green

• Eases design integration of the opticalCON chassis connectors (NO2-4FDW*) in combination with SFP transceivers
  • Compatible with all LC SFP transceivers
  • Automatic sealing shutter of the opticalCON avoids transceiver soiling
• Enables use of rugged opticalICON or conventional LC connectors
• Avoids vandalism, opticalCON "protects" the transceiver

NAO2M-SFP-LC	grey	MM Transceiver Adapter + opticalCON chassis (NO2-4FDW-A) without copper contacts
NAO2S-SFP-LC	blue	SM Transceiver Adapter + opticalCON chassis (NO2-4FDW-A) without copper contacts
NAO2SA-SFP-LC	green	SM APC Transceiver Adapter + opticalCON chassis (NO2-4FDW-A) without copper contacts

NAOBO - Breakout ADAPTER

NAOBO is a flexible chassis mounting and adaption solution with cable strain relief to meet any kind of standard fiber connector (e.g. LC, SC, ST). It can be fixed to a rack with a cable tie. The breakout adapter can be mounted straight or angled.

NAOBO (KIT) Application example

• Flexible chassis mounting solution
- Adaption solution to meetexisting non-opticalCON fiber installation
• NAOBO can be equipped with any D-size chassis connector

NAOBO Breakout Adapter Kit consisting of:

1 NAOBO plastic housing, 1 counter nut, 1 90° rear shell, 1 PG-gland, 1 cable tie and 2 screws

Breakout Solutions

Breakout Box

Open black plastic case with multiple blue-lit modules and a display screen showing technical specifications (no readable text or symbols)

NO12SABB6D-A

Black and blue handheld battery pack with open case showing internal display (no visible text or symbols)

NO4SBB4D-PM-A
(with powerMONITOR)

Black plastic hard case with visible internal components and a small circular object on the side (no text or symbols)

opticalICON Breakout Box

• Breakout boxes are used to split multichannel connections as the opticalCON QUAD and MTP® to either dual or single channels
  • Dust and waterproof according to IP67 in mated condition

opticalCON Breakout Box with powerMONITOR

The breakout boxes are used to split a 4-channel point-to-point opticalICON QUAD connection. In mated condition the boxes are dust and water resistant according protection class IP54. The breakout boxes equipped with the opticalICON powerMONITOR offer attenuation measuring for all 4 channels.

The opticalCON powerMONITOR is a cost-saving, purpose-built measurement (monitoring) device for professional fiber optic broadcast, audio and video applications.

With simultaneous monitoring of attenuation for up to 4 transmission channels, powerMONITOR provides an immediate, "on air" view into fiber optic signal strength. Visual and audible alarms can be set individually for each fiber channel, based on each channel's power budget. powerMONITOR provides clear status information, delivers early warnings for potential problems, and assists with maintenance scheduling.

• On-air monitoring of fiber optic transmission quality
• Simultaneous power measurement (+0.0/-0.1 dB measurement accuracy) of up to 4 channels
• Programmable-threshold alarms
- Rackmount and mobile units
- Operates on rechargeable battery power or on mains power with fail-safe battery backup in case of unexpected mains power interruption
• Low loss (0.5 dB maximum split loss)
- Wavelength selectable: multimode 850 nm or 1300 nm, single mode 1310 nm, 1550 nm or WDM (wave division multiplexing)

Breakout Box

NO4SBB2D-A1) 1 x NO4FDW-A to 2 x NO2-4FDW-A, Singlemode PC
NO4SABB2D-A1) 1 x NO4FDW-A to 2 x NO2-4FDW-A, Singlemode APC
NO4MBB2D-A1) 1 x NO4FDW-A to 2 x NO2-4FDW-A, Multimode PC
NO4SBB4D-A 1 x NO4FDW-A to 4 x NO2-4FDW-A, Singlemode PC
NO4SABB4D-A	1 x NO4FDW-A to 4 x NO2-4FDW-A, Singlemode APC
NO4MBB4D-A	1 x NO4FDW-A to 4 x NO2-4FDW-A, Multimode PC
NO12SAABB6D-A	1 x NO12FDW-A to 6 x NO2-4FDW-A, Singlemode APC to APC
NO12SABB6D-A	1 x NO12FDW-A to 6 x NO2-4FDW-A, Singlemode APC to PC
NO12MBB6D-A	1 x NO12FDW-A to 6 x NO2-4FDW-A, Multimode PC
NO12SAABB3Q-A	1 x NO12FDW-A to 3 x NO4FDW-A, Singlemode APC to APC
NO12SABB3Q-A	1 x NO12FDW-A to 3 x NO4FDW-A, Singlemode APC to PC
NO12MBB3Q-A 1 x NO12FDW-A to 3 x NO4FDW-A, Multimode PC
NO24SABB2M12-A	1 x NO24FDW-A to 2 x NO12FDW-A, Singlemode APC
NO24MBB2M12-A	1 x NO24FDW-A to 2 x NO12FDW-A, Multimode PC

Breakout Box with powerMONITOR

NO*BB1*-PM-A1) breakout box equipped with opticalCON powerMONITOR1) ... add attribute X for crossed fiber wiring

Power Supply for powerMONITOR

NOPS-1RU-PM		NOPS-E-PMNOPS-3RU-PM

NOPS-1RU-PM

NOPS-1RU-PM	opticalCON powerMONITOR 5W Power Supply, powers up to 2 power monitors, Intern. AC plugs included
NOPS-3RU-PM	opticalCON powerMONITOR 15W Power Supply, 1 + 3RU use, powers up to 9 power monitors, IEC power socket
NOPS-E-PM	opticalCON powerMONITOR, power supply extension cable to dasisy-chain power

214 (8.425) 98 (3.050)

172 [6.772] V-KEU XCN WARNING Breako

On air monitoring of fiber optic transmission quality

The opticalICON powerMONITOR is a cost-saving, purpose-built measurement (monitoring) device for professional fiber optic broadcast, audio and video applications.

With simultaneous monitoring of attenuation for up to 4 transmission channels, powerMONITOR provides an immediate, "on air" view into fiber optic signal strength. Visual and audible alarms can be set individually for each fiber channel, based on each channel's power budget. powerMONITOR provides clear status information, delivers early warnings for potential problems, and assists with maintenance scheduling.

• On-air monitoring of fiber optic transmission quality
  • Simultaneous power measurement (+0.0/-0.1 dB measurement accuracy) of up to 4 channels
  • Programmable threshold alarms
• Rack mount and mobile units
• Operates on rechargeable battery power or on mains power with fail-safe battery backup in case of unexpected mains power interruption
  • Low loss (0.5 dB maximum split loss)
• Wavelength selectable: multimode 850 nm or 1300 nm, single mode 1310 nm, 1550 nm or WDM (wave division multiplexing)

Example

opticalCON powerMONITOR NEUTRIC

Front view: e.g. 4F (opticalCON QUAD)

Back panel of three connected audio/video connectors with no visible text or symbols

Rear view: e.g. 2R (opticalCON DUO)

powerMONITOR

Channel Mode Chassis Front Chassis Rear
NO2S-2F-2R-PM-A	2		S	DUO
NO2SA-2F-2R-PM-A	2	SA		DUO
NO4SA-2F-2R-PM-A	4	SA		QUAD
NO4SA-4F-4R-PM-A	4	SA		QUAD
NO4M-4F-4R-PM-A	4	M	QUAD	QUAD

^1) ... add attribute X for crossed fiber wiring

DUO

Power Supply for powerMONITOR

Product photo of a black-and-white electrical adapter with multiple power plugs and a connected cable (no visible text or symbols)

NOPS-1RU-PM

Black electronic device with metallic connector and cable, no visible text or symbols

NOPS-3RU-PM

Coiled black audio/video cable with two metallic connectors (no text or symbols visible)

NOPS-E-PM

NOPS-1RU-PM	opticalCON powerMONITOR 5W Power Supply, powers up to 2 power monitors, Intern. AC plugs included
NOPS-3RU-PM	opticalCON powerMONITOR 15W Power Supply, 1 + 3RU use, powers up to 9 power monitors, IEC power socket
NOPS-E-PM	opticalCON powerMONITOR, power supply extension cable to dasisy-chain power

1 RU & 3 RU 19" Rack units with powerMONITOR

Exterior view of a black industrial control unit with a digital display and control panel (no visible text or symbols)

NO4S-4F-2R-PM-A (up to two powerMONITOR's)

Front view of a black rack-mounted power monitor with multiple ports and indicator lights (no visible text or symbols)

Panel Solutions

19" D-Shape Z-Panels & Plates

Two black industrial server racks with labeled connectors and ports, no visible text or symbols on the modules themselves.

• Space saving design, ideal for cramped rack applications such as OB truck I/O panels
• Frame plate can be loaded with opticalCON DUO or QUAD and E2000 or ST or SC
• Frames can be equipped with frame plates (D-shape) or blind plates
  • Best cable bend protection
  • 1 RU or 3 RU frame

Application Example:

NO2-4FDW-A NO2-4FDW-A NZPFD-2 2 x NOSPS-50LC-50LC

Panel frame 1RU Panel frame 3RU

483 (19.02) 44 (1.72) 420 (16.54) 49 (1.92)

483 [19.02] 133 (5.24) 38.5 [1.52] 435 [17.13] 47.5 [1.87]

Z-Panels

Panel frame 1RU: NZPF1RU

e.g. opticalCON Chassis NO4FDW-A with sealing gasket SCDP-5

Panel frame 3RU: NZPF3RU

e.g. NO2-4FDW-A e.g. NO4FDW-A with SCDP-4

5

6

7

8

9

10

Angled rack panel: NZP1RU-8

Exterior view of a black rectangular electronic device with multiple circular ports, mounted on a mounting bracket (no text or symbols visible)

Splitter: NOSPS-50LC-50LC

100 % 50 % 50 %

Panel Frame

1 NZPF1RU Panel frame 1RU for opticalCON panel frames
2 NZPF3RU Panel frame 3RU for opticalCON panel frames
3 NZP1RU-8 Panel 1RU, 30° forward-turned and offers 8 x D-shape cutouts with M3 threaded fastening holes
3 NZP1RU-12 Panel 1RU, 30° forward-turned and offers 12 x D-shape cutouts with M3 threaded fastening holes

Panel Plate

4 NZPFBP Panel frame blind plate
5 NZPFD Panel frame plate for opticalCON chassis connector
6 NZPFD-2 Panel frame plate 2 x D-shape cutouts (works only on NZPF3RU Panel)
7 NZPFD-4E Panel frame plate 1 x D-shape cutout, 2 E2000 compact chassis cutouts
8 NZPFD-4SC Panel frame plate 1 x D-shape cutout, 2 SC compact chassis cutouts
9 NZPFD-4ST Panel frame plate 1 x D-shape cutout, 4 ST chassis cutouts
10 NZPFD-4SC-S Panel frame plate 1 x D-shape cutout, 4 SC simplex cutouts

Splitter

11 NOSPM-LC50-LC50 Multimode 1 x 2 splitter LC*
11 NOSPS-LC50-LC50 Singlemode PC 1 x 2 splitter LC*

* ... other connectors (SC, ST, E200) on request

Ordering Information

Fiber Optic Measurement & Cleaning Kit

CAS-FOCD-ADV Fiber Optic Cleaning Devices - CASE contains hand microscope, opticalCON measurement adapter, cleaning set

FOCD-CF 10 Cleaning Fluid

FOCD-DC125 1) DRY Cleaner 1.25 mm

FOCD-DC250 1) DRY Cleaner 2.5 mm

FOCD-DCM DRY Cleaner MTP

*, cleaning brush for guidance holes

FOCD-DW 1) Lint-free dry wipes for fiber cleaning

CAS-FOMD-ADV Fiber Optic Measurement Devices - CASE contains power source frame, 1.25 mm adapter and multimode attenuator

FOMD-TC-MM850 2) Transceiver 850 nm multimode

FOMD-TC-SM1310 2) Transceiver 1310 nm singlemode

FOMD-TC-SM1550 2) Transceiver 1550 nm singlemode

FOMD-FM-MM 2) Fiber meter multimode

FOMD-FM-SM 2) Fiber meter singlemode

1) ... refill consumable, in CAS-FOCD included

2) ... combine with CAS-FOMD

Exterior view of a cylindrical mechanical component with attached wire (no text or symbols visible)

FOCD-STD FOCD-STQ FOCD-STM

Exterior view of a cylindrical mechanical component with a coiled cable (no text or symbols visible)

White cylindrical mechanical component with attached black and white wires (no text or symbols visible)

• Enhanced inspection and cleaning procedure
- Lockable with opticalCON cable connector
• Compatible with conventional cleaning and inspection equipment

FOCD-STD Service tool for opticalCON DUO

FOCD-STQ Service tool for opticalCON QUAD

FOCD-STM Service tool for opticalCON MTP

opticalCON Connector Field Assembly

Product photo of opticalicon and NEUTRIC tools including crimping, tape, and adhesive (no text or symbols visible on main items)

opticalCON connector Field assembly

• Neutrik opticalCON field assembly kit
• Based on Corning UniCam pre-polished LC connectors
  • No additional tooling required
• Requires completion of a certified Neutrik opticalCON field assembly training
  • Find more details on www.neutrik.com

DENSTEIN (HEADQUARTERS) Piet 143,

LIECHTENST NEUTRIK AG, Im alten Rieck 9494 Schaan, Liechtenstein T [phone], F [phone], neutrik@neutrik

CHINA Ningbo Neutrik Trading Co., Ltd. Fengjia Village, Hai Shu District, Ningbo, T [phone], [e-mail]

HONG KONG Neutrik Hong Kong LTD., Suite 18, 7th Floor Shatin Galleria Fotan, Shatin T [phone], [e-mail]

JAPAN Neutrik Limited, Yusen-Higashinihonbashi-Ekimae Bldg., 3-7-19 Higashinihonbashi, Chuo-ku, Tokyo 103 T [phone], [e-mail]

INDIA Neutrik India Pvt. Ltd., Level 3, Neo Vitt, Above Audi Show Room, Andheri West, Mumbai, 480 T [phone], [e-mail]

USA 4115 Taggart Creek Road, 28208

Neutrik USA Inc., 28200 North Carolina, 28200

Charlotte, North Carolina, T [phone], info@neural.

GERMANY / NETHERLAND GmbH, Felix-Wankel St

Neutrik Vertrieb 85221 Dachau, Germany T [phone], [e-mail]

ASSOCIATED COMPANIES Ryderkerstrasse 35, 8902 Urdorf, Switzerland

opticalCON Guide - NF05 V22 - 2019 03 - Data subject to change without NEUTRIK®, opticalCON® are registered trademarks of NEUTRIK AG. ALL RIGHTS RESERVED

www.neutrik.com
