USER MANUAL NBTB75CLI5 Neutrik

natural_image Circular logo with white stylized 'T' and curved line inside a green ring (no text or symbols)

BNC Connectors

QR code image containing encoded data, no visible human-readable text

Content Page

UHD BNC - rearTWIST Cable Connectors ..... 124

UHD BNC - Chassis 124

rearTWIST HD Cable Connectors 125

Cable to Connector Guide 126

Connector to Cable Guide 128

HD BNC Chassis & Cable Jack Panel Version ..... 130

Technical Data 131

Accessories 132

NEUTRIK ^® , crystalCON ^® , etherCON ^® , maxCON ^® , miniCON ^® , nanoCON ^® , neutriCON ^® , opticalCON ^® , powerCON ^® , Profi ^® , rearTWIST ^® , silentPLUG ^® , speakON ^® , DIWA ^® , XIRIUM ^® , are registered trademarks of Neutrik AG.

NEUTRIK®

75 Ω BNC Connectors

Neutrik NBTB75CLI5 - Ω BNC Connectors - 1

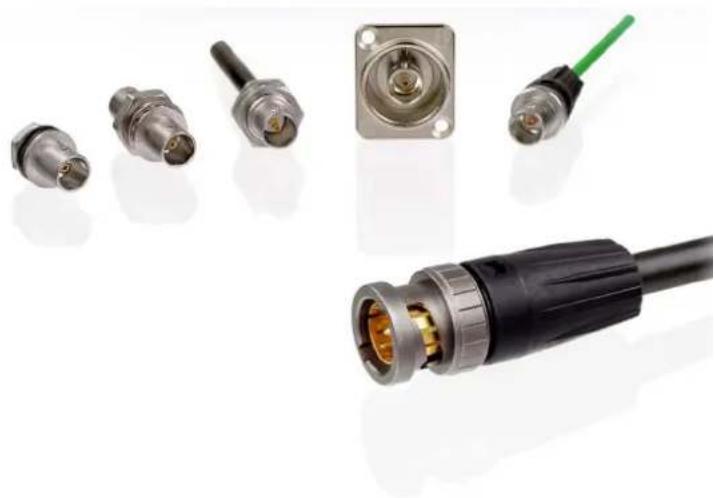

natural_image Collection of various electronic connectors and a black cable, including metallic connectors, a connector, and a green cable (no text or symbols visible)

Neutrik offers a variety of 75 Ω cable and chassis BNC connectors. The rearTWIST cable connectors are easy to handle in high density applications such as video patchbays and switches, provide a tactile and fast assembly and offer colour coding as a standard. All parts of our BNC series are precisely machined to our high quality standards.

rearTWIST UHD - BNC Connector

With the transition to 4K or even 8K-signals the impedance of BNC connectors became more important than ever. Every deviate impedance has a negative influence on return loss and VSWR (Voltage Standing Wave Ratio) which are important measurements for reflected signals in a transmission line. Especially on high data rates up to 24 Gb/s, as they occur when transmitting ultra high definition (UHD) signals, an impedance mismatch results in high return loss.

Neutrik's new rearTWIST UHD-BNC connector is a specifically for high frequencies optimized BNC connector; based on the proven rearTWIST technology. The unique insulator design in combination with the reduced crimp diameter of the gold plated center pin allows UHD-data transmission within the required return loss limits.

UHD

4K8K

Neutrik NBTB75CLI5 - rearTWIST UHD - BNC Connector - 2

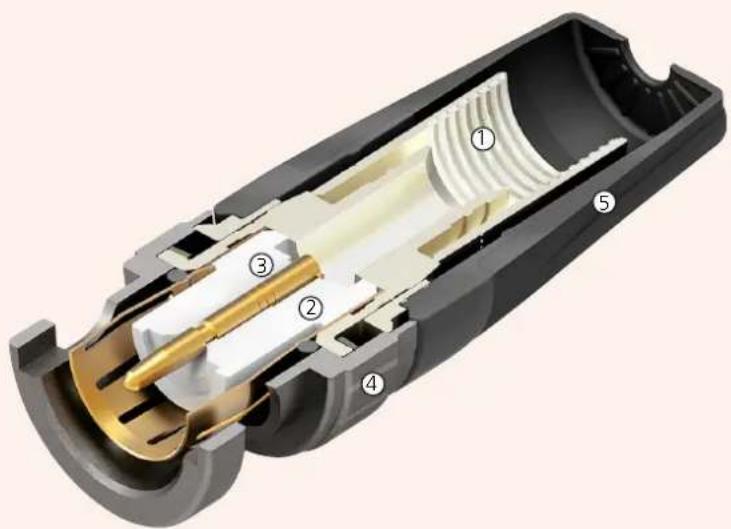

natural_image Cross-sectional diagram of a mechanical device showing internal components and fluid flow (no text or symbols)

Features & Benefits

① Screen and cable jacket crimp instead of screen crimp only. Grooved inner surface holds the cable jacket to prevent tearing braids.
② High frequency optimized insulator design for UHD-transmissions.
③ Reduced pin crimp diameter for performance improvement (return loss values).
④ Swiss antraloy plating
⑤ rearTWIST boot for easy access in high density applications.

Neutrik NBTB75CLI5 - Features & Benefits - 1

Neutrik NBTB75CLI5 - Features & Benefits - 2

Neutrik NBTB75CLI5 - Features & Benefits - 3

4K8K

Gold plated contacts Precise Swiss machined parts

rearTWIST UHD & Panel Version

Neutrik NBTB75CLI5 - rearTWIST UHD & Panel Version - 1

natural_image Close-up of a black plastic connector with gold-colored internal body (no text or symbols visible)

NBNC75BFG7X

Neutrik NBTB75CLI5 - rearTWIST UHD & Panel Version - 2

natural_image Close-up of a black mechanical component with a central fan and mounting holes (no visible text or symbols)

NBB75DFGX

  • Optimized contact pin and insulator design for UHD-data transmission
    • Proven rearTWIST technology
  • Swiss antraloy plating
    • Available for common cable types
    • Fully compatible with conventional BNC chassis connectors
    • D-size feedthrough chassis connectors

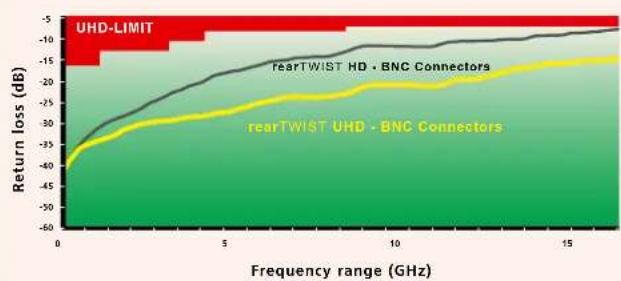

Neutrik BNCs – Excellent return loss!
Neutrik NBTB75CLI5 - rearTWIST UHD & Panel Version - 3

line | Frequency range (GHz) | rearTWIST HD - BNC Connectors (dB) | rearTWIST UHD - BNC Connectors (dB) | | --------------------- | ---------------------------------- | ----------------------------------- | | 0 | -35 | -40 | | 5 | -20 | -25 | | 10 | -10 | -15 | | 15 | -5 | -10 |

NBNC75* NBB75DFG
Neutrik NBTB75CLI5 - rearTWIST UHD & Panel Version - 4

26 [1.024°] 31 [1.220°]

34 [1.34°] 4.7 [185°] 0.5 [020°]

Neutrik NBTB75CLI5 - rearTWIST UHD & Panel Version - 7

Neutrik NBTB75CLI5 - rearTWIST UHD & Panel Version - 8

Neutrik NBTB75CLI5 - rearTWIST UHD & Panel Version - 9

Neutrik NBTB75CLI5 - rearTWIST UHD & Panel Version - 10

Neutrik NBTB75CLI5 - rearTWIST UHD & Panel Version - 11
Bayonet locking Gold plated contacts 9 different colors available
Female cable jack

rearTWIST HD

Neutrik NBTB75CLI5 - rearTWIST HD - 1

natural_image Close-up of a black and silver electrical connector with copper-colored internal body (no text or symbols visible)

NBNC75BFG7

Neutrik NBTB75CLI5 - rearTWIST HD - 2

natural_image Close-up of a yellow and black plastic connector with internal orange and black bands (no text or symbols visible)

NBNC75BLP7
Neutrik NBTB75CLI5 - rearTWIST HD - 3

natural_image Close-up of a metallic connector with green cable, no visible text or symbols

Neutrik NBTB75CLI5 - rearTWIST HD - 4

natural_image Close-up of a blue and silver mechanical connector (no text or symbols visible)

NBNB75GLP9

  • "rearTWIST Principle" locking / unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
    • Large version for RG 11 cable
  • Precise Swiss machined brass parts for outstanding durability
    • Accessories include color coded boots in 10 standard colors, crimp tool and dies
  • Sleek female cable jack e.g. for Y-cables

NBNC75\*

Neutrik NBTB75CLI5 - NBNC75\* - 1

rearTWIST rearTWIST rearTWIST Cable Jack Pin Crimp Hex Crimp Stripping

UHD HD HD Tiny & Panel in mm in mm Tool

UHD

H

CS ONCRT

CS-BNC-LCS

CS-BNC-LCV

+CS-BNC-TCI

Belden

Belden 1277R, 1278R, 1279RNBTC75BNN51.64.53●--●
Belden 1406B, 1407B, 1417BNBTC75BVV51.65.00●--●
Belden 1426A, 1505A (ANH), 4505RNBNC75BLP9XNBNC75BLP9NBNB75GLP91.071.66.47●---
Belden 1505FNBNC75BJP9XNBNC75BJP91.071.66.47●---
Belden 1506ANBNC75BJ91.65.41●---
Belden 1520A, 1521A, 1522A, 179DTNBTC75BFI4NBTB75CFI41.64.06●--●
Belden 1694A (ANH, DNH), 4694R
Belden 70082, 70082CH & 70082NHNBNC75BTU11XNBNC75BTU111.071.67.36●---
NBNC75BTUP11X1.077.06●---
Belden 1694FNBNC75BRU111.67.36●---
Belden 1695ANBNC75BQP11XNBNC75BQP111.66.47●---
Belden 1855ANBNC75BDD6XNBNC75BDD61.071.64.53●---
Belden 1865ANBTC75BXX61.65.00●--●
Belden 1855ENHNBNC75BFG7XNBNC75BFG71.071.65.00●---
Belden 7731A (ANH)NBLC75BVZ171.810.00--●-
Belden 8218NBTC75BXX51.65.00●--●
Belden 8241NBNC75BLP7XNBNC75BLP71.071.66.47●---
Belden 8241FNBNC75BLP9XNBNC75BLP9NBNB75GLP91.071.66.47●---
Belden 8281NBNC75BXY91.68.23●---
Belden 8281FNBNC75BYY91.68.23●---
Belden 9221NBTC75BLI41.64.06●--●
Belden 1794ANBNC75BZV141.68.23●---
Canare
Canare L-3CFB, L-3C2VSNBNC75BHK71.65.41●---
Canare L-4CFBNBNC75BLP9XNBNC75BLP9NBNB75GLP91.071.66.47●---
Canare L-4.5CHD, L-4.5CHWSNBNC75BTU11XNBNC75BTU111.071.67.36●---
Canare L-5CFBNBNC75BYY111.68.23●---
Canare LV-61SNBNC75BLP7XNBNC75BLP71.071.66.47●---
Canare LV-77SNBNC75BYY91.68.23●---
Canare V(3-5)-3CNBNC75BGG71.65.00●---
Canare V(3-5)-4CFBNBNC75BJ91.65.41●---
Canare V(3-5)-5CNBNC75BRS91.67.01●---
Canare V(3-5)-5CFBNBNC75BWS111.67.01●---
Canare L-1.5C2VSNBTC75BLI41.64.06●--●
Canare L-3CFWNBNC75BLP7XNBNC75BLP71.071.66.47●---
Canare L-5CFWNBNC75BYY111.68.23●---
Canford
Canford SDV-MNBTB75CNN51.64.53●--●
Canford SDV, SDV-X, SDMNBNC75BFG7XNBNC75BFG71.071.65.00●---
Canford SDV-L, SDV-FNBNC75BWS111.67.01●---
Canford SDV-HDNBLC75BVZ171.810.00--●-
Canford SDV-F-HDNBNC75BWU131.67.36●---
Canford VCS (BBC PSF1/3)NBNC75BLS71.67.01●---
Clark
Clark CD7559-0, CD7559F-0NBNC75BLP9XNBNC75BLP91.071.66.47●---
Clark CD7523-7NBNC75BDD6XNBNC75BDD61.071.64.53●--●
Clark CD7506-0NBNC75BTU11XNBNC75BTU111.071.67.36●---
Clark CD7506F-0NBNC75BRU111.67.36●---
Commscope
Commscope 2065VNBNC75BIJ91.65.41●---
Commscope 2279VNBNC75BQP111.66.47●---
Commscope 5563NBNC75BLP7XNBNC75BLP71.071.66.47●---
Commscope 5565NBNC75BLP9XNBNC75BLP9NBNB75GLP91.071.66.47●---
Commscope 5765NBNC75BTU11XNBNC75BTU111.071.67.36●---
Commscope 7536 (03-05)NBTC75BXX61.65.00●--●
Commscope 7538NBNC75BDD6XNBNC75BDD61.071.64.53●---

rearTWIST rearTWIST rearTWIST Cable Jack Pin Crimp Hex Crimp Stripping

UHD HD HD Tiny & Panel in mm in mm Tool

UHD

H

CS ANC RT

CS-BNC-LCS

CS-BNC-LCV

CS-RNC-TCI

Draka Multimedia Cable

0.31 / 1.45 AF, 753-1304(2),
755-1302NBTC75BFI4NBTB75CFI41.64.06●-●
0.41 / 1.9 AF, 753-1104, 755-1103,
755-1101NBTC75BNN5NBTB75CNN51.64.53●-●
0.51 / 2.3 Dz, 757-1001, VADN 7243NBTC75BVX61.65.00●-●
0.6 / 2.8 AF, 0.6 L / 2.8 AFNBNC75BFG7XNBNC75BFG71.071.65.00●--
HD Pro 0.6/2.8 AFNBNC75BFG7XNBNC75BFG71.071.65.00●--
0.6 / 3.7, 0.6L / 3.7NBNC75BLP7XNBNC75BLP71.071.66.47●--
0.6 / 3.7 DzNBNC75BLS71.67.01●--
0.8 / 3.7 AF, 755-801(803, 804)NBNC75BLP9XNBNC75BLP9NBNB75GLP91.071.66.47●--
Highflex 08L/3.7D, HD Pro 0.8/3.7 AFNBNC75BLP9XNBNC75BLP91.071.66.47●--
0.8 / 4.9 DzNBNC75BXY91.68.23●--
1.0 / 4.8 AF, 755-901/5NBNC75BUU11XNBNC75BUU11NBNB75GUU111.071.67.36●--
1.2L / 4.8Dz, 1.2L / 4.95AFNBNC75BWU131.67.36●--
1.4 / 6.6 AFNBLC75BSX141.759.73-●-
1.6 / 7.3AFNBLC75BVZ171.810.00--●
Suhner
Suhner G02233NBTC75BFI4NBTB75CFI41.64.06●-●
Suhner G04233DNBNC75BLS71.67.01●--
Suhner S02223NBTC75BLI41.64.06●-●
Suhner S04233, S04263NBNC75BLP9XNBNC75BLP9NBNB75GLP91.071.66.47●--
Suhner S05133-07NBNC75BTU11XNBNC75BTU111.071.67.36●--
Suhner S05163-02NBNC75BTU11XNBNC75BTU111.071.67.36●--
Percon
Percon VK2NBTC75BNN51.64.53●-●
Percon VK5NBNC75BFG7XNBNC75BFG71.071.65.00●--
Percon VK6NBNC75BLP9XNBNC75BLP91.071.66.47●--
Percon VK7NBNC75BUU11XNBNC75BUU111.071.67.36●--
Percon VK77NBNC75BTU11XNBNC75BTU111.071.67.36●--
Percon VK770FNBNC75BWU131.67.36●--
Percon VK8NBLC75BSX141.759.73-●-
Percon VK9NBLC75BVZ171.810.0--●
Percon VK95NBNC75BLP7XNBNC75BLP71.071.66.47●--
Van Damme
Van Damme 268-175-000NBNC75BUU11XNBNC75BUU111.071.67.36●--
Van Damme 268-275-000NBNC75BJP9XNBNC75BJP91.071.66.47●--
Van Damme 268-306-000NBNC75BLP9XNBNC75BLP91.071.66.47●--
Van Damme 268-408-000NBTC75BFI141.66.47●-●
Van Damme 268-475-000NBNC75BTU11XNBNC75BTU111.071.67.36●--
Van Damme 268-675-000NBNC75BTU11XNBNC75BTU111.071.67.36●--
Van Damme 278-475-000NBLC75BVZ171.810.00--●
Van Damme 278-175-000NBNC75BUU11XNBNC75BUU111.071.67.36●--
Van Damme 278-975-000NBNC75BLP9XNBNC75BLP91.071.66.47●--
Van Damme 278-775-000NBTC75BSS51.64.53●-●
Van Damme 278-075-000NBNC75BFG7XNBNC75BFG71.071.65.00●--
Van Damme 278-075-006NBNC75BFG7XNBNC75BFG71.071.65.00●--
Van Damme 278-375-000NBNC75BUU11XNBNC75BUU111.071.67.36●--
earTWIST rearTWIST rearTWIST Cable Jack Pin Crimp Hex Crimp StrippingUHD HD HD Tiny & Panel in mm in mm Tool
UHDHDCS-BNC-RTCS-BNC-LCSCS-BNC-LEVCS-BNC-TCI
Argosy Image
Argosy Image 360NBNC75BFG7XNBNC75BFG71.071.65.00●--
Argosy Image 720NBNC75BLP9XNBNC75BLP91.071.66.47●--
Argosy Image 1000NBNC75BUU11XNBNC75BUU11NBNB75GUU111.071.67.36●--
CAE
CAE MC75NBTC75BLI5NBTB75CLI51.64.06●-
CAE MC75 39NBTC75BVX61.65.00●-
CAE KX6ANBNC75BLP7XNBNC75BLP71.071.66.47●--
CAE VCB75NBNC75BNP91.66.47●--
CAE VCB 100NBNC75BXU131.67.36●--
CAE HD1250FLEXNBNC75BXU131.67.01●--
CAE HD10460LSZHNBNC75BTS111.67.01●--
CAE HD0628LSZHNBNC75BFG7XNBNC75BFG71.071.65.00●--
CAE HD08370LSZHNBNC75BLP9XNBNC75BLP91.071.66.47●--
CAE HD16720LSZHNBLC75BVZ171.810.00--●
Cordial
Cordia CVI 3-7NBNC75BFG7XNBNC75BFG71.071.64.53●--
Cordia CVI 06-28NBNC75BFG7XNBNC75BFG71.071.65.00●--
Cordia CVI 06-28HD, CVI 06-28HD-FRNCNBNC75BFG7XNBNC75BFG71.071.65.00●--
Cordia CVI (CVM) 06-37NBNC75BLP7XNBNC75BLP71.071.66.47●--
Cordia CVI 08-37 HD-FRNCNBNC75BNP91.66.47●--
Cordia CVI 10-48 HDNBNC75BUU11XNBNC75BUU111.071.67.36●--
Cordia CVI 10-48 HD-FRNCNBNC75BWS111.67.01●--
Cordia CVM 08-32 HD-FLEXNBNC75BU91.65.41●--
Cordia CVM 12-50 HD-FLEXNBNC75BWU131.67.36●--
Kabeltronik
Kabeltronik HFV 1.0/4.8 AF-FRNCNBNC75BRU111.67.36●--
Kabeltronik HFV 0.6/2.8 AF-FRNCNBNC75BFG7XNBNC75BFG71.071.65.00●--
Kabeltronik MVP 5x 0.6/2.8 AF-FRNCNBNC75BFG7XNBNC75BFG71.071.65.00●--
KLOTZ
KLOTZ V06/28, V062SH, VMXX/5YNBNC75BFG7XNBNC75BFG71.071.65.00●--
KLOTZ V06/37NBNC75BLP7XNBNC75BLP71.071.66.47●--
KLOTZ V08/37H, VD083SHNBNC75BLP9XNBNC75BLP91.071.66.47●--
KLOTZ VD083LP 0.8L/3.7DZNBNC75BJP9XNBNC75BJP91.071.66.47●--
KLOTZ V10/48, V10/48HNBNC75BUU11XNBNC75BUU11NBNB75GUU111.071.67.36●--
KLOTZ V10/48, V10/48HNBLC75BVZ171.810.00--●
Nexans
Nexans HF 75 0.6/2.9 02YS(ST)CHNBNC75BFG7XNBNC75BFG71.071.65.00●--
Nexans HF 75 1.6/7.2 02YS(ST)CHNBNC75BVZ171.810.00--●
Nexans HF 75 0.6/3.7 2YCYNBNC75BLP7XNBNC75BLP71.071.66.47●--
Proel
Proel HPC 805NBNC75BLP7XNBNC75BLP71.071.66.47●--
Proel HPC 810NBNC75BLP9XNBNC75BLP91.071.66.47●--
Proel HPC 820NBNC75BFH61.65.00●--
RG
RG11NBLC75BVZ171.810.00--●
RG59BUNBNC75BLP7XNBNC75BLP71.071.66.47●--
RG179BUNBTC75BLI41.64.06●-●
SOMMER
SOMMER 600-0051 (M/L/S)NBNC75BLP7XNBNC75BLP71.071.66.47●--
SOMMER 600-0054 (M/L/S)NBNC75BLP7XNBNC75BLP71.071.66.47●--
SOMMER 600-0101MNBNC75BFG7XNBNC75BFG71.071.65.00●--
SOMMER 600-0104MNBNC75BFG7XNBNC75BFG71.071.65.00●--
SOMMER 600-162(F), Victor 0.8/3.7NBNC75BLP9XNBNC75BLP91.071.66.47●--
SOMMER 600-025* -03 (05)NBTC75BLI5NBTB75CLI51.64.06●-
SOMMER 600-0201NBTC75BLI5NBTB75CLI51.64.06●-
SOMMER 600-020* -03 (05)NBTC75BLI5NBTB75CLI51.64.06●-●
SOMMER 600-0451NBNC75BLP9XNBNC75BLP9NBNB75GLP91.071.66.47●-
SOMMER 600-0751NBTC75BVX61.65.00●-●
Tesca
Tesca BengalNBTC75BNS41.64.53●-●
Tesca SupfaNBNC75BFG7XNBNC75BFG71.071.65.00●--
Tesca MassimoNBLC75BSX141.759.73-●-
Tesca SphereNBLC75BVZ171.810.00--●
Tesca PrestoNBNC75BJP91.66.47●--
Tesca PrimaNBNC75BT5111.67.01●--
Tesca LineaNBNC75BNP91.66.47●--
Tesca VostokNBNC75BWS121.67.01●--
Tesca DubloNBNC75BWS121.67.01●--
Others
AT&T 735NBTC75BSS51.64.53●-●
COMM-TEC RGBHVNBTC75BSS51.64.53●-●
BBC PSF 1/3*NBNC75BLS71.67.01●--
Bryant BD SD50NBNC75BR591.67.01●--
Bryant BD SD53FNBNC75BJP9XNBNC75BJP91.071.66.47●--
Bryant SD10F, SD11NBNC75BTU11XNBNC75BTU111.071.67.36●--
Bryant SD50FNBNC75BLP9XNBNC75BLP91.071.66.47●--
COVID CVD 1300-1500NBTC75BLI5NBTB75CLI51.64.06●-
Eupen 705 CRT 5V-RSNBNC75BTS111.67.36●--
Extron BNC-5HRNBTC75BNN5NBTB75CNN51.64.53●-
Extron BNC-5RC1.071.65.00●-
GEPCO VDM230NBNC75BFG7XNBNC75BFG71.071.64.53●-
GEPCO VPM2000NBNC75BDD6XNBNC75BDD61.071.64.53●-
GEPCO VSD2001NBNC75BLP9XNBNC75BLP9NBNB75GLP91.64.06●
Helix 734
Helix 735
Hirschmann KOKA 712Cu
Kansai 3C-5S
Kelsey SD-1
Kelsey SD-1LL
KROSCHU (341 270, 341 280)
Quadtronics CABPGHD70MW-500
Wisi MK 99A
ZNK CM14B

* Registered trademark of BBC

Inner ConductorInsulatorCable O.D. mmPin crimp mm (square)Hex Crimp mmStripping Tool
CS-SNC-RTCS-SNC-LCSCS-SNC-LCV+ CS-BNC-TCI

rearTWIST HD & UHD

NBLC75BVZ17<1.7<8.0<10.41.80 (Hex crimp)10.00- -● -
NBLC75BSX14<1.4<6.6<9.51.75 (Hex crimp)9.73-● --
NBNC75BDD6<0.6<2.8<4.31.64.53● - - -
NBNC75BDD6X<0.6<2.8<4.31.074.53● - - -
NBNC75BFG7<0.7<3.1<4.71.65.00● - - -
NBNC75BFG7X<0.7<3.1<4.71.075.00● - - -
NBNC75BFH6<0.6<3.1<4.91.65.00● - - -
NBNC75BGG7<0.7<3.2<4.71.65.00● - - -
NBNC75BHK7<0.7<3.3<5.61.6 (or 1.75 Hex)5.41● - - -
NBNC75BIJ9<0.9<3.6<5.31.65.41● - - -
NBNC75BJJ9<0.9<3.8<5.31.65.41● - - -
NBNC75BJP9<0.9<3.8<6.31.66.47● - - -
NBNC75BJP9X<0.9<3.8<6.31.076.47● - - -
NBNC75BLP7<0.7<3.8<6.31.66.47● - - -
NBNC75BLP7X<0.7<3.8<6.31.076.47● - - -
NBNC75BLP9<0.9<3.8<6.31.66.47● - - -
NBNC75BLP9X<0.9<3.8<6.31.076.47● - - -
NBNC75BLS7<0.7<3.8<6.91.67.01● - - -
NBNC75BNP9<0.9<4.1<6.31.66.47● - - -
NBNC75BQP11<1.1<4.5<6.31.66.47● - - -
NBNC75BQP11X<1.1<4.5<6.31.076.47● - - -
NBNC75BRS9<0.9<4.8<6.91.67.01● - - -
NBNC75BTS9<0.9<4.7<6.91.67.01● - - -
NBNC75BTS11<1.1<4.7<6.91.67.01● - - -
NBNC75BTU11<1.1<4.7<7.31.67.36● - - -
NBNC75BTU11X<1.1<4.7<7.31.077.36● - - -
NBNC75BTUP11X<1.1<4.7<7.31.077.06● - - -
NBNC75BTU13<1.3<4.7<7.31.67.36● - - -
NBNC75BUU11<1.1<4.9<7.31.67.36● - - -
NBNC75BUU11X<1.1<4.9<7.31.077.36● - - -
NBNC75BRU11<1.1<4.7<7.31.67.36● - - -
NBNC75BWS11<1.1<5.1<6.91.67.01● - - -
NBNC75BWS12<1.2<5.1<6.91.67.01● - - -
NBNC75BWU13<1.4<5.1<7.31.67.36● - - -
NBNC75BXU13<1.4<5.3<7.31.67.36● - - -
NBNC75BXY9<0.9<5.3<8.01.68.23● - - -
NBNC75BYY9<0.9<5.2<8.01.68.23● - - -
NBNC75BYY11<1.1<5.2<8.01.68.23● - - -
NBNC75BZV14<1.4<5.2<8.01.6 (or 1.75 Hex)8.23● - - -

rearTWIST TINY

NBTC75BFI4<0.4<1.6<2.91.64.06● - -●
NBTC75BLI4<0.4<1.8<2.91.64.06● - -●
NBTC75BLI5<0.5<1.8<2.91.64.06● - -●
NBTC75BNN5<0.5<2.0<3.11.64.53● - -●
NBTC75BNS4<0.4<2.0<3.51.64.53● - -●
NBTC75BSS5<0.5<2.3<3.41.64.53● - -●
NBTC75BVV5<0.5<2.5<3.81.65.00● - -●
NBTC75BVX6<0.6<2.5<4.01.65.00● - -●
NBTC75BXX5<0.5<2.6<4.01.65.00● - -●
NBTC75BXX6<0.6<2.6<4.01.65.00● - -●

CABLE JACKS (TINY & PANEL VERSION)

NBTB75CFI4<0.4<1.6<2.91.64.06● - -●
NBTB75CNN5<0.5<2.0<3.11.64.53● - -●
NBTB75CLI5<0.5<1.8<2.91.64.06● - -●
NBNB75GLP9<0.9<3.8<6.31.66.47● - -●
NBNB75GUU11<1.1<4.9<7.31.67.36● - -●
NBNB75ILP9<0.9<3.8<6.31.66.47● - -●
NBNB75IUU11<1.1<4.9<7.31.67.36● - -●

Neutrik NBTB75CLI5 - NBNC75\* - 2
D-shape metal housing

Neutrik NBTB75CLI5 - NBNC75\* - 3
Gold plated center pin

Neutrik NBTB75CLI5 - NBNC75\* - 4

HD BNC Chassis & Cable Jacks Panel Version

Neutrik NBTB75CLI5 - HD BNC Chassis &amp; Cable Jacks Panel Version - 1

natural_image Close-up of a metallic coaxial connector with threaded end and mounting holes (no text or symbols visible)

Bulkhead Jacks - NBB75FG

Neutrik NBTB75CLI5 - HD BNC Chassis &amp; Cable Jacks Panel Version - 2

natural_image Close-up of a metallic mechanical component with mounting holes and internal cavity (no visible text or symbols)

NBB75DFG

Neutrik NBTB75CLI5 - HD BNC Chassis &amp; Cable Jacks Panel Version - 3

natural_image Close-up of a metallic mechanical component with a central cylindrical housing and mounting holes (no visible text or symbols)

NBB75DFGB

Neutrik NBTB75CLI5 - HD BNC Chassis &amp; Cable Jacks Panel Version - 4
Cable jacks Panel Version - NBB75SI

• True 75 Ω design meets the stringent HDTV/DVD requirements
• Isolated or grounded versions
- "D" shaped housing (provides flush mounting and protection of the jacks from damage) or single feed through mountings
• Gold plated center contact

NBB75FI NBB75DFG
Neutrik NBTB75CLI5 - HD BNC Chassis &amp; Cable Jacks Panel Version - 5

Neutrik NBTB75CLI5 - HD BNC Chassis &amp; Cable Jacks Panel Version - 6

26 [1.024"] 31 [1.220]

34 [1.34°] 4.7 [.185°] 0.5 [.020°]

Ordering Information

Nickel housing Black housing Antraloy housing

NBB75DFG NBB75DFGB Bulkhead jack, D-shape housing, feed through, grounded

NBB75DFGX Bulkhead jack, D-shape housing, feed through, grounded, UHD-optimized

NBB75DFI NBB75DFIB Bulkhead jack, D-shape housing, feed through, isolated

NBB75DFIX Bulkhead jack, D-shape housing, feed through, isolated, UHD-optimized

NBB75DSGNBB75DSGBBulkhead jack, D-shape housing, solder version, grounded
NBB75DSINBB75DSIBBulkhead jack, D-shape housing, solder version, isolated
NBB75FGBulkhead jack, feed through, grounded
NBB75FIBulkhead jack, feed through, isolated
NBB75SIBulkhead jack, solder version, including isolationwashers
NBB75FACoupler, feed through
SpecificationsUHD rearTWIST HD Large Tiny & Cable & PanelrearTWISTrearTWIST HD & & Cable JackrearTWIST HDJack TinyBulkheadsCoupler

Electrical

Impedance75 Ω●●●●
Rated voltage500 V ac rms●●250 V ac rms●
Insulation resistance>5 GΩ●●●●
Dielectric withstanding voltage1'500 V ac rms●●750 V ac rms●
VSWR / Return Loss≤1.050/>32 dB up to 1 GHz<1.06/>30 dB upto 6 GHz●<1.10/>26 dB upto 1 GHz<1.08/>37 dB upto 1 GHz
≤1.065/>30 dB up to 2 GHz<1.13/>24 dB upto 12 GHz●≤1.14/>24 dB upto 2 GHz<1.05/>32 dB upto 2 GHz
≤1.100/>26 dB up to 3 GHz<1.22/>20 dB upto 18 GHz●<1.22/>20 dB upto 3 GHz<1.08/>28 dB upto 3 GHz
Inner contact resistance≤3 mΩ (initial)●●●●
Outer contact resistance≤2 mΩ (initial)●●●●

Mechanical

Cable anchoringJacket crimping●●●N/A
Cable O.D. rangemm4.3 - 7.34.0 - 7.72.5 - 3.8N/A
- Rear Twist Largemm-10.3--
Center contact retention>30 N●●●-
Engagement force< 25 N●●●●
Lifetime1'000 mating cycles●●●●

Material

ShellBrass (CuZn39Pb3)●●●●
Optalloy coated-●●●
Antraloy coated●---
PA6 (Push Pull only)-N/AN/AN/A
D-Shape housing:Zinc diecast (ZnAl4Cu1)gal Ni or black Cr platinN/AN/AN/ANBB75D*
Antraloy coated●---
Ground contactBronze (CuSn6)●●●-
0.2 μm AuCo over 2 μm NiP15●●●-
Brass (CuZn39Pb3)---●
OPTALLOY coated---●
Center contactBrass (CuZn35Pb2)●●●-
0.2 μm AuCo or●●●-
Brass (CuZn39Pb3)---●
0.2 μm AuCo---●
InsulatorTeflon PTFE-●●●
Polypropylen PP●---
ChuckPolyacetal POMN/AN/AN/AN/A
Insulation ShellPolyacetal POMN/AN/AN/A●

Environmental

Temperature range-30 °C to +85 °C●●●●
Solderability complies withIEC 68-2-20●●●N/A
Contact crimpability compliesIEC 60803 and IEC 60352-2●●●N/A

Colour Coded Accessories and Seals

Neutrik NBTB75CLI5 - Colour Coded Accessories and Seals - 1
BST-BNC-* DSS-*

Neutrik NBTB75CLI5 - Colour Coded Accessories and Seals - 2

Neutrik NBTB75CLI5 - Colour Coded Accessories and Seals - 3
SCF SCDX SCDP-*

Neutrik NBTB75CLI5 - Colour Coded Accessories and Seals - 4

Neutrik NBTB75CLI5 - Colour Coded Accessories and Seals - 5
SCCD-W

Neutrik NBTB75CLI5 - Colour Coded Accessories and Seals - 6

natural_image Five colorful plastic ring components arranged in a fan pattern (green, blue, black, white, yellow, red) with no text or symbols visible.
BST-BNC-*Standard boot for the rearTWIST BNCs in black, 9 different colors available
DSS-*Lettering plate for D Shape bulkheads.
SCFRubber sealing cover to protect the connector agains dust and moisture
SCDP-*D-Size sealing gaskets, color coding (*: 0- black, 2- red, 4- yellow, 5- green, 6- blue, 9- white)
SCDXHinged cover seals D-size chassis connectors, IP 42 rated
SCCD-WSpring-loaded cover to seals for D-size chassis connectors, IP 65 rated
NZP1RU-8Panel 1RU housing for 8 D-shape cutouts
NZP1RU-12Panel 1RU housing for 12 D-shape cutouts

*: 0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Grey, 9 - White

Neutrik NBTB75CLI5 - Colour Coded Accessories and Seals - 7

Assembly Tools

Neutrik NBTB75CLI5 - Assembly Tools - 1

natural_image Open blue and black toolbox containing various electrical probes and tools (no visible text or labels)

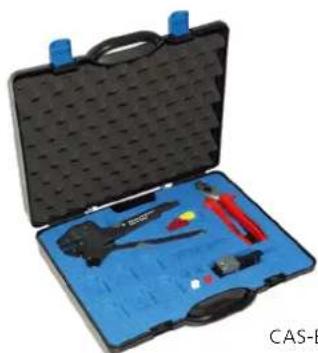

CAS-BNC-T

Neutrik NBTB75CLI5 - Assembly Tools - 2

Neutrik NBTB75CLI5 - Assembly Tools - 3

Neutrik NBTB75CLI5 - Assembly Tools - 4
HX-R-BNCCS-BNC-RT

Neutrik NBTB75CLI5 - Assembly Tools - 5
DIE-R-BNC-*PT-BNC

CAS-BNC-TBNC tool case equipped with HX-R-BNC, PT-BNC: Plier tool, CS-BNC-RT: Stripping toolCS-BNC-LCVCoax cable stripper for cable O.D. > 8 mm (NBLC75BVZ17)
Note: Dies have to be ordered separatelyDIE-R-BNC-*Crimp tool die for pin and shield for HX-R-BNC
CS-BNC-RTCoax cable stripper for cable O.D. 2.5 – 8 mmHT-BNCSpanner tool for the pushPULL BNCs
CS-BNC-LCSCoax cable stripper for cable O.D. > 8 mmHX-R-BNCCrimp tool, frame
(BNLC75BSX14)PT-BNCBNC pliers tool

Crimp die assignment for HX-R-BNC

Crimp dieHex crimpHex crimpCenter pin
mminchmm
ABCABC (square crimp)

rearTWIST HD BNC

DIE-R-BNC-PDC6.474.534.060.2550.1780.1601.6
DIE-R-BNC-PG6.475.00-0.2550.197-1.6
DIE-R-BNC-PJ6.475.41-0.2550.213-1.6
DIE-R-BNC-PS6.477.01-0.2550.276-1.6
DIE-R-BNC-PU6.477.36-0.2550.290-1.6
DIE-R-BNC-PY6.478.23-0.2550.324-1.6
Crimp dieHex crimpHex crimpCenter pin
mminchmm
ABCABC(square crimp)
DIE-R-BNC-X9.73--0.383--1.75(Hex Crimp)
DIE-R-BNC-UG7.365.00-0.2900.197-1.6
DIE-R-BNC-ZPLUS10.0--0.39--1.8

rearTWIST UHD BNC

DIE-R-BNCX-PDG6.475.004.530.2550.1970.1781.07
DIE-R-BNCX-PU6.477.36-0.2550.290-1.07
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Neutrik

Model : NBTB75CLI5

Category : Coaxial cable
