Product Type	Wall Mount for Flat Panel Displays
Model	LL-VWM-36S-42SP
Brand	Middle Atlantic
Screen Size Compatibility	36 to 42 inches
Maximum Weight Capacity	150 lbs (68 kg)
VESA Compatibility	Up to 600x400 mm
Material	Cold-rolled steel
Finish	Black powder coat
Tilt Adjustment	+5° to -15°
Swivel Adjustment	±90° (depending on installation)
Leveling	Post-installation leveling
Mounting Type	Single or dual stud
Depth from Wall	2.75 inches
Shipping Weight	Approximately 15 lbs
Warranty	5 years
Included Hardware	Bolts, spacers, and paper template
Safety Certification	UL Listed
Cleaning Instructions	Wipe with a damp cloth; do not use abrasives
Spare Parts Availability	Contact Middle Atlantic support

Frequently Asked Questions - LL-VWM-36S-42SP Middle Atlantic

Is the LL-VWM-36S-42SP compatible with my 42-inch TV?

Yes, this mount supports flat panel displays from 36 to 42 inches with a maximum weight of 150 lbs. Ensure your TV's VESA pattern is within 600x400 mm.

What VESA patterns are supported?

The mount supports VESA patterns up to 600x400 mm. Common smaller patterns like 200x200, 400x400, and 600x400 are compatible with the included hardware.

Does this mount tilt or swivel?

Yes, it offers tilt adjustment from +5° to -15° and swivel up to ±90° depending on wall and stud placement. This allows optimal viewing angles.

What tools are required for installation?

You'll need a stud finder, drill, socket wrench or screwdriver, level, and a pencil. The mount includes a paper template and all necessary bolts and spacers.

Can I install this mount on drywall without studs?

No, the mount must be attached to wood studs or a solid concrete wall. Use the included template to locate studs. Drywall anchors are not sufficient for the weight.

How far from the wall will the TV sit?

The mount holds the TV approximately 2.75 inches from the wall, providing a low-profile appearance. Cable management slots are included for a clean look.

What is the warranty for this mount?

Middle Atlantic offers a 5-year limited warranty against defects in materials and workmanship. Contact their support for warranty claims.

Is this mount compatible with curved TVs?

Most curved TVs within the specified 36-42 inch size and 150 lb weight limit can be mounted, provided the VESA pattern is standard and the curvature does not exceed the mount's clearance.

Does the mount include a leveling feature?

Yes, the mount features post-installation leveling. You can adjust the tilt and swivel after the TV is attached to ensure it is perfectly straight.

How do I clean and maintain this mount?

Clean with a damp cloth and mild soap. Do not use abrasive cleaners or solvents. Periodically check that all bolts are tight and the mount is secure.

USER MANUAL LL-VWM-36S-42SP Middle Atlantic

INSTALLATION INSTRUCTIONS

LEVER L OCK™ SERIES

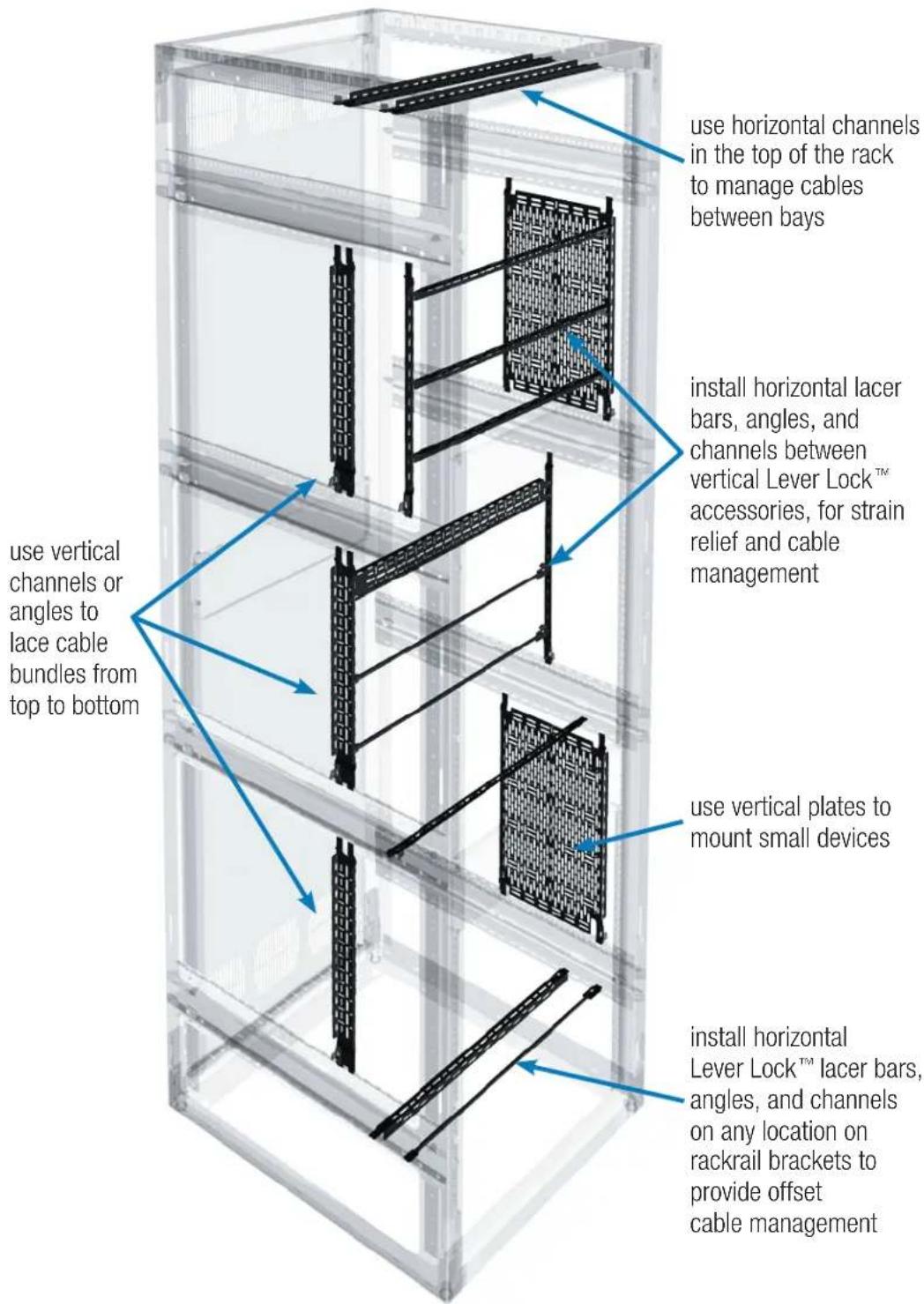

use horizontal channels in the top of the rack to manage cables between bays install horizontal lacer bars, angles, and channels between vertical Lever Lock™ accessories, for strain relief and cable management use vertical channels or angles to lace cable bundles from top to bottom use vertical plates to mount small devices install horizontal Lever Lock™ lacer bars, angles, and channels on any location on rackrail brackets to provide offset cable management

Lever Lock™ TOOL FREE INTERNAL MANAGEMENT SYSTEM

PATENT PENDING

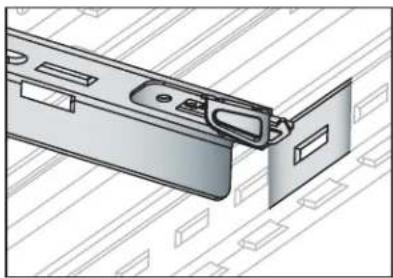

Lever Lock ™ OPERATION EXAMPLE S

• Shown here is an example of Lever Lock™ operation (horizontal installation shown).
• Included with the Lever Lock™ accessory are plastic securing rivets. See page 3 for rivet installation.
• When using Din Rail, the clip must go to the outside if the rack.
• Face the flanges to the outside of the rack for the most usable surface (plate and channel).

Technical illustration of a mechanical component with internal parts and mounting holes (no text or symbols)

VERTICAL INSTALLATION

1) Insert the Lever Lock™ accessory into the mating slots in the top rackrail brackets. Ensure the lock mechanism is installed in the bottom rackrail bracket for proper securement.

Diagram showing a structural assembly with two views of a grid-patterned panel inside a metal frame (no text or symbols)

2) Fully insert into the top rackrail slots, and then push down into the corresponding slots in the lower rackrail bracket to lock the accessory into place. The Lever Lock ^™ will click into place when engaged.

Architectural diagram showing structural components with arrows indicating movement, no text or symbols present

HORIZONTAL INSTALLATION

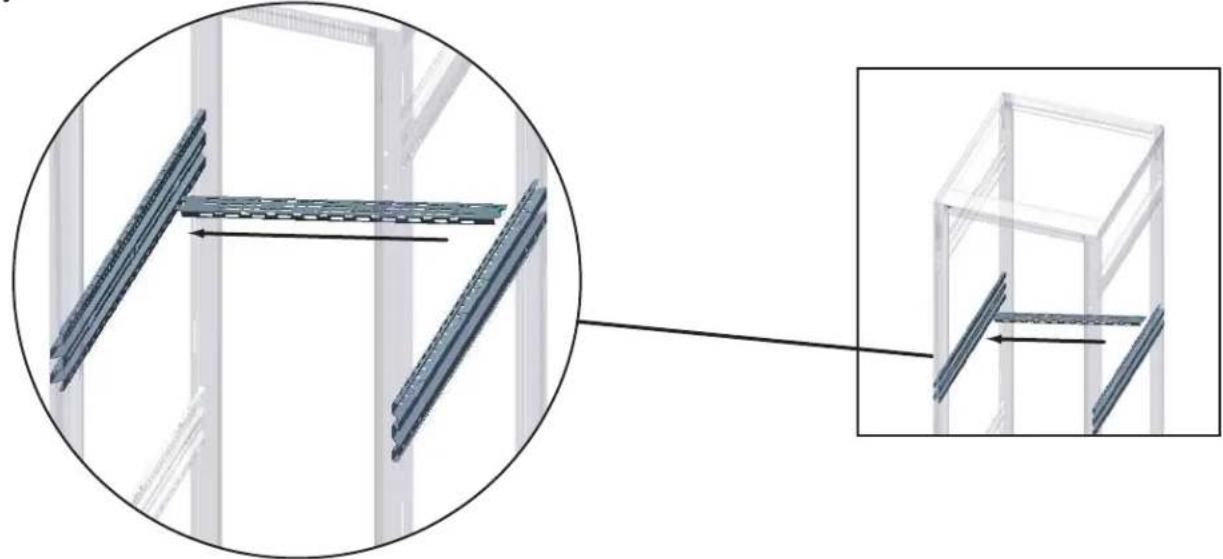

1) Insert the Lever Lock ^TM accessory into the mating slots in the side rackrail brackets or vertical Lever Lock ^TM .

NOTE: All horizontal Lever Lock™ accessories can be installed using any vertical Lever Lock™ accessory.

Diagram showing structural components with arrows indicating movement, no text or symbols present

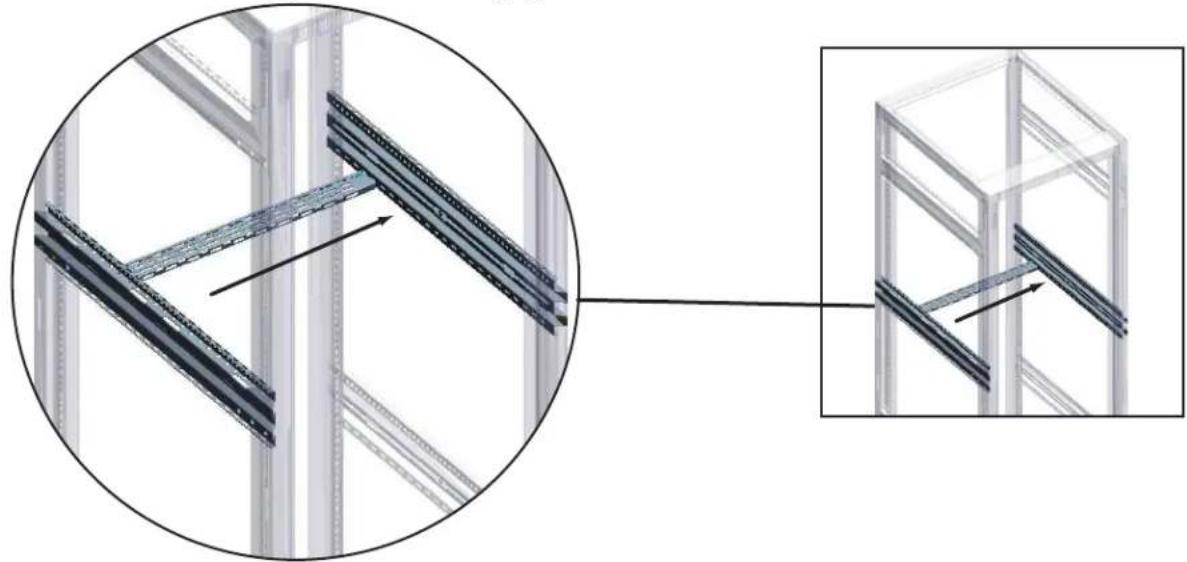

2) Fully insert into the opposite side rackrail slots, and then push into place to lock the accessory. The Lever Lock™ will ‘click’ into place when engaged.

Diagram showing structural assembly of a metal frame with two views (circular and rectangular), no text or symbols present.

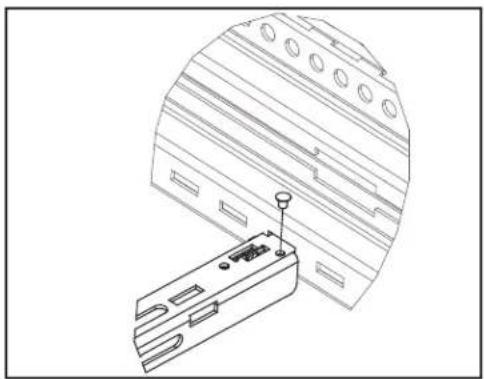

SECURING RIVET INSTALLATION

- Install plastic securing rivet into the inner holes as shown. This rivet can be used for seismic installations and for transporting a populated Lever Lock™ accessory.

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

• BGR Series Lever Lock™ usage table
  USAGE TABLES

Gangable Part #	Stand-Alone Part #	Compatible Lever LockTM Accessories								Multi Packs (7 pieces total**)
		Vertical Angle*	Vertical Channel*	Horizontal Round*	Horizontal Channel*	Horizontal Angle*	Horizontal 2" Off-Set Angle	Horizontal 4" Off-Set Angle	Vertical Din Rail	Vertical 10" Deep Plate
BGR-1927	BGR-19SA-27 LL-VA17	LL-VC17 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN17	LL-VP1710
-BGR-19SA27MDK-xx	LL-VA17	LL-VC17 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN17	LL-VP1710
BGR-2527	BGR-25SA-27 LL-VA21	LL-VC21 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN21	LL-VP2110 -
-BGR-25SA27MDK-xx	LL-VA21	LL-VC21 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN21	LL-VP2110 -
BGR-2532	BGR-25SA-32 LL-VA21	LL-VC21 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN21	LL-VP2110 LL-MP21
-BGR-25SA32MDK-xx	LL-VA21	LL-VC21 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN21	LL-VP2110 LL-MP21
BGR-3827	BGR-38SA-27 LL-VA21	LL-VC21 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN21	LL-VP2110 LL-MP21
BGR-3832	BGR-38SA-32 LL-VA21	LL-VC21 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN21	LL-VP2110 LL-MP21
BGR-4127	BGR-41SA-27 LL-VA17	LL-VC17 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN17	LL-VP1710 LL-MP21
BGR-4132	BGR-41SA-32 LL-VA17	LL-VC17 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN17	LL-VP1710 -
BGR-4138	-LL-VA17	LL-VC17 LL-HR21 LL-HC21	LL-HA21 LL-H4A21	LL-VDIN17	LL-VP1710 -
BGR-4527	BGR-45SA-27 LL-VA21	LL-VC21 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN21	LL-VP2110 -
BGR-4532	BGR-45SA-32 LL-VA21	LL-VC21 LL-HR21 LL-HC21	LL-HA21 LL-H2A21	LL-H4A21	LL-VDIN21	LL-VP2110 LL-MP21
BGR-4538	-LL-VA21	LL-VC21 LL-HR21 LL-HC21	LL-HA21 LL-H4A21	LL-VDIN21	LL-VP2110 LL-MP21
*Available in 4 packs. Please suffix part number with -4. **Multi packs include (2) LL-VC21, (4) LL-HA21, and (1) LL-VP2110

• DTRK Series Lever Lock™ usage table


Part # DTRK Lever Lock™ Options Lever Lock™ Height DTRK-718 - DTRK-1018 LL-VA21 and LL-VC21 DTRK-1218 LL-VA21 and LL-VC21 DTRK-1418 LL-VA21 and LL-VC21 DTRK-1818 LL-VA21 and LL-VC21

NOTE: Requires LL-DTRK Lever Lock™ Kit

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the Lever Lock™ accessory to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory. This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
