USER MANUAL LACE-WB6-45 Middle Atlantic

security network enclosure

configured specifically to address the needs of hybrid security systems consisting of a mix of analog and digital equipment and cabling

  • Fully welded construction provides the following weight capacities:
  • UL Listed load capacity - 3,000 lbs.
  • Caster load capacity – 1,600 lbs.
  • Seismic certified capacity – 1,050 lbs.
  • Configurations available with active top (660 CFM) or rear (1,760 CFM) ventilation
    • Ships fully configured, and includes
  • 70% open area vented front door
  • Split solid rear doors
  • Pair of split flush mount locking side panels
    · (2) vertical 10" wide Lever Lock™ accessory mounting plates
  • 6" wide vertical wire grid lace
    · 4 space cage nut rail adapter
  • Casters
  • Leveling feet
    • Available in 24", 27.6" and 30" widths
  • 36" and 42" overall depths
  • Includes 2 pairs of 10-32 threaded fully adjustable rackrail
  • Doors accommodate industry standard electronic door locks

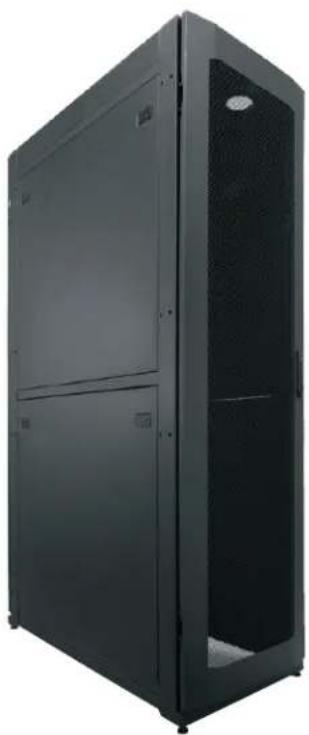

Middle Atlantic LACE-WB6-45 - security network enclosure - 1

natural_image Exterior view of a black server rack cabinet (no visible text or labels)

EIA compliant 19" gangable hybrid security network enclosure shall be Middle Atlantic Products model # SNE_H- -A (refer to chart). Overall dimensions shall be "H x "W x "D (refer to chart). Useable height shall be _ rackspaces, useable depth shall be " (refer to chart). Fully welded construction shall provide a UL Listed load capacity of 3,000 lbs., and casters shall provide a capacity of 1,600 lbs. SNE shall come equipped with two pairs of fully adjustable steel rackrail with tapped 10-32 mounting holes in universal EIA spacing, black e-coat finish and numbered rackspaces. SNE shall include 70% vented front door, split 3-point solid rear door, and flush locking split side panels. SNE shall include two 10" wide patent-pending Lever Lock™ tool free accessory mounting plates. SNE shall include one 6" wide vertical grid lace and 4 space cage-nut rail adapter. SNE shall have pre-threaded 5/16"-18 ganging holes. SNE shall be capable of ganging while fully loaded, using bolts only. SNE shall have active cooling, top mounted (660 CFM) or rear door mounted (1,760 CFM), refer to chart. SNE shall have marked rackrail depth indicators. SNE shall be of fully welded construction. SNE shall be finished in an environmentally friendly, durable black powder coat. SNE Series enclosures shall satisfy the 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high seismicity, Seismic Use Group III, Zone 4 or Seismic Design Category (SDC) "D" with lateral force requirements for protecting 1,050 lbs. of essential equipment in locations with the highest level of seismicity and top floor or rooftop installations with an Importance factor (lp) of 1.5 when used with SNE-Z4 seismic floor anchor bracket. SNE shall be UL Listed in the US and Canada to the UL-2416 (NWIN) category. SNE shall be GREENGUARD Gold Certified. SNE enclosure shall be RoHS EU Directive 2002 / 95 / EC compliant. SNE shall be manufactured by an ISO 9001 and ISO 14001 registered company. SNE enclosure shall be warranted to be free from defects in material or workmanship under normal use and conditions for the lifetime of the rack.

Customizable specification clips available at middleatlantic.com

EIA/TIA COMPLIANT

RoHS C UL US LISTED

Middle Atlantic LACE-WB6-45 - security network enclosure - 2

PRODUCT CERTIFIED FOR LOW CHEMICAL EMISSIONS UL.COM/GG UL 2818

Middle Atlantic LACE-WB6-45 - security network enclosure - 3

PEP eco PASS PORT®

options:

  • Split lift-off cable chase shall be 4.4" wide and mount in-between enclosures, model # SNE-CC-_LT (refer to drawing for model number)
  • Cable duct shall be model # SNE-_DUCT-4x6-_ and be available packaged or installed (refer to chart)
  • Cable chase shall be model # SNE-_ -CC12-45_ (refer to chart), and shall be 12" wide x_" deep x 83.33" high
  • Front air dam/zero-U panel mount shall be model # SNE-____-FAD-PM-____ (refer to drawing for model #)
  • Bracket for top cable pass-through enclosure to enclosure shall provide the ability to pass cables from enclosure to enclosure when ganged together, and shall be model number SNE-TCB-_ (36, 42, 48)
  • 6" wide wire type vertical lace shall be model number LACE-WB6-_ (24, 42, 45)
  • Seismic Zone-4 and Seismic Use Group III compliancy floor anchor kit shall be model # SNE _-Z4 (24,27,30)

what great systems are built on.

SNE Series Hybrid

with active top ventilation basic dimensions

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

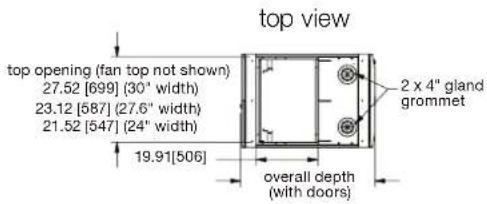

top view top opening (fan top not shown) 27.52 [699] (30" width) 23.12 [587] (27.6" width) 21.52 [547] (24" width) 19.91[506] overall depth (with doors) 2 x 4" gland grommet

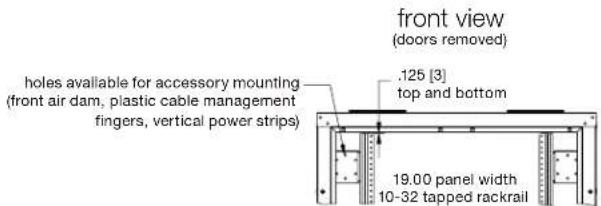

front view (doors removed) .holes available for accessory mounting (front air dam, plastic cable management fingers, vertical power strips) .125 [3] top and bottom 19.00 panel width 10-32 tapped rackrail

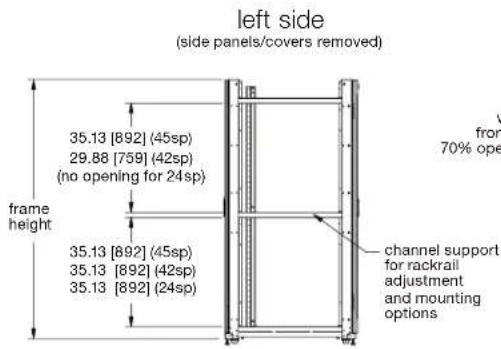

left side (side panels/covers removed) frame height 35.13 [892] (45sp) 29.88 [759] (42sp) (no opening for 24sp) 35.13 [892] (45sp) 35.13 [892] (42sp) 35.13 [892] (24sp) channel support for rackrail adjustment and mounting options

front view
width vented front door 70% open area I support rail ment ounting

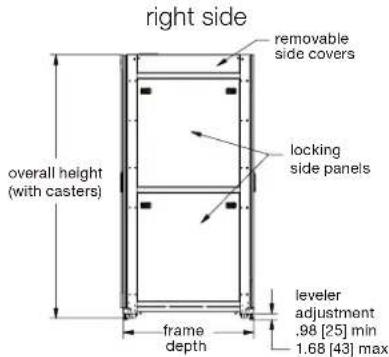

right side removable side covers locking side panels overall height (with casters) leveler adjustment .98 [25] min 1.68 [43] max frame depth

Middle Atlantic LACE-WB6-45 - with active top ventilation basic dimensions - 6

natural_image Isometric line drawing of a multi-level industrial cabinet with ventilation ducts and fan gauges (no text or symbols)

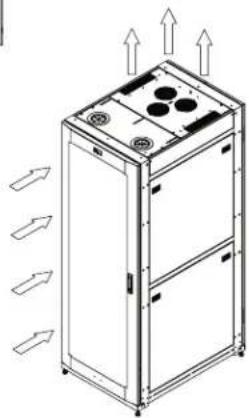

arrows indicate airflow direction

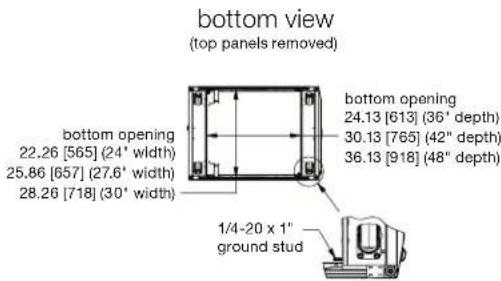

bottom view (top panels removed) bottom opening 22.26 [565] (24" width) 25.86 [657] (27.6" width) 28.26 [718] (30' width) 1/4-20 x 1" ground stud bottom opening 24.13 [613] (36" depth) 30.13 [765] (42" depth) 36.13 [918] (48" depth)

front/rear door(s) opening (SNE30H-4542-A1 shown)
145° 145" 660 CFM fan top 145°

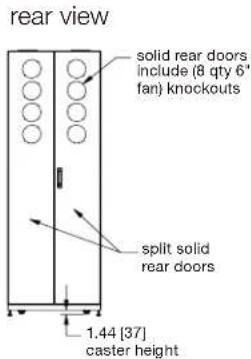

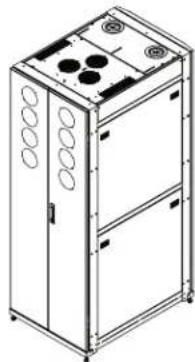

rear view solid rear doors include (8 qty 6" fan) knockouts split solid rear doors 1.44 [37] caster height

Middle Atlantic LACE-WB6-45 - with active top ventilation basic dimensions - 10

natural_image Isometric line drawing of a multi-tiered industrial cabinet with circular vent holes and mounting holes (no text or symbols)

Note: Front door, rear door, and side panels are keyed the same

Overall Height (w/ casters)Frame Height24.00 [609] width 27.60 [701] width 30.00 [762] widthSolid Rear Doors with Fan TopSolid Rear Doors w/ Fan Top & Solid Top
36.0 [914] depth42.0 [1067] depth36.0 [914] depth42.0 [1067] depth36.0 [914] depth42.0 [1067] depth
24 space 48.02 [1220]46.58 [1183]SNE24H-2436-A1 SNE24D-2442-A1 ---- yes no
42 space 79.52 [2020]78.08 [1983]SNE24H-4236-A1 SNE24D-4242-A1 SNE27H-4236-A1 SNE27H-4242-A1 SNE30H-4236-A1 SNE30H-4242-A1 yes no
45 space 84.77 [2153]83.33 [2117]SNE24H-4536-A1 SNE24D-4542-A1 SNE27H-4536-A1 SNE27H-4542-A1 SNE30H-4536-A1 SNE30H-4542-A1 yes no
Frame DepthUseable DepthOverall Depth (with doors)
36.00 [914]32.48 [825]37.15 [944]
42.00 [1067]38.48 [977]43.15 [1096]
48.00 [1219]44.48 [1130]49.15 [1248]

what great systems are built on."

SNE Series Hybrid

with rear active ventilation basic dimensions

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

top view
rack comes with solid top installed with brush sides

front/rear door(s) opening
(SNE30H-4542-A2 shown)
145° 145° 145°

Middle Atlantic LACE-WB6-45 - with rear active ventilation basic dimensions - 3

natural_image Isometric line drawing of a multi-tiered server cabinet with airflow arrows indicating direction (no text or symbols)

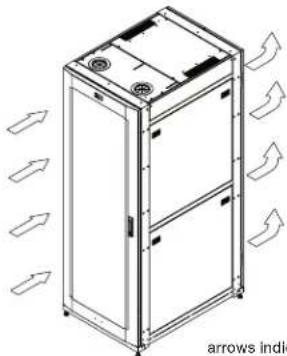

arrows indicate airflow direction

Middle Atlantic LACE-WB6-45 - with rear active ventilation basic dimensions - 4

natural_image Isometric line drawing of a multi-tiered industrial cabinet or enclosure with ventilation ducts and mounting holes (no text or symbols)

left side
(side panels/covers removed)
Middle Atlantic LACE-WB6-45 - with rear active ventilation basic dimensions - 5

natural_image Pure structural diagram of a rectangular frame with no text, numbers, or symbols

front view
width vented front door 70% open area

right side
overall height (with casters) frame depth

rear view
Middle Atlantic LACE-WB6-45 - with rear active ventilation basic dimensions - 8

natural_image Simple line drawing of a two-decker industrial cabinet with circular vent holes and a small arrow pointing to the side (no text or symbols)

solid rear doors with 220 CFM fans installed (1760 CFM total)

Middle Atlantic LACE-WB6-45 - with rear active ventilation basic dimensions - 9

Note: Front door, rear door, and side panels are keyed the same

Overall Height (w/ casters)Frame Height24.00 [609] width 27.60 [701] width 30.00 [762] width
36.0 [914] depth42.0 [1067] depth36.0 [914] depth42.0 [1067] depth36.0 [914] depth42.0 [1067] depth
24 space 48.02 [1220]48.55 [1183]SNE24H-2436-A2 SNE24D-2442-A2 ----
42 space 79.52 [2020]78.08 [1983]SNE24H-4236-A2 SNE24D-4242-A2 SNE27H-4236-A2 SNE27H-4242-A2 SNE30H-4236-A2SNE30H-4242-A2
45 space 84.77 [2153]83.33 [2117]SNE24H-4536-A2 SNE24D-4542-A2 SNE27H-4536-A2 SNE27H-4542-A2 SNE30H-4536-A2 SNE30H-4542-A2
Frame DepthUseable DepthOverall Depth (with doors)

36.00 [914] 32.48 [825] 37.15 [944]
42.00 [1067] 38.48 [977] 43.15 [1096]
48.00 [1219] 44.48 [1130] 49.15 [1248]

what great systems are built on."

SNE Series Hybrid

basic dimensions

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

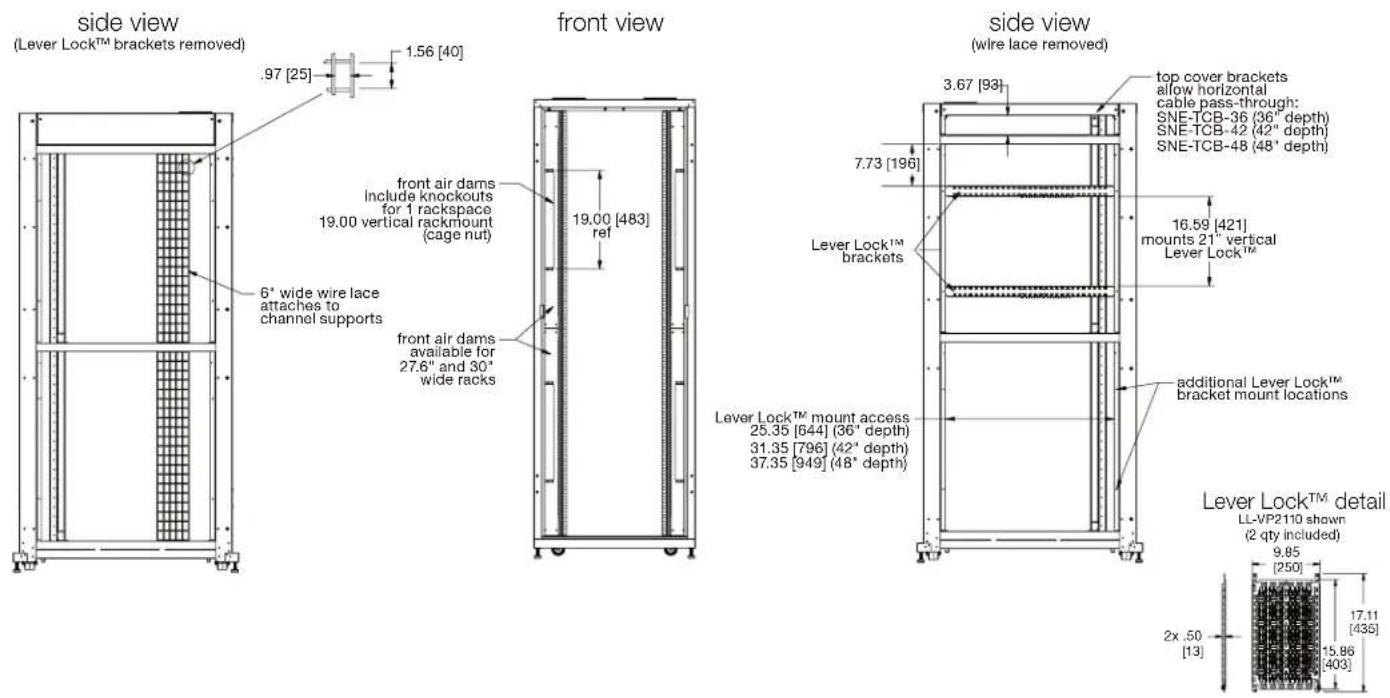

Middle Atlantic LACE-WB6-45 - basic dimensions - 1

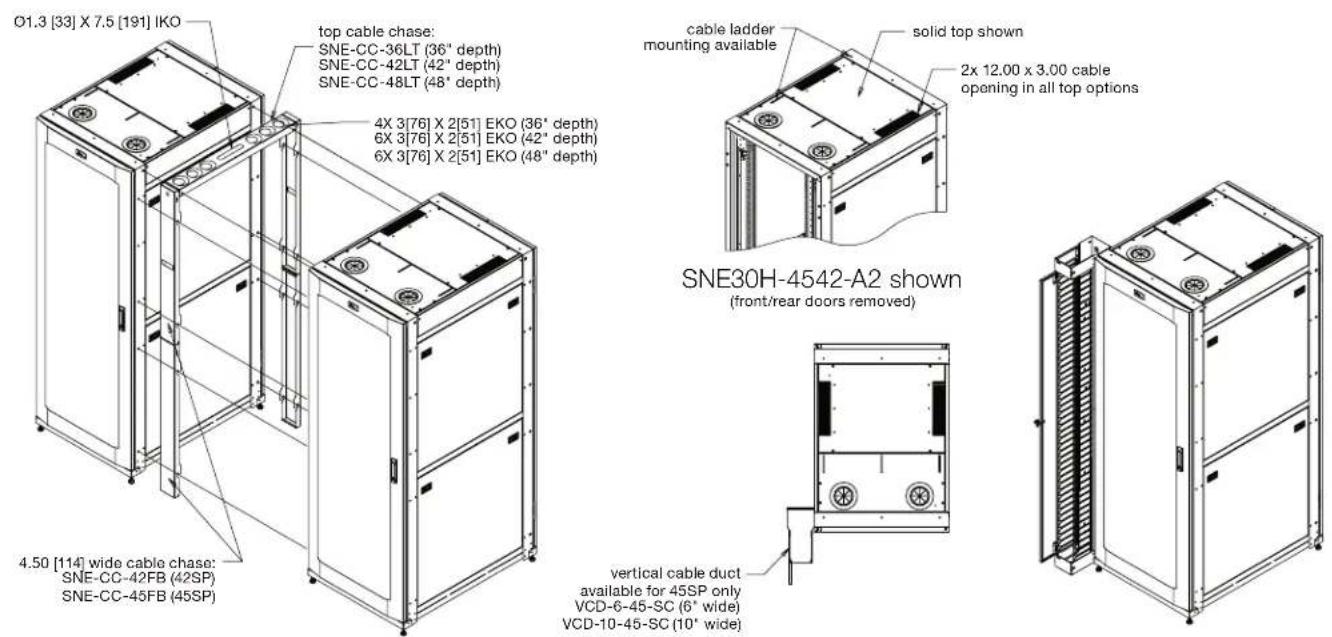

01.3 [33] X 7.5 [191] IKO top cable chase: SNE-CC-36LT (36" depth) SNE-CC-42LT (42" depth) SNE-CC-48LT (48" depth) 4X 3[76] X 2[51] EKO (36' depth) 6X 3[76] X 2[51] EKO (42" depth) 6X 3[76] X 2[51] EKO (48" depth) cable ladder mounting available solid top shown 2x 12.00 x 3.00 cable opening in all top options SNE30H-4542-A2 shown (front/rear doors removed) vertical cable duct available for 45SP only VCD-6-45-SC (6" wide) VCD-10-45-SC (10" wide) 4.50 [114] wide cable chase: SNE-CC-42FB (42SP) SNE-CC-45FB (45SP)

what great systems are built on.

Middle Atlantic LACE-WB6-45 - basic dimensions - 3

Middle Atlantic Products

middleatlantic.com | middleatlantic.ca

SNE Series

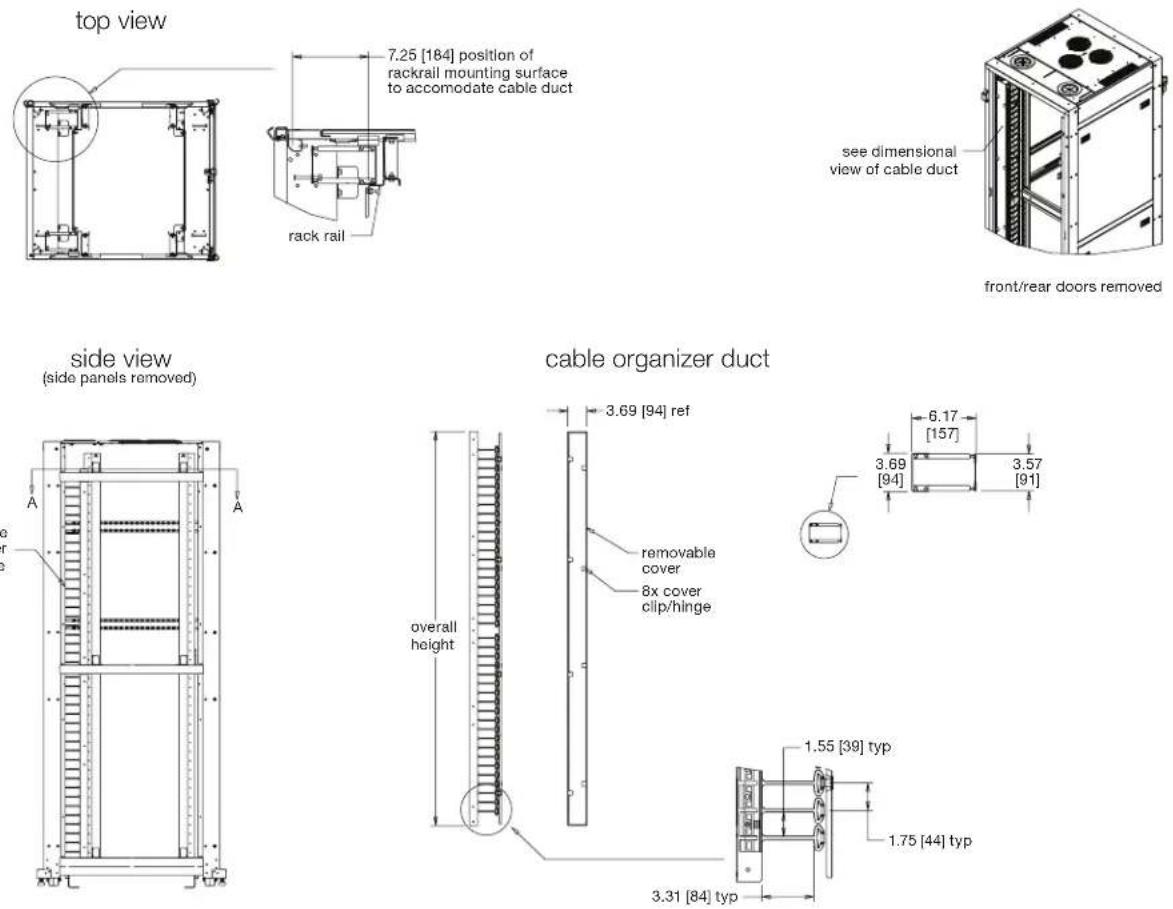

cable duct basic dimensions

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

Middle Atlantic LACE-WB6-45 - cable duct basic dimensions - 1

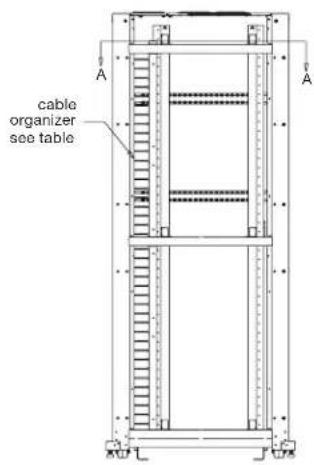

cable organizer see table

Notes:
1. cable duct can be installed at each inside corner of the rack.
3. cable ducts are only available for 30° wide racks

Cable Duct

Part Number Overall Height Rackspaces

SNE-42DUCT-4X6 70.50 [1791] 42 space

SNE-45DUCT-4X6 75.75 [1924] 45 space

what great systems are built on.

SNE Series

cable chase basic dimensions

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

top view
2x 4' gland grommet

rear view
leveler adjustment .98 [25] min 1.68 [43] max

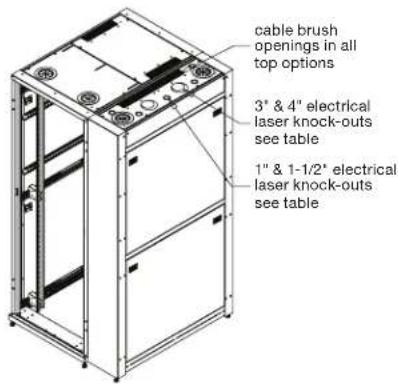

cable brush openings in all top options 3" & 4" electrical laser knock-outs see table 1" & 1-1/2" electrical laser knock-outs see table

front view

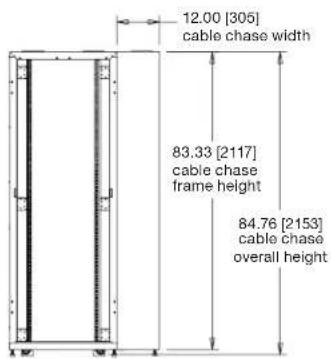

12.00 [305] cable chase width 83.33 [2117] cable chase frame height 84.76 [2153] cable chase overall height

right side
cable chase depth removable side covers accepts locking side panels

cable chase side view (without side panels)

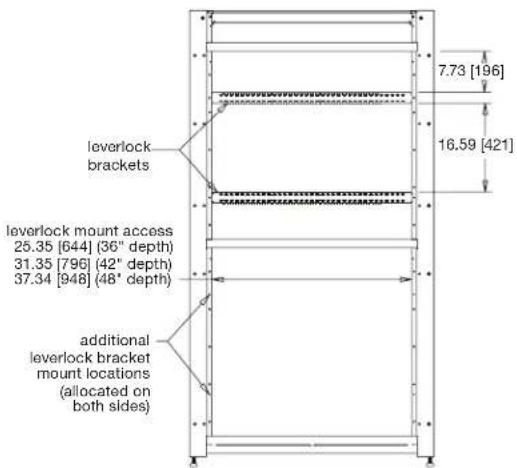

leverlock brackets leverlock mount access 25.35 [644] (36" depth) 31.35 [796] (42" depth) 37.34 [948] (48" depth) additional leverlock bracket mount locations (allocated on both sides)

Notes:

  1. cable chase shown mounted on a SNE rack enclosure

  2. cable chase can be mounted on left or right side of rack

Cable Chase Part NumberCable Chase Depth1" & 1-1/2" LKO (Qty)4" & 5" LKO (Qty)Fits SNE Racks
SNE-CCE12-4536 36.00 [914] 4 1 SNEXX-4536-XX
SNE-CCE12-4542 42.00 [1067] 4 1 SNEXX-4542-XX
SNE-CCE12-4548 48.00 [1219] 5 2 SNEXX-4548-XX

what great systems are built on.
