Product Type	Ethernet over Coax Transceiver (EOC)
Model Compatibility	DA-EC1101R (receiver) and DA-EC1101T (transmitter)
Dimensions (W x D x H)	100 x 43 x 39 mm
Weight	150 g
Power Supply	48V DC adapter (included with DA-EC1101R only)
Power over Ethernet (PoE)	IEEE 802.3af / 802.3at
Data Transmission Speed	Up to 95 Mbps
Maximum Distance	800 m over coaxial cable (distance varies with PoE class)
Network Interface	1 x RJ45 10/100Base-T
Coaxial Interface	1 x BNC (3C or higher grade coaxial cable)
LED Indicators	Power, BNC Link, RJ45 Link
Plug & Play	Yes, no IP configuration required
Operation Mode	Two-way 10/100Base-T communication; can be used as transmitter or receiver
PoE Switch	On/Off toggle to enable/disable PoE output
Safety & Compliance	FCC Class A; caution for use near combustible substances
Accessories Included	Main unit, 48V DC adapter & power cable (DA-EC1101R), operation manual, MAC address sticker
Maintenance & Cleaning	Wipe with a dry, soft cloth; avoid moisture and solvents
User-Replaceable Parts	None; no user-serviceable components
Repair Service	Contact IDIS support or authorized service center

Frequently Asked Questions - DA-EC1101R IDIS

What is an Ethernet over Coax (EOC) transceiver?

The IDIS DA-EC1101R is a networking device that transmits Ethernet data and power over coaxial cables, allowing HD network cameras to be installed using existing coax infrastructure.

How far can the DA-EC1101R transmit data?

It supports data transmission up to 800 meters over coaxial cable. The distance may vary when using PoE due to power constraints.

What power supply is required?

The DA-EC1101R requires a 48V DC power adapter (included). The DA-EC1101T can be powered via PoE from the receiver side or by using its PoE switch.

Can the product work with non-PoE devices?

Yes. If the connected device does not support PoE, set the PoE switch to Off to avoid damage.

How do I connect the DA-EC1101R and DA-EC1101T?

Connect the RJ45 ports to your NVR and camera, then link the two units via a coaxial cable. Power the DA-EC1101R with the adapter; the transmitter will receive power over coax.

What do the LED indicators mean?

Power LED lights when power is connected. BNC LED lights when coaxial link is established. RJ45 LED lights when Ethernet link is active.

Is the device plug-and-play?

Yes, it supports Plug & Play without requiring special IP address configuration.

What type of coaxial cable is recommended?

Use 3C or higher grade coaxial cable for optimal performance.

Why is the MAC address sticker important?

The MAC address is required for warranty service. Keep the sticker attached to the product.

Are there any safety precautions I should follow?

Always connect the power adapter before turning on the device to avoid electric sparks. Do not use near gas stations or combustible substances.

USER MANUAL DA-EC1101R IDIS

Ethernet over Coax Transceiver

Operation Manual

DA-EC1101R

DA-EC1101T

FCC Compliance Statement

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,

including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

User's Caution Statement

Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Product Overview

DA-EC1101R / DA-EC1101T is a networking device(EOC: Ethernet Over Coax) that uses coaxial cables. It makes it possible to supply Power over Ethernet and transmit data between a network camera that uses RJ45 port and a DVR using coaxial cables.

Product Features

• Makes it possible to install Full-HD network cameras using existing coaxial cables.
• 10/100Base-T two-way communication allows use of the product as a transmitter or a receiver.
  • Supports PoE (IEEE 802.3af, IEEE 802.3at)
• Supports Plug & Play without setting up special IP addresses.
  • Supports up to 800 meters in distance.

Accessories

The product consists of the following components.

Line drawing of a rectangular electronic device with ports and a base (no text or symbols)

Main unit (DA-EC1101R / DA-EC1101T)

Two types of electrical connectors shown in line drawings: a rectangular device and a multi-pin cable (no text or symbols)

48V DC adapter & 220V power cable (DA-EC1101R only)

Operation Manual MAC address sticker

MAC Address is required for warranty services. Please keep the sticker attached on the product.

First, connect the adapter to the product. Then, turn the device On. If the adapter is connected while the switch is turned On, it may cause an electric spark. Be careful when using the product at a gas station or near combustible substances.

Front

DA-EC1101T DA-EC1101R

Back

DA-EC1101T DA-EC1101R

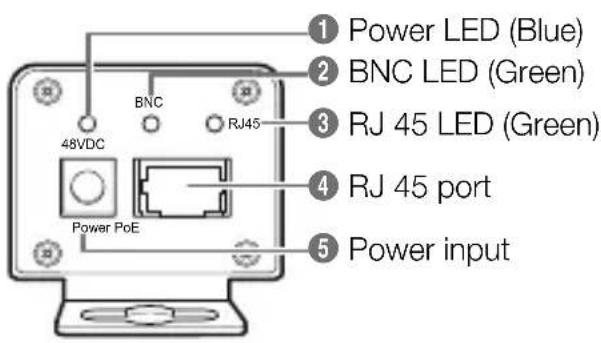

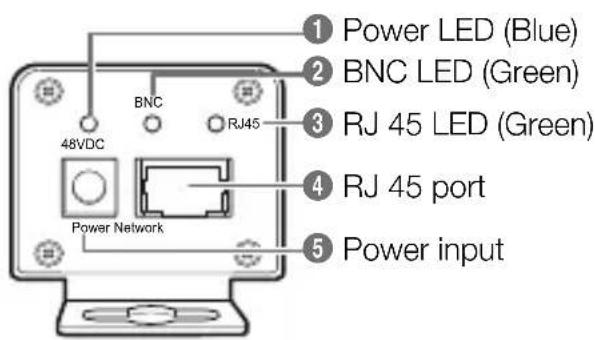

1	Power LED	LED turns on when power is connected.
2	BNC LED	LED turns on when BNC cable is connected.
3	RJ 45 LED	LED turns on on when a RJ45 UTP cable is connected.
4	RJ 45 port	Use the RJ45 port to connect the UTP cable.
5	Power input	Connect a 48V DC adapter. Connect the adapter first before turning the device On.

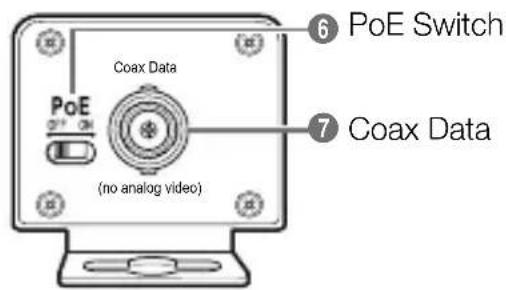

6	PoE Switch	Turns PoE On or Off.Turn PoE Off if the product connected to the RJ45 port does not support PoE power input. Its factory default is set to Off.

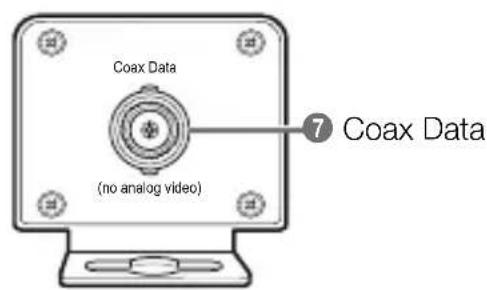

7	Coax Data	Connect BNC cable.

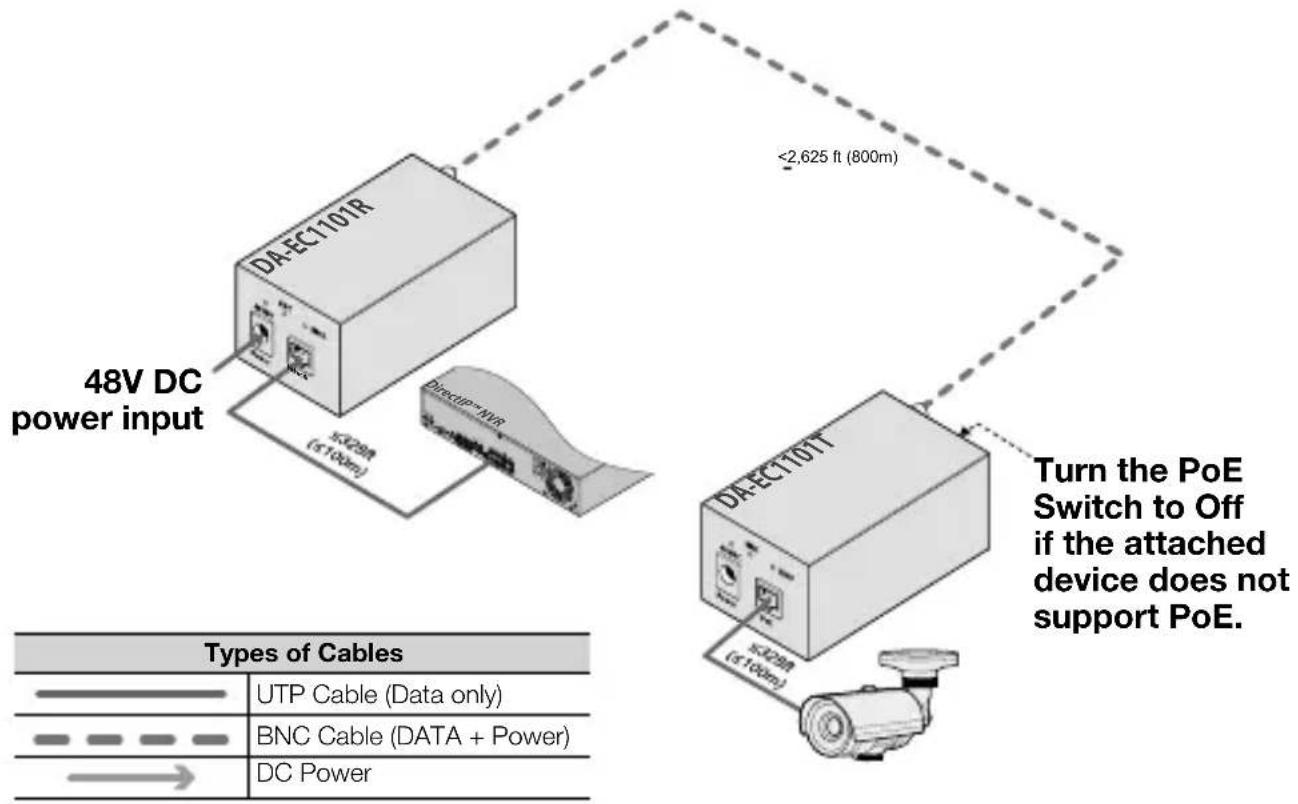

1 Connect DA-EC1101R's RJ45 port to the Video In port or a hub attached to a Video In port of DirectIP™ NVR using a network cable.
2 Connect DA-EC1101T's RJ45 port to the network port of DirectIP™ camera using a network cable.

If DA-EC1101T EOC requires PoE power supply, turn the PoE Switch of DA-EC1101T to On.

3 Connect DA-EC1101R and DA-EC1101T using a coaxial cable.

4 Connect the included 48V DC adapter to the Power Input port of DA-EC1101R.

First, connect the adapter to the product. Then, turn the device On. If the adapter is connected while the switch is turned On, it may cause an electric spark. Be careful when using the product at a gas station or near combustible substances.

5 DA-EC1101R and DC-EC1101T will turn on at the same time and the 48V DC LED on the product will be lit.

6 Refer to the installation layout and install the product.
    note right of A: <2,625 ft (800m)
    note right of D: <2,625 ft (800m)
    note bottom table:
        UTP Cable (Data only)
        BNC Cable (DATA + Power)
        DC Power

Specifications

Model	DA-EC1101R / DA-EC1101T
RJ45	10/100
Coaxial cable	3C or higher
Power	48V
Maximum data transfer distance	800m (Distance varies by class when using PoE transmission.)
Maximum data transfer speed	95Mbps
PoE	IEEE802.3af, IEEE 802.3at
Weight	150g
Dimensions (W)X(D)X(H)	100 X 43 X 39 (mm)

IDIS

IDIS Co., Ltd.

For more information, please visit at

www.idisglobal.comVer. 1.00
