Frequently Asked Questions - KX-MC6020E PANASONIC

How do I install the toner and drum cartridges?

Open the front cover, unlock the drum cover, remove the orange protector, insert the colour drum cartridge into the left side, then the monochrome drum cartridge into the right side. Shake the toner cartridges vertically more than 10 times before removing from the bag, then insert each into the matching colour slot. Close the covers until they click.

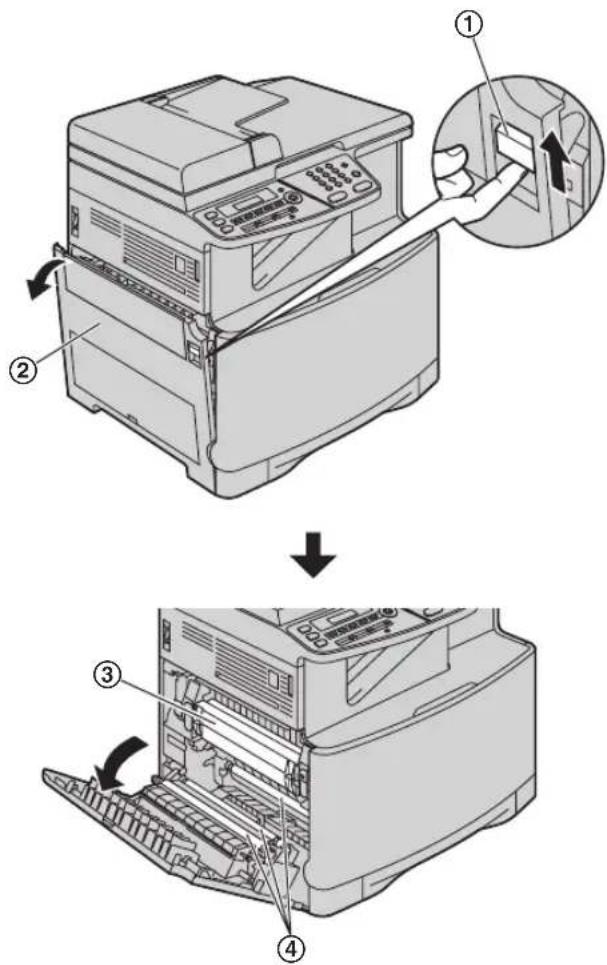

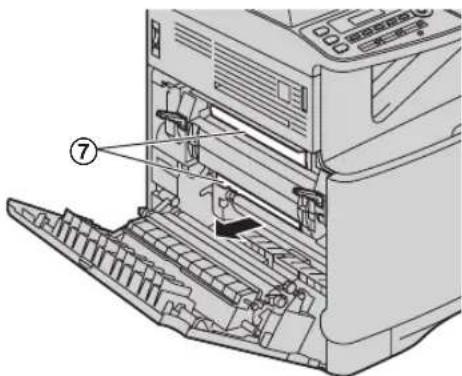

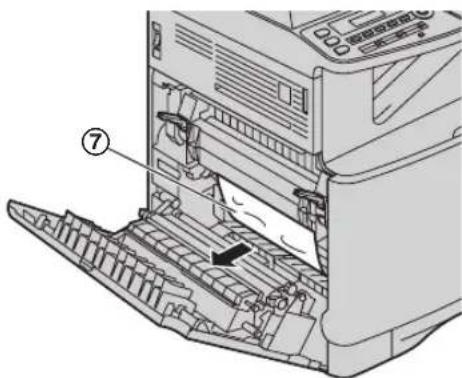

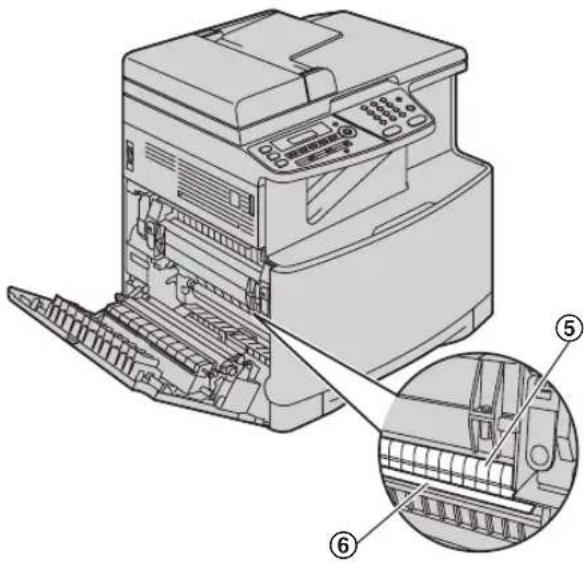

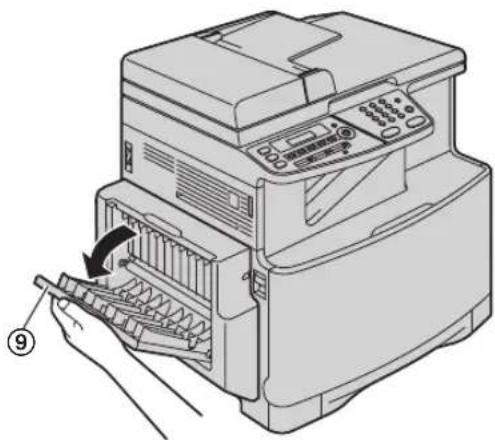

How do I clear a paper jam?

Open the front cover and left cover, remove the drum cartridges carefully, and pull out any jammed paper from the paper path. Also check the standard input tray and recording paper exit. Refer to the Paper Jams section in the manual for detailed steps.

How do I send a fax?

Press [Fax] to enter fax mode, place the document face up in the automatic document feeder (or face down on the scanner glass), dial the number, and press [Black]. For multiple pages using the scanner glass, press [Quick Scan] to scan each page into memory, then press [Black] to send.

How do I scan a document to my computer?

You can use Push Scan from the unit: select [Scan], choose the destination (e.g., File, Email, Viewer), then press [Black] or [Colour]. Or use Pull Scan from your computer: open Multi-Function Station, click [Scan], choose an application, and follow the prompts.

How do I set the date and time?

Press [Menu], then [#][1][0][1][Set]. Enter the current date, month, year, hour, and minute using two digits each. Press [*] to select AM/PM or 24-hour format. Press [Set] to save, and [Menu] to exit.

How do I enable duplex printing?

Duplex printing requires the optional automatic duplex unit (KX-FAB318X). After installation, open the printer properties in your Windows application, go to the [Basic] tab, select a duplex layout (e.g., Long Edge or Short Edge), and click OK.

How do I clean the unit?

Wipe the outer surface with a soft cloth. Do not use benzine or thinner. For internal cleaning, open the top cover and clean the white plates and glass with a lint-free cloth. Clean the document feeder rollers and paper chute as described in the Cleaning section.

How do I connect the unit to a network?

Connect a shielded LAN cable (category 5) from the unit's LAN interface to your network router/hub. The unit can obtain an IP address automatically via DHCP (default) or you can set it manually by pressing [Menu], [#][5][0][0] to disable DHCP, then entering the IP address, subnet mask, and default gateway.

How do I replace the drum cartridge?

When the display shows 'COLOUR DRUM REPLACE' or 'MONOCHROME DRUM REPLACE', open the front cover, unlock the drum cover, lift the levers, and remove the old drum cartridge. Insert the new drum cartridge within 45 seconds to avoid light damage. Close the covers. Use only genuine Panasonic drum cartridges.

What should I do if the print quality is poor?

Check the toner levels and replace if low. Run the colour calibration feature (Menu, #485 for all colours). Clean the drum surface if needed (see Drum cleaning feature #480). Ensure you are using the correct paper type and that the toner save feature is disabled for best quality.

USER MANUAL KX-MC6020E PANASONIC

Line drawing of a printer with control panel and paper airplane (no text or symbols)

Panasonic

Operating Instructions

Colour Laser Multi-Function Printer

Model No. KX-MC6020E

Do NOT connect the unit to a computer with USB cable until prompted by the Multi-Function Station (CD-ROM).

1

2

Designed to be used only in the United Kingdom and Ireland.

• This unit is compatible with Caller ID. You must subscribe to the appropriate service offered by your service provider/telephone company.
• Be sure to use the telephone line cord supplied with this unit.

Thank you for purchasing a Panasonic Multi-Function Printer.

Caution:

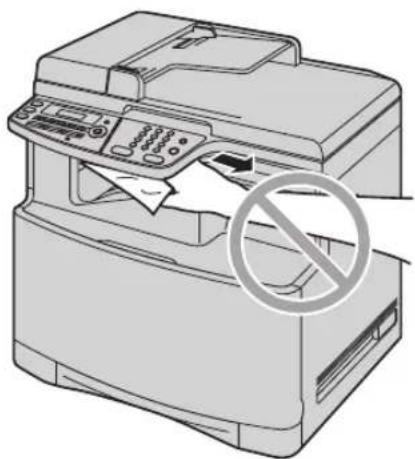

- Do not rub or use an eraser on the printed side of recording paper, as the print may smear.

Trademarks:

• Microsoft, Windows, Windows Vista and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• Pentium is a trademark of Intel Corporation in the U.S. and other countries.
• Screen shots reprinted with permission from Microsoft Corporation.
• Adobe and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
• 3M is a trademark or registered trademark of 3M Company.
• Avery is a registered trademark of Avery Dennison Corporation.
  ●PCL is a trademark of Hewlett-Packard Company.
• All other trademarks identified herein are the property of their respective owners.

Copyright:

- This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.

© 2008 Panasonic Communications Co., Ltd. All Rights Reserved.

For your safety

Laser radiation

CLASS 1 LASER PRODUCT

The printer of this unit utilises a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Laser diode properties

Laser output : Max. 6.5 mW

Wavelength : 770 nm - 800 nm

Emission duration : Continuous

Fuser unit

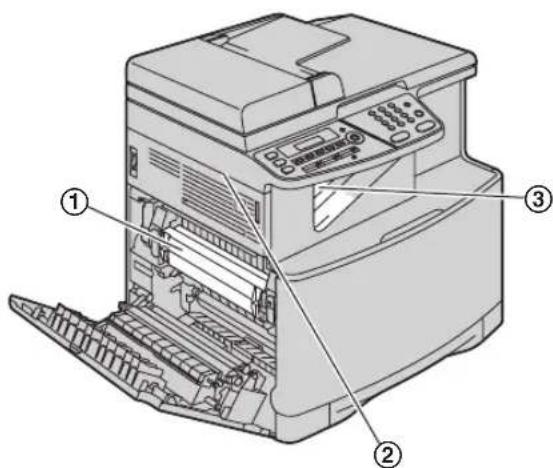

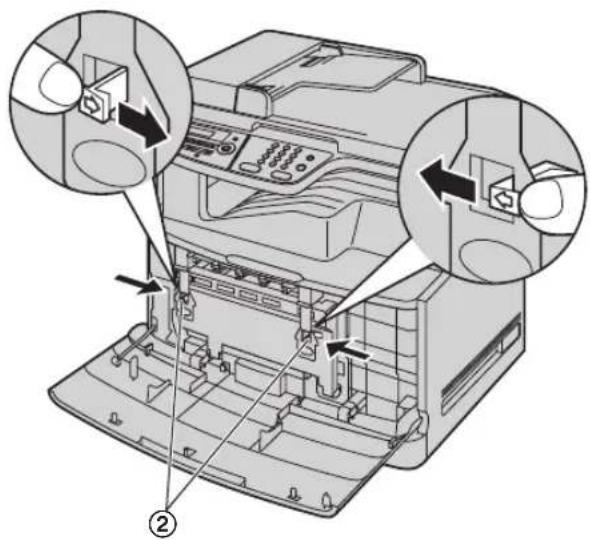

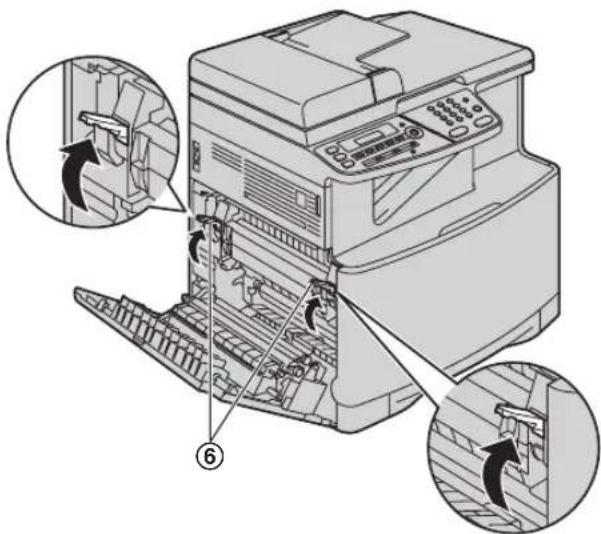

During or immediately after printing, the fuser unit (①) gets hot. This is normal. Do not touch the fuser unit.

Note:

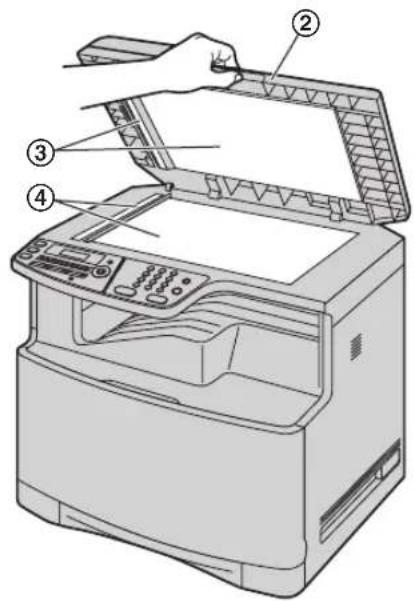

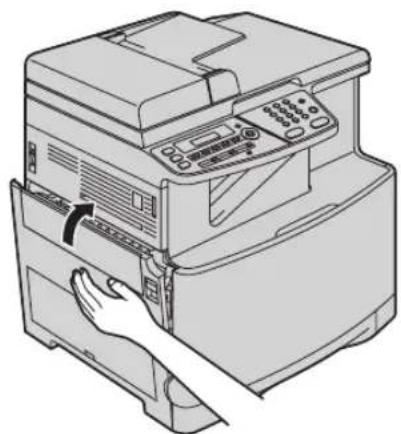

- The left side of the unit (②) and the area near the recording paper exit (③) also get warm. This is also normal.

For best performance

Toner cartridge and drum cartridge

• When replacing the toner cartridge or drum cartridge, do not allow dust, water, or liquids to come in contact with the drum. This may affect print quality.

• For optimal performance, genuine Panasonic toner cartridges and drum cartridges are recommended. We cannot be responsible for problems that may be caused by a non-Panasonic toner cartridge or drum cartridge:

• Damage to the unit
  – Poor print quality

• Improper operation

Toner cartridge

- Do not leave the toner cartridge out of the protection bag for a long time. It will decrease the toner life.

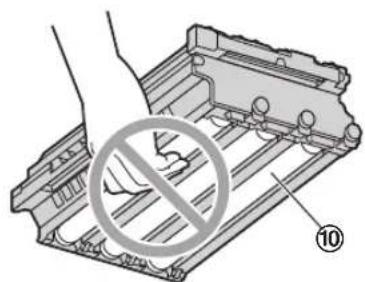

Drum cartridge

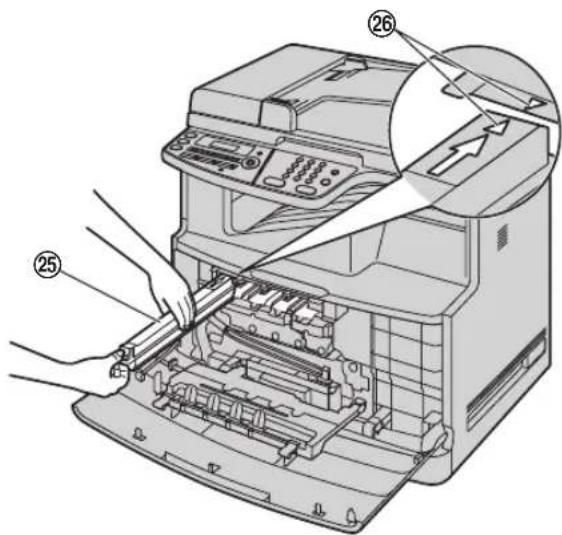

- Read the instructions on page 11 before you begin installation of the drum cartridge. After you have read them, open the drum cartridge protection bag. The drum cartridge contains a photosensitive drum. Exposing it to light may damage the drum. Once you have opened the protection bag:

• Do not expose the drum cartridge to light for more than 45 seconds.
• Do not touch or scratch the green drum surface.
• Do not place the drum cartridge near dust or dirt, or in a high humidity area.
• Do not expose the drum cartridge to direct sunlight.

● To extend the life of the drum cartridge, the power switch should never be turned OFF immediately after printing. Leave the power turned ON for a minimum of 30 minutes after printing.

Location

- To avoid malfunction, do not position the unit near appliances such as TVs or speakers which generate an intense magnetic field.

Static electricity

- To prevent static electricity damage to the interface connectors or other electrical components inside the unit, touch a grounded metal surface before touching the components.

Environment

• Keep the unit away from electrical noise generating devices, such as fluorescent lamps and motors.
  ● The unit should be kept free from dust, high temperature and vibration.
  ●The unit should not be exposed to direct sunlight.
• Do not place heavy objects on top of the unit. When you leave the unit unused for a long period of time, unplug this unit from the power outlet.
  ● The unit should be kept away from heat sources such as heaters, kitchen stoves, etc. Damp basements should also be avoided.
• In the printing process, heat is used to fuse toner onto the page. As a result, it is normal for the machine to produce an odour during and shortly after printing. Be sure to use this unit in an area with proper ventilation.

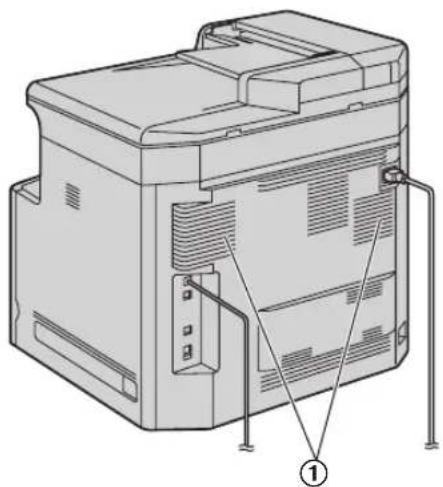

• Do not place any objects within 10 cm of the right, left and back sides of the unit.

- Do not cover slots or openings on the unit. Inspect the air circulation vents regularly and remove any dust build-up with a vacuum cleaner (①).

Technical line drawing of a computer tower with labeled components (no text or symbols present)

Routine care

● Wipe the outer surface of the unit with a soft cloth. Do not use benzine, thinner, or any abrasive powder.

Moving the unit

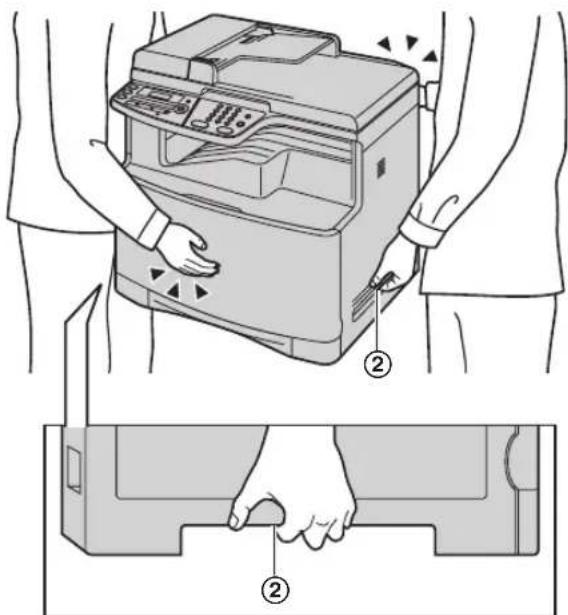

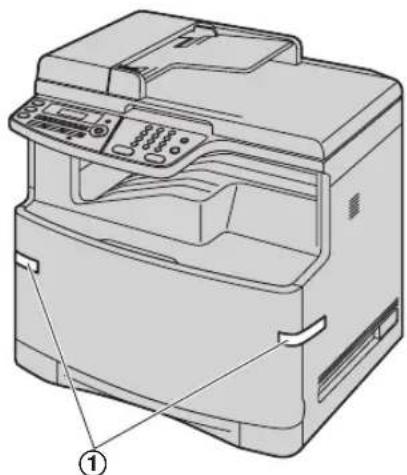

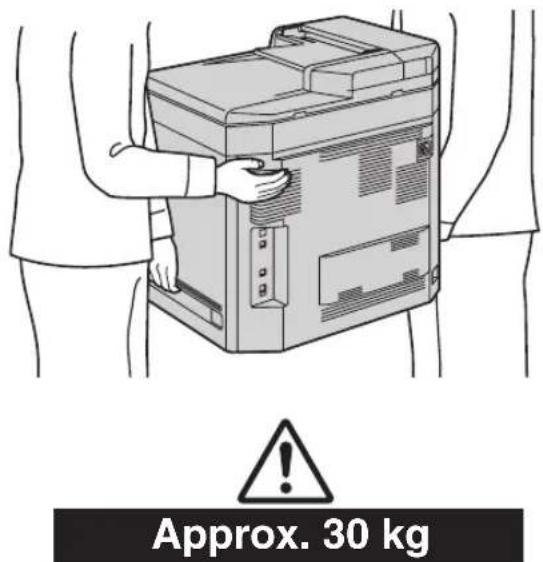

The unit weighs approximately 30 kg. It is highly recommended that two people handle this unit. When moving the unit, hold both of the side grips (②).

Illegal copies

- It is unlawful to make copies of certain documents.

Copying certain documents may be illegal in your country. Penalties of fines and/or imprisonment may be imposed on those found guilty. The following are examples of items that may be illegal to copy in your country.

• Currency
  – Bank notes and checks
  – Bank and government bonds and securities
  – Passports and identification cards
  – Copyright material or trademarks without the consent of the owner
  – Postage stamps and other negotiable instruments

This list is not inclusive and no liability is assumed for either its completeness or accuracy. In case of doubt, contact your legal counsel.

Notice:

● Install your machine near a supervised area to prevent illegal copies from being made.

1. Introduction and Installation

Accessories

1.1 Supplied accessories .... 7
1.2 Accessory information...... 8

Finding the Controls

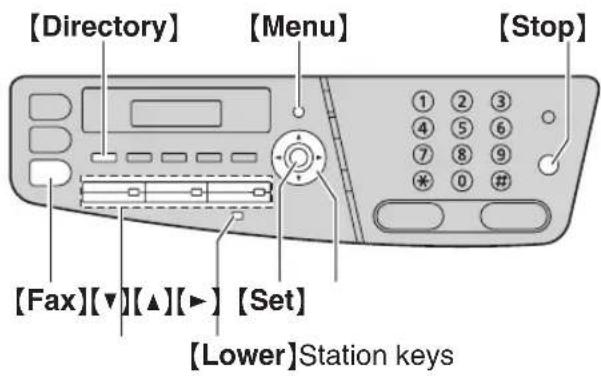

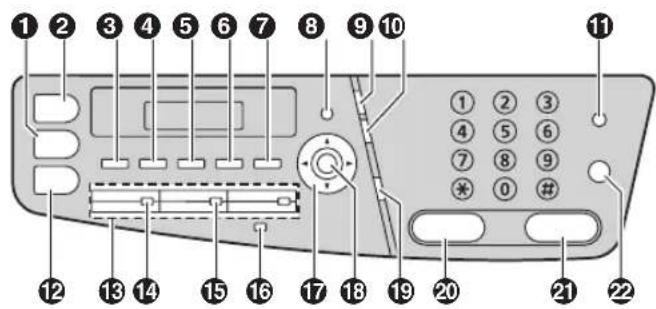

1.3 Button descriptions.... 9
1.4 Overview 10

Installation

1.5 Toner cartridge and drum cartridge..... 11
1.6 Recording paper.... 15

2. Preparation

Connections and Setup

2.1 Connections 18
2.2 Turning the power switch ON.... 19
2.3 Selecting the operation mode (Scan/Copy/Fax) 19

Document Requirements

2.4 Setting the original.... 20

Help

2.5 Help function 21

Volume

2.6 Adjusting the volume 22

Initial Programming

2.7 Date and time 22
2.8 Your logo.... 23
2.9 Your fax number 23
2.10 Configuring the unit to access the LAN..... 24
2.11 Installing Multi-Function Station 25
2.12 Starting Multi-Function Station 27

3. Printer

Printer

3.1 Printing from Windows applications ..... 29
3.2 Printing a received e-mail attachment automatically (LAN connection only) ...... 31

4. Scanner

Scanner

4.1 Scanning from the unit (Push Scan)...... 33
4.2 Scanning from a computer (Pull Scan)...... 35

5. Copier

Copy

5.1 Making a copy 37
5.2 More copying features 38

6. Fax

Sending Faxes

6.1 Sending a fax manually 44
6.2 Storing items for the one-touch dial feature and navigator directory.... 45
6.3 Sending a fax using one-touch dial feature and navigator directory.... 46
6.4 Broadcast transmission.... 47

6.5 Sending a computer document as a fax message from your computer ....49

Receiving Faxes

6.6 Selecting the way to use your unit....49
6.7 Receiving a fax automatically – Auto answer ON....50
6.8 Receiving a fax manually – Auto answer OFF 51
6.9 Using the unit with an answering machine...52
6.10 Receive polling (retrieving a fax placed on another fax machine) ....53
6.11 Junk fax prohibitor (preventing fax reception from undesired callers)....53
6.12 Receiving a fax on your computer....54

7. Caller ID

Caller ID

7.1 Caller ID service....55
7.2 Viewing and calling back using caller information ....55
7.3 Editing a caller's telephone number before calling back/storing....55
7.4 Erasing caller information....56
7.5 Storing caller information .....56

8. Programmable Features

Features Summary

8.1 Programming....57
8.2 Basic features ......58
8.3 Fax features 61
8.4 Copy features....65
8.5 PC print features 66
8.6 Scan features 69
8.7 LAN features 71
8.8 Network features (LAN connection only).....73

9. Useful Information

Useful Information

9.1 Character entry .....75
9.2 Status of the unit 76
9.3 Cancelling the operations....77
9.4 Changing the colour calibration....77

Option

9.5 Optional automatic duplex unit....78
9.6 Optional input tray 78
9.7 Setting the optional input tray/optional automatic duplex unit .....79

10.Help

Error Messages

10.1 Error messages – Reports .....80
10.2 Error messages – Display ....81

Troubleshooting

10.3 When a function does not work....84

11.Paper Jams

Jams

11.1 Recording paper jam....93
11.2 Document jams (Automatic document feeder) 98

12.Cleaning

Cleaning

12.1 Cleaning the white plates and glass.... 99
12.2 Cleaning the document feeder rollers..... 100
12.3 Cleaning the paper chute 101

13.General Information

Printed Reports

13.1 Reference lists and reports ...... 102

Specifications

13.2 Specifications 103

Copyrights

13.3 Information of copyrights and licences ..... 106

14.Index

14.1 Index.... 116

1.1 Supplied accessories

①Toner cartridge (starter) (Cyan/Magenta/Yellow/Black) ^*1

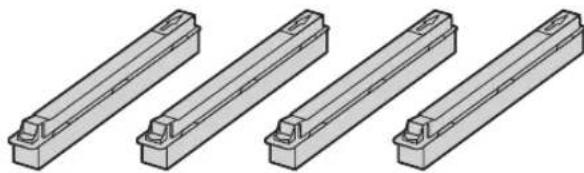

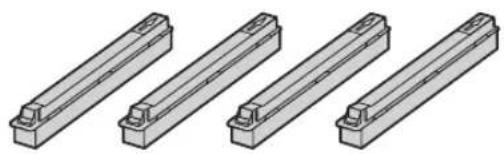

Four identical mechanical components with flanged ends, shown in 3D rendering without any text or symbols.

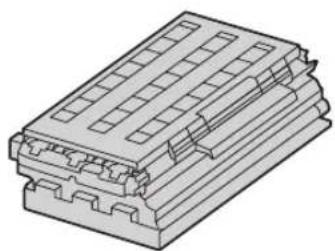

②Colour drum cartridge (KX-FADC510X) ^2

③Monochrome drum cartridge (KX-FADK511X) ^4

Isometric line drawing of a multi-layered plastic housing or enclosure (no text or symbols)

④Waste toner cartridge (pre-installed inside the unit) (KX-FAW505X) ^2

⑤CD-ROM (PNJKMC6020Z) ^*2

⑥Quick reference guide (PNQW1365Z) ^4

⑦Quick installation guide (PNQW1047Z) ^2

⑧Mains lead (PFJA03A008Y) ^*2

⑨Telephone line cord (PQJA87S) ^2*3

*1 Prints about 1,000 A4-size pages with a 5 % coverage (page 104).
*2 Part numbers are subject to change without notice.
*3 For UK.

Note:

- Save the original carton and packing materials for future shipping and transportation of the unit.

● After unpacking the product, take care of the power plug cap and/or packing materials appropriately.
- Do not remove the drum cartridges and toner cartridges from the unit when repacking the unit for shipping and transportation.

1.2 Accessory information

To ensure that the unit operates properly, we recommend the use of Panasonic toner cartridge and drum cartridge.

1.2.1 Sales and Support Information

Customer Care Centre

●For customers within the UK: 0844 844 3878 (for fax machine) 0844 844 3867 (for MFP)
- For customers within the Republic of Ireland: 01 6130082 (for fax machine) 01 2898255 (for MFP)
- Visit our website for product information
• E-mail: [e-mail]

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday - Thursday 9:00am - 5:30pm, Friday 9:30am - 5:30pm (Excluding public holidays).
• Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk
• Most major credit and debit cards accepted.
  ● All enquires transactions and distribution facilities are provided directly by Panasonic UK Ltd.
• It couldn't be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details.

■ Replacement accessory

- Toner cartridge

Colour Model No. (Part No.)

Cyan KX-FATC501X

Magenta KX-FATM502X

Yellow KX-FATY503X

Black KX-FATK504X

●Prints about 2,000 sheets of A4-size pages with a 5 % coverage using KX-FATC501X/KX-FATM502X/KX-FATY503X and about 2,500 sheets using KX-FATK504X.

- Toner cartridge (high capacity)

Colour Model No. (Part No.)
Cyan KX-FATC506X
Magenta KX-FATM507X
Yellow KX-FATY508X
Black KX-FATK509X

- Prints about 4,000 sheets of A4-size pages with a 5% coverage.

• Colour drum cartridge • Model No. (Part No.): KX-FADC510X
• Monochrome drum cartridge • Model No. (Part No.): KX-FADK511X
• Waste toner cartridge • Model No. (Part No.): KX-FAW505X

■ Optional accessory

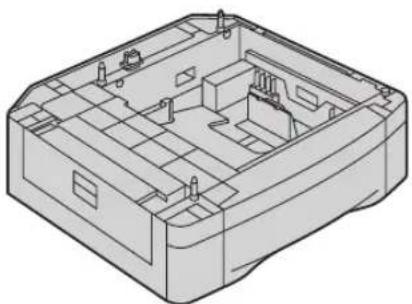

• Optional lower input tray
• Model No. (Part No.): KX-FAP317X
• Automatic duplex unit • Model No. (Part No.): KX-FAB318X

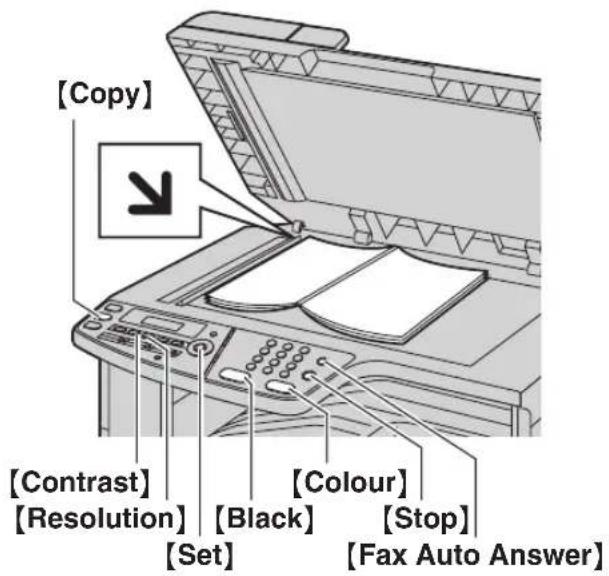

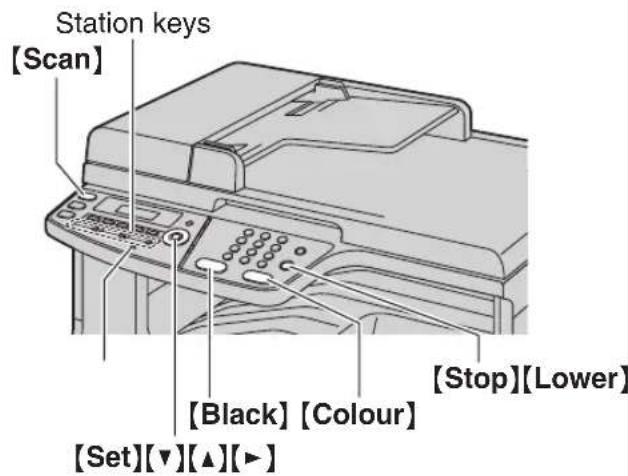

1.3 Button descriptions

①[Copy]

●To switch to the copy mode (page 19, 37).

②[Scan]

●To switch to the scan mode (page 19, 33).

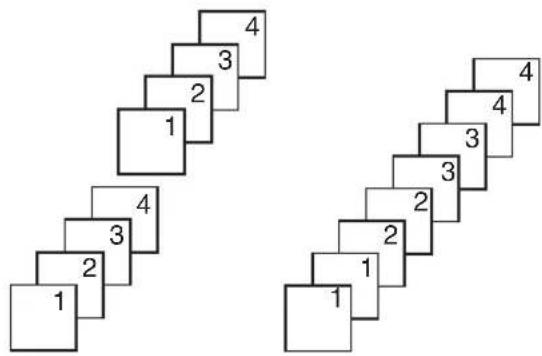

③ [Collate][Directory]

● To make a collated copy (page 39).
●To initiate the navigator directory (page 46, 48).

4[Contrast]

●To select a contrast when copying (page 37).
- To select a contrast when sending a fax (page 44).

⑤[Resolution]

●To select a resolution when copying (page 37).
- To select a resolution when sending a fax (page 44).

⑥ [Zoom][Quick Scan]

• To enlarge or reduce a document when copying (page 38).
• To store a scanned document into memory, and then send it (page 45).

⑦ [Page Layout][Caller ID]

●To make various page layout copies (page 40).
- To use Caller ID features (page 55).

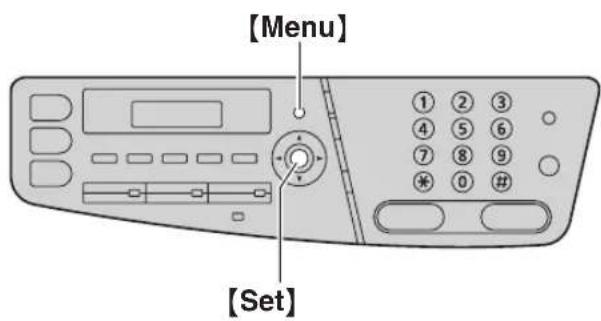

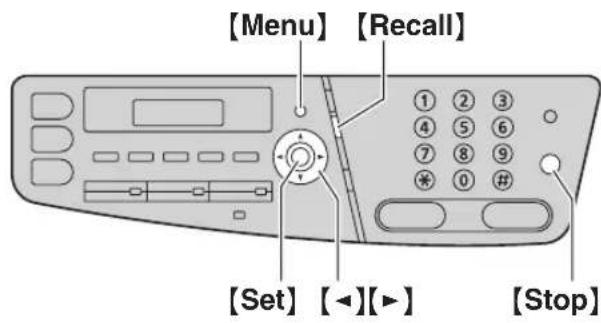

⑧[Menu]

● To start or exit programming.

⑨ [Redial][Pause]

• To redial the last number dialled. If the line is busy when you send a fax, the unit will automatically redial the number 5 times.
  ●To insert a pause during dialling.

10[Recall]

- To access special telephone services or for transferring extension calls.

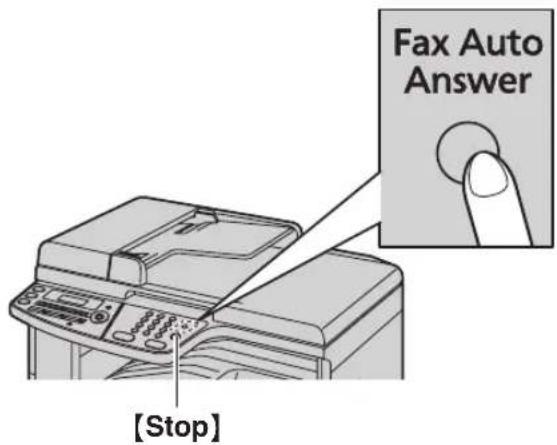

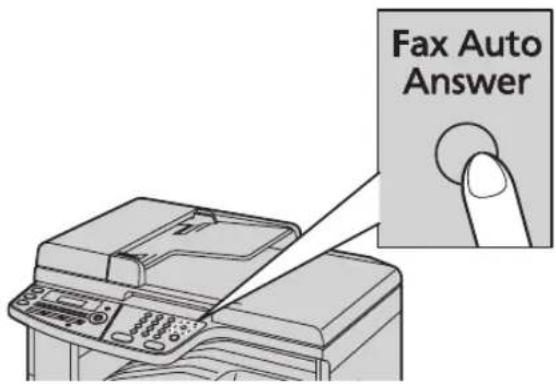

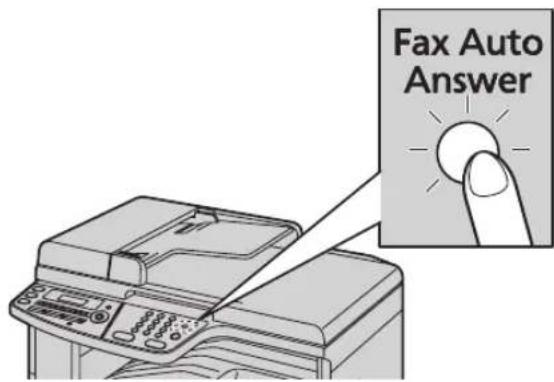

⑪[Fax Auto Answer]

- To turn the auto answer setting ON/OFF (page 50).

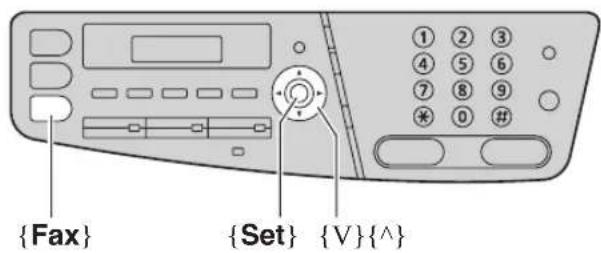

12[Fax]

●To switch to the fax mode (page 19, 44).

13Station keys

●To use the one-touch dial feature (page 45, 46).

14[Broadcast]

●To send a document to multiple parties (page 47).

15[Manual Broad]

● To send a document to multiple parties by storing using the dial keypad (page 47).

16[Lower]

- To select stations 4–6 for the one-touch dial feature (page 45, 46).

⑰ Navigator key

● To select desired settings.
- To adjust the volume (page 22).
- To search for a stored item (page 46).

18[Set]

●To store a setting during programming.

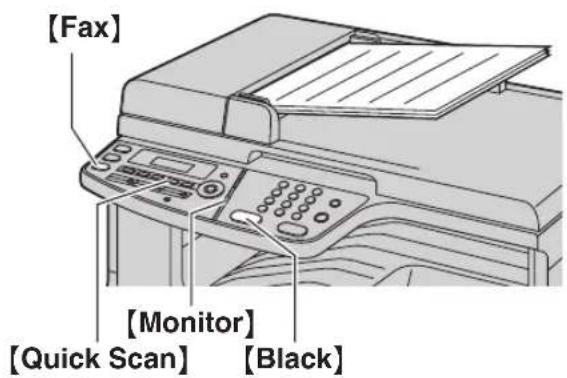

19[Monitor]

- To initiate dialling.

When you press [Monitor] while receiving a call, you will be able to hear the other party, but the other party will not be able to hear you.

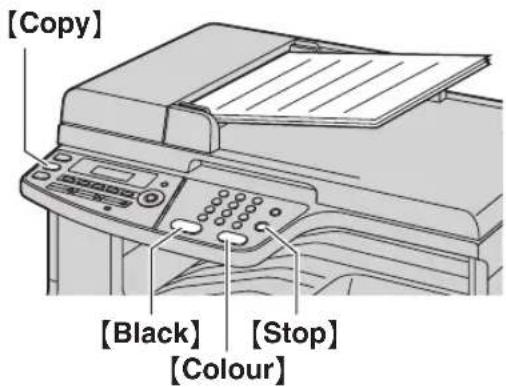

20[Black]

● To copy a document in monochrome (page 37).
- To scan a document in monochrome (push scan) (page 33).
● To send or receive a fax (page 44).

21[Colour]

●To copy a document in colour.
- To scan a document in colour (push scan).

22[Stop]

• To stop an operation or programming session.
• To erase a character/number.

Recall button (to use the recall feature)

[Recall] is used to access optional telephone services. Contact your telephone company business office for details.

Note:

- If your unit is connected to a PBX, pressing [Recall] allows you to access some features of your host PBX such as transferring an extension call.

1.4 Overview

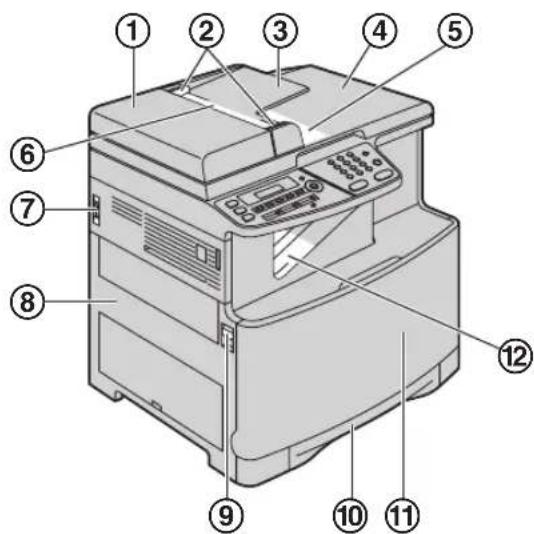

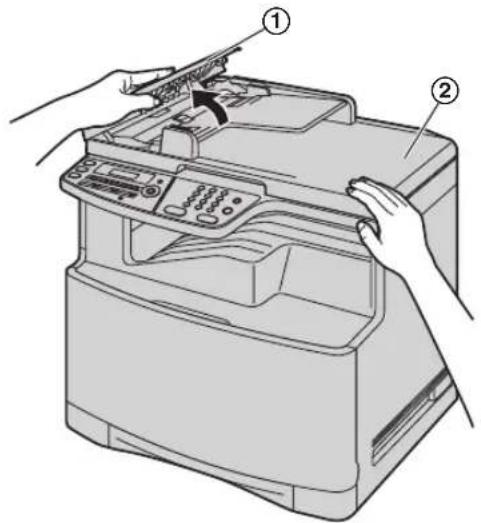

1.4.1 Front view

①ADF (Automatic Document Feeder) cover
②Document guides
③Document tray
④Document cover
⑤Document exit
⑥Document entrance

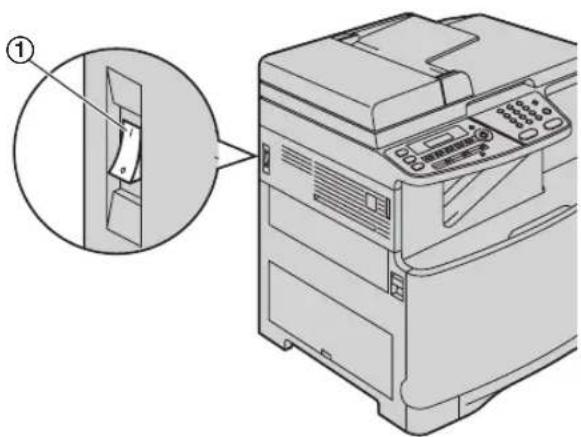

⑦Power switch
⑧Left cover
⑨Left cover open lever
⑩Standard input tray
⑪Front cover
⑫Recording paper exit *1

Technical diagram of a printer internal structure showing base tray, casing, and mounting bracket (no text or symbols)

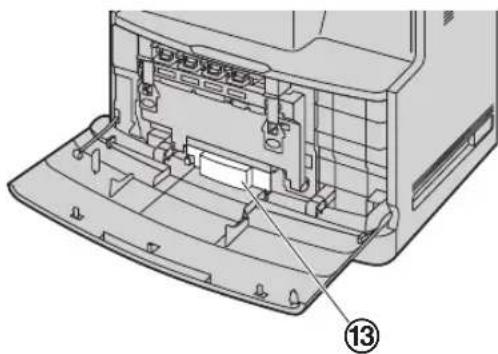

⑬Waste toner cartridge (pre-installed inside the unit) ^2

*1 The unit can hold up to approximately 100 sheets of printed paper. Remove the printed paper before the recording paper exit becomes full.
*2 The waste toner cartridge stores toner that is discharged during printing. See page 105 for information on the waste toner cartridge life.

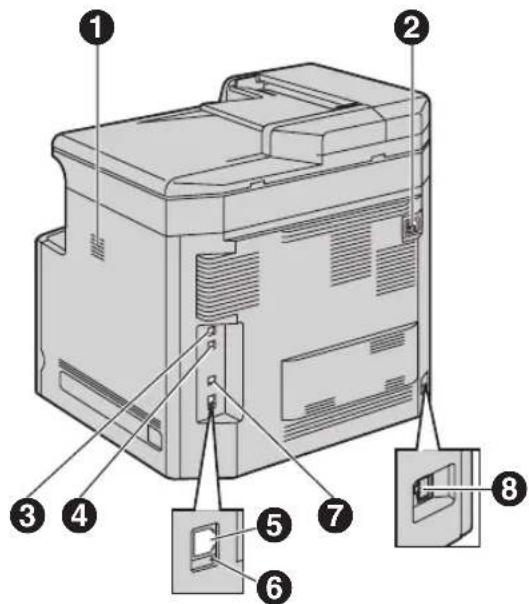

1.4.2 Rear view

①Speaker
②AC-in socket
③Telephone line socket
④External telephone socket
⑤LAN interface connector
6LED
⑦USB interface connector
⑧Automatic duplex unit (optional) connector

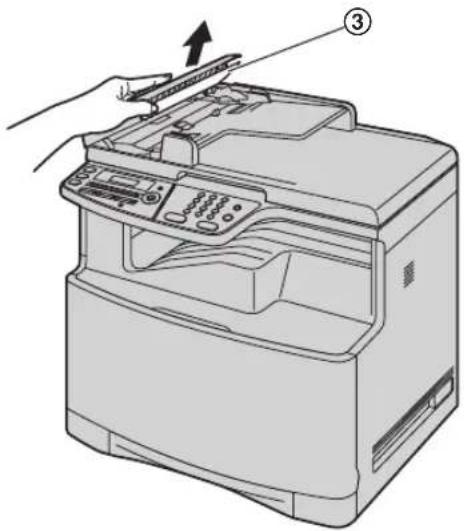

Removing the shipping tape

Remove the shipping tape (①).

Line drawing of a printer with control panel and paperclip (no text or symbols)

Note:

- Shipping tape positions are subject to change without notice.

1.5 Toner cartridge and drum cartridge

The supplied toner cartridge is a starter toner cartridge.

Caution:

- Read the following instructions before you begin installation. After you have read them, open the drum cartridge protection bag. The drum cartridge contains a photosensitive drum. Exposing it to light may damage the drum. Once you have opened the protection bag:

• Do not expose the drum cartridge to light for more than 45 seconds.
• Do not touch or scratch the green drum surface at the bottom of the drum cartridge.
• Do not place the drum cartridge near dust or dirt, or in a high humidity area.

• Do not expose the drum cartridge to direct sunlight.

• Do not leave the toner cartridge out of the protection bag for a long time. It will decrease the toner life.

• We cannot be responsible for any damage to the unit or degradation of print quality which may occur from the use of a non-Panasonic toner cartridge and drum cartridge.
• Do not add toner to the toner cartridge.

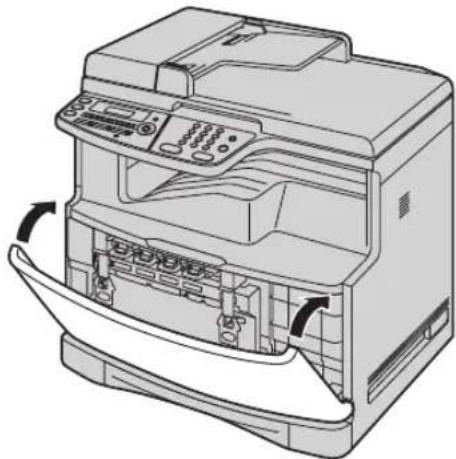

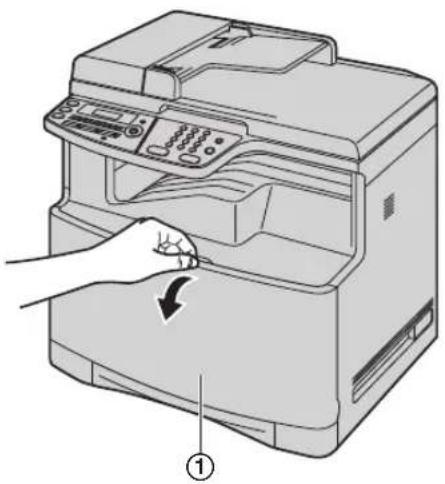

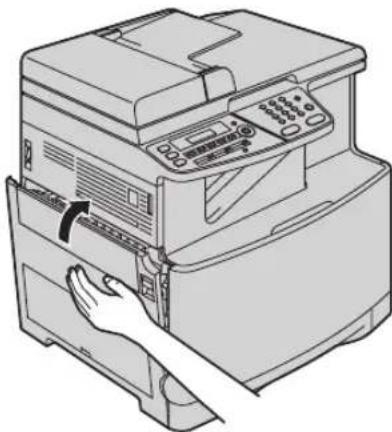

1 Open the front cover (①) by holding the centre part.

Illustration of a printer with a hand inserting a button to a paper airplane (no text or symbols present)

2 Unlock the drum cartridge cover by pushing the tabs (②) in the direction of the arrows.

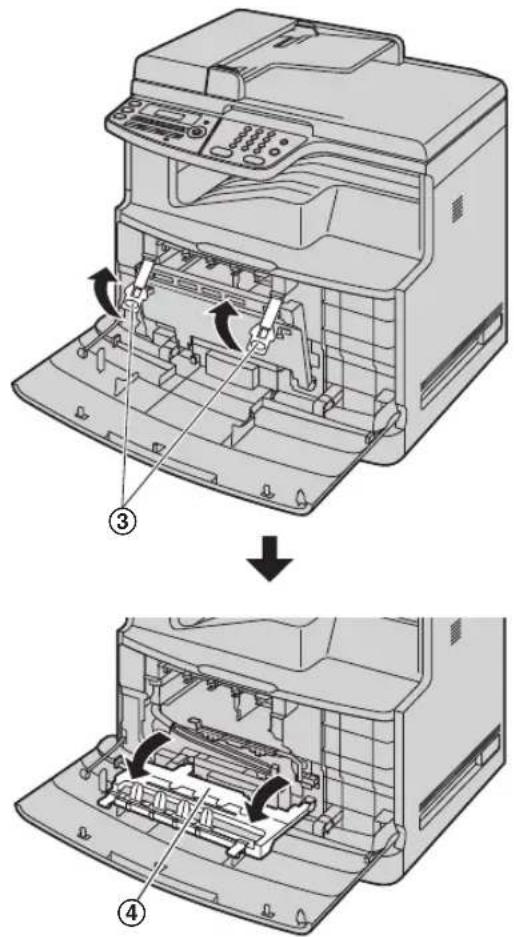

3 Lift up the levers (③) and open the drum cartridge cover (④).

1. Introduction and Installation

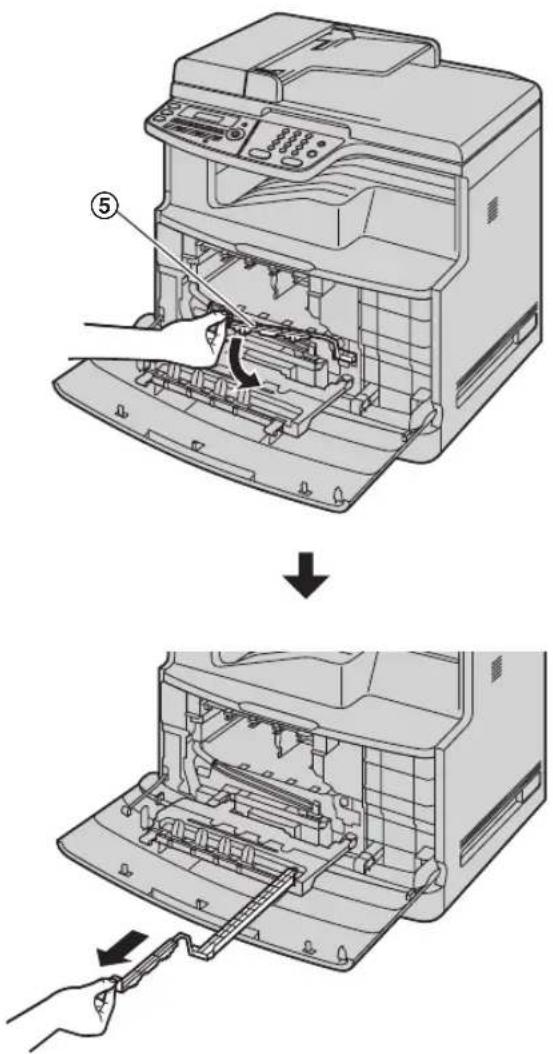

4 Remove the orange protector (⑤) by pulling it toward you, then pull it completely out from the unit.

5 Remove the colour drum cartridge from the protection bag.

Isometric line drawing of a multi-layered electronic component with no text or symbols

• Remove the shipping tape.
• Do not remove the monochrome drum cartridge from the protection bag before installing the colour drum cartridge in step 8.
• When holding the colour drum cartridge, be sure to handle it over a table to prevent damage caused by dropping it from a high position.

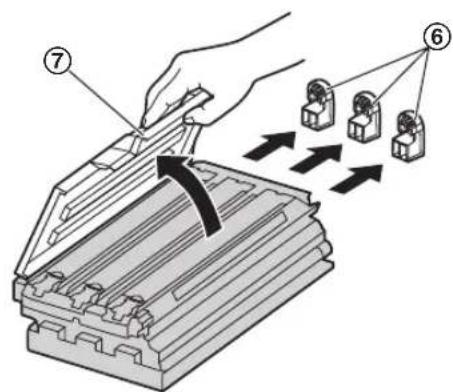

6 Remove the protective caps (⑥), then detach the upper seal cover by holding the tab (⑦).

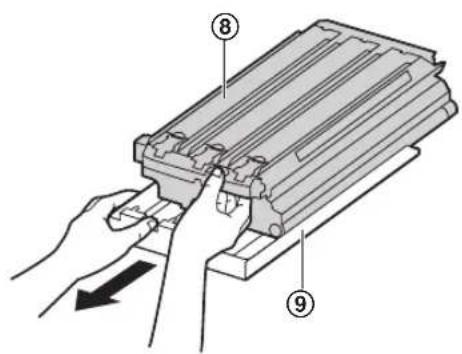

7 Firmly grip the colour drum cartridge (⑧) and remove the protective tray (⑨) by sliding it toward you.

- Do not touch or scratch the green drum surface (⑩) at the bottom of the drum cartridge.

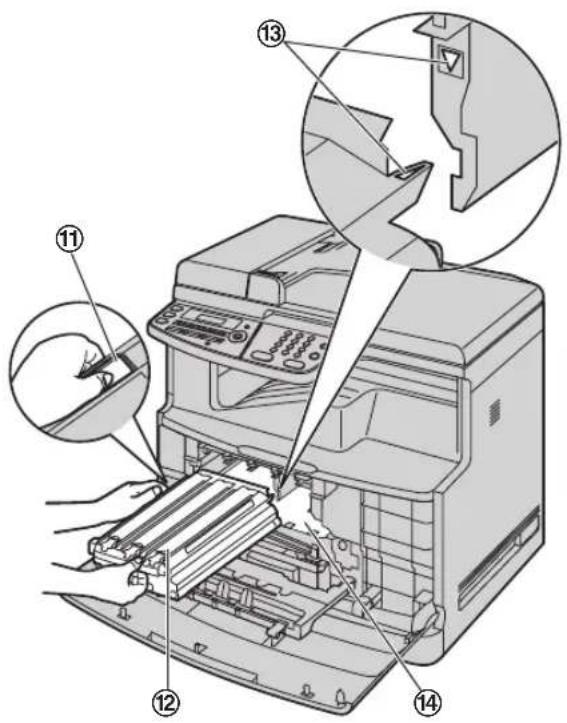

8 Hold the green lever (11) of the colour drum cartridge (12) using your left hand, and hold the front part using your right hand. Then insert it into the left side of the unit.

- Make sure that the arrows (13) match to insert the drum cartridge correctly.

- Do not touch or scratch the accumulator unit (14).

9 Remove the monochrome drum cartridge from the protection bag.

Isometric line drawing of a mechanical component with internal channels (no text or symbols)

- Remove the shipping tape.

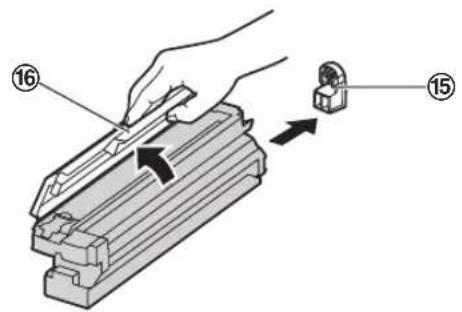

10 Remove the protective cap (⑮), then detach the upper seal cover by holding the tab (⑯).

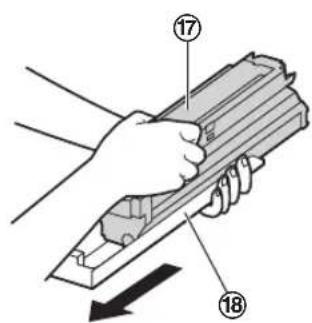

11 Firmly grip the monochrome drum cartridge (⑰) and remove the protective tray (⑱) by sliding it toward you.

- Do not touch or scratch the green drum surface (19) at the bottom of the drum cartridge.

Diagram of a hand holding a device with a prohibition symbol overlay (no text or labels present)

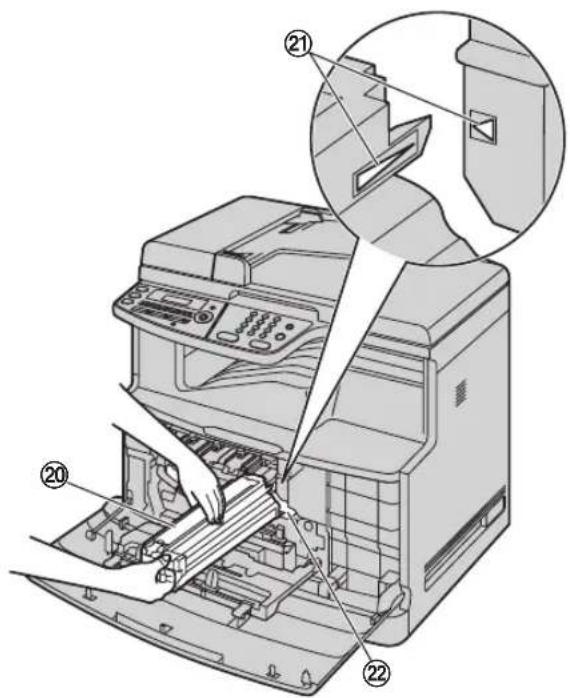

12 Insert the monochrome drum cartridge (⑳) into the right side of the unit.

• Make sure that the arrows (21) match to insert the drum cartridge correctly.
• Do not touch or scratch the accumulator unit (22).

1. Introduction and Installation

13 Before opening the protection bag of the new toner cartridges, shake them vertically more than 10 times.

Hand holding a rectangular object with motion lines indicating movement (no text or symbols)

14 Remove the 4 toner cartridges from the protection bags.

Four identical 3D mechanical parts with flanged ends, shown in isometric view (no text or symbols)

- Remove the shipping tape.

15 Remove each protective tray (23) by lifting up the toner cartridge (24).

16 Insert each toner cartridge (25) in the appropriate colour slot.

From left to right, yellow, magenta, cyan, black.

- Make sure that the arrows (26) match to insert the toner cartridge correctly.

- Do not touch the toner cartridge shutter at the bottom of the toner cartridge. The toner may spill out of the toner cartridge.

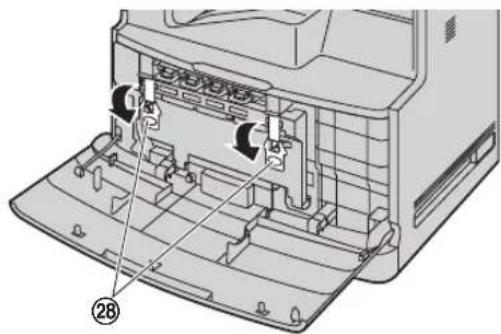

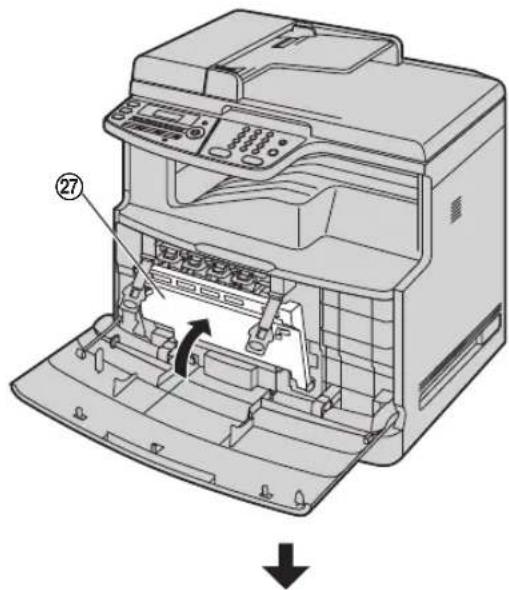

17 Lift the drum cartridge cover (27) and push down on the levers (28) to close.

- Push the levers down until you hear a click to ensure that the cover is locked.

18 Close the front cover.

Line drawing of a printer with internal components and a curved base, showing no text or symbols.

When to replace the toner cartridge and the drum cartridge

When the display shows the following, replace the toner cartridge.

- "BLACK TONER LOW"

• "CYAN TONER LOW"
• "MAGENTA TONER LOW"
• "YELLOW TONER LOW"
• "BLACK TONER EMPTY"
• "CYAN TONER EMPTY"
• "MAGENTA TONER EMPTY"
• "YELLOW TONER EMPTY"

When the display shows the following, replace the drum cartridge.

• "COLOUR DRUM LIFE LOW"
• "MONOCHROME DRUM LIFE LOW"
• "COLOUR DRUM REPLACE"
• "MONOCHROME DRUM REPLACE"

Note:

• When replacing the toner cartridge, be sure to seal the used toner cartridge in a plastic bag or other container so that toner does not spill out of it.
• When replacing the colour drum cartridge, hold the green lever using your left hand same as installing it. See step 8 on page 12 for instructions.
• To ensure that the unit operates properly, we recommend the use of Panasonic toner cartridge and drum cartridge. See page 8 for accessory information.
• See page 104 for information on toner life and drum life.

Waste disposal method

Waste material should be disposed of under conditions which meet all national and local environmental regulations.

Toner save feature

If you want to reduce toner consumption, set the toner save setting to ON (feature #482 on page 60). The toner cartridge will last approximately 40 % longer. This feature may lower the print quality.

1.6 Recording paper

The standard input tray unit can hold:

• Up to 250 sheets of 75g / m^2 paper.
• Up to 230 sheets of 80g / m^2 paper.
• Up to 200 sheets of 90g / m^2 paper.
• Up to 180 sheets of 105g / m^2 paper.
• Up to 25 transparencies. *1
• Up to 25 labels.
• Up to 10 envelopes. *1
• Up to 10 card stocks. *1

*1 Only when using the unit as a printer. See page 30 for details.

• Please refer to page 103 for information on recording paper.

• The unit is set for printing A4-size plain paper by default.

• To use letter or legal-size paper, change the recording paper size setting (feature #380 on page 59).

• To use thin or thick paper, change the recording paper type setting (feature #383 on page 59).

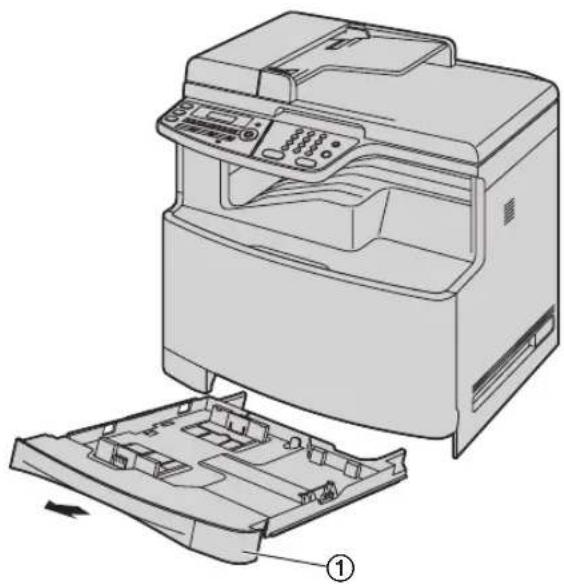

1 Pull the standard input tray (①) until it clicks into place, then pull it completely out, lifting the front part of the tray.

Line drawing of a printer with internal components and a base cover, showing no text or symbols.

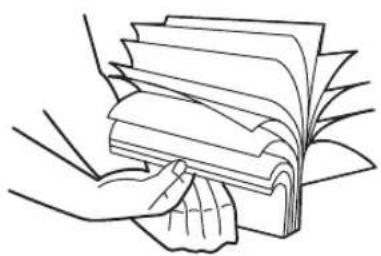

2 Before loading a stack of paper, fan the paper to prevent paper jams.

Line drawing of a hand holding a stack of books (no text or symbols present)

1. Introduction and Installation

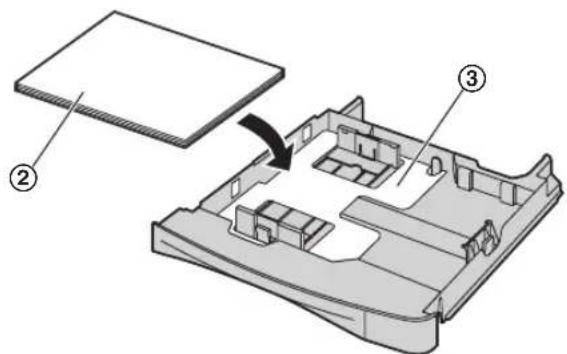

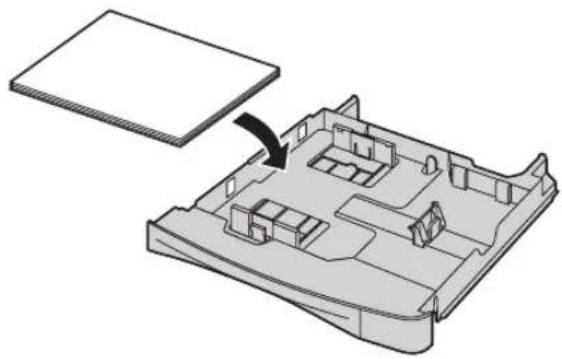

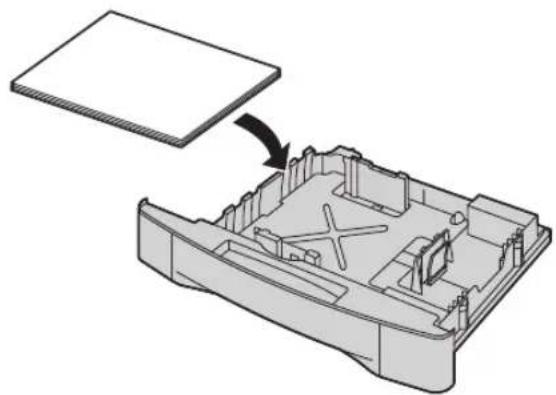

3 Load the paper, print-side up (②).

Important:

- Push and lock the plate (③) in the standard input tray, if it is lifted.

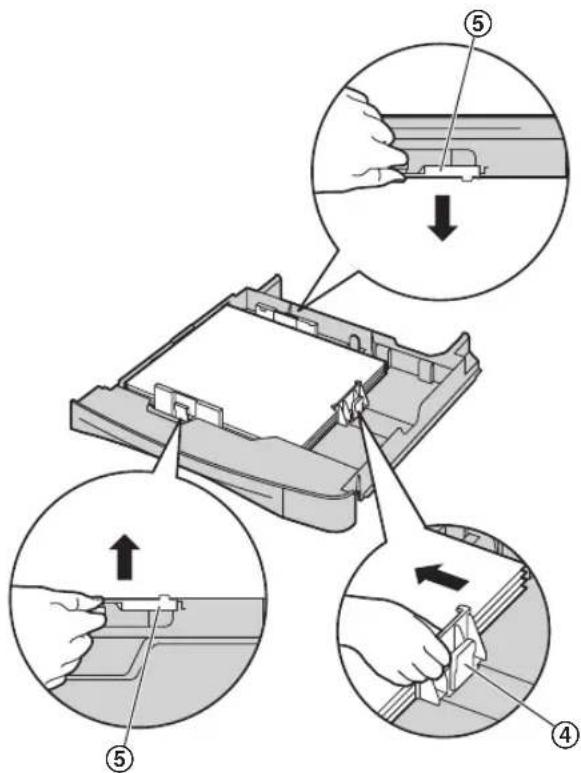

4 Pinch the right side of the recording paper guide (④), then slide it to match the paper size mark. Pinch the front and back recording paper guides (⑤) at the same time, then slide them together to match the paper size mark.

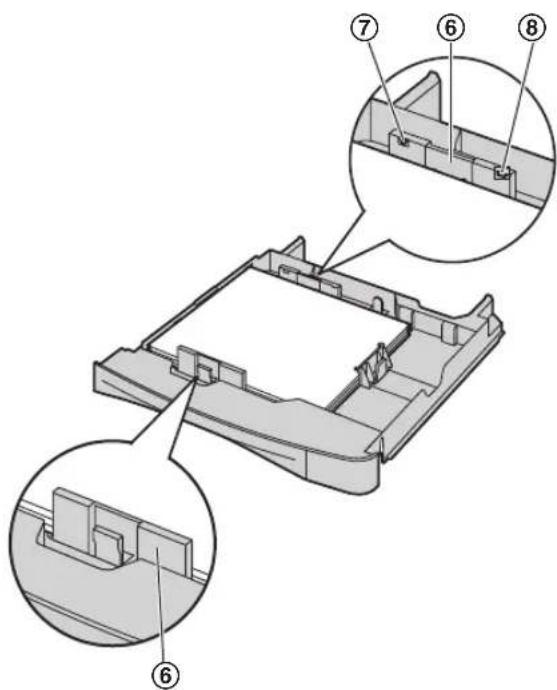

- Make sure that the recording paper guides (⑥) are at the paper size mark and the recording

paper is under the paper limit mark (⑦). The paper should not be loaded over the tab (⑧).

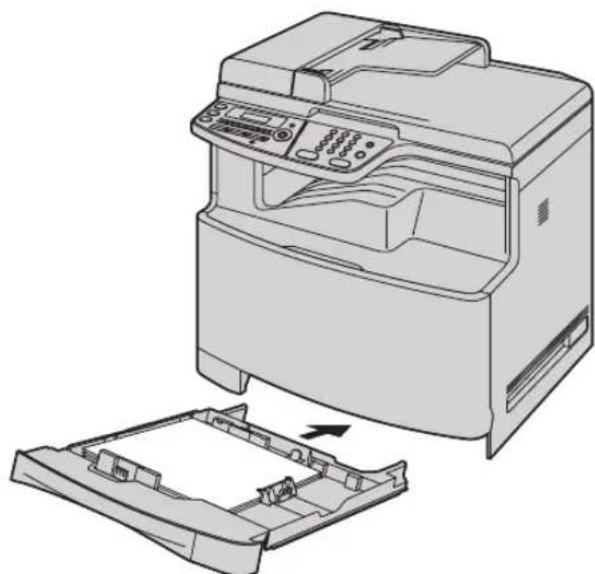

5 Insert the standard input tray to the unit, lifting the front part of the tray. Then push it completely into the unit.

Line drawing of a printer with internal components and an open lid (no text or symbols)

Note:

• If the paper is not loaded correctly, re-adjust the paper guides, or the paper may jam.
• If the standard input tray does not close, the plate in the standard input tray may be lifted. Push the paper and make sure that the paper is laid flat in the standard input tray.

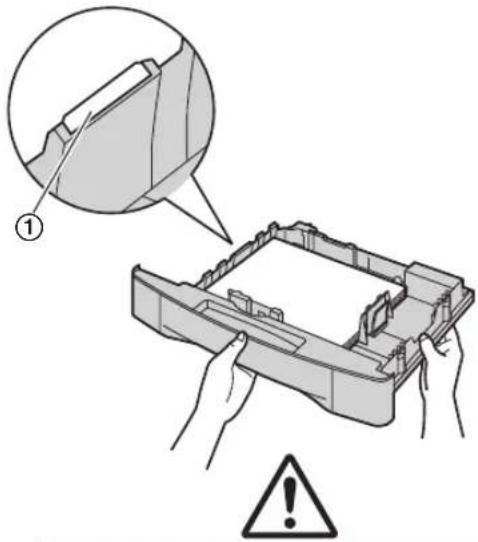

Caution for the standard input tray

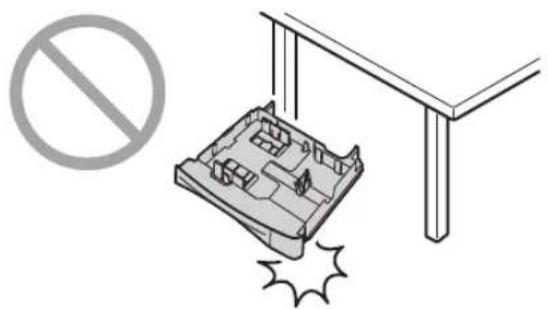

- Do not drop the standard input tray.

Illustration of a cluttered device with a prohibition symbol and explosion effect (no text or symbols present)

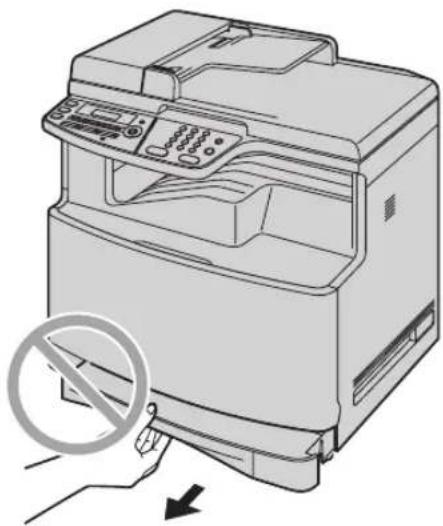

- Hold the standard input tray with both hands when removing or installing. The standard input tray weighs approximately 2.9 kg when the recording paper is fully installed.

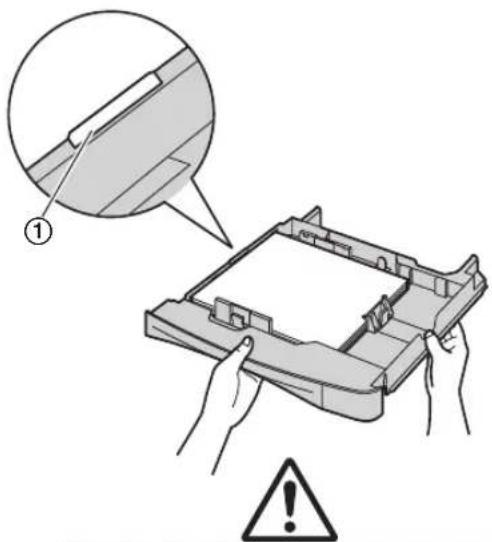

Do not touch the plate (①) on the left side of the standard input tray.

Approx. 2.9 kg

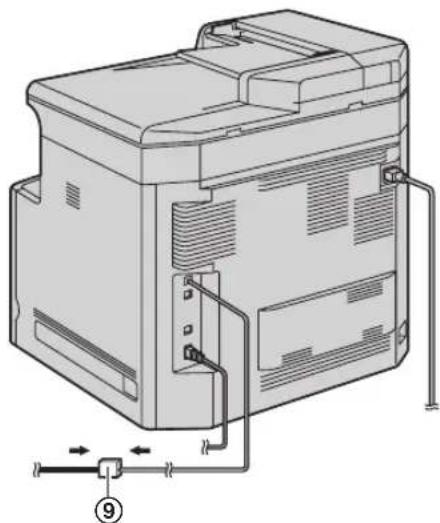

2.1 Connections

Caution:

●The mains lead must remain connected at all times.
- Never install telephone wiring during a lightning storm.
- When you operate this product, the power outlet should be near the product and easily accessible.
- Be sure to use the telephone line cord supplied with this unit.
- Do not extend the telephone line cord.

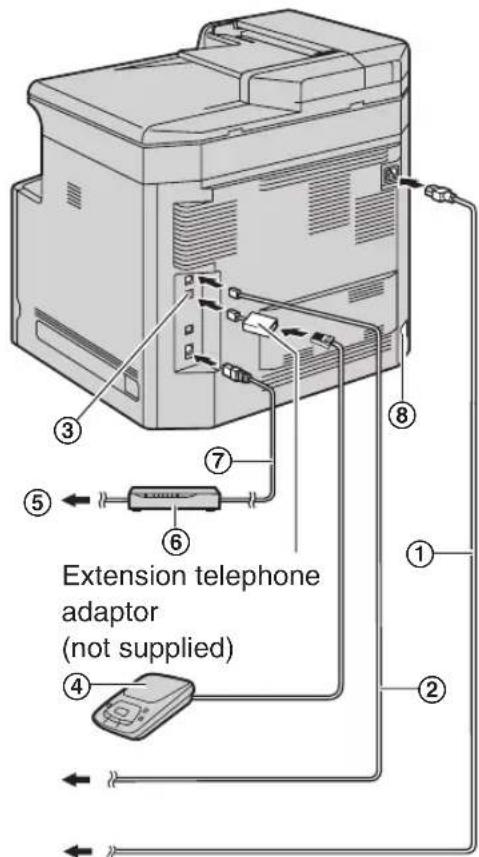

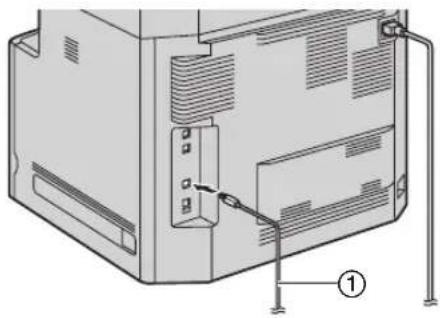

①Mains lead
- Connect to Household Mains Supply (220–240 V, 50 Hz).
②Telephone line cord
- Connect to telephone network.

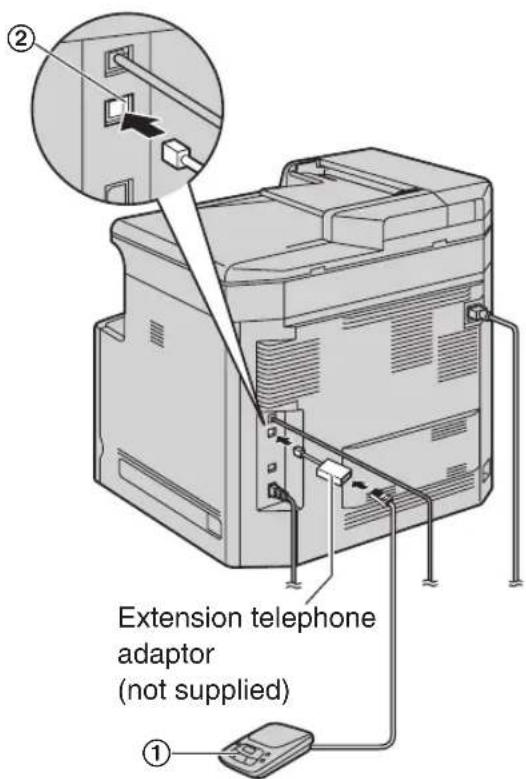

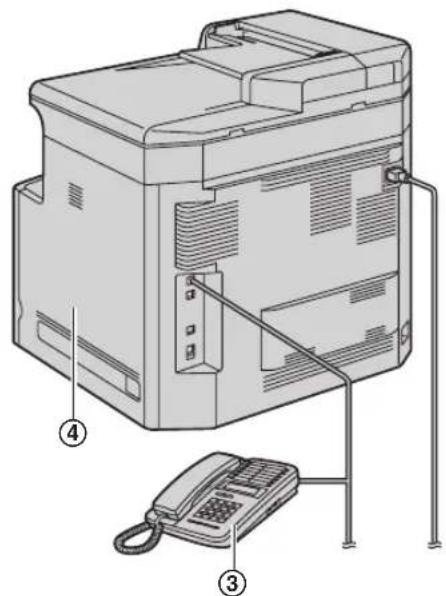

③[EXT] socket
- You can connect an answering machine or an extension telephone. Remove the stopper if attached.
④Answering machine (not supplied)
⑤To the internet
⑥Network router/Network hub (not supplied)
- Also connect networked computers.

⑦LAN cable (not supplied)

- To assure continued emission limit compliance, use only shielded LAN cable (category 5 straight cable).

⑧Automatic duplex unit (optional) connector

IMPORTANT NOTICE FOR THE USB CONNECTION

- DO NOT CONNECT THE UNIT TO A COMPUTER WITH USB CABLE UNTIL PROMPTED BY THE MULTI-FUNCTION STATION (page 25).

Note:

• If any other device is connected to the same telephone line, this unit may disturb the network condition of the device.
• If you use the unit with a computer and your internet provider instructs you to install a filter (⑨), please connect it as follows.

Technical line drawing of a computer tower with attached cables and connectors (no text or symbols)

- A telephone handset cannot be connected directly to this unit. To talk to the other party, please connect an extension telephone.

Using network router/network hub

• We recommend using network routers/network hubs (⑥) under secure network environments. Consult your network administrator for firewall settings, etc.
  ● The warranty does not cover damage due to security problems or any disadvantages relating to it.

2.2 Turning the power switch ON

Turn the power switch to the ON position (①).

2.3 Selecting the operation mode (Scan/Copy/Fax)

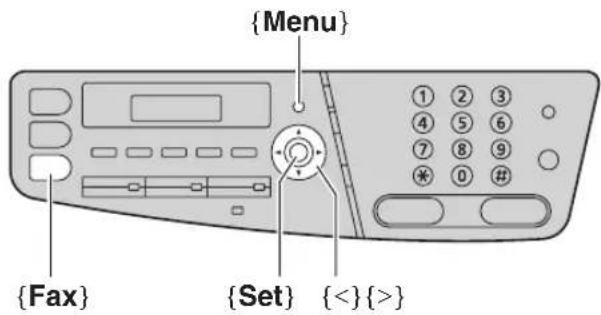

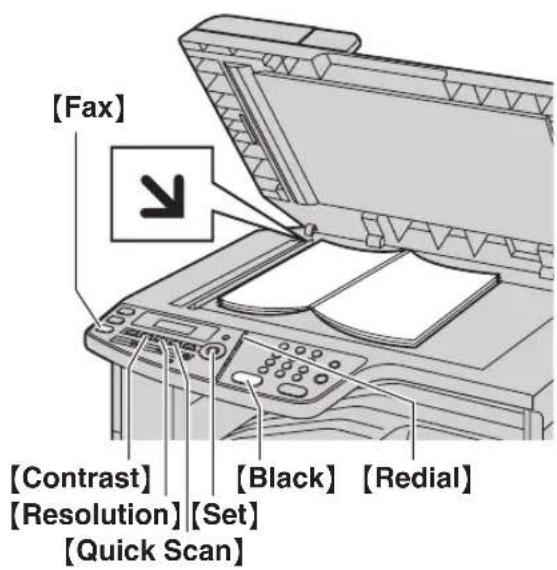

You can select the desired mode by pressing one of the following buttons.

• 【Scan】: Select this mode when using the unit as a scanner (page 33).
• 【Copy】: Select this mode when using the unit as a copier (page 37).
• [Fax]: Select this mode when using the unit as a fax machine (page 44).

Note:

• The default operation mode is the copy mode.
• You can change the default operation mode (feature #463 on page 60) and the timer before returning to the default operation mode (feature #464 on page 60).

2.4 Setting the original

2.4.1 Using the scanner glass

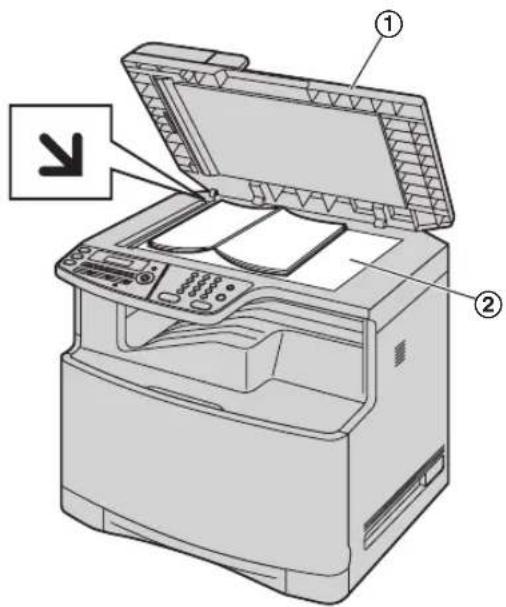

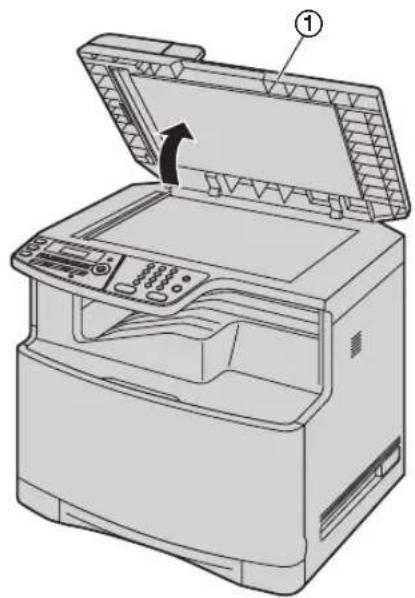

1 Open the document cover (①).

2 Place the document FACE DOWN on the scanner glass (②), aligning the top left of the document with the corner to which the mark points.

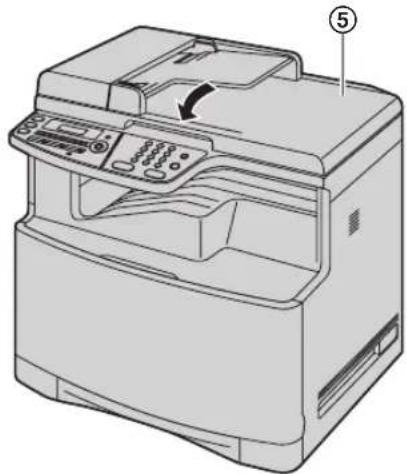

3 Close the document cover.

Note:

- Confirm that there are no documents in the automatic document feeder.

- Place the original onto the scanner glass gently. Do not press down too firmly to avoid malfunction.

- If the original is a thick book, do not close the document cover.

- Check that any ink, paste or correction fluid has dried completely.

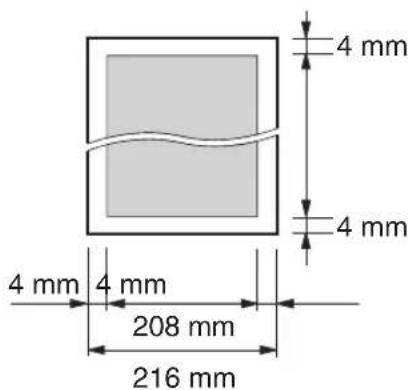

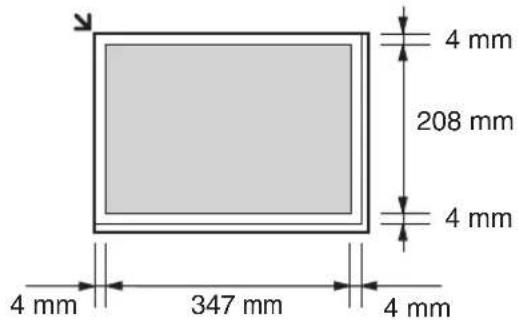

●Effective scanning area is as follows: Effective scanning area

●Shaded area will be scanned.

2.4.2 Using the automatic document feeder

Line drawing of a printer with control panel and paper feed (no text or symbols)

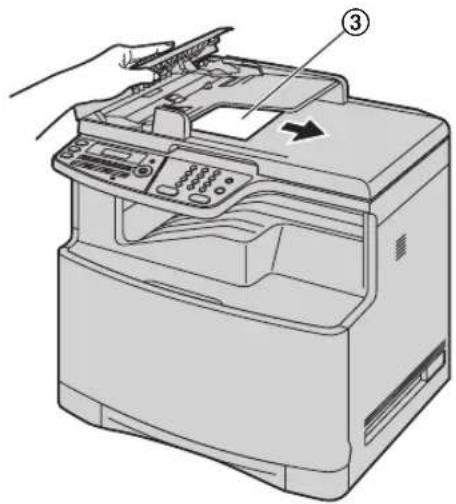

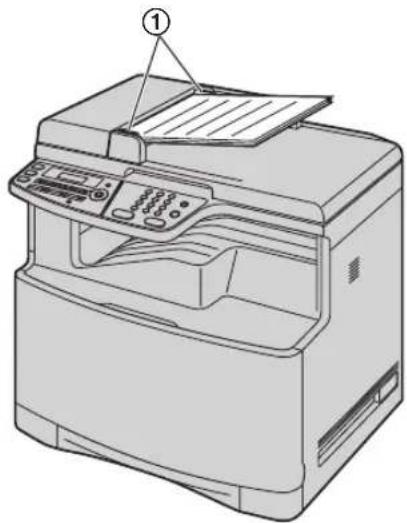

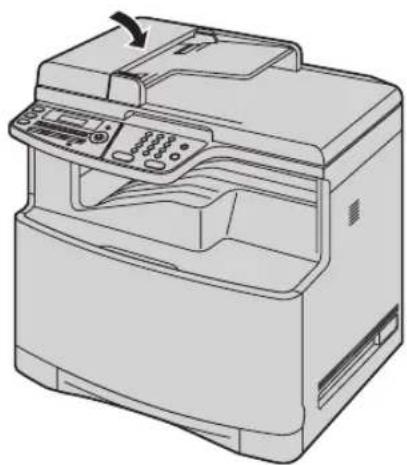

1 Insert the document (up to 50 pages) FACE UP into the feeder until a single beep is heard.

2 Adjust the width of the document guides (①) to fit the actual size of the document.

Note:

• Confirm that there are no documents on the scanner glass.
• Check that any ink, paste or correction fluid has dried completely.
• Remove clips, staples or other fasteners.
• Do not insert the following types of documents: (Make a copy of the document using the scanner glass and set the copy instead.)

- Chemically treated paper such as carbon or carbonless duplicating paper

– Electrostatically charged paper
– Badly curled, creased or torn paper
– Paper with a coated surface
– Paper with printing on the opposite side that can be seen through the other side, such as newsprint

● The total height of the documents when laid flat, must be less than 5 mm. If the documents exceed the capacity of the automatic document feeder, they may fall or cause a jam in the feeder.
- To set a document with a width of less than 210 mm, we recommend using the scanner glass to copy the original document onto A4 or letter-size paper, then setting the copied document.
- Do not set documents that do not satisfy the requirements of size and weight. Make a copy of the document using the scanner glass and set the copy.
● Available document size, document weight and effective scanning area are as follows:

Minimum document size

Maximum document size

Effective scanning area

●Shaded area will be scanned.

Document weight

• Single sheet:
  45 g/m² to 90 g/m²
  ●Multiple sheets:
  60 g/m² to 80 g/m²

2.5 Help function

The unit contains helpful information, which can be printed for reference.

• "BASIC SETTINGS"
• "FEATURE LIST"
• "DIRECTORY"
• "FAX RECEIVING"
• "COPIER"
• "REPORTS"
• "CALLER ID"

1 Press [Menu] repeatedly to display "HELP".
2 Press [◀] or [▶] repeatedly to display the desired item. → [Set]
3 Press [Menu] to exit.

2.6 Adjusting the volume

Important:

L Before adjusting the volume, set the operation mode to fax mode. If the {Fax} light is OFF, turn it ON by pressing {Fax}.

Ringer volume

While the unit is idle, press {V} or {^}.

L The ringer volume can only be adjusted if there are no documents in the document entrance.

To turn the ringer OFF

Press {V} repeatedly to display "RINGER OFF= OK?".

→ {Set}

L The unit will not ring.

L To turn the ringer back ON, press {^}.

Monitor volume

While using the monitor, press {V} or {^}.

2.7 Date and time

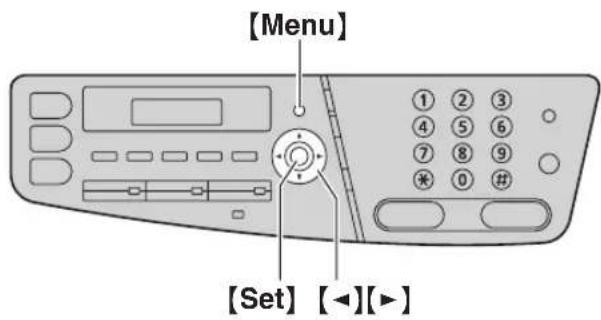

1 {Menu} → {#}{1}{0}{1} → {Set}

D:01/M:01/Y:08

TIME: 00:00

2 Enter the current date/month/year/hour/minute by selecting 2 digits for each. Press {*} repeatedly to select "AM" or "PM", or 24-hour time entry. Example: 10 August, 2008 10:15 PM (12 hour clock format)

1. Press {1}{0} {0}{8} {0}{8} {1}{0} {1}{5}.

D:10/M:08/Y:08

TIME: 10:15

1. Press {*}\ repeatedly to select "PM".

3 {Set}

4 Press {Menu} to exit.

Note:

L The other party's fax machine will print the date and time on the top of each page you send according to your unit's date and time setting.
L After setting the date and time, if the unit is in the copy mode, change it to the fax mode by pressing {Fax}. You can check your unit's date and time setting on the display.

To correct a mistake

Press {<} or {>} to move the cursor to the incorrect number, and make the correction.

If you have subscribed to a Caller ID service

The date and time will be automatically set according to the received caller information.

L If the time has not previously been set, Caller ID will not adjust the clock.

2.8 Your logo

You can program your logo (name, company name, etc.) so that it appears on the top of each page sent.

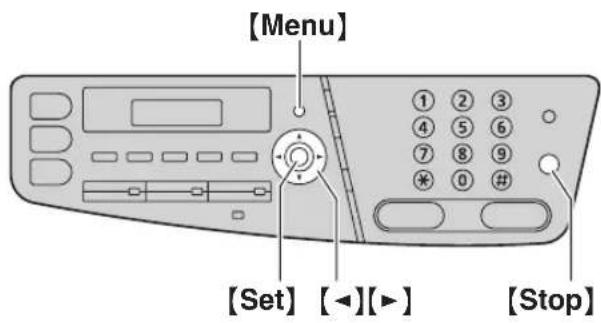

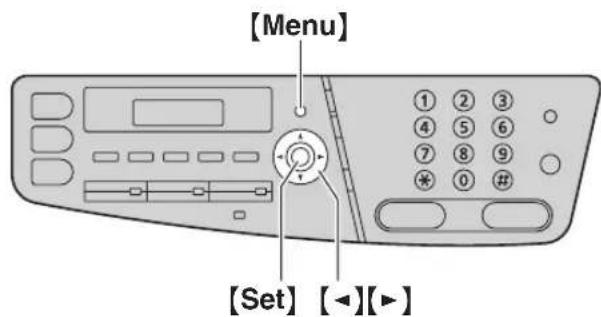

1 [Menu] → [#][1][0][2] → [Set]

LOGO=

2 Enter your logo, up to 30 characters (see page 75 for character entry). → [Set]
3 Press [Menu] to exit.

To correct a mistake

Press [◀] or [▶] to move the cursor to the incorrect character, and make the correction.

- To erase all characters, press and hold [Stop].

2.9 Your fax number

You can program your fax number so that it appears on the top of each page sent.

1 [Menu] → [#][1][0][3] → [Set]

NO.=

2 Enter your fax number, up to 20 digits.

• To enter a “+”, press [★].
• To enter a space, press [#].
  • To enter a hyphen, press [Recall].
  • To erase a number, press [Stop].

3 [Set]

4 Press [Menu] to exit.

To correct a mistake

Press [◀] or [▶] to move the cursor to the incorrect number, and make the correction.

- To erase all numbers, press and hold [Stop].

2.10 Configuring the unit to access the LAN

You can print documents, scan documents, receive faxes or send faxes using a computer on the LAN. To enable these features, you need to set the IP address, subnet mask, and default gateway for the unit.

Important:

- Consult your network administrator when setting the IP address, subnet mask, and default gateway.

2.10.1 Setting up automatically with a DHCP server

Your situation:

- When only one unit is connected to the LAN.

If your network administrator manages the network with a DHCP (Dynamic Host Configuration Protocol) server, it will automatically assign an IP (Internet Protocol) address, subnet mask, and default gateway to the unit.

1 After connecting the LAN cable to the unit and the computer, turn the power switch ON.

- The IP address, subnet mask, and default gateway will be set automatically.

2 Install Multi-Function Station on the computer that you want to use it with. See page 25 for details.

Note:

- You can connect two or more units and assign IP addresses automatically with a DHCP server, but we recommend assigning static IP addresses manually for each unit to avoid unnecessary trouble.

2.10.2 Setting up manually

Your situation:

- When your network administrator does not manage the network with a DHCP server.

- When two or more units are connected to the LAN.

You need to assign an IP address, subnet mask, and default gateway manually.

1 [Menu]

2 Press [#][5][0][0] to display "DHCP".

3 Press [0] to select "DISABLED". → [Set]

4 Set each item.

For the IP address:

1. Press [5][0][1] to display "IP ADDRESS".
2. [Set] → Enter the IP address of the unit. → [Set]

For the subnet mask:

1. Press [5][0][2] to display "SUBNET MASK".

2. [Set] → Enter the subnet mask of the network. → [Set]

For the default gateway:

1. Press [5][0][3] to display "DEFAULT GATEWAY".
2. [Set] → Enter the default gateway of the network. → [Set]

5 Press [Menu] to exit.

6 Install Multi-Function Station on the computer that you want to use it with. See page 25 for details.

To correct a mistake in the IP address, subnet mask, or default gateway

Press [◀] or [▶] to move the cursor to the incorrect number, and make the correction.

2.10.3 Setting the computer for PC fax reception

You need to select the computer that will be used for receiving faxes.

- Make sure PC fax setting is turned ON beforehand (feature #442 on page 64).

1 [Menu] → [#][4][4][3] → [Set]
2 Press [▼] or [▲] repeatedly to select the desired computer. → [Set]
3 Press [Menu] to exit.

Note:

• If the unit is not connected to the LAN, the computer connected to the unit by USB is assigned as the default computer for PC fax reception.
• To select the desired computer easily, change the PC name beforehand (page 27).

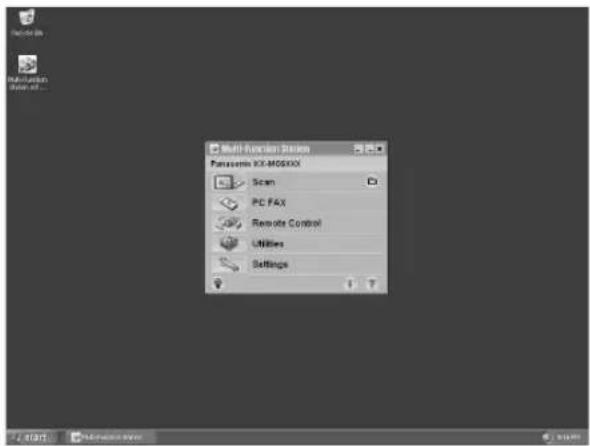

2.11 Installing Multi-Function Station

2.11.1 Required computer environment

Panasonic Multi-Function Station software enables the unit to carry out the following functions:

• Printing on plain paper, thin and thick paper, transparencies, labels, envelopes and card stocks
• Scanning documents and converting an image into text with Readiris OCR software
• Scanning from other applications for Microsoft ^ Windows ^ that support TWAIN scanning and WIA scanning (Windows XP/Windows Vista ^ , USB connection only)
• Storing, editing or erasing items in directories using your computer
• Programming the features using your computer
  – Sending, receiving fax documents using your computer

To use Multi-Function Station on your computer, the following are required:

Operating System:

Windows 98/Windows Me/Windows 2000/Windows XP/Windows Vista

CPU:

Windows 98/Windows Me/Windows 2000: Pentium® II or higher processor

Windows XP: Pentium III or higher processor

Windows Vista: Pentium 4 or higher processor

RAM:

Windows 98/Windows Me: 64 MB (128 MB or more recommended)

Windows 2000/Windows XP: 128 MB (256 MB or more recommended)

Windows Vista: 512 MB (1,024 MB or more recommended)

Other Hardware:

CD-ROM drive

Hard disk drive with at least 150 MB of available space USB interface

LAN interface (10Base-T/100Base-TX)

Other:

Internet Explorer ^® 5.0 or later

Warning:

• To assure continued emission limit compliance;
• use only shielded USB cable (Example: Hi-Speed USB 2.0 certified cable).
• use only shielded LAN cable (category 5 straight cable).
• To protect the unit, use only shielded USB cable in areas where thunderstorms occur.

Note:

● A USB cable is not supplied. Please purchase a shielded Type-A male/Type-B male USB cable.

2.11.2 Installing Multi-Function Station on a computer

• Install Multi-Function Station (CD-ROM) before connecting the unit to a computer with USB cable. If the unit is connected to a computer with USB cable before installing Multi-Function Station, the [Found New Hardware Wizard] dialogue box will appear. Click [Cancel] to close it.
• The screenshots shown in these instructions are for Windows XP and are included for reference only.
• The screenshots shown in these instructions may differ slightly from those of the actual product.
• Software features and appearance are subject to change without notice.
• If you are using KX-MB200/KX-MB700/KX-FLB880 series, see page 92.

1 Start Windows and exit all other applications.

- For Windows 2000, Windows XP and Windows Vista users, you must be logged in as an administrator in order to install Multi-Function Station.

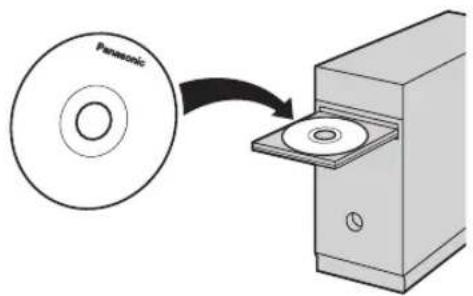

2 Insert the supplied CD-ROM into your CD-ROM drive.

• If the [Select Language] dialogue box appears, select the language that you want to use with this software. Click [OK].
• If the installation does not start automatically: Click [Start]. Choose [Run...]. Type "D:\Install" (where "D" is the drive letter of your CD-ROM drive). Click [OK].
  (If you are not sure what the drive letter is for your CD-ROM drive, use Windows Explorer and look for the CD-ROM drive.)

3 [Easy Installation]

●The installation will start automatically.

4 When the setup program starts, follow the on-screen instructions.

- Readiris OCR software (page 34) and Device Monitor (page 76) will also be installed.

5 The [Connect Type] dialogue box appears.

For USB connection:

1. [Connect directly with a USB cable.] → [Next] • The [Connect Device] dialogue box will appear.

2. Preparation

1. Connect the unit to a computer with USB cable (①), then click [Next].

Diagram of a computer tower with labeled ports and cable, showing internal structure without any text or symbols.

• If the unit is connected to your computer, the model name will be automatically detected.

• You can change the name of the unit if necessary.

• Click [Install], then follow the on-screen instructions.

●The files will be copied to your computer.

For LAN connection:

1. [Connect via the Network.] → [Next]

- The [Select a Network Device] dialogue box will appear.

1. Check [Select in the searched list] and select the unit from the list.

- If the name of the desired unit is not displayed on the list, and the IP address for the unit has been assigned, check [Direct input] and enter the IP address.

1. [Next]

- You can change the name of the unit if necessary.

1. Click [Install], then follow the on-screen instructions.

●The files will be copied to your computer.

Important notice

If you use Windows XP or Windows Vista, a message may appear after connecting the unit with the USB cable. This is normal and the software will not cause any difficulties with your operating system. You can continue the installation with no problem. This kind of message is displayed:

●For Windows XP users

"The software you are installing for this hardware has not passed Windows Logo testing to verify its compatibility with Windows XP."

- For Windows Vista users

"Would you like to install this device software?"

To view or install the operating instructions data

1. Start Windows and insert the supplied CD-ROM into your CD-ROM drive.
2. Click [Operating Instructions], then follow the on-screen instructions to view or install the operating instructions in PDF format.

- Adobe ^ Reader ^ is required to view the operating instructions.

Note:

• If the screen prompts you to insert the CD-ROM for the operating system when installing Multi-Function Station, insert it into your CD-ROM drive.
• If you install the operating instructions, you can view it anytime by clicking [?] on the Multi-Function Station launcher.

To use another unit with the computer

You need to add the printer driver for each unit, as follows.

1. Start Windows and insert the supplied CD-ROM into your CD-ROM drive.
2. [Modify] → [Add Multi-Function Station Driver]. Then follow the on-screen instructions.

Note:

- You cannot connect more than one unit to the same computer at the same time (USB connection only).

To modify the software (To add or uninstall each component)

You can select the components to install or uninstall anytime after the installation.

For Windows 2000, Windows XP and Windows Vista users, you must be logged in as an administrator in order to modify Multi-Function Station.

1. Start Windows and insert the supplied CD-ROM into your CD-ROM drive.
2. [Modify]→ [Modify Utilities]. Then follow the on-screen instructions.

To uninstall the software

For Windows 2000, Windows XP and Windows Vista users, you must be logged in as an administrator in order to uninstall Multi-Function Station.

[Start] → [All Programs] or [Programs] → [Panasonic] → the unit's name → [Uninstall]. Then follow the on-screen instructions.

2.12 Starting Multi-Function Station

[Start] → [All Programs] or [Programs] → [Panasonic] → the unit's name → [Multi-Function Station]

●Multi-Function Station will appear.

[Scan] (page 35)

●To scan and display the scanned images.
- To scan and create an image file.
●To scan and send by e-mail.
- To scan and convert an image into editable text data.

[PC FAX]

• To send a document created on the computer as a fax message (page 49).

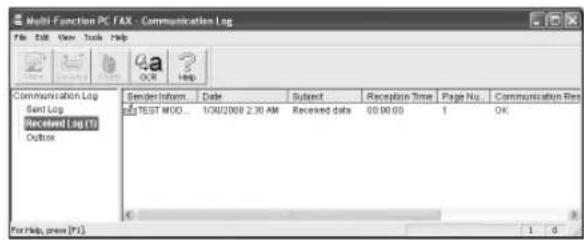

• To display a fax document received on the computer (page 54).

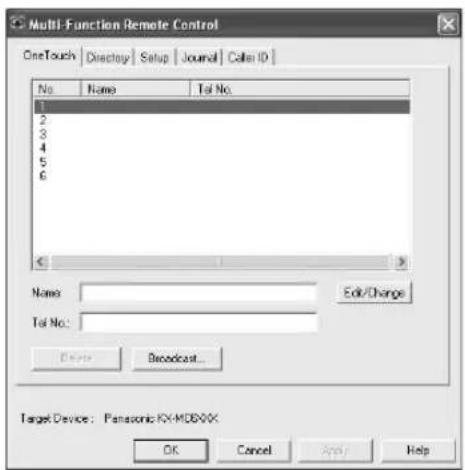

[Remote Control] (page 76)

● To program the features.
- To store, edit or erase items in directories.
- To view items in the journal report or Caller ID list.
- To store caller information into directories.
- To store or erase items for broadcast transmission.

[Utilities]

●To start Multi-Function Viewer (page 35).
● To start Device Monitor (page 76).
- To start OCR application (page 34).
- To start configuration web page (page 57, 76) (LAN connection only).

[Settings] (page 27)

● To change the general settings.
- To change the settings for scanning.

[?]

• For detailed instructions on Multi-Function Station.
  ● To view operating instructions.

[ ]

- To display usage tips.

[i]

- To display information about Multi-Function Station.

Note:

• You can confirm if the unit is connected to your computer by using Device Monitor (page 76).
• Computer features (printing, scanning, etc.) may not function properly in the following situations:
• When the unit is connected to a computer that was custom-built by the user.
• When the unit is connected to the computer via a PCI card or other expansion card.
• When the unit is connected to another piece of hardware (such as a USB hub or interface adapter) and not connected directly to the computer.

To change the settings

You can change the settings for Multi-Function Station beforehand.

1. Select [Settings] from Multi-Function Station.
2. Click the desired tab and change the settings. → [OK]

[General]

• [Launcher display setting]: To select the display type of the launcher.
• [OCR Path]: To select the OCR software.
• [PC name list up on device] (LAN connection only): To select whether or not your computer name is displayed on the unit.
• [PC name] (LAN connection only): The computer name that will be displayed on the unit.

[Scan]

- [Save to]: To select the folder where the scanned image will be saved.

- [Viewer][File][E-Mail][OCR][Custom]: To change scanning settings for Multi-Function scan application.

Note:

- Assign a unique name for the [PC name] to avoid overlapping, or the scanned image may be sent to an undesired computer.

To select the default E-mail software

The default E-mail software is used when using

"4.1.3 Scan to E-mail", page 33.

You can select the default E-mail software as follows.

For Windows 98/Windows Me/Windows 2000:

1. [Start] → [Settings] → [Control Panel] → [Internet Options] → [Programs] → [E-mail]
2. Select the desired MAPI-compliant E-mail software such as [Outlook Express], etc. → [OK]

For Windows XP:

1. [Start] → [Control Panel] → [Internet Options] → [Programs] → [E-mail]
2. Select the desired MAPI-compliant E-mail software such as [Outlook Express], etc. → [OK]

2. Preparation

For Windows Vista:

1. [Start] → [Control Panel] → [Internet Options] → [Programs] → [Set programs] → [Set program access and computer defaults]

2. If the [User Account Control] dialogue box appears, click [Continue].

3. [Custom]

4. Select the desired MAPI-compliant E-mail software such as [Windows Mail], etc. from [Choose a default e-mail program]. → [OK]

3.1 Printing from Windows applications

You can print a file created in a Windows application. For example, to print from WordPad, proceed as follows.

1 Open the document you want to print.

2 Select [Print...] from the [File] menu.

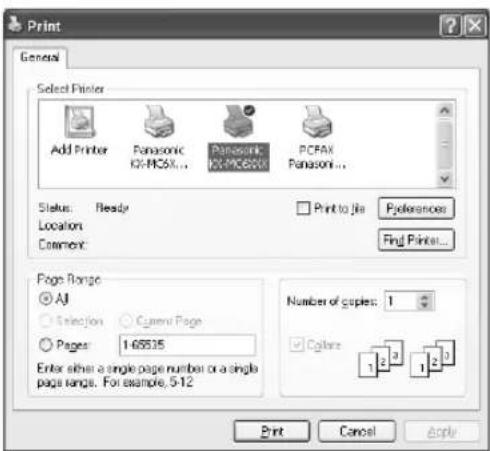

- The [Print] dialogue box will appear. For details about the [Print] dialogue box, click [?], then click the desired item.

3 Select the unit's name as the active printer.

- If you have changed the name of the unit when installing, select that name from the list.

- For easier greyscale printing, select the unit's name with [B/W] attached to the name.

- To change the printer settings, proceed as follows.

For Windows 98/Windows Me:

Click [Properties], then click the desired tab. Change the printer settings, then click [OK].

For Windows 2000:

Click the desired tab and change the printer settings.

For Windows XP/Windows Vista:

Click [Preferences], then click the desired tab. Change the printer settings, then click [OK].

4 Click [Print] or [OK].

●The unit will start printing.

Note:

● To stop printing from the unit, see page 77.

● To load paper, see page 15, 30.

- For details about the paper specifications, see page 103.

- If a printing error occurs, the Device Monitor (page 76) will start automatically and display the error information.

Setting the printer properties

You can change the printer setting in step 3. We recommend that you test paper (especially special sizes and types of paper) on the unit before purchasing large quantities.

You can change or display the settings on the following tabs.

[Basic]: Paper size, media type, pages per sheet, etc.

[Output]: Number of prints, collate, etc.

[Quality]: Colour mode, colour management, toner save feature, etc.

[Effects]: Watermark, overlay.

[Profile]: Saving the desired settings, selecting the saved settings, etc.

[Support]: Version information.

Note:

- Select the desired media type on the [Basic] tab according to the recording paper.

Recording paper type Media type
Plain paper75 g/m2 to 105 g/m2	[Plain Paper]
Thin paper60 g/m2 to 74 g/m2	[Thin Paper]
Thick paper106 g/m2 to 165 g/m2	[Thick Paper]
Transparency [Transparency]
Label [Label]
Envelope*1	——
Card stock163 g/m2	[Card Stock]

*1 Select [Envelope #10] or [Envelope DL] for paper size.

- When printing from a computer, the printer properties setting overrides the following unit's programming features:

- Media type setting (feature #383 on page 59) - Toner save setting (feature #482 on page 60)

- When printing on envelopes, press [Black]/[Colour] of the unit after step 4. Change the colour mode on the [Quality] tab beforehand.

3.1.1 Printing on special media

You can print not only on plain paper but also on special media (transparencies / labels / envelopes / card stocks).

- Please refer to page 103 for information on recording paper.

● To load paper, see page 15.

To print on transparencies

Use transparencies designed for laser printing.

We recommend the following:

3M® CG3300/PP2500

- Do not stack more than 25 transparencies at a time.

● After printing, place transparencies on a flat surface to cool and to prevent them from curling.

- Do not re-use transparencies that have already been fed through the unit. This includes transparencies that have been fed through and ejected without being printed on.

- Some types of transparencies have instructions recommending which side to print on. If the print quality is poor, try printing on the other side of a new transparency.

To print on labels

Use labels designed for laser printing. We recommend the following:

Avery®

5160/5163/5660/5663/L7159/L7164

• Do not stack more than 25 labels at a time.

• Do not use the following types of labels:

• Labels that are wrinkled, damaged or separated from the backing sheet.
  – Any sheet of labels that has spaces in it where some of the labels have been removed.

• Labels that do not completely cover the backing sheet as follows.

To print on envelopes

Use envelopes designed for laser printing. We recommend the following:

– High quality envelopes of 90 g/m ^2 paper,
- Envelopes that have thin, sharply creased leading edges,
- Envelopes that have diagonal seams, and
- Envelopes with a moisture content of 4 % to 6 % by weight.

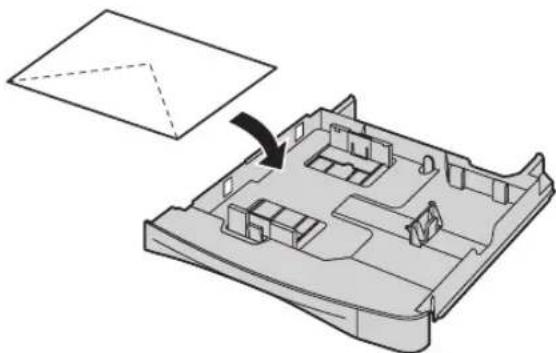

- Load envelopes with the sealing flap FACE DOWN.

3D architectural diagram of a building interior with internal compartments and a highlighted section (no text or symbols)

- Do not stack more than 10 envelopes at a time.

Note:

• Wrinkles and waving may occur in some cases, even if high quality envelopes are used.
• Avoid printing in high humidity. High humidity may cause the envelope to curl or seal the envelope.
• Store envelopes away from moisture and humidity, where they can lay flat and their edges will not be bent or damaged.

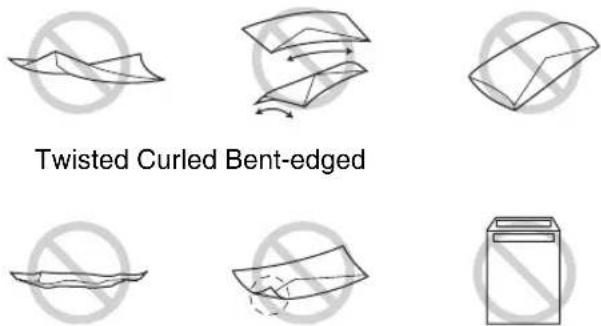

Do not use envelopes with any of the following characteristics (using these may result in paper jams):

• Irregularly shaped envelopes
• Envelopes with curls, wrinkles, nicks, twists, dogears or other damage
  ● Envelopes with side seam construction
  ● Highly textured envelopes, or envelopes with extremely shiny surfaces
  ● Envelopes that seal by removing a peel-off strip
  ● Envelopes with more than one flap to be sealed
  ● Self-adhesive envelopes
  ● Envelopes that are baggy or not sharply creased
• Embossed envelopes
  ● Envelopes that have previously been printed on
  ● Envelopes that include cotton and/or fibre material

Side seam construction

Peel-off strip Multiple flaps

Waved Dog-eared Self adhesive

Do not attempt to print on any of the following types of envelopes (these may cause damage to the unit):

● Envelopes with clasps, snaps or tie strings
● Envelopes with transparent windows
- Envelopes that use encapsulated types of adhesive that do not require moistening but rely on pressure to seal them

Clasp Transparent window

3.1.2 Duplex printing (optional)

Connecting the optional automatic duplex unit allows duplex printing (page 78). For example, to print from WordPad, proceed as follows.

1 Open the document you want to print.
2 Select [Print...] from the [File] menu.
3 Select the unit's name as the active printer. - For Windows 2000 users, go to step 5.

4 For Windows 98/Windows Me:

[Properties]

For Windows XP/Windows Vista:

[Preferences]

5 Click the [Basic] tab.

6 Select the desired duplex layout. → [OK]

- Select [None] to deactivate this feature.

- You can also change the duplex margin.

7 Click [Print] or [OK].

Booklet feature

You can print the document, then fold in half to create booklets. The documents will be reduced to fit the recording paper.

To use this feature, select [Booklet] icon for print layout after step 5.

3.2 Printing a received e-mail attachment automatically (LAN connection only)

If you configure the POP server beforehand, the unit will automatically print e-mail attached files sent from a compatible unit via the internet (scan to e-mail print). This is useful if you want to print only the attachment file, without checking your e-mails.

Important:

●The unit does not print e-mail messages.
- The unit will only print attached files sent from a compatible unit, which can send e-mails directly (without using a computer).
- The attachment file formats that can be printed are as follows.

- T I F F

- JPEG

- PDF (files scanned from the unit, or scanned from the computer using Multi-Function Viewer)

- Received e-mails and the attached files will be deleted automatically after printing.

Illustration of a printer with a paper sheet being inserted (no text or symbols)

2

3

Illustration of a printer with paper feed and paper tray (no text or symbols)

① Send from a compatible multi-function unit (Example: "4.1.5 Scan to e-mail server (LAN connection only)", page 34)
② Via the internet (e-mail server)
③ The unit will print an attached file

1 Start Multi-Function Station.

2 [Utilities] → [Configuration Web Page] → [Network Configuration]

3 Type "root" as the user name, then enter the password (feature #155 on page 58). → [OK]

4 Click the [SCAN TO E-MAIL PRINT] tab.

5 Set each item.

To activate this feature:

Select [ENABLED] next to [SCAN TO E-MAIL PRINT]. → [Submit]

To set the e-mail server information:

1. Click [Edit] next to [E-MAIL SERVER].
2. Enter the e-mail server and POP server information. → [Submit]

6 Close the web browser.

Note:

• Printing will not stop even if you press [Stop].
  ● This feature can be programmed only through the web browser interface (page 57).
• To view the recent scan to e-mail print information, click [List] next to [E-MAIL PRINT LOG] (page 74).
• If the attached file is too heavy or is a non-supporting format, it will not be printed properly.
• You can change the e-mail checking interval (page 73) or header print setting (page 74).
• Consult your service provider or network administrator for details.

4.1 Scanning from the unit (Push Scan)

You can easily scan the document by using the operation panel on the unit. Select following scanning modes depending on the way to use the scanned image.

• Viewing using Multi-Function Viewer (Viewer)
  – Saving as a file to your computer (File)
  – Sending as an attached file to e-mail destination from your computer (E-mail)
• Using OCR software (OCR)
• Sending as an attached file to e-mail destination directly from your server (E-mail server)
• Sending to an FTP server (FTP)

Note:

• You can set the desired scan mode for push scan beforehand (feature #493 on page 69).
• To select the scan type for monochrome scanning (black/white or greyscale), set the desired type beforehand (feature #495 on page 69).
• The scanned image will be automatically saved in the folder selected in the [Settings] window.
• When scanning a document, we recommend using the scanner glass rather than the automatic document feeder for better results.
• Do not open the document cover when scanning a document with the automatic document feeder.

4.1.1 Scan to Multi-Function Viewer

1 Set the original (page 20).
2 [Scan]
3 Press [▼] or [▲] repeatedly to select "VIEWER". → [Set]
4 For USB connection:

Press [▼] or [▲] repeatedly to select "USB HOST". → [Set]

For LAN connection:

Press [▼] or [▲] repeatedly to select the computer to which you want to send the scanned image. → [Set]

5 If necessary, change the scanning settings. Press [▶], press [▼] or [▲] repeatedly to select the desired setting. → [Set] → [Black]/[Colour]

- The scanned image will be displayed in the [Multi-Function Viewer] window after scanning. However, when you select PDF as a file format, the software that is associated to open PDF file will start.

Note:

● To stop scanning, see page 77.
- You can save the images in TIFF, JPEG, BMP or PDF formats.

4.1.2 Scan to save as a file

1 Set the original (page 20).
2 [Scan]
3 Press [▼] or [▲] repeatedly to select "FILE". → [Set]
4 For USB connection:

Press [▼] or [▲] repeatedly to select "USB HOST". → [Set]

For LAN connection:

Press [▼] or [▲] repeatedly to select the computer to which you want to send the scanned image. → [Set]

5 If necessary, change the scanning settings. Press

[▶], press [▼] or [▲] repeatedly to select the desired setting. → [Set] → [Black]/[Colour]

- The scanned image will be automatically saved in the folder selected in the [Settings] window. To change the folder, see page 27.

Note:

● To stop scanning, see page 77.
- You can save the images in TIFF, JPEG, BMP or PDF formats.

4.1.3 Scan to E-mail

You can send the scanned image as an attachment to an e-mail using e-mail software in your computer.

1 Set the original (page 20).
2 [Scan]
3 Press [▼] or [▲] repeatedly to select "E-MAIL". → [Set]
4 For USB connection:

Press [▼] or [▲] repeatedly to select "USB HOST". → [Set]

For LAN connection:

Press [▼] or [▲] repeatedly to select the computer to which you want to send the scanned image. → 【Set】

5 If necessary, change the scanning settings. Press [▶], press [▼] or [▲] repeatedly to select the desired setting. → [Set] → [Black]/[Colour]

- The e-mail software will automatically start and the scanned image will be attached to a new e-mail message.

Note:

• To select the default E-mail software, see page 27.
  ●To stop scanning, see page 77.
• You can save the images in TIFF, JPEG or PDF formats.

4.1.4 Scan to OCR

With OCR software, you can convert an image into text data that can be edited with word processing software. Readiris OCR software can be installed when installing Multi-Function Station.

1 Set the original (page 20).
2 [Scan]
3 Press [▼] or [▲] repeatedly to select "OCR". → [Set]
4 For USB connection:

Press [▼] or [▲] repeatedly to select "USB HOST". → [Set]

For LAN connection:

Press [▼] or [▲] repeatedly to select the computer to which you want to send the scanned image. → [Set]

5 If necessary, change the scanning settings. Press [▶], press [▼] or [▲] repeatedly to select the desired setting. → [Set] → [Black]/[Colour]

- The scanned image will be displayed in the OCR window after scanning.

Note:

• You can save the images in TIFF, JPEG or BMP formats.
• For detailed instructions about OCR, select [Help].

4.1.5 Scan to e-mail server (LAN connection only)

You can send the scanned image as an attachment without using e-mail software. To select the e-mail destination easily, register e-mail addresses through the web browser interface beforehand (page 70).

Important:

- Program the e-mail server and SMTP server settings beforehand (page 69).

1 Set the original (page 20).
2 [Scan]
3 Press [▼] or [▲] repeatedly to select "E-MAIL SERVER". → [Set]
4 Enter the destination e-mail address.

Using stations 1-3:

Press the desired station key.

Using stations 4-6:

Press [Lower], then press the desired station key.

Using navigator key:

Press [▼] or [▲] repeatedly to select the desired destination.

Using dial keypad:

Press [Set], then enter the e-mail address using the dial keypad (page 75).

5 [Set]

6 If necessary, change the scanning settings. Press [▶], press [▼] or [▲] repeatedly to select the desired setting. → [Set] → [Black]/[Colour]

- The scanned image will be sent as an attachment via e-mail server.

Note:

- You can search for an e-mail address by initial. Example: "LISA"

1. Proceed steps 1 to 3 on "4.1.5 Scan to e-mail server (LAN connection only)", page 34.
2. Press [5] repeatedly to display any name with the initial "I" (see page 75 for character entry). To search for symbols, press [★].
3. Press [▼] or [▲] repeatedly to display "LISA".
4. To stop the search, press [Stop].

- You can easily send scanned image to the desired destinations using station keys. To use this feature, register e-mail addresses to station keys beforehand (page 70).

1. Set the original (page 20).
2. [Scan]
3. Using stations 1-3:

Press the desired station key.

Using stations 4-6:

Press [Lower], then press the desired station key.

1. [Set] → [Black]/[Colour]

- You can save the images in TIFF, JPEG or PDF formats.

4.1.6 Scan to FTP server (LAN connection only)

You can send the scanned image to a folder on an FTP server.

Important:

- Program the FTP server settings beforehand (page 70).

1 Set the original (page 20).
2 [Scan]
3 Press [▼] or [▲] repeatedly to select “FTP SERVER”. → [Set]
4 Press [▼] or [▲] repeatedly to select the destination to which you want to send the scanned image. → [Set]

5 If necessary, change the scanning settings. Press [▶], press [▼] or [▲] repeatedly to select the desired setting. → [Set] → [Black]/[Colour]

Note:

- You can save the images in TIFF, JPEG or PDF formats.

4.2 Scanning from a computer (Pull Scan)

Note:

• When scanning a document, we recommend using the scanner glass rather than the automatic document feeder for better results.
• Do not open the document cover when scanning a document with the automatic document feeder.

4.2.1 Using Multi-Function scan application

By clicking an application icon, the selected application starts automatically after scanning.

1 Set the original (page 20).
2 Start Multi-Function Station. → [Scan]
3 Click the desired application icon.

- When you click [Custom], the pre-programmed application starts.

- To cancel scanning while the documents is being scanned, click [Cancel].

Note:

• You can change the scanning settings beforehand for each application (page 27).
• By pointing to an application icon, scanning settings are displayed as tooltip.

4.2.2 Using Multi-Function Viewer

1 Set the original (page 20).
2 Start Multi-Function Station.
3 [Utilities] → [Viewer]

- [Multi-Function Viewer] will appear.

4 Click the [Scan] icon in the [Multi-Function Viewer] window.

- The unit's name dialogue box will appear.

5 If necessary, change the scanning settings on your computer.

- To preview the scanned image, click [Preview]. You can drag the frame to specify the scanned area. If you change the scan settings, click [Preview] to refresh the scanned image. If you use the automatic document feeder, only the first page will be previewed. When you need to refresh the scanned image, set the document to preview again.

6 [Scan]

• If you preview the scanned image using the automatic document feeder in step 5, set the document again and click [Scan].

• The scanned image will be displayed in the [Multi-Function Viewer] window after scanning.

• To save the scanned image, select [Save As ...] from the [File] menu.

• To cancel scanning while the document is being scanned, click [Cancel].

Note:

• You can display images in applications that support TIFF, JPEG, PCX, DCX and BMP formats.
• You can save images in TIFF, JPEG, PCX, DCX, BMP or PDF formats.
• If the [Select...] button is displayed in the [Target Device], click the [Select...] to select the unit from the list, then click [OK].
  The [Select...] button will not be displayed when there is only one printer driver installed.
• You can move, copy and delete a file or page.

4.2.3 Using other applications

Multi-Function Station includes a TWAIN and WIA compliant scanner driver. You can also scan using other applications that support TWAIN or WIA scanning. For scanning example, proceed as follows.

1 Set the original (page 20).
2 Start an application that supports TWAIN or WIA scanning.
3 For TWAIN scanning:
Select [Acquire Image...] from the [File] menu.
For WIA scanning:
Select [From Scanner or Camera...] from the [File] menu.
- The unit's name dialogue box will appear.

4 If necessary, change the scanning settings on your computer. → [Scan]

● The scanned image will be displayed in the application window after scanning.

- To cancel scanning while the document is being scanned, click [Cancel].

Note:

• Scanning from WIA compliant applications is only available for Windows XP and Windows Vista, and via a USB connection.
• Depending on the application used, the appearance may differ slightly.
• If the [Select...] button is displayed in the [Target Device] when performing TWAIN scanning, click the [Select...] to select the unit from the list, then click [OK].
  The [Select...] button will not be displayed when there is only one printer driver installed.

5.1 Making a copy

5.1.1 Using the scanner glass

1 If the [Copy] light is OFF, turn it ON by pressing [Copy].
2 Set the original (page 20).
3 If necessary, change the resolution and contrast according to the type of document.

●To select the resolution, see page 37.
● To select the contrast, see page 37.

4 If necessary, enter the number of copies (up to 99).

5 [Black]/[Colour]
● The unit will start copying.
6 After you finish copying, press [Stop] to reset the settings you set in step 3 and 4.

Note:

● To stop copying, see page 77.
- You can change the default operation mode (feature #463 on page 60) and the timer before returning to the default operation mode (feature #464 on page 60).
- If the [Fax Auto Answer] light is ON, the unit can receive faxes automatically even when in the copy mode.

To select the resolution

1. Press [Resolution] repeatedly.

2. "TEXT/PHOTO": For both text and photographs.

3. “TEXT”: For text only.

4. “PHOTO”: For photographs, shaded drawings, etc.

5. [Set]

Note:

- You can change the default resolution (feature #461 on page 65).

To select the contrast

You can adjust this setting depending on the darkness or lightness of the document. 5 levels (low to high) are available.

Press [Contrast] repeatedly. → [Set]

Note:

- You can hold the previous contrast setting (feature #462 on page 59).

5.1.2 Using the automatic document feeder

1 If the [Copy] light is OFF, turn it ON by pressing [Copy].
2 Set the original (page 20).
3 If necessary, change the resolution and contrast according to the type of document.

● To select the resolution, see page 37.

● To select the contrast, see page 37.

4 If necessary, enter the number of copies (up to 99).
5 [Black]/[Colour]

● The unit will start copying.

6 After you finish copying, press [Stop] to reset the settings you set in step 3 and 4.

Note:

● To stop copying, see page 77.

5.2 More copying features

- Make sure that the [Copy] light is ON.

5.2.1 Zoom copy (enlargement / reduction)

1 Set the original (page 20).
2 Press [Zoom] repeatedly to select the zoom rate that fits the size of your document and recording paper.

$$ \begin{array}{l} - \text { “ZOOM } = 1 0 0 \% \text { ” } ^ { 1} \ - “ 50 \% \ - “ 2 0 0 \text { \% } \ - \quad " L T R \triangleright A 4" ^ {2} \ - \quad " A 4 \triangleright L T R" ^ {} 3 \ - \text { "LGL } \triangleright \mathrm{A} 4 ^ {\prime \ast 2} \ - \quad " L G L \blacktriangleright L T R" ^ {*} 3 \ \end{array} $$

*1 Press [▼] or [▲] repeatedly to change the zoom rate by 1 % at a time from “25%” to “400%”. You can also enter the desired percentage specifically by using the dial keys.
*2 Make sure A4-size recording paper is installed.
*3 Make sure letter-size recording paper is installed.

3 [Set]

4 If necessary, enter the number of copies (up to 99). → [Black]/[Colour]
5 After you finish copying, press [Stop] to reset this feature.

Note:

• Zoom copy is not available for the following features:
  – Quick ID copy feature (page 40)
• Easy repeat feature (page 40)
• Poster feature (page 41)
• N in 1 feature (page 41)
• Separate N in 1 feature (page 42)

• Booklet feature (page 42)

• You can hold the previous zoom setting (feature #468 on page 65).

• When using the scanner glass, the unit will only enlarge the right top corner of the document starting from the mark on the unit.
• When using the automatic document feeder, the unit will only enlarge the centre of the upper part of the document. To make an enlarged copy of the bottom of the document, turn the document around, and then make a copy.

Example: 150 % enlarged copy Using the scanner glass (①):

Original document Enlarged copy

Using the automatic document feeder:

Original document Enlarged copy

Example: 70 % reduced copy Using the scanner glass (①):

Original document Reduced copy

Using the automatic document feeder:

Original document Reduced copy

5.2.2 Collate copy

The unit can collate multiple copies in the same order as the original document pages.

1 Set the original (page 20).
2 Press [Collate] repeatedly to display "ON".
3 [Set]
4 Enter the number of copies (up to 99).
5 When using the scanner glass:

1. [Black]/[Colour]

●The unit will scan 1 page.

1. Place the next document on the scanner glass and press [Set]. Repeat this until all the

documents are scanned, then press [Black]/[Colour].

●The unit will start copying.

When using the automatic document feeder: [Black]/[Colour]

6 After you finish copying, press [Stop] to reset this feature.

Example: Making 2 copies of a 4-page original document

Collated pages Uncollated pages

Note:

• The unit will store the documents into memory while collating the copies. If memory becomes full while storing, the unit will only print out the stored pages.
• You can hold the previous collate setting (feature #469 on page 65).

Proof set feature

To make 1 set of collate copy first, press [Collate] repeatedly to display "PROOF SET" (step 2 on "5.2.2 Collate copy", page 39). The unit will make 1 set of collate copy and stop temporarily so you can check whether the copy is made as you expected. If the copy is correct, press [Black]/[Colour] to continue copying. If the copy is not correct, press [Stop] and start again from the beginning.

5.2.3 Quick ID copy feature / Easy repeat feature (Scanner glass only)

Quick ID copy feature: To copy 2-sided documents onto one page.

Easy repeat feature: To copy a single document repeatedly onto one page.

Note:

- The copied documents will not be reduced to fit the recording paper, and useful for copying small sized documents such as business cards.

1 Set the original (page 20).

• To make a landscape copy, set the original in landscape direction. To make a portrait copy, set the original in portrait direction.
• The scanning area changes according to the selected setting in step 4. See the following table for details. The shaded area will be scanned.

2 [Page Layout]

3 Press [▼] or [▲] repeatedly to select "QUIK ID COPY" or "EASY REPEAT". → [Set]
4 Press [▼] or [▲] repeatedly to select the number of original documents from "2 in 1", "4 in 1" or "8 in 1". → [Set]

- For quick ID copy feature, go to the next step.

- For easy repeat feature, skip to step 6.

5 Press [▼] or [▲] repeatedly to select the page layout from “LANDSCAPE” or “PORTRAIT”. → [Set]
6 If necessary, enter the number of copies (up to 99).

7 Quick ID copy feature:

1. [Black]/[Colour]

●The unit will scan 1 page.

1. Place the next document on the scanner glass and press [Set]. Repeat this until all the documents are scanned.

●The unit will start copying.
- You can press [Black]/[Colour] anytime to start copying.

Easy repeat feature:

[Black]/[Colour]

8 After you finish copying, press [Stop] to reset this feature.

For quick ID copy feature

Original document Page layout
“2 in 1”	“LANDSCAPE”“PORTRAIT”
“4 in 1”	“LANDSCAPE”“PORTRAIT”
“8 in 1”

For easy repeat feature

Original document Page layout
“2 in 1”
“4 in 1”____	____
“8 in 1”____	____

Note:

- You can save the previous page layout setting (feature #467 on page 65).

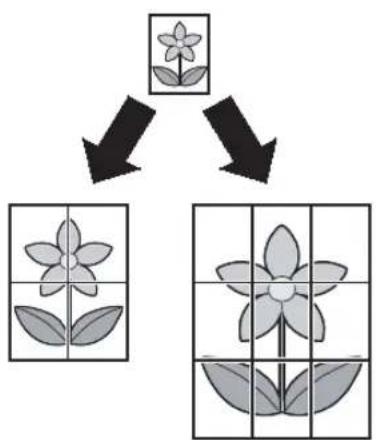

5.2.4 Poster feature (Scanner glass only)

You can make copies divided into 4 ("2 × 2") or 9 ("3 × 3") sections to make enlarged copies of the individual sections. You can then glue them together to make a poster.

1 Set the original (page 20).
2 [Page Layout]
3 Press [▼] or [▲] repeatedly to select "POSTER". → [Set]
4 Press [▼] or [▲] repeatedly to select "2 × 2" or "3 × 3". → [Set]
5 If necessary, enter the number of copies (up to 99). → [Black]/[Colour]
6 After you finish copying, press [Stop] to reset this feature.

Note:

- You can save the previous page layout setting (feature #467 on page 65).

5.2.5 N in 1 feature

You can save paper by copying 2, 4 or 8 pages onto 1 page. The documents will be reduced to fit the recording paper.

1 Set the original (page 20).

- To make a portrait copy, set the original in portrait direction. To make a landscape copy, set the original in landscape direction.

2 [Page Layout]

3 Press [▼] or [▲] repeatedly to select "N in 1". → [Set]
4 Press [▼] or [▲] repeatedly to select the number of original documents from "2 in 1", "4 in 1" or "8 in 1". → [Set]
5 Press [▼] or [▲] repeatedly to select the layout from "PORTRAIT" or "LANDSCAPE". → [Set]
6 If necessary, enter the number of copies (up to 99).
7 When using the scanner glass:

1. [Black]/[Colour]

●The unit will scan 1 page.

1. Place the next document on the scanner glass and press [Set]. Repeat this until all the documents are scanned.

●The unit will start copying.
- You can press [Black]/[Colour] anytime to start copying.

When using the automatic document feeder: [Black]/[Colour]

8 After you finish copying, press [Stop] to reset this feature.

Original document Page layout
“2 in 1”	“PORTRAIT”“LANDSCAPE”
“4 in 1”	“PORTRAIT”“LANDSCAPE”
“8 in 1”	“PORTRAIT”“LANDSCAPE”____

Note:

- You can save the previous page layout setting (feature #467 on page 65).

Separate N in 1 feature (Scanner glass only)

You can separate an N in 1 copied document back into its original, separate pages. This feature is available from "2 in 1" and "4 in 1" copy.

1. Set the original (page 20).

2. [Page Layout]

1. Press [▼] or [▲] repeatedly to select "SEPARATE N in 1". → [Set]
2. Press [▼] or [▲] repeatedly to select the number of original documents from "2 in 1" or "4 in 1". → [Set]
3. Press [▼] or [▲] repeatedly to select the page layout of the original document from "PORTRAIT" or "LANDSCAPE". → [Set]
4. If necessary, enter the number of documents (up to 99). → [Black]/[Colour]
5. After you finish copying, press [Stop] to reset this feature.

5.2.6 Copy reservation

You can reserve your copy;

– while the unit is printing documents from your computer.

– while the unit is printing received fax documents.

1 Set the original (page 20).
2 While "PC PRINTING" or "PRINTING" is displayed, press [Copy].
3 Make necessary settings such as number of copies, resolution, zoom features and page layout features. → [Black]/[Colour]

- "COPY RESERVED" will be displayed. The unit will start copying after the current printing job.

5.2.7 Duplex copy (optional)

Connecting the optional automatic duplex unit allows duplex copy (page 78). You can make 2-sided copies of 1-sided documents.

2 [Page Layout]

1 Set the original (page 20).
3 Press [◀] or [▶] repeatedly to select "DUPLEX".
4 Press [▼] or [▲] repeatedly to select the desired binding.

- "LONG EDGE"

- "SHORT EDGE"

- Select "OFF" to deactivate this feature.

5 [Set]

6 If necessary, enter the number of documents (up to 99).

7 When using the scanner glass:

1. [Black]/[Colour]

●The unit will scan 1 page.

1. Place the next document on the scanner glass and press [Set].
   ● The unit will start copying.

When using the automatic document feeder: [Black]/[Colour]

8 After you finish copying, press [Stop] to reset this feature.

Note:

• Duplex copy is not available for quick ID copy feature (page 40), easy repeat feature (page 40) or poster feature (page 41).
• You can save the previous duplex setting (feature #470 on page 65).

Booklet feature

You can make copies, and then fold them in half to create booklets. The documents will be reduced to fit the recording paper.

1. Set the original (page 20).

2. [Page Layout]

1. Press [▼] or [▲] repeatedly to select "BOOKLET". → [Set]
2. Press [▼] or [▲] repeatedly to select the desired binding direction from "LEFT BIND" or "RIGHT BIND". → [Set]
3. Press [▼] or [▲] repeatedly to select the desired binding pages.

- “1”: To print 4 documents as separate blocks.

- “ALL”: To print all documents as 1 block (monochrome printing only).

6. [Set]

1. If necessary, enter the number of documents (up to 99).

● Multiple copies will be collated automatically.

8. When using the scanner glass:

1. [Black]/[Colour]

●The unit will scan 1 page.

1. Place the next document on the scanner glass and press [Set]. Repeat this until all the documents are scanned.

2. If "1" is selected in step 5, the unit will start copying.

3. You can press [Black]/[Colour] anytime to start copying.

4. For multiple copies, press [Black]/[Colour] to start copying.

If "ALL" is selected in step 5, press [Black] to start copying.

When using the automatic document feeder: [Black]/[Colour]

1. After you finish copying, press [Stop] to reset this feature.

Note:

• If "ALL" is selected in step 5, only monochrome copy is available, so press [Black] in step 8. If you press [Colour], steps 2 to 7 will be reset.
• You can save the previous page layout setting (feature #467 on page 65).

6.1 Sending a fax manually

Important:

- You can only send faxes in monochrome.

6.1.1 Using the scanner glass

By using the scanner glass, you can send a page from booklets or small size paper that cannot be sent with the automatic document feeder.

1 If the [Fax] light is OFF, turn it ON by pressing [Fax].
2 Set the original (page 20).
3 If necessary, change the resolution and contrast according to the type of document.

• To select the resolution, see page 44.
  ● To select the contrast, see page 44.

4 Dial the fax number.

● To send a single page, skip to step 7.
- To send multiple pages, go to the next step.

5 Press [Quick Scan] to scan the document into memory.

- Wait until "SCAN: PRESS SET" "SEND: PRESS START" is displayed.

6 Place the next page on the scanner glass. → [Set]

- To send more pages, repeat this step.

7 [Black]

Note:

●To stop sending, see page 77.
- You can change the default operation mode (feature #463 on page 60) and the timer before returning to the default operation mode (feature #464 on page 60).

To select the resolution

1. Press [Resolution] repeatedly.

- "STANDARD": For normal-sized characters.

• “FINE”: For small-sized characters.
• "SUPER FINE": For very small-sized characters.
• “PHOTO”: For photographs, shaded drawings, etc.

2. [Set]

- Using the "FINE", "SUPER FINE" and "PHOTO" settings will increase transmission time.

To select the contrast

You can adjust this setting depending on the darkness or lightness of the document. 5 levels (low to high) are available.

Press [Contrast] repeatedly. → [Set]

Note:

- You can hold the previous contrast setting (feature #462 on page 59).

To redial the last number

[Redial]

- If the line is busy, the unit will automatically redial the number up to 5 times.

Note:

●To stop sending, see page 77.

Reserving the fax transmission (Dual Access)

You can reserve the fax transmission even when the unit is just receiving a fax or sending a fax from memory.

• Up to 3 reservations when sending
• Up to 4 reservations when receiving
• Set the original during fax reception or fax memory transmission.
• Enter the fax number using the dial keypad, one-touch dial or navigator directory.
• When using the scanner glass, press [Quick Scan]. The unit will scan 1 page. Place the next document on the scanner glass and press [Set]. Repeat this until all the documents are scanned, then press [Black].

When using the automatic document feeder, press [Black].

- If the document exceeds the memory capacity, transmission will be cancelled. You must send the entire document manually.

Printing a sending report

A sending report provides you with a printed record of transmission results. To print sending reports, make sure feature #401 is activated (page 61). For an explanation of error messages, see page 80.

Printing a journal report

A journal report provides you with a printed record of the 30 most recent faxes. To print it manually, see page 102.

To print it automatically after every 30 new fax transmissions and receptions, make sure feature #402 is

activated (page 61). For an explanation of error messages, see page 80.

6.1.2 Using the automatic document feeder

1 If the [Fax] light is OFF, turn it ON by pressing [Fax].
2 Set the original (page 20).
3 If necessary, change the resolution and contrast according to the type of document.

● To select the resolution, see page 44.

● To select the contrast, see page 44.

4 [Monitor]
5 Dial the fax number. → [Black]

Note:

● To stop sending, see page 77.
- Do not open the document cover when sending a fax with the automatic document feeder.

Pre-dialling a fax number

1. Enter the fax number.
2. Set the original (page 20). [Black]

Sending from memory (Quick scan feature)

1. Set the original (page 20).
2. Enter the fax number. → [Quick Scan]
3. Set the original (page 20).
4. Enter the fax number. → [Quick Scan]

6.2 Storing items for the one-touch dial feature and navigator directory

The unit provides the one-touch dial feature (6 items) and navigator directory (300 items).

• Station 1 and 2 can be used alternatively as broadcast keys (page 47).
• Make sure that the [Fax] light is ON.

6.2.1 Storing one-touch dial item

1 Press [Menu] repeatedly to display "DIRECTORY SET".
2 Select the desired station key.

For stations 1–2:

1. Press one of the station keys.

Example: STATION 1 DIAL MODE [▼▲]

2. [Set]

For station 3:

Press the station key.

For stations 4–6:

Press [Lower], then press one of the station keys.

3 Enter the name, up to 16 characters (see page 75 for character entry). → [Set]
4 Enter the telephone number, up to 32 digits. → [Set]

● To program other items, repeat steps 2 to 4.

5 [Stop]

Note:

● A hyphen or a space entered in a telephone number counts as 2 digits.

6.2.2 Storing navigator directory items

1 Press [Menu] repeatedly to display "DIRECTORY SET". → [▶]
2 Enter the name, up to 16 characters (see page 75 for character entry). → [Set]

3 Enter the telephone number, up to 32 digits. → [Set]
●To program other items, repeat steps 2 to 3.

4 [Menu]

Note:

● A hyphen or a space entered in a telephone number counts as 2 digits.

6.2.3 Editing a stored item

1 [Directory]
2 Press [▼] or [▲] repeatedly to display the desired item. → [Menu] → [★]
3 Edit the name if necessary. → [Set]
4 Edit the telephone number if necessary. → [Set]

6.2.4 Erasing a stored item

1 [Directory]
2 Press [▼] or [▲] repeatedly to display the desired item. → [Menu] → [#]
- To cancel erasing, press [Stop].

3 [Set]

6.3 Sending a fax using one-touch dial feature and navigator directory

Before using this feature, store the desired names and telephone numbers into one-touch dial feature and navigator directory (page 45).

- Make sure that the [Fax] light is ON.

6.3.1 Using the scanner glass

1 Set the original (page 20).
2 If necessary, change to the desired resolution (page 44) and the desired contrast (page 44).
3 Enter the fax number.

Using stations 1–3:

Press the desired station key.

Using stations 4–6:

Press [Lower], then press the desired station key.

Using navigator directory:

Press [Directory], then press [▼] or [▲] repeatedly to display the desired item.

• To send a single page, skip to step 6.
  ● To send multiple pages, go to the next step.

4 Press [Quick Scan] to scan the document into memory.

5 Place the next page. → [Set]

- To send more pages, repeat this step.

6 [Black]

To search for a name by initial

Example: "LISA"

1. [Directory]
2. Press [▼] or [▲] to initiate the navigator directory.
3. Press [5] repeatedly to display any name with the initial "L" (see page 75 for character entry).
4. To search for symbols, press [★].
5. Press [▼] or [▲] repeatedly to display "LISA".
6. To stop the search, press [Stop].

Fax auto redial

If the line is busy or if there is no answer, the unit will automatically redial the number up to 5 times.

Note:

●To stop sending, see page 77.

6.3.2 Using the automatic document feeder

1 Set the original (page 20).
2 If necessary, change to the desired resolution (page 44) and the desired contrast (page 44).

3 Enter the fax number using one-touch dial or navigator directory.
4 [Black]

6.4 Broadcast transmission

You can send the same document to multiple parties (up to 20). To use this feature, store the fax numbers into broadcast memory as follows.

Broadcast: Store items using one-touch dial or navigator directory (page 45).

Manual broadcast: Store items using one-touch dial or navigator directory (page 45). You can also use the dial keypad to store items manually.

Your programmed items will remain in the broadcast memory, allowing frequent re-use.

• The broadcast function utilises stations 1–2. The one-touch dial function will be cancelled.
• Make sure that the [Fax] light is ON.

6.4.1 Programming items into the broadcast memory

1 Press [Menu] repeatedly to display "DIRECTORY SET".
2 Select the desired broadcast key.

For BROADCAST:

1. [Broadcast]
2. Press [▼] or [▲] repeatedly to select "BROADCAST".

For MANUAL BROADCAST:

1. [Manual Broad]
2. Press [▼] or [▲] repeatedly to select "MANUAL BROAD".

3 [Set]

4 Program items.

Using stations 1–3:

Press the desired station key.

Using stations 4–6:

Press [Lower], then press the desired station key.

Using navigator directory:

Press [▼] or [▲] repeatedly to display the desired item. → [Set]

Using the dial keypad (only for manual broad):

Enter the fax number. → [Set]

• The number in brackets indicates the number of registered items.
• To program other items, repeat this step (up to 20 items).
• If you have programmed the wrong item, press [Stop] to erase the item.

5 [Set]

- To program another broadcast key, repeat steps 2 to 5.

6 [Stop]

6.4.2 Adding a new item into the broadcast memory

1 【Directory】
2 Press [▼] or [▲] repeatedly to display the desired broadcast memory (“” or “”). → [Menu] → [★]
3 Press [▼] or [▲] repeatedly to display the desired item you want to add. → [Set]
- To add other items, repeat this step (up to 20 items).

4 [Stop]

Note:

- When adding new items to the MANUAL BROADCAST memory, you can only select stored items.

6.4.3 Erasing a stored item from the broadcast memory

1 [Directory]
2 Press [▼] or [▲] repeatedly to display the desired broadcast memory (“” or “”). → [Menu] → [#]
3 Press [▼] or [▲] repeatedly to display the desired item you want to erase.
- To cancel erasing, press [Stop].
4 [Set] → [Set] → [Stop]

6.4.4 Sending the same document to pre-programmed parties

To send the same document using the scanner glass

1. Set the original (page 20).
2. If necessary, change to the desired resolution (page 44) and the desired contrast (page 44).
3. Press [Broadcast] or [Manual Broad].
4. To send a single page, skip to step 5.
   ● To send multiple pages, go to the next step.
5. Place the next page. → [Set]
6. To send more pages, repeat this step.

5. [Black]

Note:

● To stop sending, see page 77.
- If you select "FINE", "SUPER FINE" or "PHOTO" resolution, the number of pages that the unit can send will decrease.
- If the document exceeds the memory capacity, sending will be cancelled.
- If a party is busy or does not answer, it will be skipped and redialled later up to 5 times.
● After transmission, the unit will automatically print a report (broadcast sending report).

To send the same document using the automatic document feeder

1. Set the original (page 20).
2. If necessary, change to the desired resolution (page 44) and the desired contrast (page 44).
3. Press [Broadcast] or [Manual Broad].

6.5 Sending a computer document as a fax message from your computer

You can access the fax function from a Windows application using Multi-Function Station. For example, to send a document created from WordPad, proceed as follows.

1 Open the document you want to send.

2 Select [Print...] from the [File] menu.

- The [Print] dialogue box will appear.

3 Select the PCFAX unit's name as the active printer.

4 Click [Print] or [OK].

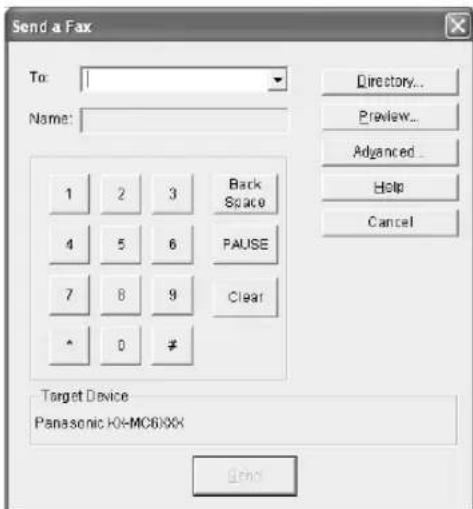

- The [Send a Fax] dialogue box will appear.

5 Enter the fax number using the keypad display or the directory.

- To stop the operation, click [Cancel].

6 [Send]

●The document will be sent through the unit from your computer.

Note:

●To stop sending, see page 77.
- If the document exceeds the memory capacity of the unit, sending will be cancelled.
- For details, see the help file by selecting [💡] from Multi-Function Station.
- Click [Select...] to change the active unit.

6.6 Selecting the way to use your unit

Depending on your situation, select the way you prefer to use your unit.

• Use only as a fax (FAX ONLY mode)
• Use mostly as a telephone (TEL mode)
• Use as a telephone and/or fax (TEL/FAX mode)
• Use with answering machine

6.6.1 Use only as a fax (FAX ONLY mode)

Your situation

You have a separate telephone line just for faxes, or you want to use the unit only for receiving faxes.

Setup

Set the unit to FAX ONLY mode (page 50) by pressing [Fax Auto Answer] repeatedly.

How faxes are received

All incoming calls will be answered as faxes.

6.6.2 Use mostly as a telephone (TEL mode)

Your situation

You want to answer calls by yourself. If a fax call is received, you must receive the fax manually.

Setup

Set the unit to TEL mode (page 51) by pressing [Fax Auto Answer] repeatedly.

Note:

- Make sure feature #404 is set to "TEL" beforehand (page 61).

How to receive phone calls and faxes

You have to answer all calls manually.

To receive a fax document, press [Black].

6.6.3 Use as a telephone and/or fax (TEL/FAX mode)

Your situation

You want to answer phone calls yourself and receive faxes automatically without rings.

Setup

Set the unit to TEL/FAX mode (page 51) by pressing

【Fax Auto Answer】repeatedly.

Note:

- Make sure feature #404 is set to "TEL/FAX" beforehand (page 61).

How phone calls and faxes are received

If the call is a phone call, the unit will ring.

If a fax calling tone is detected, the unit will receive the fax automatically without ringing.

6.6.4 Use with answering machine

Your situation

You want to use the unit with an answering machine.

Setup

Connect an external telephone answering machine and set the ring count of the answering machine to less than 4.

- Set the ring count in FAX ONLY mode of the unit to more than 4, if you use with auto answer ON.

How to receive calls

When receiving phone calls, the answering machine will record voice messages.

6.7 Receiving a fax automatically – Auto answer ON

Important:

- You can only receive faxes in monochrome.

6.7.1 Activating FAX ONLY mode

Press [Fax Auto Answer] repeatedly to display "FAX ONLY MODE".

• The [Fax Auto Answer] light turns ON.

How faxes are received

When receiving calls, the unit will automatically answer all calls and only receive fax documents.

Note:

- The number of rings before a call is answered in FAX ONLY mode can be changed (feature #210 on page 59).

6.8 Receiving a fax manually – Auto answer OFF

Important:

• Use this mode with an extension telephone.
• You can only receive faxes in monochrome.

6.8.1 Activating TEL mode

1 Make sure feature #404 is set to "TEL" beforehand (page 61).
2 Press [Fax Auto Answer] repeatedly to display "TEL MODE".

- The [Fax Auto Answer] light turns OFF.

How to receive faxes with an extension telephone

If you have another telephone connected to the [EXT] socket or the same line (extension telephone), you can use the extension telephone to receive faxes.

1. When the extension telephone rings, lift the handset of the extension telephone.
2. When:

– document reception is required,
- a fax calling tone (slow beep) is heard, or
- no sound is heard,

press [∗] [#] [9] (default fax activation code) firmly.

1. Replace the handset.

Note:

●To stop receiving, see page 77.
- To receive fax documents using the extension telephone, make sure remote fax activation is turned ON (feature #434 on page 63) beforehand. The default setting is ON.

6.8.2 Activating TEL/FAX mode

1 Make sure feature #404 is set to "TEL/FAX" beforehand (page 61).
2 Press [Fax Auto Answer] repeatedly to display "TEL/FAX MODE".

- The [Fax Auto Answer] light turns OFF.

3 The ringer volume setting should be ON (page 22).

How phone calls and faxes are received

1. "INCOMING CALL" will be displayed but the unit will not ring.

2. The unit will wait for the duration of 2 rings before answering the call.

3. The number of rings is determined by the "TEL/FAX delayed ring setting" (feature #212 on page 61).

4. During this time, an extension telephone will ring.

5. The unit will answer the call and try to detect a fax calling tone.

When a fax calling tone is detected

The unit receives the fax automatically without ringing.

When a fax calling tone is not detected

① The unit will ring 3 times. You may answer the call.

- To answer using another telephone (①) connected to the [EXT] socket of this unit (②), lift the handset, then press [Stop] on the unit to talk to the other party.

- To answer using the handset of the unit (if connected) or another telephone (③) connected to the same telephone line as this unit (④), lift the handset and talk to the other party.

- See "1.1 Supplied accessories", page 7 and "1.2 Accessory information", page 8 if your unit includes a handset, or if an optional handset is available.

- The number of rings is determined by the “Silent fax recognition ring setting” (feature #436 on page 63).

- Callers will hear a ring back tone different from the one generated by the telephone company.

② If you do not answer the call, the unit will activate the fax function.

- Some fax machines do not generate fax calling tones when sending faxes, therefore the unit will try to receive a fax even if no fax calling tone is detected.

6.9 Using the unit with an answering machine

6.9.1 Setting up the unit and an answering machine

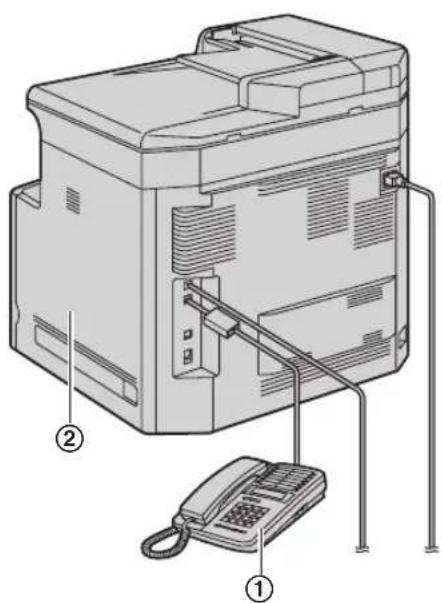

1 Connect the answering machine (①).

• Answering machine is not supplied.
• Please purchase an extension telephone adaptor.
• Remove the stopper (②) if attached.

2 Set the number of rings on the answering machine to 4 rings or less.
●This will allow the answering machine to answer the call first.

3 Record a greeting message on the answering machine.

- We recommend you record a message up to 10 seconds long, and not to pause for more than 4 seconds during the message. Otherwise, both machines will not function correctly.

4 Activate the answering machine.

5 Set the unit to the desired receiving mode (page 50).
- If you set to FAX ONLY mode, change the ring setting in FAX ONLY mode to more than 4 (feature #210 on page 59).

6 Make sure each of the following are unique: - the remote access code of the answering machine - the fax activation code (feature #434 on page 63)

Note:

• If the call is a phone call, the answering machine will record voice messages.
  If a fax calling tone is detected, the fax machine will receive a fax automatically.
• Regarding the remote access code for the answering machine, see the operating instructions of the answering machine.

Receiving a voice message and fax document in one call

The caller can leave a voice message and send a fax document during the same call. Inform the caller of the following procedure beforehand.

1. The caller calls your unit.
   ●The answering device will answer the call.
2. The caller can leave a message after the greeting message.
3. The caller presses [∗][#][9] (pre-selected fax activation code).
   ●The unit will activate the fax function.
4. The caller presses the start button to send a document.

Note:

• To use this feature, make sure remote fax activation is turned ON (feature #434 on page 63). The fax activation code can also be changed.
• If there is no room left in the memory of your answering machine, the unit may not be able to receive documents. See the operating instructions of the answering machine and erase unnecessary messages.

6.10 Receive polling (retrieving a fax placed on another fax machine)

This feature allows you to retrieve a document from another compatible machine. Therefore you pay for the call.

Make sure that no documents are fed into your unit and that the other party's machine is ready for your call.

1 Press [Menu] repeatedly to display "POLLING". → [Set]

2 Dial the fax number. → [Black]

6.11 Junk fax prohibitor (preventing fax reception from undesired callers)

If you subscribe to Caller ID service (page 55), this feature prevents fax reception from calls that do not show caller information.

Additionally, the unit will not accept faxes originating from numbers that match the ones on a programmable junk fax prohibitor list.

Important:

●This feature does not work when manual reception is performed.

6.11.1 Activating the junk fax prohibitor

1 Press [Menu] repeatedly to display "JUNK FAX PROH.". → [▶]
2 Press [▼] or [▲] repeatedly to select "ON". → [Set]
3 Press [Stop] to exit.

6.11.2 Storing undesired callers

You can register up to 20 undesired numbers from the Caller ID list (page 55) if you do not wish to receive faxes from them.

1 Press [Menu] repeatedly to display "JUNK FAX PROH.".
2 Press [▶] repeatedly to display "JUNK LIST SET". → [Set]
3 Press [▼] or [▲] repeatedly to display the party you wish to prevent fax reception from. → [Set]
4 Press [Stop] 2 times to exit.

To display the junk fax prohibitor list

1. Press [Menu] repeatedly to display "JUNK FAX PROH.".
2. Press [▶] repeatedly to display "JUNK LIST DISP.". → [Set]
3. Press [▼] or [▲] to display the items on the list.
4. Press [Stop] to exit.

To print the junk fax prohibitor list

1. Press [Menu] repeatedly to display "JUNK FAX PROH.".
2. Press [▶] repeatedly to display "JUNK LIST PRINT". → [Set]
3. Press [Stop] to exit.

To erase an item from the junk fax prohibitor list

1. Press [Menu] repeatedly to display "JUNK FAX PROH.".

2. Press [▶] repeatedly to display "JUNK LIST DISP.". → [Set]

3. Press [▼] or [▲] repeatedly to display the desired item. → [◀]

- To cancel erasing, press [Stop], then press [Menu].

1. [Set] → [Menu]

6.12 Receiving a fax on your computer

You can receive a fax document on your computer. The received fax document is saved as an image file (TIFF-G4 format).

To receive a fax document using your computer, make sure the following features are set beforehand.

- PC fax reception (feature #442 on page 64)

- Computer setting for the PC fax reception (feature #443 on page 24)

1 Press [Fax Auto Answer] repeatedly to turn the auto answer setting ON (page 50).

2 Start Multi-Function Station. → [PC FAX]

3 When a fax call is received, your computer will receive a document through the unit.

Note:

- You can view, print or transfer the received document using your computer.

Viewing a received document

1. Select [PC FAX] from Multi-Function Station.

2. Select [Received Log] in [Communication Log].

1. Click the item you want to view.

2. Click [File] in the menu bar, then select [View], or click [View] icon in the toolbar.

●The received fax will be displayed.

If the unit's memory stores a received fax document You can load the document into your computer.

1. Select [PC FAX] from Multi-Function Station.

2. Select [Received Log] in [Communication Log].

3. Click [File] in the menu bar. → [Receive a Fax]

- If feature #442 is activated, the received fax document will be automatically transferred to the computer.

7.1 Caller ID service

This unit is compatible with the Caller ID service offered by your local telephone company. To use this unit's Caller ID features, you must subscribe to a Caller ID service.

Important:

• This unit is designed in accordance with the ETS (European Telecommunication Standard) and only supports the basic CLIP (Calling Line Identification Presentation) features.
• This unit will only display the caller's telephone number and name.
• This unit will not support future additional telephone services.
• Depending on the service of the local telephone company, the date/time of the call or the caller's name may not be displayed.

Make sure the following ring count is set to 2 or more rings beforehand.

- FAX ring count (feature #210 on page 59)

- TEL/FAX ring count (feature #212 on page 61)

- The name display service may not be available in some areas. For further information, please contact your telephone company.

7.1.1 How Caller ID is displayed

The calling party's name or telephone number will be displayed after the 1st ring. You have the option of whether or not to answer the call.

The unit will automatically store caller information (name, telephone number and date and time of the call) from the 30 most recent calls. It is possible to view caller information one at a time on the display (page 55) or print the entire Caller ID list (page 102).

• When caller information is received and it matches a telephone number stored in the unit's one-touch dial or navigator directory, the stored name will be displayed.
• If the unit is connected to a PBX (Private Branch Exchange) system, caller information may not be received properly. Consult your PBX supplier.
• If the unit cannot receive caller information, the following will be displayed:

"OUT OF AREA": The caller dialled from an area which does not provide Caller ID service.

"PRIVATE CALLER": The caller requested not to send caller information.

"LONG DISTANCE": The caller made a long distance call.

To confirm caller information by printing the Caller ID list

• To print manually, see page 102.
• To print automatically after every 30 new calls, activate feature #216 (page 59).

7.2 Viewing and calling back using caller information

Important:

- If the area code of the received telephone number is the same as yours, the area code may need to be deleted before calling back. This may only apply to some areas. To edit the number, see page 55.

1 If the [Fax] light is OFF, turn it ON by pressing [Fax]. → [Caller ID]
2 Press [▼] to search from the recently received caller information.
- If you press [▲], the display order will be reversed.
● To send a fax, see page 44.

To change the way caller information is displayed Press [Caller ID] repeatedly after step 2 to change name/telephone number information.

7.2.1 Symbols and operations for caller information

What "√" means

“√” on the display means the call has already been viewed or answered.

To stop viewing

Press [Stop].

7.3 Editing a caller's telephone number before calling back/storing

1 [Caller ID]

2 Press [▼] or [▲] repeatedly to display the desired entry.
3 Press [Caller ID] to display the telephone number.
4 Press dial key (0 to 9) or [★] to enter the editing mode and edit the telephone number.

● To send a fax, see page 44.

Note:

- The edited telephone number will not be saved in the caller information. To save in the directory, see page 56.

To correct a mistake

1. Press [◀] or [▶] to move the cursor to the incorrect number.
2. Press [Stop] to delete the number.
3. Enter the correct number.

To delete a number

Press [◀] or [▶] to move the cursor to the number you want to delete and press [Stop].

7.4 Erasing caller information

7.4.1 Erasing all caller information

1 Press [Menu] repeatedly to display "CALLER SETUP". → [Set]
- "CALL LIST ERASE" will be displayed.
2 [Set]
- To cancel erasing, press [Stop], then [Menu].

3 [Set] → [Stop]

7.4.2 Erasing specific caller information

- Make sure that the [Fax] light is ON.

1 [Caller ID]

2 Press [▼] or [▲] repeatedly to display the desired item. → [◀] → [Set] → [Stop]

7.5 Storing caller information

7.5.1 Storing in the one-touch dial feature and navigator directory

- Make sure that the [Fax] light is ON.

1 [Caller ID]

2 Press [▼] or [▲] repeatedly to display the desired item.

3 [Menu]

4 Select the station key or navigator directory.

For stations 1–2:

1. Press the desired station key.
2. Press [▼] or [▲] repeatedly to select "DIAL MODE". → [Set] → [Set]
   Press the station key. → [Set]
   Press [Lower], then press the desired station key. → [Set]
   Press [◀] or [▶]. → [Set]

For station 3:

For stations 4–6:

For navigator directory:

5 [Set]

Note:

• To edit a name or number, see page 46.
• If you assign an item to a station key which already contains an item, the previous item will be replaced.
• Station 1 and 2 can be used alternatively as broadcast keys (page 47).

8.1 Programming

1 [Menu]
2 Press【#】and the 3-digit code (page 58 to page 72).
3 Press the desired selection to display the desired setting.

● This step may be slightly different depending on the feature.

4 [Set]

5 Press [Menu] to exit.

To select features through the web browser interface (LAN connection only)

You can change features through the web browser interface instead of the unit.

1. Start Multi-Function Station. → [Utilities] → [Configuration Web Page]

- You can also access the unit by entering its IP address on the web browser.

1. Select the desired category from the menu bar. [Device Configuration]: features of the unit [Network Configuration]: features of the network
2. Type "root" as the user name, then enter the password (feature #155 on page 58). → [OK]
3. Select the desired feature tab at the top of the right frame.
4. Change the settings or edit information.

●This step may be slightly different depending on the feature.

1. [Submit]

●The new data will be transferred to the unit.

1. Close the web browser.

Note:

- The settings displayed in the web browser will be updated by clicking [Reload].

8.2 Basic features

Feature/Code Selection
Setting the date and time【#】【1】【0】【1】	Enter the date and time using the dial keypad. See page 22 for details.
Setting your logo【#】【1】【0】【2】	Enter your logo using the dial keypad. See page 23 for details.
Setting your fax number【#】【1】【0】【3】	Enter your fax number using the dial keypad. See page 23 for details.
Setting recall/flash time【#】【1】【2】【1】	The recall/flash time depends on your telephone exchange or host PBX.[0] “900ms”[1] “700ms”[2] “600ms”[3] “400ms”[4] “300ms”[5] “250ms”[6] “200ms”[7] “160ms”[8] “110ms”[9] “100ms” (default)[*] “90ms”[#] “80ms”Note:●If the unit is connected via a PBX, PBX functions (transferring a call, etc.) might not work correctly. Consult your PBX supplier for the correct setting.
Changing the LCD display contrast【#】【1】【4】【5】	[1] “NORMAL” (default)[2] “DARKER”
Changing the password for feature programming via remote operation【#】【1】【5】【5】	1. [Menu] → 【#】【1】【5】【5] → [Set]2. Enter the current password. → [Set]● The default password is “1234”.3. Enter a new 4-digit password using 0–9. → [Set]4. Enter the new password again. → [Set] → [Menu]Note:●It is recommended that you change this password from the default password.●This password is also used for feature programming via web browser.
Setting the toner maintenance time【#】【1】【5】【8】	The unit will automatically activate for maintenance, once every 24 hours. Because this is to prevent the toner from solidifying, so the noise that the unit makes during maintenance cannot be stopped. However, if the unit’s noise bothers you, you can change the start time.1. [Menu] → 【#】【1】【5】【8] → [Set]2. Enter the maintenance start time.●If you selected 12-hour time entry (page 22), the default time is “12 : 00AM”. Press [*] repeatedly to select AM or PM.●If you selected 24-hour time entry (page 22), the default time is “00 : 00”.3. [Set] → [Menu]
Setting the ringer pattern【#】【1】【6】【1】	[1] “A” (default)[2] “B”[3] “C”
Changing the ring count in FAX ONLY mode[#][2][1][0]	[1] “1”[2] “2” (default)[3] “3”[4] “4”[5] “5”[6] “6”[7] “7”[8] “8”[9] “9”●If you are using the unit with an answering machine, set to more than 4 (page 52).
Setting the Caller ID list to print automatically[#][2][1][6]	[0] “OFF” (default): The unit will not print the Caller ID list, but will keep records of the information for the last 30 callers.[1] “ON”: The unit will print the Caller ID list automatically after every 30 new calls (page 55).
Setting the recording paper size in the standard input tray[#][3][8][0]	[1] “LETTER”: Letter-size paper[2] “A4” (default): A4-size paper[3] “LEGAL”: Legal-size paper
Setting the recording paper size in the optional input tray[#][3][8][2]	This feature will be displayed only when the optional input tray is installed.[1] “LETTER”: Letter-size paper[2] “A4” (default): A4-size paper[3] “LEGAL”: Legal-size paper
Setting the recording paper type[#][3][8][3]	[1] “PLAIN PAPER” (default): 75 g/m^2 to 105 g/m^2 paper. [2] “THIN PAPER”: 60 g/m^2 to 74 g/m^2 paper. [3] “THICK PAPER”: 106 g/m^2 to 165 g/m^2 paper. Note:●This setting is valid for both the standard input tray and the optional input tray.●“THICK PAPER” will be displayed only when “#1” is selected for the following:- Paper input tray setting for fax (Feature #440 on page 63).- Paper input tray setting for copy (Feature #460 on page 65).- Paper input tray in PCL ®(Feature #760 on page 66).- Paper input tray setting for the scan to e-mail print feature (Feature #565 on page 72).
Setting the waiting time for the power save mode[#][4][0][3]	To set the length of time before the unit enters the power save mode.[1] “5min”: 5 minutes[2] “15min” (default): 15 minutes[3] “30min”: 30 minutes[4] “1h”: 1 hourNote:●During the power save mode, the unit needs to preheat the fuser unit before printing.
Holding the previous contrast setting[#][4][6][2]	[0] “DISABLED” (default): Deactivates this feature.[1] “ENABLED”: The unit will hold the previous setting.Note:●The previous setting will be held individually for copying and sending faxes.
Setting the default operation mode[#][4][6][3]	To select the default operation mode when the selected time of the mode timer (feature #464) passes.[1] “COPY” (default): Copy mode is selected as default.[2] “FAX”: Fax mode is selected as default.Note:●You cannot select the scan mode using this feature.
Setting the default operation mode timer[#][4][6][4]	To set the timer before returning to the default operation mode (feature #463).[0] “OFF”: Deactivates this feature.[1] “30s”: 30 seconds[2] “1min” (default): 1 minute[3] “2min”: 2 minutes[4] “5min”: 5 minutes
Cleaning the drum[#][4][8][0]	Clean the drum cartridge automatically. See page 102 for details.
Setting toner save feature[#][4][8][2]	[0] “OFF” (default): Deactivates this feature.[1] “ON”: The toner cartridge will last longer.Note:●This feature may lower the print quality by reducing toner consumption.
Changing the colour calibration for all colours (cyan, magenta, yellow and black)[#][4][8][5]	Change the colour calibration if colour printing is too dark or too light. See page 77 for details.
Changing the colour calibration for cyan colour[#][4][8][6]	Change the colour calibration if colour printing is too dark or too light. See page 77 for details.
Changing the colour calibration for magenta colour[#][4][8][7]	Change the colour calibration if colour printing is too dark or too light. See page 77 for details.
Changing the colour calibration for yellow colour[#][4][8][8]	Change the colour calibration if colour printing is too dark or too light. See page 77 for details.
Changing the colour calibration for black colour[#][4][8][9]	Change the colour calibration if colour printing is too dark or too light. See page 77 for details.

8.3 Fax features

Feature/Code Selection
Changing the TEL/FAX delayed ring count[‡][2][1][2]	If you use an extension telephone in TEL/FAX mode, select the desired number of times the extension telephone rings before the unit answers the call.[1] “1”[2] “2” (default)[3] “3”[4] “4”[5] “5”[6] “6”[7] “7”[8] “8”[9] “9”Note:See page 51 for details.
Printing a sending report[‡][4][0][1]	[0] “OFF”: Sending reports will not be printed.[1] “ON”: A sending report will be printed after every fax transmission.[2] “ERROR” (default): A sending report will be printed only when fax transmission fails.
Setting the journal report to print automatically[‡][4][0][2]	[0] “OFF”: The unit will not print a journal report, but will keep a record of the last 30 fax transmissions and receptions.[1] “ON” (default): The unit will print a journal report automatically after every 30 new fax transmissions and receptions (page 44).
Changing the receiving mode in the manual answer setting[‡][4][0][4]	[1] “TEL” (default): Telephone mode (page 51)[2] “TEL/FAX”: Telephone/Fax mode (page 51)
Sending documents overseas[‡][4][1][1]	If you cannot send a fax overseas even if the number is correct and the line is connected, activate this feature before sending the fax.This feature improves the reliability by reducing the transmission speed.[0] “OFF”: Deactivates this feature.[1] “NEXT FAX”: This setting is effective only for the next attempted fax transmission. After transmission, the unit will return to the previous setting.[2] “ERROR” (default): When the previous fax transmission fails and you wish to re-send the document.Note:This feature is not available for broadcast transmission.Calling charges may be higher than usual.
Sending a fax at a specific time[#][4][1][2]	This feature allows you to take advantage of low-cost calling hours offered by your telephone company. This feature can be set up to 24 hours in advance of the desired time.[0] “OFF” (default)[1] “ON”To send a document:If the [Fax] light is OFF, turn it ON by pressing [Fax].Set the original (page 20).If necessary, change to the desired resolution (page 44) and the desired contrast (page 44).[Menu] → [#][4][1][2]Press [1] to select “ON”. → [Set]Enter the fax number.To enter an item using one-touch dial feature and navigator directory, see step 3 on “6.3.1 Using the scanner glass”, page 46. (When using navigator directory, you do not have to press [Directory] before pressing [▼] or [▲].)7. [Set]8. Enter the transmission start time.If you selected 12-hour time entry (page 22), press [★] repeatedly to select AM or PM.If you selected 24-hour time entry (page 22), the time is set using 24-hour time entry.When using the scanner glass, press [Set]. → [Black]When using the automatic document feeder, press [Set].The document will be fed into the unit and scanned into memory. The unit will then send the data at the specified time. You cannot use this feature for another fax transmission until the former sending is completed.Note:To cancel after programming, press [Stop] while the unit is idle, and then press [Set].
Setting the Error Correction Mode (ECM)[#][4][1][3]	This feature is available when the sending / receiving fax machines are ECM compatible.[0] “OFF”: Deactivates this feature.[1] “ON” (default): If there is an error during fax transmission / reception, the unit will support the communication.
Setting the connecting tone [#][4][1][6]	If you often have trouble when sending faxes, this feature allows you to hear connecting tones: fax tone, ring back tone and busy tone. You can use these tones to confirm the status of the other party’s machine.[0] “OFF”: Deactivates this feature.[1] “ON” (default): You will hear connecting tones.Note:If the ring back tone continues, the other party's machine may not be a fax machine or may have run out of paper. Check with the other party.The connecting tone volume cannot be adjusted.
Setting the maximum fax speed[#][4][1][8]	[1] “14 . 4Kbps”[2] “33 . 6Kbps” (default)Note:The fax speed maybe lower than the selected speed according to your line.
Setting auto reduction feature【#】【4】【3】【2】	To receive a fax document that is longer than your recording paper.【0】“OFF”: The unit will print the original size.【1】“ON” (default): The unit will fit received documents onto your recording paper.
Changing the fax activation code【#】【4】【3】【4】	If you wish to use an extension telephone to receive faxes, activate this feature and program the activation code.Important:●The fax activation code must be different from the code that you programmed on the answering machine.【0】“OFF”【1】“ON” (default)1. 【Menu】→【#】【4】【3】【4】2. Press【1】to select “ON”. →【Set】3. Enter your code from 2 to 4 digits, using 0–9,【*】and【#】.●The default code is “*#9”.●Do not enter “0000”.4.【Set】→【Menu】
Changing the silent fax recognition ring setting【#】【4】【3】【6】	To change the number of times the unit rings while in TEL/FAX mode.【3】“3” (default)【4】“4”【5】“5”【6】“6”【7】“7”【8】“8”【9】“9”Note:●See page 51 for details.
Setting the memory reception alert【#】【4】【3】【7】	To alert you with a beeping sound when a received fax document is stored into memory due to some existing problem.【0】“OFF”: Deactivates this feature.【1】“ON” (default): You will hear a beeping sound.Note:●The slow beeps will continue until you solve the printing problem and make sure the unit is supplied with enough paper to print the stored document.
Setting friendly reception【#】【4】【3】【8】	To receive a fax automatically when you answer a call and hear a fax calling tone (slow beep).【0】“OFF”: You have to press【Black】for fax reception.【1】“ON” (default): You do not have to press【Black】for fax reception.
Setting the paper input tray to use for printing received faxes【#】【4】【4】【0】	This feature will be displayed only when the optional input tray is installed.【1】“#1” (default): Standard input tray【2】“#2”: Optional input tray【3】“#1+#2”Note:●If you select “#1+#2”, make sure the same paper size is selected for the following:– Standard input tray (feature #380 on page 59)– Optional input tray (feature #382 on page 59)If either is changed, “#1” will be selected automatically.
Receiving a fax into the computer【#】【4】【4】【2】	If you wish to receive a fax into the computer, activate this feature and run [PC FAX] from Multi-Function Station.【0】“OFF”: Deactivates this feature.【1】“ALWAYS”: If the unit recognizes the connection to the computer, it will transfer a received document to the computer. If the unit cannot recognize the connection, it will store a received document in the memory once, then transfer the data after recognition of the connection.【2】“CONNECTED” (default): If the unit recognizes the connection to the computer, it will transfer a received document to the computer. If the unit cannot recognize the connection, it will print out the data.
Setting the computer for PC fax reception【#】【4】【4】【3】	To select the computer that will be used for receiving a fax. See page 24 for details.
Sending legal size documents using the scanner glass【#】【4】【4】【5】	【0】“OFF” (default): Deactivates this feature.【1】“NEXT FAX”: Legal-size documents can be sent for the next fax transmission using the scanner glass. After transmission, this setting will turn OFF automatically.【2】“ALWAYS”: Legal-size documents can be sent using the scanner glass anytime.
Resetting fax features to their default settings【#】【4】【5】【9】	【0】“NO” (default)【1】“YES”To reset the fax features:1. 【Menu】→【#】【4】【5】【9】2. Press【1】to select “YES”. →【Set】→【Set】→【Menu】Note:●The PC fax reception (feature #443 on page 24) will not be reset.

8.4 Copy features

Feature/Code Selection
Setting the paper input tray to use for copy【#】【4】【6】【0】	This feature will be displayed only when the optional input tray is installed.【1】“#1” (default): Standard input tray【2】“#2”: Optional input tray【3】“#1+#2”Note:If you select “#1+#2”, make sure the same paper size is selected for the following:- Standard input tray (feature #380 on page 59)- Optional input tray (feature #382 on page 59)If either is changed, “#1” will be selected automatically.
Changing the default copy resolution【#】【4】【6】【1】	To change the default resolution setting for copying.【1】“TEXT/PHOTO” (default): For documents containing both text and photographs.【2】“TEXT”: For documents containing only text.【3】“PHOTO”: For documents containing photographs, shaded drawings, etc.
Holding the previous page layout setting【#】【4】【6】【7】	【0】“DISABLED” (default): Deactivates this feature.【1】“ENABLED”: The unit will hold the previous setting.
Holding the previous zoom setting【#】【4】【6】【8】	【0】“DISABLED” (default): Deactivates this feature.【1】“ENABLED”: The unit will hold the previous setting.
Holding the previous collate setting【#】【4】【6】【9】	【0】“DISABLED” (default): Deactivates this feature.【1】“ENABLED”: The unit will hold the previous setting.
Holding the previous duplex setting【#】【4】【7】【0】	This feature will be displayed only when the automatic duplex unit is installed.【0】“DISABLED” (default): Deactivates this feature.【1】“ENABLED”: The unit will hold the previous setting.

8.5 PC print features

Feature/Code Selection
Setting the paper input tray in PCL[#][7][6][0]	This feature will be displayed only when the optional input tray is installed.[1] “#1” (default): Standard input tray[2] “#2”: Optional input tray[3] “#1+#2”Note:If you select “#1+#2”, make sure the same paper size is selected for the following:- Standard input tray (feature #380 on page 59)- Optional input tray (feature #382 on page 59)If either is changed, “#1” will be selected automatically.
Setting the number of copies in PCL[#][7][6][2]	[Menu] → [#][7][6][2] → [Set]Enter the number of copies from “001” to “999”, using the dial keypad.The default setting is “001”.[Set] → [Menu]
Setting the recording paper size in PCL[#][7][6][3]	[1] “LETTER”: Letter-size paper[2] “A4” (default): A4-size paper[3] “LEGAL”: Legal-size paper
Setting the image reduction feature in PCL[#][7][6][4]	[0] “OFF”: Deactivates this feature.[1] “ON” (default): The document resolution will be automatically reduced when the data size is too large to print.Note:This feature may lower the print quality by reducing the resolution.
Setting the recording paper direction in PCL[#][7][6][5]	[1] “PORTRAIT” (default): The document will be printed in portrait direction.[2] “LANDSCAPE”: The document will be printed in landscape direction.
Setting the A4 wide feature in PCL[#][7][6][6]	You can change the margin and printable area of A4-size recording paper so that 80 characters in 10 cpi font may be printed on a line.[0] “OFF” (default): Deactivates this feature.[1] “ON”: The margin and printable area of A4 recording paper will be changed.
Setting the line per page in PCL[#][7][6][7]	To set the number of lines per page in PCL printing.[Menu] → [#][7][6][7] → [Set]Enter the number of lines per page from “005” to “128”, using the dial keypad.The default setting is “064”.[Set] → [Menu]
Setting the font source in PCL[#][7][6][8]	This feature is available when the downloaded font is registered to the unit.[1] “RESIDENT” (default): The document will be printed using resident font.[2] “DOWNLOAD FONT”: The document will be printed using download font.
Setting the font number in PCL[#][7][6][9]	To set the font number to be used in PCL printing. The unit assigns a number to each font.1. [Menu] → [#][7][6][9] → [Set]2. Enter the font number from “000” to “054”, using the dial keypad.The default setting is “000”.3. [Set] → [Menu]Note:If feature #768 is set to “DOWNLOAD FONT”, the default setting is “001”.To print the font list, see page 102.
Setting the font pitch/point in PCL[#][7][7][0]	To set the font pitch/point to be used in PCL printing.1. [Menu] → [#][7][7][0] → [Set]2. Enter the font pitch from “00 . 44” to “99 . 99”, or the point from “004 . 00” to “999 . 75”, using the dial keypad.The default pitch is “10 . 00” and the default point is “012 . 00”.3. [Set] → [Menu]
Setting the symbol set in PCL[#][7][7][1]	To set the symbol set to be used in PCL printing.1. [Menu] → [#][7][7][1]2. Press [▼] or [▲] repeatedly to display the desired symbol set. → [Set]→ [Menu]
Setting the line breaks in PCL[#][7][7][2]	To set each behaviour when receiving CR, LF, and FF codes.[1] “CR/LF/FF” (default): CR=CR, LF=LF, FF=FF[2] “CR+LF/LF/FF”: CR=CR+LF, LF=LF, FF=FF[3] “CR/CR+LF/CR+FF”: CR=CR, LF=CR+LF, FF=CR+FF
Setting the waiting time for auto continue mode[#][7][7][3]	To set the length of time before the unit recovers if a memory overflow occurs.[1] “OFF” (default): Deactivates this feature.[2] “20s”: 20 seconds[3] “30s”: 30 seconds[4] “60s”: 60 seconds[5] “90s”: 90 seconds[6] “120s”: 120 seconds
Changing the data timeout setting[#][7][7][4]	The unit will automatically print the remaining data in memory when the computer does not send data to the unit during the set time.[1] [Menu] → [#][7][7][4] → [Set]2. Enter the desired data timeout setting from “005” seconds to “600” seconds, using the dial keypad.The default setting is “060” seconds.3. [Set] → [Menu]
Detecting monochrome pages[#][7][7][5]	[0] “OFF”: When you make a colour printout, all pages including monochrome pages will be printed using colour toner cartridge and colour drum cartridge. This will increase consumable usage for colour toner cartridge and colour drum cartridge.[1] “ON” (default): When you make a colour printout, this feature automatically detects the monochrome pages of your document and print only using the black toner cartridge and monochrome drum cartridge. This will decrease consumable usage for colour toner cartridge and colour drum cartridge, but will require time to automatically switch between monochrome printing and colour printing.Note:Depending on the type of document, this feature may not be activated even when “ON” is selected.

8. Programmable Features

Feature/Code Selection
Setting mutual A4/letter print【#】【7】【7】【6】	This feature allows printing in A4-size even if letter-size recording paper is installed, and vice versa.【0】“OFF”: Deactivates this feature.【1】“ON” (default): Printing is possible between A4/letter-size.

8.6 Scan features

Feature/Code Selection
Setting the scan mode for Push Scan[#][4][9][3]	[1] “VIEWER” (default): The scanned image will be displayed in the [Multi-Function Viewer] window.[2] “FILE”: The scanned image will be saved as a file.[3] “E-MAIL”: The scanned image will be saved for e-mail attachment.[4] “OCR”: The scanned image will be displayed in the OCR window.[5] “E-MAIL SERVER”: The scanned image will be sent as an attachment without using e-mail software.[6] “FTP SERVER”: The scanned image will be sent to the pre-programmed folder on the FTP server.Note:●Following selections will be displayed only when the server setting is programmed through the web browser interface in advance. - “E-MAIL SERVER” will be displayed when the e-mail server setting is programmed (page 69). - “FTP SERVER” will be displayed when the FTP server setting is programmed (page 70).
Holding the previous scanning parameter for Push Scan[#][4][9][4]	[0] “DISABLED” (default): Deactivates this feature.[1] “ENABLED”: The unit will hold the previous scan settings for each mode of push scan; scan size, resolution, file format, brightness, colour contrast/contrast.
Setting the monochrome scan type[#][4][9][5]	[1] “BLACK/WHITE” (default): To scan as black lines, select this for text contents.[2] “GREYSCALE”: To scan as black lines and grey shades, select this for images.
Setting the information for scan to e-mail (via e-mail server) (LAN connection only)●This feature can be programmed only through the web browser interface.	When you send scanned files via e-mail server, you need to program the e-mail server and SMTP server settings beforehand. Consult your service provider or network administrator for details.1. Start Multi-Function Station.2. [Utilities] → [Configuration Web Page] → [Device Configuration]3. Type “root” as the user name, then enter the password (feature #155 on page 58). → [OK]4. Select the [SCAN FEATURE] tab.5. Click [Edit] next to [E-MAIL SERVER].6. Enter the e-mail server and SMTP server information. → [Submit]7. Close the web browser.
Registering the scan to e-mail destinations (via e-mail server) (LAN connection only)●This feature can be programmed only through the web browser interface.	When you send scanned files via e-mail server, you can register e-mail destinations (up to 300 destinations) for the unit through the web browser interface in advance.1. Start Multi-Function Station.2. [Utilities] → [Configuration Web Page] → [Device Configuration]3. Type “root” as the user name, then enter the password (feature #155 on page 58). → [OK]4. Select the [SCAN FEATURE] tab.5. Click [Edit] next to [SEND USER].6. Click [Edit] next to the desired scan to e-mail user.7. Enter name and e-mail address, then select the station key number from the drop-down list if necessary. → [Submit]8. Close the web browser.
Setting the information for scan to FTP (LAN connection only)●This feature can be programmed only through the web browser interface.	When you send scanned files to an FTP server, you can register FTP destinations (up to 6 destinations) to the unit through the web browser interface in advance.1. Start Multi-Function Station.2. [Utilities] → [Configuration Web Page] → [Device Configuration]3. Type “root” as the user name, then enter the password (feature #155 on page 58). → [OK]4. Select the [SCAN FEATURE] tab.5. Click [Edit] next to [FTP SERVER].6. Click [Edit] next to the desired FTP server destination.7. Enter the server name, IP address, folder directory, etc. → [Submit]8. Close the web browser.Note:●If you do not enter the folder directory in step 7, the scanned image will be saved in the root folder.

8.7 LAN features

Feature/Code Selection
LAN setting with a DHCP server[#][5][0][0]	[0] “DISABLED”: Deactivates this feature.[1] “ENABLED” (default): The following will be allocated automatically using a DHCP (Dynamic Host Configuration Protocol) server.- IP address- Subnet mask- Default gateway
Setting the IP address for the LAN connection[#][5][0][1]	This feature is available when feature #500 is deactivated.1. [Menu] → [#][5][0][1] → [Set]2. Enter the IP address of the unit on the LAN using the dial keypad. → [Set] → [Menu]
Setting the Subnet mask for the LAN connection[#][5][0][2]	This feature is available when feature #500 is deactivated.1. [Menu] → [#][5][0][2] → [Set]2. Enter the subnet mask of the network on the LAN using the dial keypad. → [Set] → [Menu]
Setting the default gateway for the LAN connection[#][5][0][3]	This feature is available when feature #500 is deactivated.1. [Menu] → [#][5][0][3] → [Set]2. Enter the default gateway of the network on the LAN using the dial keypad. → [Set] → [Menu]
Setting the primary DNS server for the LAN connection[#][5][0][4]	This feature is available when feature #500 is deactivated.1. [Menu] → [#][5][0][4] → [Set]2. Enter the primary DNS server of the network on the LAN using the dial keypad. → [Set] → [Menu]
Setting the secondary DNS server for the LAN connection[#][5][0][5]	This feature is available when feature #500 is deactivated.1. [Menu] → [#][5][0][5] → [Set]2. Enter the secondary DNS server of the network on the LAN using the dial keypad. → [Set] → [Menu]
Setting the machine name[#][5][0][7]	1. [Menu] → [#][5][0][7] → [Set]2. Enter the name of the unit to recognize on the LAN, up to 15 characters, using the English alphabet and numbers (see page 75 for character entry). → [Set] → [Menu]Note:●In order to recognize the unit on the LAN, the default name of the unit is assigned automatically. If you change the name, assign a unique name to avoid overlapping.
Displaying the MAC address of the unit[#][5][0][8]	1. [Menu] → [#][5][0][8] → [Set]2. The MAC address of the unit will be displayed. → [Menu]
IP filtering for the LAN connection[#][5][3][2]	[0] “DISABLED” (default): Deactivates this feature.[1] “ENABLED”: The unit will deny/approve access from the pre-programmed IP patterns. Whether to deny or approve, and up to 4 patterns can be programmed through the web browser interface.1. Start Multi-Function Station.2. [Utilities] → [Configuration Web Page] → [Network Configuration]3. Type “root” as the user name, then enter the password (feature #155 on page 58). → [OK]4. Select the [LAN FEATURE] tab.5. Click [Edit] next to [IP FILTERING].6. Click [Edit] next to [FILTER].7. Change the mode and edit IP filtering information. → [Submit]8. Close the web browser.
Setting the IP address automatically for the LAN connection[#][5][3][3]	This feature will be displayed only when feature #500 is activated.[0] “DISABLED” (default): Deactivates this feature.[1] “ENABLED”: IP address will be allocated automatically without using a DHCP (Dynamic Host Configuration Protocol) server.
Setting HTTPD for the LAN connection[#][5][3][4]	[0] “DISABLED”: Denies access to the web browser.[1] “ENABLED” (default): Allows access to the web browser.
IPv6 protocol[#][5][3][5]	[0] “DISABLED” (default): Deactivates this feature.[1] “ENABLED”: IPv6 protocol can be used. After installing the printer driver, be sure to change the port to IPv6 protocol. You can check the IPv6 protocol address by printing the “SETUP LIST” (page 102).Note:●To activate this feature, you need to turn the power switch of the unit OFF, then ON.
Setting the paper input tray to use for the scan to e-mail print feature[#][5][6][5]	This feature will be displayed only when the optional input tray is installed.[1] “#1” (default): Standard input tray[2] “#2”: Optional input tray[3] “#1+#2”Note:●If you select “#1+#2”, make sure the same paper size is selected for the following:- Standard input tray (feature #380 on page 59)- Optional input tray (feature #382 on page 59)If either is changed, “#1” will be selected automatically.

8.8 Network features (LAN connection only)

These features can be programmed only through the web browser interface.

Feature Tab Selection
Setting the community name for SNMP	[SNMP]Enter the SNMP community name. Consult your service provider or network administrator for details.
Setting the location where you use this unit	[SNMP]Enter the location information of the unit.
Displaying the link local address	[IPv6]The link local address will be displayed.
Displaying the IP address for auto configuration	[IPv6]	The IP address for auto configuration will be displayed.
Setting the IP address for IPv6	[IPv6]	Enter the IP address for IPv6. Consult your service provider or network administrator for details.
Setting the default router for IPv6	[IPv6]	Enter the default router address for IPv6. Consult your service provider or network administrator for details.
Setting the information for scan to FTP	[FTP FEATURE]	Enter the FTP server information to send scanned images from the unit to an FTP server. See page 70 for details.
Setting the information for scan to e-mail (via e-mail server)	[E-MAIL FEATURE]	Enter the e-mail server and SMTP server information to send scanned images from the unit via e-mail. See page 69 for details.
Registering the scan to e-mail destinations (via e-mail server)	[E-MAIL FEATURE]	Register e-mail destinations (up to 300 destinations) for the unit. See page 70 for details.
Setting the error notify feature	[ERROR NOTIFY]	[ENABLED]: The unit will send an e-mail to registered destinations when a problem occurs.[DISABLED] (default): Deactivates this feature.
Setting the information for the error notify feature	[ERROR NOTIFY]	Enter the e-mail server and SMTP server information to send error notification e-mails to.
Registering destinations for the error notify feature	[ERROR NOTIFY]	Enter the e-mail address to which error notifications will be sent and select the types of problems.[LIFE WARNING]: A warning indicating that the toner cartridge, drum cartridge or waste toner cartridge needs to be replaced soon.[MEDIA PATH ERROR]: An error indicating that there is a problem with the paper input tray.[LIFE ERROR]: An error indicating that the toner cartridge, drum cartridge or waste toner cartridge needs to be replaced.
Setting the scan to e-mail print feature	[SCAN TO E-MAIL PRINT]	[ENABLED]: The unit will automatically print e-mail attachment that it receives.[DISABLED] (default): Deactivates this feature. See page 31 for details.
Setting the e-mail checking interval for the scan to e-mail print feature	[SCAN TO E-MAIL PRINT]	Enter the desired e-mail checking interval.
Setting the header print option for the scan to e-mail print feature	[SCAN TO E-MAIL PRINT]	[ENABLED] (default): The unit will print a received e-mail attachment with the header information.[DISABLED]: Deactivates this feature.
Setting the information for the scan to e-mail print feature	[SCAN TO E-MAIL PRINT]	When you use the scan to e-mail print feature, you need to program the POP server setting beforehand. See page 31 for details.
Displaying the scan to e-mail print information	[SCAN TO E-MAIL PRINT]	The information for the 30 most recently received e-mails will be displayed.

Note:
- See the following sections for details on these related features:

- DHCP mode (feature #500 on page 71)

- IP address (feature #501 on page 71)

- Subnet mask (feature #502 on page 71)

- Default gateway (feature #503 on page 71)

- DNS server #1 (feature #504 on page 71)

- DNS server #2 (feature #505 on page 71)

- Machine name (feature #507 on page 71)

- IP filtering (feature #532 on page 72)

– Auto IP (feature #533 on page 72)

- HTTPD (feature #534 on page 72)

- IPv6 protocol (feature #535 on page 72)

– Paper input tray setting for the scan to e-mail print feature (feature #565 on page 72)

9.1 Character entry

The dial keypad is used to enter characters and numbers.

• Press (◀) or (▶) to move the cursor.
• Press dial keys to enter characters and numbers.
• Press [Stop] to erase the character or number highlighted by the cursor. Press and hold [Stop] to erase all characters or numbers.
• To enter another character located on the same dial key, press [▶] to move the cursor to the next space, then press the appropriate dial key.

Keypad Characters
[1]1 . _ - [	] { } +/ = , ` : ; ? l
[2]A B C 2
	a b c 2
[3]D E F 3
	d e f 3
[4]G H I 4
	g h i 4
[5]J K L 5
	j k l 5
[6]M N O 6
	m n o 6
[7]P Q R S 7
	p q r s 7
[8]T U V 8
	t u v 8
[9]W X Y Z 9
	w x y z 9
[0]	0 @ ( ) < > ! " #$ % & ¥ * ^ ' →
[*]	To switch between uppercase or lowercase letters.
[Recall]	Hyphen
[Zoom]	To insert a space.
[Stop]	To delete a character.

To select characters using [▼] or [▲]

Instead of pressing the dial keys, you can select characters using [▼] or [▲].

1. Press [▼] repeatedly to display the desired character. Characters will be displayed in the following order:

① Uppercase letters
② Number
③ Symbol
④ Lowercase letters
- If you press [▲], the order will be reversed.

1. Press [▶] to insert the displayed character.

2. Return to step 1 to enter the next character.

9.2 Status of the unit

9.2.1 Using Remote Control

You can easily operate the following functions from your computer.

• Programming the features (page 58)
• Storing, editing or erasing items in directories (page 45)
• Storing or erasing items for broadcast transmission (page 47)
  – Viewing items in the journal report (page 44)
  – Saving the journal report on your computer
• Viewing items in the Caller ID list (page 55)
• Storing caller information into directories (page 56)
  – Saving the Caller ID list on your computer

1 Start Multi-Function Station. → [Remote Control]

- The [Multi-Function Remote Control] window will appear.

2 Select the desired tab.

●The latest data in the unit will be displayed.

3 Perform the desired operation.

- For details about each function, click [Help].

- To stop the operation, click [Cancel].

4 [OK]

- You can also click [Apply] to continue the next operation without closing the window.

5 Enter the password (feature #155 on page 58). → [OK]

●The new data will be transferred to the unit and the window will close.

Note:

• Some of the features cannot be programmed from your computer.
• For details, see the help file by selecting [💡] from Multi-Function Station.
• When another person is adjusting stored data in the unit, it may be overwritten. Make sure the unit is not currently being used for the same function.

9.2.2 Using Device Monitor

You can confirm the setting information and current status of the unit from your computer.

1 Start Multi-Function Station.
2 [Utilities] → [Device Monitor]

- The [Device Monitor] window will appear.

3 Confirm the status of the unit.

[Status]: Current status of the unit

Note:

• Additional information (toner and recording paper status, unit information, etc.) will be displayed in [Status] tab by clicking [Advanced Information].
• You can update the status of the unit by clicking [Refresh].
• If a printing error occurs, the Device Monitor will start automatically and display the error information.
• For details, see the help file by selecting [💡] from Multi-Function Station.

9.2.3 Using the web browser (LAN connection only)

You can confirm the setting information and status of the unit from the web browser.

1 Start Multi-Function Station. → [Utilities] → [Configuration Web Page]

- You can also access the unit by entering its IP address in a web browser.

2 Select a category from the menu bar.

[Status]: Toner and paper information, etc.

[Device]: Current status of the unit, etc.

[Network]: Network information, etc.

- When you select [Device] or [Network], you can change which features are displayed by clicking the feature tabs at the top of the right frame.

3 Confirm the status of the unit.

Note:

- You can update the status of the unit by clicking [Reload].

9.3 Cancelling the operations

You can cancel the current operation from the unit. You can also select the desired operation to cancel.

1 [Stop]

● "USER STOPPED" is displayed.
- When "USER STOPPED" is not displayed, go to step 2.

2 To cancel printing:

Press [Stop] repeatedly to display "STOP PRINTING?".

To cancel scanning:

Press [Stop] repeatedly to display "STOP SCANNING?".

To cancel copying:

Press [Stop] repeatedly to display "STOP COPYING?".

To cancel sending or receiving faxes:

Press [Stop] repeatedly to display "STOP FAX?".

To cancel broadcast transmission:

Press [Stop] repeatedly to display "BROAD CANCELLED?".

To cancel fax redialling:

Press [Stop] repeatedly to display "SEND CANCELLED?".

3 [Set]

9.4 Changing the colour calibration

If colour printing is too dark or too light, change the colour calibration.

1 Select the desired colour to change the calibration.

• To change the colour density for cyan, magenta, yellow and black, press [Menu]. → [#][4][8][5]
• To change the colour calibration for cyan, press [Menu]. [☐][4][8][6]
• To change the colour calibration for magenta, press [Menu]. [#][4][8][7]
• To change the colour calibration for yellow, press [Menu]. [#][4][8][8]
• To change the colour calibration for black, press [Menu]. [☐][4][8][9]

2 Select the desired colour calibration.

[0]“-5”
[1]“-4”
[2]“-3”
[3]“-2”
[4]“-1”
【5】“0” (default)
[6] "1"
[7] "2"
[8] "3"
[9] "4"
【*】“5”

3 [Set]

4 Press [Menu] to exit.

Printing a colour test

You can print the colour test to check the colour density for each colour (page 102).

9.5 Optional automatic duplex unit

You can add the optional automatic duplex unit. See page 8 for accessory information.

Technical line drawing of a rectangular mechanical part with mounting flanges (no text or symbols)

A4, letter or legal-size recording paper (plain and thin) can be used.

Important:

• Before starting installation of the optional automatic duplex unit, be sure to turn the power switch OFF. For more details about the installation, please refer to the installation guide for the optional automatic duplex unit.
• To use the optional automatic duplex unit with your computer, you need to change the printer properties. See page 79 for details.

9.6 Optional input tray

You can add the optional input tray. See page 8 for accessory information.

Isometric line drawing of a mechanical housing or enclosure with internal compartments and mounting points (no text or symbols)

A4, letter or legal-size recording paper (plain and thin) can be used.

The optional input tray can hold:

• Up to 520 sheets of 75g / m^2 paper.
• Up to 470 sheets of 80g / m^2 paper.
• Up to 410 sheets of 90g / m^2 paper.
• Up to 360 sheets of 105g / m^2 paper.

- The unit is set for printing A4-size plain paper by default.

- To use letter or legal-size paper, change the recording paper size setting (feature #382 on page 59).

- To use thin paper, change the recording paper type setting (feature #383 on page 59).

Important:

• Before starting installation of the optional input tray, be sure to turn the power switch OFF. For more details about the installation, please refer to the installation guide for the optional input tray.
  ● After installation, you can select the optional input tray for the following:

– Paper input tray setting for faxing (feature #440 on page 63).
- Paper input tray setting for copying (feature #460 on page 65).
– Paper input tray in PCL (feature #760 on page 66).
– Paper input tray setting for the scan to e-mail print feature (feature #565 on page 72).

- To use the optional input tray with your computer, you need to change the printer properties. See page 79 for details.

Caution for the optional input tray

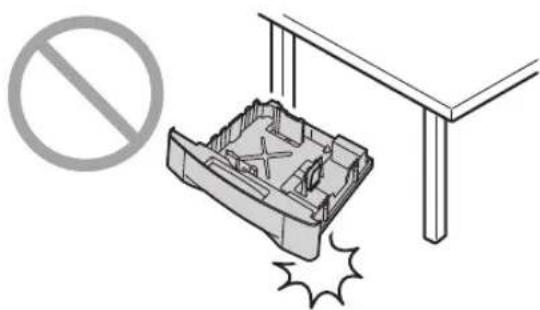

- Do not drop the optional input tray.

Diagram showing a plastic bed with a no-smoking symbol and a broken floor, no text or labels present.

- Hold the optional input tray with both hands when removing or installing. The optional input tray weighs approximately 4.8 kg when the recording paper is fully installed.

Do not touch the plate (①) on the left side of the optional input tray.

Approx. 4.8 kg

- Do not position the unit in a location where it is unstable or subject to vibrations. The unit weighs approximately 40 kg when the optional input tray is installed and the recording paper is fully installed.

9.7 Setting the optional input tray/optional automatic duplex unit

To use the optional input tray/optional automatic duplex unit with your computer, proceed as follows.

1 [Start]
2 Open the printer window.

For Windows 98/Windows Me/Windows 2000:

[Settings] → [Printers]

For Windows XP Professional:

[Printers and Faxes]

For Windows XP Home:

[Control Panel] → [Printers and Other

Hardware] → [Printers and Faxes]

For Windows Vista:

[Control Panel] → [Printers]

3 Select the unit's name.
4 For Windows 98/Windows Me/Windows 2000/Windows XP:

Select [Properties] from the [File] menu.

●The printer properties window will appear.

For Windows Vista:

Select [Properties] from the [Organize] menu.

●The printer properties window will appear.

5 Click [Auto Configuration] on the [Device] tab. → [OK]

● The optional input tray and/or optional automatic duplex unit will be automatically detected.

• For [Number of Input Tray], [2] will be selected.
• For [Automatic Duplex Unit], [Installed] will be selected.

If the setting is not changed automatically, change it manually.

6 [OK]

10.1 Error messages – Reports

If a problem occurs during fax transmission or reception, one of the following messages will be printed on the sending and journal reports (page 44).

Message Code Cause & Solution
COMMUNICATION ERROR 40-42	46-72FF	●A transmission or reception error occurred. Try again or check with the other party.
	4344	●A line problem occurred. Connect the telephone line cord to a different socket and try again.●An overseas transmission error occurred. Try using the overseas mode (feature #411 on page 61).
DOCUMENT JAMMED	----	● Remove the jammed document (page 98).
ERROR-NOT YOUR UNIT 53	545970	●A transmission or reception error occurred because of a problem with the other party's fax machine. Check with the other party.
JUNK FAX PROH. REJECT	----	● The junk fax prohibitor feature of this unit rejected fax reception.
MEMORY FULL	----	● The memory is full of received documents due to a lack of recording paper or a recording paper jam. Install paper (page 15) or remove the jammed paper (page 93).● If feature #442 is set to “ALWAYS” (page 64), check the connection between the computer and the unit.
NO DOCUMENT / FAILED PICKUP	----	● The document was not fed into the unit properly. Re-insert it and try again.
OTHER FAX NOT RESPONDING	----	● The other party's fax machine is busy or has run out of recording paper. Try again.●The other party's fax machine rings too many times. Send the fax manually (page 44).●The other party's machine is not a fax machine. Check with the other party.●The number you dialled is not in service.
PRESSED THE ‘Stop’ KEY	----	● [Stop] was pressed and fax communication was cancelled.
THE COVER WAS OPENED	----	● The front or left cover was opened. Close it and try again.
OK	----	● Fax transmission or reception was successful.

10.2 Error messages – Display

If the unit detects a problem, one or more of the following messages will appear on the display.

Display Cause & Solution
“BLACK TONER EMPTY”“CYAN TONER EMPTY”“MAGENTA TONER EMPTY”“YELLOW TONER EMPTY” “CHANGE SUPPLIES”	●The toner cartridge life is finished. Replace the toner cartridge immediately.
“BLACK TONER LOW”“CYAN TONER LOW”“MAGENTA TONER LOW”“YELLOW TONER LOW” “CHANGE SUPPLIES”	●The toner cartridge life is near its end. Replace the toner cartridge as soon as possible.
“CALL SERVICE”	●There is something wrong with the unit. Contact our service personnel.
“CHECK DOCUMENT”	●The document was not fed into the unit properly. Remove the document, then press [Stop] to clear the message. Re-insert the document. If misfeeding occurs frequently, clean the document feeder rollers (page 100) and try again.
“CHECK INSTALL INPUT TRAY #1”	●The paper input tray is not installed correctly. Pull out the paper input tray and re-insert it.Note:●“#1”: Standard input tray●“#2”: Optional input tray●“#1+#2”: Standard input tray and optional input tray
“CHECK PAPER”	●You are printing on envelopes. Check the standard input tray to be sure that envelopes are installed, then press [Black]/[Colour].●The recording paper size is not the same as the size that is selected for copy. Change the recording paper size setting (feature #380 on page 59 or feature #382 on page 59), and install the appropriate recording paper.●The recording paper size is not the same as the size that is selected when printing from the PC. Change the recording paper size setting (feature #380 on page 59 or feature #382 on page 59), and install the appropriate recording paper.●The recording paper size is not the same as the size that is selected for receiving a fax. Change the recording paper size setting (feature #380 on page 59 or feature #382 on page 59), and install the appropriate recording paper.
“CHECK PICK UP INPUT TRAY #1”	●Recording paper was not fed into the unit properly. Re-insert the recording paper (page 97).Note:●“#1”: Standard input tray●“#2”: Optional input tray
“COLOUR DRUM REPLACE”“MONOCHROME DRUM REPLACE” “CHANGE SUPPLIES”	●The drum cartridge life is finished. Replace the drum cartridge immediately.Note:●The continuous use of an old drum cartridge may cause malfunction. To prevent this, when the drum life is finished, the unit will stop printing after a while, and printing will not be possible until a new drum cartridge is installed.
“COLOUR DRUM LIFE LOW”“MONOCHROME DRUM LIFE LOW” “CHANGE SUPPLIES”	●The drum cartridge life is near its end. Replace the drum cartridge as soon as possible.
“COOL DOWN FUSER”	●The unit is cooling down the fuser unit. Wait for a while.
“DIRECTORY FULL”	●There is no space to store new items in navigator directory. Erase unnecessary items (page 46).
“DRUM NOT INSTALLED”	●The colour drum cartridge or the monochrome drum cartridge is not installed. Install it (page 11).
“E-MAIL SIZE OVER”	●When performing scan to e-mail server, the total file size of scanned data exceeded the file size limitation. Divide the document into sections.
“FAX IN MEMORY”	●The unit has a document in memory. See the other displayed message instructions to print out the document. For fax memory capacity, see page 103.●If feature #442 (page 64) is set to “ALWAYS”,– check the connection between the computer and the unit.– check the computer is turned ON.
“FILE SIZE OVER”	●When performing scan to FTP server, the total file size of scanned data exceeded the file size limitation. Divide the document into sections.
“FRONT OR LEFT COVER OPEN”	●The front or left cover is open. Close it.
“KEEP COPYING”	●Copying has stopped due to some existing problem (example: a lack of recording paper or a recording paper jam). See the other displayed message instructions to continue copying.
“LOW TEMP.”	●The inside of the unit is extremely cold and cannot be operated. Use the unit in a warmer area.
“MEMORY FULL”	●When performing memory transmission, the document being stored exceeded the memory capacity of the unit. Send the entire document manually.●When making a copy, the document being stored exceeded the memory capacity of the unit. Press [Stop] to clear the message. Divide the document into sections.
“MODEM ERROR”	●There is something wrong with the unit's modem. Contact our service personnel.
“NO FAX REPLY”	●The other party’s fax machine is busy or has run out of recording paper. Try again.
“OUT OF PAPER INPUT TRAY #1”	●Recording paper is not installed or the paper input tray has run out of paper. Install paper (page 15, 30).●Recording paper is not fed into the unit properly. Reinstall paper (page 15, 30).Note:●“#1”: Standard input tray●“#2”: Optional input tray●“#1+#2”: Standard input tray and optional input tray
“PAPER JAMMED”	●A recording paper jam occurred. See the other displayed message instructions to remove the jammed paper (page 93).
“PC FAIL OR BUSY”	The cable or the computer mains lead is not connected correctly. Check the connections (page 18, 26).The software is not running on the computer. Restart the software and try again.
“PLEASE WAIT”	The unit is warming up. Wait for a while.
“POLLING ERROR”	The other party's fax machine does not offer the polling function. Check with the other party.
“REDIAL TIME OUT”	The other party's fax machine is busy or has run out of recording paper. Try again.
“REMOVE DOCUMENT”	The document is jammed. Remove the jammed document (page 98).Attempted to send or copy a document longer than 600 mm using the automatic document feeder. Press [Stop] to remove the document. Divide the document into two or more sheets and try again.
“RX MEMORY FULL”	The memory is full of received documents due to a lack of recording paper or a recording paper jam. Install paper (page 15) or remove the jammed paper (page 93).If feature #442 (page 64) is set to “ALWAYS”,- check the connection between the computer and the unit.- check the computer is turned ON.
“SCANNER POSITION ERROR”	There is something wrong with the scanner position. Turn the power switch OFF, then ON. If the problem cannot be solved, contact our service personnel.
“SELF CALIBRATION”	The unit is changing the colour calibration. Wait for a while.
“TRANSMIT ERROR”	A transmission error occurred. Try again.
“TONER CARTRIDGE NOT INSTALLED”	The toner cartridge is not installed. Install it (page 11).
“TRAY #2 LEFT COVER OPEN”	The left cover of the optional input tray is open. Close it.
“WASTE TONER FULL” “CHANGE SUPPLIES”	The waste toner cartridge life is near its end. Replace the waste toner cartridge as soon as possible.
“WASTE TONER NOT INSTALLED”	The waste toner cartridge is not installed. Install it (page 10).
“WASTE TONER REPLACE” “CHANGE SUPPLIES”	The waste toner cartridge life is finished. Replace the waste toner cartridge immediately (page 10, 105).

10.3 When a function does not work

10.3.1 General

Problem Cause & Solution
The unit does not work.	Check the connections (page 18, 26).
The recording paper exit becomes full quickly or the recording paper does not stack properly at the recording paper exit.	High humidity may cause the recording paper to curl. Try turning the paper over and re-inserting it. If the curl on the paper is heavy, please remove it from the recording paper exit. If you still have this problem, contact our service personnel.
I cannot adjust the volume, display items stored in one-touch dial and navigator directory or display Caller ID information.	The unit is set to the scan mode or copy mode. Press [Fax] to switch modes. If you still have this problem, contact our service personnel.
A printing error is displayed while using PC FAX and Remote Control.	The printer driver is used for PC FAX and Remote Control. Transmission errors will be displayed as printing errors.
Multi-Function Station does not work properly.	If you connect the USB cable to a USB hub, connect it to the USB port of your computer directly.Make sure you have installed the latest Service Pack available for the version of Windows installed on your computer. See the Microsoft web site for details.If you have any other multifunction software installed on your computer, uninstall it.Check that your computer has enough memory and hard disk space. If your computer warns that there is insufficient memory, close other applications. If there is not enough space on the hard disk, delete unnecessary files.Uninstall Multi-Function Station once, and re-install it.
I cannot install or uninstall Multi-Function Station.	Some of the files needed to install or uninstall Multi-Function Station may be corrupted. Use the MfsCleaner utility (found on the supplied CD-ROM) to solve the problem.Insert the supplied CD-ROM into your CD-ROM drive.The setup program will start automatically.[Tools] → [Cleanup Tool]The [MfsCleaner] window will appear.Click [Clean], then click [Yes] to restart the computer.Note:To install Multi-Function Station again, see page 25.
I cannot view the operating instructions using Multi-Function Station.	Install the operating instructions to your computer beforehand (page 26).
I cannot find the unit in the [Target Device] or [Device Select] dialogue box when operating the following functions.- Scanning- Remote Control- PC FAX- Device Monitor	●The printer driver has not been installed. Install it on your computer (page 25).
I forgot the password for feature programming via remote operation.	●You may have changed the feature programming password. If you do not remember it, assign a new password using feature #155 (page 58). When required to enter the current password, enter “0101” instead.

10.3.2 Printing problems

Problem Cause & Solution
I cannot print in monochrome.ORI cannot print in colour.	When using the unit as a printer, change the colour mode from the [Quality] tab (page 29).When printing on envelopes, even if you press [Black]/[Colour], the printing colour will follow the colour mode setting.When using the unit as a copier;– press [Black] to copy in monochrome.– press [Colour] to copy in colour.When using the unit as a fax, sending/receiving colour faxes is not possible.One or more colour toner cartridge(s) is empty. Replace the toner cartridge according to the displayed message. Even if cyan, magenta, yellow is empty, monochrome printing is available.
Colour printing is too dark or too light.	Change the colour calibration (page 77).
Vertical, white lines appear on the printed documents.	The drum cartridge may be the cause. Print the colour test, then the printer test pages to clean the drum cartridge (feature #480 on page 102).
The printing quality is poor (e.g. has smudges, blurred points or lines).	Some paper has instructions recommending which side to print on. Try turning the recording paper over.You may have used paper with a cotton and/or fibre content that is over 20 %, such as letterhead or resume paper.The recording paper is too damp. Use new paper.
I changed the recording paper, but the printing quality is still poor.	The glass or rollers are dirty with correction fluid, etc. Clean them (page 99, 100). Please do not insert a document before correction fluid has dried completely.The paper chute is dirty with toner, etc. Clean it (page 101).The toner save mode of feature #482 is ON (page 60).The unit may not be the cause. Print the printer test list to find out the problem (page 102).
A blank sheet is ejected.	You placed the document facing the wrong way when using the copier.The other party placed the document in their fax machine the wrong way. Check with the other party.
I cannot find the PCL driver.	● The PCL driver can be found in the following folder on the supplied CD-ROM.
	Operating system Folder path
	Windows 98/Windows Me “D:\Drivers\Object\Printer\Win98\PCL”
	Windows 2000/Windows XP Home/Windows Vista x32	“D:\Drivers\Object\Printer\x32\PCL”
	Windows XP Professional x64 Edition/Windows Vista x64	“D:\Drivers\Object\Printer\x64\PCL”
	(where “D” is the drive letter of your CD-ROM drive)For more details, refer to:http://panasonic.co.jp/pcc/cs/en/telecom/mfp-faq.htm
I specified automatic duplex printing using the printer driver, but documents are printed on one side.	● Install the optional automatic duplex unit (page 78).

10.3.3 Scanner

Problem Cause & Solution
I cannot scan.	When scanning at a high resolution, a large amount of available memory is required. If your computer warns that there is insufficient memory, close other applications and try again.The unit is in use. Try again later.There is not enough space on the hard disk. Delete unnecessary files and try again.Check the connection between the computer and the unit (page 18, 26).Restart the computer, and try again.You attempted to scan a document longer than the paper size which you set. Change the setting or divide the document into the appropriate paper size, and try again.
I cannot scan in monochrome.ORI cannot scan in colour.	To scan in monochrome, press [Black]. To scan in colour, press [Colour].
The document is not fed into the unit when using the unit as a scanner.	Remove the document in the automatic document feeder and re-insert it.
Even after clicking [Cancel], scanning continues.	Please wait. It may take a while for the cancel request to be accepted.
The name of the desired computer will not be displayed on the unit when scanning documents from the unit (LAN connection only).	●The printer driver has not been installed. Install it on your computer (page 25).●The PC name list up feature has been set to [Off]. Set [PC name list up on device] to [On] (page 27).●The maximum number of computers on the LAN is connected to the unit (up to 30 computers). Set [PC name list up on device] to [Off] on the other computers (page 27).●The IP address of the unit may have changed. To detect the IP address, proceed as follows.[Start] → [All Programs] or [Programs] → [Panasonic] → the unit's name → [IP Address Checker]●The IP address for the unit will be detected.

10.3.4 Copier

Problem Cause & Solution
The unit will not make a copy.	You cannot make a copy during programming. Make the copy after programming.The document was not fed into the unit properly. Re-insert the document.Recording paper is not installed or the unit has run out of paper. Install paper (page 15).
Letters on the copied documents are not clear.	The original document is too dark or too light. Change the contrast (page 37) and try again.
The copied documents are too dark and cannot be read.	You used a coloured paper as a document. Change the contrast (page 37) and make a lighter copy of the document, using “TEXT” resolution (page 37).

10.3.5 Fax

Problem Cause & Solution
I cannot send documents.	The telephone line cord is connected to the [EXT] socket on the unit. Connect to the [LINE] socket (page 18).The other party's fax machine is busy or has run out of recording paper. Try again.The other party's machine is not a fax machine. Check with the other party.The other party's fax machine failed to answer the fax automatically. Send the fax manually (page 44).Set the maximum fax speed to “14 . 4Kbps” (feature #418 on page 62).
I cannot send a fax overseas.	Use the overseas transmission mode (feature #411 on page 61).Add two pauses at the end of the telephone number or dial manually.
The other party complains that letters on their received document are distorted.	If your line has special telephone services such as call waiting, the service may have been activated during fax transmission. Connect the unit to a line that does not have these services.Another telephone on the same line is off the hook. Hang up the extension telephone and try again.
The other party complains about the quality of their received documents.	Try copying the document. If the copied image is clear, there may be something wrong with the other party's machine.If the copied image is not clear, too dark, black and white lines or smudges appear, refer to “10.3.2 Printing problems”, page 85.The original document is too dark or too light. Change the contrast (page 44) and try again.
The other party complains that received documents are too dark and cannot be read.	You used a coloured paper as a document. Change the contrast (page 37) and make a lighter copy of the document, using “TEXT” resolution (page 37), and try again.
I cannot receive documents.	The telephone line cord is connected to the [EXT] socket on the unit. Connect to the [LINE] socket (page 18).Feature #442 is activated and the received fax documents are automatically transferred to the computer. View the received documents using the computer (page 54).Set the maximum fax speed to “14 . 4Kbps” (feature #418 on page 62).
I cannot receive documents automatically.	The receiving mode is set to TEL mode. Set to FAX ONLY mode (page 50) or TEL/FAX mode (page 51).The time taken to answer the call is too long. Decrease the number of rings before the unit answers a call (feature #210 on page 59).
The display shows “CONNECTING . . . .”, but faxes are not received.	The incoming call is not a fax. Change the receiving mode to TEL mode (page 51) or TEL/FAX mode (page 51).
The printing quality of the received documents is poor.	If documents can be copied properly, the unit is working normally. The other party may have sent a faint document or there may be something wrong with the other party’s machine. Ask them to send a clearer copy of the document or to check their fax machine.If documents can not be copied properly, refer to “10.3.2 Printing problems”, page 85.
The other party complains that they cannot send a document.	The memory is full of received documents due to a lack of recording paper or a recording paper jam. Install paper (page 15) or remove the jammed paper (page 93).If feature #442 is set to “ALWAYS” (page 64), check the connection between the computer and the unit.The unit is not in FAX ONLY mode. Press [Fax Auto Answer] repeatedly to turn ON the [Fax Auto Answer] light.
I cannot select the desired receiving mode.	If you want to set FAX ONLY mode:– press [Fax Auto Answer] repeatedly to turn ON the [Fax Auto Answer] light.If you want to set TEL mode or TEL/FAX mode:– select the desired mode using feature #404 (page 61), and press [Fax Auto Answer] repeatedly to turn OFF the [Fax Auto Answer] light.
When an extension telephone is connected, I cannot receive documents by pressing [*][#][9].	You must set remote fax activation to ON (feature #434 on page 63) beforehand.Press [*][#][9] firmly.You may have changed the remote fax activation code from [*][#][9](default setting). Verify the remote fax activation code (feature #434 on page 63).
I cannot hear a dial tone.	The telephone line cord is connected to the [EXT] socket on the unit. Connect to the [LINE] socket (page 18).If you use a splitter/coupler to connect the unit, remove the splitter/coupler and connect the unit to the wall socket directly. If the unit operates properly, check the splitter/coupler.Disconnect the unit from the telephone line and connect a known working telephone. If the working telephone operates properly, contact our service personnel to have the unit repaired. If the working telephone does not operate properly, contact your telephone company.The mains lead or telephone line cord is not connected. Check the connections (page 18).If you connected the unit through a computer modem, connect the unit directly to a telephone line socket.
The unit does not ring.	The ringer volume is turned OFF. Adjust it (page 22).
The other party complains they only hear a fax tone and cannot talk.	FAX ONLY mode is set (page 50). Tell the other party the number is only used for faxes.
The [Redial] or [Pause] button does not function properly.	If this button is pressed during dialling, a pause will be inserted. If pressed immediately after a dial tone is obtained, the last number dialled will be redialled.
I cannot receive a fax document on the computer.	Make sure the following features are set beforehand.- PC fax reception (feature #442 on page 64)- Computer setting for the PC fax reception (feature #443 on page 24)

10.3.6 Network

Problem Cause & Solution
I cannot operate the following functions.- PC printing- Scanning- Remote Control- PC FAX- Device Monitor	Confirm the LED via the LAN port of the main board. If the LED is glowing or blinking, the network access is working correctly.If the LED is not glowing or blinking, confirm the LAN cable (category 5 straight cable) is connected to the LAN port of the main board correctly.If the LED is blinking and you cannot perform the desired operation, the IP address of the unit may have changed.To detect the IP address, proceed as follows.[Start] → [All Programs] or [Programs] → [Panasonic] → the unit's name → [IP Address Checker]The IP address for the unit will be detected.Note:If the IP address cannot be detected, enter it manually (feature #501 on page 71). The IP address of the computer and the unit must be in the same local IP address class as shown below. Set the IP address in the range of the number specified in the class corresponding to your local network scale.
	Class Subnet mask	IP address
	Class A 255.0.0.0 10	0.0.1 -	10.255.255.254
	Class B 255.255.0.0	172.xx.0.1 -	172.xx.255.254^*1
	Class C 255.255.255	0 192.168.xx.1 -	192.168.xx.254^*2
	*1 "xx" should be the same value for the unit and for the computer, as shown in the following example.Example: 172.16.0.1 - 172.16.255.254(The available range of "xx" is 16 - 31)*2 "xx" should be the same value for the unit and for the computer, as shown in the following example.Example: 192.168.0.1 - 192.168.0.254(The available range of "xx" is 0 - 255)Your firewall software is blocking the connection. Disable the firewall software or change the firewall settings to make the Multi-Function Station work properly.LAN features can be used when the unit and the computer are connected in same network segment only. Make sure the network is configured correctly. Consult your network administrator.
The unit does not appear in the [Select a Network Device] dialogue box when installing Multi-Function Station.	Your firewall software is blocking the connection and the setup program may not list any units. Consult your network administrator and temporarily disable the firewall software.The unit is connected to another network segment and the setup program may not list any units. Make sure the network is configured correctly. Consult your network administrator.
The [Windows Security Alert] dialogue box appears and asks if I want to block [PCCMFLPD] and I cannot operate the following functions after installing the Microsoft Windows XP Service Pack 2.- PC printing- Scanning- Remote Control- PC FAX- Device Monitor	● Click [Keep Blocking] and run the Windows Firewall Setting Tool to allow the data transmission for Multi-Function Station (page 91).

10.3.7 Using an answering machine

Problem Cause & Solution
I cannot receive documents automatically.	●Your greeting message on the answering machine is too long. Shorten the message. Record a message up to 10 seconds long.●The answering machine rings too many times. Set to 1 or 2 rings.
I cannot receive voice messages.	●Check if the answering machine is turned ON and connected to the unit properly (page 52).●Set the number of rings on the answering machine to 1 or 2.
I pressed the remote access code to access the answering machine remotely, but the line was disconnected.	●The code may include “#” which is used for certain features provided by telephone companies. Change the code on the answering machine to another number which does not include “#”.
Callers complain that they cannot send a document.	●There is no room left in memory of your answering machine to record voice messages. See the operating instructions of the answering machine and erase unnecessary messages.●You set the answering machine to only give a greeting message.

10.3.8 If a power failure occurs

●The unit will not function.
- If any documents are stored in the memory (i.e. during copy, PC printing, fax transmission or fax reception), they will be lost.
- The unit is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services.
● Fax transmission and reception will be interrupted.
- When power is restored, a power down report will be printed out stating which fax items in the memory have been erased.

10.3.9 Firewall setting tool for Microsoft Windows XP Service Pack 2/Windows Vista users (LAN connection only)

After installing Microsoft Windows XP Service Pack 2/Windows Vista, you will not be able to use the following functions because the Windows Firewall feature will be activated and block the connection.

• Device Monitor
  – LPD Manager (Network communication tool)

The Windows Firewall Setting Tool enables you to change the Windows Firewall security settings and to use the above functions properly.

1 Insert the CD-ROM that is supplied with the unit into your CD-ROM drive.

10. Help

- If the [Select Language] dialogue box appears, select the desired language that you want to use with this software. Click [OK].

2 [Tools] → [Windows Firewall Setting]

- The [Windows Firewall Setting Tool] window will appear.

3 [Add to the exceptions list] → [OK] → [OK]

To confirm the security settings (For Windows XP users)

1. [Start] → [Control Panel] → [Security Center]

- The [Windows Security Center] window will appear.

1. [Windows Firewall]

- The [Windows Firewall] dialogue box will appear.

1. Click the [Exceptions] tab.

2. Confirm that [Panasonic Trap Monitor Service] and [PCCMFLPD] are displayed and checked on the [Programs and Services] list.

To confirm the security settings (For Windows Vista users)

1. [Start] → [Control Panel] → [Security Center]

- The [Windows Security Center] window will appear.

1. [Windows Firewall]

- The [Windows Firewall] dialogue box will appear.

1. [Change settings]

- The [User Account Control] dialogue box will appear.

1. [Continue]

2. Click the [Exceptions] tab.

3. Confirm that [Panasonic Trap Monitor Service], [PCMFSMLM] and [PCCMFLPD] are displayed and checked on the [Program or port] list.

10.3.10 Notice for KX-MB200/KX-MB700/KX-FLB880 series users

If you have already installed KX-MB200/KX-MB700/KX-FLB880 series Multi-Function Station on your computer, the instructions of modifying or adding printer driver change after installing KX-MC6000 series Multi-Function Station. You can modify or add printer driver, as follows.

1 Start Windows and insert the KX-MB200/KX-MB700/KX-FLB880 series CD-ROM into your CD-ROM drive.

- If the [Select Language] dialogue box appears, select the desired language that you want to use with this software. Click [OK].

2 [Easy installation]

3 [Modify] → [Next]

4 Select [Modify Utility] or [Add Printer Driver]. → [Next]. Then follow the on-screen instructions.

Important:

- For users of versions prior to 1.12, download the latest software as follows, then activate it. [Start] → [All Programs] or [Programs] → [Panasonic] → the unit's name → [Support Web Page]. Then follow the on-screen instructions.

11.1 Recording paper jam

Caution:

- Do not pull out the jammed paper forcibly before opening the left cover.

Illustration of a printer with a prohibition symbol overlay (no text or symbols on the diagram itself)

- Do not open the paper input tray as the jammed paper may be pulled and the jam may get worse.

Illustration of a printer with a prohibition symbol overlay (no text or symbols on the device itself)

11.1.1 When the recording paper has jammed inside of the unit

The display will show the following.

"PAPER JAMMED"

↑↓

"OPEN LEFT COVER HOT CAUTION"

1 Push the left cover open lever (①) upward, then pull open the left cover (②).

Caution:

- During or immediately after printing, the fuser unit (③) gets hot. Wait until the fuser unit cools down before removing the jammed paper.

Note:

- Do not touch the rollers (④).

2 Remove the jammed paper.

Case 1:

When the recording paper has jammed near the rollers:

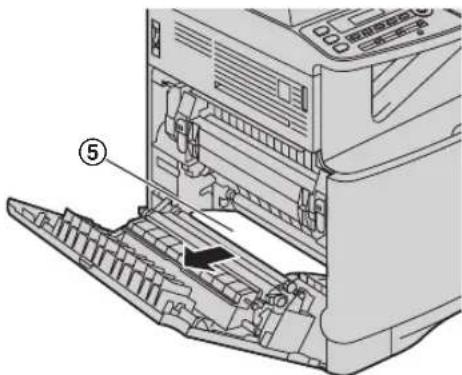

1. Remove the jammed paper (⑤) carefully by pulling it toward you.

1. Close the left cover.

Line drawing of a printer with a hand inserting a button to the front panel (no text or symbols present)

Case 2:

When the recording paper has jammed near the fuser unit:

1. Lift both green levers (⑥) until they stop.

1. Remove the jammed paper (⑦) carefully by pulling it toward you.

Example 1:

Example 2:

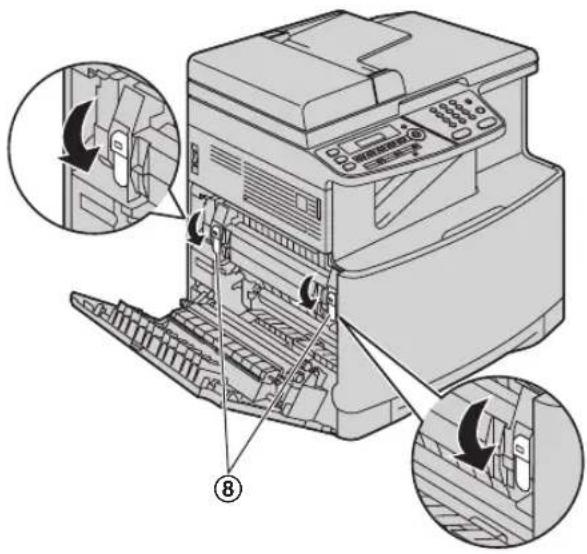

1. Push back the green levers (⑧) to the original position.

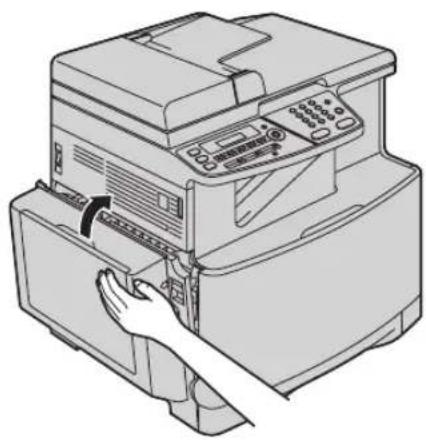

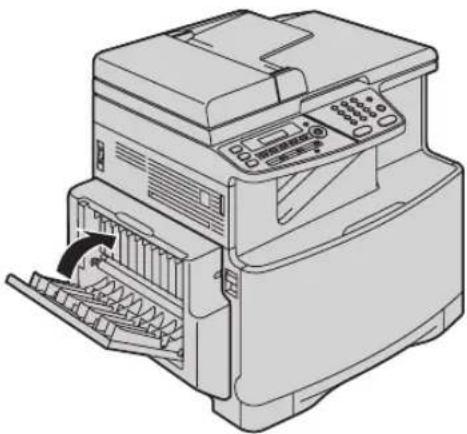

1. Close the left cover.

Line drawing of a printer with a hand inserting a button to the front panel (no text or symbols present)

Case 3: When the recording paper has jammed inside of the optional automatic duplex unit:

1. Close the left cover.

Line drawing of a printer with a hand inserting a button to the front panel (no text or symbols present)

1. Open the automatic duplex unit cover (⑨).

1. When the document has jammed near the roller:

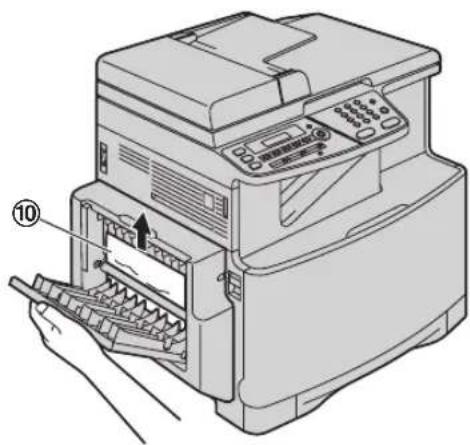

Hold the automatic duplex unit cover and remove the jammed paper (10) carefully by pulling it upward.

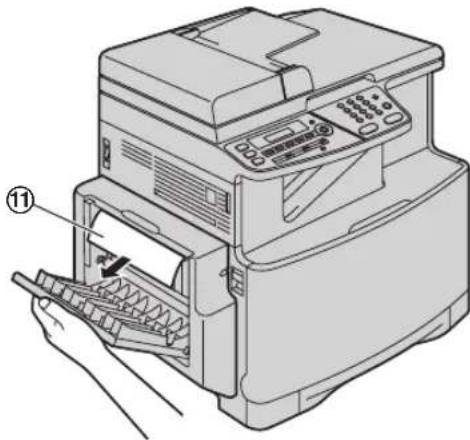

When the document has jammed near the recording paper exit of the automatic duplex unit:

Hold the automatic duplex unit cover and remove the jammed paper (⑪) carefully by pulling it toward you.

1. Close the automatic duplex unit cover.

Line drawing of a printer with internal structure and external ports (no text or symbols)

11.1.2 When the recording paper has jammed near the optional input tray

The display will show the following.

"PAPER JAMMED"

↑↓

"OPEN TRAY #2 LEFT COVER"

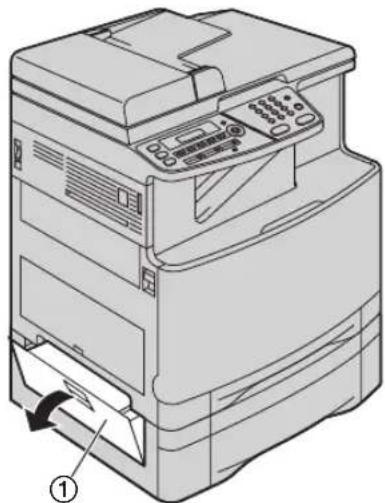

1 Open the cover (①) at the left side of the optional input tray.

2 Remove the jammed paper (②).

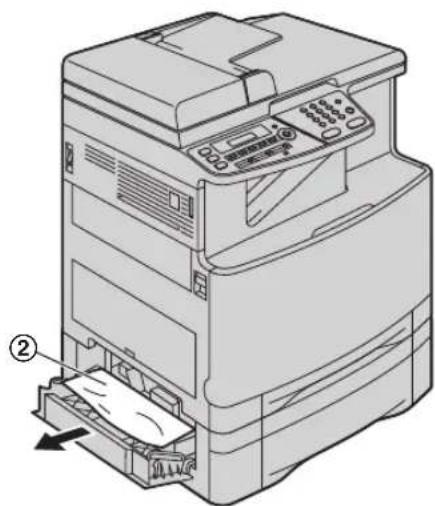

Illustration of a printer with internal components and a labeled arrow indicating a component (no text or symbols present)

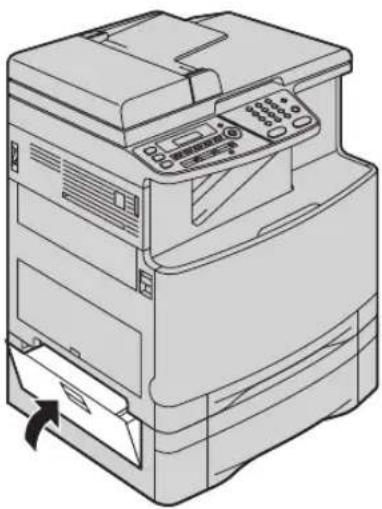

3 Close the cover at the left side of the optional input tray.

Line drawing of a printer with control panel and paper clip (no text or symbols)

11.1.3 When the recording paper is not fed into the unit properly

The display will show the following.

• "CHECK PICK UP INPUT TRAY #1" (standard input tray)
• "CHECK PICK UP INPUT TRAY #2" (optional input tray)

1 Pull the paper input tray until it clicks into place, then pull it completely out, lifting the front part of the tray. Remove the recording paper and straighten.

2 Re-load the recording paper.

Standard input tray:

3D diagram of a mechanical assembly with a rectangular base and internal compartments, showing a cutaway view (no text or symbols)

Optional input tray:

3D diagram of a mechanical component with an arrow indicating assembly or transformation (no text or symbols present)

3 Insert the paper input tray to the unit, lifting the front part of the tray. Then push it completely into the unit.

Note:

- If the error message is still displayed, check the recording paper specifications and re-install recording paper. See page 15 and page 78 for details.

11.2 Document jams (Automatic document feeder)

Caution:

- Do not pull out the jammed document forcibly before lifting the ADF cover.

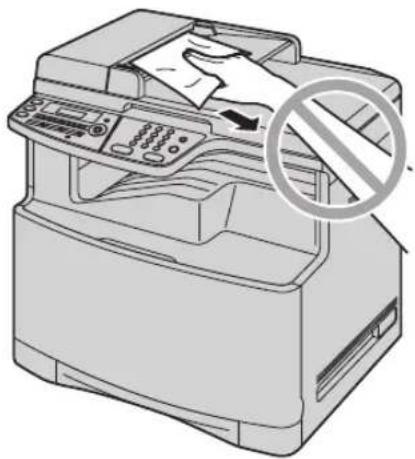

Illustration of a printer with a hand holding paper, no text or symbols present

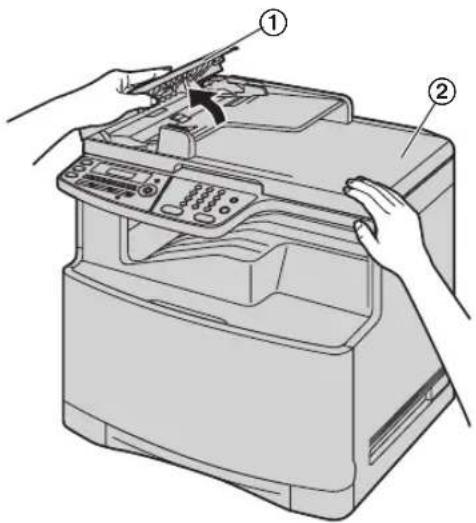

1 Open the ADF cover (①) while holding the document cover (②).

2 Remove the jammed document (③) carefully. When the document has jammed near the document entrance:

Illustration of a printer with a hand operating the top panel and a paperclip inserted, showing internal components (no text or symbols)

When the document has jammed near the document exit:

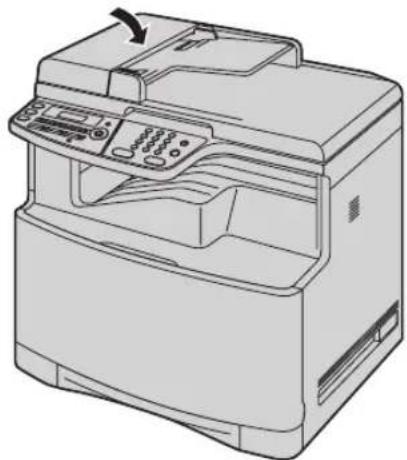

3 Close the ADF cover.

Line drawing of a printer with control panel and paper airplane (no text or symbols)

12.1 Cleaning the white plates and glass

Clean the white plates and glass when a black line, a white line or a dirty pattern appears on:

• your recording paper,
  – the original document,
• the scanned data, or
  – the fax document received by the other party.

Caution:

- Do not use paper products, such as paper towels or tissues for cleaning.

1 Open the document cover (①).

Illustration of a printer with an open lid and internal components, showing no text or symbols.

2 Hold the document cover (②) while cleaning the white plates (③) and the scanner glass (④).

3 Close the document cover (⑤).

Line drawing of a printer with control panel and paper airplane (no text or symbols)

12.2 Cleaning the document feeder rollers

Clean the rollers when the document frequently misfeeds.

Caution:

- Do not use paper products, such as paper towels or tissues for cleaning.

1 Turn the power switch OFF.
2 Open the ADF cover (①) while holding the document cover (②).

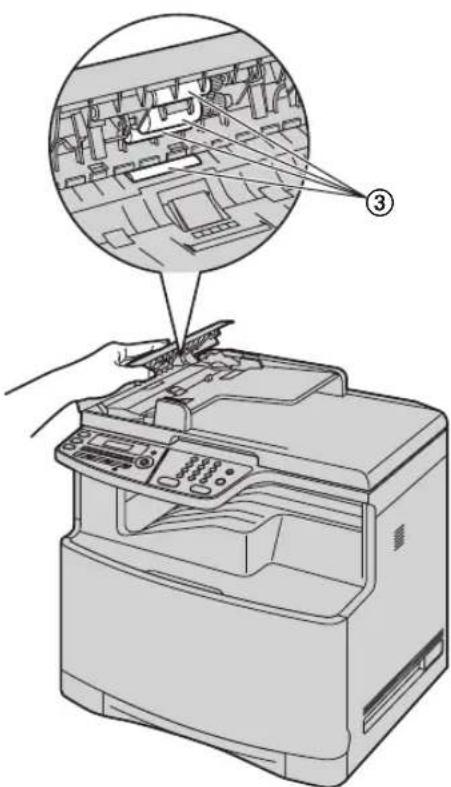

3 Clean the document feeder rollers (③) with a cloth moistened with water, and let all parts dry thoroughly.

4 Close the ADF cover.

Line drawing of a printer with control panel and paper tray (no text or symbols)

5 Turn the power switch ON.

12.3 Cleaning the paper chute

Clean the paper chute inside the unit when a line or a dirty pattern appears at the top or bottom of your recording paper.

1 Turn the power switch OFF.
2 Push the left cover open lever (①) upward, then pull open the left cover (②).

Caution:

- During or immediately after printing, the fuser unit (③) gets hot. Wait until the fuser unit cools down before removing the jammed paper.

Note:

- Do not touch the rollers (④).

3 Clean the paper chute (⑤) with a dry paper towel or tissue.

Technical illustration of a printer with internal components and exploded view (no text or symbols)

Note:

- Do not touch the black belt (⑥), or rub it strongly.

4 Close the left cover.

Line drawing of a printer with a hand inserting a card into the front panel (no text or symbols)

5 Turn the power switch ON.

13.1 Reference lists and reports

You can print out the following lists and reports for your reference.

• "SETUP LIST"
• "TEL NO. LIST"
• "JOURNAL REPORT"
• "BROADCAST LIST"
• "PRINTER TEST"
• "COLOUR TEST"
• "CALLER ID LIST"
• "PCL FONT LIST"
• "ADDRESS LIST"
• "FTP SERVER LIST"

1 Press [Menu] repeatedly to display "PRINT REPORT".
2 Press [◀] or [▶] repeatedly to display the desired item.
3 Press [Set] to start printing. → [Menu]

Colour test

The unit will print a colour test page consisting of black, cyan, magenta and yellow lines so you can specify which drum cartridge has the problem.

If vertical, white lines appear on the colour test page, try the following to solve the problem.

Solution 1: Cleaning the drum cartridge

Important:

- This solution uses at least 3 pages of recording paper. Make sure there is enough recording paper installed in the standard input tray beforehand.

1. 【Menu】→【#】【4】【8】【0】
2. Select the colour which has vertical, white lines in the colour test page.

[1] "BLACK" (default)

[2] "CYAN"

【3】“MAGENTA”

【4】“YELLOW”

1. [Set]

●The drum cartridge will be cleaned automatically by printing out 3 pages of the selected colour.
- Repeat steps 1 to 3 for all lines with vertical, white lines.

- Print the colour test list again. If the vertical, white lines remain, try the next solution.

Solution 2: Changing the drum cartridge

• If the black test page has vertical, white lines, change the monochrome drum cartridge.
• If the cyan, magenta or yellow test page has vertical, white lines, change the colour drum cartridge.
• Print the colour test again. If the vertical, white lines remain, contact our service personnel.

13.2 Specifications

■ Applicable lines:

Public Switched Telephone Network

■ Document size:

Max. 216 mm in width, Max. 600 mm in length

■ Effective scanning width:

208 mm

■ Effective printing width:

A4: 202 mm

Letter/Legal: 208 mm

■ Transmission time ^*1 :

Approx. 4 s/page (ECM-MMR Memory transmission) ^2

■ Scanning density:

Scanning resolution:

Up to 600 × 1,200 dpi (Optical)

Up to 9,600 × 9,600 dpi (Interpolated)

Copy resolution:

Up to 600 × 600 dpi

Fax resolution:

Horizontal: 8 pels/mm

Vertical: 3.85 lines/mm-in standard resolution, 7.7 lines/mm-in fine/photo resolution, 15.4 lines/mm-in super fine resolution

■ Photo resolution:

64-level

Scanner type:

Colour Contact Image Sensor

■ Printer type:

Laser Printer

■ Data compression system:

Modified Huffman (MH), Modified READ (MR), Modified Modified READ (MMR)

■ Modem speed:

33,600 / 31,200 / 28,800 / 26,400 / 24,000 / 21,600 /

19,200 / 16,800 / 14,400 / 12,000 / 9,600 / 7,200 / 4,800

/ 2,400 bps; Automatic Fallback

■ Operating environment:

10 °C - 32.5 °C, 20 % - 80 % RH (Relative Humidity)

■ Dimensions:

Approx. width 520 mm × depth 438 mm × height 546 mm

■ Mass (Weight):

Approx. 30 kg

■ Power consumption:

Standby: Approx. 16 W

Preheat: Approx. 35 W

Copy: Approx. 550 W

Maximum: Approx. 1,100 W (When the fuser lamp turns on)

■ Power supply:

220–240 V AC, 50 Hz

■ Memory capacity

(for operation and storing memory):

192 MB

■ Fax memory capacity:

10 MB in total

Approx. 630 pages of memory reception (max. 255 pages per one reception)

Approx. 150 pages of memory transmission

(Based on the ITU-T No. 1 Test Chart in standard resolution, without using the Error Correction Mode.)

■ Scan to e-mail server memory capacity:

5 MB in total (including the e-mail message)

■ Scan to FTP server memory capacity:

20 MB in total

■ Laser diode properties:

Laser output: Max. 6.5 mW

Wave length: 770 nm – 800 nm

Emission duration: Continuous

■ Print speed:

Colour:

A4: Approx. 20 ppm (pages per minute)

Letter: Approx. 21 ppm (pages per minute)

B/W:

A4: Approx. 20 ppm (pages per minute)

Letter: Approx. 21 ppm (pages per minute)

■ Printing resolution:

Up to 1,200 × 1,200 dpi

*1 Transmission speed depends on the contents of the pages, resolution, telephone line conditions and capability of the other party's machine.

*2 Transmission speed is based on the ITU-T No. 1 Test Chart with original mode. If the capability of the other party's machine is inferior to your unit, the transmission time may be longer.

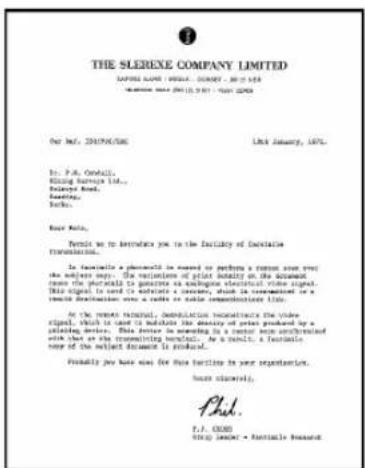

ITU-T No.1 Test Chart

Note:

• Design and specifications are subject to change without notice.
  ●The pictures and illustrations in these instructions may vary slightly from the actual product.
• The accuracy of the clock is approximately ±60 seconds a month.

Recording paper specifications

Plain paper/Thin paper:

A4: 210 mm × 297 mm

Letter: 216 mm × 279 mm

Legal: 216 mm × 356 mm

Thick paper/Transparency/Label/Card stock size:

A4: 210 mm × 297 mm

Letter: 216 mm × 279 mm

Envelope size:

10: 105 mm × 241 mm

DL: 110 mm × 220 mm

Recording paper weight:

60 g/m² to 165 g/m²

Card stock weight:

163 g/m²

Note for recording paper:

• We recommend that you test paper (especially special sizes and types of paper) on the unit before purchasing large quantities.
• Do not use the following types of paper:

– Paper with cotton and/or fibre content that is over 20 %, such as letterhead paper or paper used for resumes
– Extremely smooth or shiny paper, or paper that is highly textured
– Coated, damaged or wrinkled paper
– Paper with foreign objects attached, such as tabs or staples
– Paper that has dust, lint or oil stains
- Paper that will melt, vaporize, discolour, scorch or emit dangerous fumes near 200^ , such as vellum paper. These materials may transfer onto the fusing roller and cause damage.

- Moist paper

- Inkjet paper

• Some paper is designed to be printed on only one side. Try printing on the other side of the paper if you are not happy with the print quality, or if misfeeding occurs.
• For proper paper feeding and best print quality, we recommend using long-grained paper.
• Do not use paper of different types or thicknesses at the same time. This may cause paper jams.
• Do not use paper printed from this unit for double-sided printing with other copiers or printers. This may cause paper jams.
• To avoid curling, do not open paper packs until you are ready to use the paper. Store unused paper in the original packaging, in a cool and dry location.

Toner life

Toner life depends on the amount of content in a printed document. The following is the approximate relationship between coverage and toner life for replacement toner cartridge. Toner life varies in actual usage.

- The following number of sheets and image sample is for when printing in one colour. As actual colour printing is a combination of several colours, the number of sheets will vary depending on the contents of the original document.

5 % coverage

Approx. 2,000 sheets of A4-size paper using:

• KX-FATC501X
• KX-FATM502X
• KX-FATY503X

Approx. 2,500 sheets using:

- KX-FATK504X

Approx. 4,000 sheets using:

• KX-FATC506X
• KX-FATM507X
• KX-FATY508X
• KX-FATK509X

10 % coverage

Approx. 1,000 sheets of A4-size paper using:

• KX-FATC501X
• KX-FATM502X
• KX-FATY503X

Approx. 1,250 sheets using:

- KX-FATK504X

Approx. 2,000 sheets using:

• KX-FATC506X
• KX-FATM507X
• KX-FATY508X
• KX-FATK509X

15 % coverage

Approx. 650 sheets of A4-size paper using:

• KX-FATC501X
• KX-FATM502X
• KX-FATY503X

Approx. 800 sheets using:

- KX-FATK504X

Approx. 1,400 sheets using:

• KX-FATC506X
• KX-FATM507X
• KX-FATY508X
• KX-FATK509X

Note:

●The coverage changes with the depth, thickness and size of the characters.

- If you turn on the toner save feature, the toner cartridge will last approx. 40 % longer.

Drum life

The drum cartridge needs to be replaced regularly. There are various factors that determine the actual drum life, such as temperature, humidity, type of paper and how much toner you use for the number of sheets per print job. The maximum drum life is approx. 10,000 sheets. The actual number of sheets your drum will print may be significantly less than this estimate if your unit is often used for printing small number sheets per job. Because many of the factors that determine the actual drum life cannot be controlled, we cannot guarantee a minimum number of sheets that will be printed by your drum.

Note:

- The continuous use of an old drum cartridge may cause malfunction. To prevent this, when the drum life is finished, the unit will stop printing after a while, and printing will not be possible until a new drum cartridge is installed.

Waste toner cartridge life

The waste toner cartridge needs to be replaced regularly. The maximum waste toner cartridge life is approx. 32,000 sheets with 5 % coverage for monochrome printing and approx. 8,000 sheets with 5 % cyan, magenta, yellow and black coverage for colour printing. The actual number of sheets may significantly vary depending on the contents of the original document.

Waste disposal method

Waste material should be disposed of under conditions which meet all national and local environmental regulations.

13.3 Information of copyrights and licences

●This product uses a part of NetBSD kernel.

The use of a part of NetBSD kernel is based on the typical BSD style licence below.

Copyright (c)

The Regents of the University of California. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:
   This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

However, parts of the NetBSD Kernel are provided with the following copyright notices.

Copyright (c) 1980, 1983, 1988, 1993 The Regents of the University of California. All rights reserved.
Copyright (c) 1980, 1986, 1989, 1993 The Regents of the University of California. All rights reserved.
Copyright (c) 1980, 1986, 1991, 1993 The Regents of the University of California. All rights reserved.
Copyright (c) 1980, 1986, 1993 The Regents of the University of California. All rights reserved.
Copyright (c) 1982, 1985, 1986, 1988, 1993, 1994 The Regents of the University of California. All rights reserved.
Copyright (c) 1982, 1986, 1988, 1990, 1993 The Regents of the University of California. All rights reserved.
Copyright (c) 1982, 1986, 1988, 1990, 1993, 1994, 1995 The Regents of the University of California. All rights reserved.
Copyright (c) 1982, 1986, 1988, 1990, 1993, 1995 The Regents of the University of California. All rights reserved.
Copyright (c) 1982, 1986, 1988, 1991, 1993 The Regents of the University of California. All rights reserved.
Copyright (c) 1982, 1986, 1988, 1993 The Regents of the University of California. All rights reserved.
Copyright (c) 1982, 1986, 1988, 1993, 1995 The Regents of the University of California. All rights reserved.
Copyright (c) 1982, 1986, 1989, 1991, 1993 The Regents of the University of California. All rights reserved.
Copyright (c) 1982, 1986, 1989, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1990, 1991, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1990, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1990, 1993, 1994 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1991, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1991, 1993, 1994 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1991, 1993, 1995 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1993, 1994 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1993, 1994, 1995 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1986, 1993, 1995 The Regents of the University of California. All rights reserved.

Copyright (c) 1982, 1988, 1991, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1983, 1990, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1983, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1985, 1986, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1985, 1986, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1986, 1989, 1991, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1986, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1987, 1991, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1987, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1987, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1988 Regents of the University of California. All rights reserved

Copyright (c) 1988 Stephen Deering.

Copyright (c) 1988 University of Utah.

Copyright (c) 1988, 1989, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1988, 1991, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1988, 1992, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1988, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1989 The Regents of the University of California. All rights reserved.

Copyright (c) 1989, 1991, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1989, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1989, 1993, 1994 The Regents of the University of California. All rights reserved.

Copyright (c) 1990, 1991, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1990, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1991, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1991, 1993, 1994 The Regents of the University of California. All rights reserved.

Copyright (c) 1992 Regents of the University of California. All rights reserved.

Copyright (c) 1992, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1993 Adam Glass

Copyright (C) 1993 by Sun Microsystems, Inc. All rights reserved.

Copyright (c) 1994 Gordon W. Ross

Copyright (c) 1994 Winning Strategies, Inc. All rights reserved.

Copyright (c) 1995 The Regents of the University of California. All rights reserved.

Copyright (C) 1995, 1996, 1997, and 1998 WIDE Project. All rights reserved.

Copyright (c) 1996 The Regents of the University of California. All rights reserved.

Copyright (c) 1996 John S. Dyson All rights reserved.

Copyright (c) 1996 Matt Thomas. All rights reserved.

Copyright (c) 1996 Matthew R. Green. All rights reserved.

Copyright (c) 1996 Paul Kranenburg

Copyright (c) 1996, 1997, 1999, 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1996, 2000 Christopher G. Demetriou. All rights reserved.

Copyright (c) 1996, 1999 by Internet Software Consortium.

Copyright (c) 1996-1999 by Internet Software Consortium.

Copyright (c) 1997 Jonathan Stone and Jason R. Thorpe. All rights reserved.

Copyright (c) 1997 Christos Zoulas. All rights reserved.

Copyright (c) 1997 Manuel Bouyer. All rights reserved.

Copyright (c) 1997, 1998 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1997, 1998, 1999, 2000 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1997, 1998, 1999, 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1997, 1998, 1999, 2002 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1997, 1998, 2000, 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1997, 1998, 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1997,98 The NetBSD Foundation, Inc. All rights reserved.

Copyright (C) 1997-2000 Sony Computer Science Laboratories Inc. All rights reserved.

Copyright (c) 1997-2002 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1998 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1998 Todd C. Miller [e-mail] All rights reserved.

Copyright (c) 1998, 1999 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1998, 1999, 2000 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1998, 1999, 2000, 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1998, 2000 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1998, 2000, 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1999 The NetBSD Foundation, Inc. All rights reserved.

Copyright (C) 1999 WIDE Project. All rights reserved.

Copyright (c) 1999, 2000 Jason L. Wright ([e-mail]) All rights reserved.

Copyright (c) 1999, 2000 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1999, 2000, 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1999, 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 2000 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 2000, 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 2000, 2001, 2002 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 2002 The NetBSD Foundation, Inc. All rights reserved.

Copyright 1998 Massachusetts Institute of Technology. All rights reserved.

Copyright 2001 Wasabi Systems, Inc. All rights reserved.

Portions Copyright (c) 1993 by Digital Equipment Corporation.

Portions Copyright (c) 1995 by International Business Machines, Inc.

Copyright (c) 1983, 1989 The Regents of the University of California. All rights reserved.

Copyright (c) 1996 by Internet Software Consortium. All rights reserved.

Copyright (c) 1980, 1986, 1989 Regents of the University of California. All rights reserved.

Copyright (c) 1988 The Regents of the University of California. All rights reserved.

Copyright (c) 1992, 1993 The Regents of the University of California. All rights reserved.

Copyright (c) 1994 Christopher G. Demetriou. All rights reserved.

Copyright (c) 1997 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1999 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 2001 The NetBSD Foundation, Inc. All rights reserved.

Copyright (c) 1996 Gardner Buchanan [e-mail] All rights reserved.

Parts of the NetBSD Kernel are provided with the licences that are slightly different from the above Berkeley-formed licence. Please refer the source code of the NetBSD Kernel about the details.

The source code of the NetBSD Kernel is provided by the NetBSD CVS Repositories (http://cvsweb.netbsd.org/bsdweb.cgi/), and this product includes parts of the source code in the following directories. http://cvsweb.netbsd.org/bsdweb.cgi/src/sys/kern/ http://cvsweb.netbsd.org/bsdweb.cgi/src/sys/net/ http://cvsweb.netbsd.org/bsdweb.cgi/src/sys/netinet/

- This product contains Net-SNMP software and is using it based on the following licence conditions.

---- Part 1: CMU/UCD copyright notice: (BSD like) ----

Copyright 1989, 1991, 1992 by Carnegie Mellon University

Derivative Work - 1996, 1998-2000

Copyright 1996, 1998-2000 The Regents of the University of California

All Rights Reserved

Permission to use, copy, modify and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appears in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of CMU and The Regents of the University of California not be used in advertising or publicity pertaining to distribution of the software without specific written permission.

CMU AND THE REGENTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU OR THE REGENTS OF THE UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM THE LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

---- Part 2: Networks Associates Technology, Inc copyright notice (BSD) ----

Copyright (c) 2001-2003, Networks Associates Technology, Inc. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of the Networks Associates Technology, Inc nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

---- Part 3: Cambridge Broadband Ltd. copyright notice (BSD) ----

Portions of this code are copyright (c) 2001-2003, Cambridge Broadband Ltd. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
* The name of Cambridge Broadband Ltd. may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

---- Part 4: Sun Microsystems, Inc. copyright notice (BSD) ----

Copyright © 2003 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, California 95054, U.S.A. All rights reserved.

Use is subject to licence terms below.

This distribution may include materials developed by third parties.

Sun, Sun Microsystems, the Sun logo and Solaris are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of the Sun Microsystems, Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE

FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Also this product contains software which includes following notices and licences.

Copyright 1988, 1989, 1990 by Carnegie Mellon University

Copyright 1989 TGV, Incorporated

All Rights Reserved

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of CMU and TGV not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission.

CMU AND TGV DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS, IN NO EVENT SHALL CMU OR TGV BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

- This product contains NetBSD software and is using it based on the following licence conditions.

/*-

* Copyright (c) 1990 The Regents of the University of California.

* All rights reserved.

*

* This code is derived from software contributed to Berkeley by Chris Torek.

*

* Redistribution and use in source and binary forms, with or without modification, are permitted provided

* that the following conditions are met:

* 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

* 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

* the following disclaimer in the documentation and/or other materials provided with the distribution.

* 3. Neither the name of the University nor the names of its contributors may be used to endorse or

* promote products derived from this software without specific prior written permission.

*

* THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY

* EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE

* DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY

* DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

* (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

* ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

*/

- This product contains NetBSD software and is using it based on the following licence conditions.

/*

* Copyright (c) 1989 The Regents of the University of California.

* All rights reserved.

*

* This code is derived from software contributed to Berkeley by Tom Truscott.

*

* Redistribution and use in source and binary forms, with or without modification, are permitted provided

* that the following conditions are met:

* 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

* following disclaimer.

* 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

* the following disclaimer in the documentation and/or other materials provided with the distribution.

* 3. All advertising materials mentioning features or use of this software must display the following * acknowledgement:

* This product includes software developed by the University of California, Berkeley and its

* contributors.

* 4. Neither the name of the University nor the names of its contributors may be used to endorse or

* promote products derived from this software without specific prior written permission.

*

* THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY

* EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE

* DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY

* DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

* (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

* ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

*/

- This product contains NetBSD software and is using it based on the following licence conditions.

/*

* Copyright (c) 1987, 1993, 1994

* The Regents of the University of California. All rights reserved.

*

* Redistribution and use in source and binary forms, with or without modification, are permitted provided

* that the following conditions are met:

* 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

* following disclaimer.

* 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

* the following disclaimer in the documentation and/or other materials provided with the distribution.

* 3. All advertising materials mentioning features or use of this software must display the following

* acknowledgement:

* This product includes software developed by the University of California, Berkeley and its

* contributors.

* 4. Neither the name of the University nor the names of its contributors may be used to endorse or

* promote products derived from this software without specific prior written permission.

*

* THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY

* EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE

* DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY

* DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

* (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
* ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/

- This product contains NetBSD software and is using it based on the following licence conditions.

/*-
* Copyright (c) 1990, 1993
* The Regents of the University of California. All rights reserved.
*
* This code is derived from software contributed to Berkeley by Chris Torek.
*
* Redistribution and use in source and binary forms, with or without modification, are permitted provided
* that the following conditions are met:
* 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and
* the following disclaimer in the documentation and/or other materials provided with the distribution.
* 3. Neither the name of the University nor the names of its contributors may be used to endorse or
* promote products derived from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY
* EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
* DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY
* DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
* (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
* ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/

- This product contains thttpd software that ACMELabs developed and is using it based on the following licence conditions.

Copyright 1995,1998,1999, 2000 by Jef Poskanzer [e-mail].

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- This product contains NetBSD software and is using it based on the following licence conditions.

/*-

* Copyright (c) 1990 The Regents of the University of California.

* All rights reserved.

*

* This code is derived from software contributed to Berkeley by Chris Torek.

*

* Redistribution and use in source and binary forms, with or without modification, are permitted provided

* that the following conditions are met:

* 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

* following disclaimer.

* 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

* the following disclaimer in the documentation and/or other materials provided with the distribution.

* 3. Neither the name of the University nor the names of its contributors may be used to endorse or

* promote products derived from this software without specific prior written permission.

*

* THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY

* EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE

* DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY

* DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

* (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

* ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

*/

- This product contains NetBSD software and is using it based on the following licence conditions.

/*-

* Copyright (c) 1990 The Regents of the University of California.

* All rights reserved.

*

* This code is derived from software contributed to Berkeley by Chris Torek.

*

* Redistribution and use in source and binary forms, with or without modification, are permitted provided

* that the following conditions are met:

* 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

* following disclaimer.

* 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

* the following disclaimer in the documentation and/or other materials provided with the distribution.

* 3. Neither the name of the University nor the names of its contributors may be used to endorse or

* promote products derived from this software without specific prior written permission.

*

* THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY

* EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE

* DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY

* DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

* (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

* ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

*/

- This product contains NetBSD software and is using it based on the following licence conditions.

/*

* Copyright (c) 1989 The Regents of the University of California.

* All rights reserved.

*

* This code is derived from software contributed to Berkeley by Tom Truscott.

*

* Redistribution and use in source and binary forms, with or without modification, are permitted provided

* that the following conditions are met:

* 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

* following disclaimer.

* 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

* the following disclaimer in the documentation and/or other materials provided with the distribution.

* 3. All advertising materials mentioning features or use of this software must display the following * acknowledgement:

* This product includes software developed by the University of California, Berkeley and its

* contributors.

* 4. Neither the name of the University nor the names of its contributors may be used to endorse or

* promote products derived from this software without specific prior written permission.

*

* THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY

* EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE

* DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY

* DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

* (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

* ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

*/

- JPEG

This software is based in part on the work of the Independent JPEG Group.

14.1 Index

# #101 Date and time: 22

102 Your logo: 23

103 Your fax number: 23

121 Recall/flash time: 58

145 LCD display contrast: 58

155 Change password: 58

158 Maintenance time: 58

161 Ringer pattern: 58

210 FAX ring count: 59

212 TEL/FAX ring count: 61

216 Automatic Caller ID list: 59

380 Paper size in the standard input tray: 59

382 Paper size in the optional input tray: 59

383 Paper type: 59

401 Sending report: 44, 61

402 Automatic journal report: 44, 61

403 Power save: 59

404 Manual answer mode: 61

411 Overseas mode: 61

412 Delayed send: 62

413 ECM selection: 62

416 Connecting tone: 62

418 Maximum fax speed: 62

432 Auto reduction: 63

434 Fax activation code: 63

436 Silent fax ring count: 63

437 Memory reception alert: 63

438 Friendly reception: 63

440 Paper input tray setting for fax: 63

442 PC fax setting: 64

443 PC fax reception: 24

445 Legal-size fax send: 64

459 Set fax features to default: 64

460 Paper input tray setting for copy: 65

461 Default copy resolution: 65

463 Default operation mode: 60

464 Mode timer: 60

467 Page layout hold: 65

468 Zoom hold: 65

469 Collate hold: 65

470 Duplex hold: 65

480 Drum cleaning: 102

482 Toner save: 15, 60

485 Colour calibration for all colours: 77

486 Colour calibration for cyan: 77

487 Colour calibration for magenta: 77

488 Colour calibration for yellow: 77

489 Colour calibration for black: 77

493 Scan mode: 69

494 Scan parameter hold: 69

495 Monochrome scan type: 69

500 DHCP mode: 71

501 IP address: 71

502 Subnet mask: 71

503 Default gateway: 71

504 DNS server #1: 71

505 DNS server #2: 71

507 Machine name: 71

508 MAC address: 71

532 IP filtering: 72

533 Auto IP: 72

534 HTTPD: 72

535 IPv6 protocol: 72

565 Paper input tray setting for the scan to e-mail print feature: 72

760 Paper input tray in PCL: 66

762 Number of copies in PCL: 66

763 Paper size in PCL: 66

764 Image reduction in PCL: 66

765 Recording paper direction in PCL: 66

766 A4 wide printing in PCL: 66

767 Line per page in PCL: 66

768 Font source in PCL: 66

769 Font number in PCL: 67

770 Font pitch/point in PCL: 67

771 Symbol set in PCL: 67

772 Line breaks in PCL: 67

773 Auto continue mode: 67

774 Data timeout: 67

775 Monochrome page detect: 67

776 Mutual A4/letter print: 68

A Address list: 102

Answering machine: 52

Auto continue mode (Feature #773): 67

Auto IP (Feature #533): 72

Automatic document feeder: 20, 38, 45

Automatic duplex unit (optional): 78

Auto reduction (Feature #432): 63

B Basic features: 58

Broadcast programming list: 102

Broadcast transmission: 47

C Caller ID

Calling back: 55

Storing: 56

Caller ID list (Feature #216): 59

Character entry: 75

Cleaning: 99, 100, 101

Collate hold (Feature #469): 65

Colour calibration

Black (Feature #489): 77

Cyan (Feature #486): 77

Magenta (Feature #487): 77

Offset (Feature #485): 77

Yellow (Feature #488): 77

Colour test: 102

Connecting tone (Feature #416): 62

Connections: 18

LAN: 18

USB: 25

Contrast hold (Feature #462): 59

Copy: 37

Booklet: 42

Collation: 39

Duplex: 42

Easy repeat: 40

N in 1:41

N in 1 (Separate): 42

Poster: 41

Proof set: 39

Quick ID: 40

Reserve: 42

Zoom: 38

Copy features: 65

D Data timeout (Feature #774): 67

Date and time (Feature #101): 22

Default copy resolution (Feature #461): 65

Default gateway (Feature #503): 71

Default operation mode (Feature #463): 60

Delayed transmission (Feature #412): 62

DHCP mode (Feature #500): 71

Directory: 45

Display

Contrast (Feature #145): 58

Error messages: 81

DNS server #1 (Feature #504): 71

DNS server #2 (Feature #505): 71

Document size: 20

Drum cartridge: 11

Drum cleaning (Feature #480): 102

Drum life: 105

Duplex hold (Feature #470): 65

E ECM selection (Feature #413): 62

Envelope: 30

Error messages: 80, 81

Extension telephone: 51

F Fax activation code (Feature #434): 63

Fax features: 61

Fax number (Feature #103): 23

FAX ONLY mode: 50

Flash time (Feature #121): 58

Friendly reception (Feature #438): 63

FTP server list: 102

H Help: 21

Basic settings: 21

Caller ID: 21

Copier: 21

Directory: 21

FAX receiving: 21

Feature list: 21

Reports: 21

HTTPD (Feature #534): 72

I Input tray (optional): 78

IP address (Feature #501): 71

IP filtering (Feature #532): 72

IPv6 protocol (Feature #535): 72

J Jams

Document: 98

Recording paper: 93

Journal report (Feature #402): 44, 61

Junk fax prohibitor: 53

L Label: 30

LAN features: 71

Legal-size fax send (Feature #445): 64

Logo (Feature #102): 23

M MAC address (Feature #508): 71

Machine name (Feature #507): 71

Maintenance time (Feature #158): 58

Manual answer mode (Feature #404): 61

Maximum fax speed (Feature #418): 62

Memory reception alert (Feature #437): 63

Mode timer (Feature #464): 60

Monochrome page detect (Feature #775): 67

Monochrome scan type (Feature #495): 69

Multi-Function Station software

Activating: 27

Installing: 25

Uninstalling: 26

Mutual A4/letter print (Feature #776): 68

N Navigator directory

Sending faxes: 46

Storing: 45

Network features: 73

OCR software: 34

One-touch dial

Sending faxes: 46

Storing: 45

Optional automatic duplex unit: 78

Optional input tray: 78

Overseas mode (Feature #411): 61

P Page layout hold (Feature #467): 65

Paper input tray setting

Copy (Feature #460): 65

Fax (Feature #440): 63

PCL (Feature #760): 66

Scan to e-mail print (Feature #565): 72

Paper size

Optional input tray (Feature #382): 59

Standard input tray (Feature #380): 59

Paper type (Feature #383): 59

Password (Feature #155): 58

PC fax reception (Feature #443): 24

PC fax setting (Feature #442): 64

PCL

A4 wide printing (Feature #766): 66

Font number (Feature #769): 67

Font pitch/point (Feature #770): 67

Font source (Feature #768): 66

Image reduction (Feature #764): 66

Line breaks (Feature #772): 67

Line per page (Feature #767): 66

Number of copies (Feature #762): 66

Paper input tray (Feature #760): 66

Paper size (Feature #763): 66

Recording paper direction (Feature #765): 66

Symbol set (Feature #771): 67

PCL font list: 102

PC print features: 66

Polling: 53

Power failure: 91

Power save (Feature #403): 59

Power switch: 19

Print

Duplex: 31

E-mail attachment: 31

Special media: 30

Printer test: 102

Programming: 57

Pull scan: 35

Scan application: 35

Viewer: 35

Push scan: 33

E-mail: 33

E-mail server: 34

File: 33

FTP: 34

OCR: 34

Viewer: 33

Q Quick scan: 45

R Recall time (Feature #121): 58

Receiving faxes

Automatically: 50

Computer: 54

Manually: 51

Recording paper: 15

Recording paper size: 103

Redialling: 44, 46

Reports

Address: 102

Broadcast programming: 102

Broadcast sending: 48

Caller ID: 59, 102

Colour test: 102

FTP server: 102

Journal: 44, 102

PCL font: 102

Power down: 91

Printer test: 102

Sending: 44, 61

Setup: 102

Telephone number: 102

Reset fax features (Feature #459): 64

Resolution: 37, 44

Ring count

FAX ONLY (Feature #210): 59

Silent fax (Feature #436): 63

TEL/FAX (Feature #212): 61

Ringer pattern (Feature #161): 58

S Scan features: 69

Scan mode (Feature #493): 69

Scanner glass: 20, 37, 44

Scan parameter hold (Feature #494): 69

Scan to e-mail print: 31

Sending faxes

Broadcast: 48

Computer document: 49

From memory: 45

Manually: 44

Navigator directory: 46

One-touch dial: 46

Sending report (Feature #401): 44, 61

Set fax default (Feature #459): 64

Setup list: 102

Storing

Broadcast: 47

Navigator directory: 45

One-touch dial: 45

Subnet mask (Feature #502): 71

T Telephone number list: 102

TEL mode: 51

Toner cartridge: 11

Toner life: 104

Toner save (Feature #482): 15, 60

Transparency: 30

V Volume: 22

W Waste toner cartridge: 10

Waste toner cartridge life: 105

Z Zoom hold (Feature #468): 65

Notes
