USER MANUAL Jewel J80 Silicon Power

Intellectual Property & Copy Rights....4
Product Introduction......5
System Requirements....5
Introduction......6
4.1 Activate SP Widget......6
4.2 Browser Interface....7
4.3 Function Overview......8
"Project Backup" Function....11
5.1 Project Backup....11
5.2 Project Restore....16
5.3 "Fast-backup" Setting....18
6 "Data Encryption" Function....20
7 "My Favorites Backup" Function....26
8 "Data in the cloud" Function....27
9 “Setup” Function....30

1. Intellectual Property & Copy Rights

The SP Widget Users' Manual is to provide information and services to consumers who buy Silicon Power products. All contents (including but not limited to texts, illustrations, videos, other forms of information, etc) are the intellectual property of Silicon Power and its respective owners. All contents are protected by Copyright Act and Intellectual Property Law. Silicon Power reserves all rights to exclude others from duplicating or distributing this User's Manual without Silicon Power's written consent.

Disclaimer Notice

This software service is provided “AS IS” and is free of charge. The software service does not provide guarantee of any form. Silicon Power shall not be liable for any damage (software data loss, hardware failure, etc.) derived from using this software service nor liable for damages caused directly, indirectly or accidentally.

Silicon Power reserves the right to edit this users' manual at anytime without prior notice.

2. Product Introduction

SP Widget provides various useful software functions for Silicon Power memory storage devices, by which users can easily perform backups and encryption for personal data. By using SP Widget, you are able to carry out following applications for all your portable storage devices :

Project Backup : Offer regular backup scheduling.
Data Encryption : Offer encryption function to help keep your data secure.
My Favorite Backup : Restore or backup your bookmark settings of Internet Explorer and Google Chrome.
Data in the Cloud : Offer service to manage your data in the cloud.

3. System Requirements

Operating system: Microsoft Windows 10/8.1/8/7/XP/Vista
• CPU: Intel Pentium III or faster
System memory: 1GB or more
• Hard drive space: 12 MB or more

4. Introduction

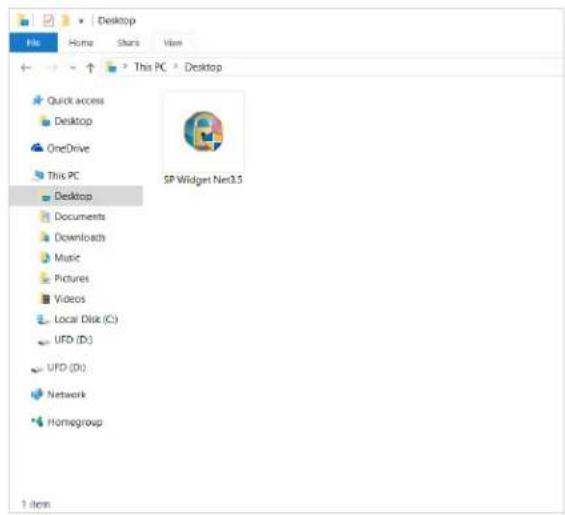

First of all, you have to extract two files from the downloaded file. One is the executable file—SP Widget.exe, and the other is the SP Widget User's Manual. The SP Widget.exe is not restricted to locations of execution, and it will be decompressed automatically once it is activated. As shown in Illustration 4.1.1.

Desktop File Home Share View This PC > Desktop Quick access Desktop OneDrive This PC Desktop Documents Download Music Pictures Videos Local Disk (C:) UFD (D:) UFD (D:) Network Homegroup 1 item SP Widget Net3.5

Illustration 4.1.1

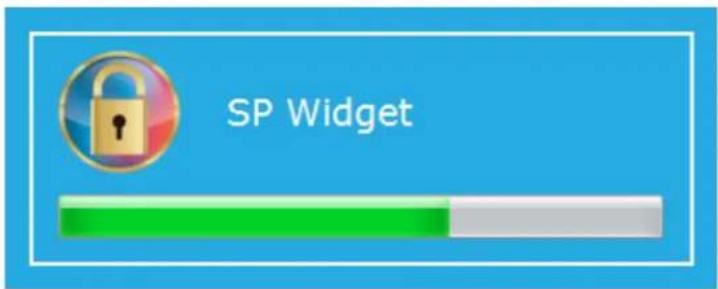

SP Widget will be decompressed while it is activated, as shown in Illustration 4.1.2.

SP Widget

Illustration 4.1.2

4.2 Browser Interface

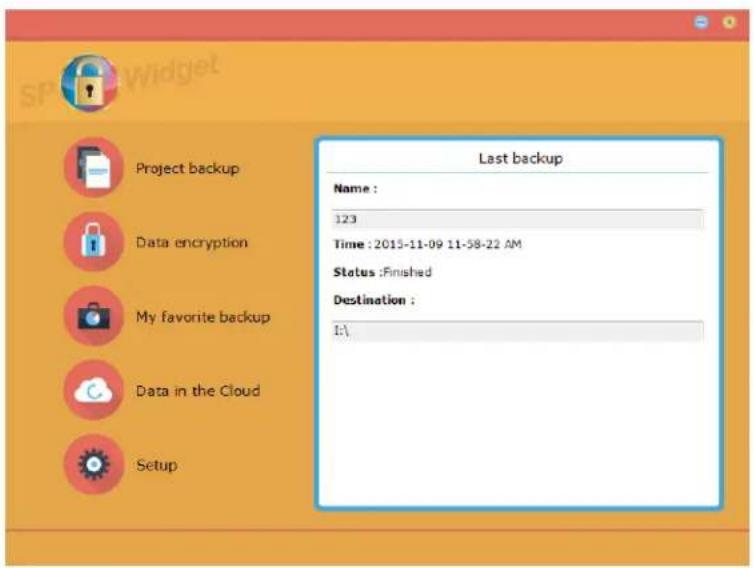

SP Widget will show the following page upon every startup.

There will be function selections listed on the left and previous project backup result recorded on the right. As shown in illustration 4.2.

Project backup Data encryption My favorite backup Data in the Cloud Setup Last backup Name : 123 Time : 2015-11-09 11-58-22 AM Status : Finished Destination : E:

Illustration 4.2

4.3 Function Overview

By clicking on “Project Backup” icon, you can set up the method you prefer to backup or restore your data. Regarding the backup setup, you can choose to backup manually or backup automatically with regular schedule. The setup page is shown in Illustration 4.3.1.

File count : 15 File size : 2.23 MB Encryption : Yes Compress : Yes Schedule : None Destination : EA OTB Information Status 123 Last backup date : 2015-11-09 11:38:22 AM Finished / X + Start Back

Illustration 4.3.1

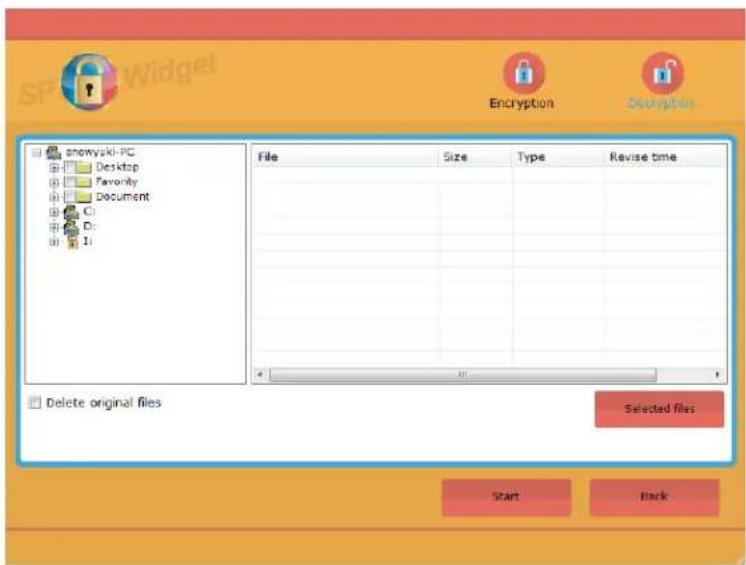

Click on “Data Encryption” to encrypt or decrypt your data. By encryption function, you’re able to keep your files secure from other people getting access to them. The “Data Encryption” page is shown as Illustration 4.3.2.

SP Widget Encryption Decription snowyski-PC Desktop Favorite Document C: D: I: File Size Type Revise time Delete original files Selected files Start Back

Illustration 4.3.2

Click on “My Favorite backup” to restore and backup your “My Favorite” settings. The page of “My Favorite backup” is shown in illustration 4.3.3.

SP Widget Internet Explorer Microsoft Edge Google Chrome Back

Illustration 4.3.3

Click on “Data in the cloud” to instantly manage your data stored in the cloud. The page of “Data in the cloud” is shown in Illustration 4.3.4.

SPR Dropbox Back

Illustration 4.3.4

Click on "Setup" to select language or to view/download the user manual. The page of "Setup" is shown in Illustration 4.3.5.

Illustration 4.3.5

5. "Project Backup" Function

5.1 Project Backup

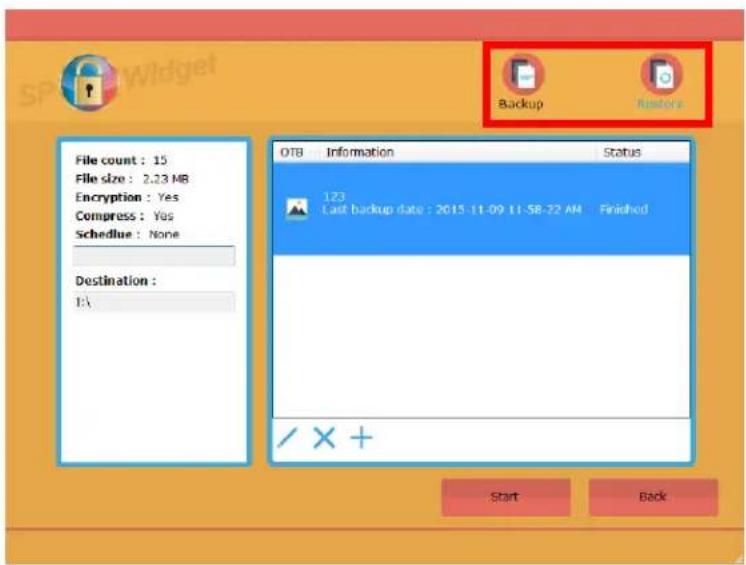

When enter the “Project Backup” page, you can find two icons at the upper-right corner of the window which respectively represent the function of “Backup” and “Restore” (from the left to the right)

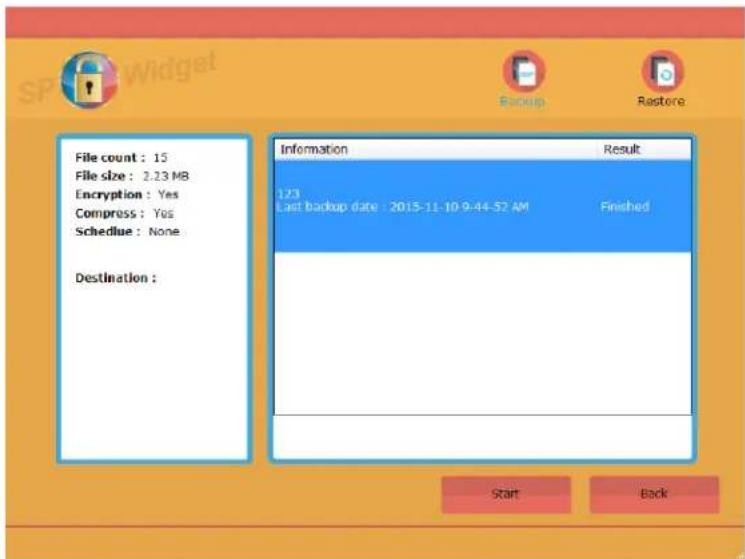

Click on "Backup" to view the backup list you've scheduled. Select one backup project from the list and see the brief content of which at the left side of the window. In addition, you can manage your backup schedule by clicking on the three icons shown at the bottom of the window which respectively stands for the function of "Edit", "Delete" and "Add" (from the left to the right). Please select the projects from the list first before you proceed further operation. The page of "Project Backup" is shown in Illustration 5.1.

File count : 15 File size : 2.23 MB Encryption : Yes Compress : Yes Schedule : None Destination : 123 Last backup date : 2015-11-09 11-58-22 AM - Finished / X + Start Back OTB Information Status 123 Last backup date : 2015-11-09 11-58-22 AM - Finished / X +

Illustration 5.1

Click on the "Add" icon and follow the 4 steps specified below after the Backup window appears,.

Step1/4: Build the project

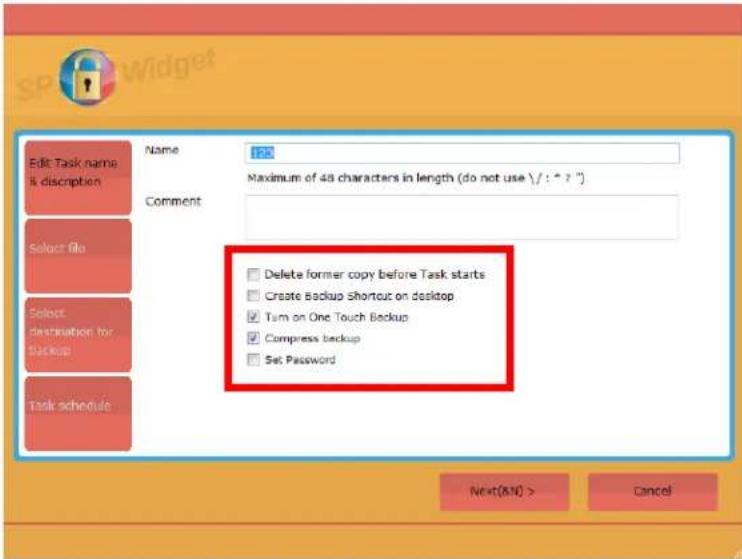

Create the project name (please type in the name and required comments) and make five setups as below (As shown in Illustration 5.2). Follows are the descriptions for each setup option.

◆ Option 1 : Delete former copies every time you use this project backup function. If you want to save previous backups, please DO NOT check this box.
◆ Option 2 : Create a quick-backup shortcut on desktop.
◆ Option 3 : Turn on One Touch Backup.
◆ Option 4 : Compress backup.
◆ Option 5 : Setup a password to perform the encryption function during backup.

$Edit Task name is disconnection Name 128 Maximum of 48 characters in length (do not use \/ : * ? *) Comment Select file Select destination for Backup Task schedule Delete former copy before Task starts Create Backup shortcut on desktop Tam on One Touch Backup Compress backup Set Password Next(810) > Cancel$

Illustration 5.2

Step2/4: Select files for backup

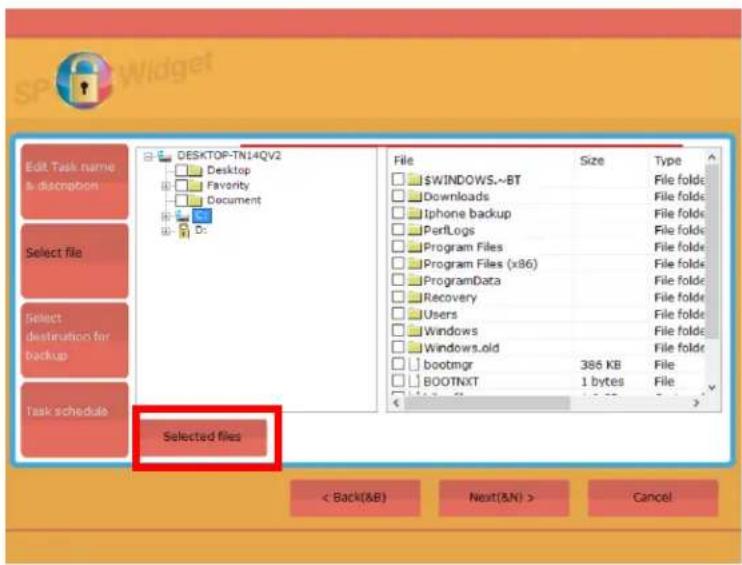

Select the file(s) or folder(s) you'd like to backup. The "Select File" page is shown as Illustration 5.3.

Click on “Selected files” (marked by the red frame) to view the documents or files you’ve selected.

Illustration 5.3

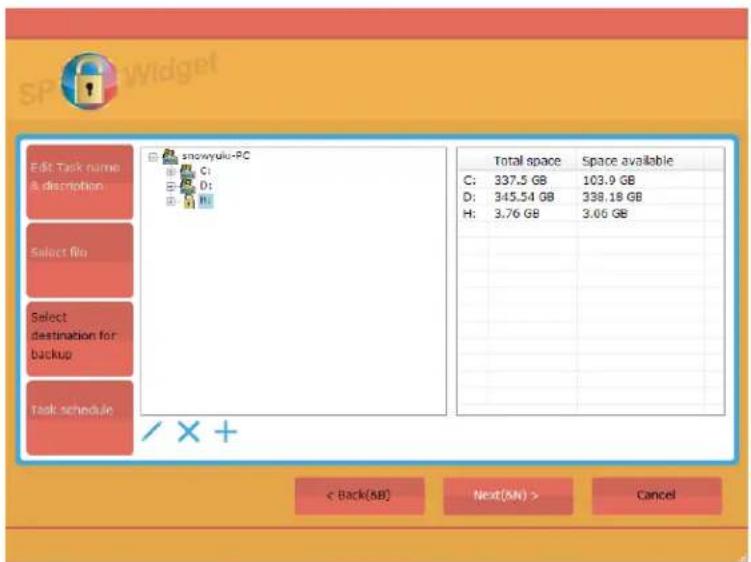

Step3/4: Select a destination for backup

Select the destination for backups. At the right side of the window, there will be a chart showing the current space of the disk you've selected. The page of "Select destination for backup" is shown as Illustration 5.4.

Edit Task name & description snowyuki-PC C: 337.5 GB 103.9 GB D: 345.54 GB 338.18 GB H: 3.76 GB 3.06 GB Total space Space available C: 337.5 GB 103.9 GB D: 345.54 GB 338.18 GB H: 3.76 GB 3.06 GB Select file Select destination for backup Task schedule / × + < Back(8B) Next(8N) > Cancel

Illustration 5.4

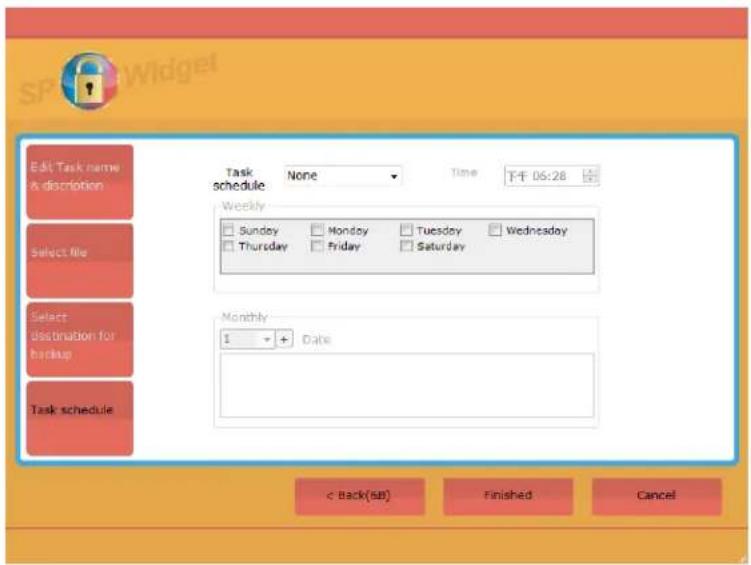

Step4/4: Task schedule

You can set up automatic backup settings to ensure regular backup schedule. If you've never used this function, SP Widget will not create a schedule for you (you have to accomplish all the backups manually.) Here are three schedule settings which you can choose from : Daily (which time to automatically backup everyday), Weekly (which time and day to backup every week) and Monthly (which time and date to backup every month). Click on the “Finished” icon to accomplish the setting. The “Task schedule” page is shown as Illustration 5.5.

Edit Task name & description Select file Select destination for backup Task schedule Task schedule None Time 下午 06:28 Weekly Sunday Monday Tuesday Wednesday Thursday Friday Saturday Monthly 1 Date < Back(sB) Finished Cancel

Illustration 5.5

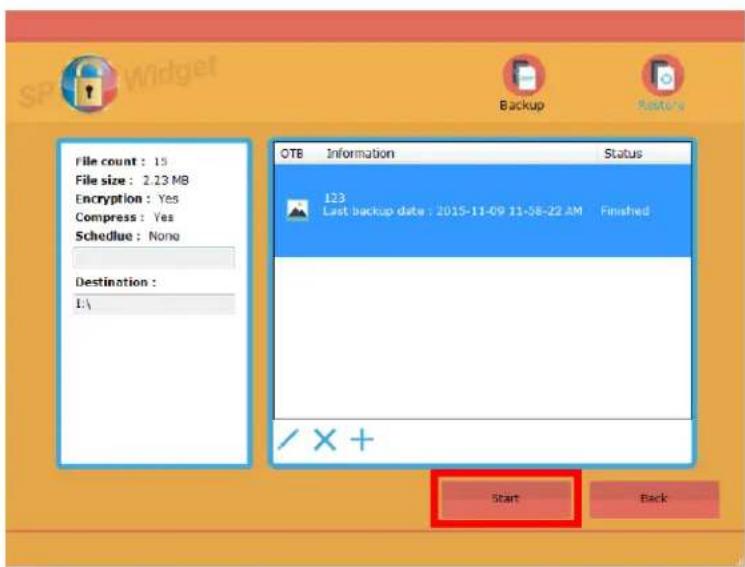

If you want to carry out your backup tasks manually, please go back to the “Project Backup” page, select the project you want to backup and click on “Start”. The operation is shown in Illustration 5.6.

$File count : 15 File size : 2.13 MB Encryption : Yes Compress : Yes Schedule : None Destination : I:\ OTB Information Status 123 Last backup date : 2015-11-09 11-38-22 AM Finished / X + Start Back$

Illustration 5.6

The pop-up window shows to confirm whether you are ready to start the backup. If you're sure to do so, please click on "Yes". The notice window is shown in Illustration 5.7.

Notice Start to backup? (Y/N) Yes No

Illustration 5.7

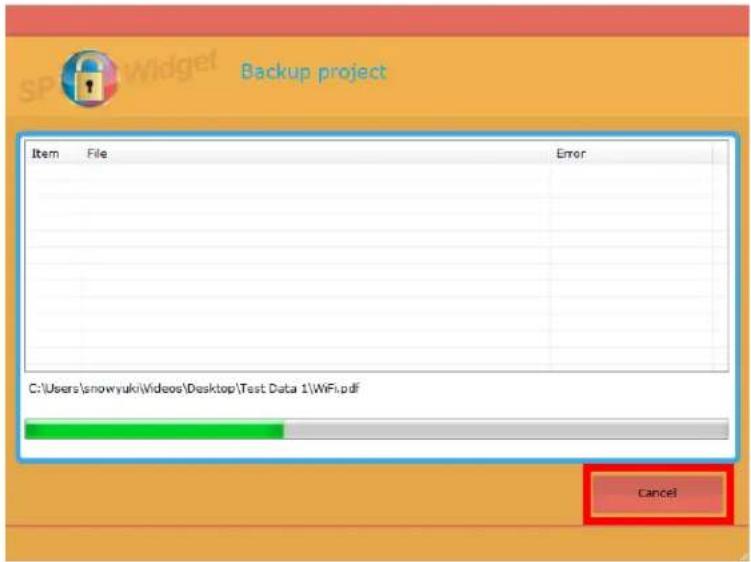

Click on "No" to stop the backup during the process. If an error appears during the backup process, it will be listed in the table as shown in illustration 5.8.

$Backup project Item File Error C:\Users\snowyuki\Videos\Desktop\Test Data 1\WiFi.pdf Cancel$

Illustration 5.8

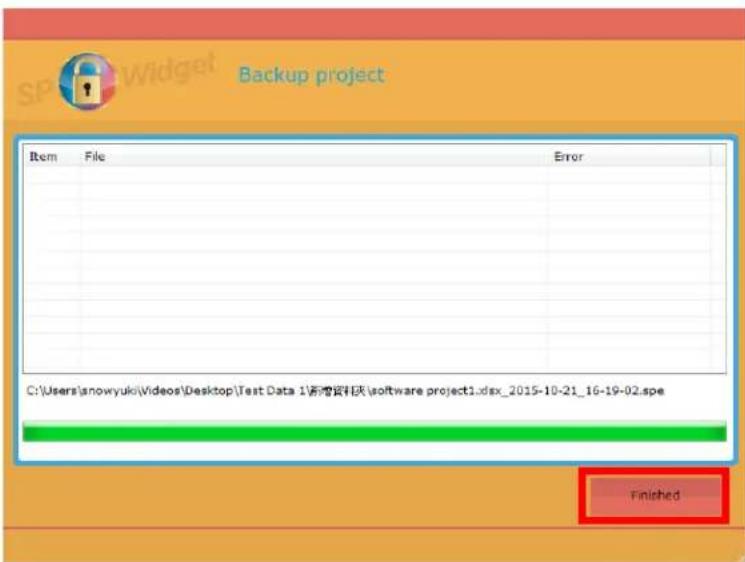

Click on "Finished" when the backup is done. As shown in illustration 5.9.

$Backup project Item File Error C:\Users\snowyuki\Videos\Desktop\Test Data 1\新增资料表\software project1.xlsx_2015-10-21_16-19-02.spe Finished$

Illustration 5.9

5.2 Project Restore

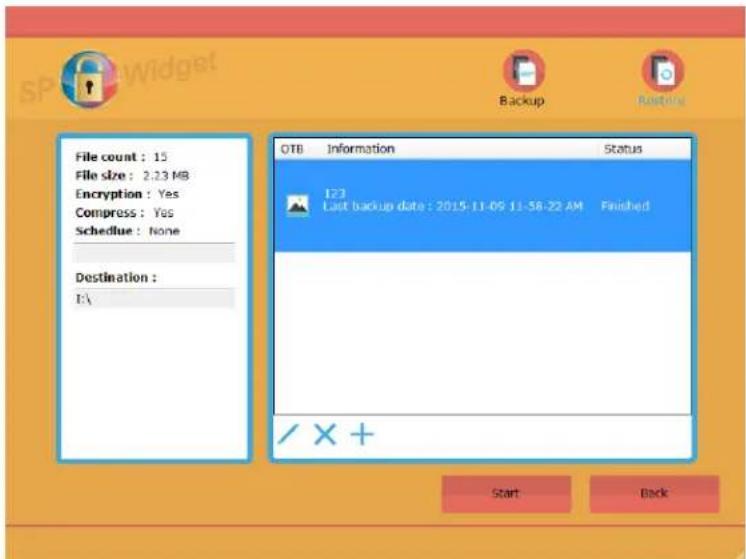

If you want to restore a project, please click on the “Restore” icon to enter the “Project Restore” page. Select the project you’re about to restore and click on the “Start” icon. As shown in Illustration 5.10.

File count : 15 File size : 2.23 MB Encryption : Yes Compress : Yes Schedule : None Destination : Information Result 123 Last backup date : 2015-11-10 9:44-57 AM Finished Start Back

Illustration 5.10

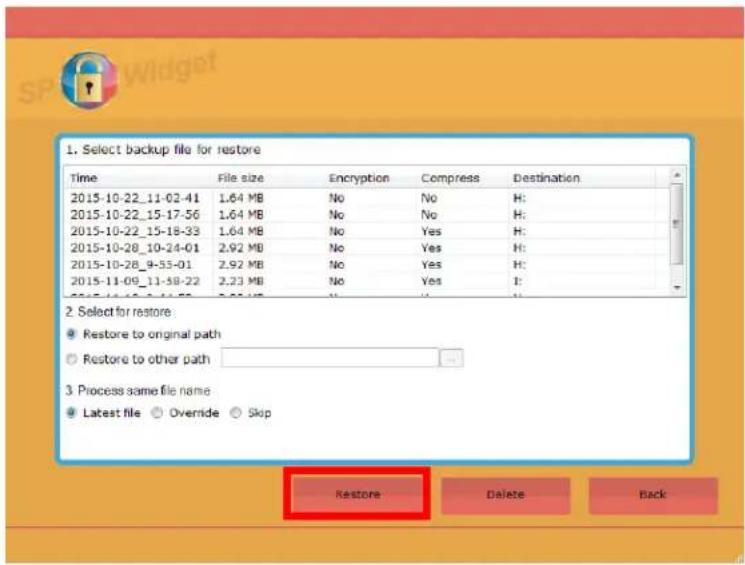

Choose the file(s) you'd like to restore and click on "Restore". The operation is shown in illustration 5.11.

Illustration 5.11

To process your restore settings, please follow the steps specified as below :

Step1 : Select the backup file(s) that you want to restore
Step2: There are two paths for restoring files. Please choose the one you prefer:

◆ Restore to the original path

(Restore at the same location according to the original path of the file)

◆ Restore to another path

(Restore at another location by creating, deleting or renaming a folder)

Step3: When it happens that there are files sharing the same file name, please do one of the following operations:

◆Restore the latest file—Among the existing files which share the same file name, the latest one will be restored.
◆Override—Restore all the backed-up files sharing the same file name.
♦ Skip — If the files you’d like to restore already exist, the restore operation will skip these files for any arrangement.

After finishing all the settings, click on "Restore" to proceed.

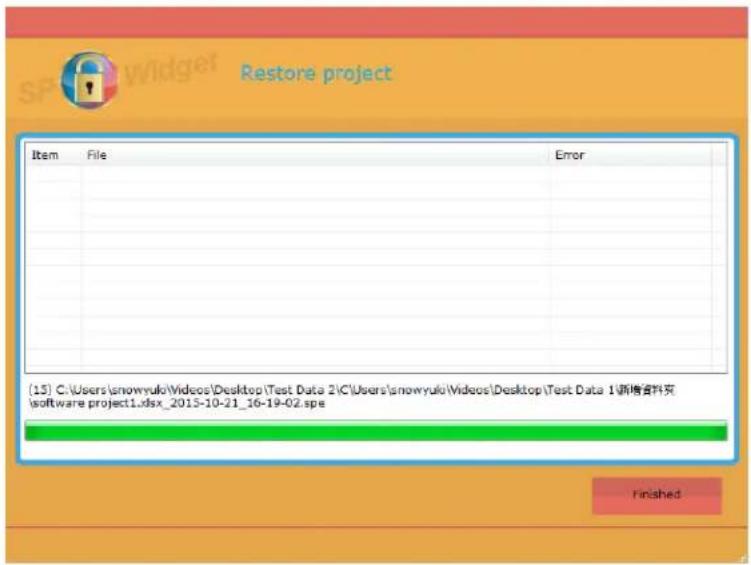

Click on “Finished” when the restore operation is done. As shown in Illustration 5.12.

$Restore project Item File Error (13) C:\Users\snowyuk\Videos\Desktop\Test Data 2\C\Users\snowyuk\Videos\Desktop\Test Data 1\新增资料夹\software project1.xlsx_2015-10-21_16-19-02.spe Finished$

Illustration 5.12

5.3 "Fast-backup" Setting

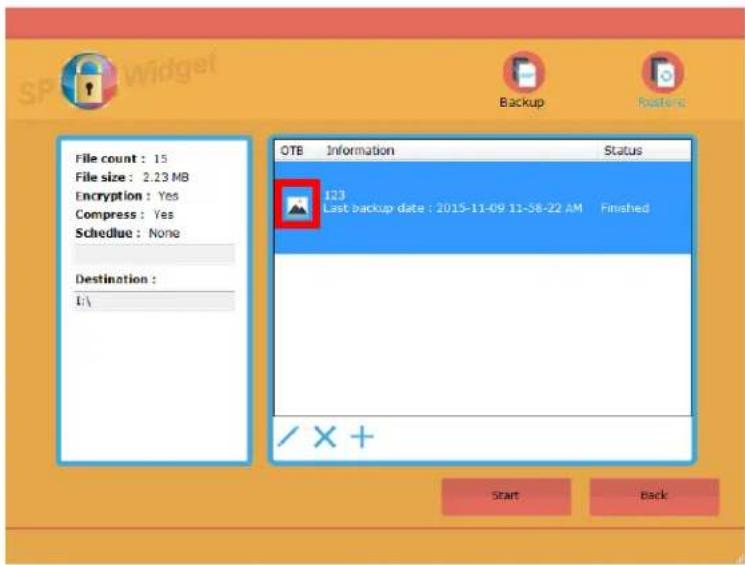

Click on the square icon in front of the project name to make the fast-backup setting. The projects are set to perform the “Fast-backup” task as soon as the “Fast-backup” function of the device is activated. The setup page is shown as Illustration 5.13.

$File count : 15 File size : 2.23 MB Encryption : Yes Compress : Yes Schedule : None Destination : L:\ OTB Information Status 123 Last backup date : 2015-11-09 11-58-22 AM Finished / X + Start Back$

Illustration 5.13

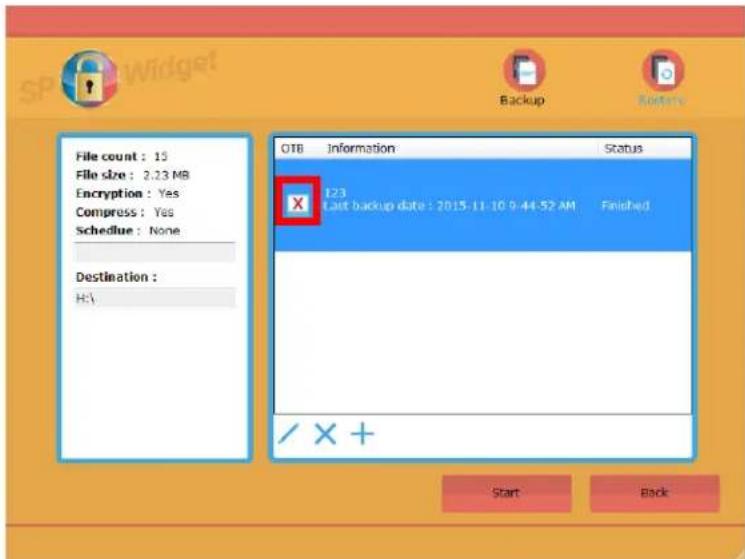

If the “Fast-backup” function is not supported, the icon in front of the project name will change as shown in Illustration 5.14.

Note : This setting only supports products that are equipped with “Fast-Backup” function.

$File count : 15 File size : 2.23 MB Encryption : Yes Compress : Yes Schedule : None Destination : H:\ OTB Information Status 123 Last backup date : 2015-11-10 9:44:52 AM Finished / X + Start Back$

Illustration 5.14

6. "Data Encryption" Function

Click on “Data Encryption” to view all files saved in this device. There are two icons on the right upper side which allow you to switch to “encryption” or “decryption” functions.

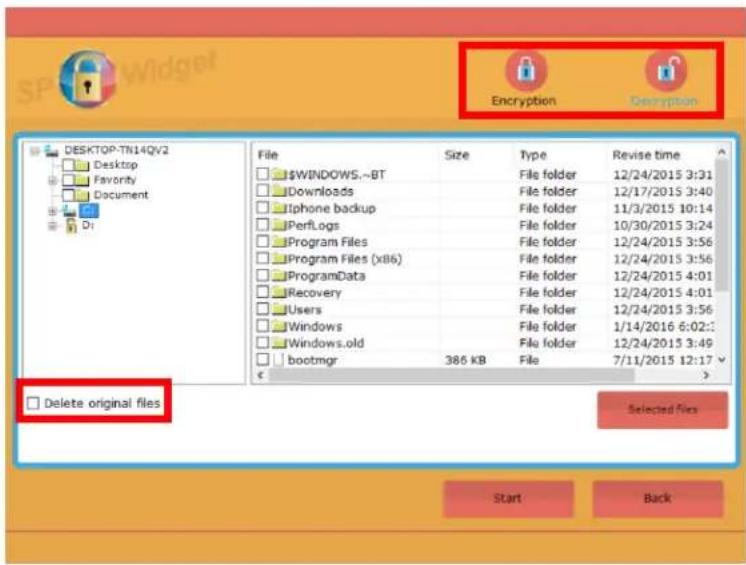

The page of “Data Encryption” is shown as Illustration 6.1. The left column shows the disks and folders for selection, and the files in the selected folder are listed in the right column. The information of selected files is shown at the bottom of the two columns.

The "encryption" function can be applied to documents or files. If you select a file for encryption, the documents within will be encrypted to one encrypted file.

Please select the files or folders you'd like to encrypt and click on "Start". The operation is shown as Illustration 6.1.

$DESKTOP-TN14QV2 Desktop Favorite Document D:\Encryption Decryption File Size Type Revise time $WINDOWS.~BT File folder 12/24/2015 3:31 Downloads File folder 12/17/2015 3:40 Iphone backup File folder 11/3/2015 10:14 PerfLogs File folder 10/30/2015 3:24 Program Files File folder 12/24/2015 3:56 Program Files (x86) File folder 12/24/2015 3:56 ProgramData File folder 12/24/2015 4:01 Recovery File folder 12/24/2015 4:01 Users File folder 12/24/2015 3:56 Windows File folder 1/14/2016 6:02:: Windows.old File folder 12/24/2015 3:49 bootmgr 386 KB File 7/11/2015 12:17 Delete original files Selected files Start Back$

Illustration 6.1

Note: By default, the original files will not be deleted after encryption. If you don't want to save the original files, please tick the checkbox of "Delete Original Files"

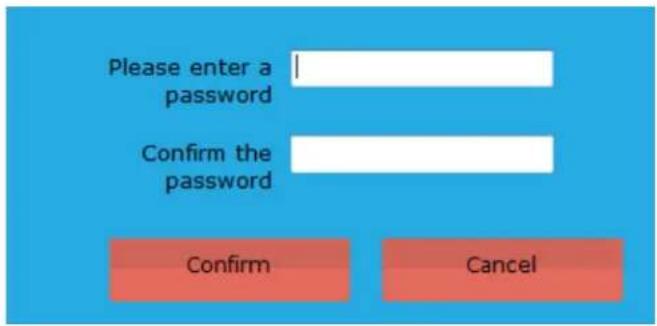

You will be prompted for an administrator password or confirmation. Please type the password or provide confirmation. Please note that the password you set here will be used for data decryption afterwards. The prompt window of password setup is shown as Illustration 6.2.

Please enter a password Confirm the password Confirm Cancel

Illustration 6.2

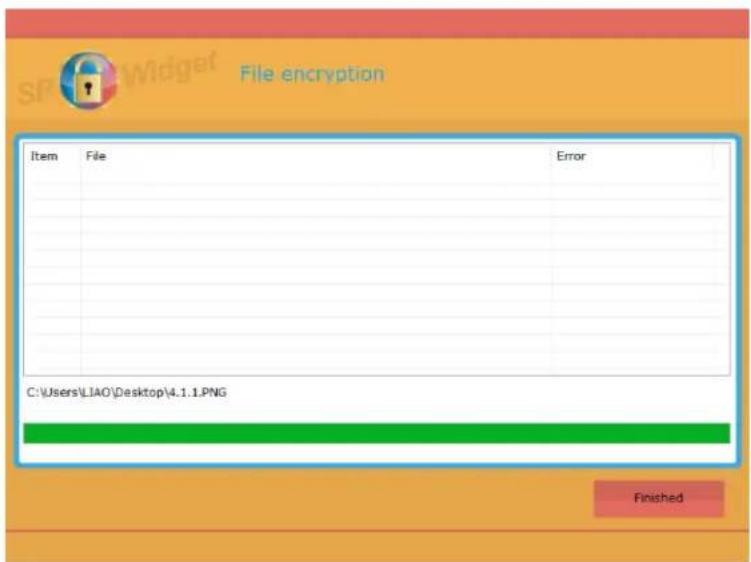

After clicking on "Confirm", the file encryption will start to process, as shown in Illustration 6.3.

$File encryption Item File Error C:\Users\LIAO\Desktop\4.1.1.PNG Finished$

Illustration 6.3

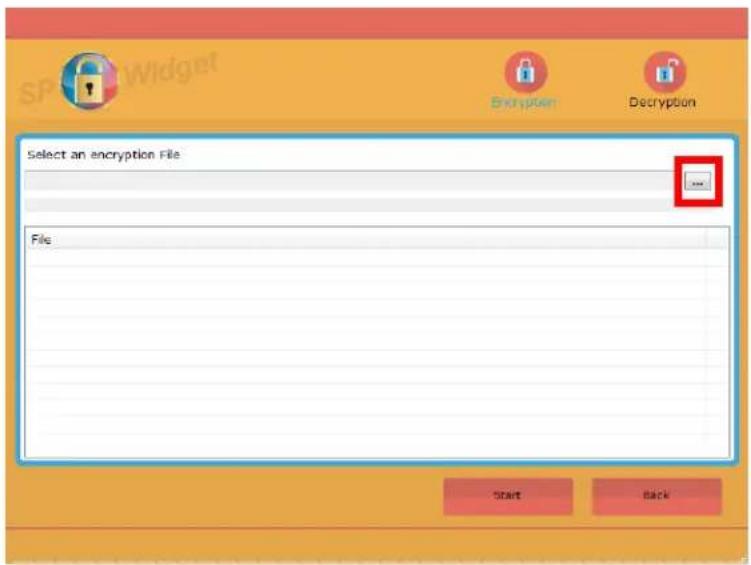

Click on the “Decryption” icon to proceed the function. As shown in Illustration 6.4.

SP Widget Encryption Decryption Select an encryption File File Start Back

Illustration 6.4

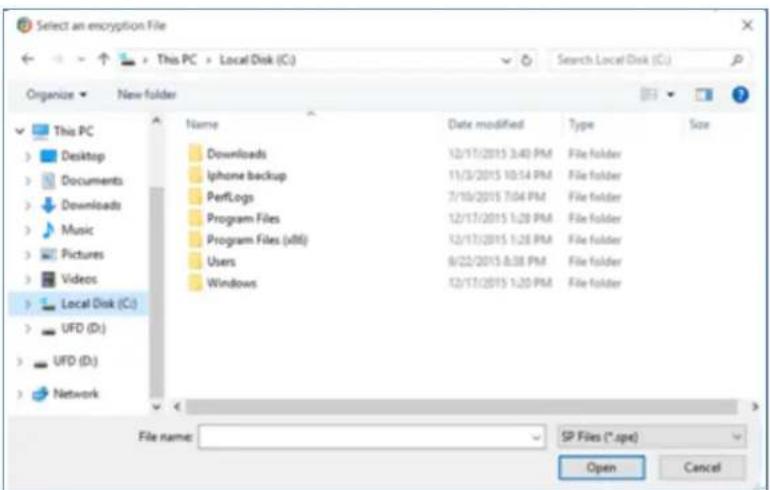

Click on the browse button to select an encrypted file. As shown in Illustration 6.4 and 6.5

Illustration 6.5

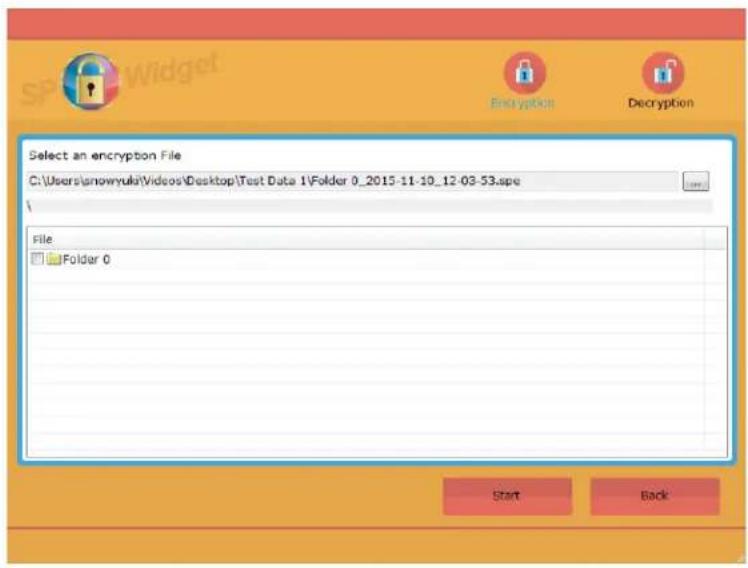

The file will be displayed after it is selected. As shown in illustration 6.6.

$Select an encryption File C:\Users\snowyulu\Videos\Desktop\Test Data 1\Folder 0_2015-11-10_12-03-53.spe File Folder 0 Start Back$

Illustration 6.6

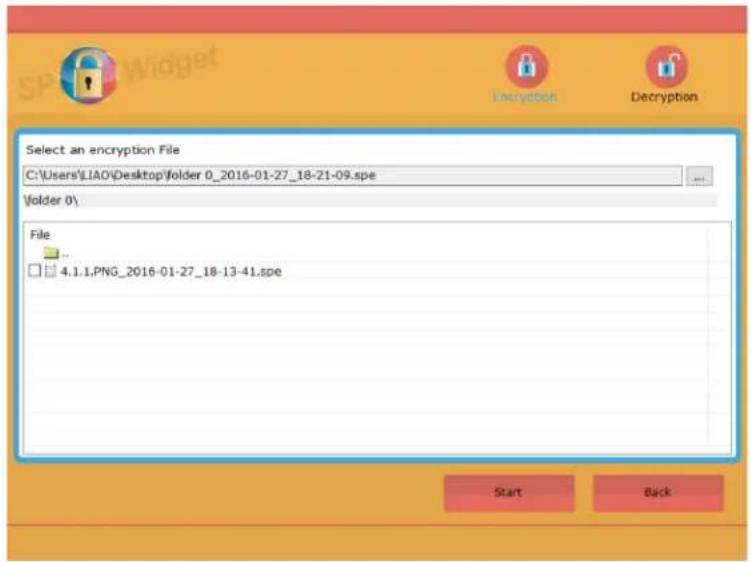

Click on the folder icon to view the contents of the file. As shown in illustration 6.7.

$Select an encryption File C:\Users\LIAO\Desktop\folder 0_2016-01-27_18-21-09.spe \folder 0\ File 4.1.1.PNG_2016-01-27_18-13-41.spe Start Back$

Illustration 6.7

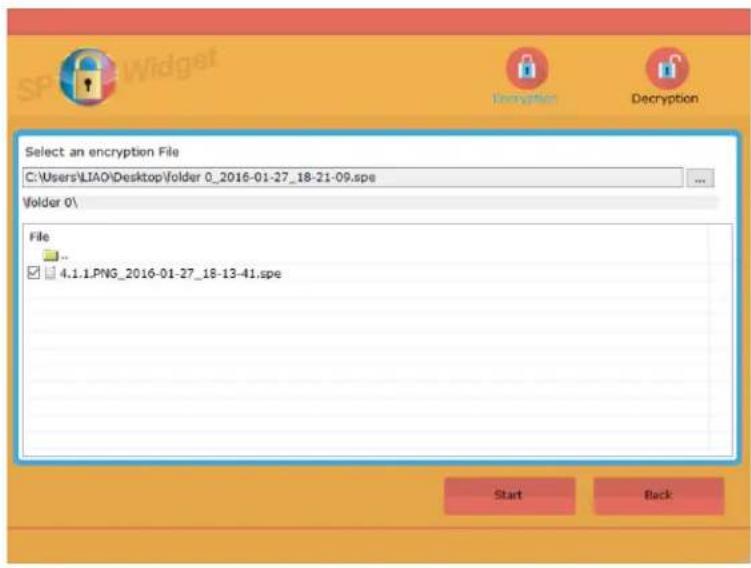

Select a document or file and click on "Start" to decrypt it. As shown in illustration 6.8.

$Select an encryption File C:\Users\LIAO\Desktop\folder 0_2016-01-27_18-21-09.spe Folder 0\ File 4.1.1.PNG_2016-01-27_18-13-41.spe Start Back$

Illustration 6.8

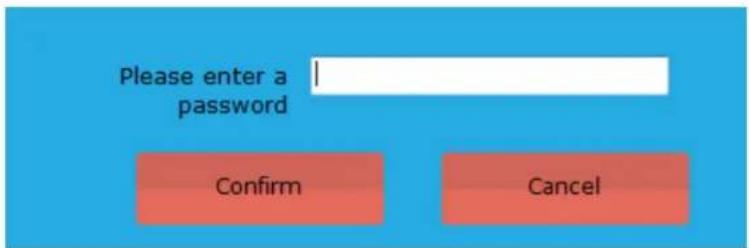

A password requirement window will pop out for confirmation. Please enter your decryption password and click on "Confirm" to proceed. As shown in illustration 6.9.

Please enter a password Confirm Cancel

Illustration 6.9

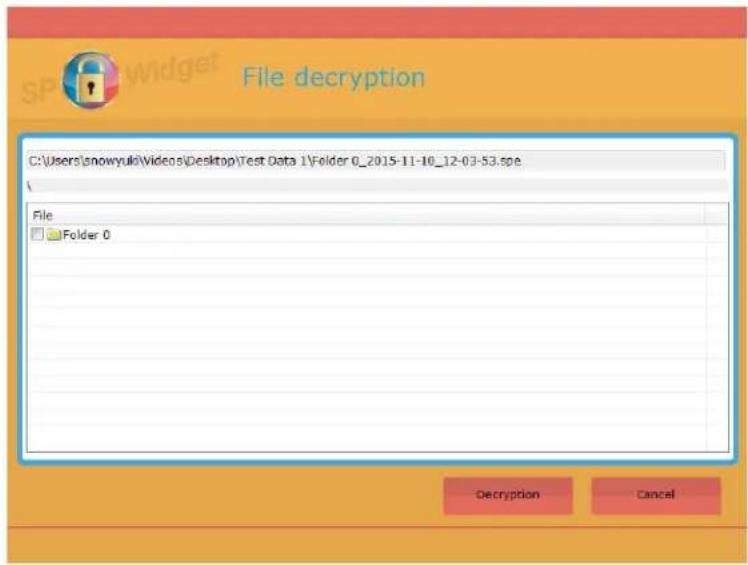

SP widget provides another method for decryption. Select the document with filename extension “spe” to start the decryption program directly. As shown in illustration 6.10.

$File decryption C:\Users\snowyule\Videos\Desktop\Test Data 1\Folder 0_2015-11-10_12-03-53.spe File Folder 0 Decryption Cancel$

Illustration 6.10

7. "My Favorites Backup" Function

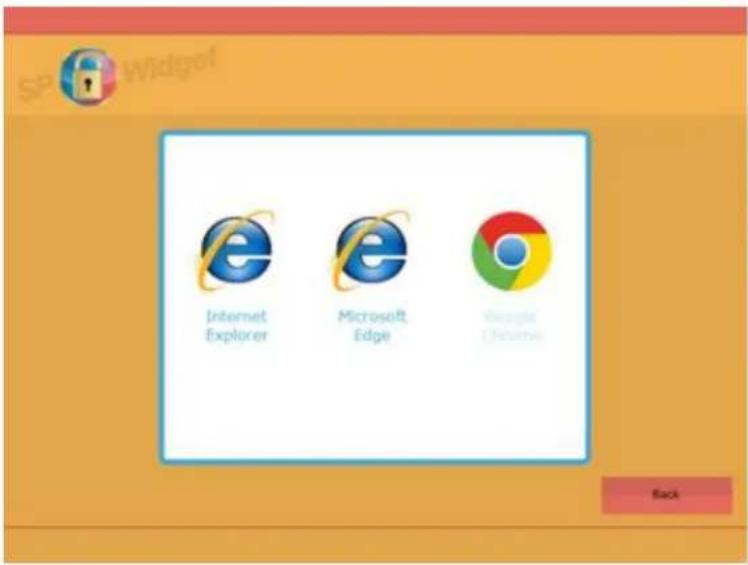

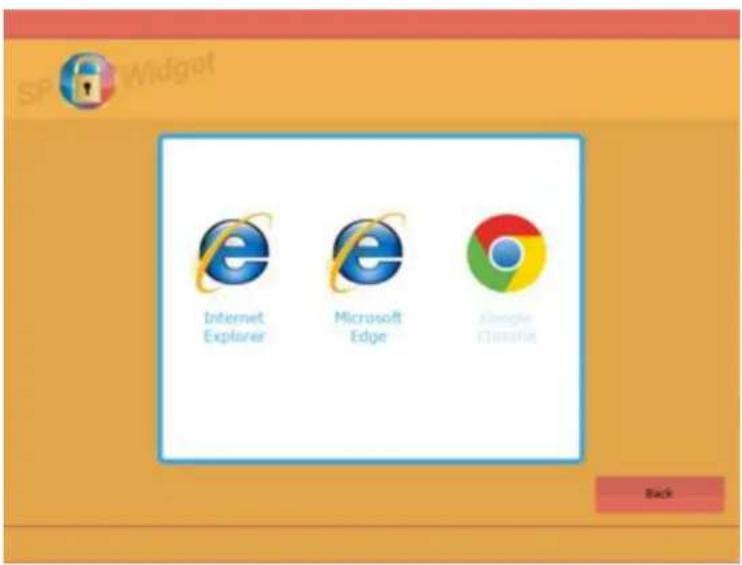

"My Favorites Backup" is designed to backup or restore users' profiles and settings in "My Favorite". Click on "My Favorites Backup" and select the browser you'd like to backup. As shown in Illustration 7.1.

SP Widget Internet Explorer Microsoft Edge Google Chrome

Illustration 7.1

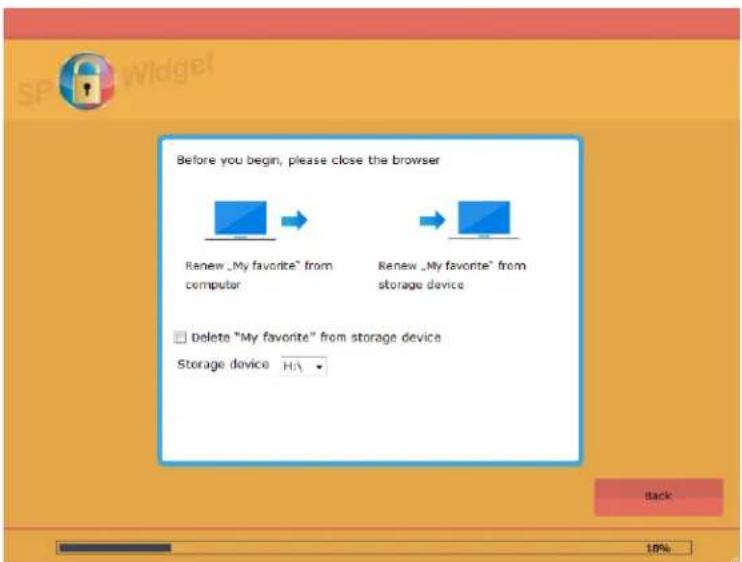

Please make sure to close the browser before you start with the backup and restore procedure. Then select a storage disk and click on “Backup” or “Restore”. You could also tick the checkbox to delete the files saved in the storage devices. As shown in Illustration 7.2.

Before you begin, please close the browser Renew "My favorite" from computer Renew "My favorite" from storage device Delete "My favorite" from storage device Storage device HA Back 10%

Illustration 7.2

8. "Data in the Cloud" Function

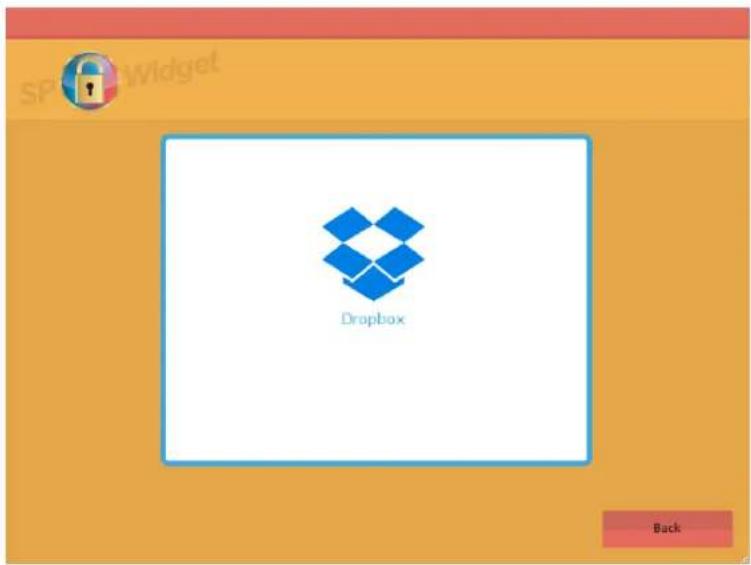

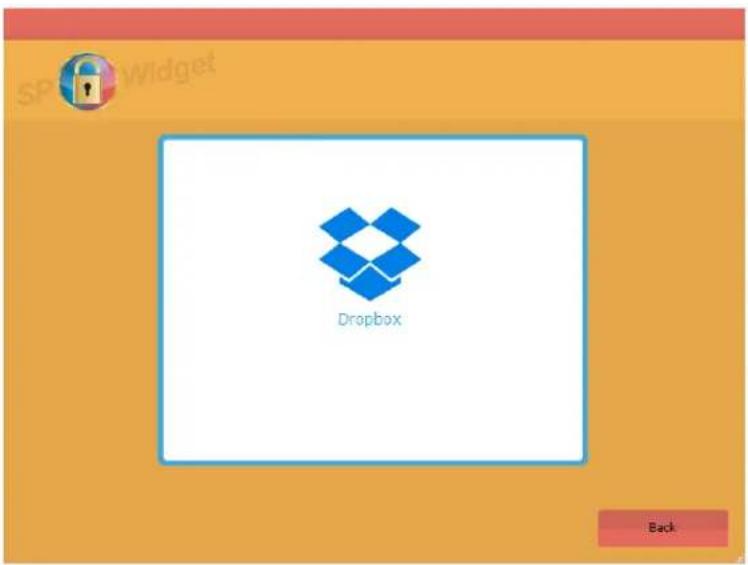

Click on "Data in the Cloud" to show the user interface of DropBox cloud space, as shown in Illustration 8.1.

SP Dropbox Back

Illustration 8.1

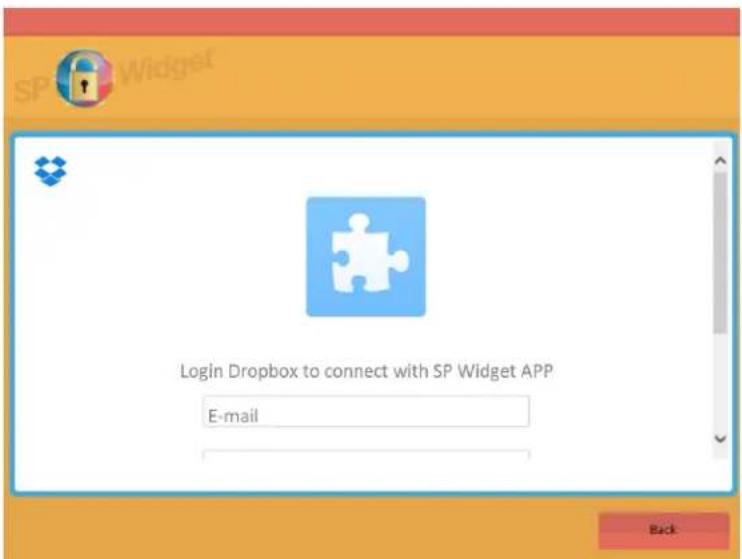

The DropBox login page will prompt for confirmation. Please enter your user account and password to log in. The login window is shown as Illustration 8.2.

SP Widget Login Dropbox to connect with SP Widget APP E-mail Back

Illustration 8.2

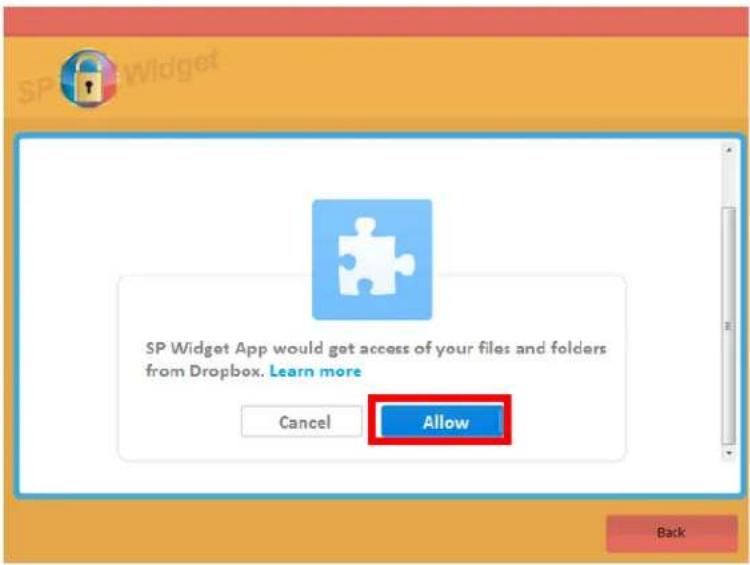

Please click on "Allow" to acquire DropBox authorization as shown in Illustration 8.3.

SP Widget App would get access of your files and folders from Dropbox. Learn more Cancel Allow Back

Illustration 8.3

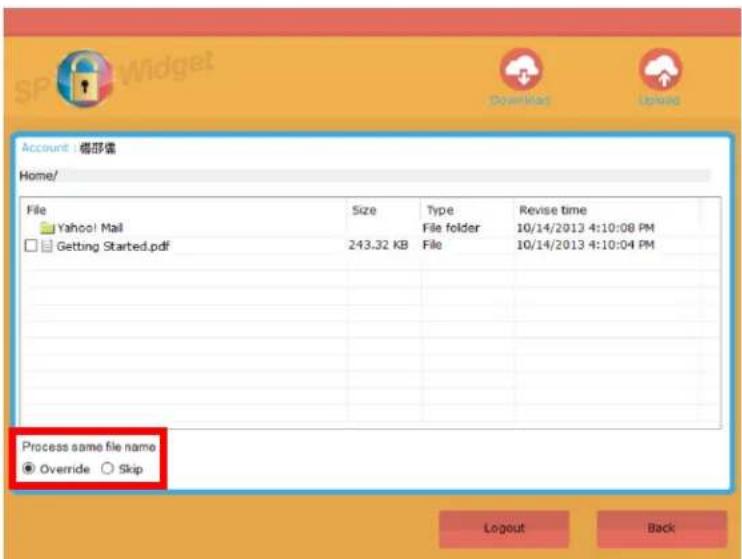

After you log in, please wait until SP Widget acquires the user information. And please be aware that you also need to choose an operation method when it comes to the situation that there are files sharing the same file name. As shown in Illustration 8.4.

Account - 摄部書 Home/ File Size Type Revise time Yahoo! Mail File folder 10/14/2013 4:10:08 PM Getting Started.pdf 243.32 KB File 10/14/2013 4:10:04 PM Process same file name Override Skip Logout Back

Illustration 8.4

To upload files to DropBox, you can drag the documents or files directly to this program. Or click on "Upload" and then select the files you'd like to upload. As shown in Illustrations 8.5.

Illustration 8.5

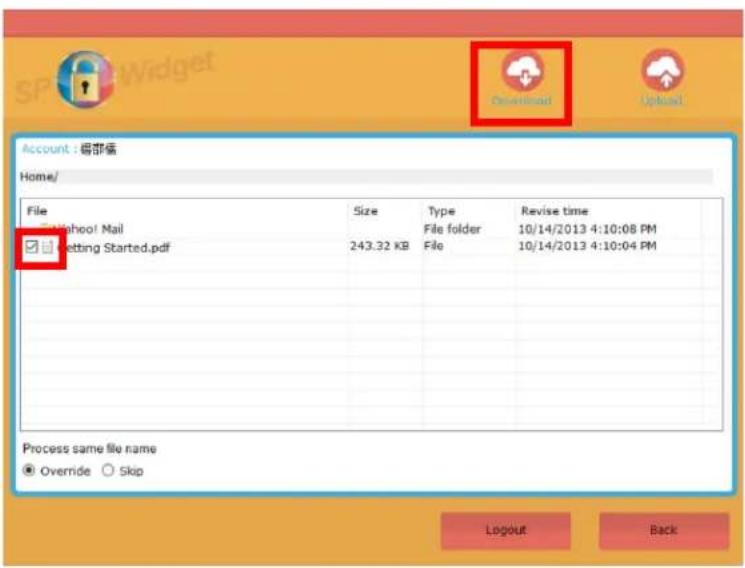

To download files from DropBox, please select the document(s) and click on "Download", as shown in illustration 8.6.

Account : 福部猫 Home/ File Size Type Revise time School Mail File folder 10/14/2013 4:10:08 PM Setting Started.pdf 243.32 KB File 10/14/2013 4:10:04 PM Process same file name Override Skip Logout Back

Illustration 8.6

By clicking on "Back", you don't need to go through login procedure next time. By clicking on "Logout", you will need to login again next time.

9. "Setup" Function

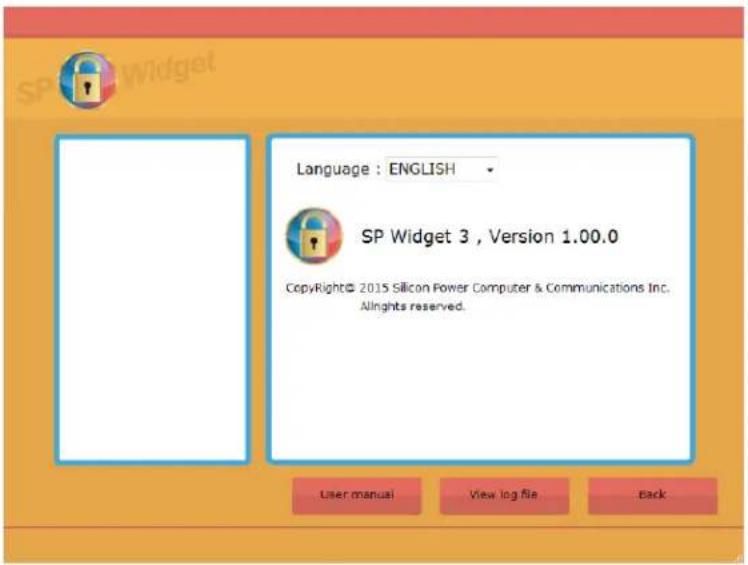

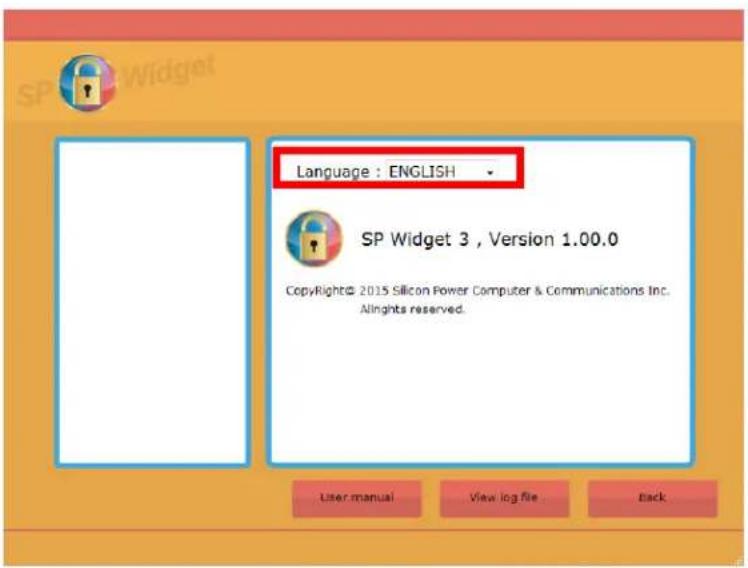

Click on the "Setup" icon to view the product information. You can also make the following operations at this section. As shown in illustration 9.1.

◆ Operation 1: Select language
◆ Operation 2: View the user manual or download it from Silicon Power official website.

Illustration 9.1
