| Product Type | LED Monitor |
| Model | 230S8QHSB |
| Brand | Philips |
| Screen Size | 23 inches (58.4 cm) |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Panel Type | IPS |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 (typical) |
| Response Time | 5 ms (GTG) |
| Viewing Angles | 178° / 178° |
| Connectivity | VGA, DVI-D, HDMI, DisplayPort |
| Power Consumption | 21.8 W (typical), 0.5 W (standby) |
| Dimensions (with stand) | 532 x 421 x 220 mm |
| Weight (with stand) | 4.3 kg |
| VESA Mount | 100 x 100 mm |
| Adjustability | Tilt (-5° / 20°), Swivel, Height, Pivot |
| Built-in Speakers | Yes, 2 x 2W |
| Features | Low Blue Light, Flicker Free, SmartImage |
| Maintenance | Clean with soft dry cloth; avoid aggressive cleaners |
| Safety | CE, RoHS, Energy Star certified |
| Spare Parts | Contact local Philips service center for replacement parts |
| General | 3-year warranty (depending on region) |
Frequently Asked Questions - S Line 230S8QHSB PHILIPS
How do I adjust the monitor height?
Hold the monitor firmly and press down on the top to lower, or lift up to raise. The stand has a built-in height adjustment mechanism.
Can I mount this monitor on a wall?

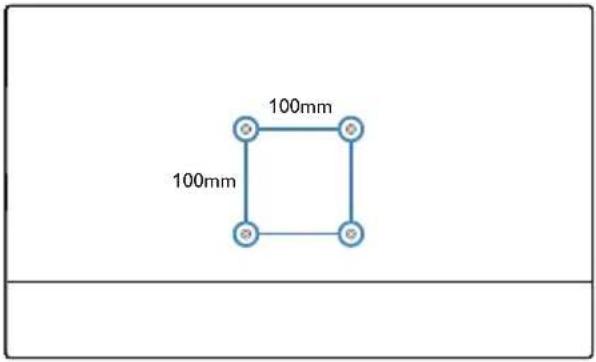

Yes, the monitor supports VESA mount 100x100 mm. Use a compatible wall mount bracket and follow the instructions in the manual.
How do I enable Low Blue Light mode?

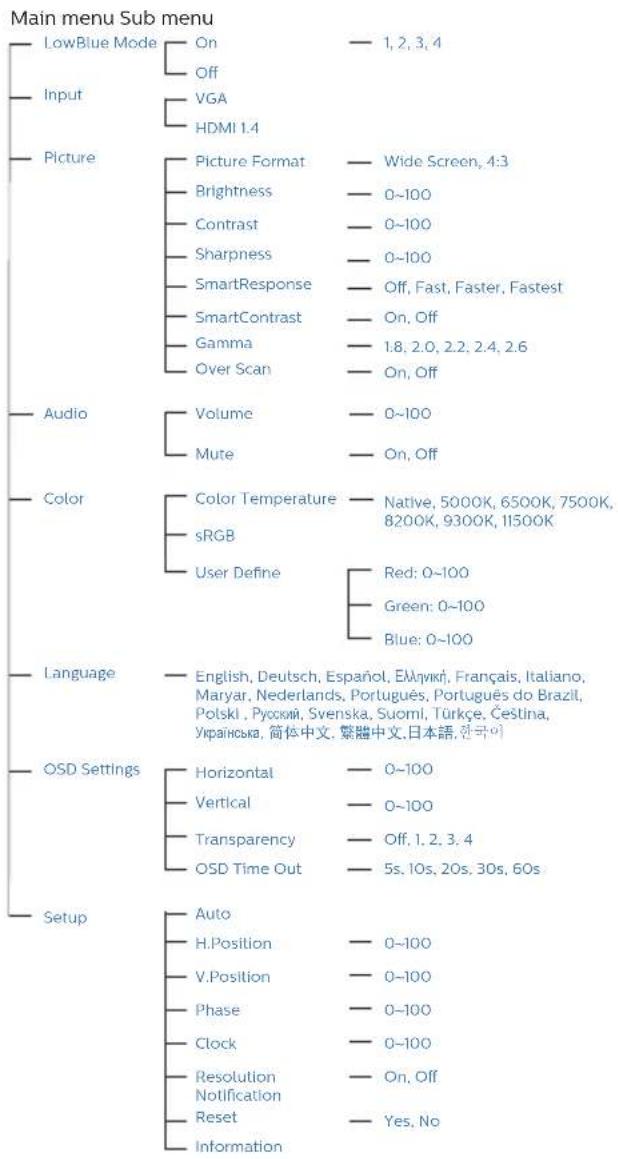

Press the menu button on the monitor, navigate to 'Picture' or 'Color' settings, and select 'LowBlue Mode'. You can set the desired level.
What is the recommended resolution?
The native resolution is 1920 x 1080 at 60 Hz. For best image quality, set your computer to this resolution.
Why is there no sound from the built-in speakers?
Ensure the audio cable is connected properly (HDMI or audio-in). Check volume settings on both monitor and computer. The speakers output 2W each.
How do I clean the screen safely?
Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water. Do not spray liquid directly on the screen. Avoid alcohol or ammonia.
Does the monitor support VESA mounting?

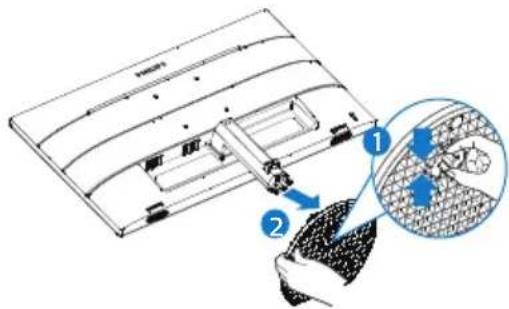

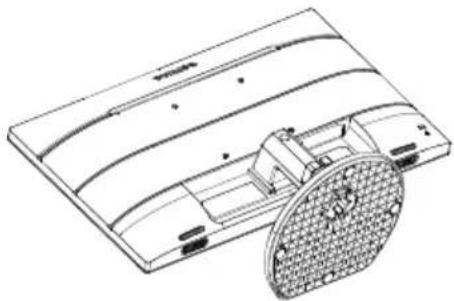

Yes, it has VESA 100x100 mm mounting holes. Remove the stand base and neck before attaching a mount.
How can I reduce eye strain?
Enable Flicker-Free and LowBlue Mode in the monitor's OSD menu. Also adjust brightness to match ambient light and take regular breaks.
What is the power consumption in standby mode?
Standby power consumption is less than 0.5 W. To fully turn off, unplug the power cord or switch off at the power strip.
Where can I find the user manual?
You can download the PDF manual from the product page on the Philips support website. A printed manual may also be included in the box.
