USER MANUAL 40795-CN HAMILTON BEACH

Visit www.hamiltonbeach.cn for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Please call us – our friendly associates are ready to help. China: 400-852-2655

如有疑问？

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces or hot water. Use handles or knobs. Care must be taken since burns can occur from touching hot parts or from spilled hot liquid.
5. To protect against fire, electric shock, and personal injury, do not immerse cord, plug, power base, or electric kettle in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.

7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the manufacturer may result in fire, electrical shock, or personal injury.

9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
11. Do not place electric kettle on or near a hot gas or electric burner or in a heated oven.
12. To disconnect electric kettle, turn any control to OFF (O) and then remove plug from wall outlet. Never pull on cord as this may damage the cord and eventually cause electric shock.
13. Do not use appliance for other than intended use.
14. Do not use for other than heating water. Other liquids or food will contaminate the interior and void warranty.
15. Do not allow kettle to boil dry.
16. To avoid circuit overload, do not operate another high-wattage appliance on the same circuit.
17. Scalding may occur if the lid is opened during the heating cycle.
18. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to

or greater than the rating of the appliance. If the appliance is of the grounding type, the extension cord should be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

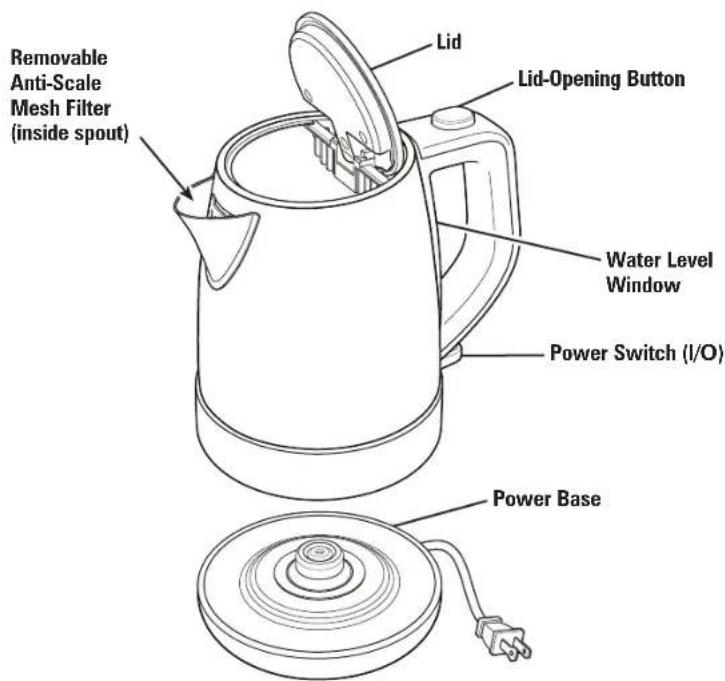

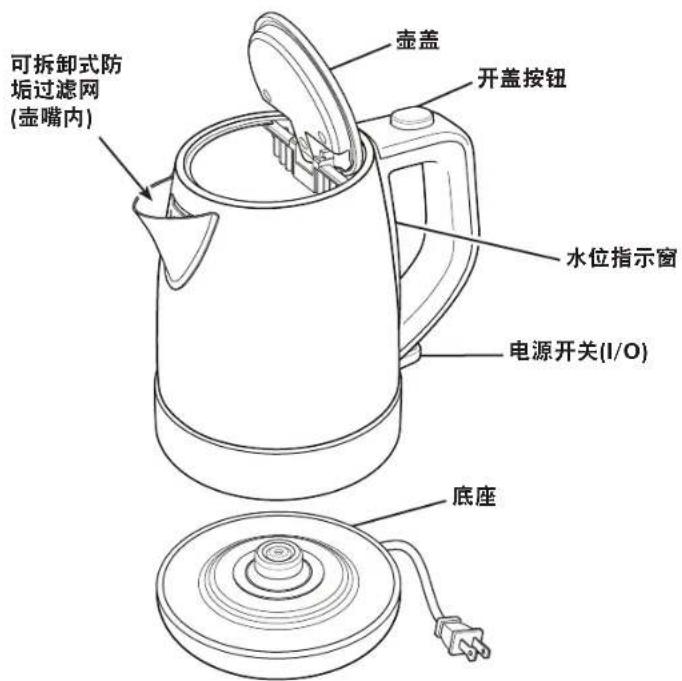

Parts and Features

Technical line drawing of a circular mechanical component with mounting holes and a plug inserted (no text or symbols)

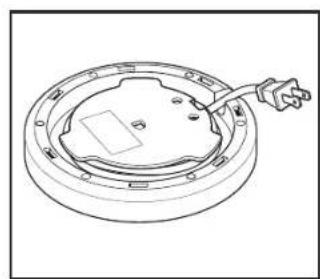

Cord Wrap

Removable Anti-Scale Mesh Filter (inside spout) Lid Lid-Opening Button Water Level Window Power Switch (I/O) Power Base

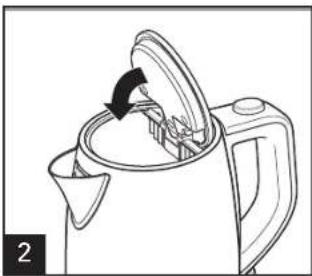

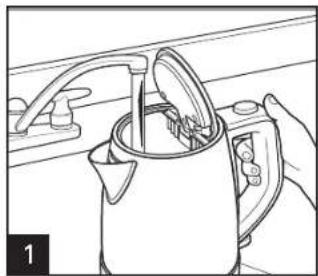

How to Use the Kettle

Line drawing of a hand pouring liquid into a kettle using a stand mixer (no text or symbols)

Line drawing of a kettle with an open lid and handle, showing internal components and a curved arrow indicating rotation (no text or symbols)

WARNING Burn Hazard.
Do not overfill kettle. Boiling water may spit out of the spout.

Diagram showing a mechanical component with a downward arrow indicating a process or operation (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the cable (no text or symbols present)

5

Kettle will automatically shut off when water has boiled.

Diagram showing a coffee machine pouring liquid into a mug, connected to an electrical outlet with a plug (no text or symbols)

NOTE: Only use kettle to heat water. If kettle is used to heat other liquids, such as coffee or tea, the warranty will be voided.

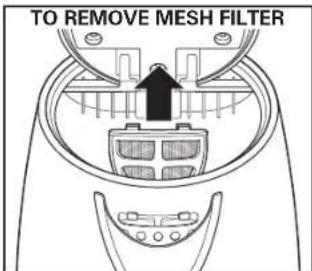

TO REMOVE MESH FILTER

The mesh filter is visible through the kettle lid opening. Pull upwards on the tab to remove. Rinse filter periodically.
WARNING Burn Hazard. Allow kettle to cool before attempting to remove mesh filter.

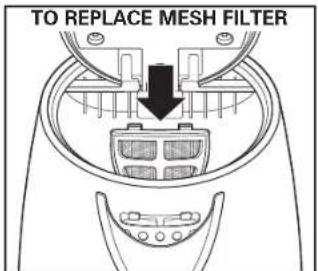

TO REPLACE MESH FILTER

To replace, slide the filter back into the slots and snap into place. The filter will fit only one way.

Care and Cleaning

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

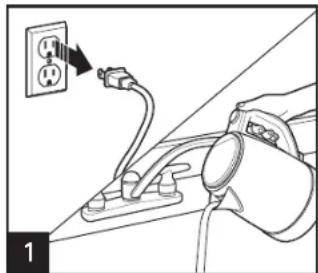

To avoid scale/lime deposit buildup, empty kettle after each use.

Line drawing of a hand holding a kettle with a lid, no text or symbols present

Wipe the exterior of kettle with a damp cloth. Do not use abrasive scouring pads or powders since they may scratch the smooth surface of the kettle.

To remove discoloration or scale/lime deposit from heating element: Place 1/2 teaspoon cream of tartar (available in the spice aisle of grocery store) into the kettle. Then fill the kettle 1/2 full with water. Plug in, turn ON (I), and bring to boil. Turn OFF (O), let cool, and rinse several times with clean tap water.

⚠ WARNING Electrical Shock Hazard.

Do not immerse kettle, power base, or plug in water or other liquid.

If Kettle Floor Discolors: It is normal for stainless steel heating elements to discolor. This does not affect the performance of the kettle. Do not use abrasive scouring pads or cleaners since this may damage the stainless steel surface.

If Kettle Boils Dry: The heating element is protected by two automatic safety devices. If your kettle is accidentally switched on without being filled with water, or is allowed to boil dry, the kettle will automatically switch off. You should:

• Turn the switch to OFF (O), unplug, and wait about 20 minutes for the element to cool down.
• Refill the kettle; then use as normal and check that the kettle functions correctly.

If Kettle Does Not Work: Make these simple checks before calling the toll-free customer assistance number:

• Have you turned power switch to ON (I) position?
• If the kettle heats but does not boil, it might need descaling.
• Has the kettle been switched on accidentally without being filled with water or allowed to boil dry? Turn the switch to OFF (O), wait 20 minutes, and try again.
• Is cord firmly plugged into the outlet and kettle firmly seated in the base?

Anti-Scale Mesh Filter: Scale is caused by lime and calcium in hard water. The mesh filter will prevent these suspended particles from being poured out of the kettle. The filter should be cleaned periodically to ensure optimum performance. To clean the filter, unplug kettle and allow to cool. The mesh filter may be removed by pulling upwards on the tab, which is visible through the kettle opening. Rinse filter under running water and brush with a soft brush. A small, soft-bristle brush works well. To replace the mesh filter, slide the filter back into the slots and snap into place. The filter will fit only one way.

重要安全说明

Technical line drawing of a circular mechanical component with mounting holes and a plug inserted (no text or symbols)

储线盘

Line drawing of a hand holding a kettle with a lid, placed on a kitchen sink (no text or symbols)

Line drawing of a kettle with an open lid and handle, showing internal components and a curved arrow indicating rotation (no text or symbols)

警告 烫伤危险。

请勿加水过量。沸水可能会从壶嘴喷出。

Diagram showing a mechanical press or stamping process with a downward arrow indicating motion (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with two outlets, connected to a cable (no text or symbols present)

5

Diagram showing a coffee machine pouring liquid into a mug, connected to an electrical outlet with a plug (no text or symbols present)

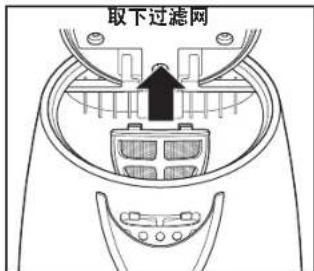

取下过滤网

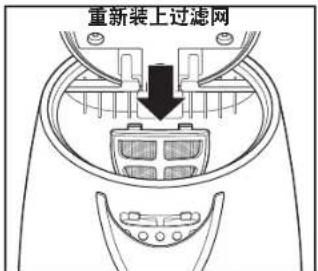

重新装上过滤网

当水沸腾时，电水壶将自动断电。

Diagram showing installation of an electrical outlet with a plug, labeled with number 1

Line drawing of a hand holding a kettle with a lid, no text or symbols present

Dist.: Hamilton Beach Brands, Inc., Glen Allen, VA 23060

© 2015 Hamilton Beach Brands, Inc.

以上内容如有改动，恕不预先通知
