USER MANUAL MP8660 3M

MP8660 Multimedia Projector Operator's Guide

MP8660 Appareil de projection multimédia Guide de l'opérateur MP8660 Multimedia-Projektor Bedienerhandbuch Portatil Multimedia MP8660 Manual del usuario MP8660 Projettore multimedia Manuale dell'operatore MP8660 Multimediaprojektor Brukerhåndbok MP8660 Multimedia Projector Gebruiksaanwýzing

Table of Contents

Safeguards 1

Warranty 2

Section 1: Unpack 3

1-1. Contents of Shipping Box 3
1-2. Keep Your Packing Materials 3
1-3. What's Next? 3

Section 2: Product Description .... 4

2-1. Machine Characteristics 4
2-2. Parts Identification List 4

Section 3: Set Up 5

3-1. Cable Connections 5
3-2. Projector Set Up 9
3-3. Now What? 10

Section 4: Operating the Projector ...... 11

4-1. Turning On the Projector 11
4-2. Projector Control Panel 12

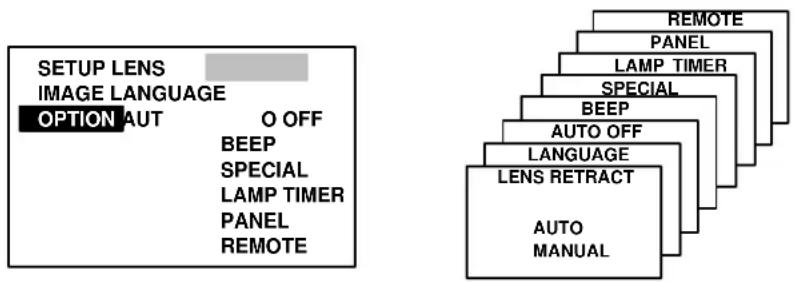

4-3. On-Screen Menus 13
4-4. Adjusting Image Size and Focus 16
4-5. Adjusting the Volume 16
4-6. Video System 16
4-7. MAC Mode (RGB only) 16
4-8. Menu Languages 16
4-9. Turning Off the Projector 16

Section 5: Remote Control 17

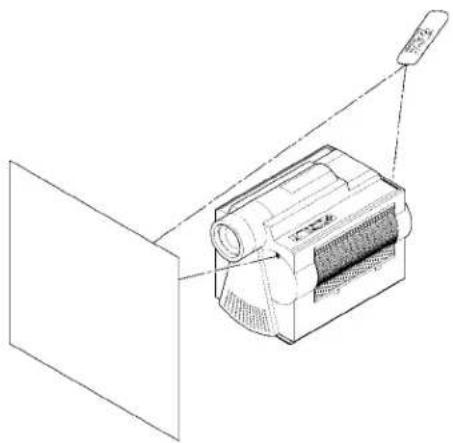

5-1. How to Operate the Remote Control 17

Section 6: Lamp Information .... 19

6-1. Metal Halide Projector Lamp 19
6-2. MP8660 Lamp Replacement 20

Section 7: Maintenance .... 21

7-1. Cleaning 21

Section 8: Troubleshooting 23

8-1. Service Information 24

Section 9: Accessories 25

9-1. MP8660 Multimedia Projector Accessories 25

Appendix: Technical Information A-1

INTENDED USE

Before operating the machine, please read the entire manual thoroughly. The 3M ^™ Multimedia Projector MP8660 was designed, built and tested for use indoors, using 3M ^™ brand lamps and nominal local voltages. The use of other replacement lamps, outdoor operation or different voltages has not been tested and could damage the projector or peripheral equipment and/or create a potentially unsafe operating condition.

IMPORTANT SAFEGUARDS

1. Read and understand all instructions before using. Pay particular attention to areas where this symbol ⚠ is shown.

⚠ WARNING — Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Caution — Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. It may also be used to alert against unsafe practices.

1. Close supervision is necessary when any appliance is used by or near children. Do not leave appliance unattended while in use.

2. Never look directly into the projector lens when the lamp is on. The metal halide lamp produces a strong light which could damage your eyesight.

3. Care must be taken as burns can occur from touching hot parts.

4. Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged — until it has been examined by a qualified service technician.

5. Position the cord so that it will not be tripped over, pulled or contact hot surfaces.

6. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat.

7. Always unplug appliance from electrical outlet before cleaning and servicing and when not in use. Grasp plug and pull to disconnect.

8. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.

9. To reduce the risk of electric shock, do not disassemble this appliance, but take it to a qualified technician when service or repair work is required. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

10. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock, or injury to persons.

11. Connect this appliance to a grounded outlet.

12. This unit is equipped with optical lenses and should not be exposed to direct sunlight.

13. Keep ventilation openings free of any obstructions.

14. Always remove the lens cap when the projection lamp is on.

15. The projection lamp contains mercury. Always dispose of it in a proper manner according to local regulations.

SAVE THESE INSTRUCTIONS

The information contained in this manual will help you operate and maintain your 3M MP8660 Multimedia Projector.

THANK YOU FOR CHOOSING 3M

Thank you for choosing 3M multimedia projection equipment. This product has been produced in accordance with 3M's highest quality and safety standards to ensure smooth and troublefree use in the years to come.

For optimum performance, please follow the operating instructions carefully. We hope you will enjoy using this high performance product in your meetings, presentations and training sessions.

LIMITED WARRANTY

3M warrants this product against any defects in material and workmanship, under normal use and storage, for a period of one year from date of purchase. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, 3M's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included).

To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

LIMITATION OF LIABILITY

THE FOREGOING WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND 3M SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS. 3M SHALL NOT BE LIABLE FOR ANY DAMAGES, DIRECT, CONSEQUENTIAL, OR INCIDENTAL, ARISING OUT OF THE USE OR INABILITY TO USE THIS PRODUCT.

Important: The above warranty shall be void if the customer fails to operate product in accordance with 3M's written instructions. This warranty gives you specific legal rights and you may have other rights which vary from state to state.

FCC STATEMENT – CLASS A: This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for a Class “A” computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his/her own expense will be required to take whatever measures may be required to correct the interference.

EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements.

Video signal cables: Single shielded coaxial cables (FCC shield cable) must be used and the outer shield must be connected to the ground. If normal coaxial cables are used, the cables must be enclosed in metal pipes or in a similar way to reduce the interference noise radiation.

Video inputs: The input signal amplitude must not exceed the specified level. See Section 9.

IBM is a registered trademark of International Business Machines Corporation. Apple Macintosh and Apple Powerbook are registered trademarks of Apple® Computer, Inc. Microsoft and Windows 95 are registered trademarks, and Windows and Windows for Work Groups are trademarks of the Microsoft Corporation. All other products are trademarks or registered trademarks of their respective companies.

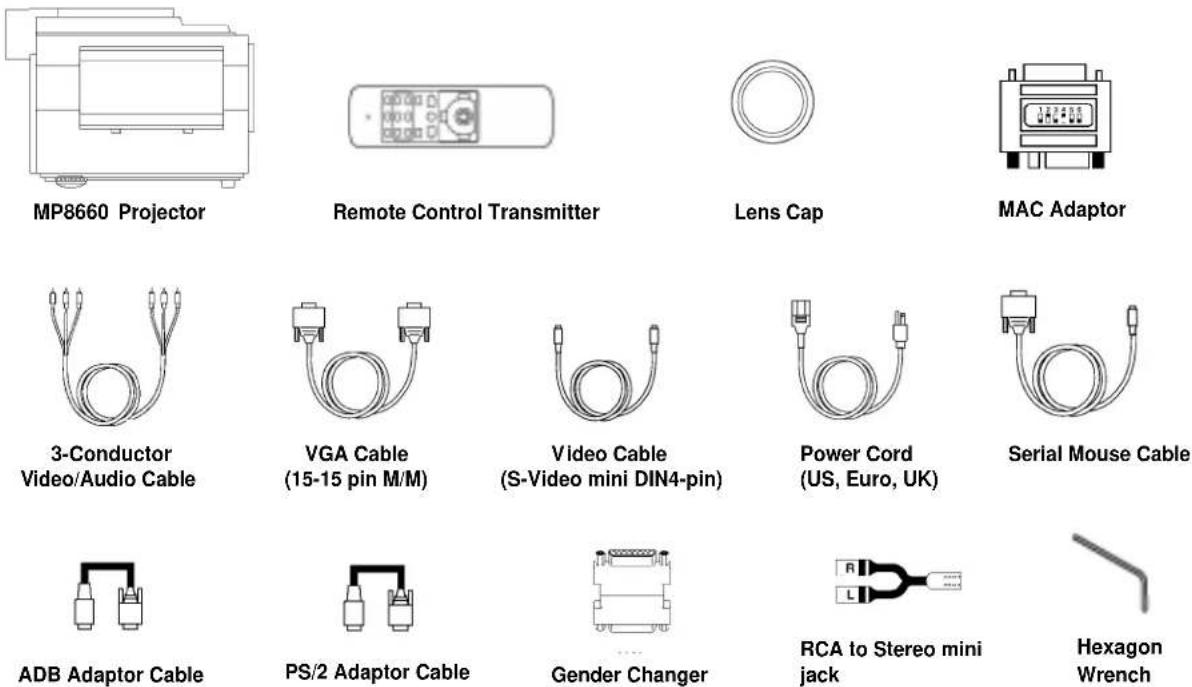

1-1. Contents of Shipping Box

The 3MMultimedia Projector MP8660 is shipped with the necessary cables required for standard VCR, PC, Apple Macintosh or laptop computer connections. Carefully unpack and verify that you have all of the items shown below in Figure 1-1.

Figure 1-1. Inventory of Shipping Box

The following items are optional and are not packed with the projector:

^TM RS-232 Control Cable

^™ VGA MAC Monitor Adaptor

^™ SVGA MAC Monitor Adaptor

1-2. Keep Your Packing Materials

Save the shipping box and packing materials in the event the MP8660 should require shipping to a 3M Service Center for repair. Check the projection lens, it should be fully retracted to prevent damage during shipping.

Note

The projection lens must be completely retracted to protect it during shipping. If the AUTO RETRACT feature has been disabled, the lens will not retract automatically. Press the ZOOM arrow and FOCUS B arrow to retract the lens manually.

1-3. What's Next?

After you have unpacked the MP8660 system and identified all the parts, you are ready to set up the projector.

Take a few minutes to review Section 2 to familiarize yourself with the MP8660 machine characteristics and then turn to Section 3 to set up the projector.

2-1. Machine Characteristics

The 3MMultimedia Projector MP8660 integrates metal halide lamp and dichroic optics display technology into a single unit. It accepts input from two different computer sources and two video/audio sources and projects a bright super crisp image.

The MP8660 Multimedia Projector offers the following features:

DEasy to set up and use DUser replaceable lamp DMetal halide projection lamp D High brightness lamp output (see note) D800 x 600 SVGA/VGA (NTSC, PAL, SECAM) DXGA compatible (60/70/72/75 Hz) DRGBS compatible DAdvanced scaling of data/video DRS-232 control DSerial, PS/2 or ADB mouse emulation DAbility to display 16.7 million colors DTwo computer input connections DTwo video input connections DPower zoom DPower focus DAutomatic projection lens retraction DFull function remote control

D Front & rear IR reciever D Full function operator panel D Back lighting – remote control keypad D Stereo speakers (2 x 1.5 Watt) D Horizontal/vertical image inverting function (rear projection or ceiling mount) D Horizontal/vertical image position control D On-screen menus to adjust projected image D Menus – English, French, Spanish or German D Fixed keystone correction D Electronic LCD Panel Alignment

Note

The MP8660 is one of the brightest projectors in the marketplace. The brightness of your machine will vary depending on the ambient room conditions and contrast/brightness settings.

2-2. Parts Identification List

Figure 2-1. Identifying MP8660 Parts

1. Remote Control Transmitter
2. Lens
3. Carry Handle
4. Remote Control Sensor (front & rear)
5. Stereo Speakers (2 x 1.5 Watt)
6. Indicator Lights (Change Lamp, Cover, Fan, Temp, Lamp)

7. Control Panel Keypad
   a. Lamp Reset, Special, Reset
   b. Standby/On Switch
   c. Input Selection
   d. Mute, Blank, Zoom, Focus, Volume
   e. Menu Selection/Control

8. Height Adjustment Feet

9. Main Power Switch
10. Power Cord Connection
11. Computer video (RGB) Input Terminals
    a. RGB1/RGB2 (D sub 15-pin)
    b. Audio-L/Audio-R (RCA Jack)
12. Video/Audio Input Terminals
    a. S-Video1/S-Video2 (Mini DIN 4-pin)
    b. Video1/Video2 (RCA Jack)
    c. Audio-L/Audio-R (RCA Jack)
13. RGB/Audio L/R (monitor output)
14. Mouse I/F
15. Serial I/F (RS-232)

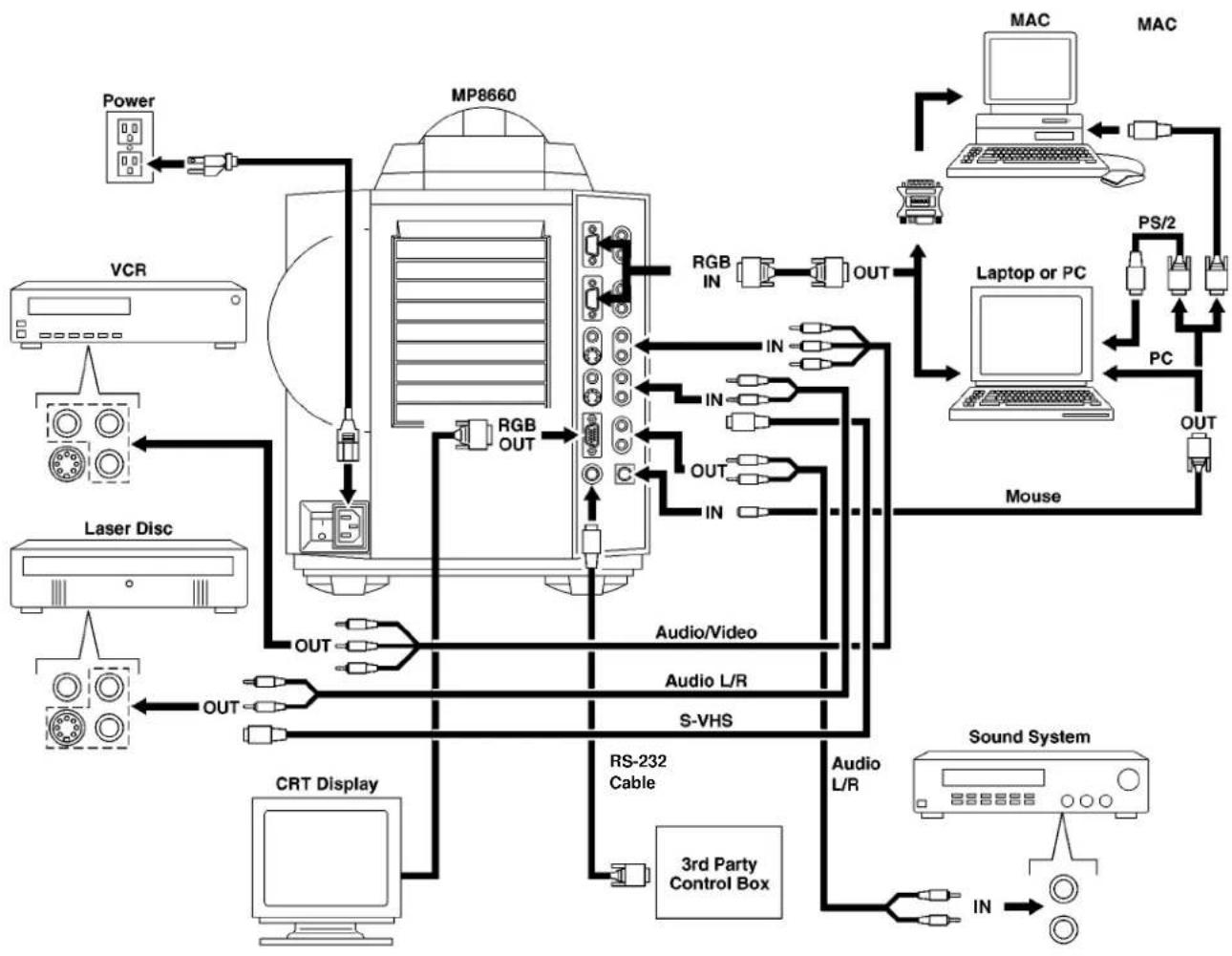

3-1. Cable Connections

It only takes a few minutes to connect the 3M Multimedia Projector MP8660 to your computer, VCR or other video device (Figure 3-1). Always disconnect the projector power before connecting any cables.

    subgraph Audio/Video
        A1["OUT"] & A2["IN"] & A3["IN"] & A4["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"] & A5["IN"]
        A1 & A2 & A3 & A4 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 & A5 |
        B1["OUT"] & B2["IN"] & B3["IN"] & B4["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"] & B5["IN"]
        C1["OUT"] & C2["IN"] & C3["IN"] & C4["IN"] & C4["IN"] & C4["IN"] & C4["IN"] & C4["IN"] & C4["IN"] & C4["IN"] & C4["IN"] & C4["IN"] & C4["IN"] & C4["IN"] & C4["IN"]
        D1["OUT"] & D2["IN"] & D3["IN"] & D4["IN"] & D4["IN"] & D4["IN"] & D4["IN"] & D4["IN"] & D4["IN"] & D4["IN"] & D4["IN"] & D4["IN"] & D4["IN"] & D4["IN"] & D4["IN"]
        E1["OUT"] & E2["IN"] & E3["IN"] & E4["IN"] & E4["IN"] & E4["IN"] & E4["IN"] & E4["IN"] & E4["IN"] & E4["IN"] & E4["IN"] & E4["IN"] & E4["IN"] & E4["IN"]
        F1["OUT"] & F2["IN"] & F3["IN"] & F4["IN"] & F4["IN"] & F4["IN"] & F4["IN"] & F4["IN"] & F4["IN"] & F4["IN"] & F4["IN"] & F4["IN"] & F4["IN"]
        G1["OUT"] & G2["IN"] & G3["IN"] & G4["IN"] & G4["IN"] & G4["IN"] & G4["IN"] & G4["IN"] & G4["IN"] & G4["IN"] & G4["IN"] & G4["IN"]
        H1["OUT"] & H2["IN"] & H3["IN"] & H4["IN"] & H4["IN"] & H4["IN"] & H4["IN"] & H4["IN"] & H4["IN"] & H4["IN"] & H4["IN"]
        I1["OUT"] & I2["IN"] & I3["IN"] & I4["IN"] & I4["IN"] & I4["IN"] & I4["IN"] & I4["IN"] & I4["IN"] & I4["IN"]
        J1["S-VHS"]
        K1["S-VHS"]
        L1["S-VHS"]
        M1["S-VHS"]
        N1["S-VHS"]
        O1["S-VHS"]
        P1["S-VHS"]
        Q1["S-VHS"]
        R1["S-VHS"]
        S1["S-VHS"]
        T1["S-VHS"]
        U1["S-VHS"]
        V1["S-VHS"]
        W1["S-VHS"]
        X1["S-VHS"]
        Y1["S-VHS"]
        Z1["S-VHS"]
        AA1["S-VHS"]
        AB1["S-VHS"]
        AC1["S-VHS"]
        AD1["S-VHS"]
        AE1["S-VHS"]
        AF1["S-VHS"]
        AG1["S-VHS"]
        AH1["S-VHS"]
        AI1["S-VHS"]
        AJ1["S-VHS"]
        AK1["S-VHS"]
        AL1["S-VHS"]
        AM1["S-VHS"]
        AN1["S-VHS"]
        AO1["S-VHS"]
        AP1["S-VHS"]
        AQ1["S-VHS"]
        AR1["S-VHS"]
        AS1["S-VHS"]
        AT1["S-VHS"]
        AU["S-VHS"]
        AV["S-VHS"]
        AW["S-VHS"]
        AX["S-VHS"]
        AY["S-VHS"]
        AZ["S-VHS"]
        BA["S-VHS"]
        BB["S-VHS"]
        BC["S-VHS"]
        BD["S-VHS"]
        BE["S-VHS"]
        BF["S-VHS"]
        BG["S-VHS"]
        BH["S-VHS"]
        BI["S-VHS"]
        BJ["S-VHS"]
        BK["S-VHS"]
        BL["S-VHS"]
        BM["S-VHS"]
        BN["S-VHS"]
        BO["S-VHS"]
        BP["S-VHS"]
        BQ["S-VHS"]
        BR["S-VHS"]
        BS["S-VHS"]
        BT["S-VHS"]
        BU["S-VHS"]
        BV["S-VHS"]
        BW["S-VHS"]
        BX["S-VHS"]
        BY["S-VHS"]
        CA["S-VHS"]
        CB["S-VHS"]
        CC["S-VHS"]
        DD["S-VHS"]
        DE["S-VHS"]
        FD["S-VHS"]
        EG["S-VHS"]
        EGb["S-VHS"]
        EGbS[BV S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-S-I-C-
    subgraph Sound System
        BQs[AQI 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2N-2C-
            AAa[AQI 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N-2C-
            AAaA[AQI 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N -2C-
            AAaB[AQI 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N 1N -2C-
            AAaB[AQI 1N 1N 1N 1N 1N 1N 1N 2P/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/3/7

Figure 3-1. Typical Cable Configuration

Terminal Connection Panel

The input connection panel (Figure 3-2) is located on the back of the projector.

Figure 3-2. Input Connection Panel

Power Connection

Caution

To prevent damage to equipment, all power to the MP8660 and input sources must be turned OFF during cable hook up.

The power cord (Figure 3-3) is detachable from the projector and has different connection plugs on each end. Plug the female end into the power cord terminal on the projector and the male end into a properly grounded electrical outlet.

Figure 3-3. Connecting the Power Cord

Computer (RGB) Input Connection

There are two input jacks available for connecting either desktop or laptop computers. Find the cable that fits your computer type. The VGA cable (Figure 3-4) fits IBM ^™ PC and compatible VGA video systems, and the MAC Adaptor (Figure 3-5) fits on the end of the VGA cable and adapts it to fit Apple ^™ Macintosh computers and Apple ^™ Powerbook laptop computers.

Line drawing of a printer connected to a computer tower (no text or symbols present)

Line drawing of two electronic devices connected by a cable, no text or symbols present

Figure 3-4. IBM Compatible Computer Figure 3-5. Apple Macintosh Computer

MAC Adapter Switch Settings

The MAC Adaptor has six switches which must be set for the resolution output of the monitor. Set all switches to OFF position, then set switches to ON according to the table below:

Resolution Switch ON
640 x 480 (67 Hz) 1, 2
640 x 480 (60 Hz)800 x 600	3, 4
832 x 624 2, 4
1024 x 768 2, 3
17 inch Multiscan 1, 2, 5

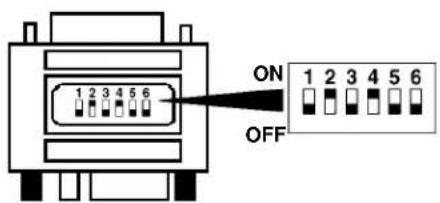

Figure 3-6. MAC Adaptor Switches

Monitor Loop-Through For IBM Compatible Computers

This connection applies to RGB output only. Video input signals are not compatible with the monitor output connection.

a Power down the computer
b Connect the monitor cable to the RGB output port on the projector.

c Turn the power on.
d Select the appropriate RGB input mode on the projector.

Monitor Loop-Through For MAC Computers (non VGA compatible monitor only)

For Apple Macintosh computers, the gender changer (78-8118-3394-2) and optional SVGA adaptor (78-8118-3236-5) or VGA adapter (78-8118-3237-3) plus an additional VGA cable (78-8118-3235-7) is required to complete the connection. See Section 9 for ordering information.

a Power down the computer.
b Connect the VGA cable to the projector monitor output port.
c Connect the SVGA or VGA MAC monitor adaptor to the VGA cable.
d Connect the gender changer to the adaptor.
e Connect the MAC monitor cable to the gender sender.
f Turn power on.


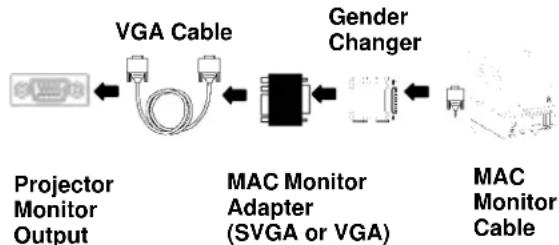

Figure 3-7. MAC Monitor Loop–Through

S-Video Connection

Some video devices can generate S-VHS video, or S-Video (Y/C). The MP8660 will accept this signal through the S-VIDEO1 or S-VIDEO2 connectors. The S-VHS cable has identical round four-pin connectors on either end (Figure 3-8). Connect one end to the S-Video jack on the input source device, and the other end to the S-VIDEO1 or S-VIDEO2 terminal on the MP8660. Remember to connect the audio cables for sound output. S-video input signals have priority over RCA jack input.

Four-Pin Connector

S-VHS Cable

Figure 3-8. S-Video Input

Video/Audio Connection

Find the small, circular connector on your camcorder, laserdisc player, VCR, or other video source marked VIDEO OUT, TO MONITOR, or something similar.

Use the 3-conductor video/audio cable and insert the video (yellow) connector into the video output jack of your video source device. Connect the other end into the MP8660 VIDEO1 or VIDEO2 connector.

Next, find the AUDIO OUT terminals on your VCR or other audio source. Insert the left and right audio cable connectors (Figure 3-9) to the input source. Connect the other end to the AUDIO-L and AUDIO-R terminals on the MP8660.

Figure 3-9. 3-Conductor Video/Audio Input Cable

If you are giving a multimedia presentation with stereo sound, you may want to consider connecting the MP8660 audio-out L/R jacks to a high-quality stereo system. When external speakers are connected, the internal speakers are disabled.

Mouse Interface Cable Connection

The MP8660 remote control transmitter can be used to control the mouse button functions on your personal computer or Apple Macintosh type computer. This connection requires the serial mouse cable and for PS/2 or MAC computers, a special cable adapter.

Note

Operating the mouse functions through the MP8660 remote control may disable the internal pointing device (IPD) on your computer. It is recommended that you review the operating instructions for your computer before connecting an external device of any kind.

Serial Mouse Cable (PC Computer):

Install the serial mouse cable (Figure 3-10) to connect the serial mouse port on your computer to the mouse I/F terminal on the MP8660 projector. A serial mouse driver must be loaded on your PC computer for this function to operate properly. It is best to reference the operating instructions for your computer before connecting an external mouse device of any kind.

Figure 3-10. PC Serial Mouse Cable

To load a serial mouse driver on a computer using Microsoft™ Windows or Windows for Workgroups, go into the Windows Setup function. From Program Manager click Main; then click Windows Setup; (note the current mouse driver that is loaded); click Options; click Change System Settings. Choose Mouse. You will need to have the Serial Mouse on Comm 1 driver loaded. It will most likely be listed as Serial or Bus Mouse. Click OK to apply the serial mouse driver. Restart Windows if prompted.

Hint: To load a serial mouse driver on a computer using Microsoft™ Windows™ 95, go into the Control Panel. Click Start; select Settings; select Control Panel. Click on Mouse; select the General tab; (note the current mouse driver that is loaded); select Change; select Show all compatible devices; (note the current Manufacturer and Model); select Standard Mouse Type for Manufacturer; select Standard Serial Mouse. Click OK to apply the serial mouse driver. Restart windows when prompted.

PS/2 Mouse Adapter Cable (PC Computer):

Install a PS/2 mouse adapter cable (Figure 3-11) to the serial mouse cable to complete the mouse emulation connection for a PS/2 computer.


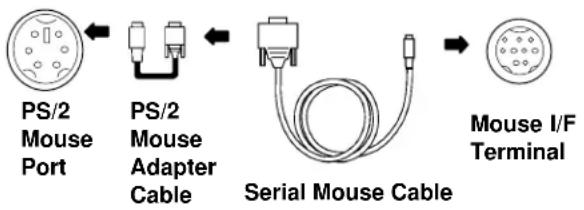

Figure 3-11. PS/2 Mouse Adapter Cable

ADB Mouse Adaptor Cable (MAC Computer):

Install an ADB mouse adapter cable (Figure 3-12) to the serial mouse cable to complete the mouse emulation connection for a MAC computer.


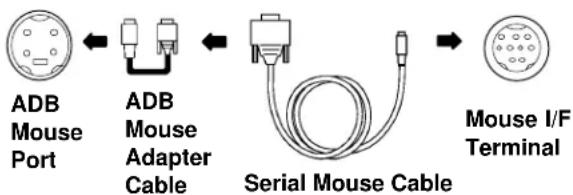

Figure 3-12. ADB Mouse Adapter Cable

Control Cable (3rd Party Control Box):

Install the RS-232 control cable (Figure 3-13) from the RS-232 port on the computer to the RS-232 terminal on the projector. This connect will provide the communication between the MP8660 and a 3rd Party Control Box. See the Technical Appendix for the valid Serial Interface Command Codes which will control projector functions.

Figure 3-13. RS-232 Control Cable

3-2. Projector Set Up

Ambient Light

Whenever you have a choice, light the room from the rear, away from the projection screen. The MP8660 has a brightness adjustment to achieve the best image possible.

Distance to Viewing Screen

The MP8660 can be used in a small or large meeting room to project a quality image from 51 cm (20 inches) to 762 cm (300 inches) in size. The distance between the projector and the viewing screen and the zoom lens setting (minimum to maximum) will determine the size of the projected image. Refer to the Technical Appendix to determine how far away from the viewing screen you need to place the projector to fill the screen with the projected image.

Remember that increasing the projector-to-screen distance also decreases the image's brightness dramatically. In other words, as the image grows larger, it also grows dimmer.

For best results, experiment to find the right combination of projector-to-screen distance and room lighting.

Carrying Handle

The MP8660 has a carrying handle that folds into the top of the projector housing. To raise the handle, push up on the back end of the handle (Figure 3-14) and then lift upward.

Technical line drawings of mechanical components with directional arrows indicating movement (no text or symbols)

Figure 3-14. Unfolding Handle

Ceiling Mount Considerations

An optional ceiling mount bracket (Figure 3-15) is required to install the MP8660 from the ceiling. For this type of installation, the image must be vertically and horizontally inverted.

See section 9-1 to order the ceiling mount kit.

Figure 3-15. Optional Ceiling Bracket

Adjusting the Projector Elevation

The elevation can be adjusted by turning the foot adjuster (Figure 3-16) to raise or lower the angle of the projector.

Technical line drawing of a mechanical component with internal grid structure and directional arrows (no text or symbols)

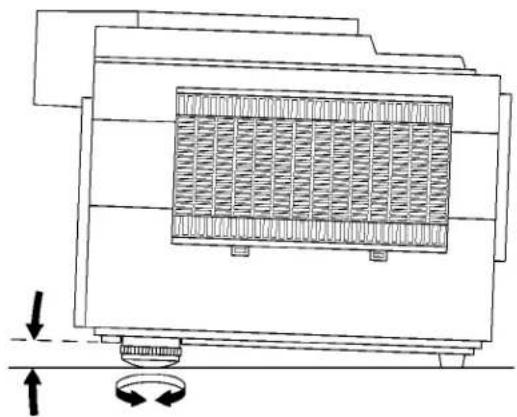

Figure 3-16. Foot Adjusters

Note

Both adjusting feet must be raised or lowered the same amount to project a level image on the viewing screen. The elevation can be adjusted from approximately 0.4 to 7.2 degrees.

Rear Projection

A semi-transparent screen (Figure 3-17) can be used to project an image and view it from the backside of the viewing screen. For this type of installation, the image must be horizontally inverted.

Figure 3-17. Rear Projection Viewing

3-3. Now What?

Your MP8660 is now connected and ready to power on. Turn to Section 4 for details on operating the projector.

4-1. Turning On the Projector

Read the Important Safeguards before operating the MP8660 projector.

Refer to Section 3 to make all cable connections. When the input cables and power cords are connected, turn on the projector power then the power to the input sources.

Caution

Allow a projector that has been stored in a cold environment to warm up to operating temperature 0C to 35C (32F to 95F) before applying power.

Step 1: Turn Projector Power On.

Turn on the main power switch located on the backside of the projector.

= ON O = OFF

Step 2: Remove Lens Cap. Remove the lens cap from the projection lens before energizing the lamp.

Step 3: Press STANDBY/ON button.

The Power indicator (Figure 4-1) will turn from amber to green to indicate that the projector is in the operating mode.

Note

When a metal halide lamp is first turned on, it is normal for it to make noise as the gas inside the bulb heats to the proper operating temperature.

Step 4: Power up input sources.

Step 5: Select Input Source.

Press the RGB or VIDEO button to select the desired video or computer source. Press again to select the next input source.

RGB1 ⇒ RGB2 ⇒ RGB1

Video1 ⇒ Video2 ⇒ Video1

Step 6: Adjust Image Size

Press and hold the ZOOM +/- button to adjust image size.

Step 7: Adjust Image sharpness

Press and hold the FOCUS +/- button to adjust sharpness.

Step 8: Adjust Volume

Press and hold VOLUME +/- button to increase or decrease internal or external speaker volume.

Step 9: Navigate Menus.

Press the MENU button and SELECT arrows to view menus and select options.

Figure 4-1. Projector Control Panel

4-2. Projector Control Panel

Indicator Lamps

The projector control panel (Figure 4-1) has several indicator lamps that illuminate to indicate normal operation and when alarm conditions have been detected. Refer to the chart below for details.

Normal Operation Indicator Lamps
LED Status of the Unit
	Main Power: ON STANDBY/ON: ON Lamp: OFF		STANDBY/ON: ON Lamp: ON	Receiving Remote Control Signal
POWER Amber GREEN GREEN
REMOTE OFF OFF OFF Blinking GREEN
CHANGE LAMP OFF OFF OFF
COVER OFF OFF OFF
FAN OFF OFF OFF
TEMP OFF OFF OFF
LAMP OFF Blinking GREEN GREEN

Alarm Indicator Lamps
LED Status of the Unit
	Lamp Failure TemperatureFailure	Right PanelOpen	Lamp Life Over(>1000 hours)	Fan Failure
POWER	Amber	Amber	Amber	GREEN	Amber
REMOTE
CHANGE LAMP				RED
COVER			RED
FAN					RED
TEMP		RED
LAMP	RED

Special/Reset Buttons

Press the SPECIAL button (Figure 4-1) to view the firmware revision level and the current input data (RGB or Video) for the projector. The TEST SCREEN (Figure 4-2) will display. If no input is detected, the message "NO INPUT" will display.

Figure 4-2. Test Screens

Press the RESET button (Figure 4-1) to reset all projector settings to the factory default. Press the down arrow to change to YES (Figure 4-3) and press the SELECT button. Press the SELECT button again to activate the settings and the message "RESET COMPLETE will display.

Figure 4-3. Reset Screen

4-3. On-Screen Menus

Use the projector control panel (Figure 4-1) or remote control keypad (Figure 5-2) to navigate the menus. Press the MENU button Ⓜ on the projector control panel or remote control keypad to display the Main Menu. Press the up/down arrows or move the mini–joy stick up/down to move vertically within a menu, sub–menu or adjustment screen.

Press the left/right select arrows " on the projector control panel or move the mini-joy stick left/right to move horizontally within a sub-menu or adjustment screen.

Press the SELECT button Ⓜ on the control panel or the SELECT (L) button ⏚ on the remote to enter a selected adjustment screen.

SETUP SUB-MENUS (RGB, VIDEO)

Press the MENU button to display the Main Menu. The SETUP Sub-Menu will be highlighted. Press the up/down arrow on the control panel or move the mini-joy stick up/down to select the desired sub-menu (SETUP, IMAGE, OPTION). Press the right arrow or move the mini-joy stick right to enter the sub-menu.

Note

The projector will display either the RGB or Video Setup menu according to the input source being projected.

Figure 4-4. Setup Sub-Menu (RGB Input)

Figure 4-5. Setup Sub-Menu (Video Input)
Press the up/down arrow on the control panel or move the mini-joy stick up/down to select the desired adjustment screen (BRIGHTNESS, CONTRAST, etc.). Press the SELECT button to enter the adjustment screen. Use the control panel arrows or mini-joy stick to change the value/position to the desired setting and press the SELECT button to activate the new setting.

Refer to the SETUP MENU SCREEN charts below. A description and the default value for each value/position is listed.
If you press the RESET button, the selected value will return to the factory default setting.

RGB - SETUP SUB-MENU
Adjustment Screen Value/Position Default
BRIGHTNESS	±00 |——|——|	±0
CONTRAST	±00 |——|——|	±0
POSITION	H ± 00V ± 00	±0
PHASE ±00	±0
H SIZE	±00	±0
MAC MODE(RGB only)	ON= MAC 16 or 19 inchOFF=all other computers	OFF

SETUP SUB-MENUS (RGB, VIDEO), continued

Figure 4-6. Image Menu
Press the up/down arrows or move the mini-joy stick up/down to select the desired adjustment screen (MIRROR or MESSAGE). Press the SELECT button to enter the adjustment screen.

Note

In Figure 4-6, the IMAGE Sub–Menu then the MIRROR Adjustment Screen have been selected. Press SELECT to enter the MIRROR Adjustment Screen.
Use the up/down/left/right arrows or mini-joy stick to change the value. The new value will activate as soon as it is changed. Press the SELECT button to return to the IMAGE Sub-Menu.
Refer to the IMAGE Sub–Menu chart below. A description and the default for each value is listed.
If you press the RESET button, the selected value will return to the factory default setting.

IMAGE SUB-MENU
Adjustment Screen Value Description Default
MIRROR(see note above)	NORMAL	Standard tabletop projection (no inversion)	ON
	H INVERT	Rear projection application	OFF
	V INVERT	Ceiling mount and rear projection application	OFF
	H & V INVERT	Ceiling mount application	OFF
MESSAGE ON	OFF	ON = messages displayOFF = no messages display	ON

OPTION SUB-MENU

Press the MENU button to display the Main Menu. The SETUP Sub–Menu will be highlighted. Press the up/down arrow or move the mini–joy stick up/down to select the OPTION Sub–Menu. Press the right arrow on the control panel or move the mini–joy stick right to enter the sub–menu.

Figure 4-7. Option Menu

Press the up/down arrows or move the mini-joy stick up/down to select the desired adjustment screen (LENS, LANGUAGE, AUTO OFF, BEEP SPECIAL or PANEL). Press the SELECT button to enter the adjustment screen.

Note

In Figure 4-7, the OPTION Sub–Menu and LENS Adjustment Screen have been highlighted. Press SELECT to enter the LENS Adjustment Screen.
Use the up/down/left/right arrows or mini-joy stick to change the adjustment screen to the desired setting. The new value will activate as soon as it is selected. Press the SELECT button to return to the OPTION Sub-Menu.
Refer to the OPTION Sub-Menu chart below. A description and the default for each value is listed. If you press the RESET button, the selected value will return to the factory default setting.

OPTION SUB-MENIU
Adjustment Screen Value	Default
LENS AUTO=lens auto retract	OnMANUAL=lens auto retract Off	AUTO
LANGUAGE Select menu language:	ENGLISHFRENCHSPANISHGERMAN	English
AUTO OFF YES=auto power	off after 10 minutesof no input (blue screen)NO=manual power off	NO
BEEP ON=activate beep	OFF=no beep	ON
SPECIAL(Test screen displays current input data)	RGB1TEST SCREENFIRMWARE REV.#xxxxxxSVGA56H xx.x kHzV xx.x Hz	—
LAMP TIMER LAMP TIMER	1000 hours	—
PANEL GREEN BLUE	±00 ±00	00*
REMOTE (Select remote control sensor)	BOTH = Front and rear sensorFRONT= Front sensor onlyREAR = Back sensor only	BOTH

* The LCD panel alignment can be electronically adjusted up or down by one pixel. This is a vertical adjustment only.

4-4. Adjusting Image Size and Focus

Zoom: Press the ZOOM +/- buttons to adjust the image size. If you cannot make the image fill the screen, locate the projector further back from the screen.

Focus: Press and hold the FOCUS +/- buttons to increase or decrease the sharpness of the projected image.

Caution

To avoid damaging the internal projector components, DO NOT rotate the projection lens with your hand. Always use the remote control or control panel buttons to adjust the focus.

4-5. Adjusting the Volume

Press and hold the VOL +/- buttons to increase or decrease the volume.

Note

Press the MUTE button on the remote control to silence the volume. Press MUTE or VOLUME to return the sound.

4-6. Video System

The MP8660 has an automatic video detection function that will select the correct video system for NTSC, PAL or SECAM.

4-7. MAC Mode (RGB only)

Select the MAC MODE option if you are connecting a 16 inch or 19 inch Macintosh computer. To select this option, go to the SETUP menu, select MAC MODE and choose "ON." When the MAC MODE is turned on, the projector will automatically select the correct mode (either 16 inch or 19 inch). See Technical Appendix for additional information.

4-8. Menu Languages

The MP8660 will display on-screen menus in the following languages:

English

French

Spanish

German

4-9. Turning Off the Projector

Press the STANDBY/ON button (remote control keypad or projector control panel) to switch the projector to the standby mode. The lamp will shut off and the green indicator on the projector panel will turn to amber. Wait until the cooling fan motor cycles off before you press the Power Off switch (Figure 3-2).

Note

Switching the power off before the fan has cycled off, will decrease the life of the projection lamp.

5-1. How to Operate the Remote Control

The remote control keypad (Figure 5-2) controls basic projector functions.

To use the remote control:

a. Aim the remote toward the projection screen or at the back of the projector (Figure 5-1).
b. Press the desired button and the signal will bounce off of the screen to the front sensor or directly enter the back sensor.

The function of each remote control button is explained below.

Technical line drawing of a mechanical device with no visible text or symbols

Figure 5-1. Using the Remote Control

Remote Control Buttons

Press STANDBY/ON to switch projector between projection and standby mode. In projection mode the lamp is ON. In standby mode the lamp is OFF.
BLANK Press BLANK to display a black background with no image. Press again to return the image to the screen.
Press MUTE to switch the audio sound ON or OFF.
ZOOM Press ZOOM (B) to increase or decrease the size of the screen image.
FOCUS Press FOCUS (B) to increase or decrease the sharpness of the screen image.
VOLUME Press VOLUME (B) to adjust internal/external speaker volume.
BACK LIGHT Press BACK LIGHT to light the remote buttons.
RGB Press RGB to switch computer video input (RGB1 ⇒ RGB2 ⇒ RGB1).
MENU Press MENU to display the on-screen menus. Move the mini-joy stick up/down or left/right as needed to nagivate the menu options. Note: Press SELECT to choose the option that is highlighted.
RESET Press RESET to reset menu options to the factory default setting. Refer to On-Screen Menus in Section 4.
Video Press VIDEO to switch between video inputs (VIDEO1 ⇒ VIDEO2 ⇒ VIDEO1).

Figure 5-2. Remote Control

Using the Mouse Buttons

Refer to Cable Connections in Section 3 for details on how to connect your type of mouse.

There are three mouse buttons L-Left, R-Right and DRAG and a mini-joy stick for controlling mouse functions. See Figure 5-3.

Mouse Mini-Joy Stick: The mini-joy stick controls the position of the on-screen cursor or pointer.

L - Left Mouse Button: This button has two functions.

- Use it to perform the same function as a left mouse button - Press L when a menu is displaying to select the highlighted menu option.

R – Right Mouse Button: This button has the same function as a right mouse button.

DRAG: Use this button to hold and drop an object so it can be moved to a new position on the screen.

*Press and release the DRAG button to select a highlighted object (similar to pressing down and holding a normal mouse key button).

- Use the mini-joy stick to move the object to a new position.

*Press the DRAG button again to release the object.

Figure 5-3. Mouse Buttons

Replacing the Batteries

The remote control uses three AAA batteries. The battery cover is located on the back of the remote control (Figure 5-4). Slide the door open to access the batteries. Make sure the polarity (+/-) on each battery matches the decal in the battery compartment.

Diagram showing battery arrangement with three cells and a curved arrow indicating direction (no text or symbols)

Figure 5-4. Replacing the Batteries

6-1. Metal Halide Projector Lamp

Under normal operating conditions, the lamp should last approximately 1000 hours. However, after time, the lamp brightness will slowly decrease. The projection lamp contains mercury and should be disposed of according to local regulations.

Note

The TEMPERATURE indicator will come on if the lamp becomes too hot. If this happens, wait for the fan motor to stop running, turn the power off and let the projector cool. Check for airflow blockage, clean the air filter then turn the power on. If the TEMPERATURE indicator comes on again, call customer service or your dealer for assistance.

Display or Reset Lamp Operation Hours

The LAMP RESET button is a recessed button. Use a paper clip or pen point to press the LAMP RESET button (1) on the projector control panel (Figure 6-1) and the current lamp operating hours (2) will display. The lamp reset screens will time-out within 5–10 seconds if no selection is made.

Figure 6-1. Projector Control Panel
Press the up/down arrows ^TM on the control panel to select either YES or NO.

YES=reset timer hours to zero NO=continue with current timer hours

Note

Reset the lamp hours to zero only when installing a new lamp.

To reset the hours to zero, select YES (3) and press the SELECT button on the control panel.

Press the SELECT button again to complete the procedure and the message “RESET COMPLETE” will display for 10 seconds.

Change Lamp Message

After 1000 hours of lamp operation, the message CHANGE LAMP will display for 30 seconds each time the machine is powered on. This message is an indication that it is time to install a new lamp.

For best results, the lamp should be replaced after 1000 hours of usage. See Section 6-2. Using a lamp beyond 1000 hours is not recommended because there is an increased potential for the lamp to burst when it gets old.

Contact your nearest Service Repair Center or the Technical Assistance Center at:

In U.S. or Canada: 1-800-328-1371

In other locations, contact your local 3M Sales office.

6-2. MP8660 Lamp Replacement

To replace the lamp on the 3MMP8660 Multimedia Projector, you will need the following:

2.5 mm hex wrench (shipped with replacement lamp module)

Metal halide lamp 78-6969-8460-4

Caution

Lamp and adjacent metal parts become extremely hot and can cause burns to your fingers. Allow the projector to cool for at least 1 hour before replacing the lamp.

Caution

Do not touch the inside of the lamp glass with your fingers. Oil from your fingers can contaminate the lamp glass and cause it to crack or burst.

Caution

Use care when inserting or removing the lamp module from the projector. Excessive force can cause damage to the lamp or projector.

1. Power OFF: Press the Standby/ON button and wait for the fan motor to cycle off. Then, turn off the power switch and UNPLUG THE POWER CORD.
2. Allow projector to cool: If the projector is at operating temperature, wait one hour to allow the metal parts to cool before continuing.
3. Remove Lamp Access Door: Use a 2.5 mm hex wrench to unscrew the lamp cover retaining screws (1) and gently open the cover. Set aside (2).
4. Remove Lamp Module: Slide the old lamp module (4) out of the projector body.
5. Insert Lamp Module: Carefully insert the new lamp module (5) into the opening and slide it all the way back into place. Check the lamp module to be sure that it is fully inserted and flush against the back wall.
6. Secure Lamp Module: Tighten the lamp module retaining screws (6) to secure the lamp in place.
7. Close and Secure Door: Close lamp access door (7) and tighten the retaining screws (8) to secure the door. Turn on projector and test lamp. If lamp light blinks green but lamp does not illuminate, reseat lamp (step 6).

Figure 6-2. Changing the Lamp

Important

The projection lamp contains mercury. Consult your local hazardous waste regulations and dispose of this lamp in a proper manner.

7-1. Cleaning

For best performance, keep your projector free of excess dust and surface dirt.

Daily Cleaning

Use a soft cloth to remove dust from the projector housing.

Cleaning the Projection Lens

Use 3M ^™ Overhead Cleaner 676 to remove surface dirt and smudges from the projection lens (Figure 7-1).

Illustration of a spray bottle and a 3M printer device (no text or symbols visible)

Figure 7-1. Cleaning the Lens

Cleaning the Air Filters

For best performance, clean the air filters every 50 hours of operation.

Removing Air Filters: Unplug the power cord and carefully remove the air filters.

The bottom air filter (Figure 7-2) is located underneath the projector and is easily removed (1) by sliding it out like a center desk drawer.

The side air filter (Figure 7-2) is located on the control panel side of the projector and is easily removed by pressing the release tabs (2) in and lifting the bottom edge of the panel up (3) and away from the body of the projector. This will expose the side air filter inside the projector. Raise the plastic retaining frame (4) and carefully take out the air filter (5).

Figure 7-2. Air Filters Figure 7-3. Lift up to remove side panel

Cleaning Air Filters:

Use a vacuum cleaner (Figure 7-4) to remove dust and dirt from the air filters and from the mesh screen inside the projector.

Figure 7-4. Vacuum Air Filters

Reinstall the bottom air filter (top side up) by sliding it back into place (Figure 7-4).

Carefully insert the side air filter and lower the retaining frame to secure it. Replace the side panel and press down on the bottom edge until the tabs lock it into position (Figure 7-2).

The MP8660 has been designed to be as simple and trouble-free to use as possible. If you should run into problems operating the projector, please review the troubleshooting information below.

Problem Probable Causes Solution
Power does not come on	Power not connected. Rear cover is open.	Plug power cord into an electric outlet.Turn power switch to “ON.” Close cover door tightly.
No picture and sound	Input connections not properly installed.	Set the projector to the correct input source.Check all cable connections from input source to projector.Make sure the input source power is on.
Picture displays but no sound	Cable connections loose and/or volume adjustment needed.	Check all cable connections from input source to projector.Press VOLUME then + on the remote control.Press the MUTE button on the remote control.
Sound but no picture	Cable connections loose and/or picture adjustment needed.BLANK button has been pressed.	Check all cable connections from input source to projector. Adjust the picture brightness. Press MENU, then press SELECT. Press BLANK button to restore picture.
Weak saturation	Picture adjustment needed. Adjust picture color and tint (video only). Press MENU, then press SELECT.
Picture is dark	Picture adjustment needed Adjust the picture brightness and contrast. Press MENU, then press SELECT.Lamp may need replacement. Call customer service for assistance. See Service Information below.
Picture is not sharp and clear	Picture adjustment needed. Adjust focus, H-size (RGB) and phase. Press MENU, then press SELECT.
WARNING is flashing on the projection screen	Projector is overheating. Turn the projector off and let it cool for 30 minutes. Clean the air filter and check all ventilation holes for blockage.
LAMP indicator red, Power-On indicator amber	Problem with lamp has been detected.	Turn the power off and let the projector cool. If the LAMP indicator comes on again, replace the lamp. If problem continues, call service.
“Change Lamp” message displays when projector is powered on	Lamp has been used for recommended 1000 hours.	The Change Lamp message will display for 30 seconds after power on when the lamp clock reaches 1000 hours. This lamp is old and should be replaced.
Problem SolutionProbable Causes
Remote control does not operate	Signal is not being received by front or back sensors.	Point the remote control toward the projection screen so the signal will bounce back to the projector. The REMOTE LIGHT on the control panel should flash when receiving the signal. Make sure the remote control sensors on the front/back of the projector are not blocked from receiving the signal. Move remote closer to the projector. Replace old batteries with fresh AAA batteries.The polarity of the batteries (+/−) must match the decal.
TEMP indicator is red, Power indicator is amber	Projector is overheating. Turn the projector off and let it cool. Check the ventilation holes for blockage.
COVER indicator is red, Power indicator is amber	Side air filter panel is not completely closed.	Check and close all panels and doors.
FAN indicator is red, Power indicator is amber	A problem with the fan has been detected.	Turn the projector off and let it cool for 30 minutes. Clean the air filters and check all ventilation holes for blockage. Call service if the problem continues.

8-1. Service Information

For product information, product assistance, service information, or to order accessories, please call:

In U.S. or Canada: 1-800-328-1371

In other locations, contact your local 3M Sales office.

9-1. MP8660 Multimedia Projector Accessories

If you wish to purchase accessories or replacement parts for the 3M MP8660 Multimedia Projector, please refer to the following list:

Accessory Parts List

Part Description Part Number

Metal Halide Lamp Module, 350W 78-6969-8460-4

Power Cords 26-1009-7103-0US

26-1009-7104-8Euro

26-1010-1051-5UK

VGA Cable (15–15 pin M/M) 78-8118-3235-7

Gender Changer for Apple Macintosh

78-8118-3394-2

(monitor loop-through)

Serial Mouse Cable (Serial mouse emulation) 78-8118-3386-8

ADB Adaptor Cable (MAC mouse emulation) 78-8118-3388-4

PS/2 Adaptor Cable (mouse emulation) 78-8118-3387-6

RS-232 Cable 78-8113-3389-2

S-VGA Apple Macintosh Adaptor (832 x 624) 78-8118-3236-5

VGA Apple Macintosh Adaptor (640 x 480)

78-8118-3237-3

RCA to Stereo Mini Jack

78-8118-3399-1

Hexagon Wrench

78-8118-3377-7

Ceiling Mount Kit

78-6969-8503-1

Adjustable Height Suspension Post

78-6969-8312-7

MP8660 Shipping Case

78-6969-8464-6

MP8660 Soft Carrying Case

78-6969-8463-8

How to Order

Please order these parts through your dealer, or contact 3M Customer Service at the following number:

In U.S. or Canada: 1-800-328-1371

In other locations, contact your local 3M Sales office.

The contents of this manual are subject to revision without prior notice.

3M assumes no responsibility for the infringement of special rights of a third party or other rights that may arise out of the use of the information contained in this manual.

Reproduction of this manual in any form without prior permission is strictly prohibited.

3M will replace the manual if any pages are missing or collated incorrectly.

Table of Contents

A-1. Specifications ...... A-1
A-2. S-Video Input Signal Terminal A-2
A-3. Projector-to-Screen Distances ...... A-2
A-4. Physical Dimensions ...... A-3
A-5. Computer Video (RGB) Input Terminal A-4
A-6. Computer (RGB) Signal Connection Modes ...... A-4

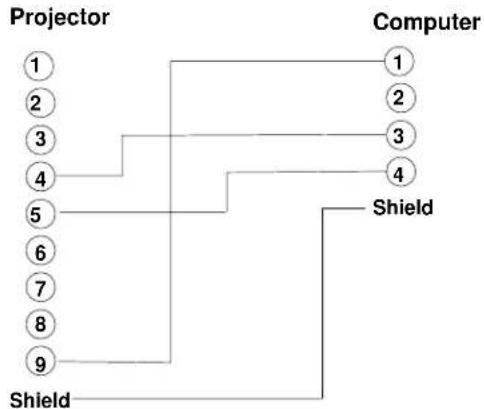

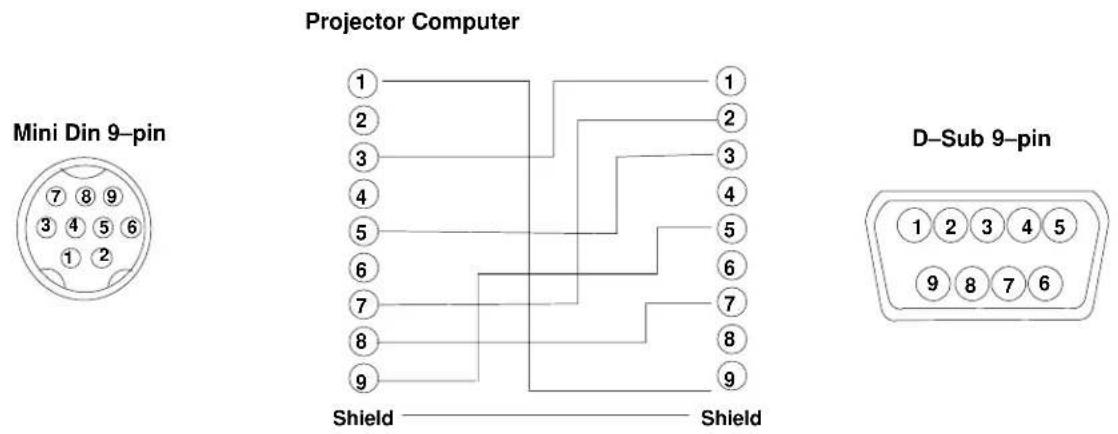

A-7. Mouse Emulation Connections ...... A-5
A-8. Serial Interface Command Codes ...... A-6

A-1. Specifications

Width		28.1 cm (11.06 inch)
Height		35.8 cm (14.1 inch)
Depth		49.1 cm (19.3 inch)
Weight	110V	14.5 kg (32.05 lbs)
	220V	15.0 kg (33.15 lbs)
Panel size		8.1 cm (3.2 inches)
Number of pixels per panel		480,000 pixels (H800 X V600), 3 panels = 1.44 million total pixels
Dot defect		< 0.011% of total pixel count
Zoom lens		1.6:1
Metal halide lamp		350W, rated at 1000 hours to half brightness
Power supply		AC100-120V, 50/60HzAC220-240V, 50/60Hz
Power consumption		Maximum 470W (typical)
Storage temperature range		-20 C to 60 C (-4 F to 14F)
Operating temperature range		0 C to 35 C (32 F to 95)
Input terminals		S-Video: Mini DIN4-pin terminalVideo: RCA jackAudio: RCA jackComputer (RGB): D sub15-pin HD terminal
Input signals		S-Video: Luminance 1.0V peak-to-peak, 75Ω termination, Chroma 0.286V peak-to-peak (burst signal) 75Ω term.Video: 1.0V peak-to-peak, 75Ω terminationAudio: 260mvRMS, across 46kΩComputer (RGB1/RGB2): 0~0.7V peak-to-peak, 75Ω
RGB (computer) input		Audio: RCA jack
Output terminals		Computer (RGB): D sub15-pin HD terminalAudio: RCA jack
Output signals		Monitor: 0~0.7V peak-to-peak, 75ΩAudio: 0~0.7V peak-to-peak or less, 680Ω termination
Batteries for remote control		Three AAA, 1.5 Volt

A-2. S-Video Input Signal Terminal

The following illustration (Figure 10-1) identifies the terminal connections for the Mini DIN4-pin.

Figure 10-1. S-Video Input (Mini DIN4-pin)

Video input signal terminals are detected by the MP8660 in the following order of priority:

DS-video input terminal dRCA jack input terminal

A-3. Projector-to-Screen Distances

DISTANCE TO SCREEN	MINIMUM IMAGE			MAXIMUM IMAGE			Image Height From Center of Lens
	Diagonal Width Height		(H)	Diagonal Width Height		(H)	Minimum Image (A)	Maximum Image (A)
152 cm(5 ft.)	76 cm(30 in.)	61 cm(24 in.)	46 cm(18 in.)	121 cm(47.5 in.)	97 cm(38 in.)	72 cm(28.5 in.)	37 cm(14.6 in.)	58 cm(22.8 in.)
229 cm(7.5 ft.)	111 cm(43.8 in.)	89 cm(35 in.)	67 cm(26.3 in.)	176 cm(69.4 in.)	141 cm(55.5 in.)	106 cm(41.6 in.)	54 cm(21.3 in.)	85 cm(33.5 in.)
314 cm(10.3 ft.)	152 cm(60.0 in.)	122 cm(48 in.)	91 cm(36 in.)	238 cm(93.8 in.)	191 cm(75 in.)	143 cm(56.3 in.)	73 cm(28.7 in.)	114 cm(44.9 in.)
381 cm(12.5 ft.)	183 cm(71.9 in.)	146 cm(57.5 in.)	110 cm(43.1 in.)	289 cm(113.8 in.)	231 cm(91 in.)	173 cm(68.3 in.)	88 cm(34.6 in.)	139 cm(54.7 in.)
457 cm(15 ft.)	219 cm(86.3 in.)	175 cm(69 in.)	131 cm(51.8 in.)	343 cm(135 in.)	274 cm(108 in.)	206 cm(81 in.)	105 cm(41.3 in.)	165 cm(65 in.)
564 cm(18.5 ft.)	271 cm(106.9 in.)	217 cm(85.5 in.)	163 cm(64.1 in.)	424 cm(166.9 in.)	339 cm(133.5 in.)	254 cm(100.1 in.)	130 cm(51.2 in.)	203 cm(79.9 in.)
610 cm(20 ft.)	291 cm(114.4 in.)	232 cm(91.5 in.)	174 cm(68.6 in.)	454 cm(178.8 in.)	363 cm(143 in.)	272 cm(107.3 in.)	139 cm(54.7 in.)	218 cm(85.8 in.)

Relationship of heights H (image height) and A (height measured from center of lens) is: A=0.8×H

Figure 10-2. Measuring Image Height

A-4. Physical Dimensions

The MP8660 projector has the following physical dimensions:

Figure 10-3. Physical Dimensions

A-5. Computer Video (RGB) Input Terminal

The following illustration (Figure 10-4) shows the terminal connections for the D-sub 15 pin HD connector. Refer to the table below for a description of the wire to pin connections.

Pin #	Description	Pin #	Description
1	Image Input (red)	9 Not connected
2	Image Input (green)	10 Ground
3	Image Input (blue)	11 Not connected
4 Not connected 12 Not connected
5	Ground (for sync.)	13 Composite/horizontal sync signal
6	Ground (red)	14	Vertical sync signal
7	Ground (green)	15 Not connected
8	Ground (blue)

Figure 10-4. D-sub 15 pin Connector

A-6. Computer (RGB) Signal Connection Modes

The MP8660 projector automatically recognizes the following connection modes.

Mode	H-Size	Pixel Number	Scan Frequency		Dot Clock Frequency (MHz)	Synchronization Signal		Computer
			Horizontal (kHz)	Vertical (Hz)		Horizontal width/polarity	Vertical width/polarity
2 848	640 x 40	0 24.83 56.42	21.053 64/- 8/-	TEXT 56
3 800	640 x 40	0 31.47 70.09	25.175 96/- 2/+	TEXT 70
3 800	640 x 35	0 31.47 70.09	25.175 96/+ 2/-	TEXT 70
4 832	640 x 40	0 37.86 85.08	31.500 32/- 3/+	TEXT 85
4 832	640 x 35	0 37.86 85.08	31.500 32/+ 3/-	TEXT 85
5 800	640 x 48	0 31.47 59.94	25.175 96/- 2/-	VGA 60
6 832	640 x 48	0 37.86 72.81	31.500 40/- 3/-	VGA 72
7 840	640 x 48	0 37.50 75.00	31.500 64/- 3/-	VGA 75
8 832	640 x 48	0 43.269 85.01	36.000 56/- 3/-	VGA 85
9 896	640 x 48	0 34.98 66.62	31.334 64/- 3/-					MAC 13
A 1024	800 x 6	00 35.16 56.25	36.000			72/±2/±		SVGA 56
B 1056	800 x 6	00 37.88 60.32	40.000 128/+	4/+ SVGA 60
C 1040	800 x 6	00 48.08 72.19	50.000 120/+	6/+ SVGA 72
D 1056	800 x 6	00 46.88 75.00	49.500 80/+	3/+ SVGA 75
E 1048	800 x 6	00 53.67 85.06	56.250 64/- 3/-	SVGA 85
F	1152	832 x 624	49.73	74.55	57.283	64/-	3/-	MAC 16
10	1344	1024 x 768	48.365	60.006	65.000	136/-	6/-	XGA60
11	1328	1024 x 768	56.476	70.069	75.000	136/-	6/-	XGA 70
12	1328	1024 x 768	58.13	71.59	77.200	136/-	3/-	XGA 72
13	1312	1024 x 768	60.02	75.029	78.750	96/+	3/+	XGA 75
14	1312	1024 x 768	48.78	60.00	64.000	96/-	6/-	MAC 19A
15	1328	1024 x 768	60.24	74.93	80.000	96/-	3/-	MAC 19B

Notes:

1. “Mode” denotes the computer mode determined by the projector. The number can be read by the read command through RS-232 interface.
2. Advanced scaling is used for all inputs that are not 800 x 600.
3. Mode 10 and 140: For XGA, full advanced scaling (vertical and horizontal) is used. Modes 11–13 and 14: Only vertical advanced scaling is used.
4. The synchronization signal widths represent the number of dots (horizontal) and the number of lines (vertical).

5. H-size denotes the standard number of dots in the horizontal period.

6. For the MAC16 and MAC19A/B computers, you must manually set the MAC MODE to "ON" to determine the correct modes.

Set the MAC MODE to "OFF" for the following computer modes:

D MAC16 as SVGA75
D MAC19A as XGA60
D MAC19B as XGA75

See Setup Sub-Menu to set MAC MODE.

1. Computer name (in right column) appears when you display the TEST SCREEN on the projector.

A-7. Mouse Emulation Connections

Serial Mouse Cable

PS/2 Adaptor Cable

ADB Adaptor Cable

Mini Din 4-pin

A-8. Serial Interface Command Codes

RS-232 Connection Cable

Command Code Formats

All codes in this document are in ASCII Text. In order to get this to work you must send at the same communication setting as the projector.

This should be 9600 8N1.

For the rest of this document CR is a carriage return which is code 13.

There are two types of commands that can be sent to the projector. They are Write commands and Read commands.

Write Command Format

User:

Code

CR

Projector:

O

K

CR

if it worked or:

N

G

CR

if it did not work.

Read Command Format

User:

Code

CR

Projector:

Data

O K CR

if it worked or:

N

G

CR

A-8. Serial Interface Command Codes, continued

Function Code Meaning
Power On/Off	Write CodesD00W00D00W01Read CodesD00R	Power OnPower OffReturns:00 – Standby01 – Power on but no lamp02 – Power on and lamp03 – Power off but fan running
Input Source	Write CodesD02W01D02W02D02W11D02W12D03W00Read CodesD02R	RGB 1RGB 2Video 1Video 2Shows what input is selected on–screenReturns:01 – RGB102 – RGB211 – Video112 – Video2
Volume Control	Write CodesD04W00 toD04W14Read CodesD04R	Sets volume level to a value between 00 and 14 hex.This corresponds to 20 possible settings.Returns:00 to 14 hex
Focus W	rite CodesD05W00D05W01D05W10D05W11D05W20	300ms Clockwise300ms CounterclockwiseContinuous ClockwiseContinuous CounterclockwiseTurn off motor
Zoom W	rite CodesD06W00D06W01D06W10D06W11D06W20	300ms Clockwise300ms CounterclockwiseContinuous ClockwiseContinuous CounterclockwiseTurn off motor
Mute W	rite CodesD07W00D07W01Read CodesD07R	Mute offMute onReturns:00 – mute is off01 – mute is on
Blank W	rite CodesD08W00D08W01Read CodesD08R	Blank is off – image is shownBlank is on – black screen is shownReturns:00 – off01 – on
Contrast W	rite CodesD12W00 to D12W14Read CodesD12R	Set contrast level to a value between 00 and 14 hex. This corresponds to 20 possible settings.Returns:00 to 14 hex
Brightness W	rite CodesD13W00 to D13W14Read CodesD13R	Sets brightness level to a value between 00 and 14 hex.This corresponds to 20 possible settings.Returns:00 to 14 hex
Tint (Hue)	Write CodesD14W00 to D14W14Read CodesD14R	Sets tint (hue) level to a value between 00 and 14 hex.This corresponds to 20 possible settings.Returns:00 to 14 hex
Color (Saturation)	Write CodesD15W00 to D15W14Read CodesD15R	Sets color (saturation) level to a value between 00 and 14 hex. This corresponds to 20 possible settings.Returns:00 to 14 hex
PC Mode Read Codes	D30R	Returns:0 to 15 hex2 to 15: See Computer (RGB) Signal Connection (Section A-6)00-Shows no input01-Shows invalid input
MAC Mode	Write CodesD32W00D32W01Read CodesD32R	MAC MODE “OFF”MAC MODE “ON”Default is “OFF”Returns:00-MAC MODE is OFF01-MAC MODE is ON
Phase W	rite CodesD34W00 to D34W80D35W00Read CodesD34R	Set phase to a value in the range of 00 to 80 hex.Reset phase to defaultReturns:00 to 80 hex
Display Position	Write CodesD36W00 to D36WFED37W00 to D37WFED38W00Read CodesD36RD37R	Change vertical display position (up/down) from reset position by 00 to FE.Change horizontal display position (left/right) from reset position by 00 to FE Presets display positionReturns:00 to FE vertical position00 to FE horizontal position
H-Size W	rite CodesD39W00 to D39W80Read CodesD39R	The 00 to 80 denotes the deviation of clock numbers from the standard in one horizontal period. “40” is zero, “00” is -64 and “80” is +64 decimal. Default value is “40”Returns:00 to 80 hex
Remote Control	Write CodesD50W00D50W01Read CodesD50R	Disables the remote controlEnables the remote controlReturns:00-Remote control is disabled01-Remote control is enabled
On-Screen Displays W	rite CodesD51W00D51W01Read CodesD51R	Disables on-screen display except “WARNING”Enables on-screen display00-On-screen display is disabled01-On-screen display is enabled

A-8. Serial Interface Command Codes, continued

Function Code Meaning
Language Selection	Write CodesD52W00D52W01D52W02D52W03Read CodesD52R	EnglishFrenchSpanishGermanReturns:00 – English01 – French02 – Spanish03 – German
Mirror W	rite CodesD53W00D53W01D53W02D53W03Read CodesD53R	NORMALH-INVERTV-INVERTH&V-INVERTReturns:00–NORMAL01–H-INVERT02–V-INVERT03–H&V-INVERT
Lens Auto Retract	Write CodesD54W00D54W01Read CodeD54R	Disables auto retractEnables auto retractDefault is “auto retract”Returns:00–Auto retract is disabled01–Auto retract is enabled
Auto Off	Write CodesD55W00D55W01Read CodesD55R	Disables auto offEnables auto offDefault is “NO” auto offReturns:00–Auto off is disabled01–Auto off is enabled
Beep W	rite CodesD56W00D56W01Read CodesD56R	Inactivates BeepActivates BeepDefault is “Activate”Returns:00–Beep is disabled01–Beep is enabled
Special W	rite CodesD57W00 Test screen is shown
Green panel position	Write CodesD58W00D58W01D58W02Read CodesD58R	Sets the green panel to centerSets the green panel by 1 pixel upSets the green panel by 1 pixel downReturns:00–Green panel is in center position01–Green panel moves 1 pixel up02–Green panel moves 1 pixel down
Blue panel position	Write CodesD59W00D59W01D59W02Read CodesD59R	Sets the blue panel to centerSets the blue panel by 1 pixel upSets the blue panel by 1 pixel downReturns:00-Blue panel is in center position01-Blue panel moves 1 pixel up02-Blue panel moves 1 pixel down
IR receiver selection	Write CodesD5AW00D5AW01D5AW02Read CodesD5AR	Selects Front and Rear IR ReceiverSelects Front IR ReceiverSelects Rear IR ReceiverReturns:00-Front and Rear Receiver is selected01-Front receiver is selected02-Rear receiver is selected
Lamp Timer Reset	Write CodesD60W00Read CodesD60R	Resets the lamp timerReturns:xxxx-shows lamp operating time in hours (decimal)
Temperature Read Codes	D61R	Returns:Shows the status of internal temperature00-Temperature level 001-Temperature level 102-Temperature level 203-Temperature level 304-Temperature level 405-Temperature level 506-Temperature level 6
Reset W	rite CodesD62W00	Resets all settings to default
Error Status	Read CodesD01R	Returns:00-No error01-Interlock error02-Lamp error04-Temperature error08-Fan error10-Memory errorNote:If there is more than one error, the resulting read code will be the sum of the error codes listed above. Example: For Interlock-01 and Lamp-02, resulting read code is 03.

We're easy to reach

http://www.mmm.com/presentations e-mail: [e-mail]

3M Austin Center

Building A145-5N-01

6801 River Place Blvd.

Austin, TX 78726-9000

3M Canada

P.O. Box 5757

London, Ontario, Canada

N6A 4T1

3M Mexico, S.A. de C.V.

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we're the only transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy references and free product samples, call us toll-free in the continental United States and Canada, 7:30 a.m. to 5:30 pm (CST) Or visit our Internet Web site.

Printed on 50% recycled wastepaper.

including 10% post-consumer wastepaper

Litho in U.S.A.©3M 1997

78-6970-8001-4 Rev. A
