Product Type Liquid Crystal Projector
Model MP8790CN
Brand 3M
Display Technology TFT Active Matrix LCD
Native Resolution 1024 x 768 (XGA)
Lens Zoom Lens F=1.7-2.4, f=30.5-45.8 mm
Lamp Type 275W UHB (Ultra High Brightness)
Brightness Ultra Bright (UHB lamp + efficient optical system)
Speaker 1.0W + 1.0W Stereo
Power Supply AC 100-120V 4.7A / AC 220-240V 2.0A
Power Consumption 430W

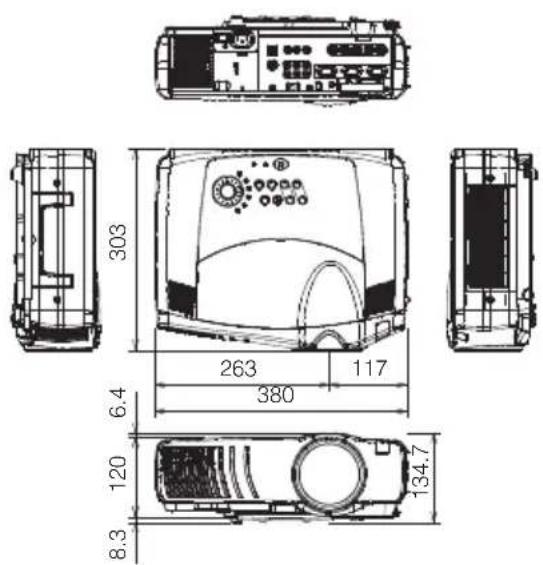

Dimensions (W x H x D) 380 x 120 x 303 mm (excluding protrusions)
Weight 5.8 kg
Operating Temperature 0°C to 35°C
Input Ports RGB (D-sub 15), BNC (RGB/Component), DVI, VIDEO (RCA), S-VIDEO (mini DIN), COMPONENT (RCA), Audio (RCA L/R, stereo mini)
Special Functions Partial Magnification, One Touch, Whisper Mode, Auto Keystone, Freeze, Picture-in-Picture
Remote Control Infrared with laser pointer, wired option available
Mouse Control USB, PS/2, ADB, Serial via CONTROL port
Replacement Lamp Model 78-6969-9601-2
Air Filter Model 78-8118-9103-1

Frequently Asked Questions - MP8790CN 3M

How do I connect my laptop to the 3M MP8790CN projector?
Connect the RGB cable from the projector's RGB port to your laptop's external monitor port. Ensure the laptop's external output is activated (e.g., by pressing the Fn + CRT/LCD key). Select RGB input using the remote or INPUT dial.
How can I correct keystone distortion?
Press the KEYSTONE button on the remote or control panel. Use the arrow buttons to select the direction of distortion, then adjust using the lever switch. You can also enable automatic correction via the ONE TOUCH button when AUTO menu is set to TURN ON.
What should I do if the projector lamp needs replacement?
Turn off the projector and unplug the power cord. Wait at least 45 minutes for the lamp to cool. Remove the lamp cover, unscrew the 3 screws, and pull out the old lamp by the handle. Insert a new lamp (model 78-6969-9601-2), tighten screws, replace cover, and reset the lamp timer via the OPTION menu.
How do I clean or replace the air filter?
Turn off the projector and unplug it. Use a vacuum cleaner to clean the filter cover. If soiling persists, replace the filter (model 78-8118-9103-1). After cleaning or replacement, reset the filter timer via the OPTION menu > FILTER TIME.
How can I use the Picture-in-Picture (P in P) feature?
Press the P. in P. button. A child window will display the video input over the RGB/BNC/DVI source. Use the INPUT menu to select the video source and position (P. IN P. INPUT and P. IN P. POSIT).
Why is there no image or sound?
Check that the power cord is plugged in and the main power switch is on. Ensure the correct input source is selected (RGB, VIDEO, etc.). Verify that the lens cap is removed. Also, check the volume and mute settings.
How can I magnify part of the image?
Press the MAGNIFY (ON) button to enter magnify mode. Use the POSITION button and lever switch to select the area to zoom, then use the lever switch to adjust the zoom level. Press MAGNIFY (OFF) to exit.
Can I control the projector with a computer mouse?
Yes. For USB, connect a USB cable between the projector's USB port and the computer. For PS/2 or serial, connect the appropriate mouse cable to the CONTROL port. The remote control can then move the pointer and click.
What does the WHISPER mode do?
WHISPER mode reduces fan noise and screen brightness for quieter operation. It can be enabled from the OPTION menu by selecting WHISPER instead of NORMAL.
How do I reset the lamp timer after replacing the lamp?
Go to the OPTION menu, select LAMP TIME, then press and hold the RESET button for at least 3 seconds. Follow the on-screen prompts to reset. Only reset when you have installed a new lamp.

User questions about MP8790CN 3M

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Video projector in PDF format for free! Find your manual MP8790CN - 3M and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MP8790CN by 3M.

USER MANUAL MP8790CN 3M

MP8790CN Multimedia Projector

Operator's Guide

Thank you for purchasing this projector.

3M MP8790CN - Operator's Guide - 1

WARNING • Please read the "Product Safety Guide" and this "Operator's Guide" thoroughly to ensure correct usage through understanding.

After reading, store this instruction manual in a safe place for future reference.

NOTE

- The information in this manual is subject to change without notice.

  • The manufacturer assumes no responsibility for any errors that may appear in this manual
  • The reproduction, transmission or use of this document or contents is not permitted without express written authority.

TRADEMARK ACKNOWLEDGEMENT :

  • PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.
  • Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.
    • VESA and SVGA are trademarks of the Video Electronics Standard Association.
  • Windows is a registered trademark of Microsoft Corporation.
  • All other trademarks are the property of their respective owners.

CONTENTS

Page

PROJECTOR FEATURES......2

PREPARATIONS ......2

PART NAMES......4

SETTING UP THE PROJECTOR .....6

CONNECTING YOUR DEVICES.....8

USING THE REMOTE CONTROL...13

TURNING ON THE POWER .....15

ADJUSTING THE VOLUME ......18

TEMPORARILY MUTING

THE SOUND....18

ADJUSTING THE POSITION......19

USING THE AUTOMATIC

ADJUSTMENT FEATURE ......20

CORRECTING KEYSTONE

DISTORTIONS ......21

USING THE MAGNIFY

FEATURE......22

FREEZING THE SCREEN .....22

Page

ADJUSTING SCREEN WITH

ONE-TOUCH....23

SELECTING THE ASPECT

RATIO....24

TEMPORARILY BLANKING

THE SCREEN....24

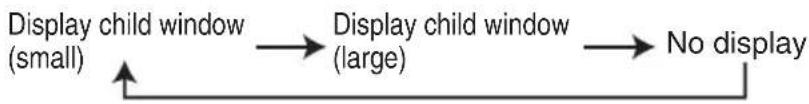

DISPLAYING CHILD WINDOW

(P. IN. P: Picture in Picture) .....24

USING THE MENU FUNCTIONS.....25

MULTIFUNCTIONAL SETTINGS.....26

WHAT TO DO WHEN YOU THINK

A MACHINE DEFECT HAS OCCURRED...38

SPECIFICATIONS......41

ACCESSORIES 42

PROJECTOR FEATURES

This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized.

Ultra High Brightness

Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly efficient optical system

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing

One Touch Function

Just press the ONE TOUCH button to automatically retrieve input signals, calibrate images, and correct keystone distortion

Whisper Mode Equipped

Special mode is available for reducing projector noise to achieve quieter operation

PREPARATIONS

Your projector should come with the items shown below. Check to make sure that all the items are included. Contact your dealer if anything is missing.

NOTE • Keep the original packing material for future reshipment.

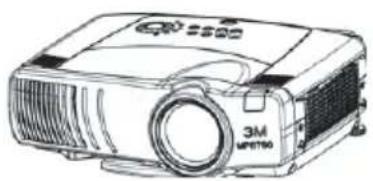

Line drawing of a projector with ventilation slots and a 3M label (no text or symbols on the device itself)

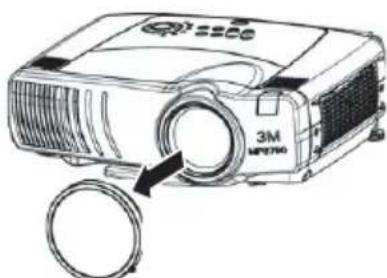

Projector (with Lens Cap)

3M MP8790CN - PREPARATIONS - 2
Operator's Guide Product Safety Guide Warranty Quick Start Guide

3M MP8790CN - PREPARATIONS - 3
Power cord (US, UK, Europe)

3M MP8790CN - PREPARATIONS - 4
RGB cable

3M MP8790CN - PREPARATIONS - 5
USB mouse cable

3M MP8790CN - PREPARATIONS - 6
RS-232C adapter

3M MP8790CN - PREPARATIONS - 7
S-Video Cable

3M MP8790CN - PREPARATIONS - 8
Video/Audio cable (with white lead)

3M MP8790CN - PREPARATIONS - 9
Stereo Mini-Cable

3M MP8790CN - PREPARATIONS - 10
Component Video cable (with green lead)

3M MP8790CN - PREPARATIONS - 11
Two AA batteries (for the remote control)

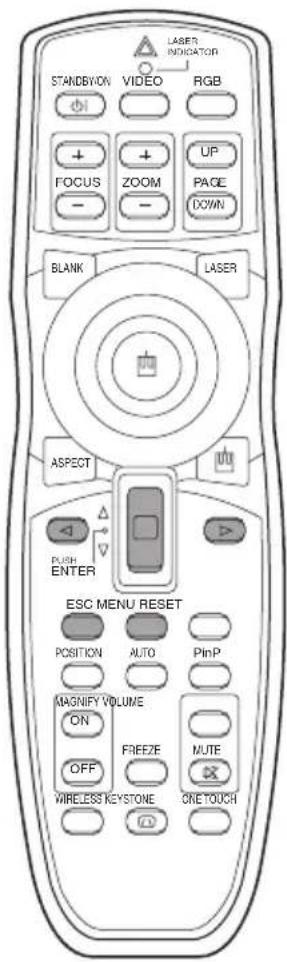

Line drawing of a remote control with labeled buttons and ports

Remote control

3M MP8790CN - PREPARATIONS - 13

WARNING Precautions to observe in regards to the power cord: Please use extra caution when connecting the projector's power cord as incorrect or faulty nections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the owing safety guidelines to insure safe operation of the projector:

  • Only plug the power cord into outlets rated for use with the power cord's specified voltage range.
  • Only use the power cord that came with the projector.
  • NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-PRONGED PLUG!
  • Make sure that you firmly connect the power cord to the projector and wall outlet.

1

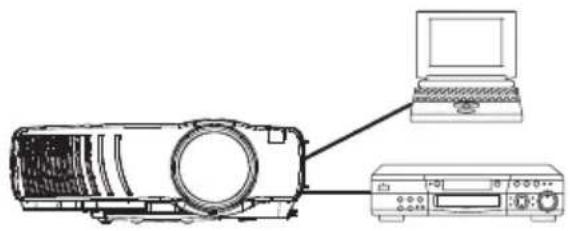

Connect your devices to the projector

Connect your computer, VCR and/or other devices you will be using to the projector.

8 \~ 12

Diagram of a projector connected to a monitor and power supply unit (no text or symbols)

2

Insert the batteries into the remote control

13

Top-down line drawing of a car with no visible text, numbers, or symbols

3

Connect the power cord

(1) Connect the connector of the electrical power cord to the AC inlet of the main unit.
(2) Firmly plug the power cord's plug into the outlet

AC inlet (1) Power outlet (2) Power cord

PART NAMES

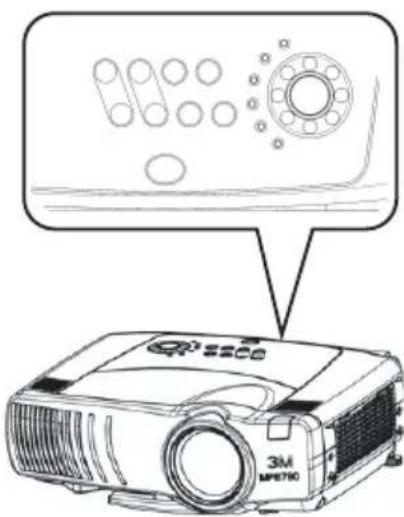

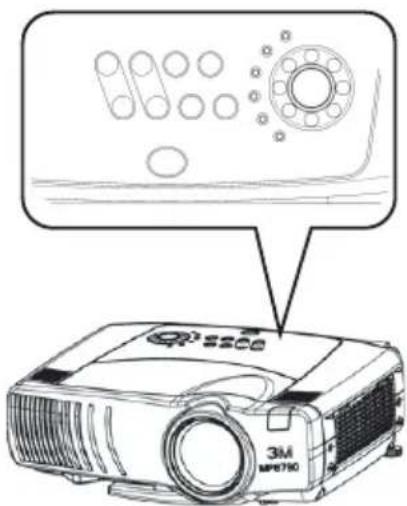

THE PROJECTOR

3M MP8790CN - THE PROJECTOR - 1

Indicates the corresponding reference page

Elevator feet 6 Lens cap 15 3M MP8790 6 Elevator screw 29 Air filter 14 Remote sensor 15 Lens 6 Elevator button

COMPONENT VIDEO port 12 CONTROL port 10 WIRELESS & NETWORK 31 MODULE port RGB OUT port 12 DVI port 11 RGB port 10 BNC port 11 AUDIO IN R/L port 12 14 REMOTE CONTROL port 12 VIDEO IN port 12 S-VIDEO IN port 14 Remote sensor 3 AC power inlet 15 Power switch 10 USB port 9 AUDIO OUT port 10 AUDIO IN 1/2…

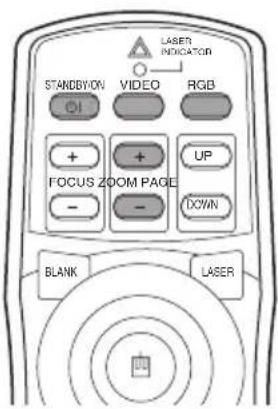

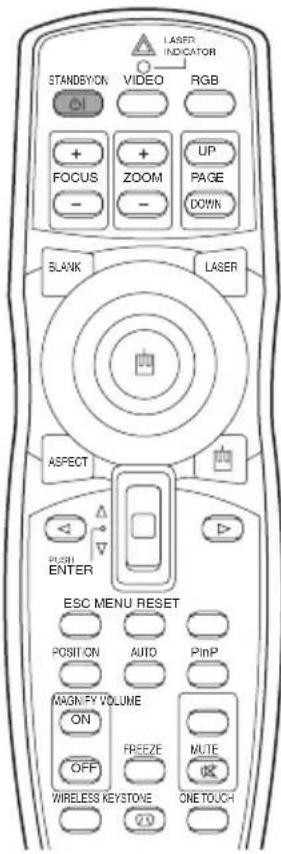

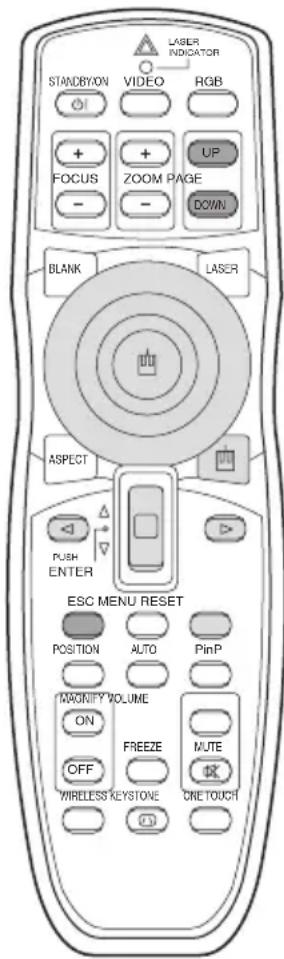

THE REMOTE CONTROL

LASER INDICATOR 1 4 VIDEO button 1 6 STANDBY/ON button 1 5 FOCUS buttons 1 6 BLANK button 2 4 Disk pad 2 6 Mouse cursor movement Left mouse click ASPECT button 2 4 Left /Right 2 5 Key buttons ESC button 2 5 MENU button 2 5 POSITION button 1 9 MAGNIFY buttons 2 2 WIRELESS button 3 1 KEYSTONE button 2…

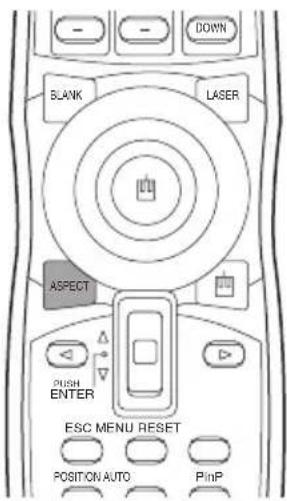

* Using the lever switch

3M MP8790CN - THE REMOTE CONTROL - 2
Flip toward disk pad : Up ( )key

3M MP8790CN - THE REMOTE CONTROL - 3
Flip toward MENU button: Down ( ) key

3M MP8790CN - THE REMOTE CONTROL - 4
Press in center : ENTER button

SETTING UP THE PROJECTOR

3M MP8790CN - SETTING UP THE PROJECTOR - 1

CAUTION • Install the projector in a suitable environment according to instructions of the "Product Safety Guide" and "Operator's Guide".

- If you press the elevator buttons without holding the projector, the projector might crash down, overturn, smash your fingers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, ALWAYS HOLD THE PROJECTOR whenever using the elevator buttons to adjust the elevator feet.

Adjusting the Projector's Elevator Feet

If the surface on which the projector is placed, or the screen is tilted, use the elevator feet and elevator screw to adjust the projection angle of the main unit. The adjustment range of the elevator feet is 0 to 9 degrees.

1

Press and hold in the elevator buttons

3M MP6750 Elevator button

2

Raise or lower the projector to the desired height and then release the elevator buttons

When you release the elevator buttons, the elevator feet will lock into position.

3M MP750 Elevator feet

3

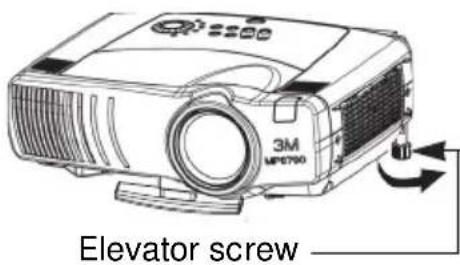

Turn the elevator screw to fine tune.

3M MP5700 Elevator screw

Adjusting the Screen Size and Projection Distance

Refer to the illustrations and tables below to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen
a:Distance from the projector to the screen (±10%)
b:Distance from the lens center to the bottom of the screen (±10%)
c:Distance from the lens center to the top of the screen (±10%)

The screen Top view Lens center Side view a c

If 4:3 aspect ratio
4 3

Screen Size [inch (m)]a [inch (m)]b[inch (cm)]c[inch (cm)]
Min. Max.
30 (0.8) 34 (0.9)52 (1.3) 0(0) 18 (46)
40 (1.0) 46 (1.2)71 (1.8) 0(0) 24 (61)
50 (1.3) 58 (1.5)89 (2.3) 0(0) 30 (76)
60 (1.5) 71 (1.8)107 (2.7)0 (0) 36 (91)
70 (1.8) 83 (2.1)126 (3.2)0 (0) 42 (107)
80 (2.0) 95 (2.4)144 (3.7)0 (0) 48 (122)
90 (2.3)108 (2.7)162 (4.1)0 (0) 54 (137)
100 (2.5)120 (3.0)181 (4.6)0 (0) 60 (152)
120 (3.0)144 (3.7)217 (5.5)0 (0) 72 (183)
150 (3.8)181 (4.6)272 (6.9)0 (0) 90 (229)
200 (5.0)243 (6.2)364 (9.2)0 (0)120 (305)
250 (6.3)304 (7.7)455 (11.6)0 (0)150 (381)
300 (7.5)366 (9.3)547 (13.9)0 (0)180 (457)

The screen Top view Lens center Side view a b c

If 16:9 aspect ratio
16 9

Screen Size [inch (m)]a [inch (m)]b[inch (cm)]c[inch (cm)]
Min. Max.
30 (0.8) 37 (0.9)57 (1.4) 2(6.2) 17(44)
40 (1.0) 50 (1.3)7 (2.0) 13(32) 27(70)
50 (1.3) 64 (1.6)97 (2.5) 16(41) 31(78)
60 (1.5) 77 (2.0)117 (3.0)19 (49) 34(86)
70 (1.8) 90 (2.3)137 (3.5)22 (57) 37(94)
80 (2.0)104 (2.6)157 (4.0)26 (65) 40(102)
90 (2.3)117 (3.0)177 (4.5)29 (73) 43(110)
100 (2.5)131 (3.3)197 (5.0)32 (81) 47(118)
120 (3.0)157 (4.0)237 (6.0)38 (97) 53(134)
150 (3.8)198 (5.0)296 (7.5)48 (121)63 (159)
200 (5.0)265 (6.7)396 (10.1)64 (162)78 (199)
250 (6.3)332 (8.4)496 (12.6)80 (202)94 (240)
300 (7.5)399 (10.1)596 (15.1)96 (243)110 (280)

Devices You Can Connect to the Projector (Refer to this section for planning your device configuration to use for your presentation.)

3M MP8790CN - Devices You Can Connect to the Projector (Refer to this section for planning your device configuration to use for your presentation.) - 1

CAUTION • Incorrect connecting could result in fire or electrical shock. Please read the "Product Safety Guide" and this "Operator's guide".

ATTENTION Precautions to observe when connecting other devices to the projector

  • Whenever attempting to connect other devices to the projector, please thoroughly read the manual of each device to be connected.
  • TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to connect a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction and/or damage to the device and/or projector. Refer to the “Technical” for the pin assignment of connectors and RS-232C communication data.
  • Make sure that you connect devices to the correct port. Incorrect connection may result in malfunction and/or damage to the device and/or projector.
  • Some cables may have to be used with core set. Use the accessory cable or a designated-type cable for the connection. For cables that have a core only at one end, connect the core to the projector.
  • Secure the screws on the connectors and tighten.

3M MP8790CN - ATTENTION Precautions to observe when connecting other devices to the projector - 1
Indicates the corresponding reference page


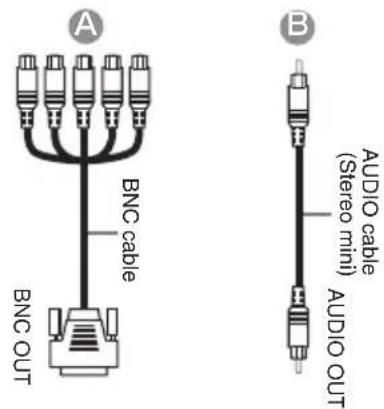

Ports and Cables

Refer to the table below to find out which projector port and cable to use for connecting a given device. Use this table for determining which cables to prepare.

Function Projector Port Connection Cables
Analog RGB inputRGBRGB cable(With D-sub 15-pin shrink jack and inch thread screws)
BNC(R/CR/PR)(G/Y)(B/CB/PB)(H)(V) When BNC (RGB) is selected (*)BNC cable
Analog output RGB OUTRGB cable(With D-sub 15-pin shrink jack and inch thread screws)
DVI input DVIDVI cable
Audio input from computerAUDIO IN 1Linked to RGB or DVI port inputAudio/video cable (Stereo mini)
AUDIO IN 2Linked to BNC (RGB) port input (*)
USB mouse control USBUSB cable
PS/2 mouse controlcableCONTROLe cable2C adapter + RS-232C cablePS/2 mouse cable
ADB mouse control ADB mouse
Serial mouse control Serial mouse
RS-232C communications RS-232C2C adapter + RS-232C cable
S video input S-VIDEO IN S-videocable (mini DIN 4-pin jack)
Video input VIDEO IN Audio/videocable
Component video inputCOMPONENT( CR/PR ) ( CB/PB )(Y)Component video cable
BNC(R/CR/PR)(G/Y)(B/CB/PB) When BNC (COMPONENT) is selected (*)
Audio input from video equipmentAUDIO IN R,LAudio/video cable or audio cable (RCA jack)
Audio output AUDIO OUT Audiocable (Stereo mini)
Wired remote control signal inputREMOTE CONTROL Audio cable (Stereo mini)

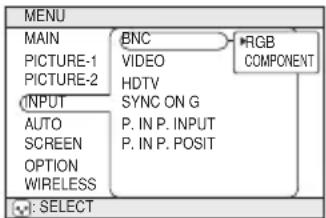

* Before using the BNC port, change RGB input to component video input on the BNC menu item of the INPUT menu.

NOTE About Plug-and-Play Capability

  • This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by connecting this projector to computers that are VESA DDC (display data channel) compatible. Please take advantage of this function by connecting the accessory RGB cable to the RGB port (DDC 1/2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.
  • Plug-and-Play is a system composed of the computer, its operating system and peripheral equipment (i.e. display devices).
  • Please use the standard drivers as this projector is a Plug-and-Play monitor.

CONNECTING YOUR DEVICES (continued)

Connecting to a Computer

ATTENTION Whenever attempting to connect a laptop computer to the projector, be sure to activate the laptop's RGB external image output (set the laptop to CRT display or to simultaneous LCD and CRT display). For details on how this is done, please refer to the instruction manual of the corresponding laptop computer.

A USB USB OUT CONTROL RBC+V1 0Y BC+V3+V4 RBC AUDIO INTU/RBR/INTOUT CoP+ CaPo X COMPONENT VIDEO VIDEO INR AVRES IN 1 2

A RGB cable Analogue RGB OUT

AUDIO cable (Stereo mini) AUDIO OUT

Line drawing of a laptop computer with blank screen and keyboard (no text or symbols)

Laptop computer

RAM A1 B1 RGB RGB OUT CONTROL RDC ENERGY BIOS/PS HV RDC AUDIO & USB/RAT/OUT C+Pc CaPa Y COMPONENT VIDEO VIDEO INR AMOUNT/IN 1 2 D

A RGB cable Analogue RGB OUT B MOUSE cable CONTROL OUT

AUDIO cable (Stereo mini) AUDIO OUT

3M MP8790CN - Connecting to a Computer - 8

Line drawing of a vintage desktop computer with monitor, keyboard, and mouse (no text or symbols)

Desktop computer

NOTE

  • Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
  • For some RGB input modes, the optional Mac adapter is necessary.

Connecting to a Computer (continued)

BNC Input DVI Input
R0B R0B OUT CONTROL R0B-R0/87/80/59 HV A A A A A BNC AUDIO IN USSAL/DIOOUT Cp/Pc Ce/Pc Y COMPONENT VIDEO 1 2 VIDEO INF-AUDIO IN

A DM RGB OUT CONTROL RGB BY/BC/PS HV INR ALIBIN USV/AND OUT Ca/Pa Ca/Pa Y COMPONENT VIDEO VIDEO INR-AMERICIN 1 2 B

A BNC cable BNC OUT B AUDIO cable (Stereo mini) AUDIO OUT

A DVI OUT DVI cable B AUDIO cable (Stereo mini) AUDIO OUT

Line drawing of a vintage desktop computer with monitor, keyboard, and mouse (no text or symbols)

Line drawing of a vintage desktop computer with monitor, keyboard, and mouse (no text or symbols)

Desktop computer Desktop computer

Connecting to a DVD Player
REMOTE CONTROL A A COMPONENT VIDEO RGB RGB OUT CONTROL B B VIDEO INT-AUDIO/DVD 1 2 100 MHz/80Hz/80Hz DAG AUDIO IN USB/CLOSE COMPONENT VIDEO CABLE COMPONENT OUT COMPONENT VIDEO CABLE AUDIO/VIDEO OUT S-VIDEO OUT C S-VIDEO CABLE If using a S-video connection If using a component video connection If usi…

Connecting to a VCR
RGB RGB OUT CONTROL RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RGB/IN-RB A AUDIO/VIDEO cable A AUDIO/VIDEO OUT B S-VIDEO OUT S-VIDEO cable If using a S-video connection…

Connecting to a Display Monitor
RGB RGB CUT CONTROL RGB/DCB/TV INC AUDIO IN USAUDIO OUT REMOTE CONTROL CnPt CaPb Y COMPONENT VIDEO VIDEO IN 2 A RGB cable RGB IN Display monitor

Putting batteries into the remote control unit

3M MP8790CN - Putting batteries into the remote control unit - 1

CAUTION Precautions to observe in regards to the batteries

Always handle the batteries with care and use them only as directed. Improper use may result in battery cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

  • Keep the battery away from children and pets.
  • Be sure to use only the batteries specified for use with the remote control. Do not mix new batteries with used ones.
  • When inserting batteries, verify that the plus and minus terminals are aligned correctly (as indicated in the remote control).
  • When you dispose the battery, you should obey the law in the relative area or country.

1

Remove the battery cover

Slide back and remove the battery cover in the direction of the arrow.

Line drawing of two hands holding a small object, no text or symbols present

2

Insert the batteries

Align and insert the two AA batteries (that came with the projector) according to their plus and minus terminals (as indicated in the remote control).

Line drawing of a car's front view with no text or symbols

3

Close the battery cover

Replace the battery cover in the direction of the arrow and snap it back into place.

Line drawing of two hands holding a small object (no text or symbols)

Operating the remote control

3M MP8790CN - Operating the remote control - 1

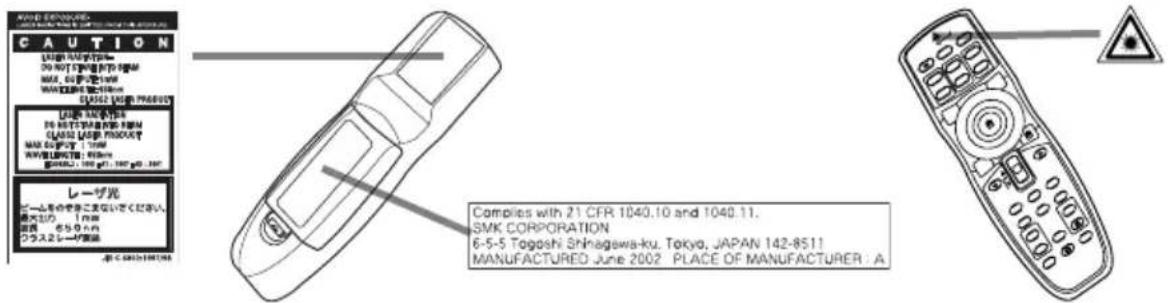

WARNING • The laser pointer of the remote control transmitter is used in place of a finger or rod. Never look directly into the laser beam outlet or point laser beam at other people. The laser beam can cause vision problems.

3M MP8790CN - Operating the remote control - 2

CAUTION • Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION LEIGH NAME: 210000 DO NOT TO BE VENTED BY: SMK MAX. GU PUE 25100W MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. MAX. M…

  • The remote control works with both the projector's front and rear remote sensors.
  • The range of the remote sensor on the front is 3 meters with a 60-degree range (30 degrees to the left and right of the remote sensor), and back is 3 meters with a 40-degree range.
  • Since the remote control uses infrared light to send signals to the projector (Class 1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control's output signal to the projector.
    • The wired remote control:

You can use the remote control as a wired remote control, by connecting the REMOTE CONTROL ports of the main unit and remote control via an audio cable (3.5 dia. stereo mini cable with plugs).

30 degrees 30 degrees approximately 3 meters 20 degrees 20 degrees approximately 3 meters

ATTENTION Precautions to observe when using the remote control

  • Do not disassemble the remote control.
  • Do not drop or otherwise expose the remote control to physical impact.
  • Do not get the remote control wet or place it on wet objects. Doing so may result in malfunction.
  • Do not place the remote control near the projector's lens, fan, or vents.
  • Remove the batteries from the remote control and store them in a safe place if you won't be using the remote control for an extended period.
  • Replace the batteries whenever the remote control starts to malfunction.
  • When strong light, such as direct sunlight or light from an extremely close range (such as from an inverter fluorescent lamp), hits the projector's remote sensor, the remote control may cease to function. Adjust the direction of the projector to keep light from directly hitting the projector's remote sensor.

Precautions

Connect all devices to be used to the projector prior to turning on the power.

3M MP8790CN - Precautions - 1

3M MP8790CN - Precautions - 2

WARNING When the power is ON, a strong light is emitted. Do not look into the lens.

LASER INDICATOR STANDBYON VIDEO RGB + + FOCUS ZOOM PAGE UP - - DOWN BLANK LASER

Control panel

Diagram showing a projector with labeled components and a speech bubble pointing to its screen interface.

NOTE Turn the

power on/off in right order.

• Power on the projector before the computer or video tape recorder.
• Power off the projector after the computer or video tape recorder.

1 Make sure that the power cord is firmly and correctly connected to the projector and outlet

3M MP8790CN - Make sure that the power cord is firmly and correctly connected to the projector and outlet - 1

2 Turn on the projector's power

Set the power switch to [ | ] (ON). The STANDBY/ON indicator will light to solid orange.

STANDBY/ON indicator power switch

3 Press the STANDBY/ON button (control panel or remote control)

  • The projector begins warming up and the STANDBY/ON indicator blinks green.
  • The STANDBY/ON indicator stops blinking and lights to solid green once the projector's power is completely on.

3M MP8790CN - Press the STANDBY/ON button (control panel or remote control) - 1

4 Remove the lens cap

The picture is projected.

Line drawing of a projector with a circular component inserted, showing no text or symbols.

Selecting an Input Signal

5

Using the remote control

If selecting RGB input Press the RGB button

Press this button to toggle between the devices connected to RGB IN 1 and 2. As illustrated below, each time you press the RGB button, the projector switches between RGB IN 1 and 2. Select the signal you wish to project.

- When BNC (RGB) is selected:

RGB BNC(RGB) DVI →

3M MP8790CN - If selecting RGB input Press the RGB button - 1

3M MP8790CN - If selecting RGB input Press the RGB button - 2

- When BNC (COMPONENT) is selected:

RGB DVI

If selecting video input Press the VIDEO button

Press this button to toggle between the devices connected to VIDEO IN, S-VIDEO IN and COMPONENT VIDEO. As

3M MP8790CN - If selecting video input Press the VIDEO button - 1

illustrated below, each time you press the VIDEO button, the projector switches between VIDEO IN, S-VIDEO IN and COMPONENT VIDEO. Select the signal you wish to project.

- When BNC (RGB) is selected: VIDEO IN S VIDEO IN COMPONENT VIDEO

3M MP8790CN - If selecting video input Press the VIDEO button - 2

- When BNC (COMPONENT) is selected: VIDEO IN SVIDEO IN COMPONENT VIDEO

3M MP8790CN - If selecting video input Press the VIDEO button - 3

Using the projector's control panel

Turn the INPUT dial

Turning the dial cycles through the inputs as shown below. Select the terminal to which the signal you want to project is input.

3M MP8790CN - Turn the INPUT dial - 1

- When BNC (RGB) is selected:

RGB BNC(RGB) DVI

COMPONENT VIDEO ↔ S-VIDEO VIDEO O

- When BNC (COMPONENT) is selected:

RGB BNC(COMPONENT) DVI

COMPONENT VIDEO ↔ S-VIDEO VIDE O

NOTE

Turn the INPUT dial and set it at the click point, otherwise input signal selection may be incorrect.

6

Use the ZOOM /+buttons to adjust the screen size

3M MP8790CN - Use the ZOOM /+buttons to adjust the screen size - 1
(Control panel)

3M MP8790CN - Use the ZOOM /+buttons to adjust the screen size - 2
(Remote control)

7

Use the FOCUS /+buttons to adjust the focus

3M MP8790CN - Use the FOCUS /+buttons to adjust the focus - 1
(Control panel)

3M MP8790CN - Use the FOCUS /+buttons to adjust the focus - 2
(Remote control)

LASER INDICATOR STANDEYON VIDEO RGB + + FOCUS ZOOM UP - - PAGE DOWN BLANK LASER ASPECT SHOWN ENTER ESC MENU RESET POSITION AUTO PINP MAGN-FY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE ONE TOUCH

Control panel
Diagram showing a projector with labeled components and a speech bubble pointing to its screen display.

NOTE

- Except in cases of emergency, do not turn off the power switch while the STANDBY/ON indicator is solid or flashing green. Doing so could shorten the lamp lifetime.

1 Press the STANDBY/ON button (control panel or remote control)

The message "Power off?" will appear on the screen for approximately 5 seconds.

3M MP8790CN - Press the STANDBY/ON button (control panel or remote control) - 1

2 Press the STANDBY/ON button again (control panel or remote control)

Press the STANDBY/ON button again while the "Power off?" message is visible. The projector lamp goes off and starts cooling down. While cooling, the STANDBY/ON indicator flashes orange. When in this state, pressing the STANDBY/ON button has no effect. When lamp cooling is complete, the STANDBY/ON indicator stops flashing, and turning solid orange.

3M MP8790CN - Press the STANDBY/ON button again (control panel or remote control) - 1

3 Check that the STANDBY/ON indicator stops blinking and lights to solid orange.

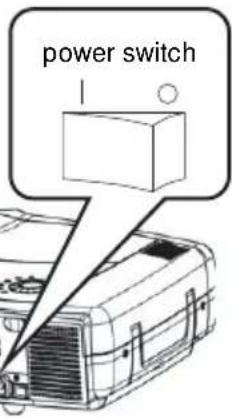

Switch the power switch to [O] (OFF).

power switch

STANDBY/ON indicator

4 Confirm that the STANDBY/ON indicator has gone off and then attach the lens cap.

When the projector has completed powering down, the STANDBY/ON indicator will go off.

Line drawing of a projector with a circular lens and label '3M UP8700' (no text or symbols on the device itself)

ADJUSTING THE VOLUME

STANDS BYON VIDEO RGB + + UP FOCUS ZOOM PAGE - DOWN BLANK LASER ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PinP MAGNIFY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE OVE TOUCH

1 Press the VOLUME button

As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the volume.

3M MP8790CN - Press the VOLUME button - 1

VOLUME 16

2 Use the lever switch Î to adjust the volume

Press the VOLUME button again to close the dialog and complete this operation. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.)

△ ▽
3M MP8790CN - Use the lever switch Î to adjust the volume - 1
Press this to increase the volume Press this to decrease the volume

VOLUME 16

TEMPORARILY MUTING THE SOUND

DOWN BLANK LASER ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PINP MAGNIFY VOLUME ON FREEZE MUTE OFF WRELESS KEYSTONE ONE TOUCH

1 Press the MUTE button

As illustrated on the right, a dialog will appear on the screen indicating that you have muted the sound. Press the VOLUME button to close the dialog. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.) Press the MUTE button again to restore the sound.

3M MP8790CN - Press the MUTE button - 1

VOLUME 16

LASER INDICATOR STANDBYON VIDEO RGB + + FOCUS ZOOM UP - - - PAGE DOWN BLANK LASER ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PinP MAGNIFY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE ONE TOUCH

1 Press the POSITION button

As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the position.

3M MP8790CN - Press the POSITION button - 1

POSITION

3M MP8790CN - Press the POSITION button - 2

2 Use the 🔊 buttons to adjust the position

When you want to initialize the position, press the RESET button during adjustment.

Press the POSITION button again to close the dialog and complete this operation. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.)

This function is only available for RGB/BNC (RGB) input.

BLANK LASER ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PIN MAGNIFY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE ONE TOUCH

1

Press the AUTO button

3M MP8790CN - Press the AUTO button - 1

Automatic Adjustment for RGB Input

Horizontal position (H. POSIT), vertical position (V. POSIT), clock phase (H. PHASE) and horizontal size (H. SIZE) are automatically adjusted.

Make sure that the application window is set to its maximum size prior to attempting to use this feature. Dark pictures may still be incorrectly adjusted. Use a bright screen when adjusting.

Automatic Adjustment for Video Input

The signal type best suited for the respective input signal is selected automatically. This feature is available only if VIDEO is set to AUTO in the INPUT menu.

NOTE

The automatic adjustment operation requires approximately 10 seconds. Also, please note that it may not function correctly with some input signals.

CORRECTING KEYSTONE DISTORTIONS

ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PinP MAGNEY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE ORE TOUCH

1 Press the KEYSTONE button

As illustrated on the right, a dialog will appear on the screen to aid you in correcting the distortion.

3M MP8790CN - Press the KEYSTONE button - 1

KEYSTONE 16

2 Use the , buttons to select the direction of distortion to correct ( )

3M MP8790CN - Use the , buttons to select the direction of distortion to correct ( ) - 1

3 Use the lever switch / to correct distortion

Press the KEYSTONE button again to close the dialog and complete this operation. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.)

3M MP8790CN - Use the lever switch / to correct distortion - 1

NOTE

  • This function may not be work well with some types of input signals.
  • The adjustable range for correcting keystone distortions will vary with the type of input signal.

USING THE MAGNIFY FEATURE

DOWN BLANK LASER ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PinP MAGNIFY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE ONE TOUCH

1

Press the MAGNIFY (ON) button

The projector enters MAGNIFY mode.

3M MP8790CN - Press the MAGNIFY (ON) button - 1

2

Press the POSITION button, then use the lever switch

◀ / ,▶ to select the area to zoom. Press the POSITION button again to finalize the zoom area.

3

Use the lever switch / to adjust the zoom level

Press the MAGNIFY (OFF) button to exit MAGNIFY mode and restore the screen to normal. (The projector will also automatically exit MAGNIFY mode if there is a change in the input signal's state.)

3M MP8790CN - Use the lever switch / to adjust the zoom level - 1

NOTE

The projector will automatically exit from MAGNIFY mode if either the INPUT SELECT, AUTO, ASPECT or VIDEO feature is used, or, if there is a change in the input signal's state.

FREEZING THE SCREEN

PUSH ENTER ESC MENU RESET POSITION AUTO PinP MAGNIFY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE CRE TOUCH

1

Press the FREEZE button

The [II] icon appears and the screen will freeze at the current image. Press the FREEZE button again and the [▶] appears as the projector exits FREEZE mode.

3M MP8790CN - Press the FREEZE button - 1

NOTE

  • The projector will automatically exit from FREEZE mode if either the POSITION, VOLUME, MUTE, AUTO, BLANK ON/OFF or MENU ON/OFF feature is used, or, if there is a change in the input signal's state.
  • If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode), the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long.

FOCUS ZOOM PAGE DOWN BLANK LASER ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PinP MAGNIFY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE ONE TOUCH

1

Press the ONE TOUCH button

You can activate the following functions just by pressing the ONE TOUCH button:

3M MP8790CN - Press the ONE TOUCH button - 1

(1) Signal search: Cycle through input signals, displaying the images of retrieved signals. If no signal is found, returns to the signal that was selected before the search was begun.

(2) Automatic adjustment: In RGB mode, automatically adjust the picture position and size; for VIDEO input, automatically select the signal mode. (20)

(3) Automatic keystone distortion correction: This is only performed if ONE TOUCH of the AUTO menu is set to TURN ON. When performed, the unit automatically corrects vertical keystone distortion due to the (forward/backward) setup angle of the main unit. (29)

NOTES

  • May not function properly with some input signals.
  • This function takes about 10 seconds to display an image.

SELECTING THE ASPECT RATIO

DOWN BLANK LASER ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PinP

1 Press the ASPECT button

RGB, DVI, COMPONENT VIDEO

(HDTV signals : 1125i (1035i/1080i), 750p)

4:3 16:0

VIDEO IN, S-VIDEO IN, COMPONENT VIDEO

(Non-HDTV signals : 525i, 525p,625i)

3M MP8790CN - Press the ASPECT button - 1

3M MP8790CN - Press the ASPECT button - 2

TEMPORARILY BLANKING THE SCREEN

FOCUS ZOOM UP PAGE DOWN BLANK LASER ASPECT PUSH ENTER ESC MENU RESET

1 Press the BLANK button

The input signal screen is shut off, and a blank screen appears. You can set the blank screen using the menu (from the SCREEN menu, select BLANK). Press the BLANK button again to remove the blank screen, and return to the input signal screen.

3M MP8790CN - Press the BLANK button - 1

DISPLAYING CHILD WINDOW (P. IN. P: Picture in Picture)

ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PIN MAGNIFY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE ORE TOUCH

1 Press the P. in P. Button

You can display the video input in a child window while displaying RGB, BNC, or DVI input.

You can select the video input to display in the child window, and the position of the child window, from the INPUT menu. (28)

STANDBYON VIDEO RGB + + FOCUS ZOOM UP - - UP PAGE DOWN BLANK LASER ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PinP MAGNIFY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE ORETOUCH

1 Press the MENU button

The menu display appears on the screen. The projector has the following menus: MAIN, PICTURE-1, PICTURE-2, INPUT, AUTO, SCREEN, and OPTION, WIRELESS. When you select a menu name using the lever switch 🔒, the current settings of items that can be manipulated from that menu are displayed.

3M MP8790CN - Press the MENU button - 1

2 Use the lever switch / to select a menu, then press the or ENTER button

The display of the selected menu appears.

[ex. Adjusting SHARPNESS]

Use the lever switch ☐ to select PICTURE-1, then press the or ENTER button.

3M MP8790CN - Use the lever switch / to select a menu, then press the or ENTER button - 1

MENU
MAINCOLOR BAL R-1
PICTURE-1COLOR BAL B+1
PICTURE-2SHARPNESS-1
INPUTCOLOR+1
AUTOTINT-1
SCREEN
OPTION
WIRELESS
SELECT

3 Use the lever switch / to select SHARPNESS, then press the or ENTER button

The operation display of the selected item appears. To adjust a numerical value, press the or ENTER button again to switch to the single menu (small display showing only the operation display area).

[ex. Adjusting SHARPNESS]

Use the lever switch △ / ▽ to select SHARPNESS, then press the or-ENTER button.

MENU MAIN PICTURE-1 PICTURE-2 INPUT AUTO SCREEN OPTION WIRELESS COLOR BAL R COLOR BAL B SHARPNESS COLOR TINT 0 SELECT

NOTE

- For details about menu operations, see "MULTI FUNCTIONAL SETTINGS" (26).

4 Use the lever switch / to adjust the level

Press the MENU button to hide the menu and finish your operation. Alternatively, press the or ESC button to return to the previous display.

[ex. Adjusting SHARPNESS]

Use the lever switch / to adjust the sharpness.

3M MP8790CN - Use the lever switch / to adjust the level - 1

MULTIFUNCTIONAL SETTINGS

This device has 8 separate menus: MAIN, PICTURE-1, PICTURE-2, INPUT, AUTO, SCREEN, OPTION, WIRELESS. Each of these menus is operated using the same methods. The basic operations of these menus are as follows.

Menu screen display : Press the MENU button.

Menu selection : Use the lever switch

or ENTER button.

☐/☐ to select a menu name, then press the

Item selection : Use the lever switch

ENTER button.

/ to select an item, then press the or

Return menu to last previous screen: Press the button or the ESC button.

Execution of settings and/or adjustments: Perform the operation using the lever switch ☐/☐.

(For further details, read the explanation for each separate menu.)

Initialization of settings and/or adjustments: During operation, press the RESET button. (Functions that are executed at the same time as a selection, including H PHASE, LANGUAGE selection, and ADJUST, will not be reset.)

End menu operations: Press the MENU button, or do not perform any operation for several seconds.

With the MAIN menu, the seven items shown in the Table below can be performed.

Perform each operation in accordance with the instructions in the Table.

MENU MAIN BRIGHT PICTURE-1(CONTRAST) PICTURE-2 ASPECT INPUT PICT. POSIT. AUTO GAMMA SCREEN MIRROR OPTION LANGUAGE WIRELESS : SELECT 12

Example : MAIN Menu (BRIGHT)

MAIN Menu

Item Description
BRIGHTAdjust Brightness: Light Dark→
CONTRASTAdjust Contrast: Strong Weak
ASPECTSelect Aspect Ratio:At RGB Input or Hi-Vision 1125i(1035i/1080i)/750p of COMPONENT VIDEO Input:4:3 16:9At VIDEO Input, S-VIDEO Input or 525i/525p/625i of COMPONENT VIDEO Input:4:3 16:9 SMALL ⇔The SMALL picture may not be displayed correctly with certain input signals.
PICT.POSIT.Select Picture Position (for 16:9/SMALL Picture):TOP CENTER BOTTOM ⇔
GAMMASelect Gamma Mode:NORMAL CINEMA DYNAMIC
MIRRORSelect Mirror Status:NORMAL H:INVERT V:INVERT ⇔H&V:INVERT ⇔
LANGUAGESelect Menu Language:ENGLISH ⇔ FRANÇAIS DEUTSCH ESPAÑOL ITALIANO ⇔ NORSK NEDERLANDSPOTUGUÊS ⇔ 中文 ⇔ 한글

PICTURE-1 Menu

With the PICTURE-1 menu, the five items shown in the Table below can be performed.

Perform each operation in accordance with the instructions in the Table.

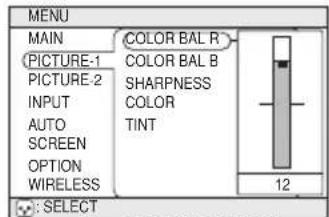

MENU MAIN PICTURE-1 PICTURE-2 INPUT AUTO SCREEN OPTION WIRELESS COLOR BAL R COLOR BAL B SHARPNESS COLOR TINT 12 : SELECT

Example : PICTURE1 Menu (COLOR BAL R)

PICTURE-1 Menu

Item Description
COLOR BAL RAdjust Red Color Balance: Dark Light⇒
COLOR BAL BAdjust Blue Color Balance: Dark Light⇒
SHARPNESSAdjust Sharpness (for VIDEO/S-VIDEO): Clear Soft ⇔
COLORAdjust COLOR (for VIDEO/S-VIDEO/COMPONENT VIDEO): Dark Light
TINTAdjust Tint (for VIDEO/S-VIDEO): Green Red ⇔

PICTURE-2 Menu

With the PICTURE-2 menu, the five items shown in the Table below can be performed.

Perform each operation in accordance with the instructions in the Table.

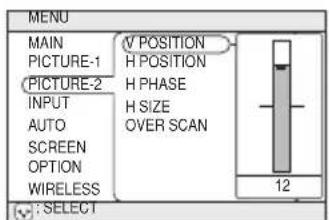

MENU MAIN PICTURE-1 PICTURE-2 INPUT AUTO SCREEN OPTION WIRELESS V POSITION H POSITION H PHASE H SIZE OVER SCAN 12 : SELECT

Example : PICTURE2 Menu (V POSITION)

PICTURE-2 Menu

Item Description
V POSITIONAdjust Vertical Position (for RGB): Up Down
H POSITIONAdjust Horizontal Position (for RGB): Left Right
H PHASEAdjust Horizontal Phase (for RGB/COMPONENT VIDEO):Right LeftAdjust to eliminate flicker.
H SIZEAdjust Horizontal Size (for RGB): Large SmallIf the horizontal size adjustment is excessive, the image may not be displayed correctly. In such a case, initialize H SIZE with the RESET button.
OVER SCANSelect Over-scan Ratio (for VIDEO/S-VIDEO/COMPONENT VIDEO):LARGE MIDDLE SMALL ⇔If you select LARGE, you may note streaking on the top and bottom of the screen, or flicker. If this is irritating, we suggest you select SMALL.

MULTIFUNCTIONAL SETTINGS (continued)

INPUT Menu

The three Input menu items listed in the table below can be manipulated. For RGB input, the reception signal's horizontal and vertical frequency is displayed on the initial menu screen. Use the table below as a guide for operation.

MENU MAIN PICTURE-1 PICTURE-2 INPUT AUTO SCREEN OPTION WIRELESS ENC VIDEO HDTV SYNC ON G P. IN P. INPUT P. IN P. POSIT RGB COMPONENT I: SELECT

Example : INPUT Menu (BNC)

INPUT Menu

Item Description
BNCBNC Pin (R/CR/PR, G/Y, B/CB/PB, H, V) function selection:BNC (RGB) ⇔ BNC (COMPONENT)(R) (G) (B) (H) (V) (C/R/PR) (Y) (CB/PB) (-) (-)(Pins for RGB) (Pins for COMPONENT)Selecting BNC (RGB) allows the 5 RGB2 pins (R/CR/PR, G/Y, B/CB/PB, H, V) to be used as RGB signal BNC input as-is.Selecting BNC (COMPONENT) allows the 3 leftmost RGB2 pins (R/CR/PR, G/Y, B/CB/PB) to be used as the COMPONENT VIDEO input CR/PR, Y, and CB/PB pins.
VIDEOSelect Mode of Signal Type (for VIDEO/S-VIDEO):AUTO NTSC PAL SECAM NTSC4 43 ⇔ ⇔ ⇔M-PAL N-PALWhen AUTO is selected, the video/ S-video input function under ADJUST (29) are enabled, and is executed simultaneously so that the optimum signal mode is selected from among the modes listed above. Use this function if the image becomes unstable with VIDEO/S-VIDEO. (e.g. The image becomes irregular, or lacks color.)• AUTO mode may not function correctly with a PAL60 signal and certain other signals.• The AUTO mode operation requires approximately 10 seconds.• For COMPONENT VIDEO, the signal type is identified automatically even if this function is inactive. For a HDTV signal, refer to the item HDTV below.
HDTVSelect HDTV Signal Mode: 1080i 1035If the selected HDTV mode is incompatible with the input signal, the picture may be distorted.
SYNC ON GOn/Off SYNC ON G Mode: TURN ON TURNOFFSelecting TURN ON turns on the SYNC ON G mode. The SYNC ON G mode allows reception of SYNC on G.• In the SYNC ON G mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and turn SYNC ON G off, and then reconnect the signal.
P. IN P. INPUTP. IN P. screen (*) input signal selection:VIDEO S-VIDEOSelects the signal displayed on the P. IN P. subscreen.
P. IN P. POSITP. IN P. screen (*) display position selection:■ ⇌ □ □ ⇌ □ □ ⇌ □ Selects the position at which the P. IN P. subscreen is displayed.

(*) The P. IN P. (picture-in-picture) function displays the video signal image in a subscreen (P. IN P. screen) on top of the screen on which the RGB signal image is being displayed. (See “Displaying Child Window” 24.)

AUTO Menu

With the AUTO menu, the four items shown in the Table below can be performed.

Please perform each operation in accordance with the instructions in the Table.

MENU MAIN ADJUST EXECUTE PICTURE-1 KEYSTONE ? PICTURE-2 POWER OFF INPUT ONE TOUCH AUTO SCREEN OPTION WIRELESS SELECT

Example : AUTO Menu (ADJUST)

AUTO Menu

Item Description
ADJUSTAuto Adjust (for RGB): Automatically adjusts H POSITION, V POSITION, H PHASE, and H SIZE. Use this function with the maximum window size.Auto Adjust (for VIDEO/S-VIDEO): This function automatically selects the appropriate signal mode depending on input signals. This is only performed if AUTO is selected on the VIDEO menu item (28) of the INPUT menu.This function may not be available with a PAL60 signal and certain other signals.The AUTO mode operation requires approximately 10 seconds.For COMPONENT VIDEO, the signal type is identified automatically even if this function is inactive. For more information on HDTV signals, see HDTV. (28)
KEYSTONEAutomatic keystone distortion correction:You can automatically correct vertical keystone distortion corresponding to the angle (forward/backward tilt) at which the unit is set up.If the projection screen is inclined, or if the projector is angled downwards, it may not be possible to make the correct adjustment when V: INVERT or H&V: INVERT is selected under the MIRROR item of the MAIN menu.When the zoom adjustment is set to the TELE side, automatic correction may be excessive. The automatic correction function should be used with zoom set to WIDE whenever possible.
POWER OFFAdjust POWER OFF Time:Long (MAX. 99 min.) Short(Min. 1 min.) (DISABLE:0 min.)If the time set here passes without valid signal input (there is no signal input, or signal input is out of specifications), the standby mode is set (see "TURNING ON THE POWER" 15). This function is inactive when DISABLE (0 min.) is selected.
ONE TOUCHEnabling/disabling the KEYSTONE function using the ONE TOUCH button:TURN ON ⇔ TURN OFFPressing the ONE TOUCH button will automatically retrieve pictures and automatically adjust the screen (see “ADJUSTING SCREEN WITH ONE-TOUCH” 23 ), and you can also set the function to execute KEYSTONE(see above in this table) simultaneously when pressed. KEYSTONE will be executed if TURN ON is selected.

MULTIFUNCTIONAL SETTINGS (continued)

SCREEN Menu

With the SCREEN menu, the five items shown in the Table below can be performed. Please perform each operation in accordance with the instructions in the Table.

MENU MAIN PICTURE-1 PICTURE-2 INPUT AUTO SCREEN OPTION WIRELESS BLANK START UP MyScreen MyScreen Size MyScreen Lock MyScreen ORIGINAL

Example : SCREEN Menu (BLANK)

SCREEN Menu

Item Description
BLANKSelection of BLANK Screen:MyScreen ORIGINAL ⇌. The BLANK Screen may be voluntarily selected. The BLANK Screen is displayed when the screen has been erased (i.e., made to vanish) by manipulating the BLANK button (please refer to the “Temporarily Blanking the Screen” section).MyScreen: Using the MyScreen category (see this Table, below), one can register a desired screen (or screens). At the time of factory shipment, this is set as a non-patterned (plain) blue color screen.ORIGINAL: Existing standard screens. Please make confirmation using the actual screen(s).Option screens: Various colored non-patterned (plain) screens displayed within the Menus.• The MyScreen and the ORIGINAL Screen will each change to a non-patterned (plain) black color screen several minutes after being displayed.
START UPSelection of START UP Screen: MyScreen ORIGINAL ⇌ TURN OFFThe START UP Screen may be voluntarily selected. The START UP Screen is displayed when no signal has been inputted, or when spec signals are being inputted.MyScreen: Using the MyScreen category (see this Table, below), one can register a desired screen (or screens). At the time of factory shipment, this is set as a non-patterned (plain) blue color screen.ORIGINAL: Existing standard screens. Please make confirmation using the actual screen(s).TURN OFF: A non-patterned (plain) blue color screen.• The MyScreen and ORIGINAL screens will switch to the BLANK screen (see above in this table) a few minutes after being displayed. If the BLANK screen is the MyScreen or ORIGINAL screen, it will turn immediately to a solid black screen.
MyScreenRegistration of MyScreen:When this item is executed, the MyScreen Menu for registration of MyScreen for the BLANK Screen and the START UP Screen is displayed. When operations are performed in accordance with this Menu, one can “cut” and register desired screens from among the received images within the display.1. After the “Do you start capturing this picture?” message has been displayed, pressing the ESC (or RESET) button interrupts execution of the MyScreen. When the ENTER button is pressed, the picture becomes static (no longer moves), and a frame for picture cutting, as well as the message that follows below, appear. Please press the button when the screen you want to register is currently being displayed.2. When the “Move the capture area as you want.” message has been displayed, pressing the ESC (or RESET) button will eliminate the static state of the picture, and operations can be performed again from operation 1.The frame can be moved using the buttons. After designating the screen you want to register, pressing the ENTER button will initiate screen registration. The registration process takes approximately 1 minute to complete.3. When the registration has been completed, the screen of the registered MyScreen, plus the message, “MyScreen registration is finished,” will be displayed for several seconds, after which the operation is terminated.
MyScreen SizeSelection of MyScreen display size: x1 FULL
MyScreen LockInvalidation of MyScreen registration function: TURN ON TURN OFFWhen TURN ON is selected, the MyScreen category (see this Table, above) cannot be executed; in this way, one can prohibit rewrites (“writeovers”) of the MyScreen.

OPTION Menu

With the OPTION menu, the five items shown in the Table below can be performed.

Please perform each operation in accordance with the instructions in the Table.

MENU MAIN PICTURE-1 PICTURE-2 INPUT AUTO SCREEN OPTION WIRELESS VOLUME WHISPER IR REMOTE LAMP TIME FILTER TIME 12 SELECT

Example : OPTION Menu (VOLUME)

OPTION Menu

Item Description
VOLUMEAdjust Volume: High Low⇔
WHISPERSelect WHISPER Mode:NORMAL WHISPERWhen WHISPER is selected the WHISPER mode is activated. In the WHISPER mode, acoustic noise and screen brightness are reduced.
IR REMOTESelecting the remote control receiver:The unit has 3 remote control receivers, as shown in the figure to the right (1, 2, and 3). You can select which of them to activate ("v" in the figure), and which to disable.The ambient lighting and other factors may prevent the remote control operation from functioning properly. If this happens, use this function to disable receivers being impacted by unneeded light.3M MP8790CN - OPTION Menu - 2
LAMP TIMERefer to LAMP TIME: When set, this function displays the total time the projector lamp has been used since new.Reset LAMP TIME [Use this function only when the lamp has been replaced!]:Depress the RESET button for at least 3 seconds while lamp time is being displayed. The reset menu will then appear. After you replace the lamp with a new lamp, select RESET on the menu with the button.Do not reset the lamp time unless you have replaced the lamp. And, always reset the lamp time when replacing the lamp. The message functions will not operate properly if the lamp time is not reset correctly.Before replacing the lamp, carefully read the descriptions headed "THE LAMP".
FILTER TIMERefer to FILTER TIME: This function displays the total time the air-filter has been used since new.Reset FILTER TIME [Use this function only when the filter is cleaned or replaced!]:Depress the RESET button for at least 3 seconds while lamp time is being displayed. The reset menu will then appear. After you replace the filter, select RESET on the menu with the button.RESET CANCELDo not reset the filter time unless you have cleaned or replaced the filter. And, always reset the filter time when cleaning or replacing the filter. The message functions will not operate properly if the filter time is not reset correctly.Before cleaning or replacing the filter, carefully read the descriptions headed "THE AIR FILTER".

WIRELESS Menu

The WIRELESS menu is only enabled if the wireless function is enabled. Using the wireless function requires a Wireless & Network Module Terminal (sold separately). See the Wireless & Network Module Terminal user's manual for more information about the WIRELESS menu. Contact your local dealer for more information about the wireless function and Wireless & Network Module Terminal.

You can use the remote control as a simplified mouse or keyboard.

3M MP8790CN - WIRELESS Menu - 1

CAUTION Caution: Mistaken use of the mouse/keyboard control could damage your equipment.

  • Only connect to a PC.
  • Before connecting, read the manuals of the device you will connect.
  • Do not unplug the connector cables while the computer is operating.

STANDBYON VIDEO RGB + + UP FOCUS ZOOM PAGE DOWN BLANK LASER ASPECT PUSH ENTER ESC MENU RESET POSITION AUTO PinP MAGNIFY VOLUME ON FREEZE MUTE OFF WIRELESS KEYSTONE ONE TOUCH

PS/2, ADB, Serial Mouse Control

  1. Turn off the projector and PC power, and connect the projector's CONTROL terminal to the computer via the mouse cable.
  2. If a USB cable is connected, disconnect it. If a USB cable is connected, the USB control function is given priority, and mouse control from the CONTROL terminal will not function.
  3. Turn on the projector power, then the computer. The functions in the table below can be controlled. If you have difficulty with control, restart the computer (either from the software or by pressing the restart button).
Available Functions Remote Control Operation
Move PointerMove using on the disk pad
Left click with mousePress the center of the disk pad
Right click with mousePress the right mouse button

USB Mouse/Keyboard Control

  1. Connect the projector's USB terminal to a PC using a USB cable. The functions in the table below can be controlled.
Available Functions Remote Control Operation
Move PointerMove using on the disk pad
Left click with mousePress the center of the disk pad
Right click with mousePress the right mouse button
Press the keyboard's keys → ↑ ↓Press [IMAGE]
Press the keyboard's ENTER key Press the ENTER button
Press keyboard's PAGE UP key Press PAGE UP button
Press keyboard's PAGE DOWN key PressPAGE DOWN button
Press keyboard's ESC key Press ESC button

NOTES

  • It may not be possible to control notebook PCs, and other computers with built-in pointing devices (e.g. track balls), using this remote control. In this case, before connecting go into BIOS (system setup) and select external mouse, and disable the pointing devices. In addition, the mouse may not function if the computer does not have the needed utility program. See your computer's hardware manual for details.
  • The USB control can be used with Windows 95 OSR 2.1 or higher. It may not be possible to use the remote control, depending on the computer's configurations and mouse drivers.
  • The USB control can only be used for the functions listed above. You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).
  • This function is not available while the lamp is warming up (the POWER indicator flashes green), while adjusting the volume and display, correcting for trapezoidal distortion, zooming in on the screen, using the BLANK function, or displaying the menu screen.

3M MP8790CN - NOTES - 1

3M MP8790CN - NOTES - 2

3M MP8790CN - NOTES - 3

3M MP8790CN - NOTES - 4

HIGH VOLTAGE

HIGH TEMPERATURE

HIGH PRESSURE

To replace the lamp, check the model number of the replacement lamp (sold separately) and contact your local dealer.

Replacement lamp model number: 78-6969-9601-2

If the projector is mounted on the ceiling, or if the lamp has broken, ask your dealer to replace the lamp. Lamp replacement is hazardous and should not be attempted by the user.

Before replacing the lamp, make sure the power switch is off and the power cable is not plugged in, then wait at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp.

3M MP8790CN - NOTES - 5

WARNING

The LCD projector uses a glass lamp bulb. It is a mercury lamp with high internal pressure. High-pressure mercury lamps can break with a loud bang, or burn out, if jolted or scratched, or through wear over time. Each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector's vent holes.

  • Do not open the lamp cover while the projector is suspended from above. This is dangerous, since if the lamp's bulb has broken, the shards will fall out when the cover is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken.
  • Handle with care: jolting or scratching could cause the lamp bulb to burst during use.
  • If the replace lamp indicator (see "Related Messages" (38) and "Regarding the indicator Lamps" (39)) comes on, replace the lamp as soon as possible. Using the lamp for long periods of time, or past the replacement date, could cause it to burst. Do not use old (used) lamps; this is a cause of breakage.
  • If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, contact your local dealer or a service representative.
  • If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to breathe the gas that comes out of the projector vents, or get it in your eyes or mouth.
  • If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector's internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.
  • Obey local ordinances when disposing of used lamps. In most cases, it is possible to dispose of used bulbs in the same manner as used glass bottles, but in some cases, bulbs are sorted separately.
  • Do not use the projector with the lamp cover removed.

THE LAMP (continued)

Replacing the lamp

All projector lamps will wear out eventually. If used for long periods of time, the image could become darkened, and the color contrast could be impacted as well. We recommend that you replace your lamps early. If the LAMP indicator turns red, or a message prompts you to replace the lamp when you power up the projector, the lamp needs to be replaced. (See "Related Messages" (38) and "Regarding the Indicator Lamps" (39) for details.)

1 Turn off the projector, and unplug the power cord. Allow the lamp bulb to cool for at least 45 minutes, and prepare a new lamp.

2 After making sure that the projector has cooled adequately, slide the knob of a lamp cover lock as shown in the figure. Then, one side of the lamp cover is raised. Pull up the lamp cover and remove it, as shown in the figure.

Knob of Lamp Cover Lock

3 Unscrew the 3 screws, and slowly pull out the lamp by the handle.

- Be careful not to touch the inside of the lamp case.

Diagram showing a vehicle interior with a switch and gear mechanism, before and after assembly (no text or symbols)

4 Insert the new lamp, and tighten the 3 screws firmly to lock it in place.

5 Interlocking the 2 tabs of the lamp cover to the projector, put the lamp cover on the projector.

Then push the point of the lamp cover to fix it, as shown in the figure.

Make sure that the lamp cover doesn't come up.

Tabs Push

6 Turn on the projector power, and reset the lamp timer.

- To reset the lamp timer, from the OPTION menu, select the LAMP TIME. (31)

ATTENTION • Make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

  • Do not use with lamp cover removed.
  • Do not reset the lamp timer without replacing the lamp. Reset the lamp timer always when replacing the lamp. The message functions will not operate properly if the lamp timer is not reset correctly.
  • When the lamp has been replaced after the message of “CHANGE THE LAMP .....THE POWER WILL TURN OFF AFTER 0 hr.” is displayed, or the LAMP indicator is red, complete the following operation within 10 minutes of switching power on.

NOTE • The LAMP indicator is also red when the lamp unit reaches high temperature.

Before replacing the lamp, switch power off, wait approximately 20 minutes, and switch power on again. If the LAMP indicator is still red, replace the lamp.

Caring for the air filter

The air filter should be cleaned about every 100 hours. If the LAMP indicator and TEMP indicator blink red simultaneously, or a message prompts you to clean the air filter when you turn on the unit, the filter needs to be cleaned. (See "Related Messages" (38) and "Regarding the Indicator Lamps" (39) for details.)

1

Turn off the projector, and unplug the power cord

2

Apply a vacuum cleaner to the top of the air filter cover to clean the air filter

3M MP8790

Filter Cover

3

Turn on the projector, and use the menu to reset the filter timer

- To reset the air filter timer, from the OPTION menu, select FILTER TIME.

THE AIR FILTER (continued)

Replacing the air filter

If the soiling will not come off the air filter, or it becomes damaged, then it needs to be replaced. Please contact your local dealer, after confirming the model of your separately sold replacement air filter.

1 Turn off the projector, and unplug the power cord. Prepare a new air filter (one specified for your projector)

2 Remove the air filter cover and air filter

3 Insert the new filter, and replace the filter cover

4 Turn on the projector power, and using the menu, reset the filter timer

- To reset the lamp timer, from the OPTION menu, select FILTER TIME.

ATTENTION • Make sure to turn off the power and unplug the power cord before caring for the unit. Please carefully read "Safety Instructions", in order to care for your projector correctly.

  • Do not use with air filter cover removed.
  • If the air filter becomes clogged by dust or the like, internal temperature rises and could cause malfunction. The power is automatically turned off in order to prevent the unit from overheating internally.

OTHER CARE

Caring for the inside of the projector :

In order to ensure the safe use of your projector, please have it cleaned and inspected by your local dealer about once every 2 years. Never try to care for the inside of the unit yourself. Doing so is dangerous.

Caring for the lens :

Lightly wipe the lens with a commercially available lens-cleaning wipe. Do not touch the lens directly with your hand.

Caring for the cabinet and remote control transmitter :

Wipe lightly with gauze or a soft cloth. If soiling is severe, dip a soft cloth in water or a neutral cleanser diluted in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

ATTENTION • Make sure to turn off the power and unplug the power cord before caring for the unit. Please carefully read "Safety Instructions" in this manual, in order to care for your projector correctly.
- Do not use cleaners or chemicals other than those listed above, including benzene and paint thinner.
- Do not use aerosols or sprays.
- Do not polish or wipe with hard objects.

When the unit's power is ON, messages such as those shown below may be displayed. When any such message is displayed on the screen, please respond as described below.

Message Description
CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER. (Note 1)Lamp usage time is approaching 2,000 hours. (Note 2)Preparation of a new lamp, and an early lamp change, is recommended. After you have changed the lamp, please be sure to reset the lamp timer.
CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER. THE POWER WILL TURN OFF AFTER ** hr. (Note 1)Lamp usage time is approaching 2,000 hours. A lamp change within hours is recommended. (Note 2)When lamp usage reaches 2,000 hours, the power will automatically be turned OFF. Please change the lamp by referring to “THE LAMP” (33). After you have changed the lamp, please be sure to reset the lamp timer.
CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER. THE POWER WILL TURN OFF AFTER 0 hr.As lamp use has reached 2,000 hours, the power will soon be automatically turned OFF. (Note 2)Please immediately turn the power OFF, and follow the instructions in the “THE LAMP” (33).After you have changed the lamp, please be sure to reset the lamp timer. (31)
CLEAN THE AIR FILTER AFTER CLEANING AIR FILTER, RESET THE FILTER TIMER.A note of precaution when cleaning the air filter.After cleaning the filter, operate FILTER TIME of the OPTION Menu (31), and perform reset of the filter timer.
NO INPUT IS DETECTED ON ***There is no input signal.Please confirm the signal input connection, and the status of the signal source.
SYNC IS OUT OF RANGE ON ***fH *****kHz H2V *****The horizontal or vertical wavelength of the inputted signal is outside of the response parameters of this unit. Please confirm the specs for this unit or the signal source specs.
CHECK THE AIR FLOWThe internal portion temperature is rising. Please turn the power OFF, and allow the unit to cool down for approximately 20 minutes. After having confirmed the following items, then please resent the power to ON.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?

NOTES

Note 1: Although this message will be automatically disappeared after around 3 minutes, it will be reappeared every time the power is turned ON.

Note 2: Lamps have a finite product life. Lamps are characterized by the fact that, after long hours of usage, a lamp will no longer light up, or the lamp will break or burst, etc. This unit is equipped with an automatic shut-down function, such that the power will automatically be turned OFF when lamp usage time has reached 2,000 hours. Please be aware, however, that among lamp types, there are major differences in product lifetimes; a lamp may thus fail to light even prior to the functioning of the automatic shut-down function of this unit.

Regarding the Indicator Lamps

Lighting and flashing of the POWER indicator, the LAMP indicator, and the TEMP indicator have the meanings as described in the Table below. Please respond in accordance with the instructions within the Table.

POWER indicatorLAMP indicatorTEMP indicatorDescription
The orange lamp is lightedTurned OFF (Not lighted)Turned OFF (Not lighted)The STANDBY mode is set
Flashing of the green lampTurned OFFTurned OFFThe unit is warming up. Please wait.
The green lamp is lightedTurned OFFTurned OFFThe unit is in an ON state. Ordinary operations may be performed.
Flashing of the orange lampTurned OFFTurned OFFThe unit is cooling down. Please wait.
Blinking of the red lamp--The unit is cooling down. Please wait.A certain error has been detected. Wait until the POWER indicator lamp has finished flashing, and then perform the proper response measure using the item descriptions below as reference.
The red lamp is lighted, or blinksThe red lamp is lightedTurned OFFThe lamp does not light.There is a possibility that the interior portion has become heated. Turn the power OFF and wait approximately 20 minutes. After the main unit has cooled down, please confirm whether or not there is blockage of the air passage aperture, whether or not the filter is dirty, and/or whether or not the peripheral temperature exceeds 35°C, etc. After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please change the lamp.
The red lamp is lighted, or blinksBlinking of the red lampTurned OFFEither there is no lamp and/or lamp cover, or either of these has not been properly fixed (attached). Turn the power OFF and wait approximately 45 minutes. After the main unit has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover. After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please contact a sales store or a service company.
The red lamp is lighted, or blinksTurned OFFBlinking of the red lampThe cooling fan is not operating. Turn the power OFF and wait approximately 20 minutes. After the main unit has cooled down, please make confirmation that no foreign matter has become caught in the fan, etc. After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please contact a sales store or a service company.
The red lamp is lighted, or blinksTurned OFFThe red lamp is lightedThere is a possibility that the interior portion has become heated. Turn the power OFF and wait approximately 20 minutes. After the main unit has cooled down, please confirm whether or not there is blockage of the air passage aperture, whether or not the filter is dirty, and/or whether or not the peripheral temperature exceeds 35°C, etc. After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please contact a sales store or a service company.
The green lamp is lightedAlternative blinking with the red lampThere is a possibility that the interior portion has become overcooled. Please use the unit within the usage temperature parameters (0°C to 35°C). After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please contact a sales store or a service company.
The green lamp is lightedSimultaneous blinking with the red lampThis is a notification that it is time to clean the filter.After cleaning the filter, operate the FILTER TIME portion of the OPTION Menu, and perform reset of the FILTER TIME.

NOTE

When the interior portion has become overheated, for safety purposes, the power source is automatically turned OFF, and the indicator lamps may also be turned OFF. Press the “○” (power OFF) side of the main power switch, and wait for approximately 20 minutes. Please then use the unit only after having first confirmed that the unit has sufficiently cooled down.

Phenomena That May Easily Be Mistaken for Machine Defects

Before requesting repair, check in accordance with the following chart.

If the situation cannot be corrected, then contact your dealer.

PhenomenonCases not involving a machine defectItems to be confirmedReference Page(s)
Power does not come ONThe main power source is not ON.Turn on the main power.3, 15
The electrical power cord is not plugged in. Correctly connect the power cord.
The main power source has been interrupted during operation, such as by a power outage (blackout), etc.Be sure to press the “O” (power OFF) side of the main power switch, and leave this OFF for approximately 20 minutes. After the unit has sufficiently cooled down, turn ON the power source.15
No sound or pictures are outputtedThe input changeover settings are mismatched.Select the input signal, and correct the settings.16
No signal is being inputted.Correctly connect the connection cord.8-12
Pictures are displayed, but no sounds are heardThe electrical wiring to this unit is not correctly connected.Correctly connect the connection cord.8-12
The volume setting has been set at (or adjusted to) an extremely low level.Adjust the VOLUME setting to a higher level.18
The MUTE mode is the current setting.Press the MUTE button to release (change) the MUTE mode setting.18
Sounds are heard, but no pictures are displayedThe electrical wiring to this unit is not correctly connected.Correctly connect the connection cord.8-12
The brightness setting has been set at (or adjusted to) an extremely low level.Adjust the BRIGHT setting to a brighter level.26
The lens cap has not been removed.Remove the lens cap.15
Colors have a faded-out appearance Color tone is poorColor depth setting or color tone settingPerform picture adjustments by changing the COLOR BAL R, the COLOR BAL B, and/or the TINT settings, etc.27
Pictures appear darkThe brightness setting and/or contrast setting has not been properly adjusted.Perform picture adjustments by changing the BRIGHT and/or CONTRAST settings, etc.26
The WHISPER mode is the current setting.Change (by releasing) from the WHISPER mode.31
Lamp is approaching the end of its product lifetime.Exchange the old lamp with a new lamp.33, 34
Pictures appear blurryEither the FOCUS setting or the H PHASE is not properly adjusted.Adjust the FOCUS and H PHASE settings.16, 27
Input signal changes with no-operation.INPUT dial is set between the click points.Turn the INPUT dial and set it at the click point.16

NOTE

Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and such do not constitute or imply a machine defect.

SPECIFICATIONS

NOTE • This specifications are subject to change without notice.

Item Specification
Product name Liquid crystal projector
Liquid crystal panelPanel size 2.5 cm (0.99 type)
Drive system TFT active matrix
Pixels 786,432 pixels (1024 horizontal x 768 vertical)
Lens Zoom lens F=1.7 ~ 2.4 f=305 ~ 45.8 mm
Lamp 275 W UHB
Speaker 1.0W+1.0W (Stereo)
Power supply AC100 ~ 120V, 4.7A / AC220 ~ 240V, 2.0A
Power consumption 430W
Temperature range 0 ~ 35°C (Operating)
Size 380 (W) x 120 (H) x 303 (D) mm (Not including protruding parts)
Weight (mass) 5.8 kg
PortsRGB Input PortsRGB......1BNC (when RGB selected)– (R.G.B.H.V)......1DVI......1VIDEO Input PortsVIDEO IN ......1S-VIDEO IN ......1COMPONENT VIDEO– (CR/PR, CB/PB, Y) ......1BNC(when COMPONENT selected)– (CR/PR, Y, CB/PB) ......1AUDIO PortsAUDIO OUT ......1CONTROL PortsCONTROL ......1USB ......1Other PortsWIRELESS & NETWORK MODULE....1REMOTE CONTROL ......1

Dimension Diagram

303 263 117 380 6.4 120 8.3 134.7

Unit : mm

ACCESSORIES

Accessories ...... Part Number

UHB Lamp, 275W 78-6969-9601-2
Air Filter Assy 78-8118-9103-1
Power Cord (US) 78-8118-8102-4
Power Cord (UK) 78-8118-8101-6
Power Cord (Europe) 78-8118-8103-2
VGA Cable 78-8118-8708-8
RCA Video/Audio Cable 78-8118-3234-0
RCA Component Cable 78-8118-8843-3
S-Video Cable 78-8118-3238-1
Stereo Mini-Cable....78-8118-8846-6
USB cable 78-8118-9057-9
RS-232C Adapter 78-8118-9114-8
Remote Control 78-8118-9115-5

Not Included with Basic Packet .... Part Number

Ceiling Mount 78-6969-9607-9
Adjustable Height Suspension 78-6969-9564-2
Shipping Case 78-6969-8925-6
Carrying Case....78-6969-8926-4
Wireless Module 78-6969-9600-4
Mouse Cable (PS/2) 78-8118-8105-7
Mouse Cable (Serial) 78-8118-8107-3
Mouse Cable (ADB) 78-8118-8106-5
Mac Adapter 78-8118-3308-2

How to Order

Please order these parts through your dealer, or contact 3M Customer Service at the following number:

In U.S. or Canada : 1-800-328-1371

In other locations, contact your local 3M sales office.

Intended Use

Before operating this machine, please read this entire manual thoroughly. The 3MTM Multimedia Projectors are designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages.

The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition.

3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment.

  • 16° to 29° C (60° to 85° F)
    • 10-80 %RH (without condensation)
    • 0-1828 m (0-6000 feet) above sea level

The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can affect the operation or performance of the projector.

Use of this product in adverse conditions will void the product warranty.

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we're the only transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy reference and free product samples, call us toll-free in the continental United States and Canada, 24 hours a day, or visit our Internet Website.

800-328-1371

3M MP8790CN - Intended Use - 2

http://www.3m.com/meetings e-mail: meetings@mmm.com

3M Austin Center

Building A145-5N-01

6801 River Place Blvd. Austin, TX 78726-9000

3M Canada

P.O. Box 5757

London, Ontario N6A 4T1

3M Mexico, S.A. de C.V.

78-6970-9157-3 Rev. A

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : 3M

Model : MP8790CN

Category : Video projector
