USER MANUAL X40C 3M

S40C/X40C Multimedia Projector Operator's Guide

Thank you for purchasing this projector.

CAUTION • Please read the accompanying manual “Product Safety Guide” and this “Operator's Guide” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for re reference.

NOTE

- The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual
• The reproduction, transmission or use of this document or contents is not permitted without express written authority.

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.
• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.
  • VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• All other trademarks are the property of their respective owners.

CONTENTS

Page

PROJECTOR FEATURES...... 2

PREPARATIONS 2

PART NAMES...... 4

SETTING UP THE PROJECTOR .... 6

CONNECTING YOUR DEVICES ..... 8

USING

THE REMOTE CONTROL ...... 12

TURNING ON THE POWER ...... 14

ADJUSTMENT FEATURE ...... 19

CORRECTING

KEYSTONE DISTORTIONS ...... 20

USING THE MAGNIFY FEATURE ... 21

Page

FREEZING THE SCREEN ..... 21

SIGNAL SEARCHING 22

SELECTING

THE ASPECT RATIO 22

TEMPORARILY

BLANKING THE SCREEN ..... 22

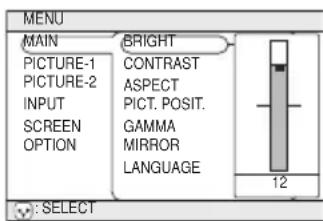

USING THE MENU FUCTIONS ..... 23

MULTIFUNCTIONAL

SETTINGS 24

THE LAMP 29

THE AIR FILTER 31

OTHER CARE 33

WHAT TO DO

WHEN YOU THINK A MACHINE

DEFECT HAS OCCURRED ...... 34

SPECIFICATIONS 37

ACCESSORIES 38

PROJECTOR FEATURES

This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized.

Ultra High Brightness

Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly efficient optical system

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing

Keystone Distortion Correction

Quick correction of distorted images electrically

Whisper Mode Equipped

Special mode is available for reducing projector noise to achieve quieter operation

PREPARATIONS

Your projector should come with the items shown below. Check to make sure that all the items are included. Contact your dealer if anything is missing.

NOTE • Keep the original packing material for future reshipment.

Projector

Power cord (US Type)

Power cord (UK Type)

Power cord (Europe Type)

Operator's Guide Product Safety Guide Warranty Quick Start Guide

RGB cable

Video/Audio cable (with white lead)

Component Video cable (with green lead)

Soft case

Stereo Mini-Cable

Two AA batteries (for the remote control)

Remote control

WARNING Precautions to observe in regards to the power cord: Please use extra caution when connecting the projector's power cord as incorrect or faulty

connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the following safety guidelines to insure safe operation of the projector:

• Only plug the power cord into outlets rated for use with the power cord's specified voltage range.
• Only use the power cord that came with the projector.
• NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-PRONGED PLUG!
• Make sure that you firmly connect the power cord to the projector and wall outlet.

1

Connect your devices to the projector

Connect your computer, VCR and/or other devices you will be using to the projector.

2

Insert the Alkaline batteries into the control

3

Connect the power cord

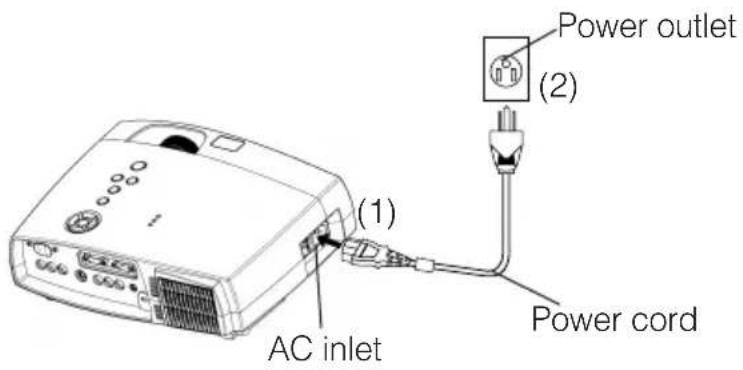

(1) Connect the connector of the electrical power cord to the AC inlet of the main unit.
(2) Firmly plug the power cord's plug into the outlet

PART NAMES

Indicates the corresponding reference page

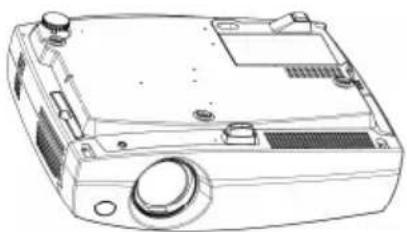

THE PROJECTOR

THE TERMINAL PANEL

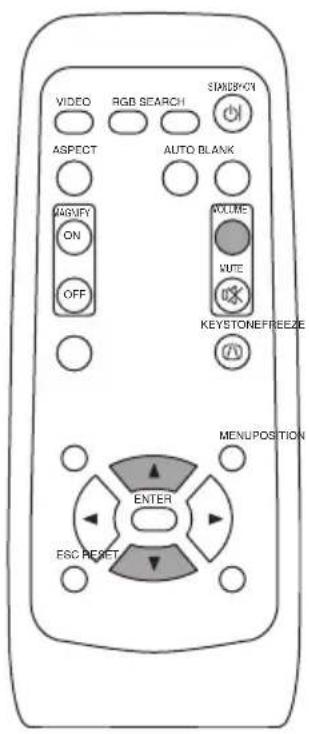

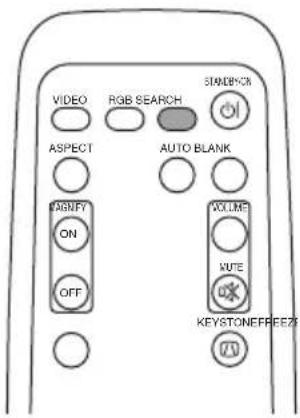

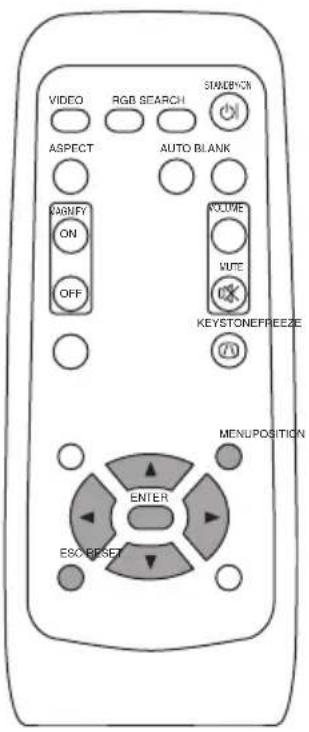

THE REMOTE CONTROL

SETTING UP THE PROJECTOR

CAUTION • Install the projector in a suitable environment according to instructions of the "Product Safety Guide" and this manual "Operator's Guide".

- If you press the elevator button without holding the projector, the projector might crash down, overturn, smash your fingers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, ALWAYS HOLD THE PROJECTOR whenever using the elevator button to adjust the elevator foot.

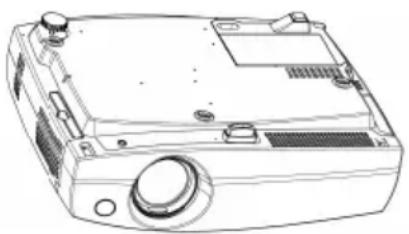

Adjusting the Projector's Elevator Foot

You can use the elevator foot to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator foot is 0 to 9 degrees.

1

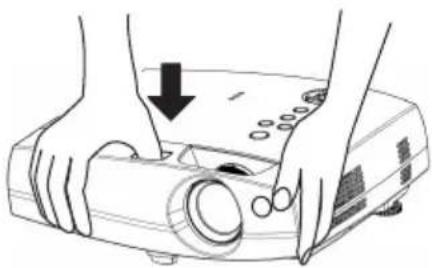

Press and hold in the elevator button

2

Raise or lower the projector to the desired height and then release the elevator button

When you release the elevator button, the elevator foot will lock into position.

3

As necessary, you can also finely adjust the left-right slope of the projector by twisting the rear foot adjuster screw by hand

Adjusting the Screen Size and Projection Distance

Refer to the illustrations and tables below to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen

(S40: 800x600 pixels/X40: 1024x768 pixels).

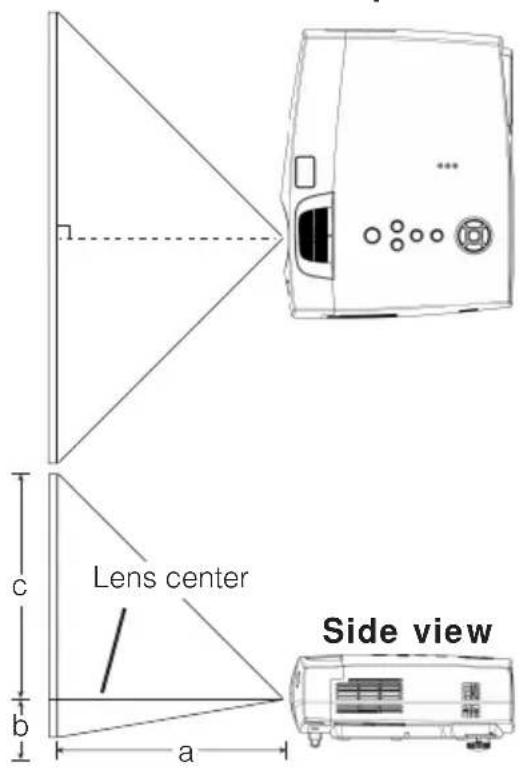

a:Distance from the projector to the screen (±10%)
b:Distance from the lens center to the bottom of the screen (±10%)
c:Distance from the lens center to the top of the screen (±10%)

The screen

Top view

If 4:3 aspect ratio

Screen Size [inch (m)]	a [inch (m)]		b[inch (cm)]	c[inch (cm)]
	Min. Max.
30 (0.8) 35 (0.9)	42 (1.1) 1	(2) 17 (44)
40 (1.0) 47 (1.2)	56 (1.4) 1	(3) 23 (58)
50 (1.3) 59 (1.5)	71 (1.8) 1	(4) 29 (73)
60 (1.5) 71 (1.8)	85 (2.2) 2	(4) 34 (87)
70 (1.8) 83 (2.1)		100 (2.5)	2 (5) 40 (102)
80 (2.0) 95 (2.4)		114 (2.9)	2 (6) 46 (116)
90 (2.3)	107 (2.7)	129 (3.3)	3 (7) 51 (131)
100 (2.5)	119 (3.0)	143 (3.6)	3 (7) 57 (145)
120 (3.0)	143 (3.6)	172 (4.4)	3 (9) 69 (174)
150 (3.8)	180 (4.6)	216 (5.5)	4 (11) 86 (218)
200 (5.0)	240 (6.1)	288 (7.3)	6 (15)	114 (290)
250 (6.3)	300 (7.6)	361 (9.2)	7 (18)	143 (363)
300 (7.5)	360 (9.2)	433 (11.0)	9 (22)	171 (435)

The screen

Top view

If 16:9 aspect ratio

Screen Size [inch (m)]	a [inch (m)]		b[inch (cm)]	c[inch (cm)]
	Min. Max.
30 (0.8) 38 (1.0)	46 (1.2) 2	(4) 16 (41)
40 (1.0) 51 (1.3)	61 (1.6) 2	(5) 22 (55)
50 (1.3) 64 (1.6)	77 (2.0) 3	(6) 27 (69)
60 (1.5) 77 (2.0)	93 (2.4) 3	(8) 32 (82)
70 (1.8) 90 (2.3)		109 (2.8)	4 (9) 38 (96)
80 (2.0)	104 (2.6)	125 (3.2)	4 (10) 43 (110)
90 (2.3)	117 (3.0)	140 (3.6)	5 (12) 49 (124)
100 (2.5)	130 (3.3)	156 (4.0)	5 (13) 54 (137)
120 (3.0)	156 (4.0)	188 (4.8)	6 (15) 65 (165)
150 (3.8)	196 (5.0)	235 (6.0)	8 (19) 81 (206)
200 (5.0)	261 (6.6)	314 (8.0)	10 (26)	108 (275)
250 (6.3)	327 (8.3)	393 (10.0)	13 (32)	135 (343)
300 (7.5)	393 (10.0)	472 (12.0)	15 (39)	162 (412)

Devices You Can Connect to the Projector (Refer to this section for planning your device configuration to use for your presentation.)

CAUTION • Incorrect connecting could result in fire or electrical shock. Please read this manual and the separate “Product Safety Guide”.

ATTENTION Precautions to observe when connecting other devices to the projector

• Whenever attempting to connect other devices to the projector, please thoroughly read the manual of each device to be connected.
• TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to connect a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction and/or damage to the device and/or projector. Refer to the “Technical” for the pin assignment of connectors and RS-232C communication data.
• Make sure that you connect devices to the correct port. Incorrect connection may result in malfunction and/or damage to the device and/or projector.
• Some cables have to be used with core set. Use the accessory cable or a designated-type cable for the connection. For cables that have a core only at one end, connect the core to the projector.
• Secure the screws on the connectors and tighten.

Indicates the corresponding reference page

Ports and Cables

Refer to the table below to find out which projector port and cable to use for connecting a given device. Use this table for determining which cables to prepare.

Function Projector Port Connection Cables
RGB input rgb		RGB cablewith D-sub 15-pin shrink jack andinch thread screws
AUDIO input(from the computer)	audio Audio cable with stereo mini jack
RS-232C communication control	RS-232C cable
S-video input s-video		S-video cablewith mini DIN 4-pin jack
Video input video Audio/video cable
Component video input	component video Y	Component video cablecomponent video C
	B/PB
	component video CR/PR
Audio input(from video equipment)	audio L	Audio/video cable orAudio cable with RCA jack
	audio R

NOTE About Plug-and-Play Capability

• This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by connecting this projector to computers that are VESA DDC (display data channel) compatible. Please take advantage of this function by connecting the accessory RGB cable to the rgb port (DDC 1/2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.
• Plug-and-Play is a system composed of the computer, its operating system and peripheral equipment (i.e. display devices).
• Please use the standard drivers as this projector is a Plug-and-Play monitor.

CONNECTING YOUR DEVICES (continued)

Connecting to a Computer

ATTENTION Whenever attempting to connect a laptop computer to the projector, be sure to activate the laptop's RGB external image output (set the laptop to CRT display or to simultaneous LCD and CRT display). For details on how this is done, please refer to the instruction manual of the corresponding laptop computer.

Laptop computer

Desktop computer

NOTE

• Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
• For some RGB input modes, the optional Mac adapter is necessary.

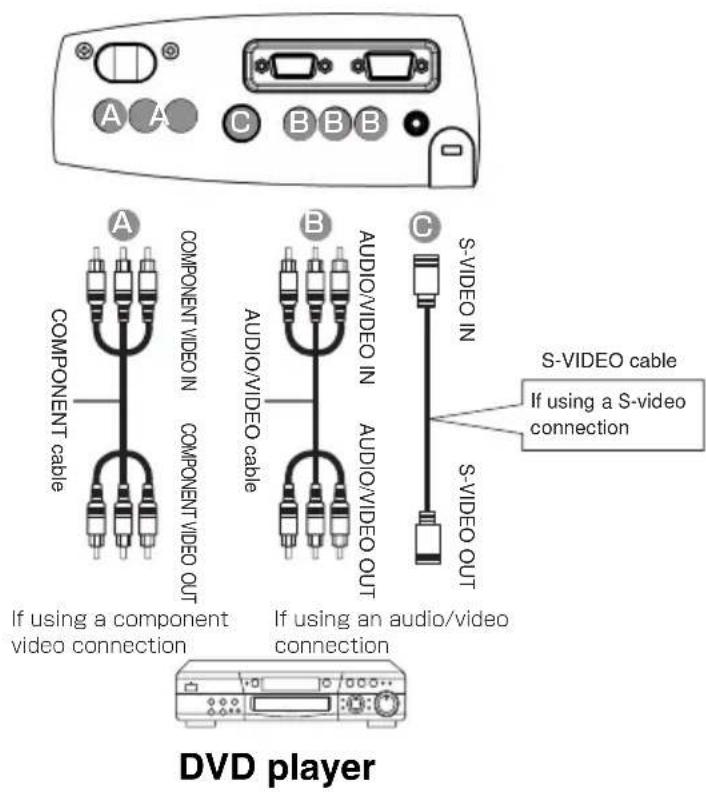

Connecting to a DVD Player

Connecting to a VCR

Putting batteries into the remote control unit

CAUTION Precautions to observe in regards to the batteries

Always handle the batteries with care and use them only as directed. Improper use may result in battery cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

• Keep the battery away from children and pets.
• Be sure to use only the batteries specified for use with the remote control. Do not mix new batteries with used ones.
• When inserting batteries, verify that the plus and minus terminals are aligned correctly (as indicated in the remote control).
• When you dispose the battery, you should obey the law in the relative area or country.

1

Remove the battery cover

Slide back and remove the battery cover in the direction of the arrow.

2

Insert the batteries

Align and insert the two AA Alkaline batteries (that came with the projector) according to their plus and minus terminals (as indicated in the remote control).

3

Close the battery cover

Replace the battery cover in the direction of the arrow and snap it back into place.

Operating the remote control

• The remote control works with both the projector's front and rear remote sensors.
• The range of the remote sensor on the front is 3 meters with a 90-degree range (45 degrees to the left and right of the remote sensor), and back is 3 meters with a 60-degree range.
• Since the remote control uses infrared light to send signals to the projector (Class 1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control's output signal to the projector.

ATTENTION Precautions to observe when using the remote control

• Do not drop or otherwise expose the remote control to physical impact.
• Do not get the remote control wet or place it on wet objects. Doing so may result in malfunction.
• Remove the batteries from the remote control and store them in a safe place if you won't be using the remote control for an extended period.
• Replace the batteries whenever the remote control starts to malfunction.
• When strong light, such as direct sunlight or light from an extremely close range (such as from an inverter fluorescent lamp), hits the projector's remote sensor, the remote control may cease to function. Adjust the direction of the projector to keep light from directly hitting the projector's remote sensor.

Precautions

Connect all devices to be used to the projector prior to turning on the power.

WARNING When the power is ON, a strong light is emitted. Do not look into the lens.

Control panel

NOTE Turn the

power on/off in right order.

• Power on the projector before the computer or video tape recorder.
• Power off the projector after the computer or video tape recorder.

1 Make sure that the power cord is firmly and correctly connected to the projector and outlet

2 Turn on the projector's power

Set the power switch to [1] (ON). The projector will go to STANDBY mode and the power indicator will light to solid orange.

3 Press the STANDBY/ON button of remote control or the on/off button of control panel

• The projector begins warming up and the power indicator blinks green.
• The power indicator stops blinking and lights to solid green once the projector's power is completely on.

Selecting an Input Signal

Control panel

Selecting a RGB signal

Press the RGB button of the Remote control or the rgb button of the control panel

Press this button to switch to the devices connected to rgb port as illustrated below.

Selecting a VIDEO signal

Press the Video button of the Remote control or the video button of the control panel

Press this button to toggle between the devices connected to videoport, s-videoport and component videoport. As illustrated below, each time you press the VIDEO button or the video button, the projector switches between video, s-video and component video. Select the signal you wish to project.

6

Use the zoom ring to adjust the screen size

7

Use the focus ring to focus the picture

1 Press the STANDBY/ON button of remote control or the on/off button of control panel The message "Power off?" will appear on the screen for approximately 5 seconds.

2 Press the STANDBY/ON or on/off button again(remote control or control panel)

Press the STANDBY/ON or on/off button again while the "Power off?" message is visible. The projector lamp goes off and starts cooling down. The power indicator blinks orange while the lamp cools down. (Pressing the STANDBY/ON or on/off button while the power indicator is blinking orange has no effect.)

The system goes into the STANDBY mode after cooling down and the power indicator stops blinking orange and then lights to solid orange.

Control panel

3 Check that the power indicator stops blinking and lights to solid orange. Switch the power switch to [O] (OFF).

When the projector has completed powering down, the power indicator will go off.

NOTE

- Except in emergencies, follow the above-mentioned procedure for turning power off.

1 Press the VOLUME button

As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the volume.

2 Press the ,buttons to adjust the volume

Press the VOLUME button again to close the dialog and complete this operation. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.)

▲ Press this to increase the volume
Press this to decrease the volume

TEMPORARILY MUTING THE SOUND

1 Press the MUTE button

As illustrated on the right, a dialog will appear on the screen indicating that you have muted the sound. Press the VOLUME button to close the dialog. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.) Press the MUTE button again to restore the sound.

1 Press the POSITION button

As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the position.

POSITION

2 Use the ,1, buttons to adjust the position

When you want to initialize the position, press the RESET button during adjustment.

Press the POSITION button again to close the dialog and complete this operation. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.)

This function is only available for rgb input.

1

Press the AUTO button

Automatic Adjustment for RGB Input

Horizontal position (H. POSIT), vertical position (V. POSIT), clock phase (H. PHASE) and horizontal size (H. SIZE) are automatically adjusted.

Make sure that the application window is set to its maximum size prior to attempting to use this feature. Dark pictures may still be incorrectly adjusted. Use a bright screen when adjusting.

Automatic Adjustment for Video Input

The signal type best suited for the respective input signal is selected automatically. This feature is available only if VIDEO is set to AUTO in the INPUT menu.

NOTE

The automatic adjustment operation requires approximately 10 seconds. Also, please note that it may not function correctly with some input signals.

CORRECTING KEYSTONE DISTORTIONS

1 Press the KEYSTONE button

As illustrated on the right, a dialog will appear on the screen to aid you in correcting the distortion.

2 Use the , buttons to correct the distortion

Press the KEYSTONE button again to close the dialog and complete this operation. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.)

NOTE

• This function may not be work well with some types of input signals.
• The adjustable range for correcting keystone distortions will vary with the type of input signal.

USING THE MAGNIFY FEATURE

1 Press the MAGNIFY (ON) button The projector enters MAGNIFY mode.

2 Press the POSITION button, then use the ,◀ , ▶ ▲ , buttons to select the area to enlarge and then press the POSITION button again to confirm your selection

3 Press the , buttons to zoom in and out of the selected area.

Press the MAGNIFY (OFF) button to exit MAGNIFY mode and restore the screen to normal. (The projector will also automatically exit MAGNIFY mode if there is a change in the input signal's state.)

NOTE

The projector will automatically exit from MAGNIFY mode if either the INPUT SELECT, AUTO, ASPECT or VIDEO feature is used, or, if there is a change in the input signal's state.

FREEZING THE SCREEN

1 Press the FREEZE button

The [II] icon appears and the screen will freeze at the current image. Press the FREEZE button again and the [▶] appears as the projector exits FREEZE mode.

NOTE

• The projector will automatically exit from FREEZE mode if either the POSITION, VOLUME, MUTE, AUTO, BLANK ON/OFF or MENU ON/OFF feature is used, or, if there is a change in the input signal's state.
• If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode), the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long.

SIGNAL SEARCHING

1 Press the SEARCH button

When you press the SEARCH button, the projector begins searching for input signals. If it detects an input signal, the search will cease and the projector will project the detected signal. If the projector is unable to find an input signal at any of its ports, it will return to the state it was in prior to the search.

SELECTING THE ASPECT RATIO

1 Press the ASPECT button

rgb in, component video

(HDTV signals : 1125i (1035i/1080i), 750p)

4:3 16:9

video in, s-video in, component video

(Non-HDTV signals : 525i, 525p,625i)

TEMPORARILY BLANKING THE SCREEN

1 Press the BLANK button

The input signal screen is shut off, and a blank screen appears. You can set the blank screen using the menu (from the SCREEN menu, select BLANK). Press the BLANK button again to remove the blank screen, and return to the input signal screen.

1 Press the MENU button

The menu display appears on the screen. The projector has the following menus: MAIN, PICTURE-1, PICTURE-2, INPUT, SCREEN, and OPTION. Select a menu using the /buttons. The current settings of the items that can be manipulated via the selected menu appear.

2 Select a menu using the ▲/▼ buttons, then press the or ENTER button.

The display of the selected menu appears. [ex. Adjusting SHARPNESS]

Use the /buttons to select PICTURE-1, then press the or ENTER button.

3

Select an item using the ▲/▼ buttons, then press the ▶ or ENTER button.

The operation display of the selected item appears. To adjust a numerical value, press the or ENTER button again to switch to the single menu (small display showing only the operation display area).

[ex. Adjusting SHARPNESS]

Use the /buttons to select SHARPNESS, then press the orENTER button.

4 Press the ▲/▼ buttons to adjust the level.

Press the MENU button to hide the menu and finish your operation. Alternatively, press the OFESC button to return to the previous display.

[ex. Adjusting SHARPNESS]

Use the /buttons to adjust the SHARPNESS.

MULTIFUNCTIONAL SETTINGS

This device has 6 separate menus: MAIN, PICTURE-1, PICTURE-2, INPUT, SCREEN, OPTION. Each of these menus is operated using the same methods. The basic operations of these menus are as follows.

Menu screen display : Press the "MENU" button.

Menu selection : Choose a menu name using the ▲/▼ button, and press the ▶ button or the ENTER button.

Item selection : Choose an item using the ▲/▼ button, and press the ▶ button or the ENTER button.

Return menu to last previous screen: Press the button or the ESC button.

Execution of settings and/or adjustments: Operate by using the ▲/▼ button. (For further details, read the explanation for each separate menu.)

Initialization of settings and/or adjustments: During operation, press the RESET button.

(Note that items whose functions are performed simultaneously with the operation of clock phase, language selection, automatic adjustment, etc., cannot be initialized.)

End menu operations: Press the MENU button, or do not perform any operation for several seconds.

MAIN Menu

With the MAIN menu, the seven items shown in the Table below can be performed.

Perform each operation in accordance with the instructions in the Table.

Example : MAIN Menu (BRIGHT)

MAIN Menu

Item Description
BRIGHT	Adjust Brightness: Light ⇌ Dark
CONTRAST	Adjust Contrast: Strong ⇌ Weak
ASPECT	Select Aspect Ratio:At rgb Input or Hi-Vision 1125i(1035i/1080i)/750p of component video Input:4:3 ⇌ 16:9At video Input, s-video Input or 525i/525p/625i of component video Input:4:3 ⇌ 16:9 ⇌ SMALL • The SMALL picture may not be displayed correctly with certain input signals.
PICT.POSIT.	Select Picture Position (for 16:9/SMALL Picture):TOP ⇌ CENTER ⇌ BOTTOM
GAMMA	Select Gamma Mode:NORMAL ⇌ CINEMA ⇌ DYNAMIC
MIRROR	Select Mirror Status:NORMAL ⇌ H:INVERT ⇌ V:INVERT ⇌ H&V:INVERT
LANGUAGE	Select Menu Language:ENGLISH ⇌ FRANÇAIS ⇌ DEUTSCH ⇌ ESPAÑOL ⇌ ITALIANO ⇌ NORSK ⇌ NEDERLANDS ⇌ 日本語 ⇌ POTUGUÊS ⇌ 中文 ⇌ 한글

PICTURE-1 Menu

With the PICTURE-1 menu, the five items shown in the Table below can be performed.

Perform each operation in accordance with the instructions in the Table.

Example : PICTURE-1 Menu (COLOR BAL R)

PICTURE-1 Menu

Item Description
COLOR BAL R	Adjust Red Color Balance: Dark ⇌▲Light▼
COLOR BAL B	Adjust Blue Color Balance: Dark ⇌▲Light▼
SHARPNESS	Adjust Sharpness (for VIDEO/S-VIDEO): Clear ⇌▲Soft▼
COLOR	Adjust COLOR (for video/s-video/component video): Dark ⇌▲Light▼
TINT	Adjust Tint (for video/s-video): Green ▲ ⇌▼ Red

PICTURE-2 Menu

With the PICTURE-2 menu, the four items shown in the Table below can be performed.

Perform each operation in accordance with the instructions in the Table.

Example : PICTURE-2 Menu (V POSITION)

PICTURE-2 Menu

Item Description
V POSITION	Adjust Vertical Position (for rgb): Up ▲ ⇔ ▼ Down
H POSITION	Adjust Horizontal Position (for rgb): Left ▲ ⇔ ▼ Right
H PHASE	Adjust Horizontal Phase (for rgb/component video):Right ➕ Left▼• Adjust to eliminate flicker.
H SIZE	Adjust Horizontal Size (for rgb): Large ▲ ⇔ ▼ Small• If the horizontal size adjustment is excessive, the image may not be displayed correctly. In such a case, initialize H SIZE with the RESET button.

MULTIFUNCTIONAL SETTINGS (continued)

INPUT Menu

With the INPUT menu, the four items shown in the Table below can be performed. With inputting of rgb in signal, the horizontal and vertical frequencies of the signal will be displayed on the initial screen of the INPUT menu.

Perform each operation in accordance with the instructions in the Table.

Example : INPUT Menu (AUTO)

INPUT Menu

Item Description
AUTO	Auto Adjust (for rgb): Automatically adjusts H POSITION, V POSITION, H PHASE, and H SIZE. Use this function with the maximum window size.Auto Adjust (for video/s-video): Automatically selects the proper VIDEO mode for the current input signal. This function is active only when the AUTO mode is selected for the item VIDEO. Refer to the description for the item VIDEO below.This function may not be available with a PAL60 signal and certain other signals.The AUTO mode operation requires approximately 10 seconds.For component video, the signal type is identified automatically even if this function is inactive. For a HDTV signal, refer to the item HDTV below.
VIDEO	Select Mode of Signal Type (for video/s-video):AUTO ⇔ NTSC ⇔ PAL ⇔ SECAM ⇔NTSC4.43 ⇔ M-PAL ⇔ N-PAL Selecting AUTO mode activates and performs the AUTO function for video/s-video. It automatically selects the proper mode from among those above.Use this function if the image becomes unstable with video/s-video. (e.g. The image becomes irregular, or lacks color.)AUTO mode may not function correctly with a PAL60 signal and certain other signals.The AUTO mode operation requires approximately 10 seconds.For component video, the signal type is identified automatically even if this function is inactive. For a HDTV signal, refer to the item HDTV below.
HDTV	Select HDTV Signal Mode:1080i ⇌ 1035If the selected HDTV mode is incompatible with the input signal, the picture may be distorted.
SYNC ON G	On/Off SYNC ON G Mode:TURN ON ⇌ TURN OFFSelecting TURN ON turns on the SYNC ON G mode. The SYNC ON G mode allows reception of SYNC on G.In the SYNC ON G mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and turn SYNC ON G off, and then reconnect the signal.

SCREEN Menu

With the SCREEN menu, the two items shown in the Table below can be performed.

Please perform each operation in accordance with the instructions in the Table.

Example : SCREEN Menu (BLANK)

SCREEN Menu

Item Description
BLANK	Selection of BLANK Screen:▲ . □ . ▼ ▲ ▶ . ▼ . ▲ ■ . .The BLANK Screen may be voluntarily selected. The BLANK Screen is displayed when the screen has been erased (i.e., made to vanish) by manipulating the BLANK button (please refer to the “Temporarily Blanking the Screen” section).Option screens: Various colored non-patterned (plain) screens displayed within the Menus.
START UP	Selection of START UP Screen:TURN ON ➕ TURN OFFThe START UP Screen may be voluntarily selected. The START UP Screen is displayed when no signal has been inputted, or when spec signals are being inputted.TURN ON: Existing standard screens. Please make confirmation using the actual screen(s).TURN OFF: A non-patterned (plain) blue color screen.• Note that if TURN OFF is selected the blank screen is displayed in blue when there is no signal.

MULTIFUNCTIONAL SETTINGS (continued)

OPTION Menu

With the OPTION menu, the five items shown in the Table below can be performed.

Please perform each operation in accordance with the instructions in the Table.

Example : OPTION Menu (VOLUME)

OPTION Menu

Item Description	Adjust Volume: High ⇌ Low
VOLUME	Adjust AUTO OFF Time:Long (MAX. 99 min.) ⇌ Short (Min. 1 min.) ⇌ DISABLE: 0 min.)The system automatically enters the standby mode if no signal is received within the set time. This function is inactive when DISABLE (0 min.) is selected.
AUTO OFF	Select WHISPER Mode:NORMAL ⇌ WHISPERWhen WHISPER is selected the WHISPER mode is activated. In the WHISPER mode, acoustic noise and screen brightness are reduced.
WHISPER
LAMP TIME	Refer to LAMP TIME: When set, this function displays the total time the projector lamp has been used since new.Reset LAMP TIME [Use this function only when the lamp has been replaced!]:Depress the RESET button for at least 3 seconds while lamp time is being displayed. The reset menu will then appear. After you replace the lamp with a new lamp, select RESET on the menu with the button.Do not reset the lamp time unless you have replaced the lamp. And, always reset the lamp time when replacing the lamp. The message functions will not operate properly if the lamp time is not reset correctly.Before replacing the lamp, carefully read the descriptions headed "THE LAMP".
FILTER TIME	Refer to FILTER TIME: This function displays the total time the air-filter has been used since new.Reset FILTER TIME [Use this function only when the filter is cleaned or replaced!]:Depress the RESET button for at least 3 seconds while filter time is being displayed. The reset menu will then appear. After you replace the filter, select RESET on the menu with the button.RESET ⇌ CANCELDo not reset the filter time unless you have cleaned or replaced the filter. And, always reset the filter time when cleaning or replacing the filter. The message functions will not operate properly if the filter time is not reset correctly.Before cleaning or replacing the filter, carefully read the descriptions headed "THE AIR FILTER".

HIGH VOLTAGE

HIGH TEMPERATURE

HIGH PRESSURE

Before replacing the lamp, check the serial number of the replacement lamp bulb (sold separately: 78-6969-9463-7 for S40 / 78-6969-9565-9 for X40), then contact your local dealer.

WARNING

Before replacing the lamp, turn off the power, and unplug the power cord, then wait at least 45 minutes, in order to ensure that the lamp is

properly cooled. Removing the lamp bulb while it is still hot could cause burns, or cause the lamp bulb to burst.

WARNING

The LCD projector uses a glass lamp bulb. It is a mercury lamp with high internal pressure. High-pressure mercury lamps can break with a loud

bang, or burn out, if jolted or scratched, or through wear over time. Each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector's vent holes.

• Handle with care: jolting or scratching could cause the lamp bulb to burst during use.
• If the replace lamp indicator (see "Related Messages" (34) and "Regarding the indicator Lamps" (35)) comes on, replace the lamp as soon as possible. Using the lamp for long periods of time, or past the replacement date, could cause it to burst. Do not use old (used) lamps; this is a cause of breakage.
• If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, contact your local dealer.
• If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to breathe the gas that comes out of the projector vents, or get it in your eyes or mouth.
• If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector's internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.
• Obey local ordinances when disposing of used lamps. In most cases, it is possible to dispose of used bulbs in the same manner as used glass bottles, but in some cases, bulbs are sorted separately.
• Do not use the projector with the lamp door removed.

Replacing the lamp

All projector lamps will wear out eventually. If used for long periods of time, the image could become darkened, and the color contrast could be impacted as well. We recommend that you replace your lamps early. If the lamp indicator turns red, or a message prompts you to replace the lamp when you power up the projector, the lamp needs to be replaced. (See "Related Messages" (34) and "Regarding the Indicator Lamps" (35) for details.)

1 Turn off the projector, and unplug the unolug the power cord. Allow the lamp bulb to cool for at least 45 minutes, and prepare a new lamp.

2 After making sure that the projector has cooled adequately, slowly flip over the projector, so that the bottom is facing up

3 Unscrew the 2 screws, and remove the lamp door

5 Insert the new lamp, and tighten the 1 screw firmly to lock it in place • Also steadily push the opposite side of the screwed side of the lamp into the unit.

6 Replace the lamp door, and tighten the 2 screws firmly to lock it in place

4 Unscrew the 1 screw, and slowly pull out the lamp by the handle - Be careful not to touch the inside of the lamp case.

7 Slowly turn the projector so that the top is facing up

8 Turn on the projector power, and using the menu, reset the lamp timer • To reset the lamp timer, from the OPTION menu, select LAMP TIME. (See “OPTION menu” (28) for details.)

ATTENTION • Make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

• Do not use with lamp door removed.
• Do not reset the lamp timer without replacing the lamp. Reset the lamp timer always when replacing the lamp. The message functions will not operate properly if the lamp timer is not reset correctly.
• When the lamp has been replaced after the message of "CHANGE THE LAMP ...THE POWER WILL TURN OFF AFTER 0 hr." is displayed, or the lamp indicator is red, complete the following operation within 10 minutes of switching power ON.

NOTE • The lamp indicator is also red when the lamp unit reaches high temperature.

Before replacing the lamp, switch power OFF, wait approximately 20 minutes, and switch power ON again. If the lamp indicator is still red, replace the lamp.

Caring for the air filter

The air filter should be cleaned about every 100 hours. If the lamp indicator and temp indicator blink red simultaneously, or a message prompts you to clean the air filter when you turn on the unit, the filter needs to be cleaned. (See "Related Messages" (34) and "Regarding the Indicator Lamps" (35) for details.)

1 Turn off the projector, and unplug the power cord

2 After making sure that the projector has cooled adequately, slowly flip over the projector, so that the bottom is facing up

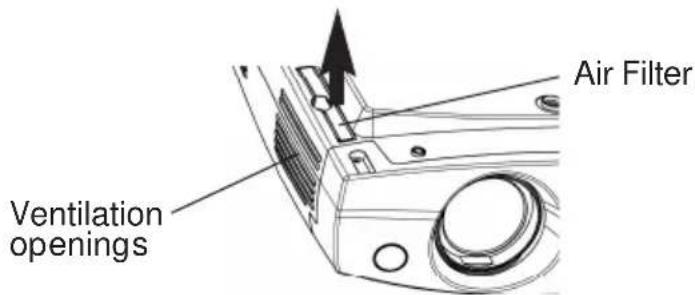

3 Remove the air filter

4 Clean the air filter and ventilation openings with a vacuum cleaner

5 Insert the air filter

6 Slowly turn the projector so that the top is facing up

7 Turn on the projector, and use the menu to reset the filter timer

- To reset the air filter timer, from the OPTION menu, select FILTER TIME.

Replacing the air filter

If the soiling will not come off the air filter, or it becomes damaged, then it needs to be replaced. Please contact your local dealer, after confirming the model of your separately sold replacement air filter.

1 Turn off the projector, and unplug the power cord. Prepare a new air filter (one specified for your projector)

2 After making sure that the projector has cooled adequately, slowly flip over the projector, so that the bottom is facing up

3 Remove the air filter

4 Insert the new filter

5 Slowly turn the projector so that the top is facing up

6 Turn on the projector power, and using the menu, reset the filter timer

- To reset the air filter timer, from the OPTION menu, select FILTER TIME.

WARNING

- Make sure to turn off the power and unplug the power cord before caring for carefully read "Product Safety Guide", in order to care for your projector correctly.

- Do not use with air filter cover removed.

- If the air filter becomes clogged by dust or the like, internal temperature rises and could cause malfunction. The power is automatically turned off in order to prevent the unit from overheating internally.

OTHER CARE

Caring for the inside of the projector :

In order to ensure the safe use of your projector, please have it cleaned and inspected by your local dealer about once every 2 years. Never try to care for the inside of the unit yourself. Doing so is dangerous.

Caring for the lens :

Lightly wipe the lens with a commercially available lens-cleaning wipe. Do not touch the lens directly with your hand.

Caring for the cabinet and remote control transmitter :

Wipe lightly with gauze or a soft cloth. If soiling is severe, dip a soft cloth in water or a neutral cleanser diluted in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

WARNING

- Make sure to turn off the power and unplug the power cord before caring for

the unit. Please carefully read "Product Safety Guide" in this manual, in order to care for your projector correctly.

• Do not use cleaners or chemicals other than those listed above, including benzene and paint thinner.
• Do not use aerosols or sprays.

NOTE

Do not polish or wipe with hard objects.

Related Messages

When the unit's power is ON, messages such as those shown below may be displayed. When any such message is displayed on the screen, please respond as described below.

Message Description
CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER. (Note 1)	Lamp usage time is approaching 2,000 hours. (Note 2)Preparation of a new lamp, and an early lamp change, is recommended. After you have changed the lamp, please be sure to reset the lamp timer.
CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER. THE POWER WILL TURN OFF AFTER ** hr. (Note 1)	Lamp usage time is approaching 2,000 hours. A lamp change within * * hours is recommended. (Note 2)When lamp usage reaches 2,000 hours, the power will automatically be turned OFF. Please change the lamp by referring to “THE LAMP”. 29 After you have changed the lamp, please be sure to reset the lamp timer. 28
CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER. THE POWER WILL TURN OFF AFTER 0 hr.	As lamp use has reached 2,000 hours, the power will soon be automatically turned OFF. (Note 2)Please immediately turn the power OFF, and follow the instructions in the “THE LAMP”, 29After you have changed the lamp, please be sure to reset the lamp timer. 28
CLEAN THE AIR FILTER AFTER CLEANING AIR FILTER, RESET THE FILTER TIMER.	A note of precaution when cleaning the air filter.After cleaning the filter, operate FILTER TIME of the OPTION Menu, and perform reset of the filter timer. 28
NO INPUT IS DETECTED ON * * *	There is no input signal.Please confirm the signal input connection, and the status of the signal source.
SYNC IS OUT OF RANGE ON *** fN*** kHz fV *****Hz	The horizontal or vertical wavelength of the inputted signal is outside of the response parameters of this unit. Please confirm the specs for this unit or the signal source specs.
CHECK THE AIR FLOW	The internal portion temperature is rising. Please turn the power OFF, and allow the unit to cool down for approximately 20 minutes. After having confirmed the following items, then please resent the power to ON.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?

NOTES

Note 1: Although this message will be automatically disappeared after around 3 minutes, it will be reappeared every time the power is turned ON.

Note 2: Lamps have a finite product life. Lamps are characterized by the fact that, after long hours of usage, a lamp will no longer light up, or the lamp will break or burst, etc. This unit is equipped with an automatic shut-down function, such that the power will automatically be turned OFF when lamp usage time has reached 2,000 hours. Please be aware, however, that among lamp types, there are major differences in product lifetimes; a lamp may thus fail to light even prior to the functioning of the automatic shut-down function of this unit.

Regarding the Indicator Lamps

Lighting and flashing of the power indicator, the lamp indicator, and the temp indicator have the meanings as described in the Table below. Please respond in accordance with the instructions within the Table.

power indicator	lamp indicator	temp indicator	Description
The orange lamp is lighted	Turned OFF (Not lighted)	Turned OFF (Not lighted)	The STANDBY mode is set
Flashing of the green lamp	Turned OFF	Turned OFF	The unit is warming up. Please wait.
The green lamp is lighted	Turned OFF	Turned OFF	The unit is in an ON state. Ordinary operations may be performed.
Flashing of the orange lamp	Turned OFF	Turned OFF	The unit is cooling down. Please wait.
Blinking of the red lamp	-	-	The unit is cooling down. Please wait.A certain error has been detected. Wait until the power indicator lamp has finished flashing, and then perform the proper response measure using the item descriptions below as reference.
The red lamp is lighted, or blinks	The red lamp is lighted	Turned OFF	The lamp does not light.There is a possibility that the interior portion has become heated. Turn the power OFF and wait approximately 20 minutes. After the main unit has cooled down, please confirm whether or not there is blockage of the air passage aperture, whether or not the filter is dirty, and/or whether or not the peripheral temperature exceeds 35°C, etc. After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please change the lamp.
The red lamp is lighted, or blinks	Blinking of the red lamp	Turned OFF	Either there is no lamp and/or lamp door, or either of these has not been properly fixed (attached). Turn the power OFF and wait approximately 45 minutes. After the main unit has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp door. After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please contact a sales store or a service company.
The red lamp is lighted, or blinks	Turned OFF	Blinking of the red lamp	The cooling fan is not operating. Turn the power OFF and wait approximately 20 minutes. After the main unit has cooled down, please make confirmation that no foreign matter has become caught in the fan, etc. After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please contact a sales store or a service company.
The red lamp is lighted, or blinks	Turned OFF	The red lamp is lighted	There is a possibility that the interior portion has become heated. Turn the power OFF and wait approximately 20 minutes. After the main unit has cooled down, please confirm whether or not there is blockage of the air passage aperture, whether or not the filter is dirty, and/or whether or not the peripheral temperature exceeds 35°C, etc. After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please contact a sales store or a service company.
The green lamp is lighted	Alternative blinking with the red lamp		There is a possibility that the interior portion has become overcooled. Please use the unit within the usage temperature parameters (0°C to 35°C). After performing any needed maintenance, turn the power ON again; if the same display is displayed, then please contact a sales store or a service company.
The green lamp is lighted	Simultaneous blinking with the red lamp		This is a notification that it is time to clean the filter.After cleaning the filter, operate the FILTER TIME portion of the OPTION Menu, and perform reset of the FILTER TIME.

NOTE

When the interior portion has become overheated, for safety purposes, the power source is automatically turned OFF, and the indicator lamps may also be turned OFF. Press the “○” (power OFF) side of the main power switch, and wait for approximately 20 minutes. Please then use the unit only after having first confirmed that the unit has sufficiently cooled down.

Phenomena That May Easily Be Mistaken for Machine Defects

Before requesting repair, check in accordance with the following chart.

If the situation cannot be corrected, then contact your dealer.

Phenomenon	Cases not involving a machine defect	Items to be confirmed	Reference Page(s)
Power does not come ON	The main power source is not ON.	Turn on the main power.	3, 14
	The electrical power cord is not plugged in. Correctly connect the power cord.
	The main power source has been interrupted during operation, such as by a power outage (blackout), etc.	Be sure to press the “O” (power OFF) side of the main power switch, and leave this OFF for approximately 20 minutes. After the unit has sufficiently cooled down, turn ON the power source.	14
No sound or pictures are outputted	The input changeover settings are mismatched.	Select the input signal, and correct the settings.	15
	No signal is being inputted.	Correctly connect the connection cord.	10, 11
Pictures are displayed, but no sounds are heard	The electrical wiring to this unit is not correctly connected.	Correctly connect the connection cord.	10, 11
	The volume setting has been set at (or adjusted to) an extremely low level.	Adjust the VOLUME setting to a higher level.	17
	The MUTE mode is the current setting.	Press the MUTE button to release (change) the MUTE mode setting.	17
Sounds are heard, but no pictures are displayed	The electrical wiring to this unit is not correctly connected.	Correctly connect the connection cord.	10, 11
	The brightness setting has been set at (or adjusted to) an extremely low level.	Adjust the BRIGHT setting to a brighter level.	24
Colors have a faded-out appearance Color tone is poor	Color depth setting or color tone setting	Perform picture adjustments by changing the COLOR BAL R, the COLOR BAL B, and/or the TINT settings, etc.	25
Pictures appear dark	The brightness setting and/or contrast setting has not been properly adjusted.	Perform picture adjustments by changing the BRIGHT and/or CONTRAST settings, etc.	24
	The WHISPER mode is the current setting.	Change (by releasing) from the WHISPER mode.	28
	Lamp is approaching the end of its product lifetime.	Exchange the old lamp with a new lamp.	24, 25
Pictures appear blurry	Either the FOCUS setting or the H PHASE is not properly adjusted.	Adjust the FOCUS and H PHASE settings.	15, 25

NOTE

Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and such do not constitute or imply a machine defect.

SPECIFICATIONS

NOTE • This specifications are subject to change without notice.

Item Specification
Product name Liquid crystal projector
Liquid crystal panel	Panel size 1.8 cm (0.7 type)
	Drive system TFT active matrix
	Pixels	S40 : 480,000 pixels (800 horizontal x600 vertical)X40 : 786,432 pixels (1024 horizontal x 768 vertical)
Lens Zoom lens F=2.0 ~ 2.3 f=18		~ 21 mm
Lamp 150 W UHB
Speaker 1.0W
Power supply AC100 ~ 120V, 2.7A / AC220 ~ 240V, 1.3A
Power consumption 240W
Temperature range 0 ~ 35°C (Operating)
Size 316 (W) x 105 (H) x 254 (D) mm
Weight (mass) 2.9 kg
Ports		RGB Portrgb in ......1VIDEO Portsvideo in ......1s-video in ......1component video(Y, CB/PB,CR/PR) ......1AUDIO Portsaudio in(R, L) ......1audio in......1CONTROL Portcontrol ......1

Dimension Diagram

ACCESSORIES

Accessories....Part Number

UHB lamp, 150W (S40) 78-6969-9463-7

UHB lamp, 150W (X40) 78-6969-9565-9

Air Filter 78-8118-

Power cord (US) 78-8118-8102-4

Power cord (UK) 78-8118-8101-6

Power cord (Europe) 78-8118-8103-2

VGA cable 78-8118-8708-8

RCA component cable 78-8118-8843-3

RCA audio/video cable....78-8118-3234-0

Stereo mini-cable 78-8118-8846-6

Remote control....78-8118-.....-

Soft case 78-6969-9203-7

Not Included with Basic Packet....Part Number

Ceiling mount 78-6969-9206-0

Adjustable height suspension 78-6969-8312-7

Shipping case 78-6969-9204-5

S-Video cable 78-8118-3238-1

RS-232C control cable 78-8118-3312-4

Mac adapter 78-8118-3308-2

Deluxe Mouse Emulation Kit 78-6969-9233-4

How to Order

Please order these parts through your dealer, or contact 3M Customer Service at the following number :

In U.S. or Canada : 1-800-328-1371

In other locations, contact your local 3M sales office.

Intended Use

Before operating this machine, please read this entire manual thoroughly. The 3MTM Multimedia Projectors are designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages.

The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition.

3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment.

• 16° to 29° C (60° to 85° F)
  • 10-80 %RH (without condensation)
  • 0-1828 m (0-6000 feet) above sea level

The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can affect the operation or performance of the projector.

Use of this product in adverse conditions will void the product warranty.

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we're the only transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy reference and free product samples, call us toll-free in the continental United States and Canada, 24 hours a day, or visit our Internet Website.

http://www.3m.com/meetings e-mail: [e-mail]

3M Austin Center

Building A145-5N-01

6801 River Place Blvd. Austin, TX 78726-9000

3M Canada

P.O. Box 5757

London, Ontario N6A 4T1

3M Mexico, S.A. de C.V.

78-xxxx-xxxx-x Rev. A
